Check out the 14 bolt axle truss we are making. I started hand making this design many years ago. When I started a different offroad company and started making a similar design as a production part it quickly became a benchmark in the industry. Many companies out there copied the design and called it their own. The design concept is simple and too the point.

The Motobilt design still utilizes some of the key features I used with hand making the parts close to 20 year back. My new design pics up where the other design left off. The front pinion support was designed with a ramp rather than a point. The cut out on the front side of the truss makes it easier to remove the pinion support bolts. The overall deck height of the truss remains low for those who want to keep the lower tucked for low COG builds.

If you have any questions pm me or call. I will be happy to assist.

Thanks
Dan

http://www.motobilt.com/axle/axle-trusses/14-bolt-axle-truss-trail-version.html


awww.motobilt.com_media_catalog_product_cache_1_image_1000x8004cb0411e8414ea7ebf941521c16fd14b.jpg


awww.motobilt.com_media_catalog_product_cache_1_image_1000x8003745e2f0c92e89bd0c7bbe78815de0c6.jpg

ascontent.xx.fbcdn.net_hphotos_xaf1_v_t1.0_0_p480x480_124393638800c324ec25543df28d153bba648475.jpg

I have one of these style Truss kits left for sale. We normally don't sell these online. Includes the pinion support, the bridge, then inner and outer truss
Call us at 334-699-6300 to order!

Check out the 14 bolt axle truss we are making. I started hand making this design many years ago. When I started a different offroad company and started making a similar design as a production part it quickly became a benchmark in the industry. Many companies out there copied the design and called it their own. The design concept is simple and too the point.

The Motobilt design still utilizes some of the key features I used with hand making the parts close to 20 year back. My new design pics up where the other design left off. The front pinion support was designed with a ramp rather than a point. The cut out on the front side of the truss makes it easier to remove the pinion support bolts. The overall deck height of the truss remains low for those who want to keep the lower tucked for low COG builds.

If you have any questions pm me or call. I will be happy to assist.

Thanks
Dan

http://www.motobilt.com/axle/axle-trusses/14-bolt-axle-truss-trail-version.html

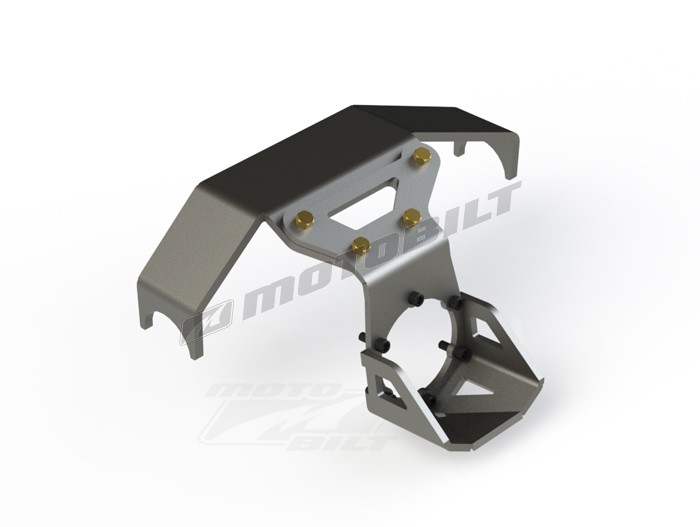

View attachment 154297

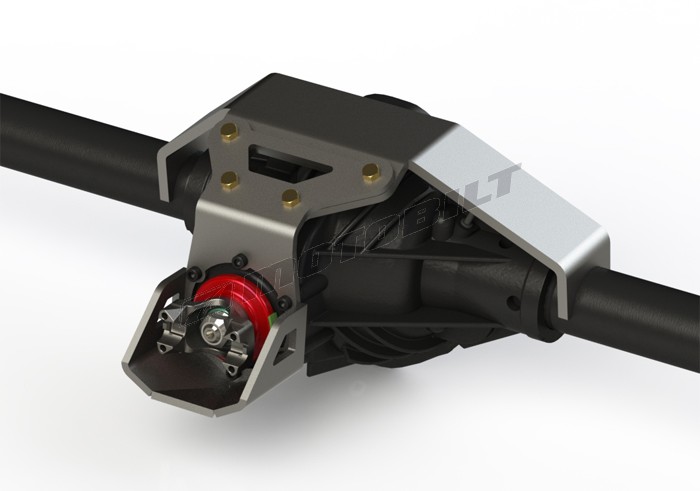

View attachment 154298
