1999 TJ

No.

Check the taillight bulbs and wiring, sounds like there is a short, and from you are describing I would suspect the reverse light is shorted to a taillight.

I have a 99tj.

No

Not sure. Basically what is happening is when you engage reverse it turns on the rev lights and it is also somehow tied in to the tail/running lights. This normally happens when you have a short between circuit. Try disconnecting one taillight then the other. By doing this you will start to eliminate things from the possible causes.

Monkeynono said:
Not sure. Basically what is happening is when you engage reverse it turns on the rev lights and it is also somehow tied in to the tail/running lights. This normally happens when you have a short between circuit. Try disconnecting one taillight then the other. By doing this you will start to eliminate things from the possible causes.
Click to expand...
N0t tail lights. Front fog lights ..

Papa_Jon said:
N0t tail lights. Front fog lights ..
Click to expand...

The front fog lights are probably getting power through a rear tail light that has an internal short or is incorrectly wired. That's the most likely cause.

If not that, power for the reverse lights comes up the engine harness from the trans to the connectors at the top of the firewall, then connects to the chassis harness and runs to the rear lights via the driver's side frame rail. If there's a short in the harness, it would probably be there at the firewall.

But my money is on tail lights.

shawn said:
The front fog lights are probably getting power through a rear tail light that has an internal short or is incorrectly wired. That's the most likely cause.

If not that, power for the reverse lights comes up the engine harness from the trans to the connectors at the top of the firewall, then connects to the chassis harness and runs to the rear lights via the driver's side frame rail. If there's a short in the harness, it would probably be there at the firewall.

But my money is on tail lights.
Click to expand...
Drove her to work so if slow Ill check. wire up front led yesterday got them to blink ,NOTICE THEY dont blink on inside when head lights on , the arrows stay lite up lol ,

Last edited:
Papa_Jon said:
Drove her to work so if slow Ill check. wire up front led yesterday got them to blink ,NOTICE THEY dont blink on inside when head lights on , the arrows stay lite up lol ,
Click to expand...
Well went to look at it blinkers blink with KOEOff but when KOEOn they don't work ughhhh. guess I will start over pull everything and do one by one

Papa_Jon said:
Well went to look at it blinkers blink with KOEOff but when KOEOn they don't work ughhhh. guess I will start over pull everything and do one by one
Click to expand...

Did you just start on the LED swap? Did they work before correctly before this?

shawn said:
Did you just start on the LED swap? Did they work before correctly before this?
Click to expand...

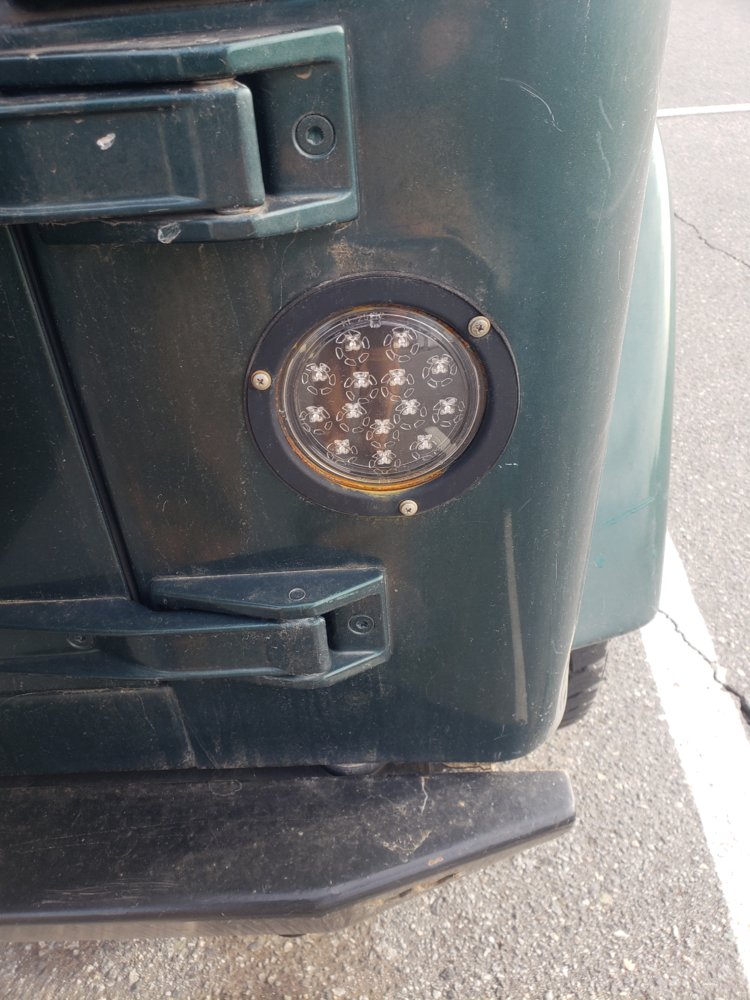

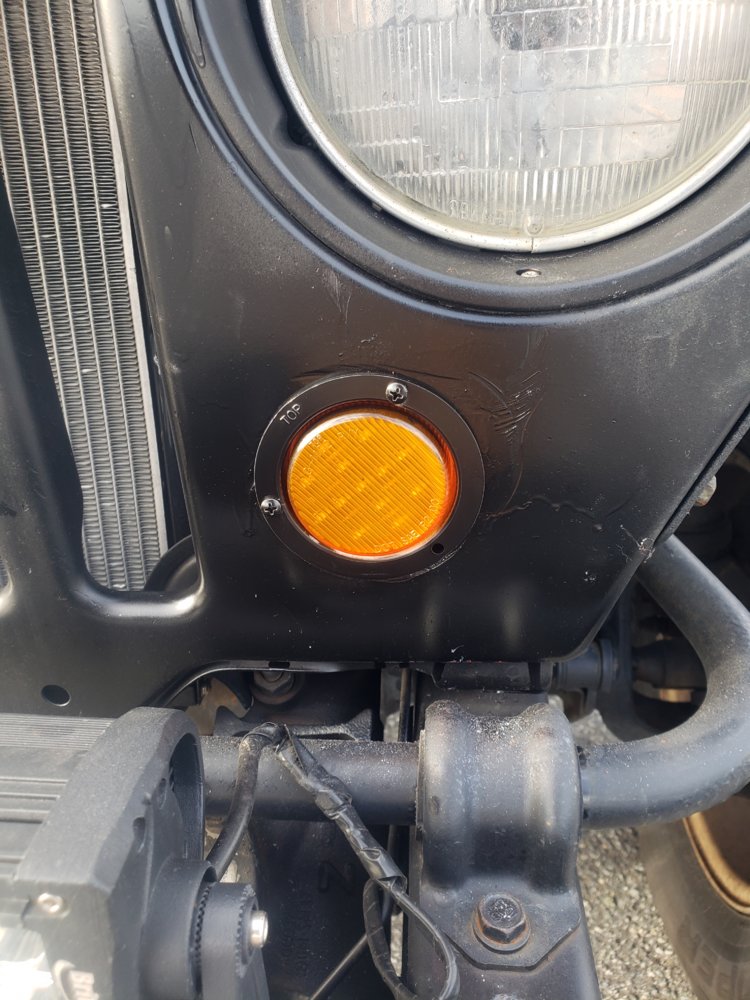

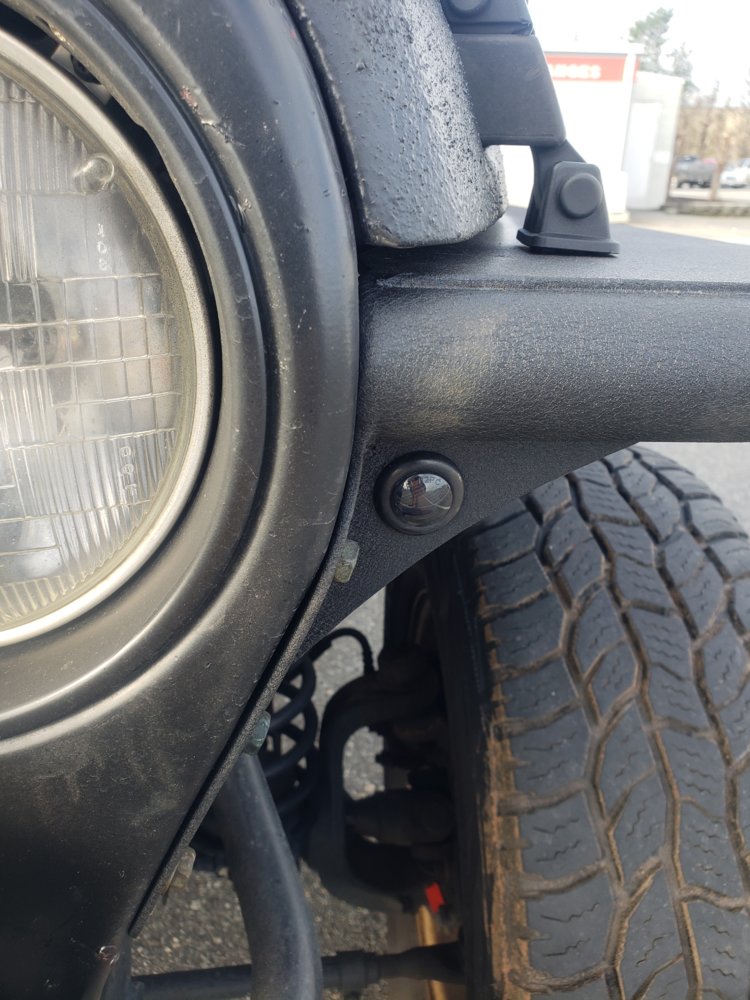

rear been there , front had the little 1/2 blinkers since i did flat fenders . I just noticed the fog light issues last few weeks , yesterday I found some 2" round amber leds I had left from old project . So i installed them ..FYI done know what TJ grills are made of but it smoked a hole saw fast
