230v wiring question (new welding machine)

[RHSCTJ]

Im sure this has been covered in plenty of other threads but this one is about me!

One of my friends bought a welding machine with the intention of keeping it at my house. Its way too big for what we need but his $$$ not mine and now I have a tig setup. Miller dynasty 350.

I have 230v 3 wire hook up for my mig and plasma but this is a 4 wire. The machine is capable of 3 phase or 1 phase. What is the proper way to hook this up? There is no plug on the machine, he said they had it wired straight to the panel. Not looking to create a @jeepinmatt situation.



[a_kelley]

Black hot
Red hot
White neutral
Green ground

Same as 3 vs 4 wire dryer

*** Read the owners manual ***
This is based on experience and may not be correct for your application!



[CarolinaHD]

Isolate the red wire, connect white and black to hot and green to ground. Those machines can automatically adjust to the input voltage without internal changes.

You can just put a 50 amp 3 wire plug on it if you dont want to hardwire it. Max amp draw is 43 amps for 220v input.
https://www.google.com/url?sa=t&sou...FjAAegQIBhAC&usg=AOvVaw06Yz1Zh0_4gEm4T_B1rWVn



[RHSCTJ]

Isolate the red wire, connect white and black to hot and green to ground. Those machines can automatically adjust to the input voltage without internal changes.

You can just put a 50 amp 3 wire plug on it if you dont want to hardwire it. Max amp draw is 43 amps for 220v input.
https://www.google.com/url?sa=t&sou...FjAAegQIBhAC&usg=AOvVaw06Yz1Zh0_4gEm4T_B1rWVn

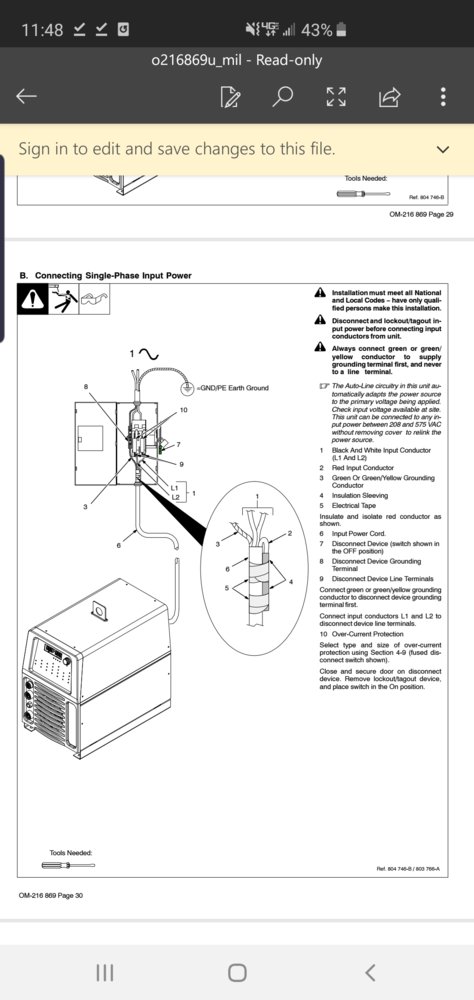

View attachment 313003

Thanks man! It works
