93 XJ build

Discussion in 'Build Threads' started by NickMaul, Mar 29, 2010.

  1. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Virginia Beach
    92 XJ build

    Here we go this is an XJ budget build.....
    What I go so far.....

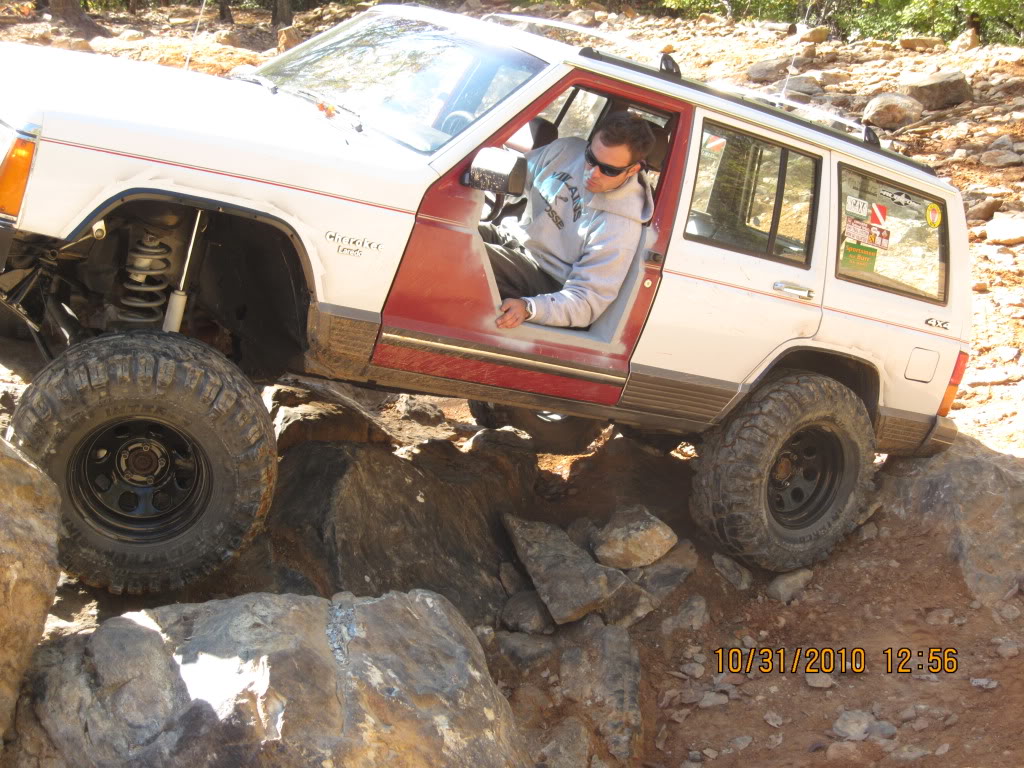

    One of my favorite pictures...

    ~4.0 HO
    ~AX15 (swap)
    ~NP231 w/ RE Flange HnT
    ~KFS shift linkage
    ~RE 3.5" lift
    ~4.56 gears
    ~Front aussie locker
    ~Rear Spartan Locker
    ~33" A/Ts
    ~(2) 6" LED Olympus Offroad Olympus Lights
    ~Trimmed Fenders
    ~CB
    ~Half Doors
    ~IRO tierod
    ~Rocker Panel Replacement Rock Sliders
    ~3 Row Aluminum Radiator
    --------------------------------------------------------------------------------------------------------------------------------

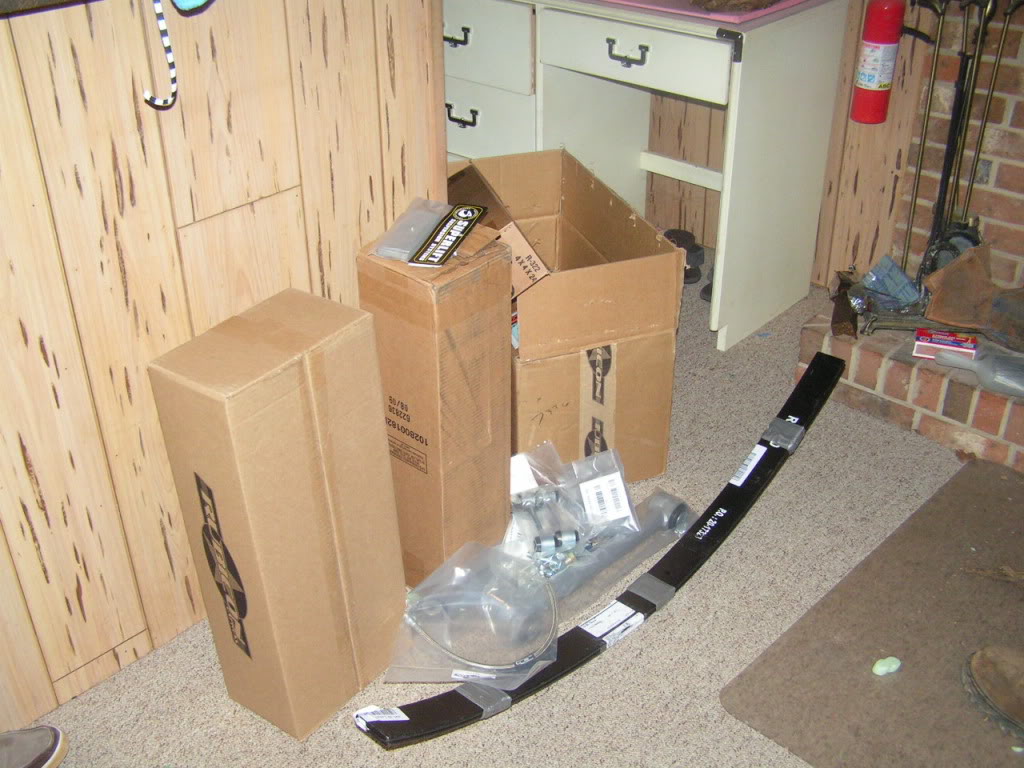

    well finally have all my stuff to begin my build up. not hardcore but i though since i am new to this it will be fun to be able to post all of this and share the problems i run in to since this is my first time doing all this work, and i'm only 17. i will be doing RE 3.5" lift & 31" tsl thornbirds

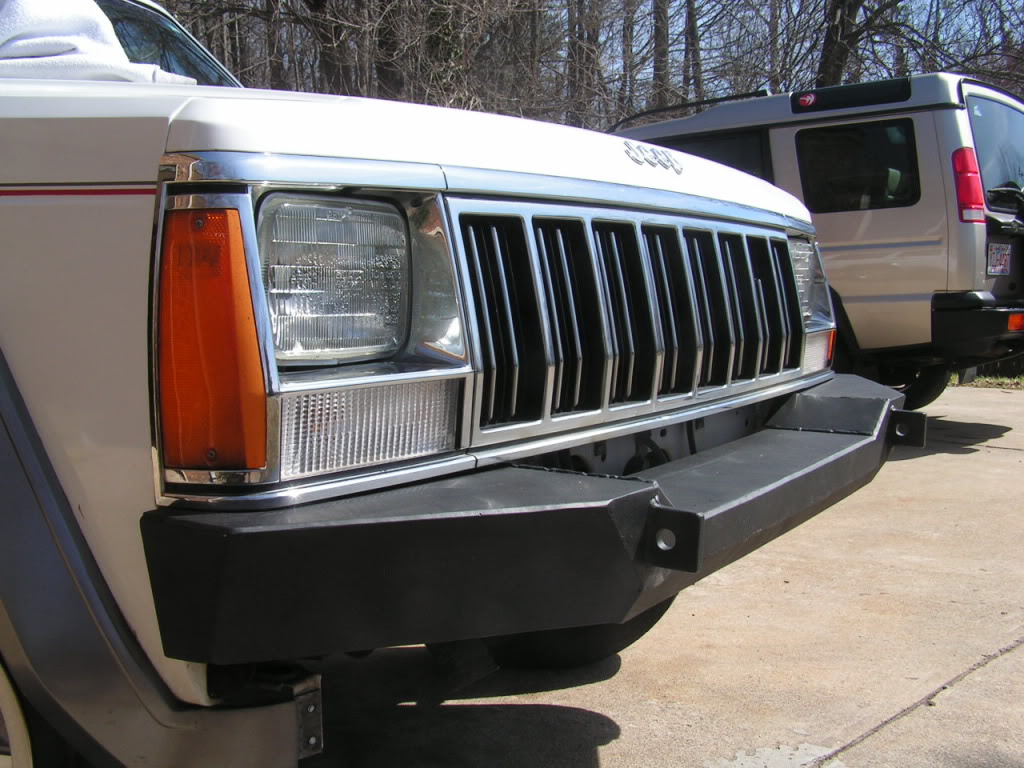

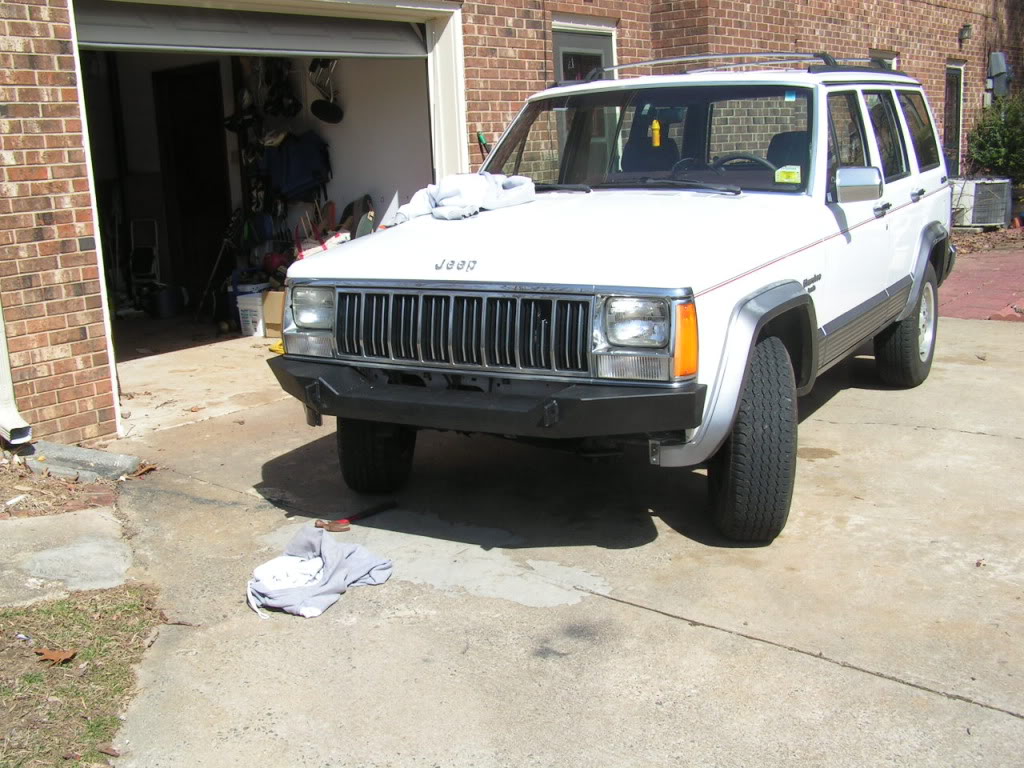

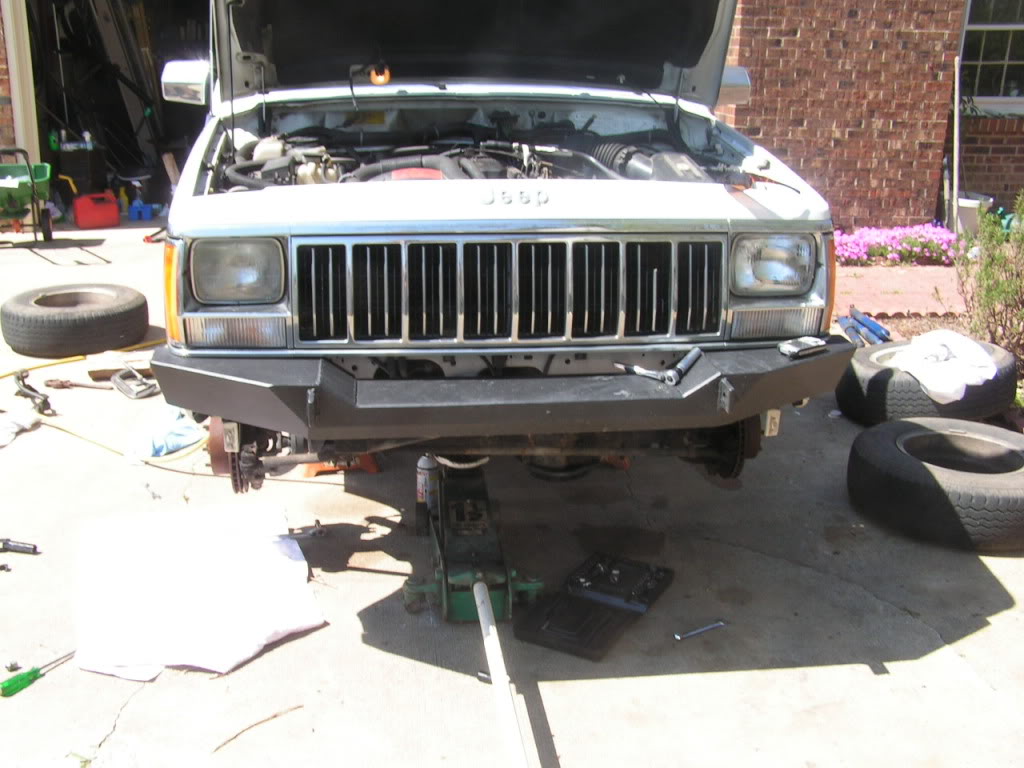

    this is the XJ I got from my sister...super long story. I put that bumper on. a guy on the board made it for me. looks slick
    a week later i picked up some tsl thornbirds...ya ya ya i dont wanna hear how they suck. i got a spanking deal and you cant have everything you want on the first go around.

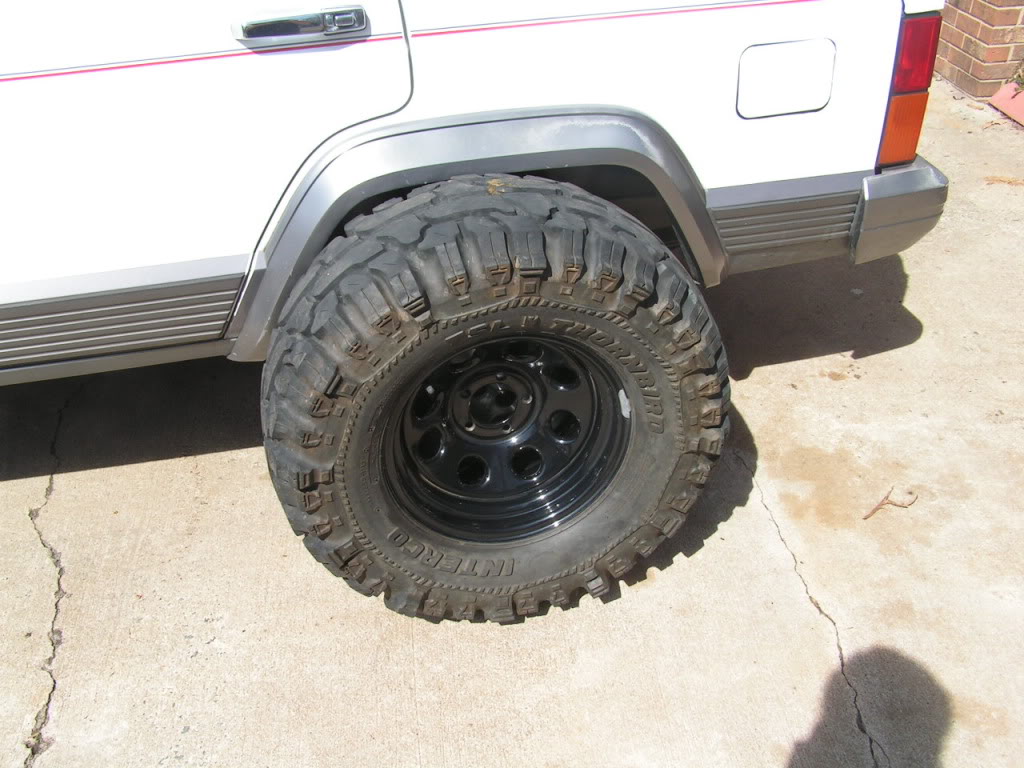

    this is just a small mock up with tires to get a taste

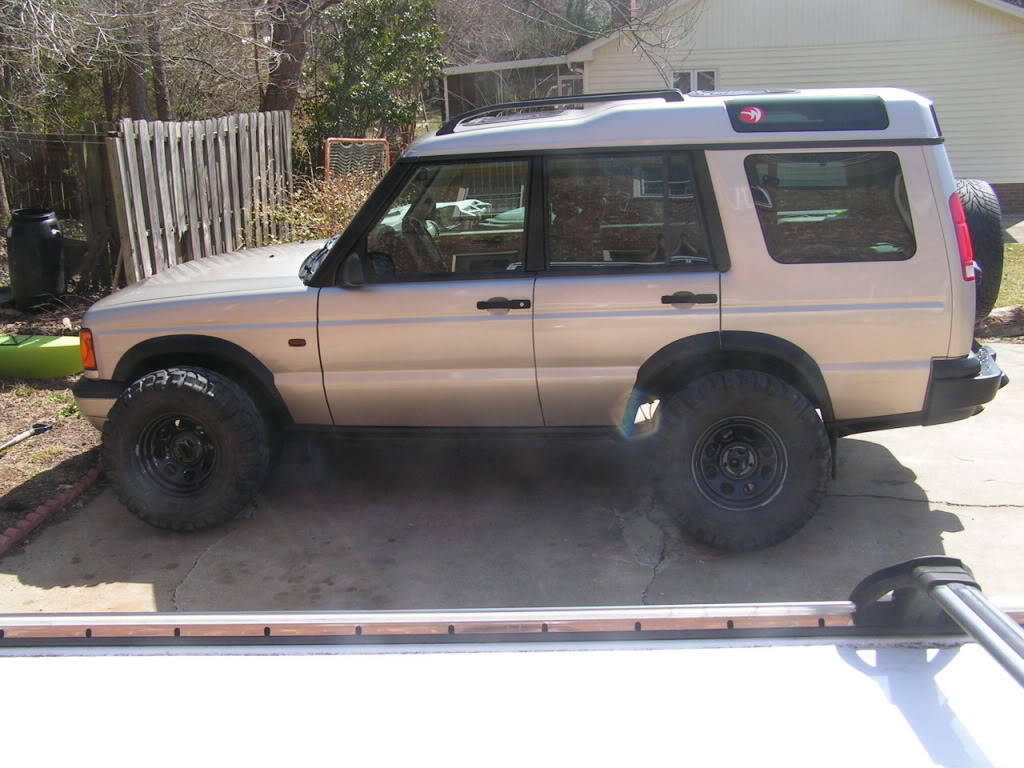

    dad's land rover mock up.....psych!:fuck-you:
    not around a camera but i will take a picture of all my goodies i have gathered for my big week.

    Last edited: Jan 13, 2014
  2. 89wrangler

    89wrangler Not a new member

    Joined:
    Oct 22, 2005
    Location:
    Bostic,NC
    I remember when I started out with my first 4x4. Thirty some years ago and counting. Walk away now and you will retire early :lol: Looking forward to your build

    C.Berry likes this.
  3. HAPPY

    HAPPY Mike B.

    Joined:
    Feb 21, 2010
    Location:
    Granite Falls
    I just started my first one too. Who made the bumper? I like it.

  4. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Virginia Beach
    leonard0909 made it. he's made a few of those exact bumpers. he told me he was working on a rear bumper as well. good deal, $200

  5. scotty015

    scotty015 Active Member

    Joined:
    Nov 14, 2007
    Location:
    benson
    it should look good that was my starting point on my xj and it only goes down hill from there:beer:

  6. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Virginia Beach
    well here is the picture showdown.

    some of my stuff

    about two hours later that night

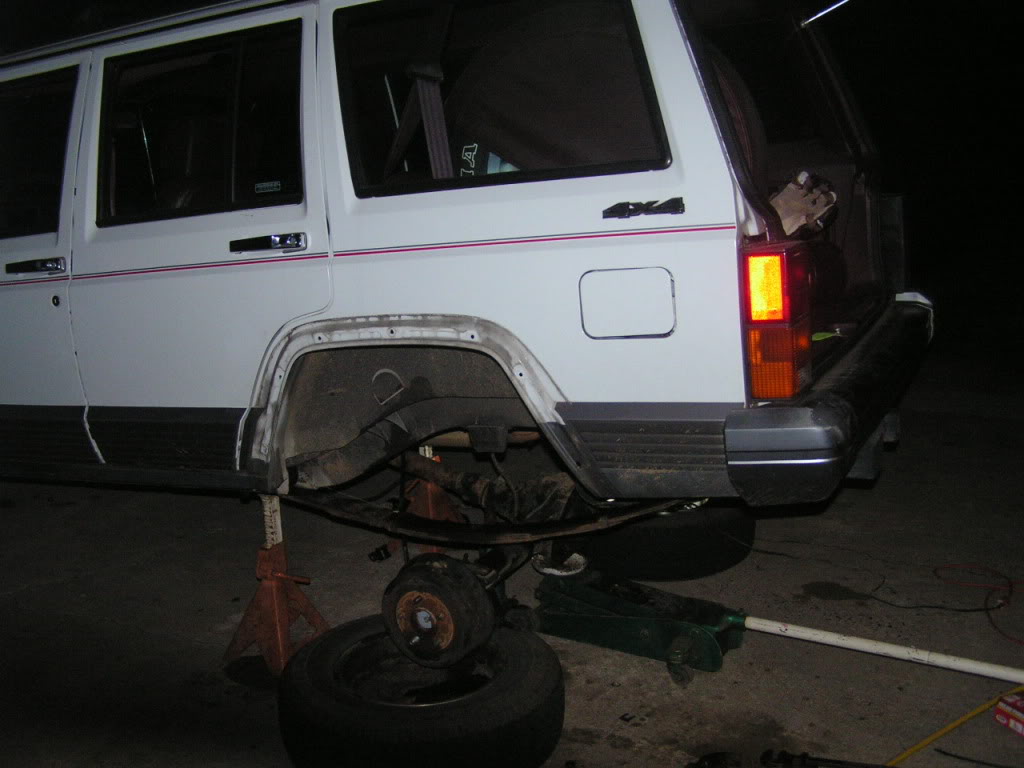

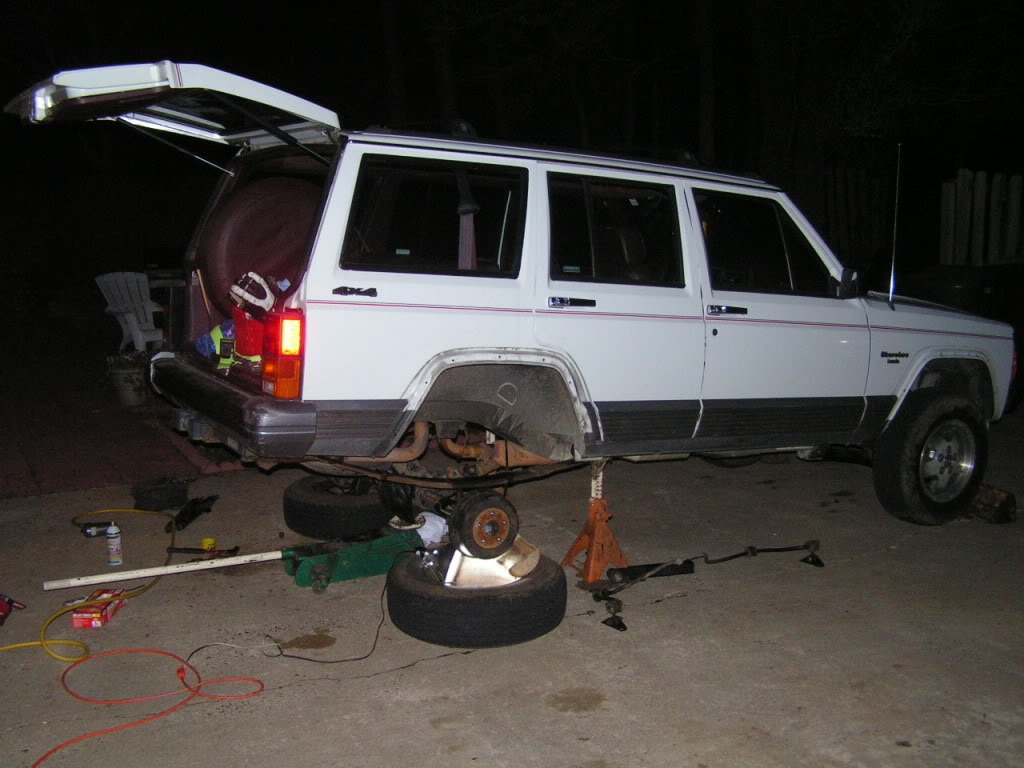

    called it a night and went to bed.......next morning picked up where i left off

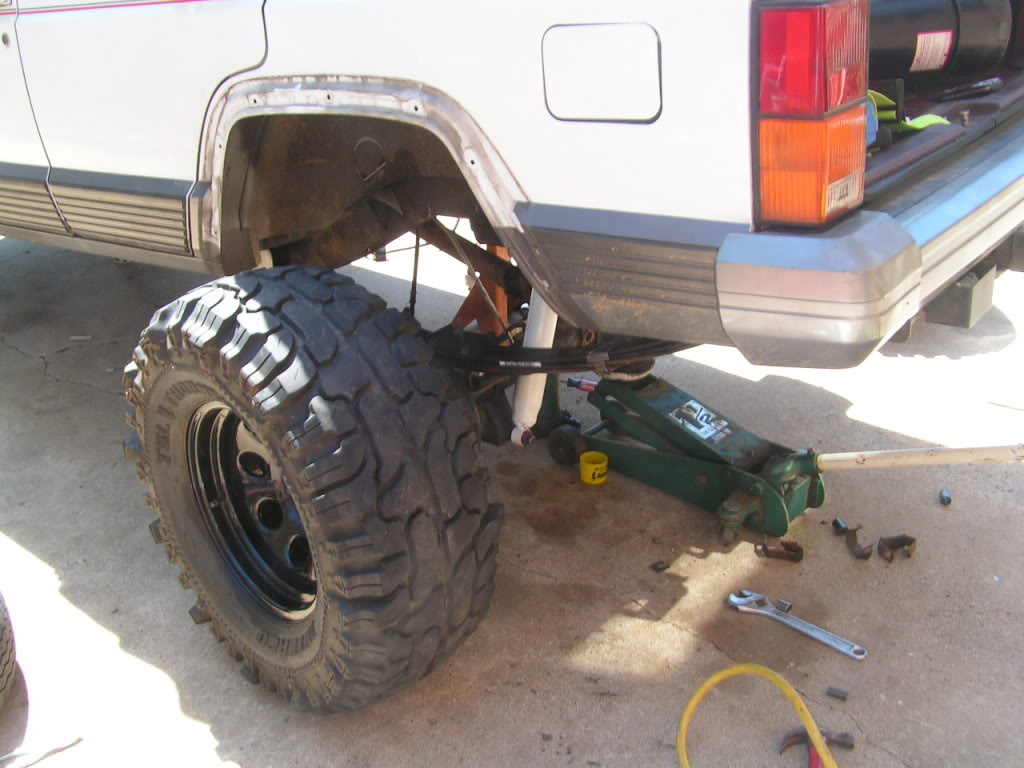

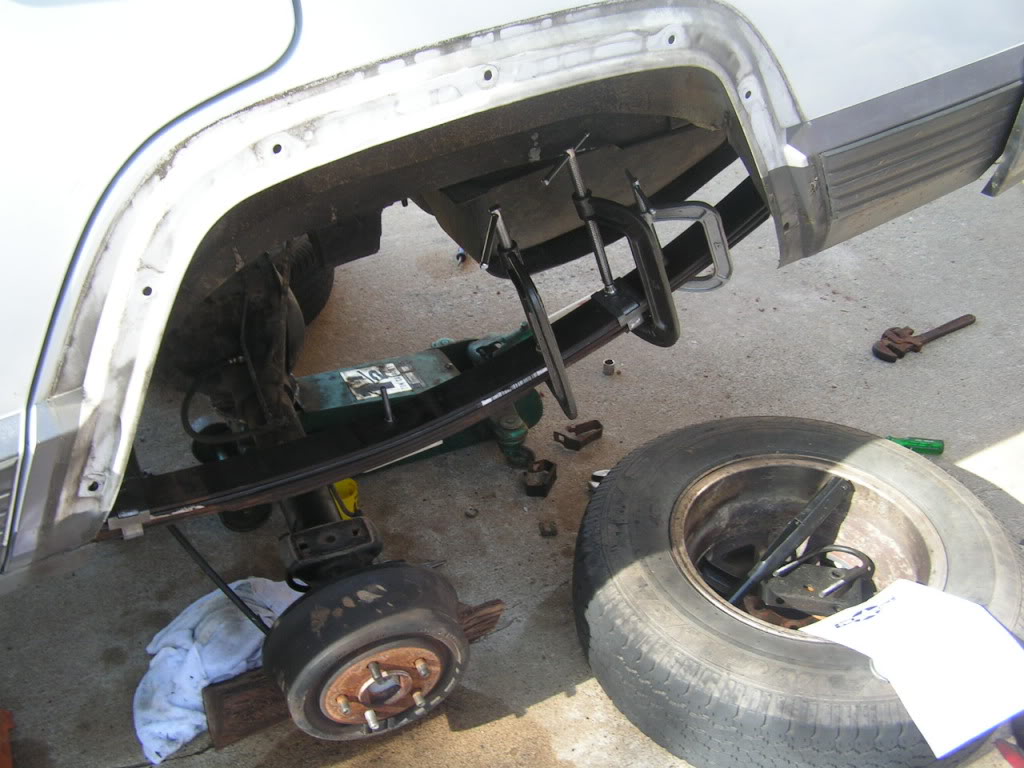

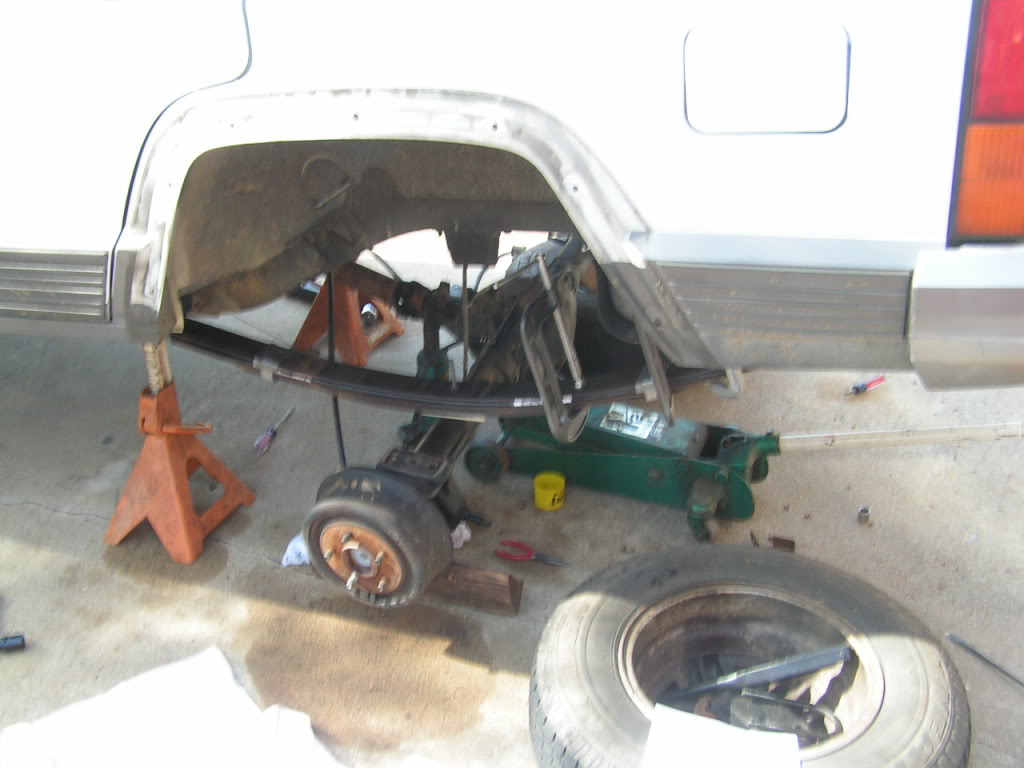

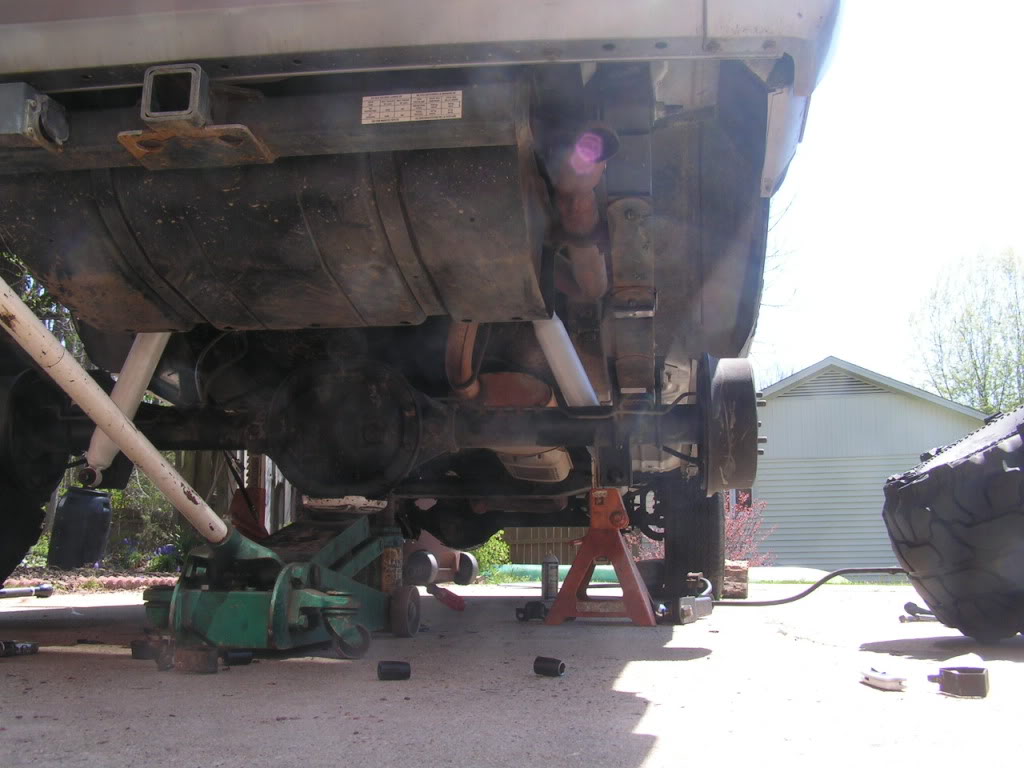

    never decided to take the whole spring set out. just left the top spring in and added the leafs then stacked them under, clamped em, pinned em, ready to go

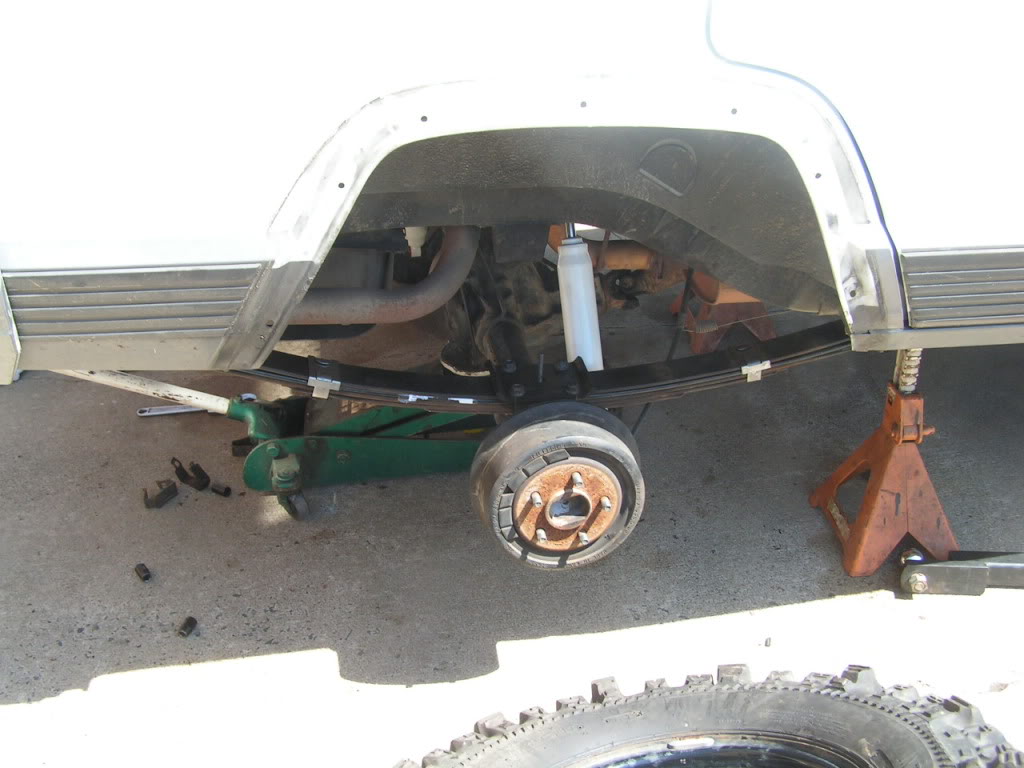

    got leafs finished then bolted the axle back. ohh and i did use axles shims, improved driveshaft angle a little. better than nothing. then put shocks in and the rear is done minus bleeding brakes.

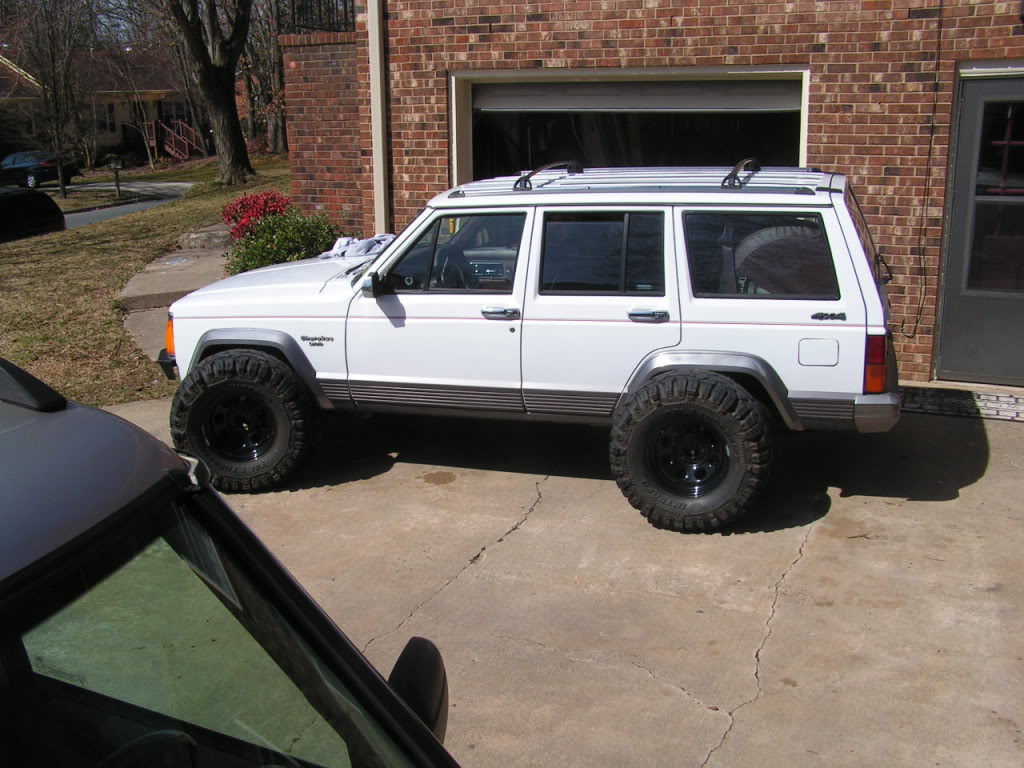

    tada

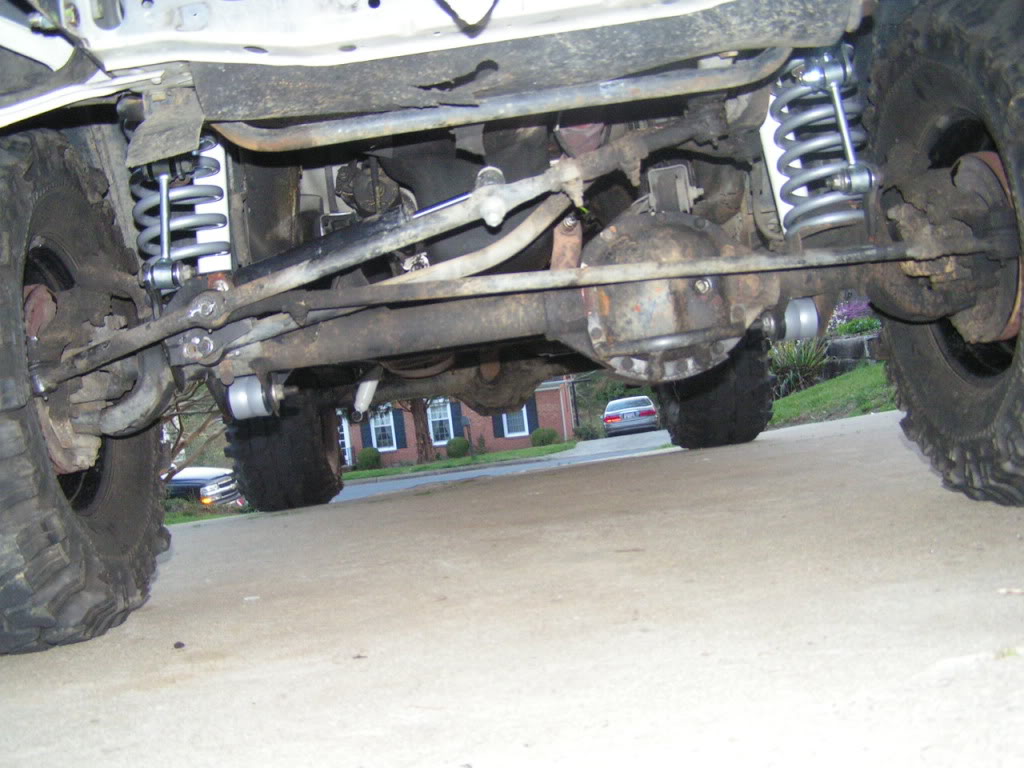

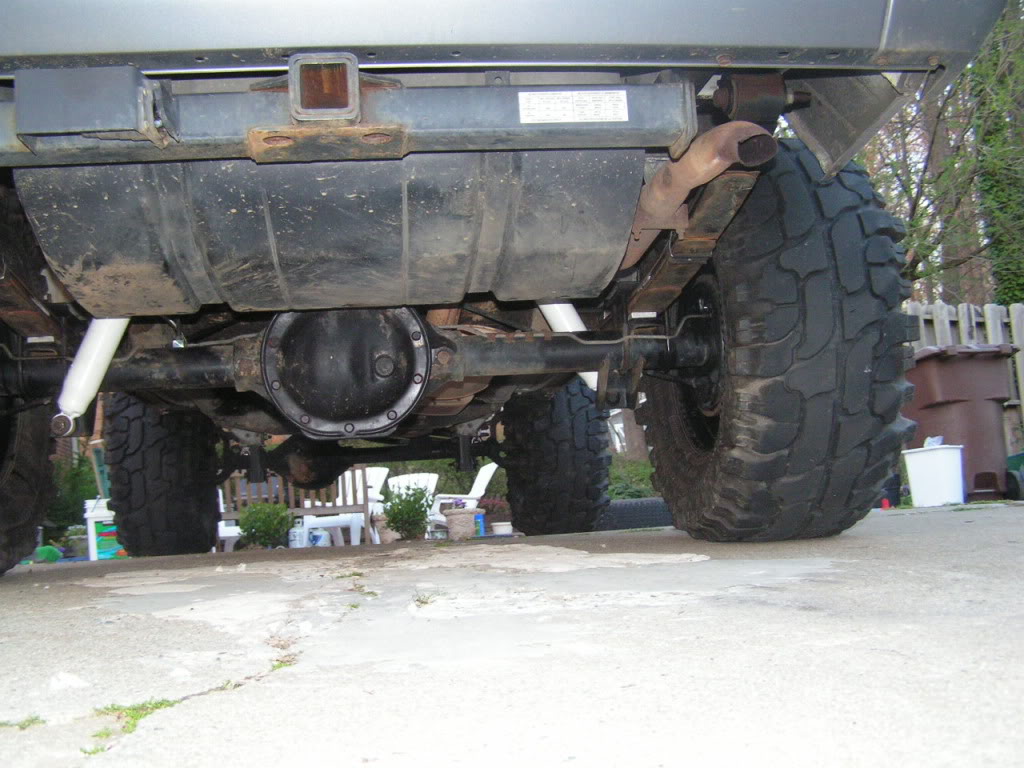

    REAR vs FRONT :lol:

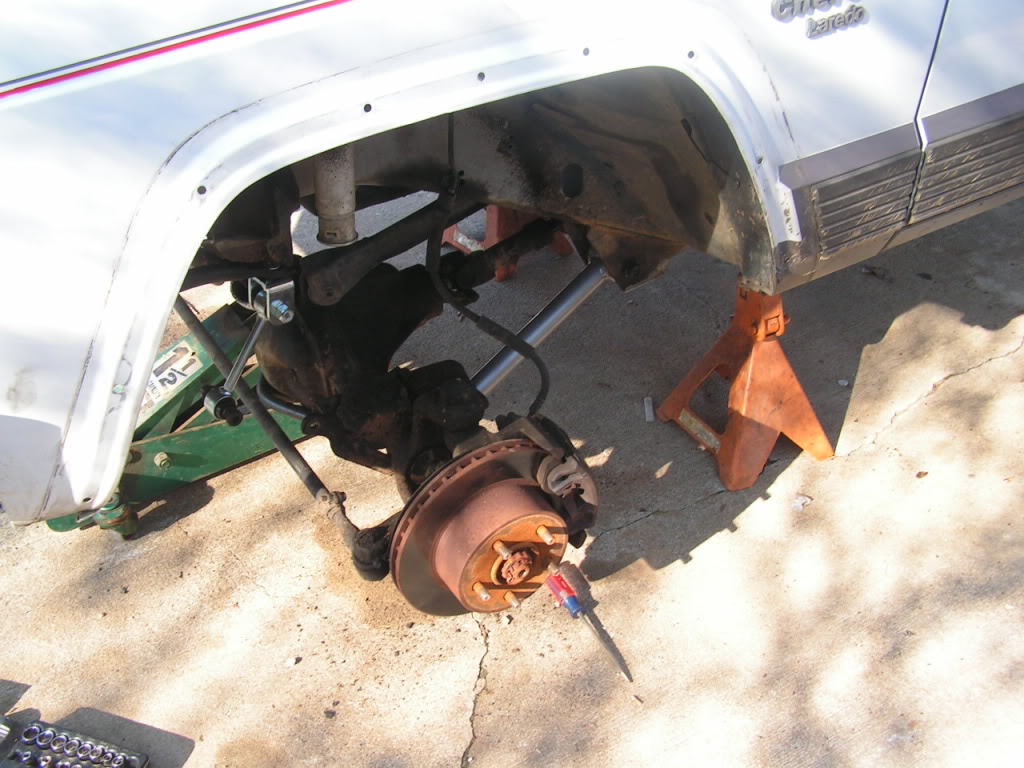

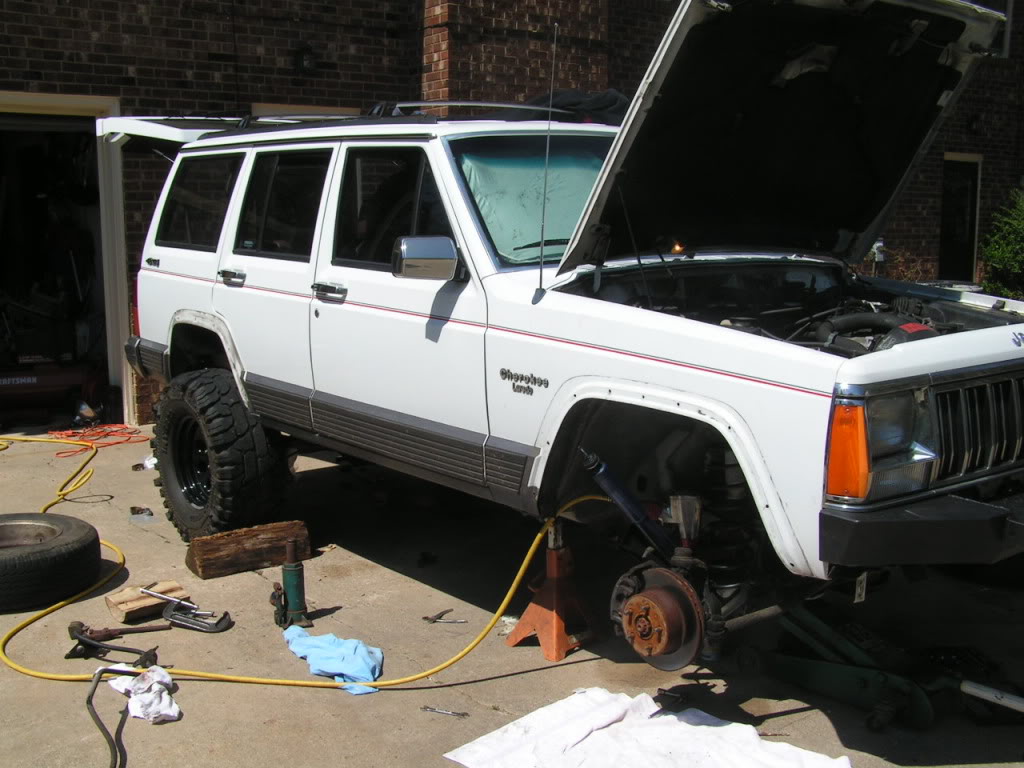

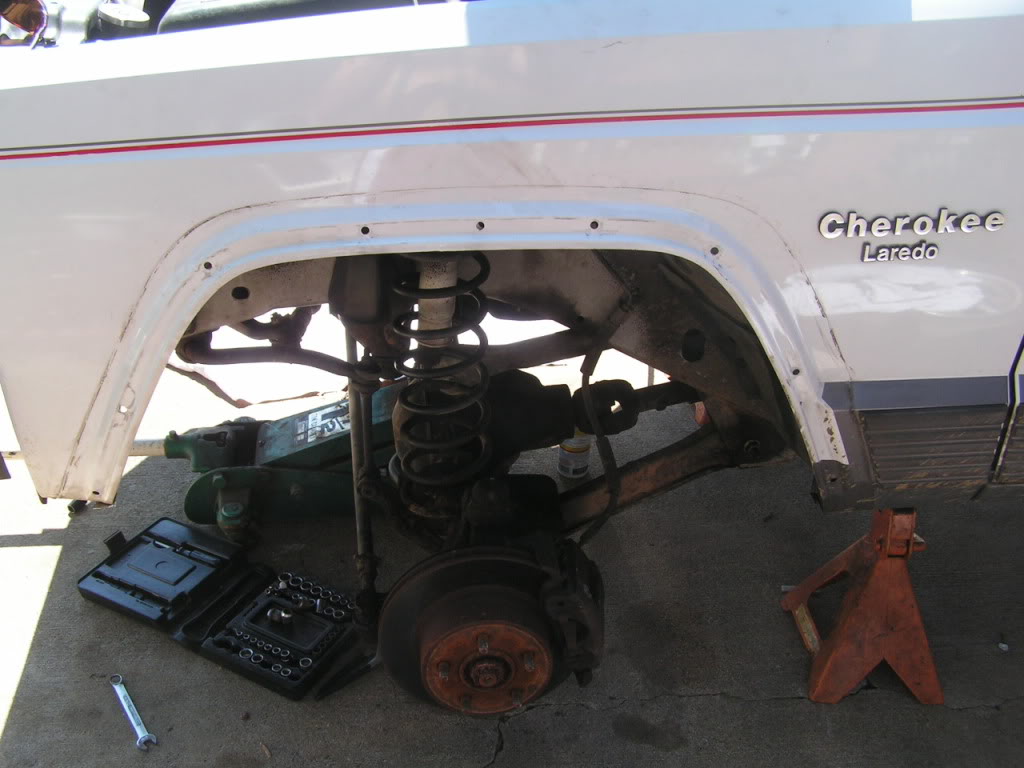

    after this i preped the front end for tomorrow. got eveything disconnected and old coils out. so tomorrow when i wake up i can just start putting everything together.

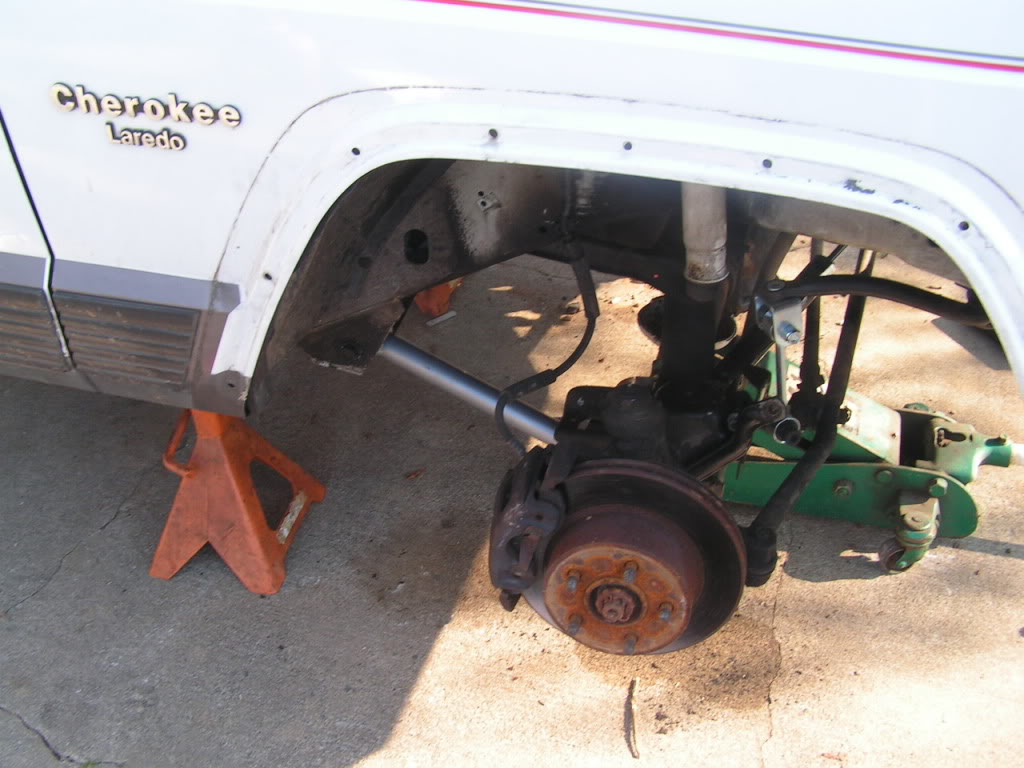

    just a few prep pics

    so far so goood. ill update my progress! :bounce2:

  7. untchabl

    untchabl On the rocks

    Joined:
    Mar 30, 2009
    Location:
    Bear Creek, NC 27207
    Looks good so far. Pretty clean looking XJ you've got there, keep up the good work.

  8. J.C.

    J.C. Volunteer Moderator

    Joined:
    Apr 18, 2005
    Location:
    Greensboro, NC
    Man. You are making quick progress. Keep it up.

  9. 98xjjeep

    98xjjeep Member

    Joined:
    Dec 11, 2008
    Location:
    Greensboro, NC
    Nice. You should cut the fender straight back right above the fender.

  10. chris

    chris cltdba Moderator

    Joined:
    Sep 28, 2009
    Location:
    Concord, NC
    Looking great Nick! That's a clean XJ too! Can't wait to wheel with ya and watch you smash it on some rocks! hehehehe

  11. burrellsjeep

    burrellsjeep Breaking Stuff...

    Joined:
    Nov 19, 2008
    Location:
    Morganton NC
    First I would like to commend you on starting a build, Its allot of work to do it your self, But in the end it is worth it.

    Whats your plans are far as usage for the Jeep, Mostly DD with some weekend wheelin or the other way around. If your planing to wheel it allot of would keep an eye out for some different tires, I understand you know the thornbirds are not the greatest tires, There good as long as you keep them on the road, They really suck off the road, I had a buddy with a set on his blazer in high school many years ago, He called me many times to pull him out. They seems to dig them selves a hole they can't get out of in mud or loose dirt. If its mostly a DD you will be fine.

    Great job, So far, interesting to see how it turns out.

  12. chris

    chris cltdba Moderator

    Joined:
    Sep 28, 2009
    Location:
    Concord, NC
    Have you seen the muscles this kid has? He doesn't even need a winch, he'll just pull it out by hand if it gets stuck! :D Oh and he knows how to use a big sledge. heheh

  13. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Virginia Beach
    burrelsjeep. this is my dd so it will be weekend wheeling. and i plan on getting another set of tires and wheels for week days and use the thornbirds for weekend wheeling. again i know they aint the best but im not to big on mud. just trail ridding and a few rock obstacles. i will look around for some TSLs or LTBs once i have money. i am broke as of right now.

    thanks for the advice though....greatly appreciated man

  14. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Virginia Beach
    well dang it was hottttt today! 85 degrees and counting....it only made the day better :driver: got it all done!!!!

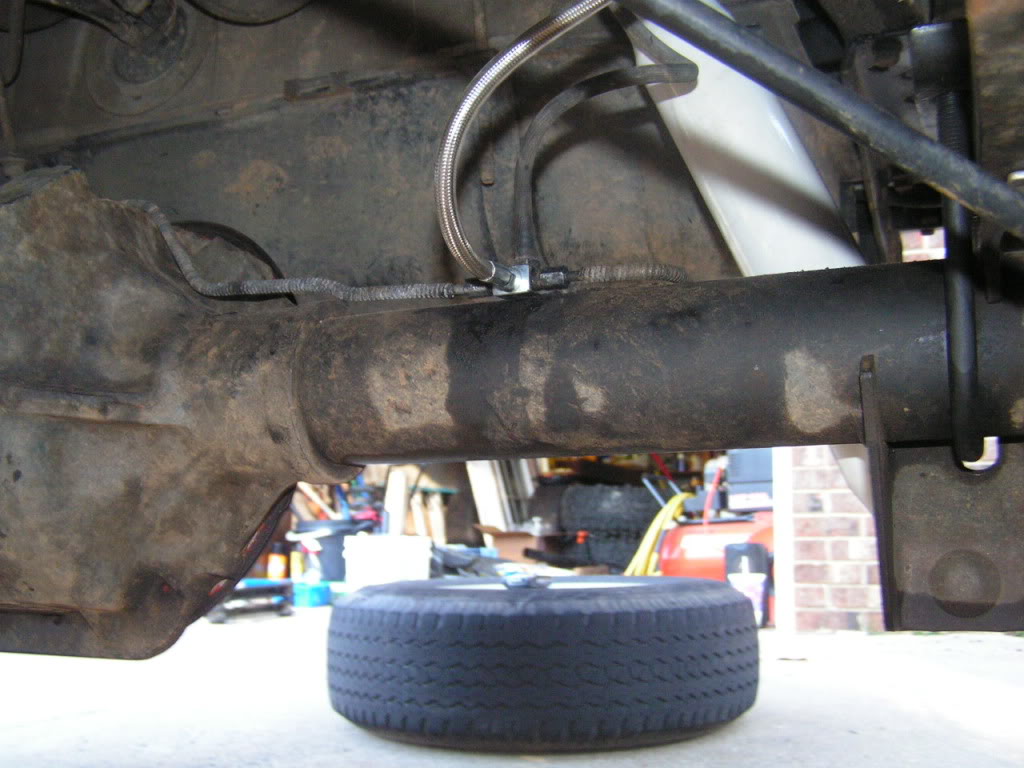

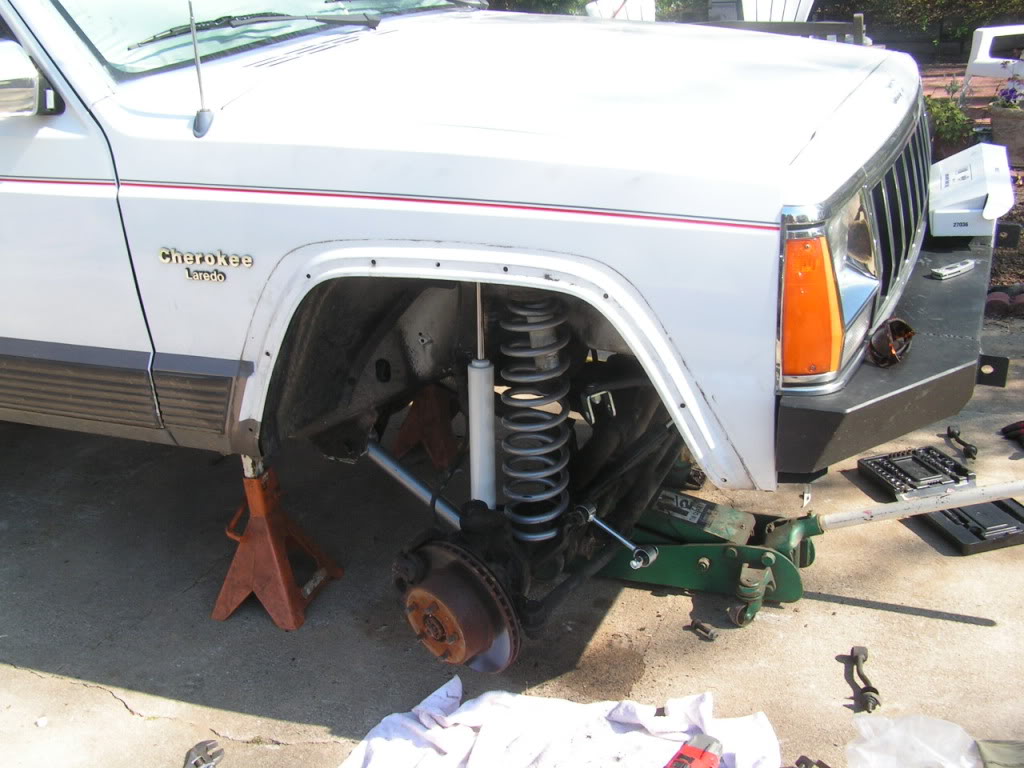

    well woke up this morning to completely finish the rear. had to reattach the brake lines with the new stainless steel line....kinda a pain but got the rear all done and could focus on the front

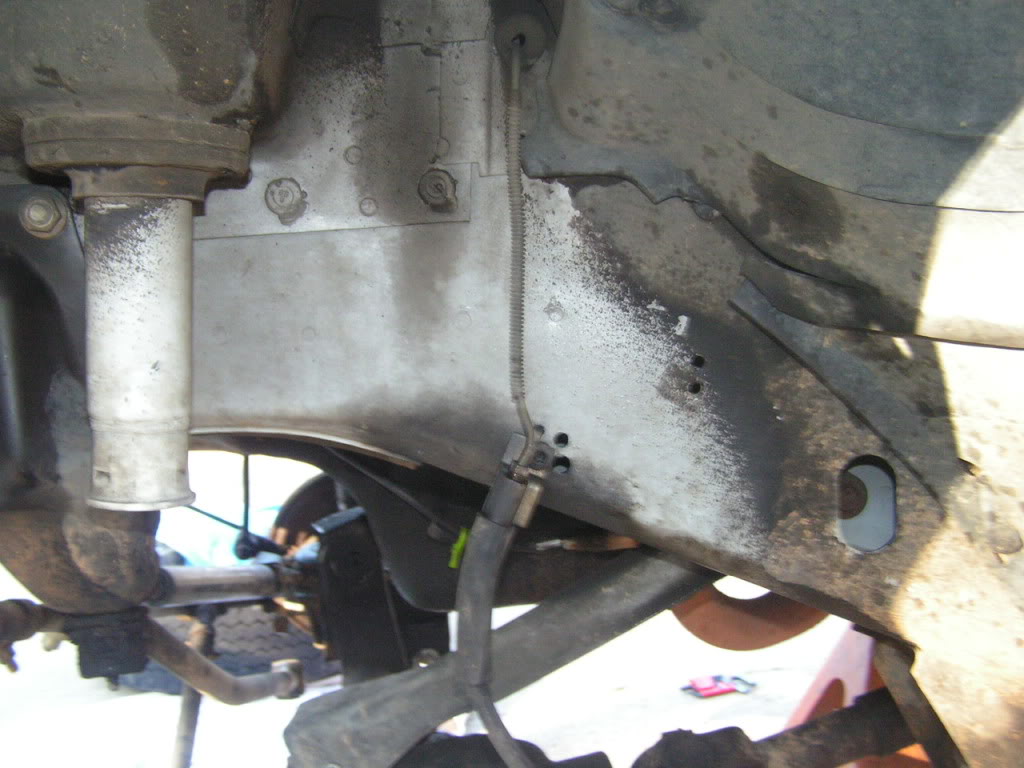

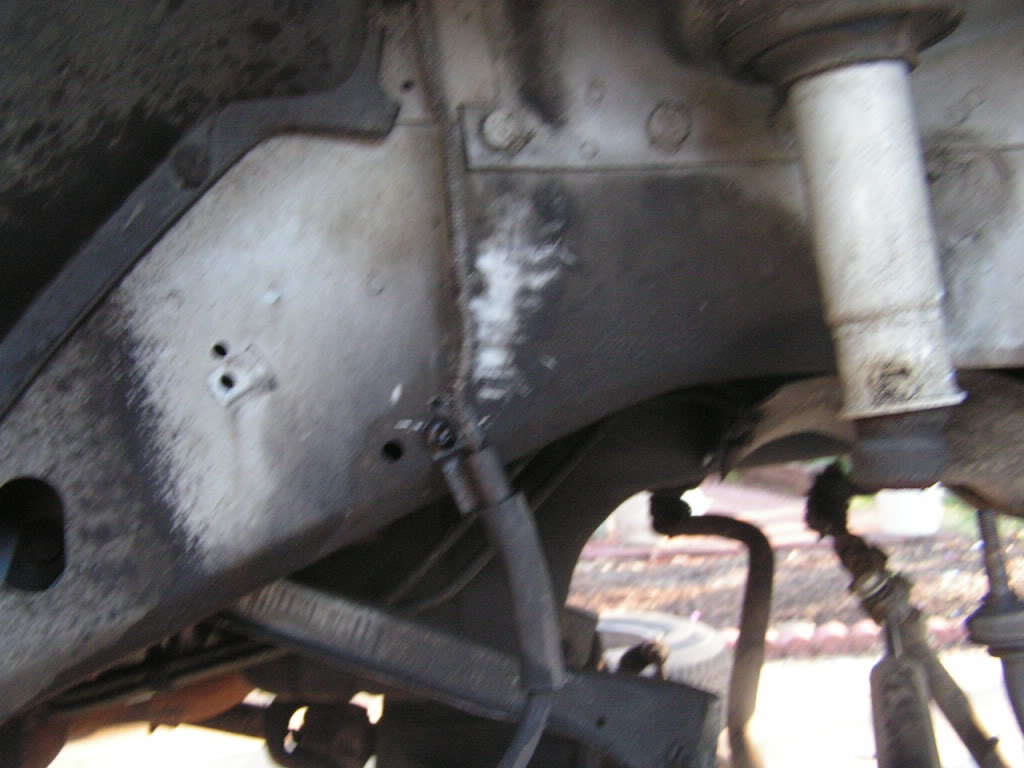

    next i tackled the front brake lines. i didnt buy the optional stainless steel front lines so i had to bend and re locate the existing line. easy as pie, except when i did this i was dumb and didnt remember that shocks exist...wooops. only took a minute to relocate after i remembered to leave room for the shocks. i never took pics of the relocated relocated the lines. these were only attempt number 1

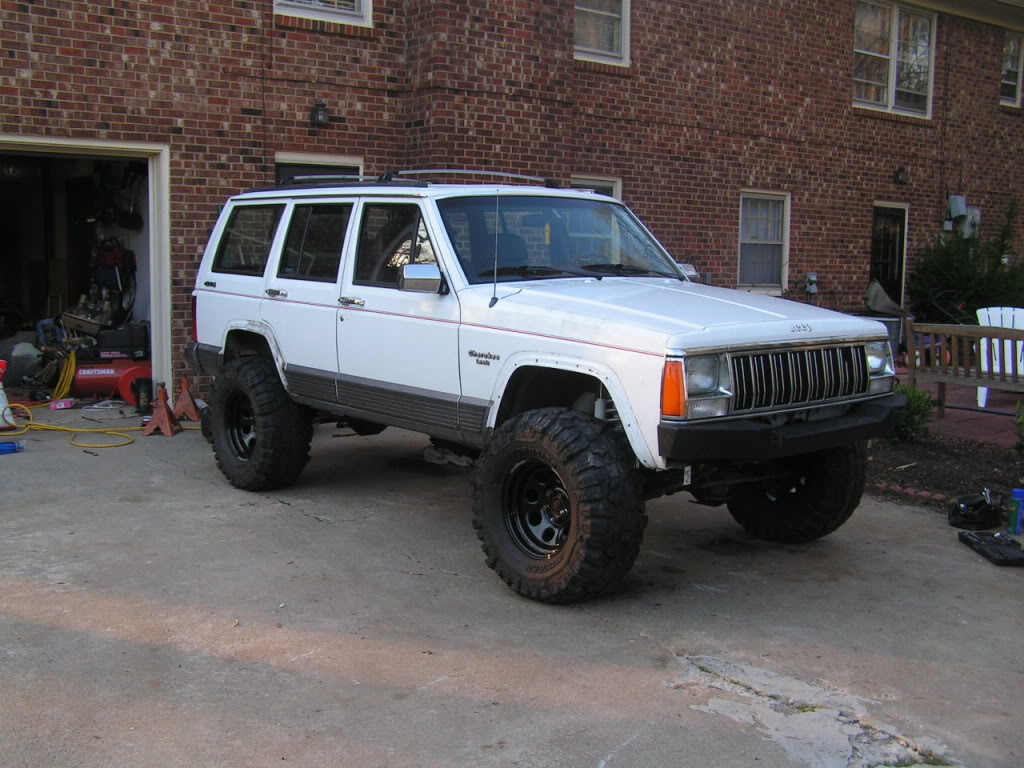

    progress!

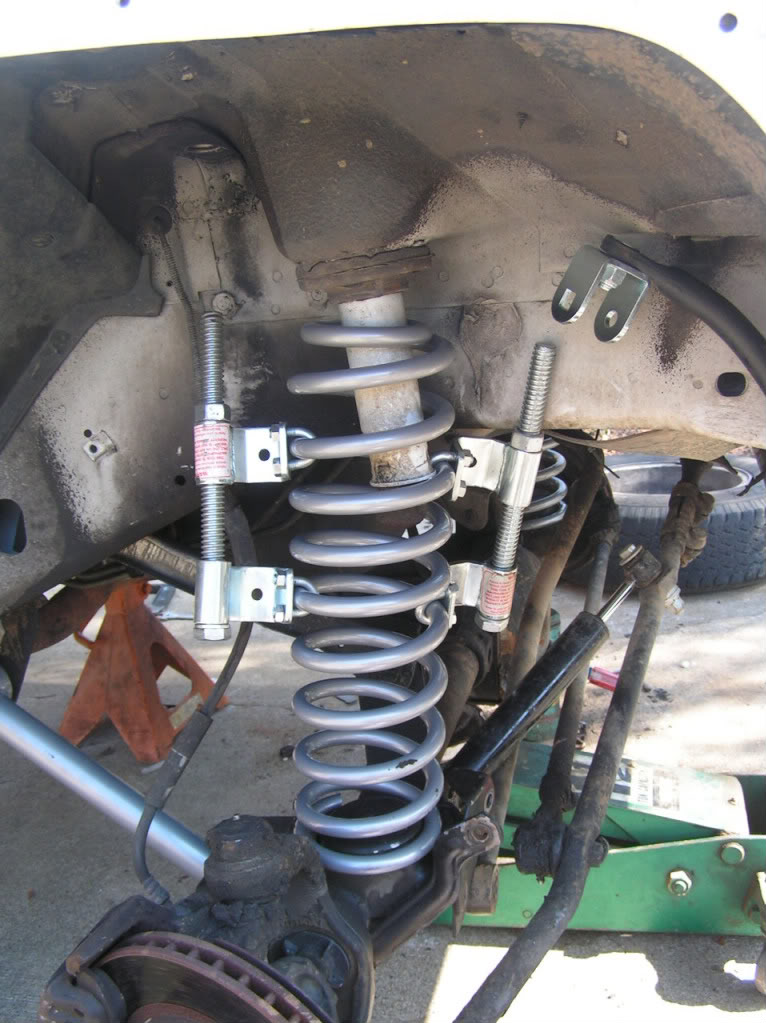

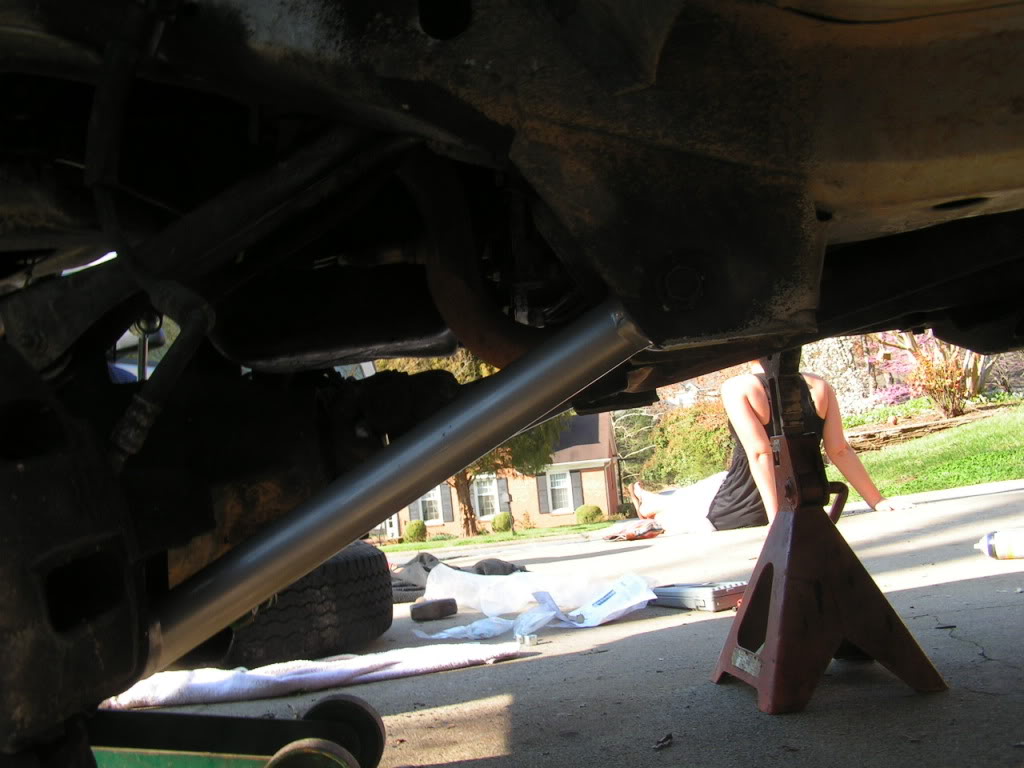

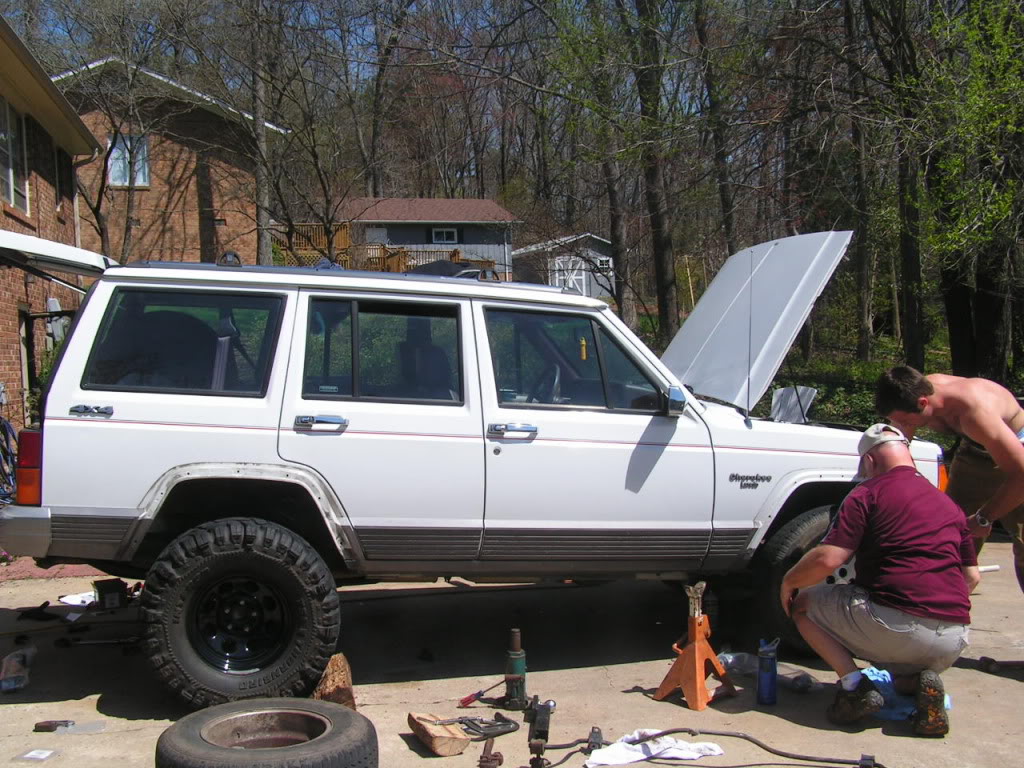

    lower control arms were a breeze. had to ratchet strap the axle to get the last control arm in, no sweat. thanks JC for that little tip!

    even more progress!

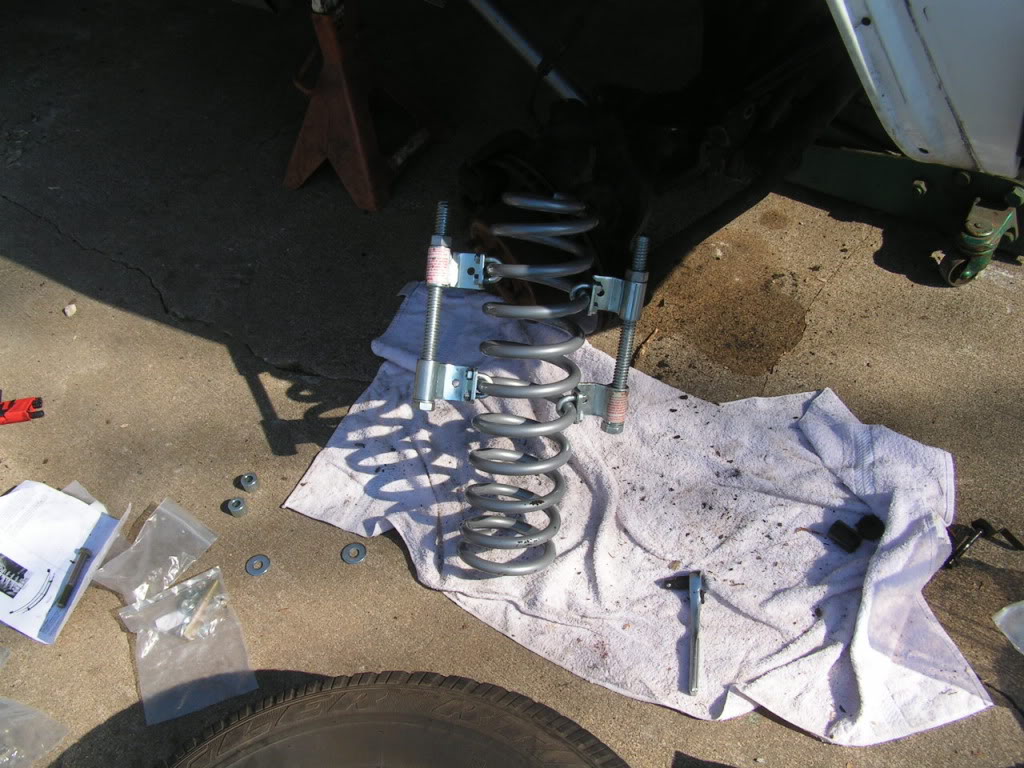

    well the coil compressor i got from auto zone was a piece of poop so my buddy had these which worked like a god. there were tiny ubolts that locked the pieces into place so when you start cranking they dont slide around due to the pressure

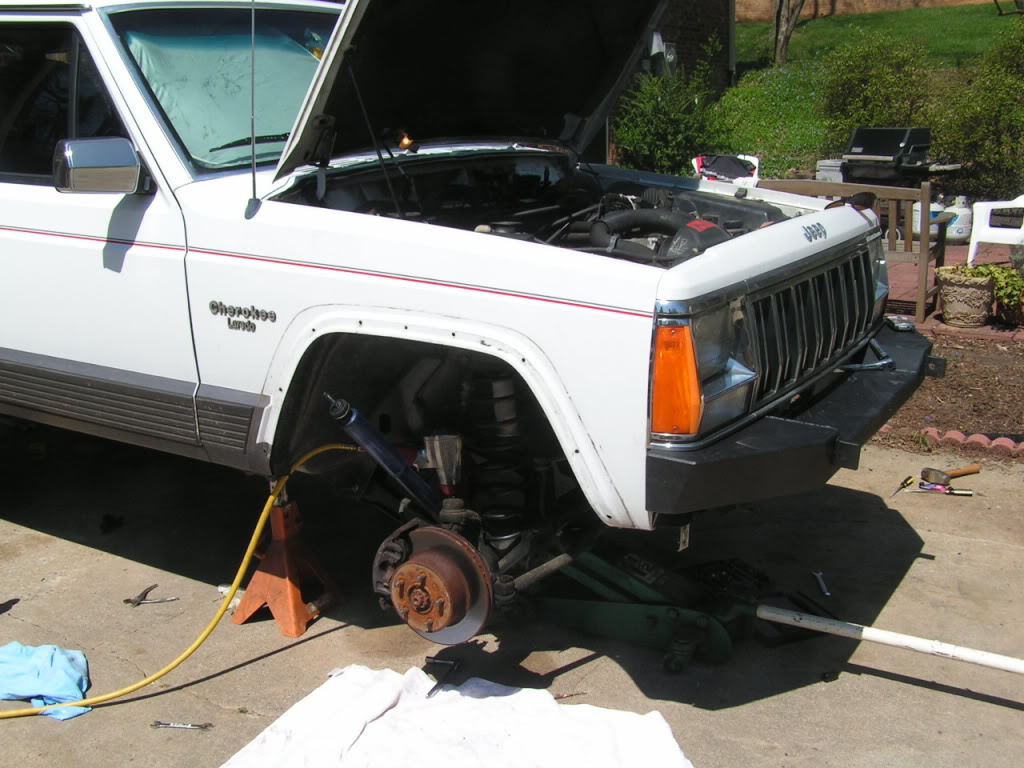

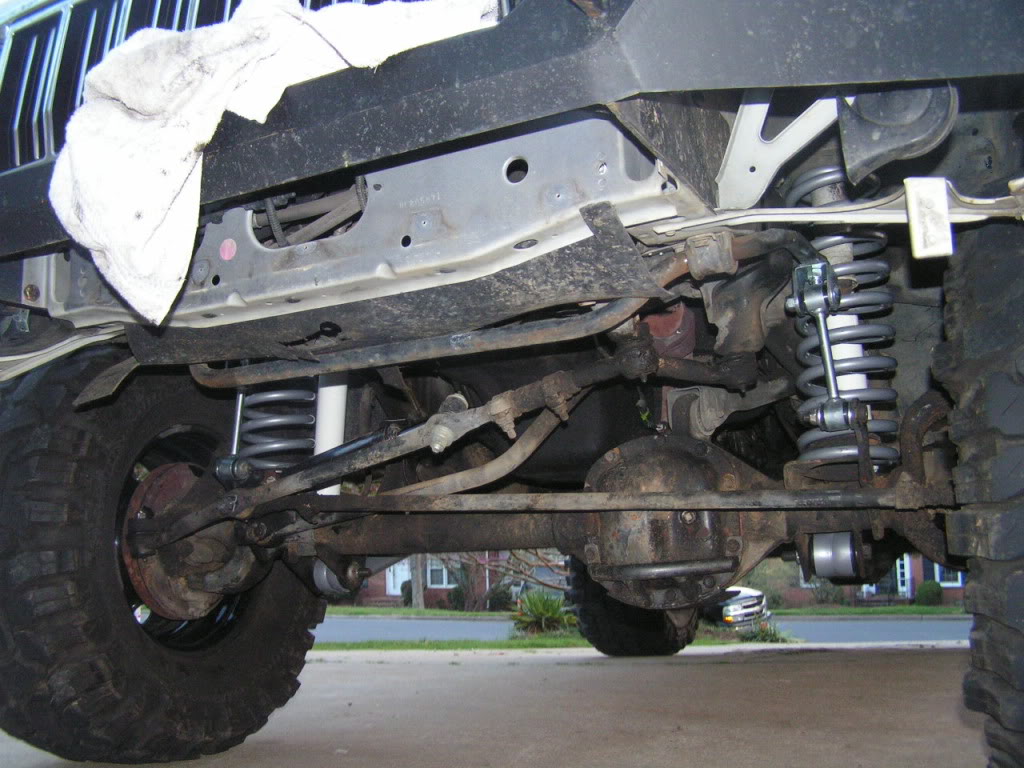

    got the shocks in. everything else is in place

    well after this all happened i drilled a hole for the trac bar. not rich enough for an adjustable trac bar. to do that i had to take the tie rod off at the passenger side of the axle. when i go to put it all back together i learn that my castle nuts a stripped......thats where the frustration began. napa had some but they were and awkard fit and didnt have enough thread to get the cotter pin through. and every specialty shop was closed, and i dont have time on my side. so i used the ones from napa but used a skinny file to lower the ridges on the nut. hard to explain, sorry no pics. but that whole ordeal took about 3-4 hours....PITA.

    then after that, bled the brakes, connected sway bars and added air to the tires.

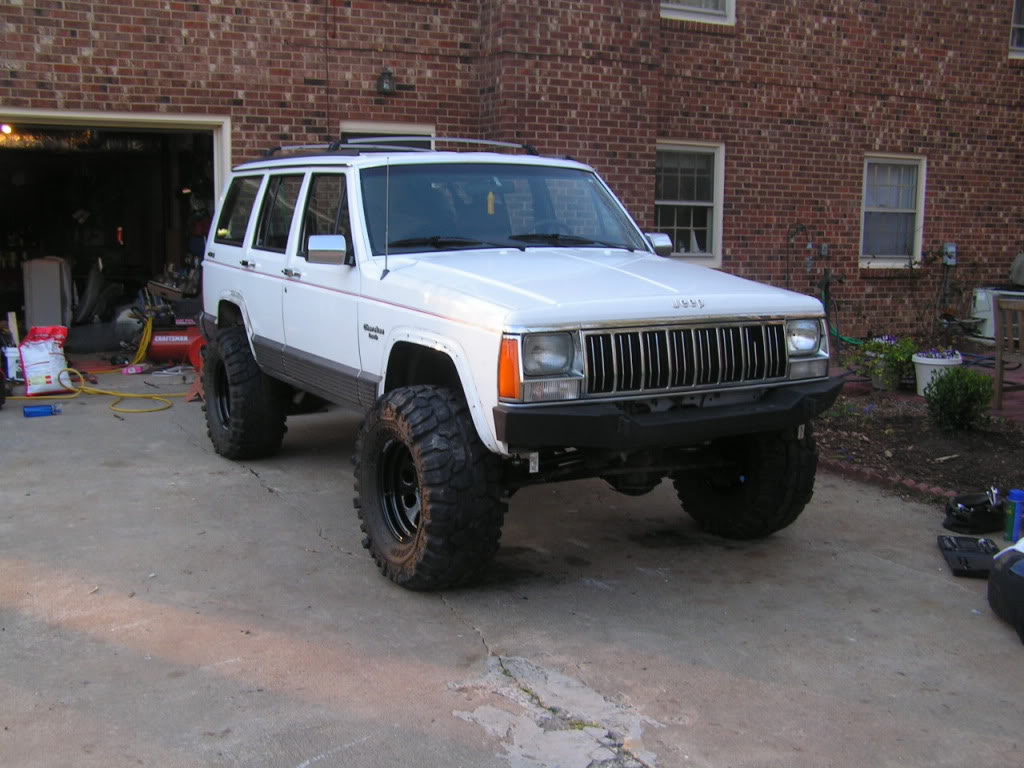

    BAMMMMM

    i love it. been wanting to lift my suburban but sold it and i was dying as soon as i got my hands on a jeep. this made me happy knowing i did all of it under my own guidance, in about two days, and didnt get frustrated and blow it up.

    thanks to JC for the pickle for and jacks. plus the few tips i picked up. I will be cutting the fender right after the bumper....i think someone had mentioned that.

    any suggestions, besides the tires?

    C.Berry likes this.
  15. chris

    chris cltdba Moderator

    Joined:
    Sep 28, 2009
    Location:
    Concord, NC
    You made quick work of that man! Very good job!

    My first suggestion is to upgrade your tie rod. To do it on the cheap go to the junkyard and find you a tie rod from a V8 ZJ. They are MUCH more beefier than the stock noodle that's on there. Otherwise you can buy HD rods online from the normal places. That will be the first thing break/bend. At least pick up a spare XJ one if you can't find a ZJ or other upgrade.

    Second in addition to cutting your front fenders I would them flush with the bottom of your bumper. It'll look better and that way you won't have to deal with smashing them on something.

  16. 89wrangler

    89wrangler Not a new member

    Joined:
    Oct 22, 2005
    Location:
    Bostic,NC
    Congrats on you first lift install :beer: after a few more, it won't be long and you will be doing the whole install in about 3-4 hrs. It was hot sum beach yesterday. I sweated my butt off in the shop too. Went from cold and hot :shaking: Looks like your girl friend was involved too, catching some rays while you were working.
    Looks good

  17. RenegadeT

    RenegadeT no shirt,no shoes,no dice Moderator

    Joined:
    Mar 24, 2005
    Location:
    Stokesdale-Greensboro
    looking good. Before you do any extreme wheeling, you'll want to replace the cruddy front bumpstops with something longer (and intact). Otherwise the larger tires can tear up the fenders. On the rear, its not that important since its a non steer axle. You'll still probably trim the front fenders and cut/fold the rear.

    I'd ride those tires until they are worn, or you actually find a situation where they suck, or you find a buyer who will give what you have in them. For a DD combo offroader, I wouldnt recommend Swampers, I go with BFG AT's or MT's.

  18. J.C.

    J.C. Volunteer Moderator

    Joined:
    Apr 18, 2005
    Location:
    Greensboro, NC
    Looks good Nick. My wife says, "rocker guards are next", don't want to mess up that nice sheet metal :)

    Rig sits real nice. SUPER job on getting it done quickly and by yourself, best way to learn IMO.

  19. burrellsjeep

    burrellsjeep Breaking Stuff...

    Joined:
    Nov 19, 2008
    Location:
    Morganton NC
    Great Job,

    x2 the tie rod spare or upgrade. Bent mine a ton, before replacing it with a custom set up. Spares are cheap, If you do a spare, Measure between the tie rod ends on the tie rod then write that on the spare in silver sharpie. That way if you have to swap it on the trail you have measurement, that should get it close and driveable.

  20. RenegadeT

    RenegadeT no shirt,no shoes,no dice Moderator

    Joined:
    Mar 24, 2005
    Location:
    Stokesdale-Greensboro
    skip the sharpie (although you should have one in the garage), pre-adjust the spare TR to match the length your running.

    jeepguy242 likes this.
  21. 95GranZJ

    95GranZJ Active Member

    Joined:
    Dec 31, 2009
    Location:
    Winston Salem
    Im guessing that is a RE lift kit,
    I have one on my 95 ZJ and mine came with the 2nd gen quick disco's
    Did you not get those? just curious. If not i would highly recommend them!
    I take mine off every time i go offroading and its a really big difference!
    BTW Nice XJ! sits real nice! Trim those fenders!!

  22. RenegadeT

    RenegadeT no shirt,no shoes,no dice Moderator

    Joined:
    Mar 24, 2005
    Location:
    Stokesdale-Greensboro
    RE6020 XJ 3.5" Super-Ride w/ Add-a-Leaf

    x2 on the disconnects, even if you simply unbolt the sway bar links and use a bungee or zip-ties to hold the bar up.

  23. burrellsjeep

    burrellsjeep Breaking Stuff...

    Joined:
    Nov 19, 2008
    Location:
    Morganton NC
    I was speaking of just carrying a tie rod with out the ends, So you dont have to unhook the tie rod ends, But your way is great also.

  24. bygkuntrey13

    bygkuntrey13 Member

    Joined:
    Mar 1, 2010
    Location:
    Ayden, NC
    Jeep looks good bro, I love the look of those thornbirds they can make such a little tire look so damn mean! My bro-in-law just got basically the same jeep you have I already got him hit twith the jeep bug so he is through! Keep up the work buddy

  25. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Virginia Beach
    well i'm gana keep the thornbirds for trail riding only and pick up a set of 30 inch street tires to use for the regular driving back and forward to school plus the highway trips. i'll keep my eyes peeled for some nice super swampers for trail riding and maybe just use the thornbirds for street untill they run slick.

    IDK i'm just broke right now.

    and as for the quick disconnects i dont think my kit came with gen 2 disco's. i'm gana have to double check my bill and call RE. either way i will disconnect the sway bar for off road usage

    thanks for the thought
