Air compressor questions

BigBody79

Well-Known Member
Joined
Mar 30, 2005
Location
Lumberton

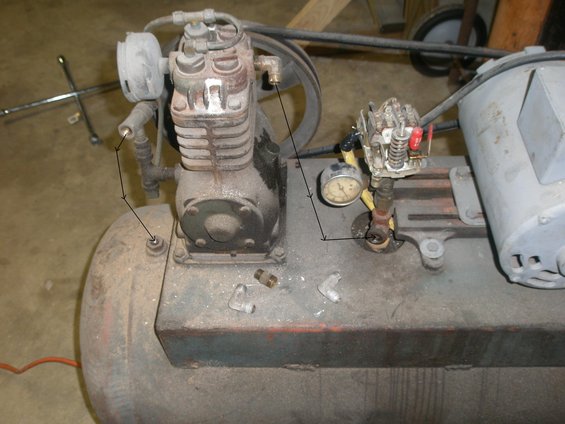

OK as you can see I am missing. the air lines that go where the black lines are drawn. However, I'm confused on how this thing is plumbed. It originally had a gas motor that I replaced with an electric one. The two small tubes come together on the top and then wrap around to the bottom where the safety valve is then to the tank. Then the other comes off and goes straight to the tank. What do you think?

the 2 lines that go together on the top should go to some sort of unloader valve that was more than likely hooked to an idle switch on the gas motor. can you get a better pic of that whole left side, maybe from the end. if you run an unloader valve, you will need some sort of in-tank check valve

next question, was the pulley that was on the gas motor the same one thats on the electric motor?
