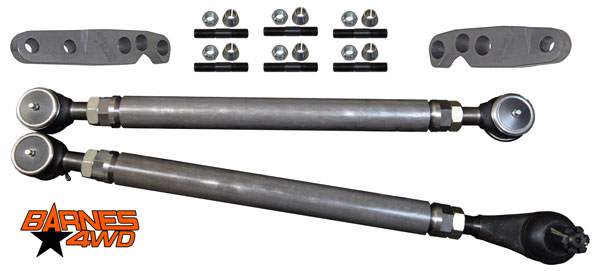

Dana 44 High Steer Cross-Over Steering Kit

Barnes 4wd is proud to offer the best Dana 44 high steer cross-over steering kit on the market, complete with high quality 1 ton tie rod ends. This kit is a huge upgrade over your stock steering, bigger tie rod ends, stronger 1.5"O.D. x 1/4" wall D.O.M. and if you ever have a mishap on the trail, replacement tie rod ends are easily obtained at the nearest auto parts store. All of the inserts in this kit have a machined hex, so all of your steering adjustments can be made with an open end wrench.

Here are a few of the options offered with the kit.

Standard or high angle tie rod end for the pitman arm: The standard tie rod end will be the same end that is used on the tie rod (part# ES2234R) this tie rod end will not have as much misalignment as the high angle tie rod end (part# ES2026R). Since the tie rod end at the piman arm generally sees more misalignment than the rest of the steering system the high angle joint is usually the best here. The taper on the high angle tie rod end is also larger but the same angle (7° or 1.5" per ft) so you may have to ream your pitman arm deeper to accommodate this tie rod end, we offer the reamer here.
With or without tubing: Some people like to source there tubing locally and some people get it with the kit. Or prices are very competitive with most local welding shops, however the option is totally up to you.

Here are the parts that are included with each kit:

2 1.5"O.D. x 1/4" Wall D.O.M. 54" Long (If You Choose This Option)
2 Right Hand Thread 7/8"-18 Hex Tube Inserts
2 Left Hand Thread 7/8"-18 Hex Tube Inserts
2 Right Hand Thread 7/8"-18 Jam Nuts
2 Left Hand Thread 7/8"-18 Jam Nuts
4 Tie Rod Ends, Dependent on the options you choose
1 Set of Dana 44 High Steer Arms
6 High Steer Arm Mounting Studs With Nuts And Cone Washers (If you choose this option)

Click Here to View Our Dana 44 High Steer Cross-Over Steering Kit

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steerc1b047a9408192c556844585c3a0d874.jpg

Last edited:

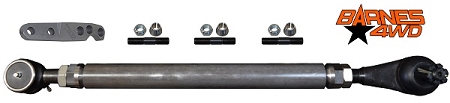

Dana 44 Cross Over Steering Upgrade

This kit comes with everything that you need to convert your kingpin Dana 44 to crossover steering.

Kit Contents:
1 Passenger Dana 44 High Steer Arm
1 Standard GM 1 Ton Left Hand Tie Rod End
1 High Angle GM 1 Ton Right Hand Tie Rod End
1 Left Hand Tube Insert
1 Right Hand Tube Insert
3 High Steer Studs (If you choose the option)
1 Piece Of 1 1/2" X 1/4" Wall D.O.M. Tubing 54" Long (If you choose this option)

Click Here To View Our Dana 44 Cross Over Steering Upgrade

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steerfb7e8539a43e7af7d7b35c8679170976.jpg

Last edited:

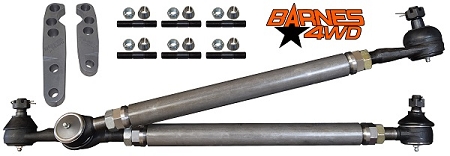

Dana 44 Y-link Steering Kit With High Steer Arms

Sometimes its just not possible to fit crossover steering on your rig this is where our Y-link steering kit can save the day. If you are having to work around leaf springs or other suspension components, space for steering can be hard to find. This kit uses high quality, heavy duty GM 1 ton tie rod ends and 1.5" x 1/4" wall D.O.M., making your steering kit a worry free part of your build. All of the tube inserts have a hex machined on them to make steering adjustments a breeze, no more using a pipe wrench on the tubing you only need an open end wrench or an adjustable wrench.

Kit Contents:
1 Dana 44 High Steer Arm Kit
1 Standard GM 1 Ton Left Hand Tie Rod End
1 Standard GM 1 Ton Right Hand Tie Rod End
1 High Angle GM 1 Ton Right Hand Tie Rod End
1 Y-Link Tie Rod End
2 Left Hand Tube Insert
2 Right Hand Tube Insert
8 High Steer Studs And Nuts (If you choose the option)
2 Pieces Of 1 1/2" X 1/4" Wall D.O.M. Tubing 54" Long (If you choose this option)

Click Here To View Our Dana 44 Y-link Steering Kit With High Steer Arms

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steering_Dana_44_Y_Link_Kit.jpg

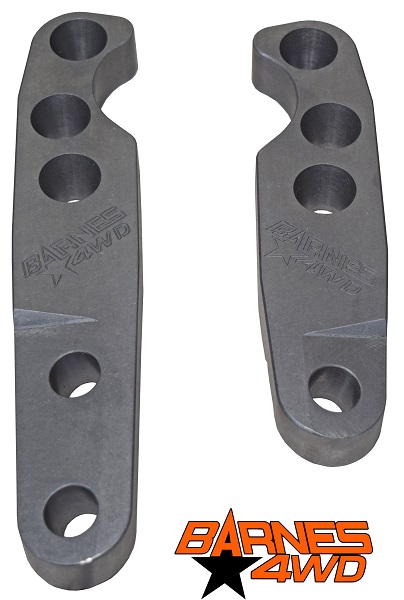

Dana 44 High Steer Arm Kit

Your search for the highest quality Dana 44 high steer arms at the lowest price ends here, we offer the most complete kit available. Our Dana 44 high steer arms are machined from a solid piece of steel right here in the good ole U.S.A. The arms have the proper angle machined into them to insure that your tie rod ends will not bind when your suspension cycles. The passenger arm has two holes one for your drag link and another for your tie rod, the driver arm has a single hole for your tie rod. This kit includes both arms and all the hardware that you will need to mount your arms (if you select the hardware option). Your arms will arrive raw and need to be painted or powder coated.

Kit Contents:
1 Passenger Dana 44 High Steer Arm
1 Driver Dana 44 High Steer Arm

Hardware Kit Includes:
6 Mounting Studs
6 Nuts
6 Cone Washers

Click Here To View Our Dana 44 High Steer Arm Kit

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steering_Dana_44_High_Steer_Arms_Top.jpg

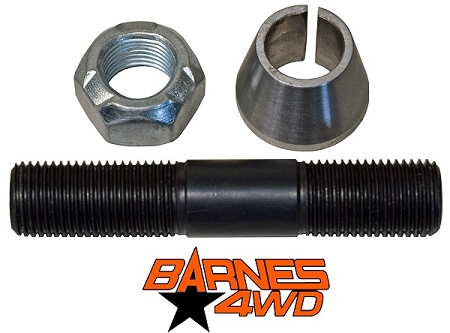

Dana 44 High Steer Stud Kit

This is a high quality single stud, nut, and cone washer for our Dana 44 high steer arms. You will need six of these to have a complete hardware kit for both arms.

Click Here To View Dana 44 High Steer Stud Kit

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steering_Dana_44_High_Steer_Stud.jpg
