Drum Brake setup

[mudonthetires10]

Anyone by chance know of a good drum brake setup steps online?

Trying to bolt a 9" brakes and parking brake back up from scratch. Since nothing is bolted up, we don't have anything good to look at. I've found some decent stuff from google searches, but not as good as I'd like. thanks



[kaiser715]

Haha, you're only 'sposed to do one side at a time.

I got a link to a CUCV manual on-line if I can find it, they generally have good parts diagrams, let me see if I can find it.



[kaiser715]

I am on dialup so not going to bother checking the .pdf, but it may be these:

http://www.pirate4x4.com/tech/billavista/PDFs/

scroll down to us military manuals



[mudonthetires10]

I want sure which military manual to click on, I think I just clicked on the first one



[kaiser715]

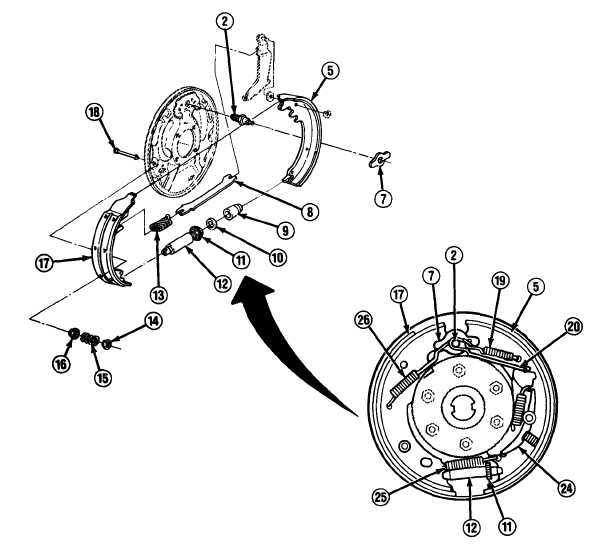

here's one from the -20 manual

http://www.tpub.com/content/trucks1.25ton/TM-9-2320-289-20/css/TM-9-2320-289-20_406.htm



[upnover]

if you have the parts, a simple way would be to borrow a old ford F-150, and take the wheel and drum off. Oh, and have some brake parts cleaner on hand so you can see what you are looking at.



[mudonthetires10]

yeah I wrote down that page number from the manual.
and If I had a donor truck to take a look at i sure would.



[Futbalfantic]

Haha yeah thats why I did on side at a time on my 9"



[AQHACowboy]

Mud I can take a picture of my 9" rear so you can see how it all bolts up.



[mudonthetires10]

Yeah man if you don't mind that would be cool.
Thanks bud
