Gear Pattern

[Kamel]

Calling @Jody Treadway please.

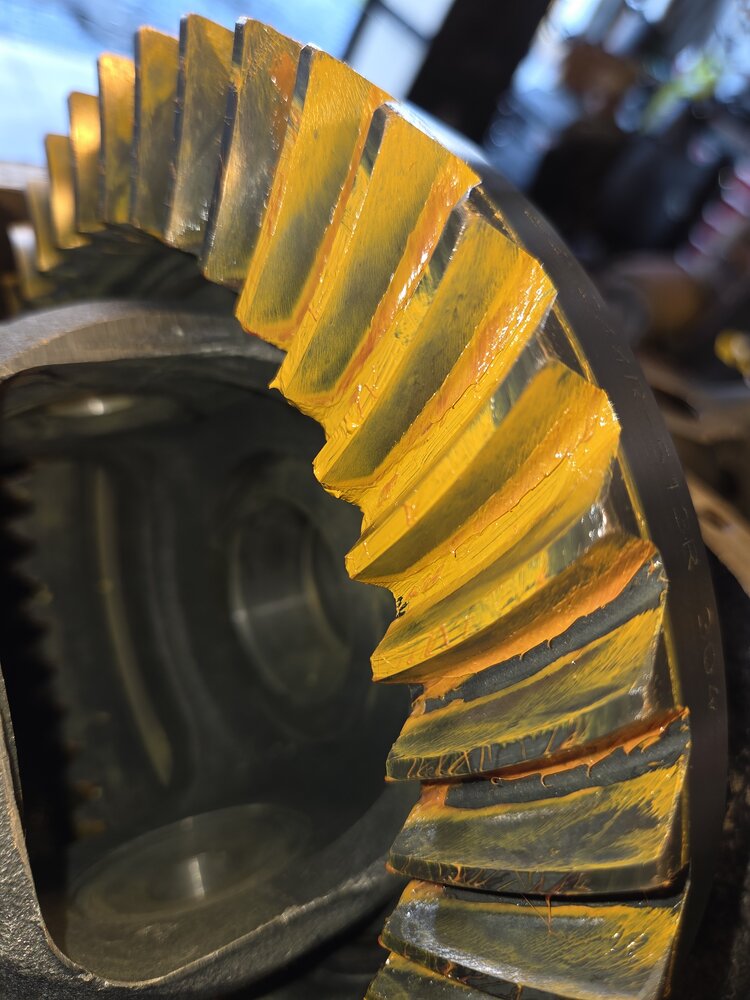

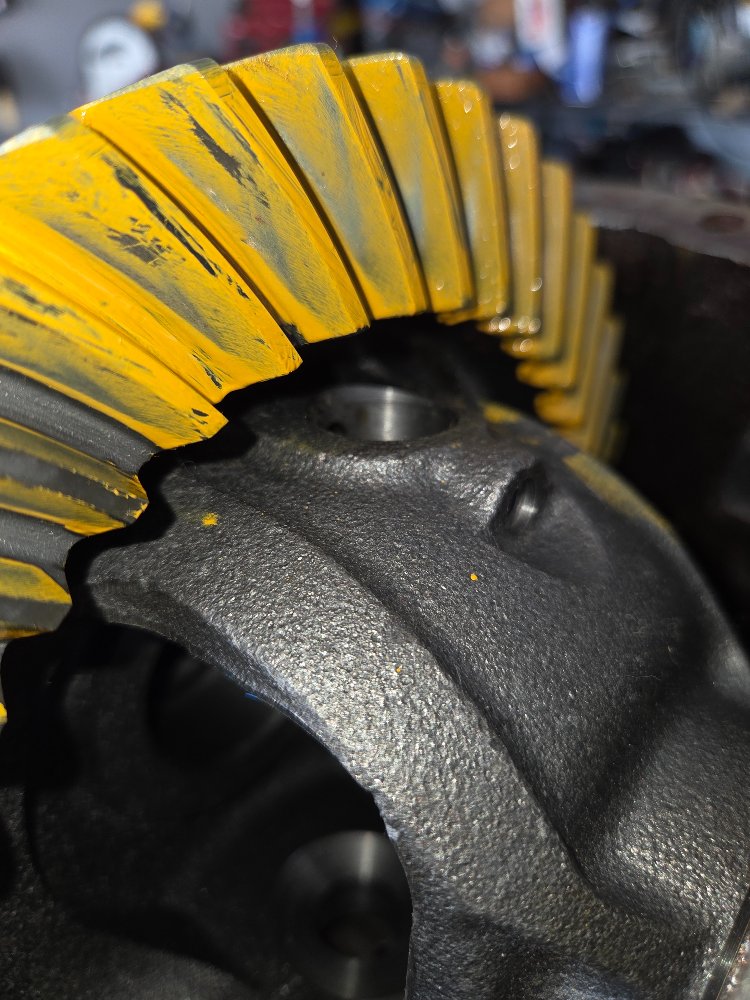

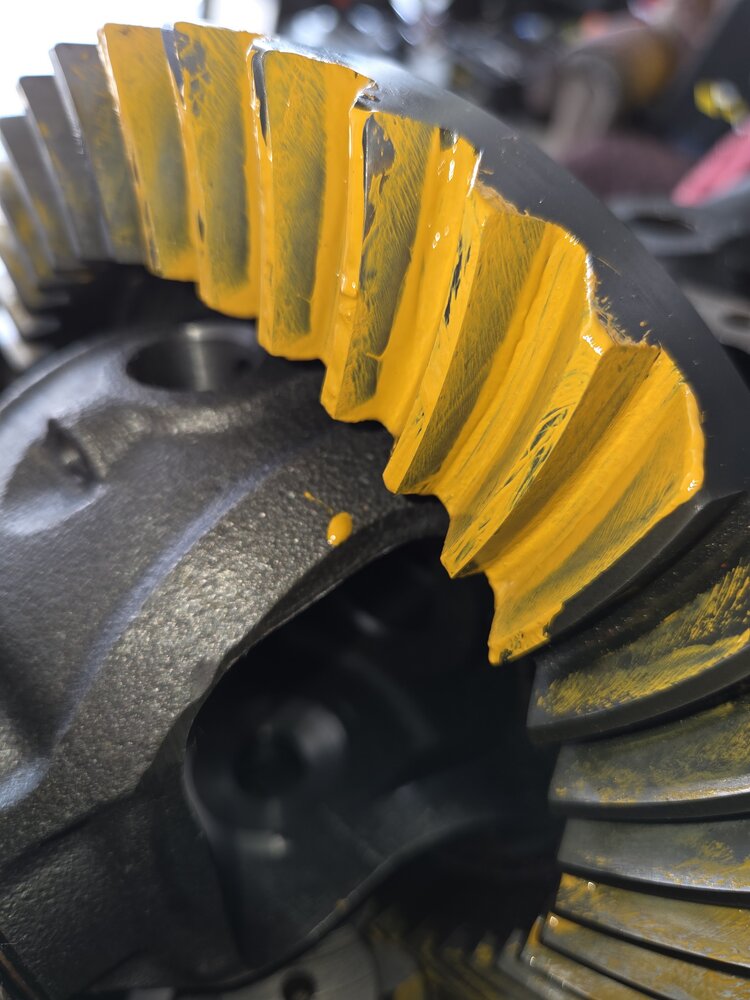

How's this pattern look? I'm conflicted. HP44 .007" backlash.



[Kamel]



[Jody Treadway]

Deep. You see the distinct flat line at the base of the contact patch?
Remove 0.005" from the pinion shim stack and re-run the pattern. Apply pressure to the ring with a prybar while turning the pinion. It'll yield an easier to read pattern



[Kamel]

Thank you sir!



[Kamel]



[Jody Treadway]

You're getting closer. Clean it all off really well, and spin the pinion, while loading the ring.
It's kinda hard to read



[Kamel]

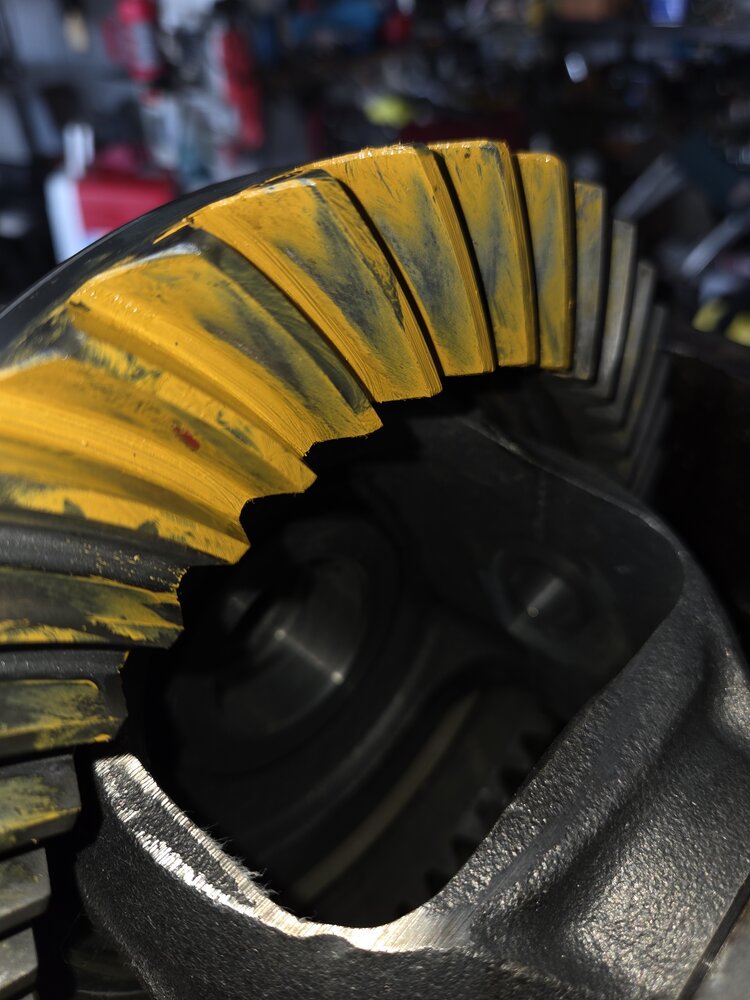

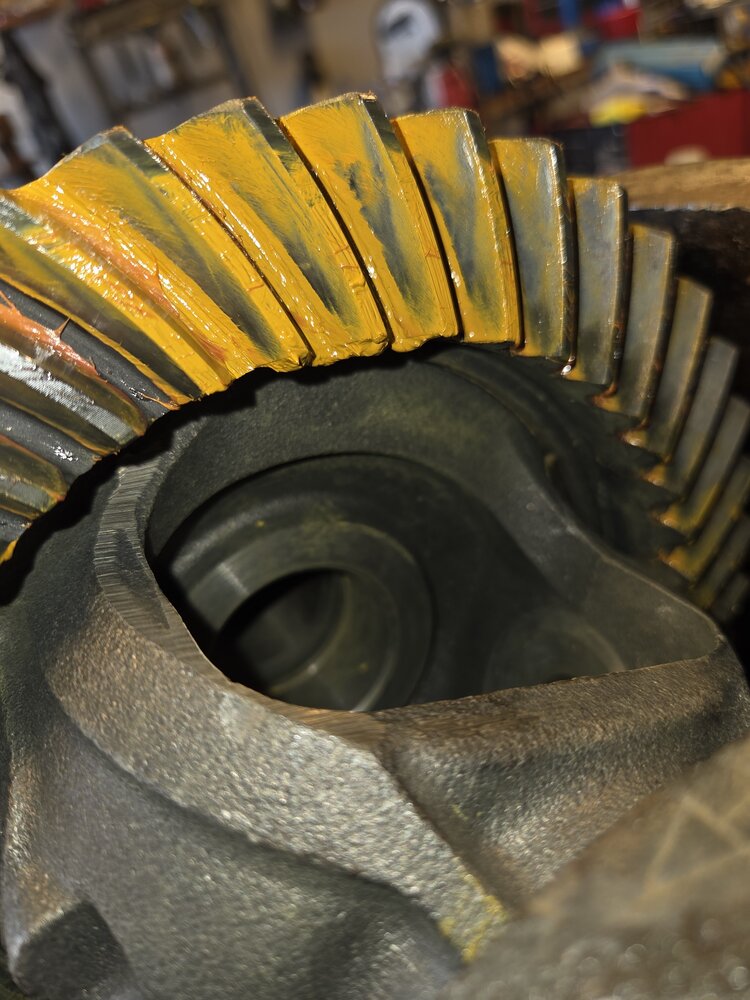

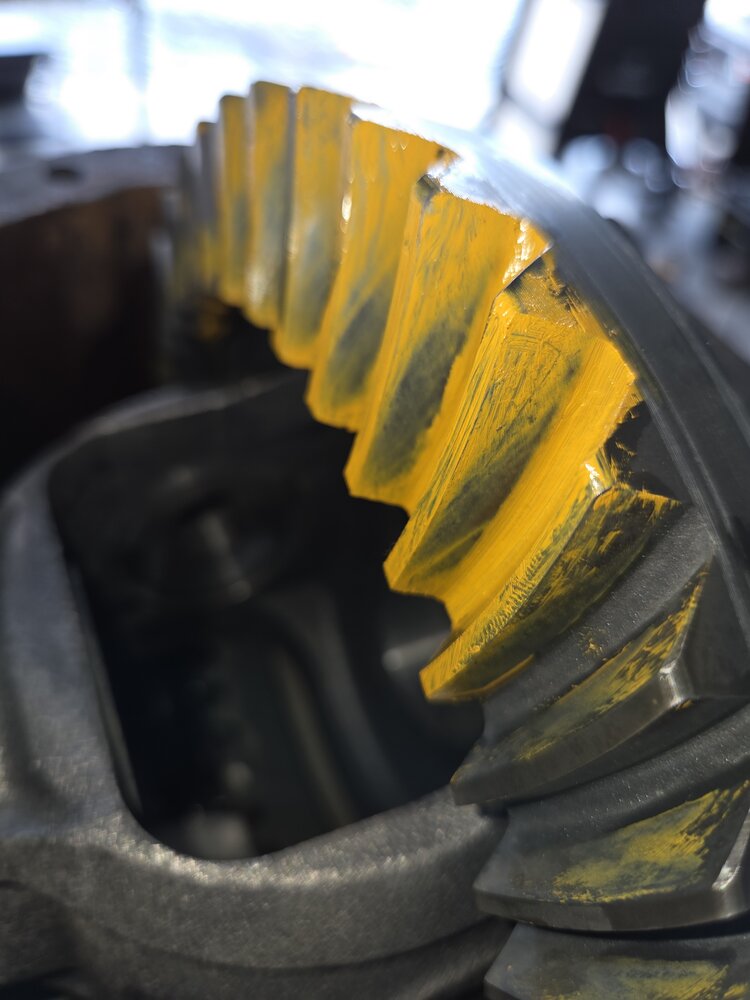

This is the best I can get it to do. Took a couple more thou out pinion depth. Keeping pressure on ring gear while rotating pinion. This was a used gear set from @jeepinmatt .Can't remember if they were ever actually ran or just installed. Pinion preload 15. 8 backlash. This is not my first set of gears but the pattern looks odd.



[Kamel]



[Jody Treadway]

Given the fact it is a used gear and a contact patch is very broad on both Coast and drive, I would let it ride. Nice work buddy



[Kamel]

Given the fact it is a used gear and a contact patch is very broad on both Coast and drive, I would let it ride. Nice work buddy

Thanks!
