Looking for someone to hook up some fog lights

Cherokeekid88

Cherokeekid88

Well-Known Member
Joined
Jun 30, 2007
Location
High Point, NC
So My brother and I mounted some fog lights on my 2017 Jeep Cherokee, but have yet to get them wired up. I have called around to a couple of places and either they don't want to do it or they never call me back. I am wanting to basically just hook them up to come on when I turn my headlights on. Don't want an extra switch or anything. Anyone interested or have any idea on who I can call?

Did they come with a wiring harness with a relay? If so just tap into your headlight switch to the trigger wire of the relay.

LBarr2002 said:
Did they come with a wiring harness with a relay? If so just tap into your headlight switch to the trigger wire of the relay.
Click to expand...
Just wires coming off the fog lights themselves.
NickMaul said:
Or tap into a dedicated fog light wire if you have fog lights already.
Click to expand...
The jeep didn't come with fog lights, so, to my knowledge, there are no fog light wires currently.

Cherokeekid88 said:
Just wires coming off the fog lights themselves.

The jeep didn't come with fog lights, so, to my knowledge, there are no fog light wires currently.
Click to expand...
Then to do it right, you need one of these:
irhapsody 5 Pack 40/30 AMP 12V DC Waterproof Relay and Harness - Heavy Duty 12 AWG Tinned Copper Wires, 5-PIN SPDT Automotive Relay https://a.co/d/geqkwth

And depending on if your headlights are positive or ground triggered you wire it like one of these:

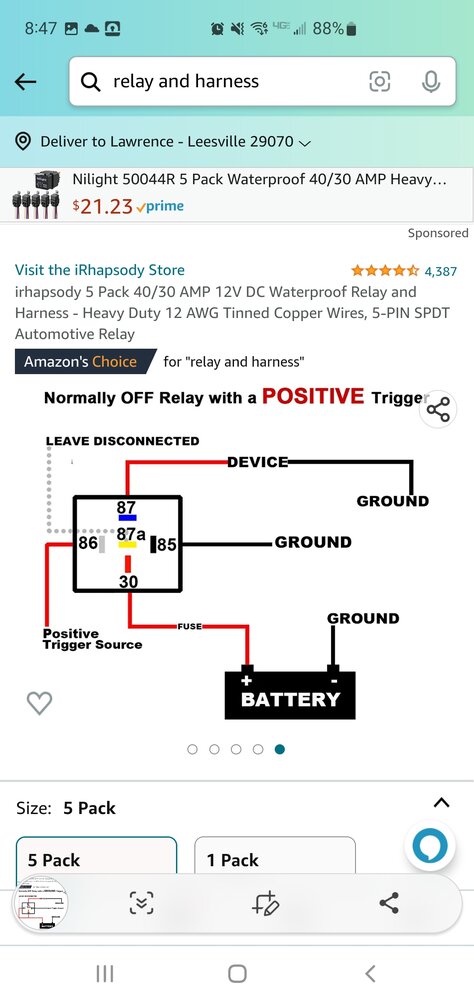

Screenshot_20230118-084709_Amazon Shopping.jpg


Screenshot_20230118-084704_Amazon Shopping.jpg

LBarr2002 said:
Then to do it right, you need one of these:
irhapsody 5 Pack 40/30 AMP 12V DC Waterproof Relay and Harness - Heavy Duty 12 AWG Tinned Copper Wires, 5-PIN SPDT Automotive Relay https://a.co/d/geqkwth

And depending on if your headlights are positive or ground triggered you wire it like one of these:

View attachment 389858

View attachment 389860
Click to expand...
Not to sound like a total newb, but electrical just isn't my thang..,

How would I know if the headlights are ground or positive triggered?

Cherokeekid88 said:
Not to sound like a total newb, but electrical just isn't my thang..,

How would I know if the headlights are ground or positive triggered?
Click to expand...
Find the wires coming out of the headlight switch and test with a meter for 12V or continuity to ground. Or pull a wiring diagram for the vehicle.
