Sometimes you just gotta do what ya gotta do

jeepinmatt

#1 WEBWHEELER
Moderator
Joined
Mar 24, 2005
Location
Stanley, NC
I got another set of H2 takeoffs (35" BFG on 17" 8 lug wheels) for cheap, and the tires still had good tread on em. With these wheels, the centers have to be machined out to fit a 1ton hub. Last time, I had taken them to my dad's friends machine shop chucked the entire wheel/tire in a vertical lathe, and turned em. Worked great, didn't take long, he let me do it, and didn't charge me a penny. Called him last week and he said they were just too busy, I said no problem, and though, crap, now what am I going to do.
Since the last time I did this, dad and I had acquired a lathe with a 16" swing, and a small bridgeport. The swing on the lathe was too small even for just the wheel, but the bridgeport would work with just the wheel. However, I would have to make a tool. Well, the last thing I wanted to do was dismount the tire, and then have to remount it.

I got to work on the tool. I had a dana 35 axleshaft with the spline end separated. I turned it down to 4.920" (worked great last time for the bore) and then turned the leading diameter to 4.600" (diameter of the existing bore on the wheels) about 1/4" deep. Flipped the shaft around, set up the steady-rest and turned the end down to 1/2" so it would fit in the drill chuck. Keep in mind this was a hardened part, so it was slow going.

Roughed out some teeth with the grinder, set it in the wheel, pulled the trigger, and off she went. I had to sharpen the teeth a few times, but generally worked great. Busted the handle off/cracked the case on my harbor freight drill, but that's ok because I needed a better one for the shop anyway.

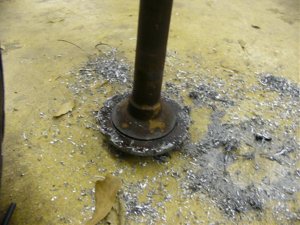

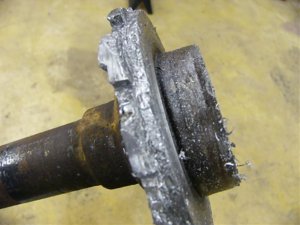

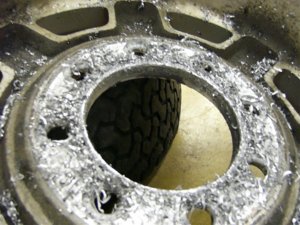

Heres a few pics of the wheel after boring and the finished product on the tool. Ive got more of the before and after kind stuff, but no need to eat more bandwidth. If you want em, let me know, and Ill email em to ya.

Enjoy:


Attachments

  • P1100211.jpg
    87.5 KB · Views: 592
  • P1100212.jpg
    106.2 KB · Views: 576
  • P1100213.jpg
    58.2 KB · Views: 639

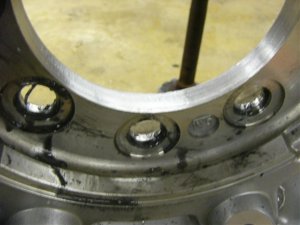

Finished bore.


Attachments

  • P1100214.jpg
    52.1 KB · Views: 741
That was a really good idea. Looks awesome.

- Mac

Cool deal man. Good thinking.

Tyler

Thanks guys. I doubt I will market the cutter. You really shouldn't subject your drill to what I did.

You can probably return the drill to Harbor Freight. They will take back anything, even w/o a receipt. I fried a friend's welder (as in- ON FIRE), took it back to HF and they gave me another, no questions asked other than "what happened to it". I pointed out the black soot on the side and told them the 'thermal overload protection' must not have worked.

Good idea for a cutter, and that would definetly be hard on any drill, I am suprised you got through 4 wheels with a HF drill.

I got through 1 and a little bit of another with the HF drill. Busted the aluminum gear housing that the handle bolted to when the cutter grab and slammed the drill into my leg. Switched sides and stripped the threads on the handle on the opposite side.

Then went to Northern and bought a Dewalt (sure wish they had a big Milwaukee) and finished the remaining 3.
