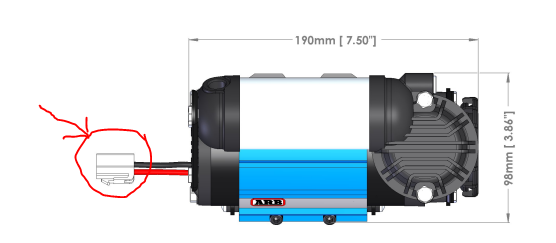

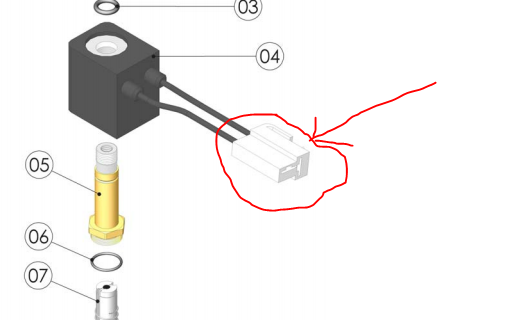

Does anyone know what type of connector ARB uses for their compressors and solenoids wiring? Looking at building a harness form scratch so I need the connector and terminals.


Attachments

  • solinode.PNG
    59.3 KB · Views: 217
  • compressor.PNG
    40.8 KB · Views: 171
Black Bear said:
Why not go with weather pack connectors instead?
Click to expand...
On most things that's normally what I do. But I want to be able to swap it over quickly if it breaks without having to rewire the connectors. My backup plan is to just cut up the harness up and create some adaptors.

Last edited:
Sumitomo 250 Series, unsealed. The gender in the pictures you posted is the female connector gender.

2 Way Sumitomo Automotive Connectors 250 Type Female Non Sealed 6070-2611

High quality 2 Way Sumitomo Automotive Connectors 250 Type Female Non Sealed 6070-2611 from China, China's leading sumitomo 2 pin connector product, with strict quality control sumitomo terminal connector factories, producing high quality sumitomo terminal connector products.
www.fuelinjector-connectors.com

orange150 said:
Isn't that a packard style connector?

www.ebay.com

5x Delphi Metri-pack 56 Series 1 Pin Connector W/14-16 AWG Male Female Terminal for sale online | eBay

Find many great new & used options and get the best deals for 5x Delphi Metri-pack 56 Series 1 Pin Connector W/14-16 AWG Male Female Terminal at the best online prices at eBay! Free shipping for many products!
www.ebay.com
Click to expand...

No, Delphi/Packard 56 series is different. The latch in the picture is the giveaway that it's a Sumitomo 250 connector (they may be other compatible brands, because that's an oooold connector family).

If it is an actual Sumitomo brand, not a generic/compatible copy from China, there will be a small raised Sumitomo logo on it that looks like a #. It will be hard to see if it's natural nylon colored instead of black or brown. If it was from a car/truck, it would have the logo, but because it's from ARB then it's probably generic/compatible and not Sumitomo branded.

I wouldn't be surprised if there was an Amp/Tyco version of that as well.

www.corsa-technic.com

250 Armlock Automotive Motorsport Connectors - Corsa Technic

Motorsport electrical products: OEM and hard to find terminals and connector kits, wiring, harness supplies, tooling, and sensors for modern and vintage motorcycle, automotive applications. Easy online shopping, low cost shipping options, to expedited around the world. We accept Paypal and...
www.corsa-technic.com www.corsa-technic.com
www.corsa-technic.com

250 Armlock Automotive Motorsport Connectors - Corsa Technic

Motorsport electrical products: OEM and hard to find terminals and connector kits, wiring, harness supplies, tooling, and sensors for modern and vintage motorcycle, automotive applications. Easy online shopping, low cost shipping options, to expedited around the world. We accept Paypal and...
www.corsa-technic.com www.corsa-technic.com

It's hard to tell what you need without an actual picture of the connector, instead of a drawing from the manual.
