can't find yoke

GotWood

GotWood

Sayer of Fact
Joined
Jan 12, 2007
Location
Maiden, NC
SPI-3-4-6211

This is the Spicer number. I can find it with a -1 (dash 1) on the end of the number but that one is threaded for straps instead of U-bolts.

If you wanna call Oliver's tomorrow we can check about getting one, small (like small) chance we'llhave one on the shelf. Just know Spicer has a bunch of stuff on back order currently.

Busted Knuckle lists this one, looks like the same measurements but from Northern Drivetrain so has NDT instead of SPI.

bustedknuckleoffroad.com

1350 Forged Yoke, 32 spline (205, 203, Atlas, Dana 300)

This Forged 1350 series yoke is designed to fit the 32 spline front and rear output shafts of New Process 205, 203, and Atlas transfer cases. The yoke has the required chamfer at the base of the hub to clear the bearing cage on Atlas transfer cases. We also designed this yoke with u-bolts rather...
bustedknuckleoffroad.com bustedknuckleoffroad.com

Interestingly enough, Northern shows the NDT number as available but out of stock and lists the Spicer part as "obsolete" and superseded by the -1 part.

Northern Drivetrain, LLC: Northern Drivetrain 3-4-6211

Northern Drivetrain 3-4-6211, Our Price: $129.90, In Stock. End Yoke - 1350 Series NP203, NP205, NP208, Atlas 32 Spline, FORGED U Bolt Style, Ø1.401x32 spline, Ø2.125 hub diameter, Includes Northern Drivetrain 3-94-18X U-Bolt Kit, Replaces Spicer 3-4-6211-1
www.northerndrivetrain.com

Northern Drivetrain, LLC: Spicer 3-4-6211

Spicer 3-4-6211, OBSOLETE per manufacturer, Normally drop ships the same, or next business day. END YOKE
www.northerndrivetrain.com

Duane

CLRracer said:
Busted Knuckle lists this one, looks like the same measurements but from Northern Drivetrain so has NDT instead of SPI.

bustedknuckleoffroad.com

1350 Forged Yoke, 32 spline (205, 203, Atlas, Dana 300)

This Forged 1350 series yoke is designed to fit the 32 spline front and rear output shafts of New Process 205, 203, and Atlas transfer cases. The yoke has the required chamfer at the base of the hub to clear the bearing cage on Atlas transfer cases. We also designed this yoke with u-bolts rather...
bustedknuckleoffroad.com bustedknuckleoffroad.com

Interestingly enough, Northern shows the NDT number as available but out of stock and lists the Spicer part as "obsolete" and superseded by the -1 part.

Northern Drivetrain, LLC: Northern Drivetrain 3-4-6211

Northern Drivetrain 3-4-6211, Our Price: $129.90, In Stock. End Yoke - 1350 Series NP203, NP205, NP208, Atlas 32 Spline, FORGED U Bolt Style, Ø1.401x32 spline, Ø2.125 hub diameter, Includes Northern Drivetrain 3-94-18X U-Bolt Kit, Replaces Spicer 3-4-6211-1
www.northerndrivetrain.com

Northern Drivetrain, LLC: Spicer 3-4-6211

Spicer 3-4-6211, OBSOLETE per manufacturer, Normally drop ships the same, or next business day. END YOKE
www.northerndrivetrain.com

Duane
Click to expand...
Ordered from BK about a month ago. They sent me the -1 PN drop shipped from Northern. I sent it back and they were going to ship the correct one as soon as it came off back order.

My next thought is to order the -1 version and see if someone can mill it down. It can't be drilled because the center point
is different for the straps vs U-bolts.

Yeah I wasn't optimistic when I saw out of stock on Northerns website, but it was the only one I found that didn't automatically go to the -1 PN.

Duane

12,800 ResultsAny time
Ads
About our ads
See spi-3-4-6211
Dana Spicer Drivetrain Products 3-4-6211-1: Spicer Drivetrain Products Slip Yokes
Dana Spicer Drivetrain Products 3-4-6211-1: Spicer Drivetrain Products Slip Yokes

$86.99

Summit Racing
Spicer 3-4-6211-1 1350 End Yoke 1.406" X 32 Spline NP203 NP205
Spicer 3-4-6211-1 1350 End Yoke 1.406" X 32 Spline NP203 NP205

$95.62

Top Rated MerchantDrivetrain America
Dana Spicer 3-4-6211-1 Transfer Case Yoke Fits NP203 & NP205 Transfer Case
Dana Spicer 3-4-6211-1 Transfer Case Yoke Fits NP203 & NP205 Transfer Case

$89.00

JEGS High Performance
Dana Spicer NP203/205 1350 Series Transfer Case Yoke - 3-4-6211-1
Dana Spicer NP203/205 1350 Series Transfer Case Yoke - 3-4-6211-1

$101.99

4Wheel Drive Hardware
Free shipping
Ford 9 Inch Posi Differential 3rd Member, 31 Spl, 3.50 Gear Ratio
Ford 9 Inch Posi Differential 3rd Member, 31 Spl, 3.50 Gear Ratio

$866.29

Speedway Motors
Spicer 3-4-6211-1 Transfer Case Slip Yoke
Spicer 3-4-6211-1 Transfer Case Slip Yoke

$118.47

eBay
Free shipping
Drive Shaft End Yoke Dana Spicer 3-4-6211-1
Drive Shaft End Yoke Dana Spicer 3-4-6211-1

$85.07

eBay
Free shipping
Spicer 3-4-6211 (U Bolt Style) End Yoke Np 203/205 1350 Series
Spicer 3-4-6211 (U Bolt Style) End Yoke Np 203/205 1350 Series

$95.75

eBay
1
Dana Spicer Drivetrain Products 3-4-613-1: Dana Spicer Drivetrain Products Yokes
Dana Spicer Drivetrain Products 3-4-613-1: Dana Spicer Drivetrain Products Yokes

$87.99

Summit Racing
Northern Drivetrain, LLC: Spicer 3-4-6211-1

Northern Drivetrain, LLC: Spicer 3-4-6211-1

Spicer 3-4-6211-1, Our Price: $148.93, In Stock. End Yoke - Splined Bore, 1350 series, Strap Style, Ø1.401x32 spline, Ø2.125 hub diameter, Replaces SPI-3-4-6211
www.northerndrivetrain.com
Spicer 3-4-6211-1, Our Price: $111.19, In Stock. End Yoke - Splined Bore, 1350 series, Strap Style, Ø1.401x32 spline, Ø2.125 hub diameter, Replaces SPI-3-4-6211

Northern Drivetrain, LLC: Spicer 3-4-6211

Northern Drivetrain, LLC: Spicer 3-4-6211

Spicer 3-4-6211, OBSOLETE per manufacturer, Normally drop ships the same, or next business day. END YOKE
www.northerndrivetrain.com
The following parts may be used as alternates for this part: Dana/Spicer 3-4-6211-1-- In Stock, Our Price: $ 111.19 Northern Drivetrain 3-4-6211

End Yokes - Driveshaft | Spicer Parts
spicerparts.com

End Yokes - Driveshaft | Spicer Parts

Engineered for precision and durability, Spicer end yokes help to minimize noise and vibration to keep your driveline running smoothly. In addition, Spicer driveshaft end yokes are: Forged from hardened steel Heat treated to endure tough conditions Engineered a precise fit Minimize noise...
spicerparts.com spicerparts.com
Engineered for precision and durability, Spicer end yokes help to minimize noise and vibration to keep your driveline running smoothly. In addition, Spicer driveshaft end yokes are: Forged from hardened steel Heat treated to endure tough conditions Engineered a precise fit Minimize noise, vibration, and harshness and keep your driveline running smoothly.

Joint Chiefs of Staff > Library > CJCS Instructions
Joint Training Policy for the Armed Forces of the United States. 1/13/2020. CJCSI 3500.02B. Universal Joint Task List (UJTL) Program. 1/15/2014. CJCSI 3505.01D. Target Coordinate Mensuration Certification and Program Accreditation.

1350 Forged Yoke, 32 spline (205, 203, Atlas, Dana 300 ...
bustedknuckleoffroad.com

1350 Forged Yoke, 32 spline (205, 203, Atlas, Dana 300)

This Forged 1350 series yoke is designed to fit the 32 spline front and rear output shafts of New Process 205, 203, and Atlas transfer cases. The yoke has the required chamfer at the base of the hub to clear the bearing cage on Atlas transfer cases. We also designed this yoke with u-bolts rather...
bustedknuckleoffroad.com bustedknuckleoffroad.com
End Yoke - 1350 Series NP203, NP205, NP208, Atlas 32 Spline. FORGED U Bolt Style, Ø1.401x32 spline, Ø2.125 hub diameter. This Forged 1350 series yoke is designed to fit the 32 spline front and rear output shafts of New Process 205, 203, and Atlas transfer cases. The yoke has the required chamfer at the base of the hub to clear the bearing ...

Brand: Northern Drivetrain
Category: Driveshaft Parts
iGaging 26 Blade Ultra Precision Feeler Gauge - 36-6211 ...
ID: 319208. iGaging 26 Blade Ultra Precision Feeler Gauge - 36-6211. Measure gap widths easily with iGaging Ultra Precision Feeler Gauge. Features: 26 blades with 3-1/4" one-piece handle

Amazon.com: car interior protectant
303 (30382) Products Automotive Protectant - Interior And Exterior - Ultimate UV Protection - Helps Prevent Fading And Cracking - Repels Dust, Lint, And Staining - Non Greasy Finish, 16 fl. oz. 4.7 out of 5 …

SHSQ11 - Spike Harrow Tooth - Shoup Manufacturing

Spike Harrow Tooth, 3/4" Sq., 11" Overall Length SHSQ11 - Shoup

Spike harrow tooth, headed, 3/4" square, 11" length. Replaces Case-IH No 33407513; John Deere N188676; Remlinger L-A0060; Sunflower SN3895; Unverferth 9634P
www.shoupparts.com www.shoupparts.com
Shop our selection of SHSQ11 - Spike Harrow Tooth - Shoup Manufacturing. Shoup Manufacturing is a trusted source for original quality or OEM replacement parts for agricultural equipment, including tractors, planters, grain drills, combines, balers, cultivators, discs, sprayers and more.

1
2
3
4
5

Chris_Keziah said:
If you wanna call Oliver's tomorrow we can check about getting one, small (like small) chance we'llhave one on the shelf. Just know Spicer has a bunch of stuff on back order currently.
Click to expand...
According to ebay you have one: 1350 Yoke T-case 32 Spline NP 205 NP 203 Atlas II comes with Spicer U Bolts. | eBay

Here are a few others from ebay:

www.ebay.com

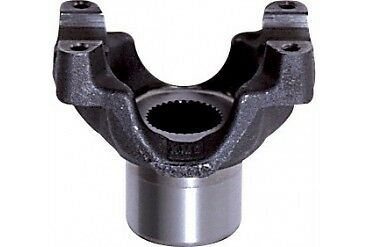

SPICER 3-4-6211 (U bolt style) end yoke NP 203/205 1350 series | eBay

Find many great new & used options and get the best deals for SPICER 3-4-6211 (U bolt style) end yoke NP 203/205 1350 series at the best online prices at eBay! Free shipping for many products!
www.ebay.com
www.ebay.com

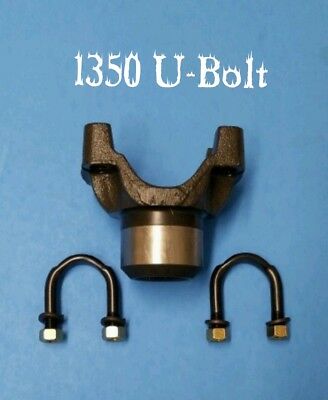

32 Spline 1350 Yoke NP 203 205 AtlasTransfer Case U Bolt Style | eBay

1350 Yoke. Pinion Yoke. U-Bolt design.
www.ebay.com

Tom Woods has them on the site, not sure if they are in stock: Transfer Case Yoke.

I spoke to Northern today (BN drop ships from them). They will have it to me next week!
