Looks great Tim. What a difference a week can make :driver:

Tim,
Since this is a tech forum, I've been meaning to ask about mounting the upper link heims in the vertical plane. Appears you're on a roll with it (2nd-3rd rig?), so I was curious as whether motion was limited?
Pros?
Cons?

:beer:

i guess motion would be limited, but have found that there is plenty of motion mounting that way. also it makes mounting easier and stronger.

firetoy said:
i guess motion would be limited, but have found that there is plenty of motion mounting that way. also it makes mounting easier and stronger.
Click to expand...

When I was linking my last YJ, I did a little testing with some Currie joints mounted in that fashion, and I could use all 16" of travel in my air shocks if the links were a minimum of 33" long (IIRC). The misalignment in a flex joint can max out mounted vertically instead of horizontally, but the links on that jeep definitely seem long enough to not use all the misalignment in the flex joint.

Also note that because he is mounting the upper links like this, instead of the lower links, they won't have to travel as far... or use up as much of their misalignment range. Because the uppers are inboard of the air shocks, they should see much less movement overall.

rear

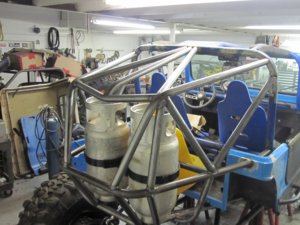

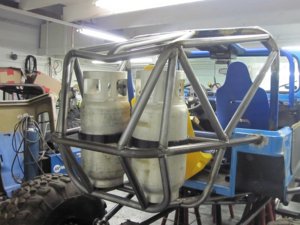

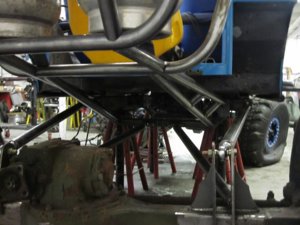

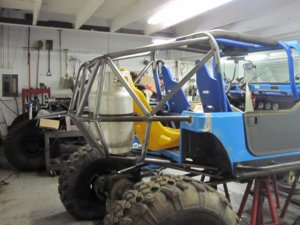

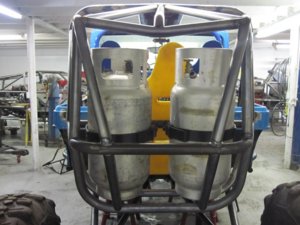

rear is basically done other than finish welding and mouting the seat and sway bar. also waiting on bump cans to show up.


Attachments

  • coley 001.JPG
    coley 001.JPG
    182.7 KB · Views: 897
  • coley 002.JPG
    coley 002.JPG
    188 KB · Views: 881
  • coley 003.JPG
    coley 003.JPG
    172.7 KB · Views: 871
  • coley 004.JPG
    coley 004.JPG
    174.8 KB · Views: 920
  • coley 005.JPG
    coley 005.JPG
    195.9 KB · Views: 933
  • coley 006.JPG
    coley 006.JPG
    175.9 KB · Views: 867
How do you get the propane cans in, looks awful tight to getting them in. I'm liking the build though.

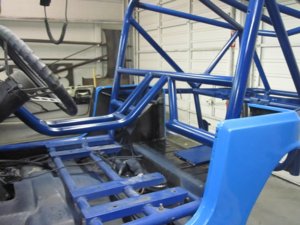

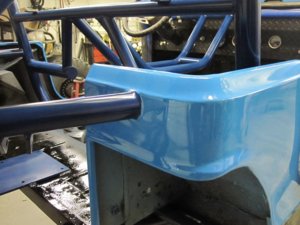

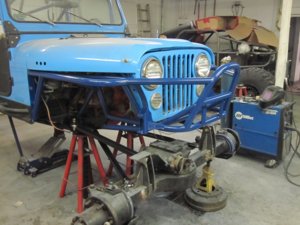

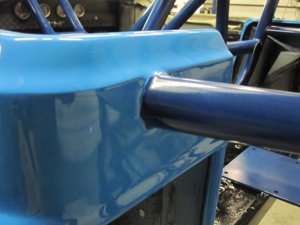

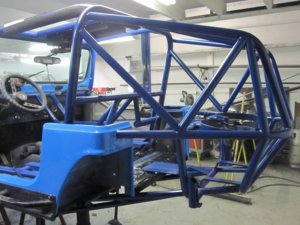

getting close to being finished with my part of this build. sprayed some paint, and reasseble things tonight.


Attachments

  • coley finish 006.JPG
    coley finish 006.JPG
    164.3 KB · Views: 656
  • coley finish 005.JPG
    coley finish 005.JPG
    190.3 KB · Views: 667
  • coley finish 004.JPG
    coley finish 004.JPG
    191.2 KB · Views: 629
  • coley finish 003.JPG
    coley finish 003.JPG
    204.9 KB · Views: 663
  • coley finish 002.JPG
    coley finish 002.JPG
    198.5 KB · Views: 707
  • coley finish 001.JPG
    coley finish 001.JPG
    194.1 KB · Views: 690

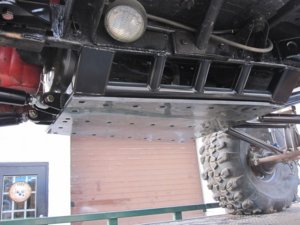

build looks killer! something to think about, if this rig is going to get beat on i would consider plating the frame at the engine mounts. If you remember at mtn city back in august when i killed my dshaft, when i backed off of that rock and caught the steering box i killed the frame at my engine mounts. It dimpled up on the inside.

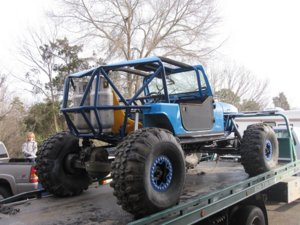

down the road.


Attachments

  • coaly done 001.JPG
    coaly done 001.JPG
    254.3 KB · Views: 553
  • coaly done 002.JPG
    coaly done 002.JPG
    244.4 KB · Views: 553
  • coaly done 003.JPG
    coaly done 003.JPG
    165.8 KB · Views: 615
  • coaly done 004.JPG
    coaly done 004.JPG
    170.8 KB · Views: 590
  • coaly done 005.JPG
    coaly done 005.JPG
    229.2 KB · Views: 552
  • coaly done 006.JPG
    coaly done 006.JPG
    188.7 KB · Views: 572
We work on her to day still a lot to do all donations would be great

Looks great guys. . .Cant Wait to see it back on the trails

what size heims are those tim? 7/8?

got a little more done this week looking good but still alot more to do
