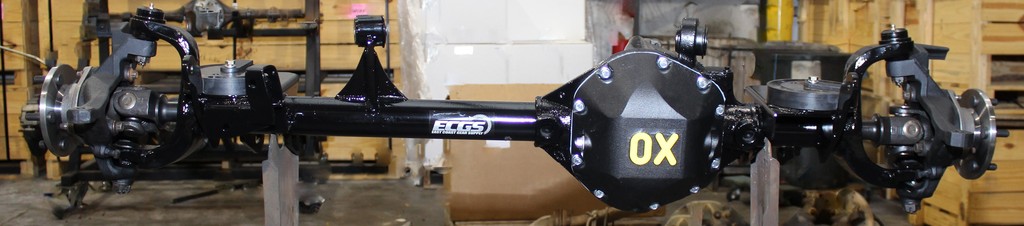

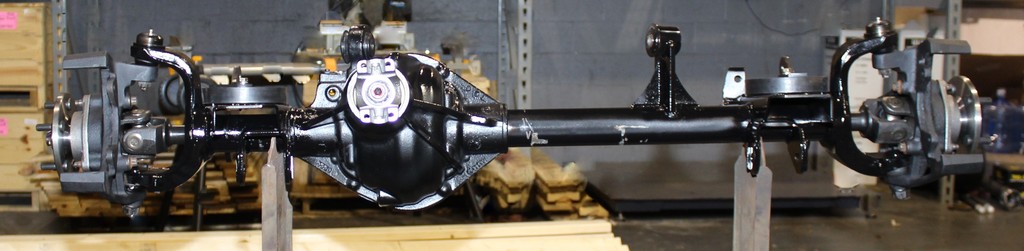

Dana 489 Bolt In Axle Assemblies

Cperry

Cperry

Well-Known Member
Joined
Apr 24, 2005
Location
Durham, NC


Dana 44 JK Rear Bolt In TJ/ZJ/WJ/XJ/YJ Axle Assembly

Semi-Float with Dual Bolt Pattern: 5x4.5 and 5x5.5

* Large Diameter 8.9" Ring Gear

* Brand New Dana 44 JK Casting Bracketed with Heavy Duty Brackets (100% USA Made)

* Heavy Duty 3.125" diameter, 3/8 wall thickness tubes.

* Semi-Float Set 10 Housing Ends (USA Made) (Roller Tapered Bearings) Welded on to Accept Stock TJ Disc or Drum Brakes

* 2 - 35 Spline Chromoly Shafts Double Drilled for: 5x4.5 and 5x5.5 for most applications and 5x5 and 5x5.5 for WJ applications

* Shafts are Fully Assembeled with Set 10 Bearings, Retainer Plates and Retaining Hardware

* 60.5 WMS Stock TJ/XJ/ZJ/YJ Width

* 63.5 WMS Stock WJ Width

OPTIONAL UPGRADES:

* Disc Brake Package
* Set 20 Wheel Bearing & Disc Brake Package
* Increased Axle Width 63.5 OR 65 WMS

For Pricing and Information Visit:
http://eastcoastgearsupply.com/c-282786-complete-axle-assemblies-dana-dana-44-axle.html

http://www.fourwheeler.com/how-to/t...t-gear-supply-bolt-in-dana-44-an-ox-out-back/

* Large Diameter 8.9" Ring Gear

* Brand New Dana 44 JK Casting Bracketed with Heavy Duty Brackets (100% USA Made)

* Heavy Duty 3.125" diameter, 3/8 wall thickness tubes.
