Dana 60 High Steer Cross-Over Steering Kit

Barnes 4wd is proud to offer the best Dana 60 high steer cross-over steering kit on the market, complete with high quality 1 ton tie rod ends. This kit is a huge upgrade over your stock steering, bigger tie rod ends, stronger 1.5"O.D. x 1/4" wall D.O.M. and if you ever have a mishap on the trail, replacement tie rod ends are easily obtained at the nearest auto parts store. All of the inserts in this kit have a machined hex, so all of your steering adjustments can be made with an open end wrench.

Here are a few of the options offered with the kit.

Standard or high angle tie rod end for the pitman arm: The standard tie rod end will be the same end that is used on the tie rod (part# ES2234R) this tie rod end will not have as much misalignment as the high angle tie rod end (part# ES2026R). Since the tie rod end at the piman arm generally sees more misalignment than the rest of the steering system the high angle joint is usually the best here. The taper on the high angle tie rod end is also larger but the same angle (7° or 1.5" per ft) so you may have to ream your pitman arm deeper to accommodate this tie rod end, we offer the reamer here.
With or without tubing: Some people like to source there tubing locally and some people get it with the kit. Or prices are very competitive with most local welding shops, however the option is totally up to you.
Grade 10.9 or A.R.P. mounting studs: Both studs types are great products and highly recommended. Choose which ever type you prefer.

Here are the parts that are included with each kit:

2 1.5"O.D. x 1/4" Wall D.O.M. 54" Long (If You Choose This Option)
2 Right Hand Thread 7/8"-18 Hex Tube Inserts
2 Left Hand Thread 7/8"-18 Hex Tube Inserts
2 Right Hand Thread 7/8"-18 Jam Nuts
2 Left Hand Thread 7/8"-18 Jam Nuts
4 Tie Rod Ends, Dependent on the options you choose
One Set of Dana 60 High Steer Arms (and all associated hardware except mounting studs)
8 High Steer Arm Mounting Studs Grade 10.9 or A.R.P. studs (If You Choose One Of These Options)

Click Here to View Our Dana 60 High Steer Cross-Over Steering Kit

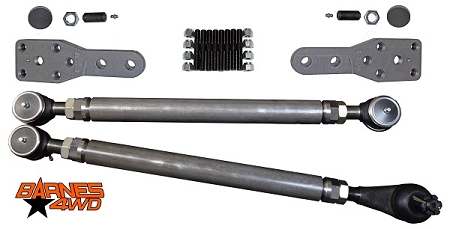

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steer1b3c22112d7f3dc0266648af601cb012.jpg

Last edited:
Dana 60 Cross Over Steering Upgrade

This kit comes with everything that you need to convert your kingpin Dana 60 to crossover steering.

Kit Contents:
1 Passenger Dana 60 High Steer Arm
1 Standard GM 1 Ton Left Hand Tie Rod End
1 High Angle GM 1 Ton Right Hand Tie Rod End
1 Left Hand Tube Insert
1 Right Hand Tube Insert
4 High Steer Studs (If you choose the option)
1 Piece Of 1 1/2" X 1/4" Wall D.O.M. Tubing 54" Long (If you choose this option)

Click Here to View Our Dana 60 Crossover Steering Upgrade

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steer14bc04fbf56d5ea651468b4e00424fd2.jpg

Last edited:
Dana 60 Y-link Steering Kit With High Steer Arms

Sometimes its just not possible to fit crossover steering on your rig this is where our Y-link steering kit can save the day. If you are having to work around leaf springs or other suspension components, space for steering can be hard to find. This kit uses high quality, heavy duty GM 1 ton tie rod ends and 1.5" x 1/4" wall D.O.M., making your steering kit a worry free part of your build. All of the tube inserts have a hex machined on them to make steering adjustments a breeze, no more using a pipe wrench on the tubing you only need an open end wrench or an adjustable wrench.

Kit Contents:
1 Dana 60 High Steer Arm Kit
1 Standard GM 1 Ton Left Hand Tie Rod End
1 Standard GM 1 Ton Right Hand Tie Rod End
1 High Angle GM 1 Ton Right Hand Tie Rod End
1 Y-Link Tie Rod End
2 Left Hand Tube Insert
2 Right Hand Tube Insert
8 High Steer Studs And Nuts (If you choose the option)
2 Pieces Of 1 1/2" X 1/4" Wall D.O.M. Tubing 54" Long (If you choose this option)

Sometimes its just not possible to fit crossover steering on your rig this is where our Y-link steering kit can save the day. If you are having to work around leaf springs, or if you only have the the two factory mounting locations on your steering knuckles our y-link kit is a great upgrade. This kit uses high quality, heavy duty GM 1 ton tie rod ends and 1.5" x 1/4" wall D.O.M., making your steering kit a worry free part of your build. All of the tube inserts have a hex machined on them to make steering adjustments a breeze, no more using a pipe wrench on the tubing you only need an open end wrench or an adjustable wrench. If you are planning to do a tie rod flip to the top of the knuckles, this kit with our tapered inserts or a reamer should be all the parts you need.

Click Here To View Our Dana 60 Y-link Steering Kit With High Steer Arms

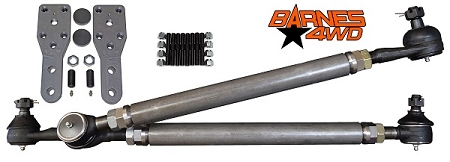

awww.barnes4wd.com_assets_images_Axle_20Accessories_HD_20Steering_Dana_60_Y_Link_Steering_Kit.jpg

Last edited:
