Electrical connector

ncsutj

ncsutj

Well-Known Member
Joined
Mar 20, 2005
Location
Concord

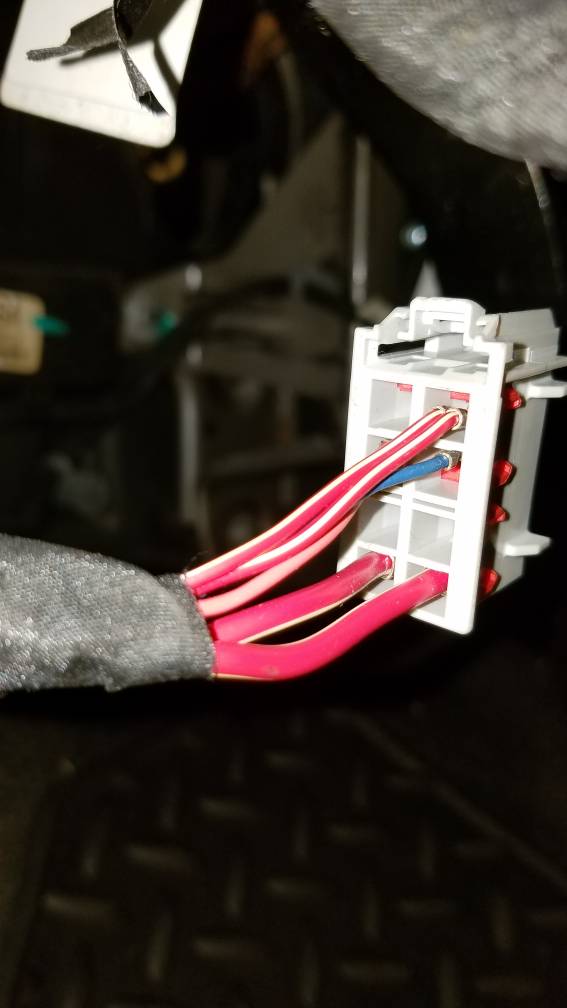

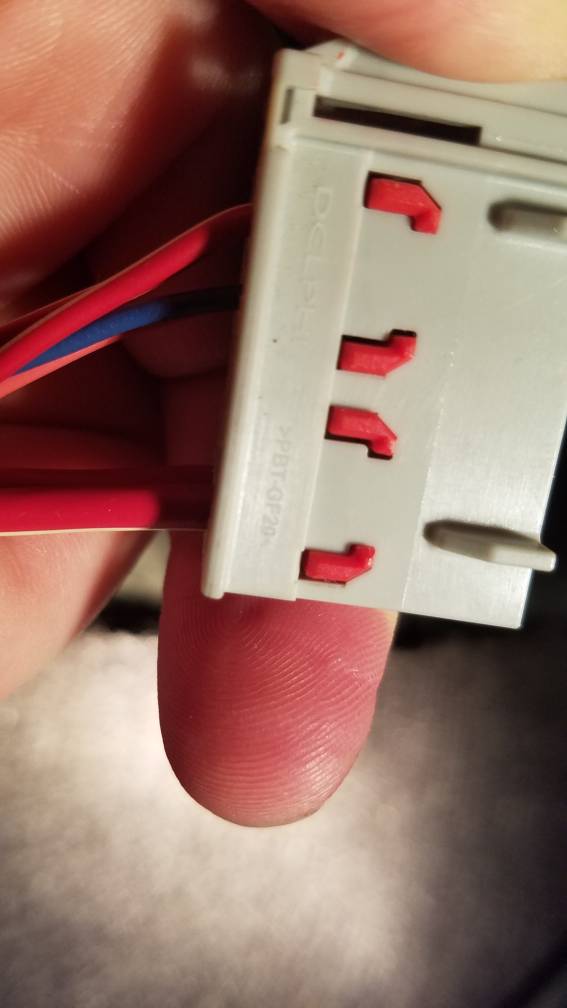

Anyone know what this type of connector is called and how to get a part number for it? I thought the number pictured PBT-GF20 was it but apparently that is what it is made of. This is on a 2013 Chevy truck.


Sent from my SAMSUNG-SM-G930A using Tapatalk

If they're even available for the public to buy, mouser.com would be the place. It's a Delphi connector but they probably make 150 different series. Your best bet would be a junk yard.

PBT-GF20 is 20% glass filled PBT, it's just a material callout. There's probably another small number (1 or 2 digits) on there somewhere that will be a mold cavity number, because all of that stuff is done in multi-cavity molds during injection molding. That's not an important number either, so ignore that one as well.

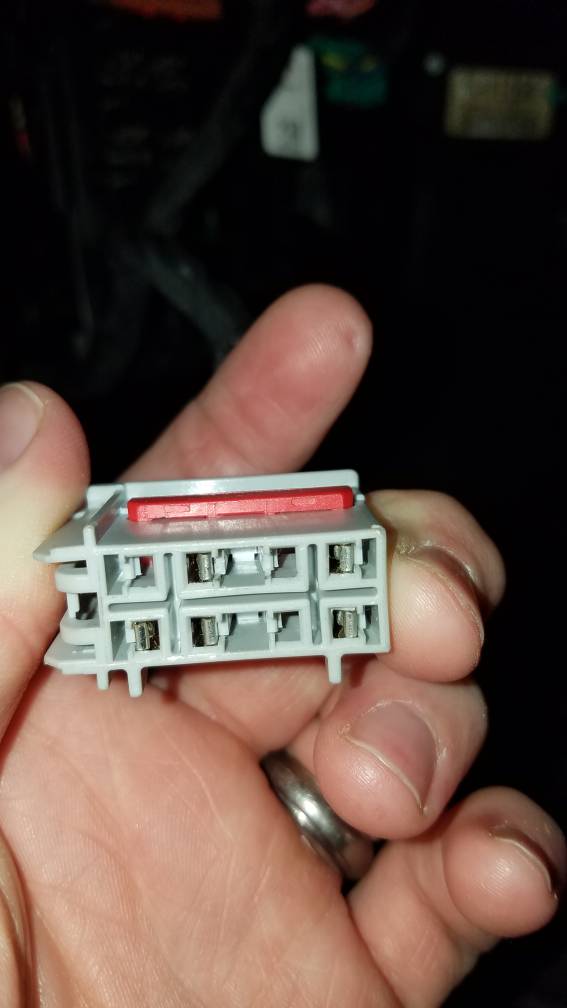

What's the front of the connector look like? Are the connector pins rotated 90 degrees from standard, and are the mating contacts flat or square? If those are rotated contacts (which it appears they are), that narrows down the possible connector families by a large amount.

I haven't seen a Delphi connector with that style of double lock plate (the red part), that's a new one for me...

Last edited:
The mating contacts are flat.

I'll have to take a picture of the other side of the connector.

Sent from my SAMSUNG-SM-G930A using Tapatalk

WARRIORWELDING said:

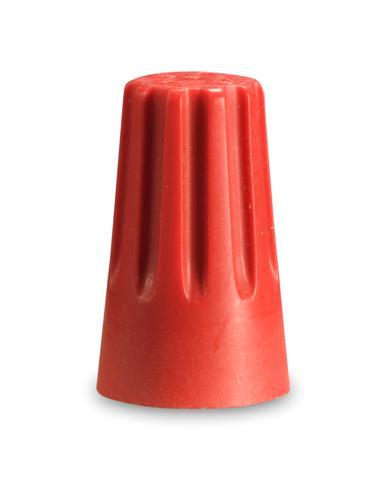

No no no no......just bare them wires and twist that crap together @Dylan W.
Click to expand...

That's what I'm talkin about. I bought a yukon that was wired for an amp/sub. I pulled all the wiring and found the 2ga power wire "extended" inside the plastic channel under the rear door sill. The pieces were stripped back about 3" and twisted together, with about a 6" piece of electrical tape mostly unraveled off of it... At least it had a 100 amp fuse ...

NC-V said:
That's what I'm talkin about. I bought a yukon that was wired for an amp/sub. I pulled all the wiring and found the 2ga power wire "extended" inside the plastic channel under the rear door sill. The pieces were stripped back about 3" and twisted together, with about a 6" piece of electrical tape mostly unraveled off of it... At least it had a 100 amp fuse ...
Click to expand...
Still waiting on Dylan :shaking::shaking::lol:.

Poly Butyl Tetraphylate or something like that. glass filled 20%- an engineered molding resin

whats it go to? I can probably back track and get one fer ya- need to know exactly year make and model and application. you can de-pin them and reuse them if needed

Ron said:
Preferable to a shitty connector imho
Click to expand...
Shitty being scotch blocks or what ever they call those wire cutting splice contraptions I hate.

Chuckman said:
Poly Butyl Tetraphylate or something like that. glass filled 20%- an engineered molding resin

whats it go to? I can probably back track and get one fer ya- need to know exactly year make and model and application. you can de-pin them and reuse them if needed
Click to expand...
2013 Silverado LT

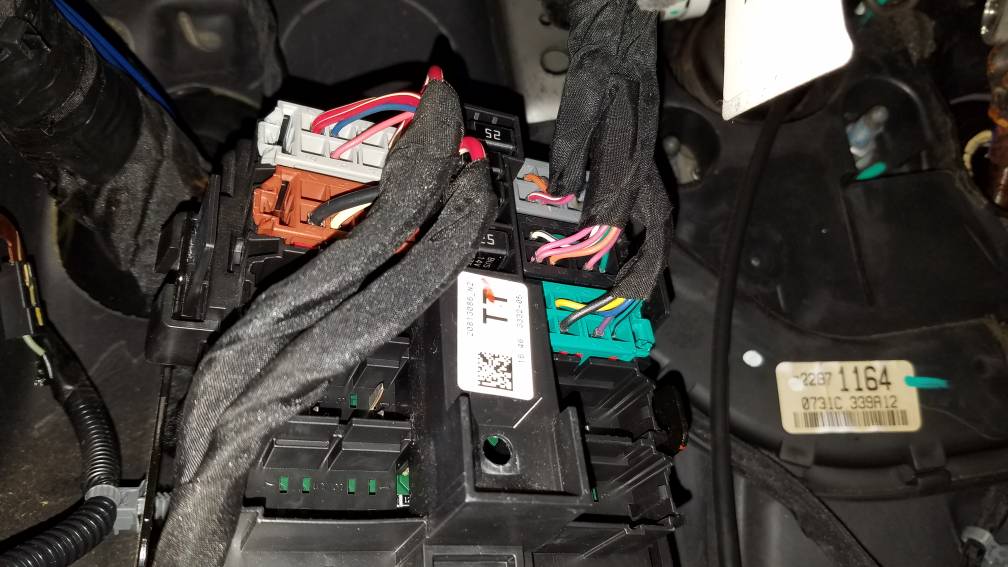

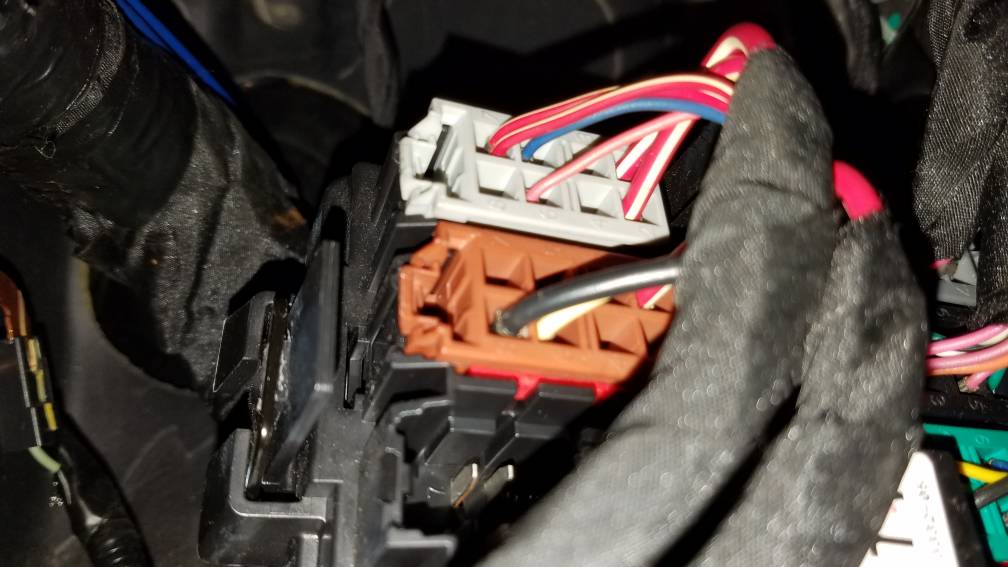

I believe this is the M-BEC panel???? It's on the firewall next to the parking brake.

I'm adding a back up camera and I need to connect in to the pink wire for the reverse signal. I broke the clip that keeps the pin in trying to take it out.

Sent from my SAMSUNG-SM-G930A using Tapatalk

Last edited:
sorry, I looked and cant order those. epoxy that sucka

Epoxy after installing connector and seating terminal.. prevents terminal clogging if using liquid epoxy. Probably good application for paste.

Send the picture to connector experts on Facebook, they'll give you a price and have you a new one in 2 days! Any electrical connector made.

Sent from my SM-G955U using Tapatalk

If you need reverse signal it can be found at the bcm as well. Or at the rear view mirror if it has electrochromatic mirror.

jeepn-jason said:
If you need reverse signal it can be found at the bcm as well. Or at the rear view mirror if it has electrochromatic mirror.
Click to expand...
I'm adding a rear view camera with the display in the mirror. Reverse signal is to cut on the display.

Sent from my SAMSUNG-SM-G930A using Tapatalk

If your truck has an autodim mirror it will have reverse signal already there in the 16 pin connector. If not you can also tap at the bcm.
