Ford leaf spring code i.d.

ANDREW W CHESTNUT

Member
Joined
Mar 9, 2018
Location
Erwin

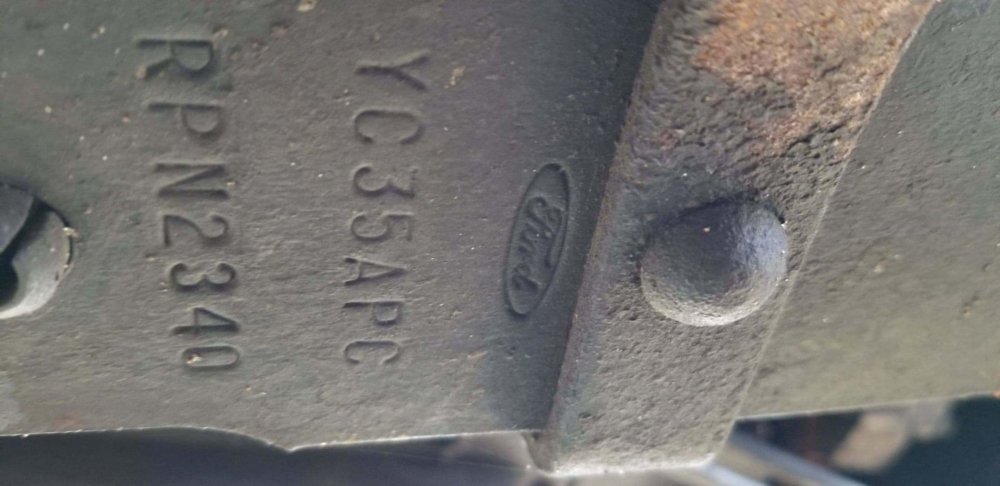

Can anyone help me identify what spring code this is? Its on a 01-03 f450 front. I know they came with x, v and w? I think but this doesn't look like any ford part # i know. Google was no help. Thanks to any that can help!

<<<Professional Googler






From How To Measure Leaf Springs
  • Ford usually only stamps the prefix and the suffix. The base must be added to complete the part number. For example F3HT5310JA, D7HT5560AUA or D1TA5588AA, whereas 5310 represents a front spring position, 5560 a rear position and 5588 a helper spring.
Which would indicate YC35-5310-APC, which lead to Ford F-250 and F-350 Pickup Front Leaf Spring | 2 Leaves | 2,630 lbs. Capacity
  • SRI Number:43-818
  • OEM Number:YC3Z5310AN / YC355310APC
  • Width:3 Inches
  • Length (A): 27-1/2 Inches
  • Length (B):28-1/8 Inches
  • Arc (C):4-7/8 Inches
  • Number of Leaves:2
  • Pack Thickness (D):1-5/16 Inches
  • Capacity:2,630 lbs.
  • Front Bushing:Included / RB-247
  • Rear Bushing:Included / RB-248
  • Note:Full taper spring.
  • Location:Front
  • Spring Construction:2/625
  • MPN43-818
And X Code Front F250 F350 Leaf Spring 1999-2004 Ford 4wd [43-818] | $95.95 which indicates "X Code" leafs...

:beer:
