Need a big torque wrench

[Bhudgins]

Was wondering if anybody knows where in Asheville I can rent a torque wrench that would go up to 305 ftlb


Sent from my Z963U using Tapatalk



[Jus Jim]

give this a look, perhaps you can use a different wrench with an extension on the handle. hopefully others can chime in if this link is bs, i dunno. Changing or increasing or decreasing the range of a torque wrench, use of extensions on torque wrenches



[kaiser715]

I made up an extension from a piece of black pipe. Slipped it over the end of a 1/2 ratchet, welded joint. At other end, cross drilled and welded in a short 1/2" drive extension. Total length is 2x my torque wrench length (to middle of handle). Set wrench on 100lbs, get 300lbs at the end. Close enough as long as you aren't building a space ship. You have to keep the torque wrench and extension straight to be accurate (there is a formula to calculate multiplication if the two are at an angle to each other).



[RatLabGuy]

And nobody is curious what the hell needs 305 lbs of torque?



[Fabrik8]

And nobody is curious what the hell needs 305 lbs of torque?

Not a bit.

I've learned not to ask those questions.



[BUCKEYE PERFORMANCE INC.]

I have one. If your willing to leave me a deposit give me a call



[snappy]

And nobody is curious what the hell needs 305 lbs of torque?

I would guess diesel head studs or king pins..



[jeepinmatt]

I would guess diesel head studs or king pins..

Heck, 305ft-lbs is only half the torque value for a D60 kingpin.



[Bhudgins]

Crank pulley on my fzj80

Sent from my Z963U using Tapatalk



[McCracken]

Heck, 305ft-lbs is only half the torque value for a D60 kingpin.

yeah I have no idea how I'm going to crank mine down



[jeepinmatt]

yeah I have no idea how I'm going to crank mine down

I used a 6ft pipe on a 7/8" allen, and pushed on the end with a bathroom scale to about 105lbs.



[Chris_Keziah]

And nobody is curious what the hell needs 305 lbs of torque?

A little bit. We just got a new press in at work and the anchor bolts call for 450 ft-lbs.

Sent from my SAMSUNG-SM-G890A using Tapatalk



[McCracken]

I used a 6ft pipe on a 7/8" allen, and pushed on the end with a bathroom scale to about 105lbs.

I've heard of dropping a double acorn lug not in there and then using a socket with an extension.



[jeepinmatt]

I've heard of dropping a double acorn lug not in there and then using a socket with an extension.

You're welcome to borrow my 7/8" Allen key. Pre-tested, only been used once. (Well, twice because I did both sides)



[McCracken]

You're welcome to borrow my 7/8" Allen key. Protested, only been used once. (Well, twice because I did both sides)

Thanks! However, I'll see if I can find one locally to save on shipping (yes, I'm a cheap ass)



[krehel24]

Why not buy a torque multiplier? You can get them for less then $100 ....



[Tacoma747]

And nobody is curious what the hell needs 305 lbs of torque?

Lugnuts on my truck are about 500 ft lbs. In other words, a big cheater bar and as tight as I can get them!



[Jody Treadway]

yeah I have no idea how Jody's going to crank mine down

Fixed it for you.

I use the German virgin method. Guudentite.



[shawn]



[powerstrokin04]

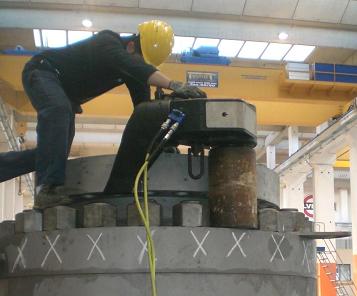

We have a couple hydraulic hytorc wrenches for steam turbine bolts that go up to 135,000 ft lbs. Maybe overkill for your application.
Example



[Bhudgins]

Used Chris at buckeye performance wrench he is a great guy that I will be getting to do some cage work on my Toyota thanks again and it was nice to finally meet you

Sent from my Z963U using Tapatalk



[BUCKEYE PERFORMANCE INC.]

Back at ya dude.
The little one blowing the horn was the highlight of the day.
