New 1975 EB on 36s

Mountain Ram

Well-Known Member
Joined
Nov 15, 2005
Location
VA

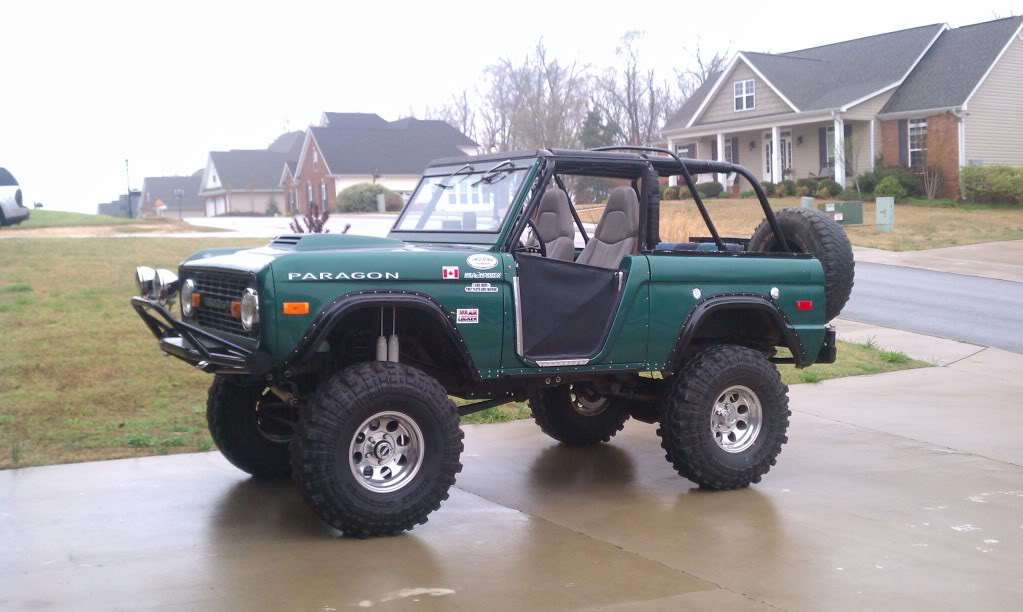

1975 EB- Updated with new pics

Picked up this to ride on the weekends and some light trail riding.
'75 Bronco
Drivetrain
’89 5.0 EFI (Non-HO)
4 core radiator
C4 w/ shift kit & cooler
HP D44, 4.56 & ARB (plumbed to on board CO2), diff skid
9” 4.56 track-lock, diff skid
Suspension- Front
Deaver 4.5” coils,
Custom long arm,
Dual shocks
Stonecrusher trackbar
Suspension- Rear
Deaver 4.5” 11 leaf packs
Dual shocks,
Duff torque Tamer
Steering/brakes
Power steering with cooler
Stonercrusher tie rods,
Hydroboost brakes
4 wheel disks
Tube work
ProtoFab family cage tied to the frame
Prerunner bumper (don’t know who’s)
Customer rear swing out dual rear bumper- holds cooler, tire, jerry can and hi-lift
Body/Top
Roadster inserts
Removed rockers- installed 2x6 tube rockers
Fuel cell
Electric wipers
3” body lift (yuck)
STC full soft top
Full soft doors
Half soft doors
36x12.5 TSL SX- brand new on 15x8 aluminum wheels
The good- no body rot or rust- painted in 2004, drives at 65-70 with no issues, strong motor & shifts
The bad- too tall (body lift), no hard top or doors, valve cover and maybe rear main leaks, stickers on the paint & no second gas tank
More pics after the Tornado warnings subside...
Todd

MarsFab said:
I'm jealous! One of these days I'll build me one like it.
Click to expand...

Wish I could say I built it... I could have, but I had a chance to buy it and there is literally $20k in afternmarket parts on this thing.

Got it from a guy who was getting divorced and the 5.0 has some issues- runing rich & leaking oil from almost everywhere... may be blow-by, but I won't knnow until I do some compression testing,

Thanks for the comment.

Todd

C'mon with it!! our cb4x4 run is in Nov. You'll have plenty of time to get the bugs worked out of it by then :D

Glad you made it home alright even with the trailer problems. Oh, and more pics, too!!! Sounds like you got a good deal.

Holy crap that is a nice EB!

Mountain Ram said:
valve cover and maybe rear main leaks,
Click to expand...


Check the rear of the intake manifold before assuming the rear main seal is leaking. JT and I were fooled by that one time many years ago on the same motor as you have that was in his Lincoln Town Car.

drkelly said:
Check the rear of the intake manifold before assuming the rear main seal is leaking. JT and I were fooled by that one time many years ago on the same motor as you have that was in his Lincoln Town Car.
Click to expand...


Got a real good look at it today and it looks like the intake... should be easier than the rear main!!

This is really a driver and VERY light wheeler...

I have been wheeling with alot of people on here in my rock crawling Dodge Ram- which is in the middle of a fron coil over conversion!


thatguy1110 said:
Price?
Click to expand...

Let's just say Ilimited myself to a Max of $10k to invest in a running, driving Bronco with no body rot. Body was my #1 concern cuz these are notorious for rot and body work is not my strong suit.

I came home with a bunch of money in my pocket and the EB!! The better half was very pleased with both!

This thing has over $20k invested once you add up all the bolt ons, 5.0 swap HP D44, etc etc. AND the body is in great shape!

TD

I guess after all these years you're still jelous of the "show Jeep" so you had to get something pretty to ride around in?

Mountain Ram said:
Let's just say Ilimited myself to a Max of $10k to invest in a running, driving Bronco with no body rot. Body was my #1 concern cuz these are notorious for rot and body work is not my strong suit.
I came home with a bunch of money in my pocket and the EB!! The better half was very pleased with both!
This thing has over $20k invested once you add up all the bolt ons, 5.0 swap HP D44, etc etc. AND the body is in great shape!
TD
Click to expand...
Did you buy the Bronco from a guy in N.C. ??? It looks very familure to me..... just a long shot asking...

raven mad said:
Did you buy the Bronco from a guy in N.C. ??? It looks very familure to me..... just a long shot asking...
Click to expand...

I know it was sold once before I bought it. I got it from a guy in GA but very close to Chattanooga, TN. He said he got it from the guy who built it- it was built sometime around 2004 and the PO said it was done near Chattanooga.

If you know who built it, I would be interested to know exactly what the motor comes out of as well as the paint color...

Thanks
Todd

Some recent updates to my mall crawler...

Corbeau front and rear seats and harnesses




New 37x14.4 R15 Toyo Open Country MT on a set of Gambler wheels I refurbished and painted charcoal gray

The tire on the left is a 35x12.5 R15 Mickey Thompson I got with the Gambler wheels. The middle is a 36x12.5 15 TSL/SX on a 15x8. The right is the Toyos on 15x10s.









Sweet looking Bronco man.

looks awesome todd! When you gonna have that ram ready to wheel again?
