New YJ Cage

sha_ba_do_bang

Joined the Band
Banned
Joined
Aug 11, 2005
Location
Wilmington

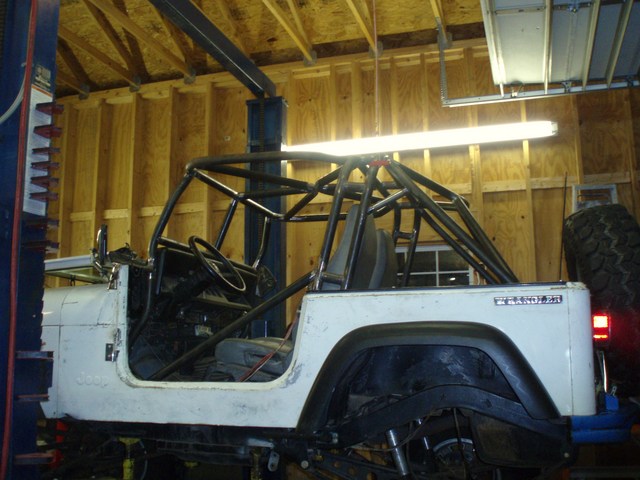

Heres the latest cage to roll out

http://img477.imageshack.us/img477/7613/p9210032uk8.jpg[/IMG
][IMG]http://img453.imageshack.us/img453/4892/p9210034vr7.jpg

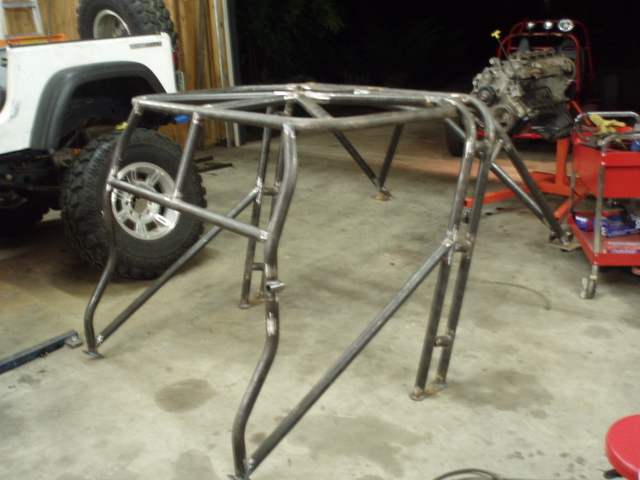

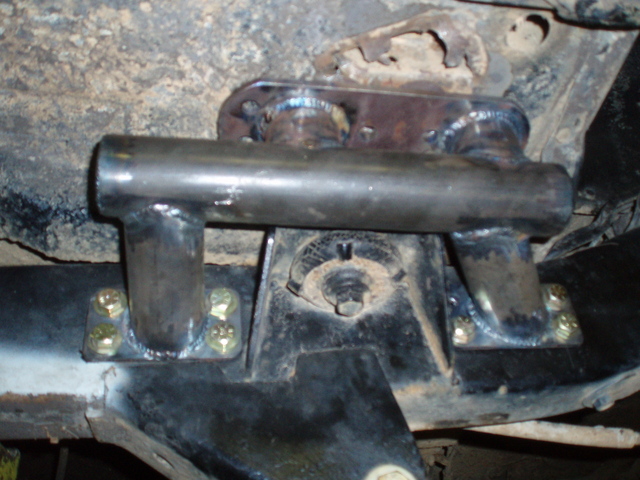

Its all 1.75" DOM .120 and .095 wall, and all tig welded

Yea i took like 2 days to weld it all

I am convinced buying a TIG will make you a better fabricator by far, theres no filling gaps when tigging(well there is but its really hard, not strong and looks bad)

Is there such a thing as overkill when it comes to a roll cage?

I think you pretty much nailed it down why i tig welded it, looks good and strong

I've been planning out my YJ cage lately and have been trying to nail down my own design. I have some questions... not criticism. All the typical cage triangulation talk and dick swinging is usually overkill, but I'll ask anyway.

The cool organic curves puzzle me a little bit. What was the rationale for not bringing the a-pillar straight down to the door bars? Ease of entry?

The curves at the top of the a pillar meet the halo just offset from the roof supports. I would have thought that you would get better force distribution if they were directly opposite from each other. What factors led you to the halo design? I am trying to determine If I want to go the Halo route or if I want to use an A-Pillar back to B-Pillar design.

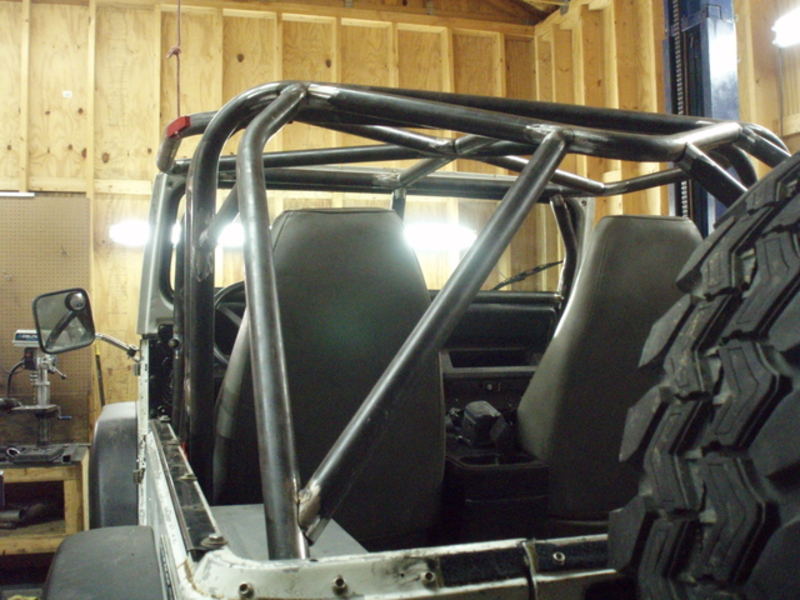

Otherwise, I like the looks of the double B-Pillar... seems like nice insurance.

TheGriz said:
The curves at the top of the a pillar meet the halo just offset from the roof supports. I would have thought that you would get better force distribution if they were directly opposite from each other.
Click to expand...

You're correct.

TheGriz said:
The cool organic curves puzzle me a little bit. What was the rationale for not bringing the a-pillar straight down to the door bars? Ease of entry?
Ease of entry, and anyone can run a a pillar straight down to the floor, and it will look like just anyone built the cage. Instead i wanted to but 4 bends in and hug it up against dash and underneath so there was a little more room when getting in

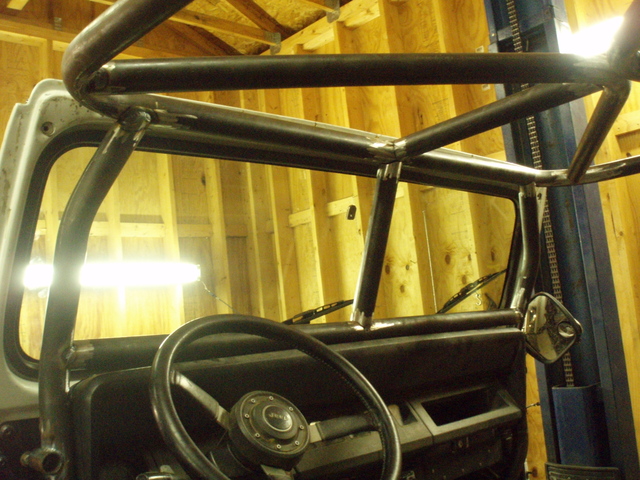

The curves at the top of the a pillar meet the halo just offset from the roof supports. I would have thought that you would get better force distribution if they were directly opposite from each other. What factors led you to the halo design?
Click to expand...

I was trying to keep with a theme when designing the roof and halo, and i liked how it looked. And the bend where the a pillar meets the top halo is there because of the bend radius at the front of the halo.
Click to expand...
Click to expand...

now all bryan needs to do is get a new tub so his junk wont look so bad. oh yeah and some real tires, but the cage does look good.

good work man, the pride in your craft shows
