Supercharged Rear steer buggy

[M&M Offroad]

This is a buggy i built for a customer in Florida.. Started out with a 22r on propane and front and rear steer toyota axles...

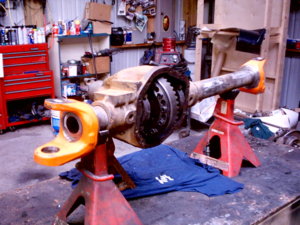

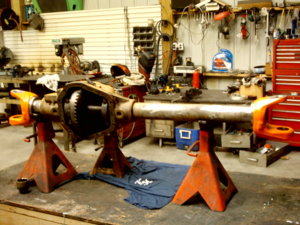

He just upgraded to a supercharged lc enigneering engine on propane .. over the next few weeks i am building two custom cut down, steering, low pinion, dana 60's with all the goodies... orange everywhere... Inner and outer from dedenbear, 538 gears and some steering goodies from Chase at East Coast Gear Supply... Here are some axle pics...
Original Buggy Build Up at MandMfab.com



[90jeepman]

This is a buggy i built for a customer in Florida.. Started out with a 22r on propane and front and rear steer toyota axles...
He just upgraded to a supercharged lc enigneering engine on propane .. and i am now building two custom cut down, steering, low pinion, dana 60's with all the goodies... orange everywhere... Inner and outer from dedenbear, 538 gears and some steering goodies from Chase at East Coast Gear Supply...
Buggy Build Up at MandMfab.com
View attachment 18554
View attachment 18555
View attachment 18556

lets here it



[quickracer]

very cool!



[csudman]

You do axles now I guess?



[M&M Offroad]

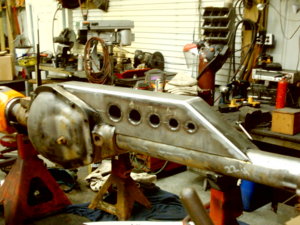

trusses

Truss... 1/4 " thick all around..



[M&M Offroad]

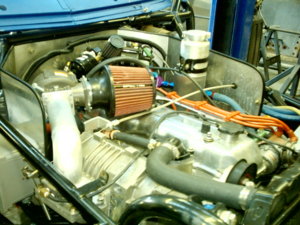

Here is pic of supercharge motor

Starting install tommorrow...



[M&M Offroad]

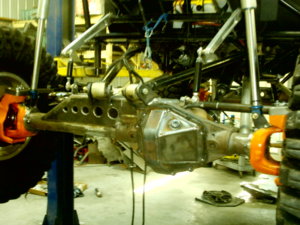

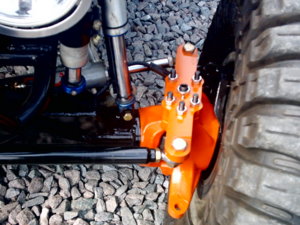

front axle



[Benjie]

Looking good PJ!



[M&M Offroad]

Thanks... Should be more stable with the width.. Using superior 35 spline stuff in the rear with long joints and 10 factory stuff in the front ... All from East coast gear suppply... thanks Chase..



[Metto]

nice work as usual PJ, keep it up



[broncomania]

great work as always pj.



[M&M Offroad]

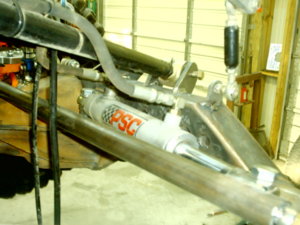

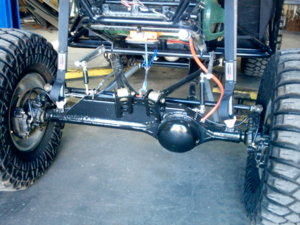

rear axle and steering



[UNBREAKABLE]

Nicely done



[GotWood]

fawsome

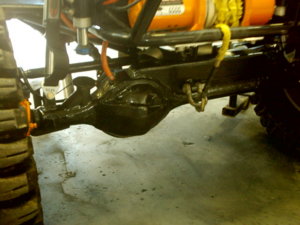

[M&M Offroad]

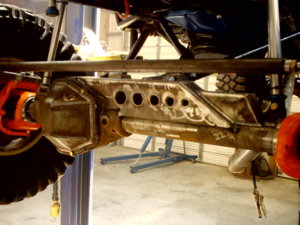

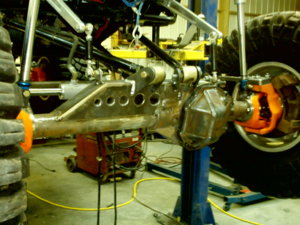

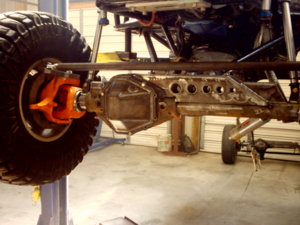

Finish welding and other goodies

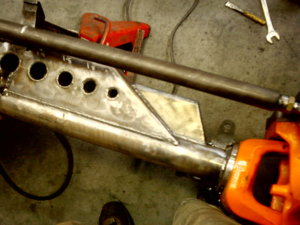

Here is the axles ready for paint ... and some other additions like an aluminum cutout for bezel and some rock slider protection...



[Metto]

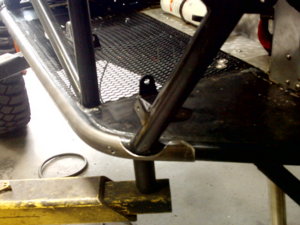

i like the tube-over-tube on the rocker. is it 1.75" over 1.5"?



[M&M Offroad]

Yes, sliced down the center with plasma...



[cburgin]

looks dang good man...



[stone4x4]

what's the HP/TQ on that 4cyl?



[M&M Offroad]

Not sure on tq.. but hp are supposed to be realistically around 200+... should sound good wound up...



[stone4x4]

it would be great if you get a clip of that



[M&M Offroad]

22r block bored 40 over
Worked crank
20r head with valve work, lc headgasket, lc header, schneider cam, 200 impco
mixer and hi boost camden blower
may jump up to 425



[Metto]

is it a blow through setup on the carb? if so, is the whole carb in a pressure box?



[M&M Offroad]

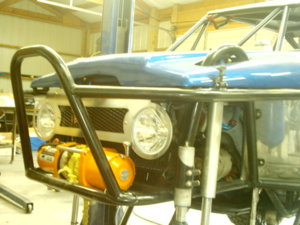

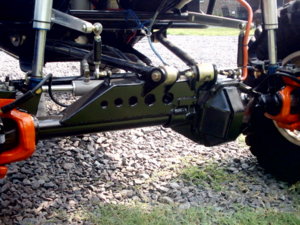

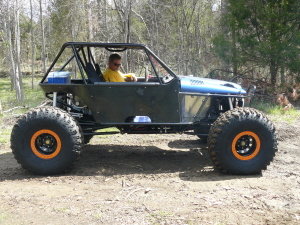

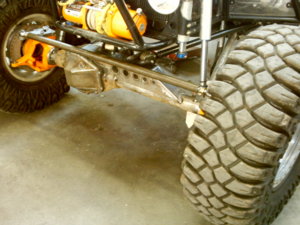

finished pics

No, carb is on the input side of supercharger... i think you can see in pic if you look close... Here are some finished pics..



[BIGWOODY]

Saw it at the Gulches this past weekend...very nice work.
