Took some pics.. do you see anything that would concern you?

Altonymous

Altonymous

Lost Wheelin'
Joined
Nov 4, 2013
Location
Clayton, NC
Sorry some are blurry.

ascontent_a_iad.xx.fbcdn.net_hphotos_ash3_t1.0_9_1385393_10154173099220624_4610508158968142224_n.jpg

ascontent_b_iad.xx.fbcdn.net_hphotos_frc1_t1.0_9_10255294_10150f51eea06e1e44c671d16863b4e14b85.jpg

ascontent_b_iad.xx.fbcdn.net_hphotos_frc3_t1.0_9_1506936_10154173099395624_5826723699636245205_n.jpg

afbcdn_sphotos_h_a.akamaihd.net_hphotos_ak_frc3_t1.0_9_1031346544db548b7128f797930ad879b228655.jpg

ascontent_a_iad.xx.fbcdn.net_hphotos_prn2_t1.0_9_10170914_101542c25b60db8a97b24a46df49d79ef918.jpg

ascontent_a_iad.xx.fbcdn.net_hphotos_ash3_t1.0_9_10314762_10154b3b07ca4010100c81560798a84e10b6.jpg

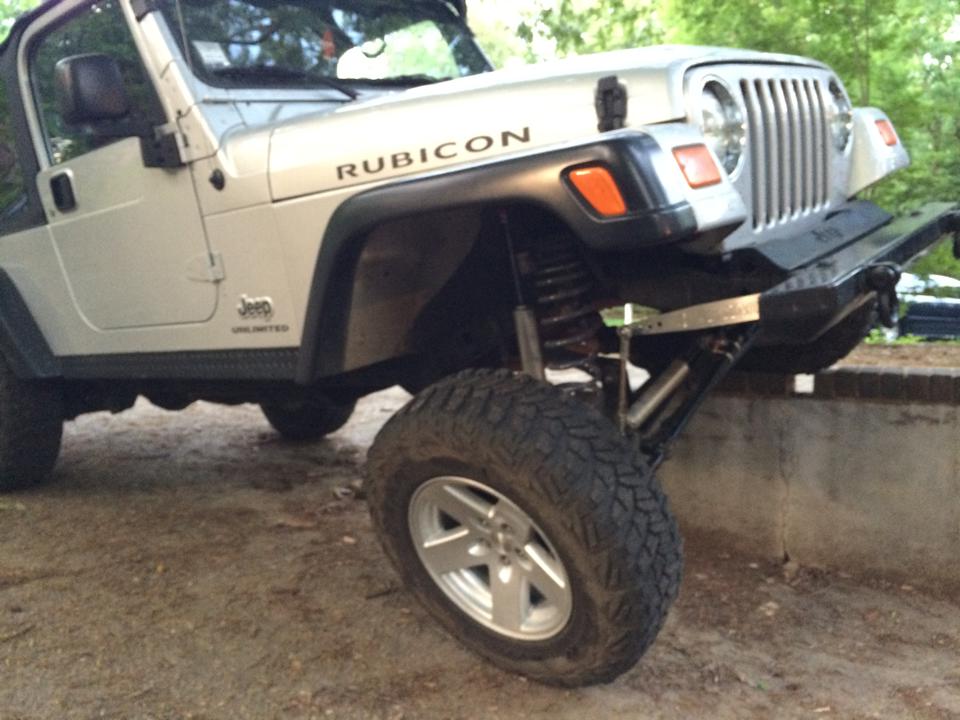

afbcdn_sphotos_f_a.akamaihd.net_hphotos_ak_prn1_t1.0_9_1031309209b35d2e98a5f8c0c2aa8294f636cda.jpg

afbcdn_sphotos_d_a.akamaihd.net_hphotos_ak_prn1_t1.0_9_103448059f3fd14f48d52ea944847865ae8d599.jpg

afbcdn_sphotos_b_a.akamaihd.net_hphotos_ak_ash3_t1.0_9_1027594f39d9348cee3174efd3e418aec3b13a8.jpg

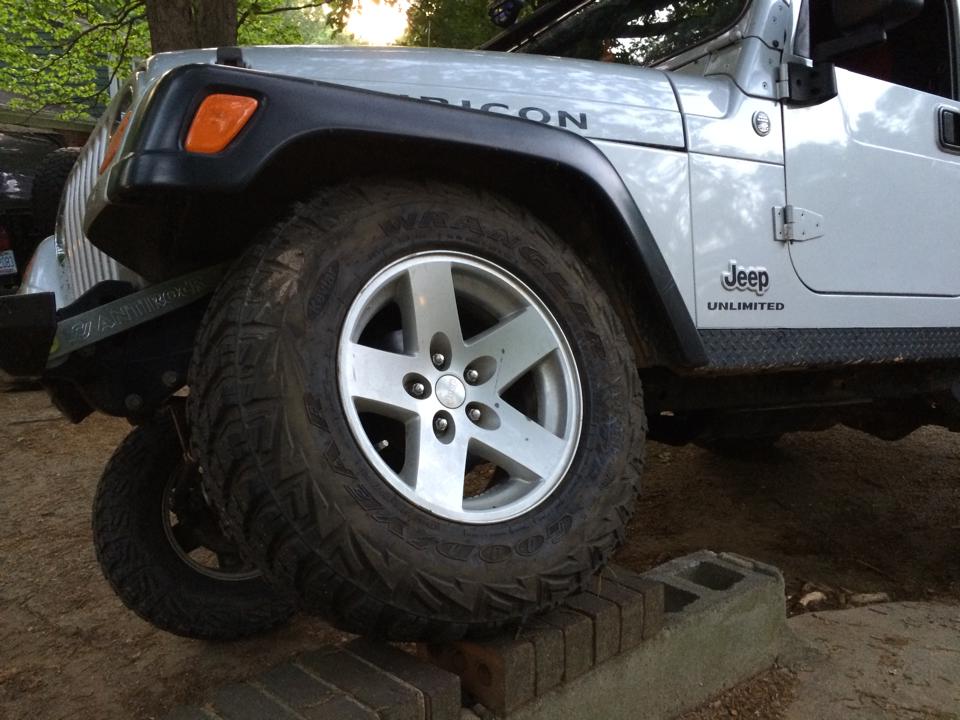

ascontent_b_iad.xx.fbcdn.net_hphotos_prn1_t1.0_9_1620770_10154173099845624_2667079515940522461_n.jpg

ascontent_a_iad.xx.fbcdn.net_hphotos_prn1_t1.0_9_10313726_1015e91c56c46a61d0686c8dbc3f245ff66b.jpg

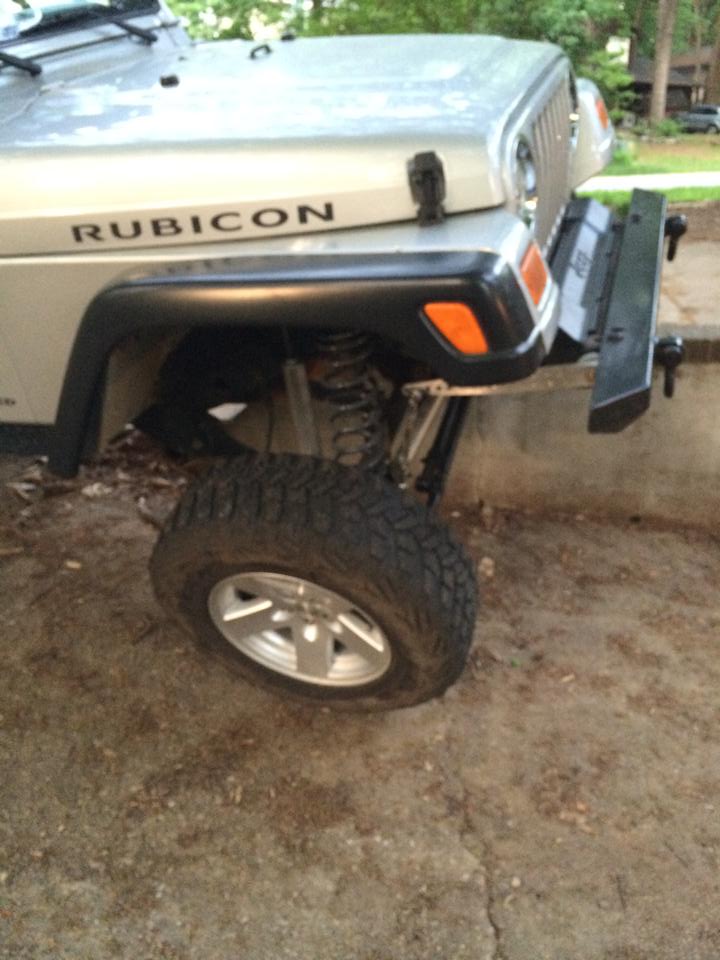

ascontent_a_iad.xx.fbcdn.net_hphotos_prn1_t1.0_9_10246674_1015b7f19cedcb2cc35f5d4d3c80fd140fd8.jpg

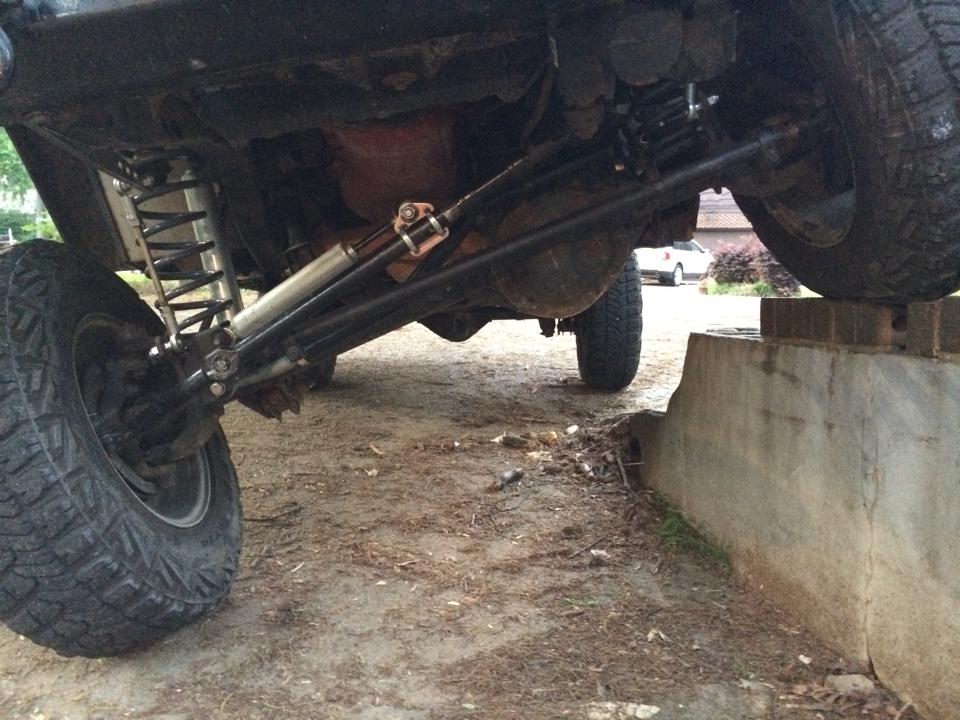

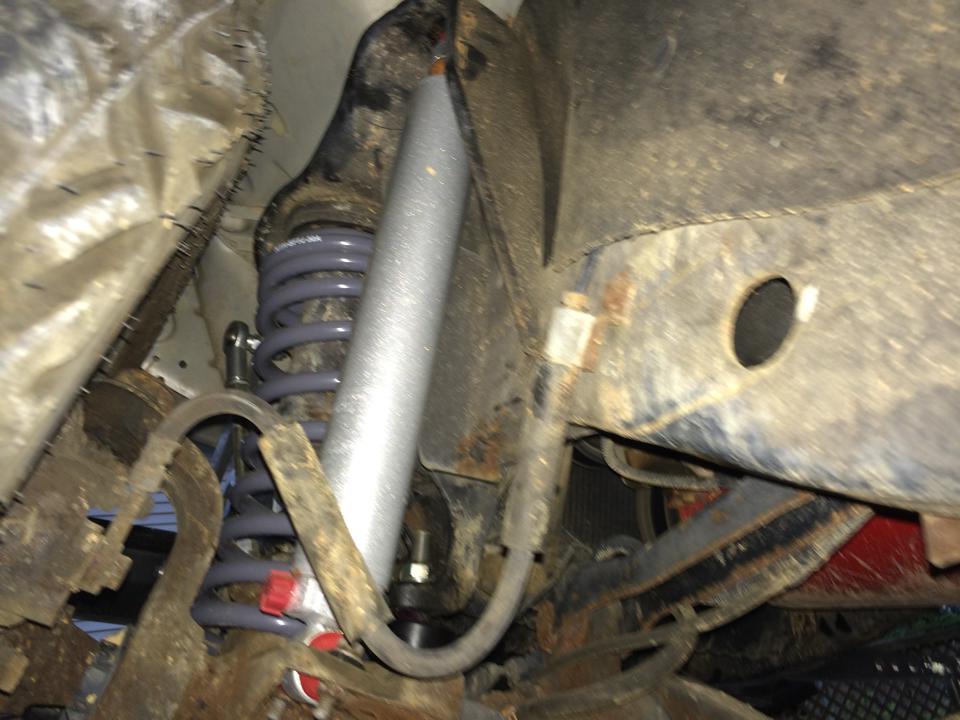

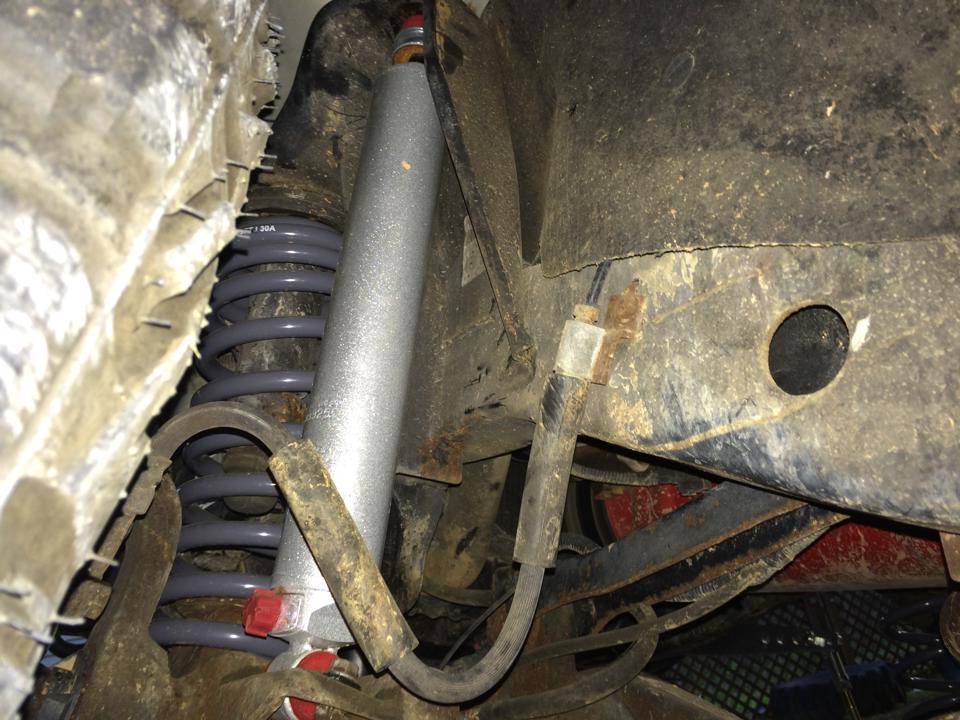

It looks like your shocks are what's limiting your up travel.
That's not good.

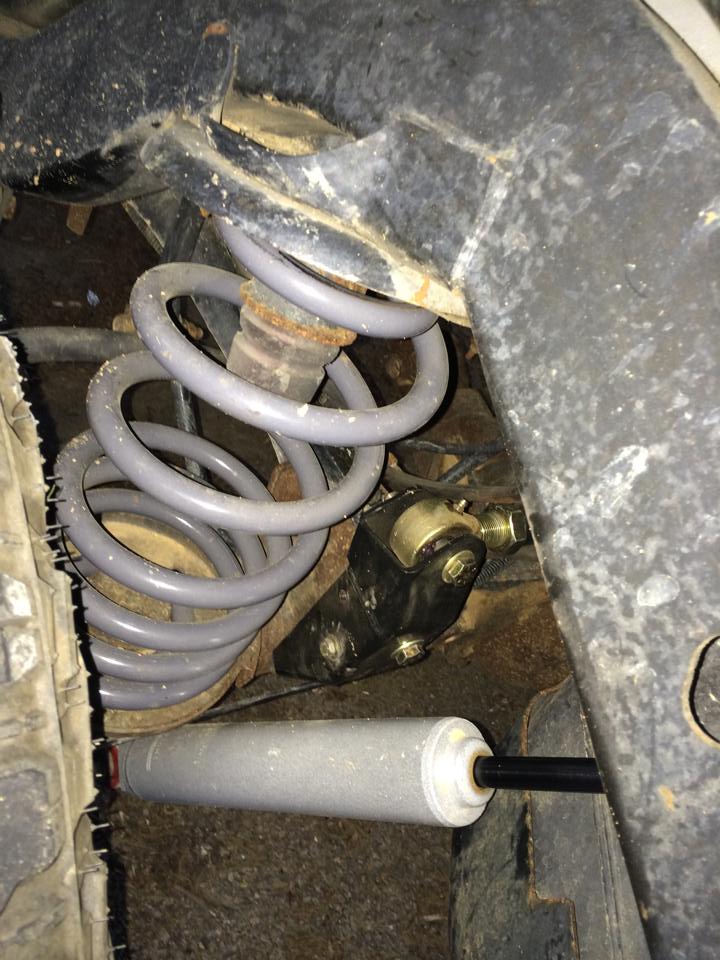

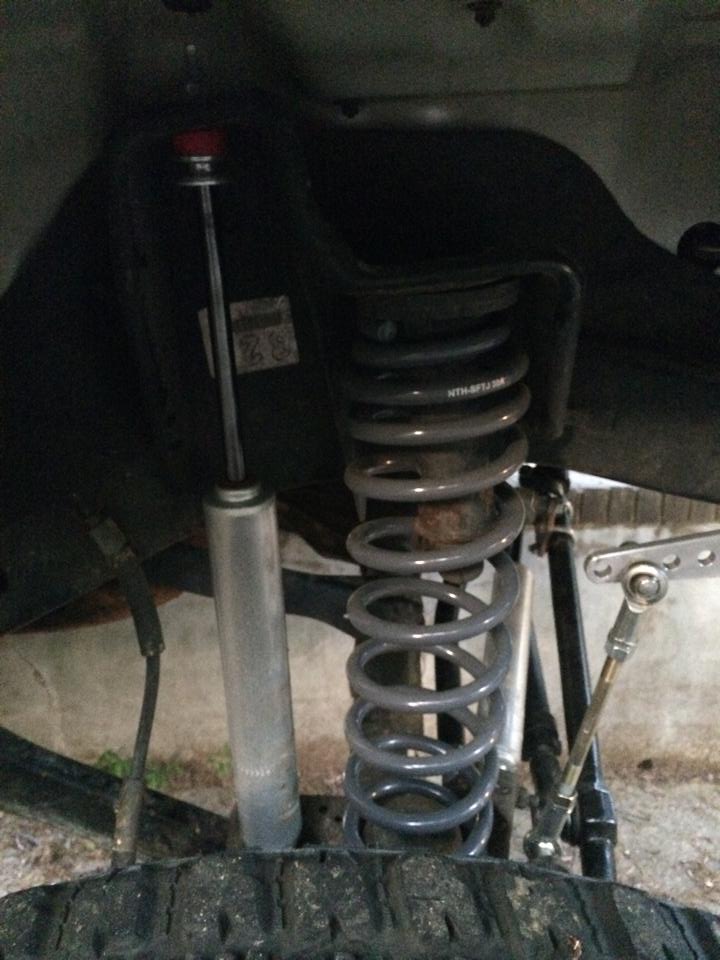

You need some extended bump stops.

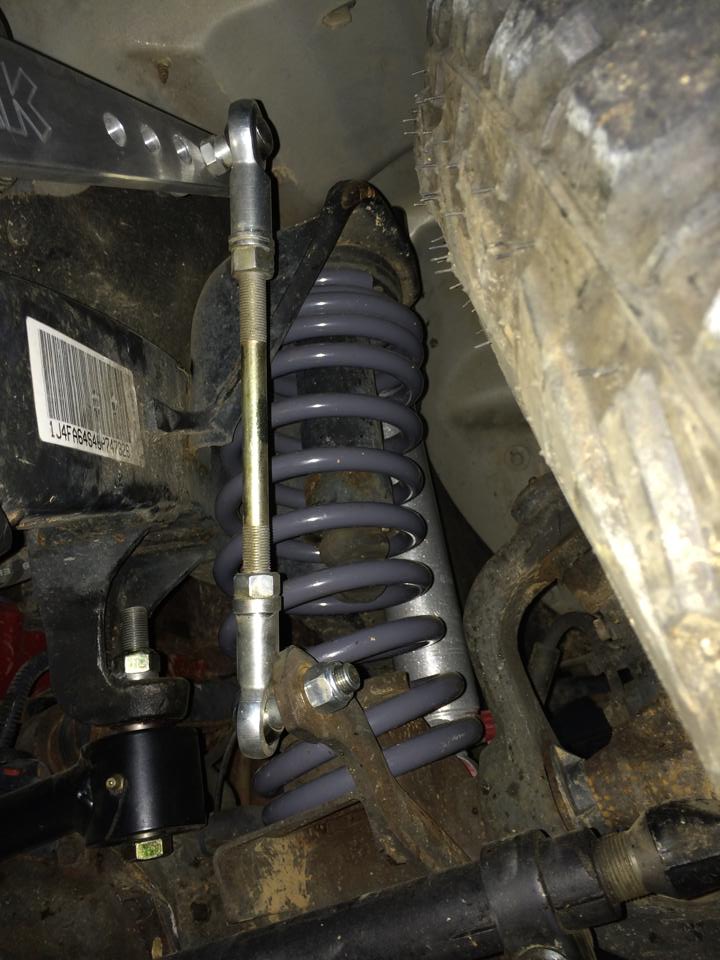

Control arms are too short.. The bump stop tube is not centered in the spring forward to rear. May not be too much concern but it is enough if it was mine I would put in adjustable U/L CA's.

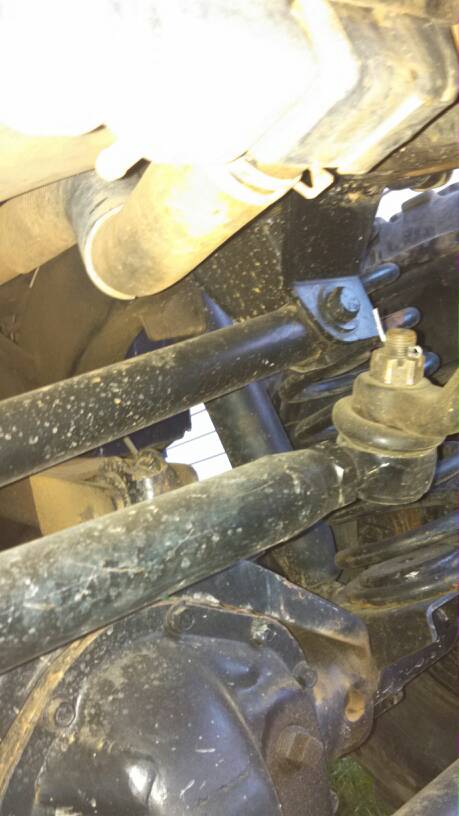

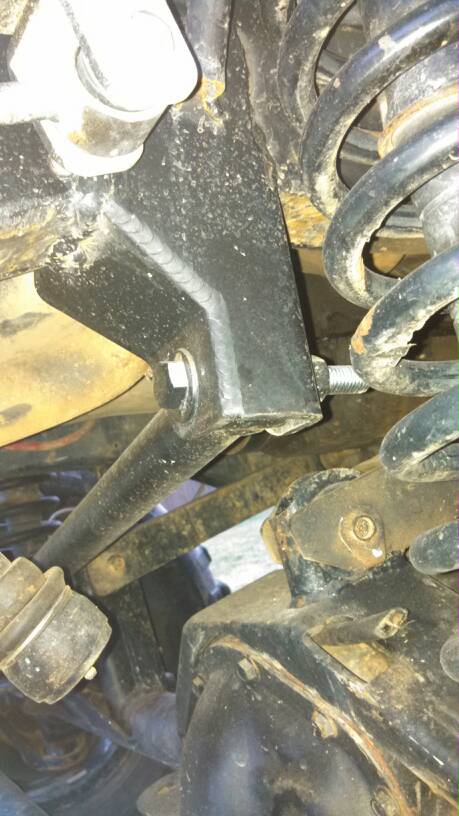

Agree with stinkbomb, that track bar setup is super sketchy. I'd worry myself sick over that. I'd put a heim on that end. That is a lot of leverage on that bolt, not to mention I would imagine that would wear that bushing out pretty fast

Altonymous said:
What about the trackbar bolt scares you? That it's vertical instead of horizontal?
Click to expand...
That it's a cantilevered bolt in single shear instead of a tapered tie rod end style bolt.

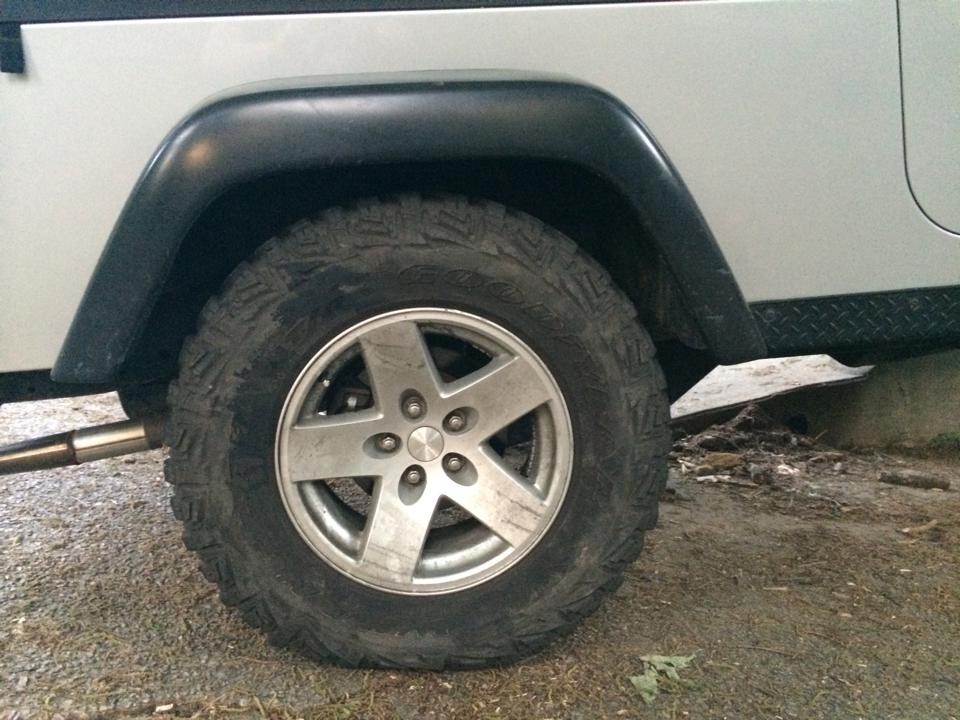

tailpipe hangs way to low
single shear trackbar not good

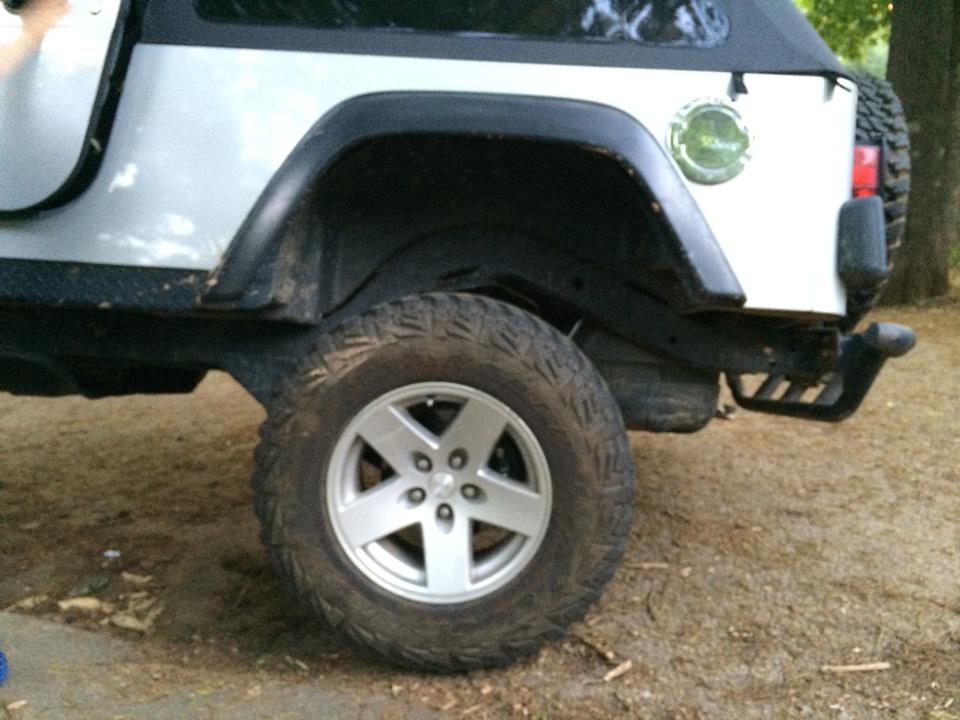

Needs Tube Fenders
& last needs bump longer stops
But other that that all looks good

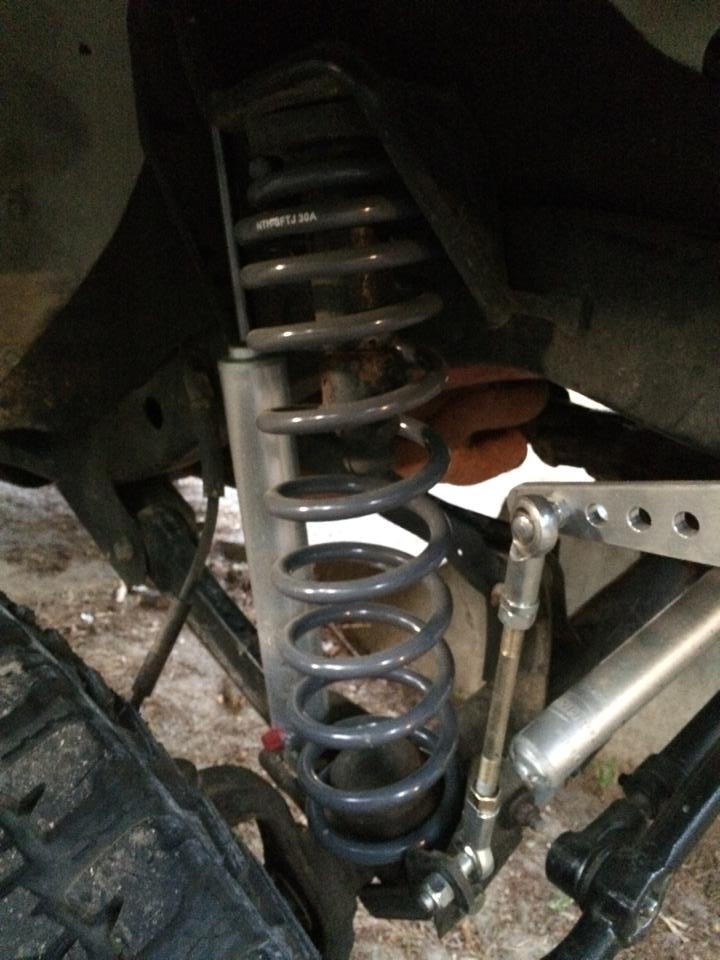

Like the rest said, longer bump stops, your brake lines also look like they ar just barely long enough, make sure they have slack and not pulled tight.

Altonymous said:
What about the trackbar bolt scares you? That it's vertical instead of horizontal?
Click to expand...

No, the part that it's enduring a massive load in single shear. Every bump you hit, every time you turn the steering wheel, that bolt is seeing a load. By the bolt being in single shear(versus going through a tab, then flex joint, then another tab, like a suspension link), it's strength is equivalent to a bolt 1/4-1/3 of it's size. Just to top it off, the load is all on the threaded portion of the bolt, aka, the weakest part of the bolt for shear loading.

Yes I'm nit-picky, but it's something that most people overlook or think, "it'll be alright, a bunch of companies do theirs that way". And 99% of that reasoning is to be able to say "all bolt on, no welding required". Sure, lots of people drive their jeeps around with this setup and no bus loads of nuns are harmed, that doesn't make it right/smart. There's quite a few easy fixes for it, all of which will require welding. The biggest pain is getting that factory bracket off the frame, but it can be done, neatly.

Otherwise, I'm not a big jeep fan, but there's just something about those LJ's that I like.




I torched the factory bracket off and moved this one forward about 2"

Get rid of the bolts and weld the brackets in and everyone is right about the track bar bushing. It's going to smush you rubber out and give you bump steer, after replacing with poly it'll start wallering out the bolt hole. Hiem joint it...
