Universal 4 Link Kits from Barnes 4WD!
All kits ship with brackets predrilled to the correct bolt hole size and no extra cost!

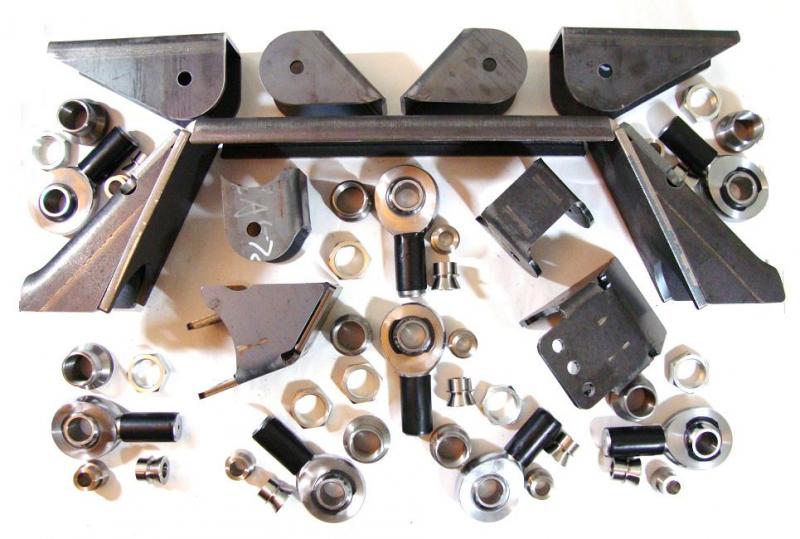

4 Link DIY Kit with 1 1/4 Heat Treated Heims - $528.00
This is the kit that has all the parts that we are always using in the shop for customers single triangulated four links suspensions. It is made to stand up to all the abuse that rock crawlers and weekend warriors put their rigs through, and everything else in between. It includes:
1x Large Axle Truss
1 x Axle Link Mount Pair 0 Deg
1 x Truss Link Mount Brackets
1 x Frame Link Mount
1 x Adjustable Inner Frame Link Mount Pair 20 Deg
4 x Chromoly 1 1/4"- 12 X 1" Heim RH
4 x Chromoly 1 1/4"- 12 X 1" Heim LH
8 x High Misalignment Spacer - 1" to 5/8" Stainless Steel (pair)
4 x 1-1/4" - 12 Jam Nut RH
4 x 1-1/4" - 12 Jam Nut LH
2 x Tube Insert (1-1/4-12) 1 1/2" ID 2" OD Tube RH
2 x Tube Insert (1-1/4-12) 1 1/2" ID 2" OD Tube LH
2 x Tube Insert (1-1/4-12) 1 1/2" ID 1.75" OD Tube RH
2 x Tube Insert (1-1/4-12) 1 1/2" ID 1.75" OD Tube LH
This is great for the do it yourself fabricators looking do their own 4 link system. Additionally, all the parts together in the kit are 5% off of our regular great prices for the items individually! If for any reason you need to exchange any of the items in the kit just let us know and we will make a kit to fit your project!

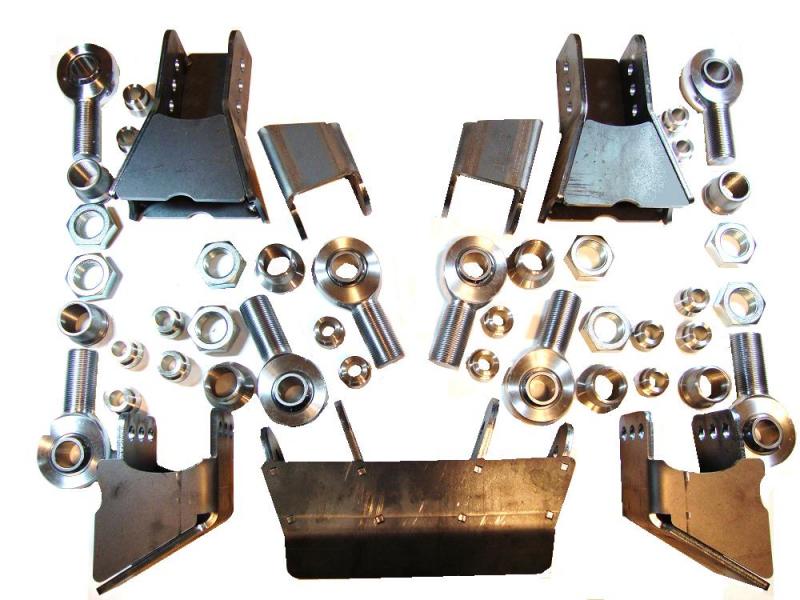

We Also have Triangulated Lowers or Double triangulated 4 link kits!
