The big cabinet Harbor freight sells is a good product especially if you get it on sale. I think mine was $169 after using the coupon. If you have a cabinet you know there are some down falls to it though. The light sucks and the gun is marginal. There are plenty of youtube videos showing the different upgrades. I watched a bunch and took the best of each one and here is what I did to make mine more user friendly.
Here is what we are starting with:
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1172_zpshjdvxhw0.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1172_zpshjdvxhw0.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1172_zpshjdvxhw0-jpg.213489/)
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1173_zpspkiui9eo.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1173_zpspkiui9eo.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1173_zpspkiui9eo-jpg.213490/)
On the table I have electrical stuff, light, and plumbing fittings I got from Home Depot. Next is the Skat Blast gun C35 I got from TP Tools. Next is the foot pedal SBC420 I got from Greg's Equipment. And on the end is a Cyclone powder dust collector I got from China via Ebay.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1175_zpsr0jhty6u.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1175_zpsr0jhty6u.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1175_zpsr0jhty6u-jpg.213491/)
First thing to do was to separate the cabinet and remove the crappy light.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1176_zpsck0ofwzj.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1176_zpsck0ofwzj.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1176_zpsck0ofwzj-jpg.213492/)
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1177_zpsiayuyn4v.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1177_zpsiayuyn4v.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1177_zpsiayuyn4v-jpg.213493/)
I built a box with a switch for the floodlight and a receptacle for the vacuum to plug into.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1178_zps9zvysvmr.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1178_zps9zvysvmr.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1178_zps9zvysvmr-jpg.213494/)
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1179_zpsjf6e0tic.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1179_zpsjf6e0tic.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1179_zpsjf6e0tic-jpg.213495/)
I then made a baffle to cover up the exhaust port and riveted it on. This should cut down on a lot of the media getting sucked out.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1180_zpskd5wdbqs.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1180_zpskd5wdbqs.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1180_zpskd5wdbqs-jpg.213496/)
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1181_zpsyoljdxax.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1181_zpsyoljdxax.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1181_zpsyoljdxax-jpg.213497/)
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1182_zpshc1tz0db.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1182_zpshc1tz0db.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1182_zpshc1tz0db-jpg.213498/)
I then cut the screen down so I can get taller items into the cabinet.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1184_zps4nqhfrmh.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1184_zps4nqhfrmh.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1184_zps4nqhfrmh-jpg.213499/)
The screen needed a little support so I took some 1/2" conduit and made a simple support.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1185_zpshky0wszd.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1185_zpshky0wszd.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1185_zpshky0wszd-jpg.213500/)
Instead of using a pick up tube like the old set up that was always in the way. Im going to have the gun siphon media from the bottom and cut a hole in the side of the cabinet and used 5/8" hose. The grommet is from a valve cover.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1186_zpsijbbpk58.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1186_zpsijbbpk58.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1186_zpsijbbpk58-jpg.213501/)
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1187_zpsop7lwexl.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1187_zpsop7lwexl.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1187_zpsop7lwexl-jpg.213502/)
I then pulled the media dump door from the bottom and drilled and bored a hole to fit the pipe fittings I bought.
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1188_zps7we7j04e.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1188_zps7we7j04e.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1188_zps7we7j04e-jpg.213503/)
![ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1190_zpstqkzndpk.jpg ai978.photobucket.com_albums_ae266_ncjeeper_1_DSCF1190_zpstqkzndpk.jpg](https://nc4x4.com/attachments/ai978-photobucket-com_albums_ae266_ncjeeper_1_dscf1190_zpstqkzndpk-jpg.213504/)
I then took a 5 gallon bucket, some pvc fittings and the cyclone and got it fitted up.
![](/proxy.php?image=http%3A%2F%2F%5BURL%3Dhttp%3A%2F%2Fs978.photobucket.com%2Fuser%2Fncjeeper-1%2Fmedia%2FDSCF1191_zpsqxhayxmq.jpg.html%5D%5BIMG%5Dhttp%3A%2F%2Fi978.photobucket.com%2Falbums%2Fae266%2Fncjeeper-1%2FDSCF1191_zpsqxhayxmq.jpg&hash=e1a4792cc9367072c0272d71264f885b)

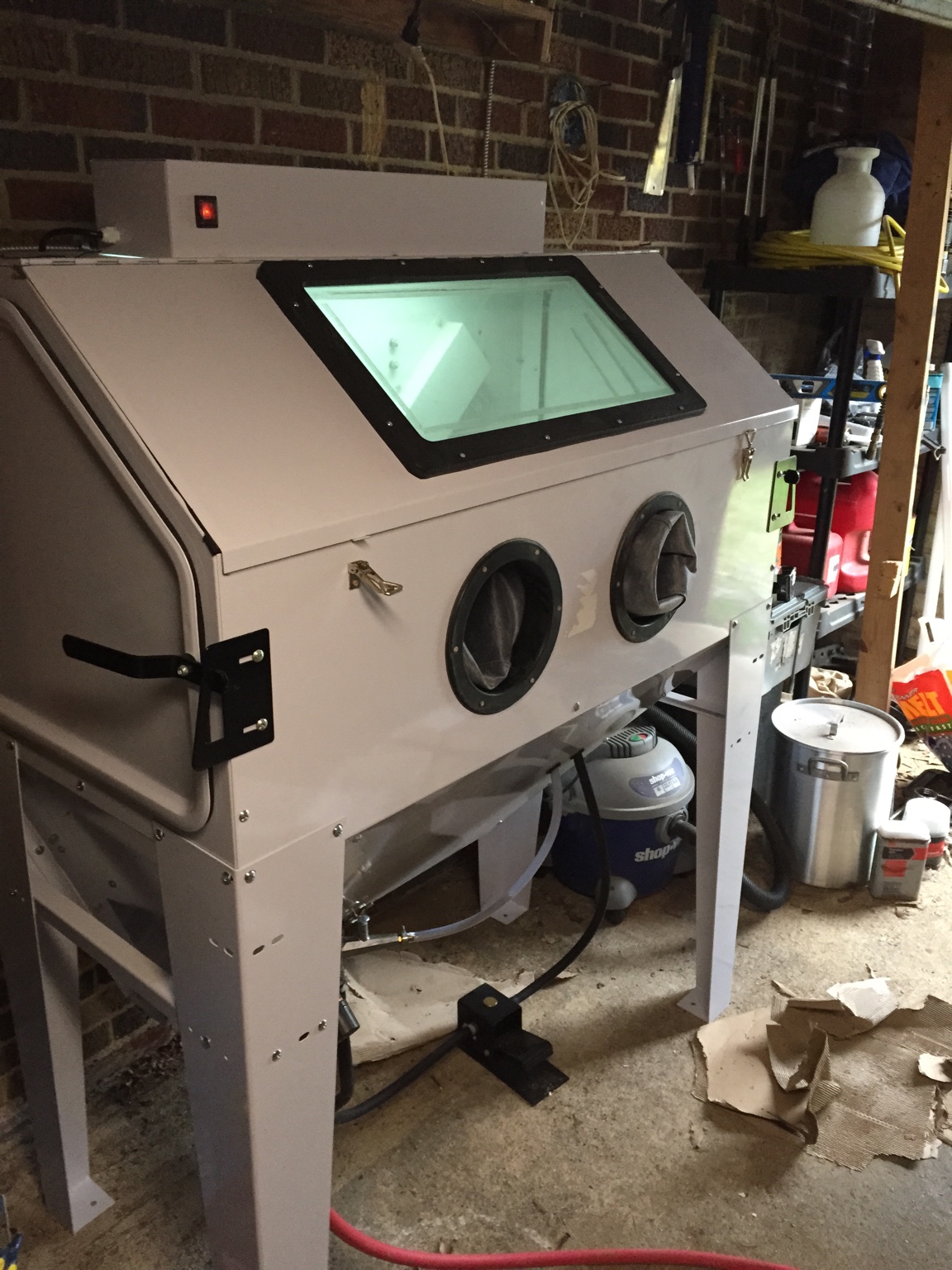

Man does this thing kick butt now. I grabbed a rusty bolt and it worked great. If you have one of these cabinets I recommend the upgrades. It makes it much more user friendly.
