  1. 89wrangler

    89wrangler Not a new member

    Joined:
    Oct 22, 2005
    Location:
    Bostic,NC
    Looking great! Man I wish you were closer so I could lend a hand. I really like your work ethic "work smart, not hard, with a beer kicker" :beer:

  2. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    Yea man, me too, come on up this weekend help set up some links.

    sent from HTC Droid on tapatalk

  3. Mountain Ram

    Mountain Ram Well-Known Member

    Joined:
    Nov 15, 2005
    Location:
    VA
    Can't wait to see it on the trail... I like the look of the headlights!

  4. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    thanks for all the comps guys!

    -stll debating on rear radiator, last truggy i had used that with no luck, concerned the reverse LT1 water pump m ay be overworked, ideas?

    thanks Ram, i'm diggn the lights too:huggy:

    a little progress tonight, got axles tubes cleaned and ready for truss work and link tabs, also picked up some new charger fenders; to see if i can make the body lines work and also how narrow the hood will need to be.

  5. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    [​IMG]

    sent from HTC Droid on tapatalk

  6. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    [​IMG]
    [​IMG]
    sent from HTC Droid on tapatalk

  7. loose cannon

    loose cannon Well-Known Member

    Joined:
    Oct 1, 2007
    Location:
    MARION
    strech the front end out long fender's, long hood, long wheel base

  8. drkelly

    drkelly Dipstick who put two vehicles on jack stands

    Joined:
    Mar 21, 2005
    Location:
    Oak Ridge/Stokesdale, NC
    John Thomas runs an LT1 with a rear radiator in his black Toyota Tacoma cab truck. The radiator is the stock Tacoma unit (mounted behind the cab), and for a fan he is running an electric one off a Volvo car. He hasn't had any trouble with it.

    Build thread here with pictures:
    http://muddevils4x4.com/forum/viewtopic.php?f=9&t=348

  9. paradisePWoffrd

    paradisePWoffrd Recovering Project Junkie

    Joined:
    Nov 5, 2005
    Location:
    Newton, NC
    you can always get an electric helper pump if you dont think it can keep up.

  10. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    Ok guys question: 1-1/4 heims, 3/4 bolt- grade 5 or 8, fine or coarse, nylock or lock washer?

    sent from HTC Droid on tapatalk

  11. sqrl$$

    sqrl$$ Well-Known Member

    Joined:
    Oct 13, 2005
    Location:
    Lexington
    I say grade 8 f/c. You cannot go wrong with overkill. 5 is probably strong enough, but why question it. I always go nylocks b/c sometimes you need the nuts to stay without having to have them cranked down super tight. Just my $.02

  12. T-bone71

    T-bone71 Well-Known Member

    Joined:
    Jan 4, 2007
    Location:
    Conover

    X2

  13. loose cannon

    loose cannon Well-Known Member

    Joined:
    Oct 1, 2007
    Location:
    MARION
    x3 nylocks and grade 8 carry a couple of spare just for a bad day.

  14. GONOVRIT

    GONOVRIT blue collar brotherhood

    Joined:
    Apr 10, 2005
    Location:
    Dallas NC
    Put it in the back like said before. We have 2guys in our club running LT1's with the rads in the back with no issues. I'll be the 3rd next time I rework my junk.

    Build looks good, keep it comin:beer:

  15. jeepn-jason

    jeepn-jason Well-Known Member

    Joined:
    Mar 20, 2005
    Location:
    Greensboro
    rear radiator sounds good, lil guys like me can see over the frontend then! lol Hurry up, I wanna jump it!

  16. akxj

    akxj New Member

    Joined:
    Aug 11, 2007
    Location:
    Virginia Beach, VA

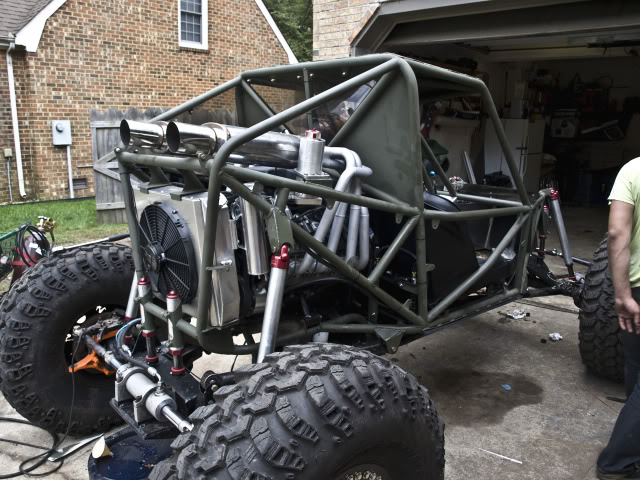

    My buddy runs a similar radiator in the back of his rear engine w/ an LT1 (although it could be an LS1, not a 100% sure) here's a picture of it...


  17. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    Check it out guys, lowers 36" eye to eye, 40 degree included angle. Approx 114" wheels, front link approx same length. First link build, thoughts, advice?

    sent from HTC Droid on tapatalk

  18. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    [​IMG]

    [​IMG]

    [​IMG]

    sent from HTC Droid on tapatalk

  19. cherokee_kid_03

    cherokee_kid_03 Rock Corps 4x4

    Joined:
    Sep 21, 2009
    Location:
    Marion, NC
    Matt, Looks great man. . .Keep the pics coming. .

  20. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc

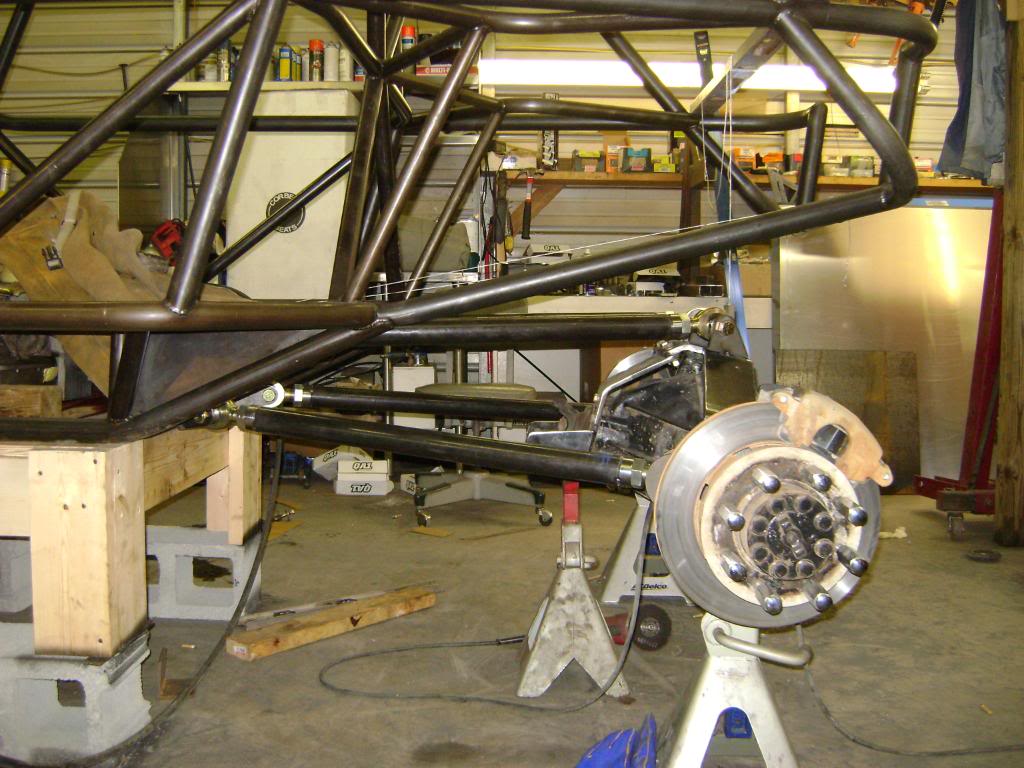

    made some good progress today. got the rear links hard tacked in, have yet to cycle them, be doing that in the morn. few picks and specs;

    lowers- 40 degree combined, 36" eye to eye, 5 degree from parallel to ground, separation @ axle 41; frame 16

    uppers- 25 degree combined, 36' eye to eye, parallel to ground, seperation @ axle 6.25; frame 22.5

    All you builders, any critique or advice appreciated on geometry!

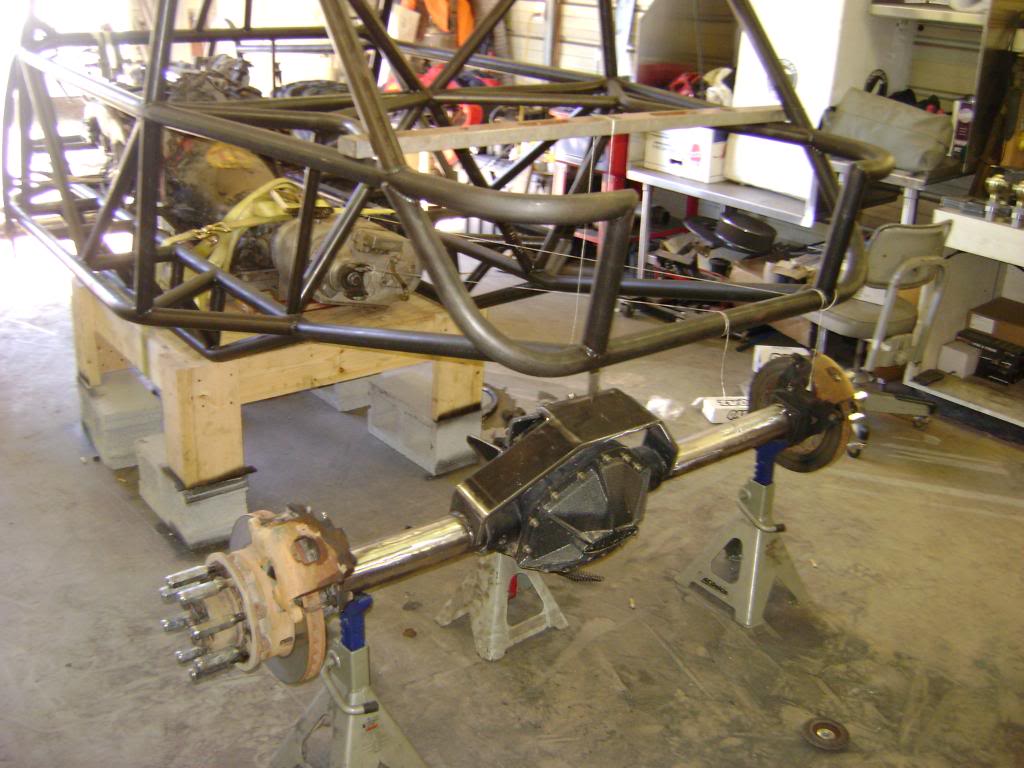

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2002.jpg
    all clean

  21. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    more pics

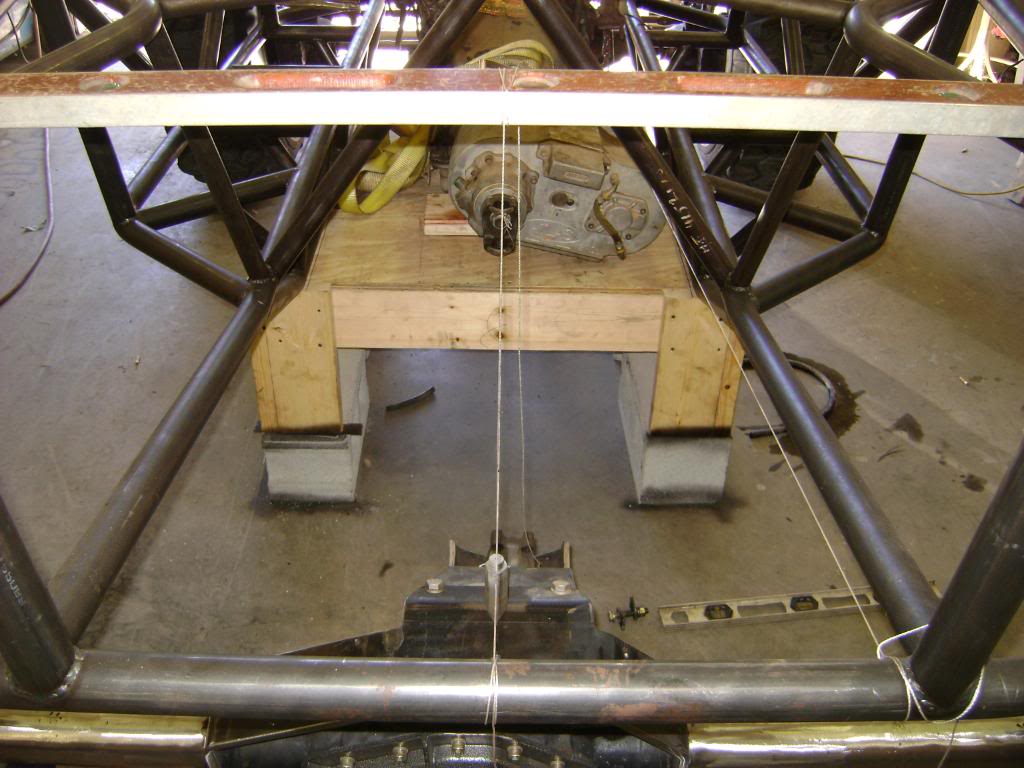

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2003.jpg

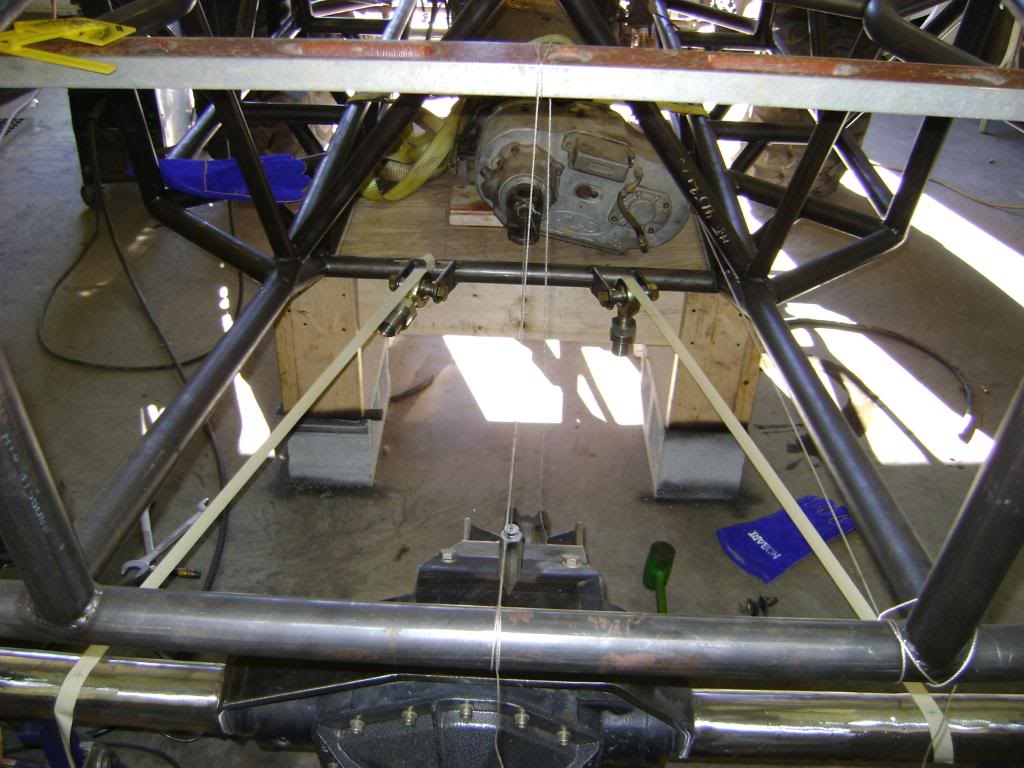

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2006.jpg

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2004.jpg
    billy-lucent

  22. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc

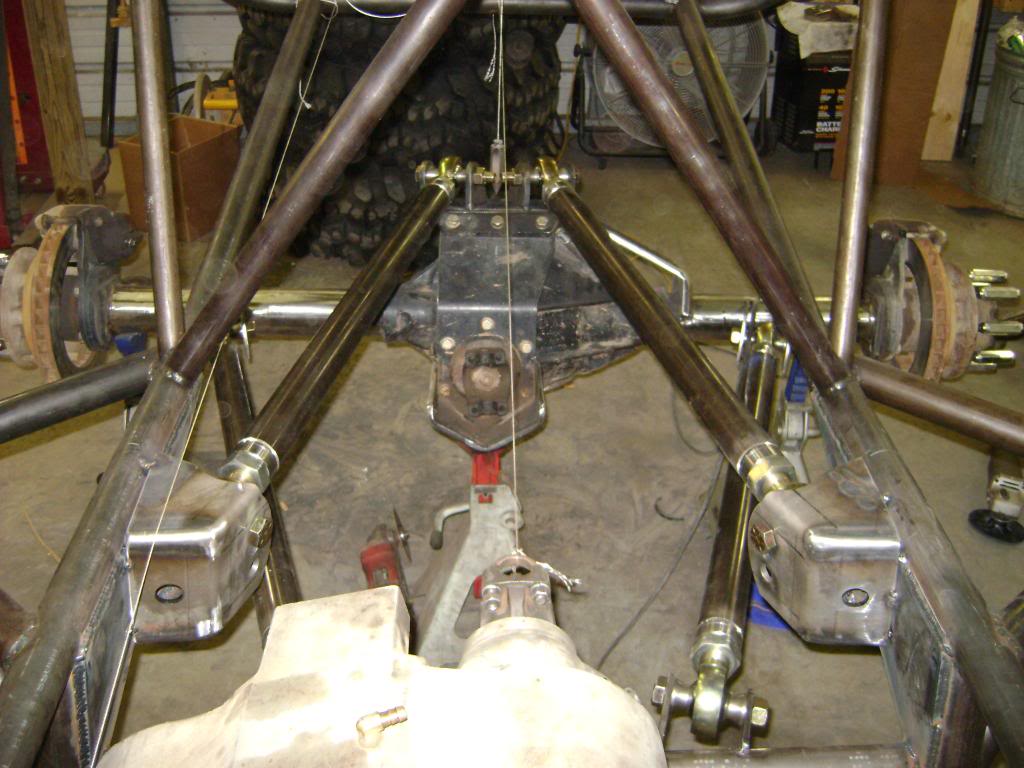

    me burning some :poop:

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2014.jpg

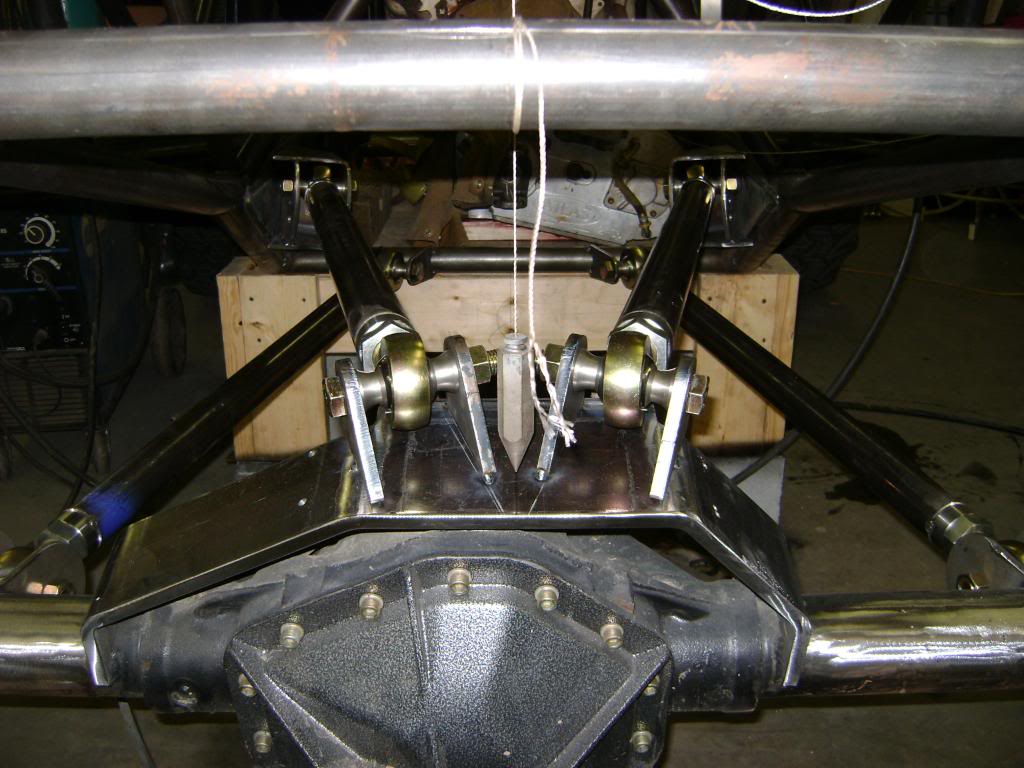

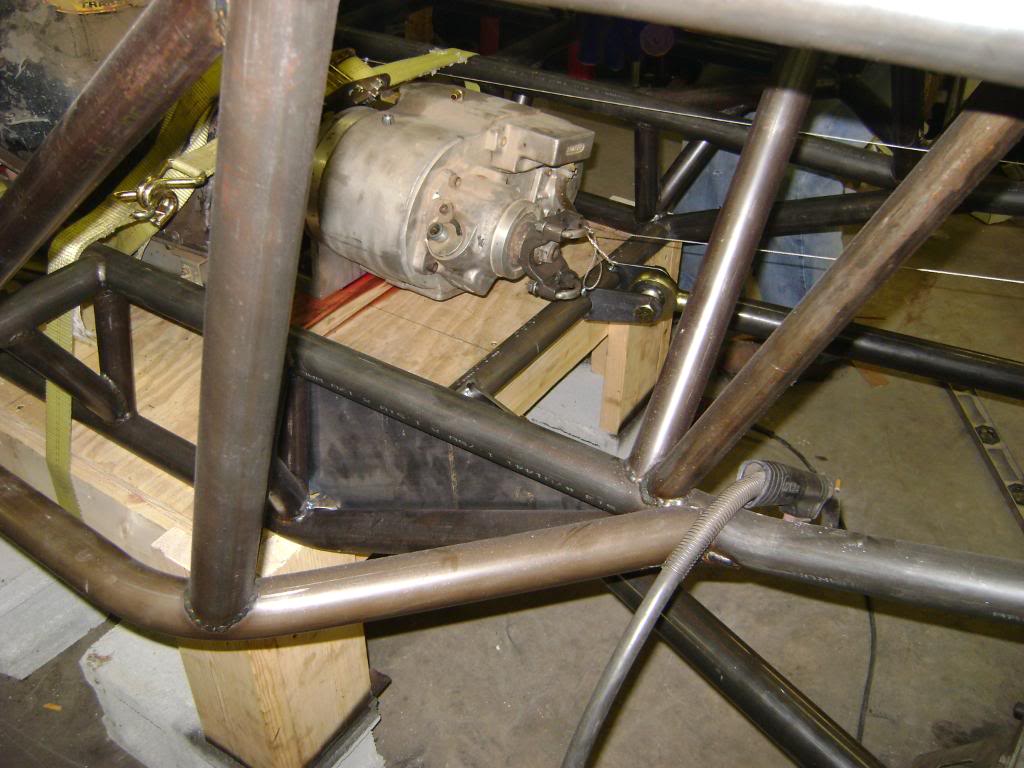

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2011.jpg

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2015.jpg

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2018.jpg

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2021.jpg

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2022.jpg

  23. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc

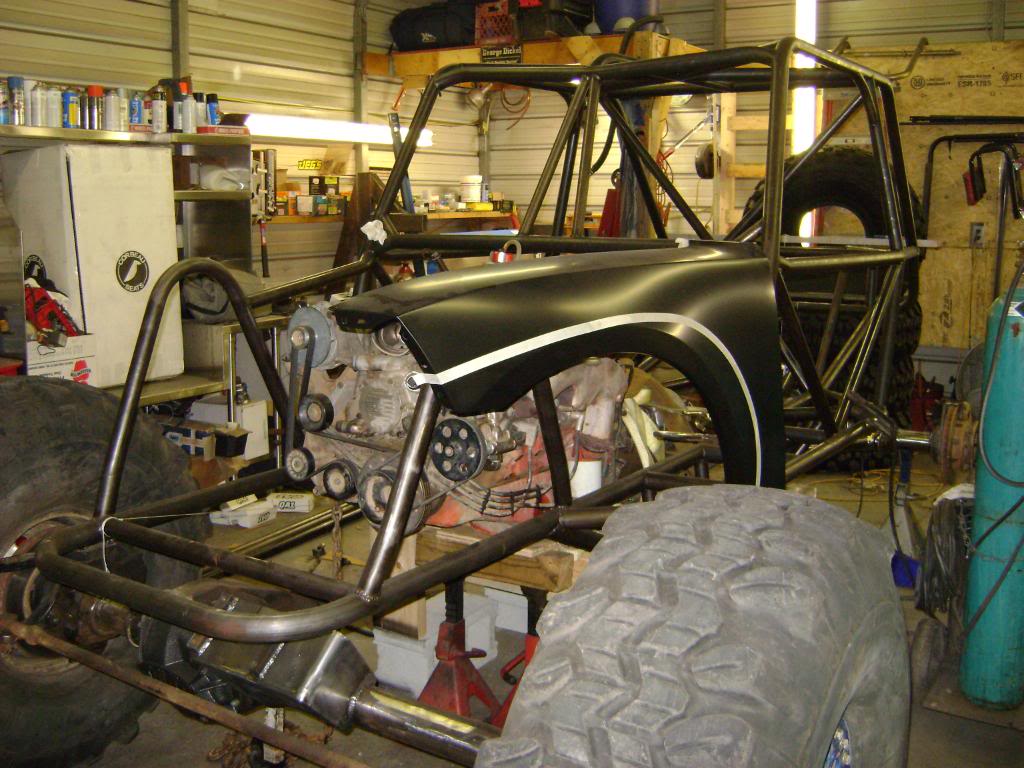

    also repostioned the fender a little higher; im thinking the front clip may look better without the hoops protruding from hood/fender...yes;no?

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2023.jpg

    ai1222.photobucket.com_albums_dd489_mcutler1_copper_20crawler_20buggy_buggybuildday2024.jpg

  24. just a sami guy

    just a sami guy Well-Known Member

    Joined:
    Apr 23, 2010
    Location:
    Mount Airy NC
    i like the hoops protruding from hood
    looks kool

  25. cherokee_kid_03

    cherokee_kid_03 Rock Corps 4x4

    Joined:
    Sep 21, 2009
    Location:
    Marion, NC
    loving the progress. . .
