I need cage inspiration

MarsFab

MarsFab

Will work for money
Joined
Oct 24, 2007
Location
Harrisburg, NC
Anybody got some good pictures of CJ5 cages. I've got one to build and need some inspiration. Most 5 cages end up being tall and boxy and I'd like to stay away from that look. :popcorn:

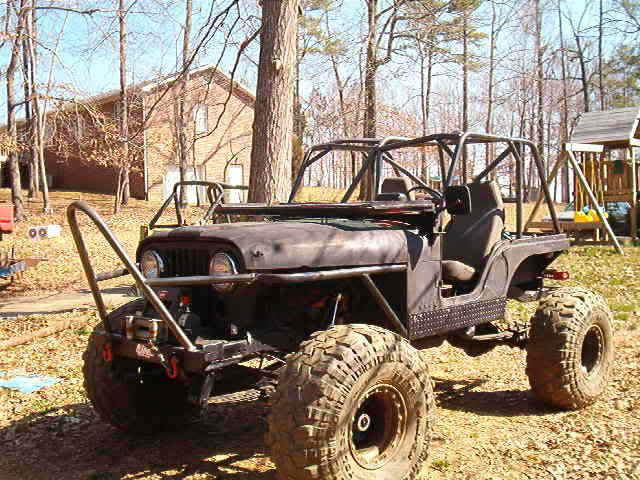

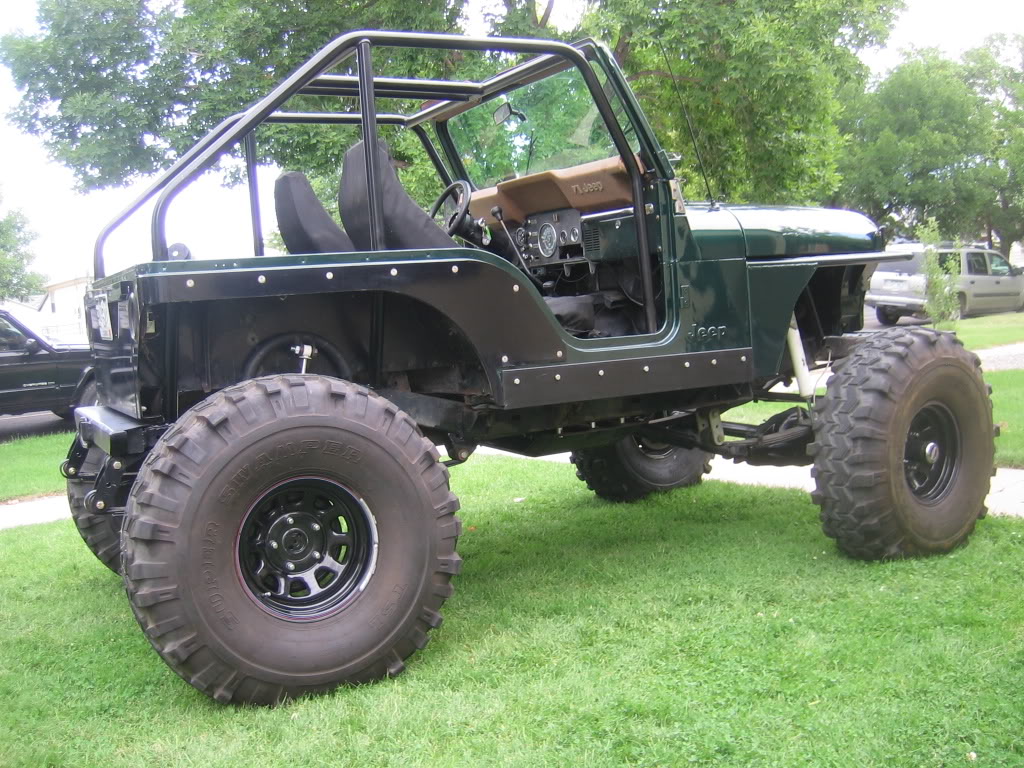

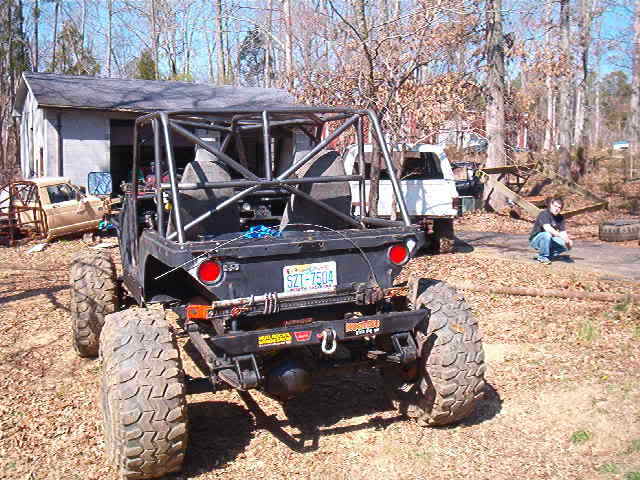

attachment.php


attachment.php


attachment.php

I'm diggin the third one. Thats pretty nice looking. fortunately I don't have to worry about a back seat too. Keep'um coming.


mbalbritton I've got you're old cj5 in the shop right now. Thats a pretty clean jeep you had.

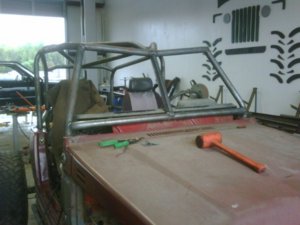

I'm probably gonna make the front look like this one I did a while back but mainly the rear is where I'm really having trouble.
sammi cage front.jpg

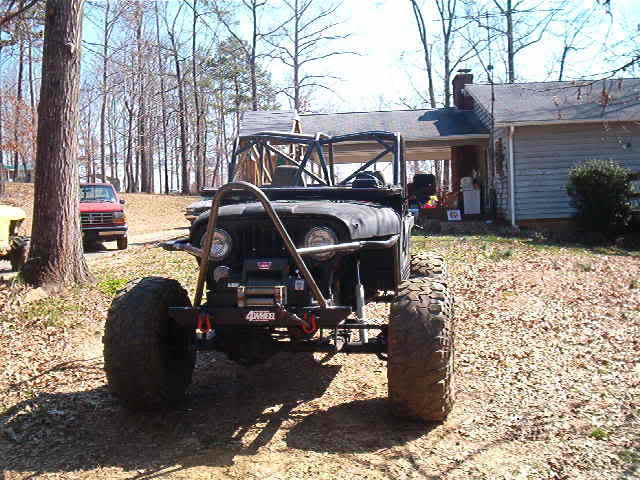

Ben, where did you get that pic of the second Jeep? I was going to post a pic of my cage but that is my cage. U know who owned it then?


Attachments

  • sept-oct 09 030.jpg
    sept-oct 09 030.jpg
    123.3 KB · Views: 408
Greg smith built the second one and the third one. The second one was in my jeep but i didnt like so it got sold.

not mine just found them for Mars, I do love Cj5's when you comp cut the rear you can just follow that door curve... just looks soo smooth. way better flow than another jeep getting comp cut.

jeepn-jason said:
Greg smith built the second one and the third one. The second one was in my jeep but i didnt like so it got sold.
Click to expand...
I bought that cage off a guy up near Elkin, NC a couple years ago because it was way cheap and I didn't have time to build one at the time. I guess it isn't my favorite design but for the time and money I have in it you can't beat it. I've yet to really find out how good it is built but it will happen sooner or later. I havent even had time to tie the back end into the frame but I really need to get it done.

MarsFab said:
I'm diggin the third one. Thats pretty nice looking. fortunately I don't have to worry about a back seat too. Keep'um coming.
mbalbritton I've got you're old cj5 in the shop right now. Thats a pretty clean jeep you had.
Click to expand...

Ya, pretty clean. Please ignore a couple booger welds that I put on it :D

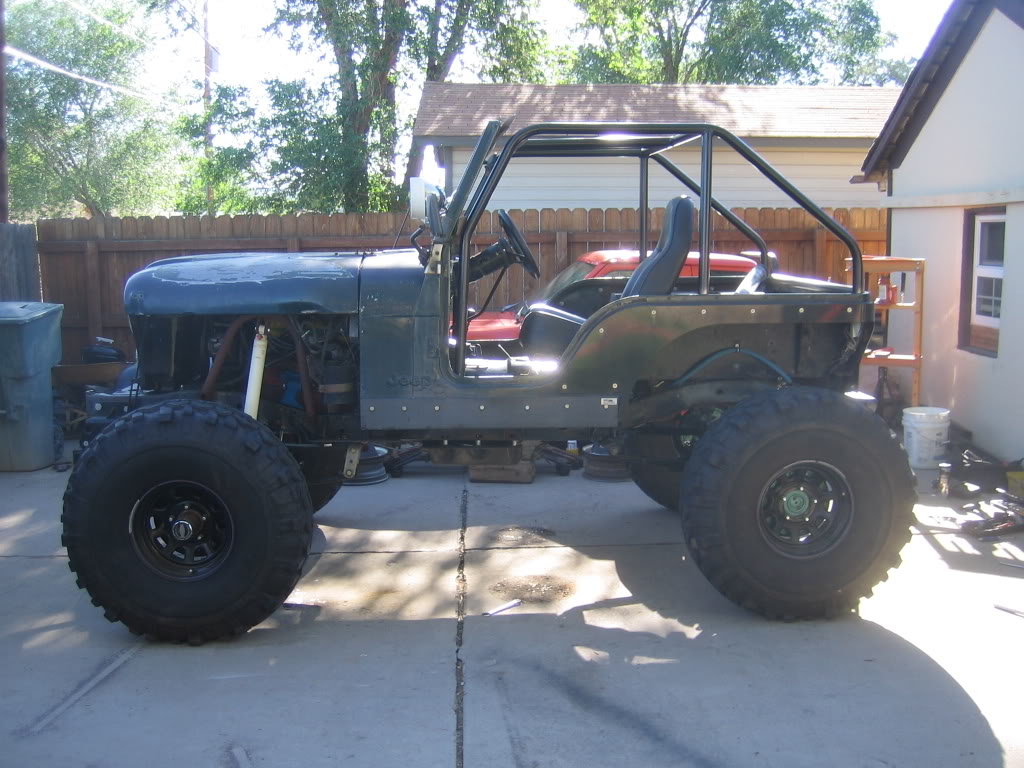

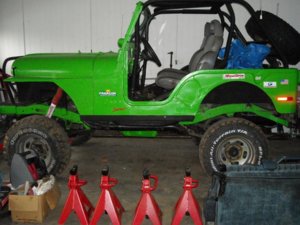

I definitely think I'm liking the sloped back better especially with a streched wheelbase. The green and black one funk skunk posted is clean and simple and probably the strech Im going for and it looks really nice.

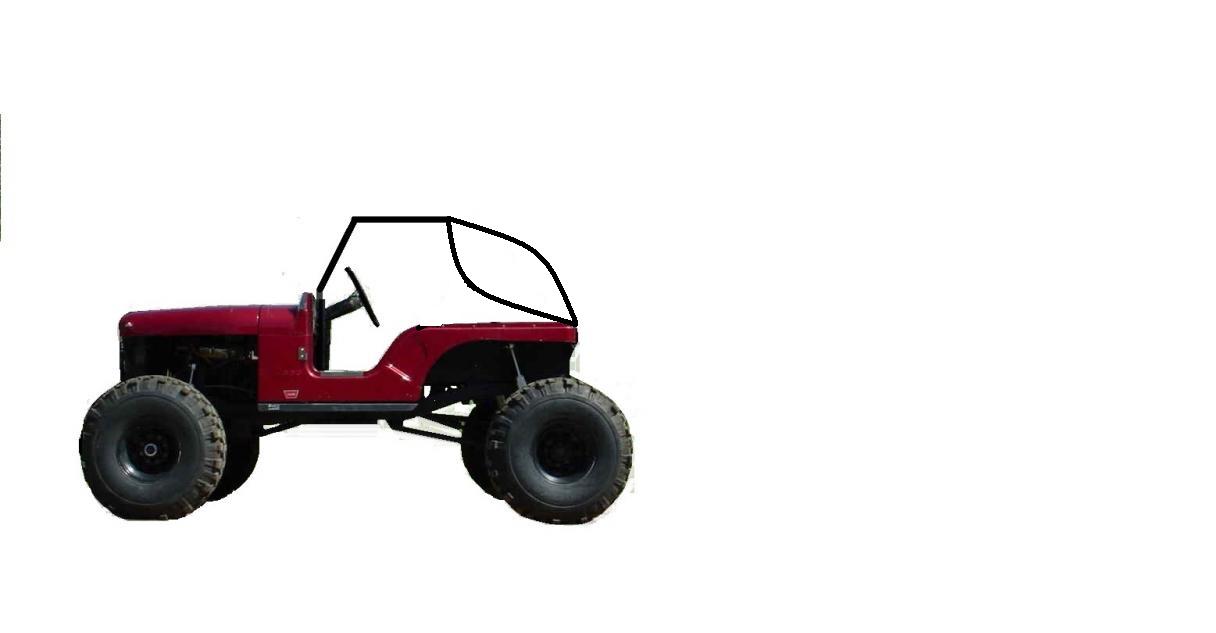

I did a few simple drawings in paint just to get an idea of some different profiles. What do you guys think about a forward leaning B pillar kinda like a PS bruiser chassis?
Cj5 roll cage design 4.jpg

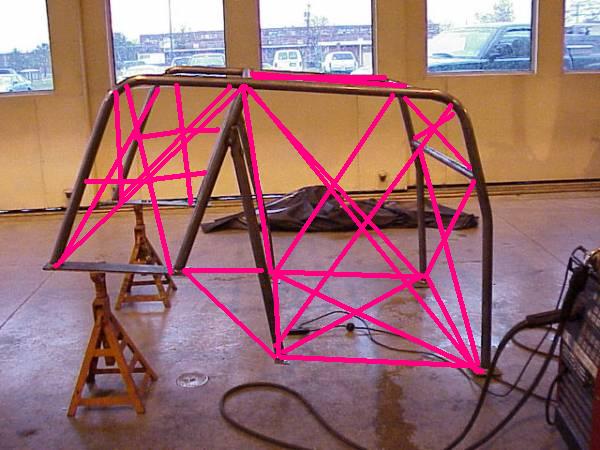

and then the top will look similar to this.


What do you guys think of that?

Just a thought, not sure how to make a design really.

Basically start like a cab, about halfway back right behind the seats come down about half way almost straight then slant back toward the rear, brace it however can be done safely. I think this would look great just not sure how to design it/draw it out.

XJfreakHO said:
Just a thought, not sure how to make a design really.

Basically start like a cab, about halfway back right behind the seats come down about half way almost straight then slant back toward the rear, brace it however can be done safely. I think this would look great just not sure how to design it/draw it out.
Click to expand...

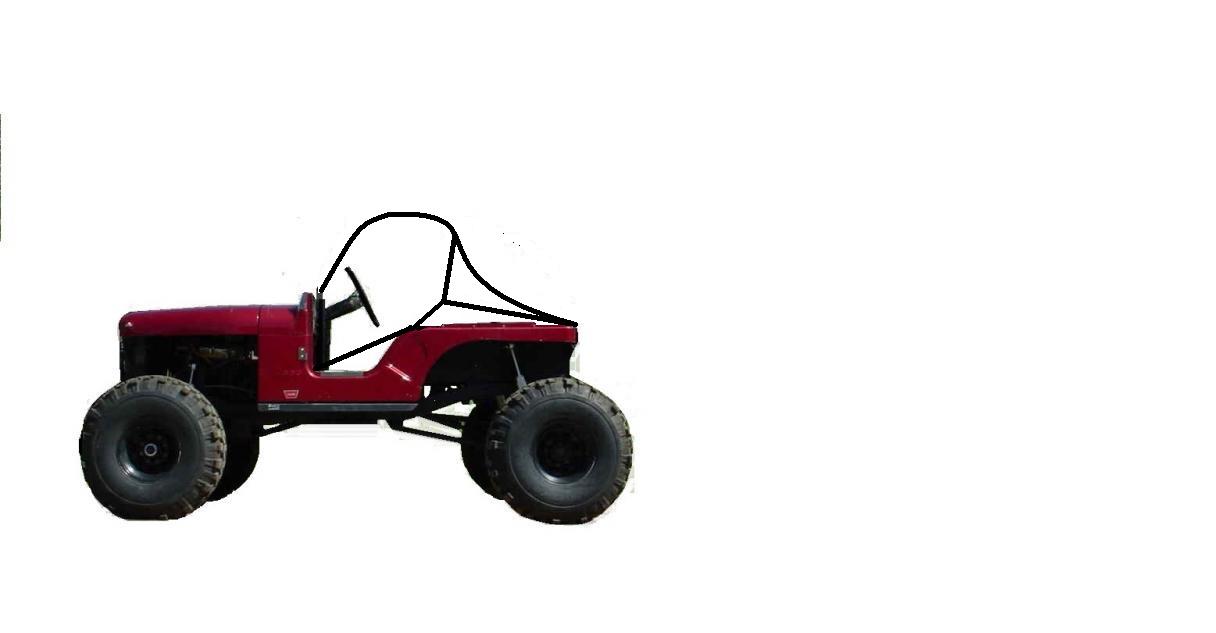

Kinda like this?
Cj5 roll cage design 5.jpg



Thinking something like that, just not sure how it would function.
Something outside the box though, everyone seems to have a basic cage, lots of straight tubing, minimal bends. Im sure it could be made functional while giving it some unique bends.
