Koup's 94 Toyota Truggy Build

Discussion in 'Build Threads' started by stinkbomb, Dec 15, 2012.

  1. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC
    Figured since I'm now part of the NC community, I'd share my build thread on here. It's a pretty basic buildup, with just a slight overkill on most parts.

    Build:
    -94 4wd pickup cab, 22re, W56, duals with a Marlin adapter, all 21 spline
    -92 2wd pickup frame, stripped completely
    -RUF bastardized leaf packs, hung by a homemade hanger
    -Double triangulated 4 link rear with dovetailed frame and TJ front coils
    -85 front housing, V6 third, Detroit, Longs, Long hub gears, FJ80 rotors
    -No idea what year rear housing with shaved drain plug and a welded V6 carrier in a 4cyl third
    -4-dee inch iroks on Beadlocks
    -Summit 12 gallon fuel cell, emptied by a Ford E2000 pump
    -Sliders frenched into rockers
    -Gnarly ass spider gear shift knob
    -5 sticks of tube bent into the mix with toolbox, cooler and dry goods bin storage in the back
    -Warn 9000 on the front bumper
    -battery relocated to next to fuel cell with a dash mounted master kill switch


    From October 24, 2011 until the Wednesday may 23rd, I worked pretty much around the clock 5-6 days a week. Worked 730-5 every day, then off to the shop until 2am, which towards the end, turned into 3-4am. Then a few weekends throughout the summer to get it to where it is now

    I'm being a dousche and linking the thread from Pirate, mostly because there's a million pictures and halfway through the build I started using Photobucket and all the previous pictures were uploaded from my laptop, which is dead. But you don't have to join or register to read it, but be warned, it is PICTURE HEAVY! And overly in depth.

    Enjoy:

    http://www.pirate4x4.com/forum/toyo...s-94-reg-cab-build-38-5s-duals-links-etc.html

    Last edited: Jan 16, 2014
  2. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC
  3. NCJeyota

    NCJeyota Well-Known Member

    Joined:
    Jun 1, 2009
    Location:
    Raleigh
    I followed your build on pirate and always loved it. Where about in Raleigh did you move to?

  4. Cooju

    Cooju Active Member

    Joined:
    Jan 16, 2012
    Location:
    Randleman,NC
    this may have gave me new direction for my rig this thing is my new insperation

  5. ORV design and fab

    ORV design and fab Well-Known Member

    Joined:
    Jul 11, 2009
    Location:
    Raleigh area, NC
    Nice man. I,m in youngsville, 25 min north of Raleigh. Let me know when you go wheeling

  6. Chris_Keziah

    Chris_Keziah Joe Dirt

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Awesome build thread. So when ya gonna link the front?

  7. frankenyoter

    frankenyoter No Rain, No Rainbow

    Joined:
    Mar 17, 2009
    Location:
    DARK CITY
    I followed the Pirate thread. Nice rig. Thanks for posting here.

  8. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC
    Thanks. In the Brier Creek area, for now. Convenience is nice, but I miss my seclusion.

    Good deal, possible plan to the flats the weekend after New Years, but that's still up in the air. I'll keep ya in mind

    I'd like to link the front now, but she's gonna stay the way she is for a while. Next winter it'll go under the knife. Possibly later this winter if I get a wild hair up my ass, but who knows haha

  9. Chris_Keziah

    Chris_Keziah Joe Dirt

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    This might be an odd question but how long can you run on 12 gallons of fuel on the trail? Kinda of wondering what size to go with in the runner.

  10. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC
    Wheeled 2 whole days at Rausch in July, on one tank. Some of the day was spent at camp fixing a buddy's buggy, but we covered a LOT of ground that weekend. Same with Gore, VA, ran the whole weekend(which included dumping a shit ton of gas out of my vent the first night there on a night run), one day was also only about 2 hours of wheeling. With a 22re you'd be surprised at how little it uses on the trail vs on the street. 12 gallon cell and keep a 5 gallon jug in the tow rig, saves you space and weight.

  11. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC
    Haven't updated in a while, some of this is really old(and copied from my Pirate thread)

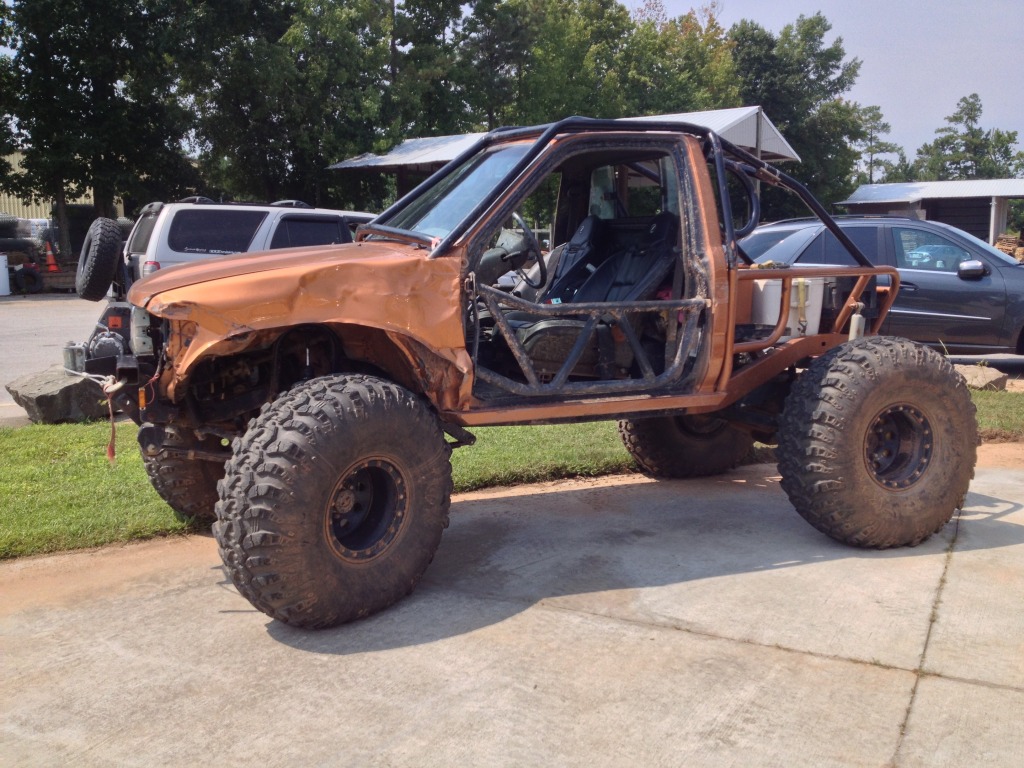

    I moved my ram mount to the front of my front axle and put some tube in front of it and took a leaf back out of my front leaf pack. now sits 23.5" to the frame on 40s, at 8 psi, run 3 psi all around on the trail.
    ai895.photobucket.com_albums_ac151_kouperstein2_truggy_20build845904846091426b6b3544bb6779d43f.jpg

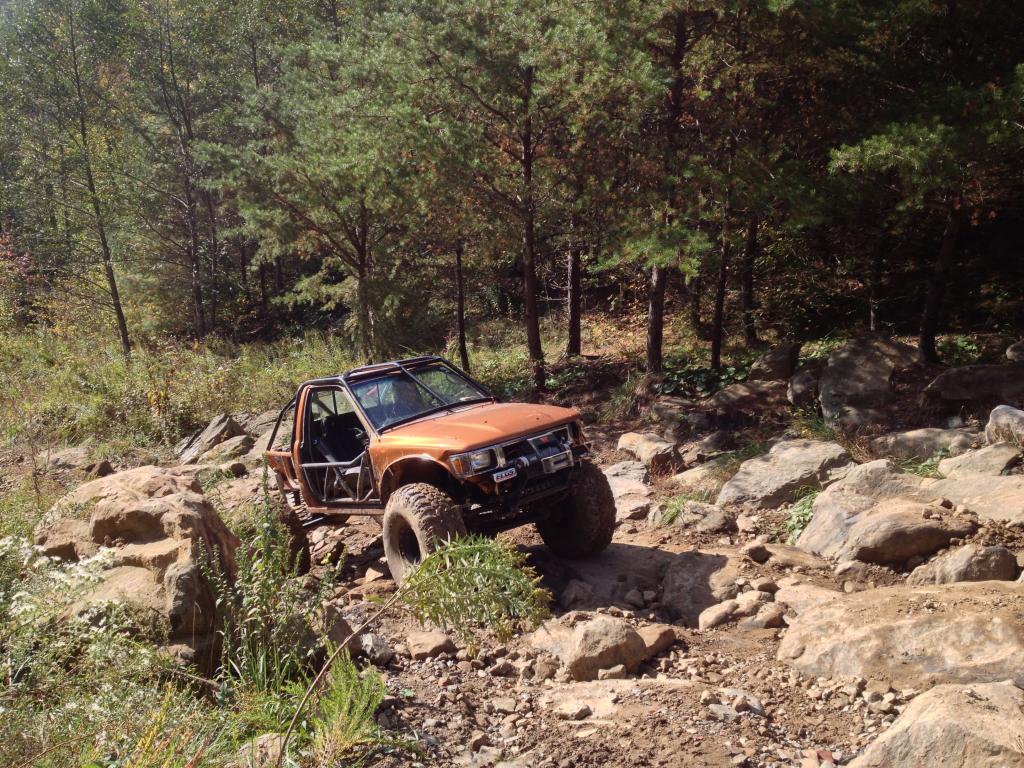

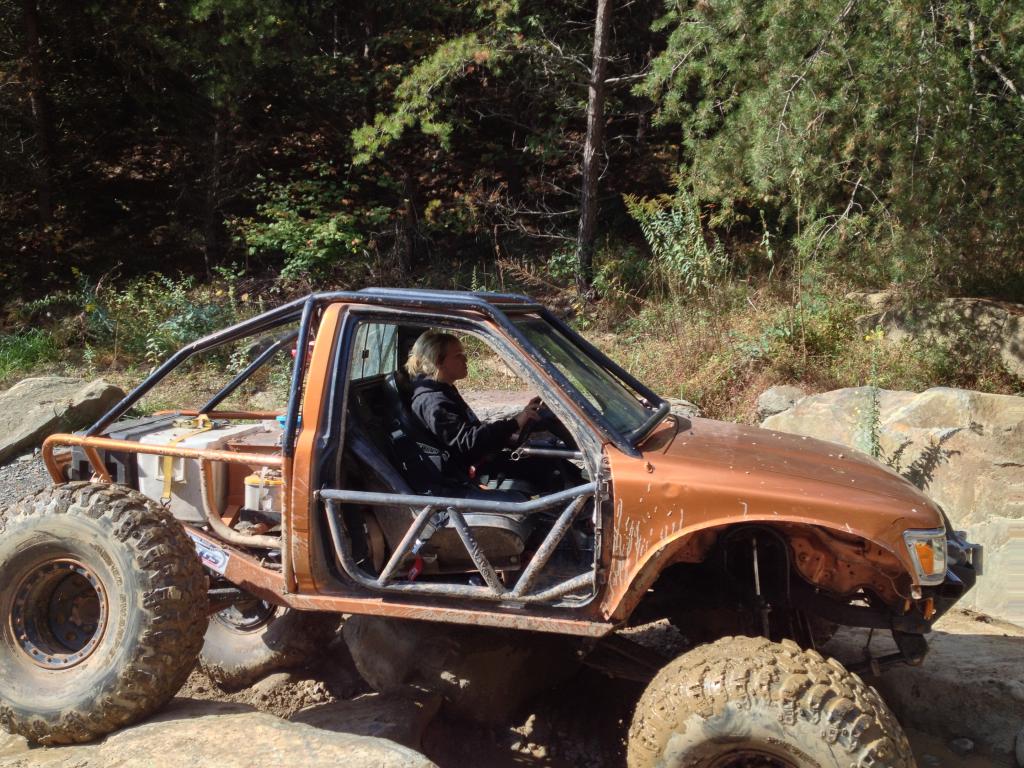

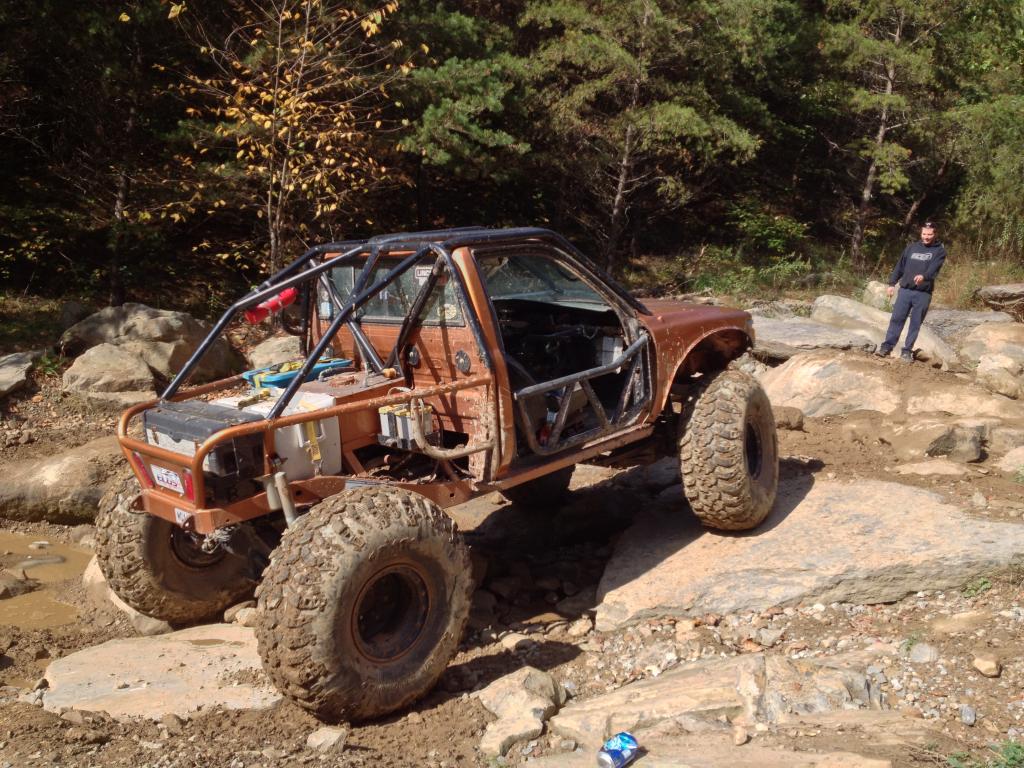

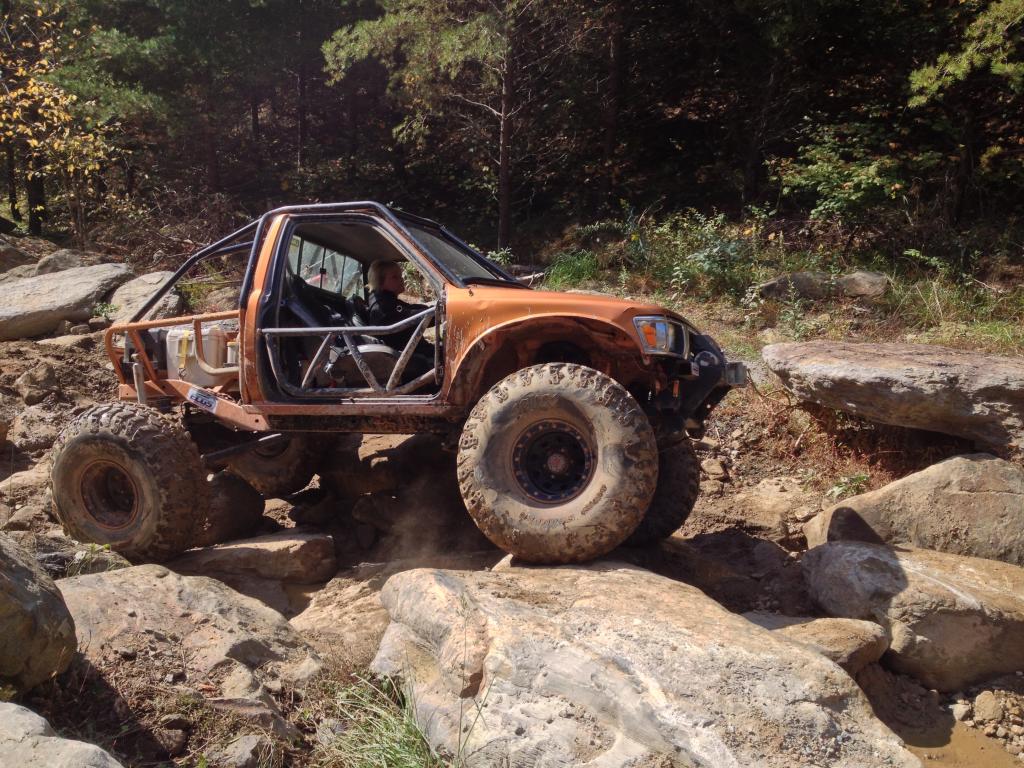

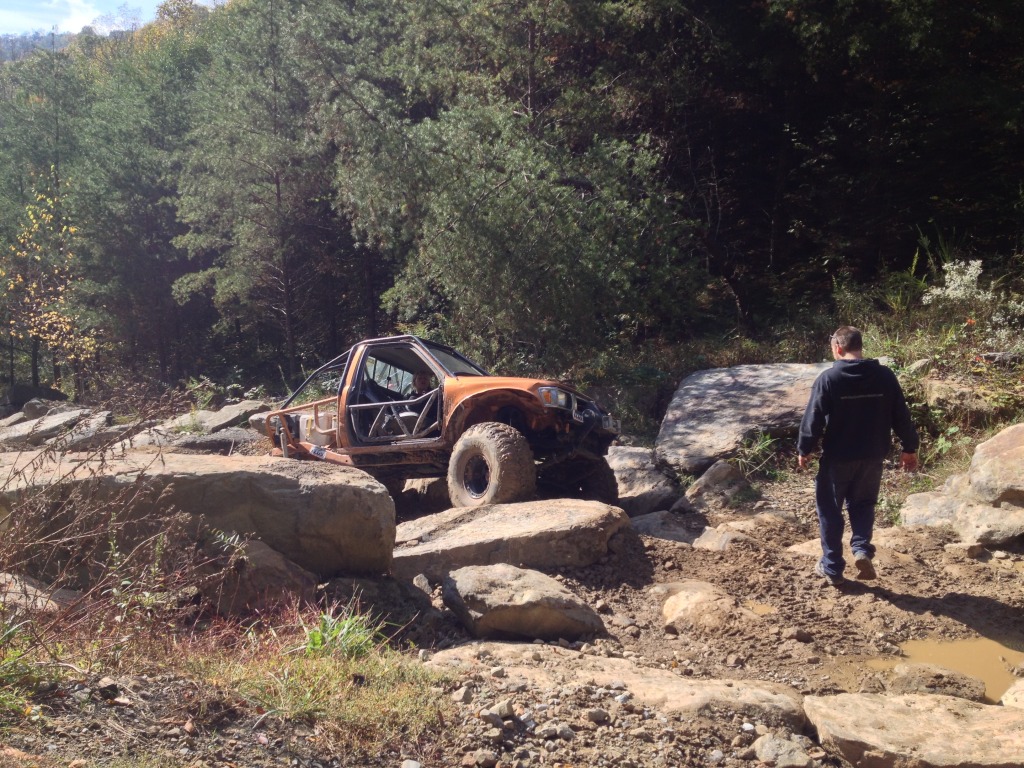

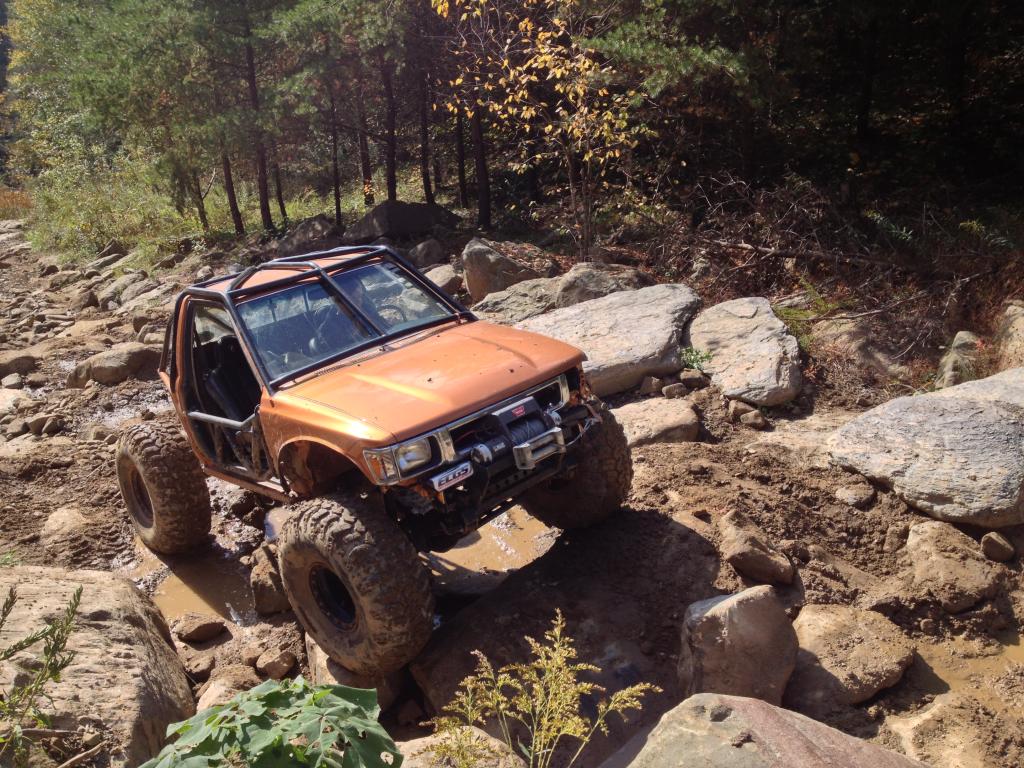

    other than that, here's a few pics from Harlan Fall Crawl 2013. Girlfriend wanted to drive it, so I put her in the seat in lower rock garden
    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_4d95fdb228112d44da53f616406f0427.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_9894196e8216a83d0d90d302a006b591.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_19fba6ecffa87dfbfa197f6a910712f1.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_de0a1f00da063073b68922ee98499ec1.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_2c7390a19e8f6e73a5f7b1ce5c5340de.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_07f2a8b87b4bff8ca0791420e89d0bda.jpg

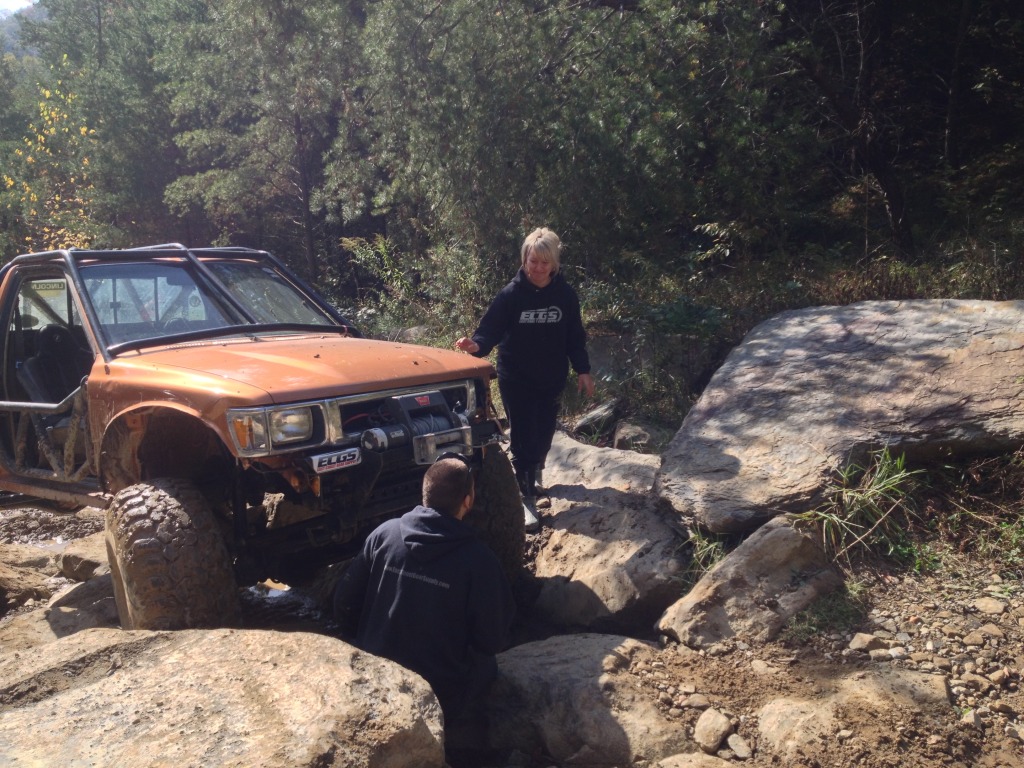

    Before she got into the part where I was actually going to have to spot her a little, I stopped her, said something broke in the front, shut it off and get out. She thought she really broke something, but I just wanted to ask her to marry me!
    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_4805f191f41c4355079e06e01477916a.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_450454f1d429269cb703c8677f7c95e9.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Harlan_20Fall_ee26f907ad442e65487e087b4df06b15.jpg


    The rest of the pics that I took at Fall Crawl, can be found here:

    http://s895.photobucket.com/user/kouperstein2/library/Harlan Fall Crawl 2013

    BShore likes this.
  12. Chris_Keziah

    Chris_Keziah Joe Dirt

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Congrats on the engagement very creative.

  13. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC

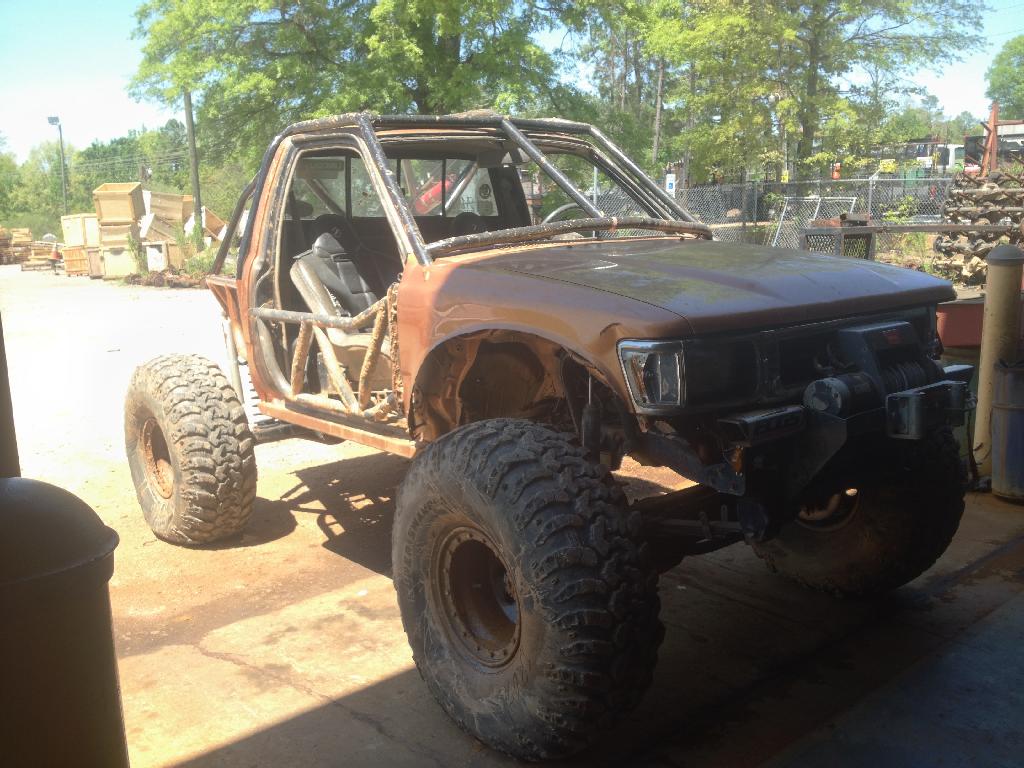

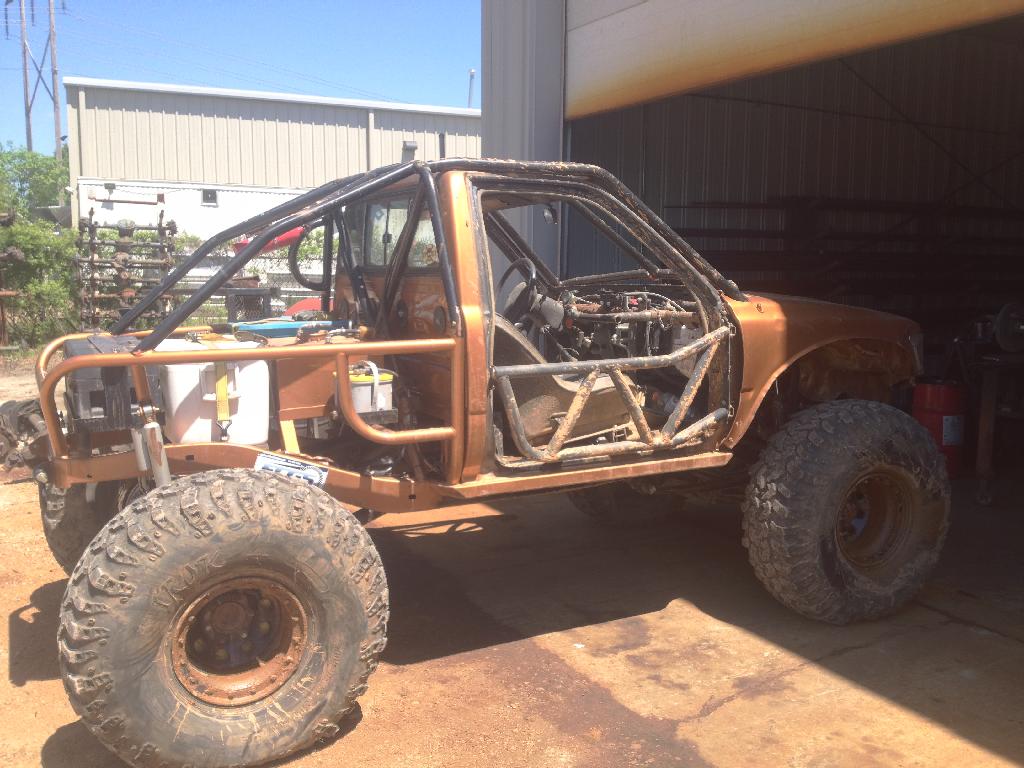

    Otherwise, I started the next phase of the build, time for a remodel.
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod6b8a396dd9a397b1cd43cd91c5a9bbd4.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodac1b646ff7eac02d21c358a03fe91748.jpg

    pulled seats and harnesses
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod9b0f85e7611b6e76621e2eb3608a8726.jpg

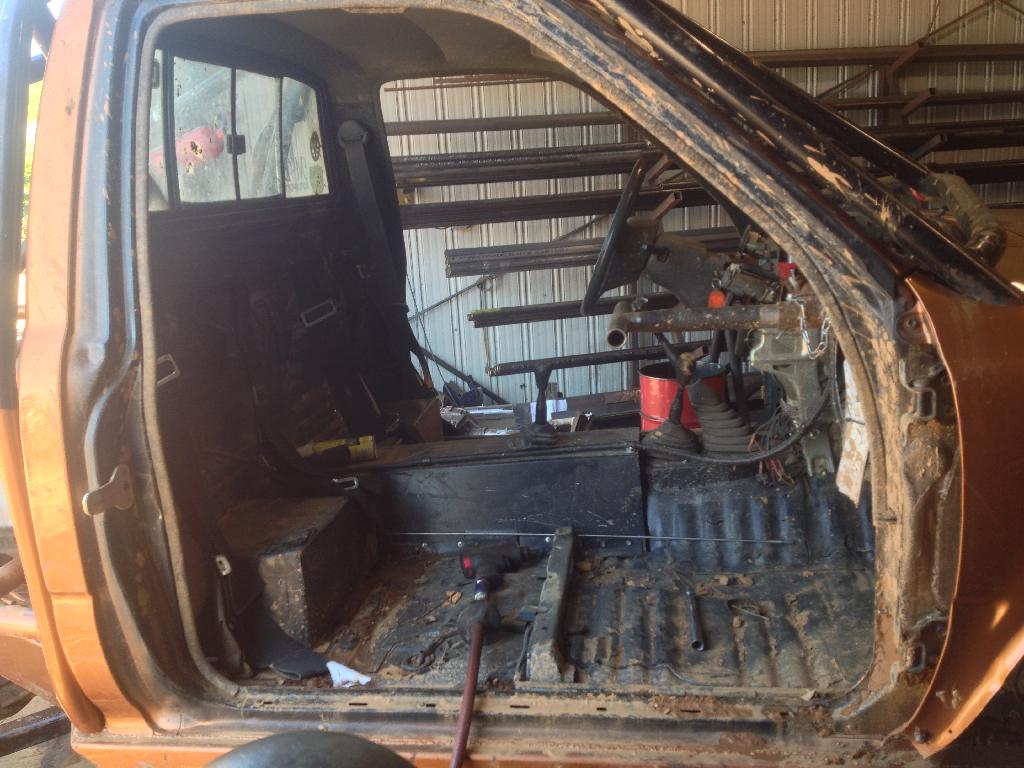

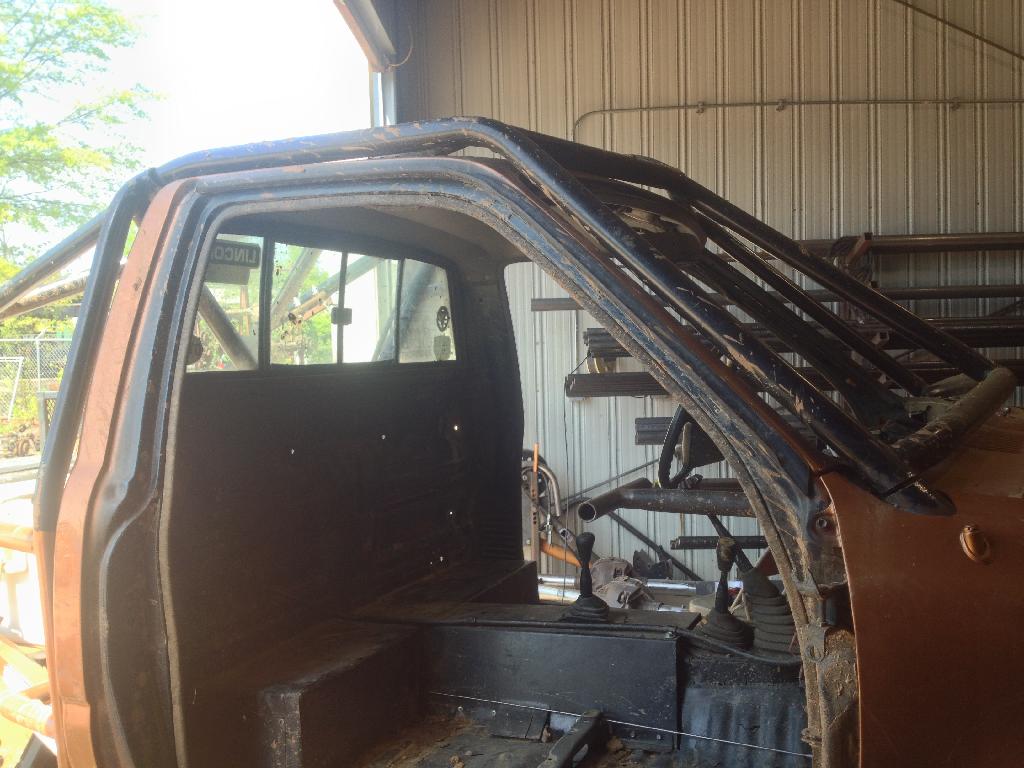

    made some incisions
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod5e687042b2e01baba4c8b37923a1f537.jpg

    tube removal
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod1d43f1e20df9e6c1f5af11de75413db8.jpg

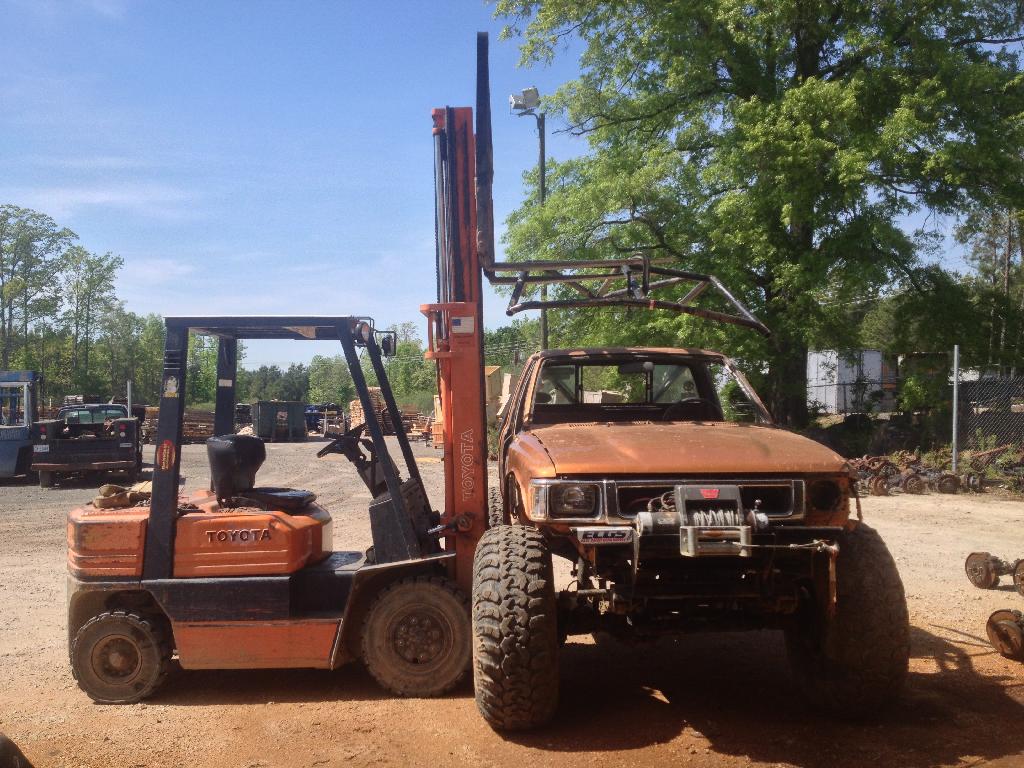

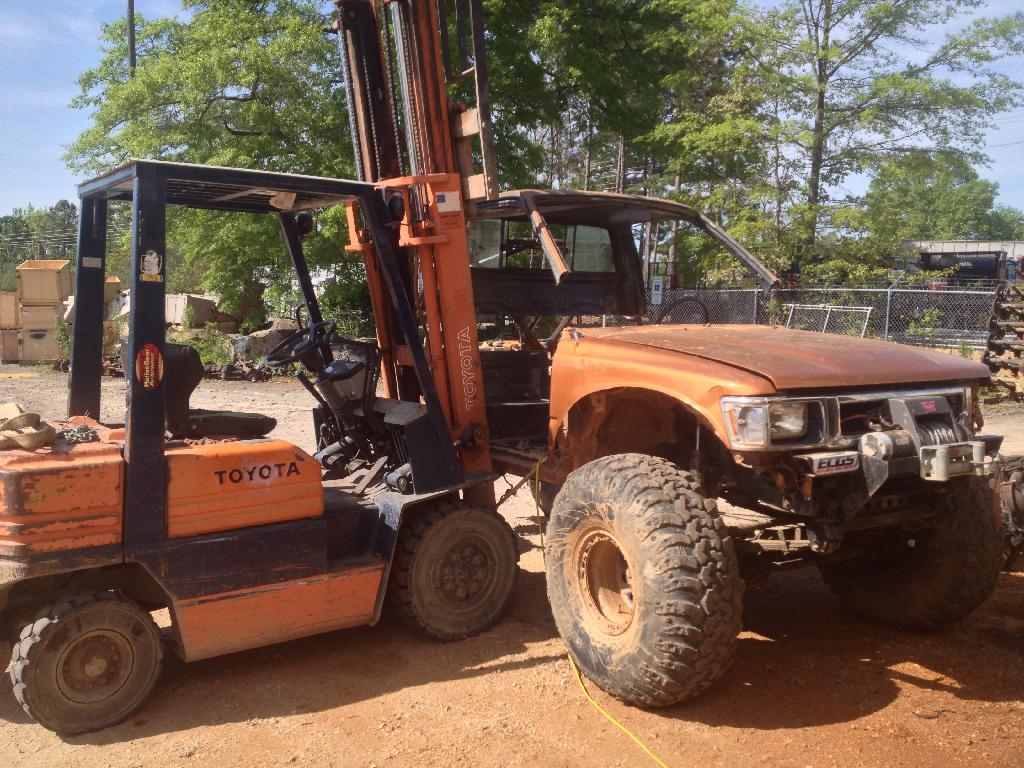

    Cab removal
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod2710f8f4f8e888ce9bc2c0c24371e41e.jpg

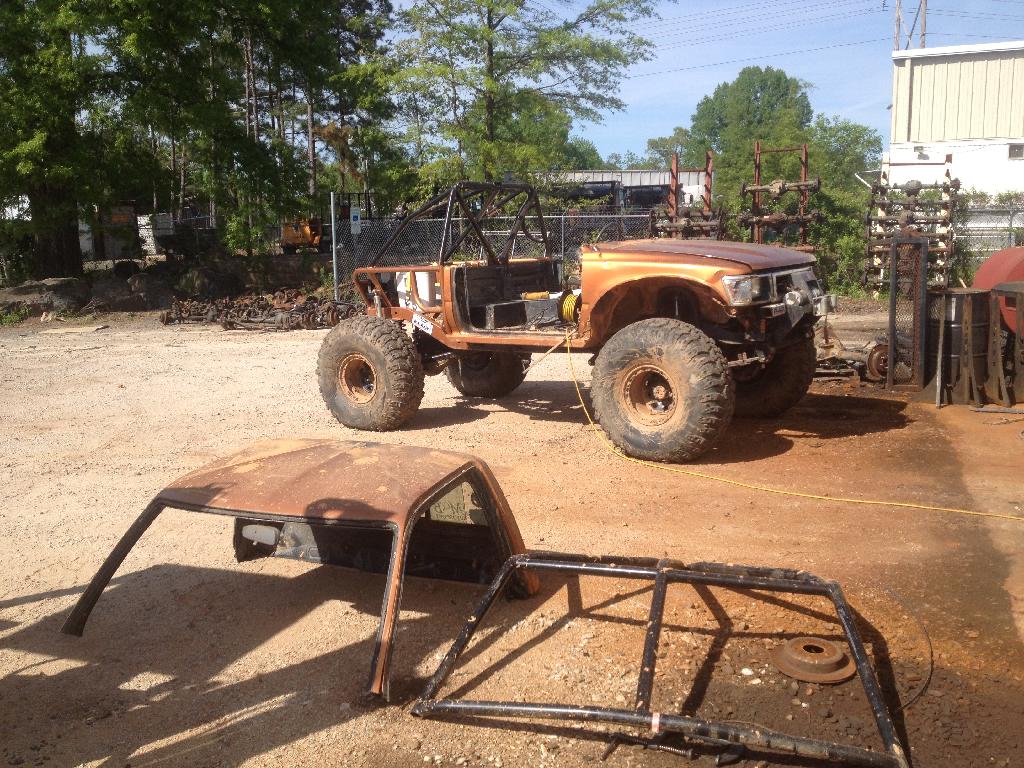

    rut row raggy
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod3bb95288955e7bdc1134ea8022074224.jpg

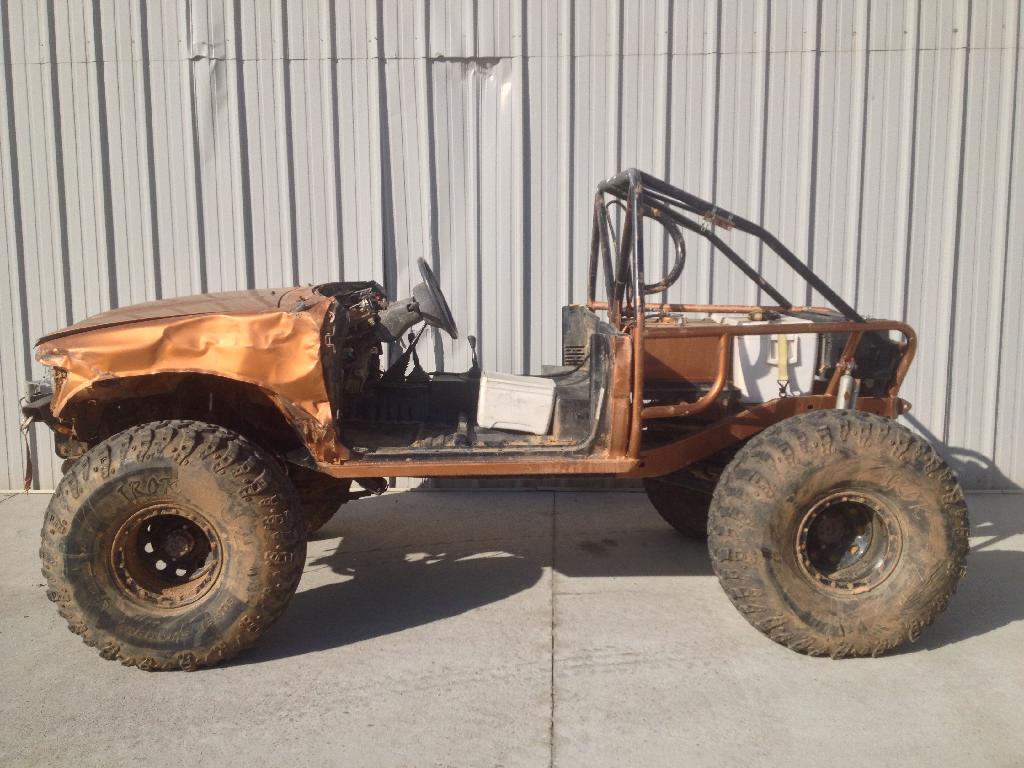

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodf3ac6f005eec3ba28180dc913987afe9.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod3a1c18a2a84370e75e2a08c48071e360.jpg

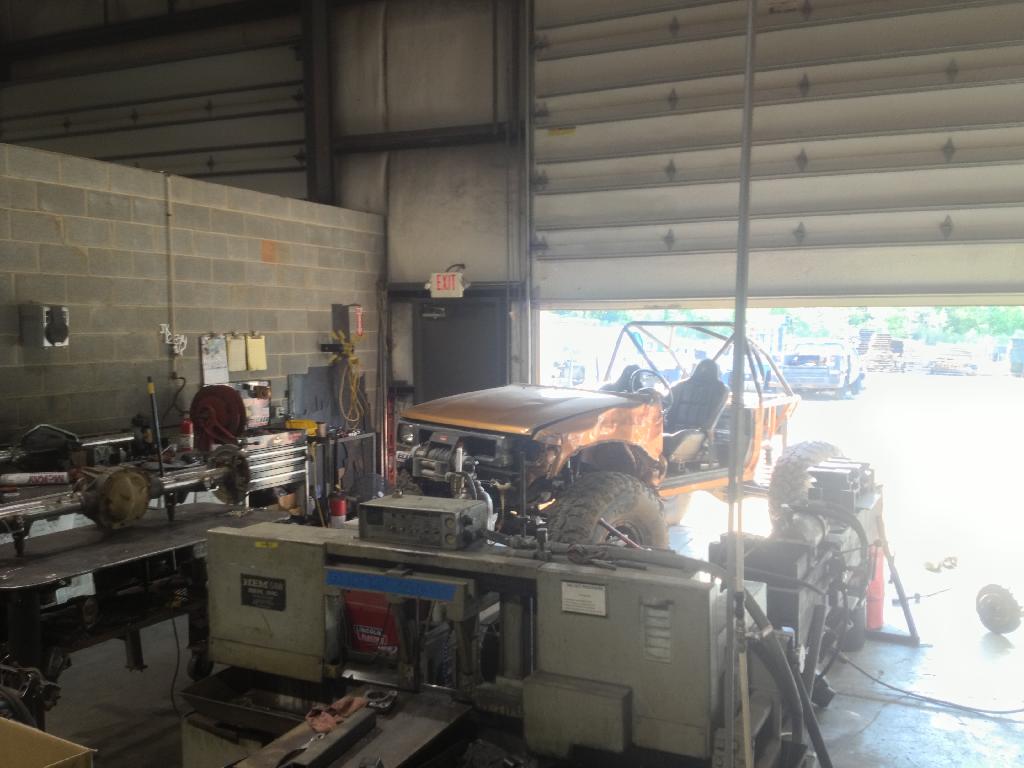

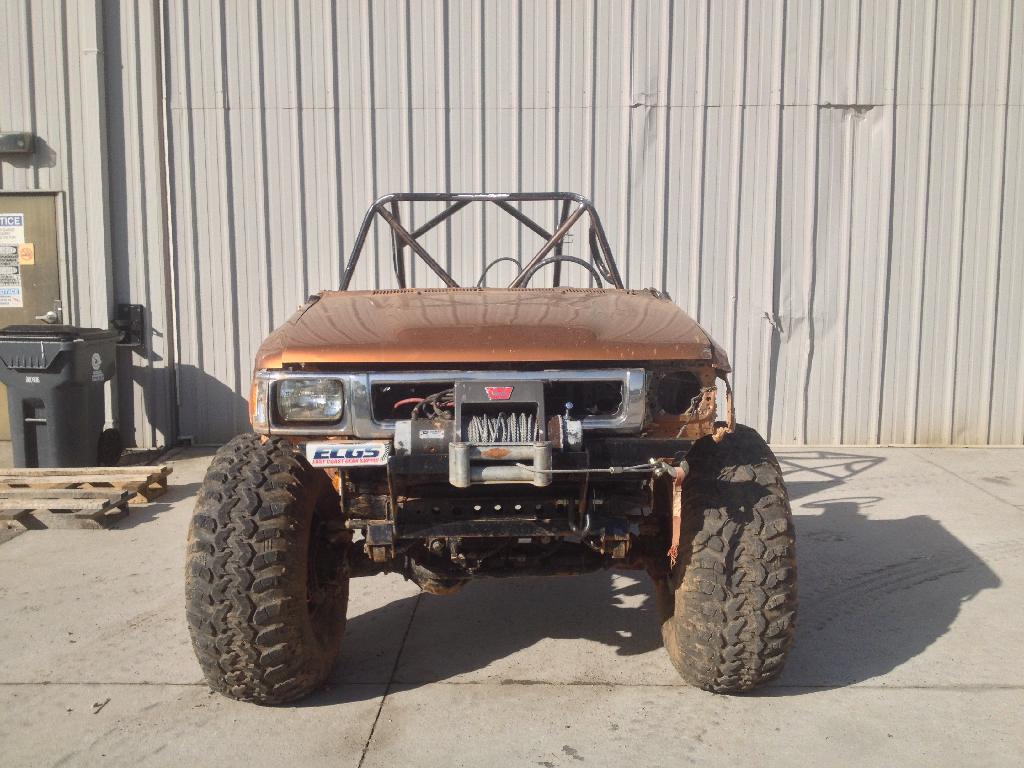

    had to pull her inside, it got hot sunday
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod61742258e692d2835ad4e95c8fc253a8.jpg

  14. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC

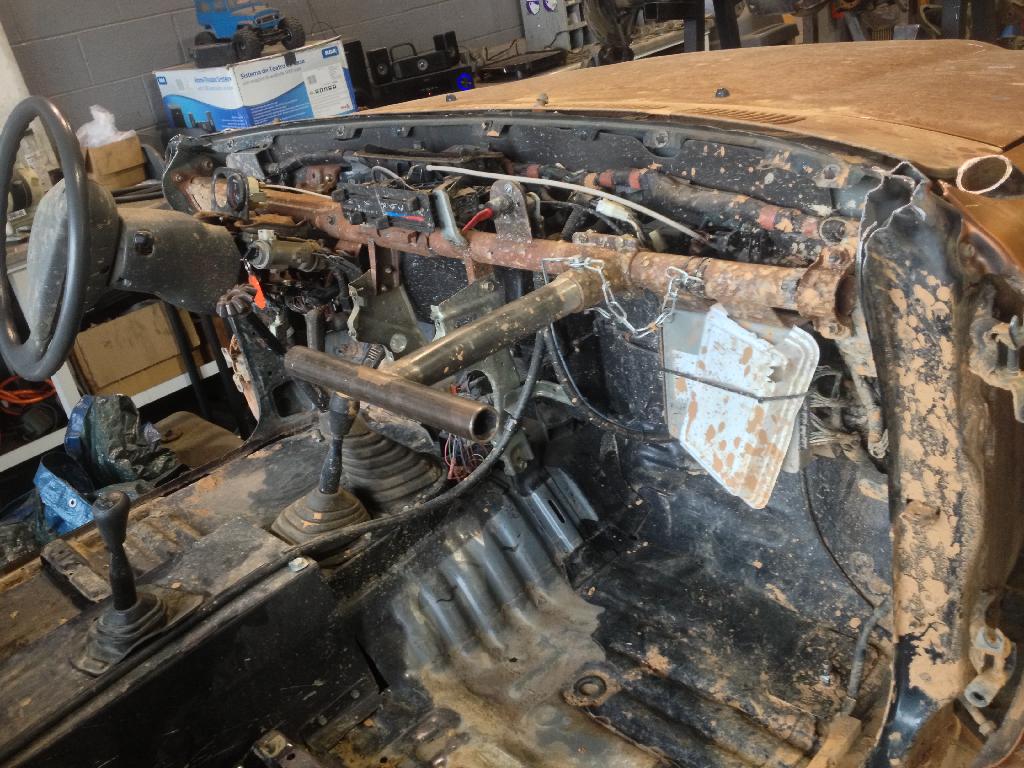

    tonight I pulled some more garbage out. This mess, had to go.
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod16f3e183ebf237ed62828525d9b77f7f.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodf82d306cbaa46b9bb185539fcea66a95.jpg

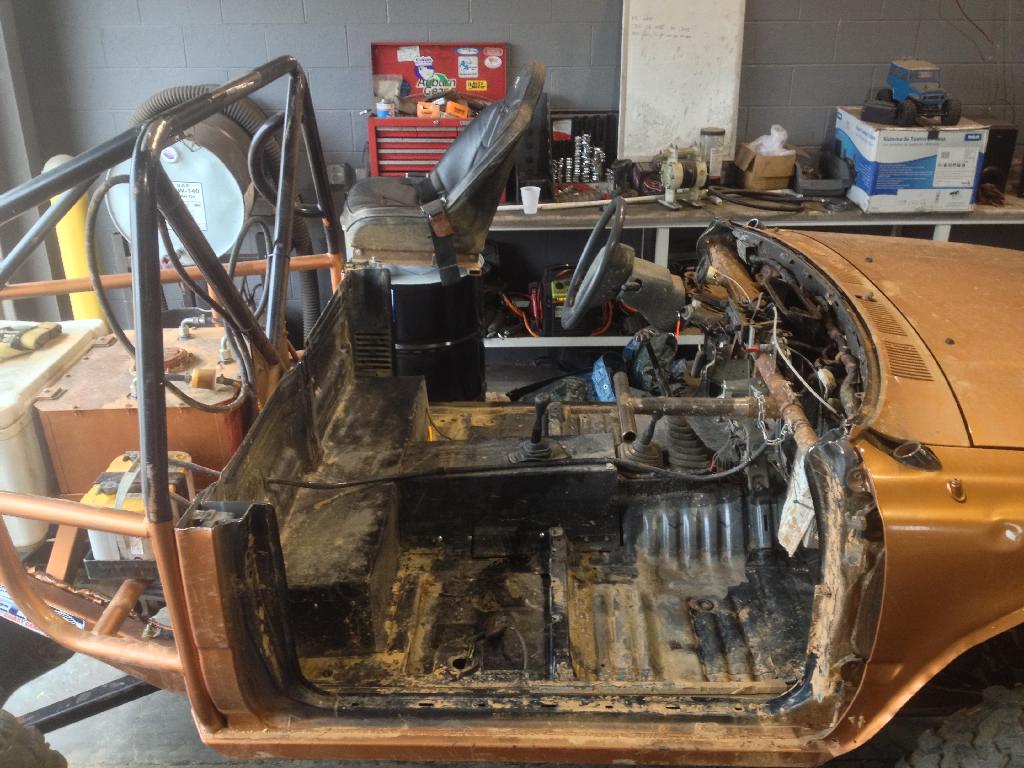

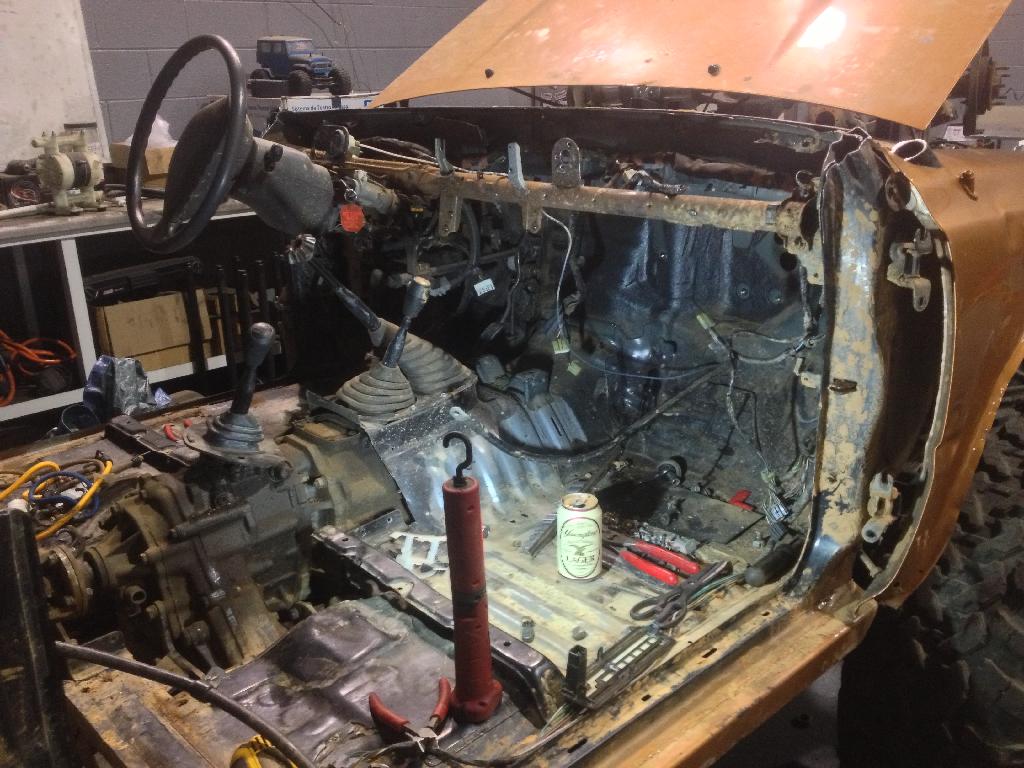

    so much better
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod4ac7af5476cd67e3f08367fe0b7f9e06.jpg

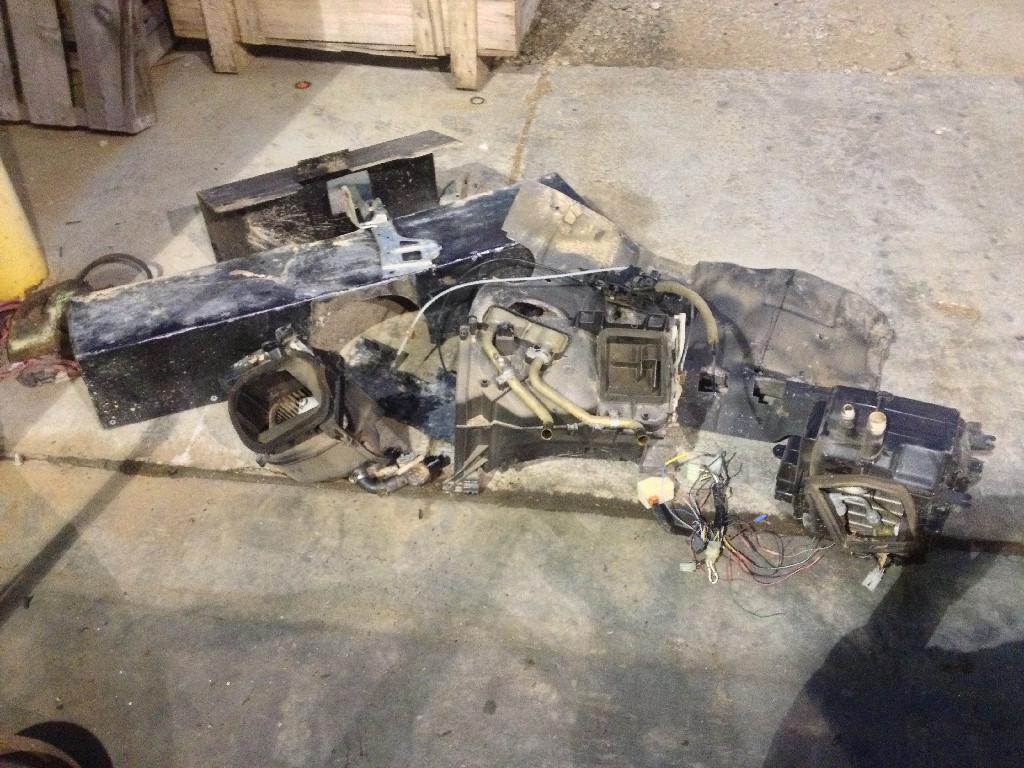

    this has all been deemed, "not required"
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remoddfc416d469b7bc029ef83605944e1890.jpg

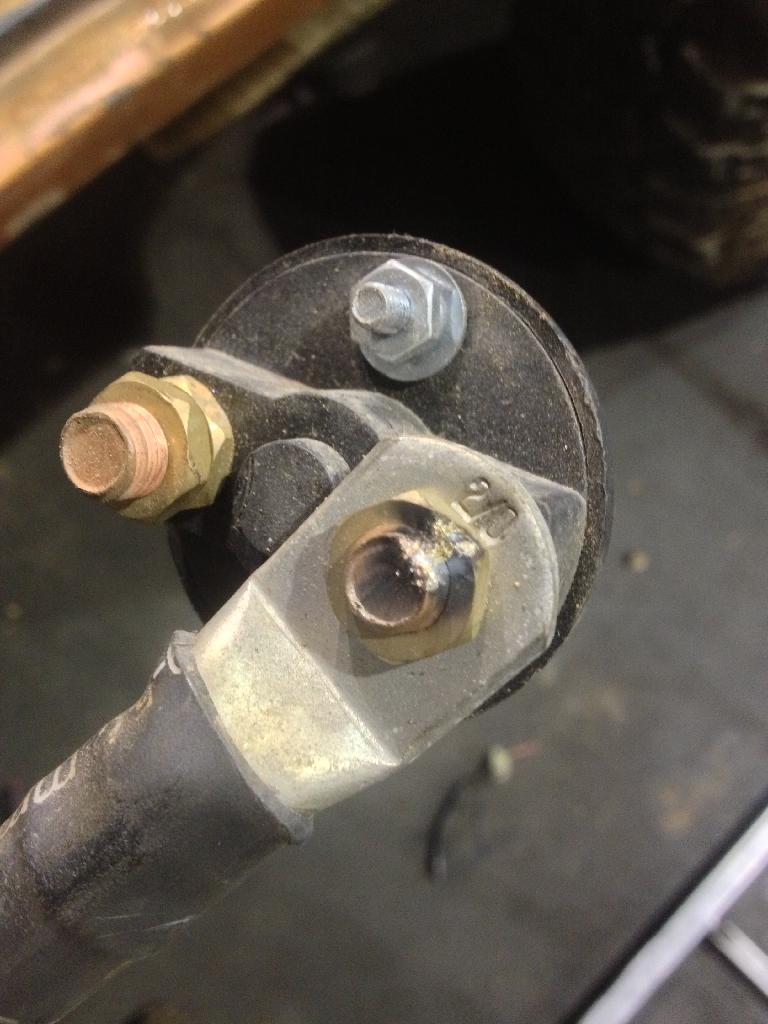

    yaaaaaa, when making an entire vehicle the ground, unhook this at the source
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod58875dc9c1e8638443c311eb640aa1d8.jpg

    the rest will continue next week, got a busy weekend of traveling ahead of me

    Mac5005 and samsterman99 like this.
  15. karatejosh

    karatejosh Well-Known Member

    Joined:
    Apr 4, 2011
    Location:
    raleigh
    Nice

  16. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC

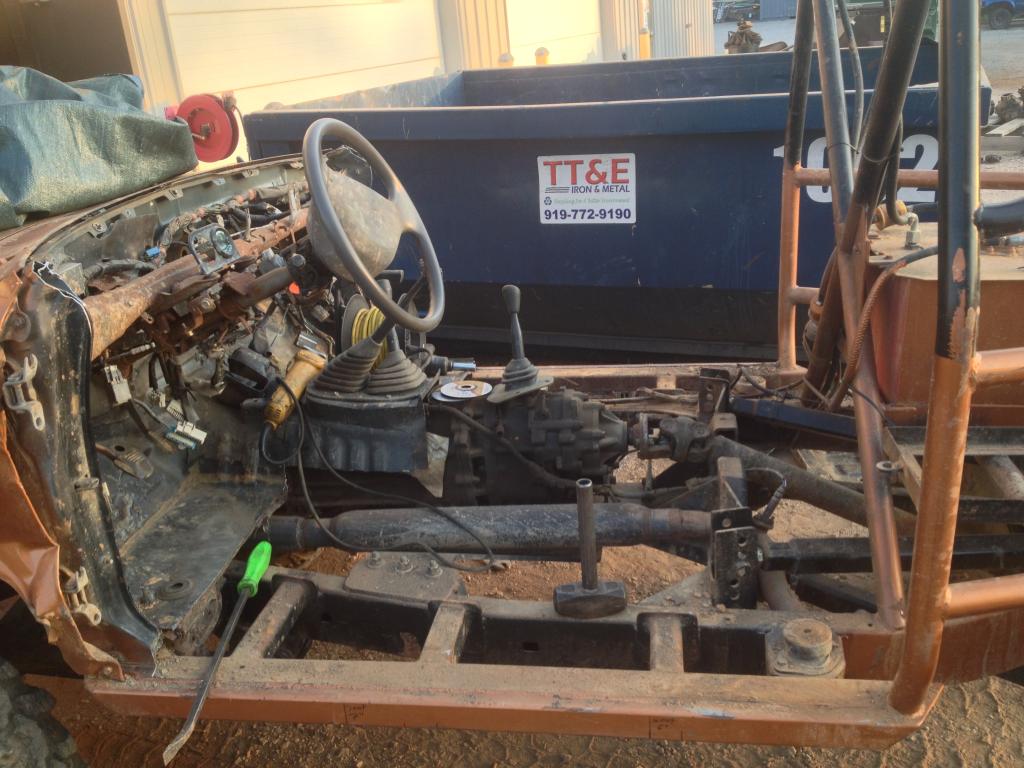

    Did some cardio tonight and shaved a few more pounds. There was mud, EVERYWHERE.
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodcc5b0401d2bef11b97152b4d0c12d548.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodf65a8c9c73d3c020984731f59cae69c2.jpg

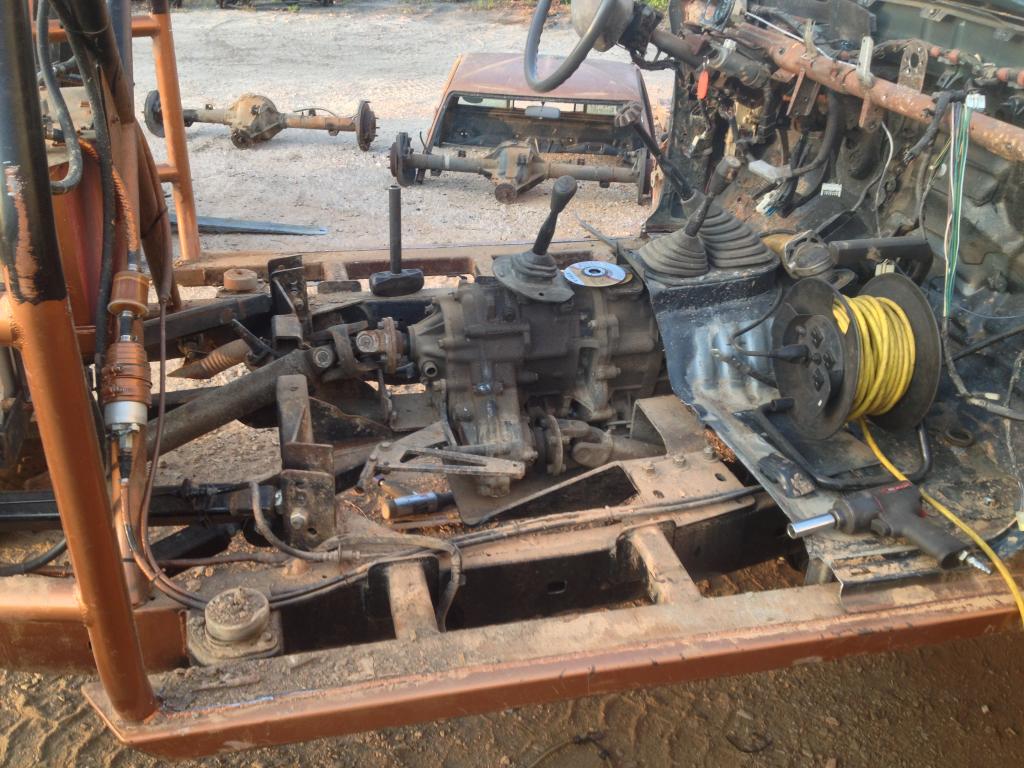

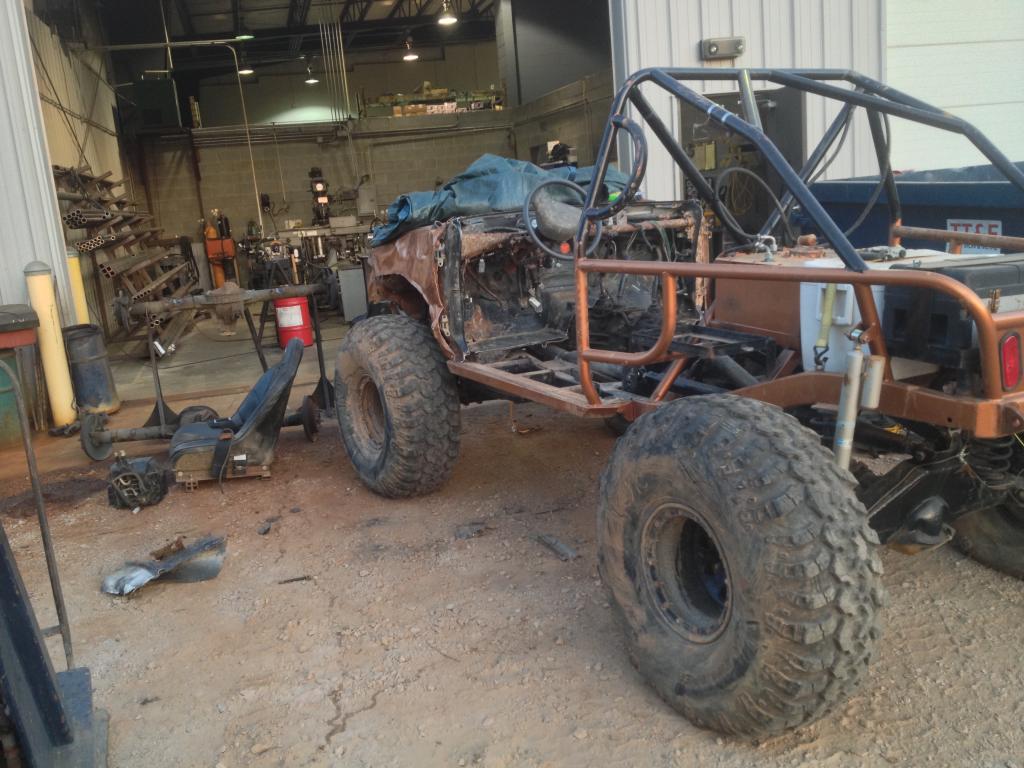

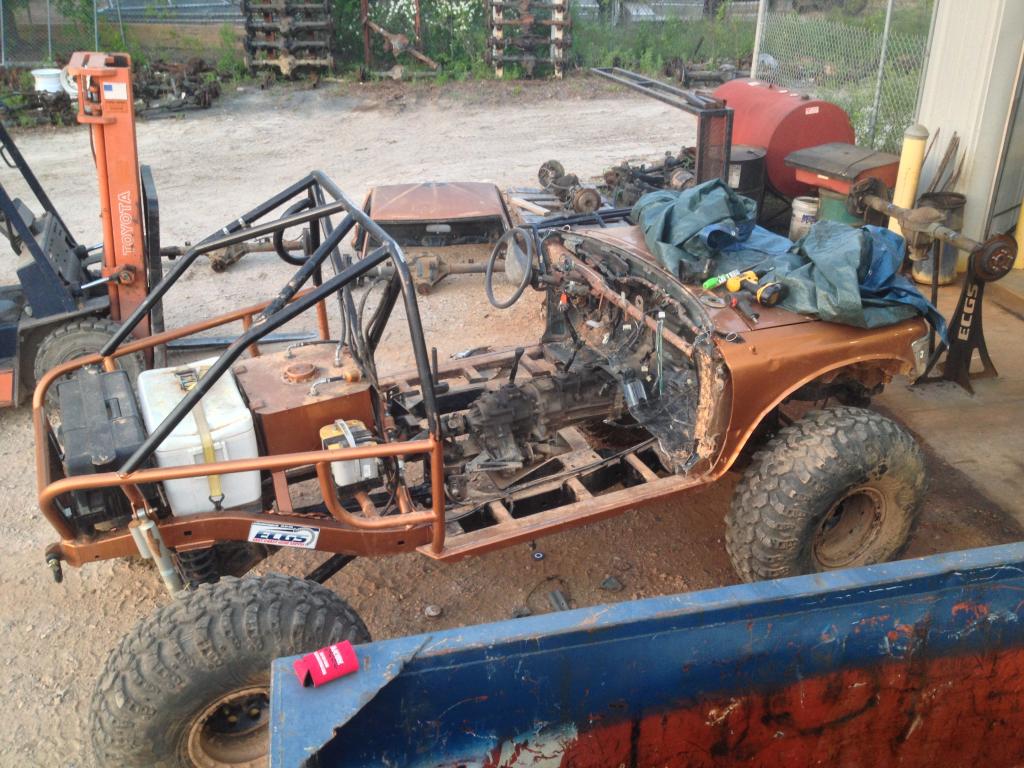

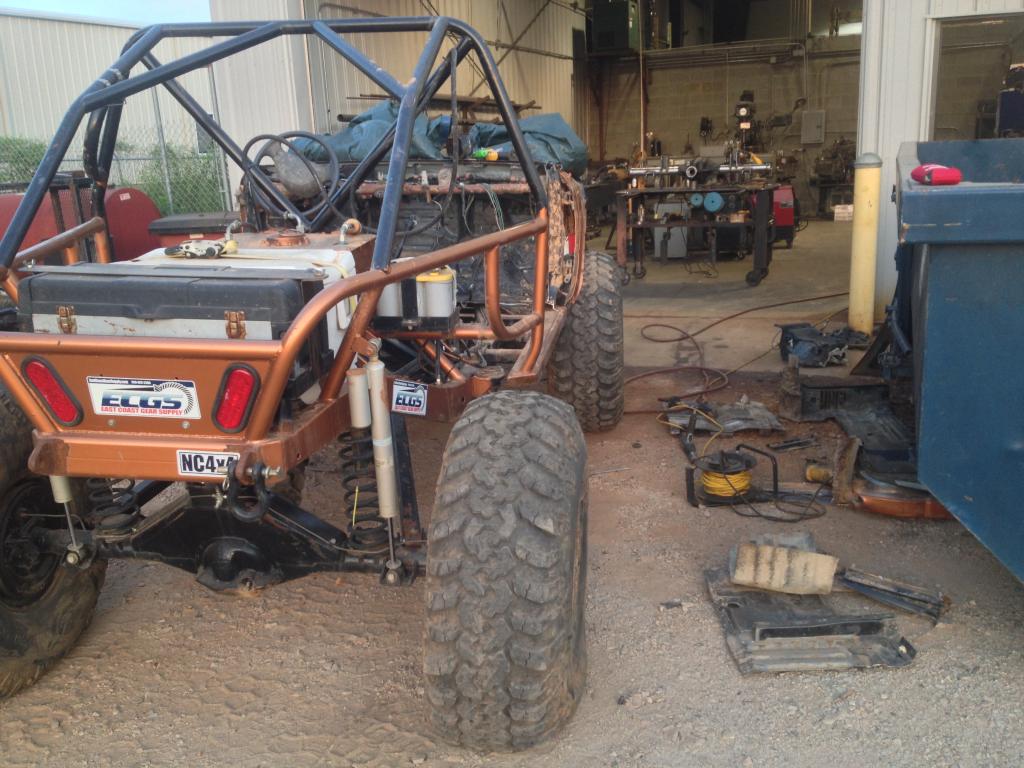

    Little more, still plan to cut a few inches further, leaving from the door jams forward, for now. the rest will go when I link/stretch the front, probably a year and a half from now. I know, I should just build damn chassis already, just don't have the space at the time.
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodcdc8b88f32e163773863fbfed8c3b42d.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodfcb453edce1fb6836c0fe2f6e979a146.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodf90f2503491e5b94f3bfbed45c040905.jpg

    Saturday I'll be trimming a little more and starting on a layout for a floor and seat mounts

  17. Louie4

    Louie4 Injanir

    Joined:
    May 5, 2014
    Location:
    Raleigh
    I was about to ask what else was left to trim? Then I saw the front fenders.

  18. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC
    Haven't updated in a bit, here goes

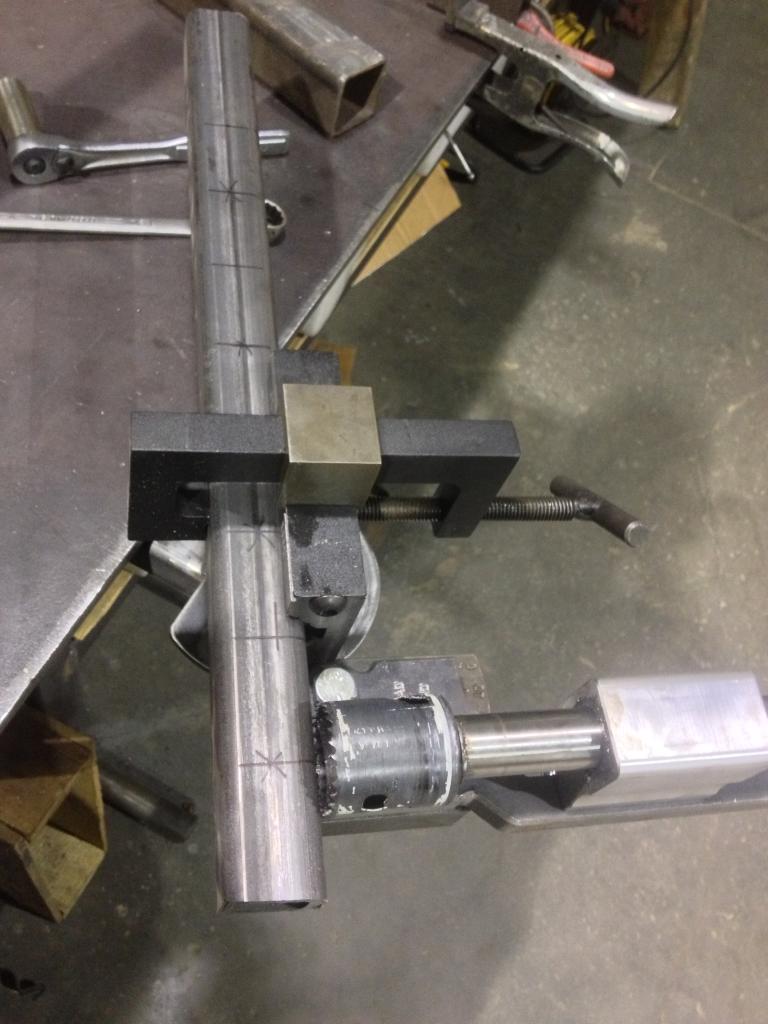

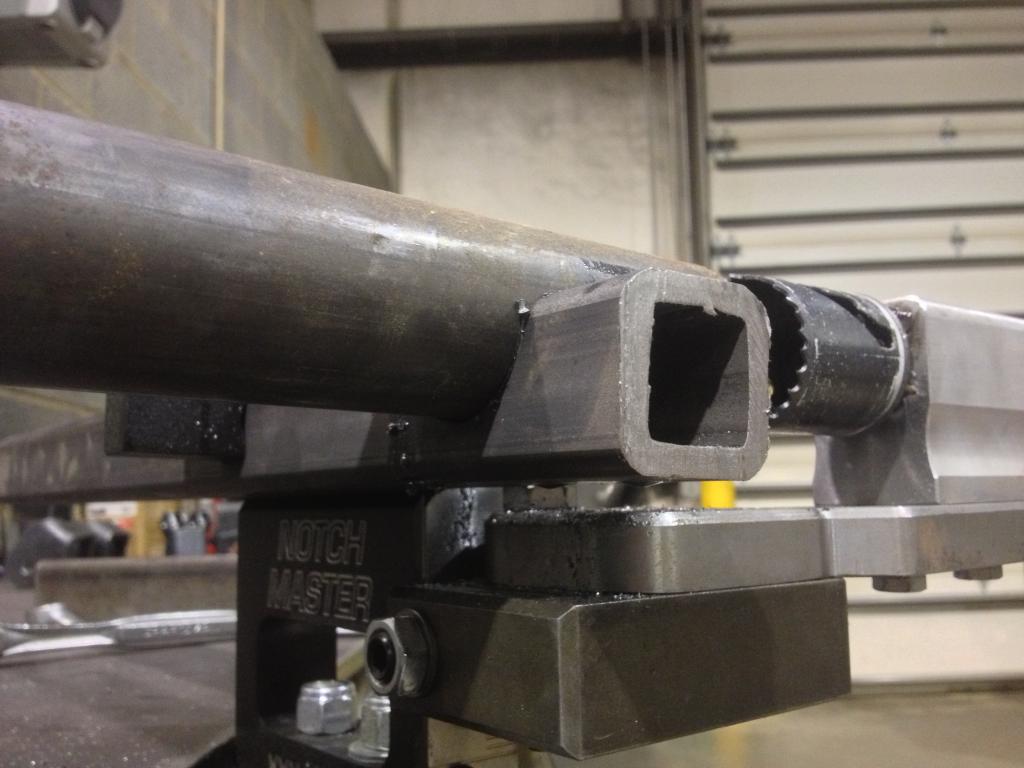

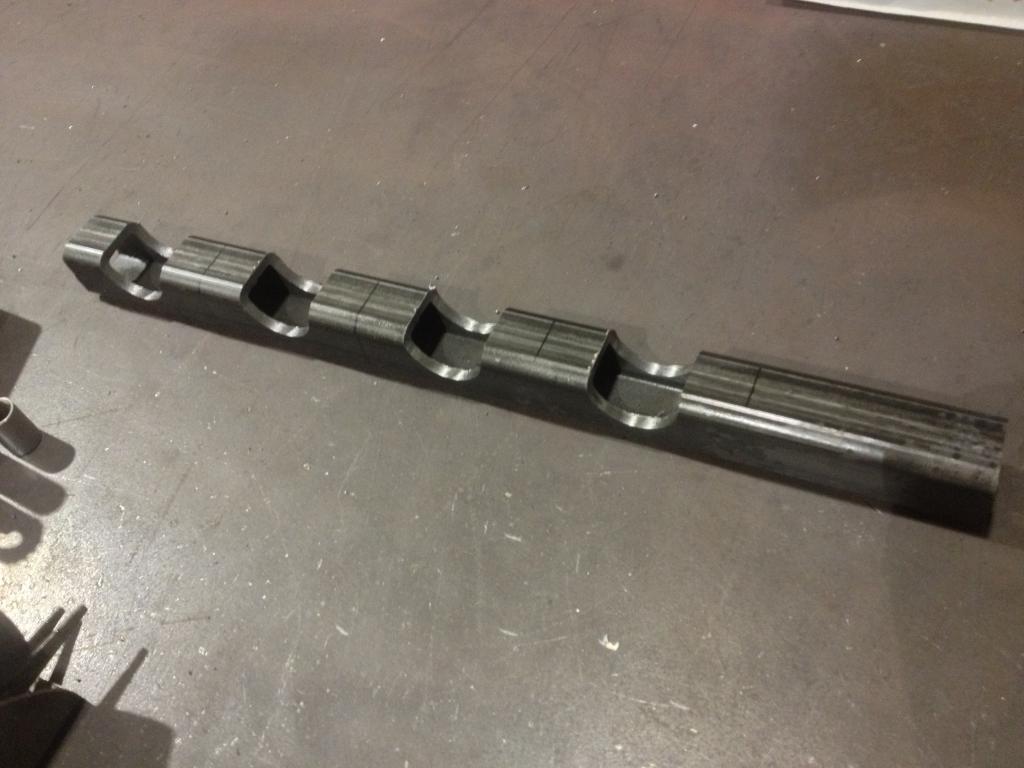

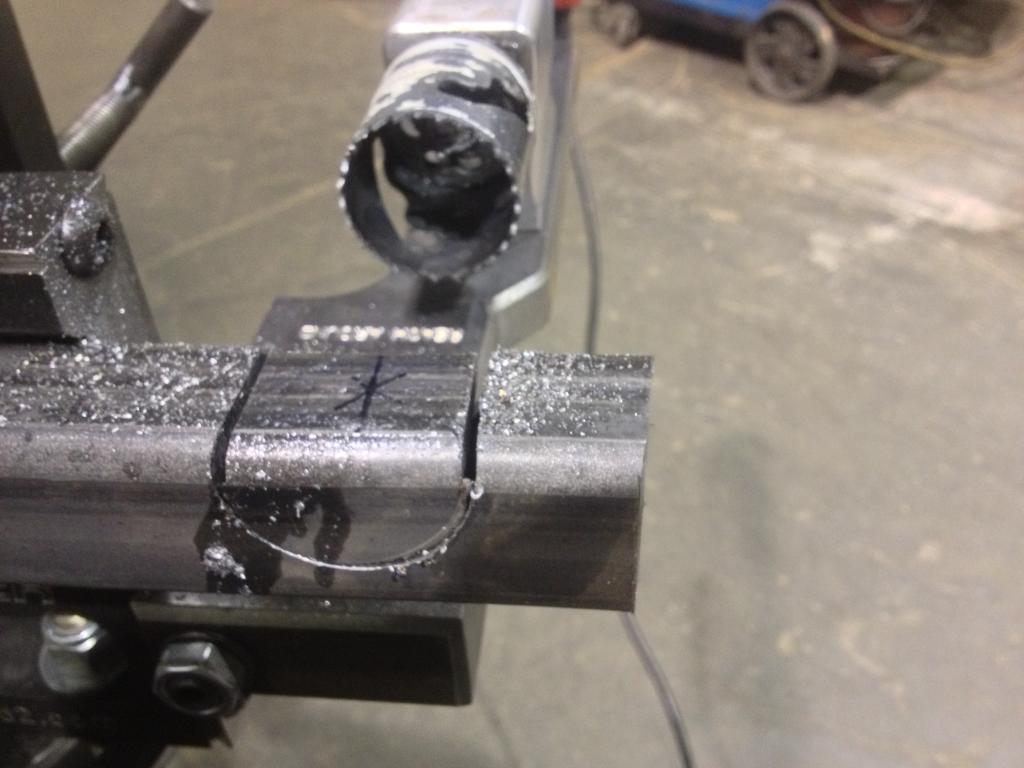

    Had a plan for seat mounts, so I made these
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod2486c6c2adb4352e27131fa941bbb63c.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodaf53d0a1e7513fb2bbb6b2156719ad77.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod1d7f7bb3b8f3219661009933ad1bfb2b.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remoda4d1c5cc38521e53a847f903fad51be7.jpg

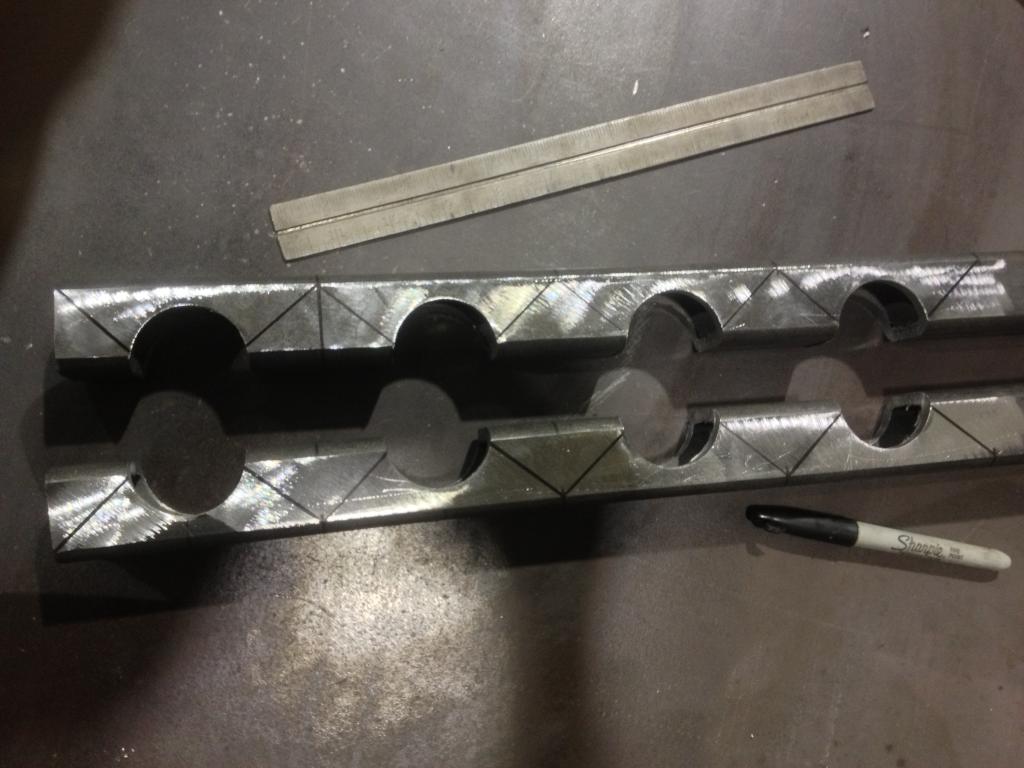

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod17404ff21ca7ae4d846af0850badbbf0.jpg

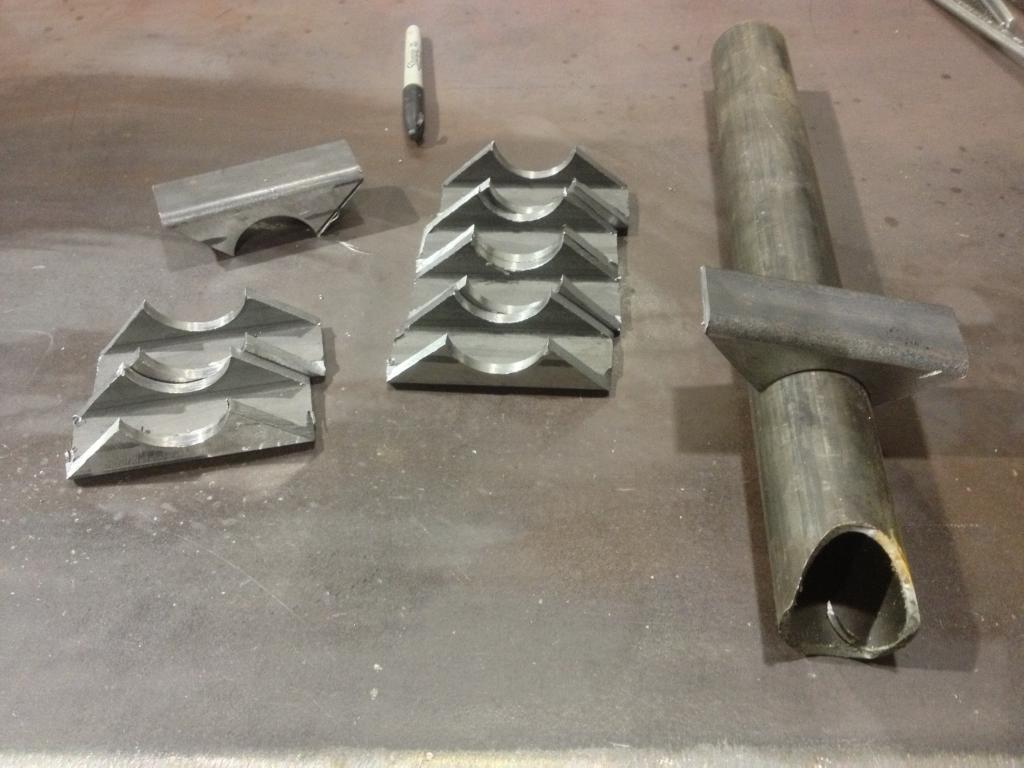

    Really miss having a big bandsaw, did this all with a portaband, ughh
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod665f0def891ef82e7ccae831cea1e515.jpg

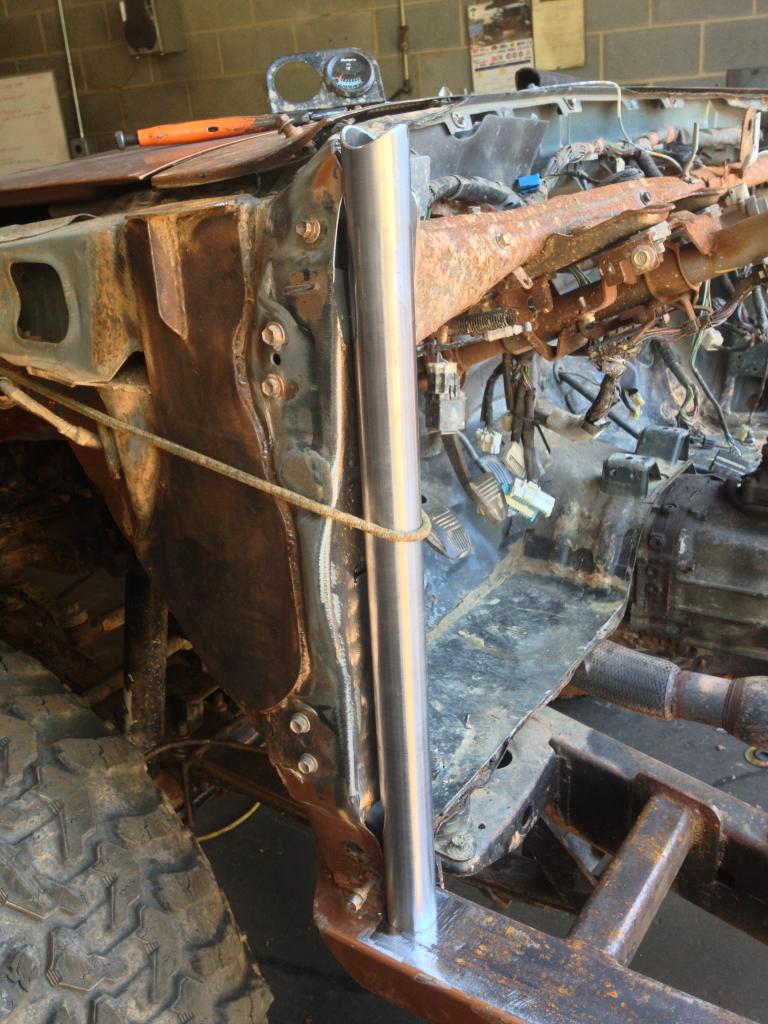

    Started laying out the cage
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod563ea04246256290bcef33af89062e33.jpg

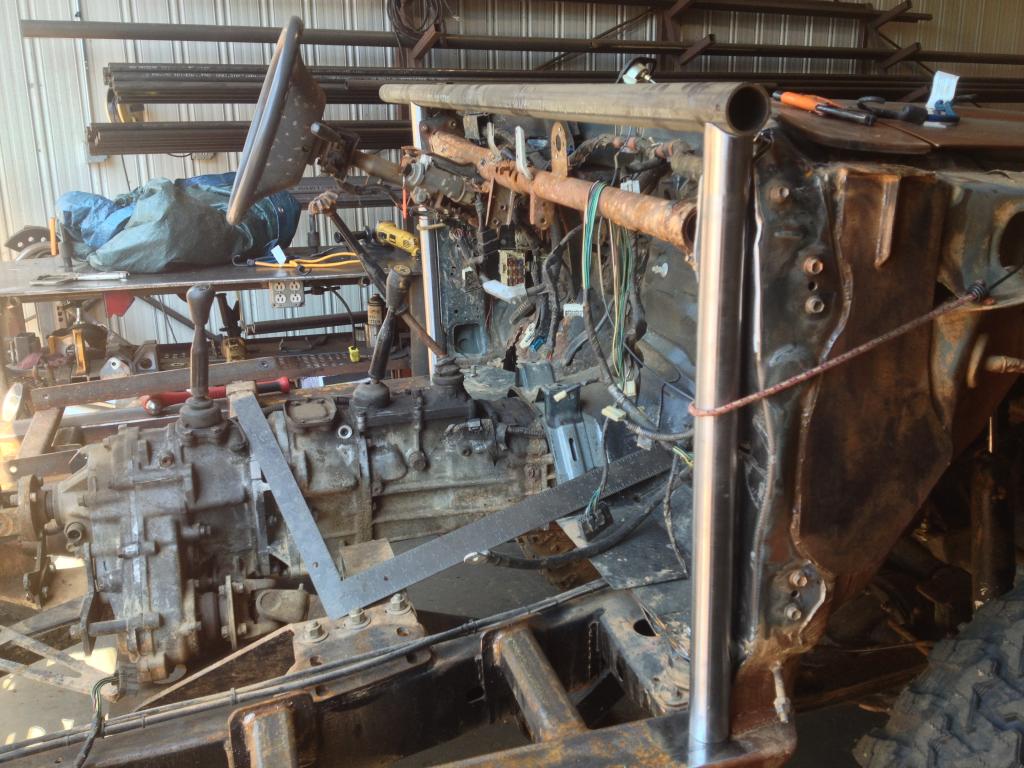

    This seemed too high for my taste, plus didn't work out with the cowl how I wanted
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remoddb2f3e5dc0fd7216e54b4767002ca14f.jpg

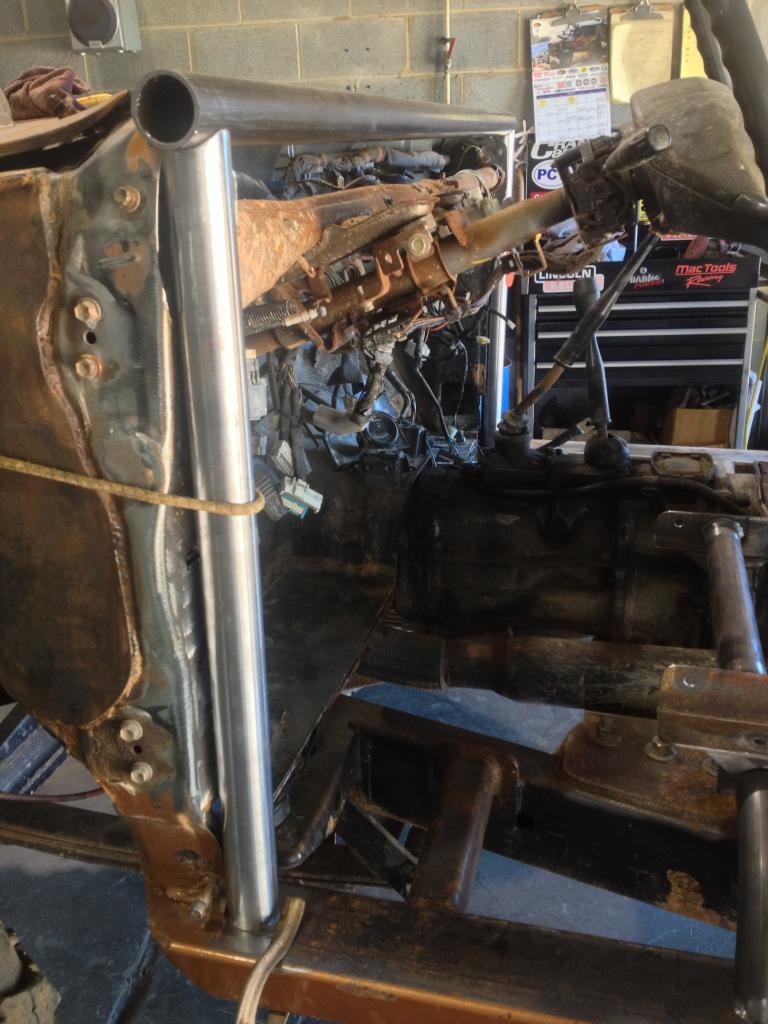

    So I cut 3/4" off the tubes and this was money
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodc2f5665f35e5e5d230ba5c4473f009c1.jpg

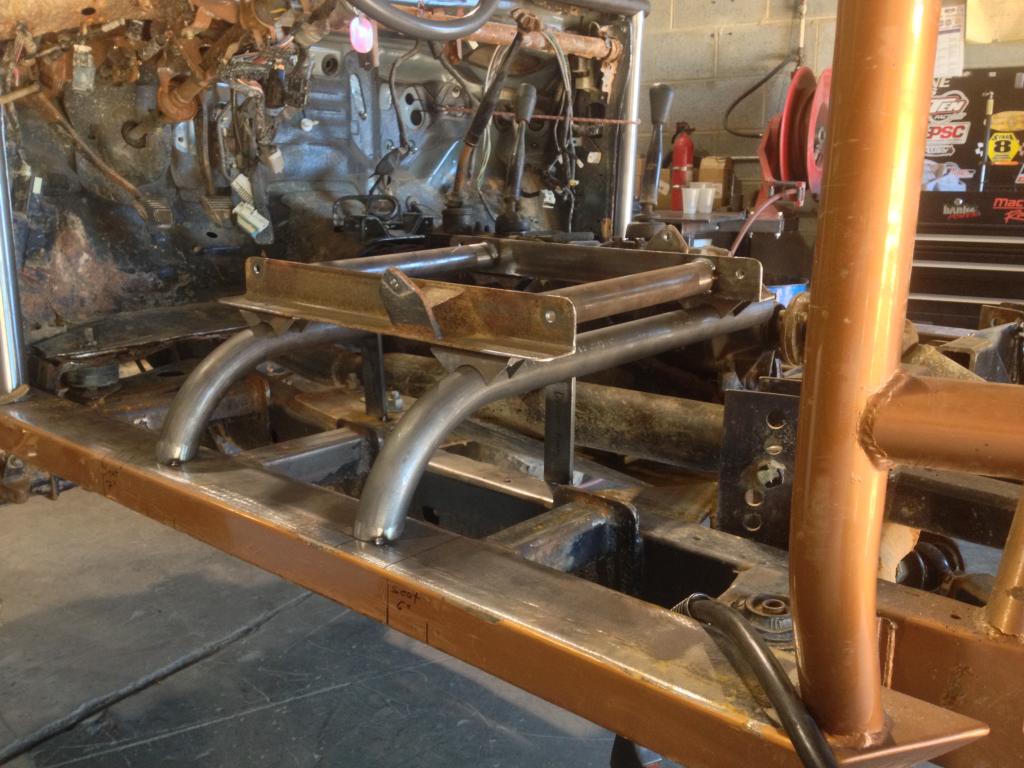

    And then my seat mount idea
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodf7a3dc3a80e1064e4053c2c81acc0212.jpg

  19. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC

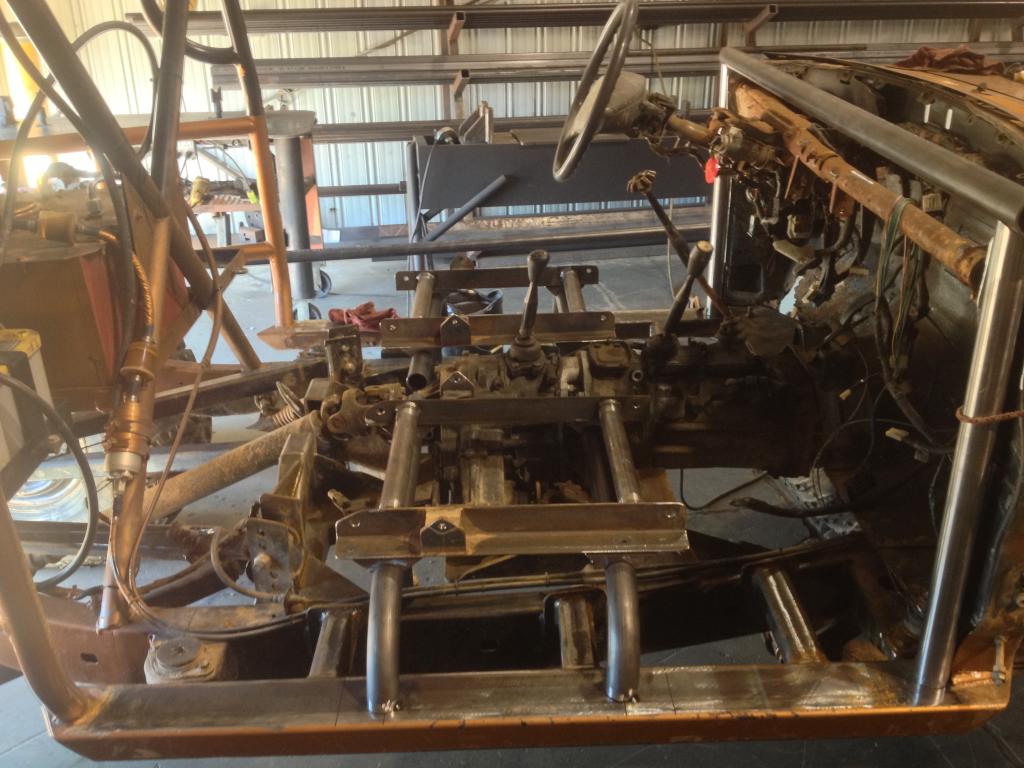

    It was a nice simple idea, but wouldn't allow the seats to be supported how I wanted. And I wanted to use my old seat brackets.
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod905e4e8480631fd4ee026c71f83b1038.jpg

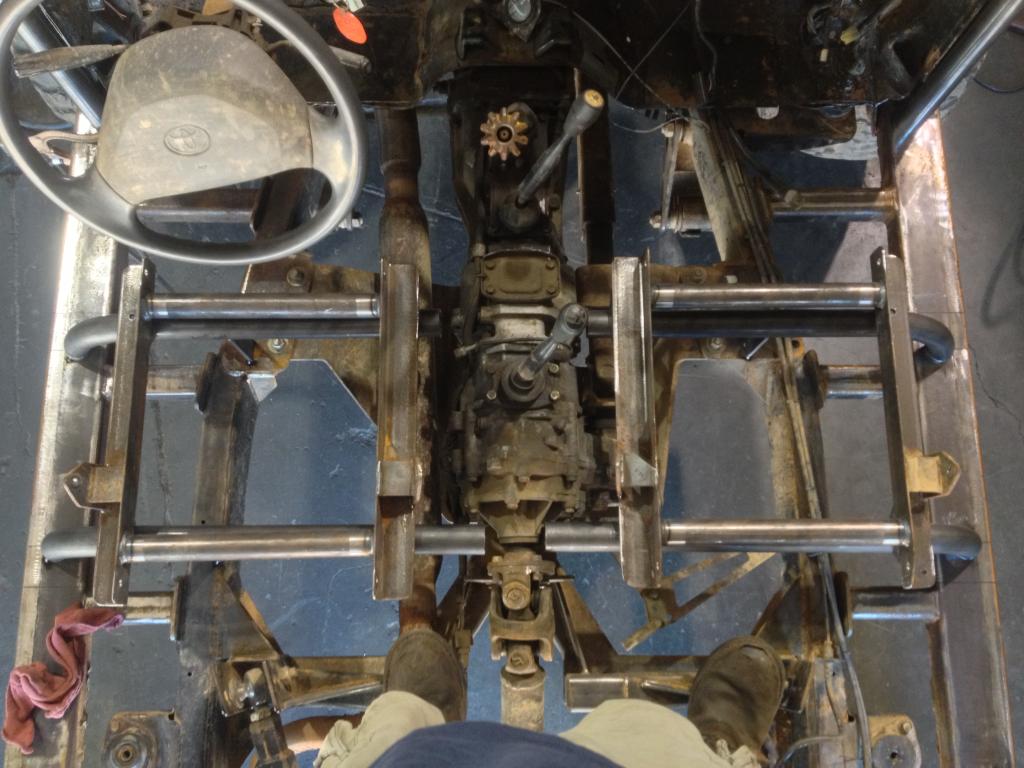

    Tubes are rough cut to length
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod37946d14fb9babc62467d91a02173c53.jpg

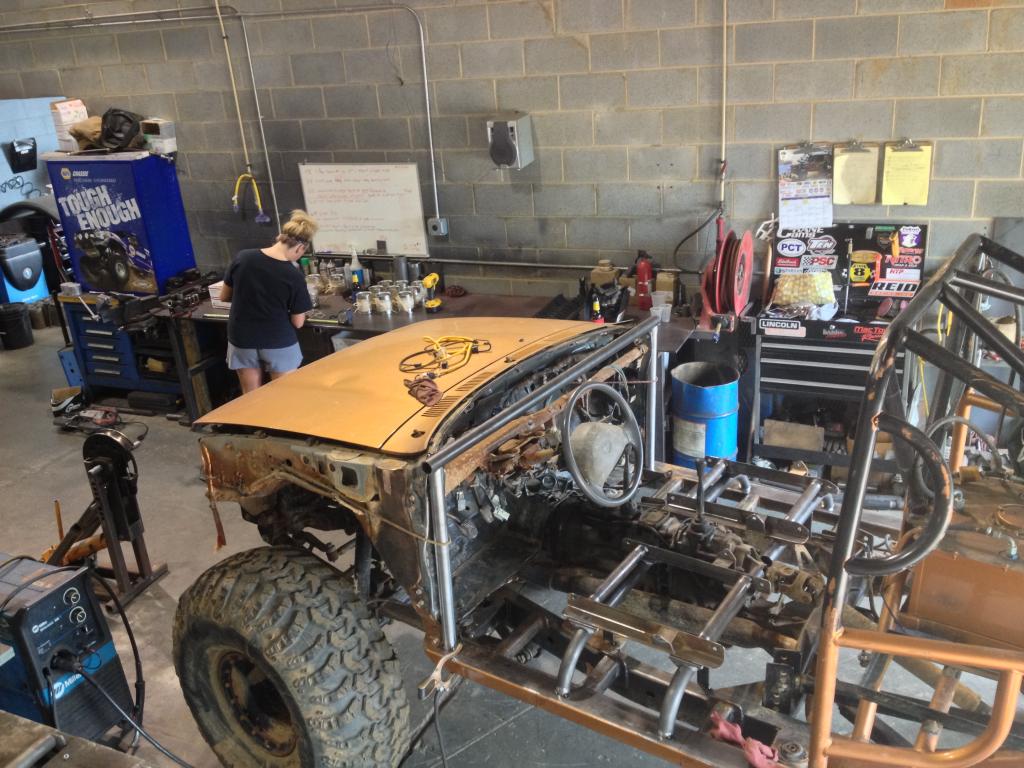

    But I did sucker the wife into coming over to the shop to make some wedding decor, figured I'd work on the truggy, I was wrong.
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodaf90091cfe1999a8524b4cb71232571c.jpg

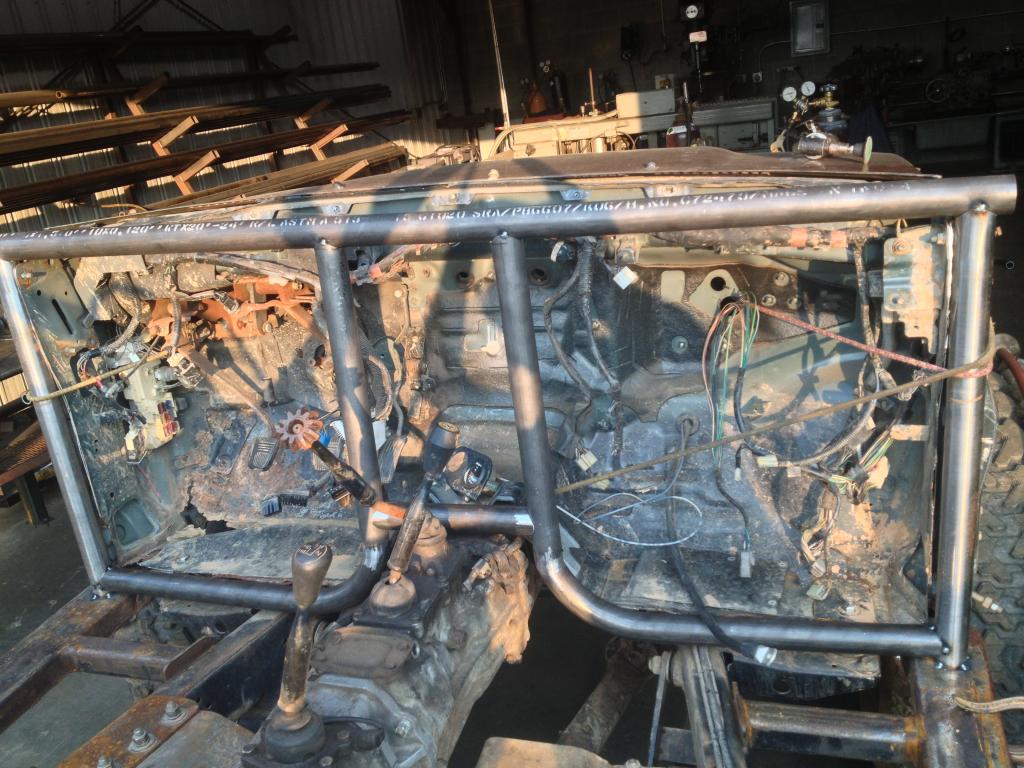

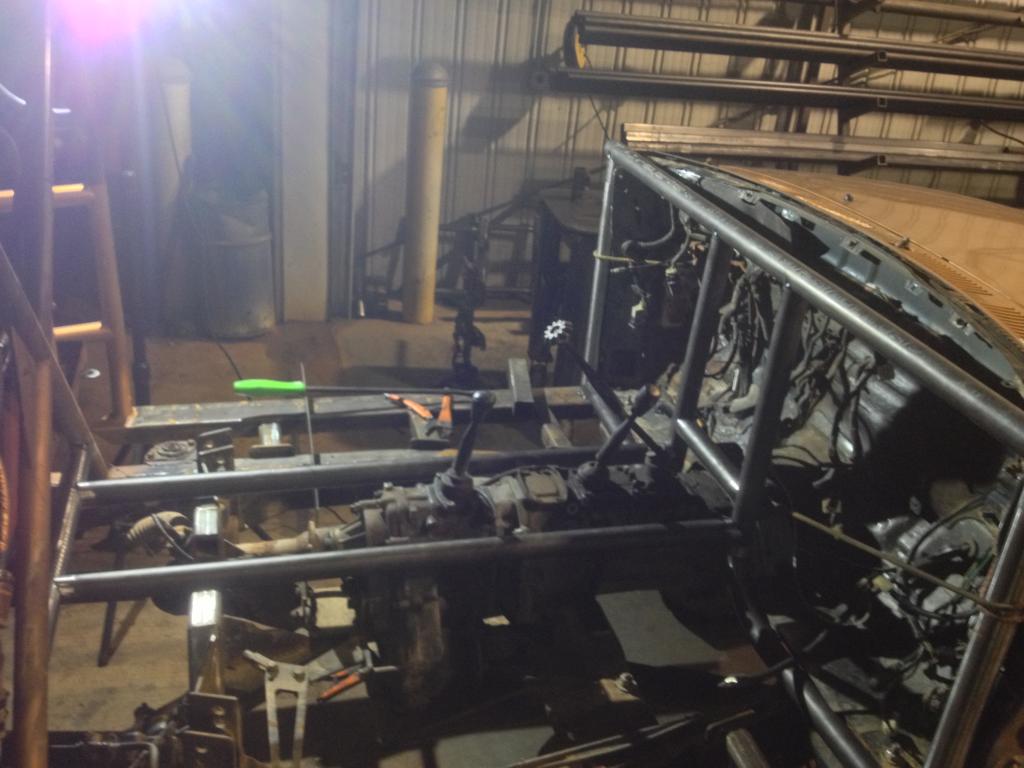

    This is what I came up with for the dash frame, used the pieces I had already bent
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod2b890bd59251c4bbabe75db29273cc49.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod1607a47d7fa03d6eca38f99b21ca9776.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod9a6a84caabe9c4cd2e4049d7e977c9b4.jpg

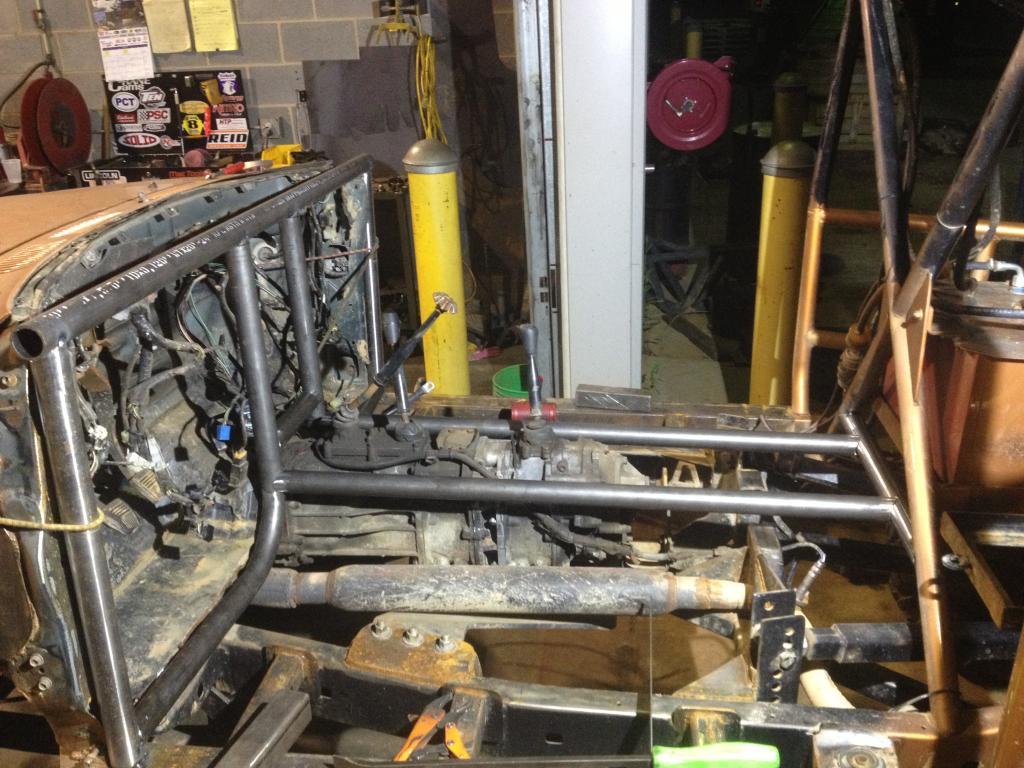

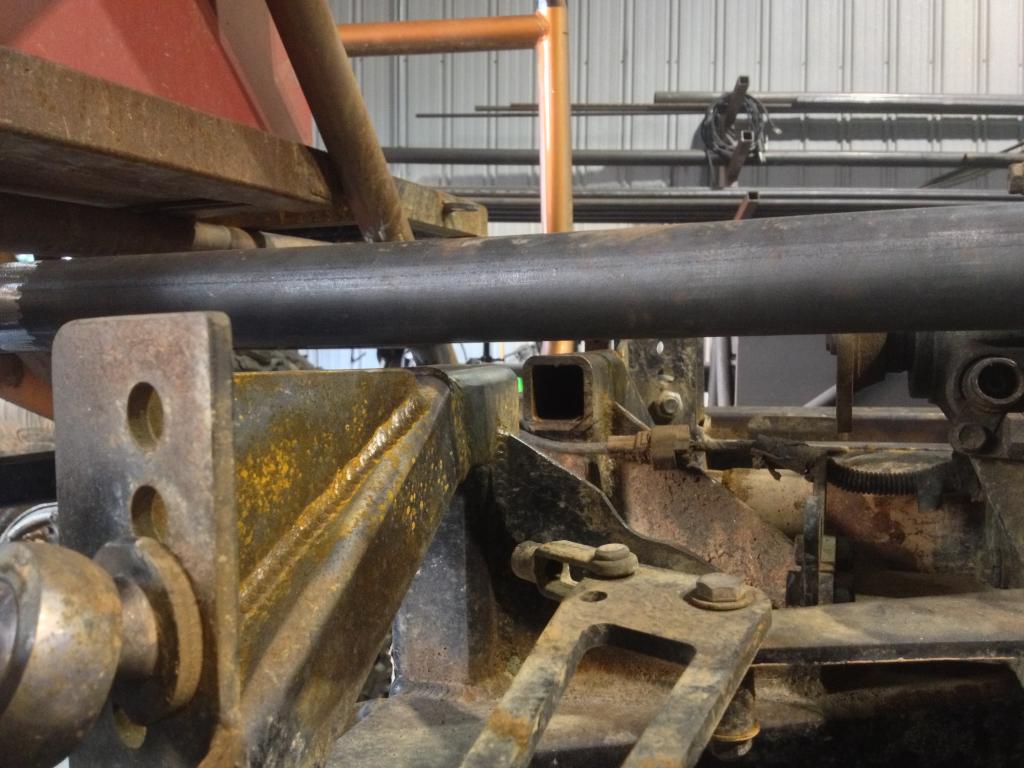

    About 9/16" to the crossmember
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod056376b1ceb6d596ee85c0b0a892d6b6.jpg

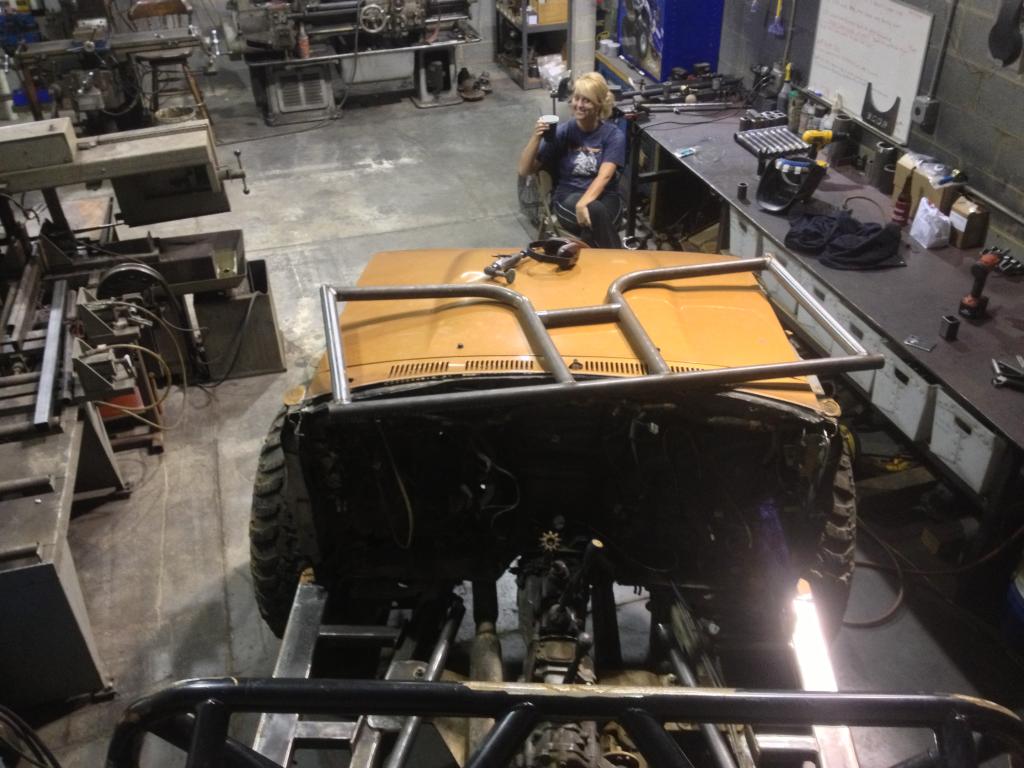

    Friday night I got the wife to come hang out, she brought her vodka and beer for me! Pulled dash frame out and fully welded it
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod354ffe5ee14f95c17e7c3b9ed93eb160.jpg

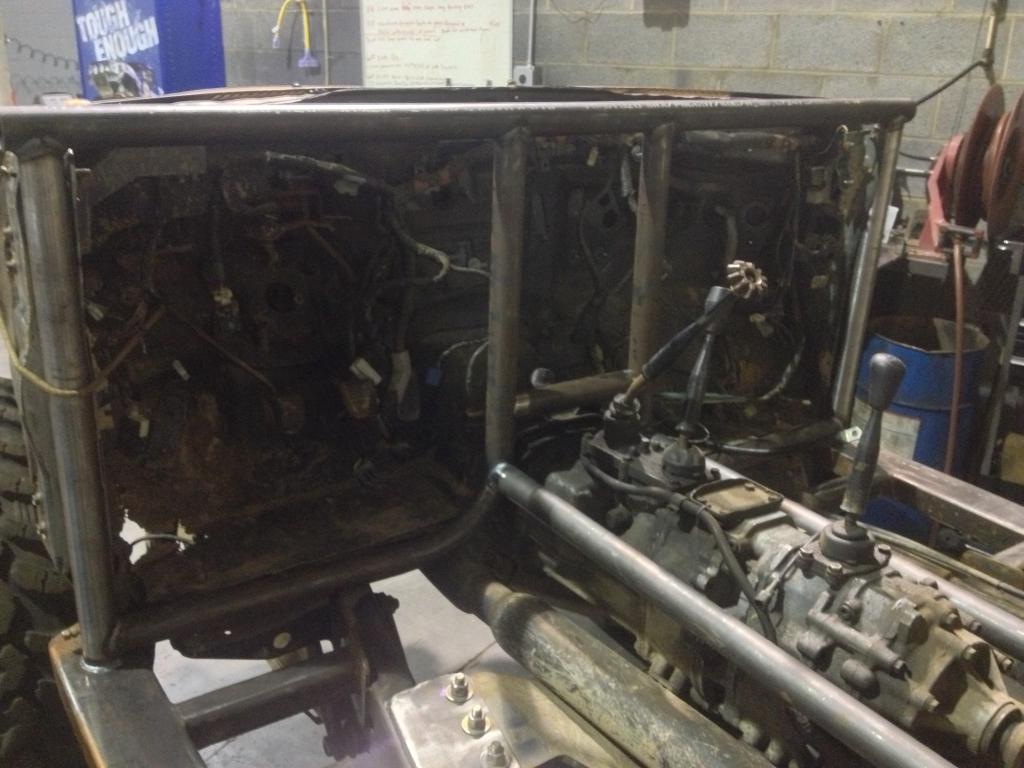

    Then glued it to the sliders
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod7861dfe357ddf4c0135b6b2809f99ab2.jpg

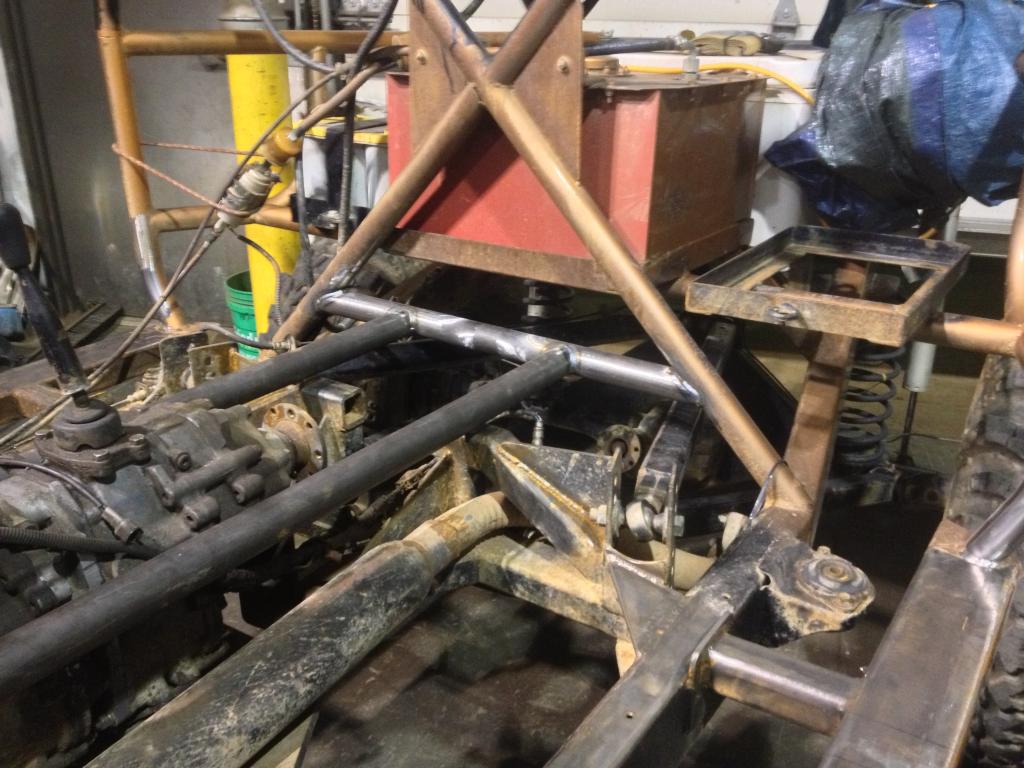

    And glued in the rear tube
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod73f09b2f0d4a3db17006f7ead7a5f75f.jpg

  20. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC

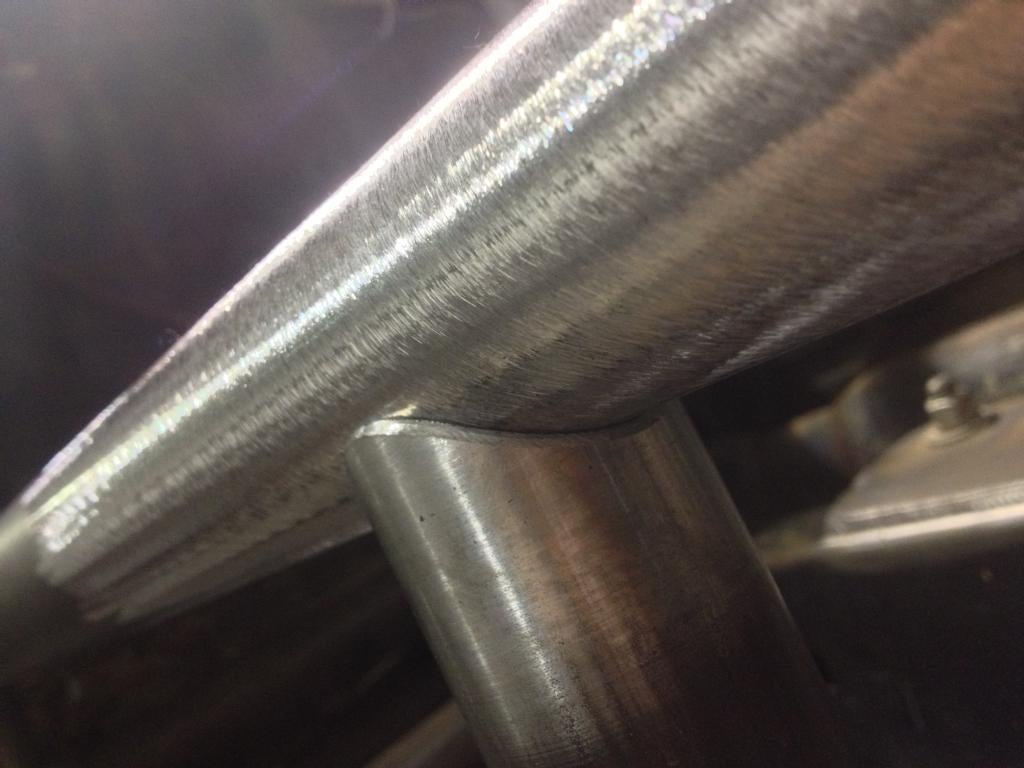

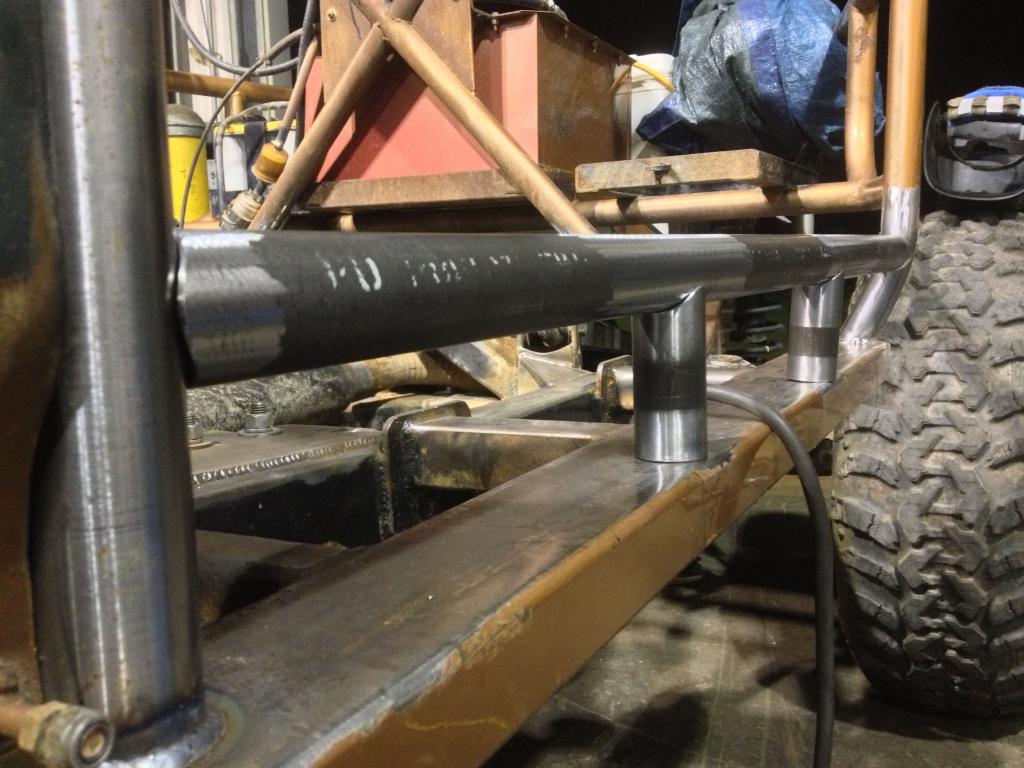

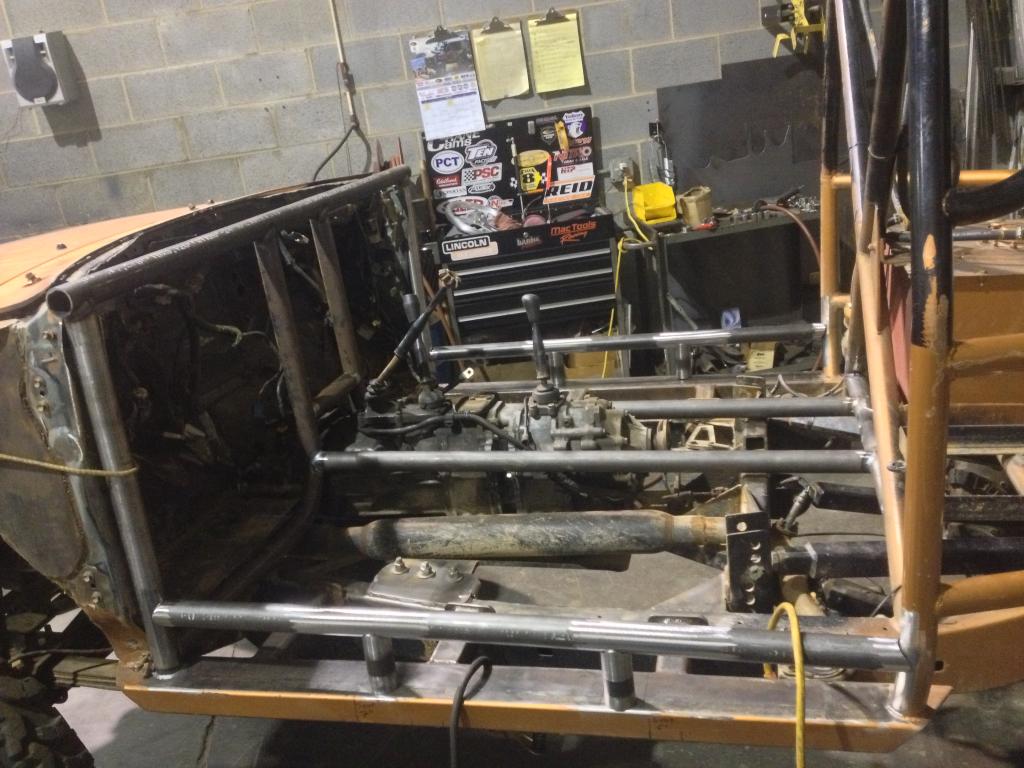

    Then the next part of my master plan
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodd8ccdda38c99b6260837cce25c73e461.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod44ae8d7dfc45931e488fddfc836b78b3.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod6c14e6fd46ba5a2cdc9cb8151d6de84f.jpg

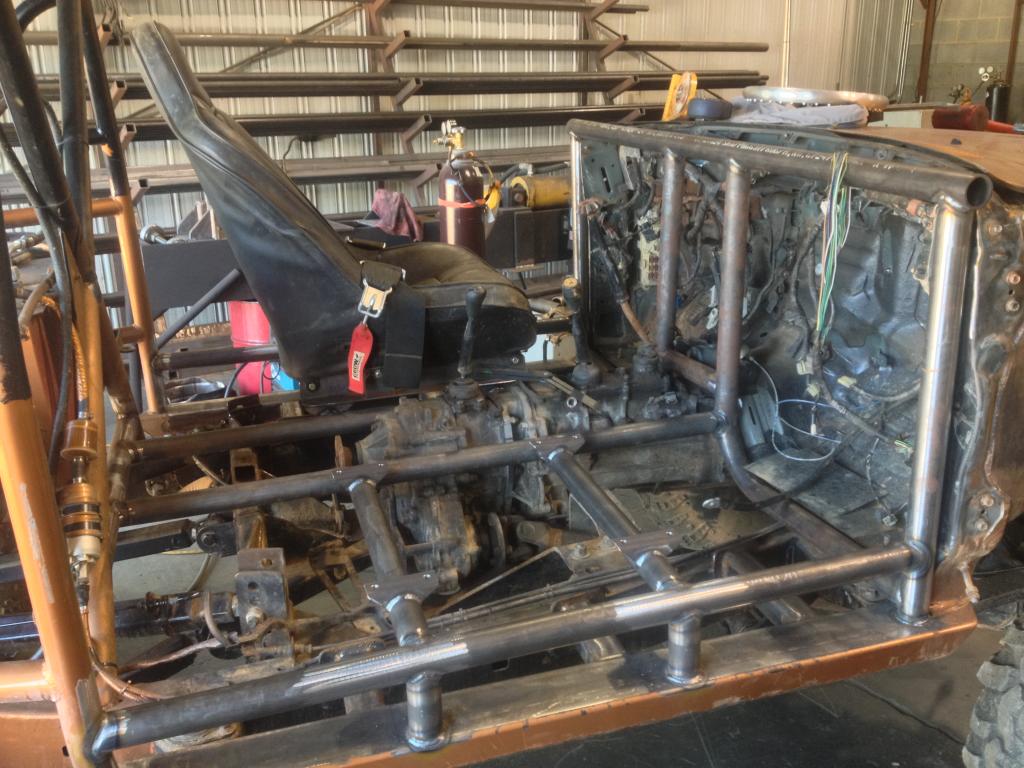

    Got it all in and finish welded Saturday. Without the seat frames
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod8c349ad21a409eb088ff776298afbaa9.jpg

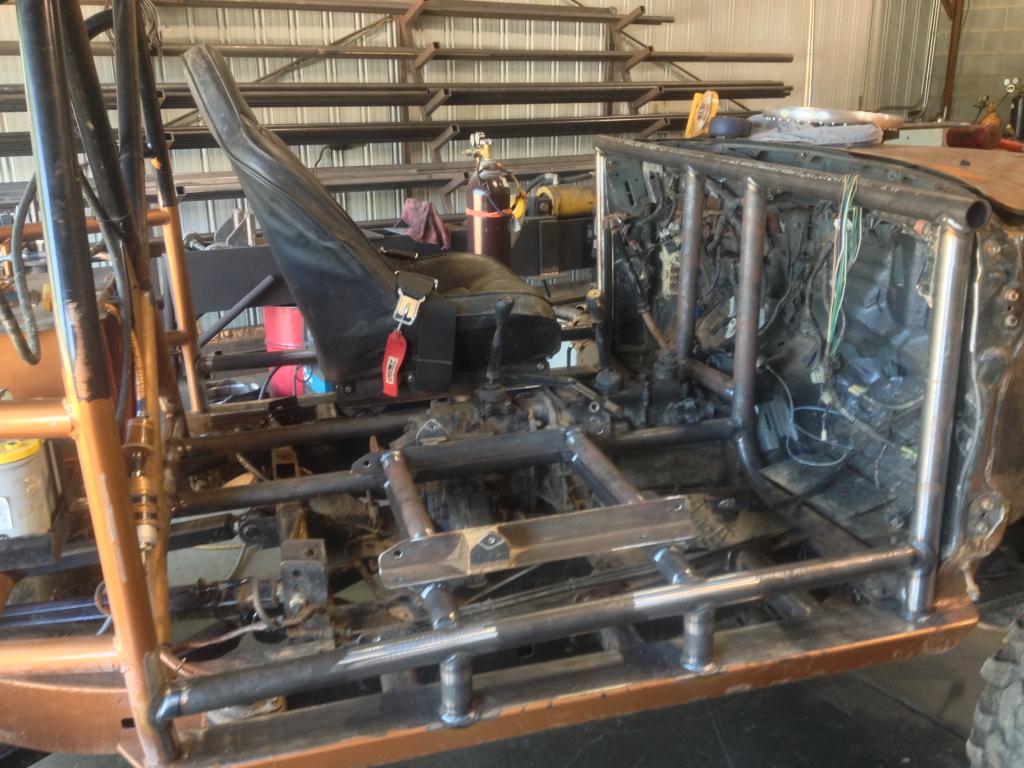

    With frames
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod2259099312edfe7fc16064aeb849afc6.jpg

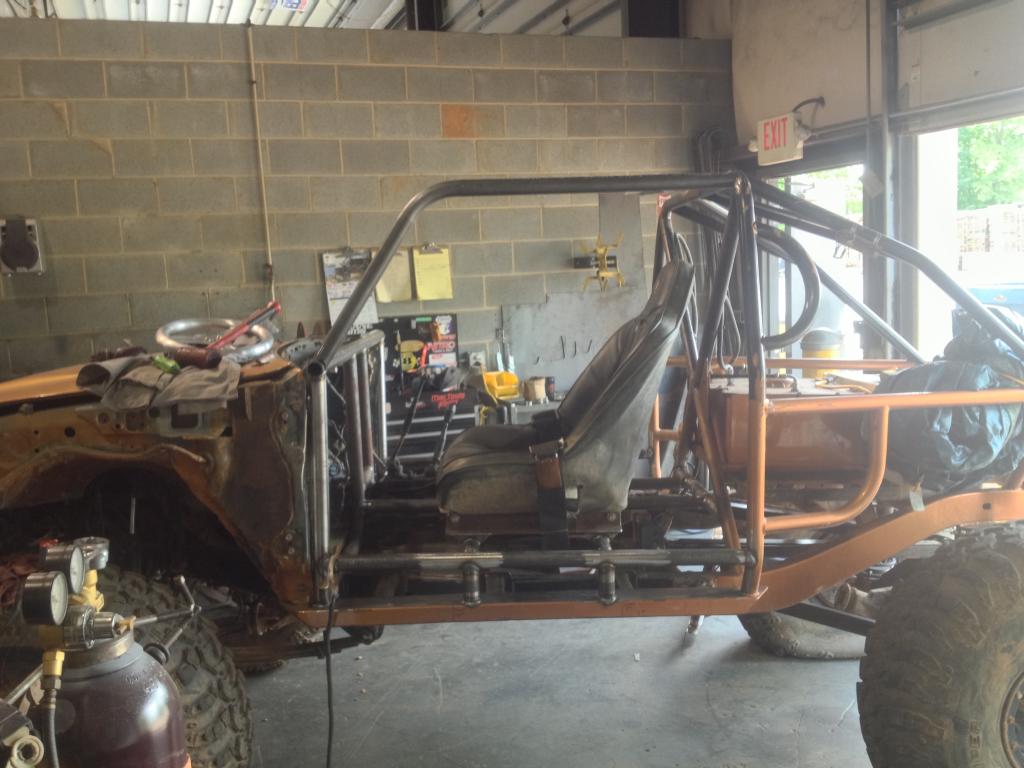

    Then I got the a-pillars on
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod061375bbeed6abe6fb8b4e36a0a5a40d.jpg

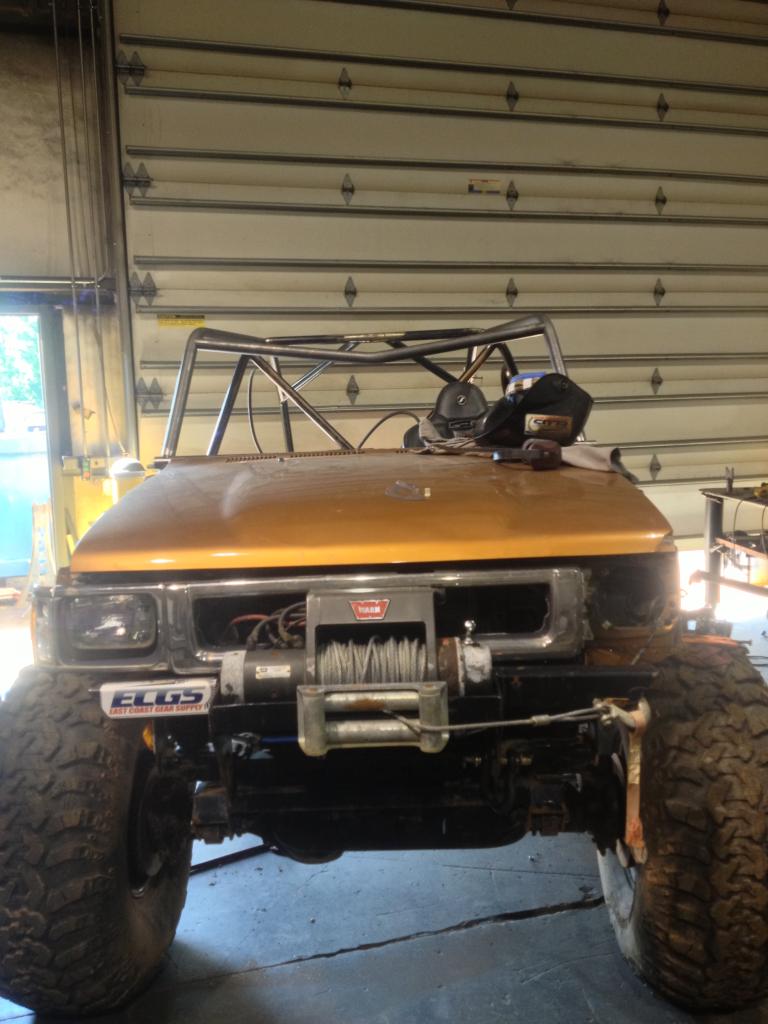

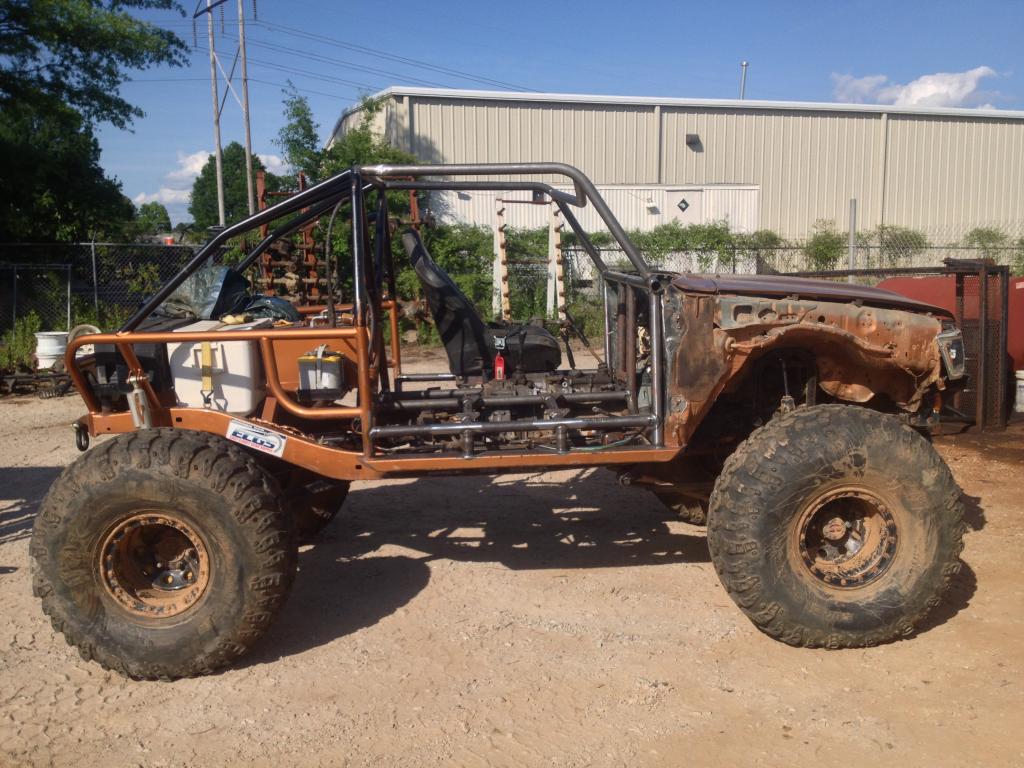

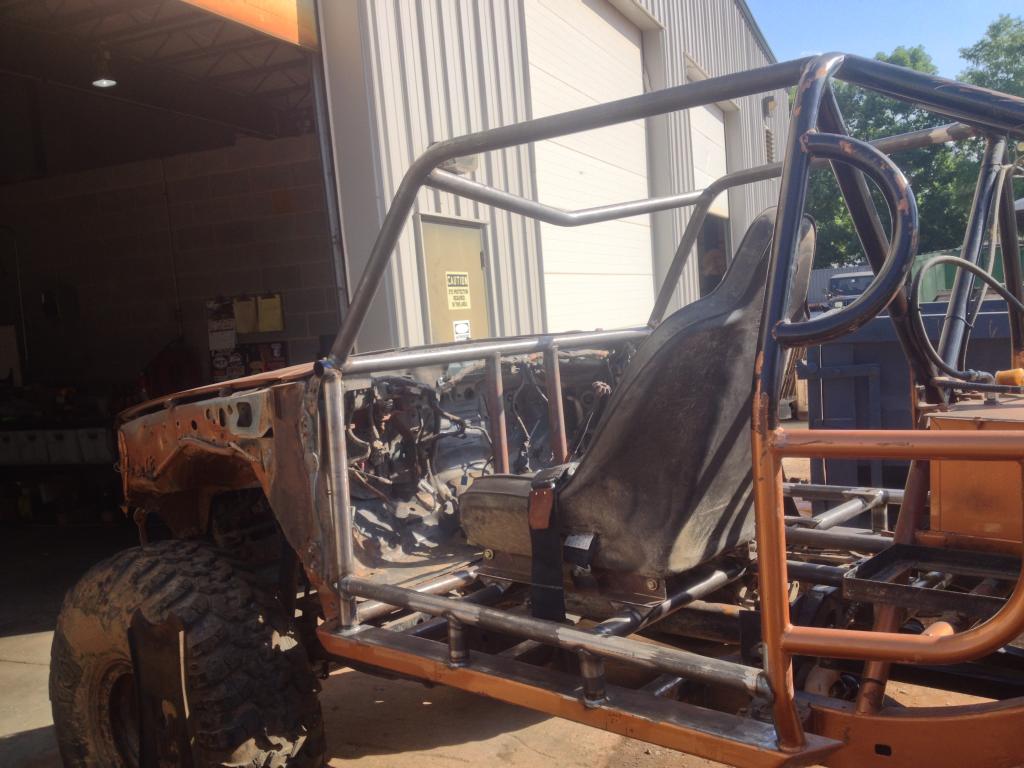

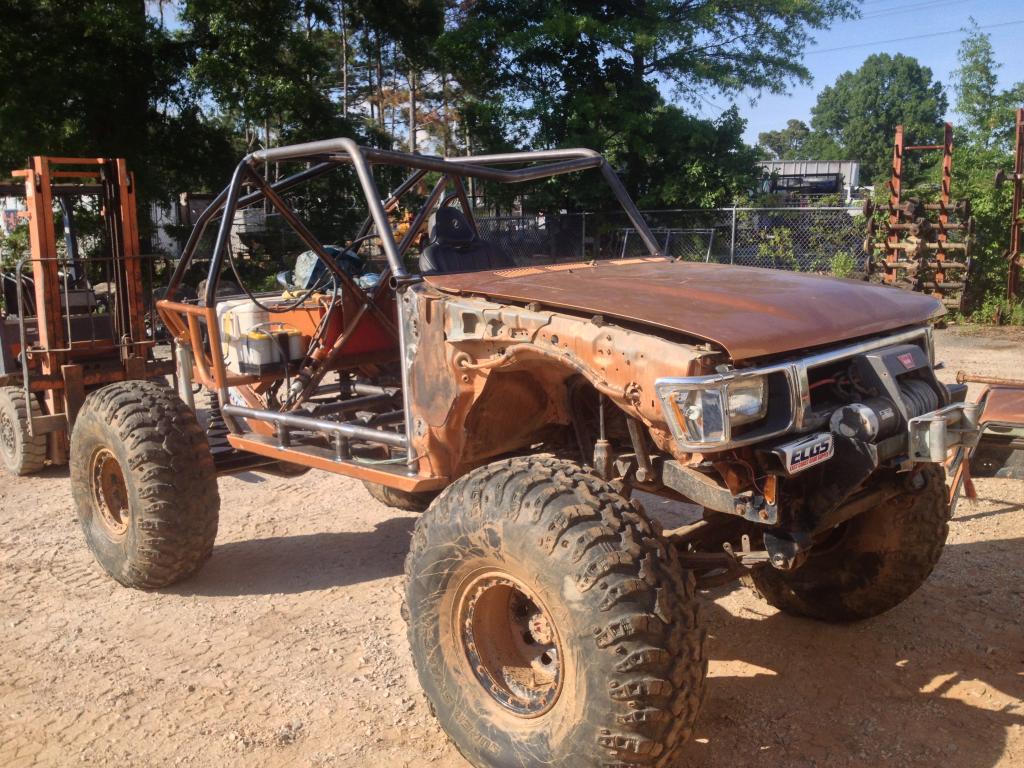

    Angry brow bar, which got slid up a bit before welded in
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod4d2feb172e704894baa5c3d48f85e72b.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodf0f376f9a5da3333e14dacbaa25c6d1d.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod8057379726b35d0f0fa02f70b5967986.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod116b4e4c0c05821a2d4daacf1f9fc262.jpg

  21. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC

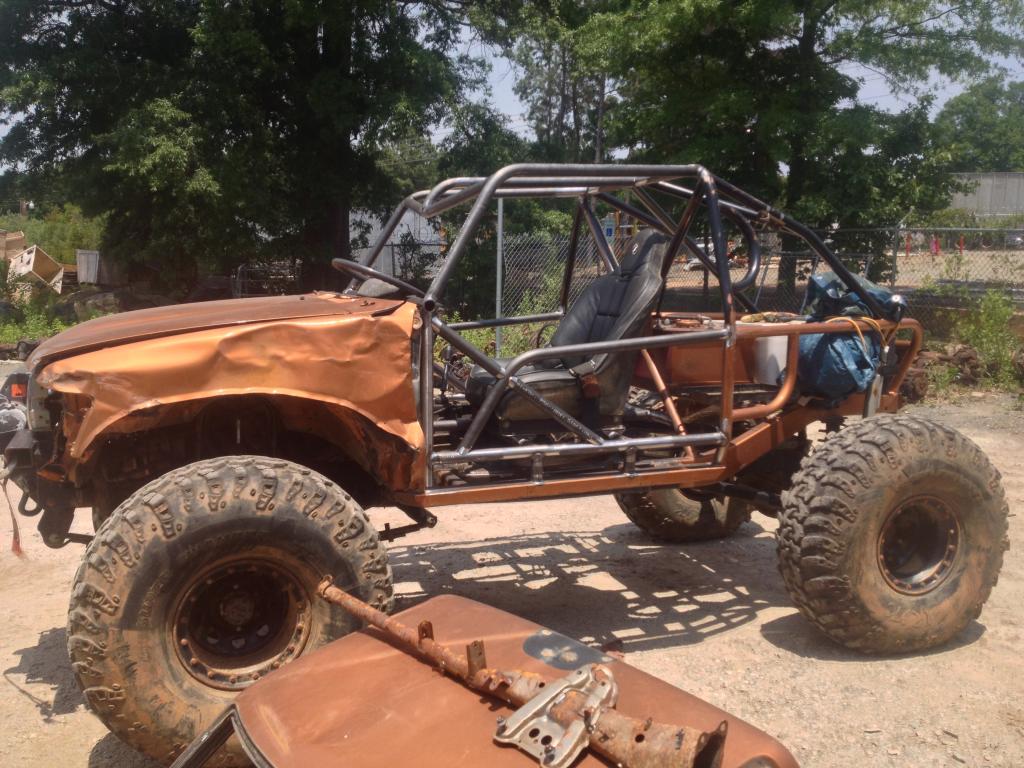

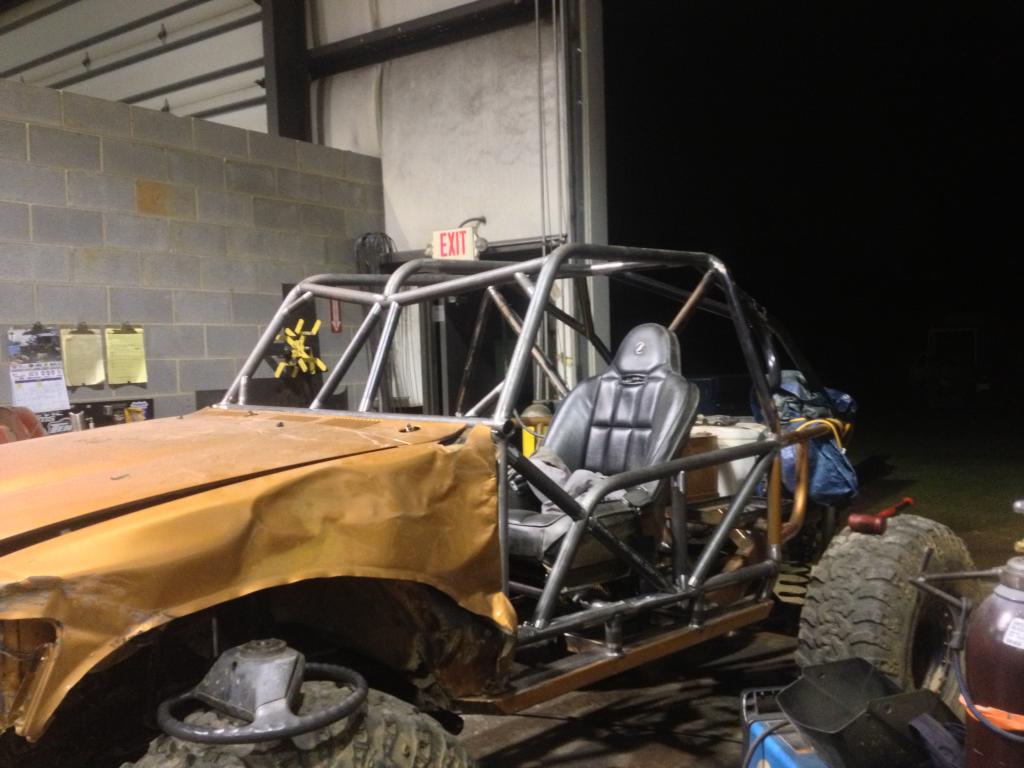

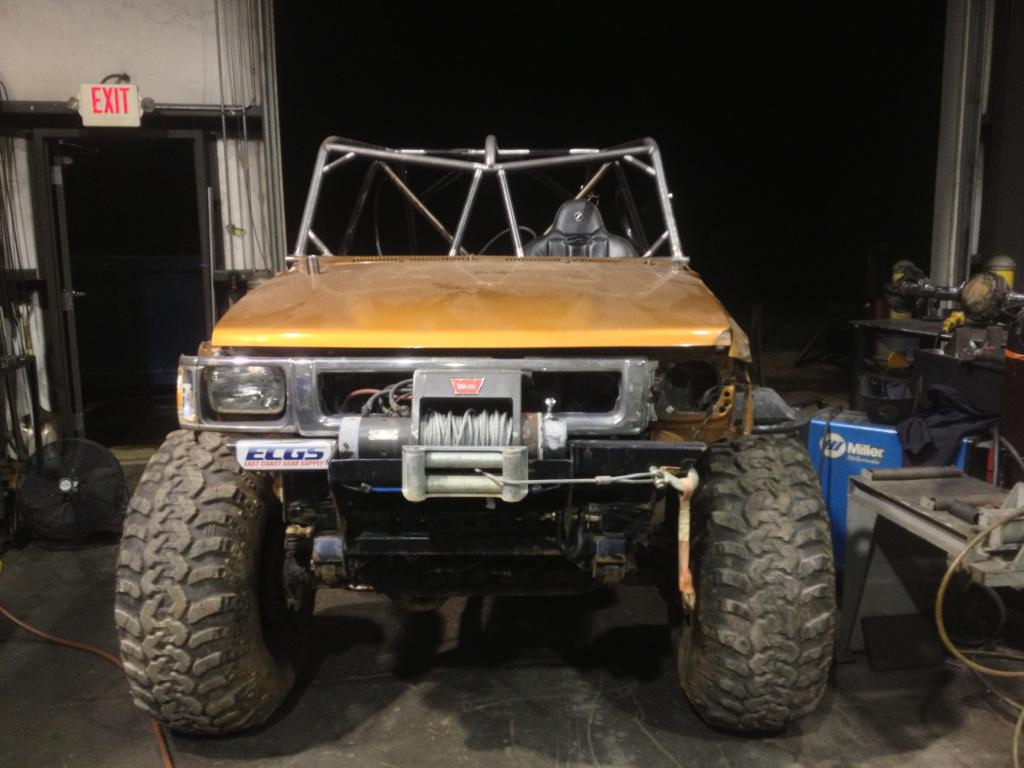

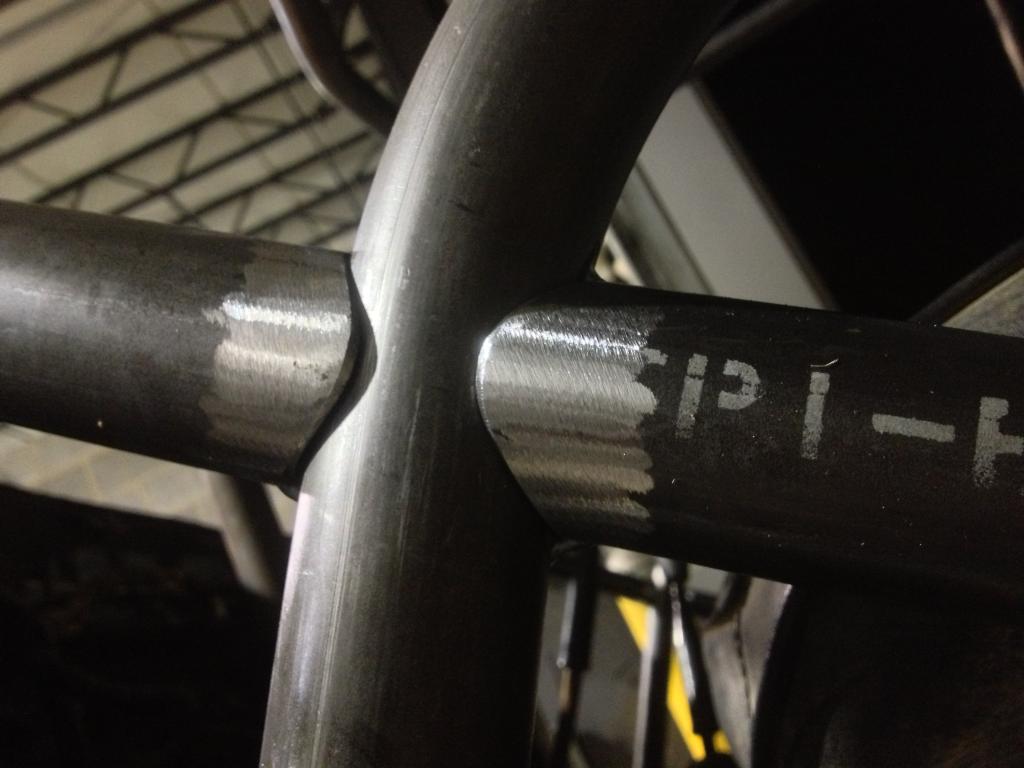

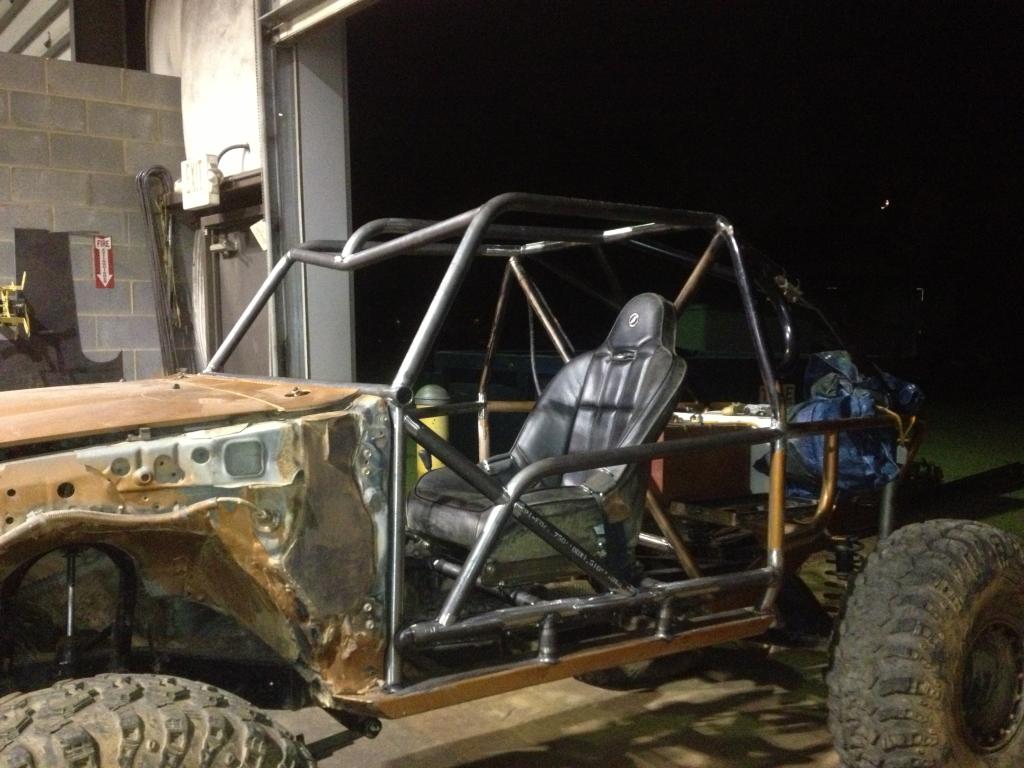

    And the last two nights' work
    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remoda998ab3c74ac9a65a79e83371a593e99.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod46ff93a36dcdf933acd3770f2c919e2e.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remod956c76e30c04210981a2f2e107b07847.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodb26cad1912787266575dc6e9e10a64a2.jpg

    ai895.photobucket.com_albums_ac151_kouperstein2_Truggy_20Remodcdbac025ec989bff2147fa4f684853a3.jpg

  22. stinkbomb

    stinkbomb Well-Known Member

    Joined:
    Dec 10, 2009
    Location:
    Rougemont, NC
    I really wanted to hammer it out and go wheeling this weekend at The Flats, but I started this renovation with the sole intent of not having a deadline. The rest of the truck I've done with my OCD level of doing everything right, and tonight I got frustrated with one thing, knowing it was going to slow everything down, I backed off. There's no point for me to rush to go wheel locally. My original intent was to take my time, not burn myself out and so everything the way I want it, not rush to get it out on the trail, which I did initially, which is why it's all cut apart now, to fix my rush finish-up job. Whole pace will slow up once again, the rest of my summer is busy, getting married in 2 months, don't need to stress myself with this.

    But she sits in the parking lot, right outside my door, so it won't be completely back-burner'd and forgot about.

    Lee likes this.
  23. StretchASU

    StretchASU Got a real good set of match tires on there...

    Joined:
    Oct 17, 2006
    Location:
    Durm
    Looks good. Every toyota needs a meanbrow.
