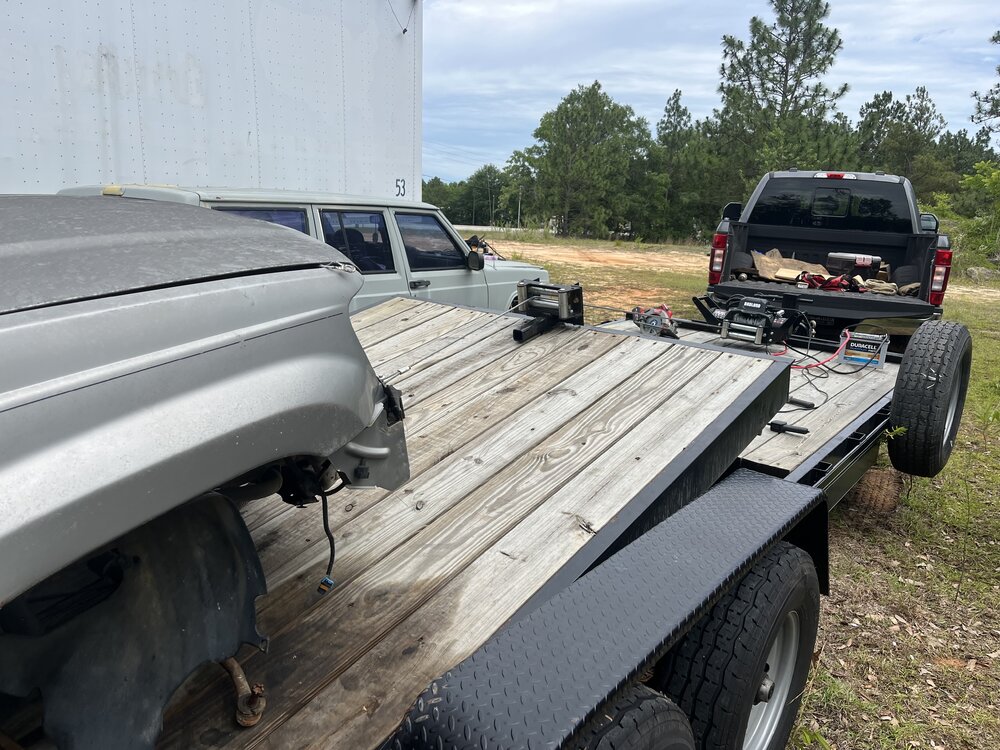

Trailer winch mount.

[ghost]

Stopped for today. Rain coming in. Need more than a 1/4 impact or the hole needs opening up just a hair.



[jeepinmatt]

Looks great, send it!



[Kickdeez]

. Cut it off, re-think it, over-design the hell out of it, and try again. J/K looks good! Run it hard.



[ghost]

I need to figure out a battery tray for the box next. The last AGM battery I bought doesn't fit the try in the race jeep.

The wire:

Amazon.com

And quick connects came in:

Amazon.com



[ghost]

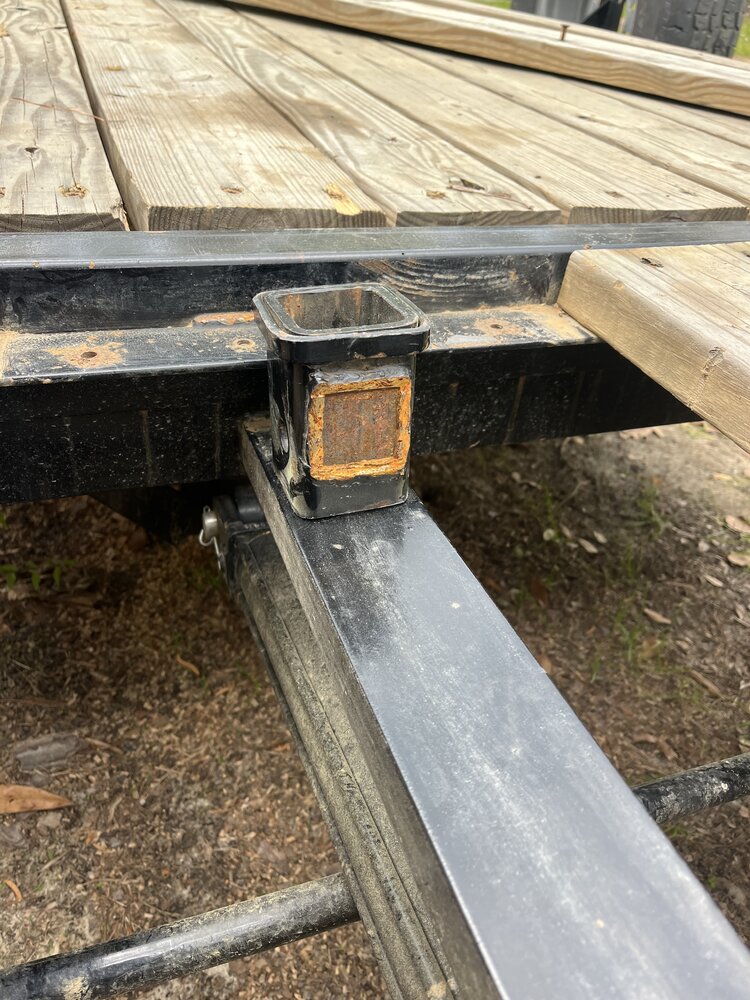

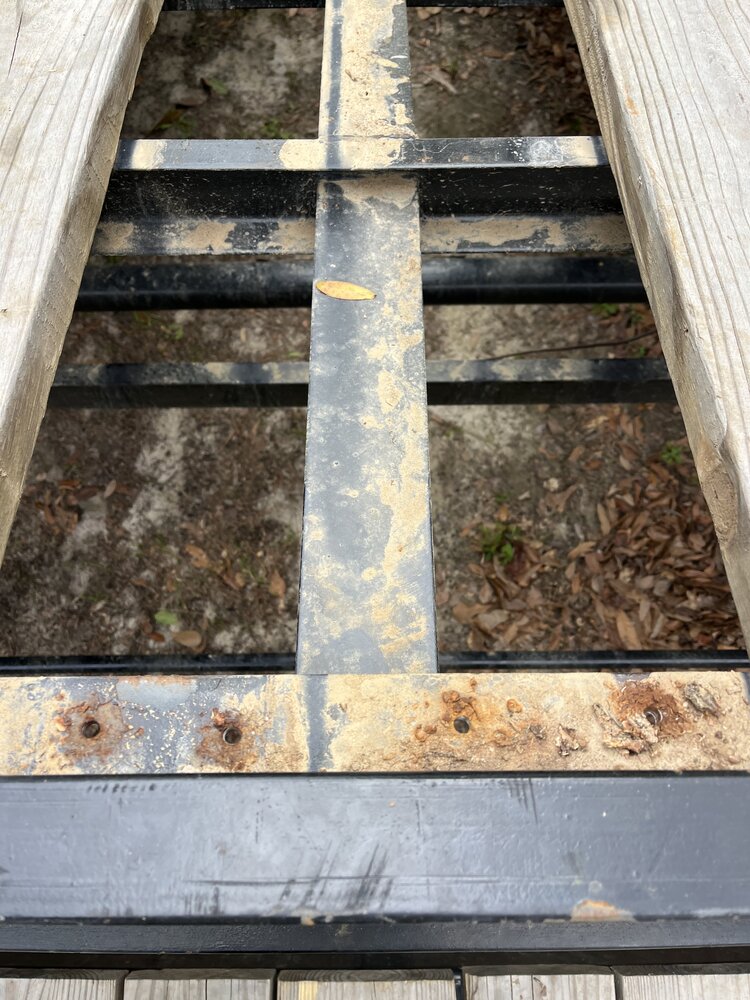

So I’m leaning towards mounting the deck mount to the 3” channel already there and add a piece of angle to each side. I’ll build a drop in mount for the cradle.

So those two plugs I assume are places for hoses?



[jeepinmatt]

So I’m leaning towards mounting the deck mount to the 3” channel already there and add a piece of angle to each side. I’ll build a drop in mount for the cradle.
View attachment 435998View attachment 435999

So those two plugs I assume are places for hoses?

View attachment 436000

What is the deck mount for? Looks useless if you already have the other one at the front.

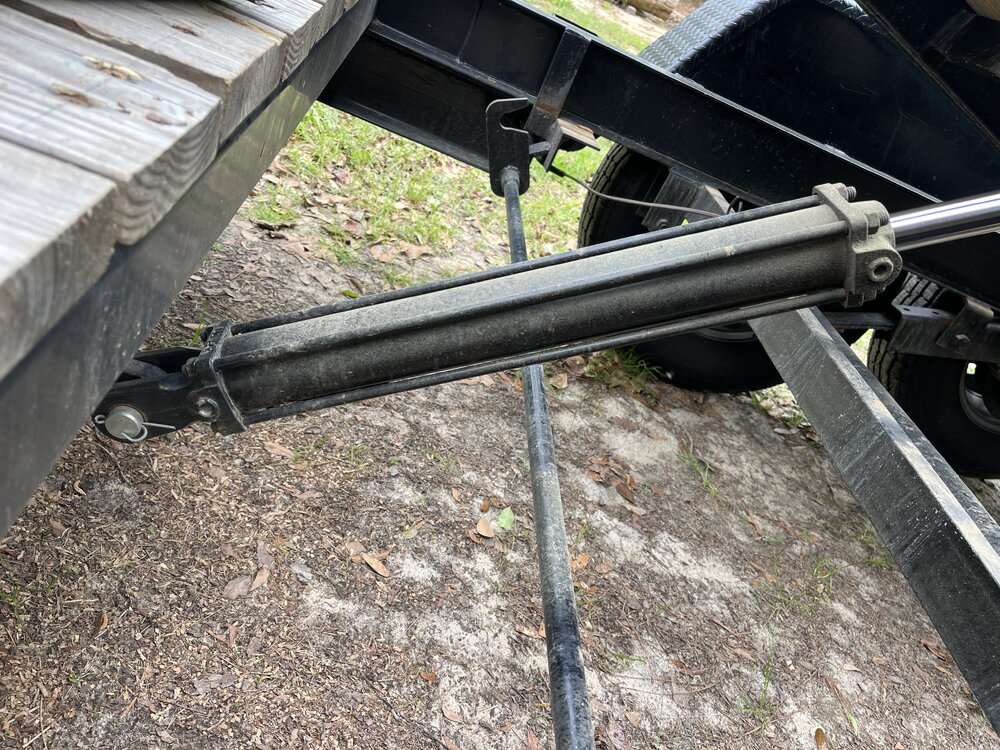

Those two fittings are for hoses. I think 1/2” NPT but I’m not 100% sure. It’s a 2 way cylinder, but the plate that separates the 2 chambers has a ~1/16” hole drilled in it. This flow restriction is what provides the damping action on the tilt. I just tack welded mine shut when I added the pump/motor. But you really need air in the system to use it as a damper since the chambers have different volumes. Or you can add a second dummy cylinder somewhere to match the volume movement.



[ghost]

What is the deck mount for? Looks useless if you already have the other one at the front.

Those two fittings are for hoses. I think 1/2” NPT but I’m not 100% sure. It’s a 2 way cylinder, but the plate that separates the 2 chambers has a ~1/16” hole drilled in it. This flow restriction is what provides the damping action on the tilt. I just tack welded mine shut when I added the pump/motor. But you really need air in the system to use it as a damper since the chambers have different volumes. Or you can add a second dummy cylinder somewhere to match the volume movement.

The deck mount was me thinking of a way to mount the winch there or a d ring for using a vehicle winch to drag a vehicle up on the deck.

I understand the hole for fluid transfer but not sure I understand the rest.
