'81 Project Toy Full width Build up, Finally got it on the Trails....

[Black Bear]

Yes it did.
The tube I got from CRS worked very well. I had to turn down the 1350 side from .188 to .120, but the toy side was much less.



[drkelly]

I really like this truck, the exo is very nice, but you are going to kill those tail lights.



[tsmall07]

If it were me (i wish!) I would skin over the original tail light locations and put led units in.



[Black Bear]

I hope they last a while, but if they get bashed, I'll flush mount some LED's.



[Black Bear]

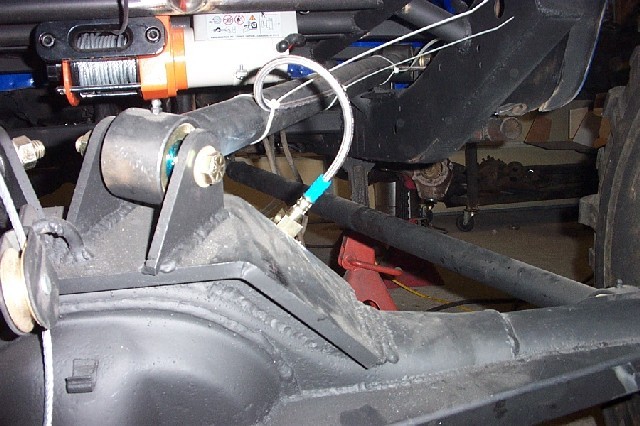

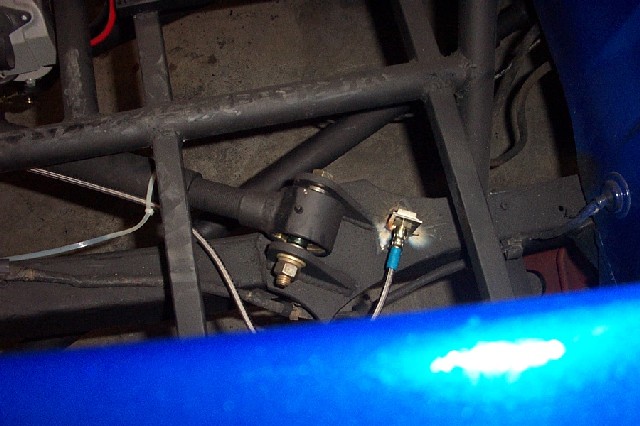

Rear DS is done and installed. Soft brake line is plumbed, and I started building the front axle.



And a thanks to Ken for giving me his old camera.



[sharksanddanger]

sweet! Great build up.. Looking forward to next pictures..



[Tim88XJ]

Awesome build, I have been following it from the get go. It seems to be coming together nicely!

Question: Where did you get your stainless brake lines from? Did you get them locally/custom made? Reason I ask is I haven't seen a stainless line that long before. -Tim



[Black Bear]

Awesome build, I have been following it from the get go. It seems to be coming together nicely!
Question: Where did you get your stainless brake lines from? Did you get them locally/custom made? Reason I ask is I haven't seen a stainless line that long before. -Tim

Alliance tube in Greensboro made it for me. http://www.alliancehtw.com/ I talked to them at the first Big Daddy event, and some of the guys on here recommended them. If your looking for an upgrade give Billy a call.



[Ridgerunner]

John you need to use black wire ties .......



[Black Bear]

yeah, i do. but sometimes you have to use what you got.



[Black Bear]

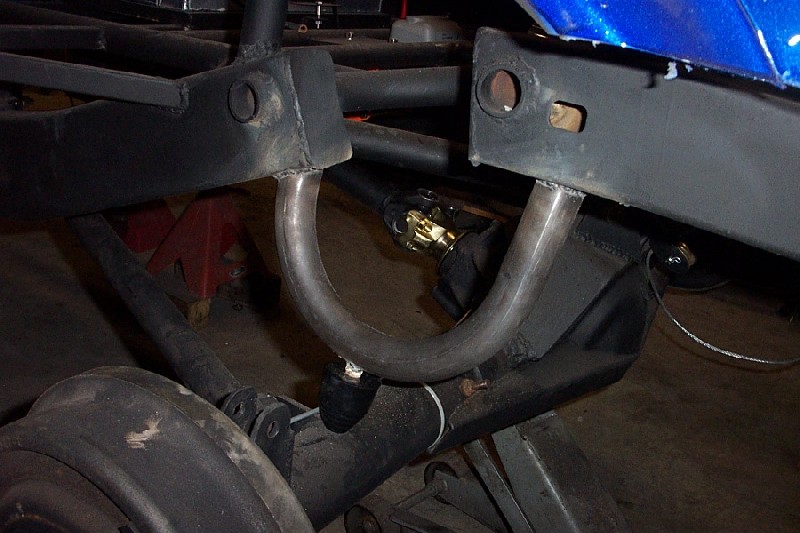

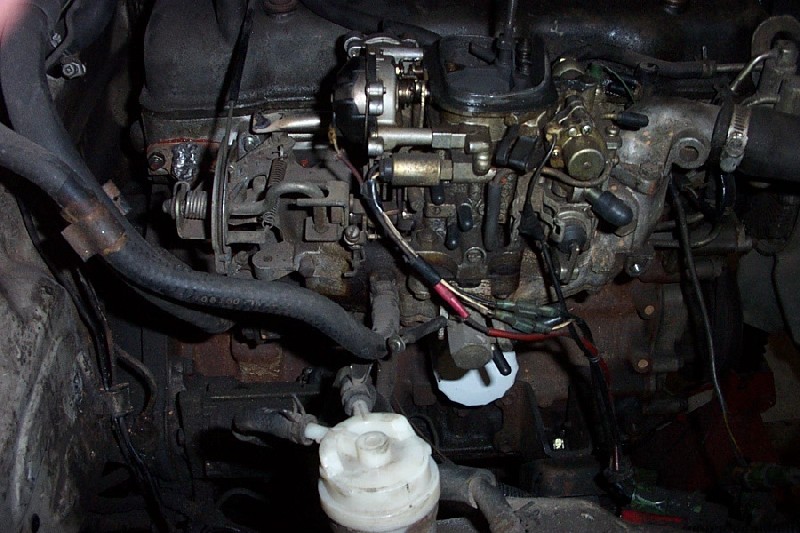

Update.. Power steering installed, IFS box tapped for hydro assist, emissions removed, bumpstops added to the rear. I am still collecting parts for the front, but its close.



[Black Bear]

Bruiser has been buggin me to put some updates out here, so this should keep him quiet for a couple days.

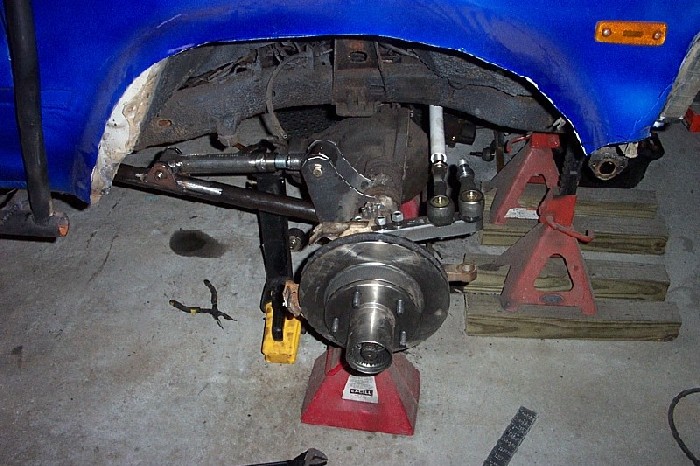

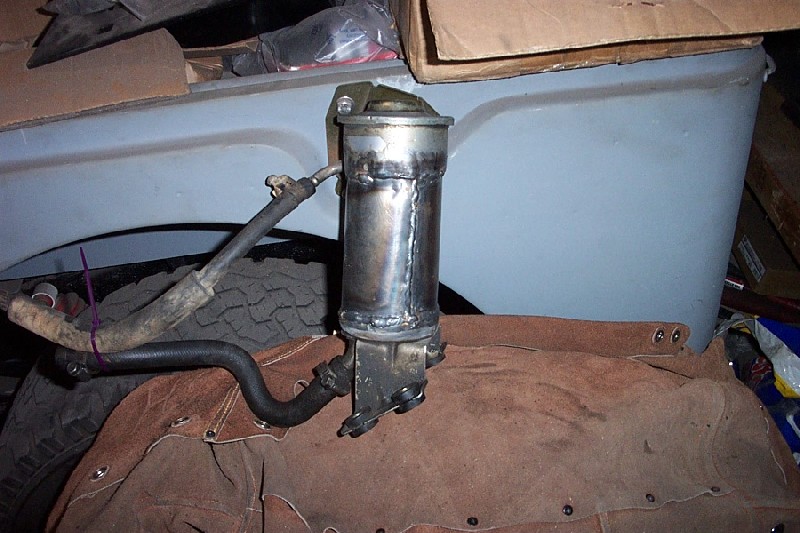

Front links are almost done, Trac-bar and steering are getting mocked up, and a new t-case mount is in the works. PS res now holds about 40 ounces.



[thecarman]

Will it be ready for the CNC Spring Fling?



[Black Bear]

Thats the goal.



[Blacktoy]

looking good man. Looks like you might be done before I am.



[Ridgerunner]

looking good



[Black Bear]

Finally, the last part to complete the PS conversion...

So whats inside?

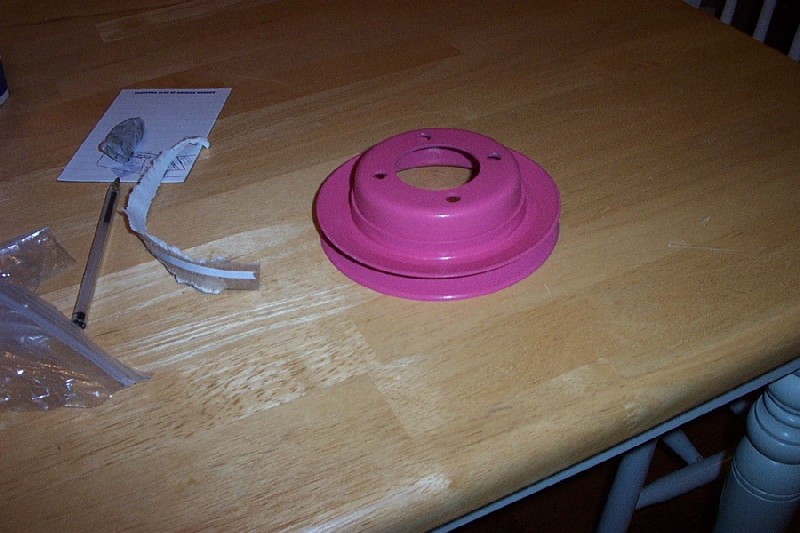

its not a pink pulley, its a "salmon" pulley.



[rattlecanpaint]

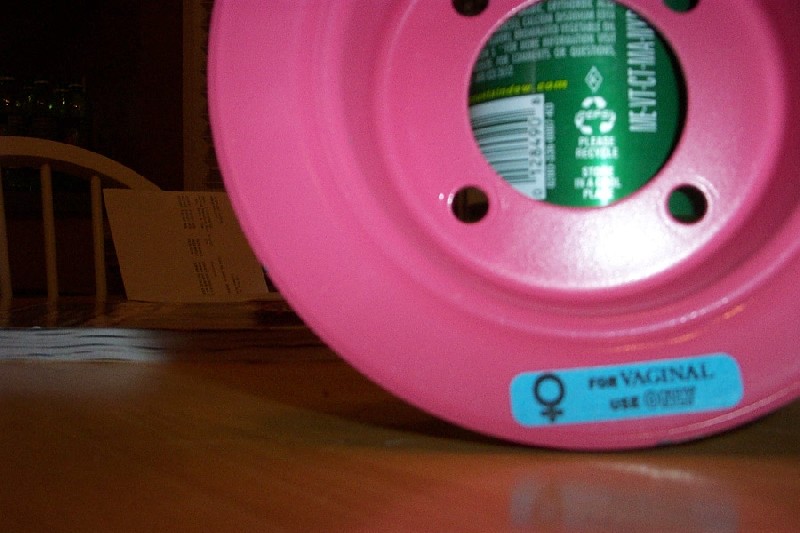

So, uh, Vaginal use only huh? Guess you need a jeep to put it on!



[ScottR]

That's got to hurt.

Scott



[rattlecanpaint]

How much did you get it for? When I was looking I was desparate so I paid $50 at the dealer. (Mine wasn't pink though.)



[Black Bear]

I got it from a friend, which is why its pink. He didnt tell me a price, so im going to make it worth his time.



[BRUISER]

Well we have been doing a little work..

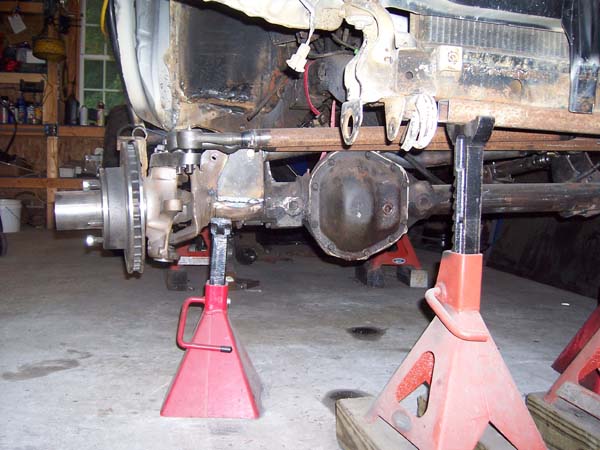

front axle in place

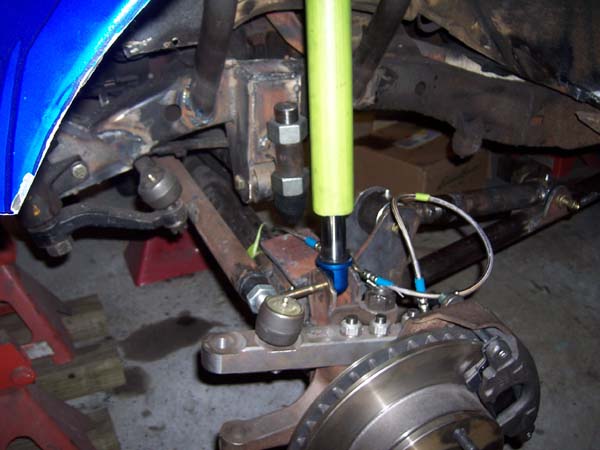

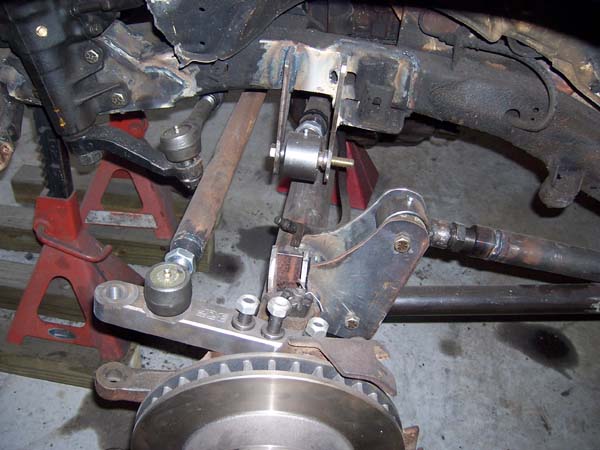

steering done

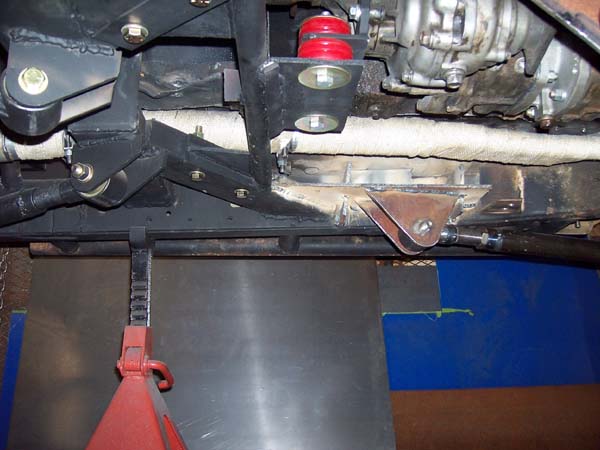

transfer case mount

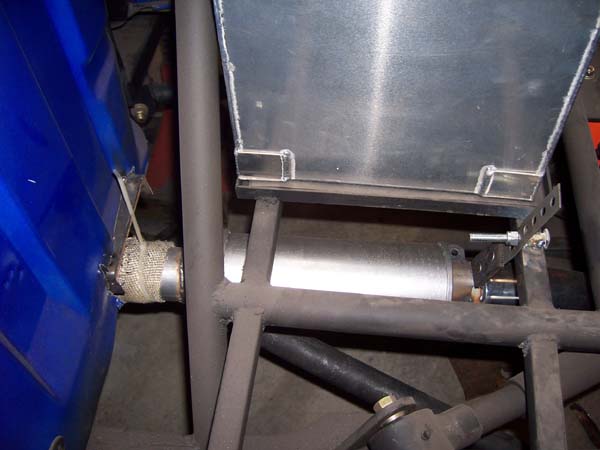

exhaust done

trac bar mount almost done



[BRUISER]

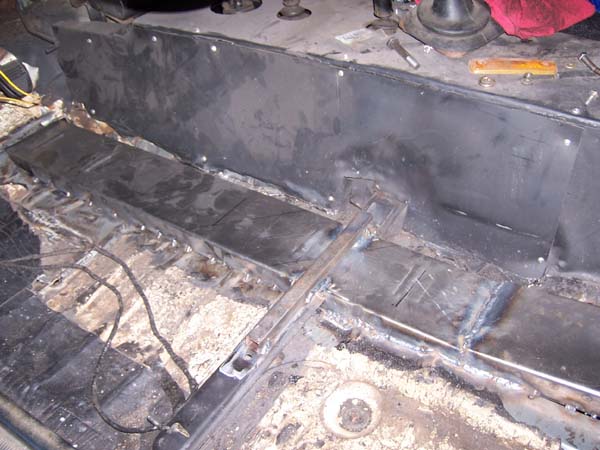

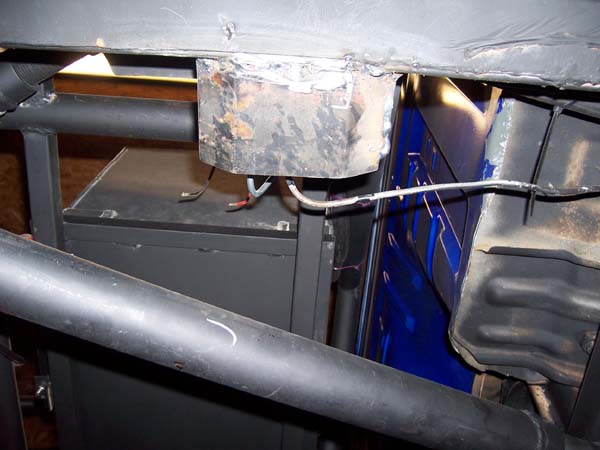

we had to redo the floor so the exhaust would not rub



[BRUISER]

Good news.. the TOY is very very close..

hope that John can get soem updated pics online..

but the rear axle is locked and geared
rear driveshaft is done and in
all fluid in axle, transfer cases, transmission are all full and topped
front axle is doen and in
front bump stops are done
rear brakes are done
power steering is done just needs to be filled with fluid
fron shock hoops are done
front brace between shock hoops are done
battery tray is in


main things to finish are: front brakes, fill FOX shocks, front driveshaft, NEW rear bump stops, limiting straps, check all bolts, and paint all the front suspension..



[BRUISER]

pics

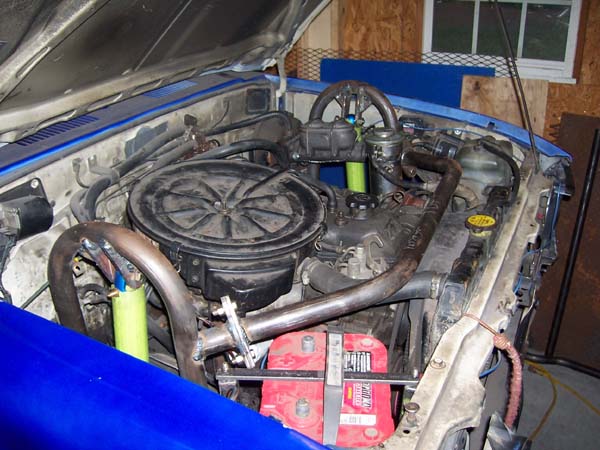

shock hoops and brace

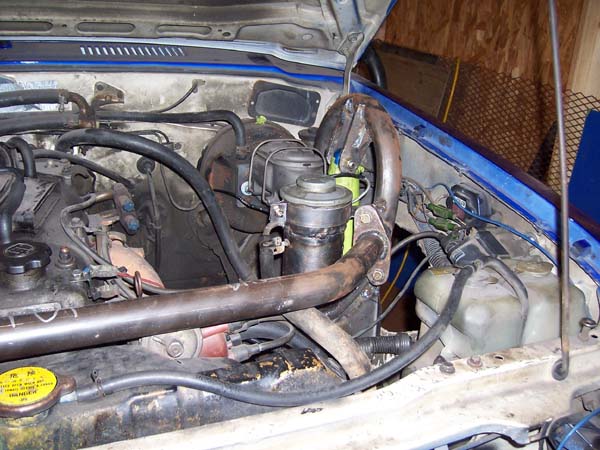

power steering

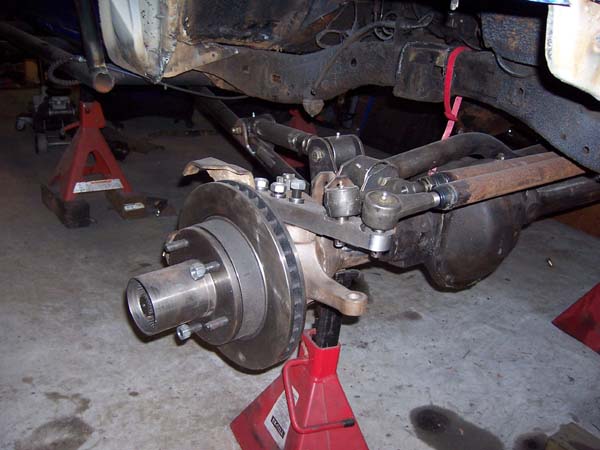

bump stops, brakes, steering box, etc

Line lock skid plate
