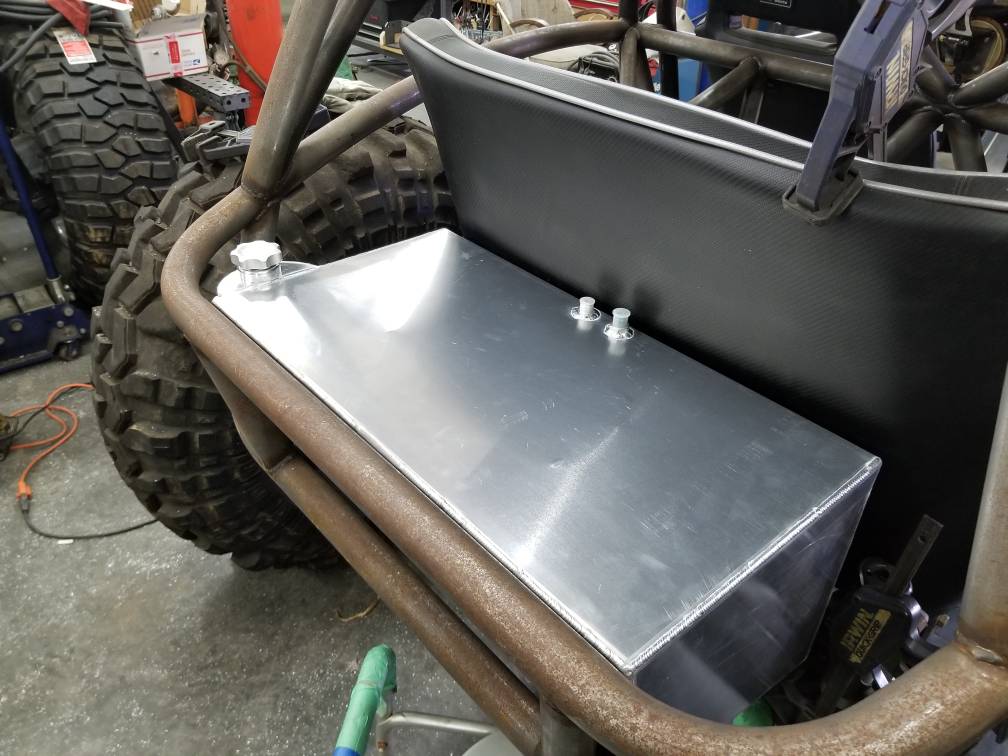

Fuel cell is complete for the #wingnutbuggy, aside from mounting. Kept the filler low and off to the side to save room for a basket/ rack of some sort, (that I'm still designing in my brain). 25x12 area above the cell.



















CutlerFab

Sent from my SM-G892A using Tapatalk

Site tube fuel gage. Very cool idea, it'll never fail to tell ya how much fuel you have! Awesome!
Makes me want one now LOL

So what are site tubes made of? What are the chances of backing into a rock and destroying that? What about a branch garbing it on a dense trail and ripping ripping it out? I ask because that kind of weird no one ever has shit like that happen to them happens to me.......

upnover said:
Site tube fuel gage. Very cool idea, it'll never fail to tell ya how much fuel you have! Awesome!
Makes me want one now LOL
Click to expand...

yep. I'll likely do the same on my next project.

ghost said:
So what are site tubes made of? What are the chances of backing into a rock and destroying that? What about a branch garbing it on a dense trail and ripping ripping it out? I ask because that kind of weird no one ever has shit like that happen to them happens to me.......
Click to expand...

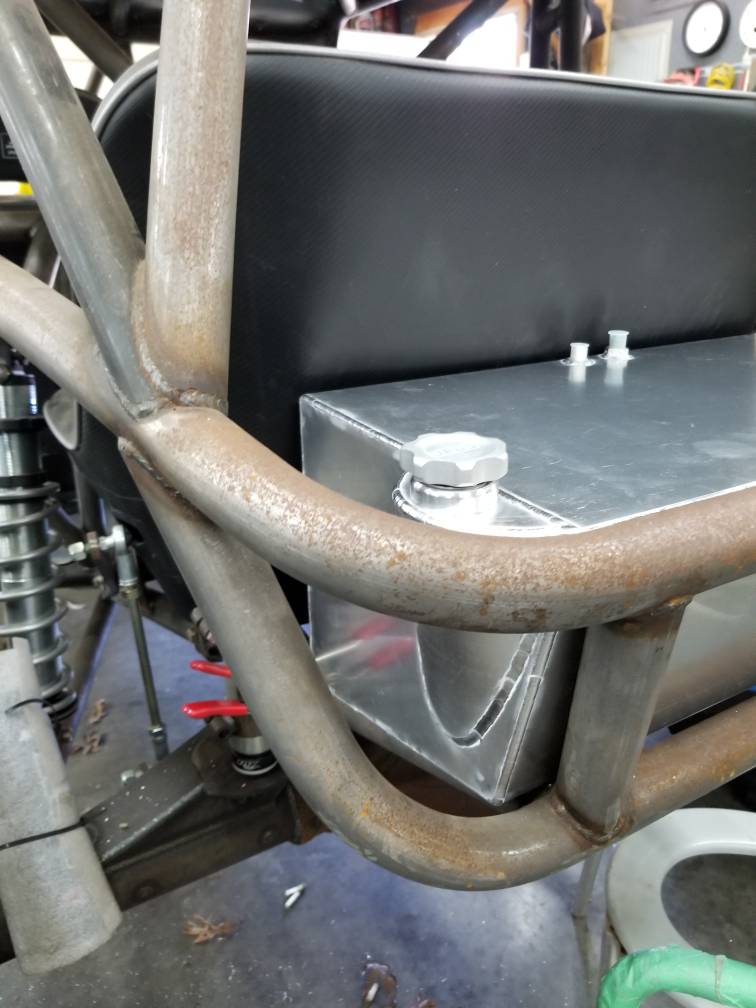

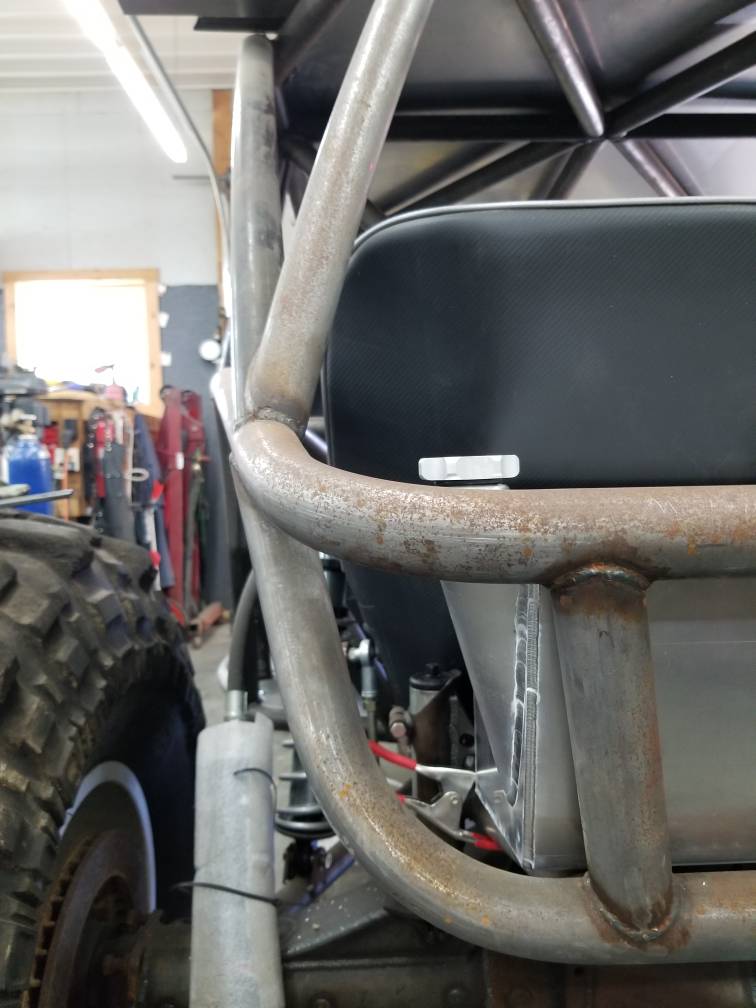

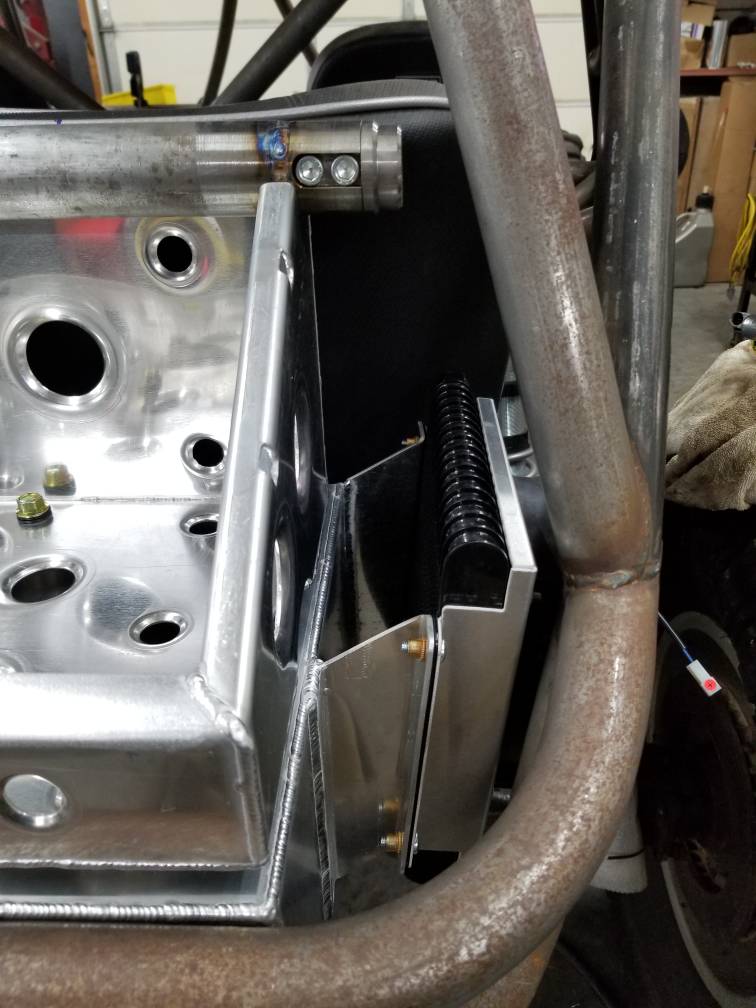

Clear gasoline rated tubing. This one is between the rear seat and the tank, just visible from the left rear tire under the fender tube. It's very well protected but anything can happen. i would carry a couple -4 an caps just in case. Added bonus, if you ever got water in the tank, easily tip the chassis to one side and drain; this has happened to me... wish I'd had a bottom drain that night...

ghost said:
So what are site tubes made of? What are the chances of backing into a rock and destroying that? What about a branch garbing it on a dense trail and ripping ripping it out? I ask because that kind of weird no one ever has shit like that happen to them happens to me.......
Click to expand...

The Atlas T cases come with a site tube also. So far, no issues with it getting snagged, or even leaking.

Ah as I look back I see. Yes I've seen pictures of tubes on tcases, atlas and D300 I think it was, but never in person and thought I'd ask....

Last edited:
Still waiting on tax info..... Wish I would have asked if those transfer cases had any 241D's in there......

#wingnutbuggy

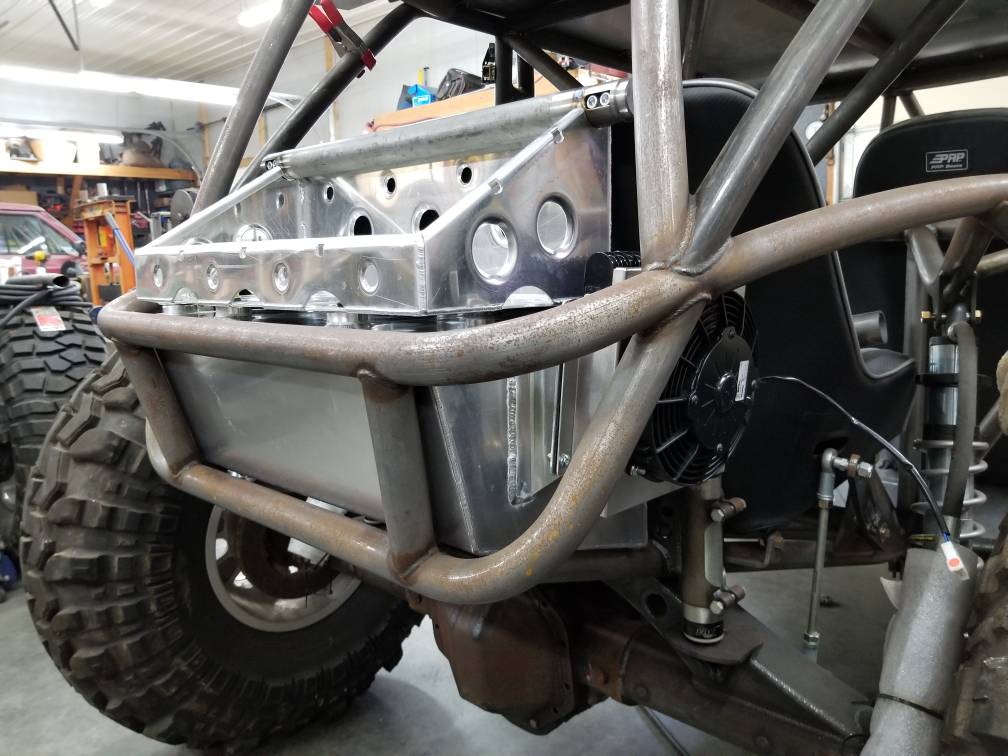

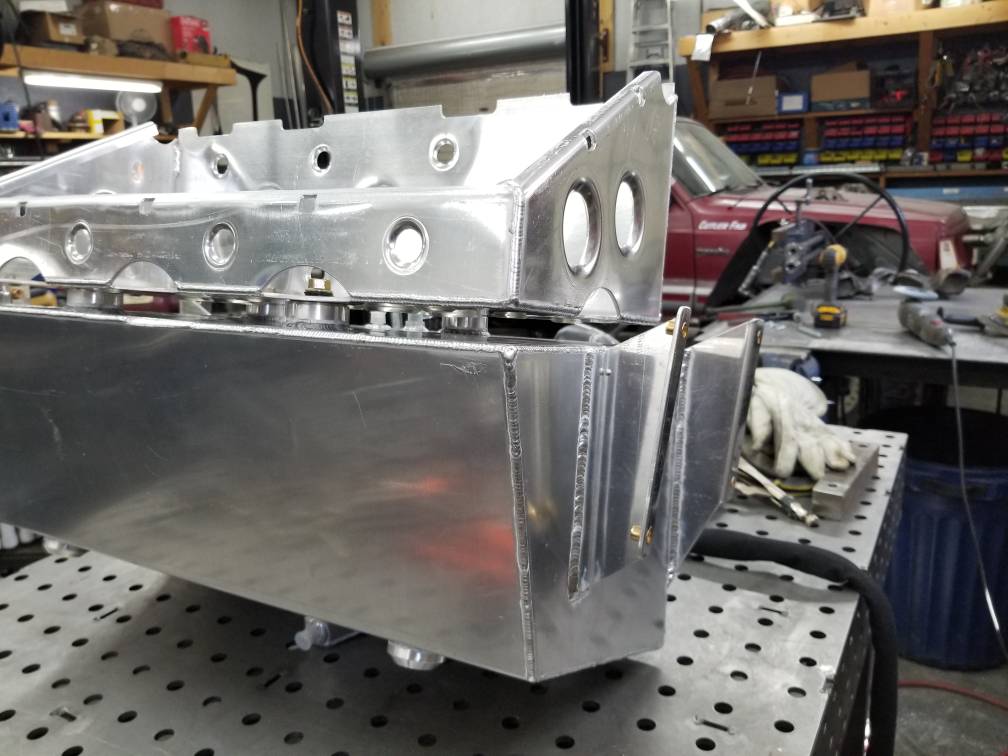

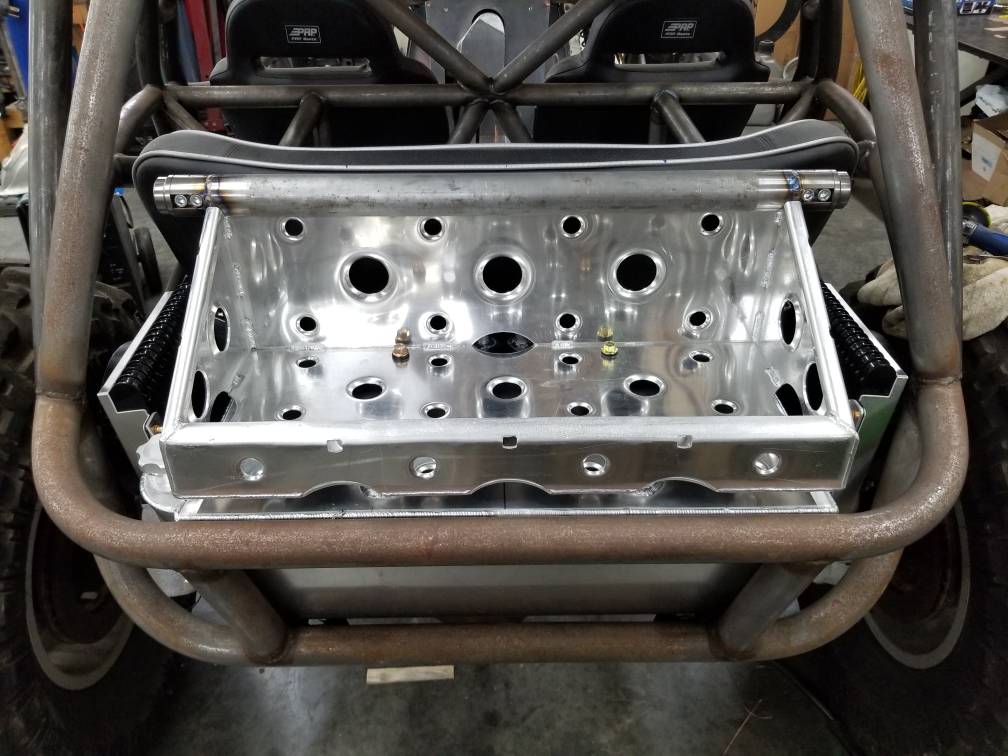

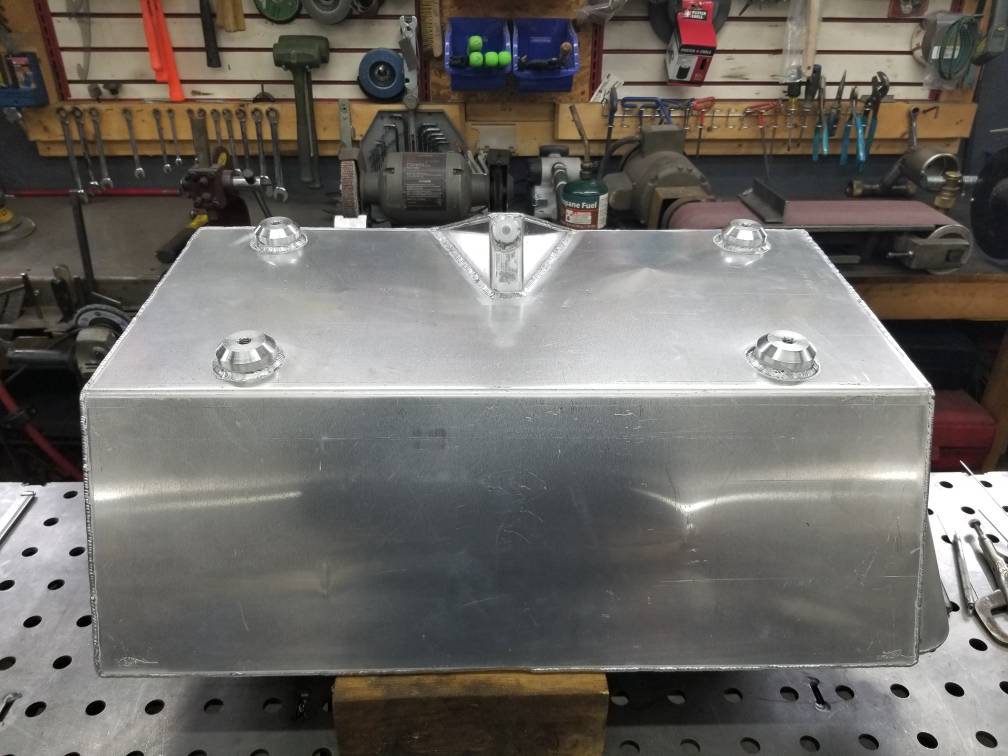

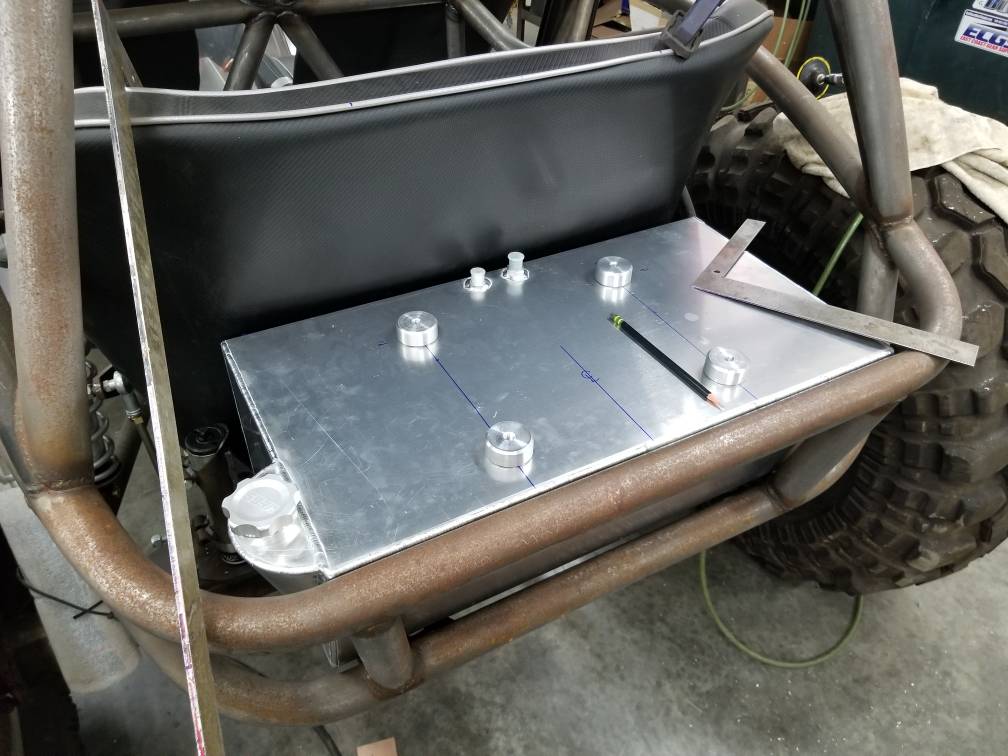

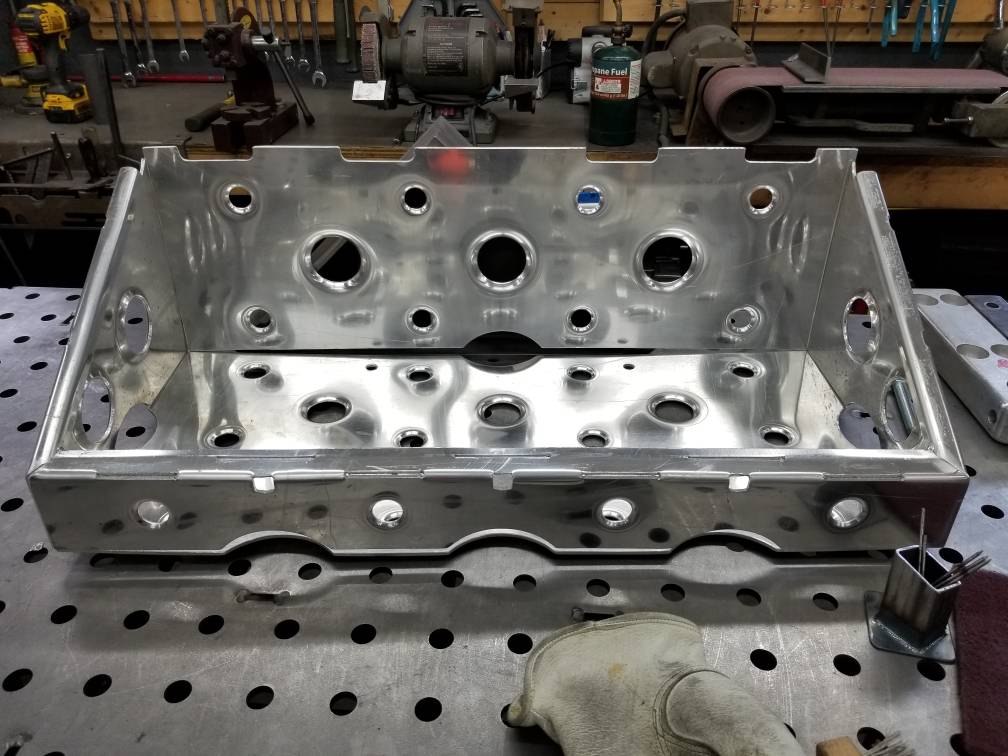

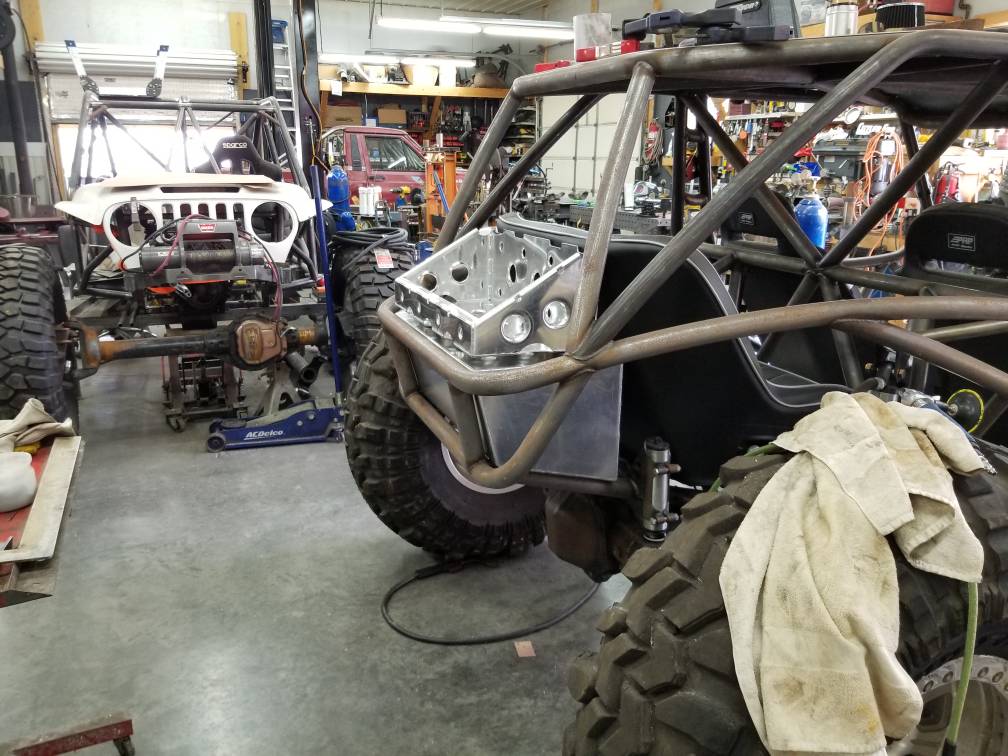

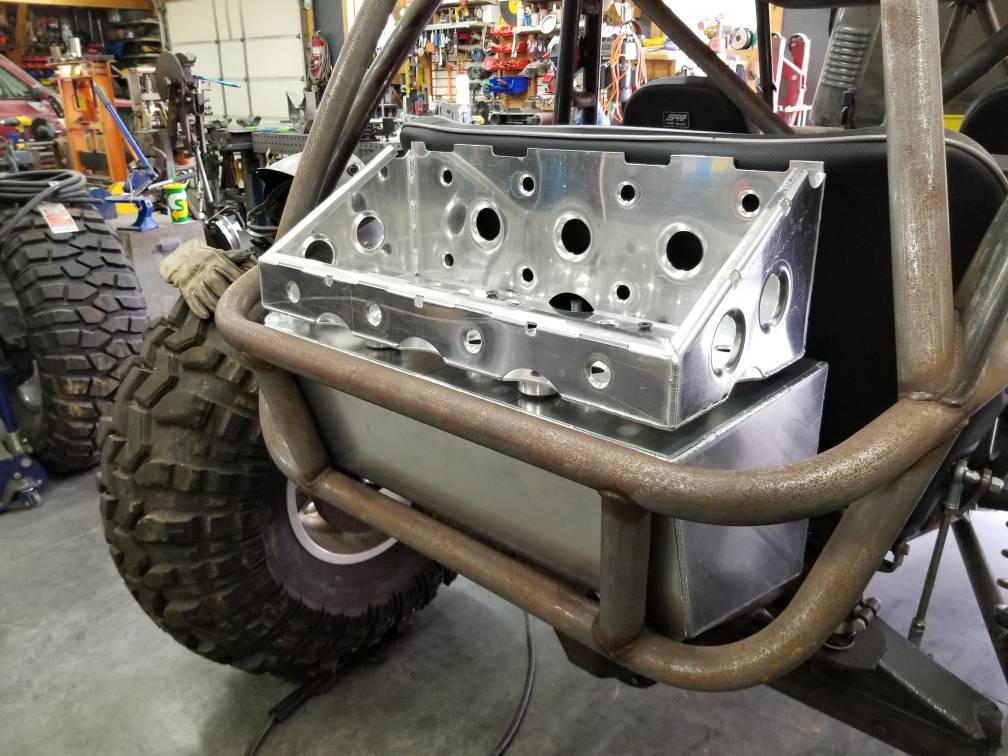

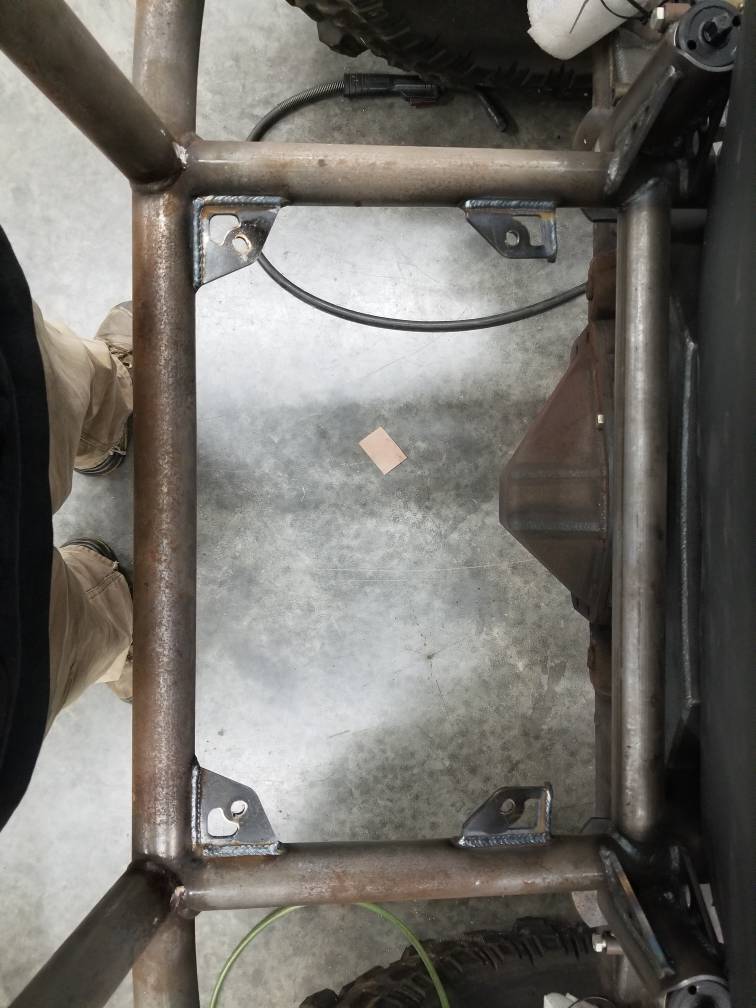

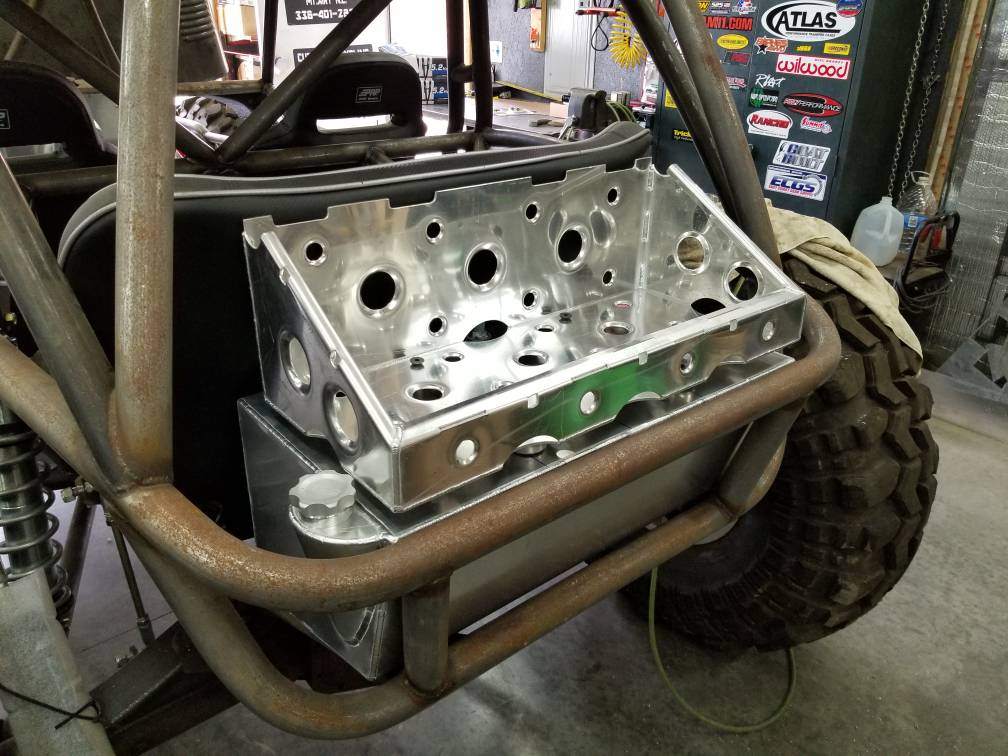

Fuel cell is mounted on the bottom, pucks ready on the top. The basket will bolt to pucks, attached to rear, upper tailgate bar, and a forth coming rear seat harness bar. The cell will be contained via upper and lower pucks- through the basket and harness bar. Slots on back wall of basket are for the harnesses.

Slots around 3 sides of basket for containment of tools/ amenities.

To be welded Friday.

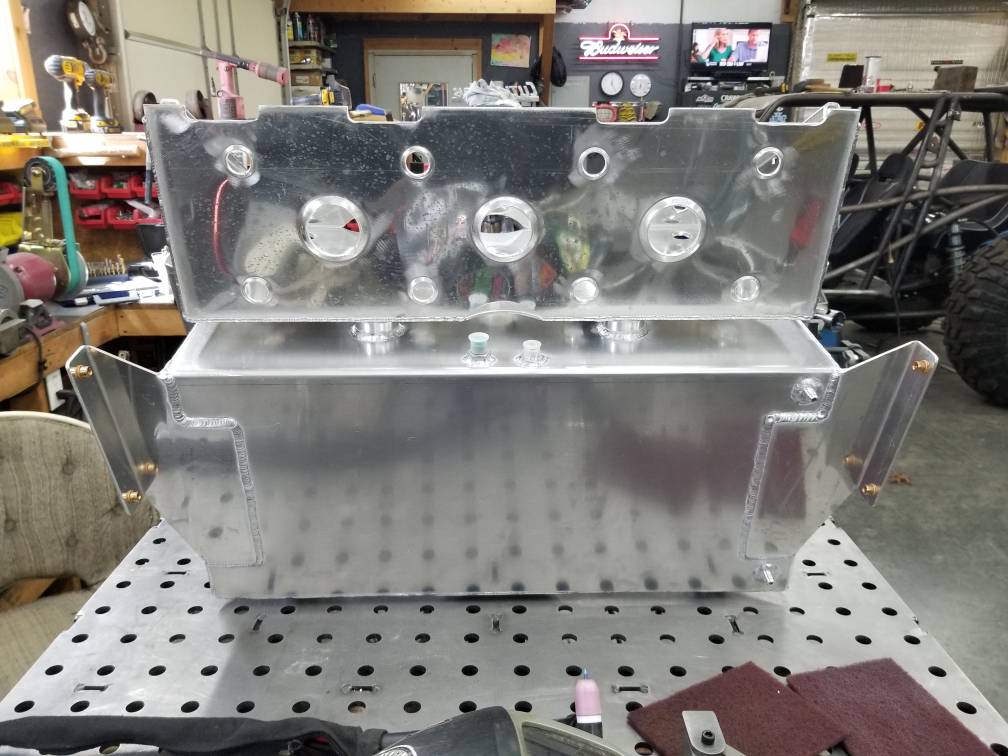

The cell is baffled and the top pucks are directly over the baffle.












CutlerFab

Sent from my SM-G892A using Tapatalk

#wingnutbuggy

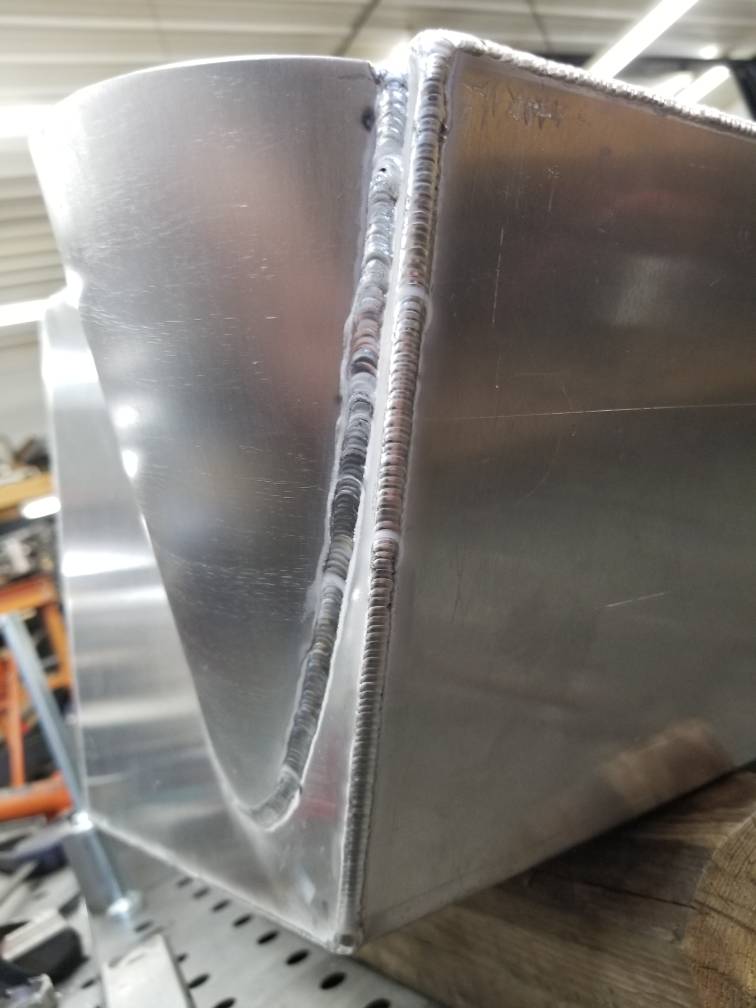

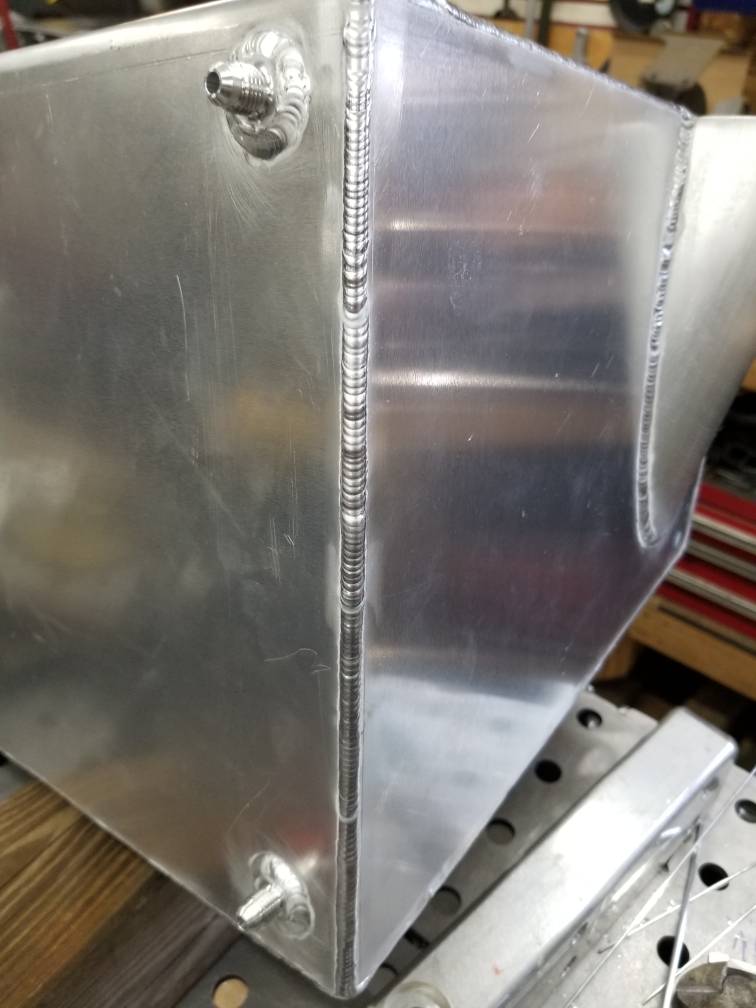

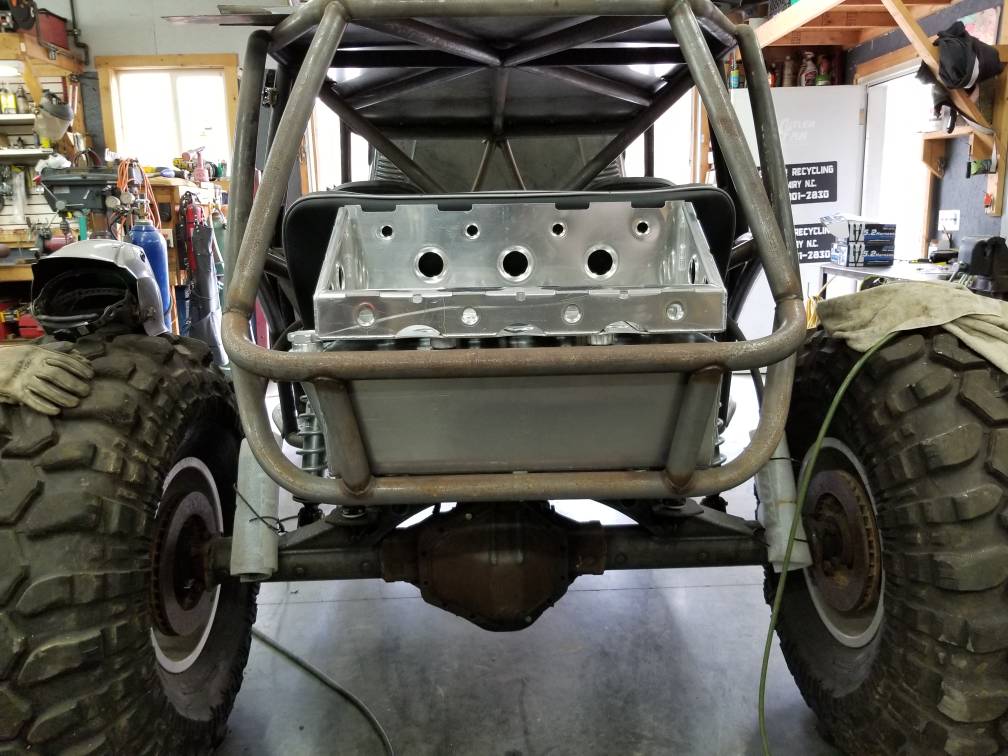

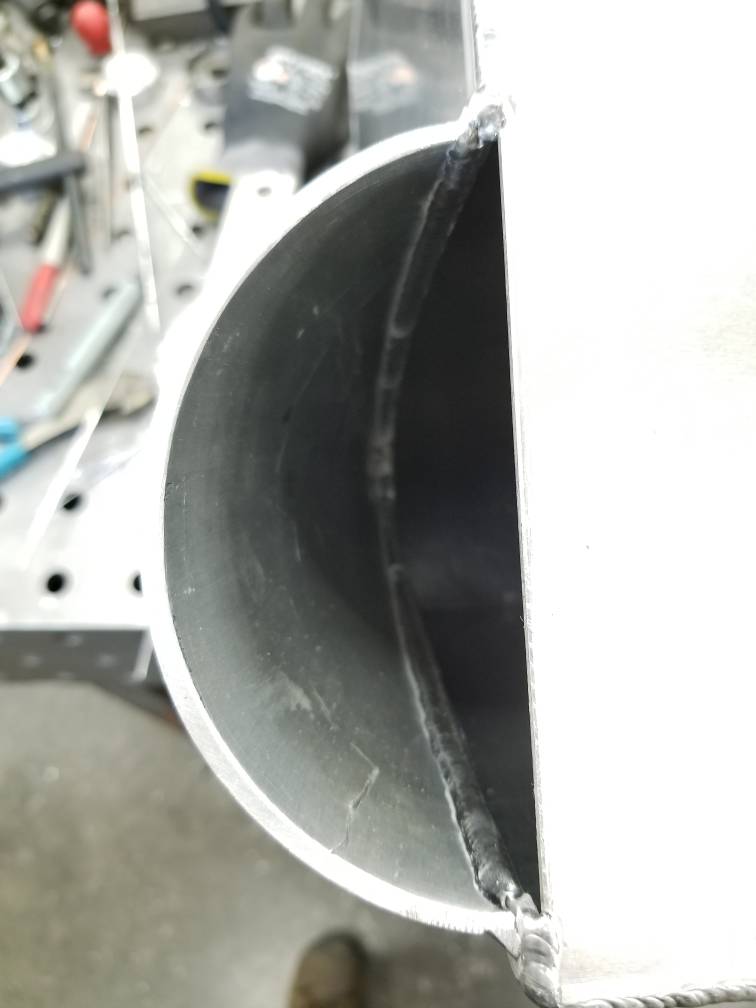

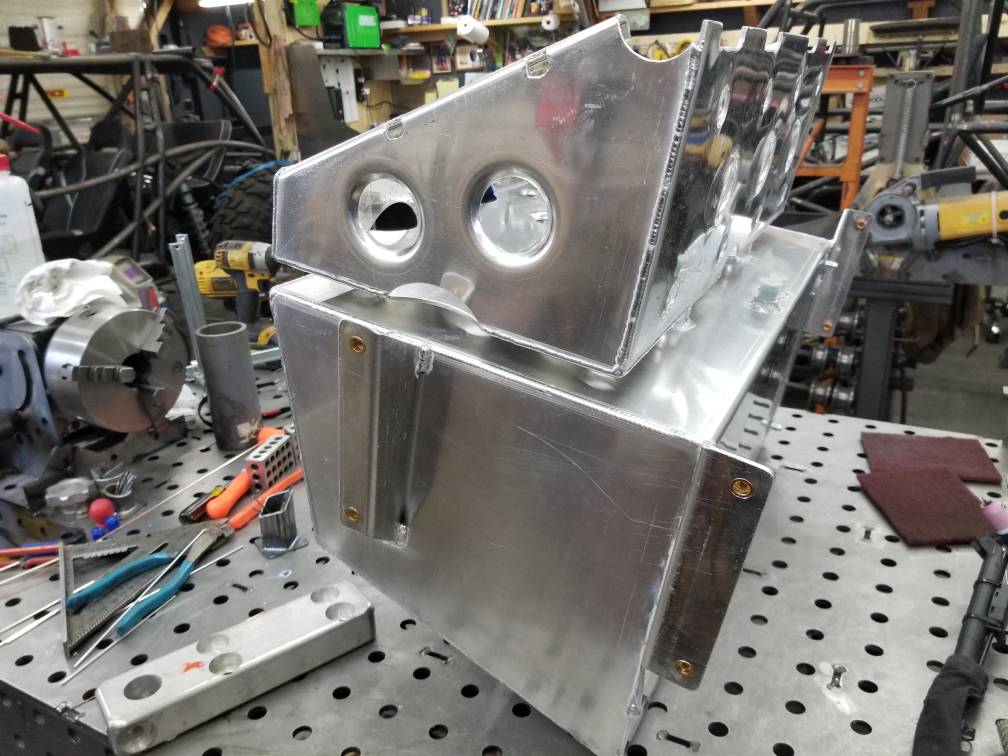

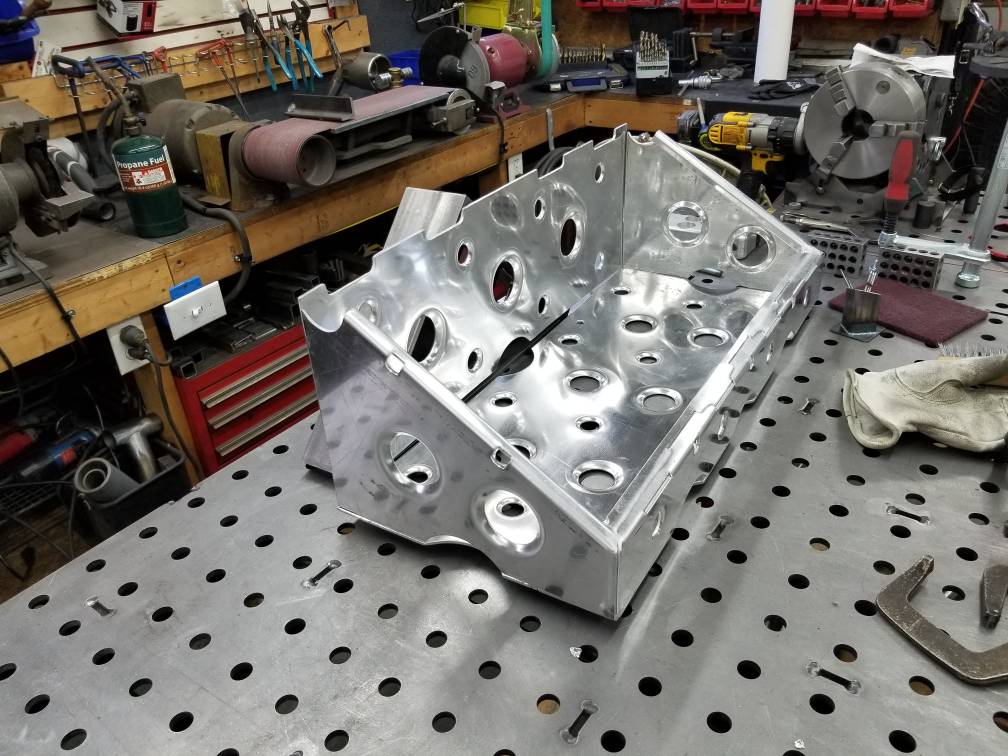

All weldered up, ready for attachment and harness bar.

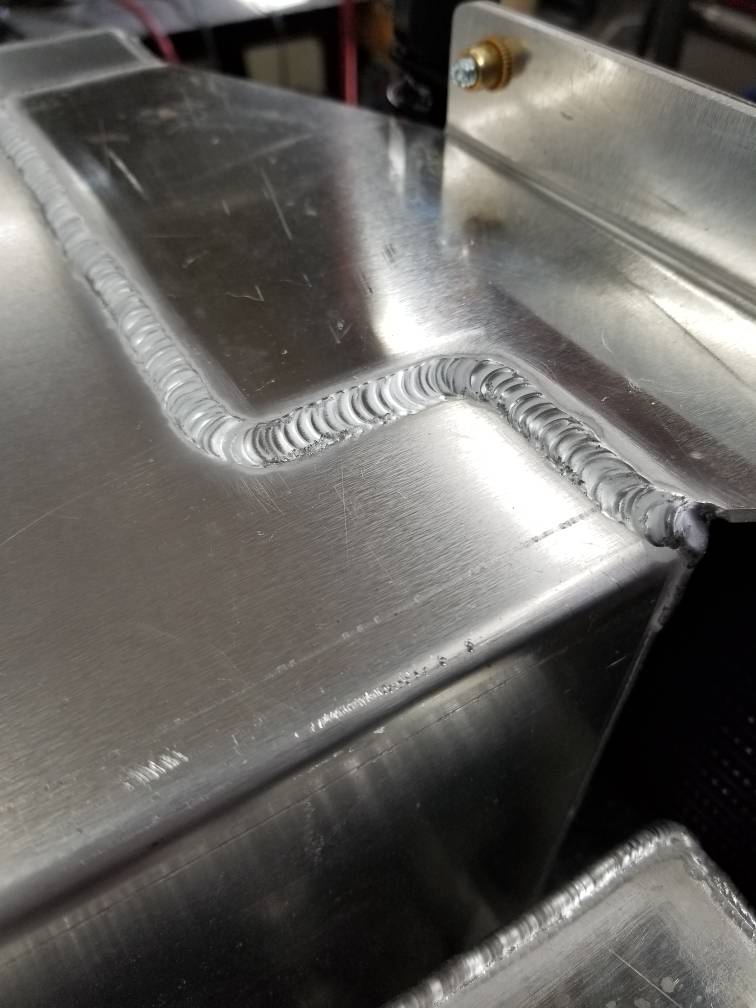

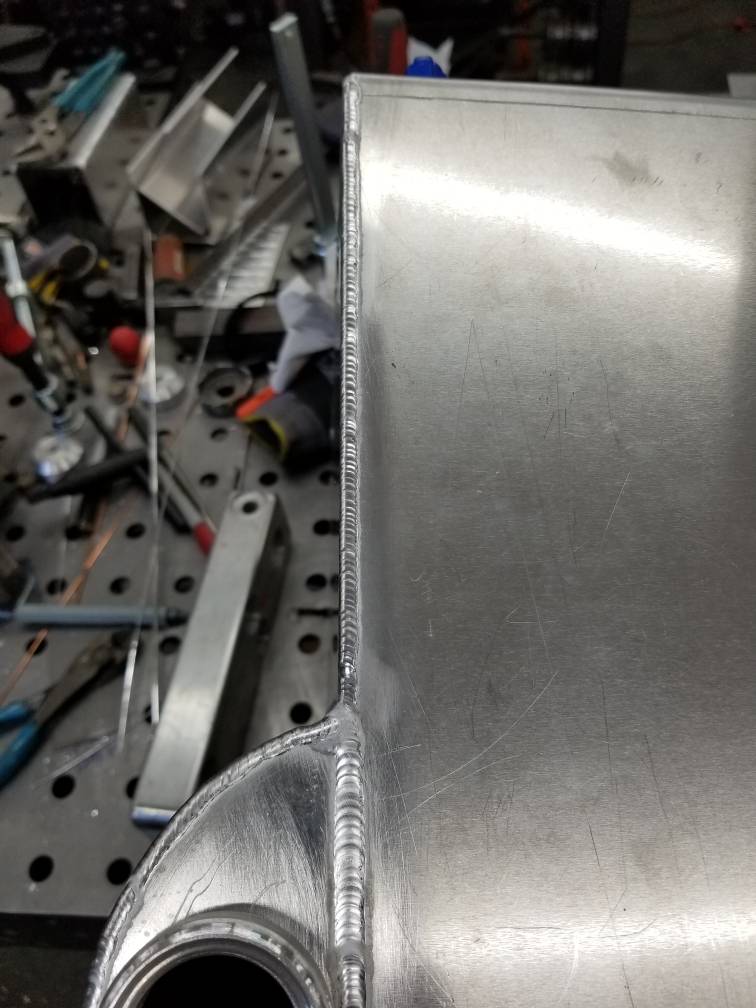

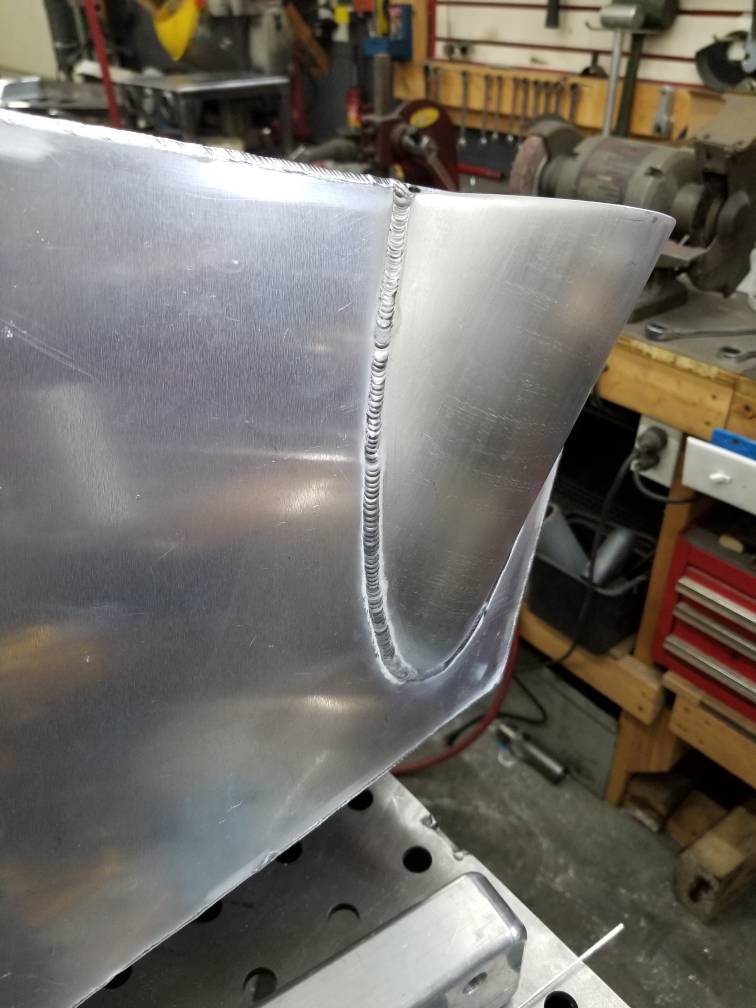

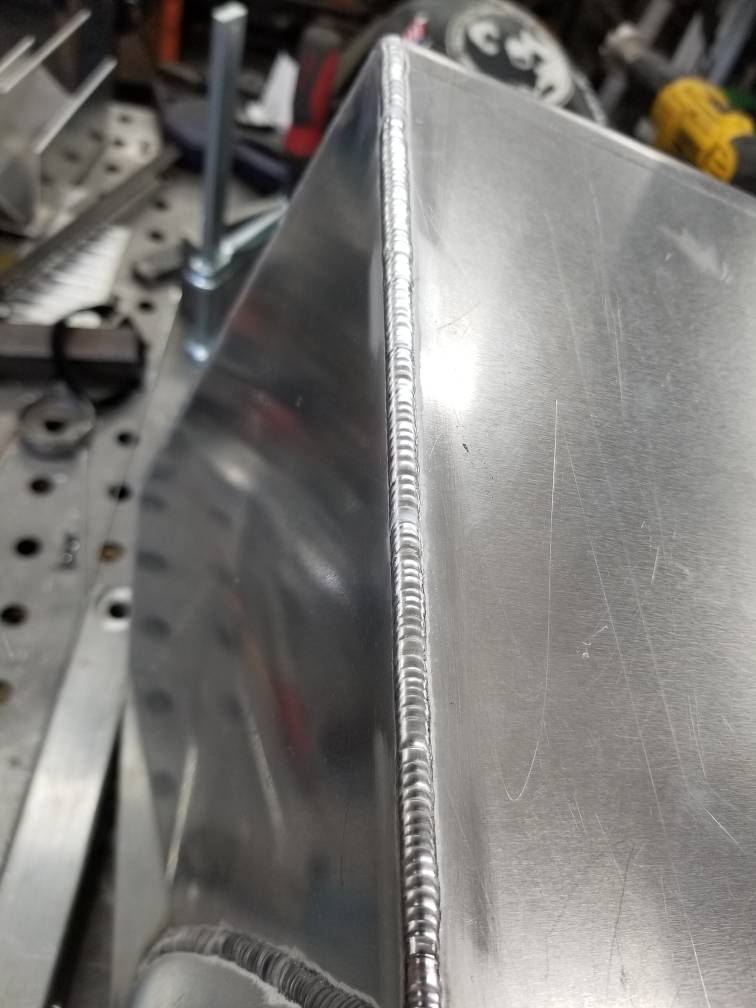

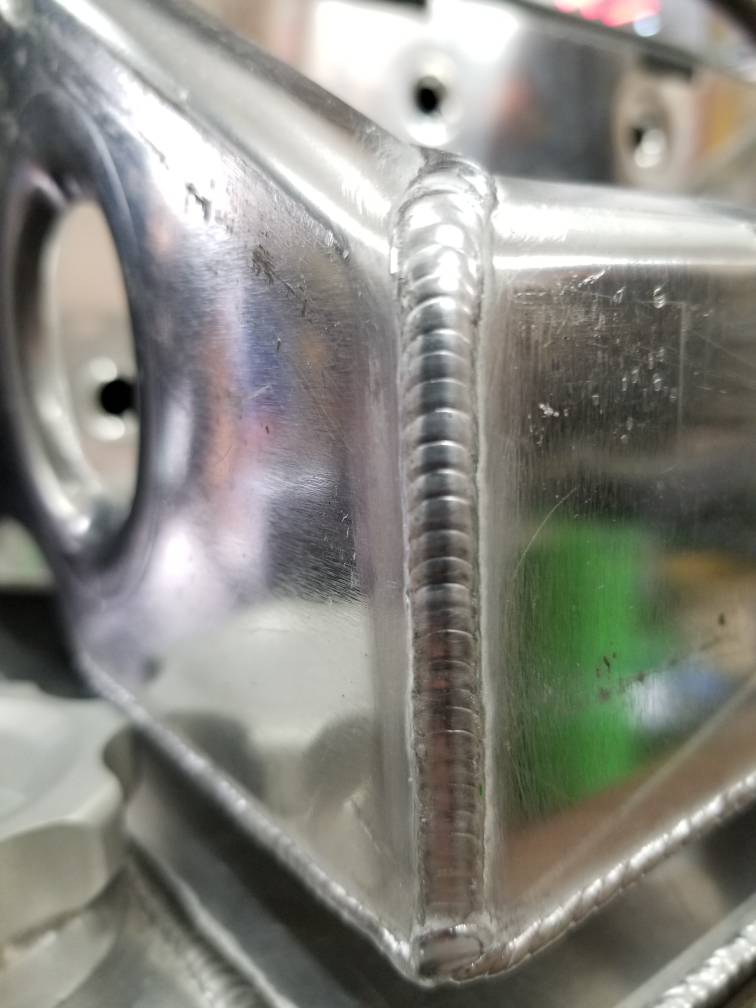

Some of my best tig aluminum welds to date. Very happy (and addicted, ready to lay more aluminum dabs.)













CutlerFab

Sent from my SM-G892A using Tapatalk

mcutler said:
#wingnutbuggy

All weldered up, ready for attachment and harness bar.

Some of my best tig aluminum welds to date. Very happy (and addicted, ready to lay more aluminum dabs.)













CutlerFab

Sent from my SM-G892A using Tapatalk
Click to expand...

While I don't own a tig welder (yet) I learned how in school(gi bill baby) by the end I was making new tooling boxes for the machining department and other aluminum welding yes it is very addictive can not wait to get back to it soon

Last edited:
Seems the thought process is still ahead of the games. The basket with all the dimples, giving it strength, and also serving as a place to secure bungee cords or straps. AWESOME!

paradisePWoffrd said:
Both look sweet.

Will the harness bar be removable?

Sent from my SM-G955U using Tapatalk
Click to expand...
Yes
upnover said:
Seems the thought process is still ahead of the games. The basket with all the dimples, giving it strength, and also serving as a place to secure bungee cords or straps. AWESOME!
Click to expand...
That's right...

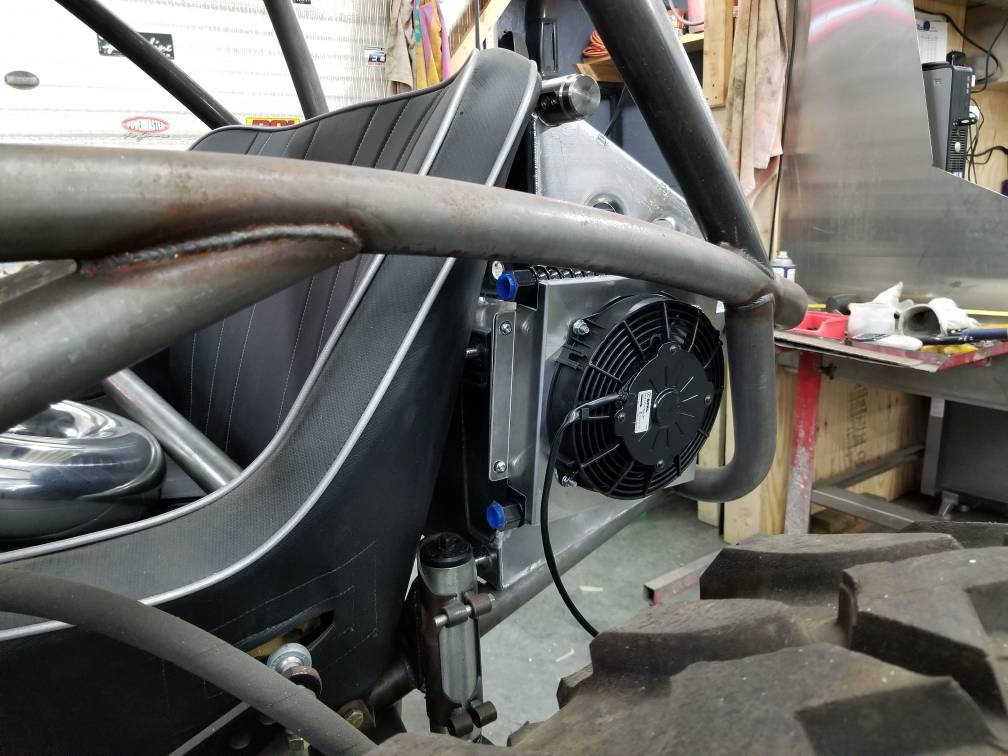

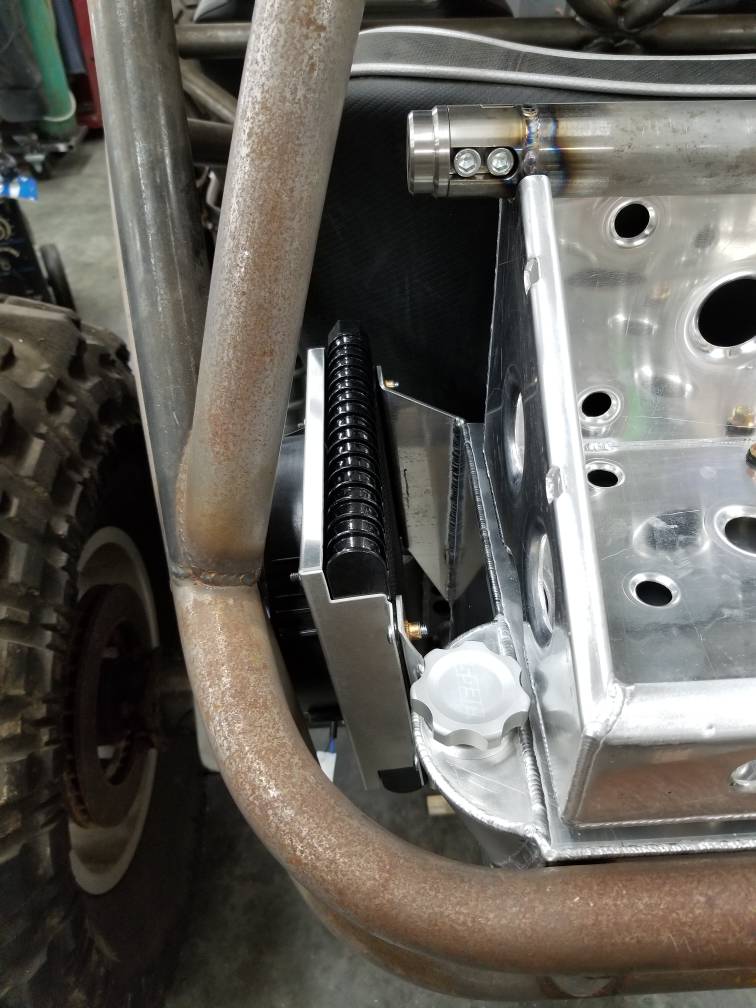

And now the trans and steering cooler are mounted... next week be the fuel pump, filter, repair, etc....

Vent line will be 3/8 aluminum, routed 3 sides and down, inside the basket; it will be very clean and hidden.






















CutlerFab

Sent from my SM-G892A using Tapatalk

I have a question. Is there any concern with mud / debris getting slung up on those coolers in that location? Trying to learn, seeing as how I’ve got to figure all this stuff out on my buggy as well.

BigSouth said:
I have a question. Is there any concern with mud / debris getting slung up on those coolers in that location? Trying to learn, seeing as how I’ve got to figure all this stuff out on my buggy as well.
Click to expand...
Numerous buggies mounted there. I questioned it myself, but talked to a few guys running there, no issues. Only place I have to put them, being it's a 4 seater anyway.

Sent from my SM-G892A using Tapatalk

I have done an amazing job at making sure Matt has the least amount of space to fit the most amount of shit! :lol:

I'm pretty sure nothing on this buddy will be standard catalog part. Partially because of what he has to work and partially because, well what's the fun in that?

farmboy said:
I have done an amazing job at making sure Matt has the least amount of space to fit the most amount of shit! [emoji38]

I'm pretty sure nothing on this buddy will be standard catalog part. Partially because of what he has to work and partially because, well what's the fun in that?
Click to expand...

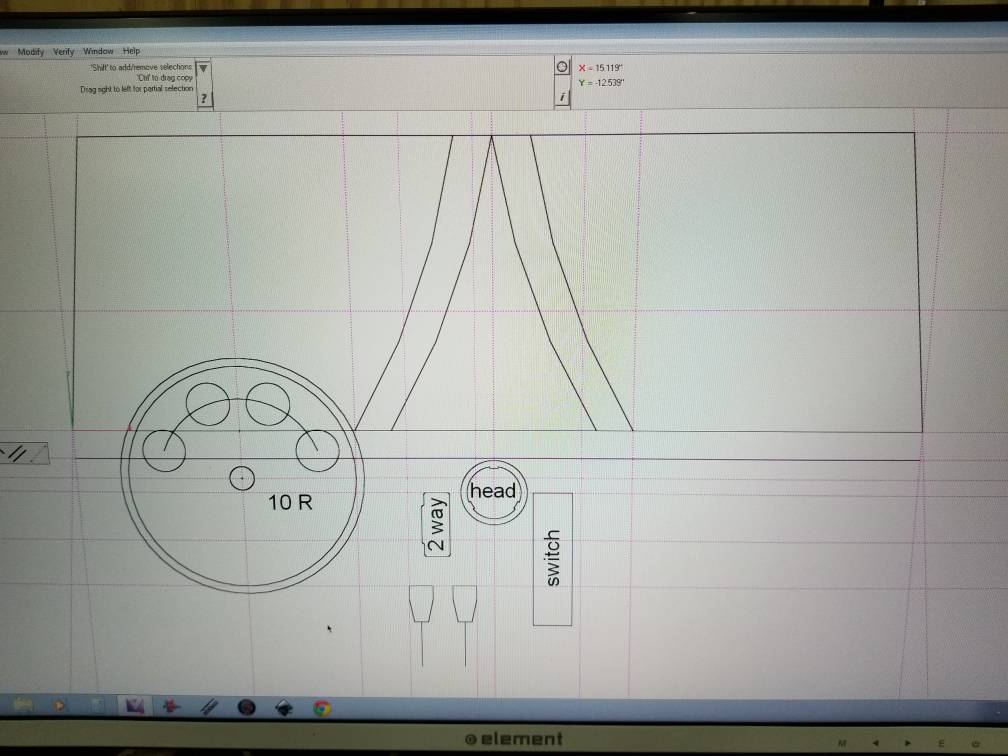

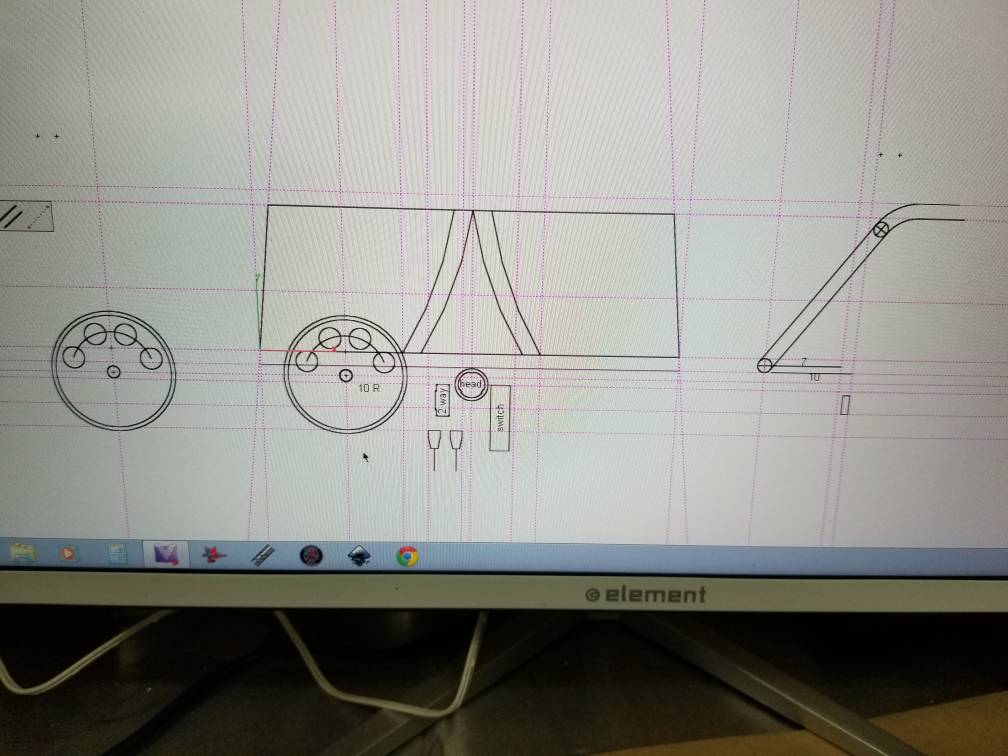

This is true.... here's me trying to design the dash with all the supplied amenities[emoji28]


... literally, right this minute trying to come up with a Cutler design that fits the rest of the buggy...





Matt

Sent from my SM-G892A using Tapatalk

I'm pretty excited to see all this stuff this weekend! We still good for Saturday? @iwaxmyjimmy @Lurch830

Croatan_Kid said:
I'm pretty excited to see all this stuff this weekend! We still good for Saturday? @iwaxmyjimmy @Lurch830
Click to expand...

I’m gonna have to pass, I’ll have to try and go another time. I’ve got too much stuff going on right now. Crossing my fingers I’ll finally get the k5 in the woods this month as soon as I finish putting back together a buddy’s TJ.
