Random pic thread.

EdJonesJeeper said:
^Are those doors bullet proof!?
Click to expand...
Nope! But they are damn heavy to put on and off, or repair for that matter. Just standard custom cab style engineering.

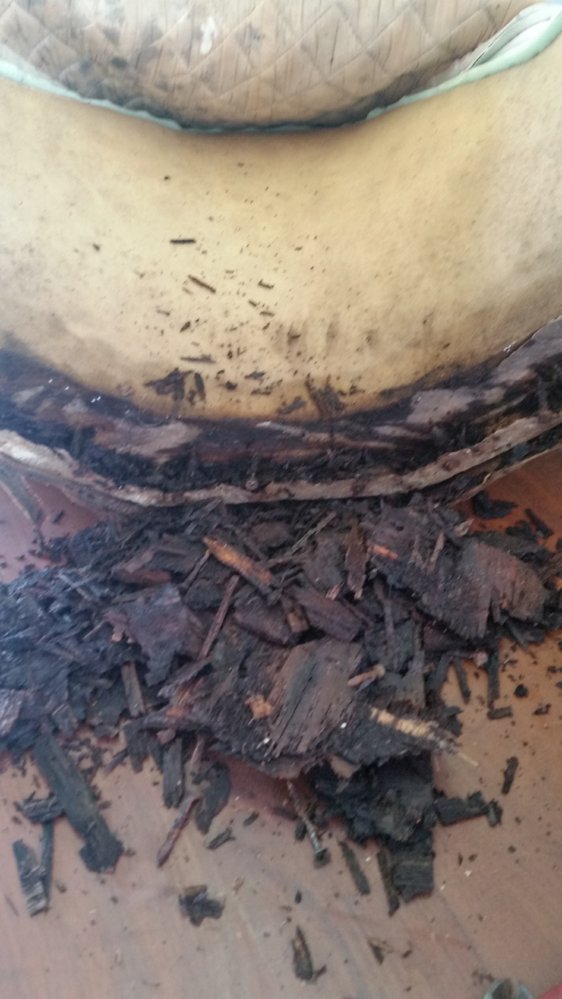

Boat seats should NEVER be built with non encapsulated plywood !

aint that one a them car-B-Que things I keep hearing about on the belt line ?

getting hot in here, is the AC on ?

tknopp said:

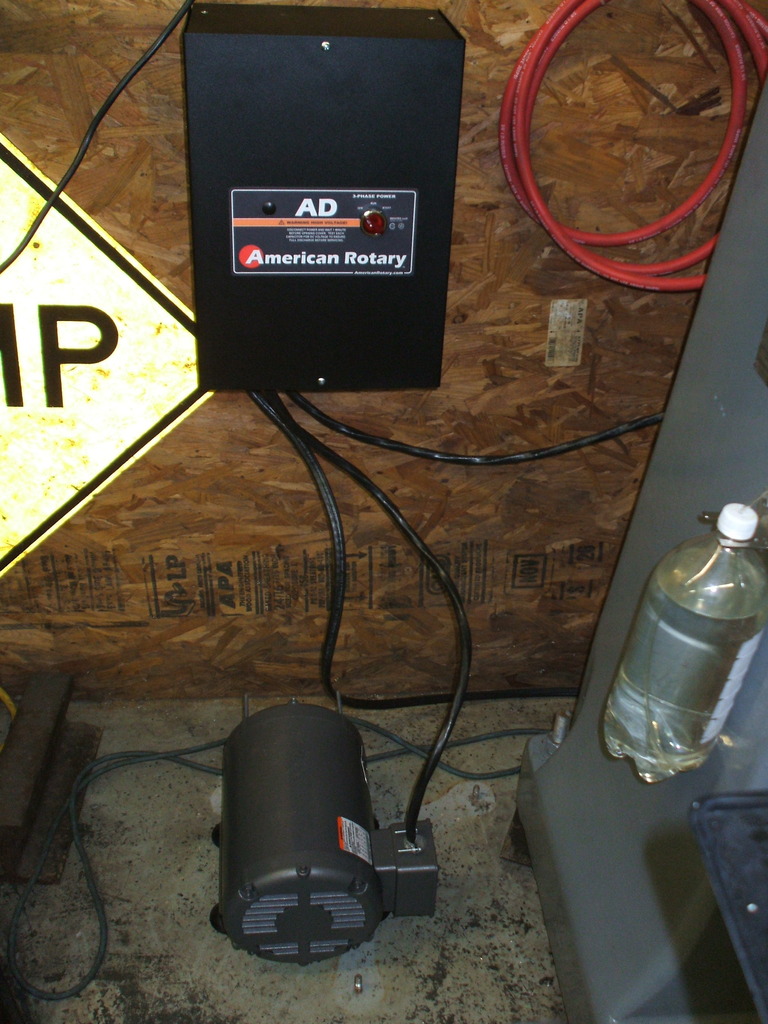

3 phase power in the shop now. Yeah baby.
View attachment 196517
Click to expand...
Nice. Mine is also an American Rotary and I haven't had a single hiccup from it. I just wish it would magically cut on when I need it and cut off when I'm done so that I don't leave it on for 3 days while I'm not in the shop :shaking:

jeepinmatt said:
I just wish it would magically cut on when I need it and cut off when I'm done so that I don't leave it on for 3 days while I'm not in the shop :shaking:
Click to expand...

You just need a three-phase light bulb to serve as an indicator/annuciator. I think they have them at Home Depot. :flipoff2: Just ask a guy in an orange vest. Report back with your findings.

GotWood said:
What is this/how much is this /is this complicated?
Click to expand...
It is a rotary phase converter. Basically a motor that runs off of a single phase and produces 3 phase power. The bigger the system the higher the price. Mine is a 5hp system to drive my milling machine. If you are good with electrical it is not too hard to wire up.

Falko said:
Where is there an EX1100 parts rig in NC?

Also, what do you know about premature arm tip bushing wear on 20-35 metric ton machines?
Click to expand...

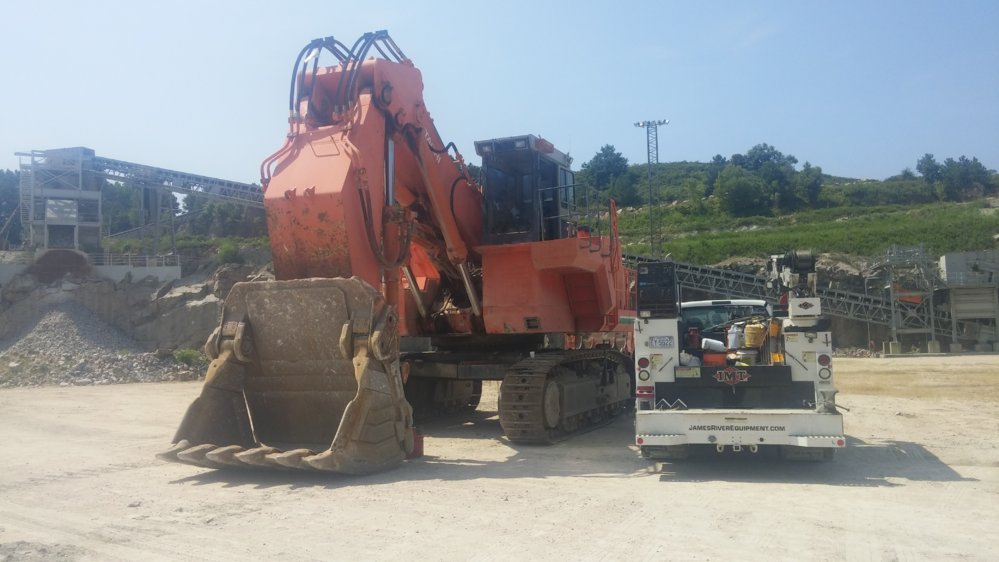

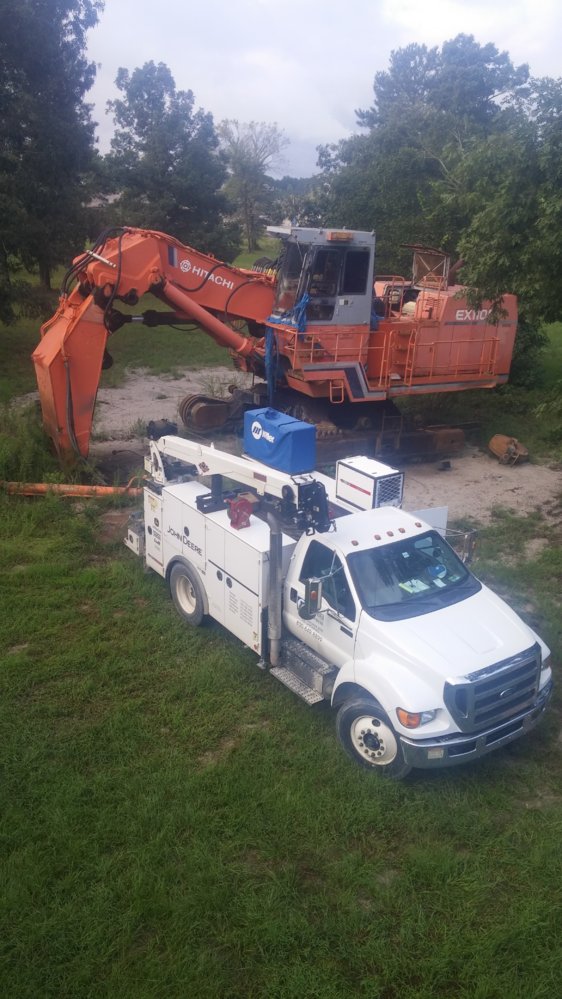

Parts machine is in Rocky mount where they have 2 running machines . 1 ex1100 and 1 ex1200. I had a pump go out on this beauty yesterday. So I'm going full blast to get it back up. Not sure what your dealing with, what type of machine?

GotWood said:
OK, I have access to a nice air compressor but it has a3 phase motor. What is this/how much is this /is this complicated?
Click to expand...
Like tknopp said, it takes regular single phase power and turns it in to 3 phase power. An air compressor has a very high starting load, so you would need a phase converter that is rated at twice the HP of the compressor. For example, I have a 10hp compressor, and a 20hp phase converter.

jeepinmatt said:
Like tknopp said, it takes regular single phase power and turns it in to 3 phase power. An air compressor has a very high starting load, so you would need a phase converter that is rated at twice the HP of the compressor. For example, I have a 10hp compressor, and a 20hp phase converter.
Click to expand...

I bet that was a pricey converter! :eek: If you're feeling frisky, you can build your own pretty easily and come out a lot cheaper. The convenience of having a package is nice, but I can probably find a surplus 20hp motor for a fraction of what that converter cost new. Not that I think you bought it new. ;)

Seems to me it's just be easier/cheaper to buy a better single phase compressor.

catfishblues said:
I bet that was a pricey converter! :eek: If you're feeling frisky, you can build your own pretty easily and come out a lot cheaper. The convenience of having a package is nice, but I can probably find a surplus 20hp motor for a fraction of what that converter cost new. Not that I think you bought it new. ;)
Click to expand...
:D Did I mention it's a Heavy Duty CNC rated with soft start? I can't remember the last time I bought something for the shop that was new. My friend Craig has a really nice list.

RatLabGuy said:
Seems to me it's just be easier/cheaper to buy a better single phase compressor.
Click to expand...
I considered that for mine, but the biggest common size in single phase is a 5hp (7.5hp do exist, but are much less common and more expensive), and I know the history of mine. Also, guys like @tknopp and I have other equipment that is 3 phase, so it makes sense to have 3 phase available.
