MetalCraftSolved said:
Griffin Radiator says that radiator is good for 850.
Click to expand...
Doubtful... maybe in a traditional front mounted, grill area, clean air placement. Certainly not in the orientation you have it drawn in.

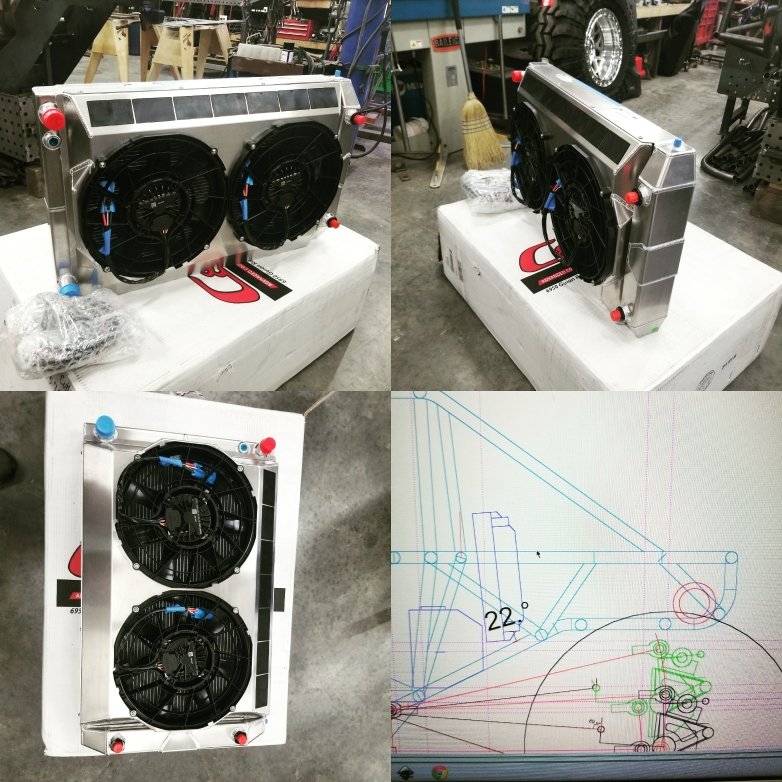

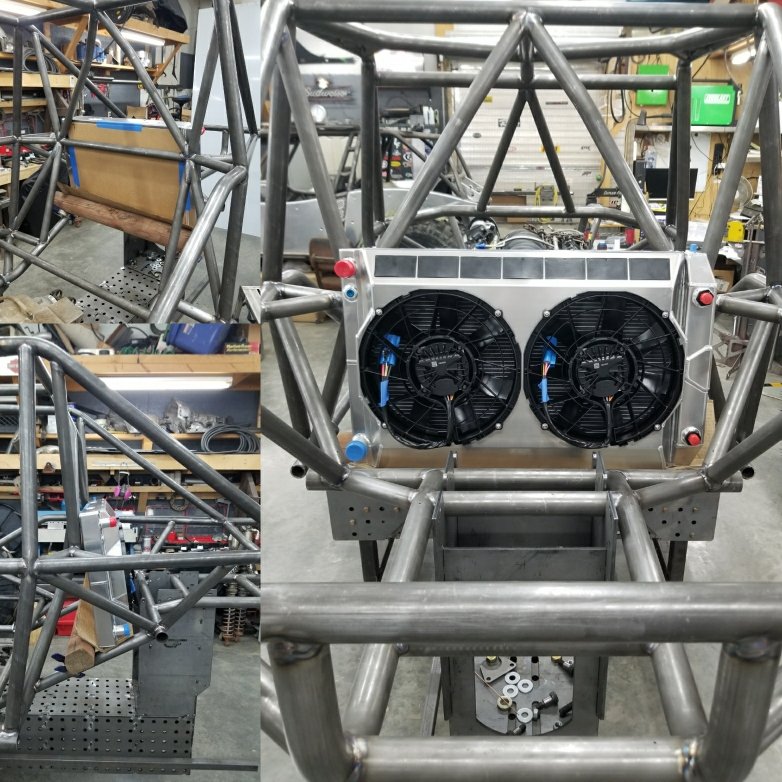

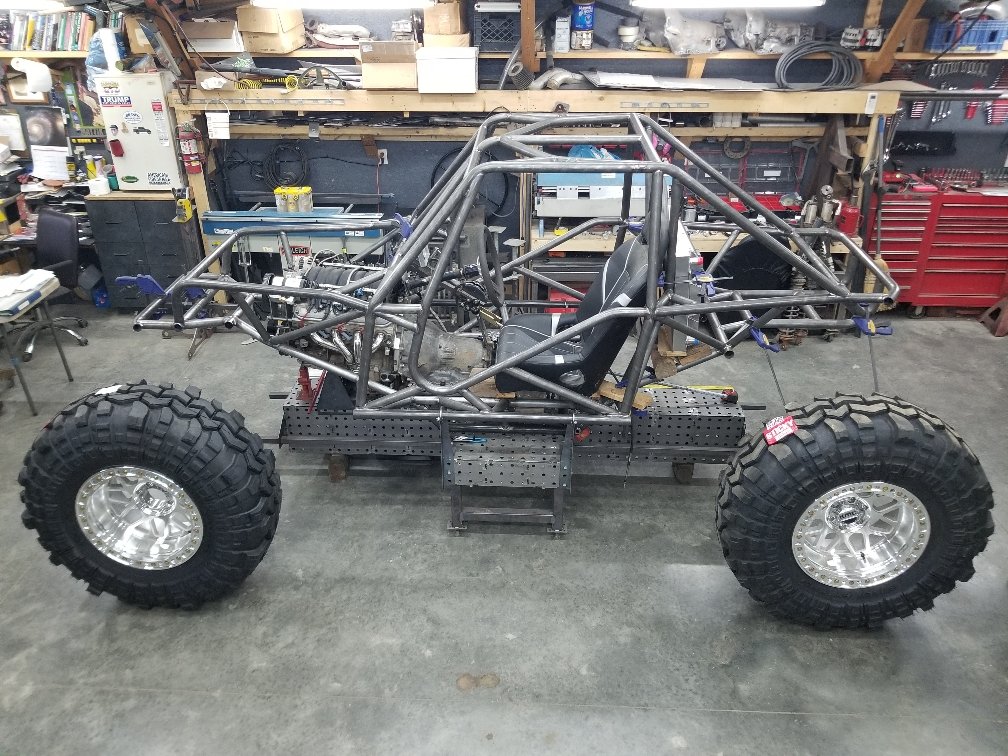

... and I say this, having just had one designed and built by C&R racing, for 600hp max, behind the seat placement in a dedicated crawler, in their wind tunnel dyno, 31x19... again 31x19



With dual spal brushless fans operating on a pulse width modulator... cost as much as the CNC cut/ bent chromoly chassis...


Sent from my SM-G892A using Tapatalk

Last edited:
CasterTroy said:

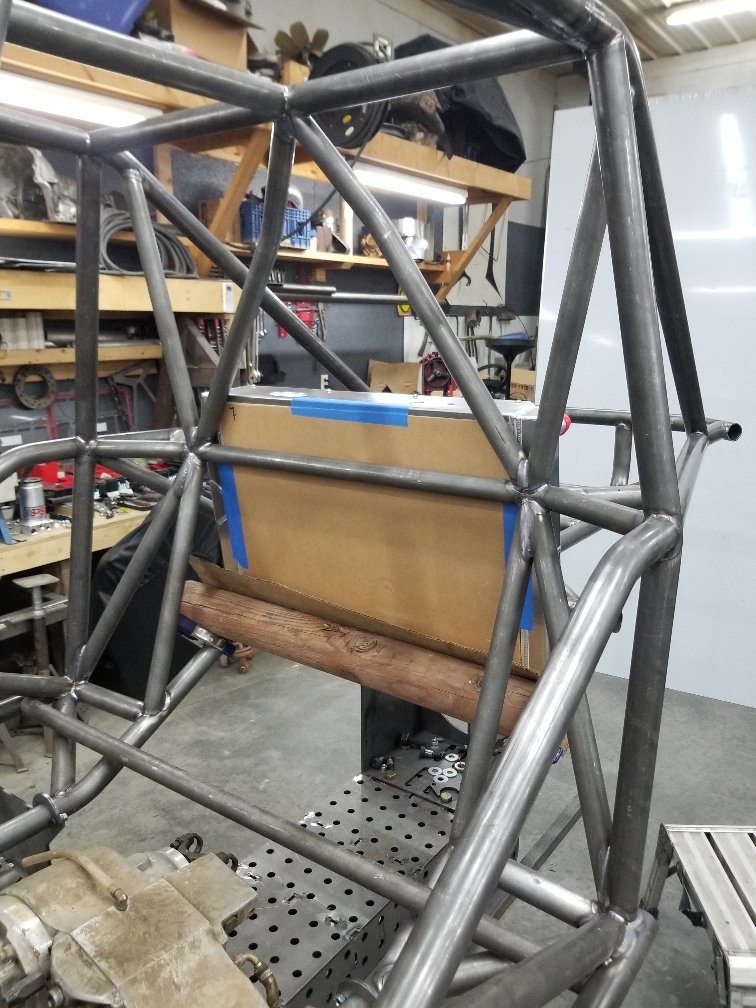

When you 3D model the cardboard and landscape timber...please remember the subtle variations from perfectly straight
Click to expand...
How many times have I heard an engineer say "but it worked on the model!" in my professional career.... :lol:

mtnbiker4evr13 said:
For the Chromoly chassis are you going to heat treat to relieve stress and normalize all the tubes/joints? I'd be curious where around here would be able to handle that large of a project.

Edit- Assumed 4130 tubes but didn't re-read to verify.
Click to expand...

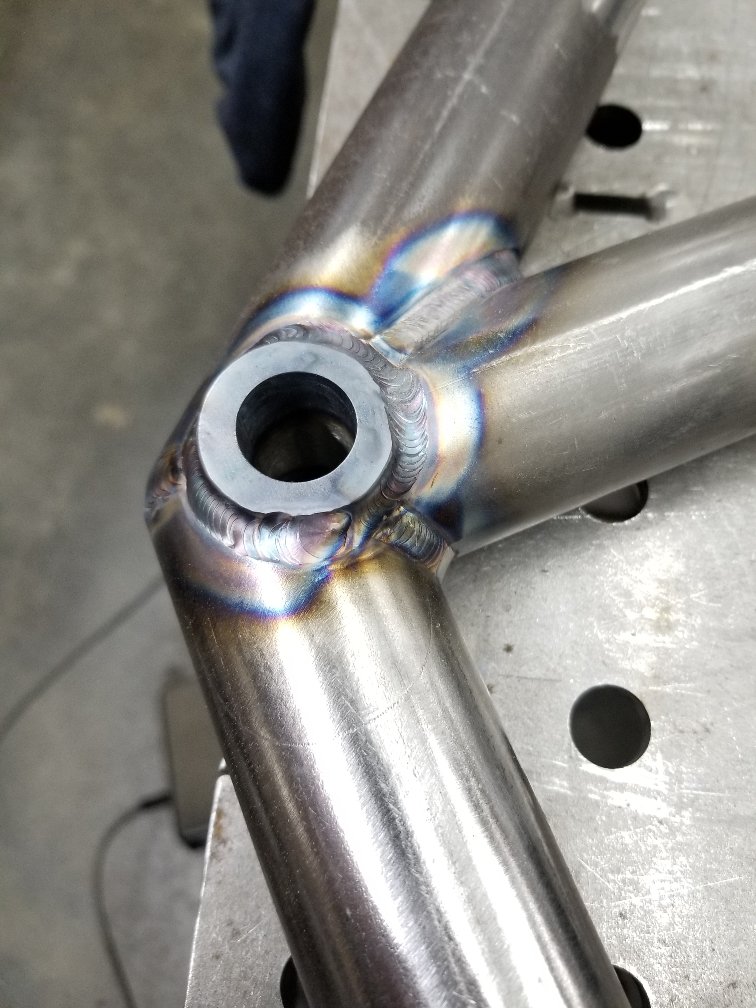

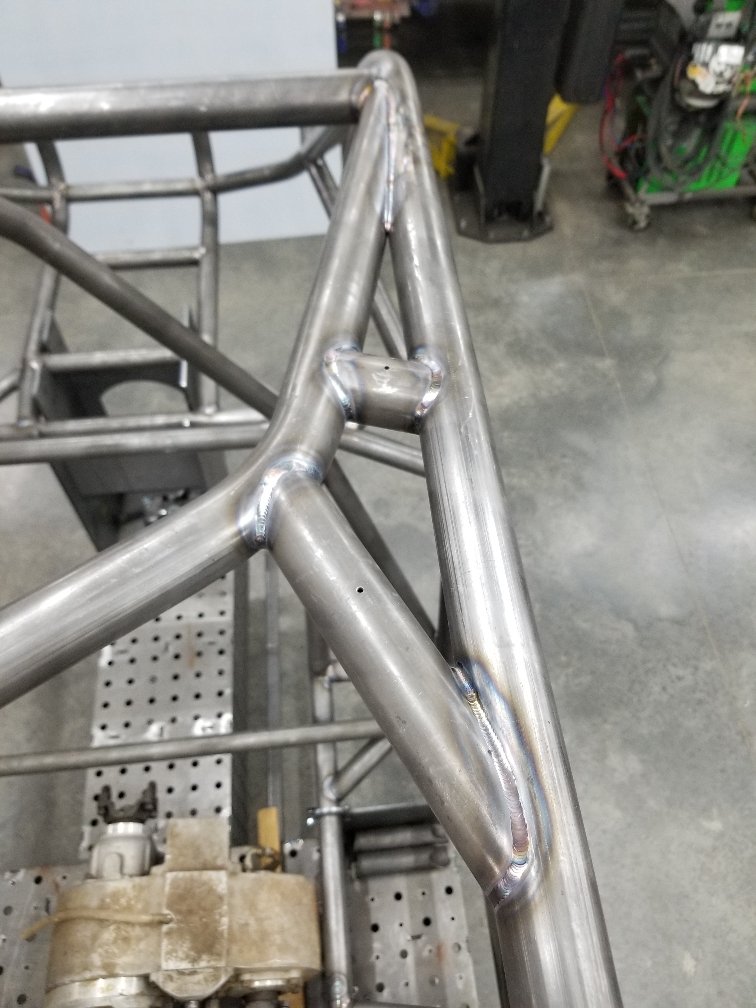

No need to heat treat or stress relieve any chromo tubing under .120... buuuut filler selection for no heat treat is er70s-2. For the parts going to HT/SR, er80s-D2. My recent study and research to build chromoly links; 2"x.250 4130, chromoly thread bungs, er80s-D2, induction HT, 1100, and stress relief; Rockwell hardness target 40-45; $225 per 100lb.

Many builders of varying professions get by with super missile and 309 or 312 SS filler... it's all a matter of parent metal and filler dilution.

Sent from my SM-G892A using Tapatalk

Last edited:
I wish I could weld everything with super missile. On the chassis, I wonder if S-2 would be good for a root pass, and mix it with super missile on the cover pass.

MetalCraftSolved said:
I wish I could weld everything with super missile. On the chassis, I wonder if S-2 would be good for a root pass, and mix it with super missile on the cover pass.
Click to expand...

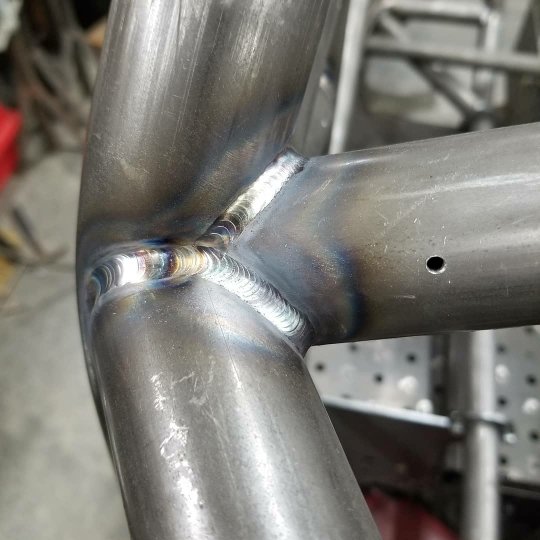

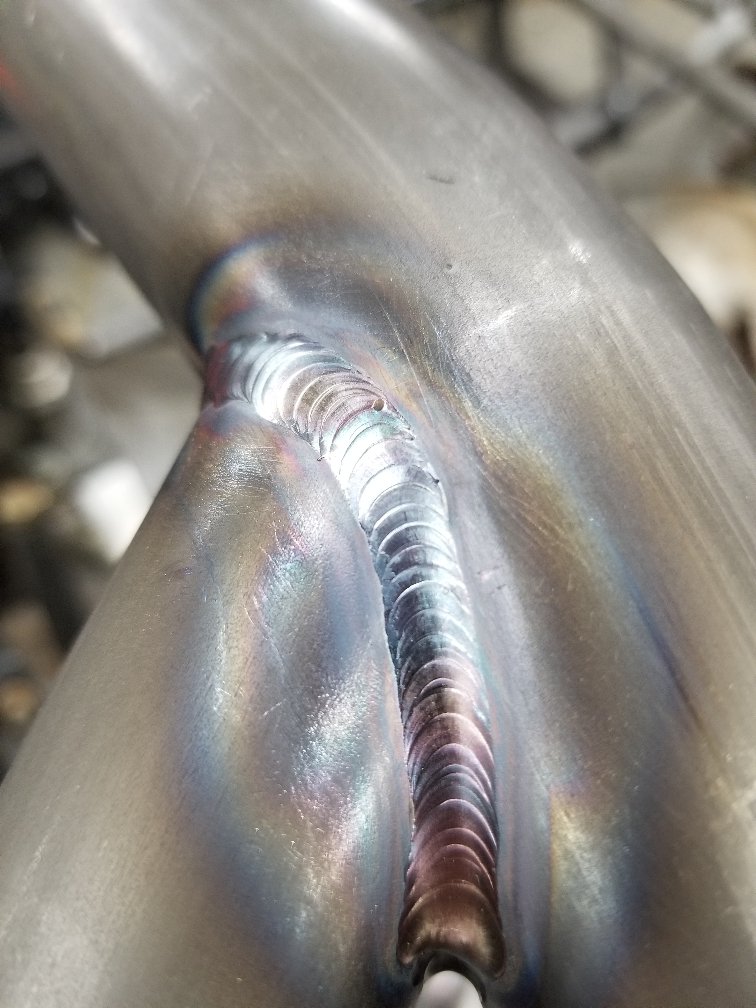

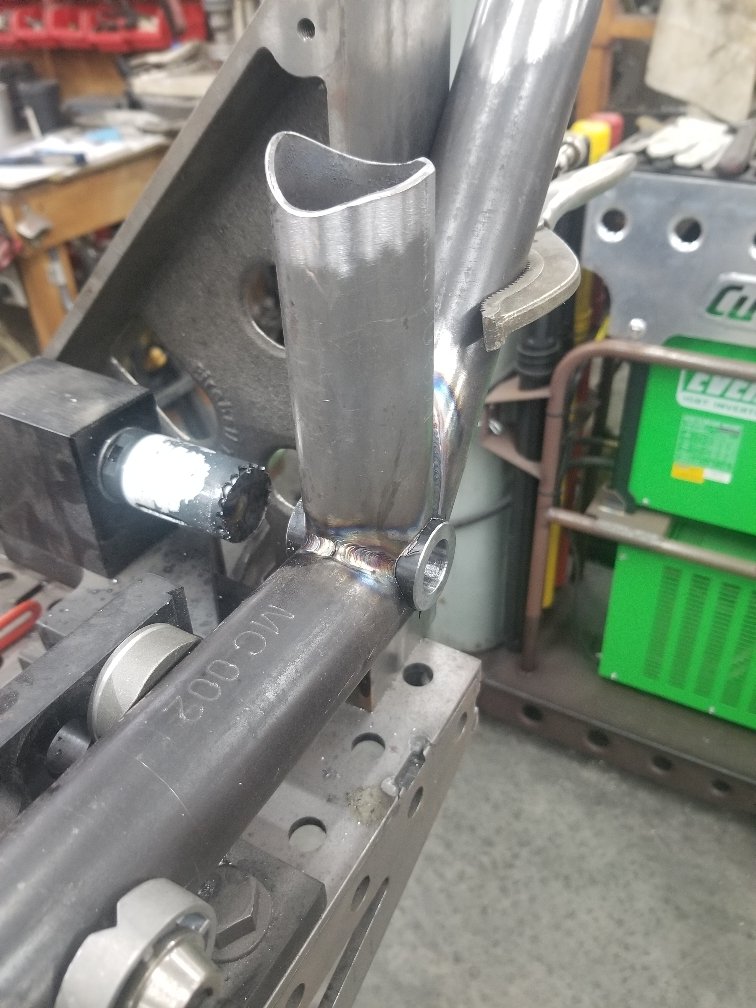

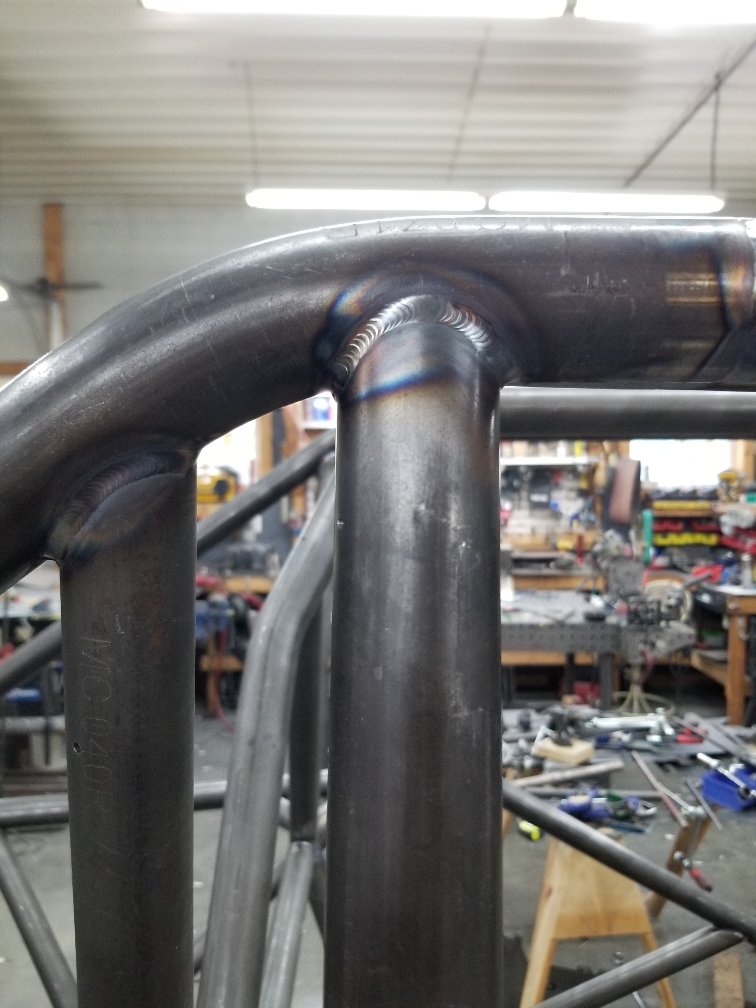

Frank Fleurquin (geiser), Michael Furick, Eli Lattin, and many others... straight er70s2.

Frank double pass everything.
Eli, single pass, but most of his cart chassis pieces are 063.
Furick, under <120 single pass >120 dbl.

I feel like Erik Eickhoff probably uses a austenetic ss cover.

FWIW, I've had one on one class with Furick, Lattin, and Mark Winchester; with specifics on precision tig. I'm not there yet, but getting close... always the student.

All these are root/ cover.



Sent from my SM-G892A using Tapatalk

mcutler said:
Doubtful... maybe in a traditional front mounted, grill area, clean air placement. Certainly not in the orientation you have it drawn in.


... and I say this, having just had one designed and built by C&R racing, for 600hp max, behind the seat placement in a dedicated crawler, in their wind tunnel dyno, 31x19... again 31x19



With dual spal brushless fans operating on a pulse width modulator... cost as much as the CNC cut/ bent chassis...


Sent from my SM-G892A using Tapatalk
Click to expand...
Holy shit!

mcutler said:
No need to heat treat or stress relieve any chromo tubing under .120... buuuut filler selection for no heat treat is er70s-2. For the parts going to HT/SR, er80s-D2. My recent study and research to build chromoly links; 2"x.250 4130, chromoly thread bungs, er80s-D2, induction HT, 1100, and stress relief; Rockwell hardness target 40-45; $225 per 100lb.

Many builders of varying professions get by with super missile and 309 or 312 SS filler... it's all a matter of parent metal and filler dilution.

Sent from my SM-G892A using Tapatalk
Click to expand...
Right because heat treat is for a to part to reach the best possible outcome. Dilluted 70 series allows elasticity and parent material dillution to fight any possible haz effects. Such as quicker cooling and or over temp embrittlement....also related to cooling cycle.

Now D2 80 series is a metalurgical blend capable of closer match in tensile........so for the full effect normalize and treat. Best of everything. Any stresses that where induced are now canceled. Which is what non treated 70 series welds mask through ductility of a diluted weldment.

CasterTroy said:
I'm glad this thread drew @mcutler out to drop some knowledge bombs as a reminder of the resources on here

Thanks Matt
Click to expand...
Beetle juice... beetle juice... beetle juice[emoji1787]

Sent from my SM-G892A using Tapatalk

mcutler said:
Beetle juice... beetle juice... beetle juice[emoji1787]

Sent from my SM-G892A using Tapatalk
Click to expand...
I miss the days when Matt, PJ, Jim, Chris and Alex were routinely engaged and making us all drool...(I’m sure I just offended 3 people by forgetting them and I’m sorry)

Ron said:
I miss the days when Matt, PJ, Jim, Chris and Alex were routinely engaged and making us all drool...(I’m sure I just offended 3 people by forgetting them and I’m sorry)
Click to expand...
I'm still here. China virus slowed my summer work in the shop; kids home schooling and no summer child care, wife working, recycle biz busy... they started back 4 days last week. Cutlerfab thread will be revived soon. Turning two loose soon, bringing two more in for finishing. Then hammer down on #001 CF chassis.

It's good having great clients/ friends.

Thanks Ron.

Sent from my SM-G892A using Tapatalk

mtnbiker4evr13 said:
Thanks @mcutler. Today I learned: chromoly isn't as picky as I had heard.
Click to expand...
It's still picky, lol. It loves the heat! Have to plan for draw/shrinkage, wait for cooling between legs... I've learned the hard way, get in a groove or get in a hurry, or your 45 yr old abs give out, welding bottom of the roof X, standing on one leg leaning over the door bar, while pumping one foot on the pedal... I make myself weld out-of-position, to get better in all positions. Welding on the bench is gravy.


Sent from my SM-G892A using Tapatalk

Drunktaco said:
Whether this thread is a dream build or legit or just for trolling, it’s got some damn good info in and with @mcutler showing up, it’s probably going to get better. No offense to @MetalCraftSolved but that guy knows his stuff through and through. If he says do this or that, I’d listen. Although improvement comes from challenge.
Click to expand...
I appreciate that, but David knows how to whip a tig torch, aesthetically far more consistent than my dabs. David has some catching/making up to do, and he knows it. I hope he has his game face on and get 'er done pants on. I'm far from perfect in business and or fab, but I learn everyday; I hope David has too.

No disrespect intended.

Sent from my SM-G892A using Tapatalk

mcutler said:
I appreciate that, but David knows how to whip a tig torch, aesthetically far more consistent than my dabs. David has some catching/making up to do, and he knows it. I hope he has his game face on and get 'er done pants on. I'm far from perfect in business and or fab, but I learn everyday; I hope David has too.

No disrespect intended.

Sent from my SM-G892A using Tapatalk
Click to expand...

Right on man, and like I said, improvements come from challenge, and a man who knows all learns nothing.

MetalCraftSolved said:
I wish I could weld everything with super missile. On the chassis, I wonder if S-2 would be good for a root pass, and mix it with super missile on the cover pass.
Click to expand...

You are now being took to school,
By a Jedi Master.
Learn well, or fail.
Yo Matt!

mcutler said:
I appreciate that, but David knows how to whip a tig torch, aesthetically far more consistent than my dabs. David has some catching/making up to do, and he knows it. I hope he has his game face on and get 'er done pants on. I'm far from perfect in business and or fab, but I learn everyday; I hope David has too.

No disrespect intended.

Sent from my SM-G892A using Tapatalk
Click to expand...
This is exactly where I am.
The past is the past. It doesn’t go away but it doesn’t have to define tomorrow either.

I hope it’s a new day and D shows what he’s capable of. I’m pulling for him.
