Hardbody SAS

Discussion in 'Build Threads' started by Nissanwheeler, Jul 20, 2011.

  1. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    Ok so Ive been working on this truck since i was 15. the truck was given to me by my pawpaw when he passed away. After i turned 16 i took out to play in the mud and after getting stuck twice i knew i wanted bigger tires and a lift. It started out as a 3" suspension lift and a 2 weeks before i was scheduled at Galloways to get it put on i decide 3"s wasnt enough so i bought a 3" body lift as well. I had done my research and i figured id be fine for some light wheeling. Man was i wrong. After my first trip to Uwharrie i was hooked. The trip ended in me bending a tie rod on the dutch john trail. i didnt think much about it i just replacled the tie rod and went on. But my second trip also ended in the bending of the same tie rod but on Dickey bell. This is when i started to re-think about the suspension. After replacing the tie rod i put a couple miles on the truck and i noticed the play in the steering and the slight camber issue. To replace all the parts it was gonna cost to much for me to keep replacing it every time i went wheeling and thats when i started looking at the SAS option. After a while of driving on the bad steering and ball joints it got to where i couldnt drive it any more so i knew it was SAS time.

    A little about the truck.
    1994 Nissan Hardbody (d21)
    V6
    4x4
    Custom tube power coated bumpers
    3" body lift
    3" suspension lift
    35 Mickey Tompson MTZ baja

    Plans for front:
    dana 44
    calmini front hanger
    calmini through frame shackles
    waggy 4" lift inch leaf springs
    4.88s or 5.13s havent decided
    spartan locker

    Plans for rear(eventually)
    14 bolt
    4.88s or 5.13s
    arb locker or powertraxx

    Tires:
    37s or 38s
    steel bullet hole wheels with a red beadlock
    Time for some pics.

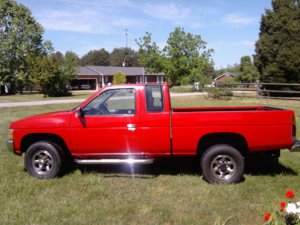

    stock:
    (sorry i dont know how to resize them)

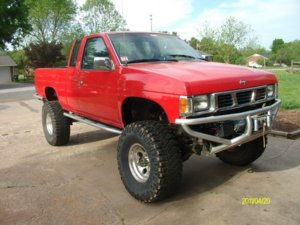

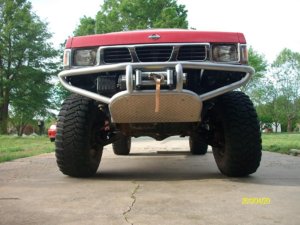

    heres one befor i cut her up
    reason for SAS

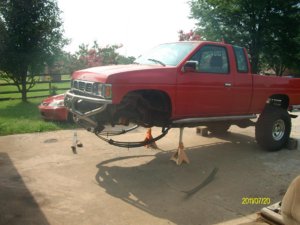

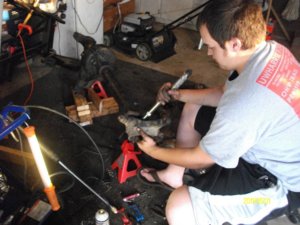

    tearing apart dana 44

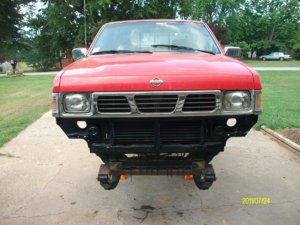

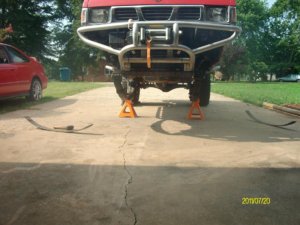

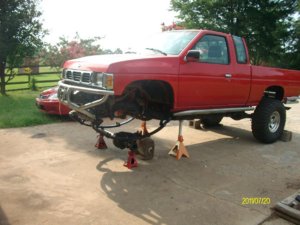

    ditching the IFS

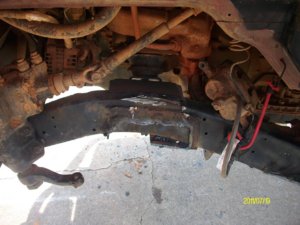

    after torching the brackets and cutting holes for shackles

  2. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    continued...

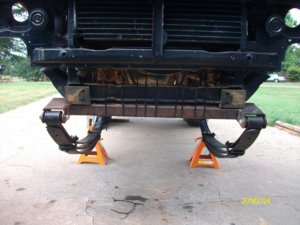

    leaf spring mock up

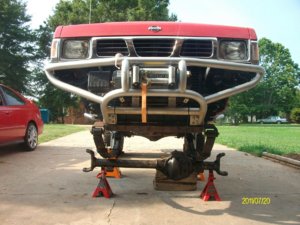

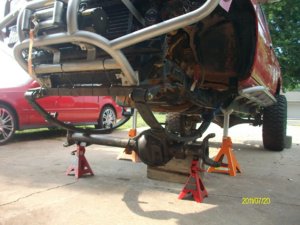

    Axle under the truck

    What still needs to be done to drive:
    Cut the driver side spring perch to fit
    get the C's turned (about 8 degrees)
    get the knuckle drilled for high steer
    weld the front hanger and shackles
    get steering figured out
    clean frame up
    get shocks and mounts
    rebuild the dana 44

    thats all i can think of for now but more tomorrow!

  3. Corneilius

    Corneilius Active Member

    Joined:
    Dec 21, 2009
    Location:
    Asheville
    those zip ties will never hold :) looks good, I like how you built that winch bumper

  4. Hurley

    Hurley WTFab

    Joined:
    Feb 22, 2008
    Location:
    Statesville
    shackle angle?

  5. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    yea i havent welded anything and the front hanger is being held up by zip ties so i cant put much weight on the springs but im hoping the shackles will swing back when the load is on them ut i might have to move the hanger back just a little

  6. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    haha yea i thought about putting about 100 of them and maybe driving it like that :lol:

  7. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC

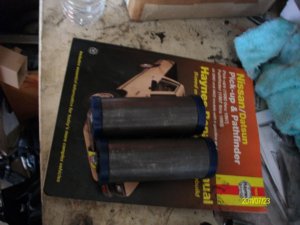

    finally got the bushings seated, took for ever.

    I had to take the bumper off today because the front hanger needs to be flush with the frame. I have to cut the bumper mount off and grind down the frame and everything else has to be brushed for welding, hopefully i can get it welded before i go to the beach friday

  8. Corneilius

    Corneilius Active Member

    Joined:
    Dec 21, 2009
    Location:
    Asheville
    what front springs are you using? could you take a few good pics of how/where you weld on that spring hanger?

  9. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    Im useing the 4" lift 80's grand wagoneer front springs. I have welded it yet its held on by zip ties right now :lol: but i should have it welded this week sometime and ill take lots of pics.

  10. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    heres with the bumper off

    heres the gap i have to fix before welding

  11. 4sd air95

    4sd air95 Active Member

    Joined:
    Sep 23, 2009
    Location:
    Raleigh
    lookin good so far! are you going to take the body lift off? looks kinda tall.

  12. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    i would like to take it off but i just havent decide im see what it looks like after im done and if its too tall i will but im hoping that since the waggy springs are so soft that my ride height wont be but and inch or two from what it was. but thats just hoping haha

  13. 95yjjeep

    95yjjeep Well-Known Member

    Joined:
    Jun 7, 2006
    Location:
    Charlotte
    nice build. i love those nissan trucks. that from spring hanger crossmember looks nice. is that a pre-made kit for those trucks or did you fabricate that?

  14. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    yea this is calmini's front hanger and the shackles are calmini too, thanks though

  15. WeRideNTruX

    WeRideNTruX Active Member

    Joined:
    Jun 15, 2011
    Location:
    Edgemoor SC
    love the hardbody man i have an 84 pickup in need of an SAS myself.

  16. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    thanks, thats good to hear not a lot of people appreciate these little trucks. hope to see a build on it when you decide SAS it:beer:

  17. WeRideNTruX

    WeRideNTruX Active Member

    Joined:
    Jun 15, 2011
    Location:
    Edgemoor SC
    yeah theyre awesome trucks that dont get a whole lot of credit. Ill have a thread soon i just need to get better about takin pictures as im workin

  18. Corneilius

    Corneilius Active Member

    Joined:
    Dec 21, 2009
    Location:
    Asheville
  19. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    Finally, after a week vacation, a little blood, alot of sweat and a serious case of flash burn.:shaking:, the welding is complete.
    Tomorrow im going to set the weight of the truck on the axle so i can get the measurements "WARRIORWELDING" needs to cut and turn the C's. Then hopfully by the end of next week i can start rebuilding the axle.
    Here are some pics of the welds.

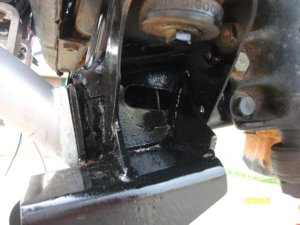

    Front hanger Gussets

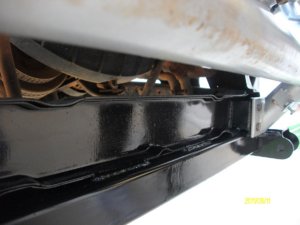

    Front hanger welds
    Back of the front hanger

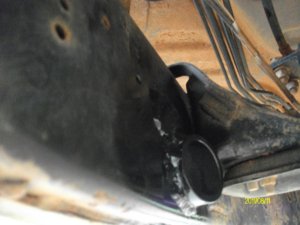

    through frame shackle welds(I will get better pictures tomorrow)

  20. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC

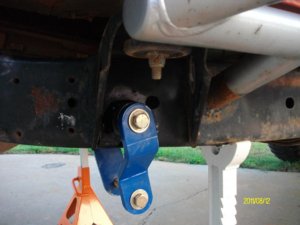

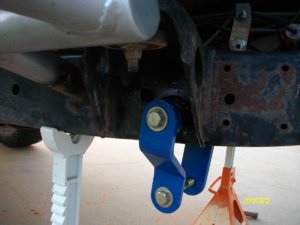

    Shackle bushings seated again and shackles back on

    Tomorrow i have to get a angle finder and gets some measurements off the axle then i can sit the weight of the truck on it and find my pinion angle.

  21. HGSR

    HGSR craigslistaholic

    Joined:
    Feb 26, 2010
    Location:
    kings mountain nc
    truck look good, ill follow this one

  22. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    Little help needed

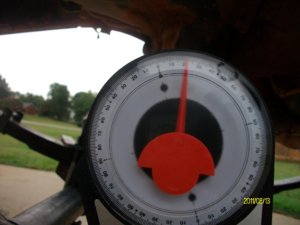

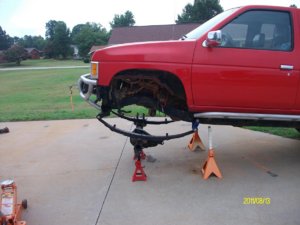

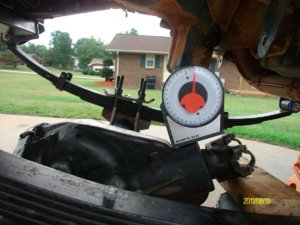

    To day i got the axle under the truck and measured where i want my pinion angle. I think I already know the answer to this question but does it matter if the truck is caompletely level to get the correct angle measeurements? Heres how i did it, is this wrong?
    Stock pinion angle is 10 degrees and stock caster about 7 degrees, i say about because im not sure if i measured correctly. After the weight of the truck was set on the axle i pointed the U-joint directly and the transfercase, this gave me an angle of 21 degrees. If i did this wrong point me in the right direction please.

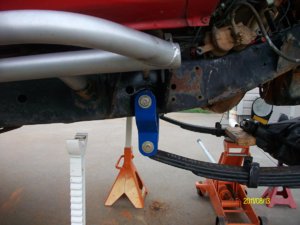

    Also what do you guys think about this shackle angle?

  23. 95yjjeep

    95yjjeep Well-Known Member

    Joined:
    Jun 7, 2006
    Location:
    Charlotte
    your front pinion angle isn't nearly as important as your caster angle. A good caster angle for lifted trucks is 4-6 degrees. i usually setup jeeps at 5-6 degrees positive caster (where top of inner c is pointed rearward). if you tilt the caster too close to 0 you will not be able to locate the road with your truck and it'll drive awful. put your caster to the factory 7degrees and see how the driveshaft angle looks. that is the one disadvantage to low pinion axles up front. good luck. let me know if you have any other questions.

    o, and you definitely want the weight of the vehicle on the suspension / axle.

  24. WeRideNTruX

    WeRideNTruX Active Member

    Joined:
    Jun 15, 2011
    Location:
    Edgemoor SC
    that shackle angle might ride a little rough but that is where calmini says to put the holes, are you using waggy springs?

  25. Nissanwheeler

    Nissanwheeler Active Member

    Joined:
    Sep 4, 2010
    Location:
    kannapolis NC
    OK thanks. But does the truck have to be level to get the accurate measurements? and yea im just getting the measurements together so i can turn the C's to get corect caster and pinion angle.
