Mall Crawling Racer...... #4410

Well the next week or so should be fun:).


MCutler's garage- builder of the Ultra4 'Manche- is helping with some green flag prep on the 4410. Matt started going over the KOH prep plan with me and it was like examine the chassis something something and replace a bearing ball unit something something. Honestly, I started glazing over because the new season of Gilmore Girls is out on Netflix and I'm like super pumped about it.

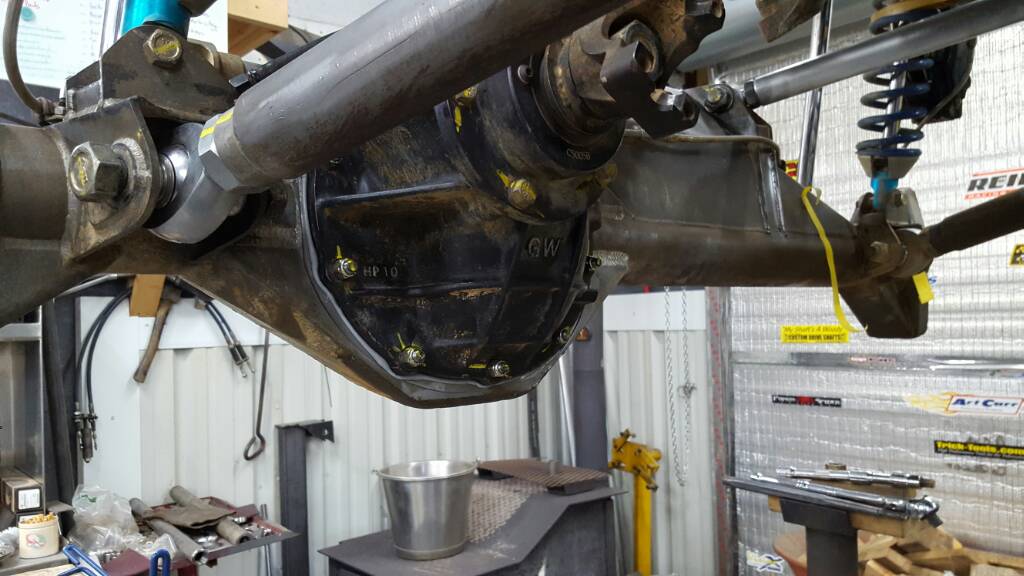

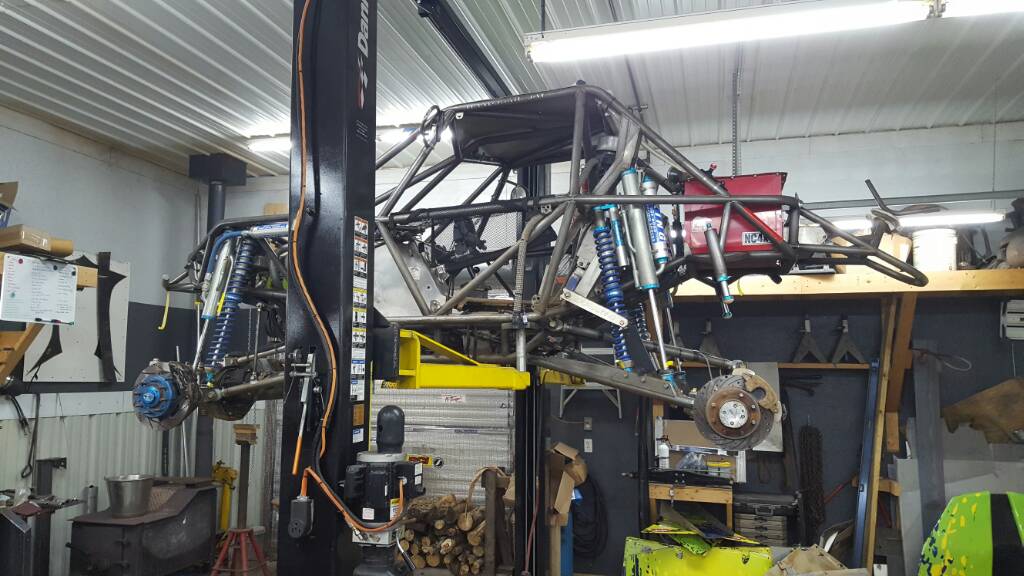

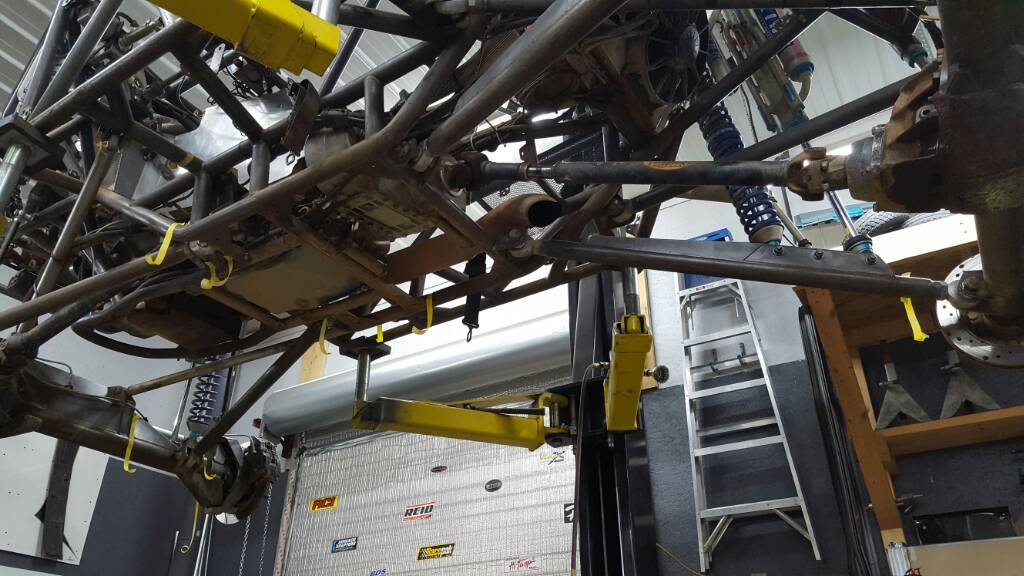

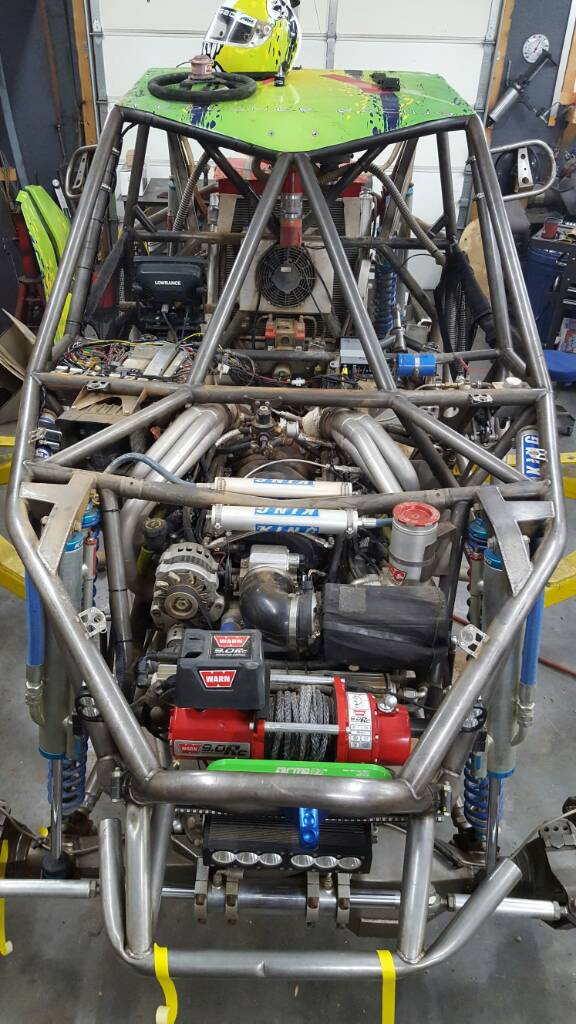

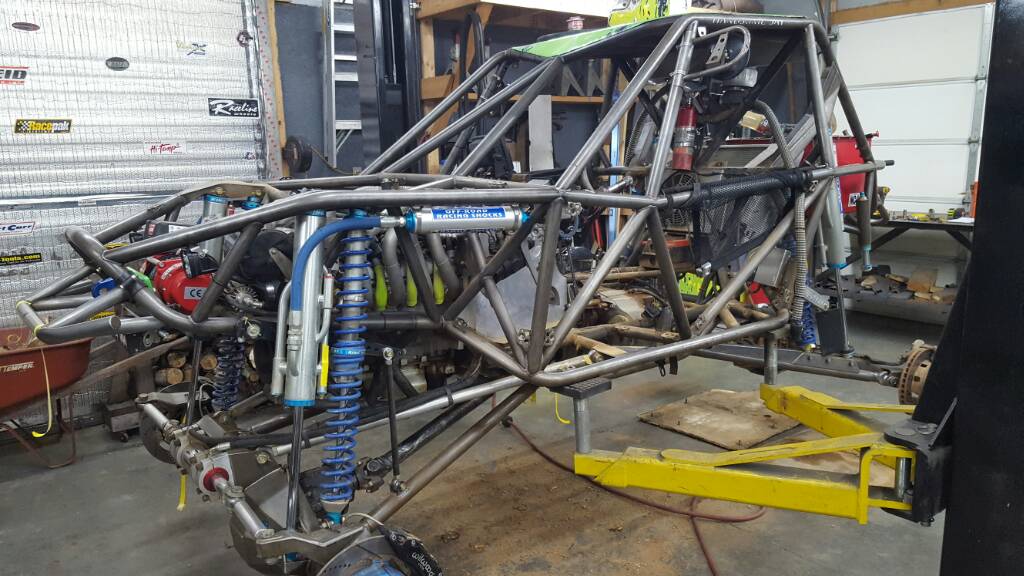

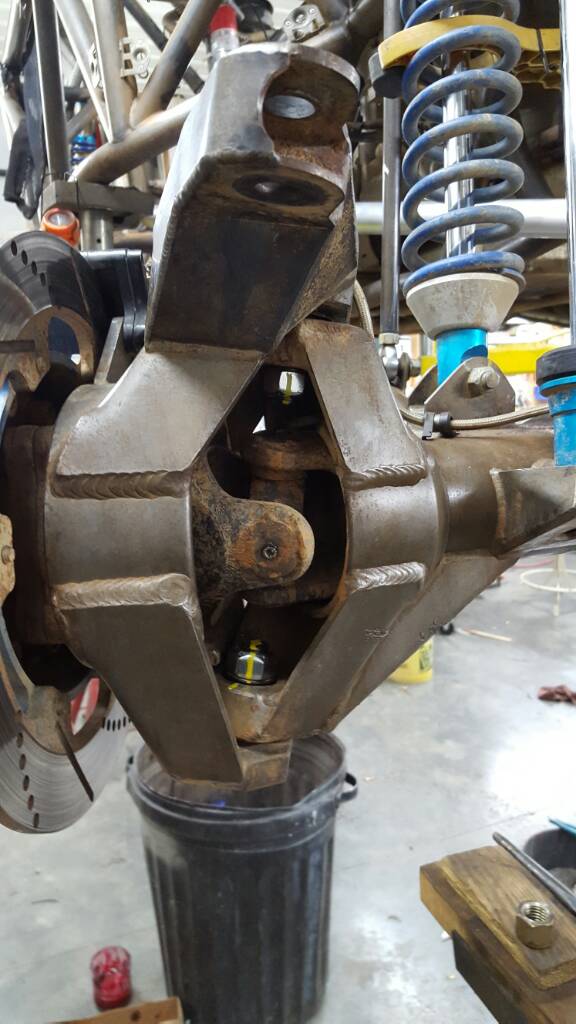

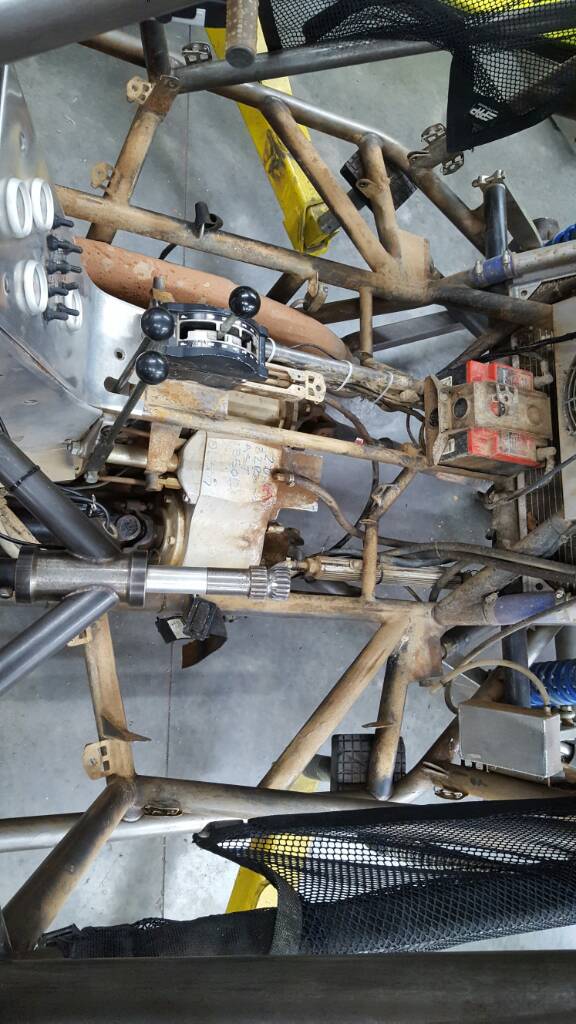

Got the 4410 Redlyner Racing bomber stripped down for cleaning and inspection. No severe red flags have been uncovered. Some minor repairs to be made, marked by the yellow tape. Once repairs are done, it will be on to r&r on the diffs, bearings, and replacement of the heims with new Ruffstuff units.















Matt

Just curious...I looked at the pictures for a while and I'm still trying to figure out what's being used to keep the lower links from rotating. I don't see any wobble stoppers or anything like them. At first I was just curious about the front with the sway bar, but then I checked the rear and noticed the shocks are mounted above the centerline of the links along with the sway bar and whatever else.

clemsonjeep said:
Just curious...I looked at the pictures for a while and I'm still trying to figure out what's being used to keep the lower links from rotating. I don't see any wobble stoppers or anything like them. At first I was just curious about the front with the sway bar, but then I checked the rear and noticed the shocks are mounted above the centerline of the links along with the sway bar and whatever else.
Click to expand...
I'll get you a pic here shortly

Matt

clemsonjeep said:
Just curious...I looked at the pictures for a while and I'm still trying to figure out what's being used to keep the lower links from rotating. I don't see any wobble stoppers or anything like them. At first I was just curious about the front with the sway bar, but then I checked the rear and noticed the shocks are mounted above the centerline of the links along with the sway bar and whatever else.
Click to expand...

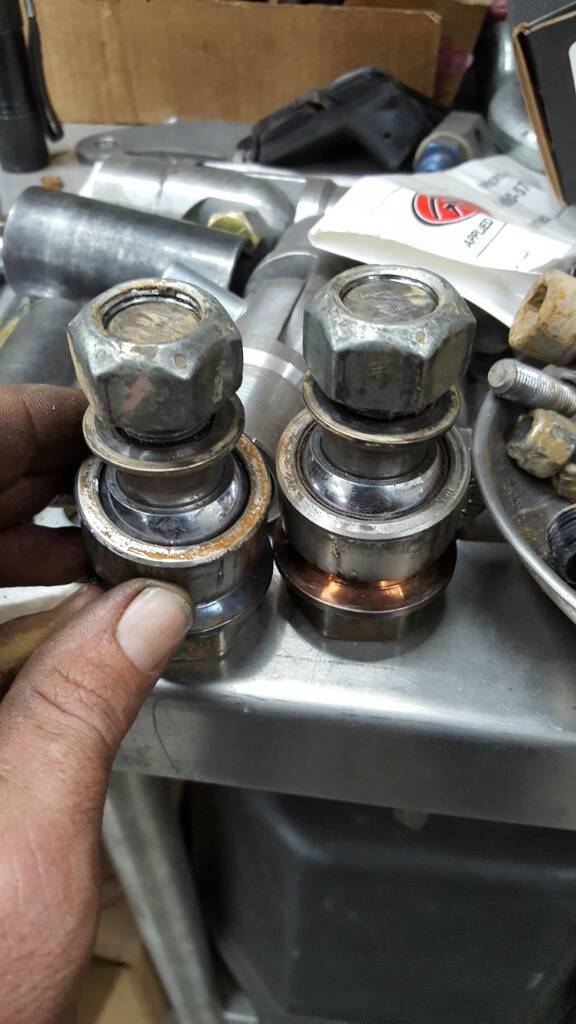

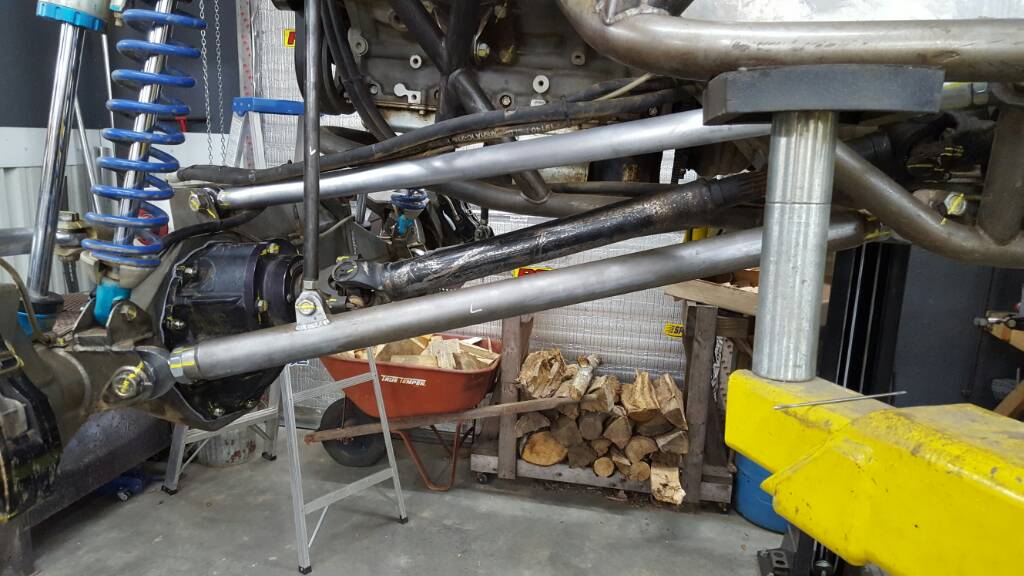

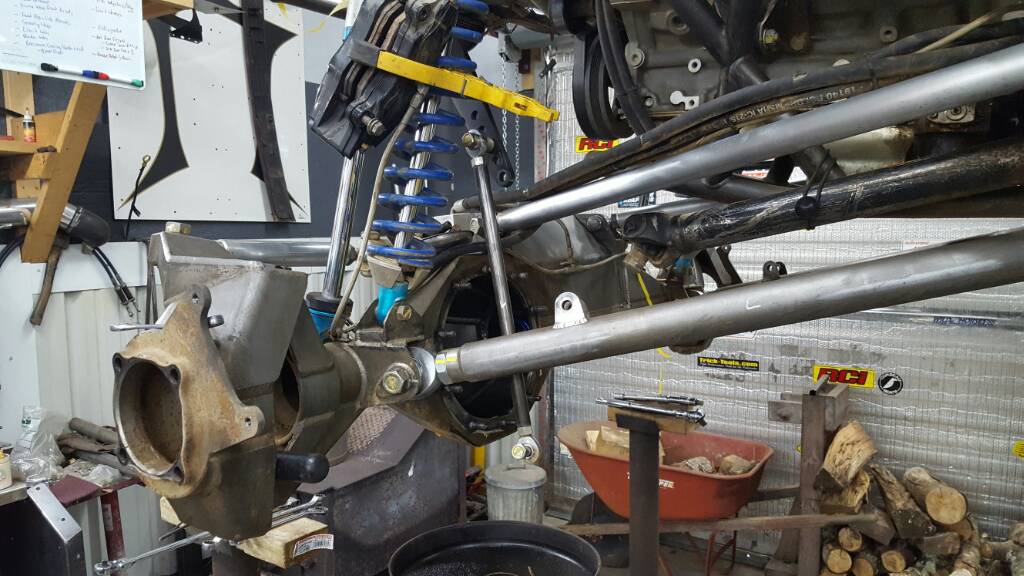

Forgot to get a close up pic for you, but this is the same concept. Bushings on the shock eye around the misalignment bushings keep rotation down.

Think this is/ was on Sam's buggy, iirc Will Carter does something similar as well as many U4 teams.




Matt

We are about to do the exact same thing to my buggy just because its so light it will help with tuning

Sent from my SM-G930V using Tapatalk

mcutler said:
Forgot to get a close up pic for you, but this is the same concept. Bushings on the shock eye around the misalignment bushings keep rotation down.

Think this is/ was on Sam's buggy, iirc Will Carter does something similar as well as many U4 teams.




Matt
Click to expand...


Wayne said Shannon Campbell original setup was just like this and there was never any signs of wear in the shocks.

I figure if it's good enough for SC, it'll work for me haha.

Pretty sure Waylan has that buggy now, and SC current buggy has trailing arms similar to matts Manche.

obullfish said:
@REDLYNER good luck and HAMMER DOWN in the desert. Looking like you have an unfair advantage with @mcutler giving the car the once, twice, three times over.
Click to expand...

It's basically 90% prep, 10% driver.

Having someone as meticulous and knowledgable as @mcutler on the team is critical for a successful campaign.

Mac5005 said:
Wayne said Shannon Campbell original setup was just like this and there was never any signs of wear in the shocks.

I figure if it's good enough for SC, it'll work for me haha.

Pretty sure Waylan has that buggy now, and SC current buggy has trailing arms similar to matts Manche.
Click to expand...

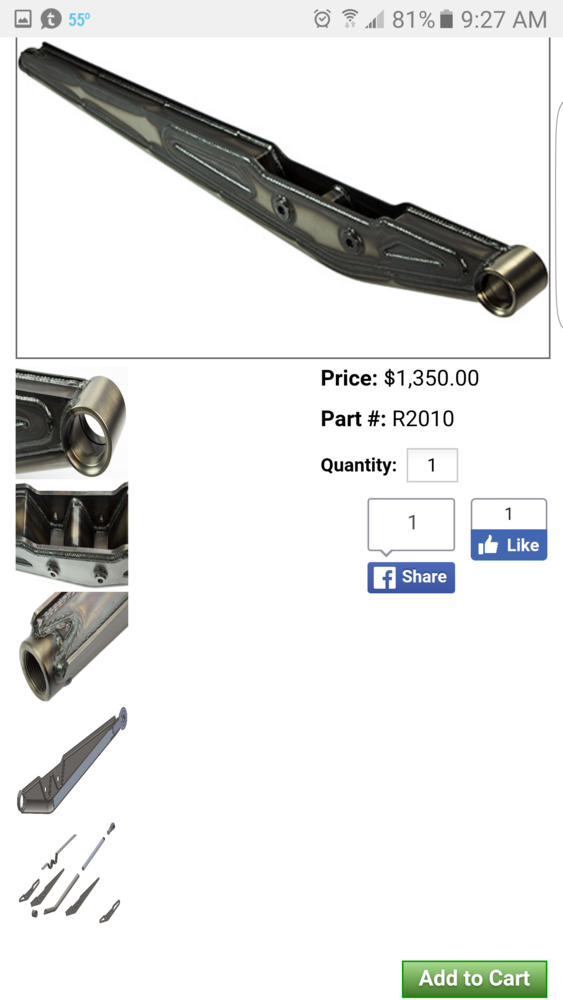

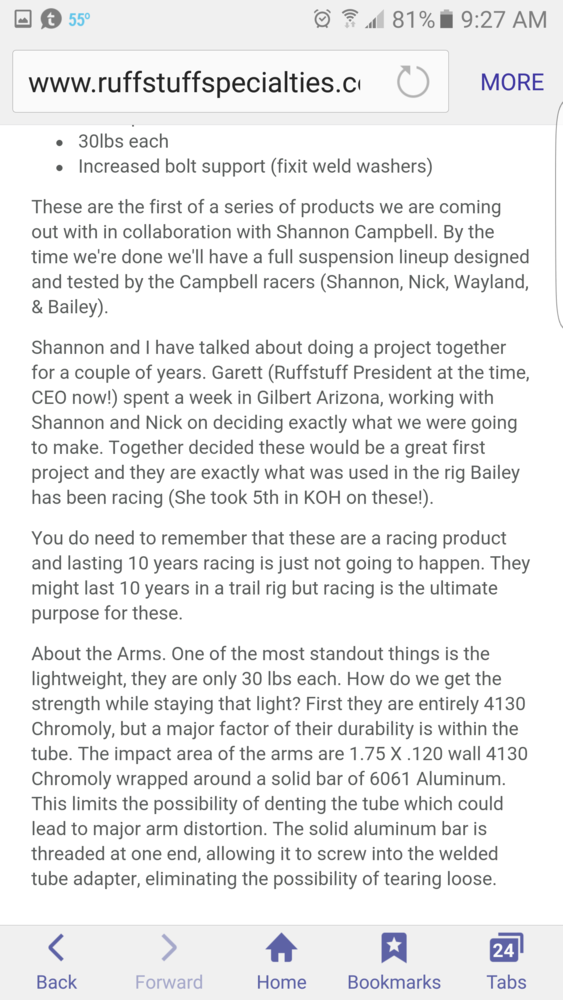

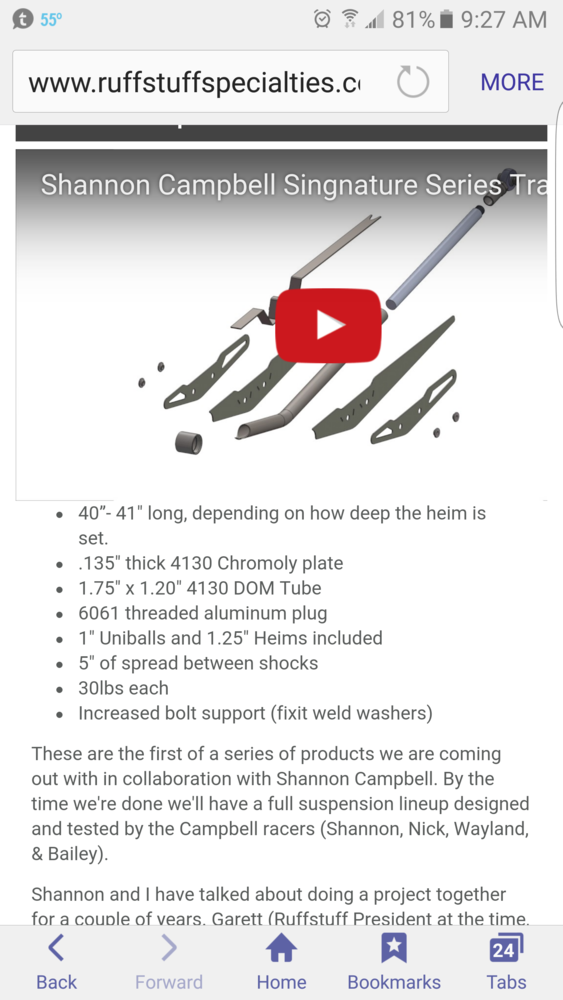

Yep, talked with Dan @Ruffstuff for an hour or so one Saturday morning (before he released them) about this subject. He told me about Shannon's design, and that they would soon be licensed SC component builders, hence the new Campbell trailing arms. Per the website, my arms are only a couple pounds more than the Campbell signature arms.

Matt

mcutler said:
Also; he mentioned that under Shannon's car, they only last 3-4 races...bending sideways...expendable items!

Matt
Click to expand...

Are they using slugged tubing like you did yours? If so, that seems hard to believe it would be hitting that hard sideways. I believe I would redesign vs having to replace a few times per year.

paradisePWoffrd said:
Are they using slugged tubing like you did yours? If so, that seems hard to believe it would be hitting that hard sideways. I believe I would redesign vs having to replace a few times per year.
Click to expand...

They were bending sideways due to hard cornering, as it was explained to me. "Bending moment"








Mo work

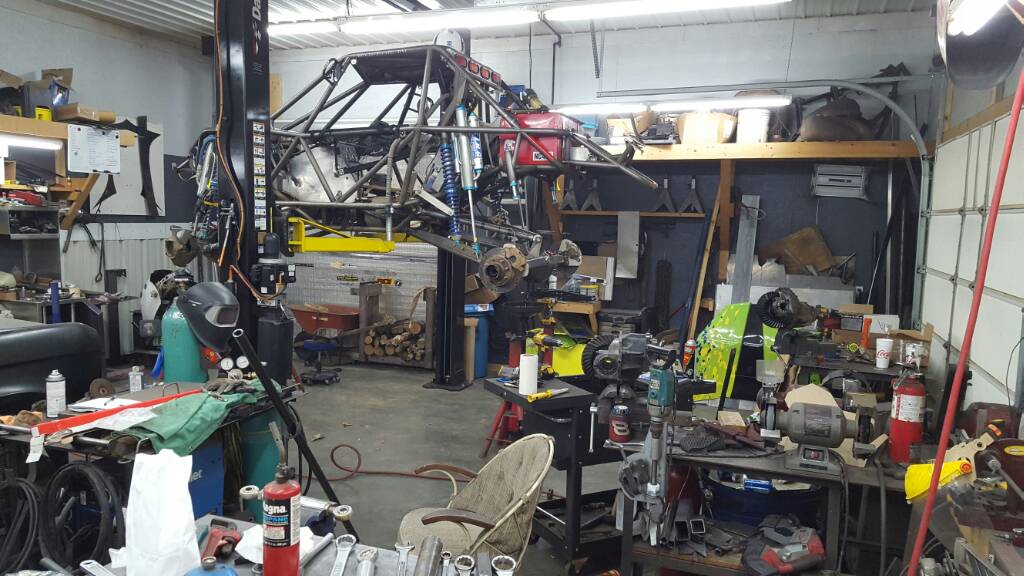

Someone asked how I keep it organized in my chaos...





Wear parts are inbound...thanks ruffstuff and spidertrax.

If I can kick this cold my boys gave me, should have all the mechanical back together by Friday night, do some small fab tid bits, and weld repairs Saturday and Sunday before that guy with all the products in his hair, (and an out of season tan) gets back- for the 4410's trip back to Mooresville...

Matt

REDLYNER said:
It's basically 90% prep, 10% driver.

Having someone as meticulous and knowledgable as @mcutler on the team is critical for a successful campaign.
Click to expand...

Interwebz quote of the day award winner right here @REDLYNER.
@mcutler is the only person i know who has OCD worse than me.
Details,details,details= good times on the trails.

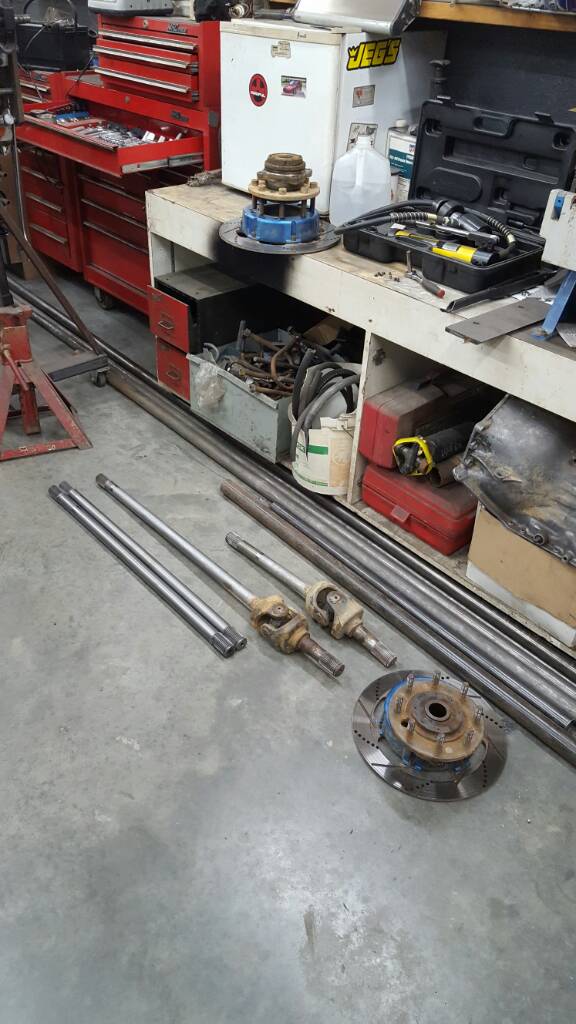

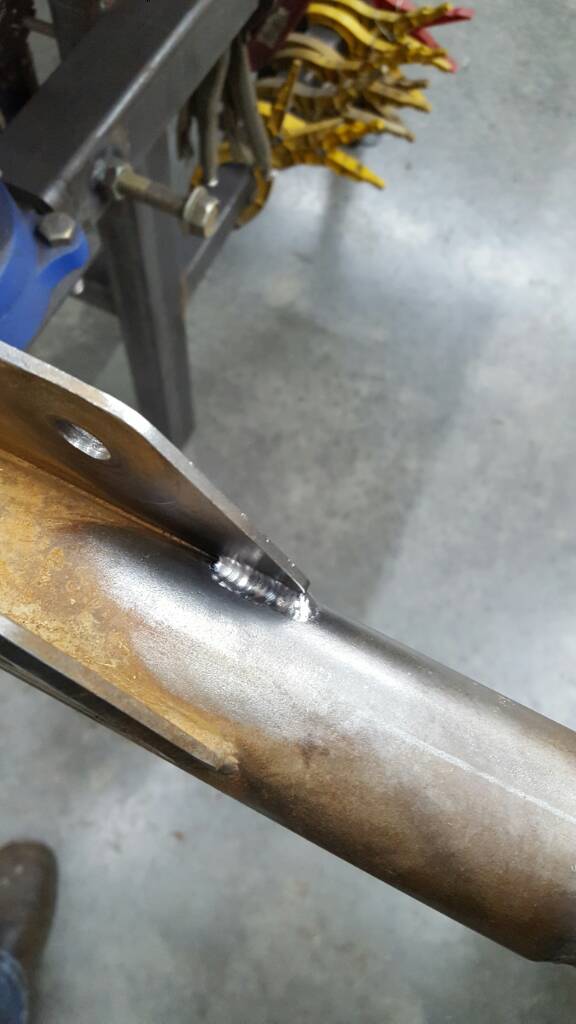

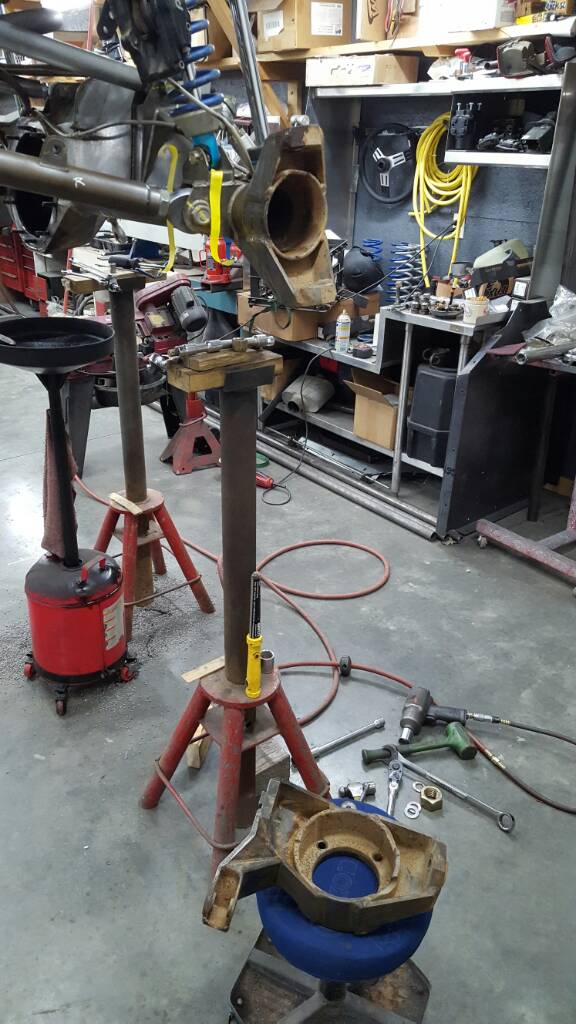

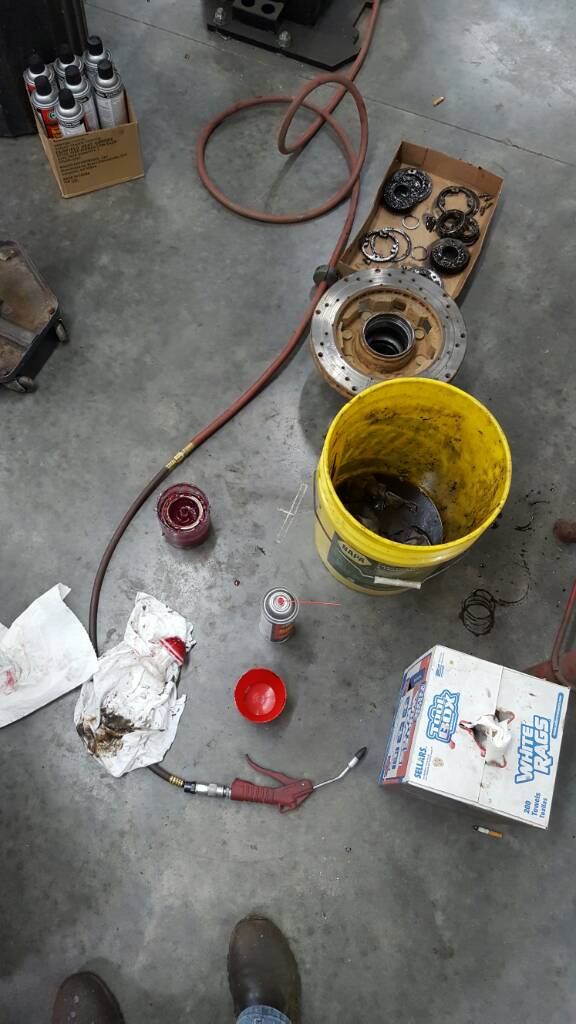

Nut/bolt check is done and painted, rear bearings are packed, both axles sealed back up, everything is greased, cracks are welded-(including one in the bottom hole of the rear housing bolt pattern; which I didn't discover until it was sealed up and full of lube....redo...), right knuckle rebuilt, shock/bypass/bump pressures are checked, two more links left to r&r heims, and ruffstuff pinion guard installed.

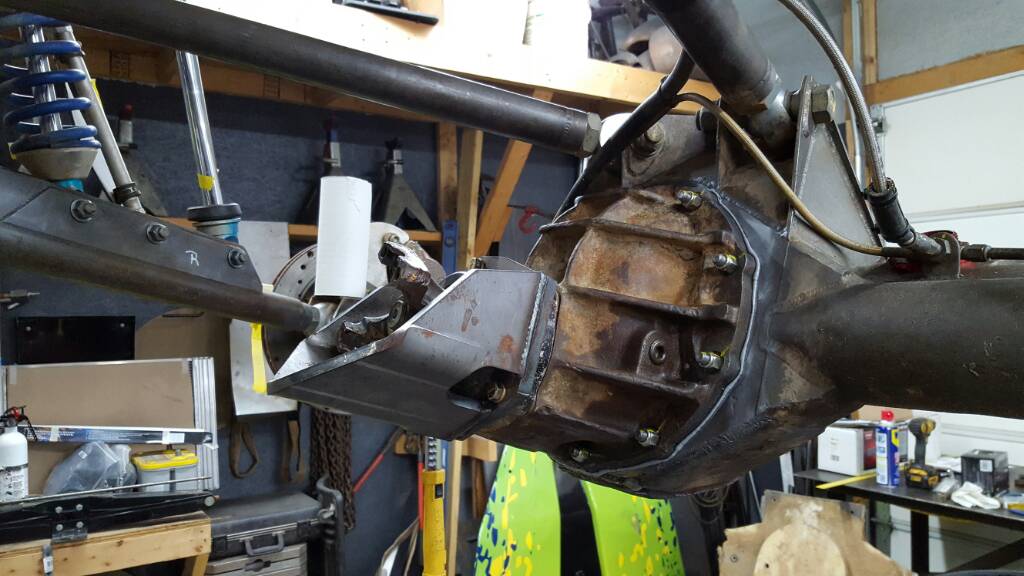

Tomorrow will be finishing the last 4 heim replacements from ruffstuff, then make some number plates and a few other small tasks. The Redlyner 4410 bomber may have an extended stay due to the frozen tundra which is my parking lot right now...

Matt
