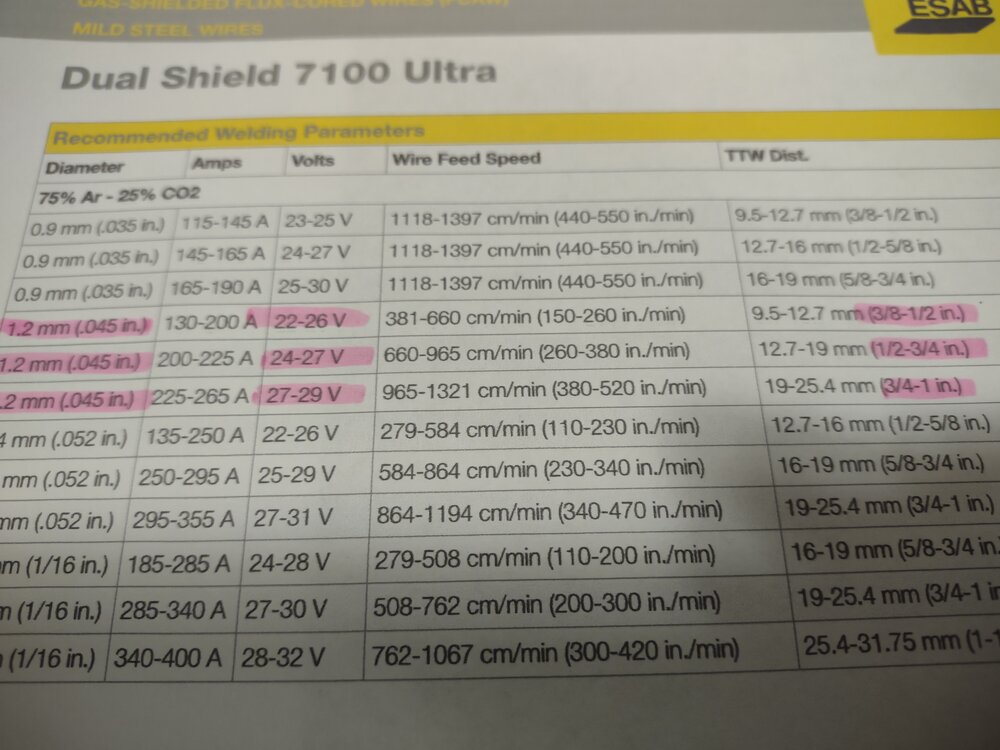

27 volts has been decent but research shows more juice can be applied......
View attachment 386450
Dang anybody got a machine I can blister that diameter wire on?
1/16 can run up to 340-400 amps at 28-32volts
I run .045 dual shield at home, at 26-27v when I worked at Toner machine shop and the welder was out on a week long bender I would get to weld up fixture tombstones. Usually 1.5" plate with massive bevels, run .062 solid at 28-29v and all the wire speed, tack a straight edge to hold the gun, cover every sq inch of skin stand back and put down a 3/4-1" weld in a single pass. Would go through a set of gloves in no time
