Square cage...here it is

Discussion in 'General Chit Chat' started by marty79, Oct 20, 2017.

  1. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC

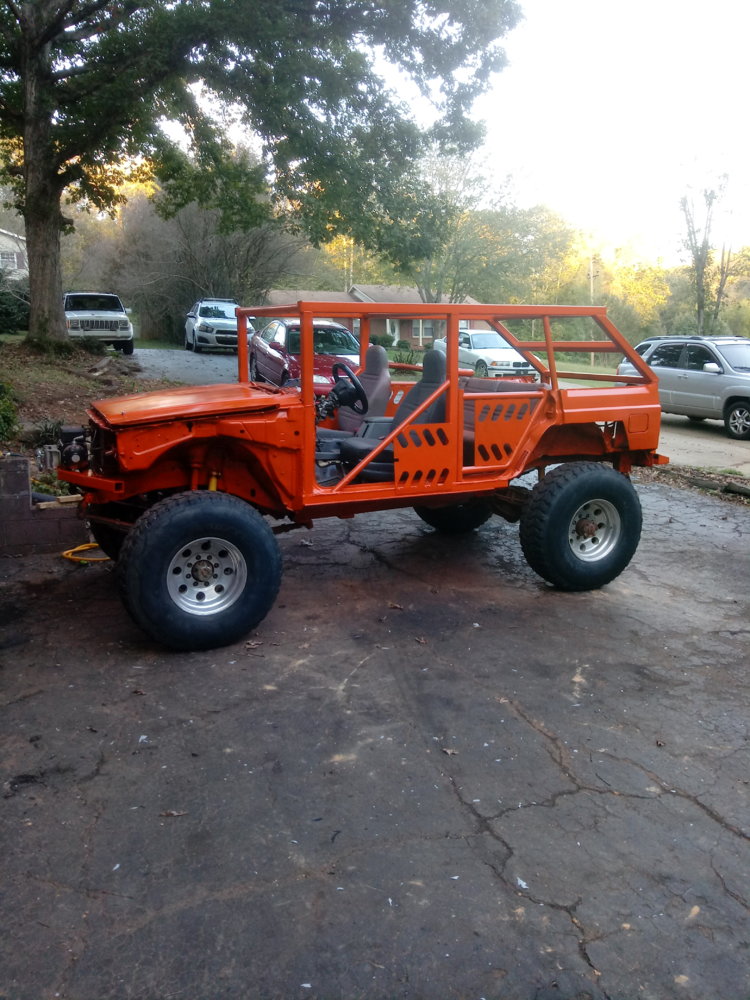

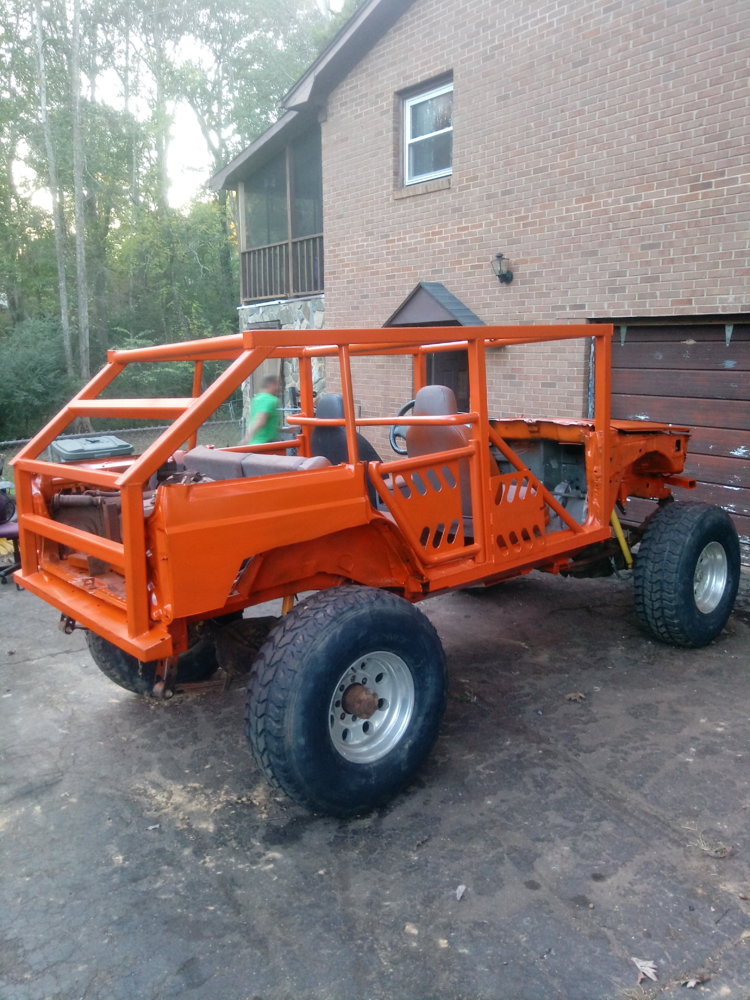

    Well my first cage is done. 2.5x2.5x3/16wall with dom tubing where you see it (its what the scrap guy had lol). Didn't mean to but quickly turned into humvee style so went with it. Paint was free so used it...I love it.
    Will def need to add lots more bracing on the roof (I guess) but that's all I could get at this time.
    15085380149412104833584.jpg 15085380868722121809816.jpg

  2. a_kelley

    a_kelley mechanical fixer

    Joined:
    Jan 26, 2010
    Location:
    Rutherfordton
    Needs some triangles.. looks good though.

    Fabrik8 and marty79 like this.
  3. 72Rockcruiser

    72Rockcruiser Prestige Worldwide

    Joined:
    Mar 22, 2005
    Location:
    Charlotte, NC
    What in the actual fuck is this?!

  4. jankoid

    jankoid Rock Humper

    Joined:
    Sep 18, 2011
    Location:
    Albemarle
    Do you not understand how a unitized chassis functions? Please do not let your family ride in this thing.

    jeepinmatt likes this.
  5. obullfish

    obullfish Carolina Trail Blazers

    Joined:
    Nov 21, 2011
    Location:
    Candler N.C.
    Here we go again.

  6. Blaze

    Blaze The Jeeper Reaper

    Joined:
    Aug 9, 2005
    Location:
    Wake Forest, NC
    Surely this is a troll post. Surely.

    Mac5005, boatedwagon, C.Berry and 2 others like this.
  7. jeepinmatt

    jeepinmatt Still Fat

    Joined:
    Mar 24, 2005
    Location:
    Stanley, NC
    Go ahead and sell it to some Clempson or Tennessee fan...

  8. braxton357

    braxton357 Robot

    Joined:
    Apr 6, 2005
    Location:
    Morganton
    "borrowing" materials from work huh? Honestly will probably hold up just fine, gotta be heavy as hell though.

    marty79 and jeepinmatt like this.
  9. Jody Treadway

    Jody Treadway Croc wearing fool Moderator

    Joined:
    Mar 20, 2005
    Location:
    Hendersonville, NC
    What keeps a square from turning into a parallelogram?

    yodaman88, Mac5005, ckruzer and 7 others like this.
  10. jeepinmatt

    jeepinmatt Still Fat

    Joined:
    Mar 24, 2005
    Location:
    Stanley, NC
    The design is poor, but by sheer mass it pretty much has to be stronger than the construction of a stock XJ, right?

  11. jeepinmatt

    jeepinmatt Still Fat

    Joined:
    Mar 24, 2005
    Location:
    Stanley, NC
    90 degree angles, duh!

    13bullets, Jody Treadway and Reid like this.
  12. anvilrubi

    anvilrubi Well-Known Member

    Joined:
    Oct 2, 2015
    Location:
    Carter county, Tn
    Is this real or photochopped?

  13. Jody Treadway

    Jody Treadway Croc wearing fool Moderator

    Joined:
    Mar 20, 2005
    Location:
    Hendersonville, NC
    It's real and it's fabulous

  14. StretchASU

    StretchASU Well-Known Member

    Joined:
    Oct 17, 2006
    Location:
    Durm
    Oh my...

    I need a whiskey.

    Mac5005 and marty79 like this.
  15. anvilrubi

    anvilrubi Well-Known Member

    Joined:
    Oct 2, 2015
    Location:
    Carter county, Tn
    Fify

    Loganwayne likes this.
  16. ManglerYJ

    ManglerYJ Well-Known Member

    Joined:
    Mar 20, 2005
    Location:
    Lexington, NC

  17. paradisePWoffrd

    paradisePWoffrd Recovering Project Junkie

    Joined:
    Nov 5, 2005
    Location:
    Newton, NC
    Turn all those squares into triangles and it should hold up fine.

    Sent from my SM-G955U using Tapatalk

  18. ProbablyBroke

    ProbablyBroke does not torque to spec

    Joined:
    Nov 7, 2012
    Location:
    Reidsville
    Paint looks great

  19. braxton357

    braxton357 Robot

    Joined:
    Apr 6, 2005
    Location:
    Morganton
    I mean to be honest this is correct. You could model it and see what kind of forces it would take but 2.5" .187 square tubing is a hell of a lot stronger than 1.75 .120 hrew. If you don't want to design just throw weight at it.
    It's all welded with a 110v flux core anyway...


    On another note, if you want to silence all the haters and if the flats would allow it, I'd put down $300 for you to push it on it's side down a decent hill the next open ride.

    Atla, XJfreakHO, Bogleparsons and 2 others like this.
  20. Reid

    Reid Hasnt Seen Dirt in Years

    Joined:
    Dec 30, 2005
    Location:
    Winston Salem
    first throught.... triangles. but thats been said

    second thought..... where does this tie into the "frame"? youve removed a lot of the body. an in an XJ, thats kinda what gives the frame strength. whats keeping the rear from collapsing in on itself?

    jeepinmatt likes this.
  21. rodney eppes

    rodney eppes Well-Known Member

    Joined:
    Feb 3, 2010
    Location:
    Mt.Holly NC 28120
    I think it is A upload_2017-10-20_22-7-57.jpeg THING! :D

    98_tj, Jason W., drkelly and 3 others like this.
  22. Loganwayne

    Loganwayne #BTL

    Joined:
    Feb 15, 2013
    Location:
    Clyde, North Carolina
    First I wanna say what the hell. And then I say I kinda like it

    There was a cherokee buggy for sale on here that was cut similar to yours (better cage styling) and I wanted it


    Sent from my iPhone using Tapatalk

  23. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    Frame is completely reinforced, rockers too, then flat bottom sliders, rear is reinforced with 1/4plate where bumper was then I made a bumper and cage ties into that. In the middle its tied into rockers which are more stout than you could desire.
    More info on this please. I know it needs more bracing but ran out of material but what is "more triangles". Thank you

  24. Loganwayne

    Loganwayne #BTL

    Joined:
    Feb 15, 2013
    Location:
    Clyde, North Carolina
    Triangles are the strongest geometric shape. More triangles in the cage stronger it is


    Sent from my iPhone using Tapatalk

  25. marty79

    marty79 Well-Known Member Banned Twice Already

    Joined:
    Dec 2, 2015
    Location:
    Newton NC
    I would but too risky breaking front axle...I'd do it for free as I trust it 110% but can't afford broken hubs/steering/or other mechanical stuff. Good idea though lol
