Bought the truck as an abandoned project back in January from member here. Most of the build has already taken place but I wanted to make a thread here to help meet new locals to wheel with.

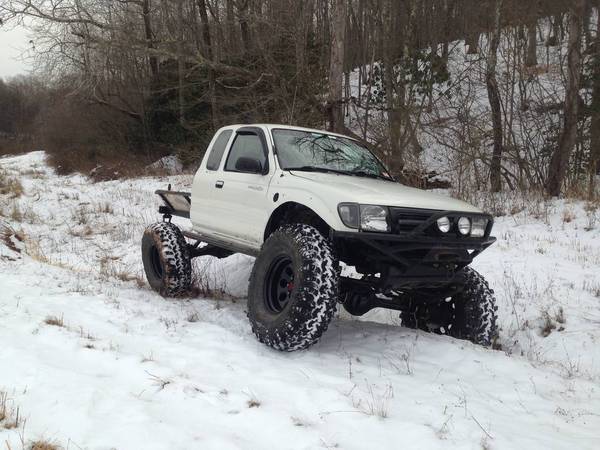

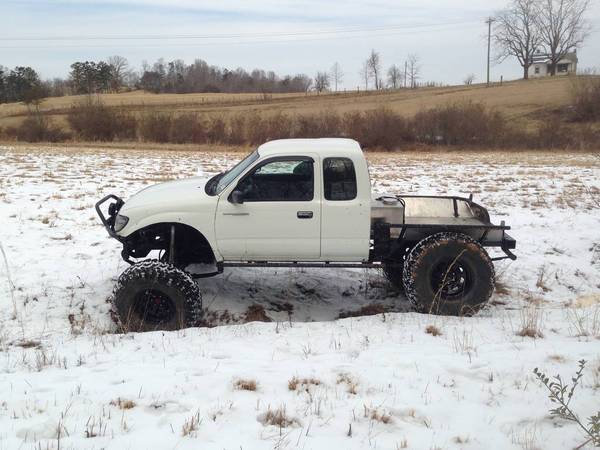

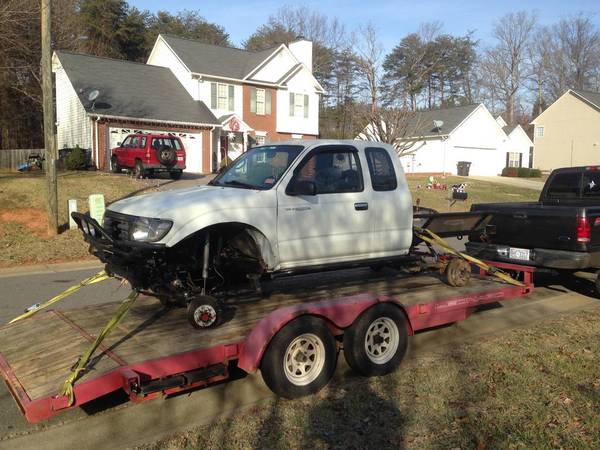

How I brought it home:

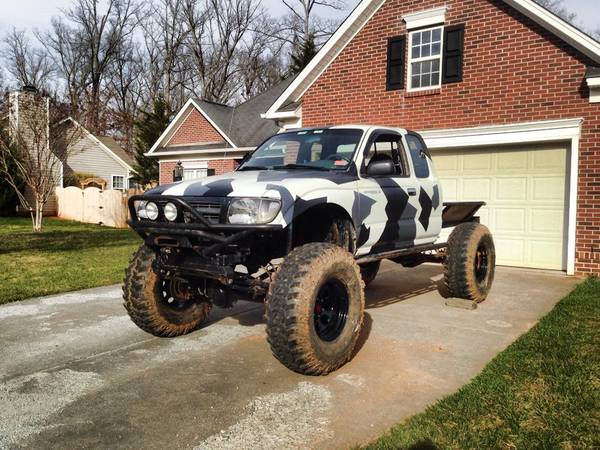

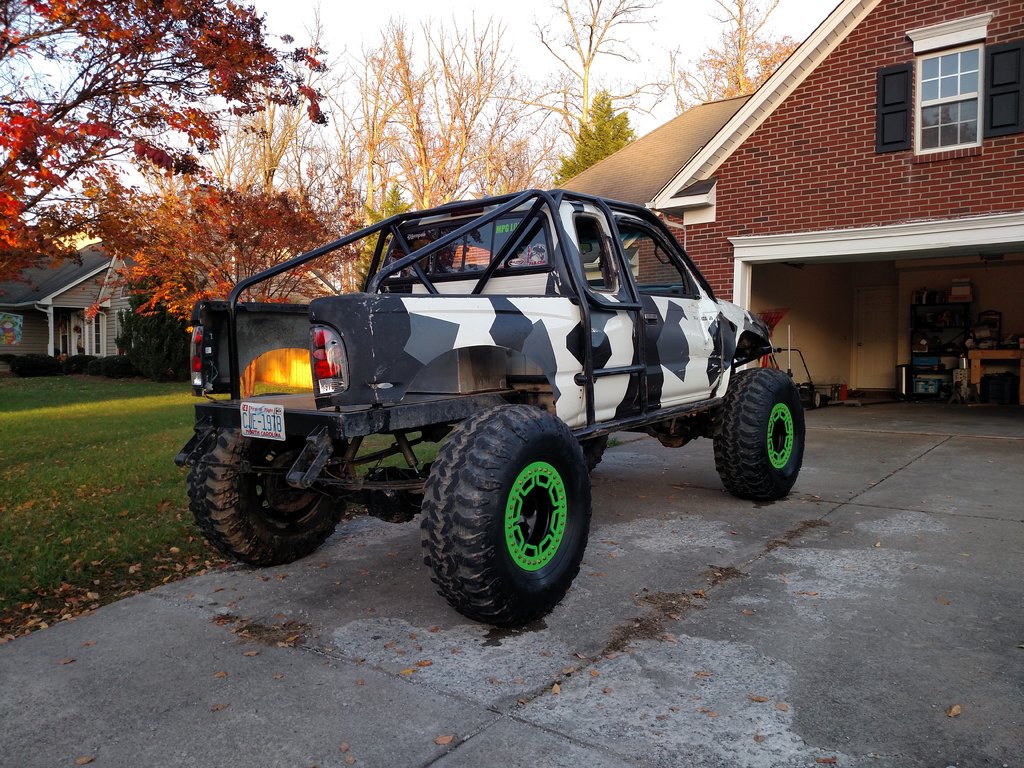

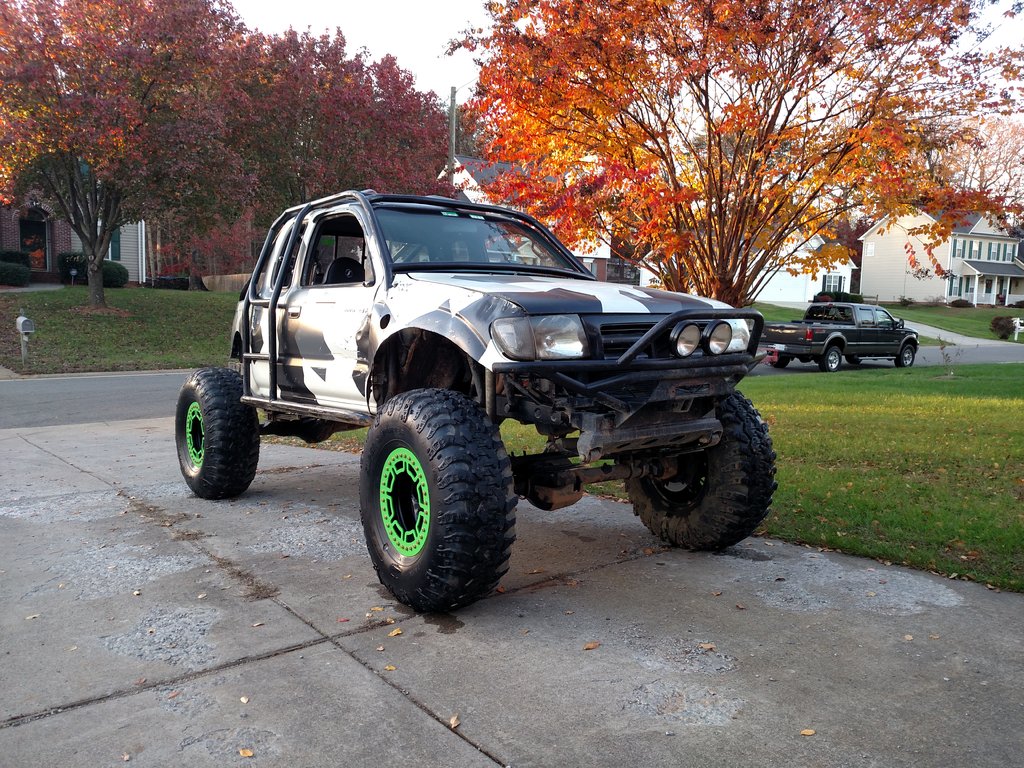

How it sits now:
awww_tacomaworld_com_media_img_20151120_164050686_490913_full_099e946aa97031e7ea3adf743384c00f._.jpg


awww_tacomaworld_com_media_img_20151120_164039530_490912_full_099e946aa97031e7ea3adf743384c00f._.jpg


Specs:
1996 Tacoma
3rz 135k miles
w56 5 speed
39.5x13.50x17 Iroks
Dual 2.28/4.70 cases
Twin sticks
Full Float FJ80 rear
FJ60 front
Arp Hub Studs
Arp Knuckle Studs
30 Spline RCV's
5.29's
Welded front and rear
Full PSC hydro (single ended)
Corbeau Baja Ultra's
Removable bedsides
Custom fuel cell that uses stock pump
Trail Gear 3" springs up front
Inboarded chevy 63's
98-00 Front end swap
Trail Gear bumper
Oliver's 1 piece rear .250 wall driveshaft
Full DOM Exo (trail tested haha)
Total Metal Innovations DIY beadlocks



Going to post a bunch of pics from projects I've tackled this year to get yall caught up. Always welcome to input and opinions

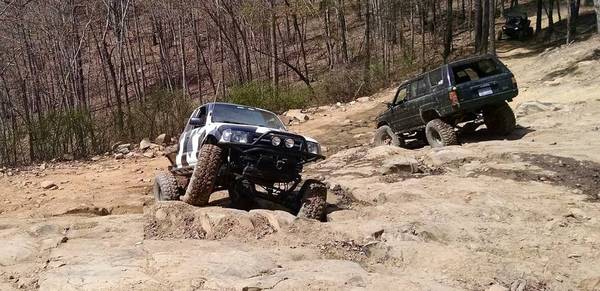

First time in the dirt




Dipped

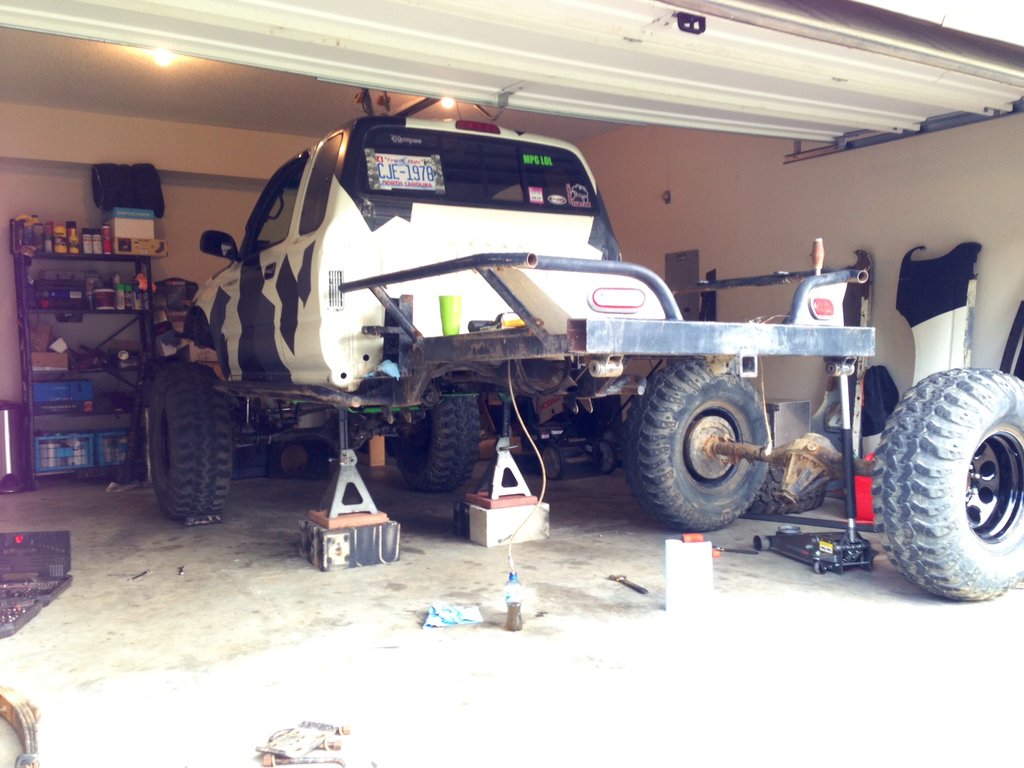

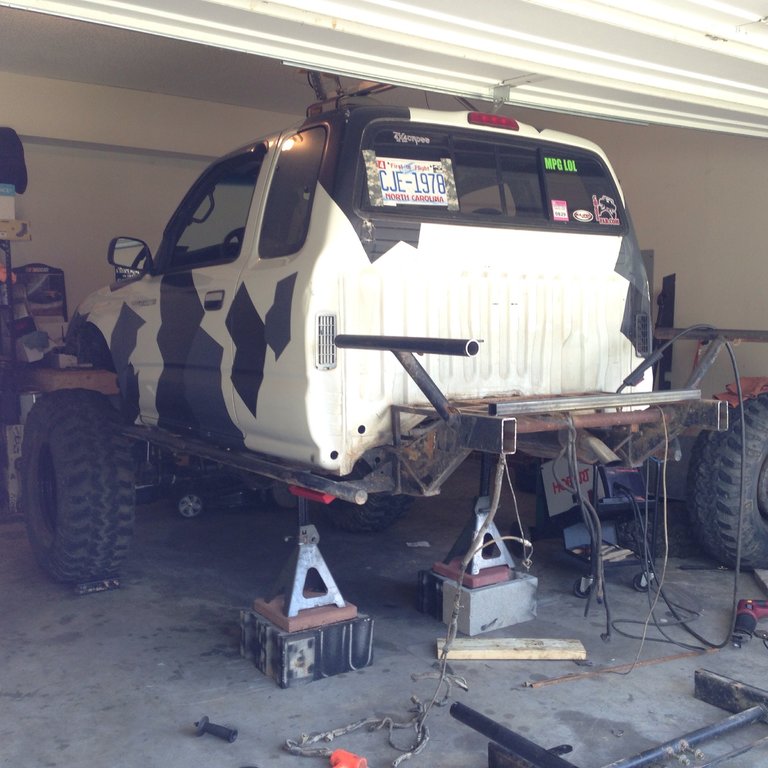

Got the urge to shorten her up
awww_tacomaworld_com_media_photo_6_465652_full_496c11b2a0cd1ee0f94c3d511441e172._.jpg


awww_tacomaworld_com_media_photo_26_466256_full_e88481743eed7277cfb1c4b747439605._.jpg

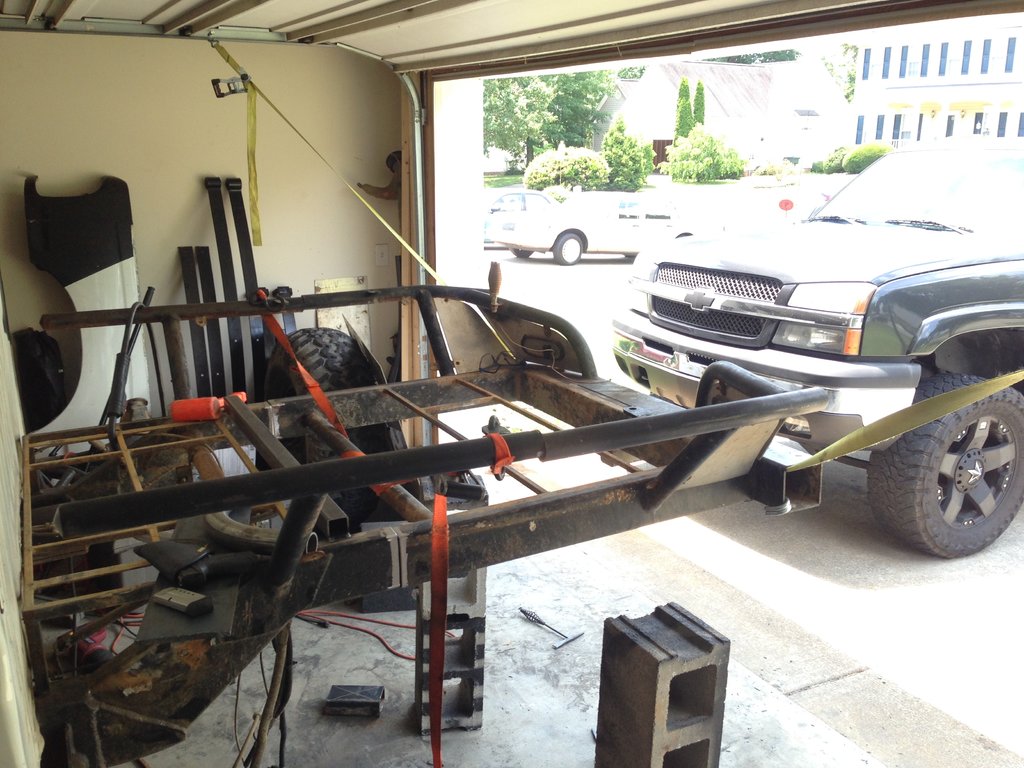

7" out of the frame
awww_tacomaworld_com_media_photo_1_466413_full_a583656530200679f8a0b970c110f724._.jpg

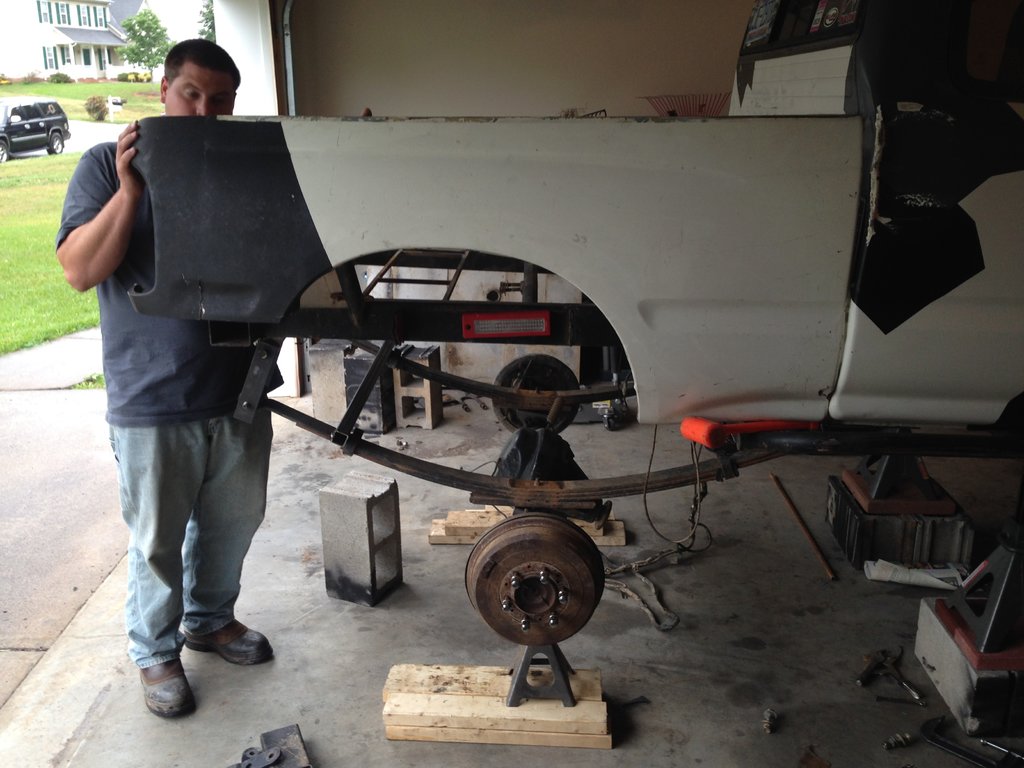

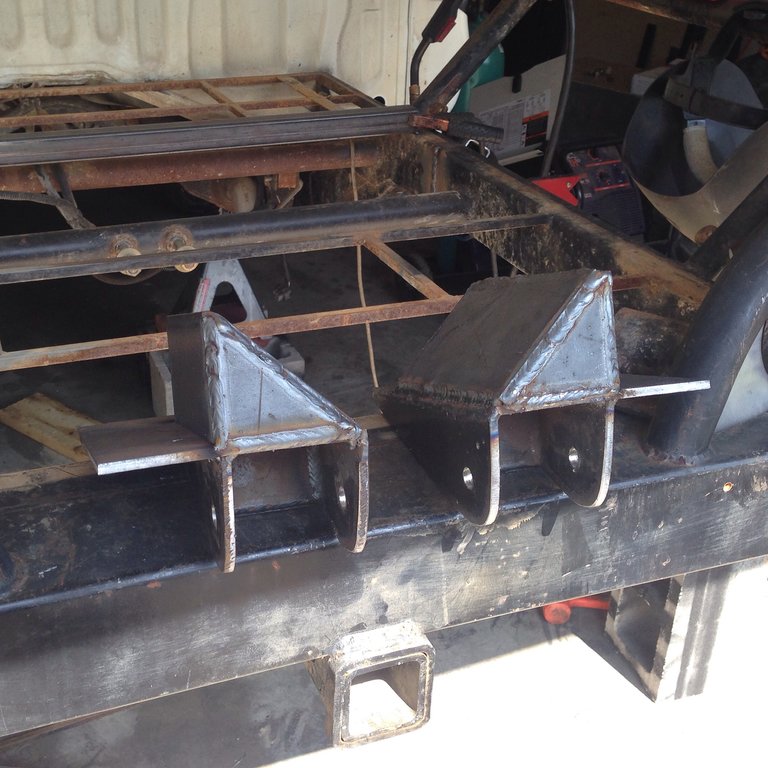

Inboarded spring hangers



awww_tacomaworld_com_media_photo_4_468238_full_2979ff2735cd934b622391acf898b7b1._.jpg

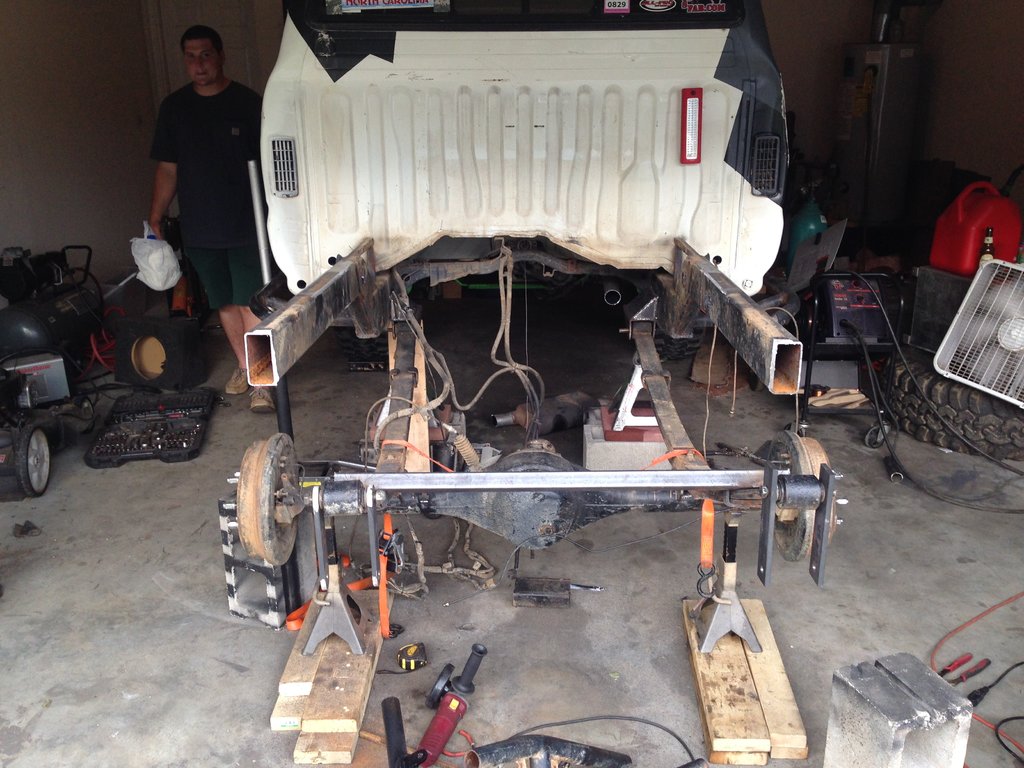

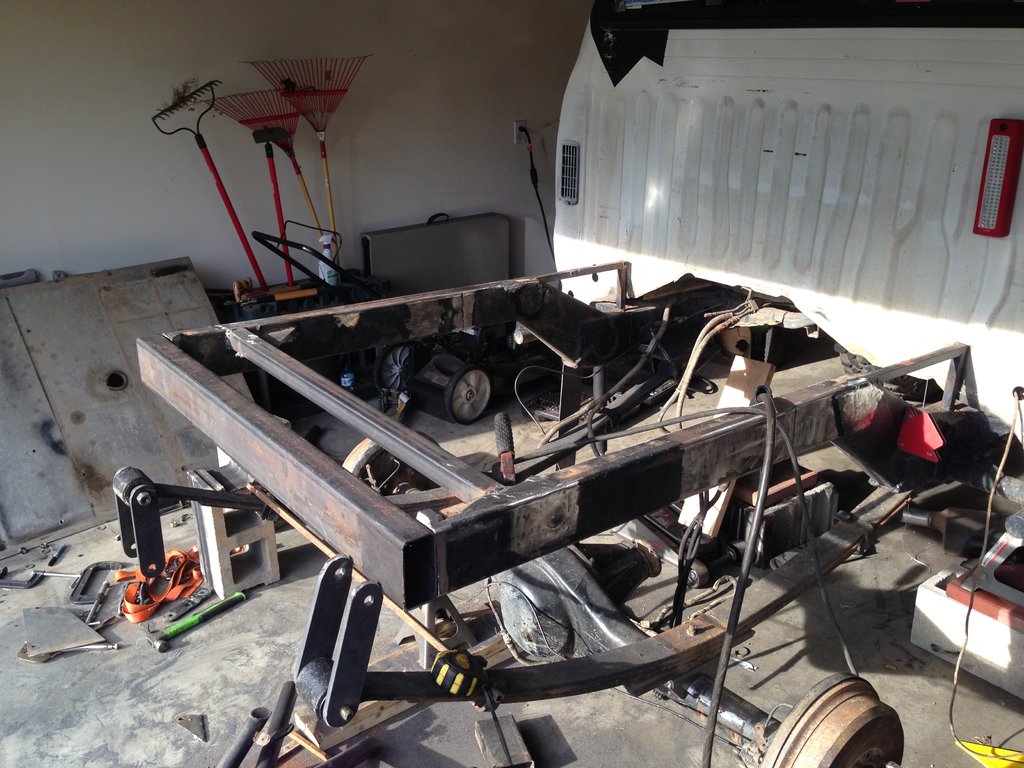

Frame was rebuilt and was crooked so I took this opportunity to straighten what I could
awww_tacomaworld_com_media_photo_2_3_468515_full_93ca36618dad749041b5e2dc266eec56._.jpg


awww_tacomaworld_com_media_photo_1_4_468682_full_e28d2c13b2bfcc8f08e4f0f6d9552933._.jpg

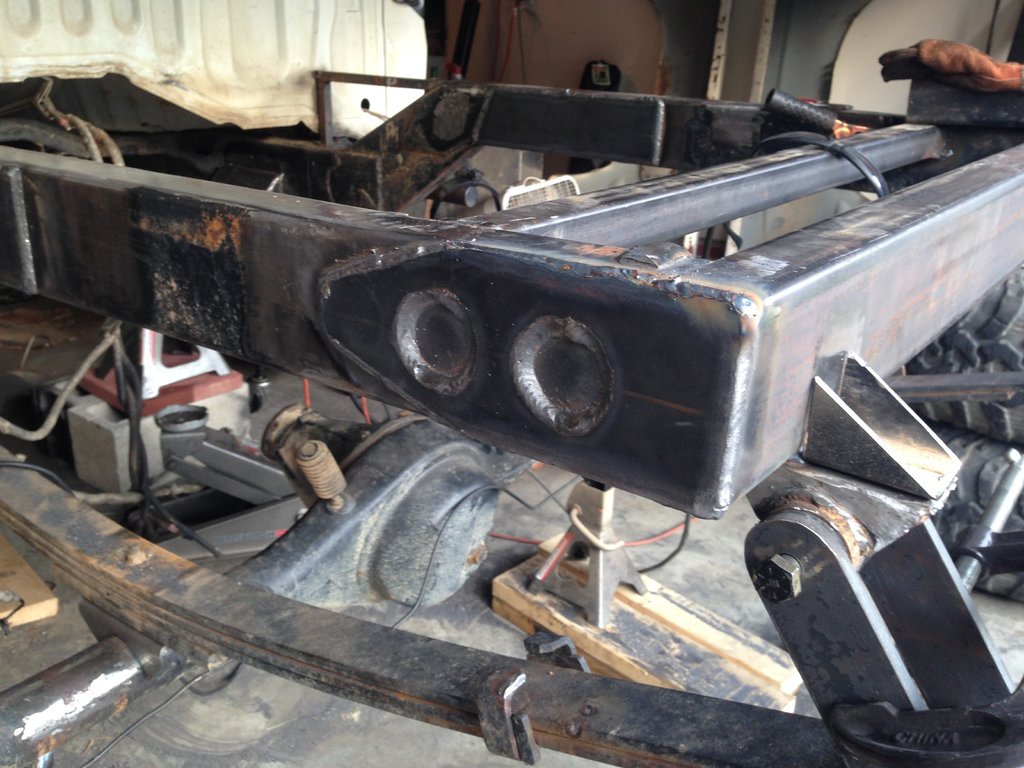

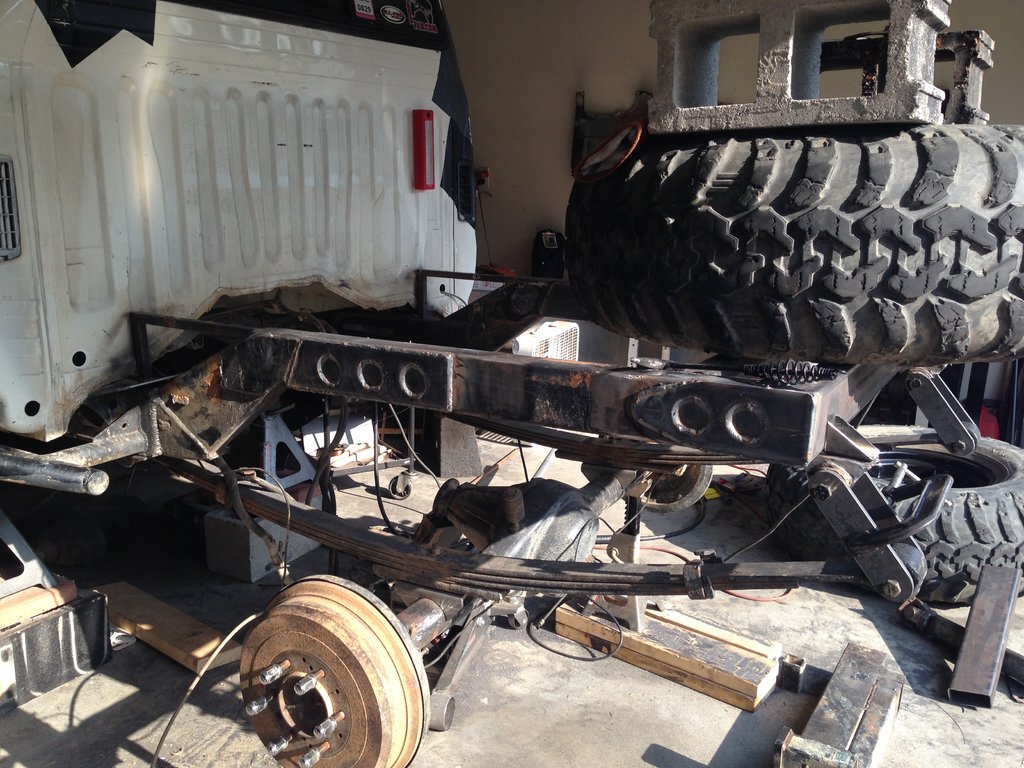

Frame plates
awww_tacomaworld_com_media_photo_1_7_469004_full_6981e7b3e0d0ee43b8ada07ab0c95fd2._.jpg


awww_tacomaworld_com_media_photo_2_7_469005_full_6981e7b3e0d0ee43b8ada07ab0c95fd2._.jpg

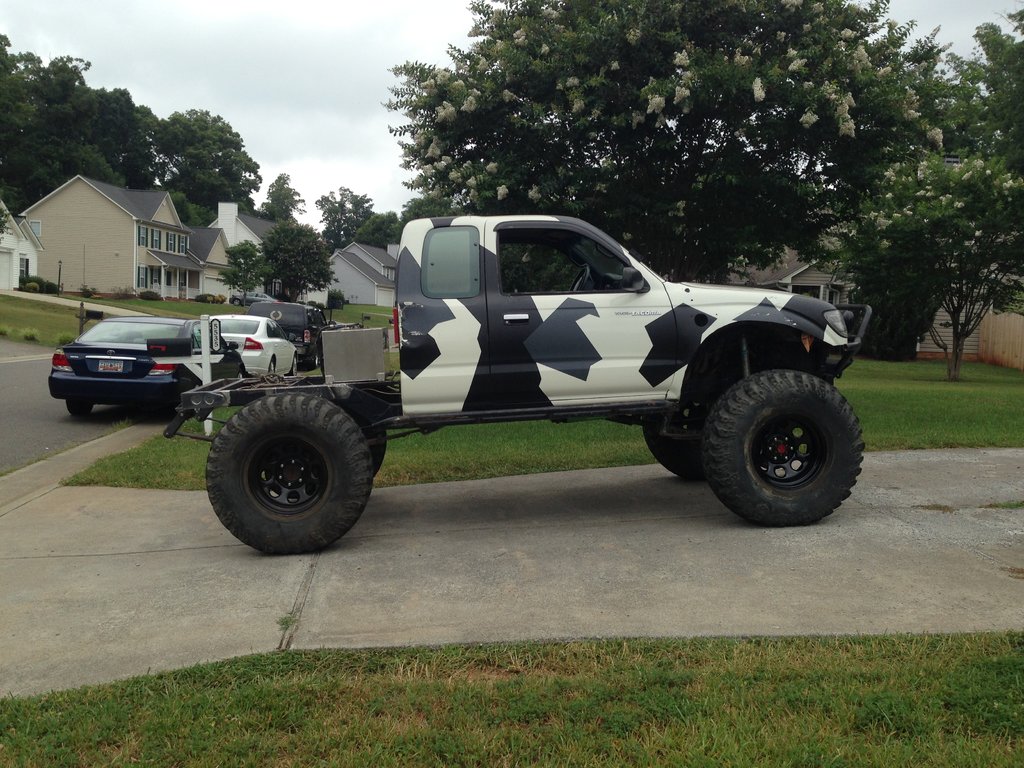

Went from 127" to 118"

awww_tacomaworld_com_media_photo_2_8_469206_full_e755b07007b3faf3d73f6f63d6b7f4a5._.jpg

Last edited:

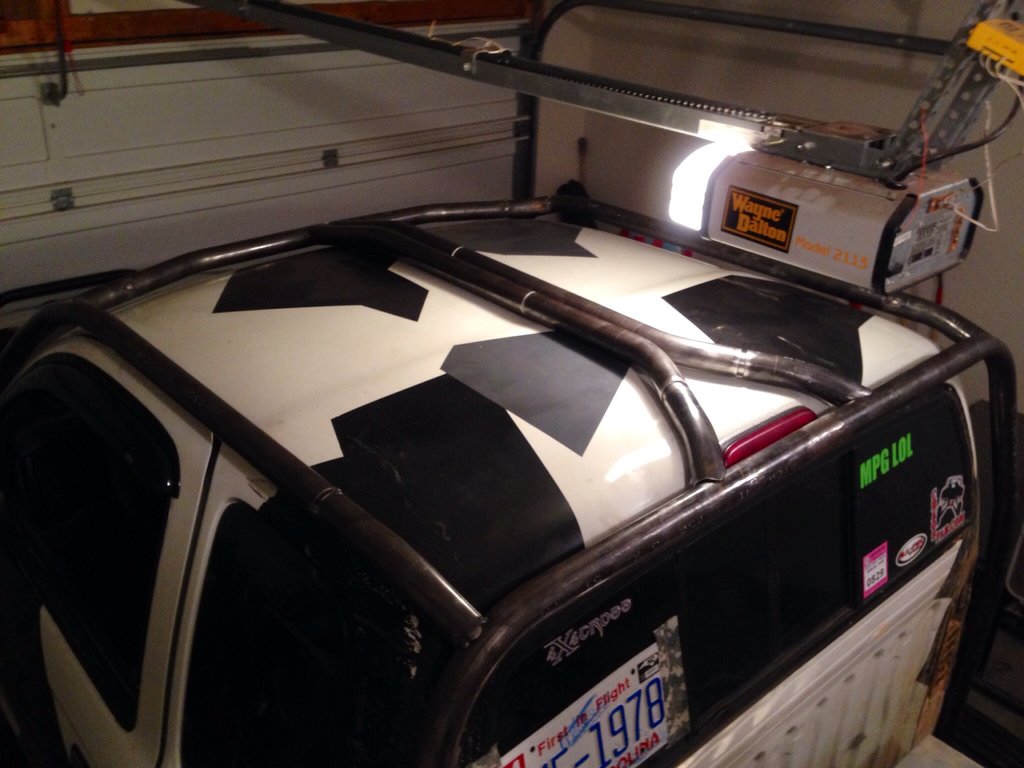

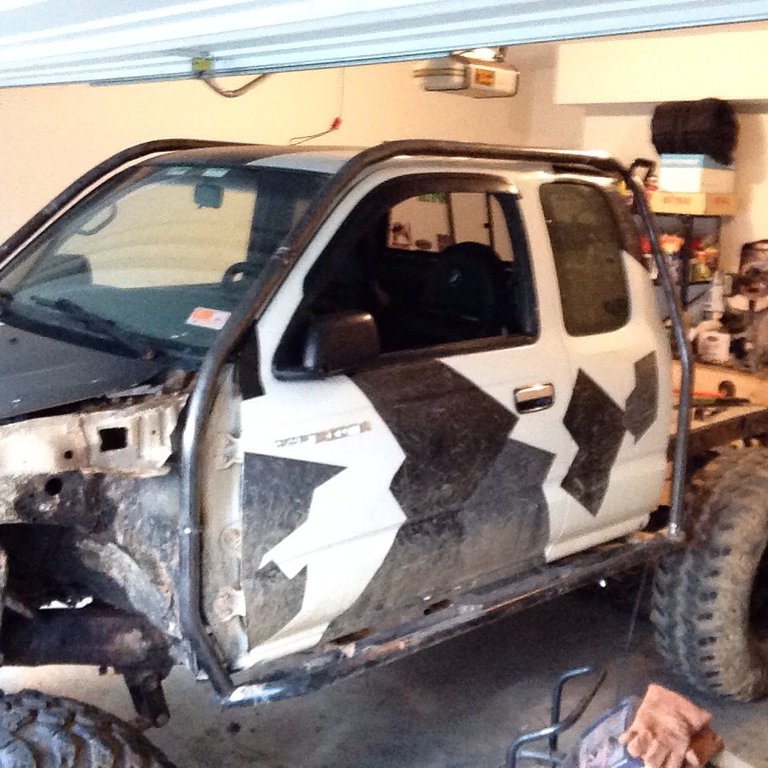

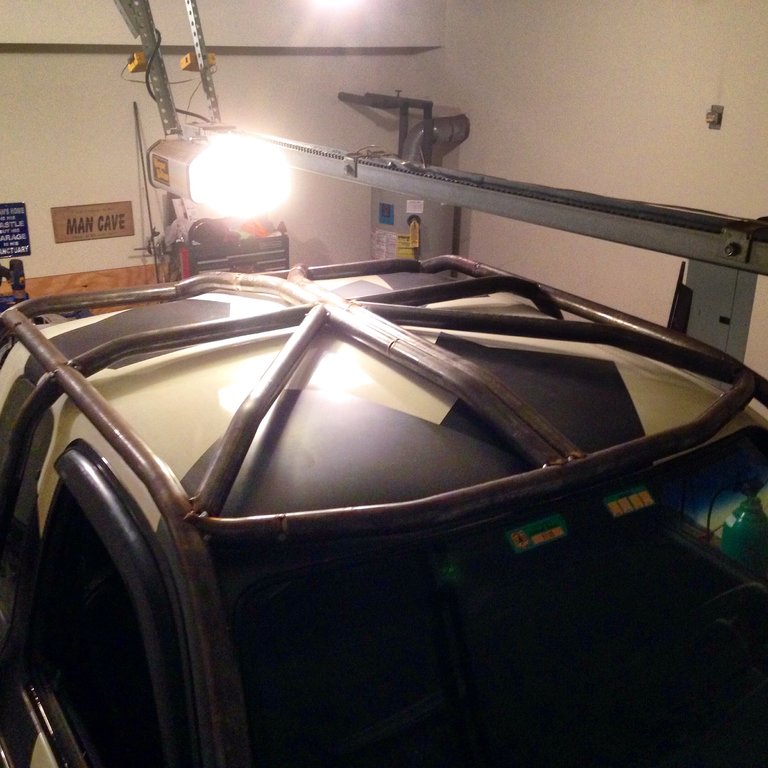

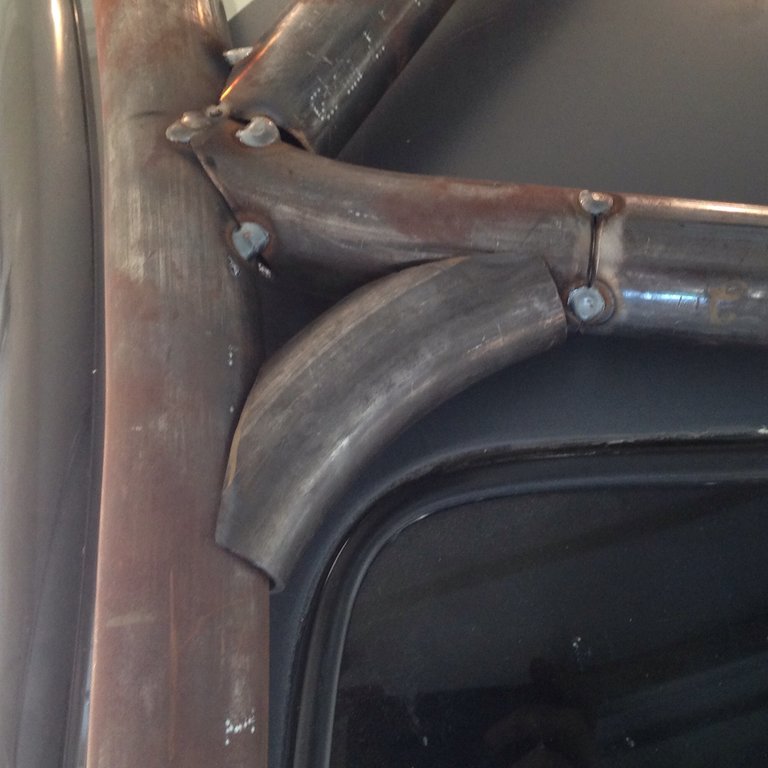

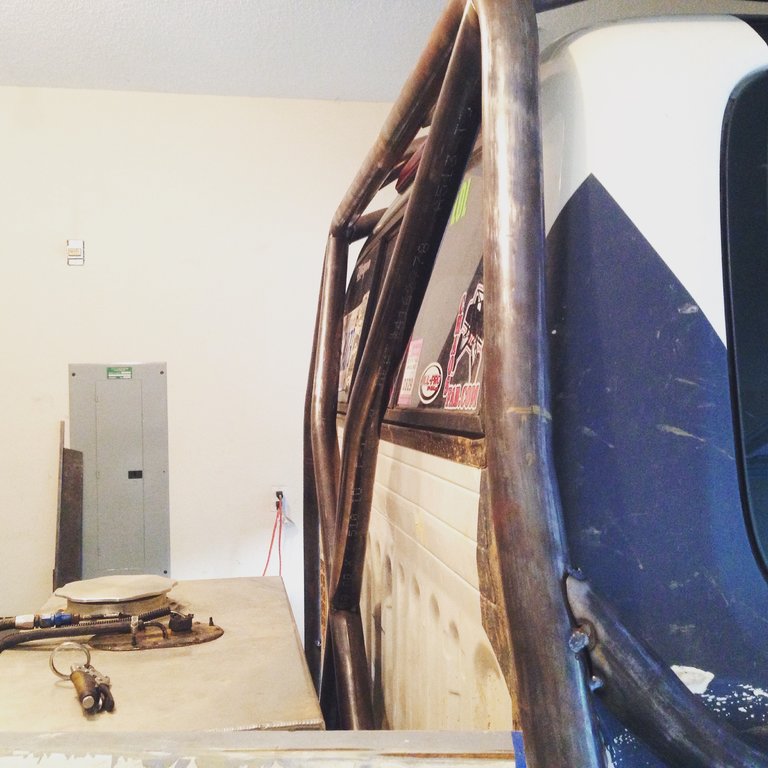

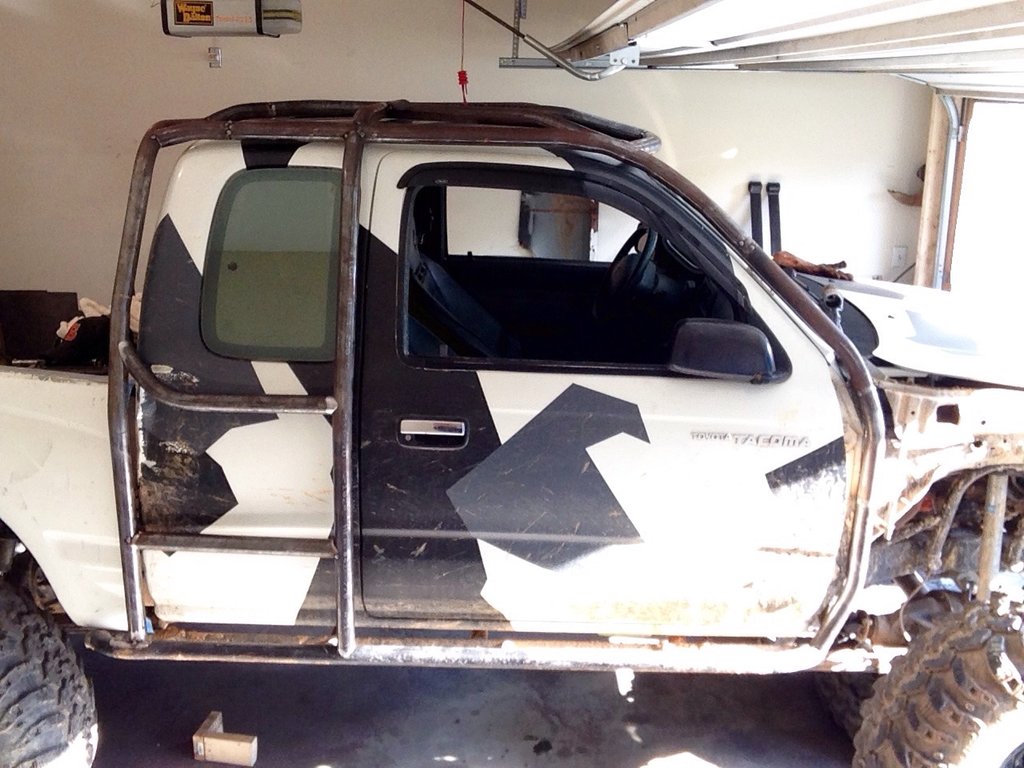

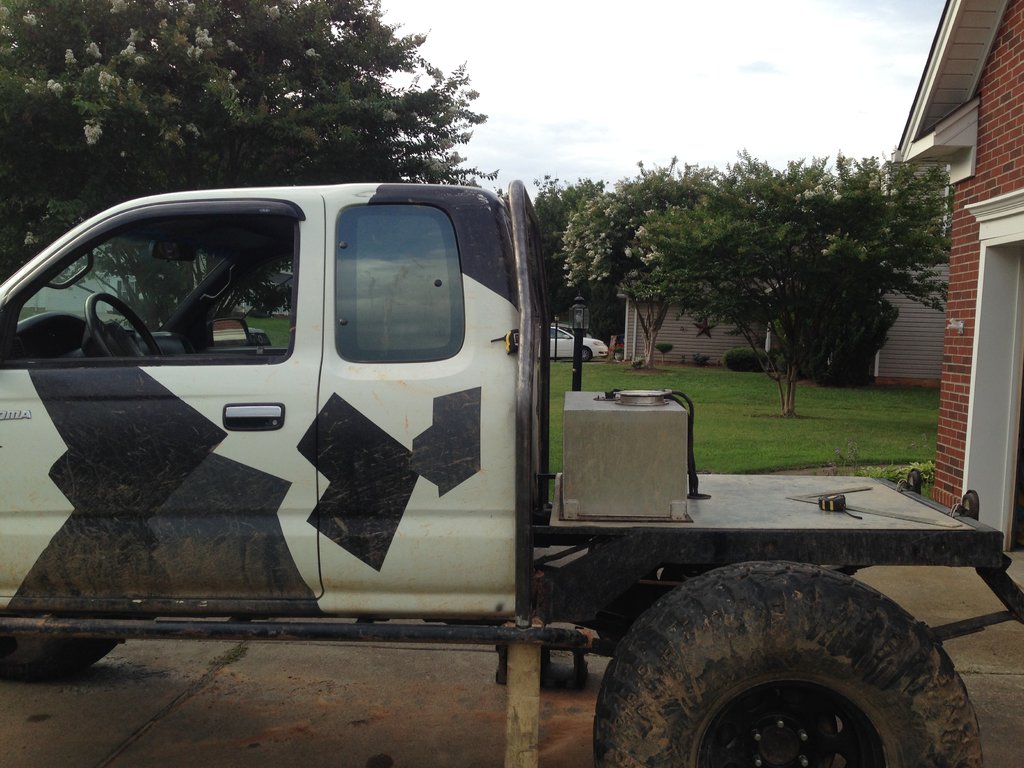

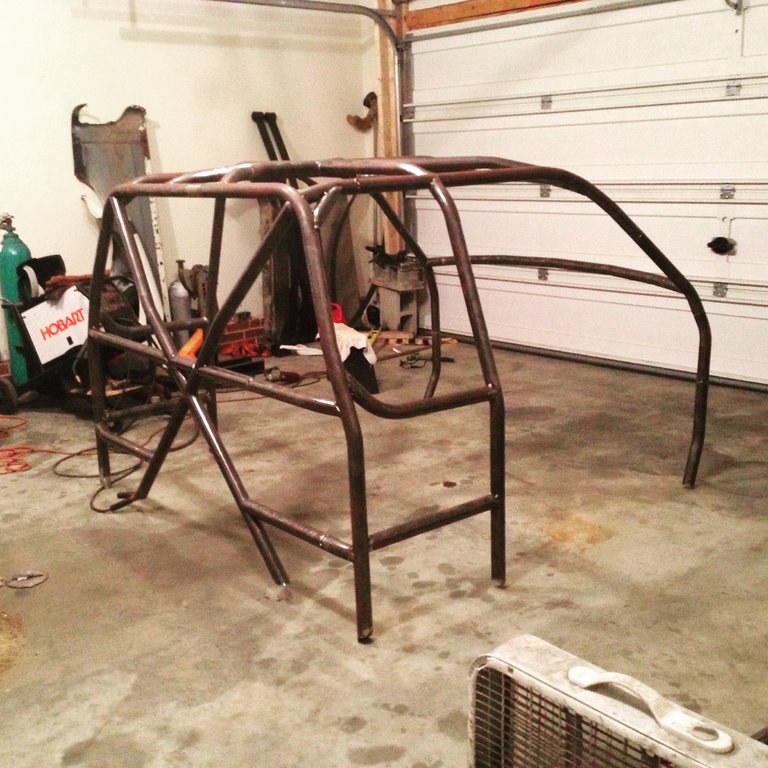

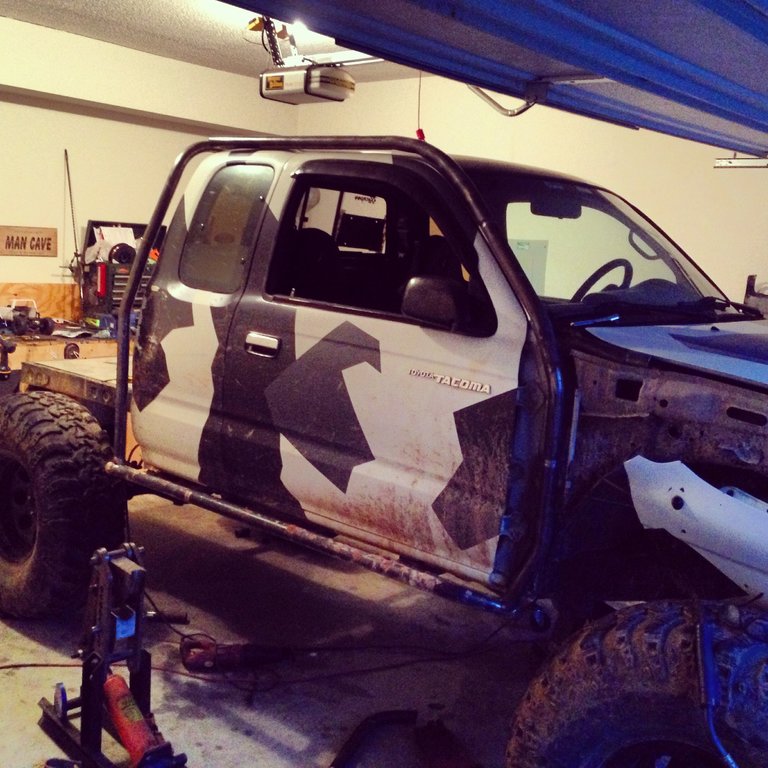

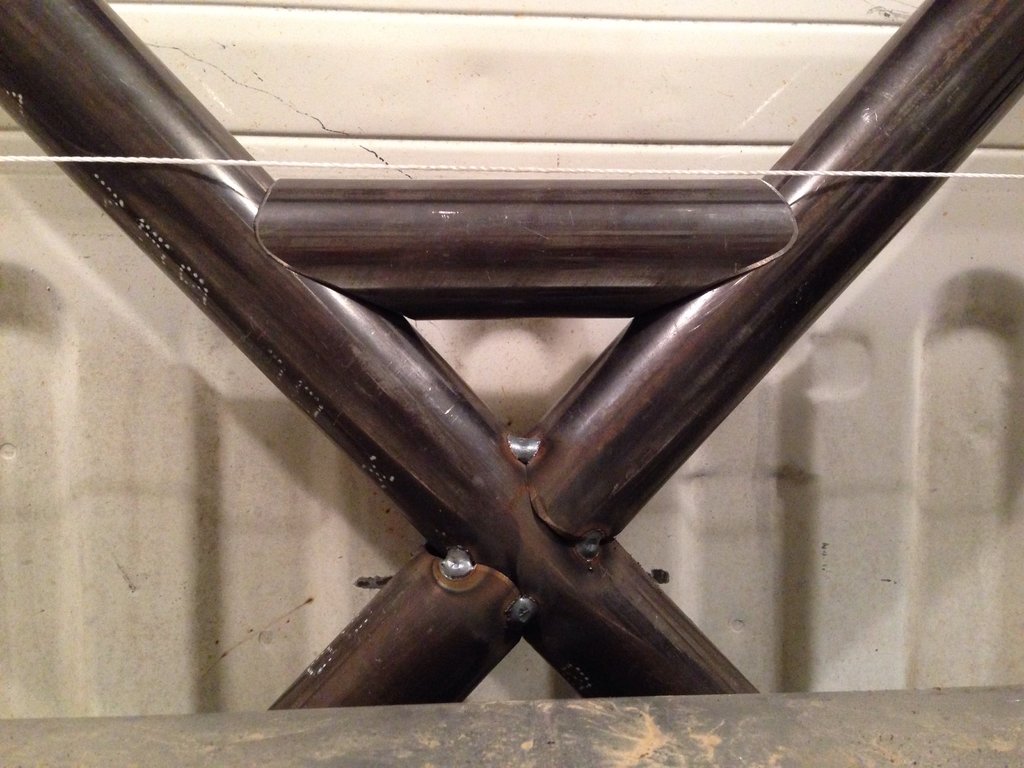

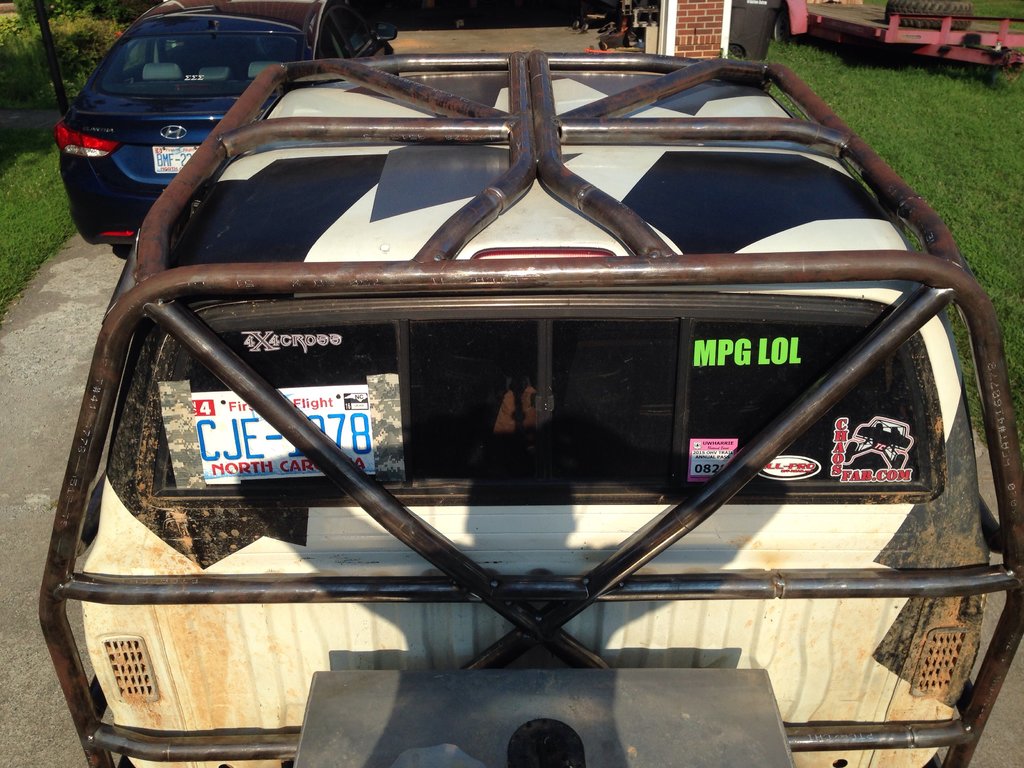

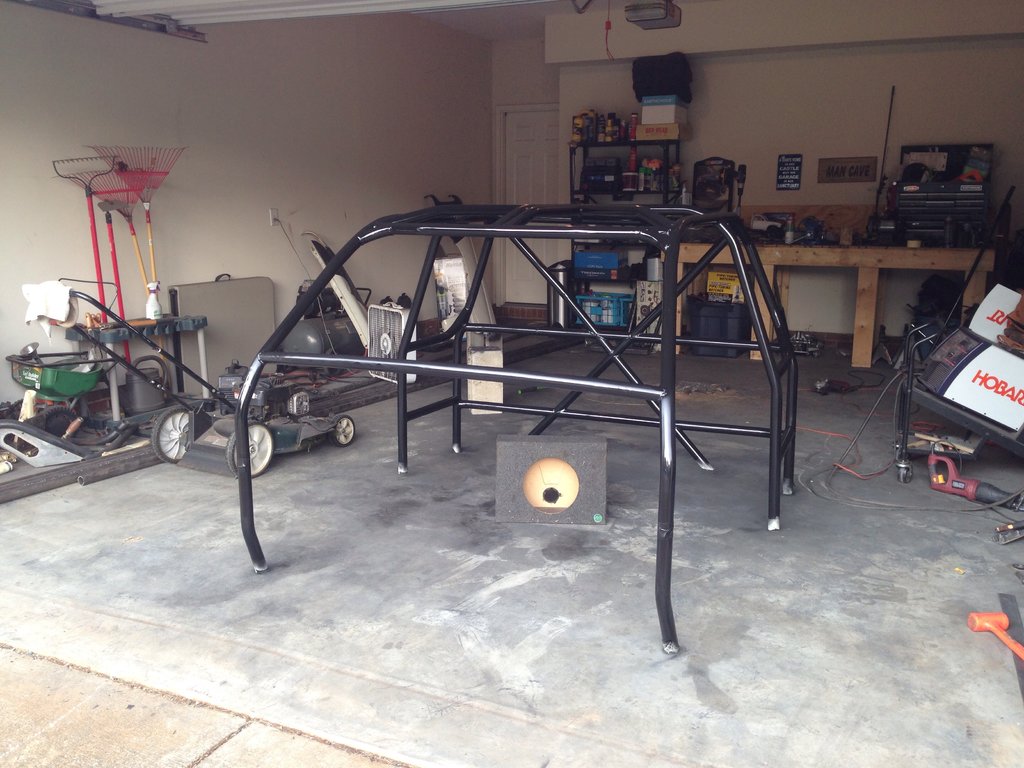

Starting the cage. This was my first time ever bending, notching, and welding around tube lol

awww_tacomaworld_com_media_photo_4_470772_full_e3da35d8de68c79750a6250c438d8b99._.jpg






























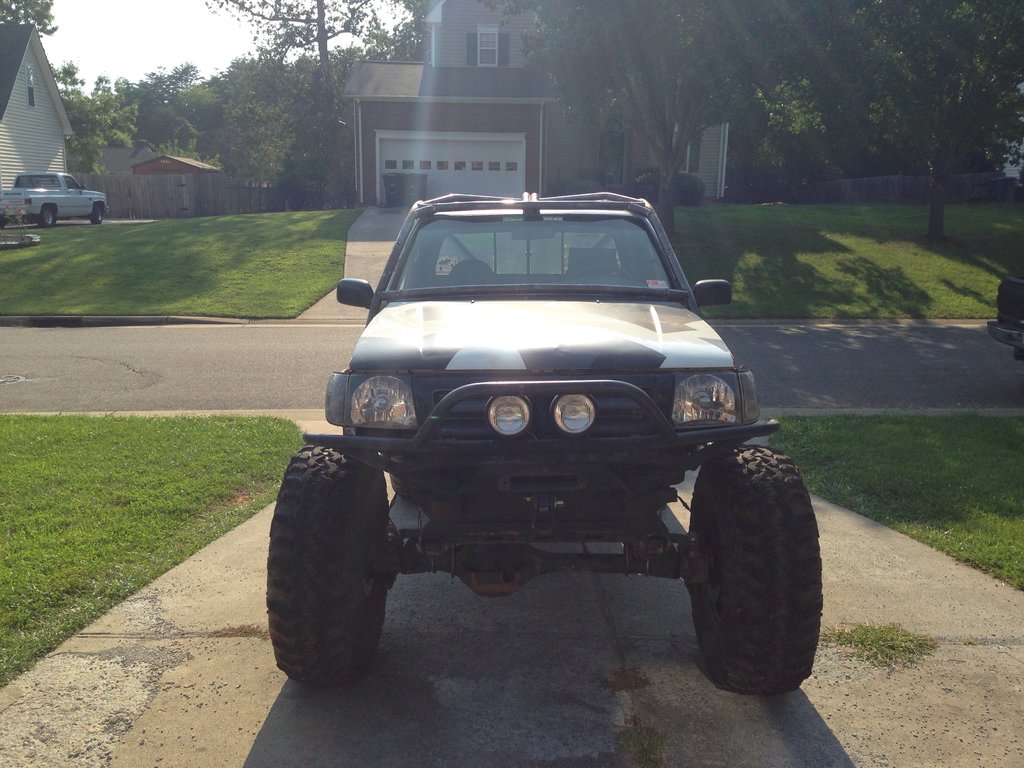

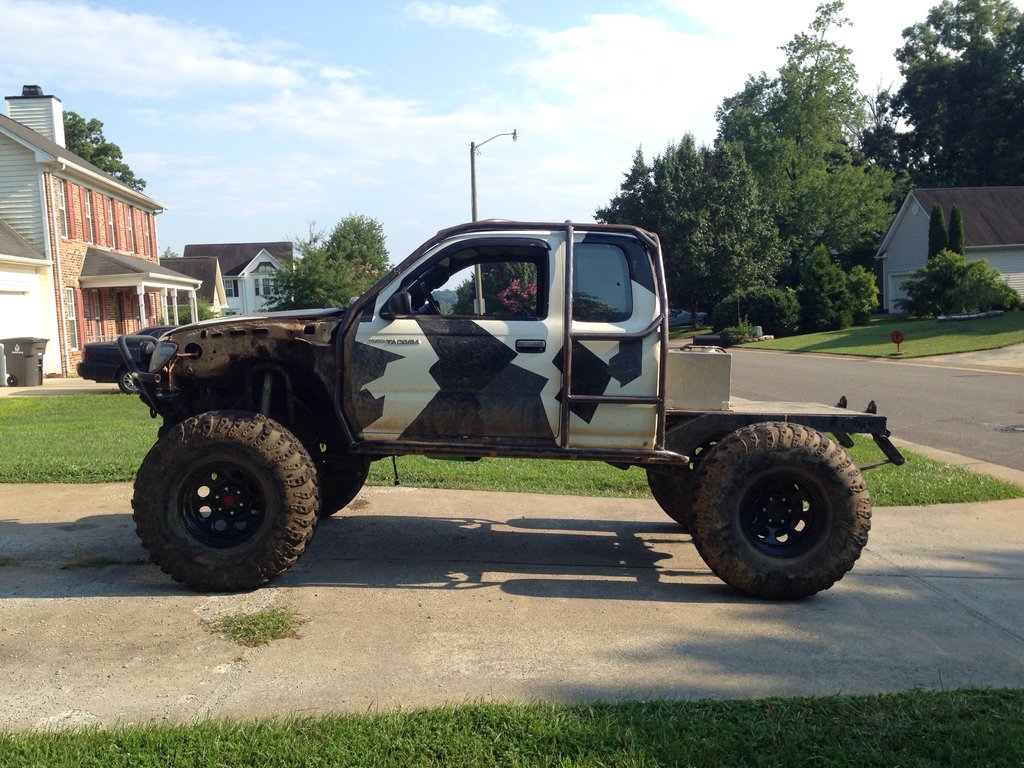

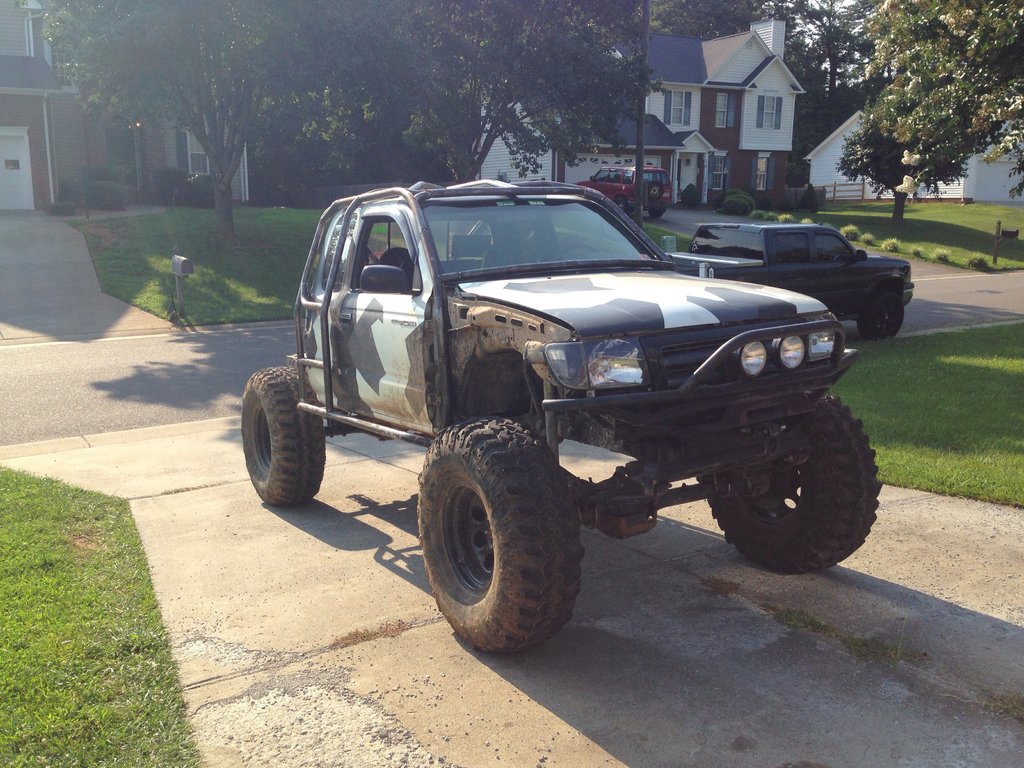

Pulled to weld

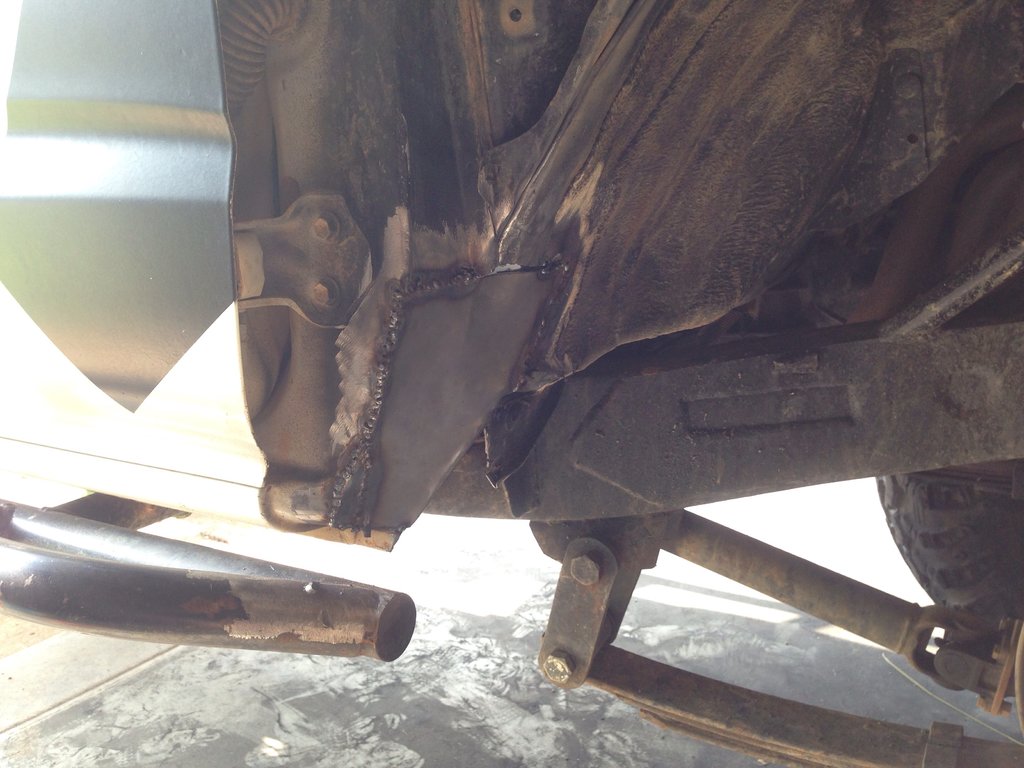

Tubbed firewall to clear a pillar tube

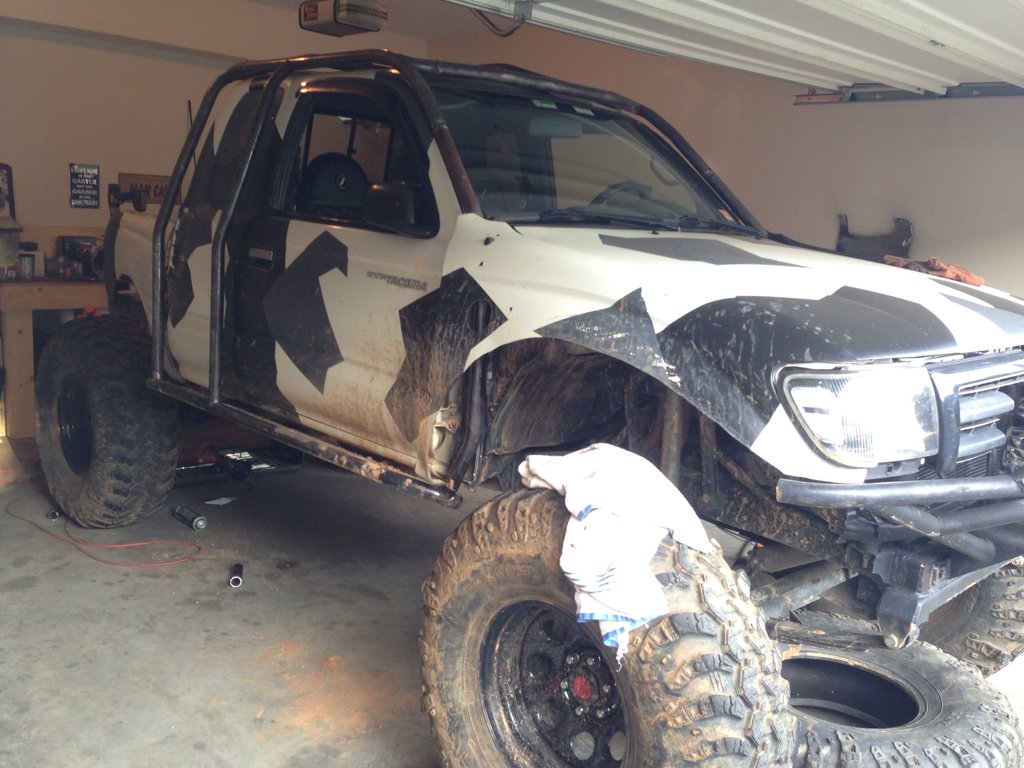

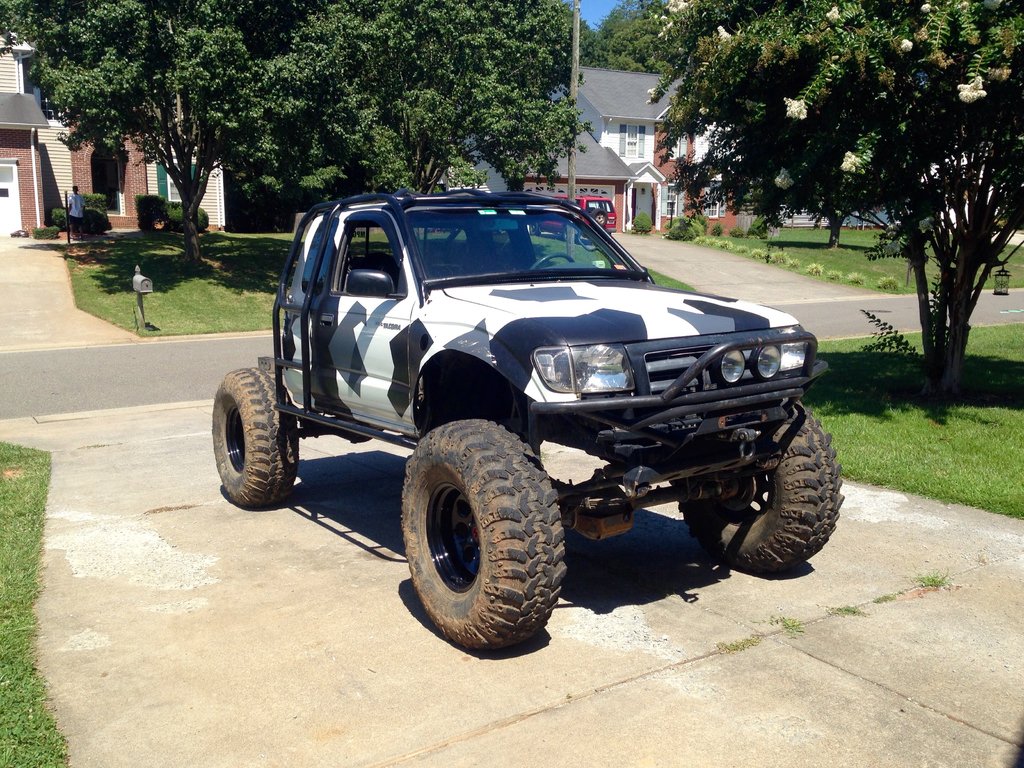

Fenders back on

Last edited:

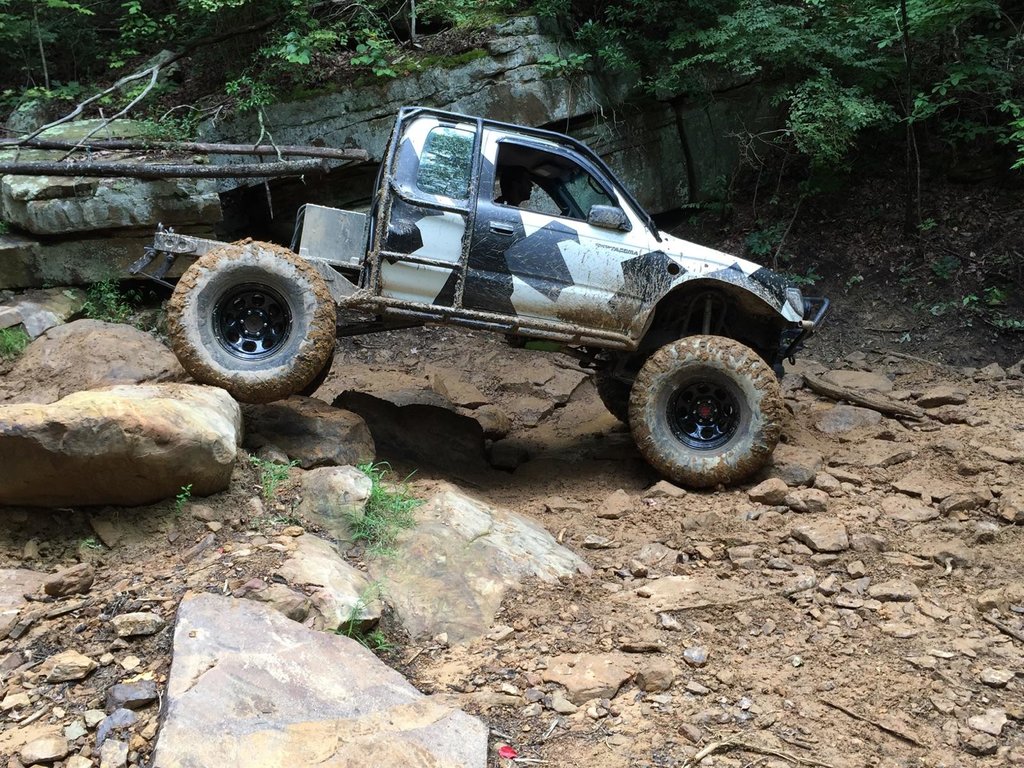

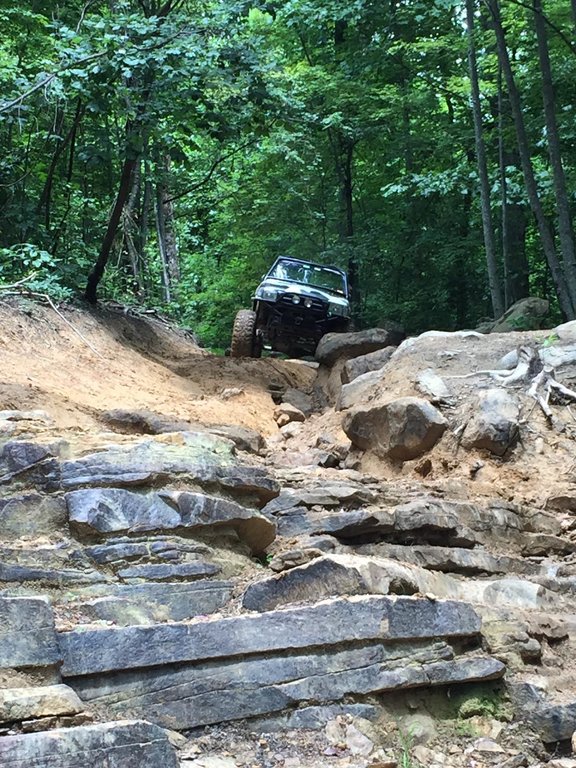

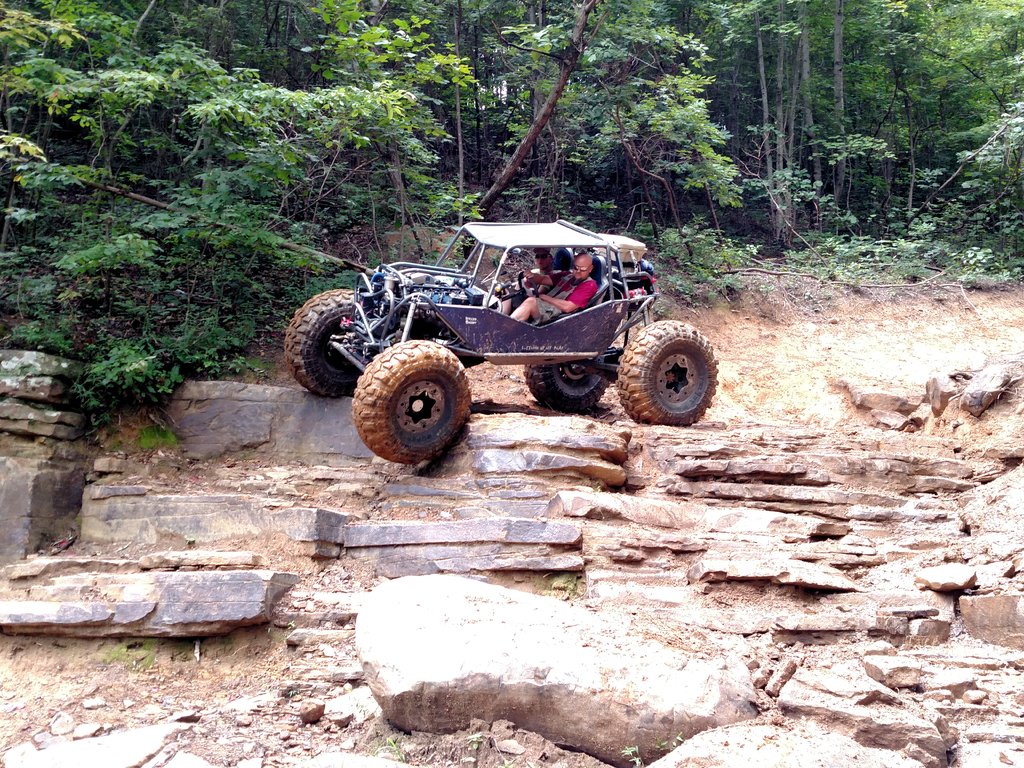

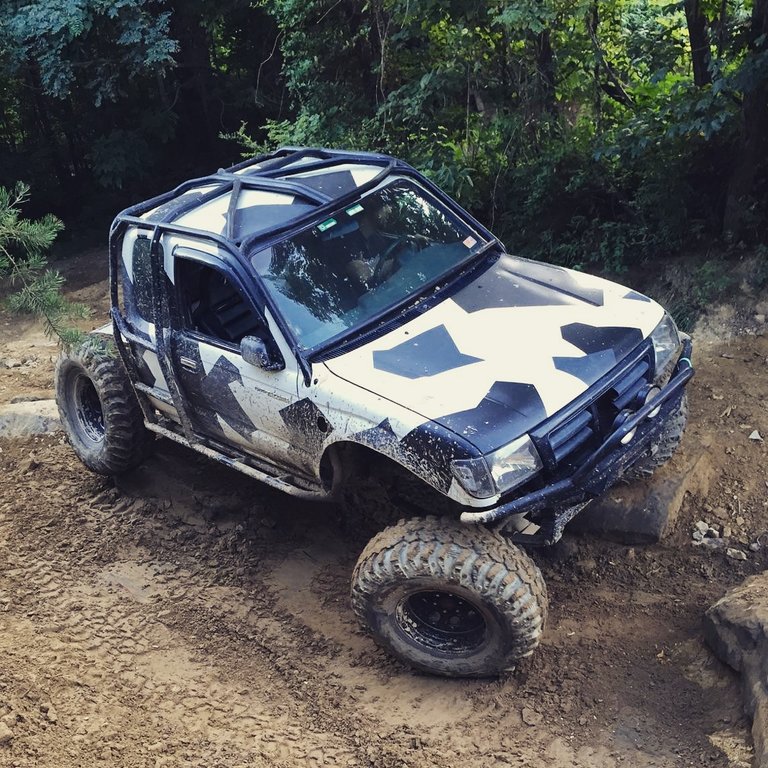

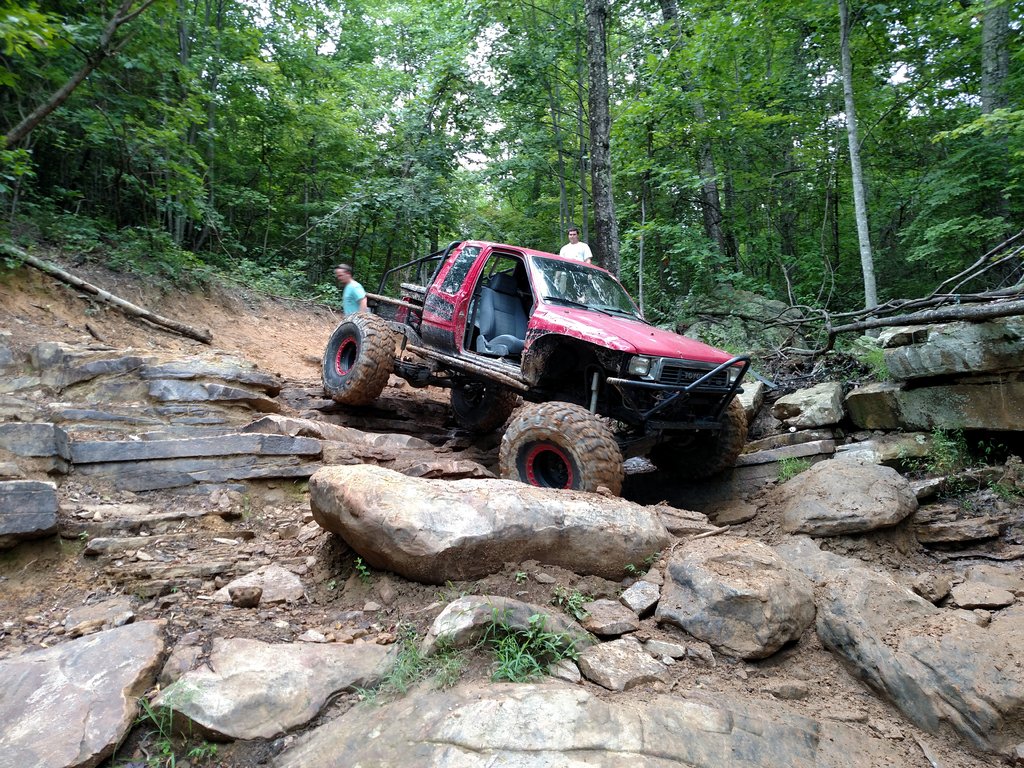

Went and did some wheeling at Windrock and watched the SRRS race.





awww_tacomaworld_com_media_img_20150809_134540_475954_full_4004bf90112031e9a18306dfd64cf656._.jpg




awww_tacomaworld_com_media_img_20150807_141323028_475964_full_f73e69287a13ff44915e0c8ea728ea50._.jpg


awww_tacomaworld_com_media_img_20150807_141646917_475967_full_f73e69287a13ff44915e0c8ea728ea50._.jpg


awww_tacomaworld_com_media_img_20150808_102757533_hdr_475965_f28bb9656a4ca44bc9e60d7c06332dfae.jpg

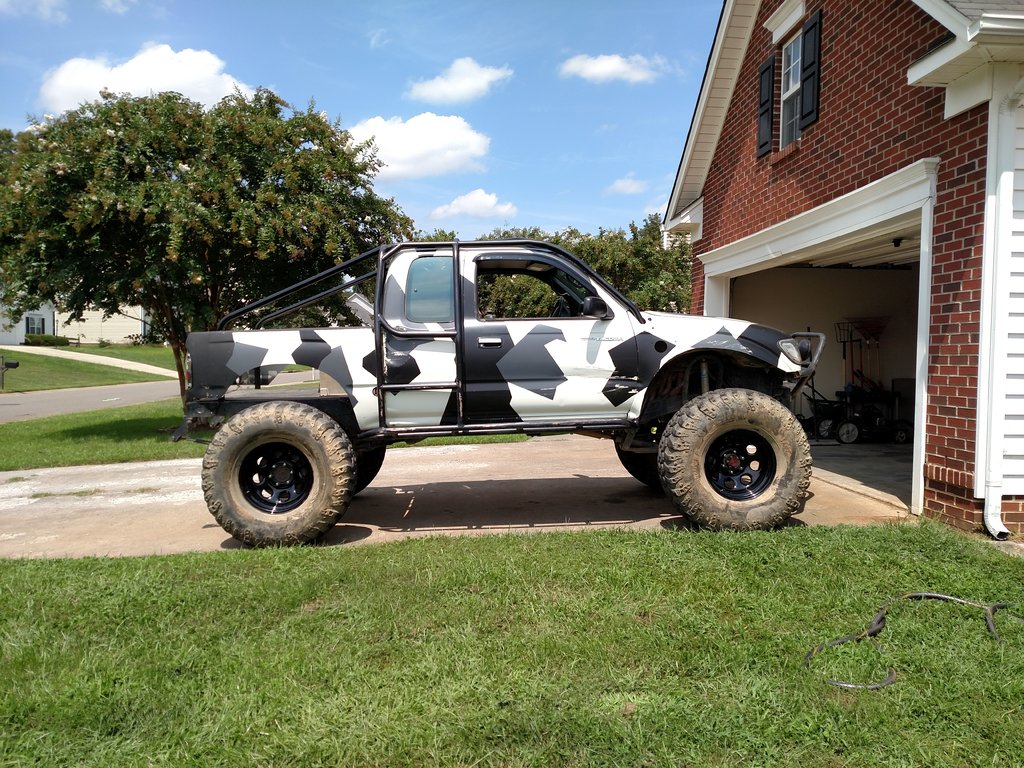

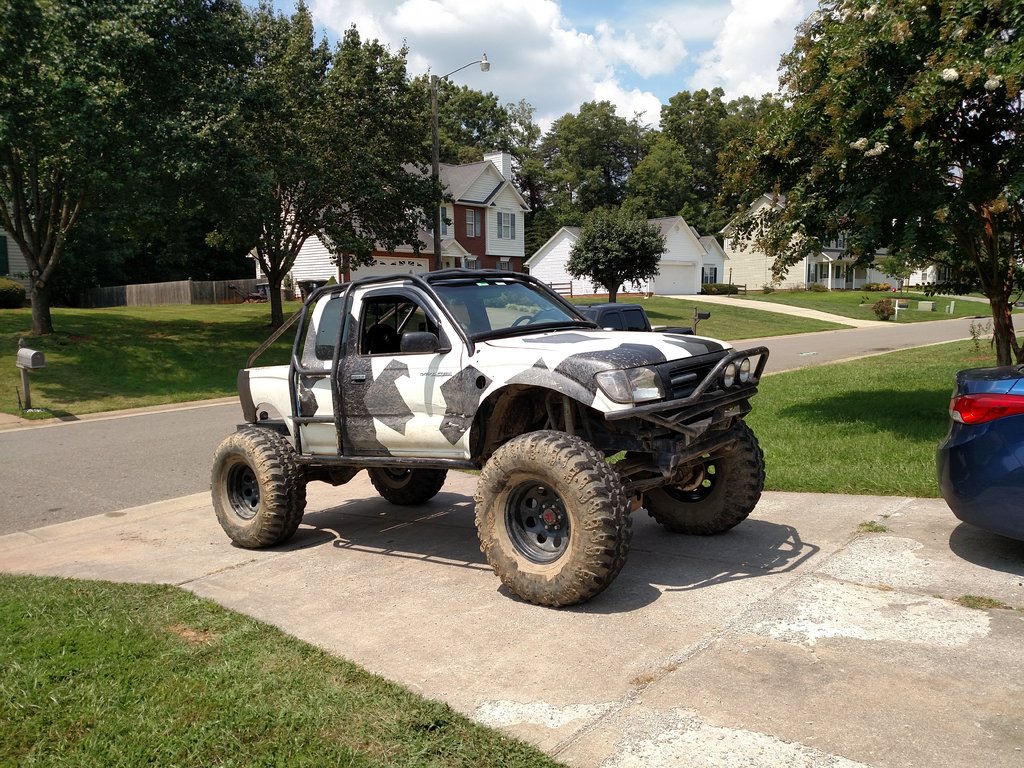

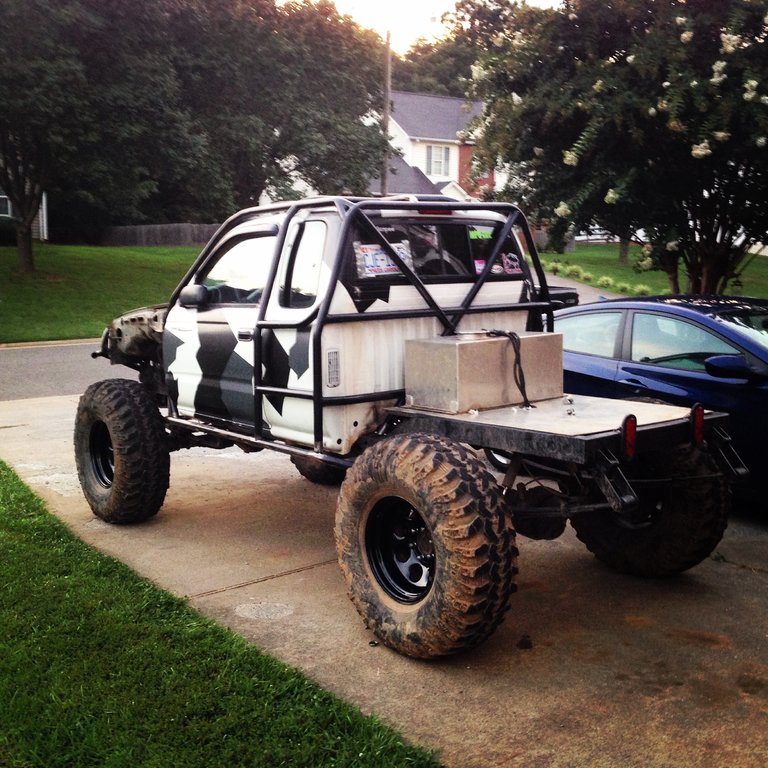

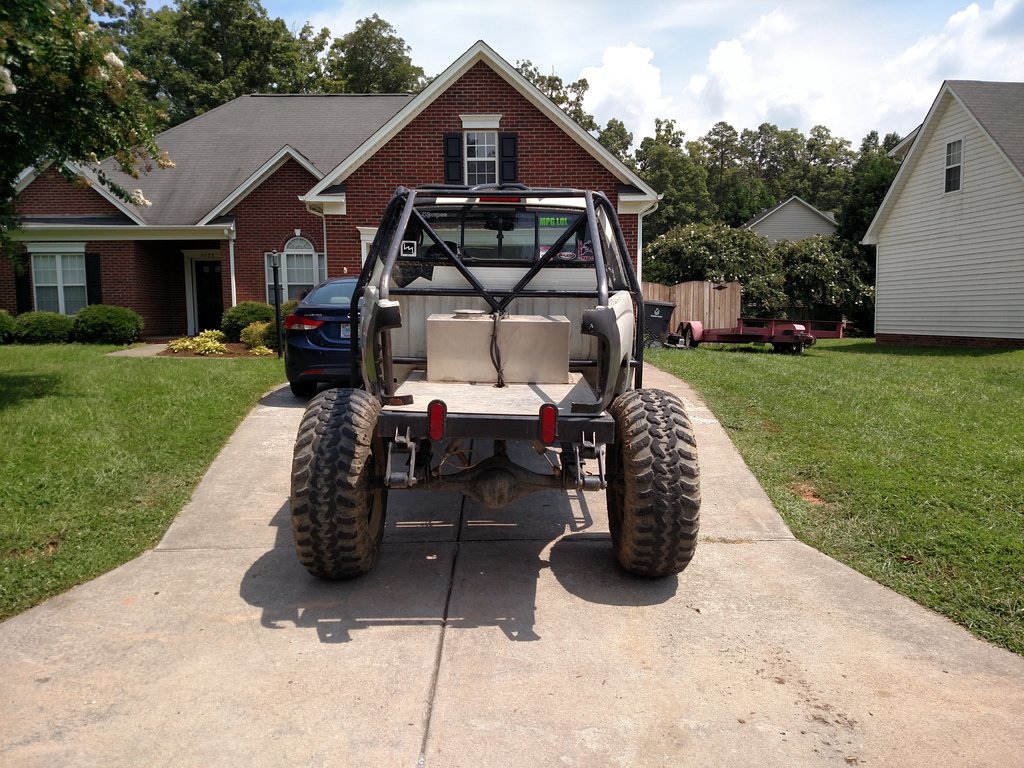

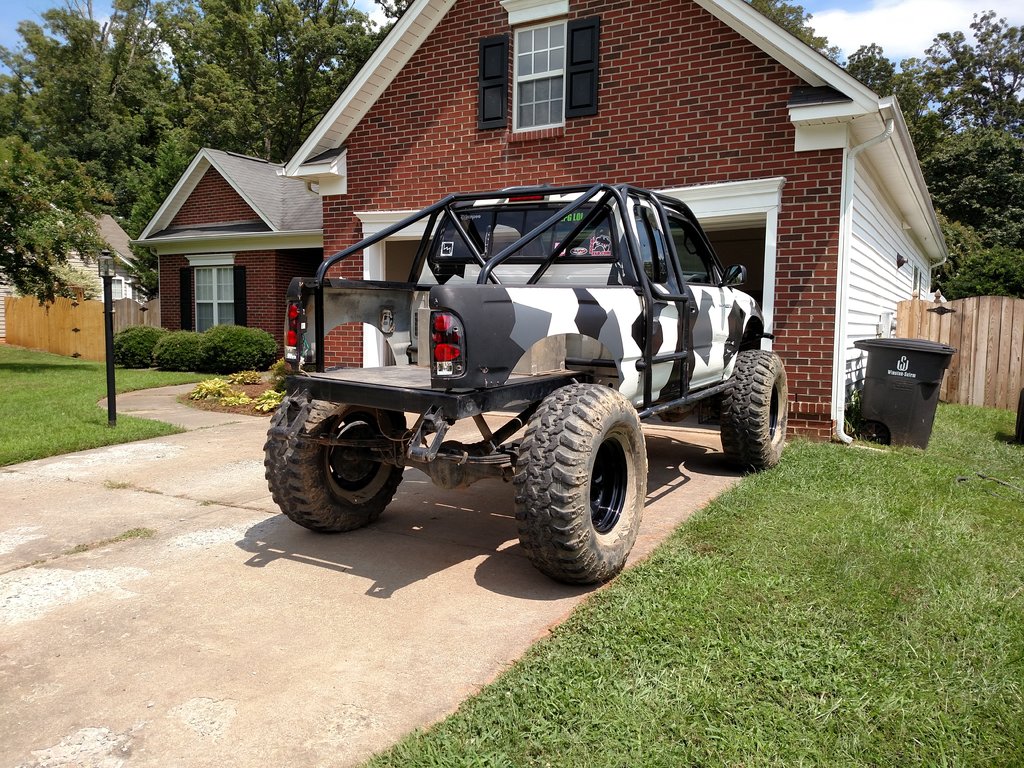

Started on the back of the truck after windrock.

awww_tacomaworld_com_media_img_20150815_135621164_476885_full_dc944fe7db55f95e2a3210bb3cc6fd3d._.jpg


awww_tacomaworld_com_media_img_20150815_135457934_476886_full_fcc1f5da3cbf0609b8dfd97a4961878d._.jpg


awww_tacomaworld_com_media_img_20150822_140307616_477722_full_ba48c0242a50b32be28ecc93ae497720._.jpg


awww_tacomaworld_com_media_img_20150822_140252467_477721_full_ba48c0242a50b32be28ecc93ae497720._.jpg

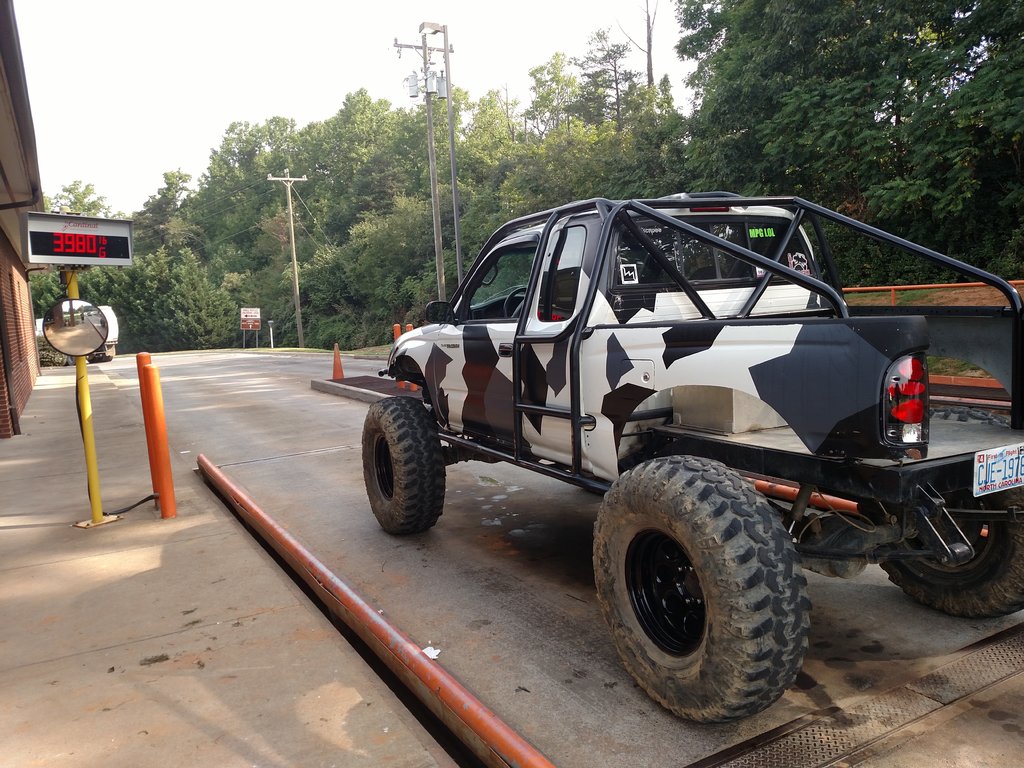

Always was curious so I weighed it, a lot lighter than expected.

awww_tacomaworld_com_media_img_20150829_100228956_478572_full_05730bbdea825d3fcf18530f8f3293be._.jpg

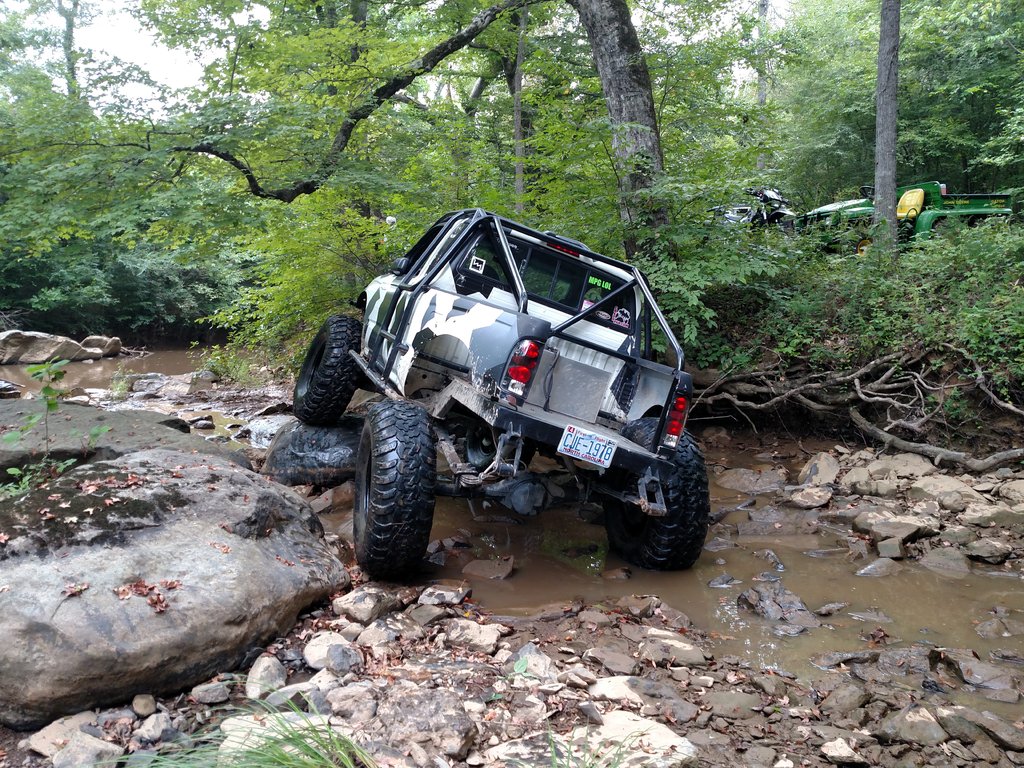

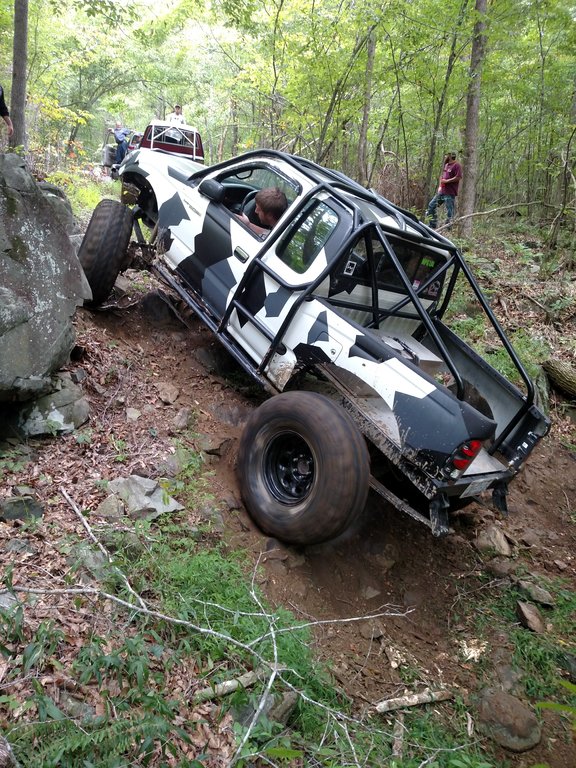

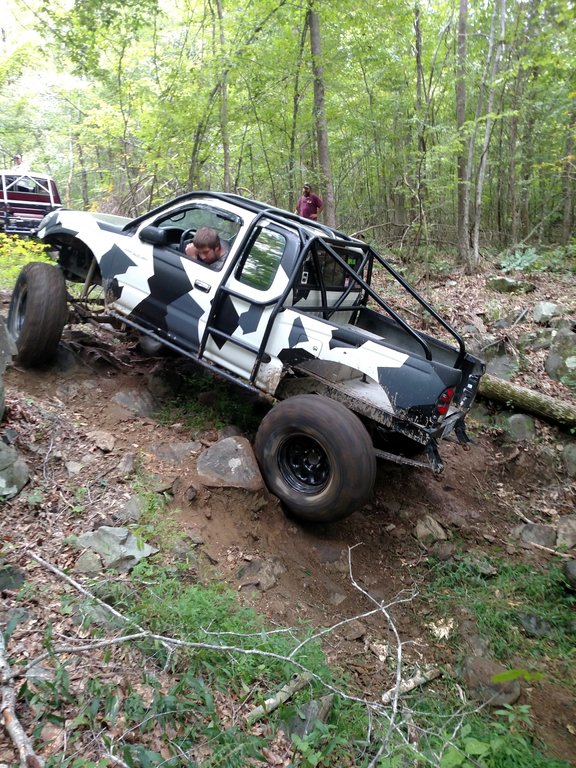

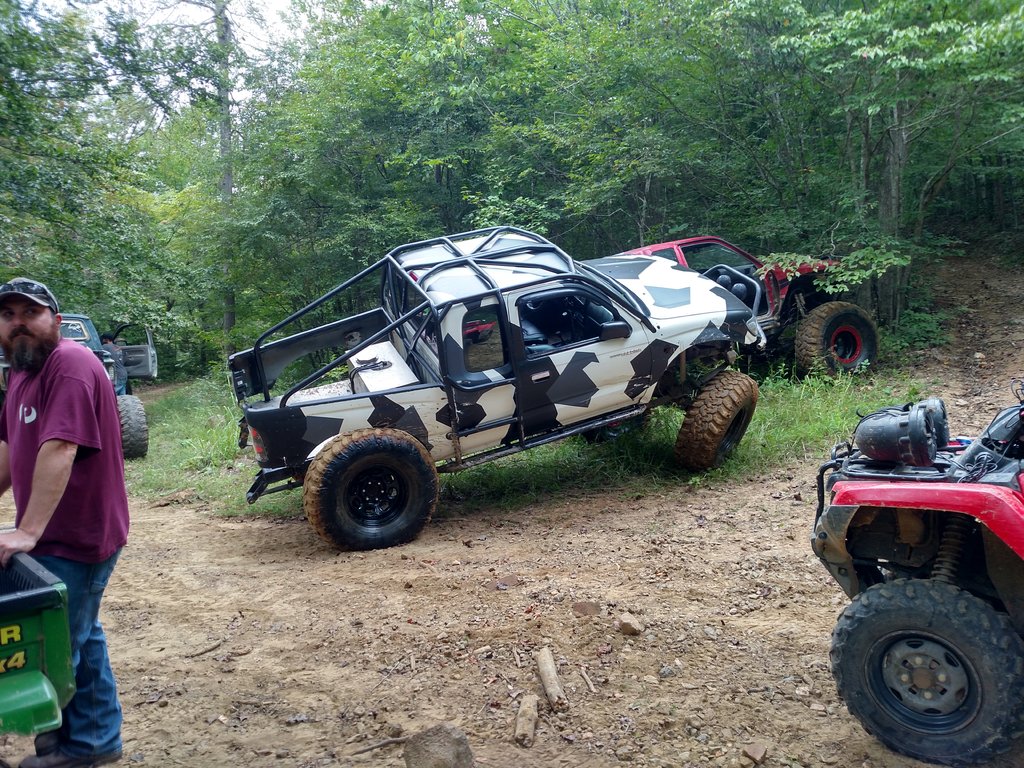

Couple wheeling shots

awww_tacomaworld_com_media_img_20150830_151139329_478989_full_40ab4adc04d1ffec9de8a19ee144d697._.jpg


awww_tacomaworld_com_media_img_20150830_151126143_478990_full_40ab4adc04d1ffec9de8a19ee144d697._.jpg


awww_tacomaworld_com_media_img_20150830_152928542_478991_full_40ab4adc04d1ffec9de8a19ee144d697._.jpg


awww_tacomaworld_com_media_img_20150830_153916709_hdr_478992_f05aaa4d5302dd7410cb3c3d13ef849ef.jpg

I really love the truck, I plan to eventually building a similar Exo on my hardbody if I ever get back started on the build. If I ever get it finished we need to get together. I'm also in Winston.


Infamous1 said:
Looking good man!! We gots to ride together again sometime.
Click to expand...

I'm game! Torn down right now but hoping to have it running by the end of the year

StokesCo.94HB said:
I really love the truck, I plan to eventually building a similar Exo on my hardbody if I ever get back started on the build. If I ever get it finished we need to get together. I'm also in Winston.

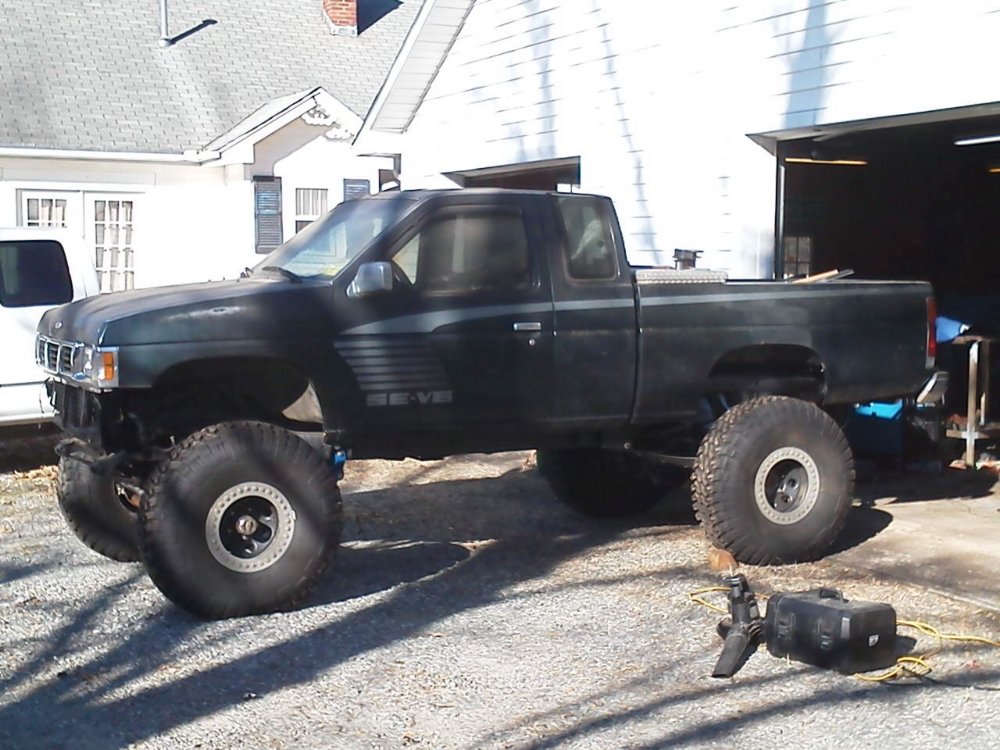

View attachment 204473
Click to expand...

Not a bad looking hardbody you got there

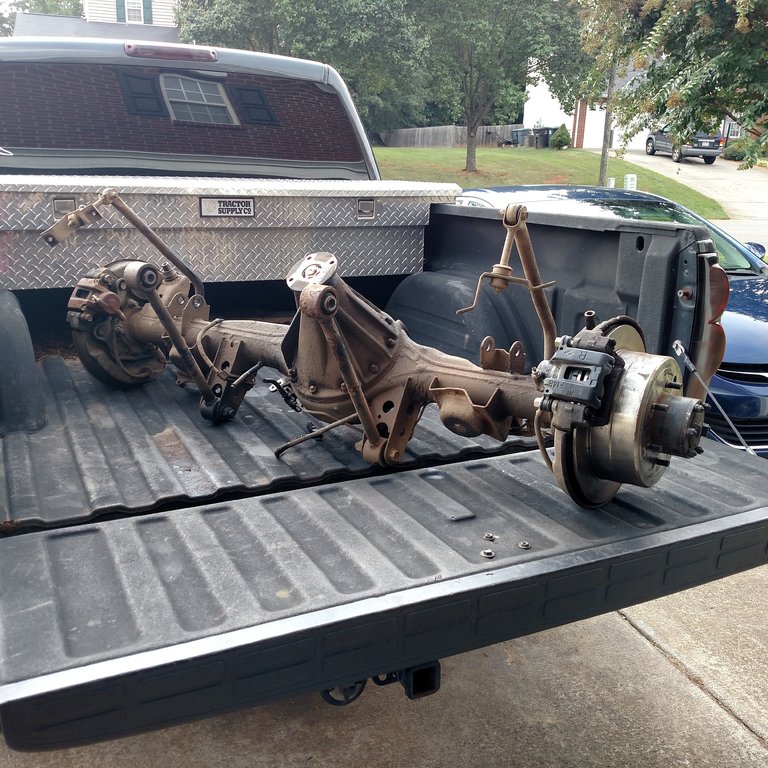

Picked up a full float fj80 for cheap

awww_tacomaworld_com_media_img_20150901_165038_479103_full_d2c0f4f56d65d165b86b56c0a4830072._.jpg

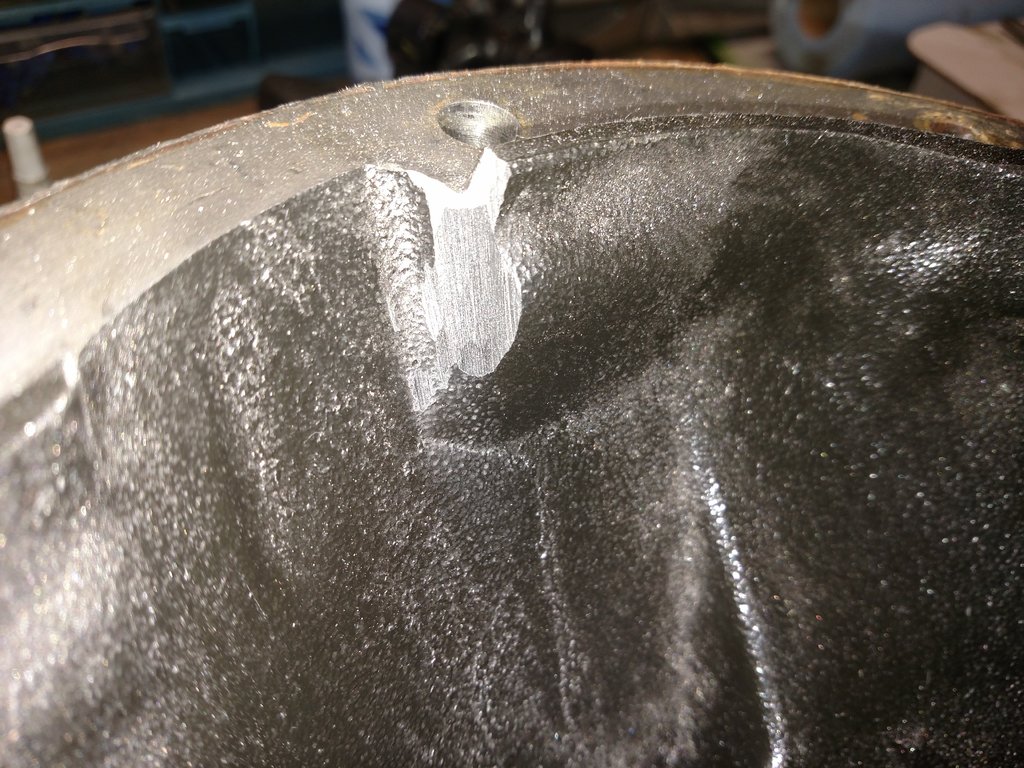

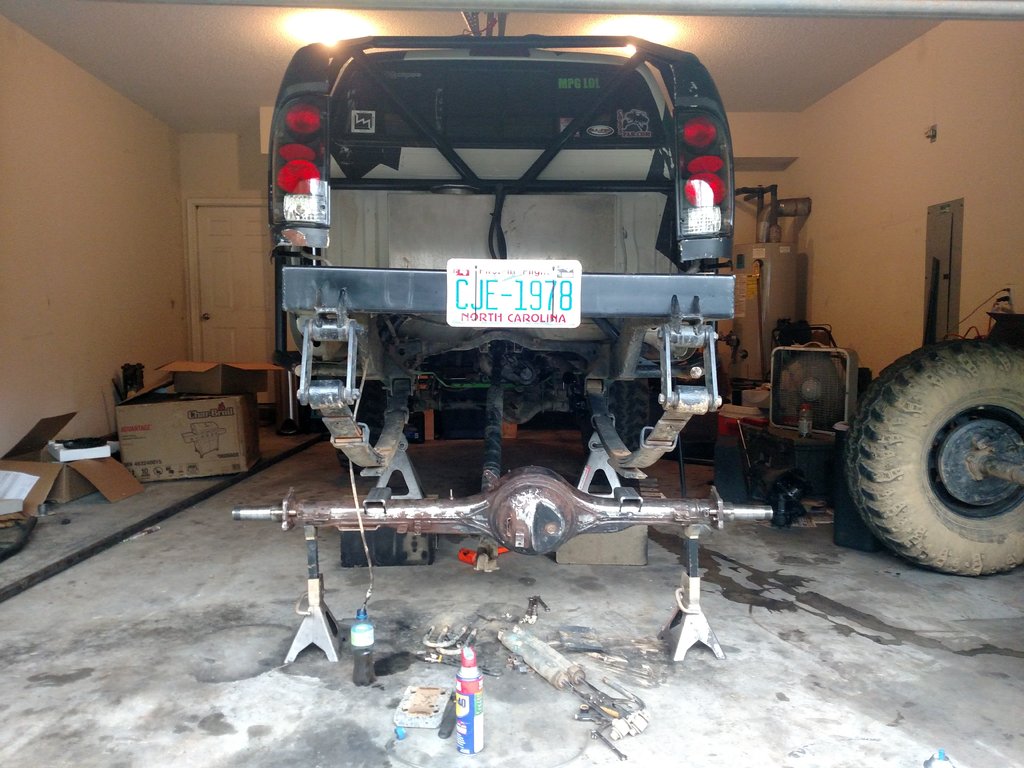

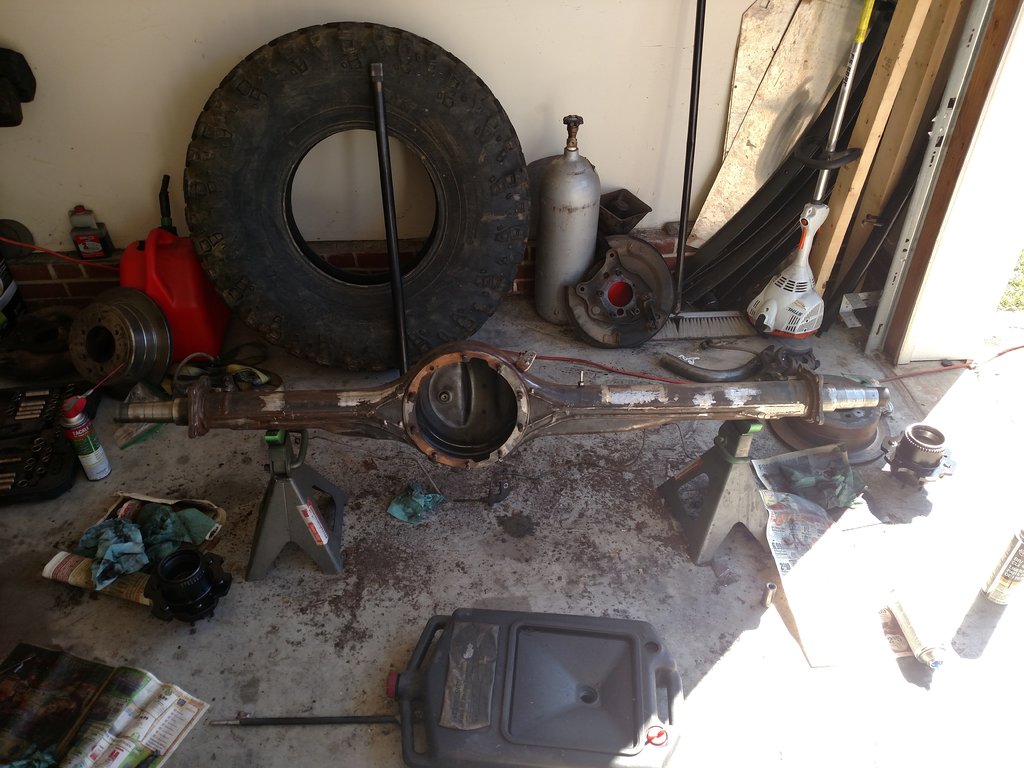

Stripped

awww_tacomaworld_com_media_img_20150919_152957215_481849_full_5af7f2586cf2ee94354e72f227056a90._.jpg


awww_tacomaworld_com_media_img_20150928_183114067_483259_full_9da9cfe86f93a03614c7a870b58876ed._.jpg

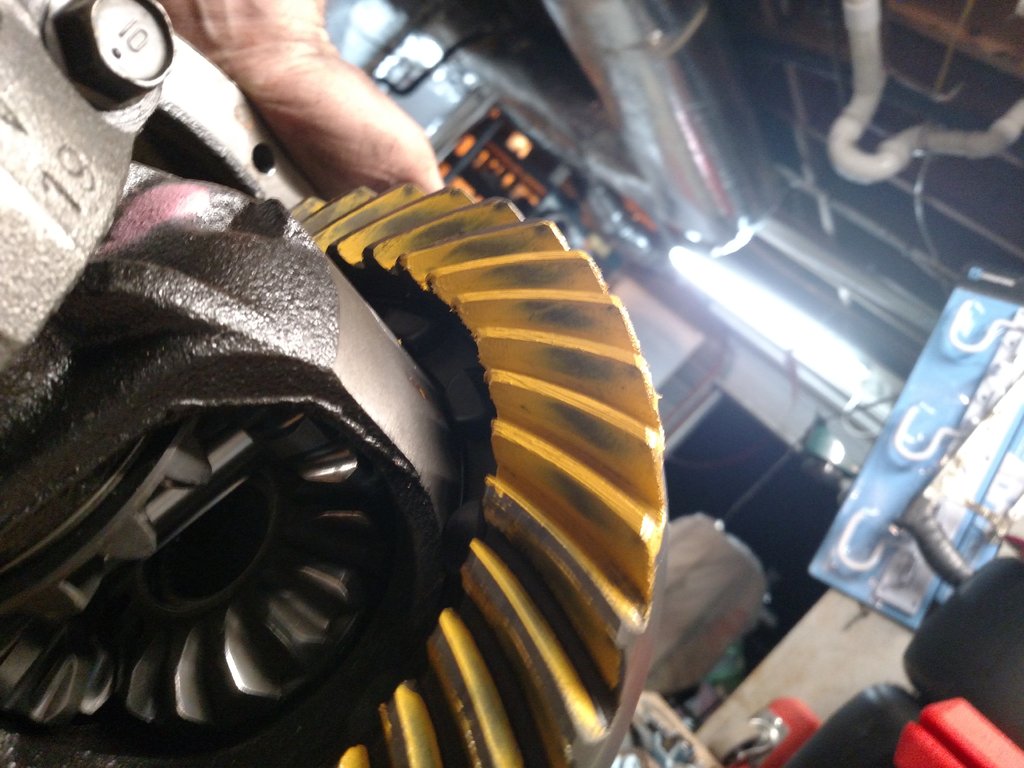

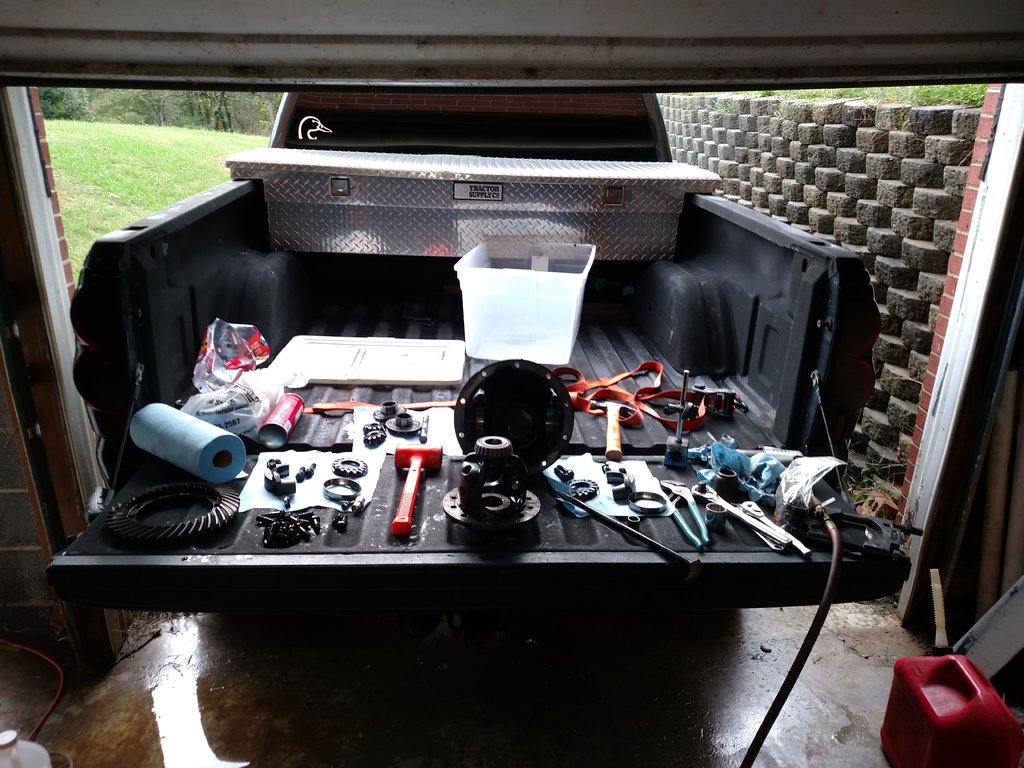

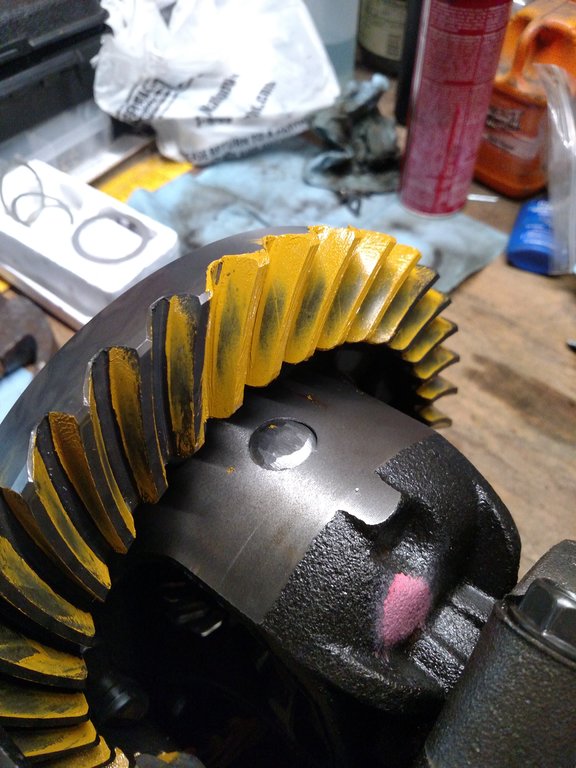

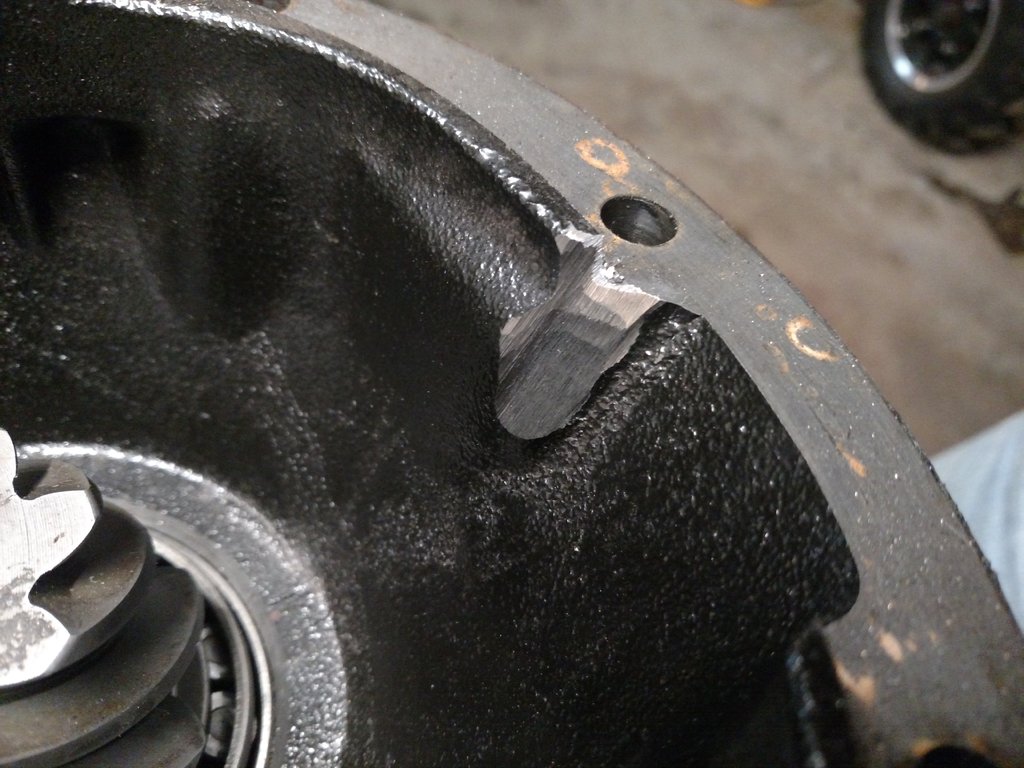

Re-geared to 5.29

awww_tacomaworld_com_media_img_20150929_173612505_483260_full_9da9cfe86f93a03614c7a870b58876ed._.jpg


awww_tacomaworld_com_media_img_20151003_163301107_483671_full_2a29aaf07c99f3b76aa7e1091f28ab57._.jpg


awww_tacomaworld_com_media_img_20151003_163317285_483672_full_2a29aaf07c99f3b76aa7e1091f28ab57._.jpg


awww_tacomaworld_com_media_img_20151003_195756864_483673_full_2a29aaf07c99f3b76aa7e1091f28ab57._.jpg


awww_tacomaworld_com_media_img_20151003_195802181_483674_full_2a29aaf07c99f3b76aa7e1091f28ab57._.jpg

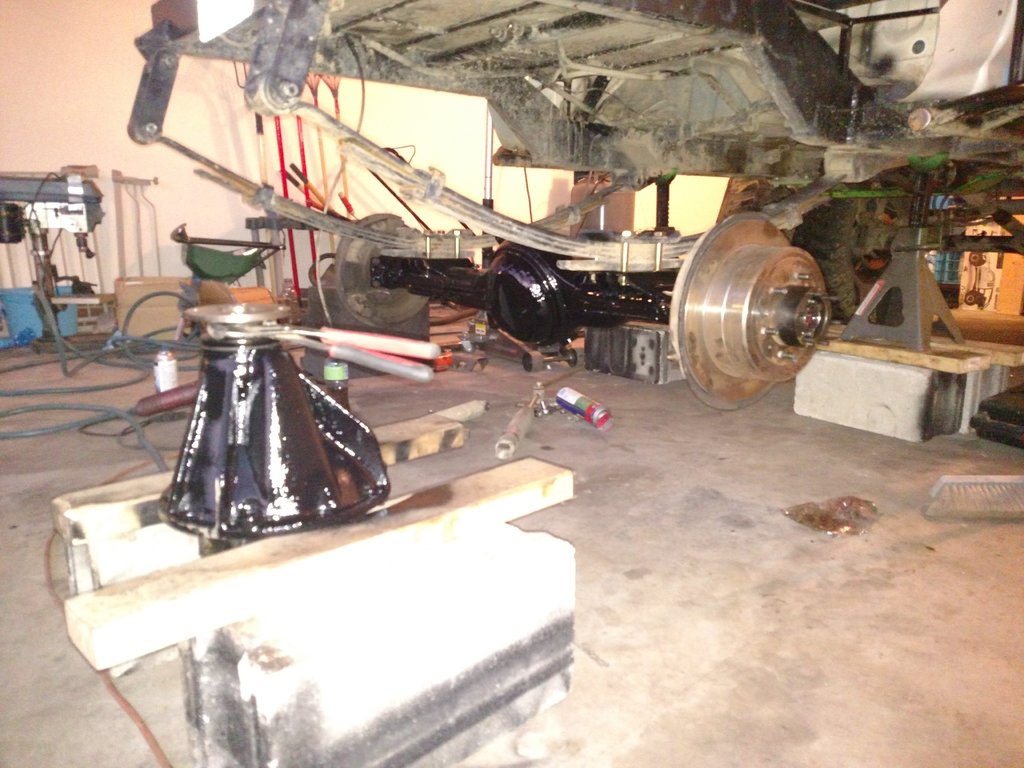

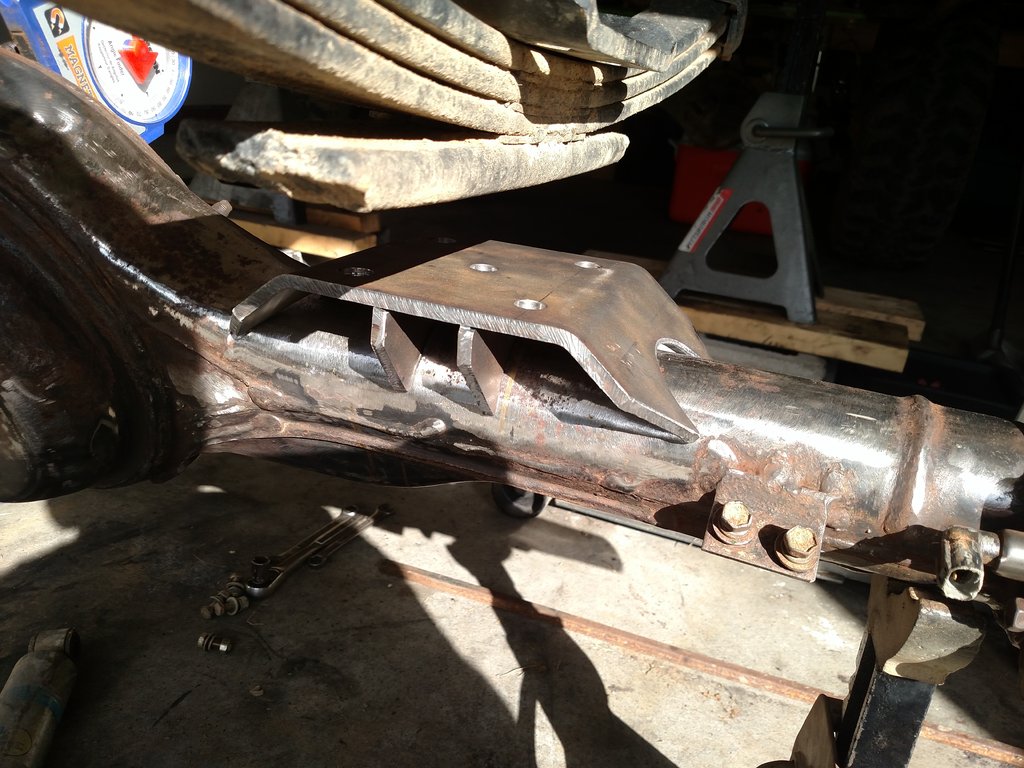

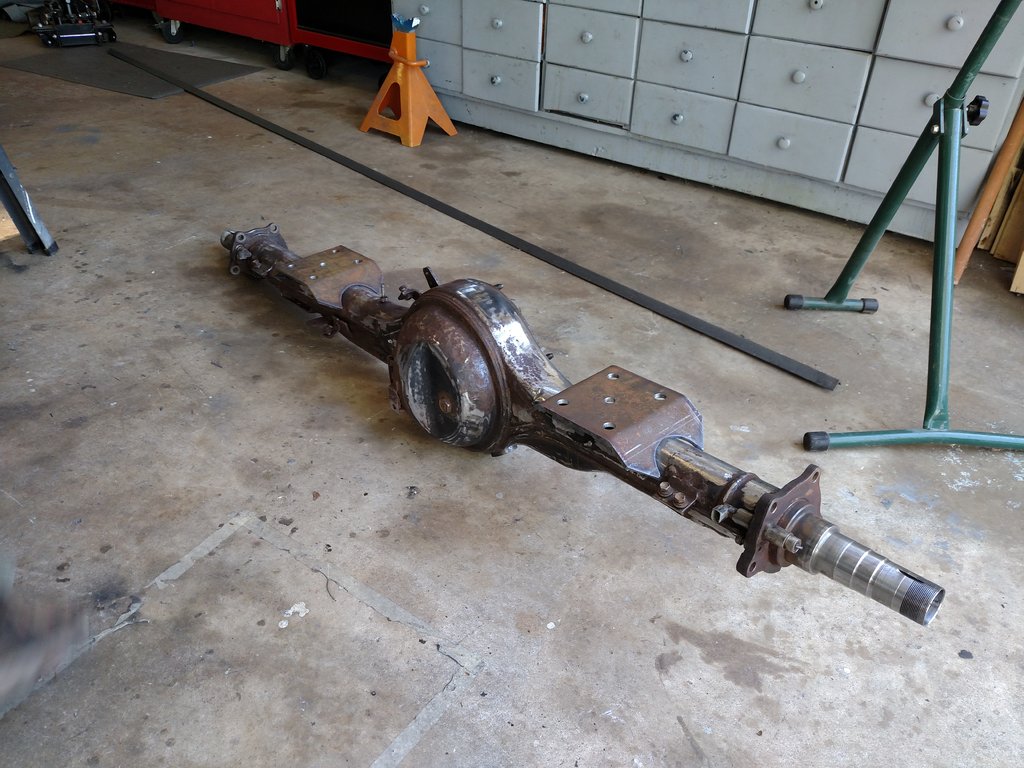

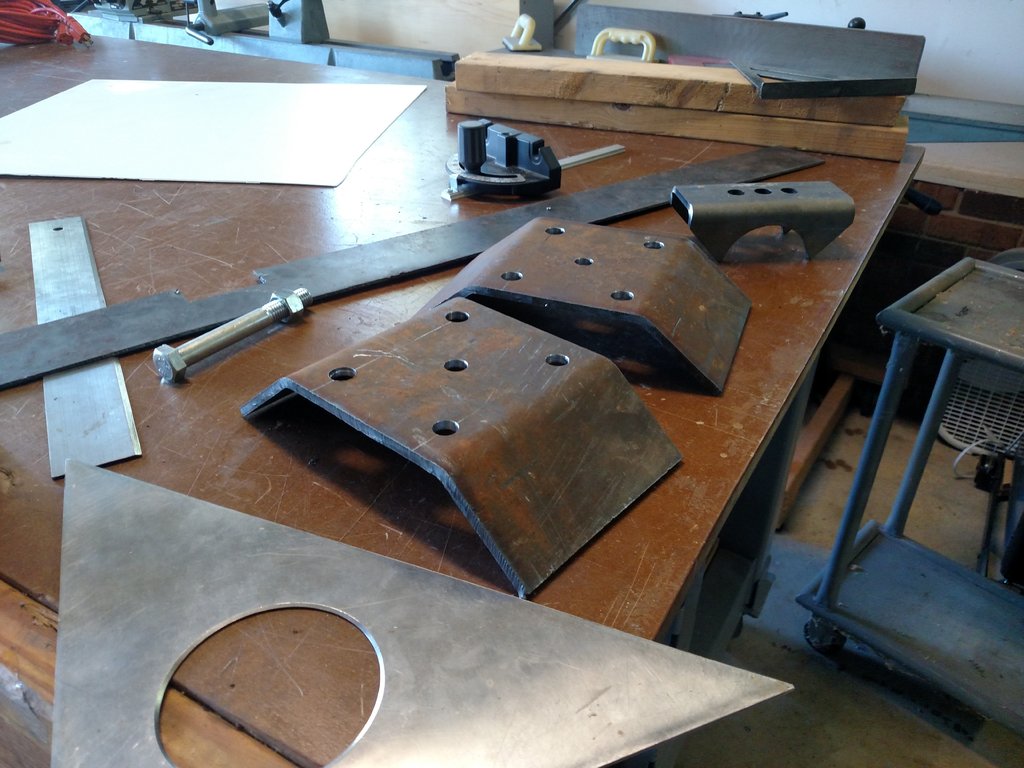

U bolts wouldn't work with the square truss on the bottom and the pinion angle I wanted so I went to a buddies and we whipped up some u bolt eliminators

awww_tacomaworld_com_media_img_20151011_101748689_484800_full_a97678f90eac999688e91db514110ebf._.jpg


awww_tacomaworld_com_media_img_20151011_120049364_484801_full_a97678f90eac999688e91db514110ebf._.jpg


awww_tacomaworld_com_media_img_20151011_160655655_484802_full_a97678f90eac999688e91db514110ebf._.jpg


awww_tacomaworld_com_media_img_20151014_190752045_485379_full_d26435491a2b71c9f079cbd20b4ec9c6._.jpg

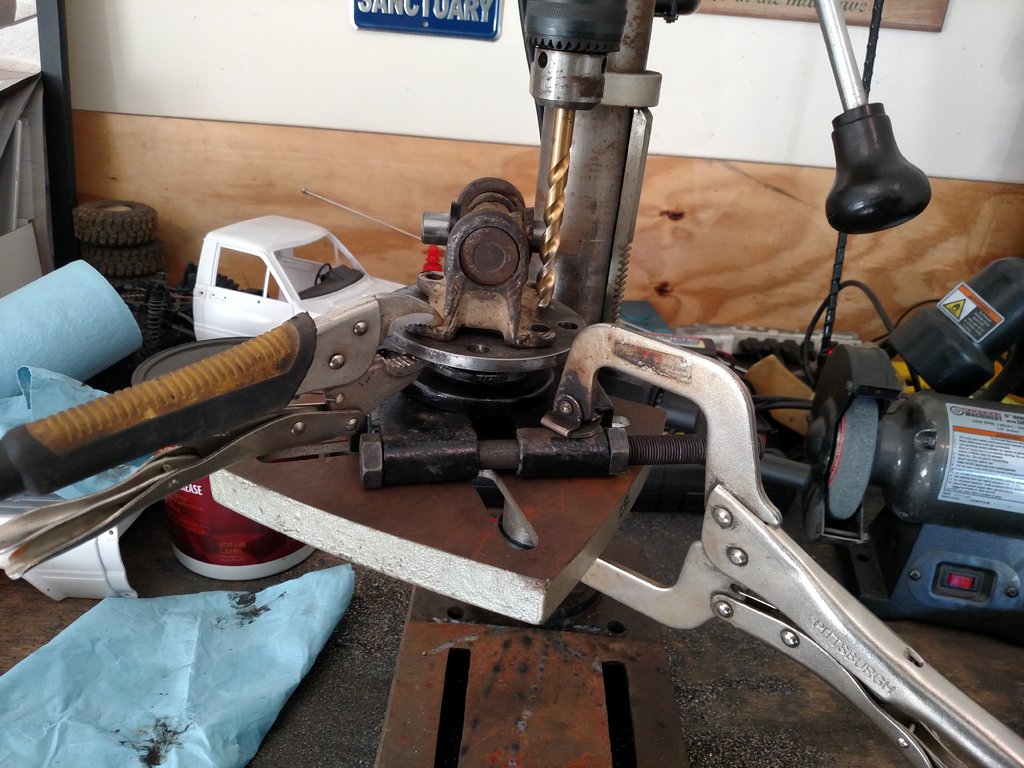

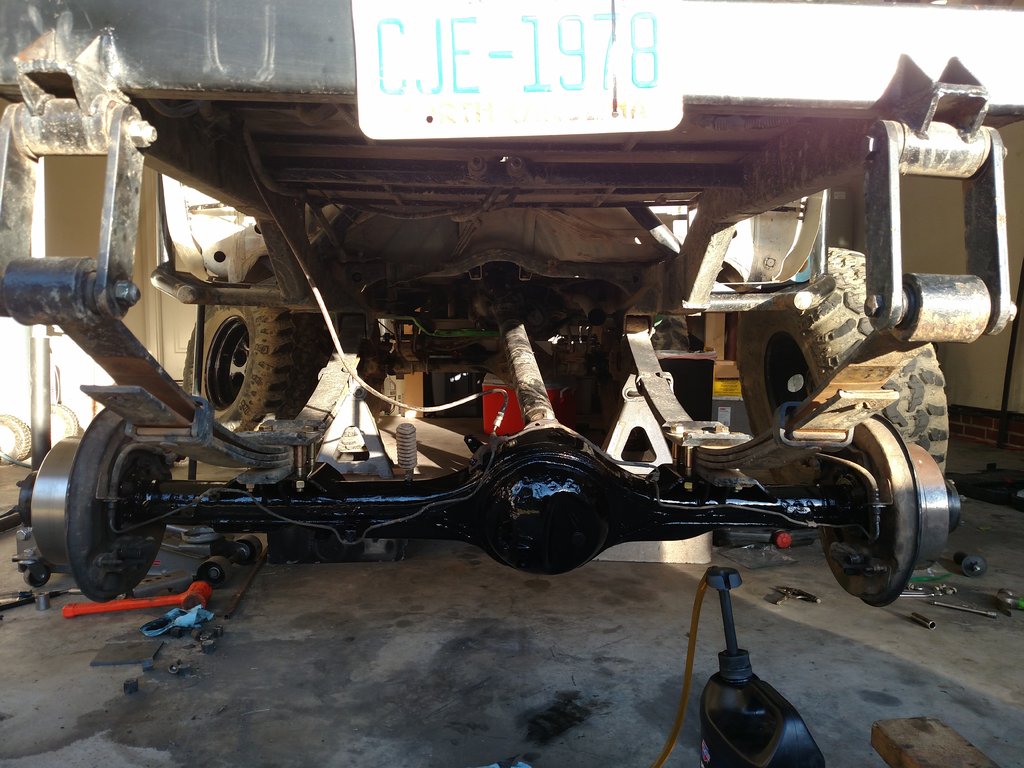

Drilling LC flange to accept tacoma driveshaft

awww_tacomaworld_com_media_img_20151015_172519884_485529_full_76d824cd909fe6cf3b29b027041c1ef9._.jpg


awww_tacomaworld_com_media_img_20151016_174334547_485632_full_702a7c8ea289bcc336ceada5a0c897c0._.jpg

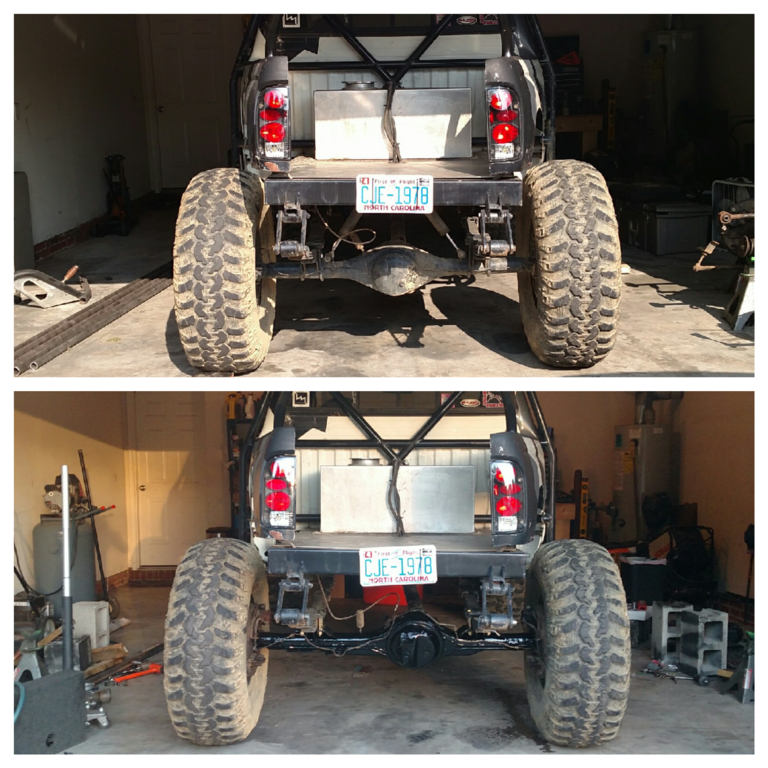

awww_tacomaworld_com_media_axle_swap_jpg_485635_full_702a7c8ea289bcc336ceada5a0c897c0._.png

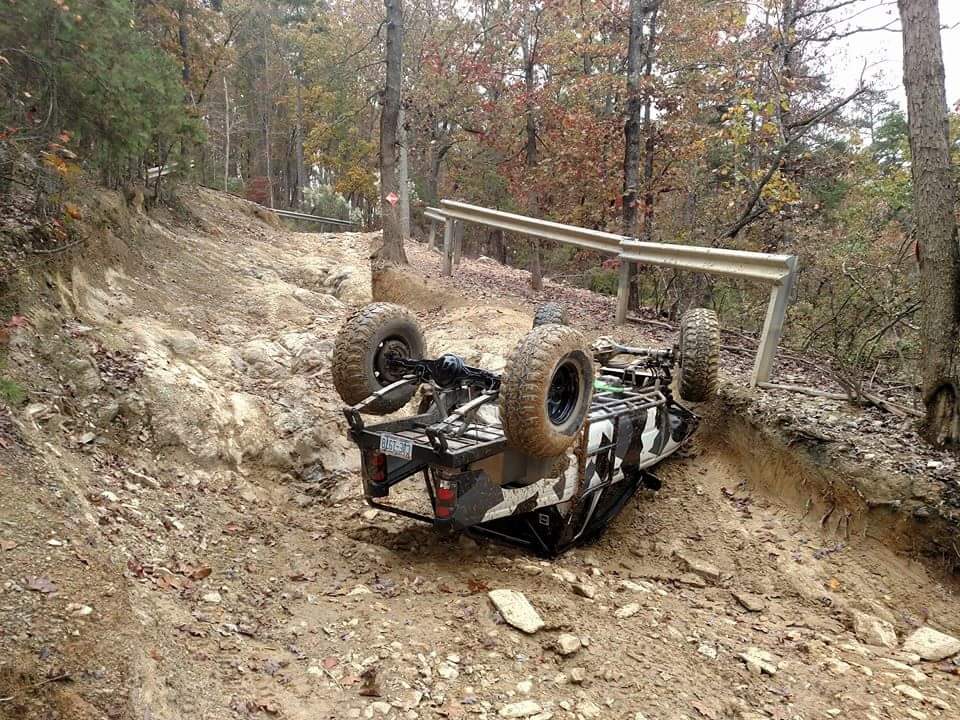

Rolled it trying the far left after it had just rained. Cage held up awesome, only damage I could find was a penny sized dent in one of the roof tubes

awww_tacomaworld_com_media_rollover_489022_full_2d2901f18c5f2ddc2df367c1edc7540b._.jpg

frankenyoter said:
I like the ubolt eliminators. I did u bolts and just cranked them down, but that that's slick.
Click to expand...

Yeah if I wouldn't have inboarded my springs I could have gotten away with u bolts. Where my springs are now the u bolts would slide over the truss but were tilted way back and there was no way they'd fit in the top plate.

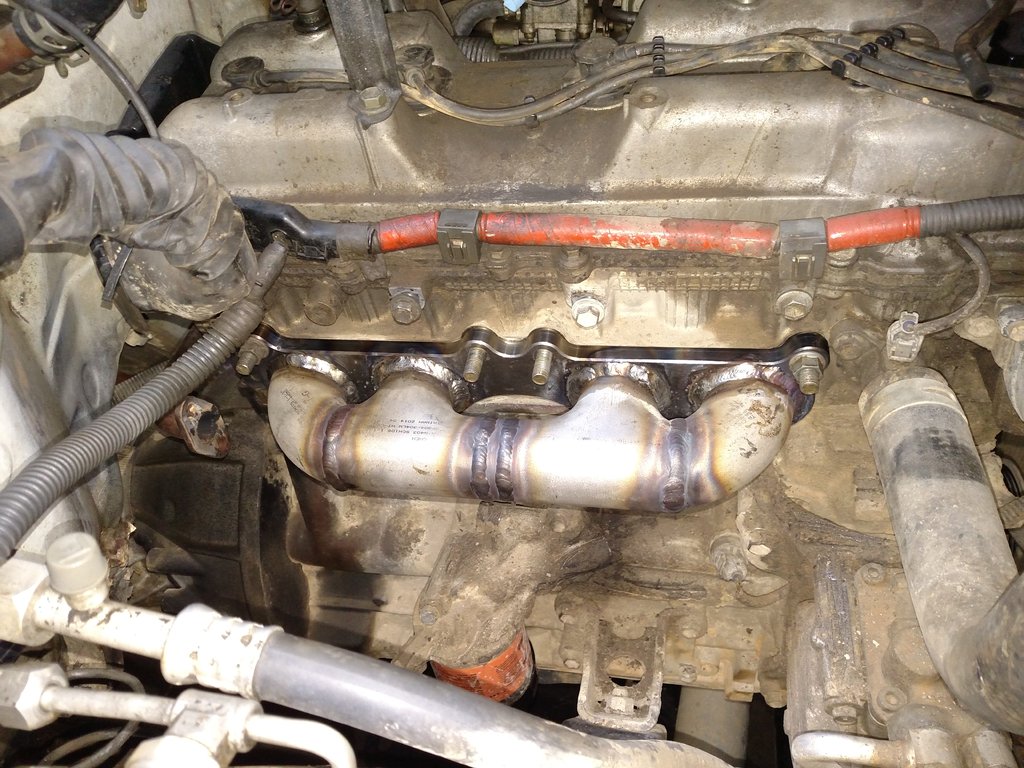

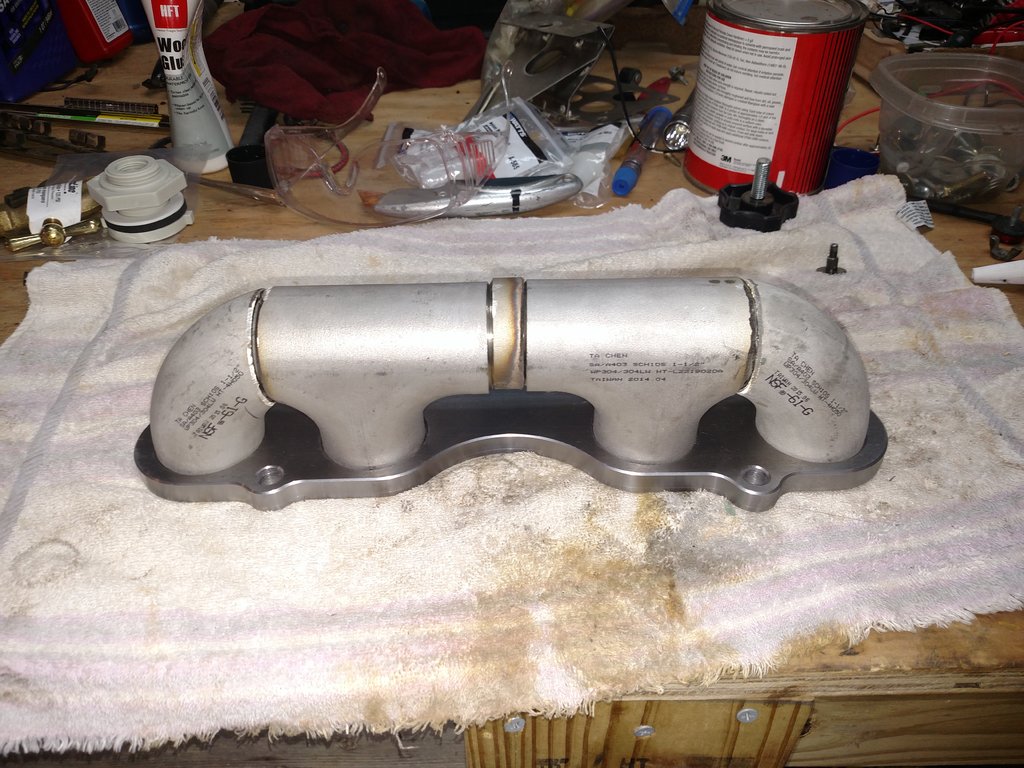

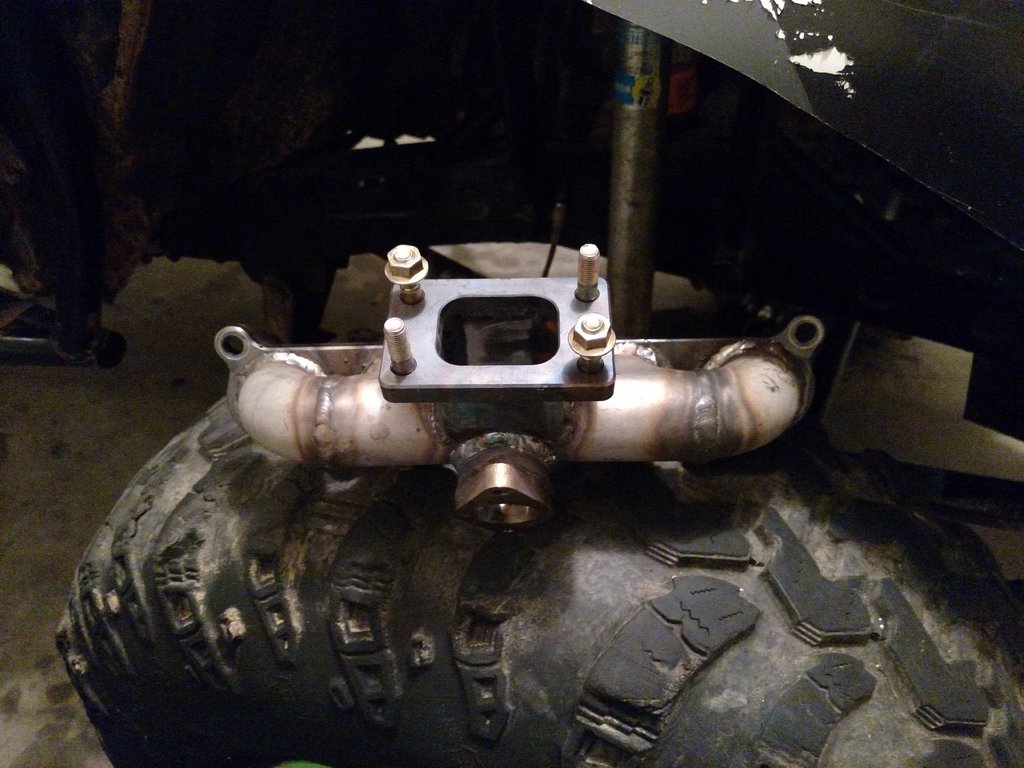

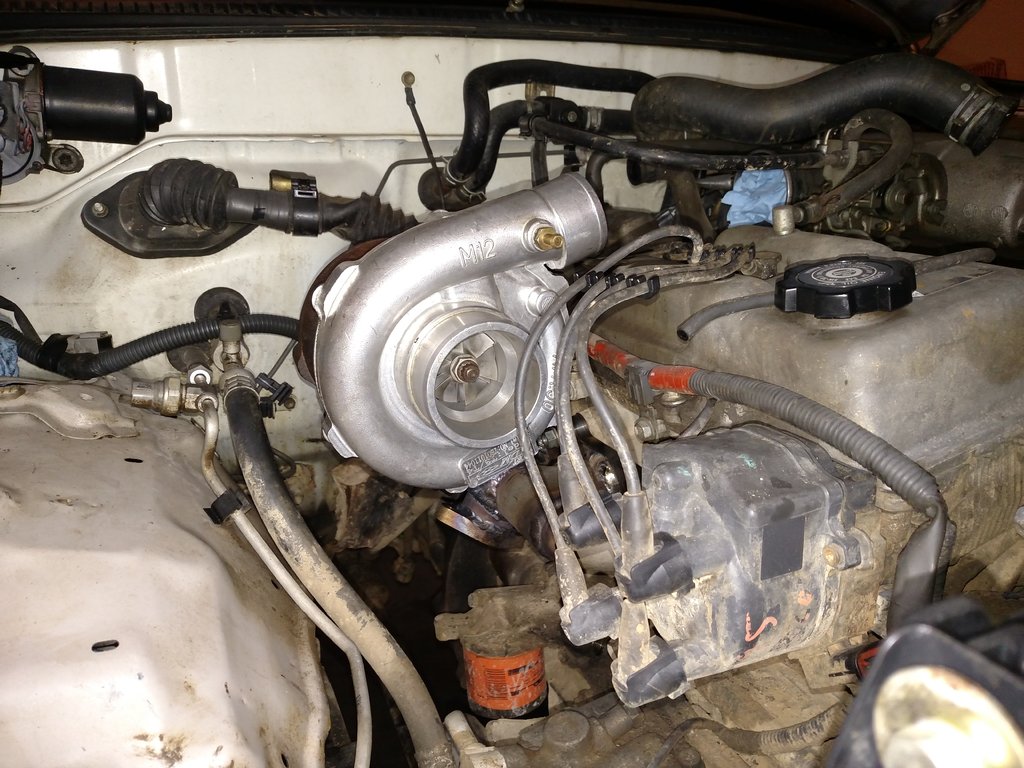

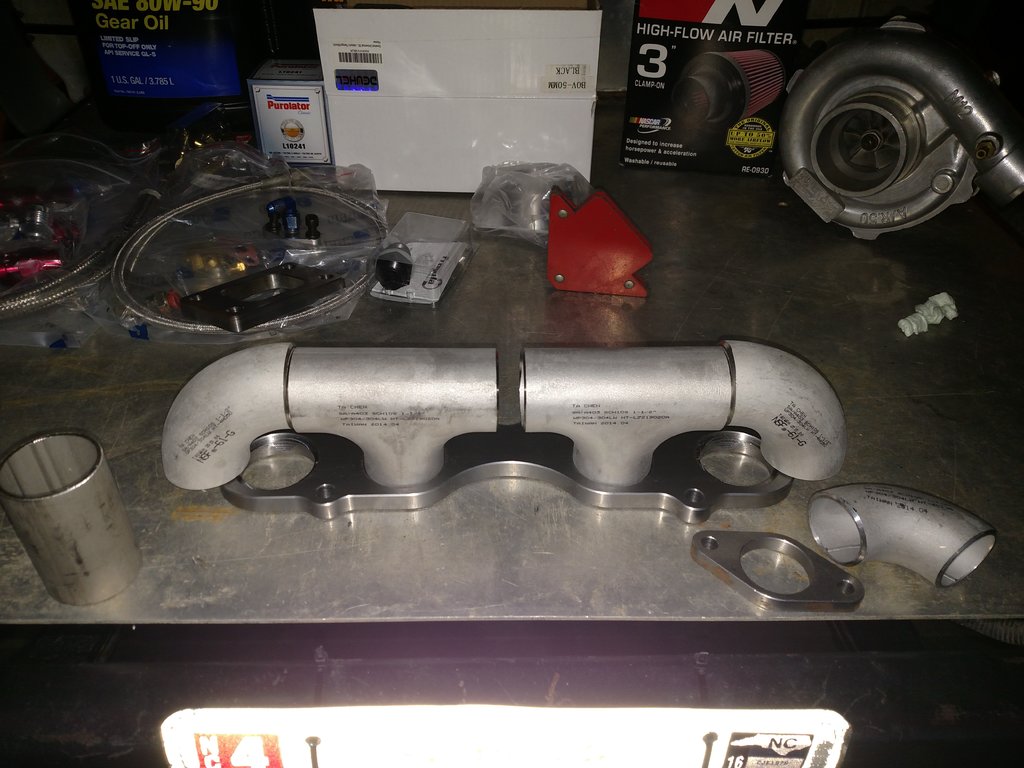

Some pics from the manifold build. 304 Stainless sch 10 pipe

awww_tacomaworld_com_media_img_20151210_172600655_493532_full_456c6b5a288e57ff45c23f781e61dd61._.jpg


awww_tacomaworld_com_media_img_20151212_104922337_493951_full_9510e2be43ec9b2bbb19d0ce984f18fe._.jpg


awww_tacomaworld_com_media_img_20151212_172044269_493952_full_9510e2be43ec9b2bbb19d0ce984f18fe._.jpg


awww_tacomaworld_com_media_img_20151214_201724558_494263_full_39e2c387325a0254be982d8c36eb9878._.jpg


awww_tacomaworld_com_media_img_20151214_202334646_494264_full_39e2c387325a0254be982d8c36eb9878._.jpg

ORV design and fab said:
Dang man, you were serious when you said you were getting ready to boost!!!! Awesome sorry I haven't gotten back with you. What turbo did you go with? Great looking manifold too!
Click to expand...

Haha yeah when I get an idea in my head I tend to run with it! Turbo is a knockoff .50 a/r t3/t4. I picked it up super cheap so I figured I'd use it to build my setup around then replace it with a better quality turbo down the road.

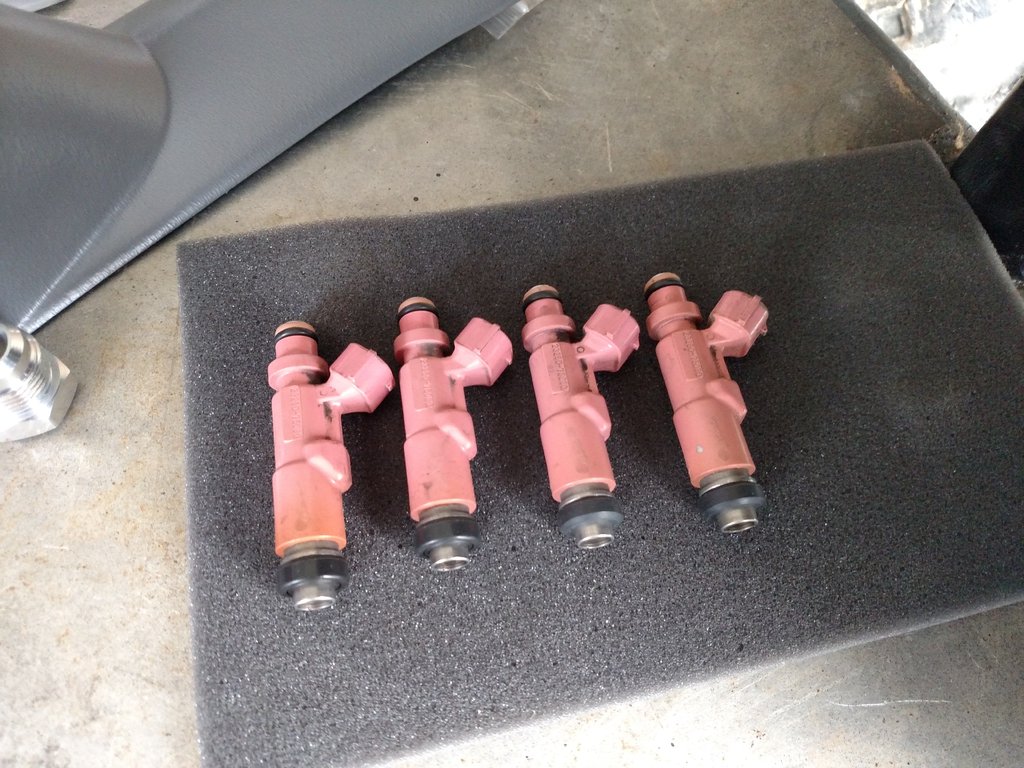

My injectors got here today.

awww_tacomaworld_com_media_img_20151221_163227489_495187_full_992ee802412f671772e33a5109de0f73._.jpg

Black Bear said:
how much boost are you planning on making?

how many miles are on that motor?
Click to expand...

Going to start at 5psi and see how it goes; shooting for 7-8psi on only injectors and a fuel pump. If I get bored I may add a piggy back and bump the boost up to 10-12psi. Motor has ~130k. From everything I've read 3rz's are good up to 15 psi on stock internals but head studs are a good idea there.

Black Bear said:
Hurry up and finish.. I am planning a revamp next summer and a turbo could be a great addition.


plans for the EGR?
Click to expand...

Well I am off work for the rest of the year so I should start making some good progress in the next day or so. I'm going to leave the egr in place and just cap it for now. I have the truck tagged so I will need to pass inspection and wont be able to do so if the CEL is on. I've read you can add a resistor to fool the computer into thinking it's still intact so I'm going to try that before I completely remove it.

ORV design and fab said:
Are you going to do any fuel management aside of the bigger injectors? What injectors are you using??? I am all kinds of jealous by the way
Click to expand...

No the stock 3rz ecu should be able to handle the boost I'm wanting to run. If I want to go bigger I will have to get some sort of piggy back like megasquirt, map3ecu, ect. The injectors are factory toyota pink tops that come in 01-04 3rz's, they are 315cc I believe.

GearHead11 said:
No the stock 3rz ecu should be able to handle the boost I'm wanting to run. If I want to go bigger I will have to get some sort of piggy back like megasquirt, map3ecu, ect. The injectors are factory toyota pink tops that come in 01-04 3rz's, they are 315cc I believe.
Click to expand...


are you going to install an air/fuel gauge or just do data logging on the obd2 to see if you are too lean?

Black Bear said:
are you going to install an air/fuel gauge or just do data logging on the obd2 to see if you are too lean?
Click to expand...

I bought an AEM wideband gauge.

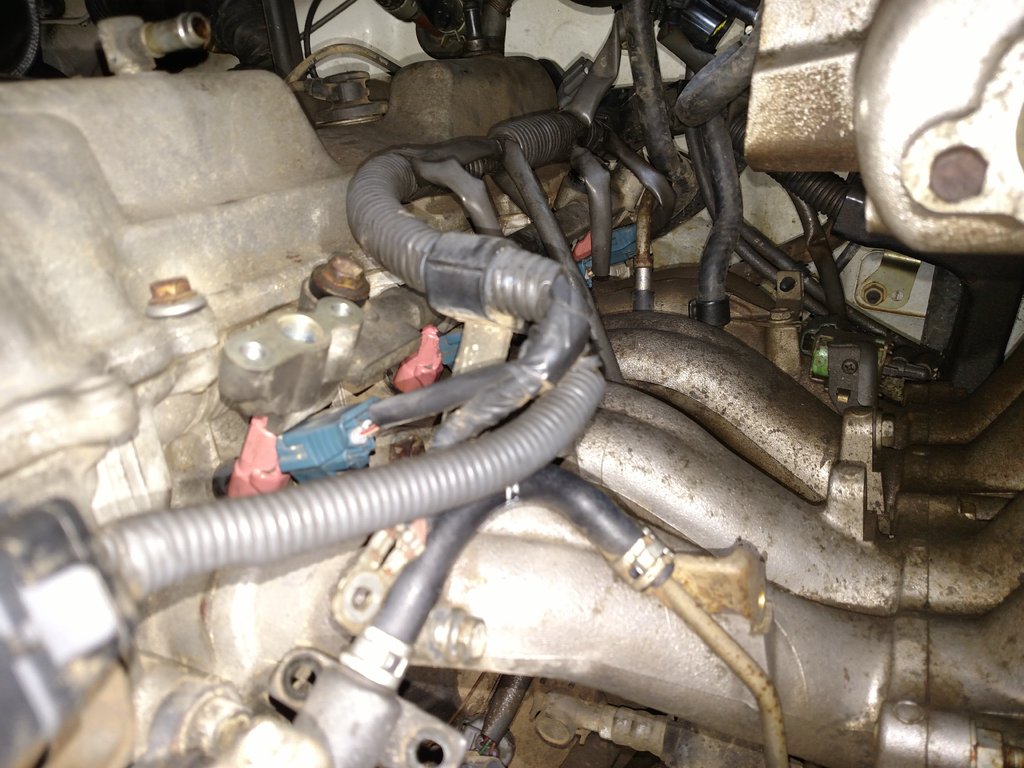

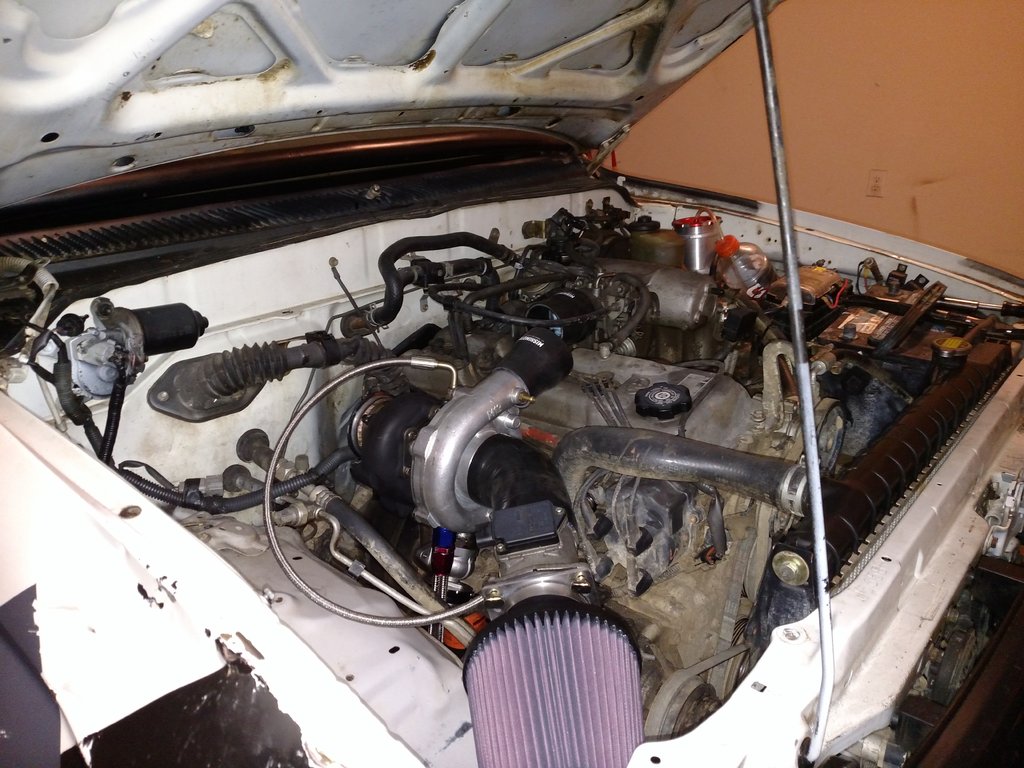

Got the injectors in and took a quick progress shot

awww_tacomaworld_com_media_img_20151223_105002388_495475_full_b9798038aa4621285542681112d4fdea._.jpg


awww_tacomaworld_com_media_img_20151223_121911640_495476_full_b9798038aa4621285542681112d4fdea._.jpg
