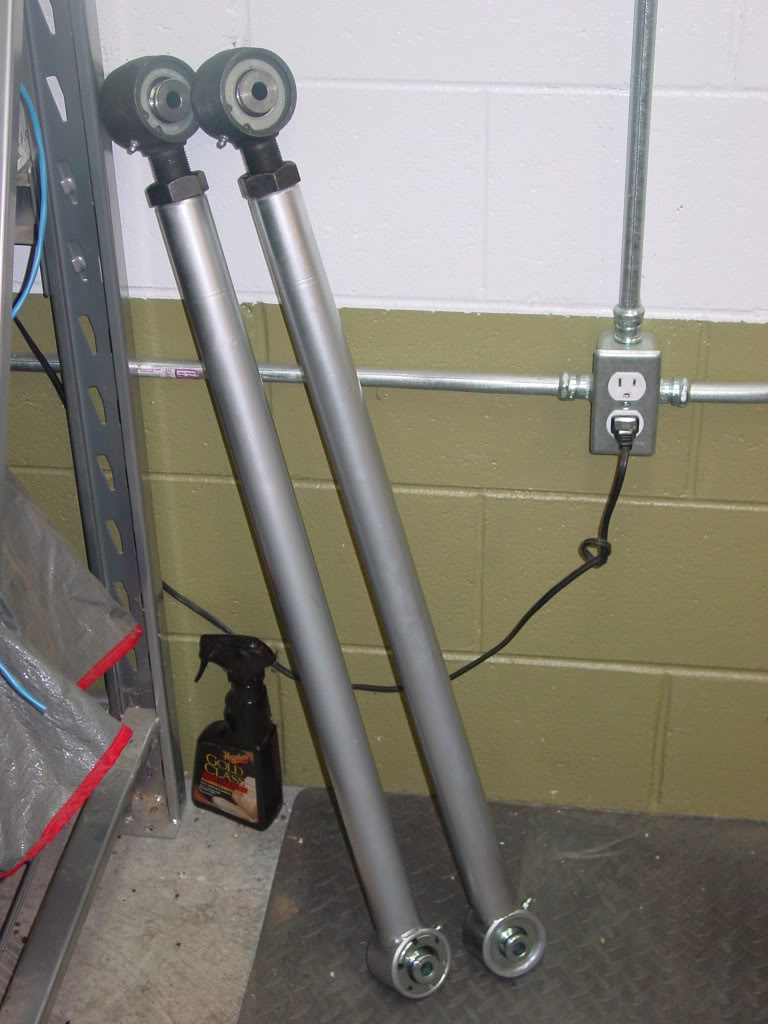

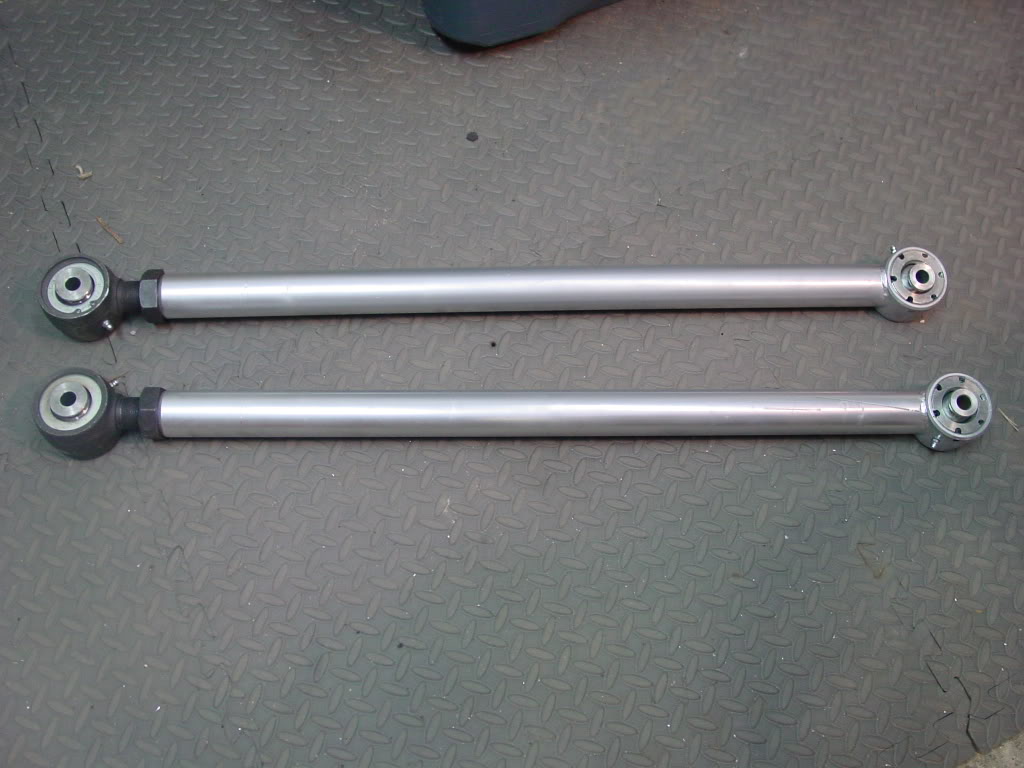

Completed Lowers, Just need to paint them.

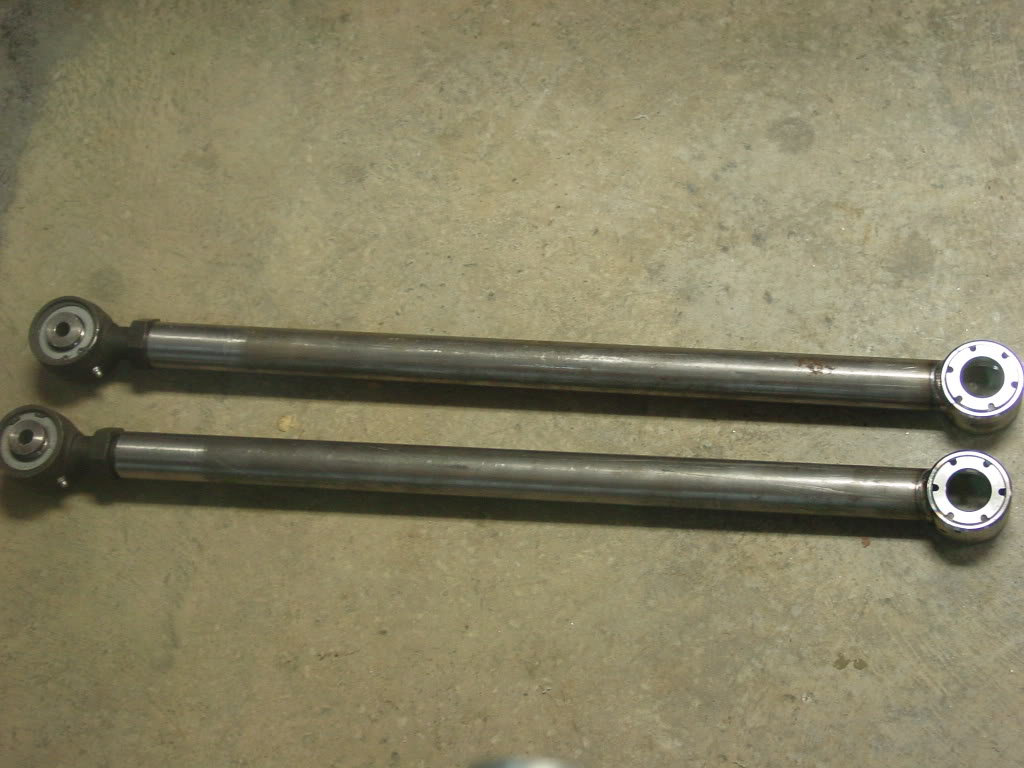

33'' Bolt to Bolt

ai298.photobucket.com_albums_mm279_burrellsjeep_001.jpg_2918676e0faf37265732250730085586.jpg

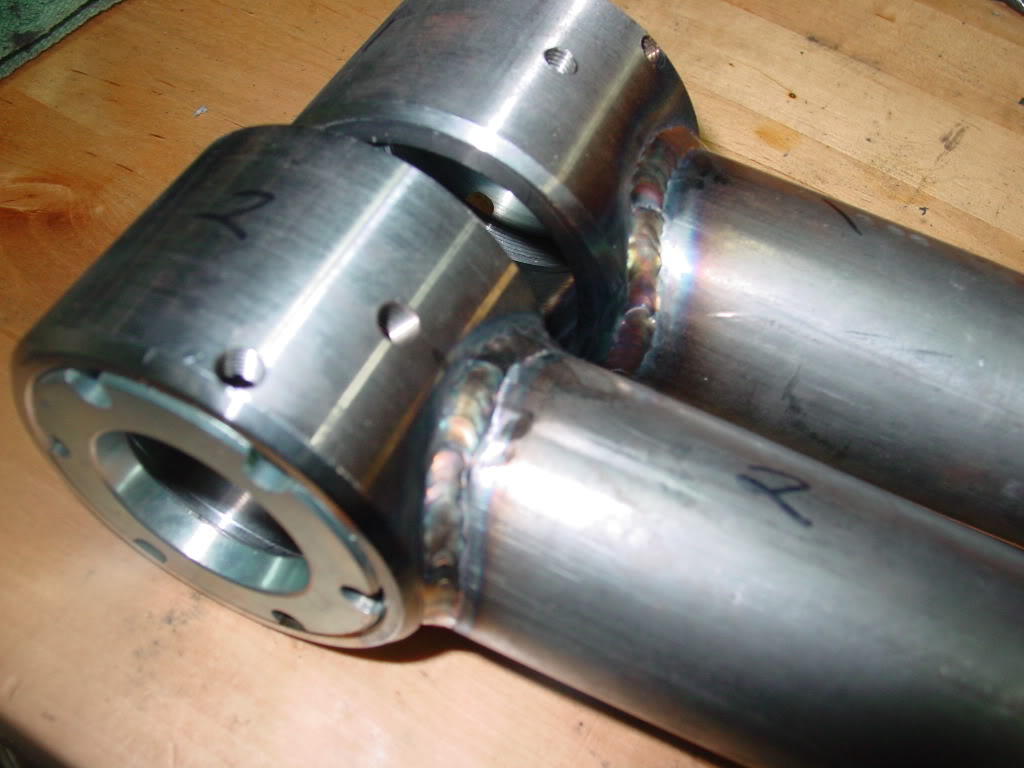

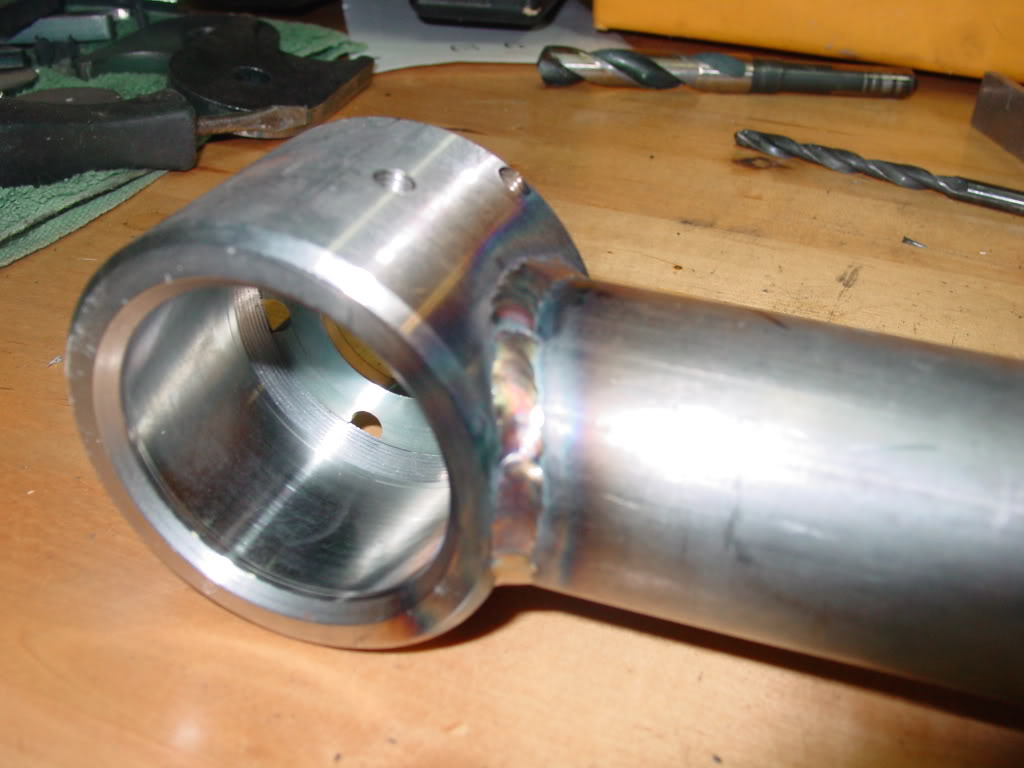

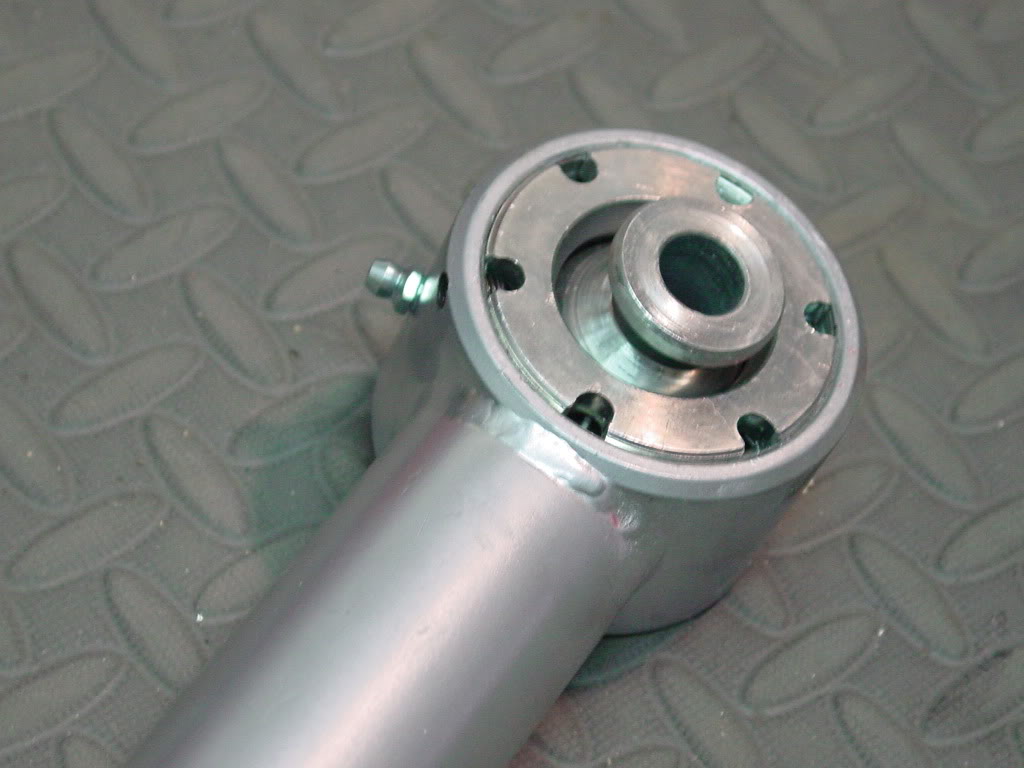

Welds

ai298.photobucket.com_albums_mm279_burrellsjeep_012_4.jpg_17ccd5be54a736df9b8701d9604b979f.jpg
ai298.photobucket.com_albums_mm279_burrellsjeep_010_8.jpg_7fa745ba0c31b367af5d182b98818600.jpg

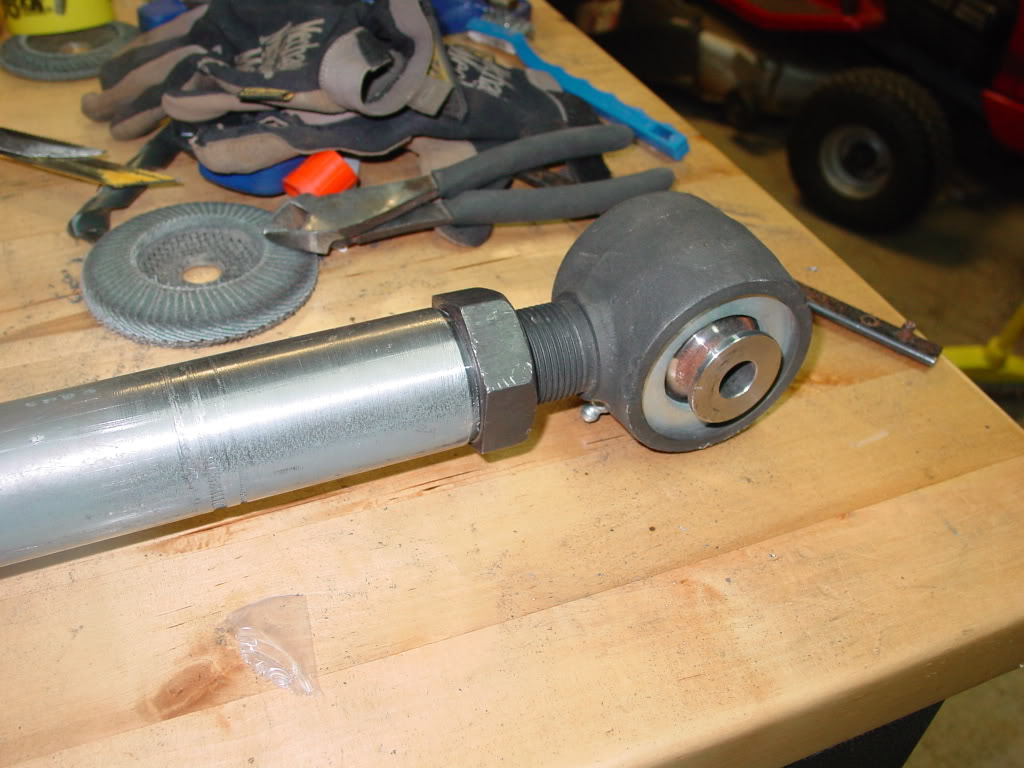

Tapped end

ai298.photobucket.com_albums_mm279_burrellsjeep_011_6.jpg_be5229cfb2065c9bd87804547715a17b.jpg


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
Making progress....

I got my link brackets cut down to fit my brackets, I used a cut off wheel on my grinder, Worked well I must say

ai298.photobucket.com_albums_mm279_burrellsjeep_002.jpg_392e457db62198ed05688b3a7094d56a.jpg

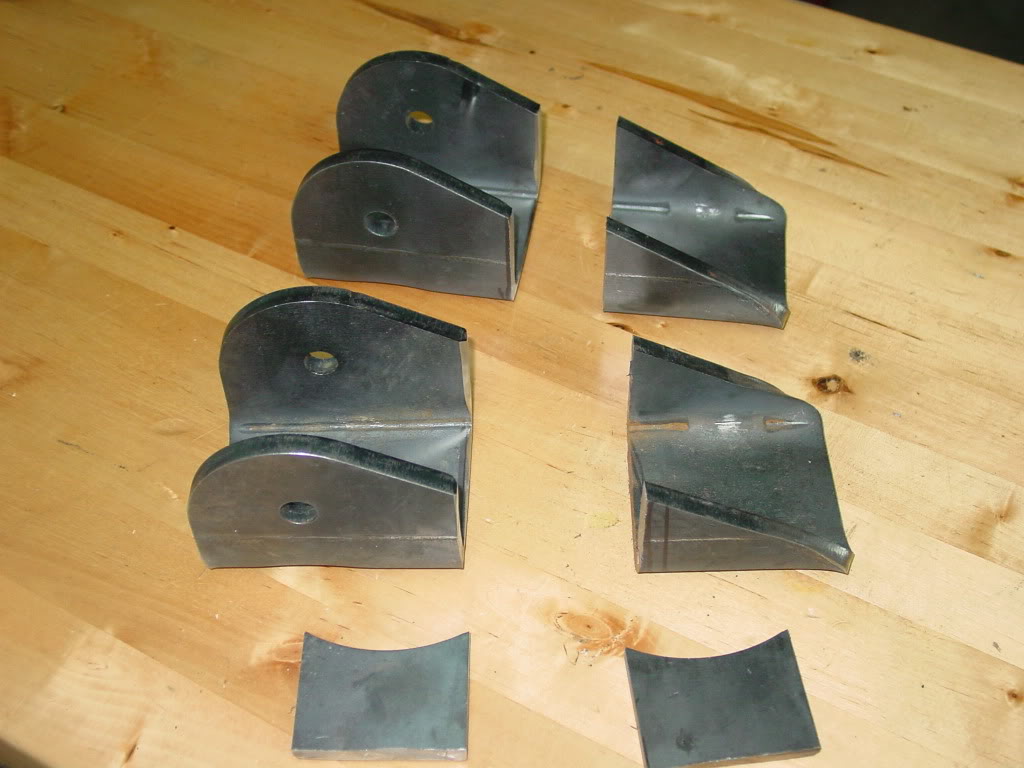

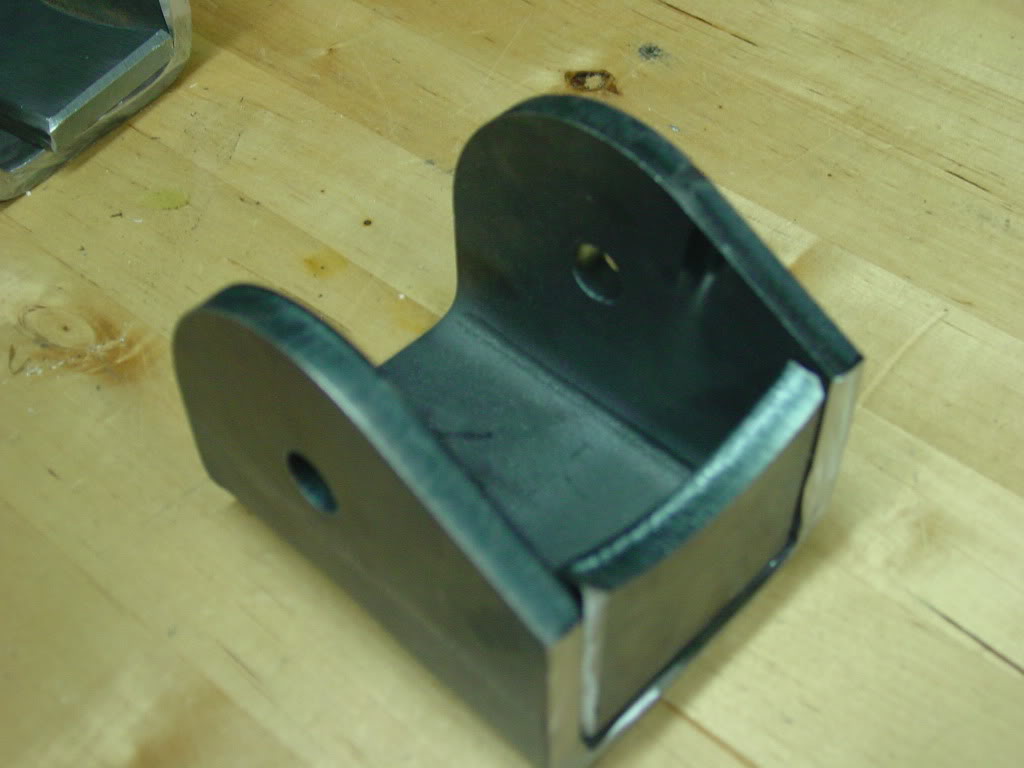

Here is what they will look like, They will be welded to the bottom of the bracket

ai298.photobucket.com_albums_mm279_burrellsjeep_004_10.jpg_090584a6ede2e147b57e8702a66a2d0b.jpg

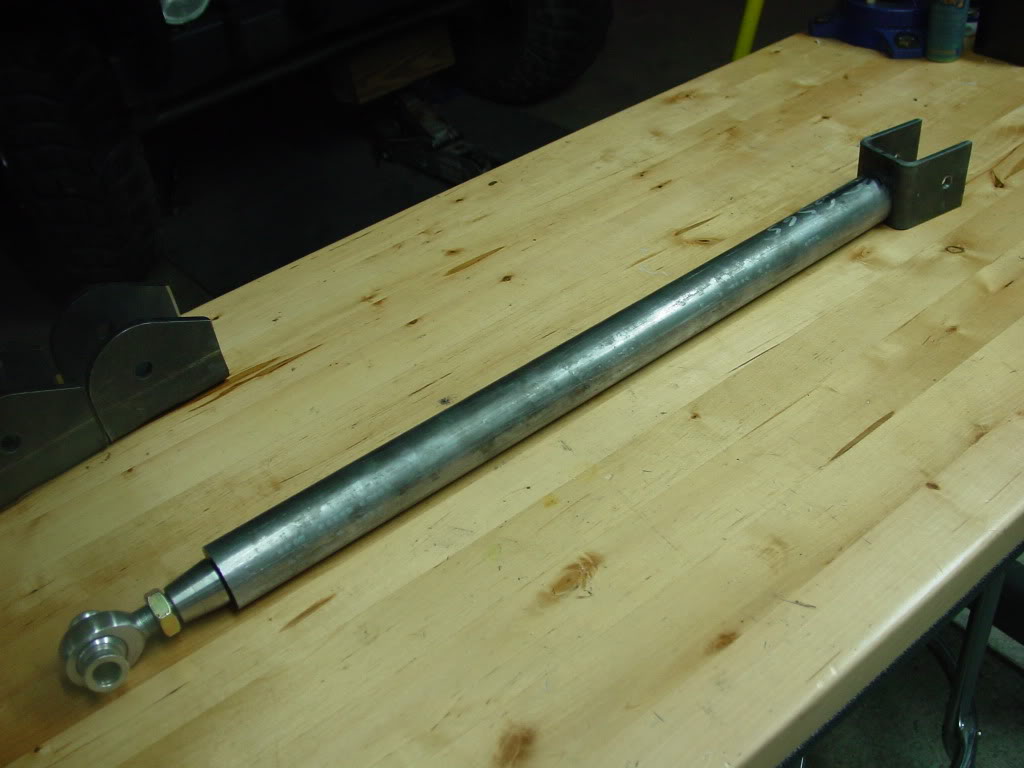

I have the upper ready to be welded, I am taking them to Justin in the morning.

ai298.photobucket.com_albums_mm279_burrellsjeep_006_9.jpg_715b8fcf5cfdf1cb5c431e2e5e5cd6bc.jpg

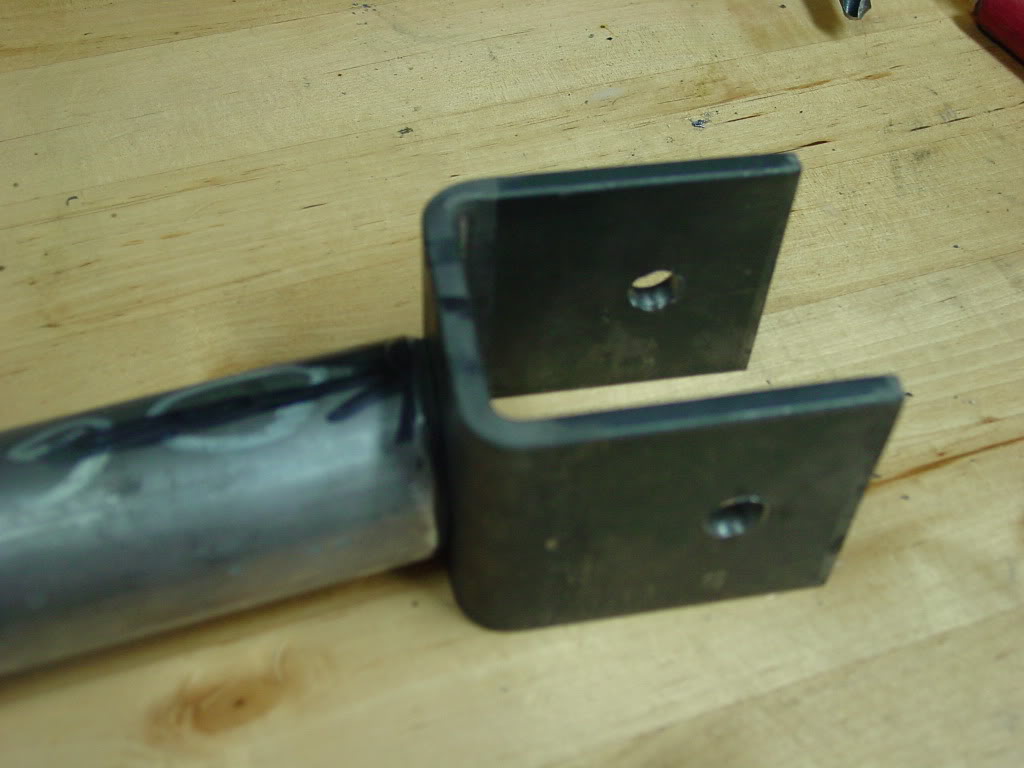

The mount at the axle end will get some rounding of the edges.

ai298.photobucket.com_albums_mm279_burrellsjeep_005_10.jpg_7f94396ec5da94e2f71e7de1b7f4d884.jpg


I still aiming for having it ready by the 8th, its going to be close.


Ron

Dum Spiro Spero
Moderator
Joined
Apr 16, 2005
Location
Sharon, SC
Looking good Mike!
hope to see you at Mountain City on 10/10


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC

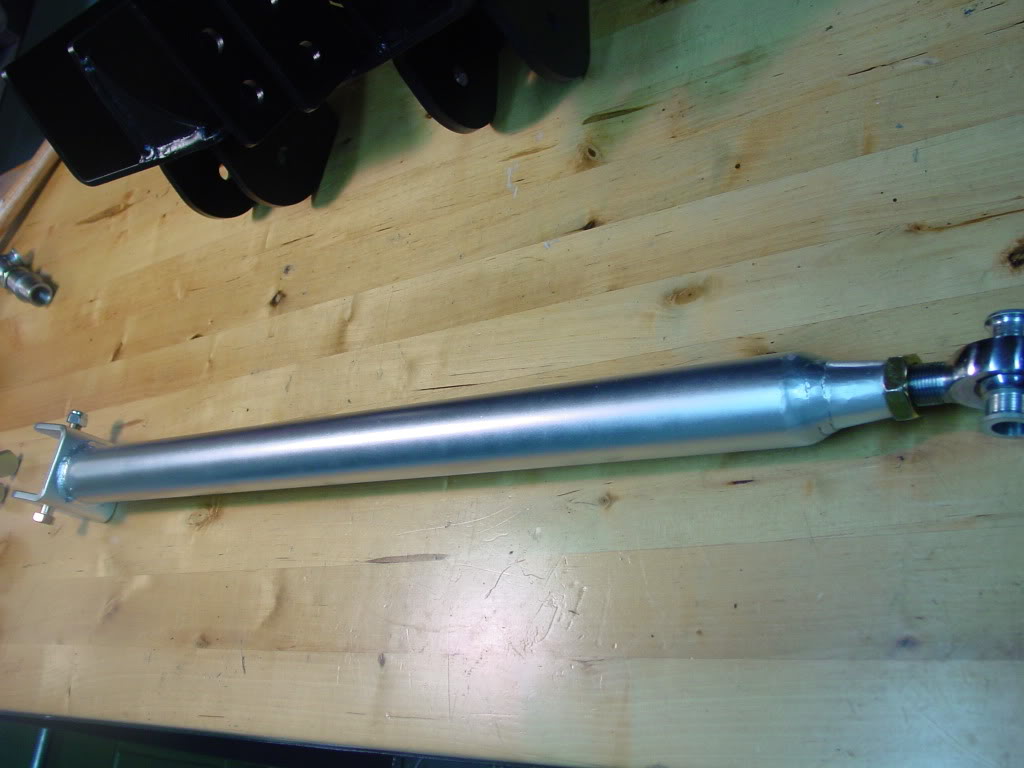

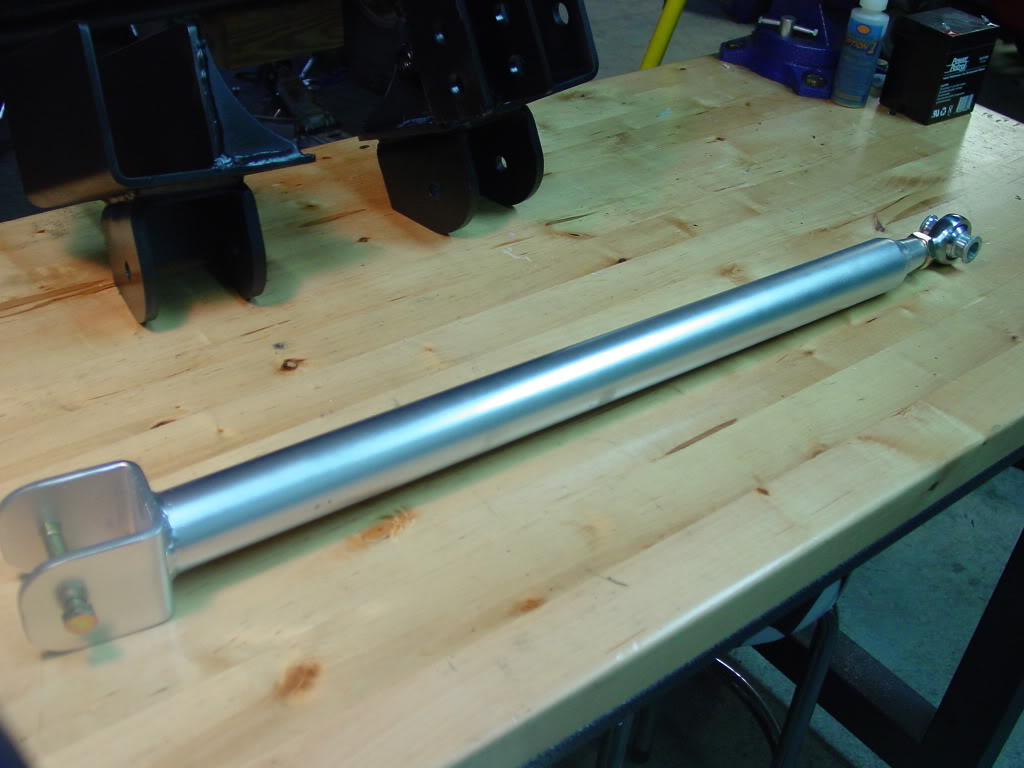

Upper link is done

ai298.photobucket.com_albums_mm279_burrellsjeep_010_9.jpg_a24a0c2299d12770a16a38ea87748ed5.jpg


ai298.photobucket.com_albums_mm279_burrellsjeep_011_7.jpg_a1c393318ef7dca38be8a4ada4f235b3.jpg

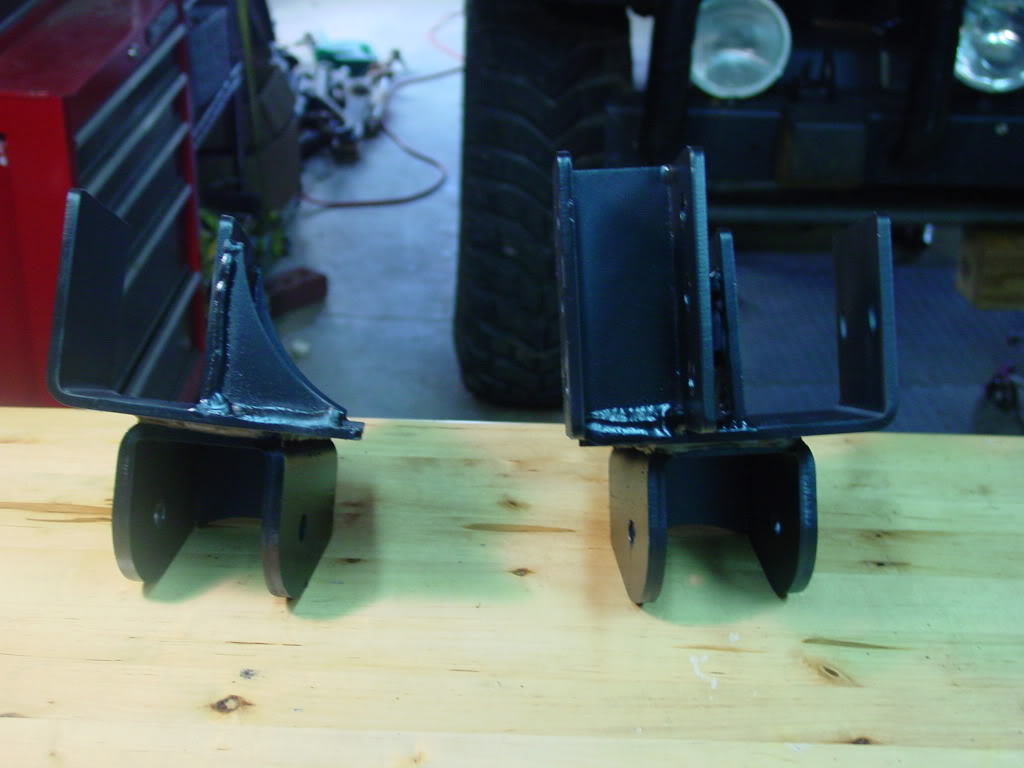

Both Brackets are done, Welded up and painted, Ready to mount

ai298.photobucket.com_albums_mm279_burrellsjeep_013_2.jpg_c4c382d0c2f80c4f79e4b0a7880a79dc.jpg

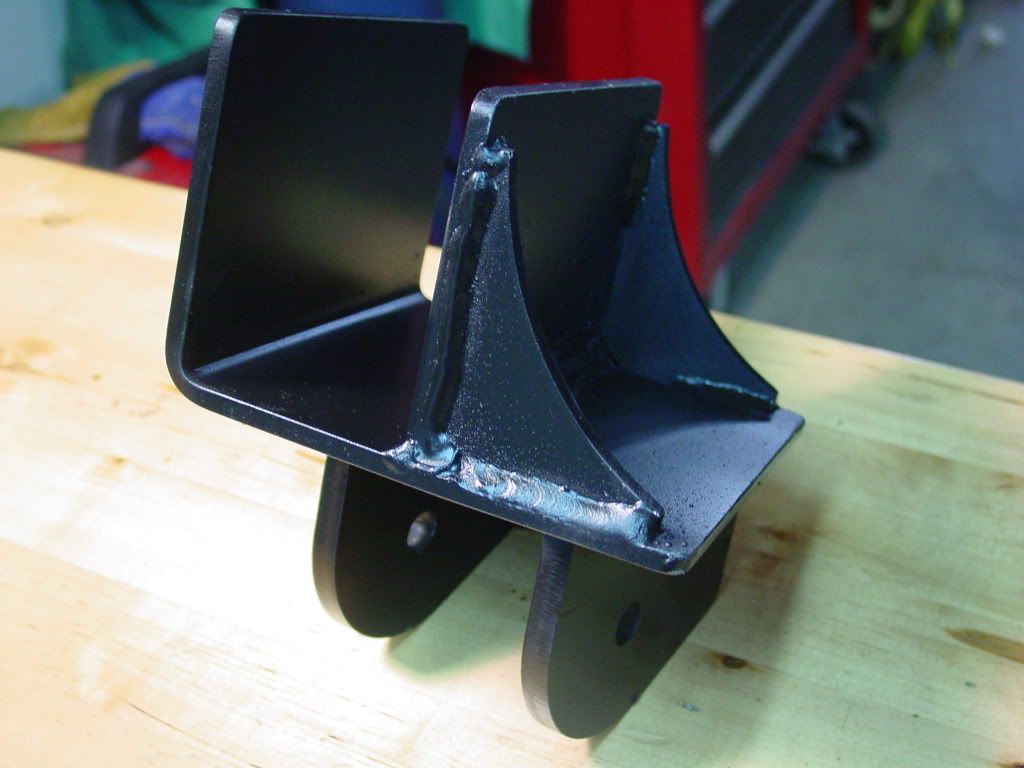

Passenger side, Still needs bolt holes drilled for the frame, But I will do that with it clapped on the frame.

ai298.photobucket.com_albums_mm279_burrellsjeep_014_2.jpg_6129c3c8ab3f057bf891bdced789d382.jpg

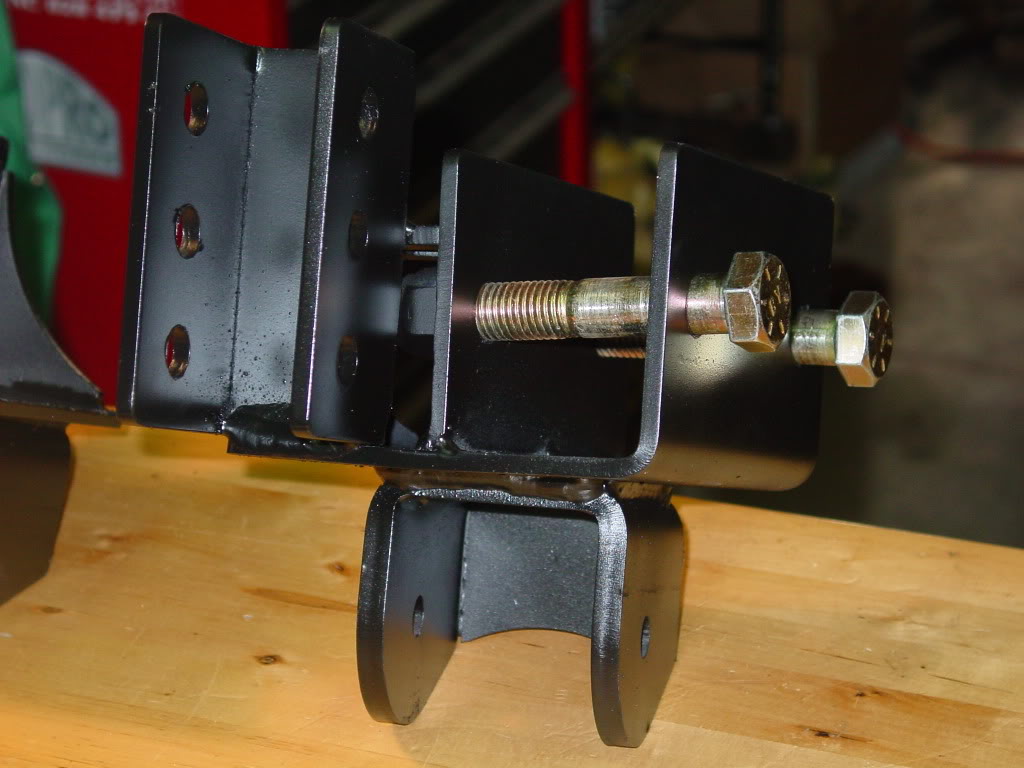

Driver Side

ai298.photobucket.com_albums_mm279_burrellsjeep_022.jpg_7d8d3f98aec041e20a8a23d1b37370d2.jpg

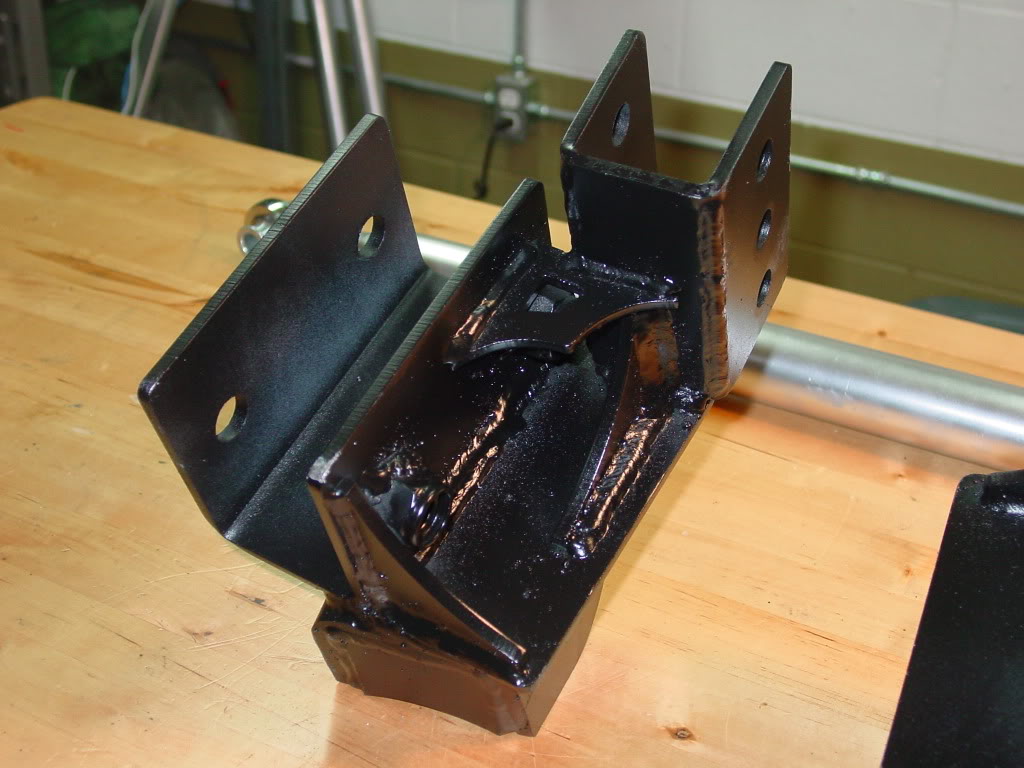

Back Side

ai298.photobucket.com_albums_mm279_burrellsjeep_018_2.jpg_0786fa438410cf2af671c704993fa55b.jpg


This weekend I will get everything on the frame and the links mounted, Then start cutting the factory mounts off. Should be testing it on Sunday.


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
Have you tried putting them back on the frame since they've been welded? Would certainly suck if they no longer fit. :flipoff2:

Yes,

The driver side is on the frame now, with the upper in place, I going to have to clearance the factory upper frame mount, Looks like it going to just get into it at full bump. Can't cut it completely off due to it being part of the engine mount brace.


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
Finally

Well I finshed the front 3 link today.

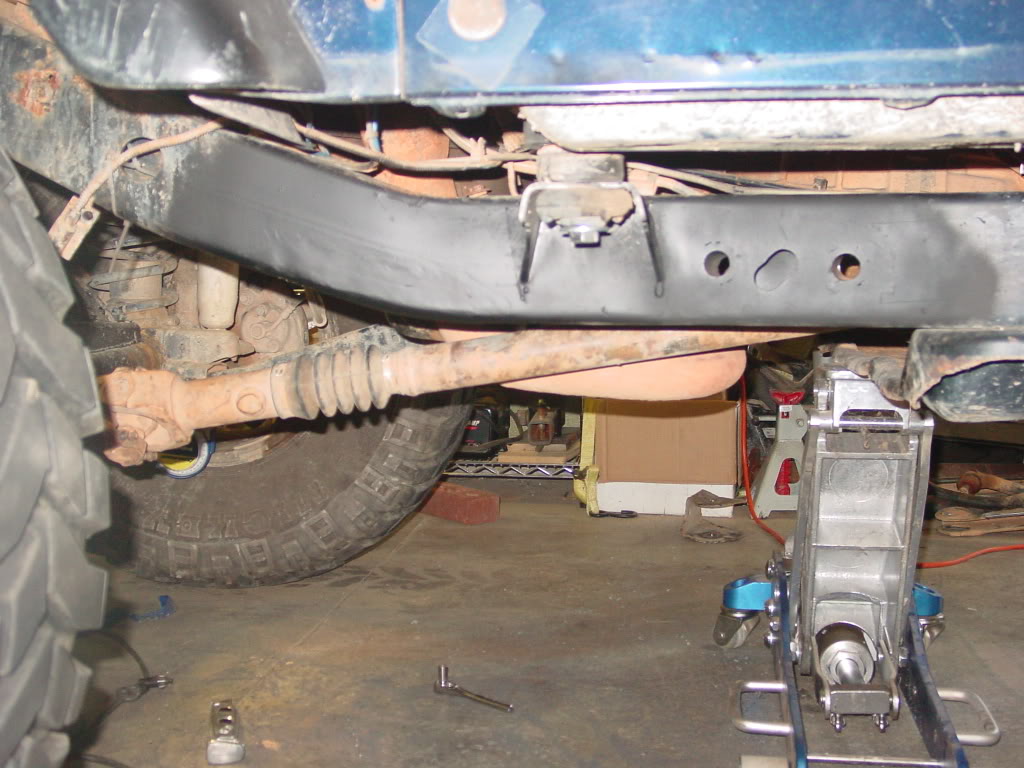

First I had to cut off the factory LCA brackets

ai298.photobucket.com_albums_mm279_burrellsjeep_003_12.jpg_a97cb1fdd9ef2a295c66b98114db326c.jpg

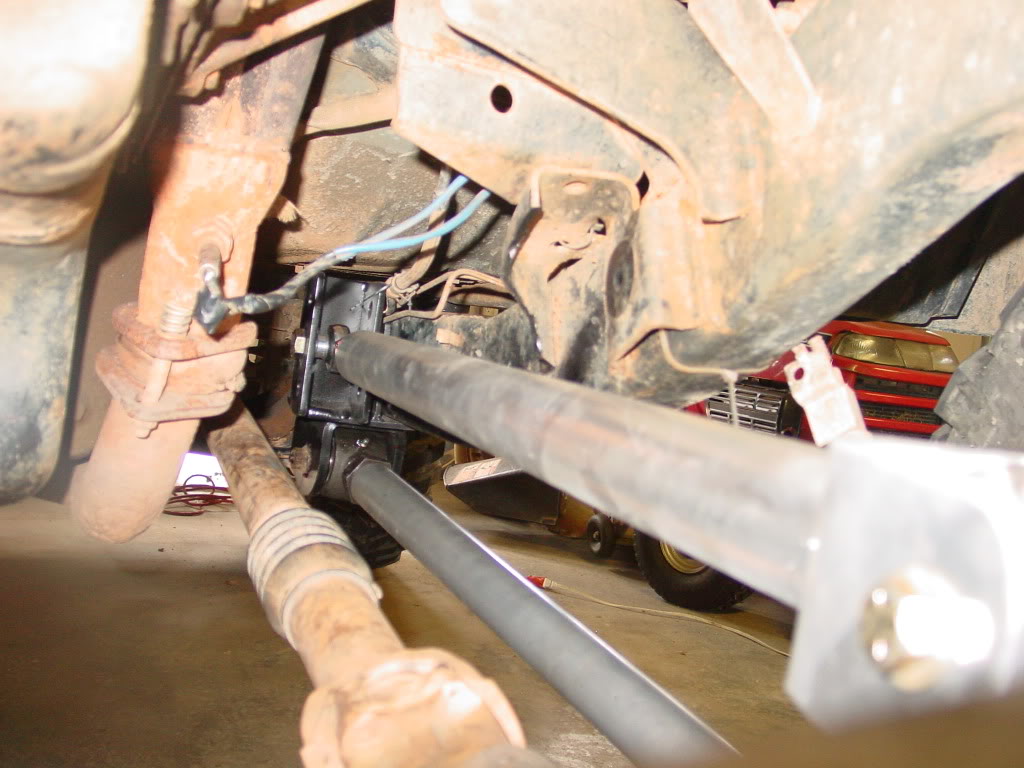

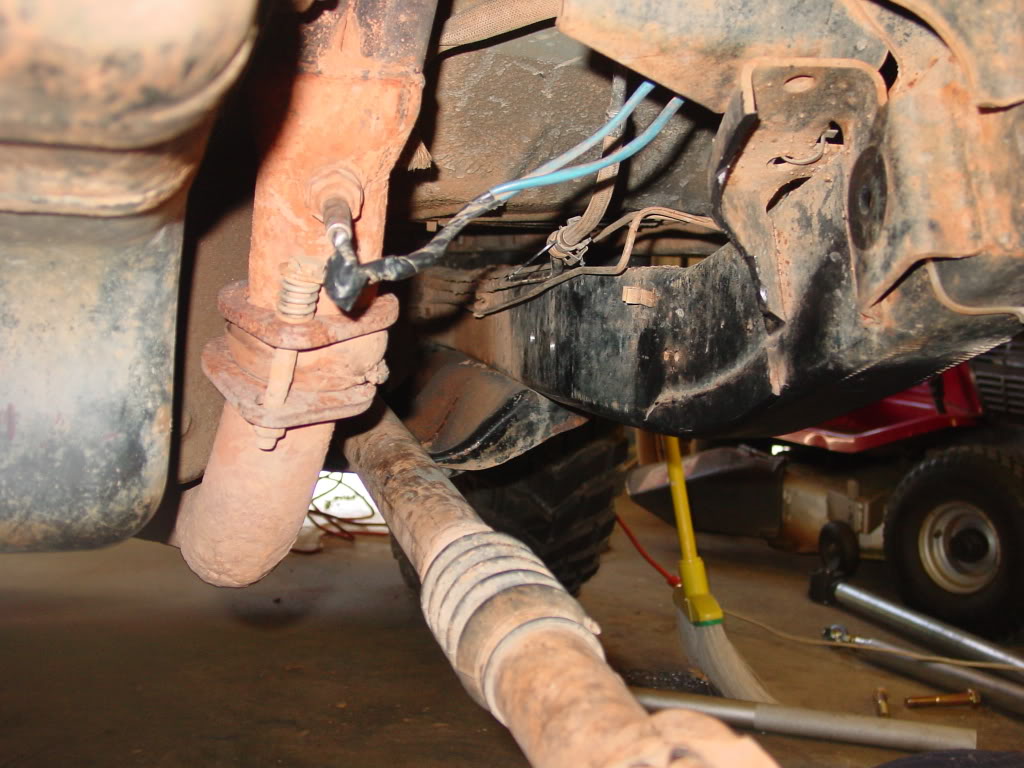

I had to clearance the Factory UCA bracket for the new uppper. Would have just hit it on the way to full bump. You can see how much I had to remove in the upper right hand corner, Can't clear too much due to it being the gusset for the engine mount.

ai298.photobucket.com_albums_mm279_burrellsjeep_002_13.jpg_c4a1aacf629cd7d892f4d7b84f6cbb17.jpg


ai298.photobucket.com_albums_mm279_burrellsjeep_010_10.jpg_11c4946d18047f5ce5ed6ab11248dae9.jpg

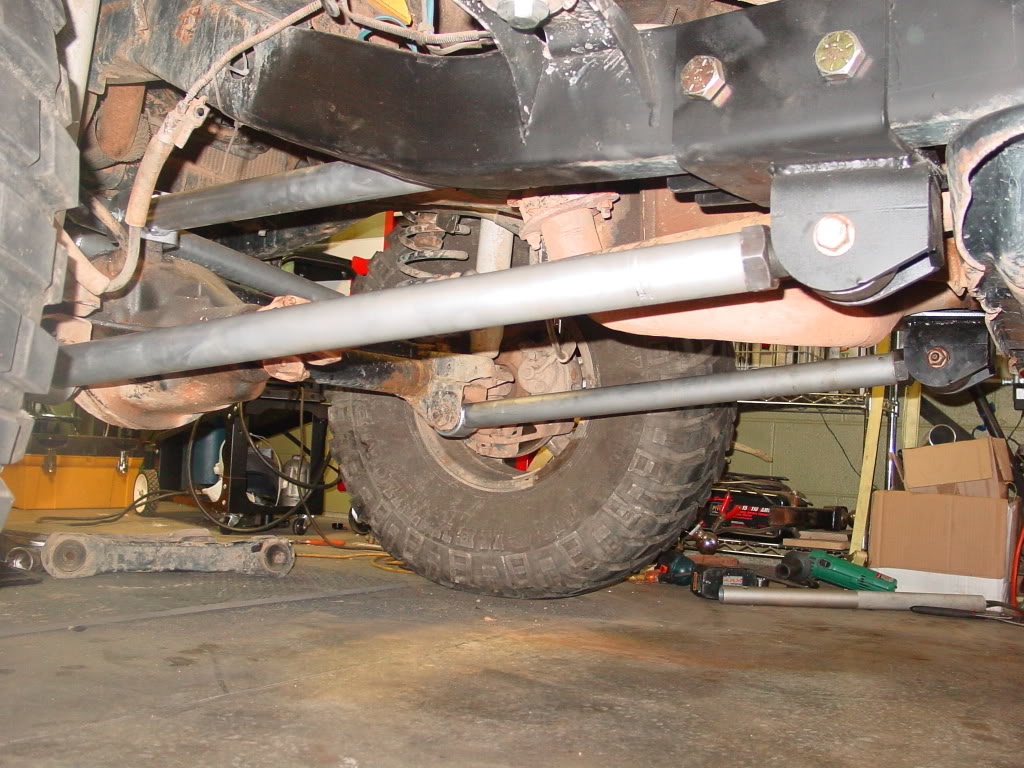

I did the same on the passenger side and It was done.

ai298.photobucket.com_albums_mm279_burrellsjeep_013_3.jpg_09701be9f693bf8a8acb0c0ed805c7ae.jpg


ai298.photobucket.com_albums_mm279_burrellsjeep_015_3.jpg_08f72ef3272229f4756f220fc2509f4a.jpg

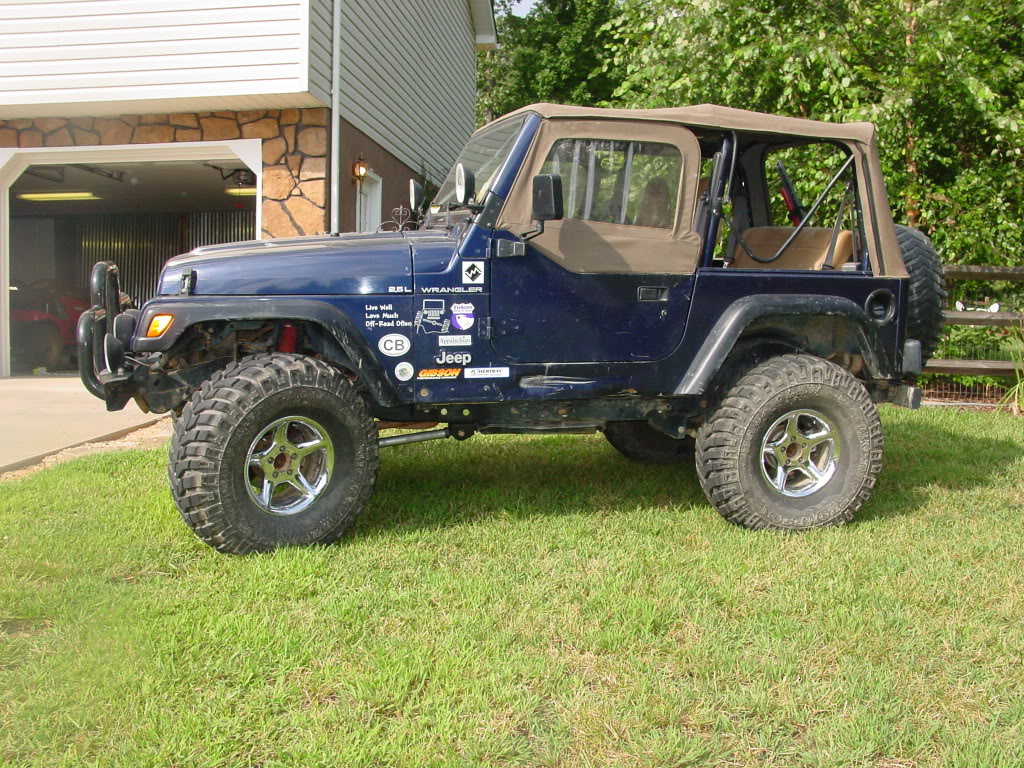

ai298.photobucket.com_albums_mm279_burrellsjeep_016_3.jpg_f0da4aad15b162c5d9a7f93a028b3efa.jpg

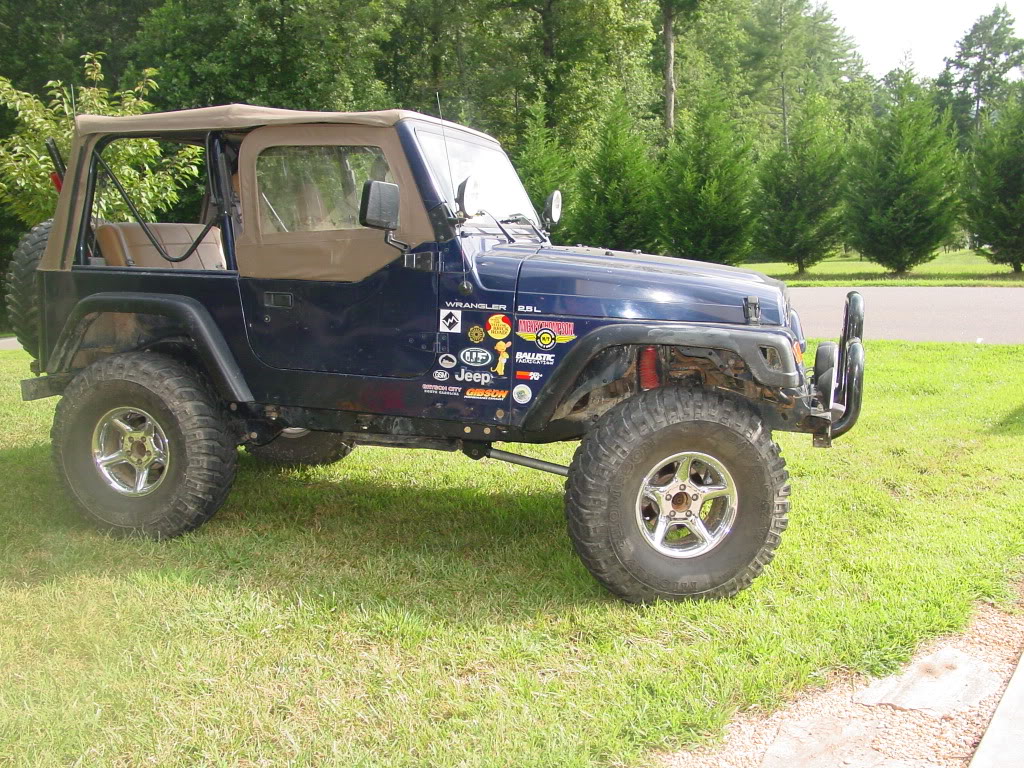

I test drove it down the road and it did very well, the ride compared to the short arms is next to none. Besides the fact I have no more wobble (Other than tires be out of balance) it tracks well and sees to handle much better. I have the upper set in the middle of the frame bracket, So I have some adjustment in it. It will take some time to determine what works best. I will get some flex shots next weekend at the charity run, Can't wait and can't believe I got it done. Now I just need to 4 link the rear, but it will be a while (Gathering parts)

Thanks to everyone that helped me make it happen


tuckxj

New Member
Joined
Aug 7, 2009
Location
Mebane
Sterring bushing?

My Rock Krawler TRO steering (xj,d30) has play in the heims at the knuckle like yours did. What exactly are the spacers and/or bushings you have between the heim and the knuckle?
Where did you get them? THX


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
My Rock Krawler TRO steering (xj,d30) has play in the heims at the knuckle like yours did. What exactly are the spacers and/or bushings you have between the heim and the knuckle?
Where did you get them? THX

The bushings are old shock bushings from an old set of shocks I had laying around,

Looks like the one in the middle



The rubber bushing has a metal washer formed into it. I drilled it out to 5/8s like my heims and then on the non metal side of the bushing I coped the bush with a 3/4 bit. I basically hollowed out a spot in the rubber of the bushing for the ball on the heim to sit in and allow it to sit flush on the knuckle. Then I greased the crap out it, in hopes to prolong the wear on it.

So far they show no wear and are holding up nicely, It does keep it from having roll or play in it. I have more bushing as I feel these will not last forever on there. But so far so good.


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
Just got back from "Toy for Rocks" run, The jeep did great, I really like how smooth the front is now, Even my wife said how great the ride was, and I even had to explain what I did to get it that way. Coming from my wife who thinks I spend to much time working on the jeep this was a big deal.

Now she wants a full cage and better stereo system in it, Go figure. Hey at least shes interested in it. Makes my life easier.

A few pictures, Had a group of six locals travel up to Mt City for the run and I had my family with me.

ai298.photobucket.com_albums_mm279_burrellsjeep_016_4.jpg_f330beb86cc5e8701293e679697d6abe.jpg


ai298.photobucket.com_albums_mm279_burrellsjeep_019_2.jpg_eb7279fb459f911be84428602f72d134.jpg


ai298.photobucket.com_albums_mm279_burrellsjeep_008_10.jpg_80f43118c1f4a25fb702a75b61541a4a.jpg


More pictures here

All in all I was very impressed with the way the jeep performed. And I believe I have a new favorite wheeling spot. Mt City has it all, Great trails on all levels. Already planing the next trip.


ABES-XJ

New Member
Joined
Jun 7, 2009
Location
morganton nc
i got some pics of a new back bumper i built i want you to see. ha and also some of the bar i added to my front bumper. every one hates it but me and adam. so i guess i get my camara in and email them to ya see what ya think


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
i got some pics of a new back bumper i built i want you to see. ha and also some of the bar i added to my front bumper. every one hates it but me and adam. so i guess i get my camara in and email them to ya see what ya think

Adam showed me some a picture off his phone and it looked pretty good.

Hey who cares if every one hates it, its your jeep build it how you like it.


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
Well I have been wheeling the jeep with the new arms on the front and it sure does make a difference in ride. Seems to suck up the bumps allot better than before.

The next step is a Full cage, I really need to get some protection in there for the family.

I really like the Genright Sport Cage, But its pricey for a sport type cage.



Just trying to decide either to build it my self or get a kit or take it to a shop. I am getting quoted at a couple local shops to see how it compares, so far its cheaper to let them build one.

I have no plans to put this on its lid, So I will keep the factory hoops and build off that.


burrellsjeep

Breaking Stuff...
Joined
Nov 19, 2008
Location
Morganton NC
I have decided that I will build it my self with the help of some buddys. My plan is to use the dash wraps like Genrights or BFFs.

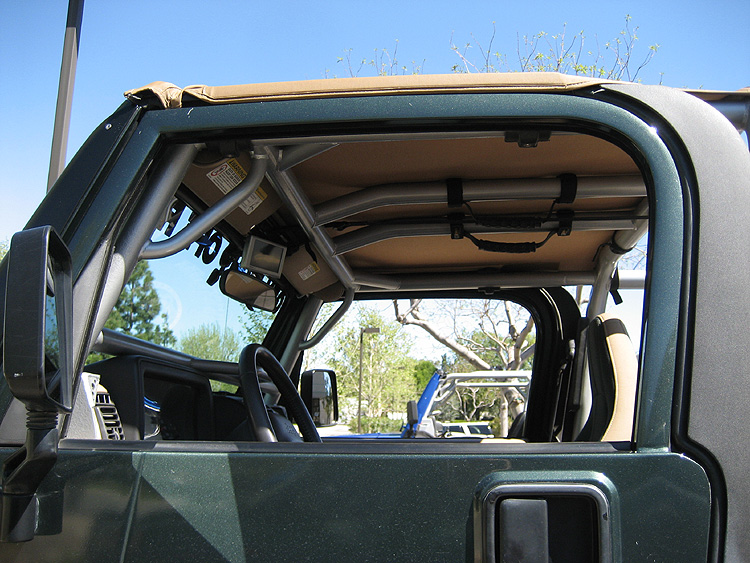

Sample picture
