Lets See a Pic of Your tow rig and trailer.

Discussion in 'Tow Rigs and Trailers' started by Treydu22, Feb 12, 2012.

  1. Hurdt299

    Hurdt299 Well-Known Member

    Joined:
    Nov 13, 2006
    Location:
    Asheville, NC
    Here's an update. It's starting to look a little more like a truck.


  2. Joe J.

    Joe J. Well-Known Member

    Joined:
    Jun 18, 2009
    Location:
    King, NC

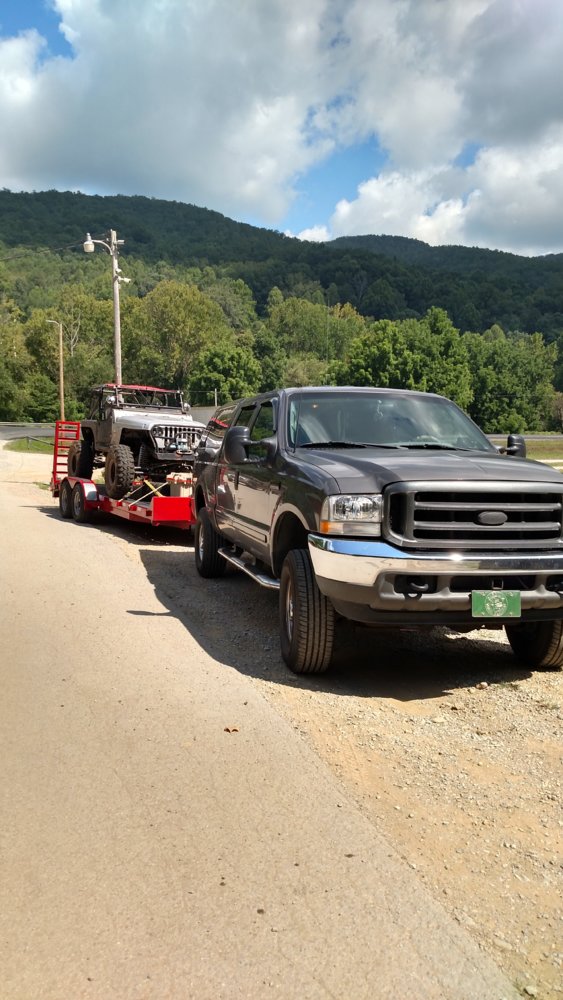

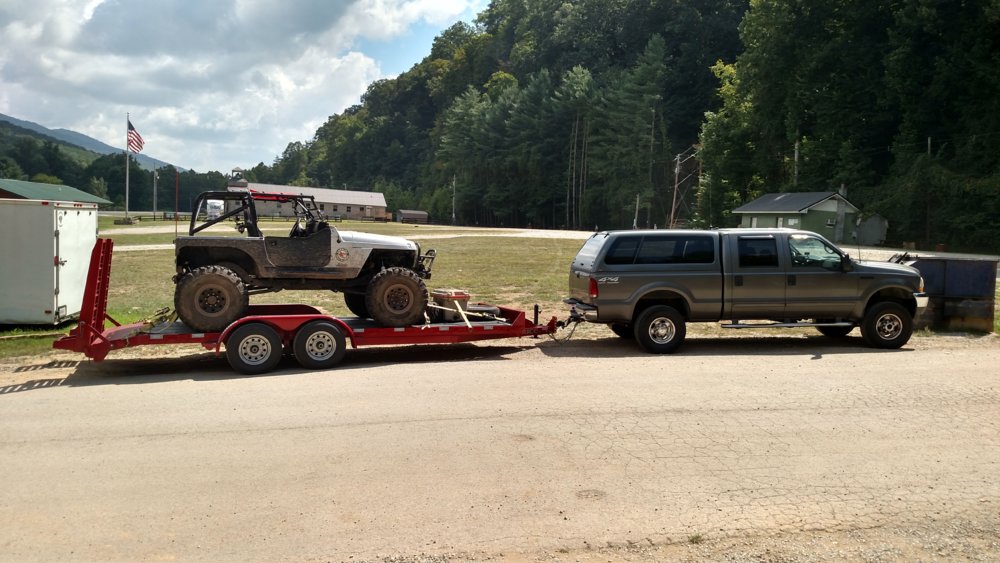

    My current setup...

    IMG_20190808_114007850_HDR.jpg IMG_20190808_113926369_HDR.jpg

  3. Clubbs

    Clubbs Well-Known Member

    Joined:
    Jun 15, 2008
    Location:
    New Bern

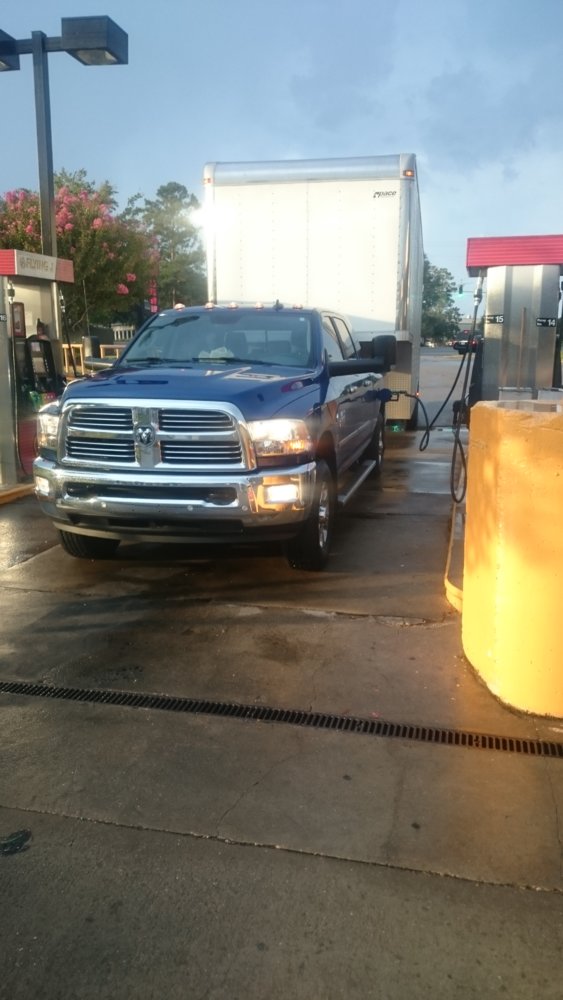

    Well the old 05 Cummins got stuck in Florida with a transmission electrical gremlin that the shop couldn't figure out. Tried 4 times to bring it home and after dumping thousands on one way air fare I gave up and traded it for this 2018 mega cab. Nearly cried leaving my 05 at the dealer but 800 ft-lbs pulling the white whale home cheered me up some.

    Pulled the trailer down empty then pulled it back sort of loaded. Cat scales said gross was 20,100 pounds. Averaged 9.1mpg for 14 hours on the hwy.

    DSC_4885.JPG DSC_4888.JPG

  4. jeepinmatt

    jeepinmatt Still Fat

    Joined:
    Mar 24, 2005
    Location:
    Stanley, NC

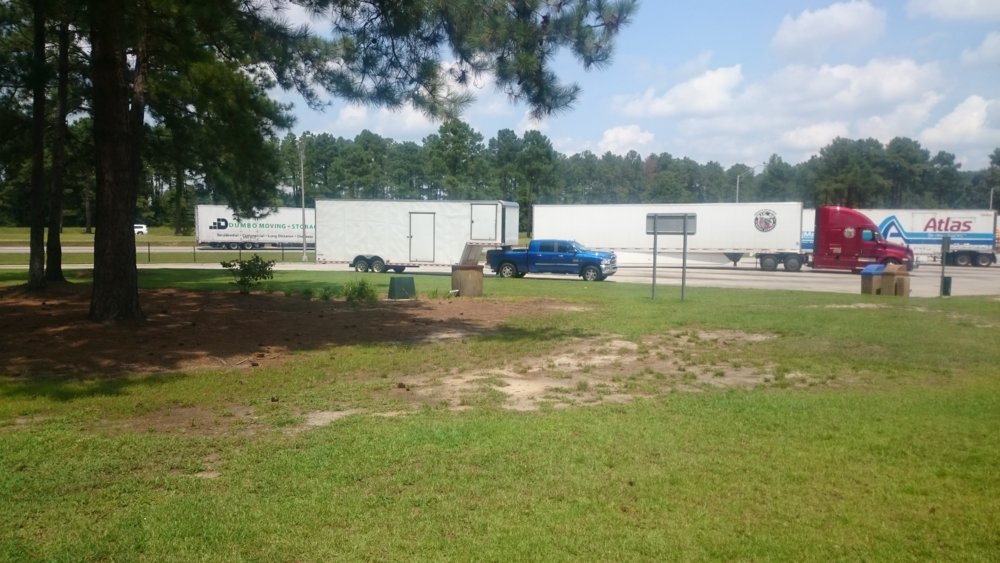

    That's actually less aerodynamic than the red tractor trailer in the background of your pic. 9.1mpg ain't bad for pulling a 6 ton house :D

    Clubbs and Stuntman Autoworks like this.
  5. Clubbs

    Clubbs Well-Known Member

    Joined:
    Jun 15, 2008
    Location:
    New Bern
    I was good with it. My 05 pulled it down to Florida empty at 5mph under the speed limit and got 8.7 mpg. Big blue was doing 5mph over the speed limit loaded at 9.1 mpg. Hand calculates mileage. Although the lie-o-meter in big blue said 9.1 too... So maybe they fixed that in the newer trucks.

    jeepinmatt likes this.
  6. CasterTroy

    CasterTroy Motarded

    Joined:
    Mar 21, 2005
    Location:
    Wallburg

    Is that a short bed? Physically impossible for it to pull a gooseneck like that :smokin:

  7. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330
    :popcorn:

    CasterTroy likes this.
  8. Clubbs

    Clubbs Well-Known Member

    Joined:
    Jun 15, 2008
    Location:
    New Bern
    It is a short bed, but with a custom fab gooseneck offset ball thing-a-ma-bob made from 1" plate. I can twist the trailer about 95 degrees before I get cab contact. I hardly ever pull that trailer though and my other trailers have the usuall skinny neck

    Caver Dave and CasterTroy like this.
  9. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330
    Ball just on a plate further back?
    I've thought about doingthe same.

  10. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330

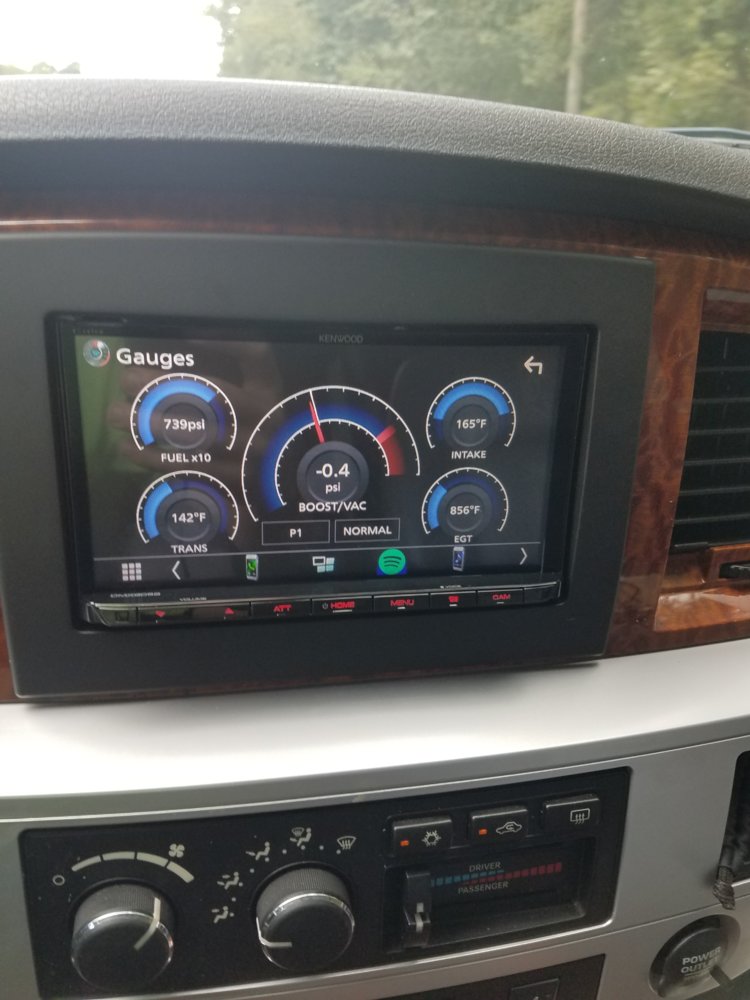

    I sold my 2018 ram 2500 and kept the 2007 3500, the radio in the 07 didn't have bluetooth or an aux input so i couldn't play my music on long trips. The 18 also had android auto which i enjoyed being able to have the phone GPS on the uconnect screen and the phone screen off. So I spent some money on a kenwood head unit to get all that back and today a pleasant surprise, it also reads the truck data and can display it like my old cts2 I had in the 06 flatbed.

    BigSouth, Clubbs, Croatan_Kid and 3 others like this.
  11. YotaOnRocks

    YotaOnRocks Well-Known Member

    Joined:
    Jul 17, 2007
    Location:
    Winston-Salem
    Have a model #. Need a new radio for my 07

  12. skyhighZJ

    skyhighZJ Thanks for your taxes

    Joined:
    May 31, 2012
    Location:
    Aberdeen, NC.

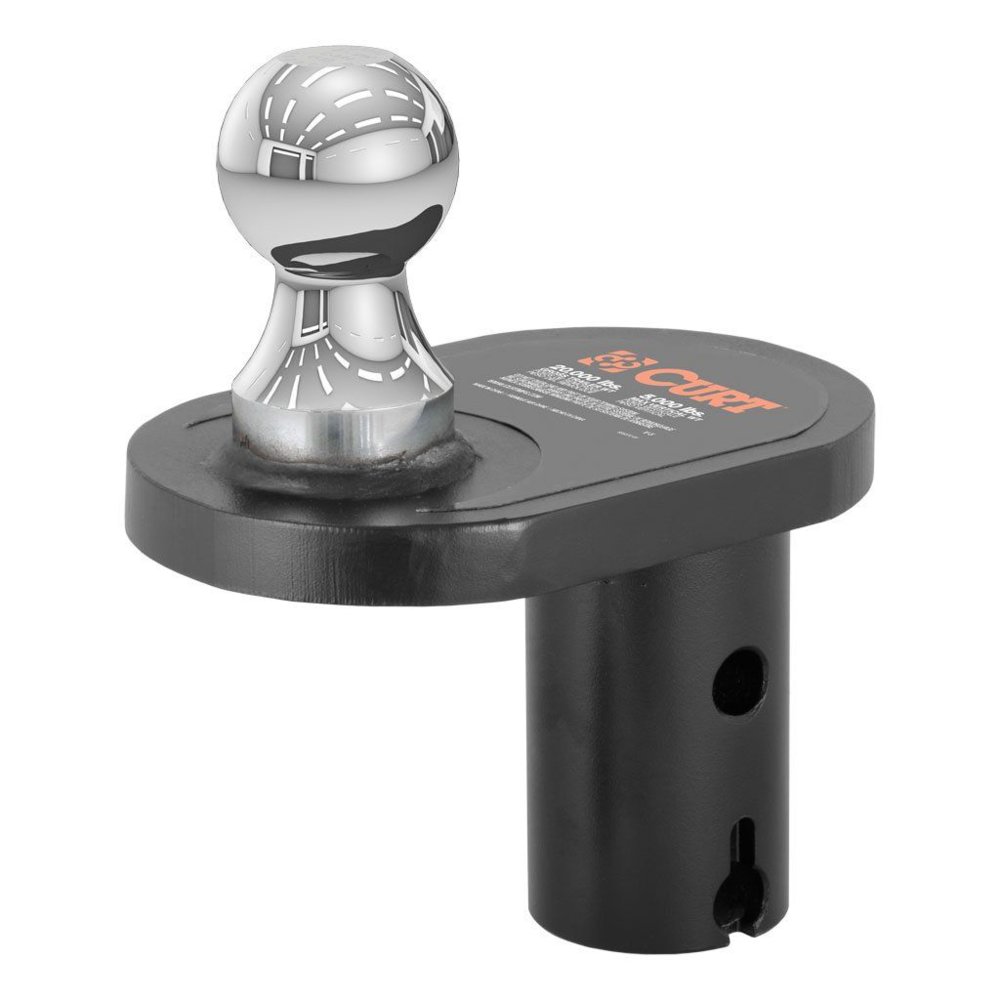

    The wife has a curt and I have a B&W we both have a version of this: 61FE5D5E-D180-44C3-8968-51EE7FB2B856.jpeg
    It offsets 4” and works just fine with our Mega Cab trucks.

  13. jeepinmatt

    jeepinmatt Still Fat

    Joined:
    Mar 24, 2005
    Location:
    Stanley, NC
    Yeah but what about the bus full of nuns :eek:
    :lol:

    CasterTroy likes this.
  14. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330
    Yeah I've about bought the b&w one for my truck but didn't know if it was enough

  15. tlucier

    tlucier Well-Known Member

    Joined:
    Jun 3, 2007
    Location:
    Mebane, NC
    That's a sharp truck.

    Clubbs likes this.
  16. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330
    Go look on crutchfield
    I got a refurb unit kenwood Excelon DMX905S
    I think the new model is 906s

    I also got ththe module so I could keep my steering wheel controls.

    This unit has 2 camera inputs and a video output so if I ever put a screen in the back for the kids it will run it.

    YotaOnRocks likes this.
  17. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330

    It was time for some new tires also. Ridge grapplers did good on my flatbed so I went with them on this one.

    Joe J., tlucier and skyhighZJ like this.
  18. skyhighZJ

    skyhighZJ Thanks for your taxes

    Joined:
    May 31, 2012
    Location:
    Aberdeen, NC.

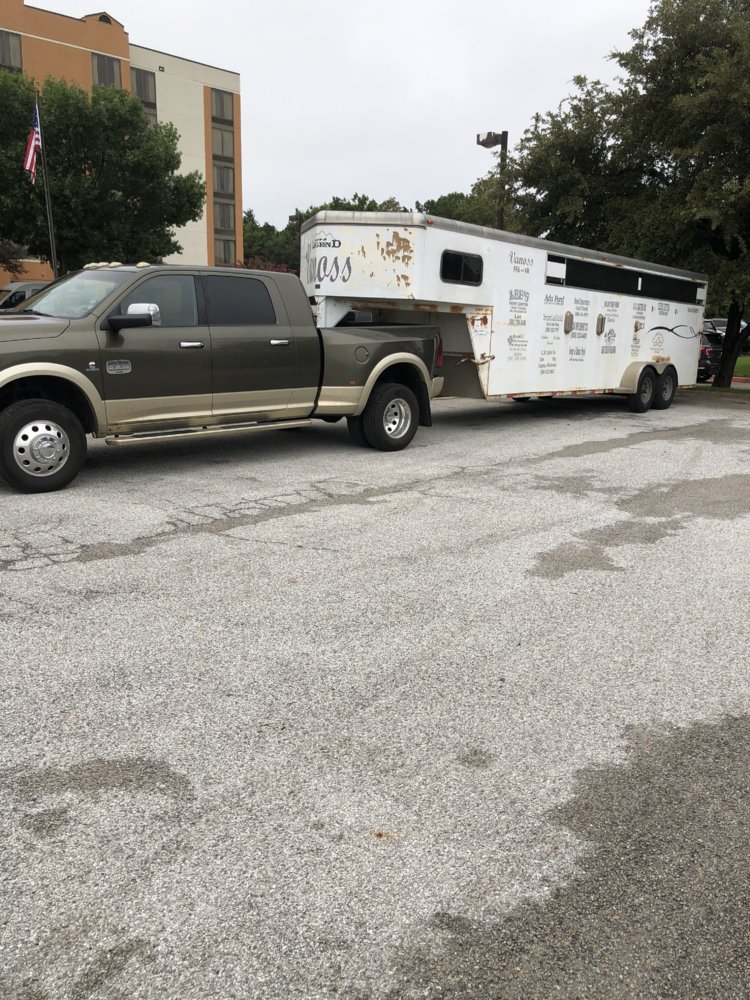

    I have had our stock trailer at some pretty damn good angles and not come close to the cab. This was when I first bought the trailer and it was straight on the ball w/o the offset and was still not really an issue. Mine is not as much of the worry being a V nose though. Strength wise and bus full of nuns insurance was not a worry cause it’s a beefy piece for sure! 396B0F24-16DA-4CD7-A46D-A90738749517.jpeg

  19. Clubbs

    Clubbs Well-Known Member

    Joined:
    Jun 15, 2008
    Location:
    New Bern
    Yup. I've got the square bore B&W hitch though not the factory round bore.

    Really wanted a long bed, but under the circumstances with my 05 broke and needing to get the trailer back to NC I wasn't really in a position to order my dream truck. The mega cab is huge and will make family trips better especially since my kids are getting big. My 05 had a 3.73 gear and this 18 has the 3.42. I was worried about towing with the 3.42, but I had 9 hours of seat time in the 05 with that trailer right before making the same run with the 18. My 05 would down shift on nearly every hill - roar to 2,800 rpm and still not keep highway speed. The 18 holds 6th gear on almost all the hills and maintained the cruise control set point.

    My 05 had air bags and needed them for the white trailer. I didn't have time to put bags under the 18 and had my doubts on how the rear coils would do. Also pleasantly surprised as it never jounced off the stops the whole way home. That said I would load the mess out of that 05 so the rear springs where probably shot, give me a year and the coils will be worn out in this 18 and I'll be putting in another set of bags. But with a 100 gallon transfer tank in the bed and the gooseneck (offset 12" aft) it did fine.

    Croatan_Kid and jeepinmatt like this.
  20. Stuntman Autoworks

    Stuntman Autoworks Instigator of things

    Joined:
    May 6, 2010
    Location:
    Sanford NC 27330
    Going from a 4spd to a 6spd makes a big difference.

    Croatan_Kid and Clubbs like this.
  21. Joe J.

    Joe J. Well-Known Member

    Joined:
    Jun 18, 2009
    Location:
    King, NC

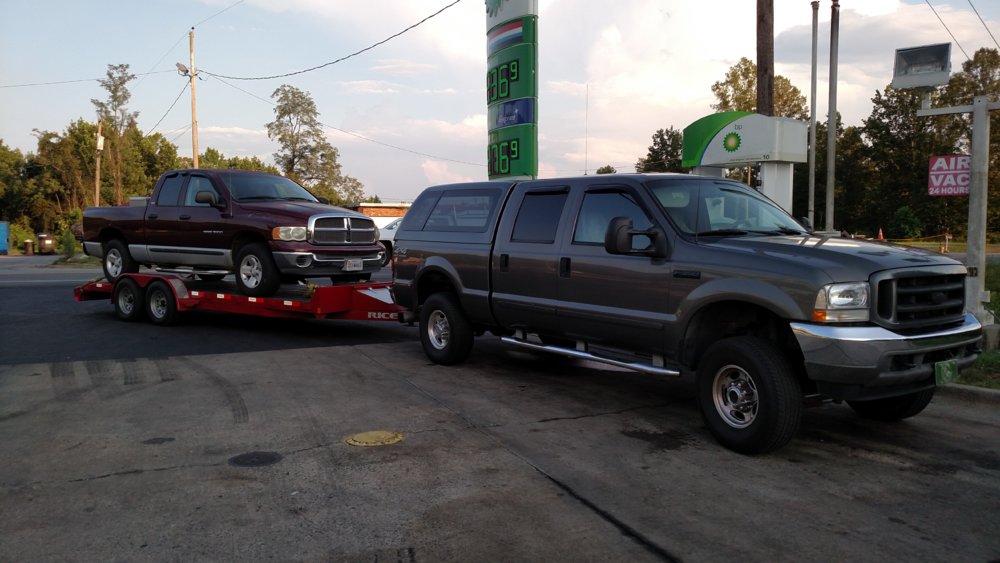

    My coworkers brakes on his Dodge went out yesterday. So we left work early to tow him back to Virginia. Any day I get to tow a Ram is a good day. :flipoff2:


  22. rcalexander105

    rcalexander105 Well-Known Member

    Joined:
    Nov 3, 2017
    Location:
    High Point
    Well, ended up selling the e99 7.3 I bought back in June. Fortunately was able to get my money back out of it and actually make a little bit (because...7.3).

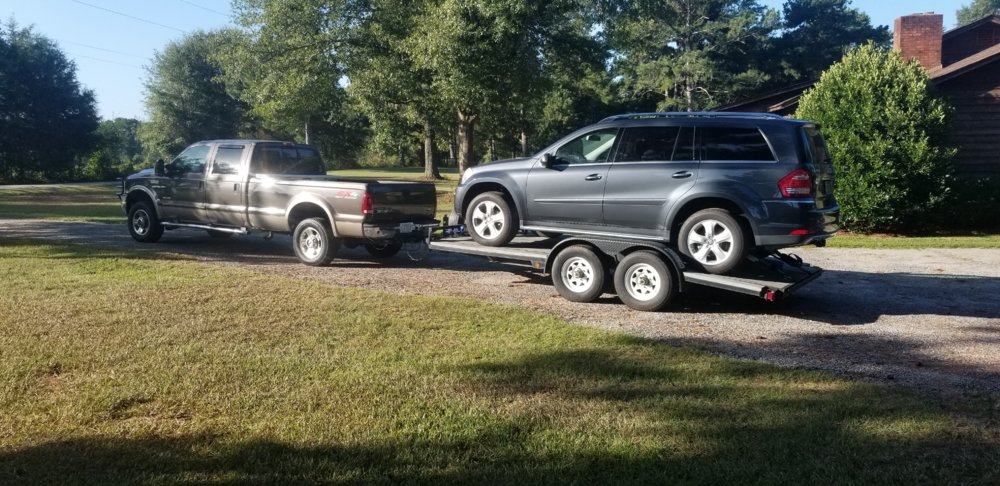

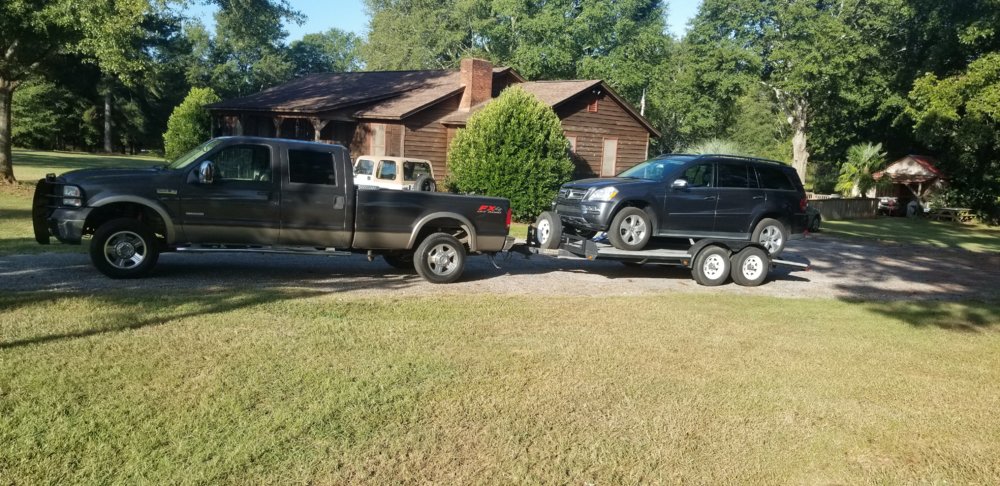

    Drove down to Madison, GA on Saturday morning and picked up this 2006 F-350 CCLB Lariat PSD. Pulled out of my driveway at about 2:45am Saturday morning in my wife’s SUV and empty trailer in tow. Got to GA around 8am after a piss and fuel stop, looked it over good, test drove, switched around the trailer, loaded the SUV on the back and turned and burned back to NC. So far I'm very pleased with the truck. The overall driving / towing experience is night and day IMO. With all the updates it's just a much more refined truck (I have absolutely zero interest in driving a 6.7 PSD right now because truck envy will do what it does). I'm now the 4th owner and the truck has 198k miles. It's been in GA and TX all it's life and the owner (again, old man probably in his 60s) didn't know whether the motor had been into before. I had a diesel shop in Madison check it out and he told me it had factory head bolts (I confirmed once I got there) and he said he couldn't tell what (if anything) had been done. My guess...it's fairly close to a stock truck.

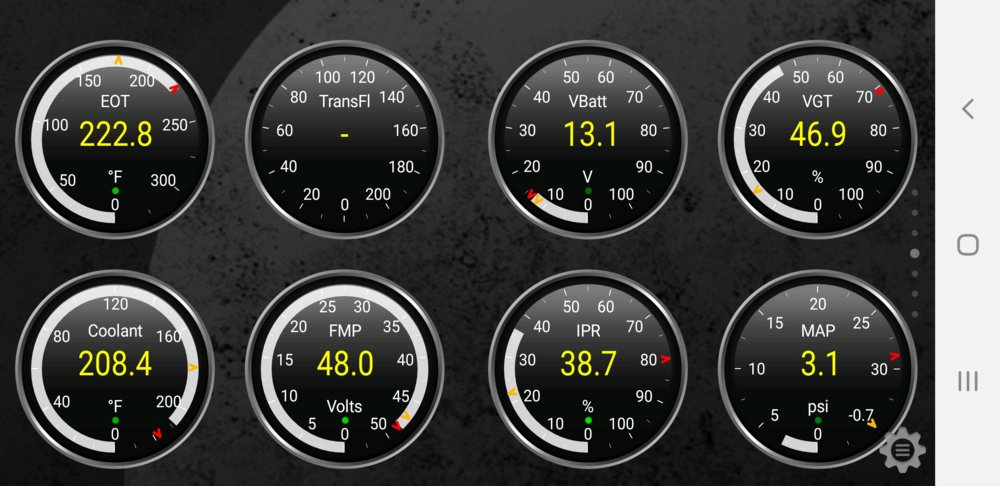

    Bought a Bluetooth OBDII reader and downloaded the Torque Pro app beforehand to monitor shiote on the way home. Below is a screenshot of what I was seeing. To me, things looked pretty good but not sure about the EOT / ECT delta. The highest EOT I saw was about 224* and the ECT hovered around the 12-18* spread but never got to 20 and typically didn't go over 15* but did a couple times. So...what say you @CasterTroy @Caver Dave @Ron or any of the other 6.0 gurus out here. I've talked to Scott a few times now over at Trucks Unlimited. I am more than likely going to have him do his thing for reassurance (ARP, Ford gaskets, test / deck heads, new oil cooler, not sure what I'll do w/ EGR yet). Other plans for the truck are pretty basic (MBRP 4", Livewire TS+, Ford updates w/ blue spring, etc., coolant filtration, some of the others things being mentioned in the 6.0 Tunes thread, etc.)




    Last edited: Sep 23, 2019
  23. CasterTroy

    CasterTroy Motarded

    Joined:
    Mar 21, 2005
    Location:
    Wallburg
    NICE!!


    A delta of 20 is where you start getting concerned.
    Typically it's the oil cooler/radiator getting clogged from when Ford put that gold silica coolant from the factory and folks let it stay in there for 100k. And it turns to sand and clogs everything up.

    Not knowing the history kinda sucks, but I'd opt for an oil cooler at the minimum

    If it performs decent for you, I'd do an EGR bypass, and maybe exhaust, but I wouldn't tune it


    Is he still open?

    Last I heard he closed shop and went to work for someone. But that may be rumor. Still on old 52 next to basset gutter?

    rcalexander105 likes this.
  24. rcalexander105

    rcalexander105 Well-Known Member

    Joined:
    Nov 3, 2017
    Location:
    High Point
    He is...I called and talked w/ him last week (maybe the week before last) to confirm that.

    CasterTroy likes this.
  25. jeepinmatt

    jeepinmatt Still Fat

    Joined:
    Mar 24, 2005
    Location:
    Stanley, NC
    If it's still stock and unmolested at 298k miles, then it's a good one. Don't make the mistake of messing with it.

    CasterTroy, rcalexander105 and Ron like this.
