Little update. Got Tapatalk.

Current rebuild includes the following....
12” fox 2.0 coilovers at all corners

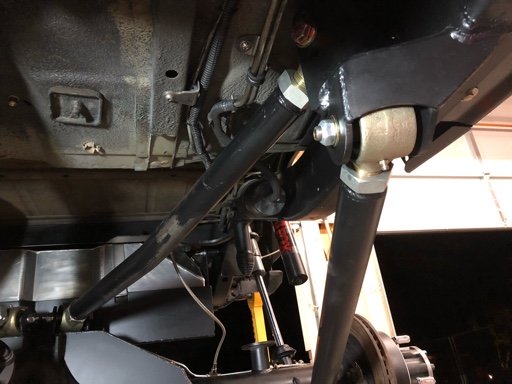

Genright link frame brackets

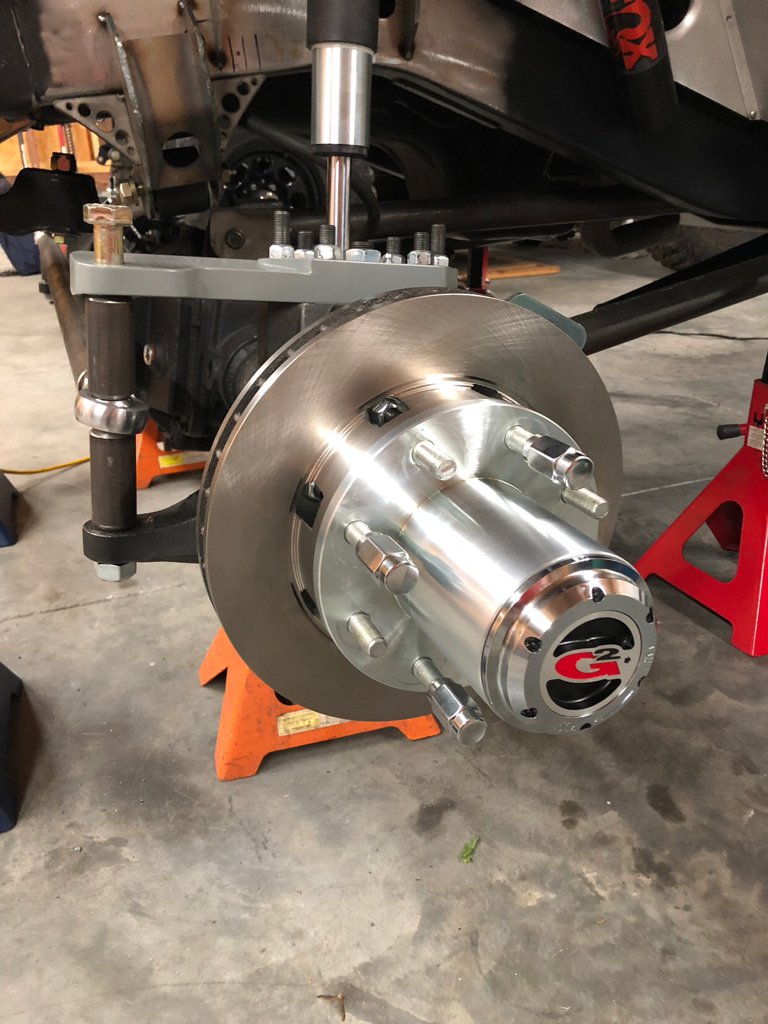

Custom ECGS Hp60 w/ 5.13 gears, Detroit locker, inner/outer 35 spline shafts, Solid Kingpin outers
Rear e350 Dana 60 with 35 spline shafts, grizzly locker, 5.13 gears

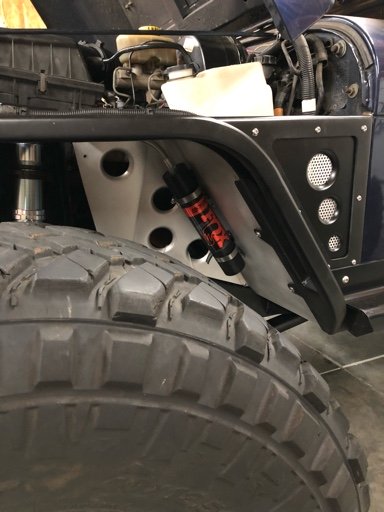

Poison Spyder front fenders (I custom made inserts and customized their inner fenders)

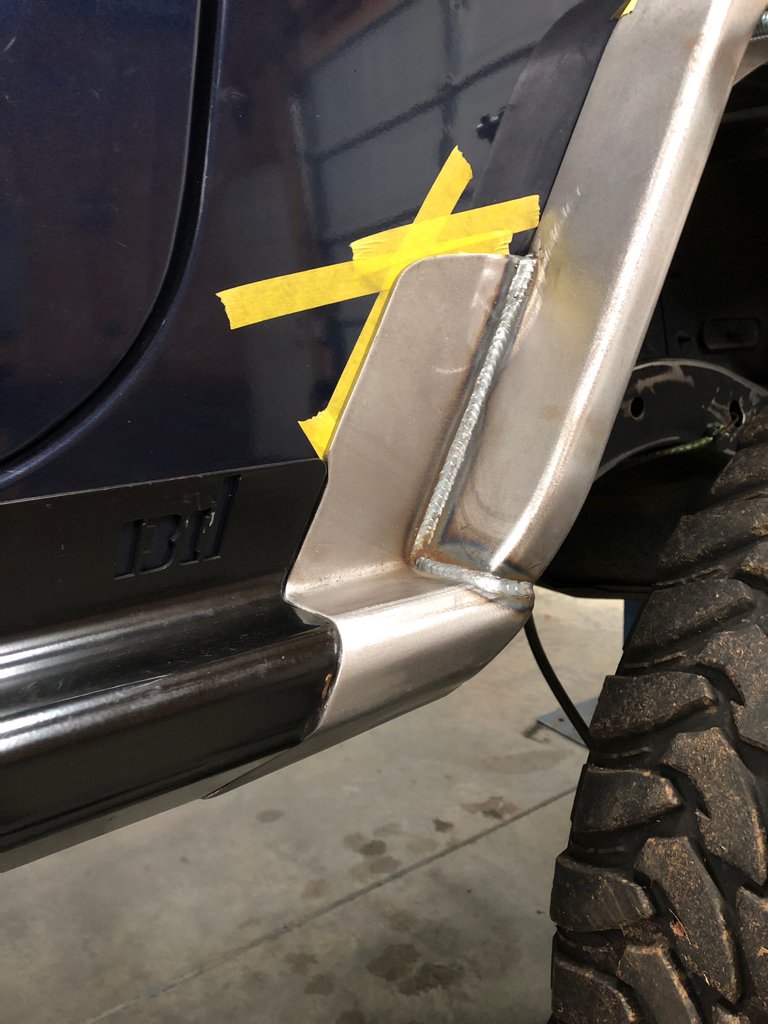

Poison Spyder rear flares (i made custom extensions to match my Big Daddy sliders)
3.5” front stretch (my own custom double sheer pitman arm)
4” rear stretch
Procomp Trilogy Race beadlocks
37” tires (tbd)
Genright EXT crawler gas tank

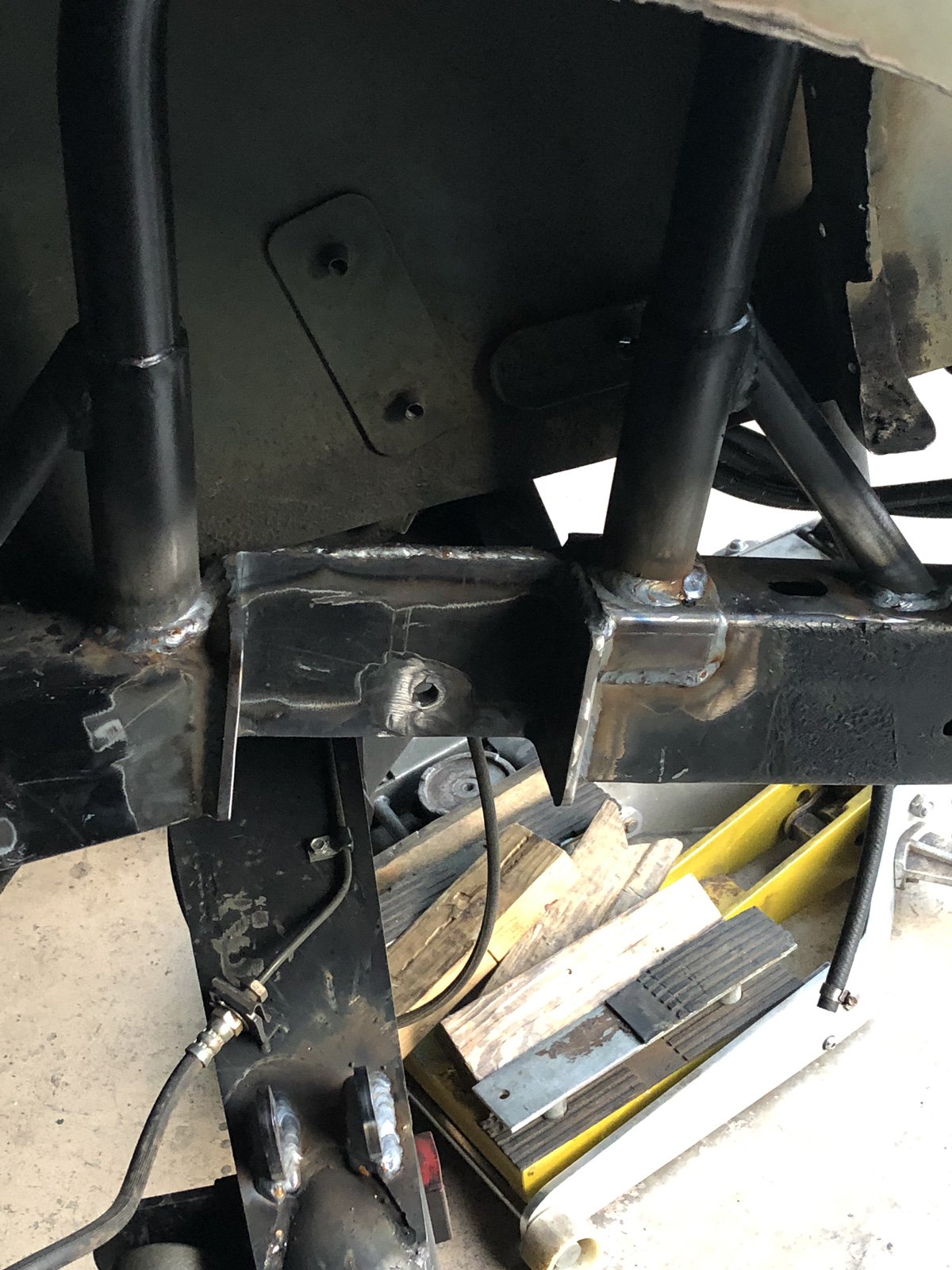

Rebuilt a new custom cage
Corbeau Baja RS seats
Front bumper (one I built)
Rear tire carrier is a Big Daddy Offroad piece I heavily modified for more clearance, better styling and fit
https://uploads.tapatalk-cdn.com/20190508/172c156b3d0011076495e1b0f558fdee.jpg
https://uploads.tapatalk-cdn.com/20190508/0f42a8c3e5cf1271ea90b609aab1c360.jpg
https://uploads.tapatalk-cdn.com/20190508/12820a717e95d574901b4b5ae2de3dba.jpg
https://uploads.tapatalk-cdn.com/20190508/3903459fba3a747677f454e4602bb89d.jpg
https://uploads.tapatalk-cdn.com/20190508/14d62253347f3daedf30d83737d3383c.jpg
https://uploads.tapatalk-cdn.com/20190508/3aa79021cd095cc3645da53bd17b4a79.jpg


Sent from my iPhone using Tapatalk

Photos didn’t load. Trying again. Tapatalk Rookie!





Sent from my iPhone using Tapatalk

Looking good dude

Last edited:

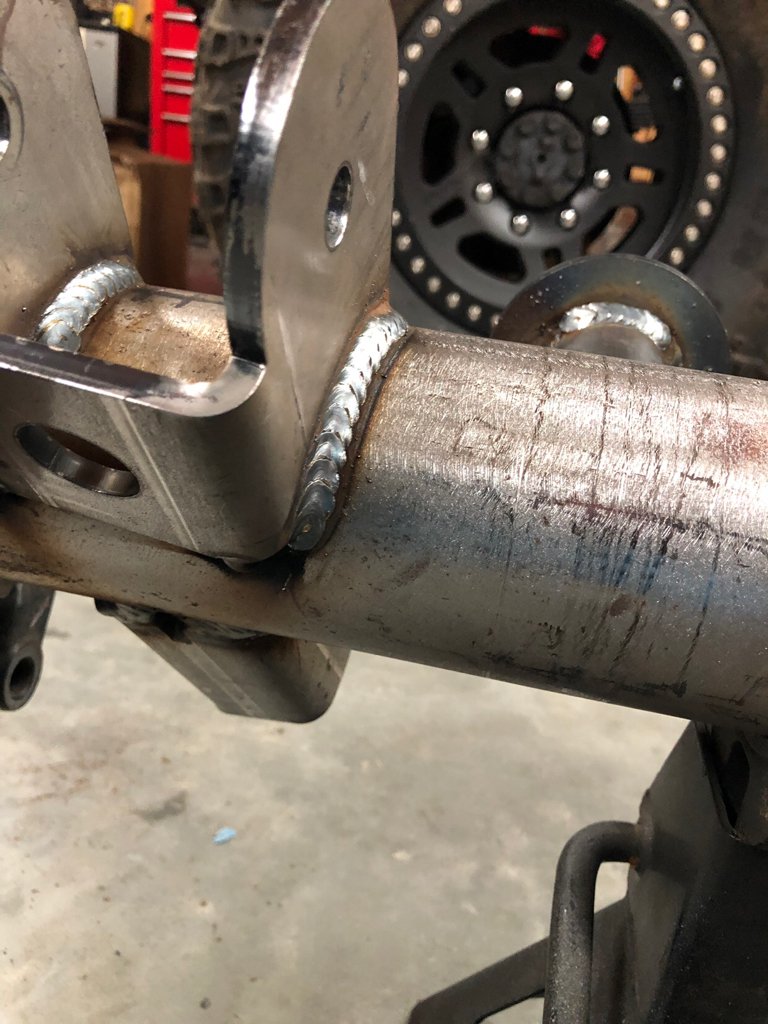

On your rear truss what size dimple dies and plate are you using? They look perfectly formed. Mine don’t do so hot on 3/16 but 16ga and 11ga they look good.

iwaxmyjimmy said:
On your rear truss what size dimple dies and plate are you using? They look perfectly formed. Mine don’t do so hot on 3/16 but 16ga and 11ga they look good.
Click to expand...

Hey man. I'm using 1/8" for the front and back of truss. Top plate is 1/4".

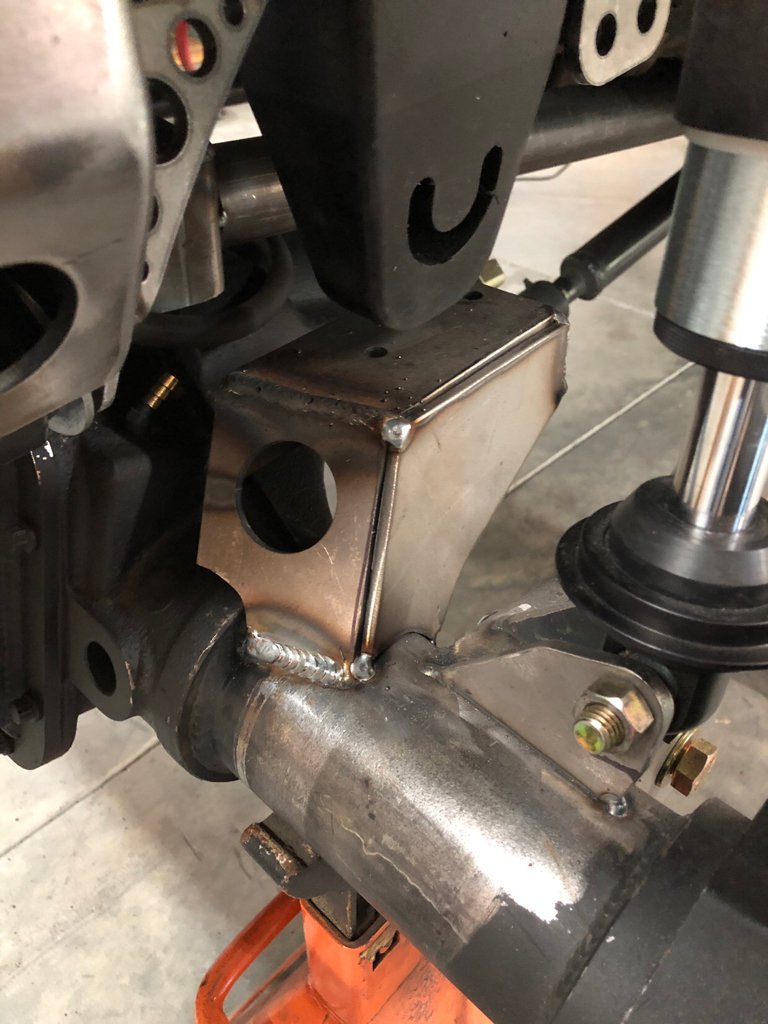

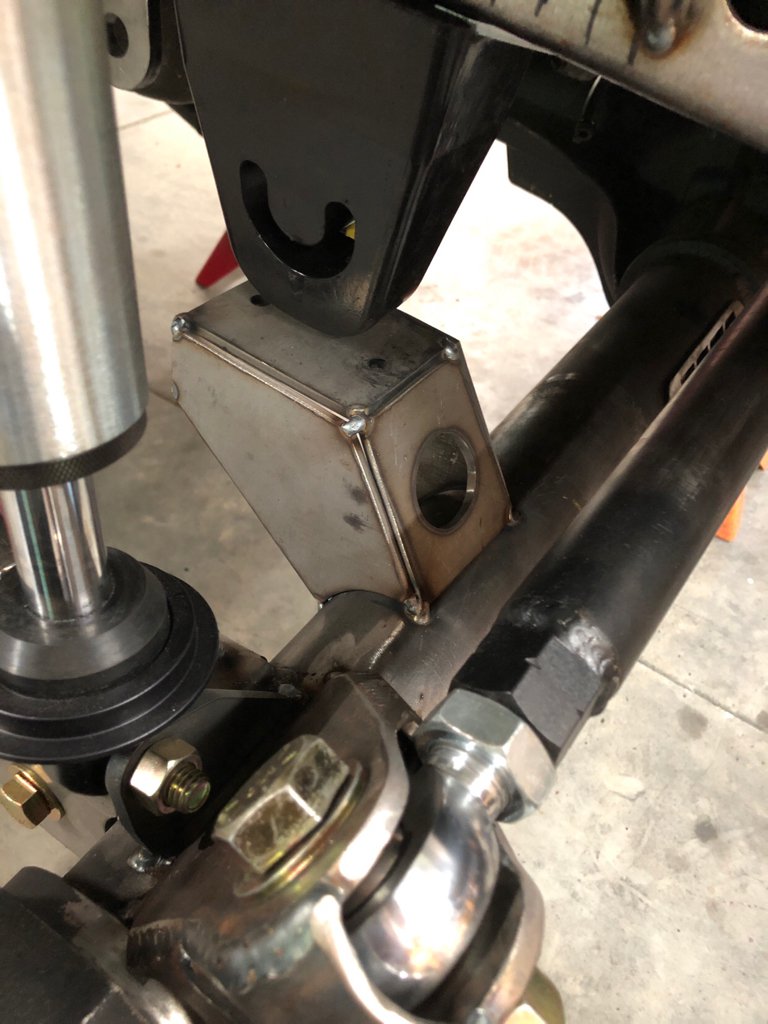

Got a little more done. Front bumper stops and limit strap mounts are in. Fully cycled. Everything clears okay.

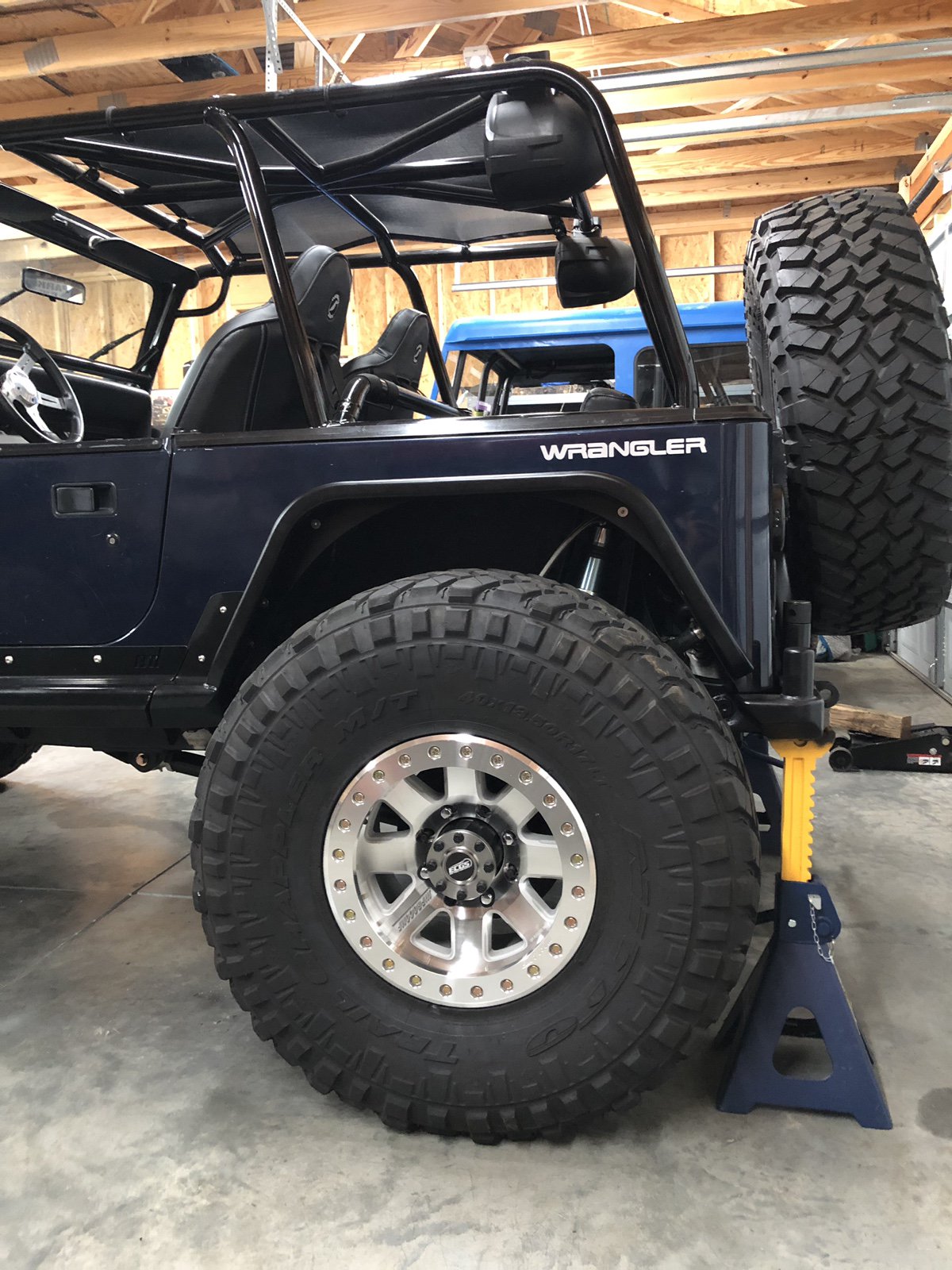

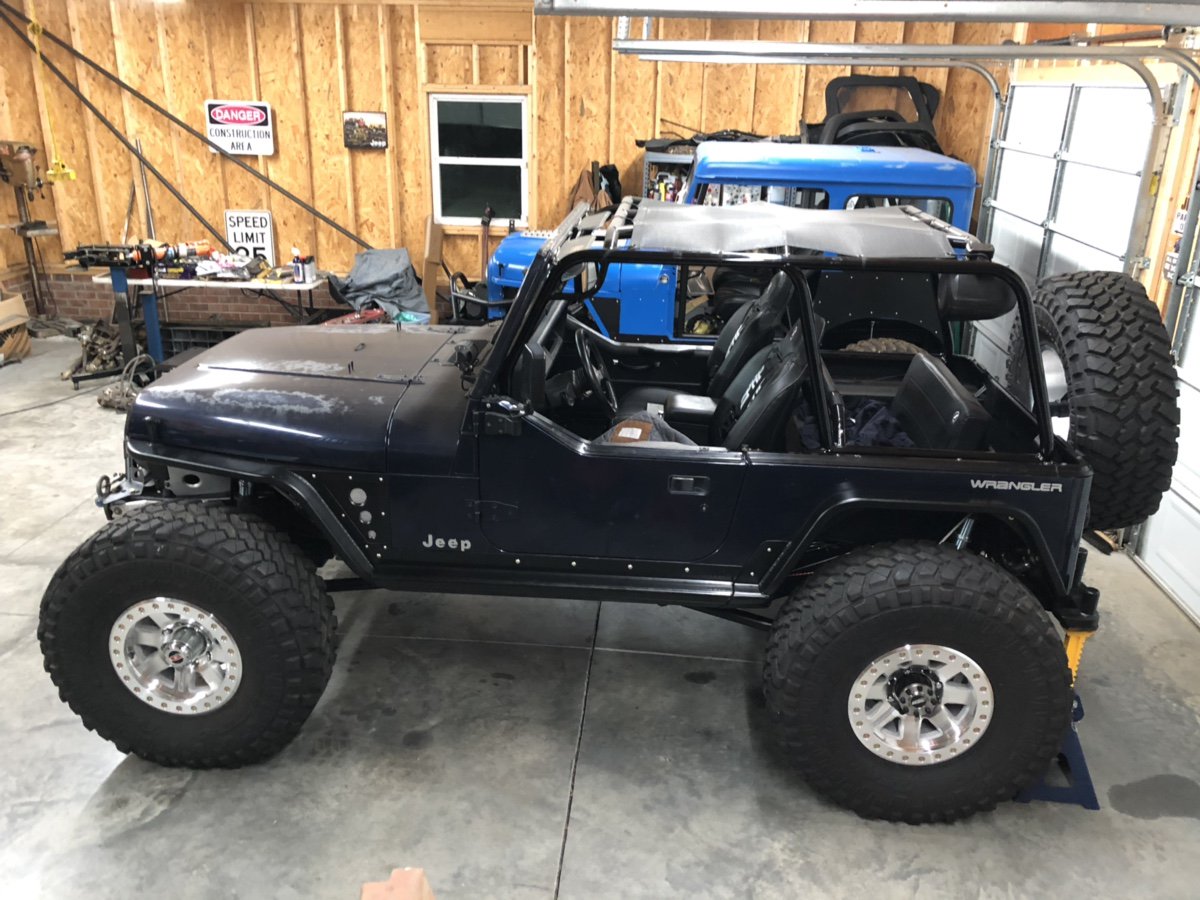

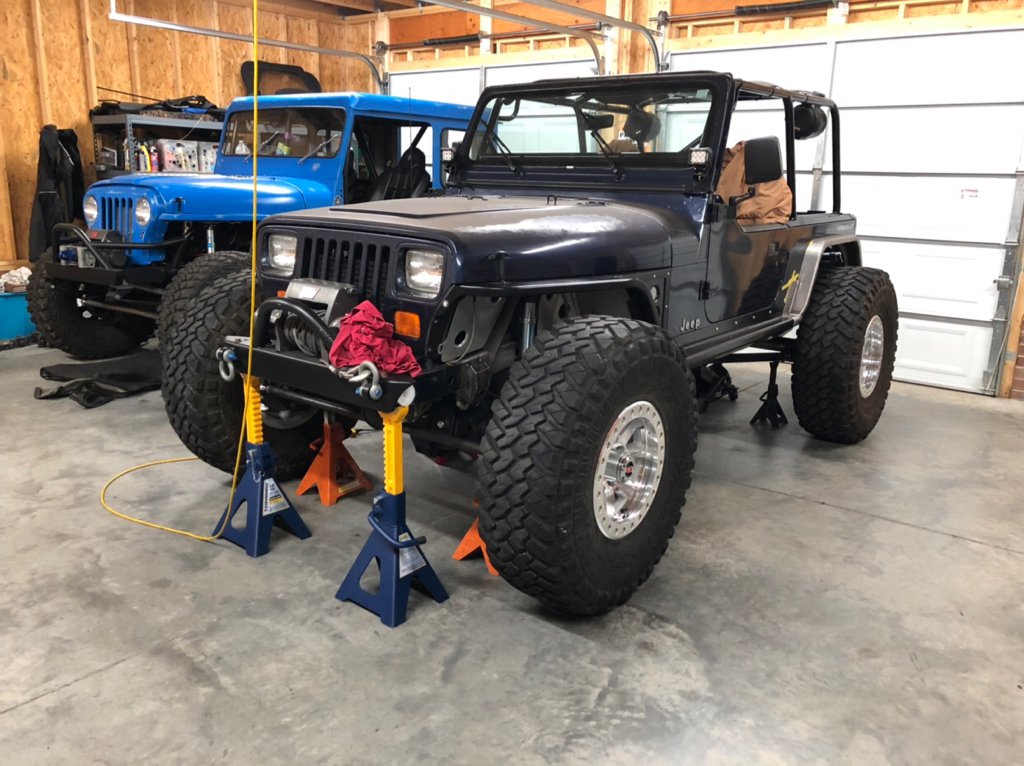

AND I ended up buying 40” nittos and mounted onto my new Procomp Trilogy Race beadlocks. This photo is about 2.25” below right height.



Sent from my iPhone using Tapatalk

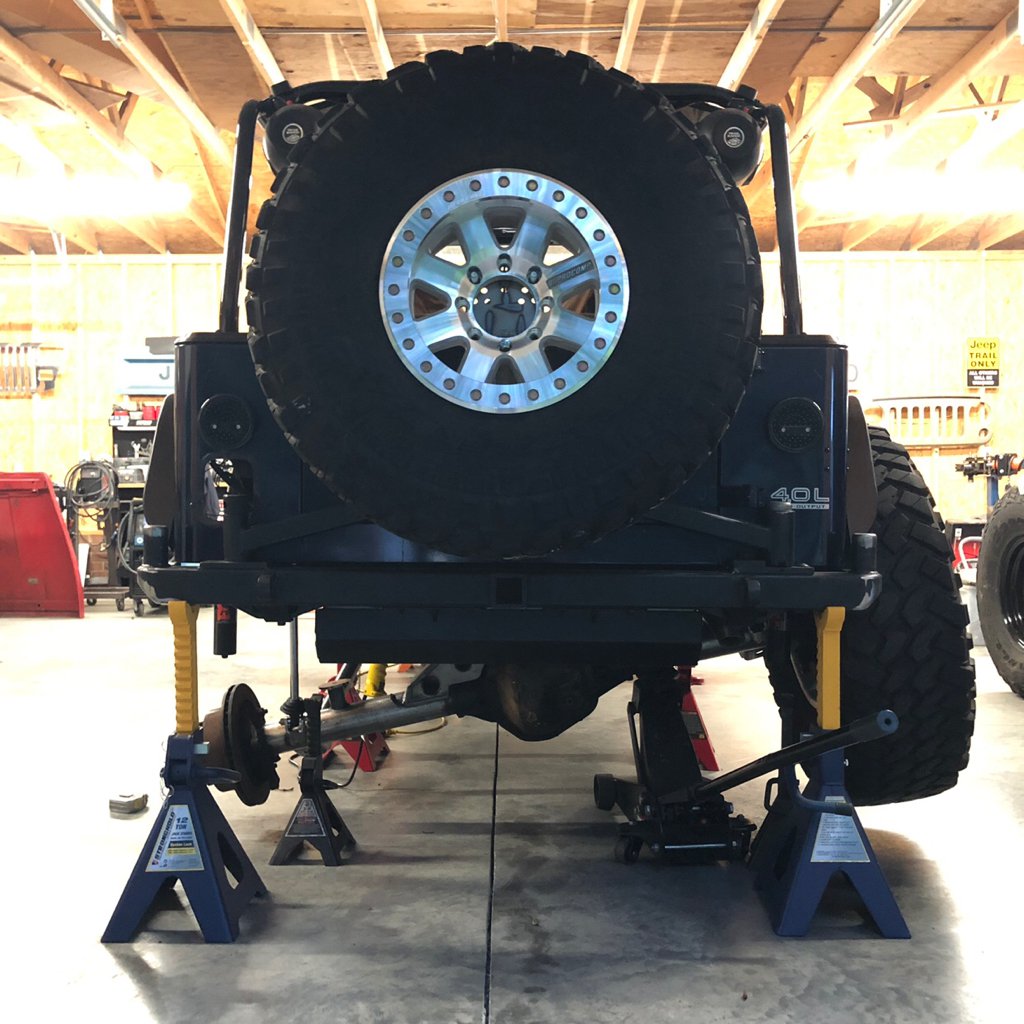

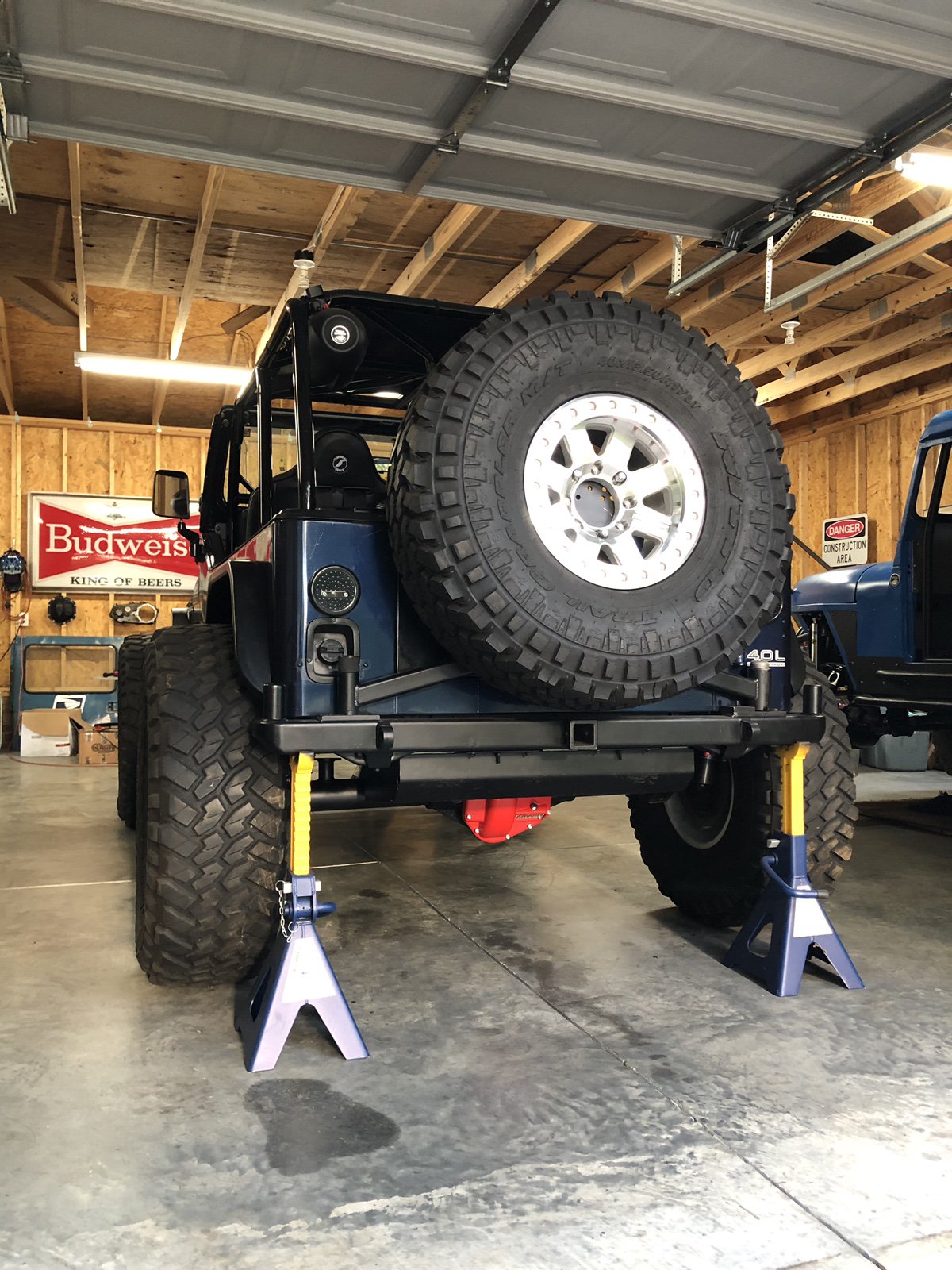

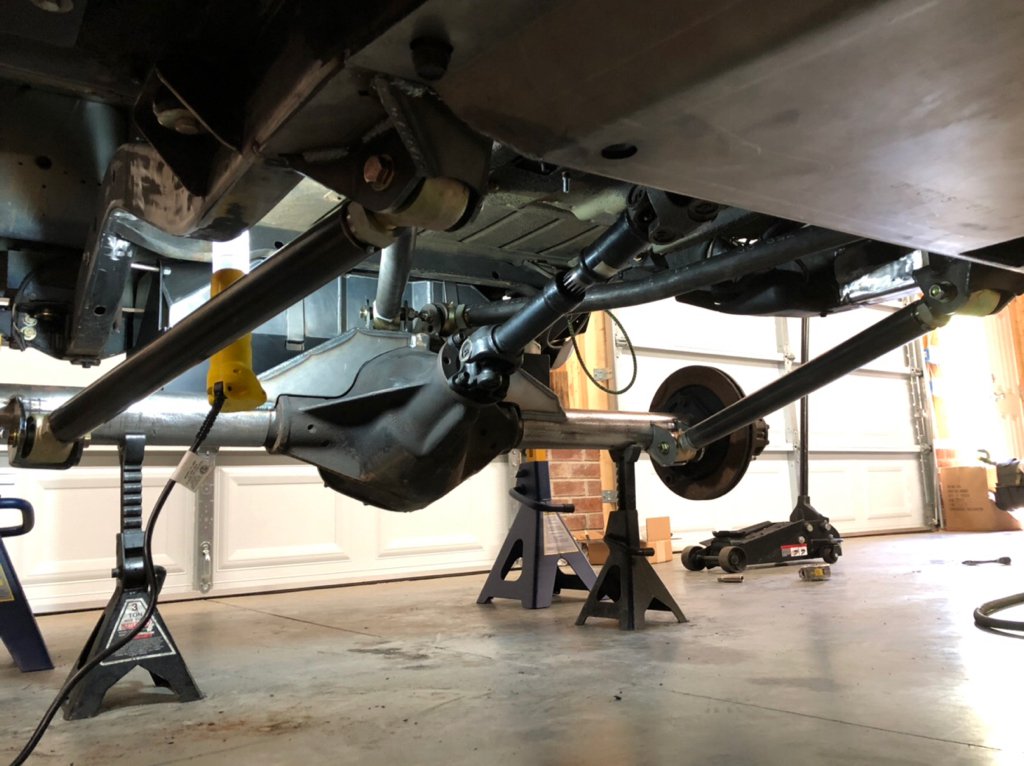

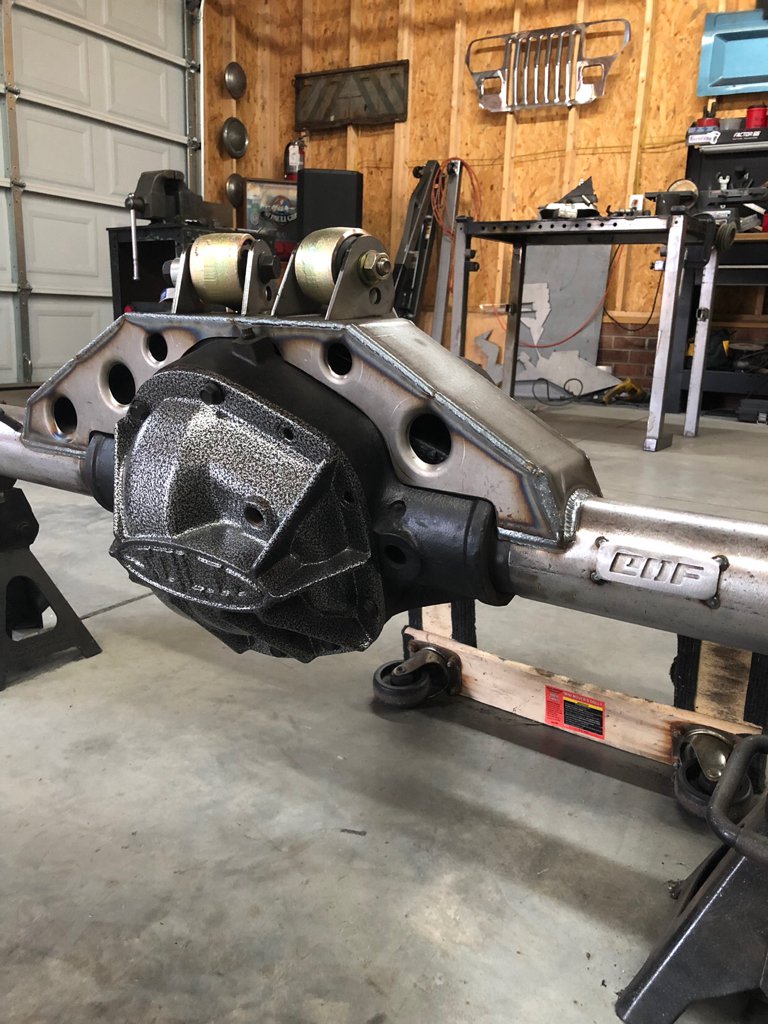

Rear axle checked for clearances and fully welded. It felt really good to get this part check off of my to-do list. Headed to get gears, shafts and locker installed today.








Sent from my iPhone using Tapatalk

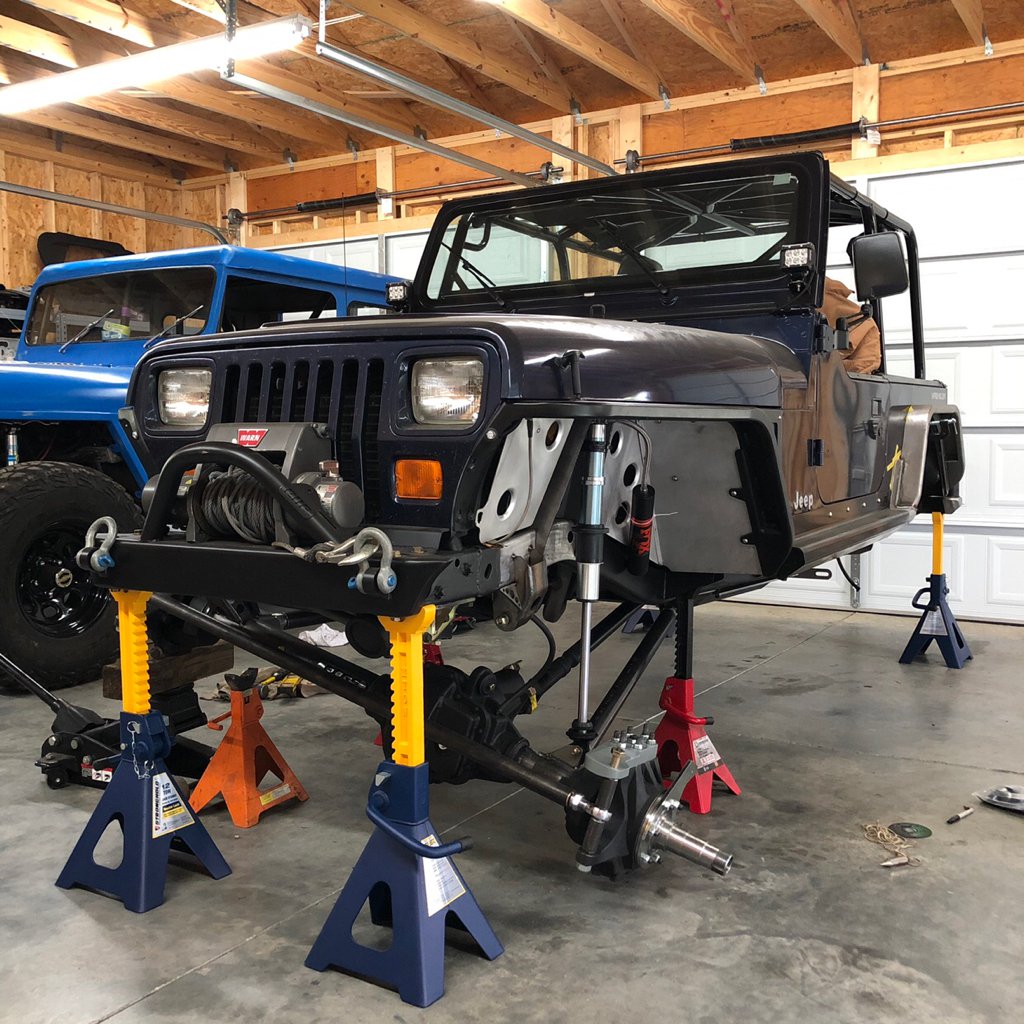

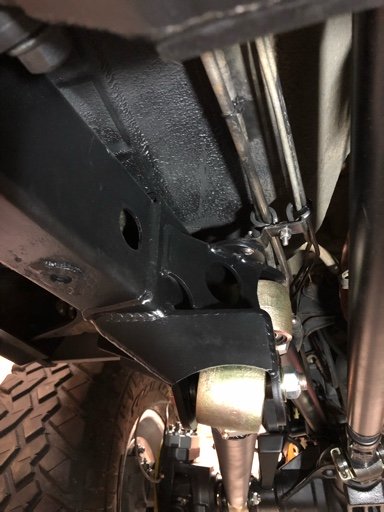

Been busy getting everything painted, ready for final install and starting to see how it’s going to look. It’s sitting about 2” below ride height. I got it as low as I could without hitting the tub. Had to trim the tub bracing underneath. Genright tank is in for good as well.




Sent from my iPhone using Tapatalk

here are a few of the detail shots of front and rear.

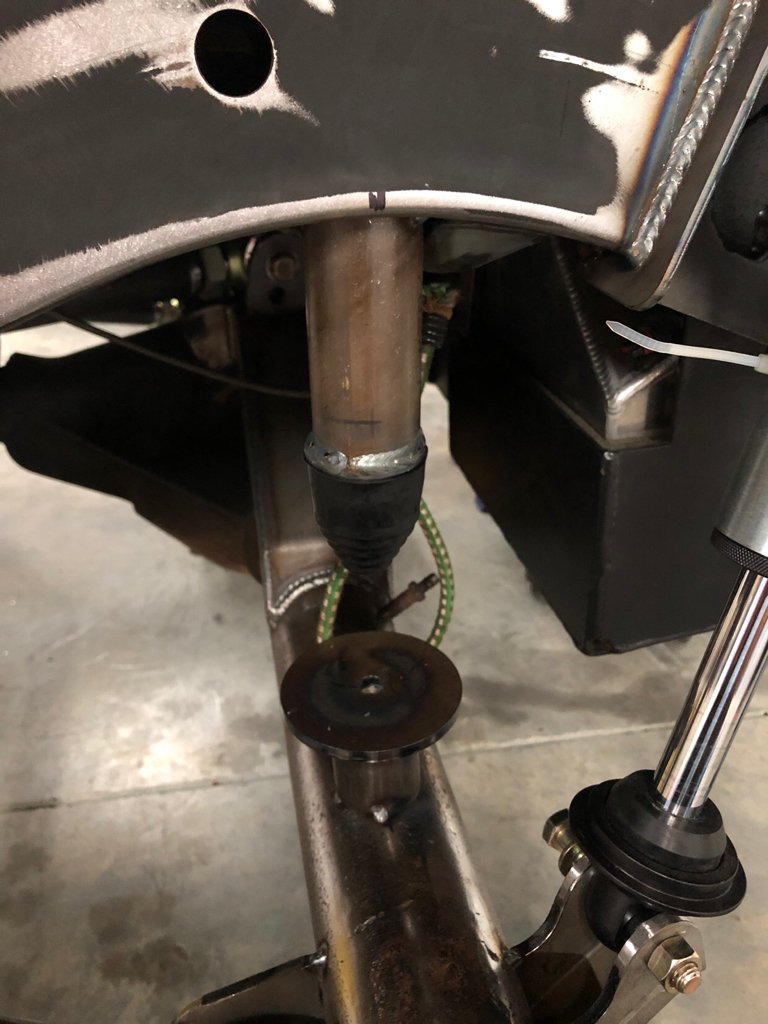

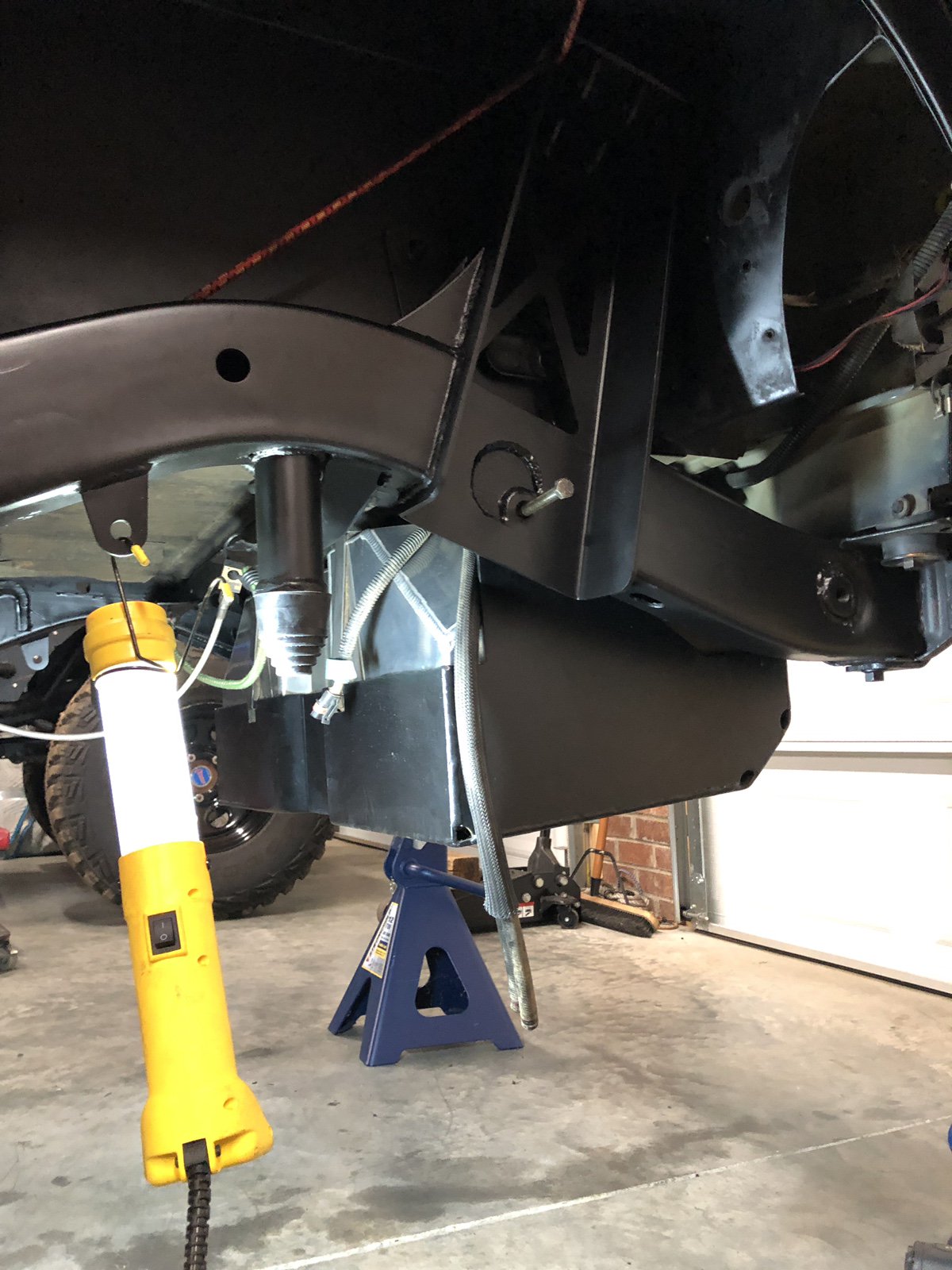

One photo shows how I welded a tube on the backside of the frame on each side so the Genright tank is solid and not just bolted with a sleeve in between.








Sent from my iPhone using Tapatalk

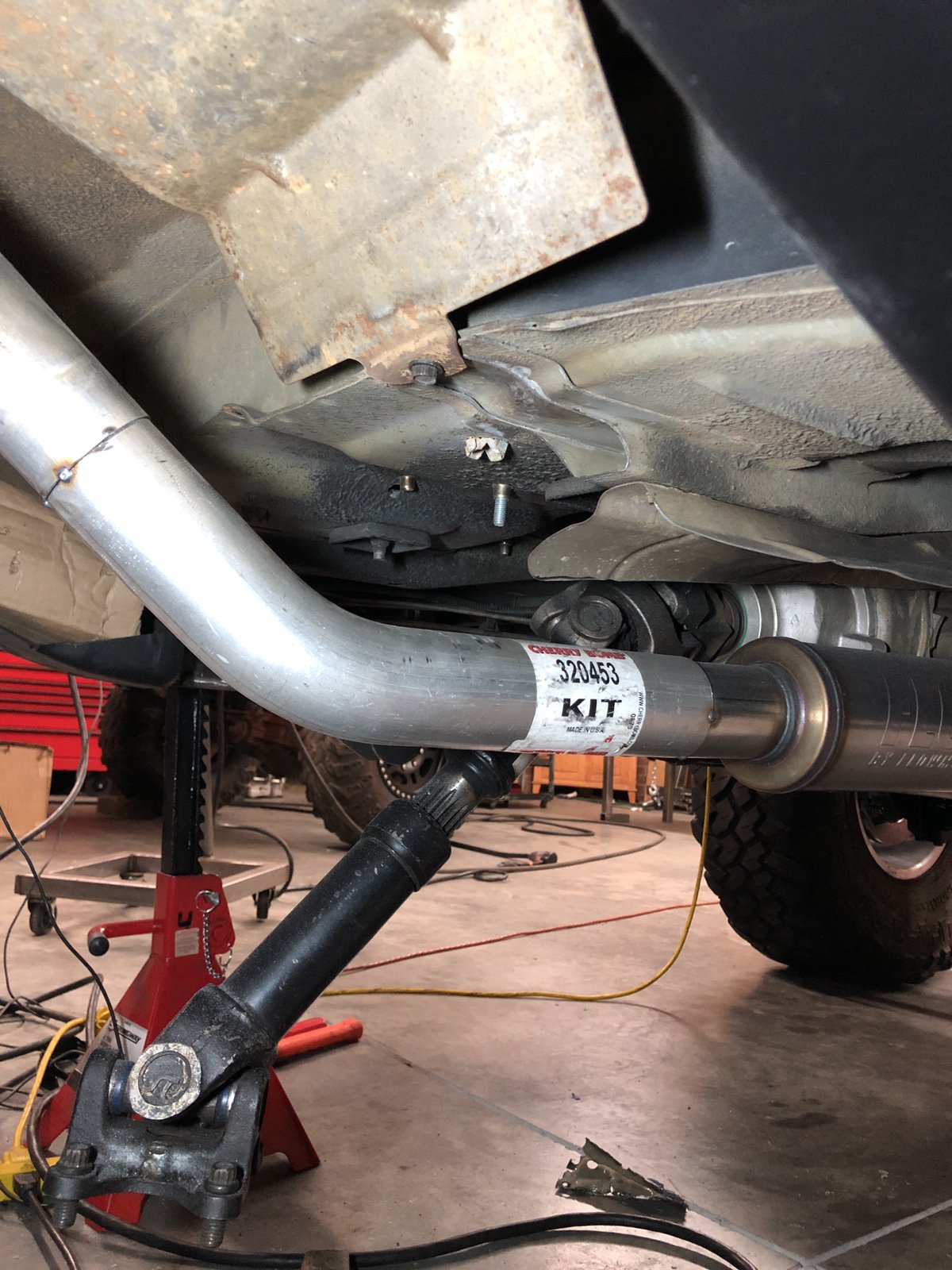

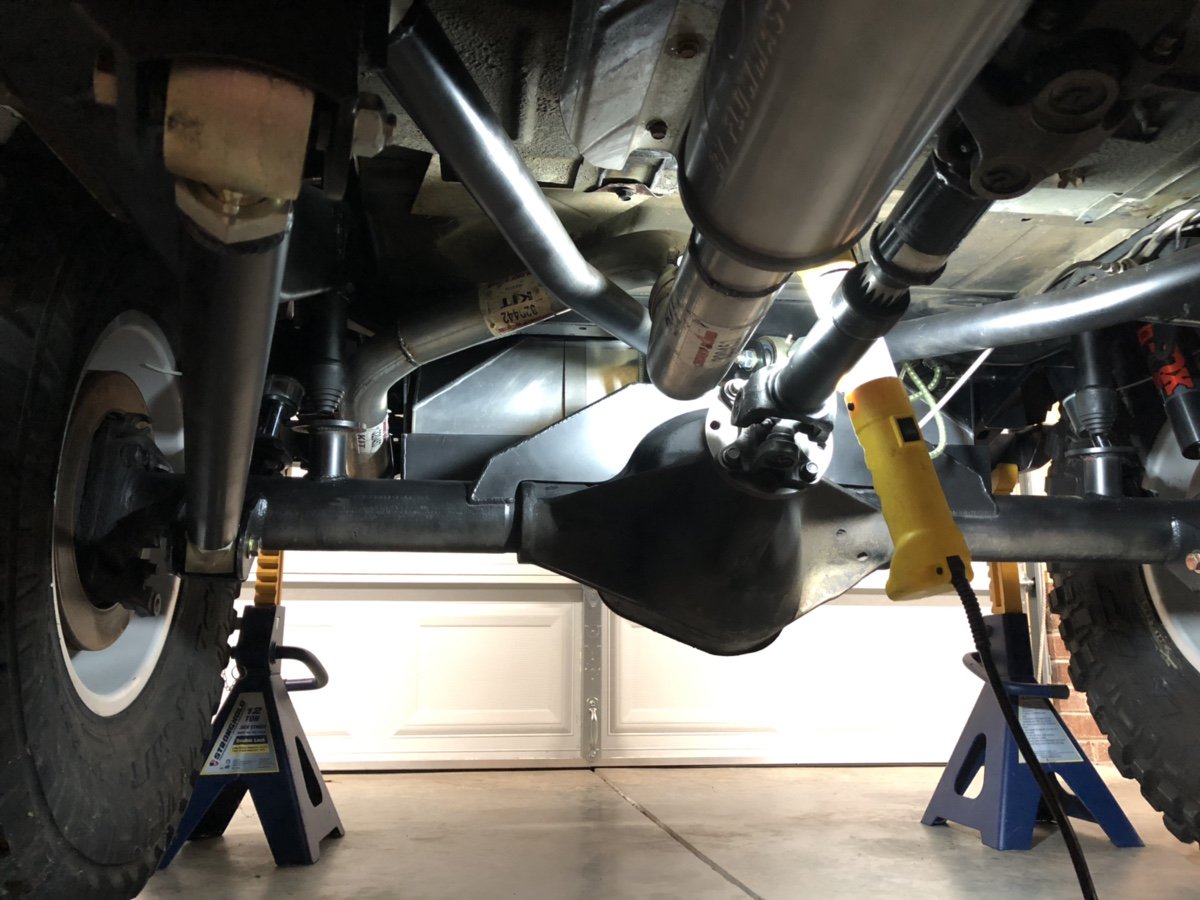

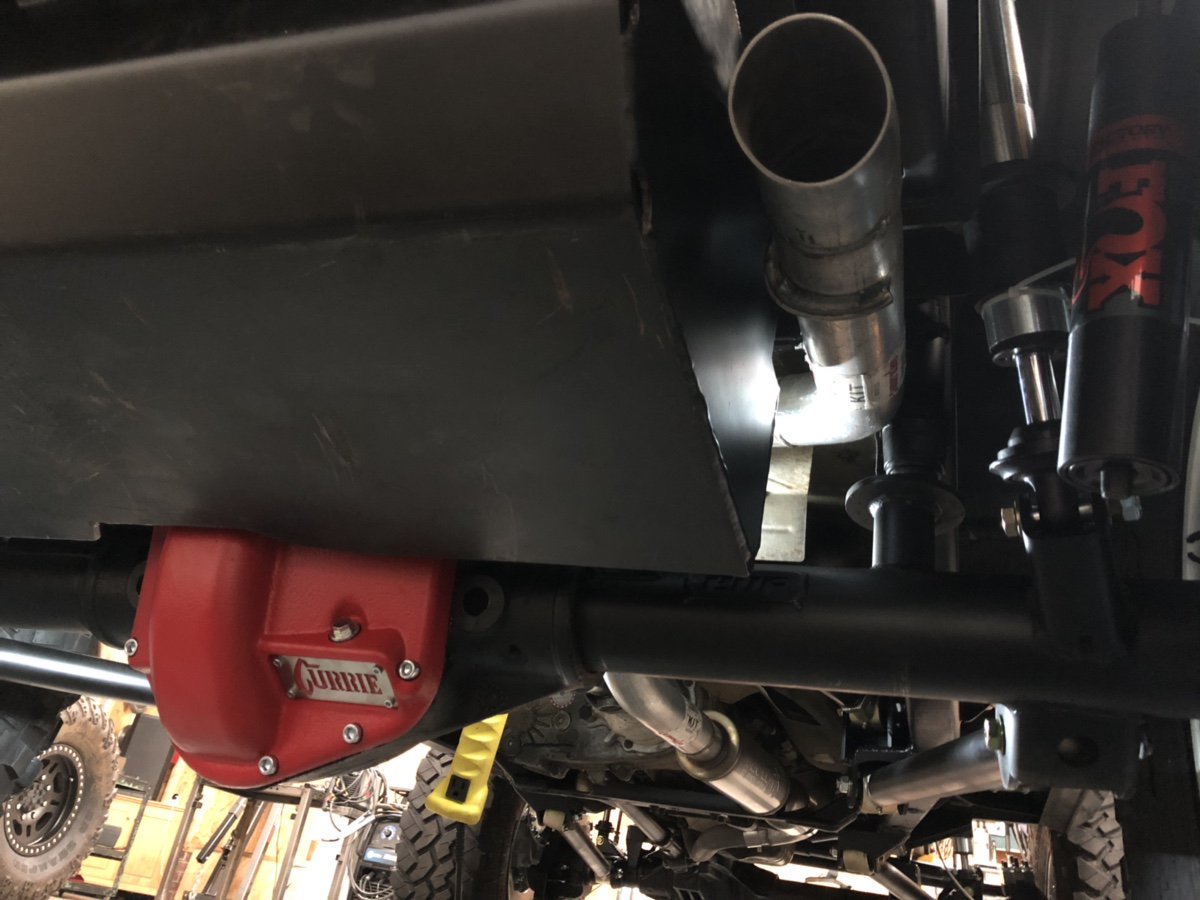

Exhaust is complete. I built it to run all the way out the back. I hate the drone sound and my wife isn’t a fan of the exhaust fumes so I added a high flow catalytic converter as well. Should sound good but not too annoying for highway and trail days.




Sent from my iPhone using Tapatalk

95yjjeep said:
here are a few of the detail shots of front and rear.

One photo shows how I welded a tube on the backside of the frame on each side so the Genright tank is solid and not just bolted with a sleeve in between.

Sent from my iPhone using Tapatalk
Click to expand...

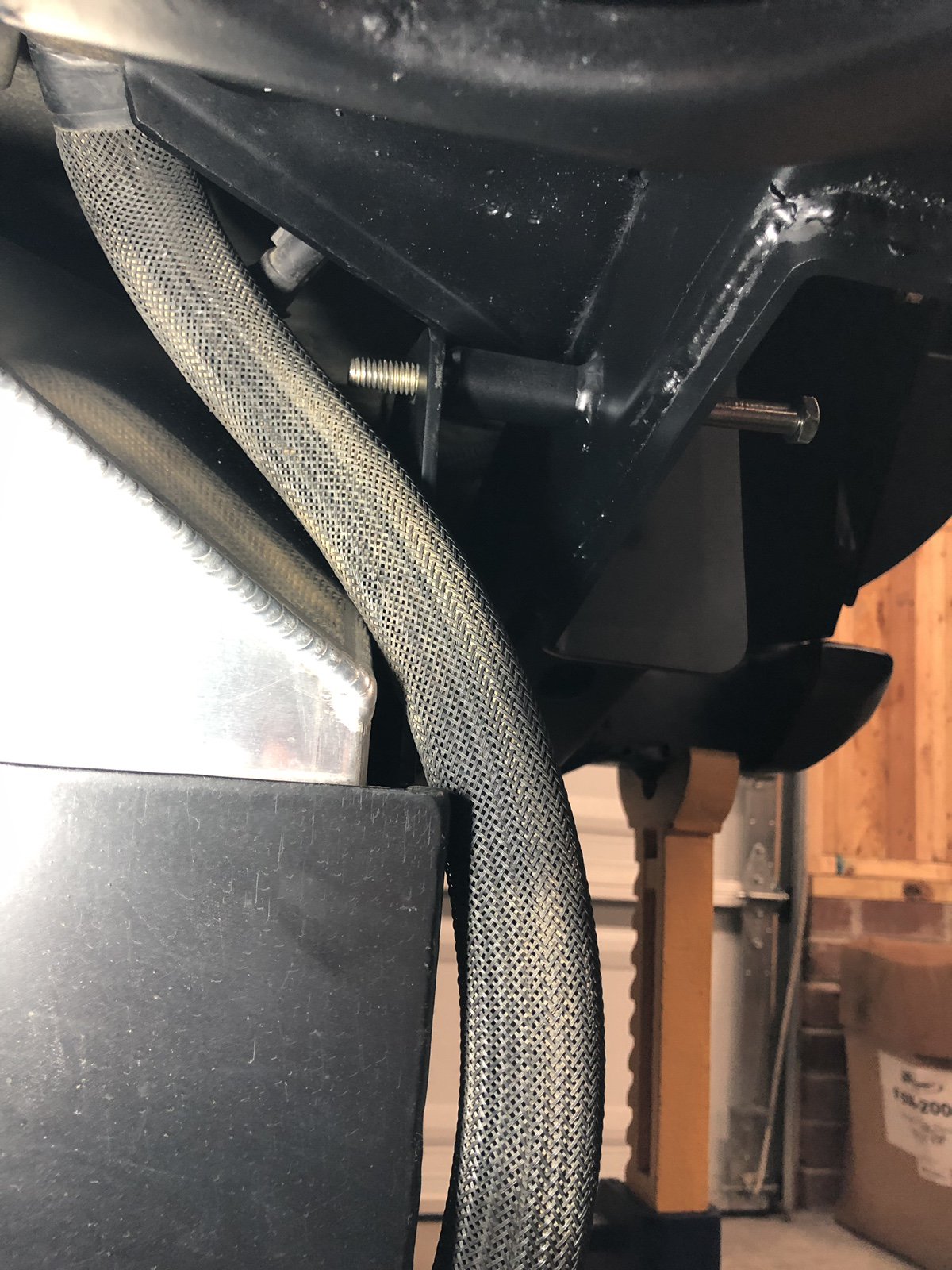

I always wondered why their frame sleeve kit included such a long bolt and sleeve. I ended up using less than a 1/2” of it. The tank skid butts up against the frame on the 23 gal tank

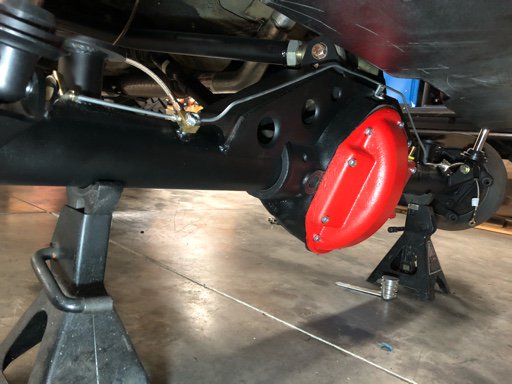

Brake lines are in.



Sent from my iPhone using Tapatalk

Fuel lines routed and shock reservoirs mounted. Jeep runs again too. Time to work on hydro assist install.









Sent from my iPhone using Tapatalk

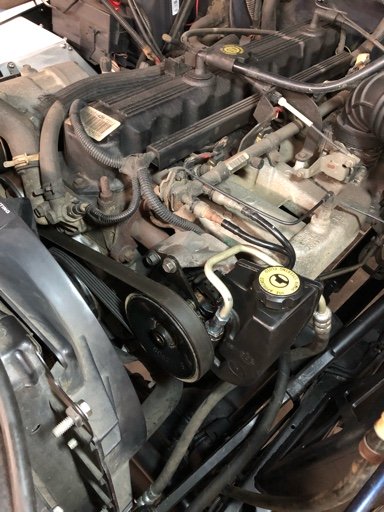

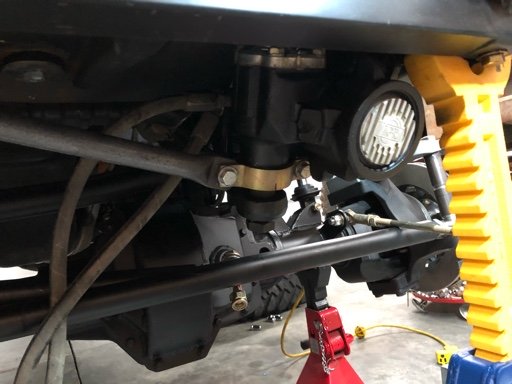

AGR Hydro assist going in. Picked it up used on NC4x4. Cleaned up and just need to add the hydro ram mount on the axle and tie rod. happy with the AGR parts so far. Pump went in seamlessly. Let’s just hope it all works well!
