One Ton 2nd gen Tacoma Build

Discussion in 'Build Threads' started by Van-go, Jun 23, 2019.

  1. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    F250 shock towers and be done. You just gonna try standard cross over steering first?

  2. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Yes, that’s the plan. I may need to notch the frame up and get a flat pitman arm. We will see.

  3. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    So I’m looking into full hydro. I have all the parts to do it, so why not.
    Only concern is the stock pump. Searched for hours. No data on its output.
    No aftermarket pumps that I can find.
    Probably going to have to use it as is or fab up a TG pump bracket.

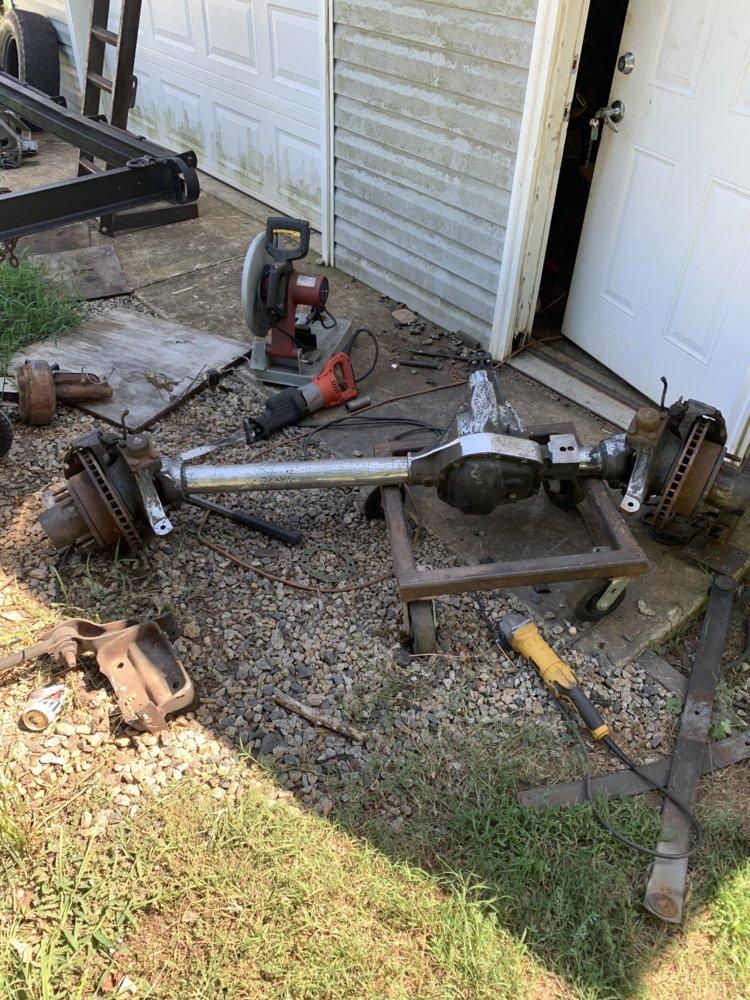

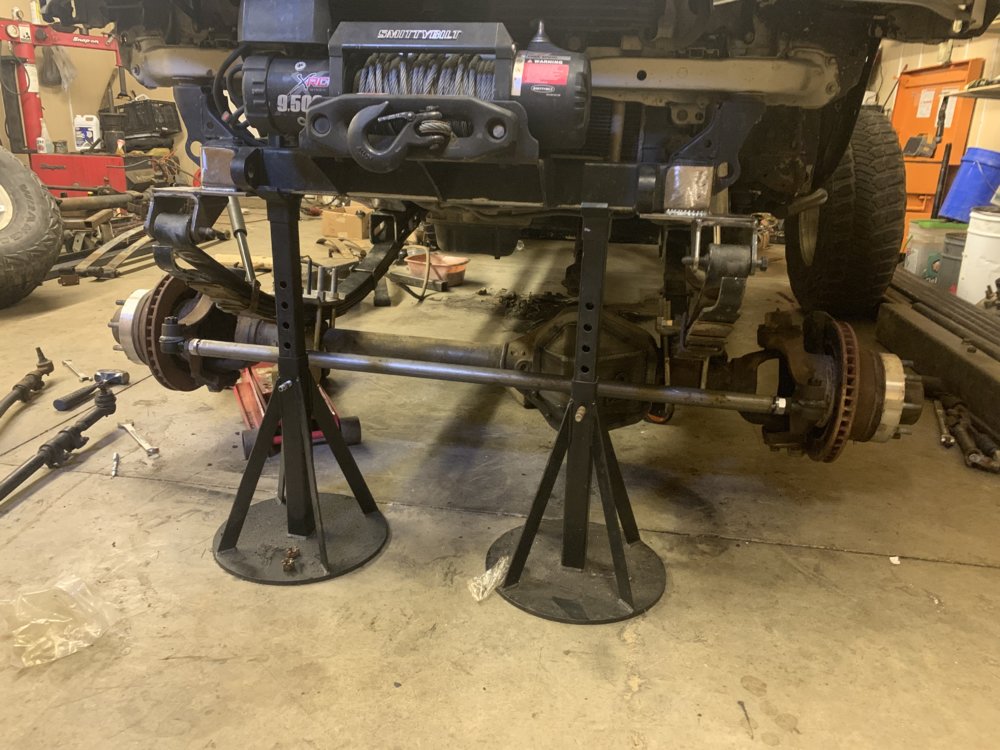

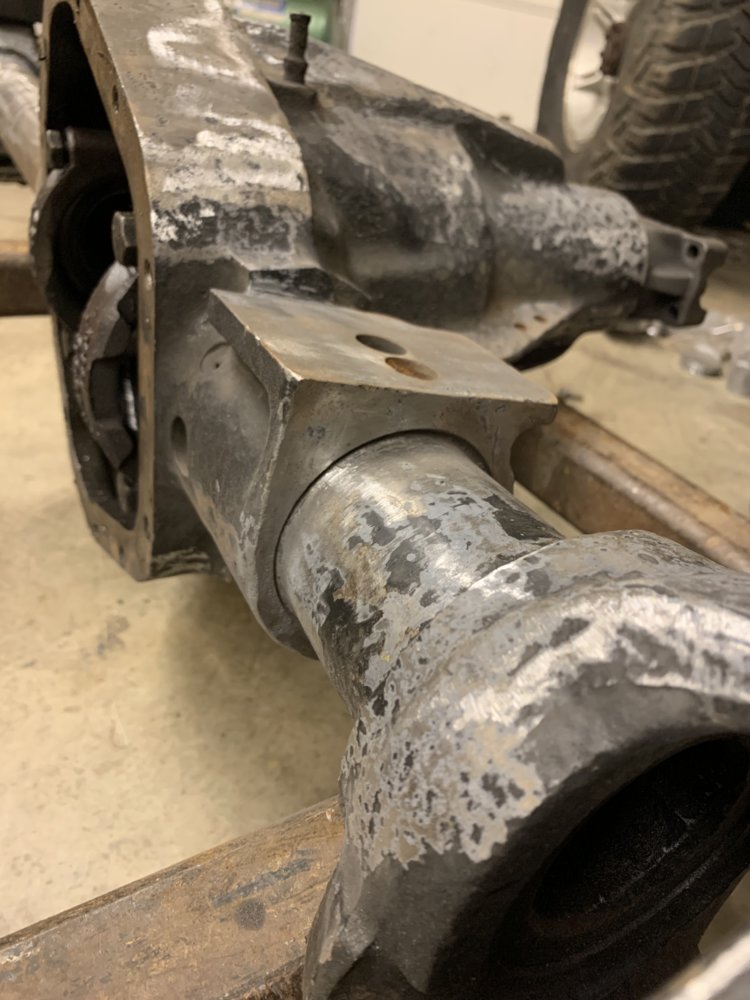

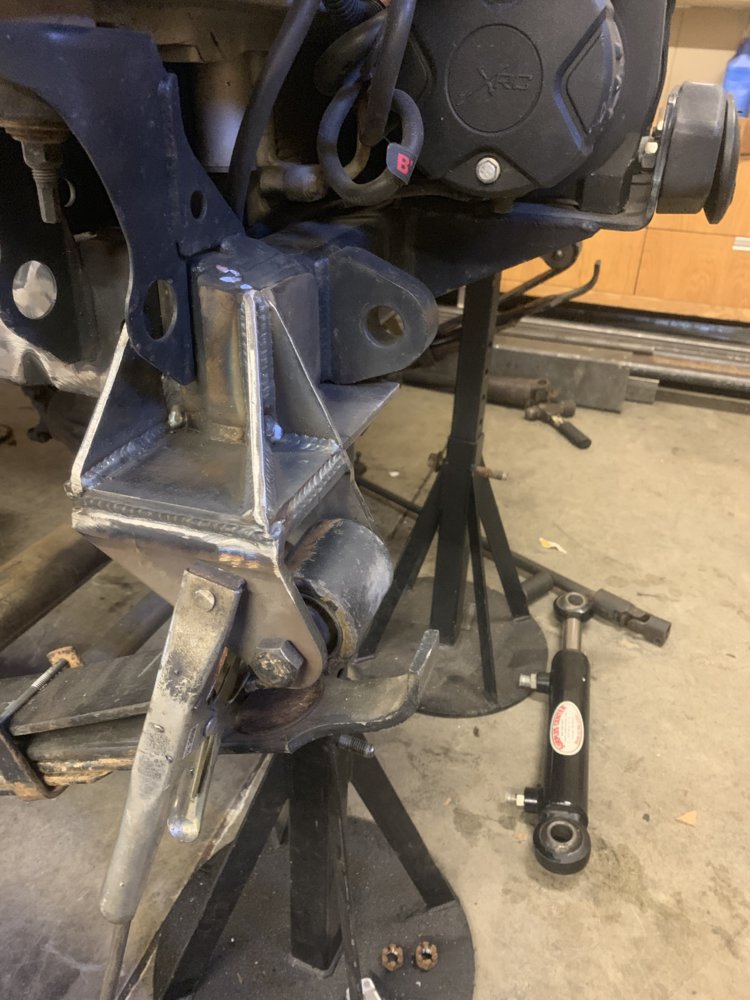

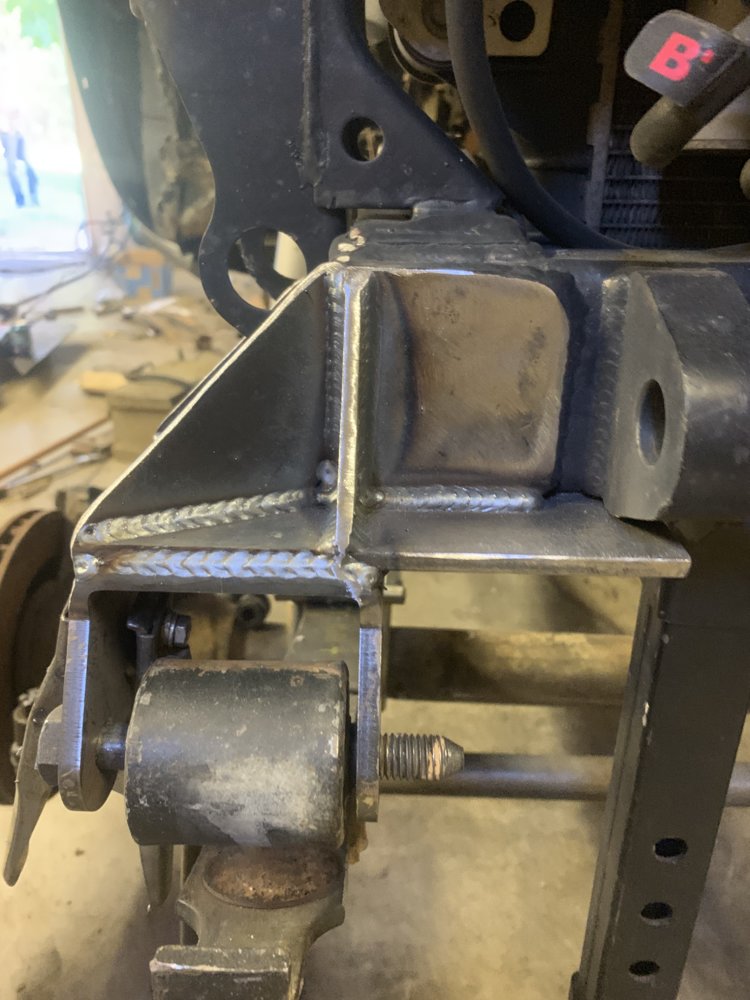

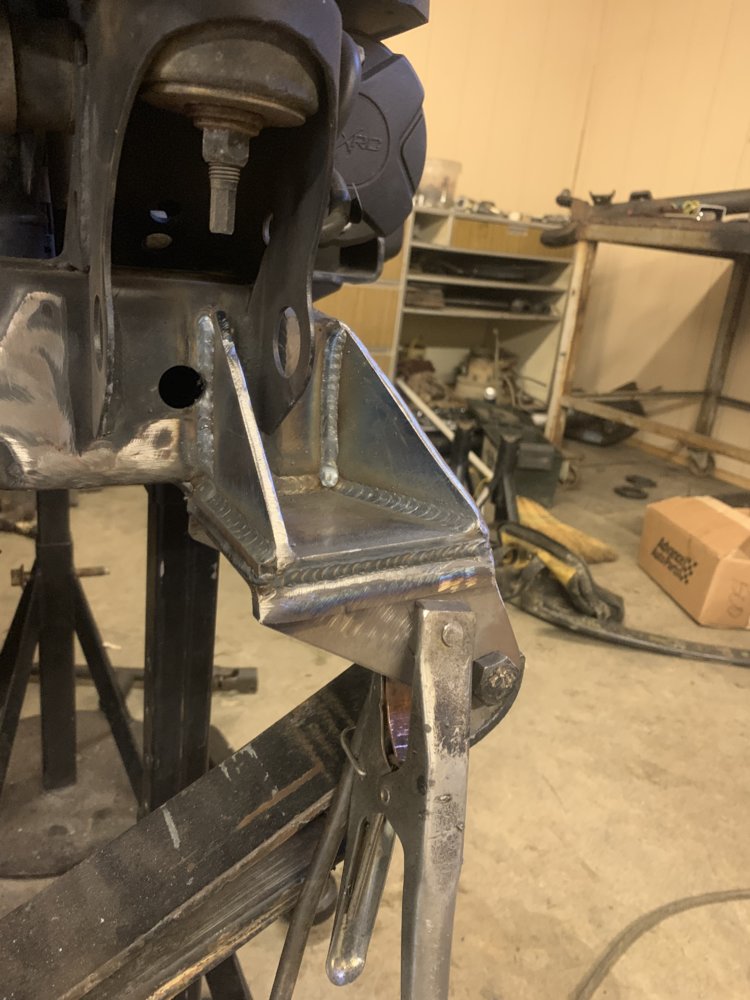

    Made a little progress today. Got the axle cleaned up That I’m planning to use. Was modified to run in a 99-04 super duty so I have to weld on a new perch.
    Ordered some parts from @Barnes 4wd
    offset TRE to clear the cover
    Misc tabs
    Shock hoops
    Orbital mount
    Leaf perch

    Ordered some gears for the front too.

    @Chris_Keziah is gonna help me install them when they get here.

    Welds by @hurt4x4

    F7BA4FFF-0825-40CB-9374-F4FD173D1D12.jpeg DCFF0B39-9547-4660-8869-B418B32019D8.jpeg 75738682-EDAA-497C-8B6E-CDA7292869BC.jpeg 80D88553-DE1A-4665-A84F-08D88BC83B0C.jpeg B9AB6492-BFA1-419F-8292-F1276D3C863A.jpeg

  4. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Norfolk, VA
    You’ll need two small bends to clear the diff cover if you aren’t moving the tie rod location from the original knuckle location. My 05 with a recessed cover from ruffstuff and Barnes offset heims still hit at full lock.


    Sent from my iPhone using Tapatalk

    Joe J. likes this.
  5. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    It cleared at lock to the driver side, but not to passenger with standard TRE’s
    We’ll see how the offsets do.

  6. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Ive got a set of offset tre if you wanna try before ordering a set.

  7. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Already ordered. Thanks though

  8. hurt4x4

    hurt4x4 Well-Known Member

    Joined:
    Sep 12, 2012
    Location:
    Greensboro
    I'm still waiting to see the purple YJ build :flipoff2:

  9. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I’m waiting on this guy to finish his taco so we can work on getting the puzzle figured out

  10. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

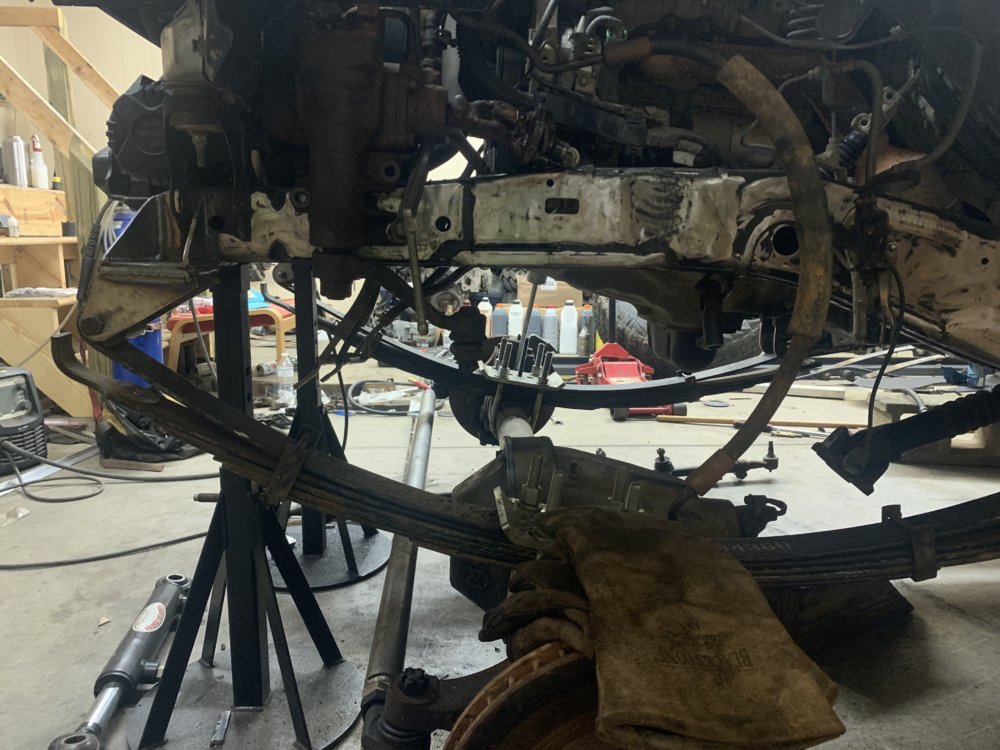

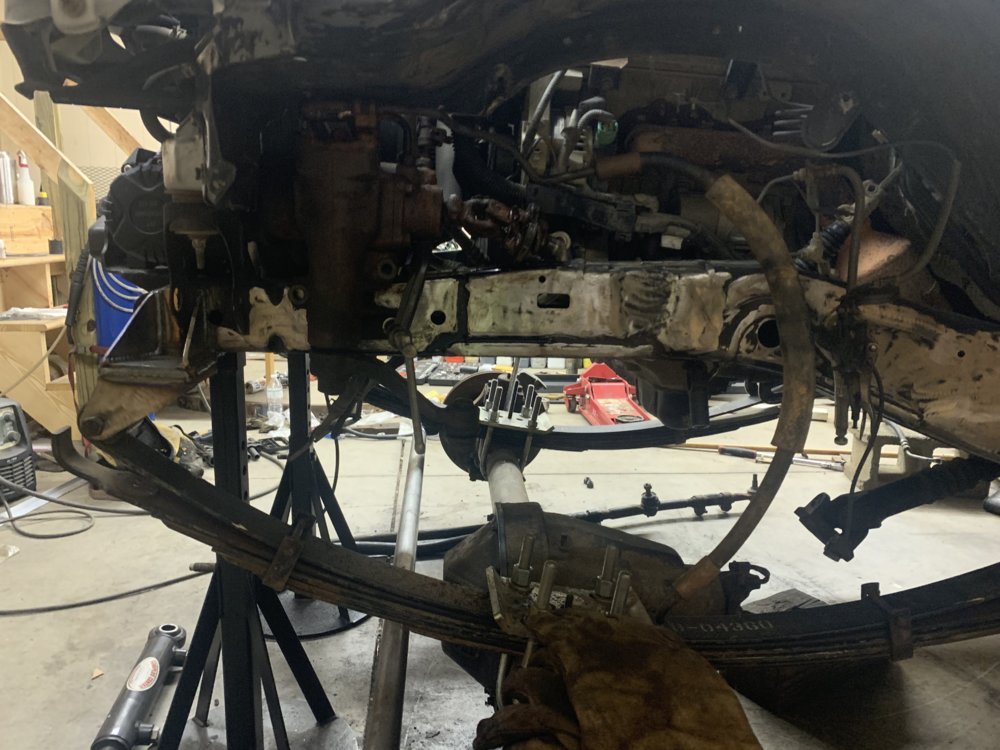

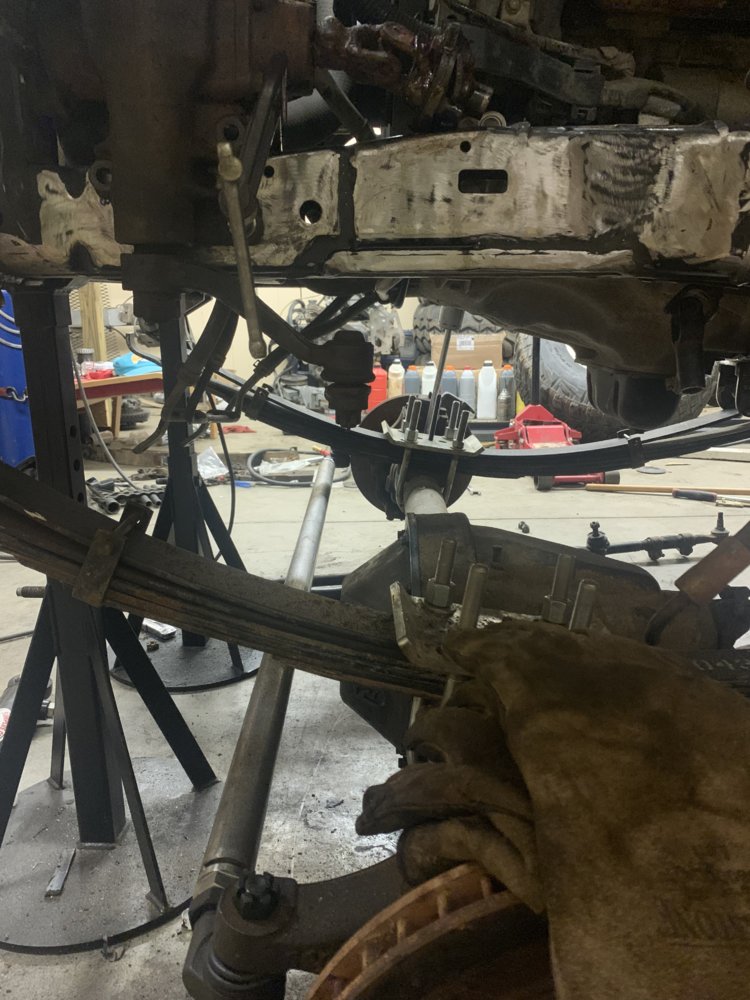

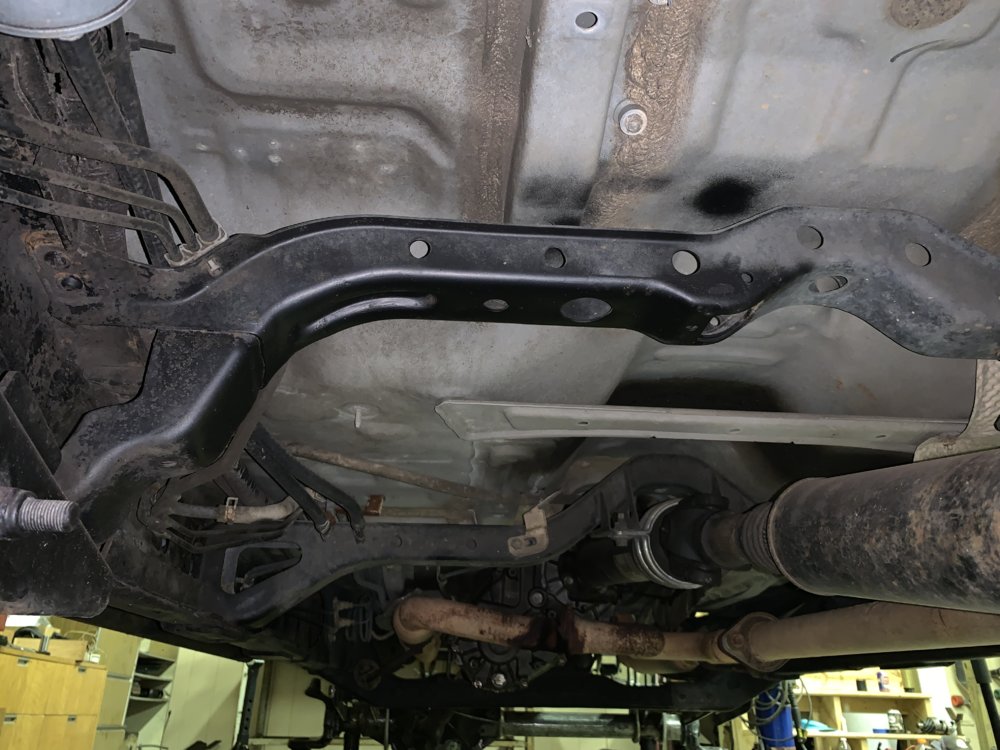

    Decided I’m going to do a steering box. Figured out full hydro is a pain on these cause the airbag clocking spring will break if you over rotate the steering wheel.

    Not 100% sure if it’s far enough forward, but it will have to work. It’s as far forward as I can get it. I can always slide the axle back an inch on the spring perches.

    2D6DE357-F83F-41AE-9B3E-DCBE38D6DC87.jpeg 2DBC5E9E-92C2-4696-A803-D2BEE0E01C0B.jpeg 3A8DE1D6-C643-4A00-A8E7-240D0B6F1E96.jpeg 01436377-B4BC-41F8-B3C3-D90A89DF2C37.jpeg

    doc likes this.
  11. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I’m thinking flat pitman arm. Possibly mount drag link above pitman arm cut up into frame to clear.

    :confused:

  12. Wesling Ducos

    Wesling Ducos Member

    Joined:
    Jan 23, 2017
    Location:
    Durham
    truck looks good man! I kick myself for selling it from time to time. I would definitely plate the frame up front. Rock solid toys sells plates for them, I've seen a few frames twist already without them on these specifically.

    Van-go likes this.
  13. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    @71chevytruckguy came over to help me get a plan for steering. I have a plan. Ordered some parts. We’ll see.

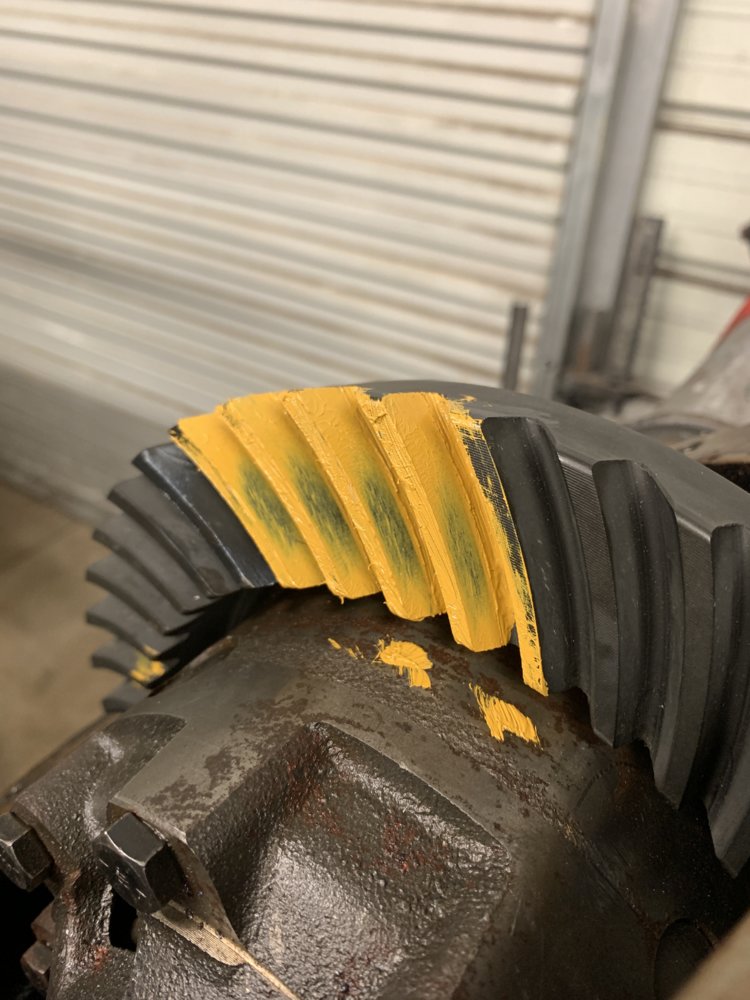

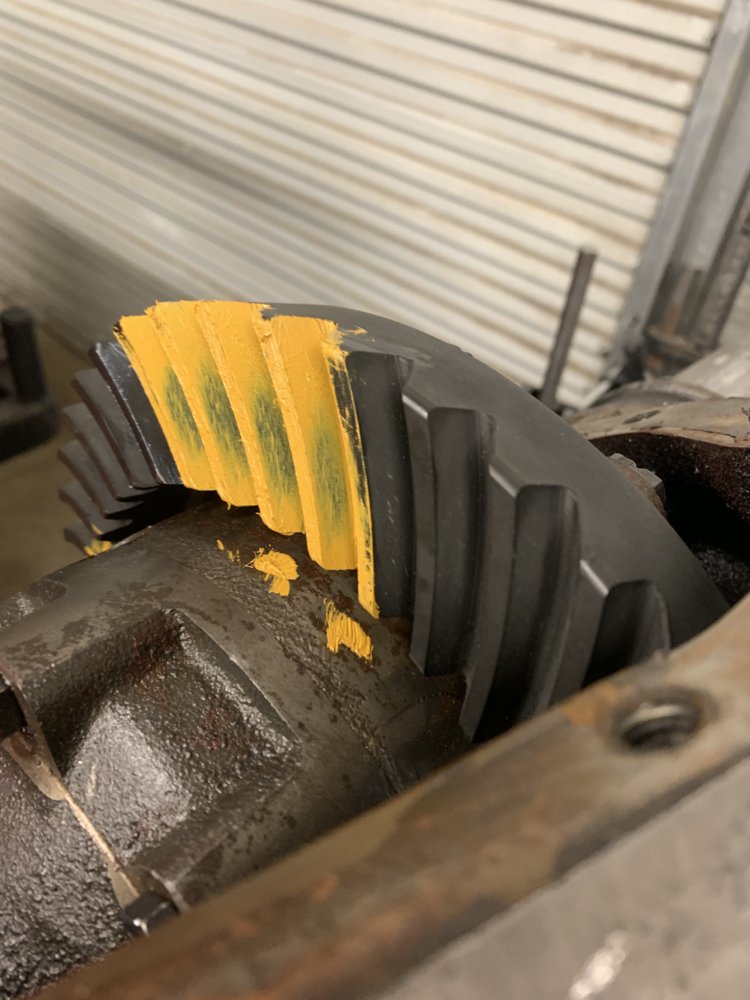

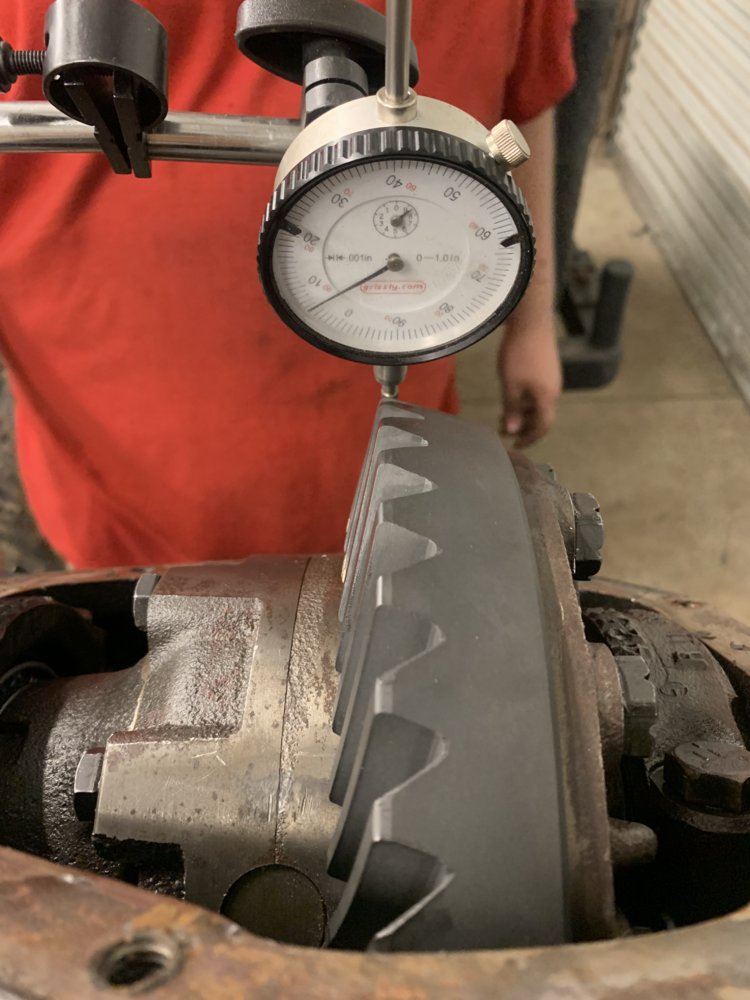

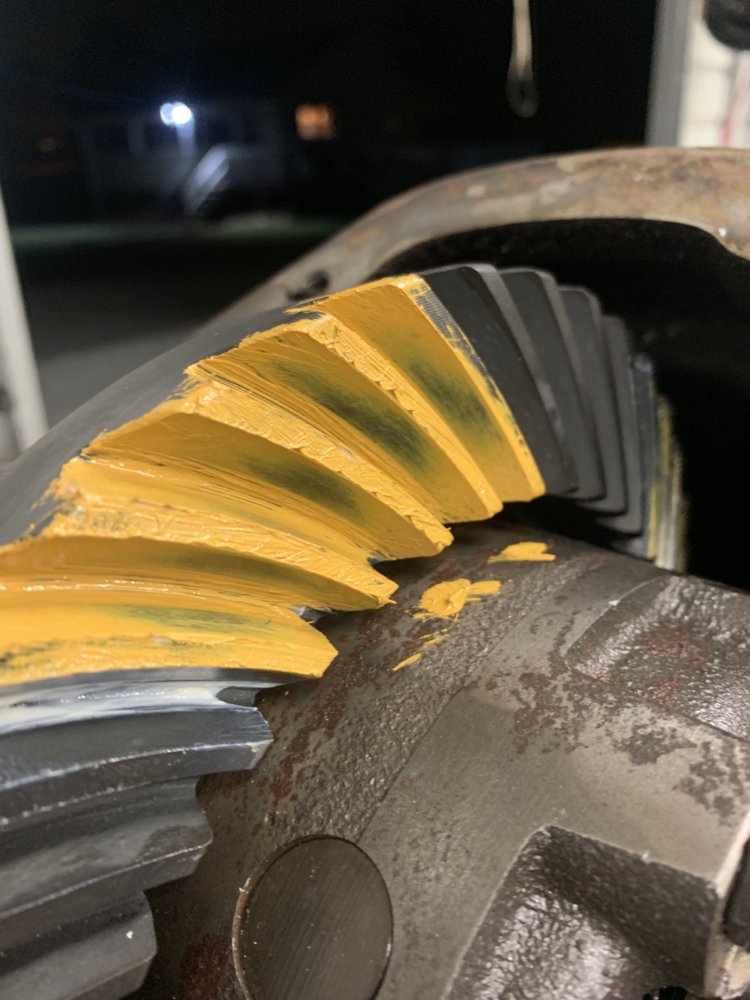

    Also, @Chris_Keziah got my gears installed on my Detroit in my 60. Now I need to weld the tubes and install new axle seals.

    4E527F8D-9C34-4503-A765-81CB58806205.jpeg F0E03C14-59CD-4522-85AA-7693B6B069AC.jpeg 83838A76-C393-4C5E-99C1-054ACEE41CD3.jpeg BDFDEDBD-A72A-4442-81BF-88922ABCEC5D.jpeg 10E7A515-4CB6-402E-AFB7-DA2B7B6C32DD.jpeg

  14. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Waiting on steering parts to show up.

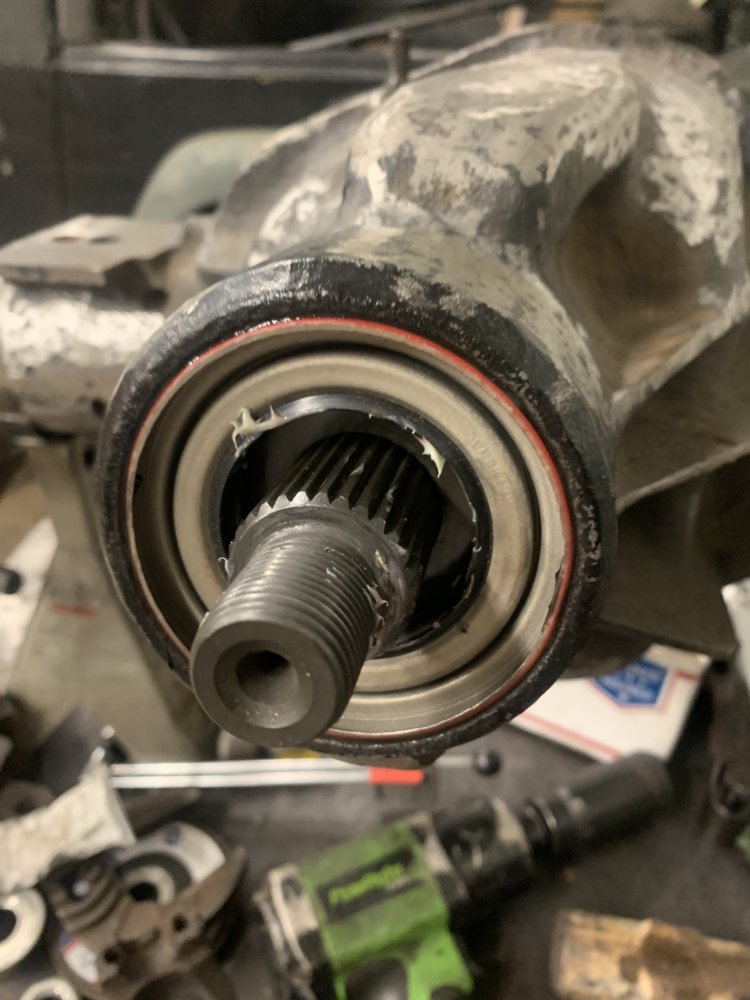

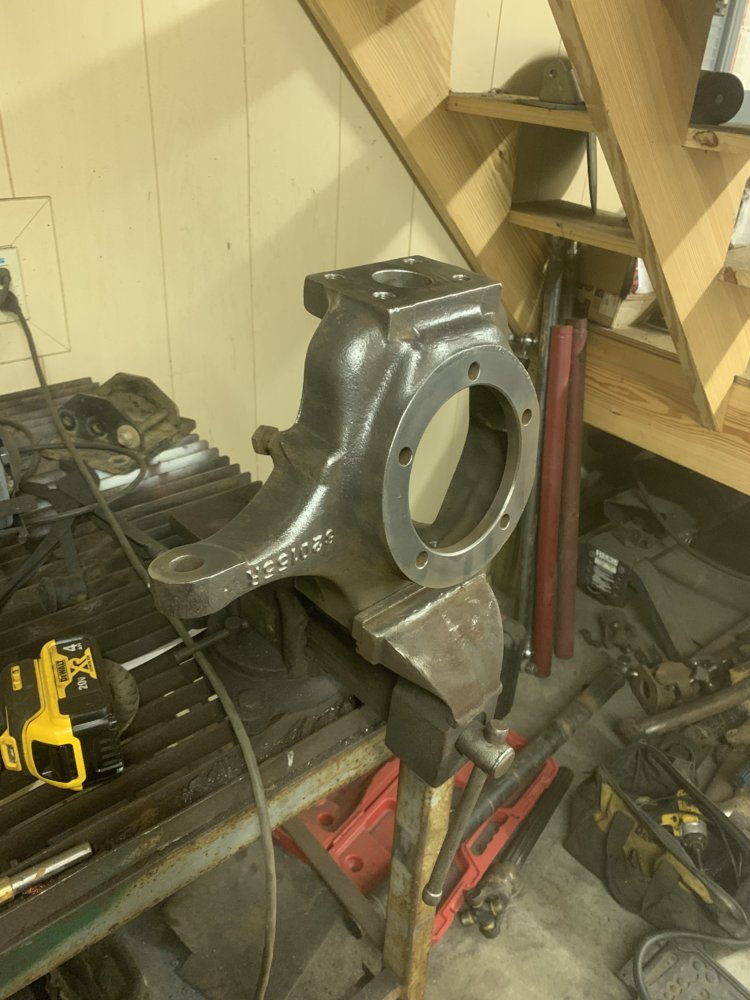

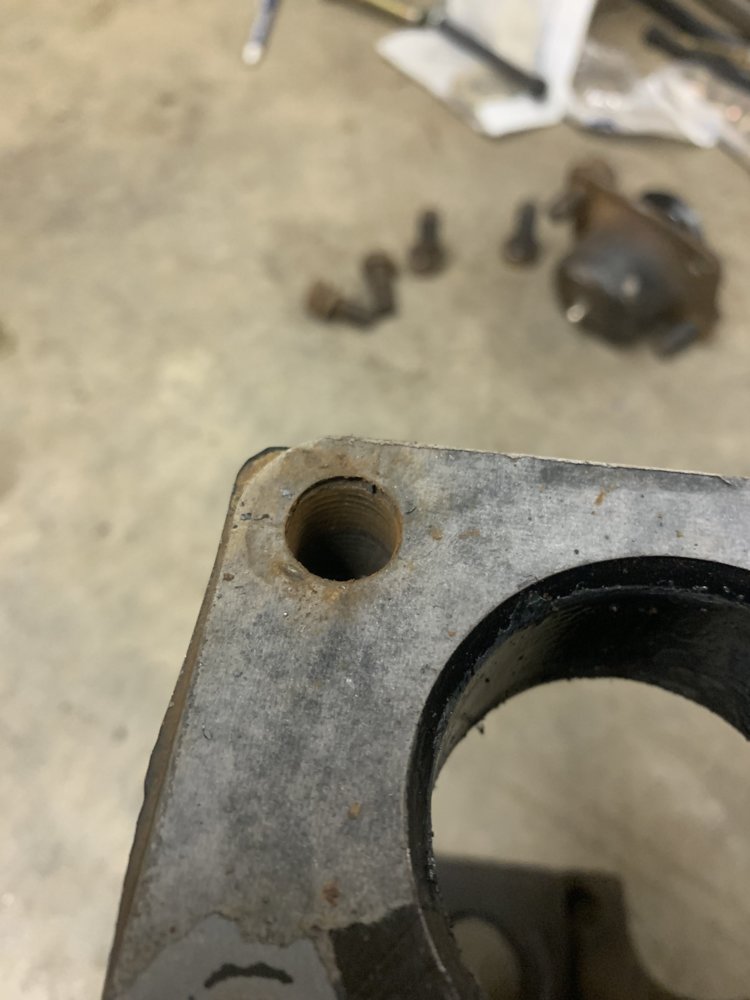

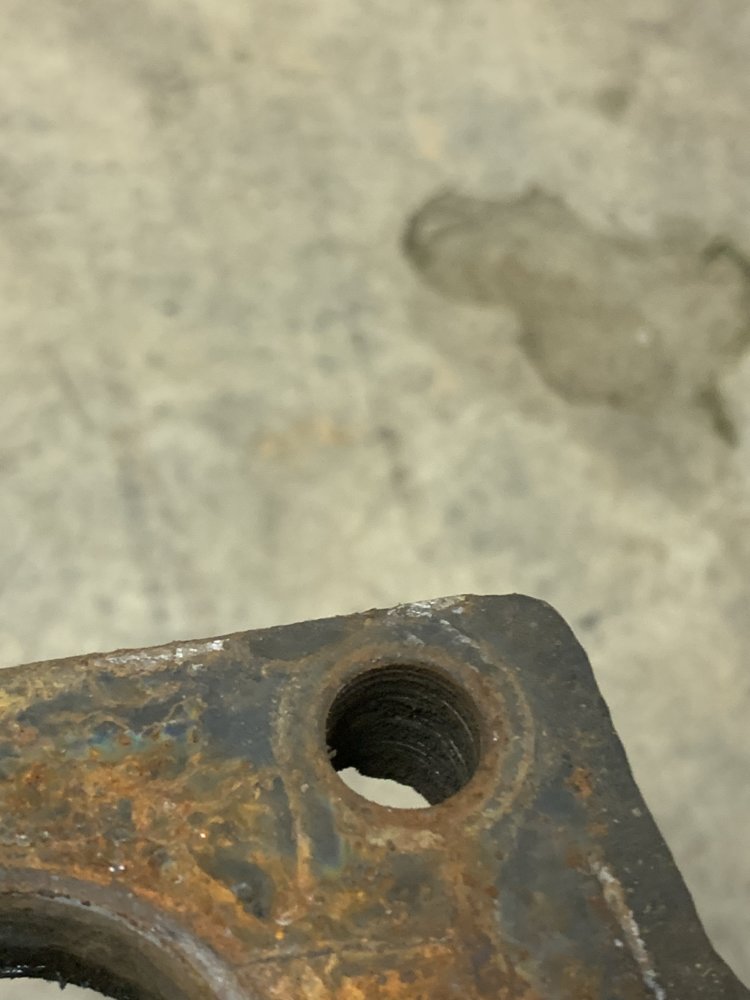

    Found some stripped threads on one knuckle. Luckily I’m a hoarder and have a few extra.

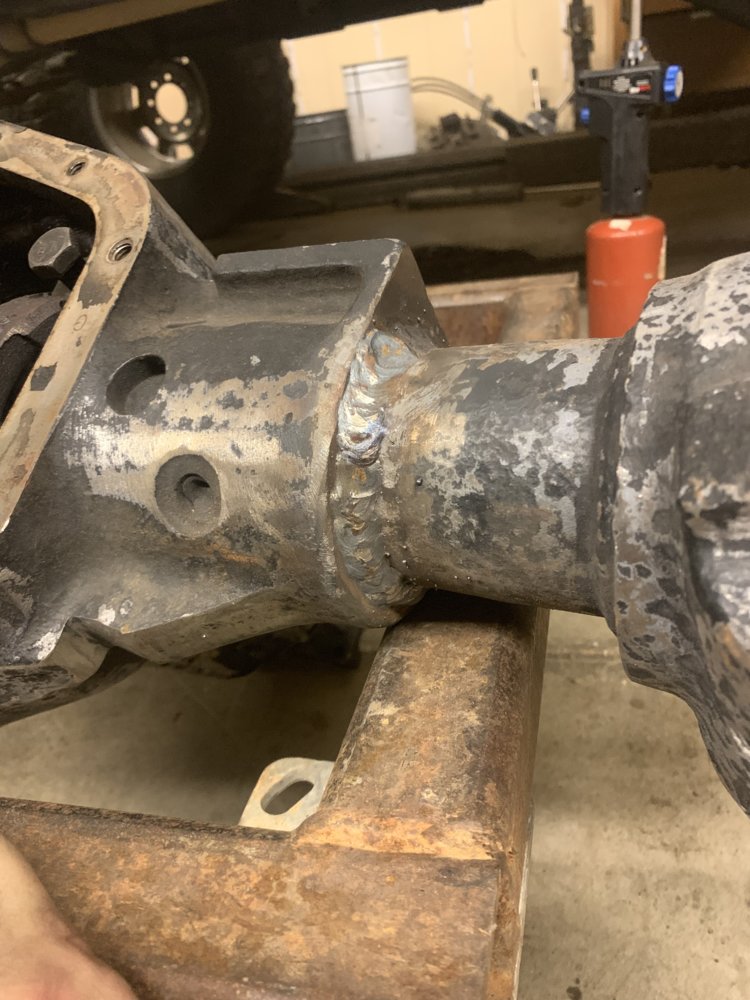

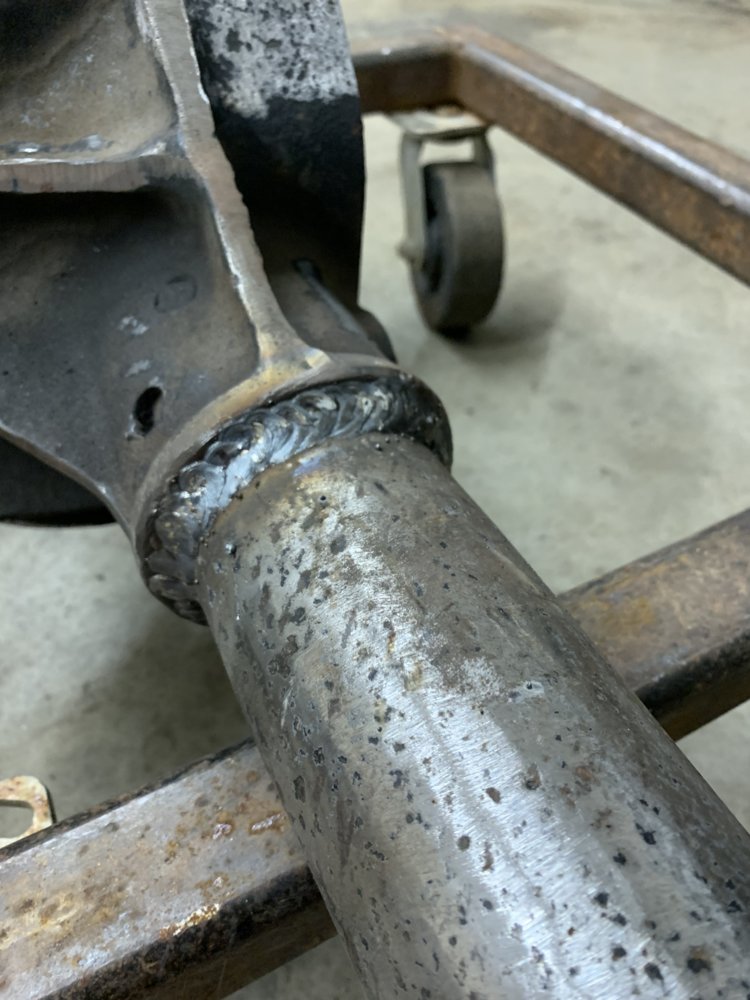

    Welded the tubes up too.

    7C33FD2E-FC1E-4001-8C7D-A6F30B8D2602.jpeg 3F8A289D-9951-42B1-9FCB-28F5B5CFAE46.jpeg AA7C9C69-8113-4DF8-A88C-433EDA1ED33B.jpeg

  15. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I guess we are a Toyota family now. Bought the wife a new 4 runner.
    Sadly it’s the most capable thing I own that runs and drives lol


  16. 77GreenMachine

    77GreenMachine Phillip Talton

    Joined:
    Mar 30, 2010
    Location:
    Trinity, NC
    Will miller, doc, McCracken and 5 others like this.
  17. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

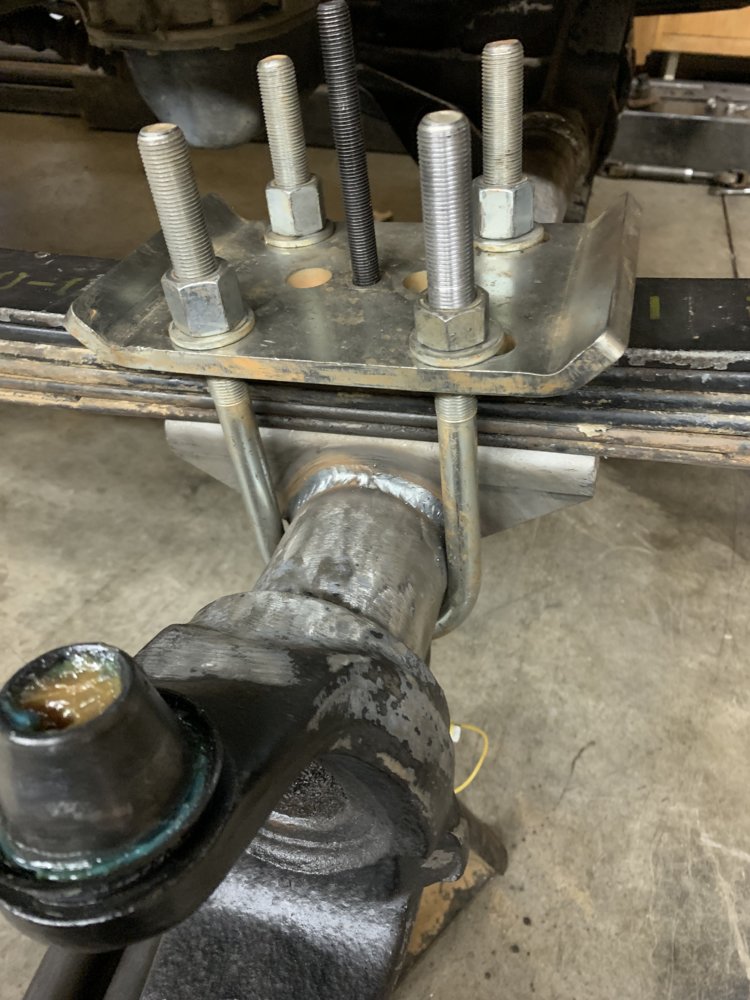

    Trying to figure out how to mount the shackle for my anti wrap bar. I like to mount them where the bar is on top and hard mount is on bottom. I’ll figure something up, but this is what I’m working with.

    Spring perch burned in.


    doc, Jody Treadway and Chris_Keziah like this.
  18. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

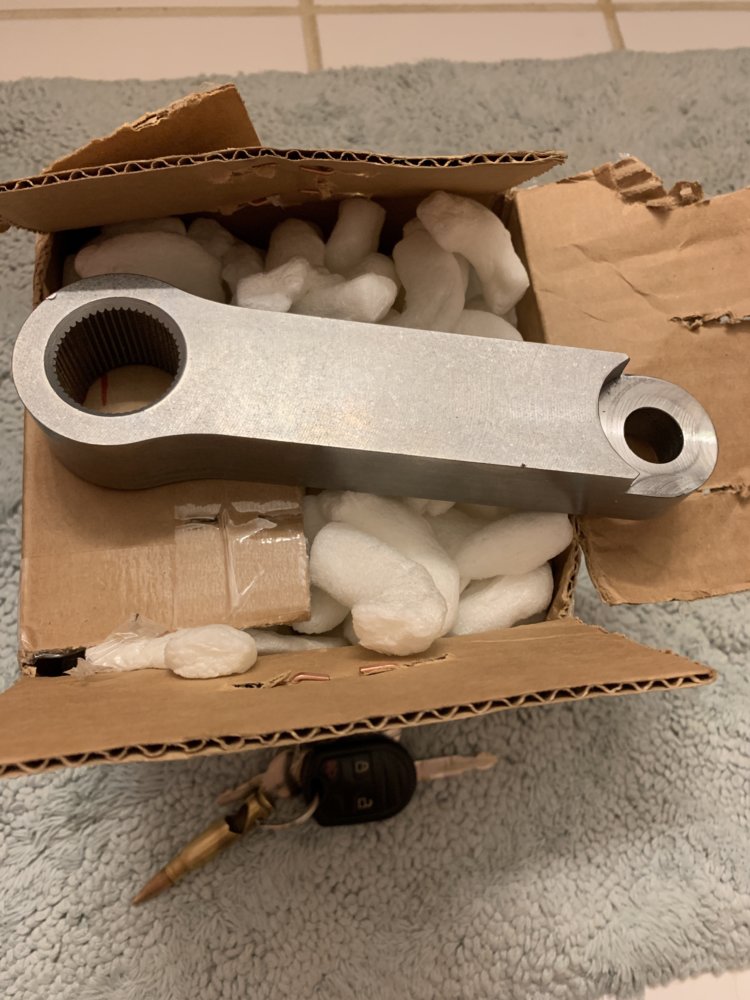

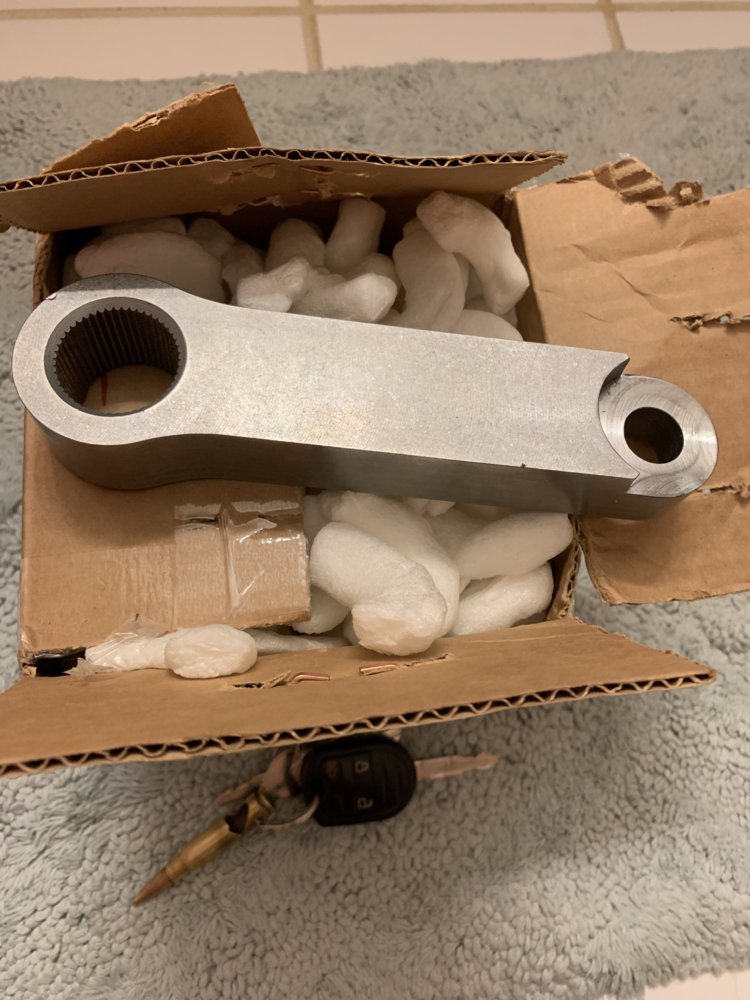

    Pitman arm finally showed up. Should be the last piece I needed for the steering. Hopefully I’ll have it all mocked up by this weekend.


    Mac5005 likes this.
  19. Mac5005

    Mac5005 Welding Instructor

    Joined:
    Oct 19, 2005
    Location:
    Rocky Mount
    Who makes that. It’s saaaawwwweeeeeettttttt

  20. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

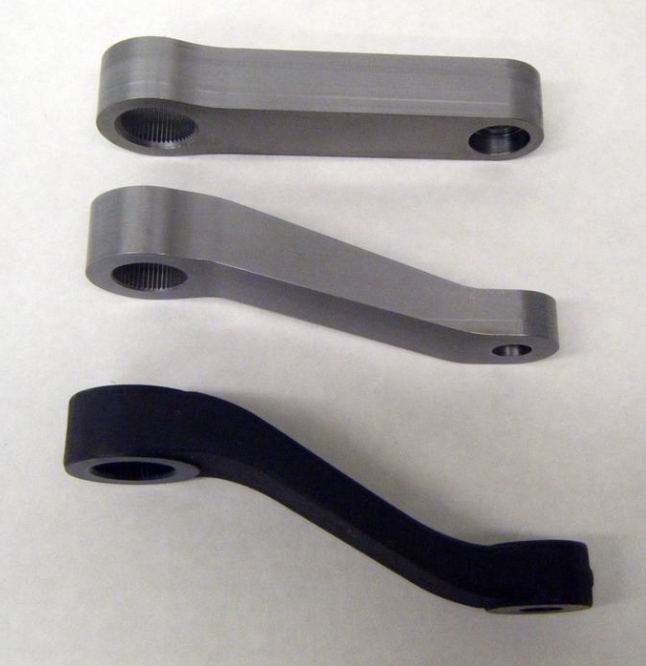

    It’s from sky. It’s beefy and I like how it’s machined so I don’t have to cut up into the frame as much for the nut.
    Picture showed it flat all the way.


    Jody Treadway likes this.
  21. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

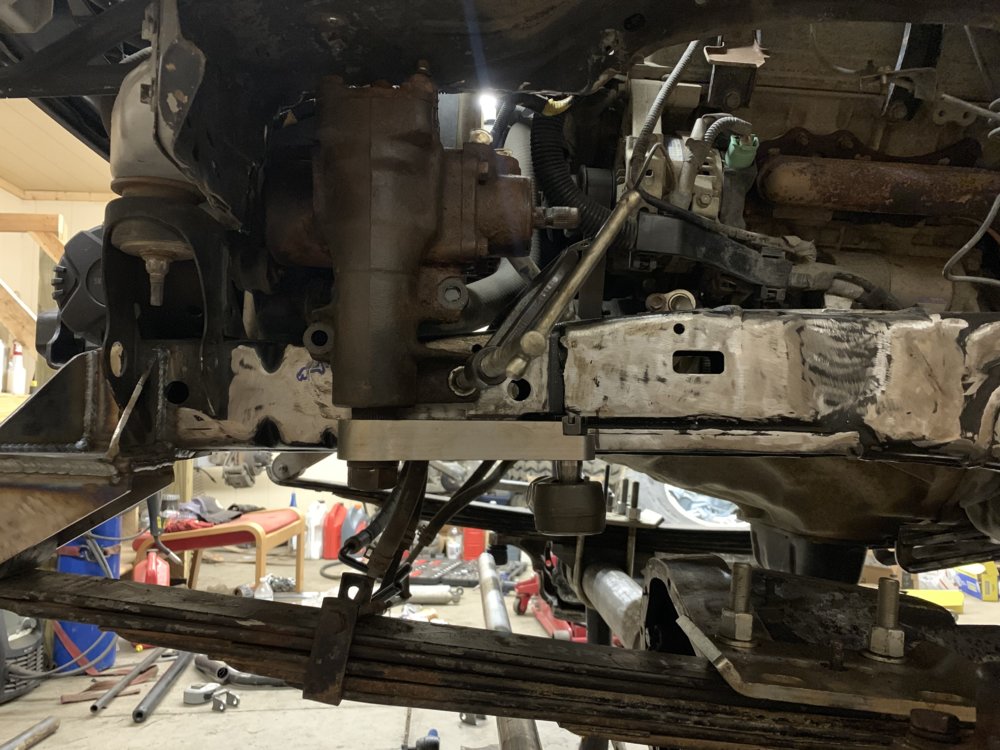

    So I needed to flip the pitman arm to get the drag link on top the arm for more clearance.

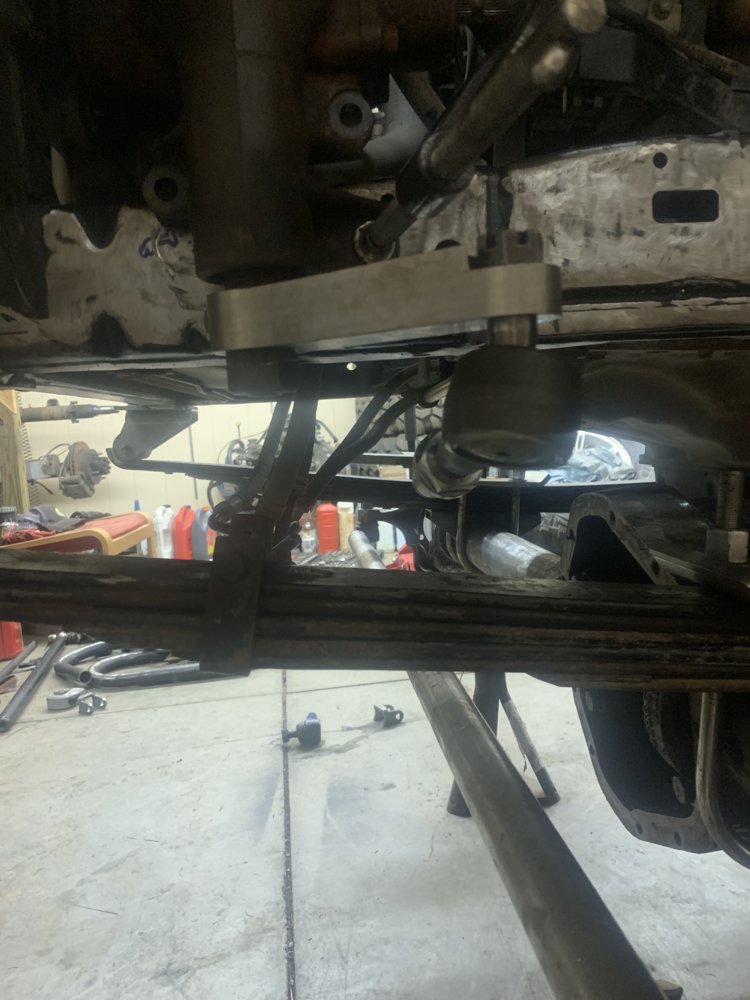

    the drag link at full lock to drivers side would give me 2 inches of up travel even if I notched the frame for the arm. Decided to notch the frame for the drag link end and mount the arm below the frame.

    307EFBF3-3B4E-4642-8343-7E37ACB51BC4.jpeg EAD26505-E7BD-4832-9AE1-A399E86C981E.jpeg

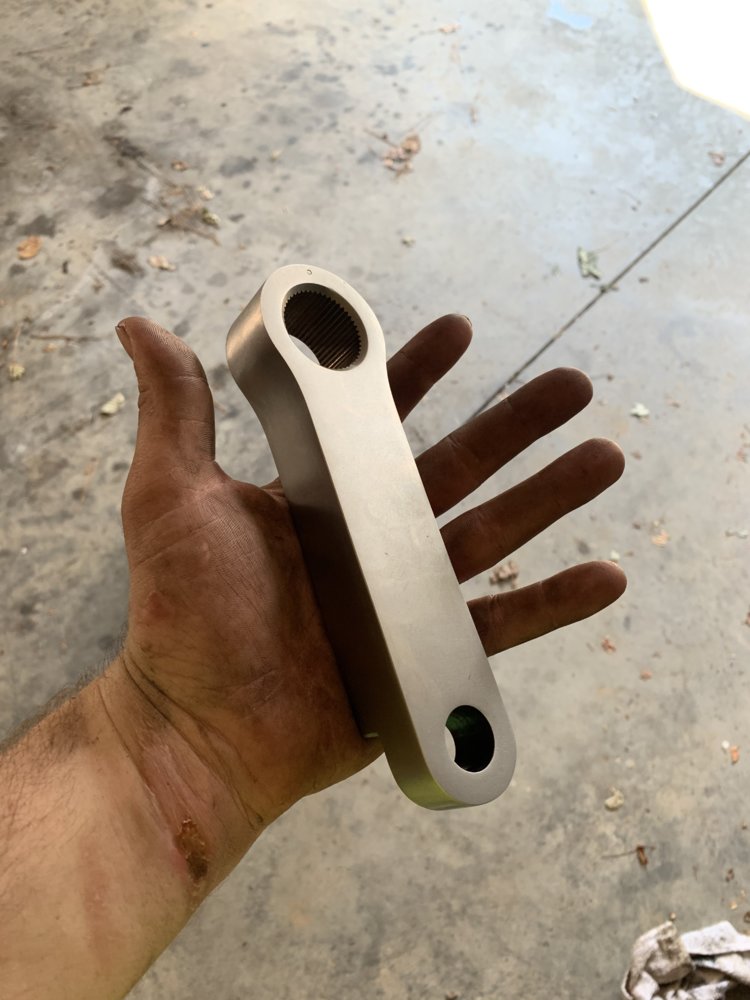

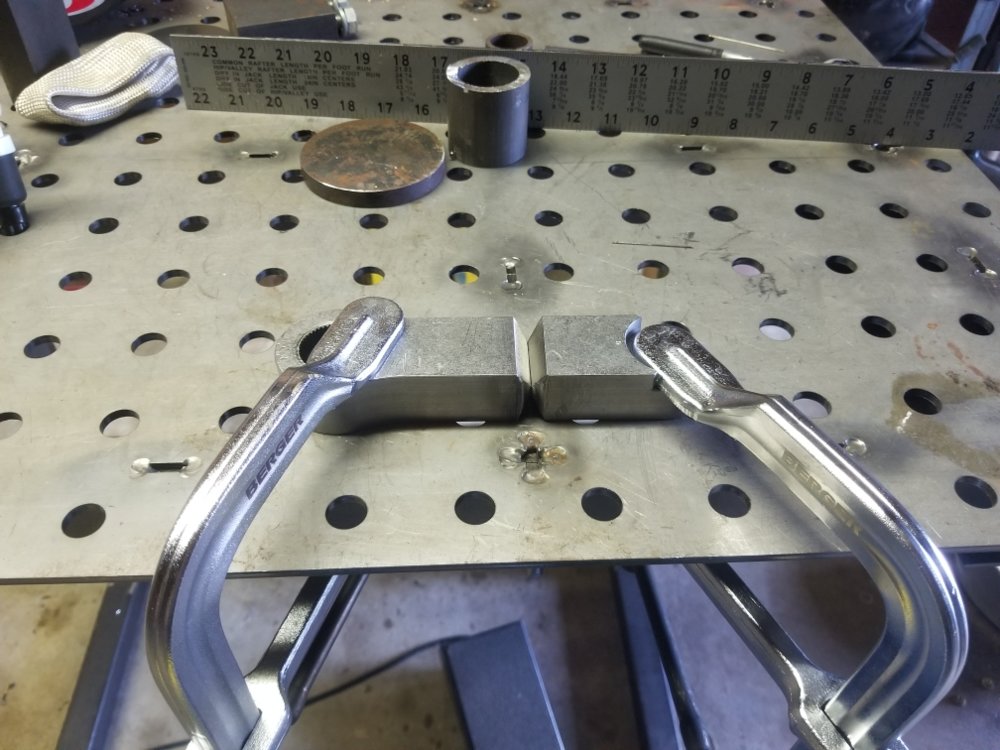

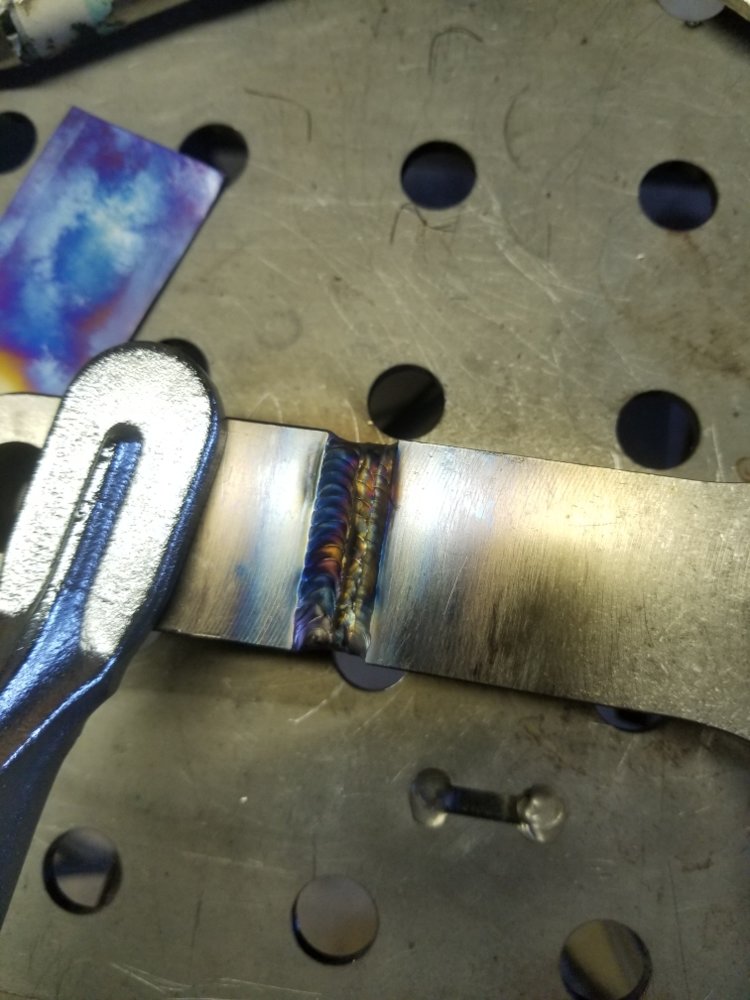

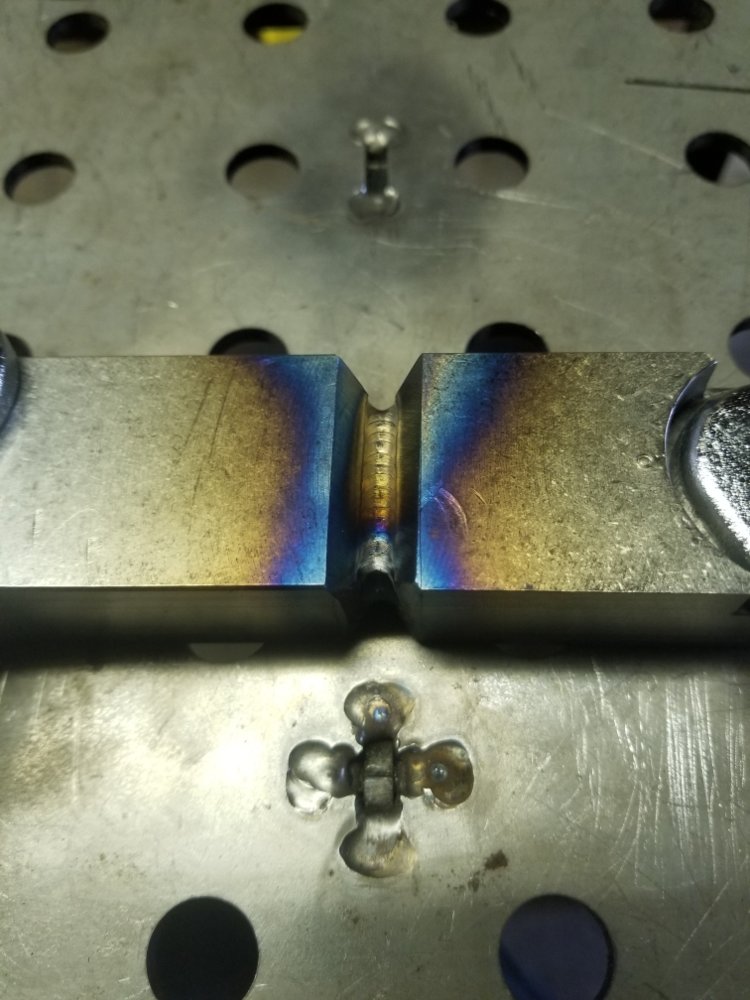

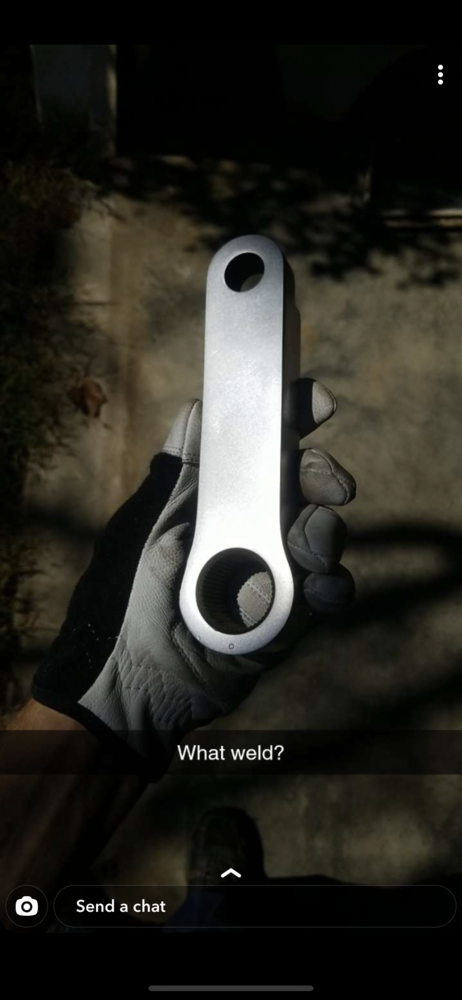

    Sky didn’t sell one so @hurt4x4 did a killer job cutting and flipping it. Looks like new

    3F2D2D23-A8BC-42AD-BC36-8FA37A4FF6CE.jpeg 34B01419-1743-4418-B8E6-F62E78354B68.jpeg 11945D8D-932D-4C35-81FD-12343D8C1FBF.jpeg DB7D1428-A493-435F-B8FF-4EF0336D6E6B.png 2A138B51-F02F-4746-BBAB-5423257C6735.jpeg

  22. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

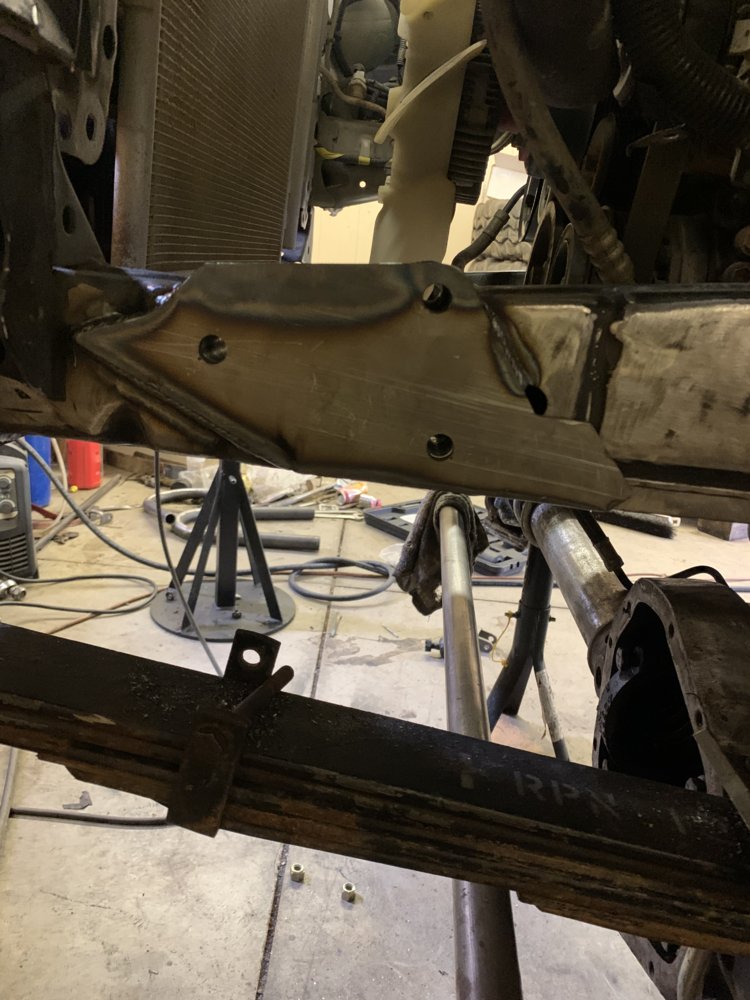

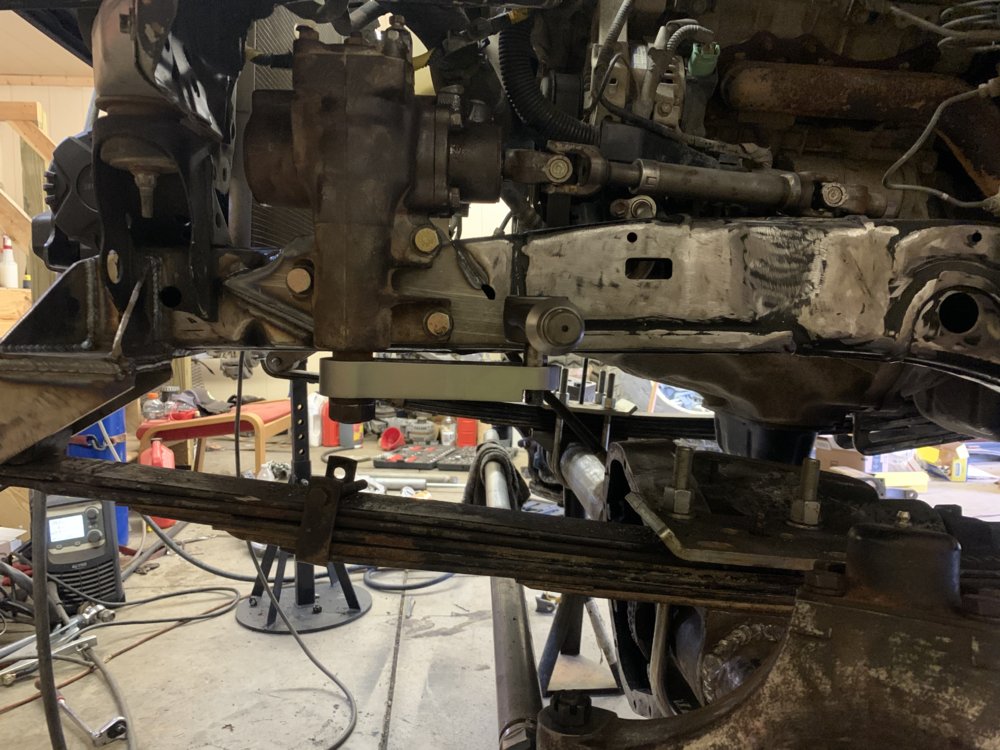

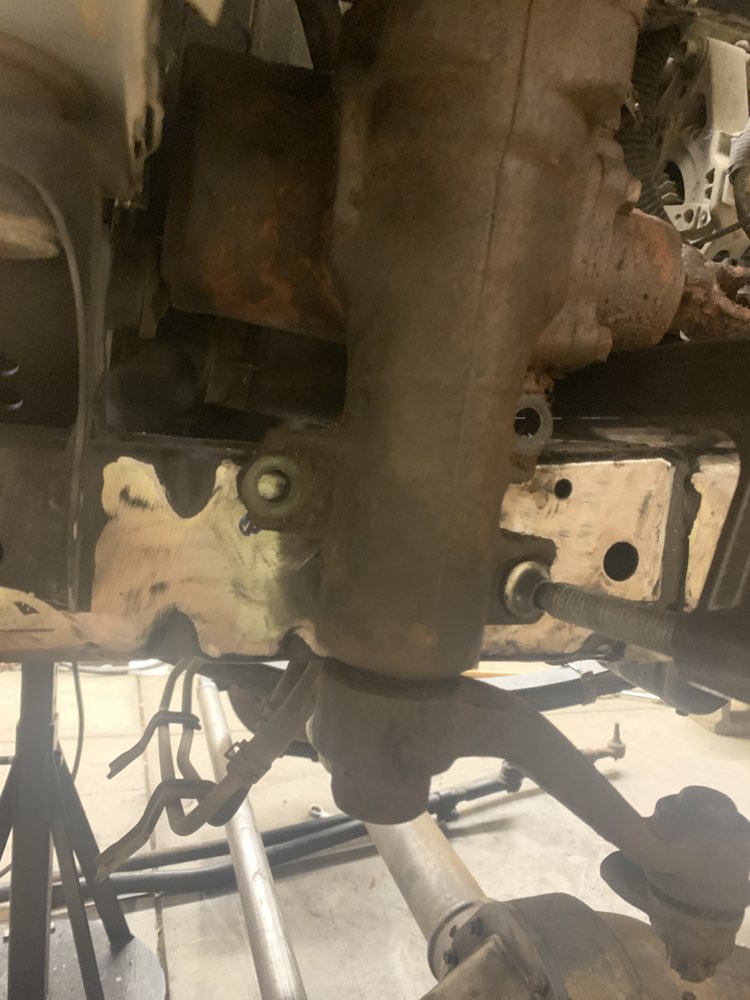

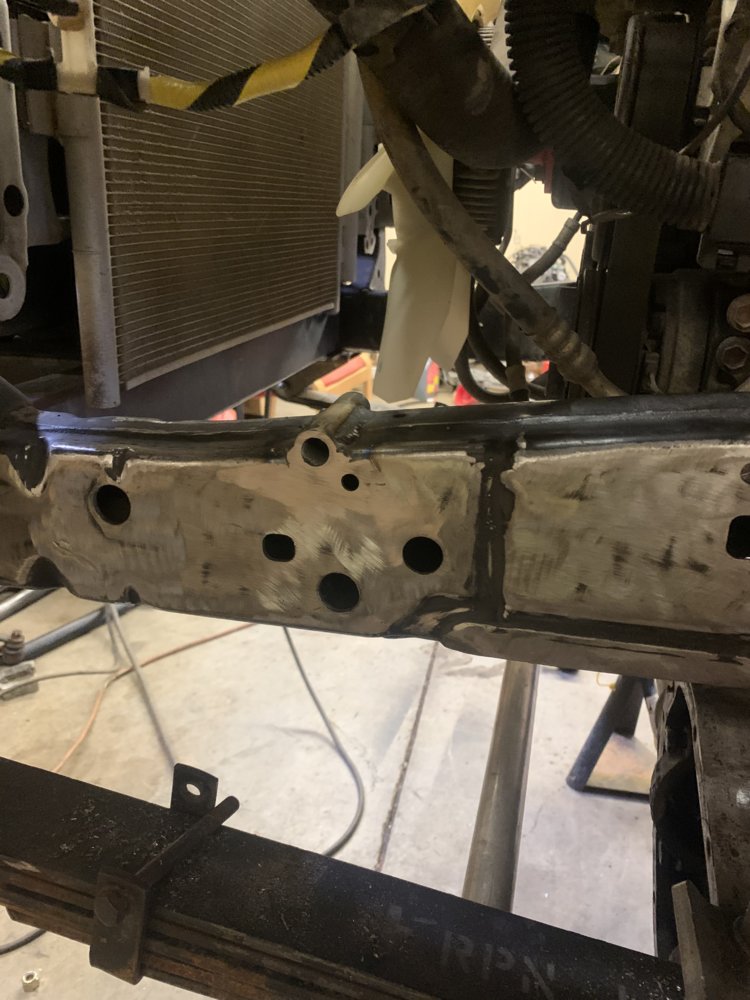

    Made some progress. Box is mounted. Had to pull the radiator to get room to weld.
    5E036B6E-70CD-4460-9833-6FE5F90A55FB.jpeg E43268F1-BC35-4A64-8A15-7BDE60F507C7.jpeg 0D2596AB-1166-4D5C-A3DA-83D431F67D18.jpeg

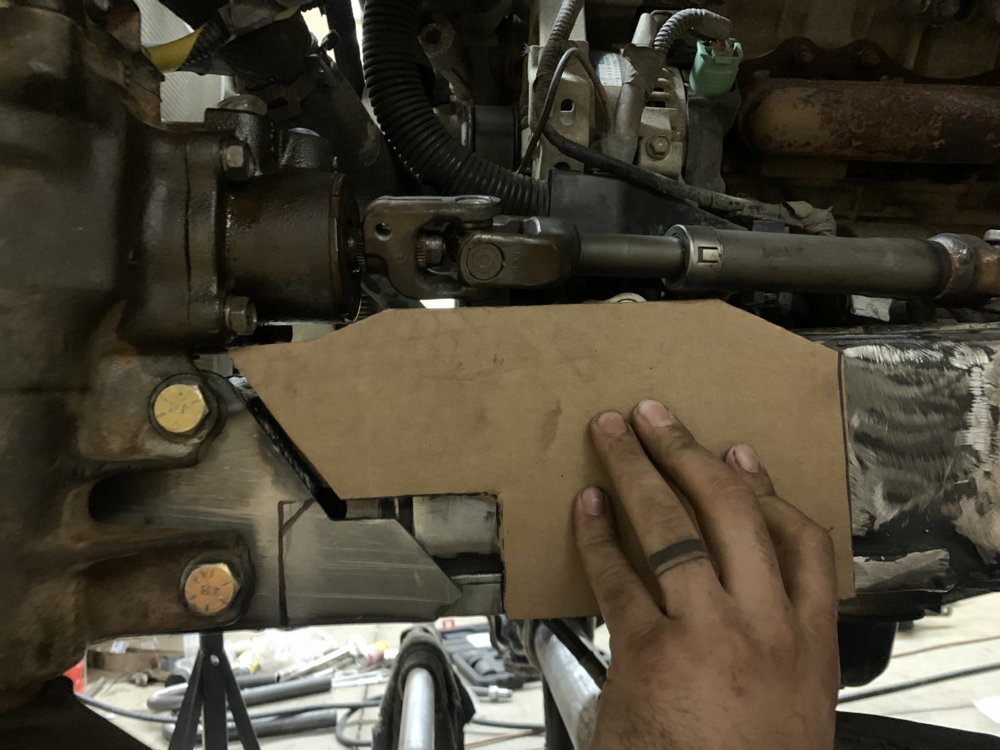

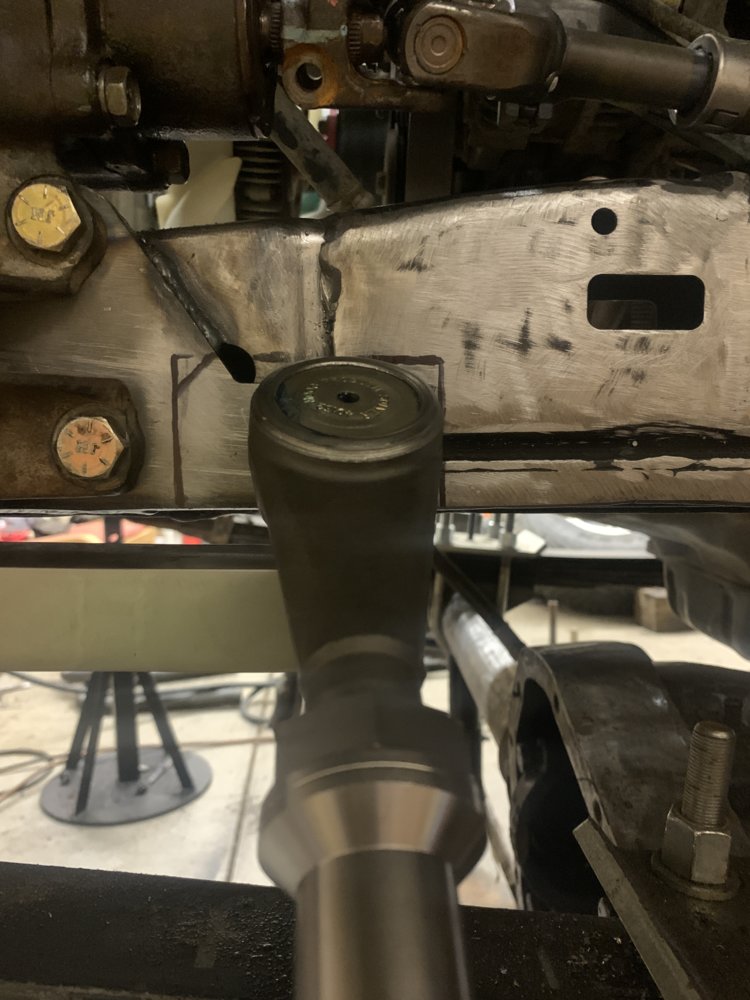

    Gotta notch frame and make plates to reinforce it tomorrow. Off to see Whitey Morgan tonight.

    8CEB7E06-C275-47E4-80C2-DE36353286E8.jpeg B840EB9D-06FB-423E-A325-64E328C94773.jpeg

  23. Wesling Ducos

    Wesling Ducos Member

    Joined:
    Jan 23, 2017
    Location:
    Durham
    looking good!

    Van-go likes this.
  24. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

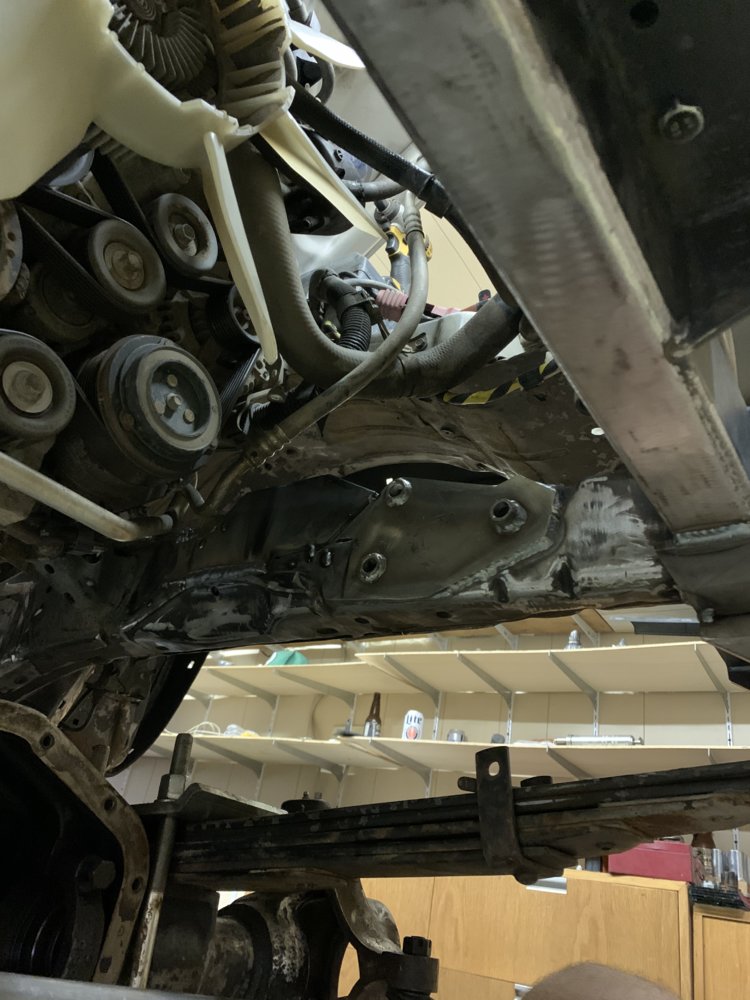

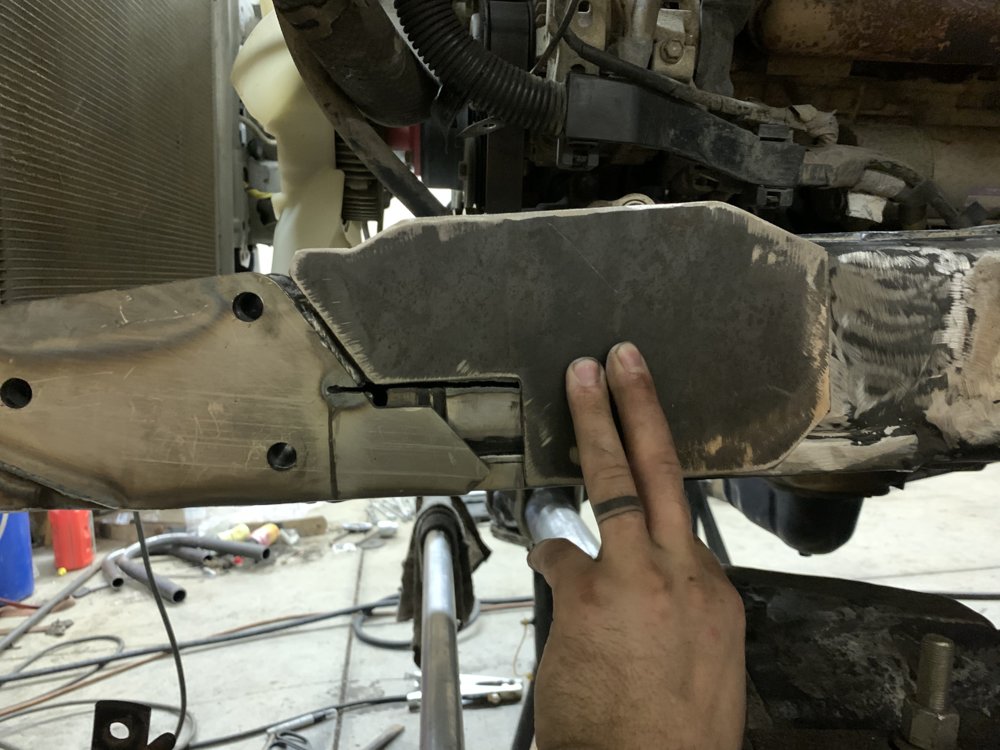

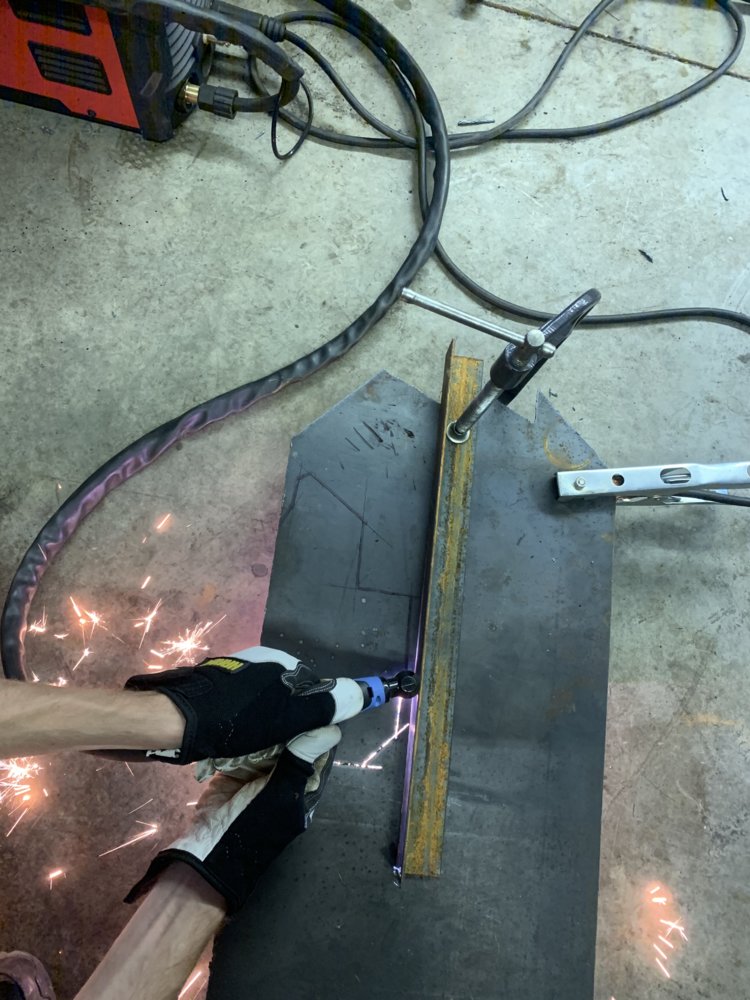

    Frame plates are made. Ran out of gas halfway through welding on the inner.

    F440D29D-0599-488C-8578-87EEA2022115.jpeg D121B019-5094-42B4-9DC5-7A386E31BE71.jpeg D579B9C8-6371-4423-A52B-4D6B422A5451.jpeg

  25. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

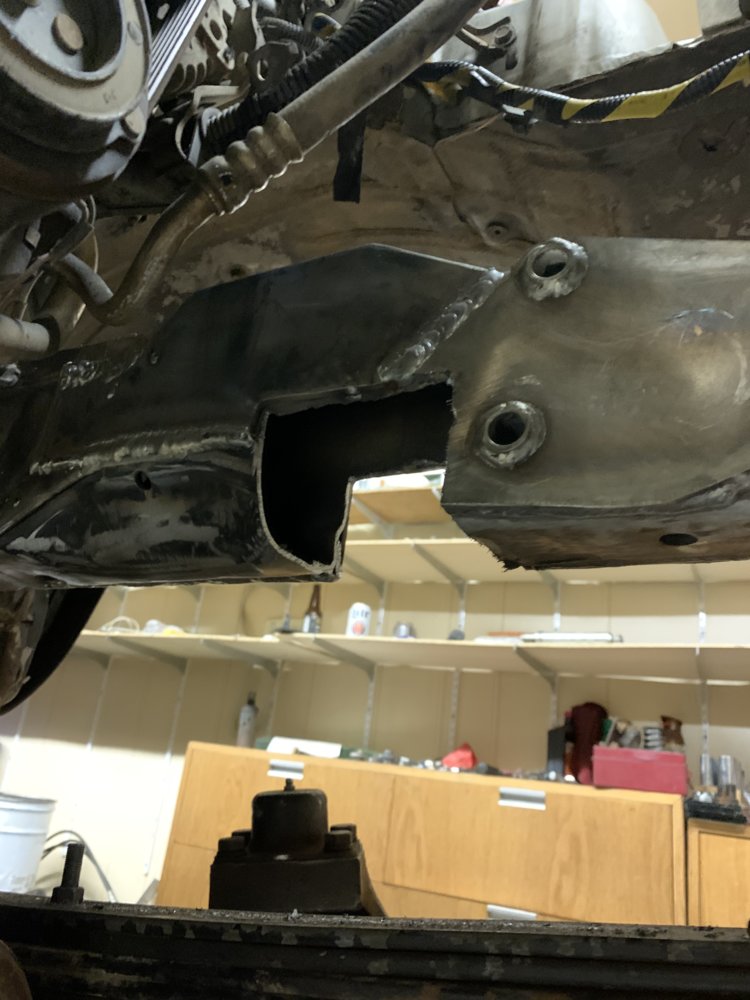

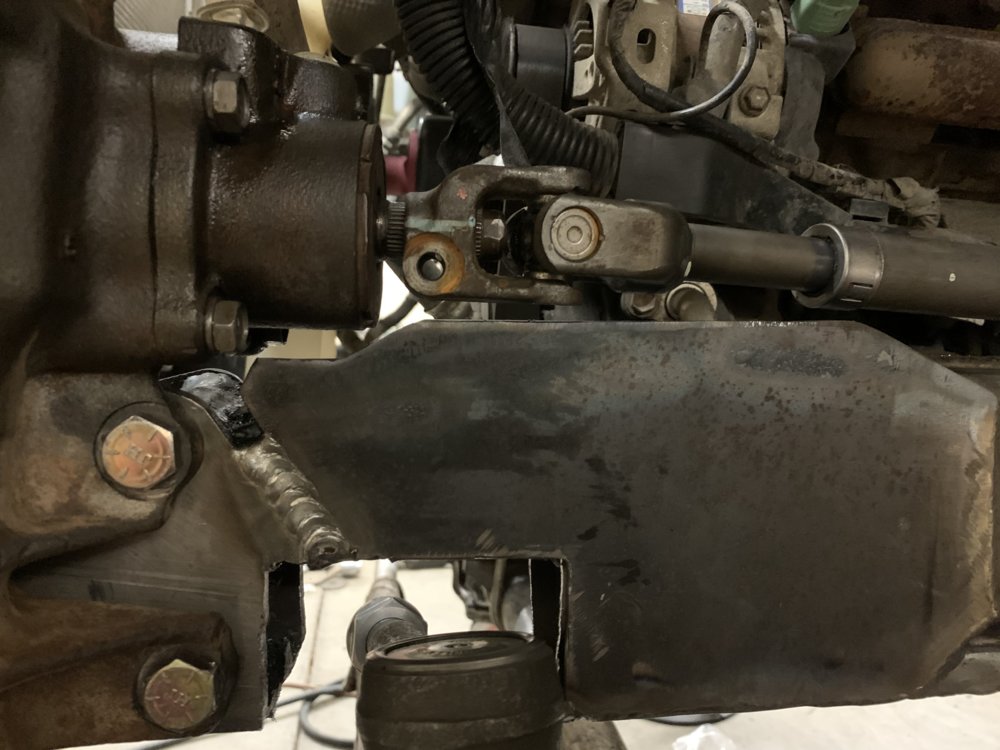

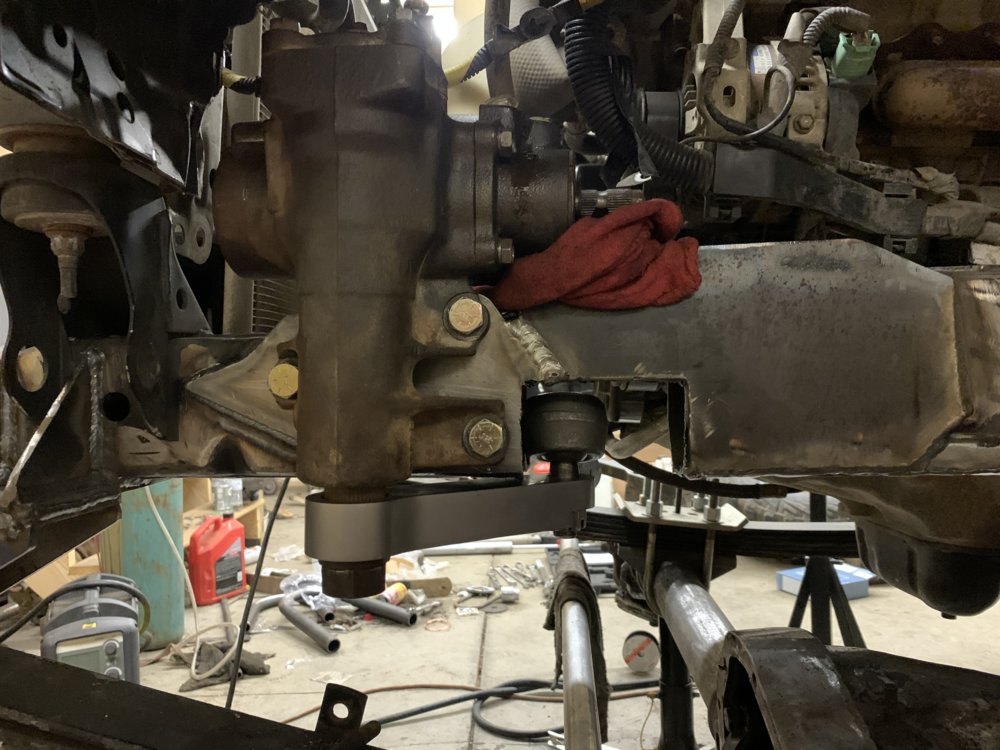

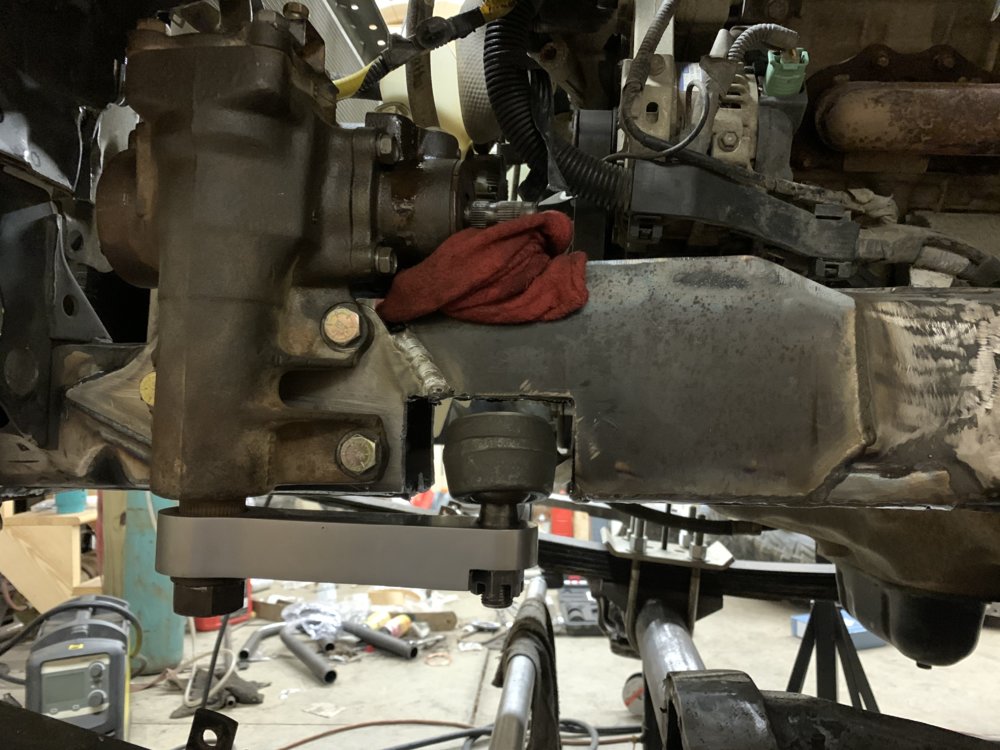

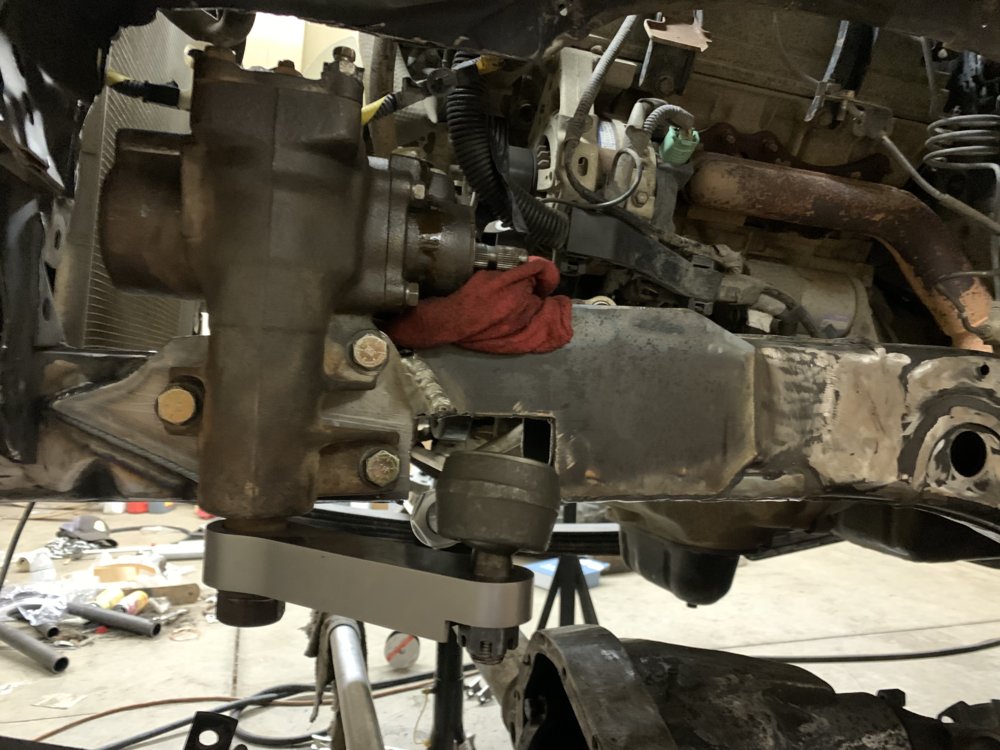

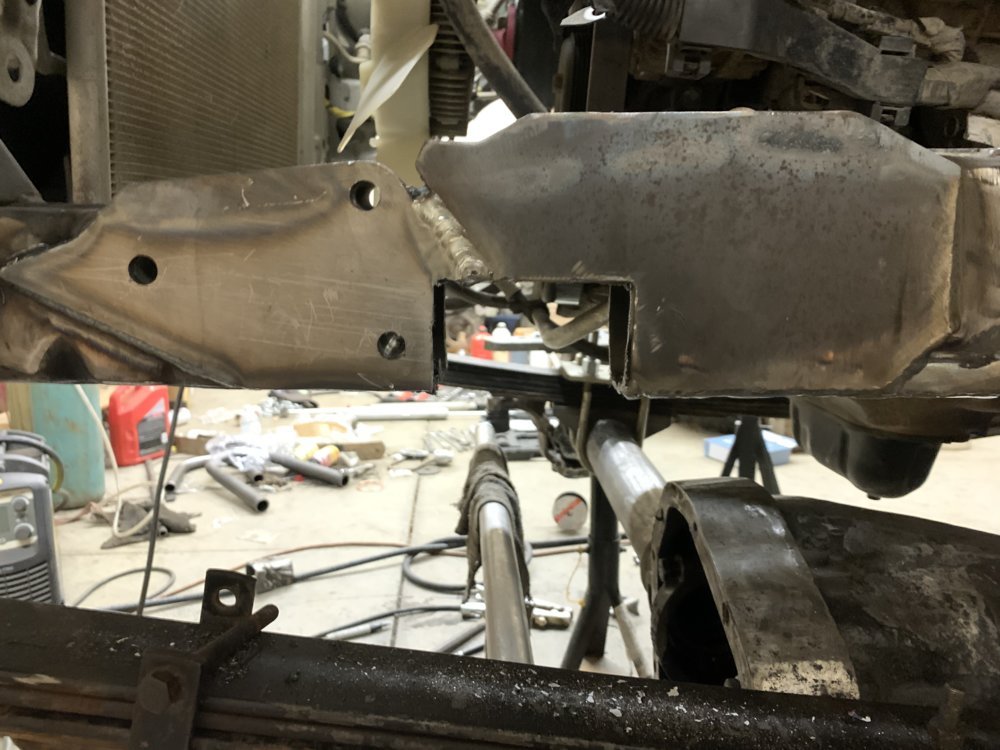

    Plates welded on. Frame cut. Definitely need to beef it up a little more... plate across the top. We will see.

    DC0724FA-3FDE-4F9C-AEE2-AF8787409CE8.jpeg 1909C802-F8CF-4C44-A84C-ED8DB3F5C035.jpeg 2E92065D-DE03-4A56-9B3F-B8D93A2CD272.jpeg F6025C90-0B57-440F-921C-F134469498DB.jpeg B7FB07E3-CBAD-460B-9DDD-CE18DA1CBACF.jpeg 19AB1CAB-980C-4AAE-9976-4C4F7FD046DC.jpeg
