One Ton 2nd gen Tacoma Build

Discussion in 'Build Threads' started by Van-go, Jun 23, 2019.

  1. pitbullcruiser

    pitbullcruiser Well-Known Member

    Joined:
    Apr 14, 2010
    Location:
    Renton, WA
    Holy shit, all this for a Steering box!

    Van-go and Chris_Keziah like this.
  2. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I like pictures lol

    doc likes this.
  3. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

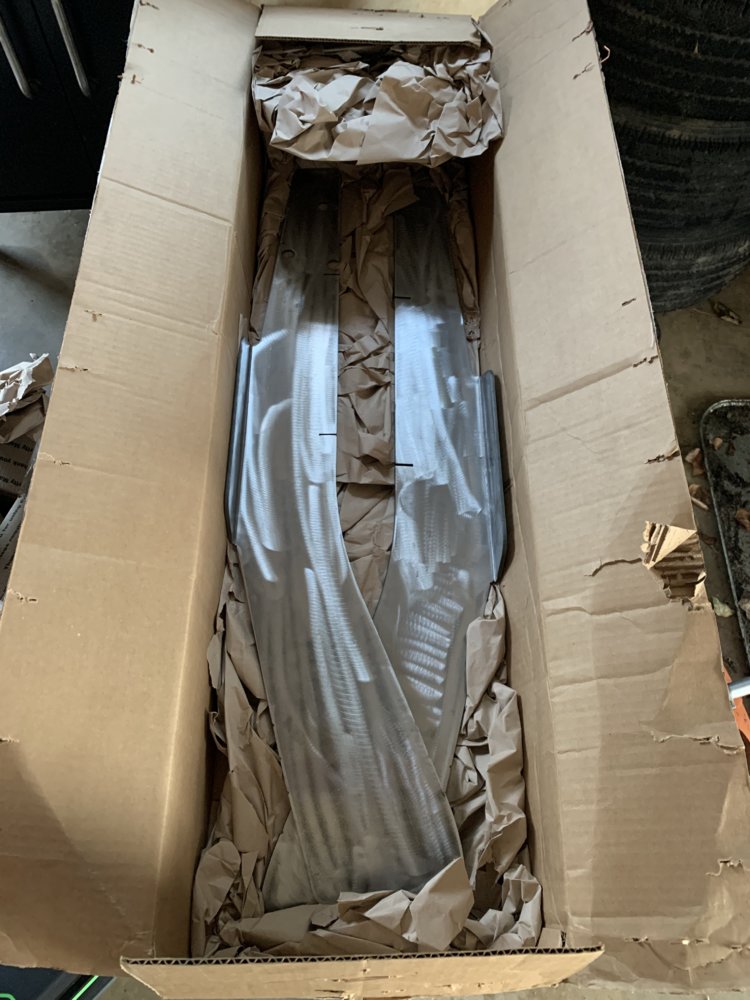

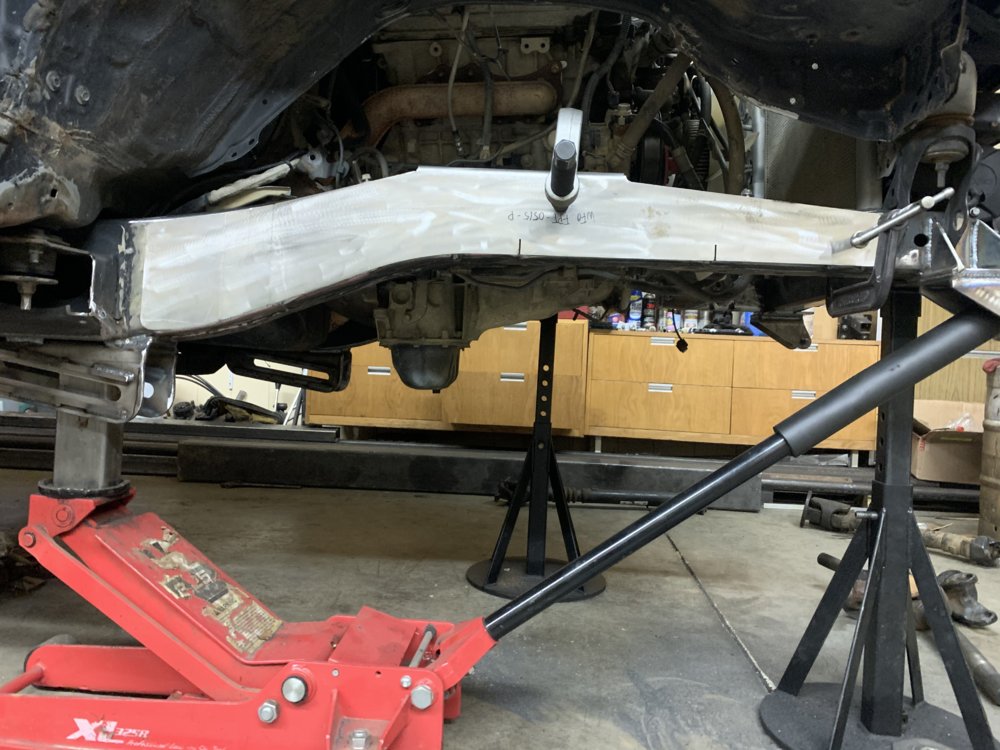

    Frame plates arrived. Welding them on tomorrow.

    2F8C7972-95EE-4D6E-A5B9-98EB467073B3.jpeg 20D790B4-1C05-4DB1-A7E9-59F770CF9F03.jpeg 7945799C-95B4-4746-AB42-DE5FE38D0708.jpeg

  4. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

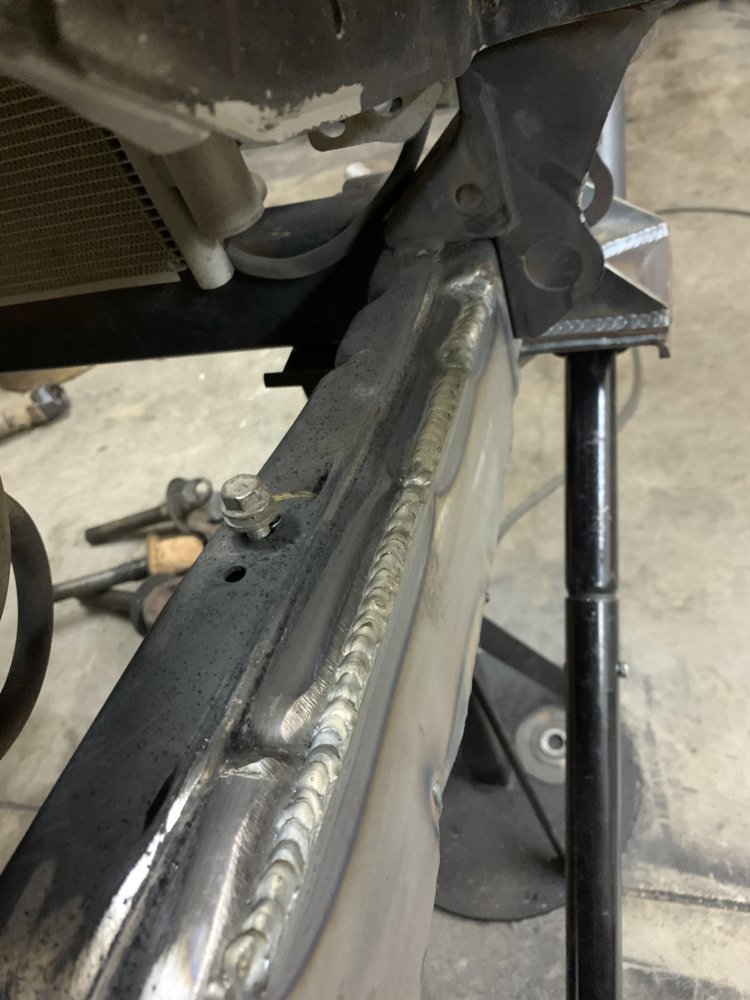

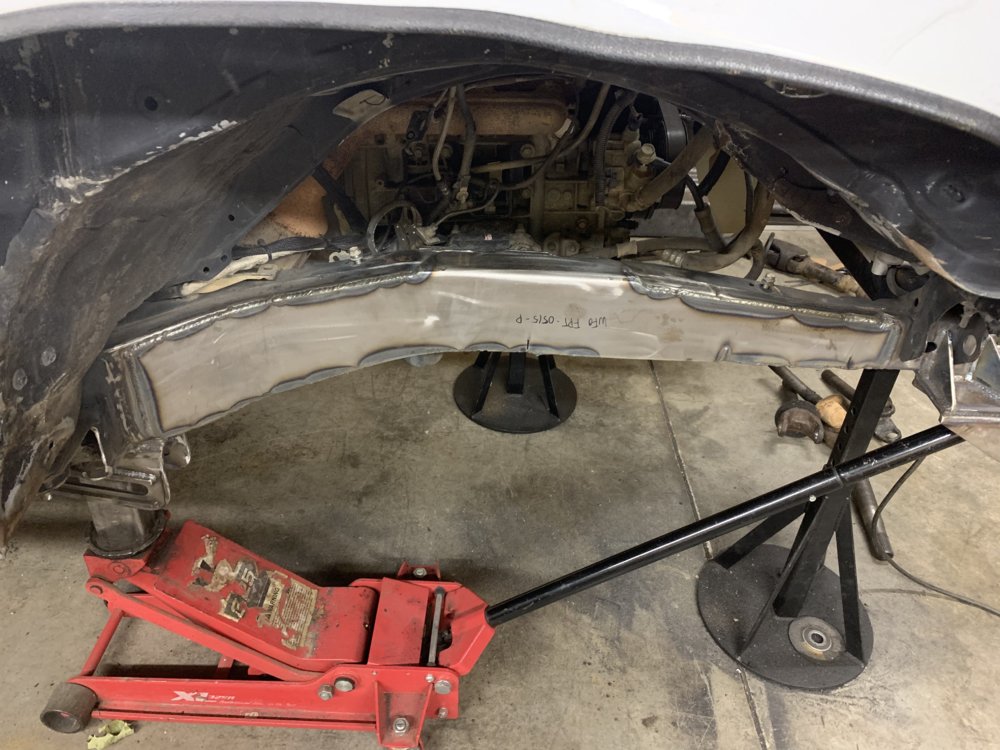

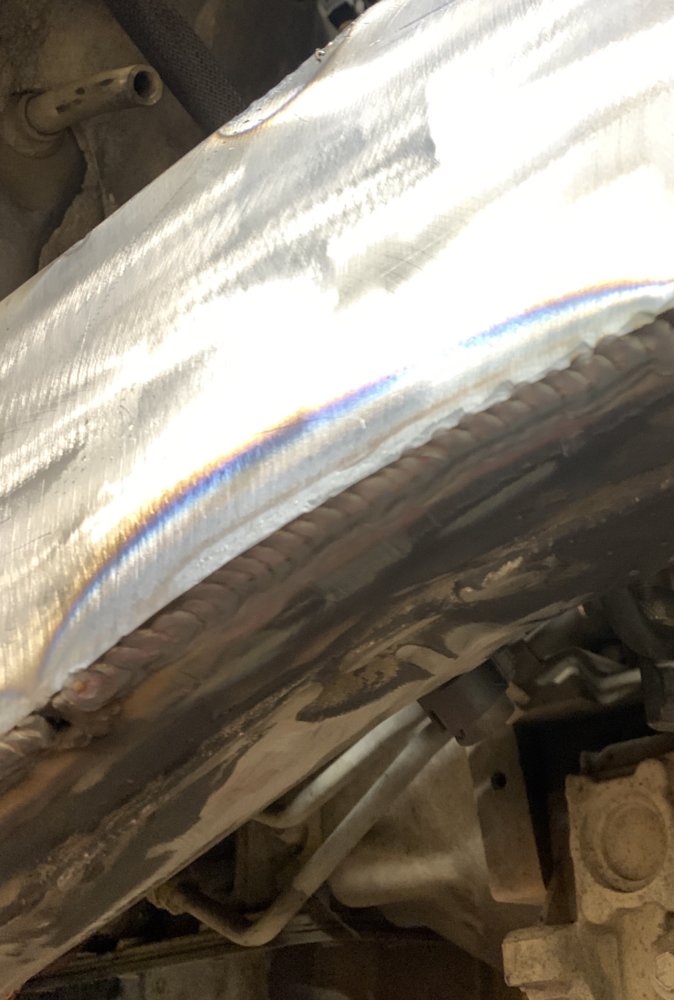

    Passenger plate mostly welded up.
    First time welding upside down where it didn’t look like crap.
    Getting closer...

    B501D47B-DD29-41A8-9813-B037246BBCA3.jpeg FBC5D036-A283-4ACA-949F-F8A649C2F48D.jpeg 3BE02EC8-4398-4D99-880A-87C93A6BACAC.jpeg

    doc, 87TPIYJ, paulevans76 and 6 others like this.
  5. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

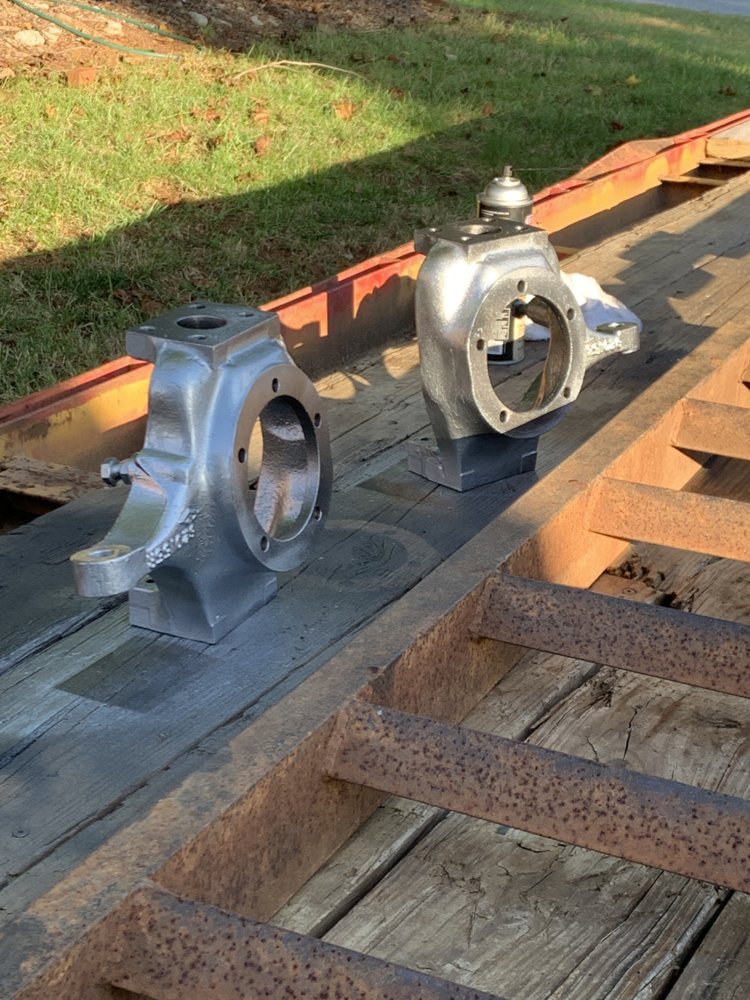

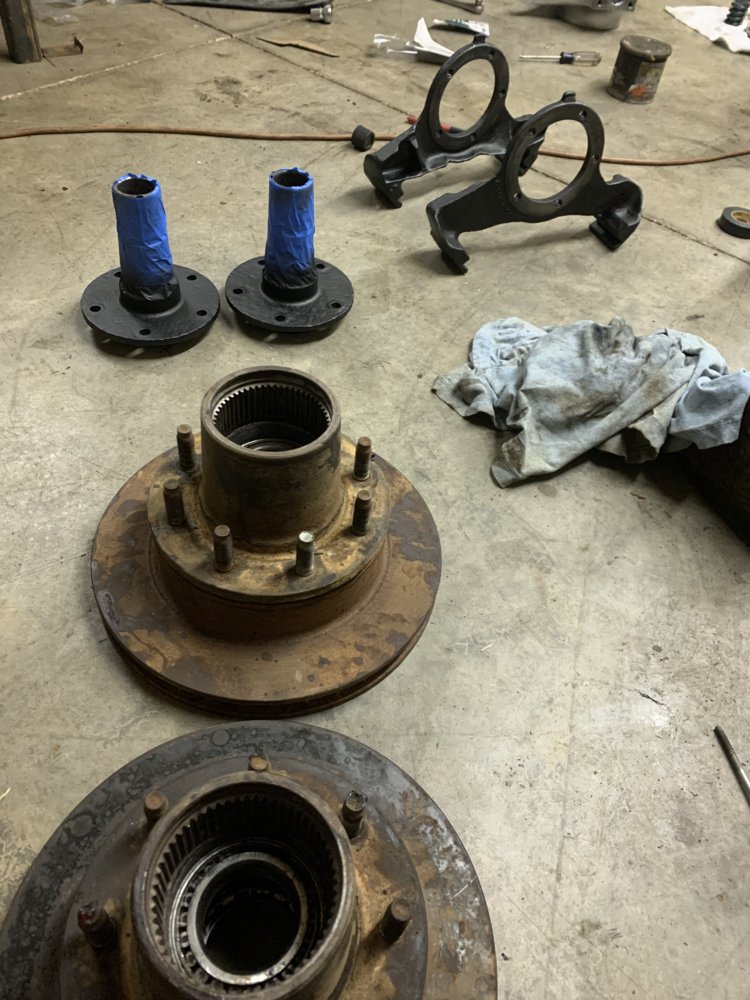

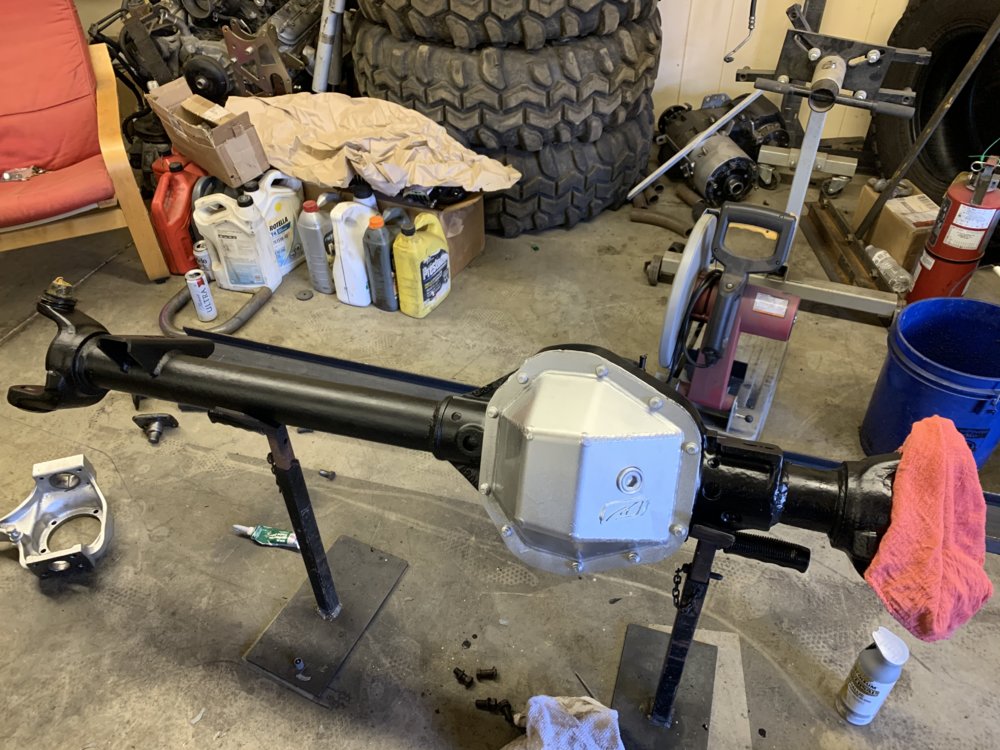

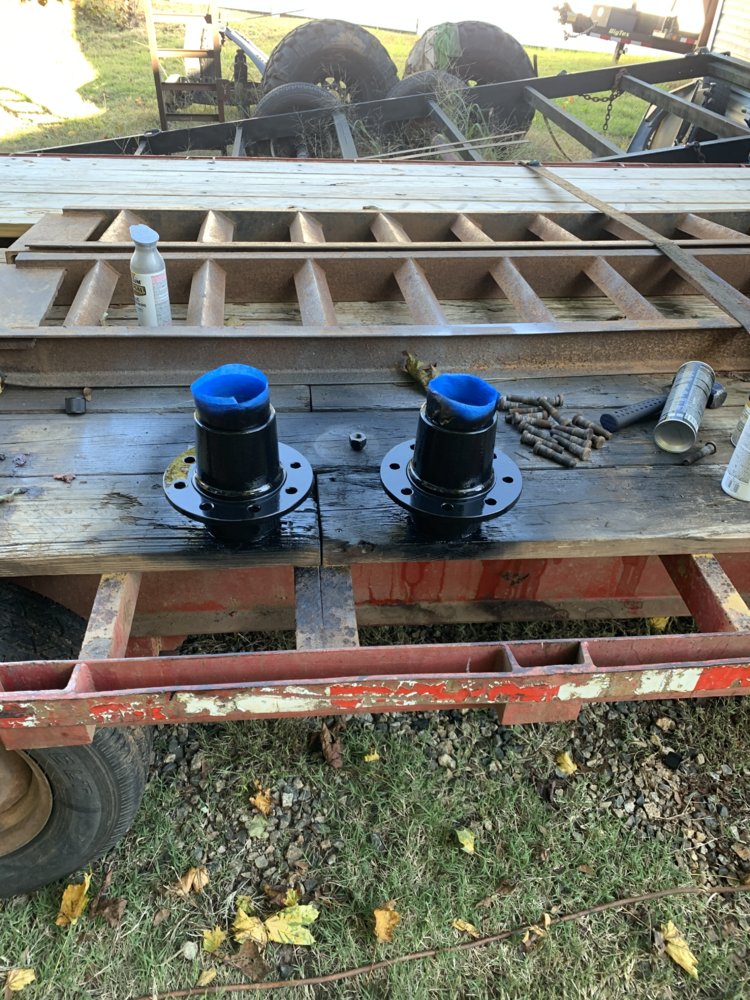

    Been doing some painting

    F3FE0446-88A5-444F-8CE3-61EA27FAC45C.jpeg D47096CE-46DC-48B3-A232-B2F4FA620E05.jpeg 747B8FA6-92F0-4CFB-9DEB-0439ED8BF630.jpeg 20082268-2261-452D-9188-E253CC78DD60.jpeg

    StretchASU, Creekin, doc and 4 others like this.
  6. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

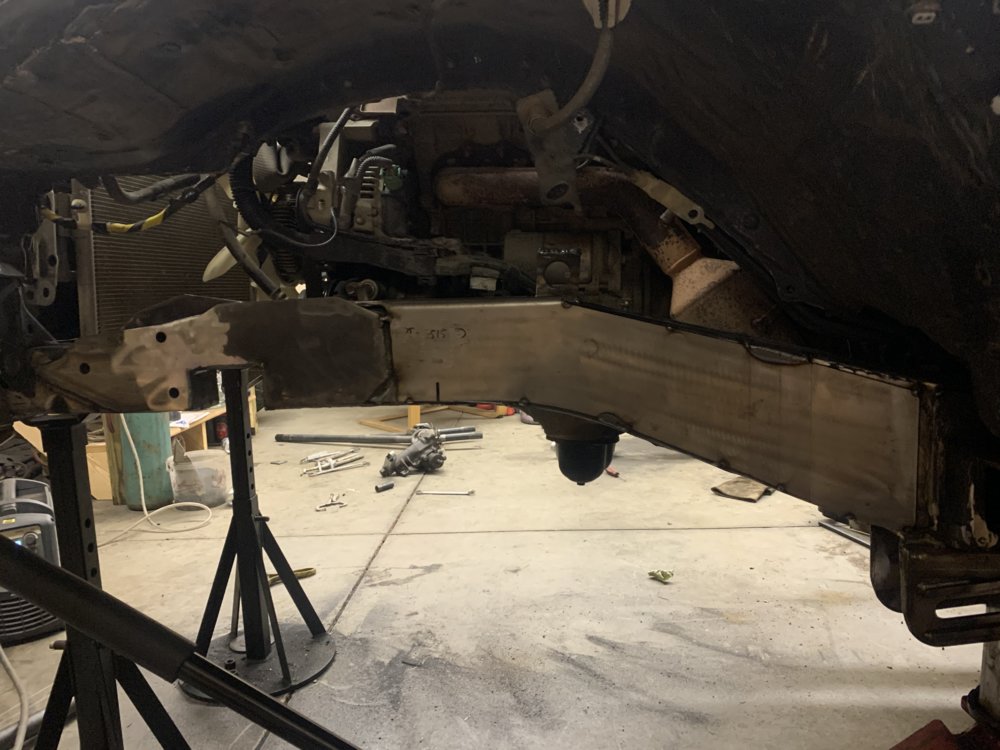

    Driver side tacked up. Burn it in tomorrow then I can put the axle together and paint most of the frame.
    Then shocks, bump stops, and hydro assist so I get to take some paint off my pretty axle.


    doc likes this.
  7. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

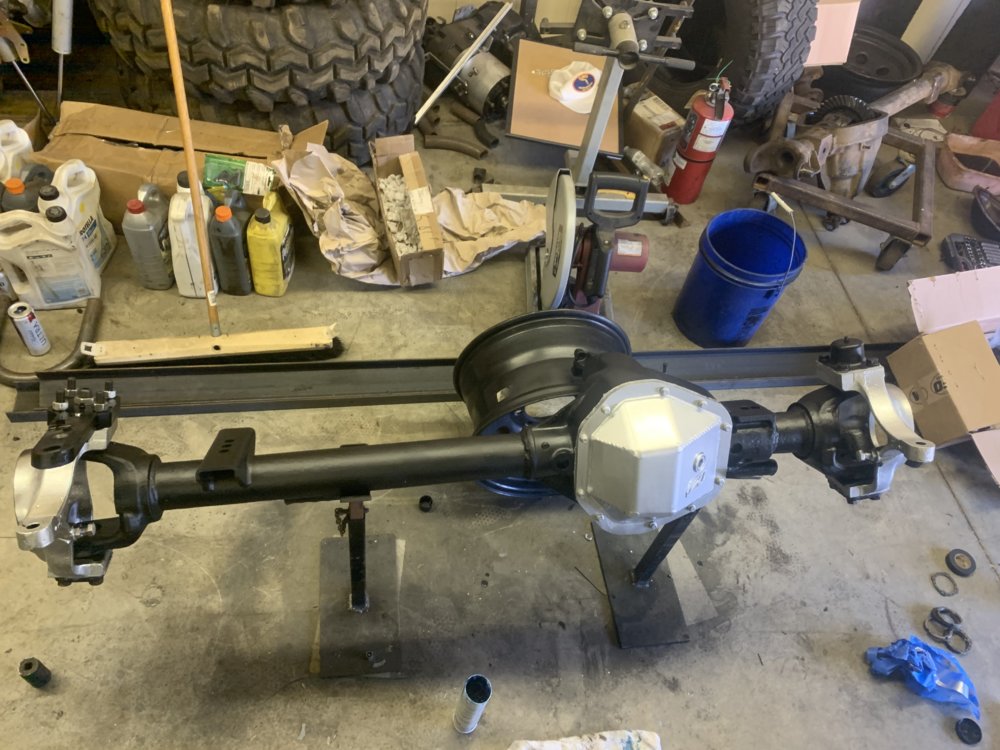

    Note that you need to put the spindle studs in the knuckle before you assemble everything. Lower C blocks the hole.... but the axle looked good before I tore it back apart


    77GreenMachine and doc like this.
  8. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

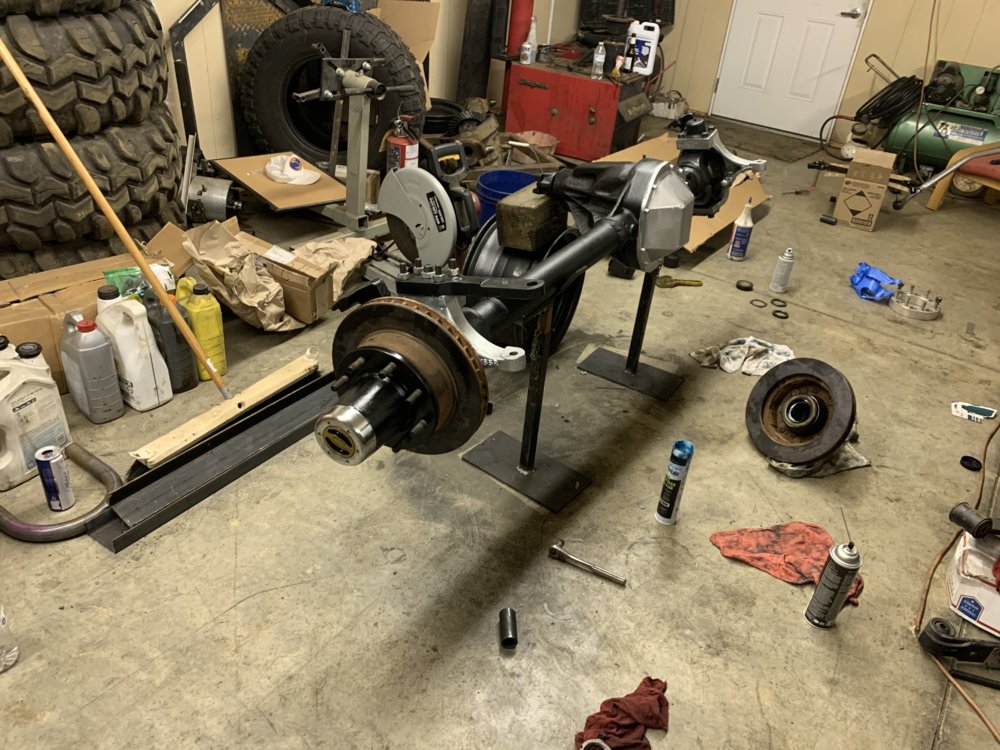

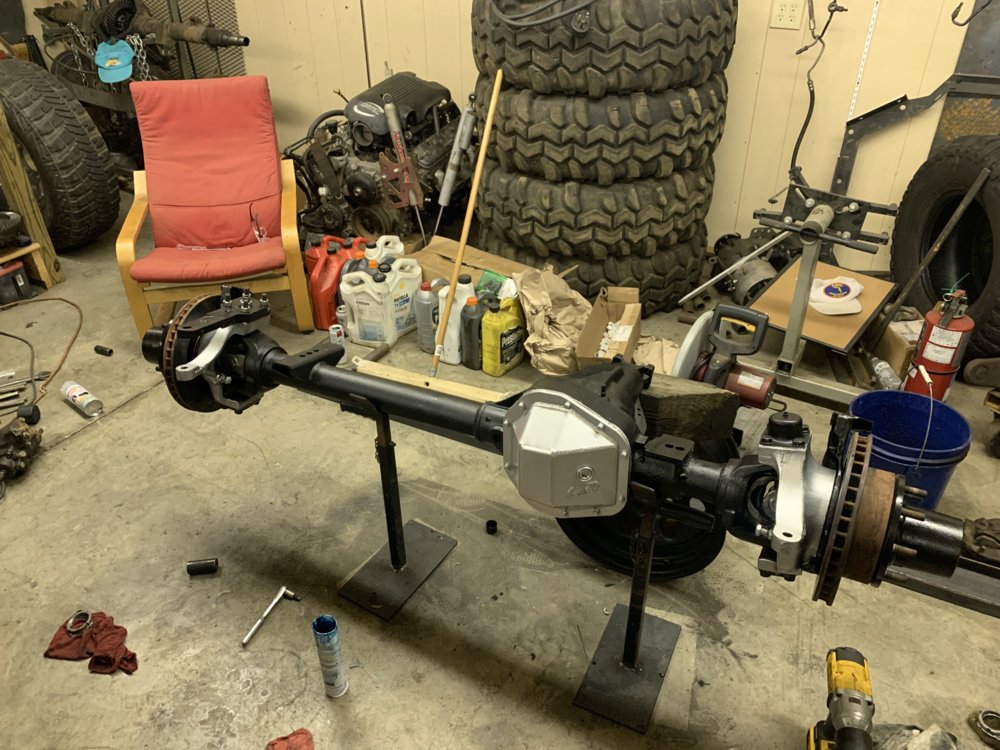

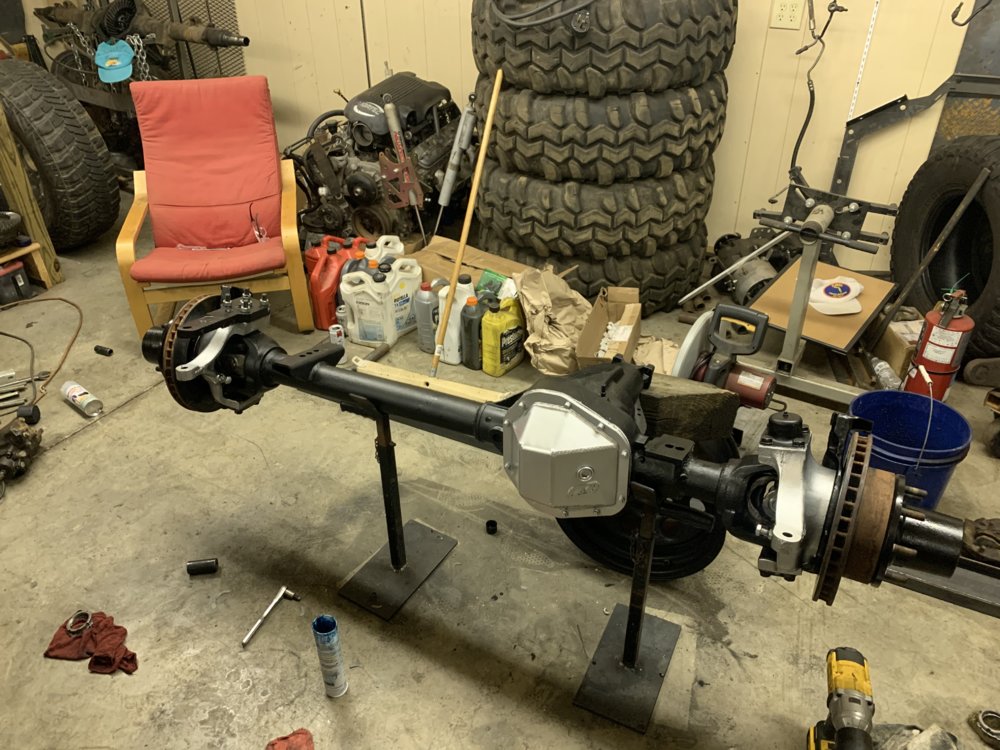

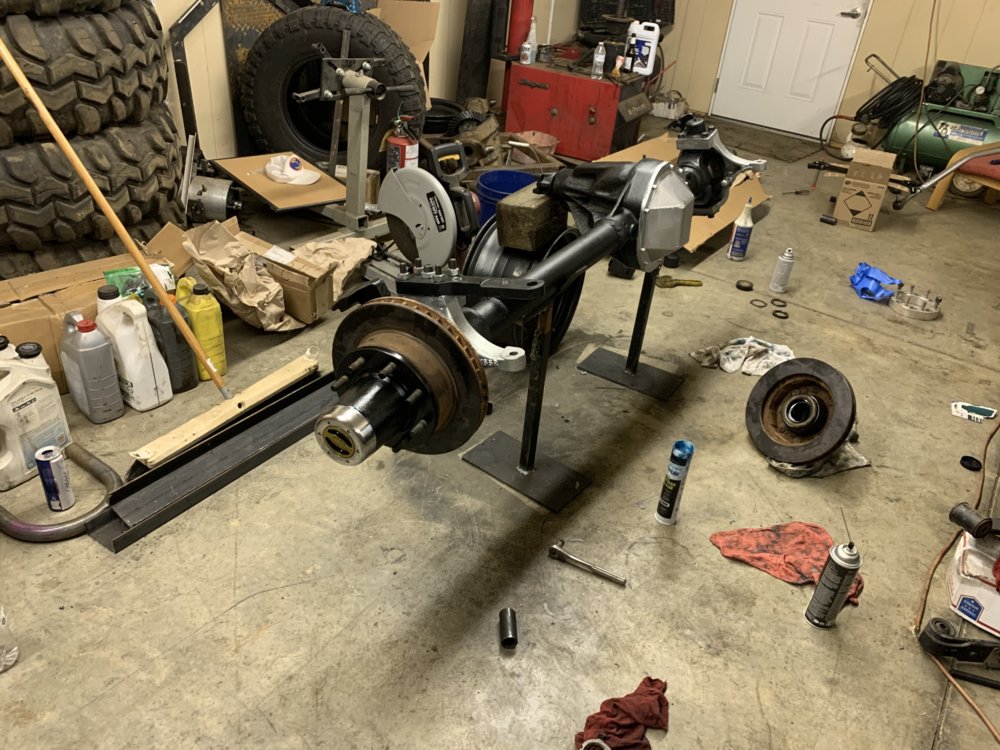

    Pretty happy with how it’s turning out.

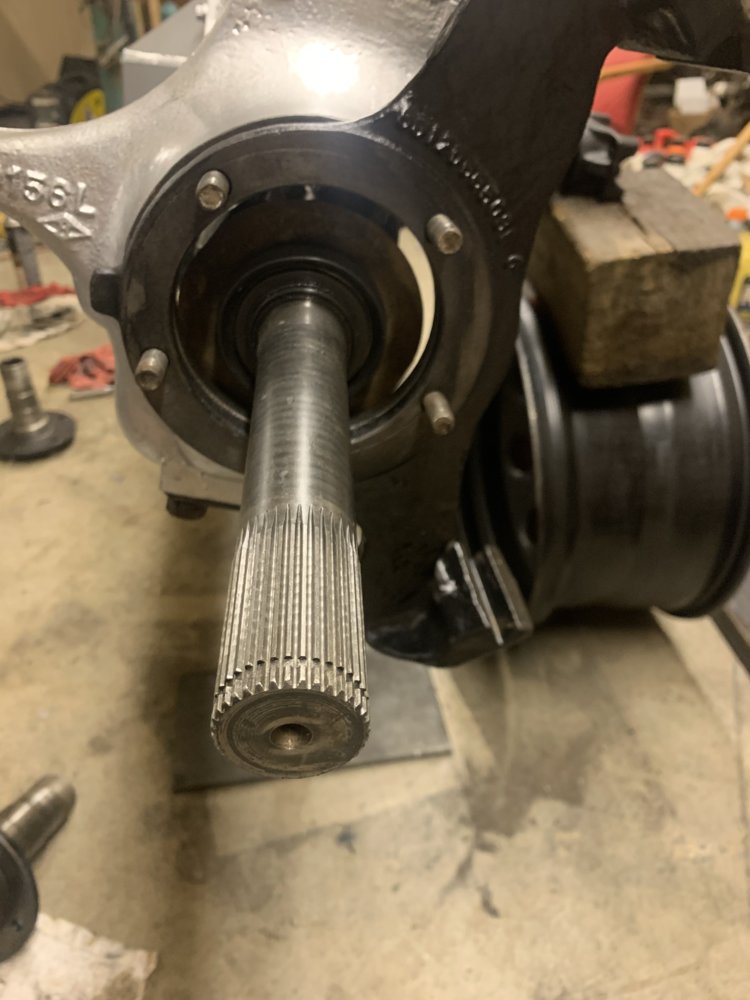

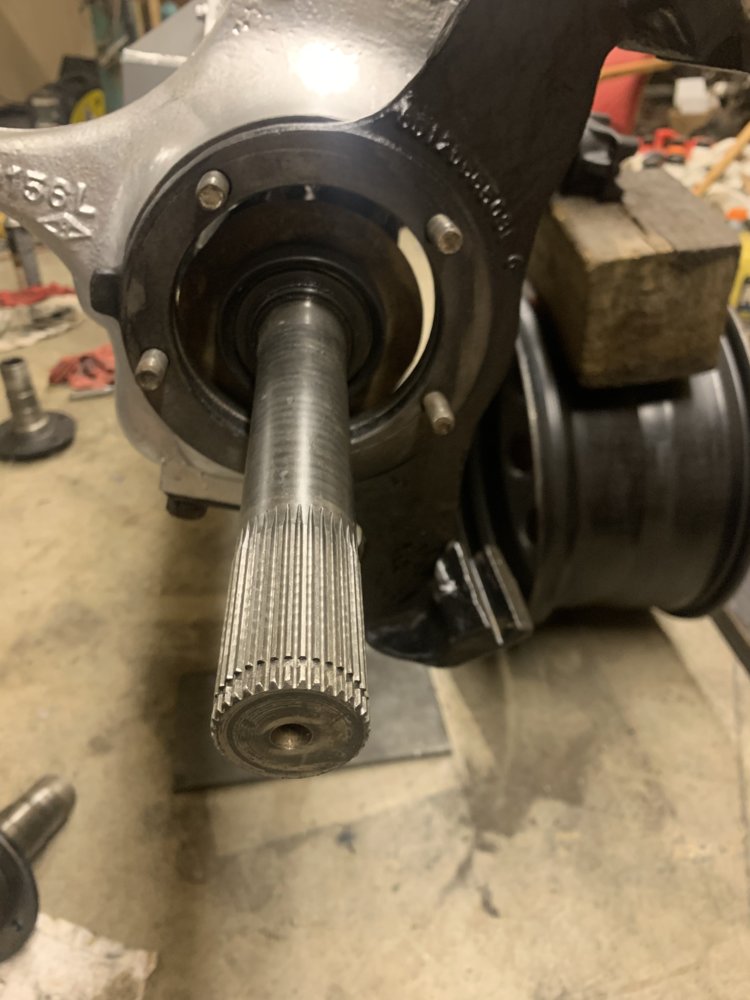

    Had some 35 spline outers from a rig I parted out.
    Gonna run warn lockouts for the road. May throw in some slugs for the trail. Not sure how strong Warns are.




    adamk, BigSouth, Chris_Keziah and 2 others like this.
  9. paradisePWoffrd

    paradisePWoffrd Recovering Project Junkie

    Joined:
    Nov 5, 2005
    Location:
    Newton, NC
    Can always step up to the yukons.

    RCV also makes 300m hub gears for the Warn Premiums.

  10. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    These were $80 new from Facebook. You remember how cheap I am...
    I’ve got some slugs to throw in if I need to, but I’m only on 37’s. We’ll see

    Hunter44 likes this.
  11. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

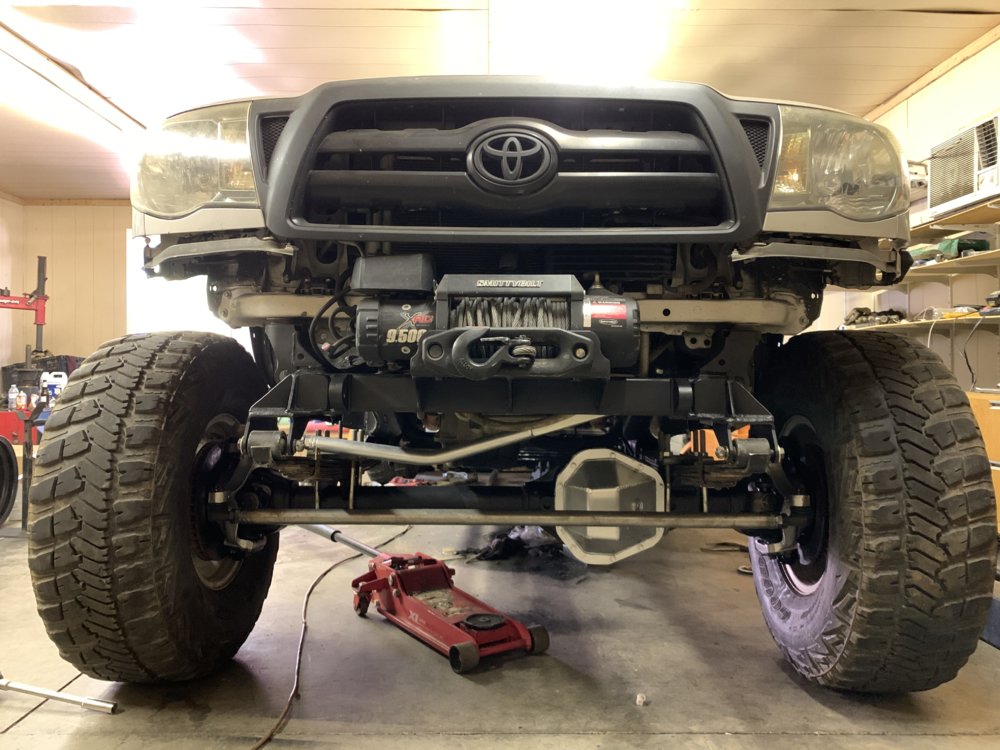

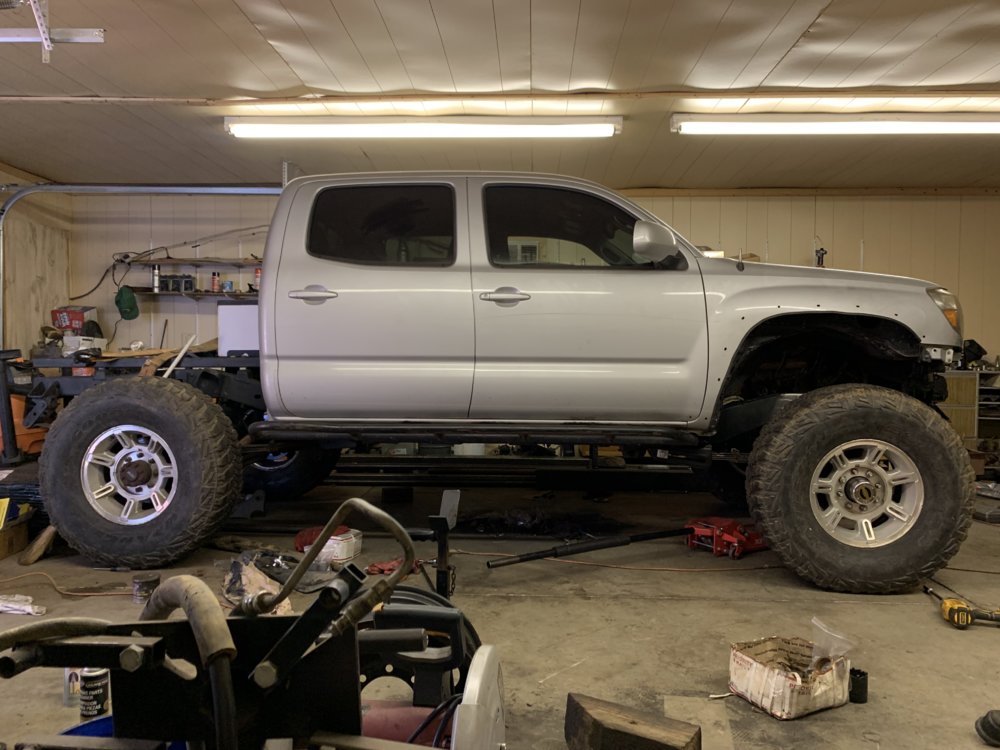

    Got the front axle in. Hopefully the last time putting it in.

    im looking for a set of flares for the front to help close up the gap from moving the axle forward.
    679F4025-2D93-4A81-907A-B2468DE86FFF.jpeg AA43CD02-6DF2-4BA7-B52D-B74295B36585.jpeg

    YJJPWrangler, 87TPIYJ, ncsutj and 5 others like this.
  12. 77GreenMachine

    77GreenMachine Phillip Talton

    Joined:
    Mar 30, 2010
    Location:
    Trinity, NC
    Looking good! You got 2 weeks to get it ready and come to Gulches with me. Might even let you drive your old rig :D

    You think you’re gonna be able to keep that body nice or you plan on thrashing this thing?

  13. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I plan to keep it nice in case I need cash so I can sell it to some overland guy. as soon as I lay it over, it will become a trail rig. :smokin:

    And I’ll be in Boone with the wife that weekend... :mad:

  14. Wesling Ducos

    Wesling Ducos Member

    Joined:
    Jan 23, 2017
    Location:
    Durham
    Keep the body nice so you can sell it back to the guy that sold it to you ;)

  15. 77GreenMachine

    77GreenMachine Phillip Talton

    Joined:
    Mar 30, 2010
    Location:
    Trinity, NC
    Id say you could make a pretty penny in it.

    But overlanders don’t know how to change a tire with that many lug nuts.

    Chris_Keziah likes this.
  16. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    That’s why I only have 4 on it.:flipoff2:


  17. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

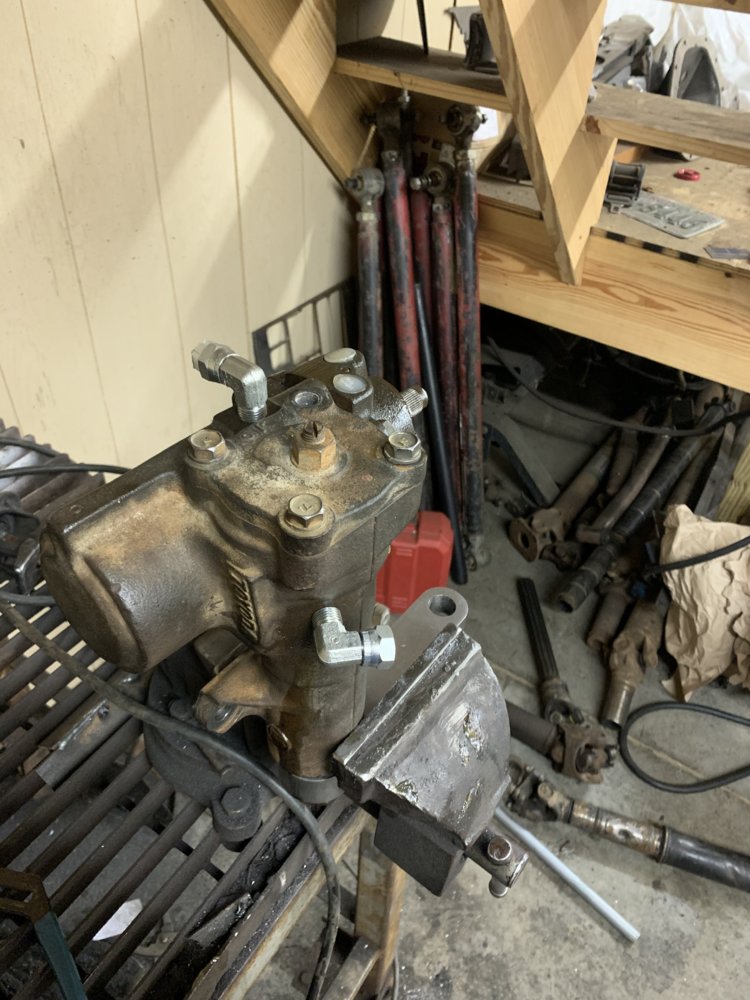

    Drilled and tapped.


    ProbablyBroke and iwaxmyjimmy like this.
  18. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

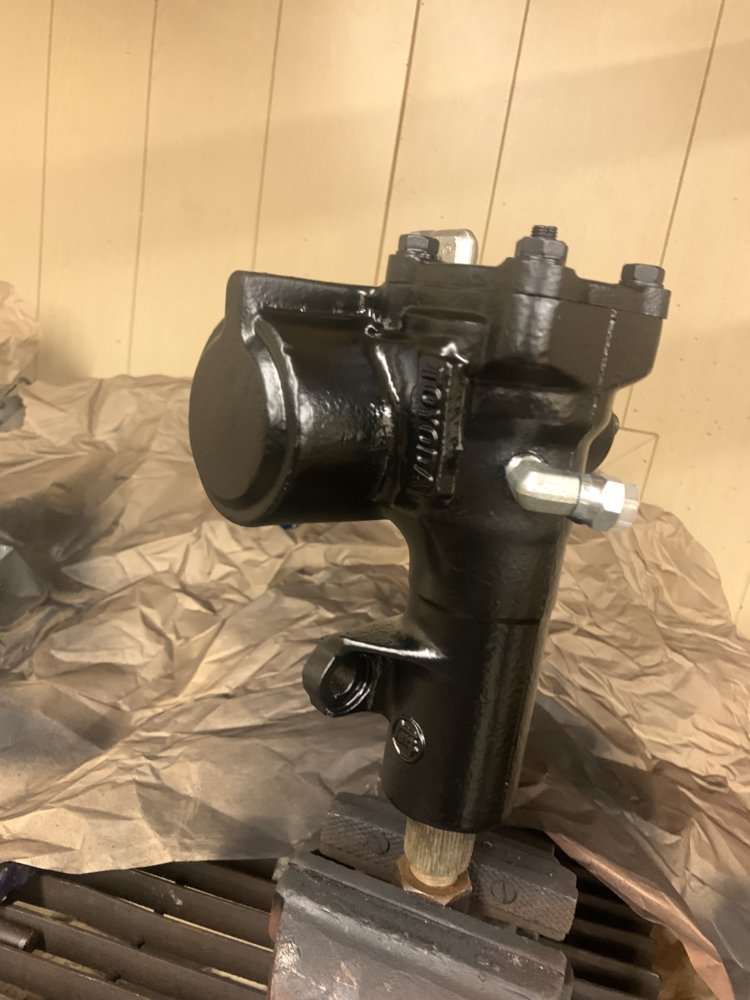

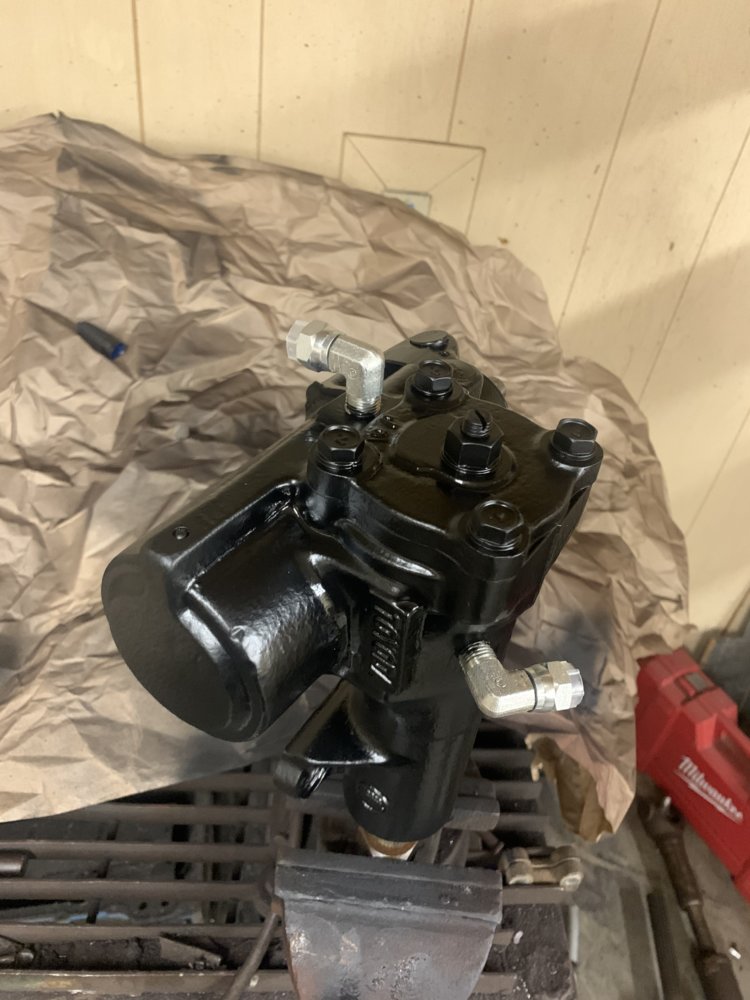

    1852458D-17F2-4836-B380-B172CA35399D.jpeg E0493628-035F-4C88-ABBC-83D1494B472A.jpeg

    Chris_Keziah and 87TPIYJ like this.
  19. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

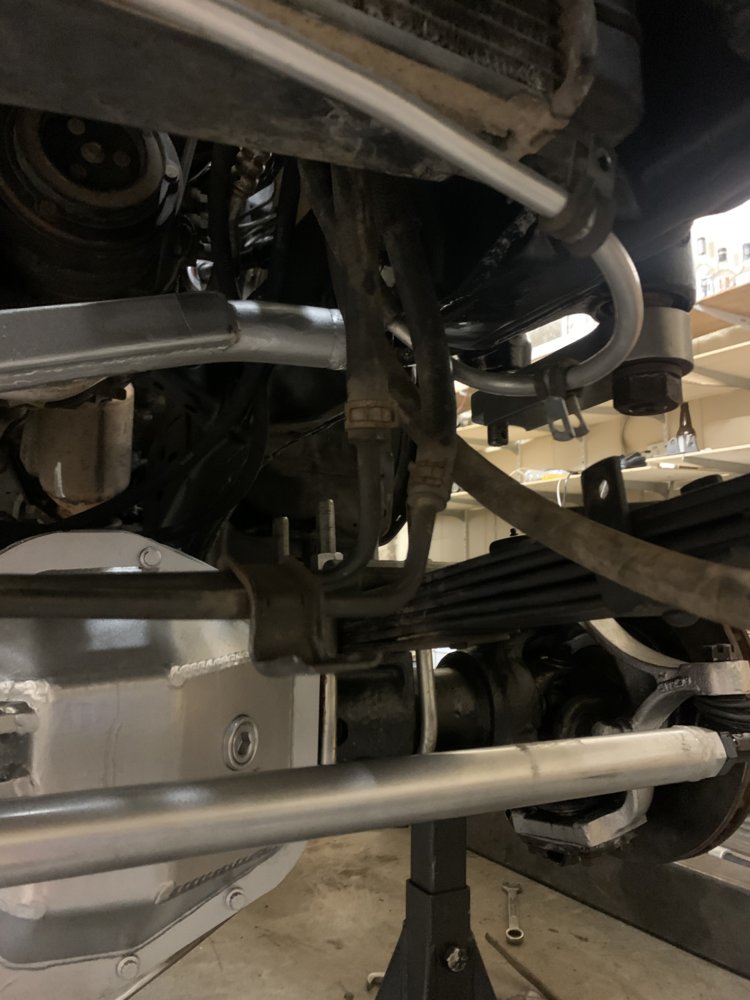

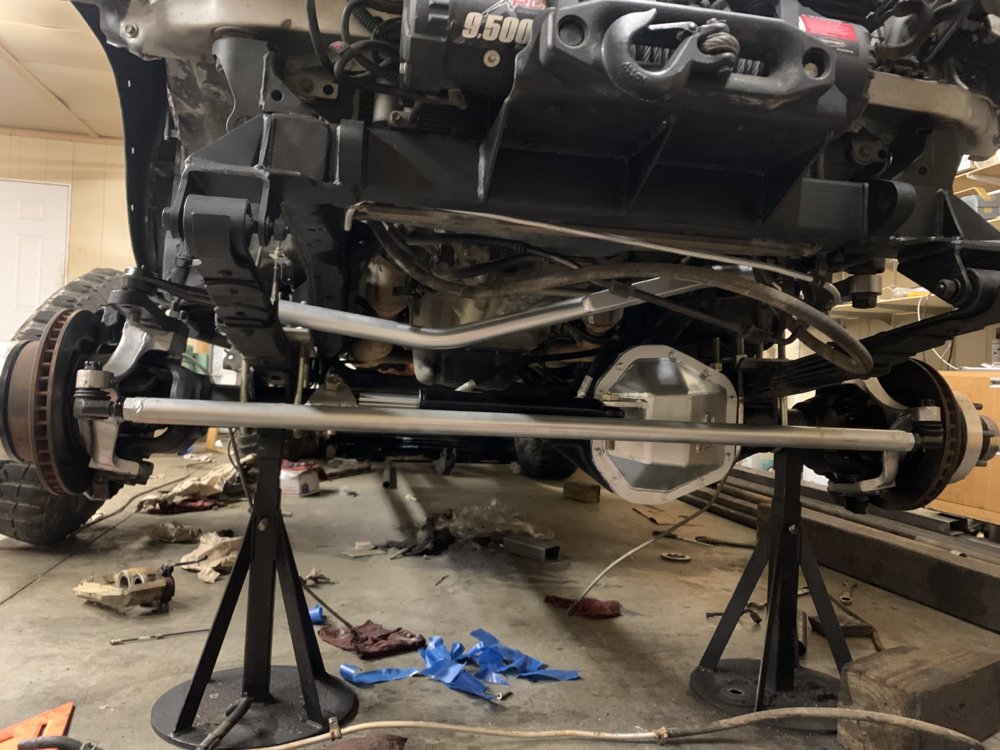

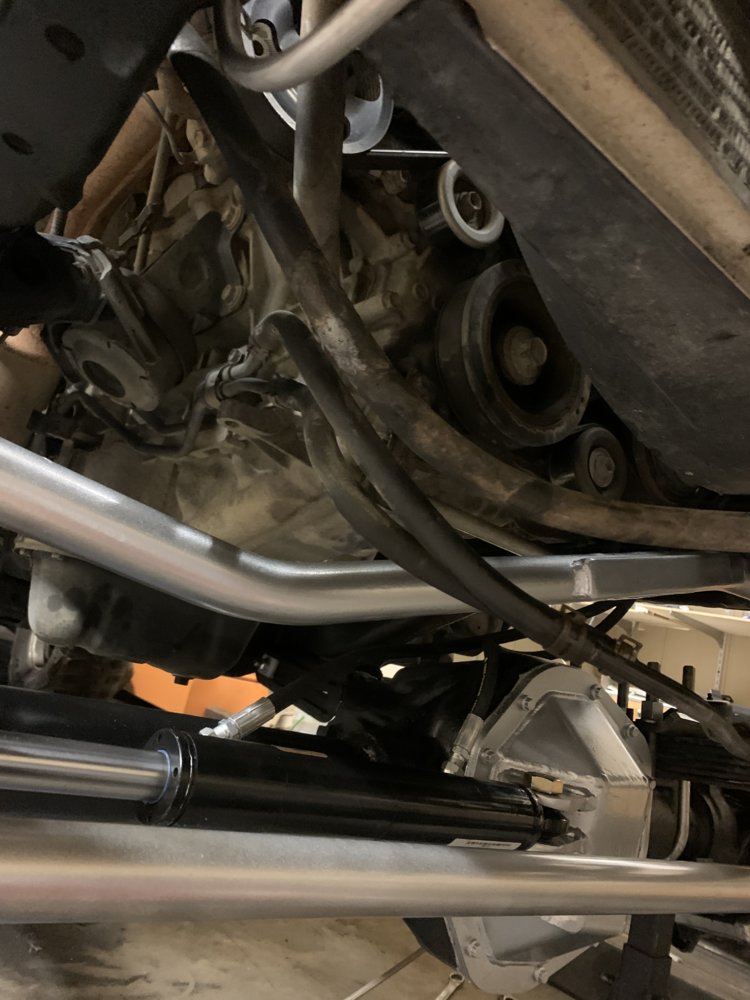

    Ram mounted.
    Figuring out where to mount all these lines is not fun.
    Old trans cooler lines were mounted to the LCA crossmember which is obviously gone.
    Gotta run new ones out of the way of my drag link.
    I made a hard line for the return PS line.
    The pressure line to the pump is very rigid. Struggling to find a place to mount it. We will see.

    28F9CFA5-2F55-4C93-90F9-58862AF3A97D.jpeg 663F12EE-7667-4C89-A130-9027ED1F278A.jpeg F389A533-8F14-4A21-BE8A-DBCACCD11D2D.jpeg

    doc and 77GreenMachine like this.
  20. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Power steering/Hydro, transmission, and coolant lines are ran.
    Filled it with fluid.
    Ran it for about an hour.
    Steering works. Seems a tad slow, but it was at an idle.
    Only leak is the input to the steering box.

    gotta bleed brakes, then take it for a spin.

    still need to do:
    Shocks in front
    make front driveshaft
    Clearance crossmember for driveshaft
    T case skid
    Anti-wrap bar
    Front bumper
    Tube out a rack/cage for the rear
    Add more diff fluid to the front
    Bump stops
    flex it out and trim front fenders
    Possibly redo the shocks in the rear.

    adamk, doc, BigSouth and 1 other person like this.
  21. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

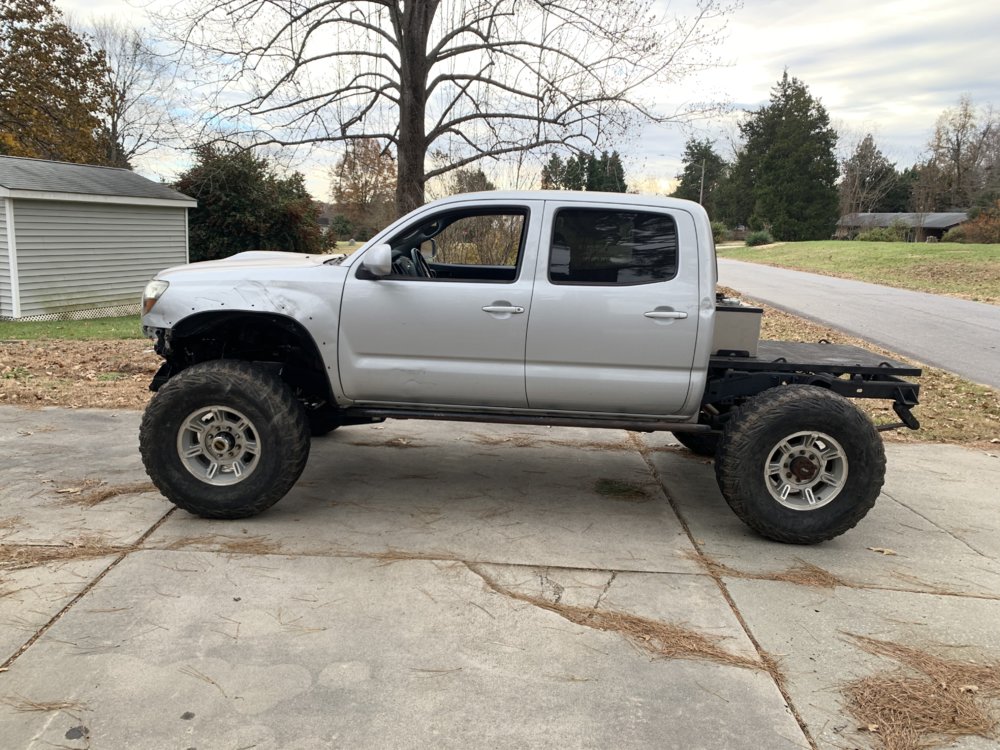

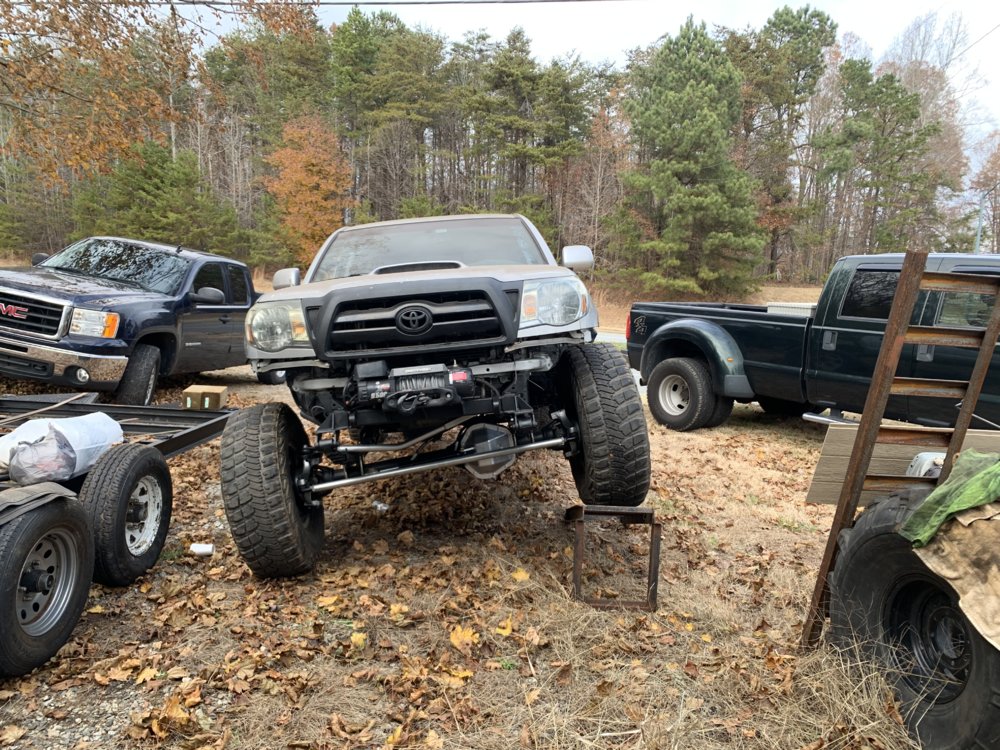

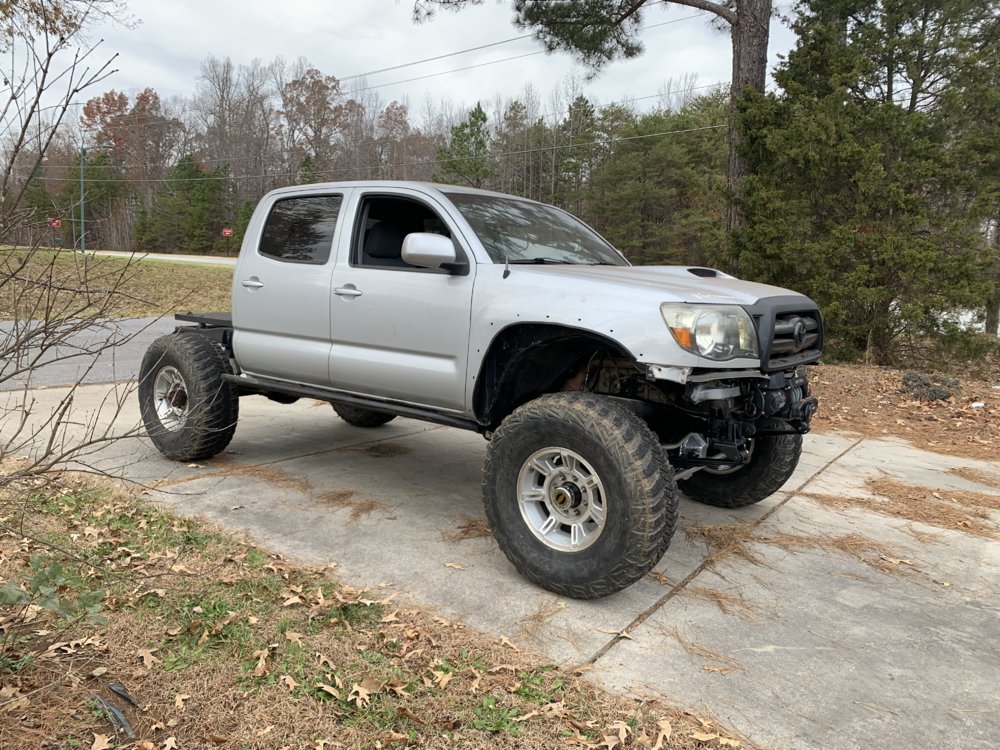

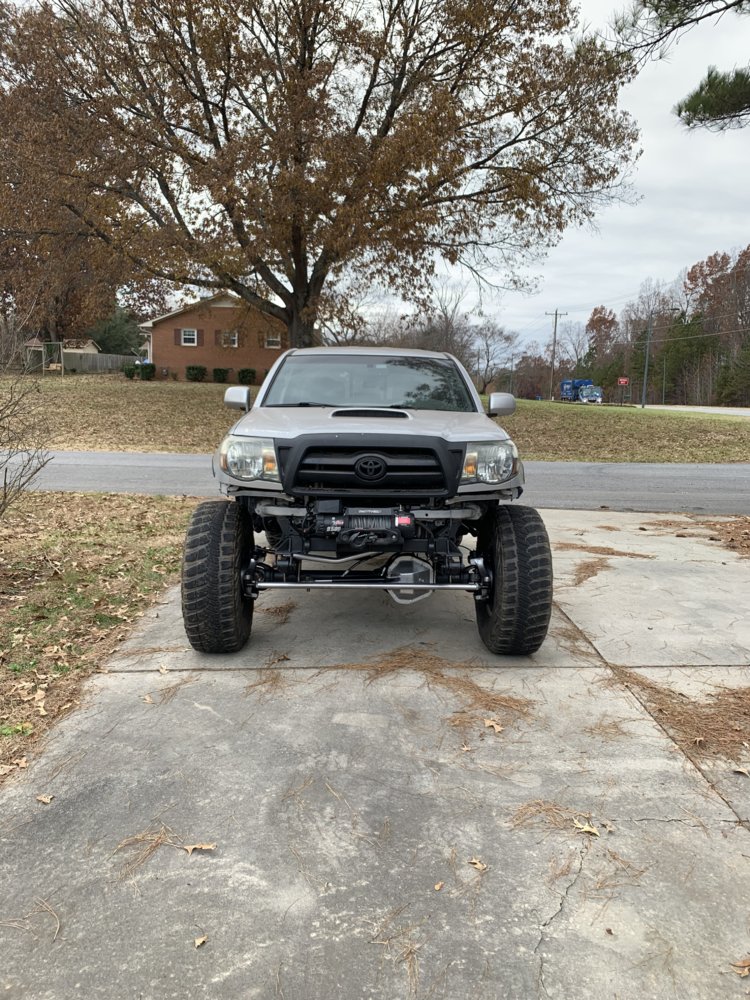

    Brakes are weak. Gotta figure out how to get a bigger master cylinder on it.
    Steering is slowww
    And I need a bigger reservoir to have enough fluid.
    Got two weeks to get the small kinks worked out and finish a few things before Uwharrie closes.

    16B12F29-FEB8-4120-8D56-F7F5C0E1700C.jpeg C17FE910-1BA4-49DD-9FEB-F16C5ACAC894.jpeg A923DA48-9FC4-4E49-A934-F21C0CFF8000.jpeg 49F845AD-86F0-48DD-87A6-A4202DF70CD0.jpeg

    justjeepin86, ramjo, doc and 3 others like this.
  22. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

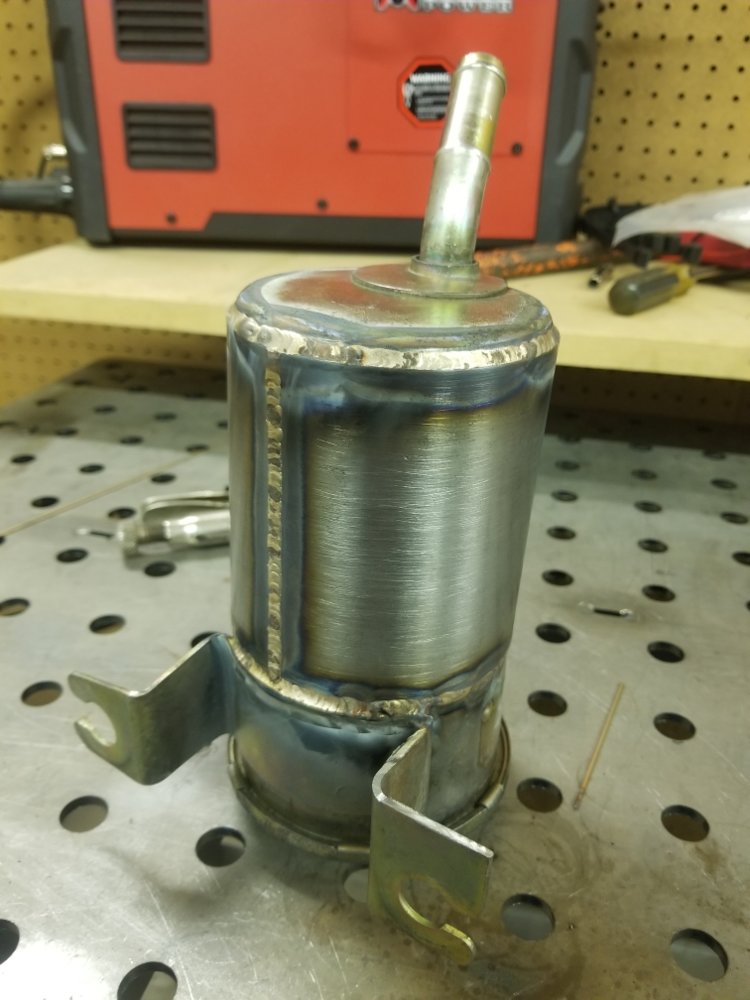

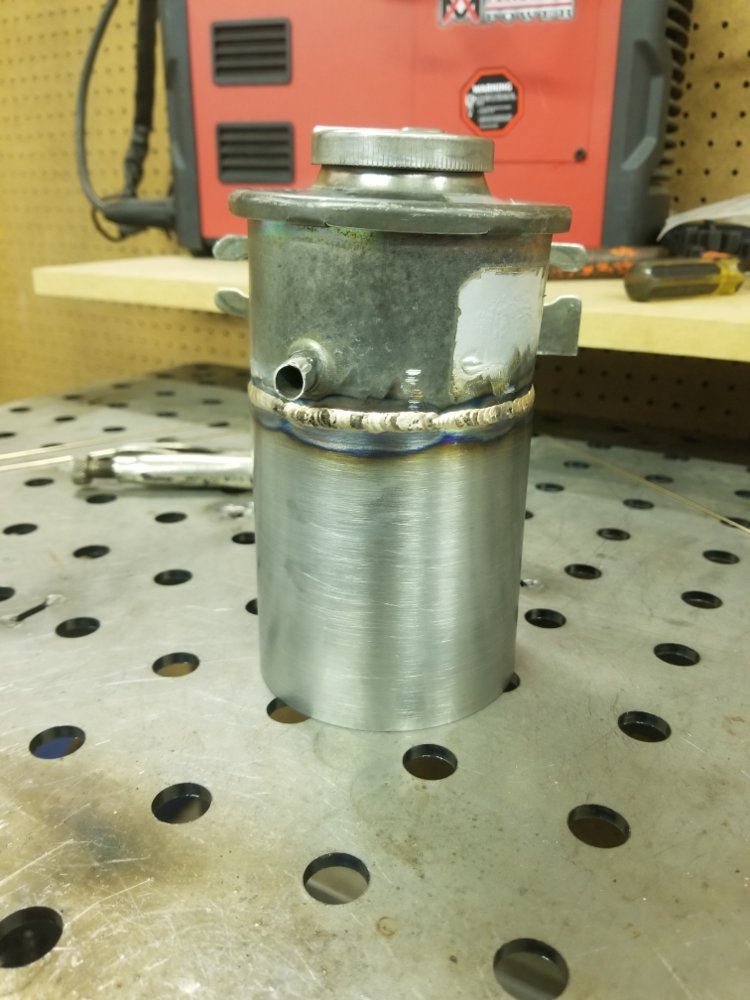

    Factory power steering reservoir was too small. It kept overflowing when ram was compressed and pump was starving for fluid extended.

    @hurt4x4 had a stock one from an 80’s truck. He cut it in half, rolled some tube for me, and welded it up.
    We’ll see how it works.

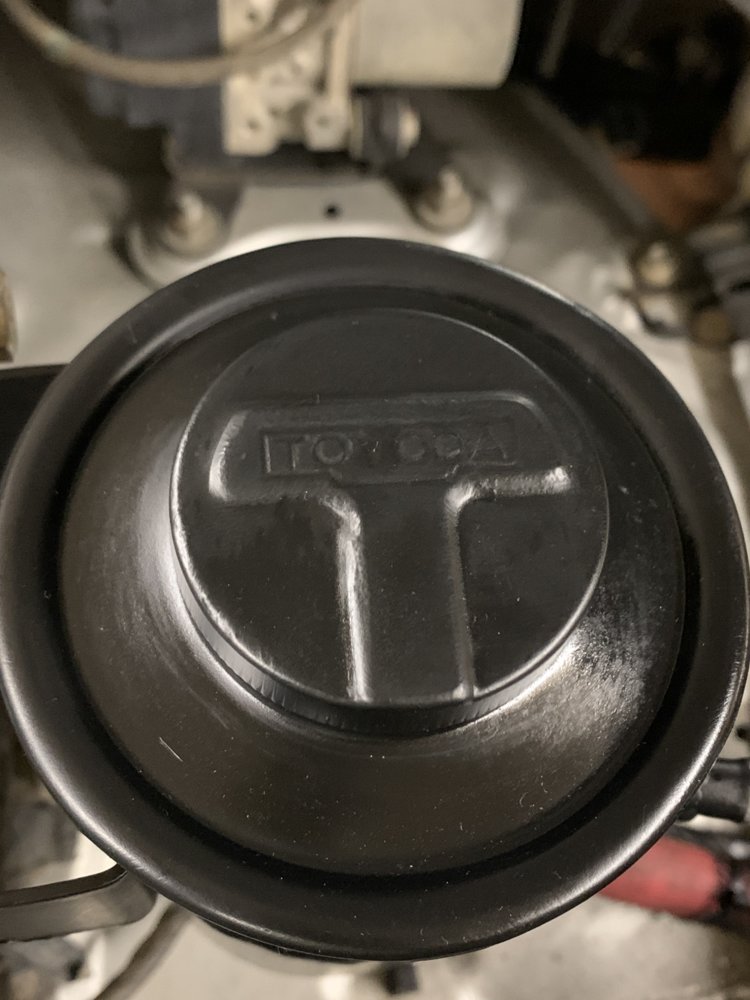

    Also has the old school “TOYODA” symbol on the cap. :smokin:

    8F44993B-ED92-4849-8ACB-9F35D090FDE8.jpeg 56FAF385-9413-4C4C-B88C-2090CB3D8049.jpeg

    taylor1, ProbablyBroke, doc and 6 others like this.
  23. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

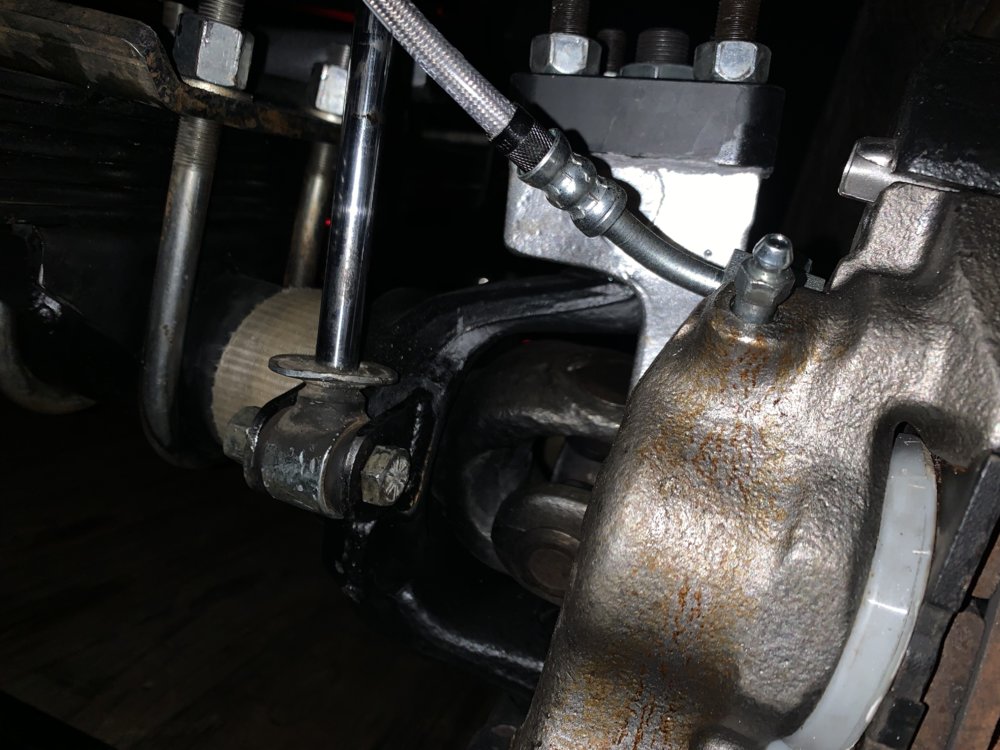

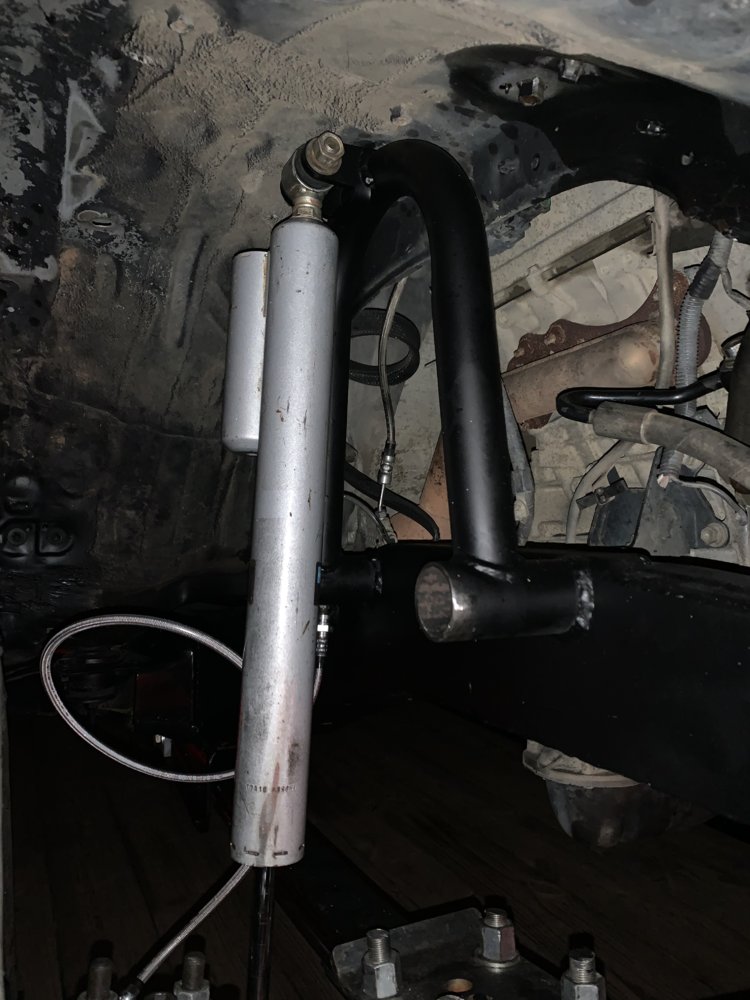

    Shocks were mounted Saturday too.

    6EE3984D-AC8B-49DD-9C2F-D16B25ECCE9F.jpeg 130E967F-DAF0-4630-971A-074916AFC1EF.jpeg

  24. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Getting closer.

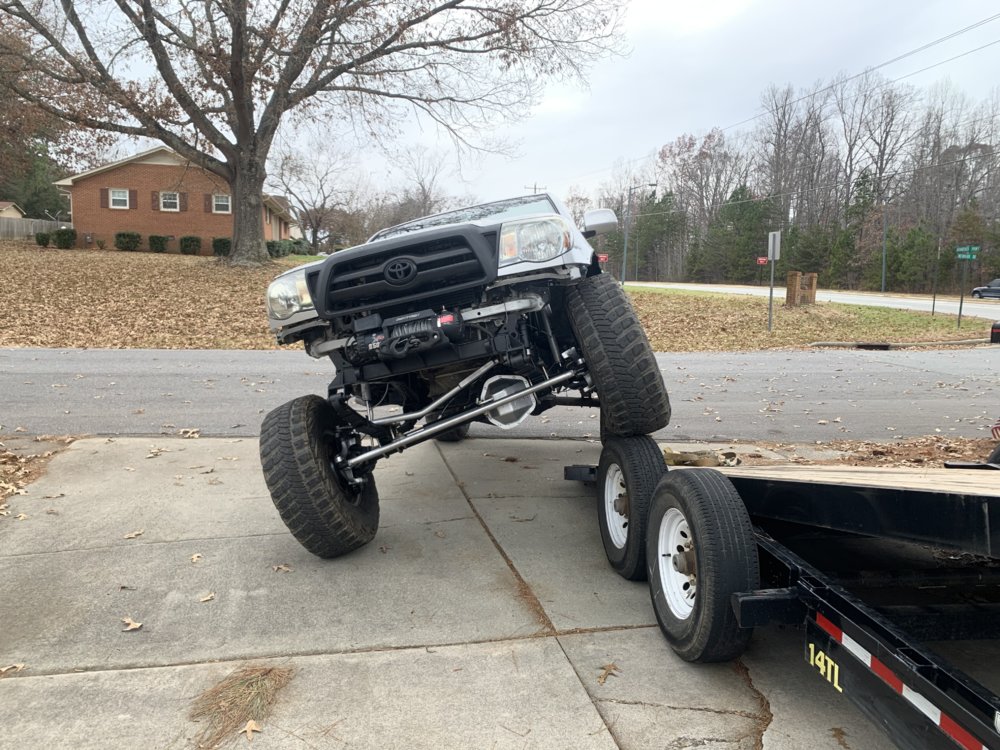

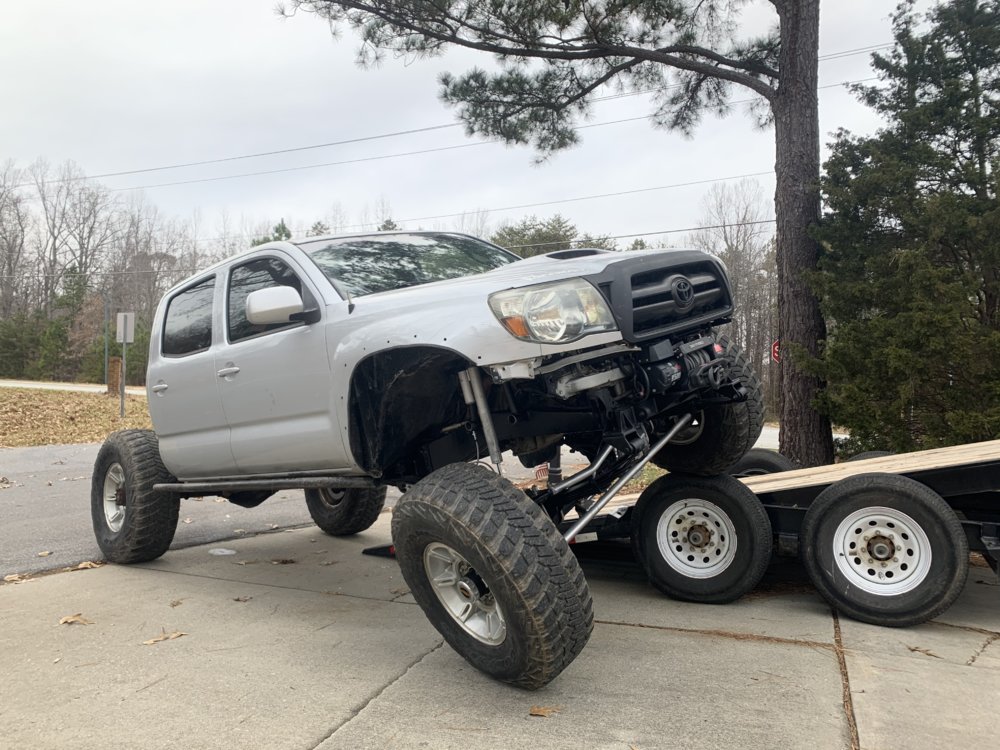

    Flexes okay. Still has more travel, but that’s all I had to flex on

    73BF9761-8B13-4C9E-B2ED-031171202BE8.jpeg 7759C58C-FD93-4F39-844C-8E44883304A2.jpeg

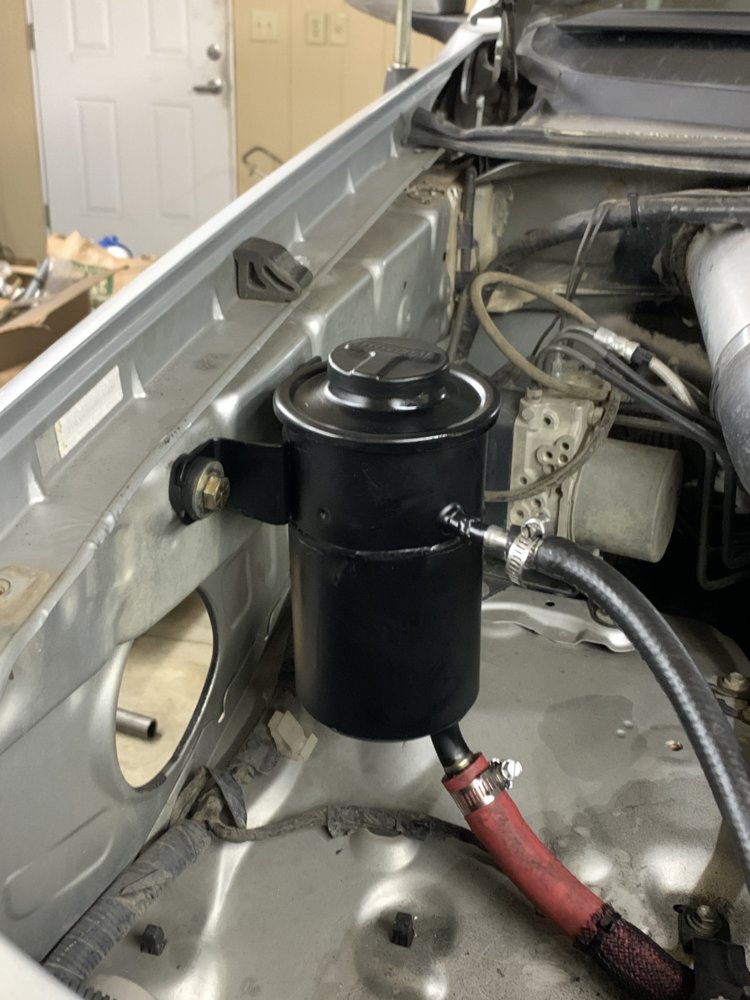

    Got the reservoir in.

    86A7BA27-0236-459D-87A1-AECDAFAED723.jpeg 6094D8F6-C3B5-4A10-A69B-978D0A67A4AE.jpeg

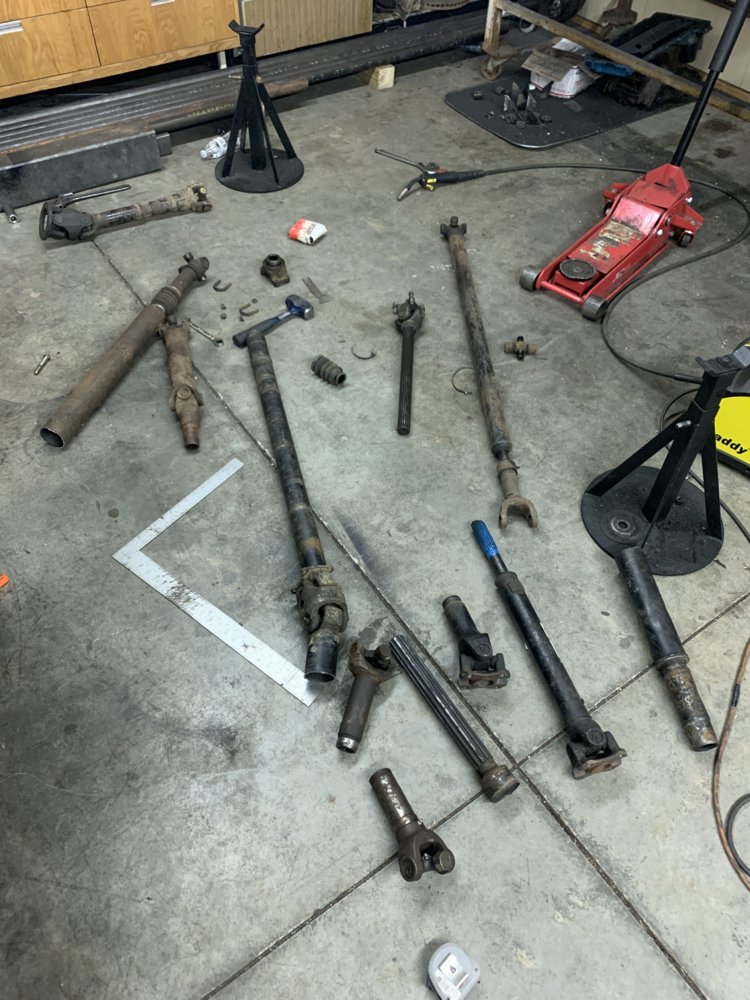

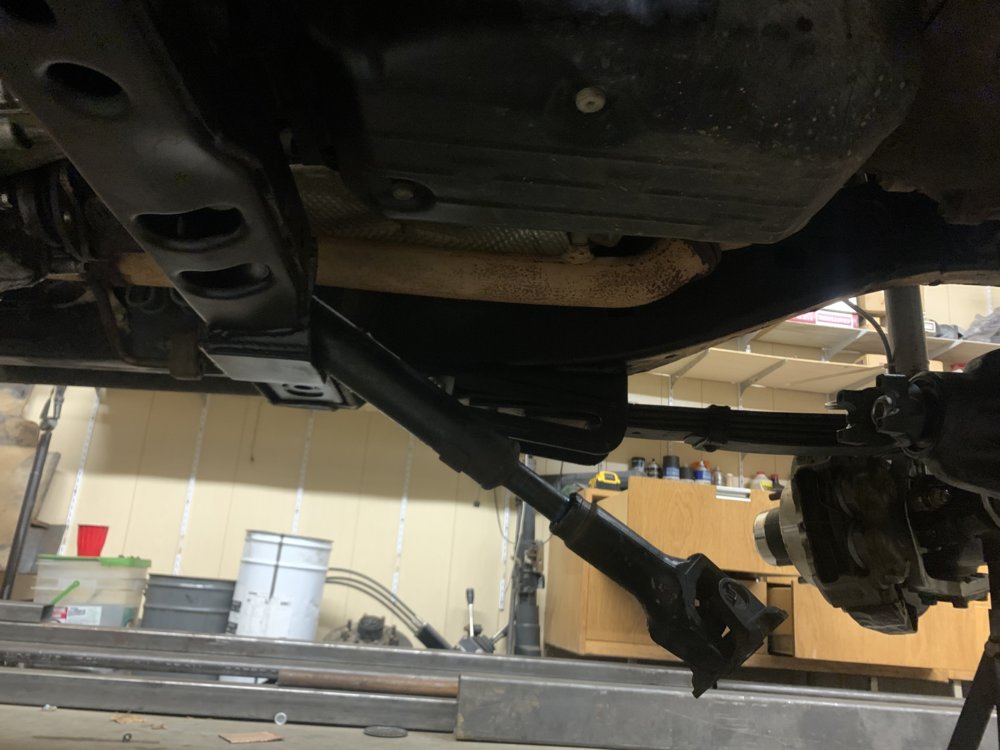

    Been trying to piece together a driveshaft. Went to @Oliver's but Dave was gone Friday.
    I think I have a plan.
    Gonna run a Toyota flange in the 60 and use all yota parts.

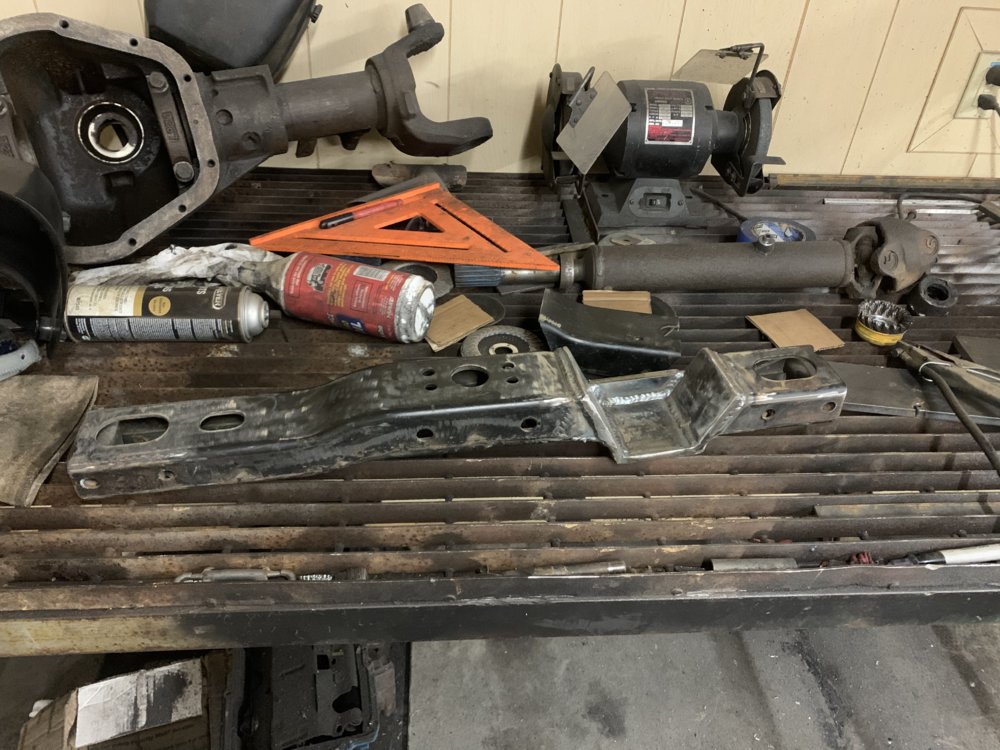

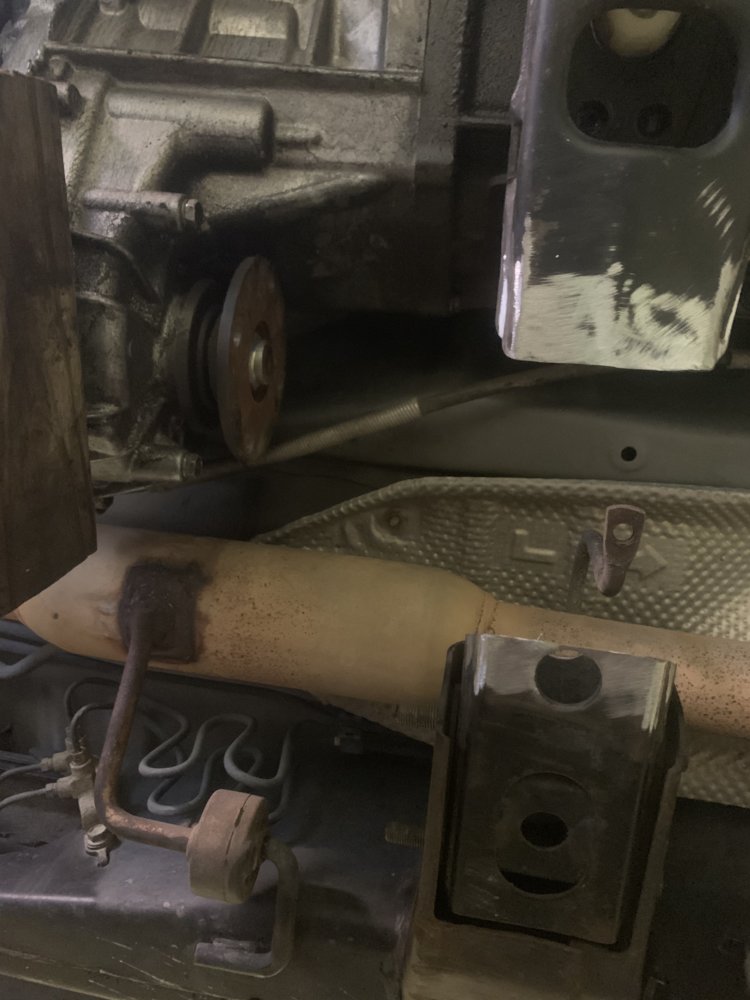

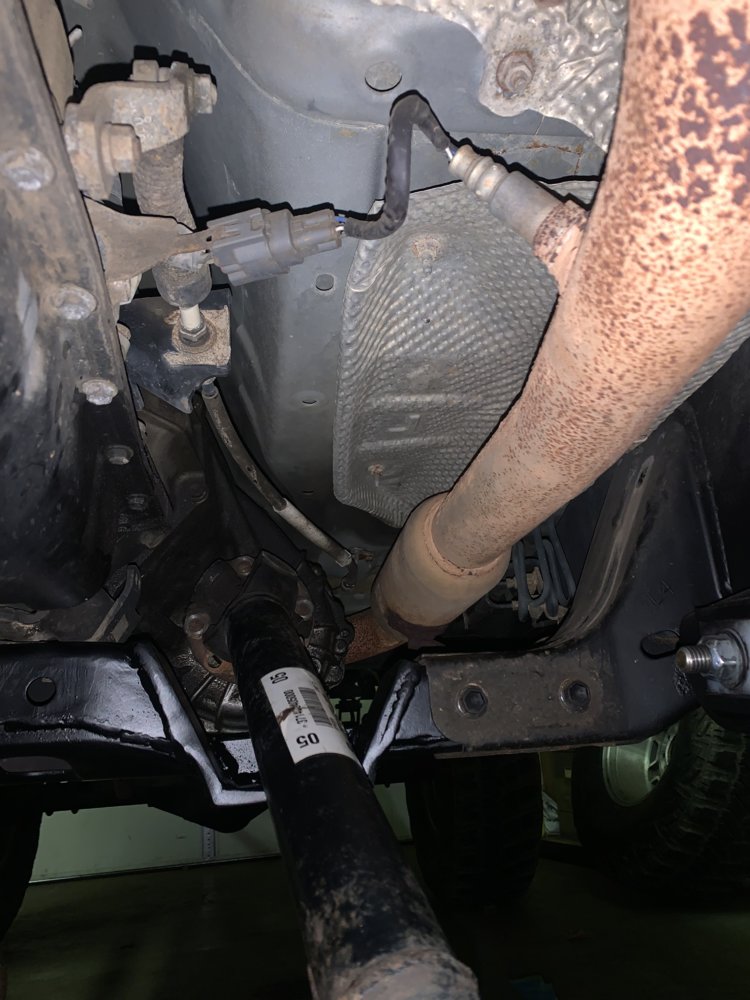

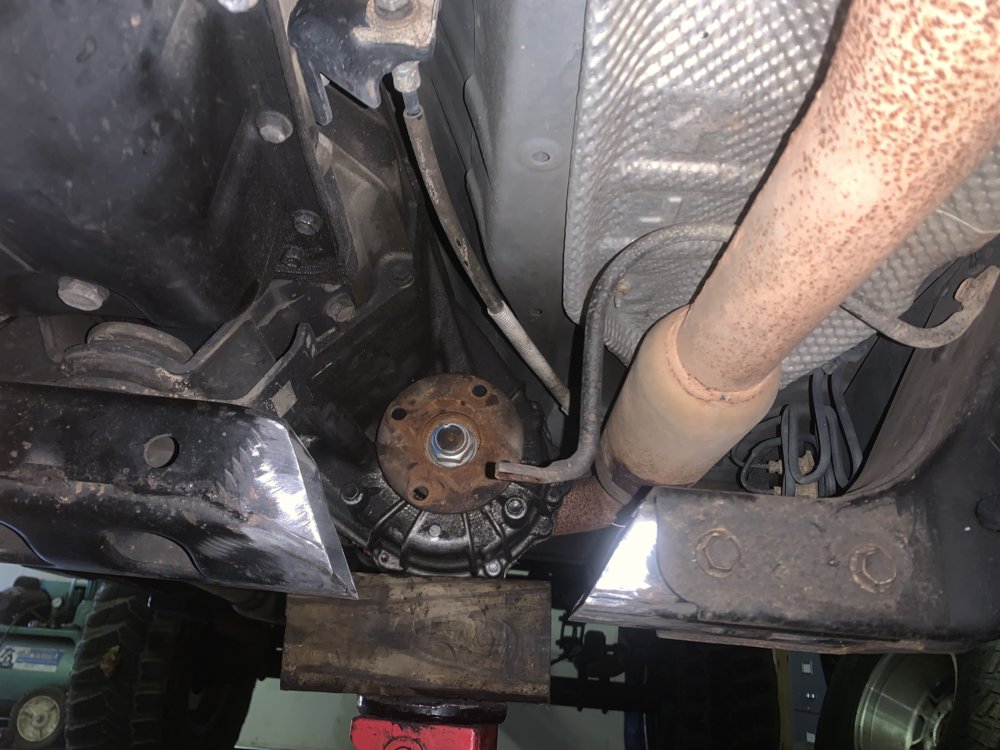

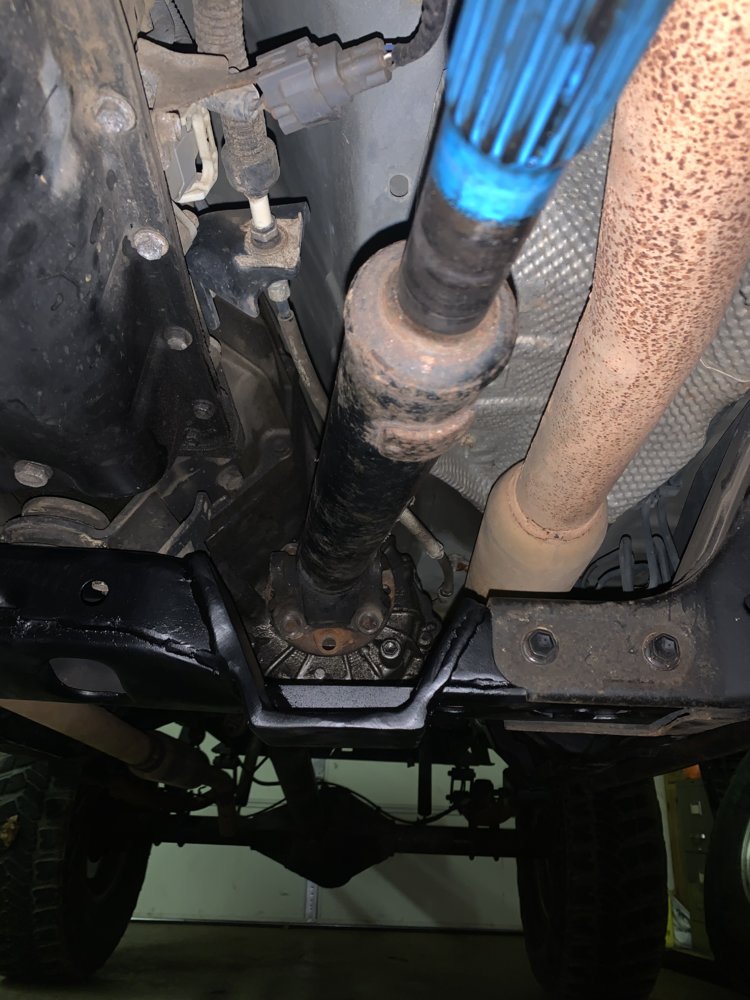

    Had to clearance the crossmember for more droop.

    0258D984-FDAA-499E-89A8-623B1E6831CB.jpeg 93A5E41B-745C-4AB0-93C5-502AA886860B.jpeg 598988DE-222E-400E-9031-8A4639A0283A.jpeg E96F62C1-A3CC-4C24-8B17-0341FD3E4570.jpeg EFCD9716-25DF-4453-8E7E-4A9CA67244F7.jpeg 5598C232-0998-4E7F-8E4D-70DBA662F427.jpeg

  25. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

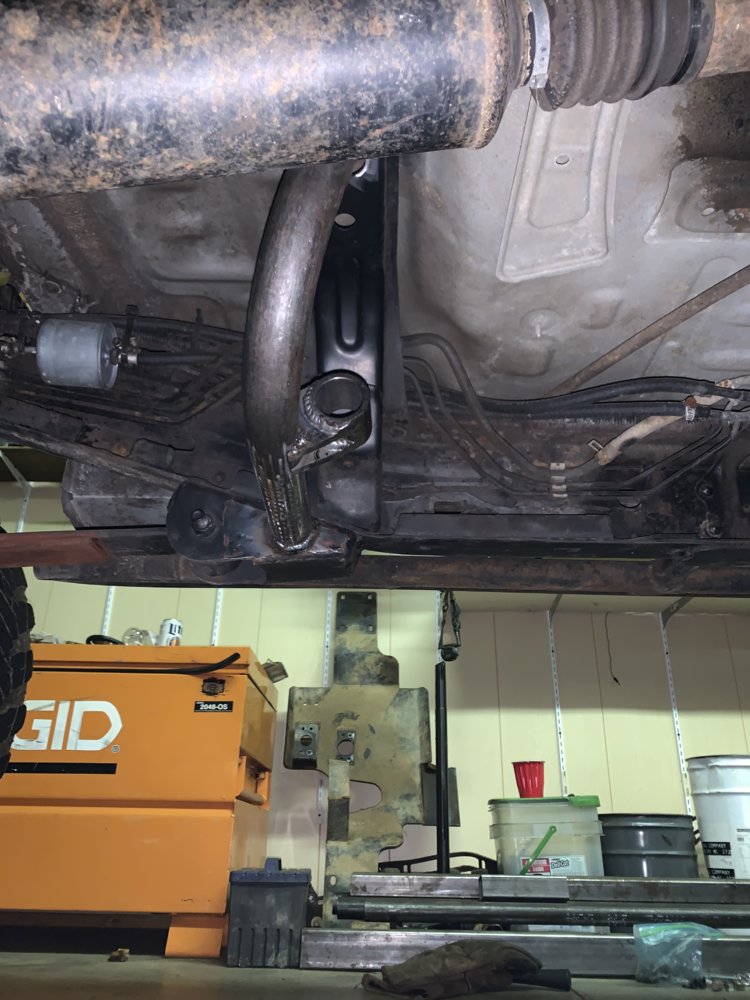

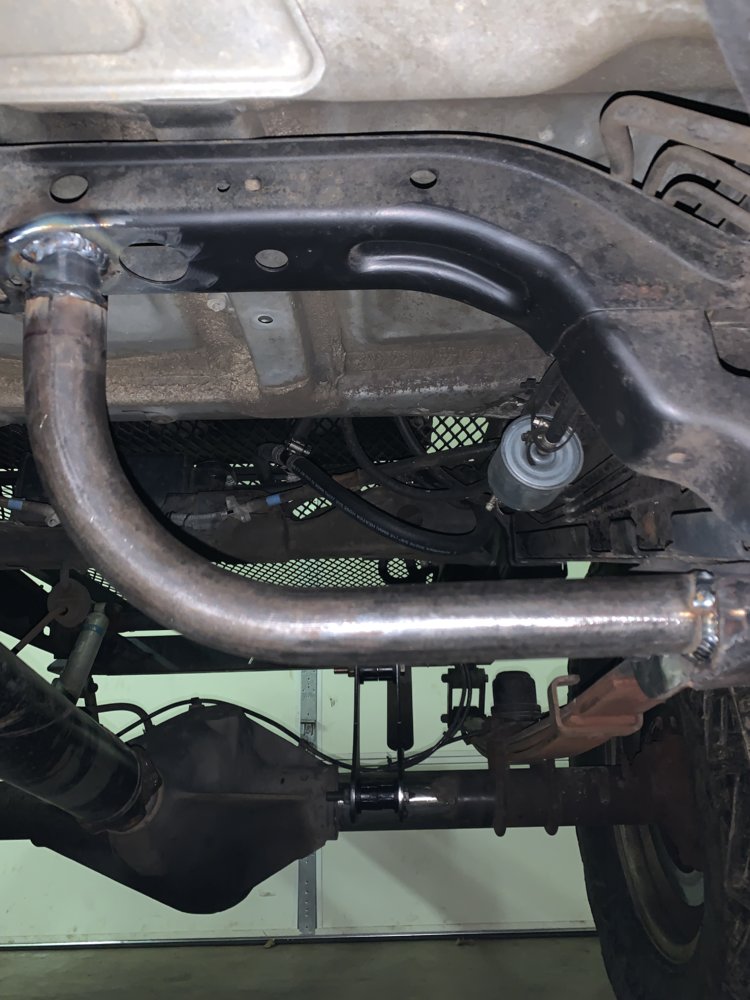

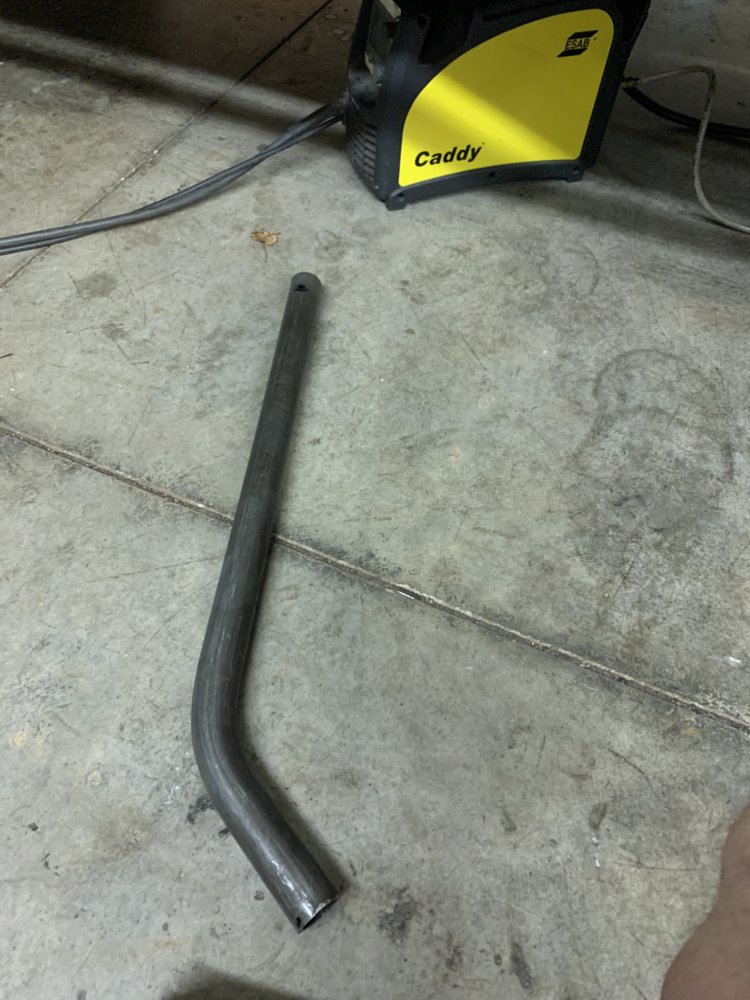

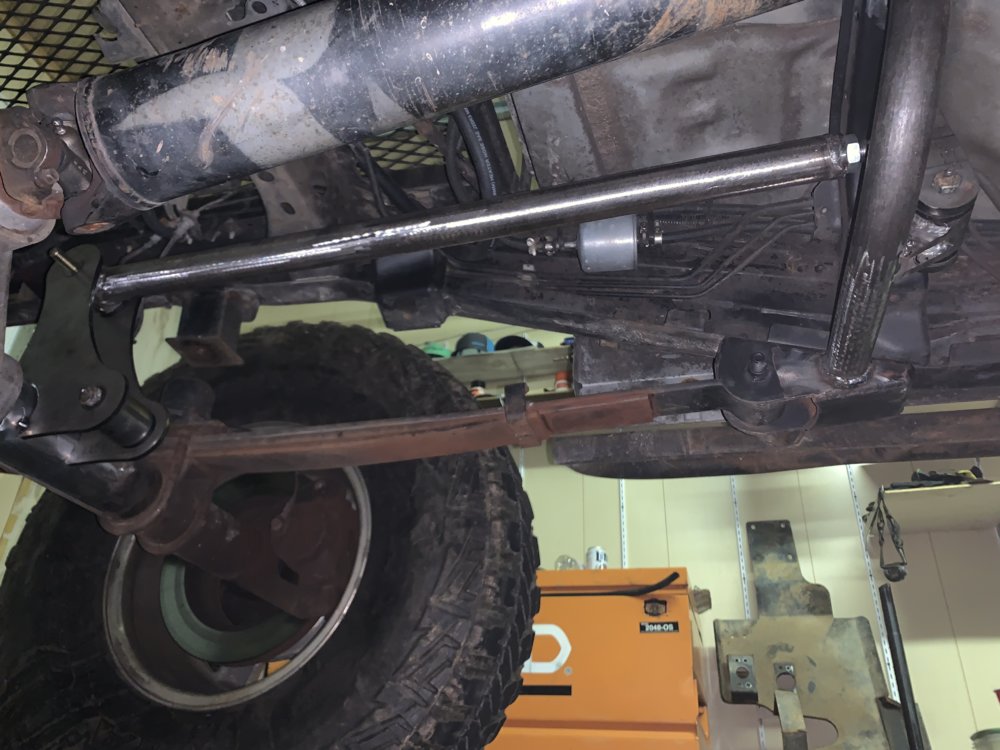

    Been working on an anti wrap bar. Only got a couple hours in the shop tonight.
    I’ll finish it tomorrow.

    80DCBF6A-DB00-4C19-90E6-C8C24E5D9582.jpeg 4C2612D5-84D1-407B-B9DE-988836F09CAF.jpeg 49D85ED8-6F21-4023-856B-0E62B165CE8C.jpeg 78916F45-03B2-4A3E-A051-703C9575692B.jpeg
