    Picked up a pop up to mount to my gooseneck this morning. @upnover cam by and got some of my junk. Good to see you Chip.

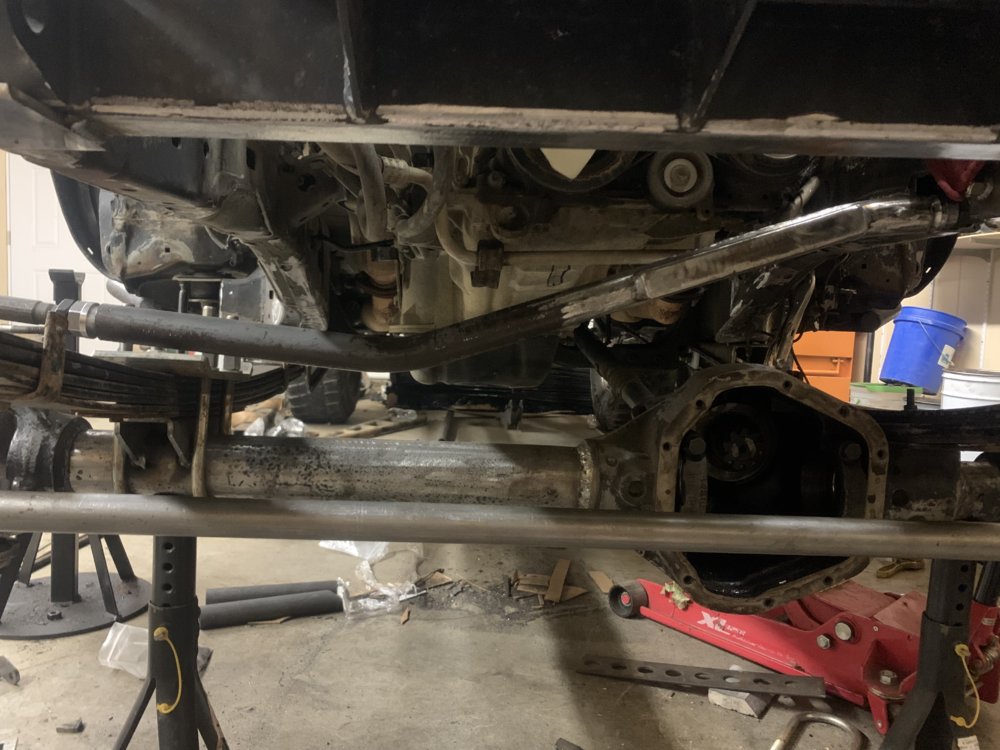

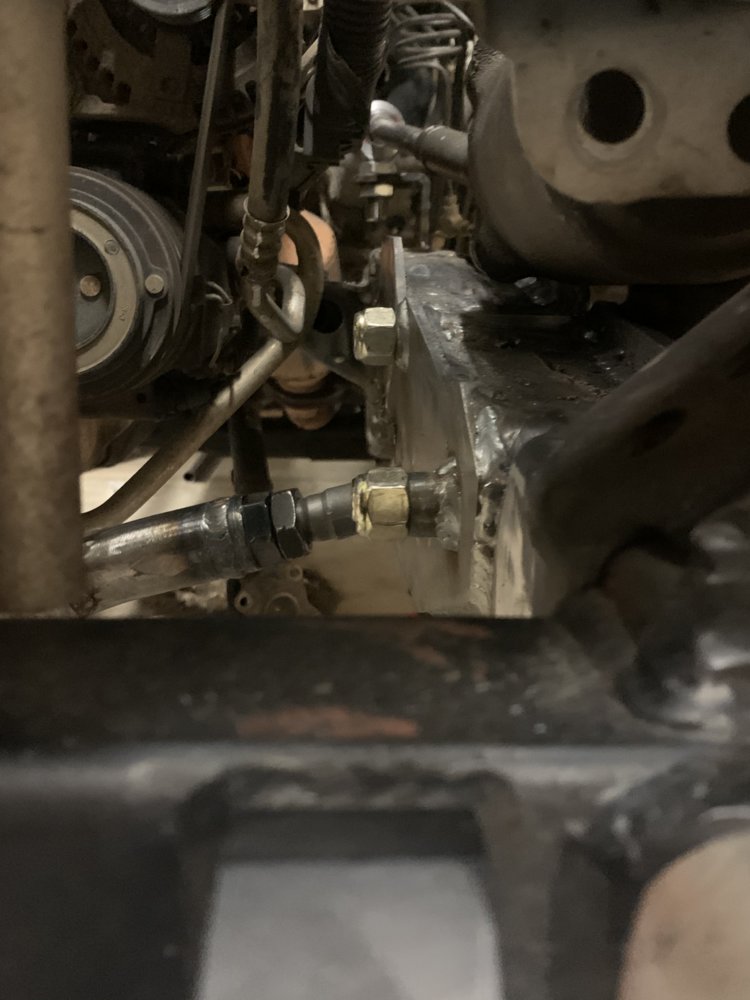

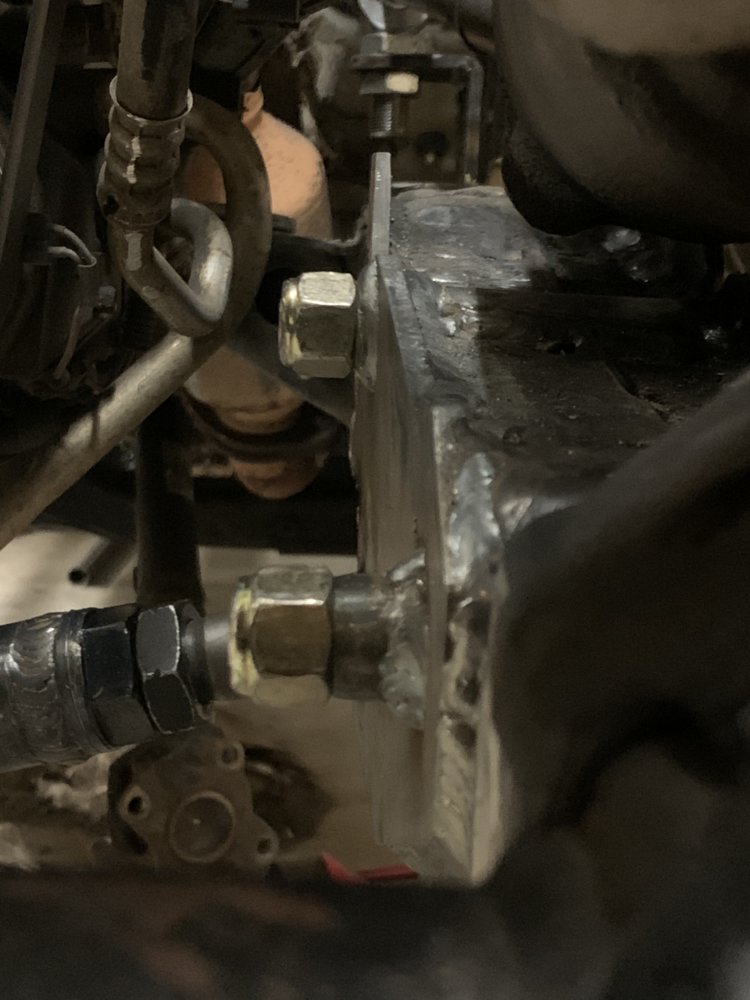

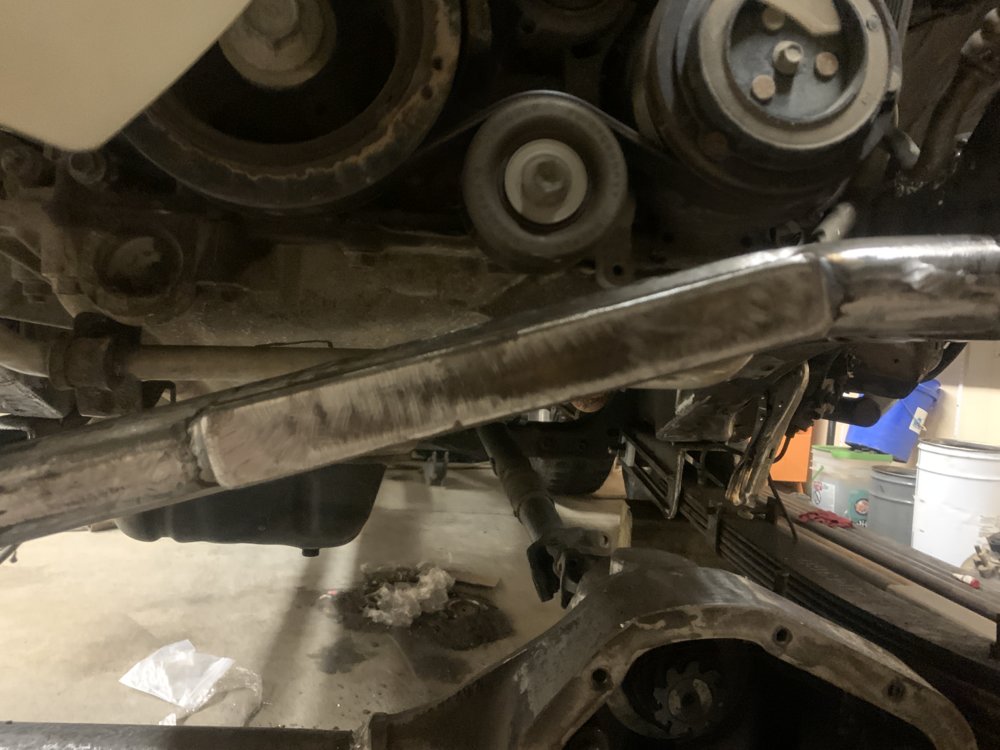

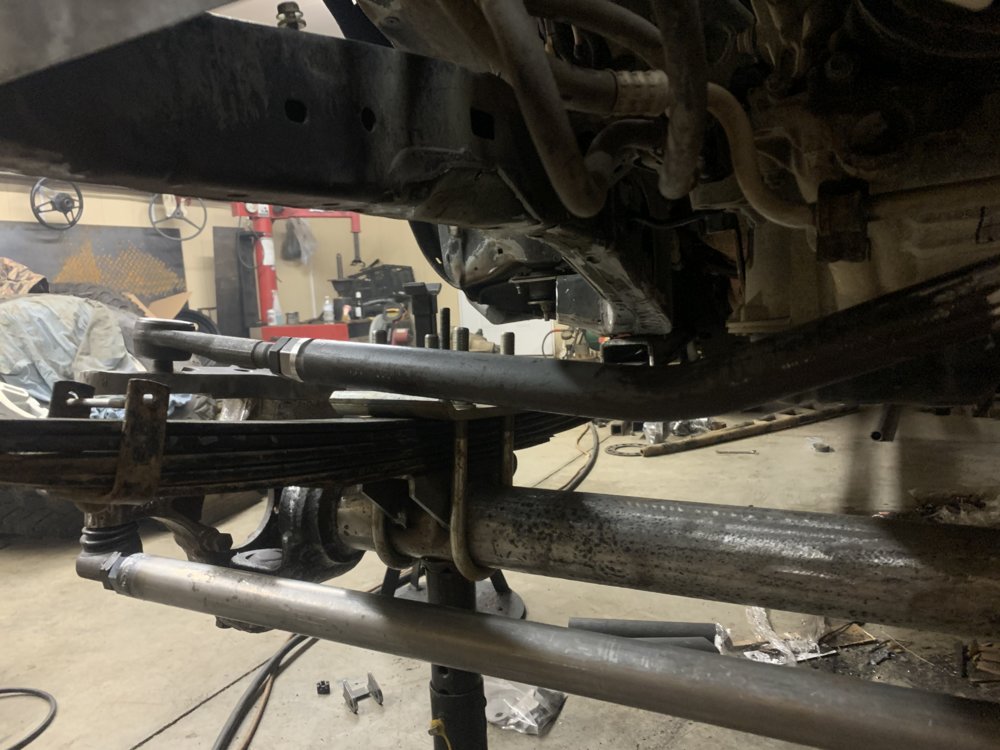

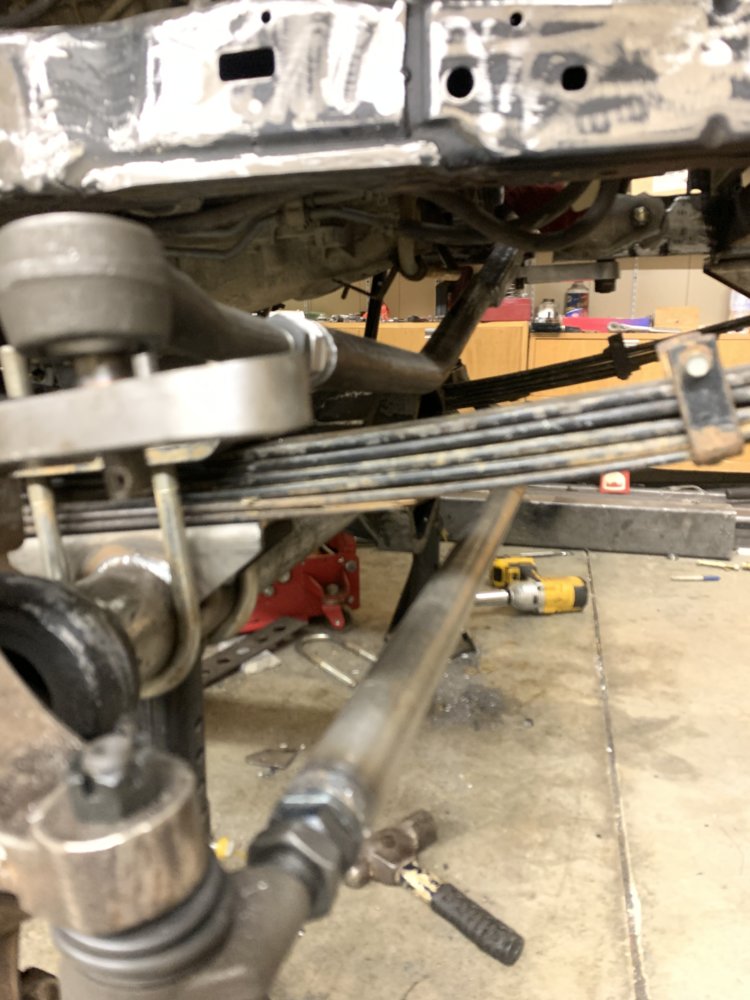

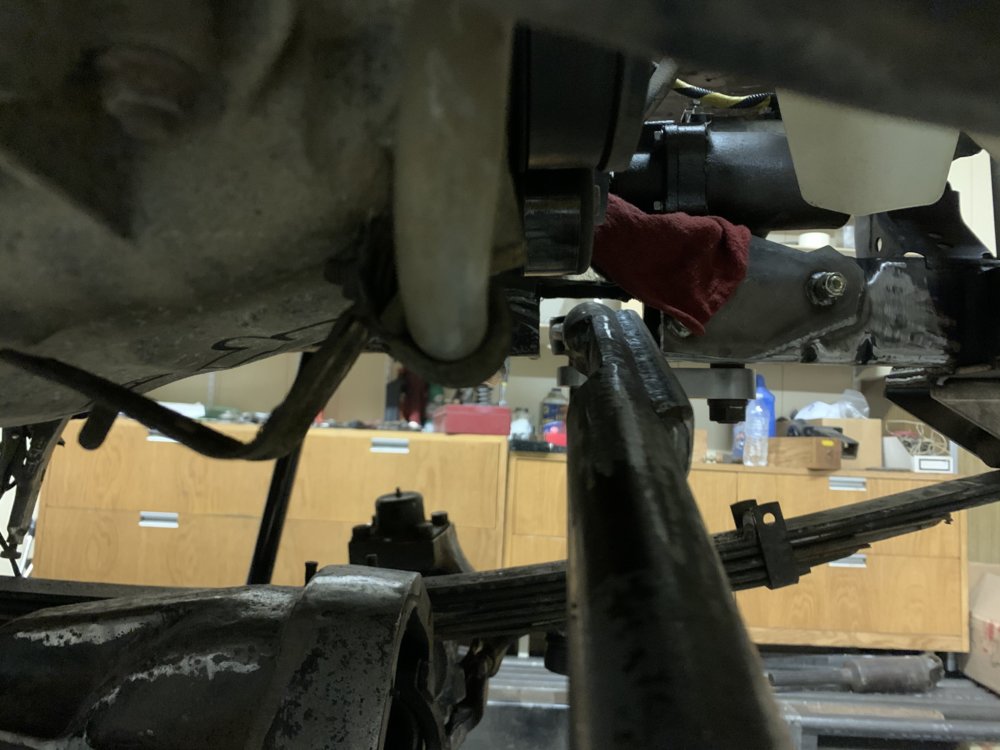

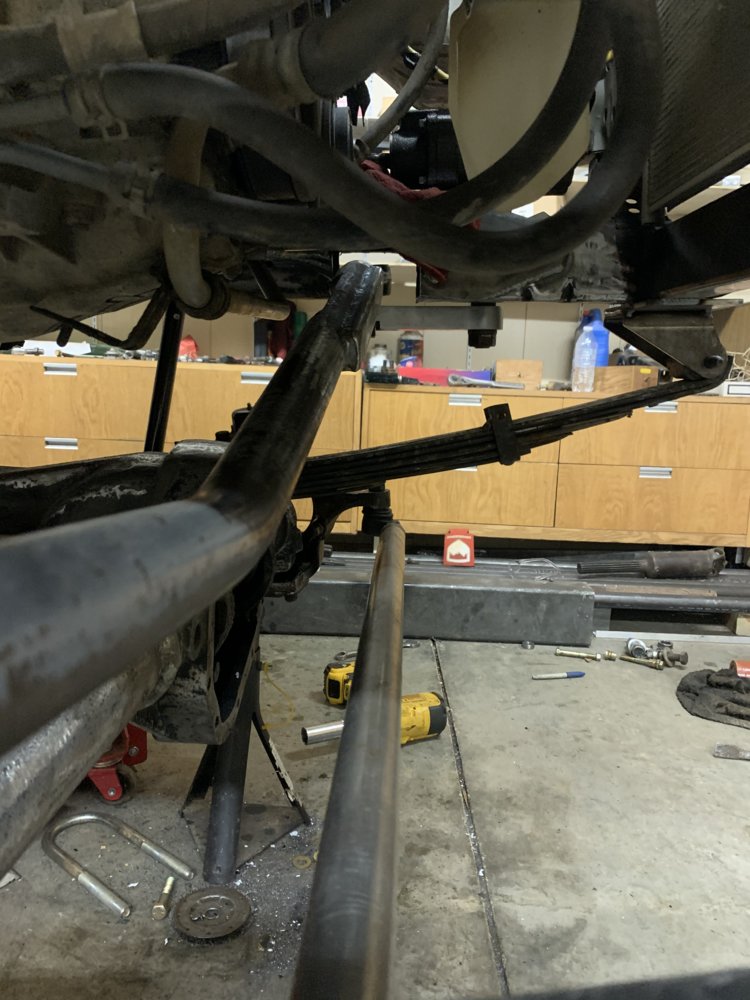

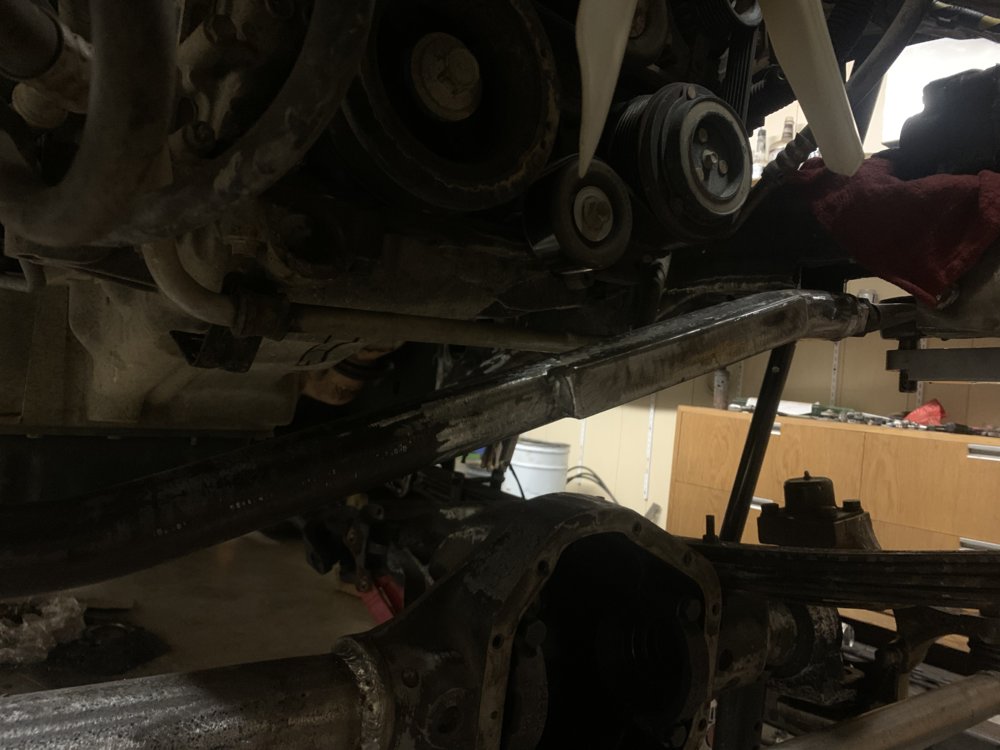

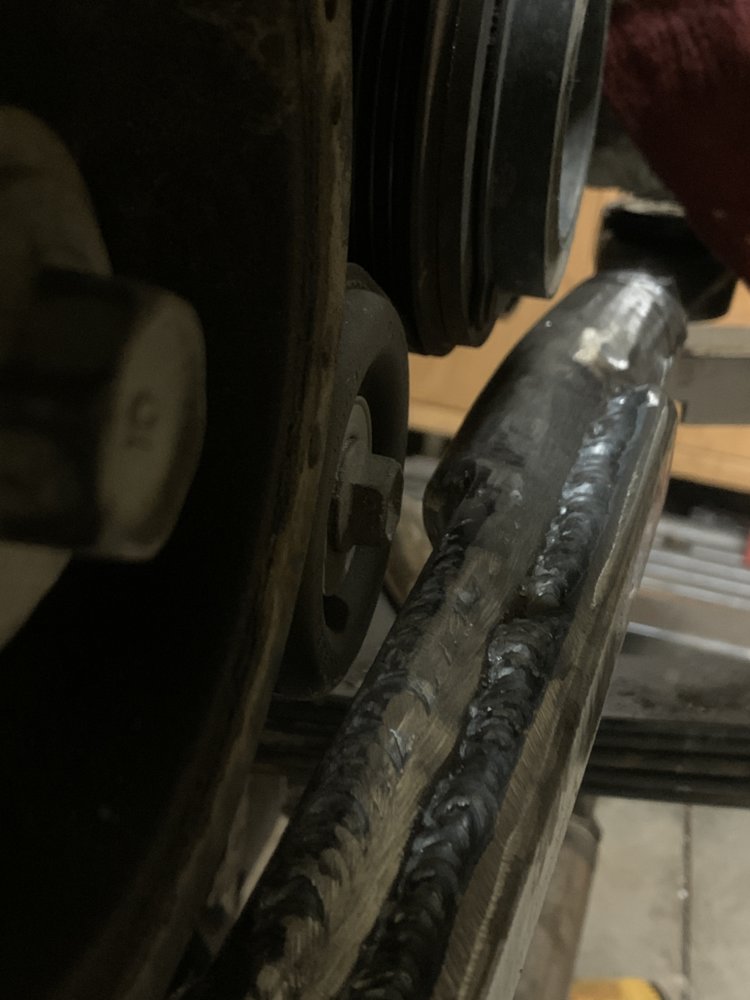

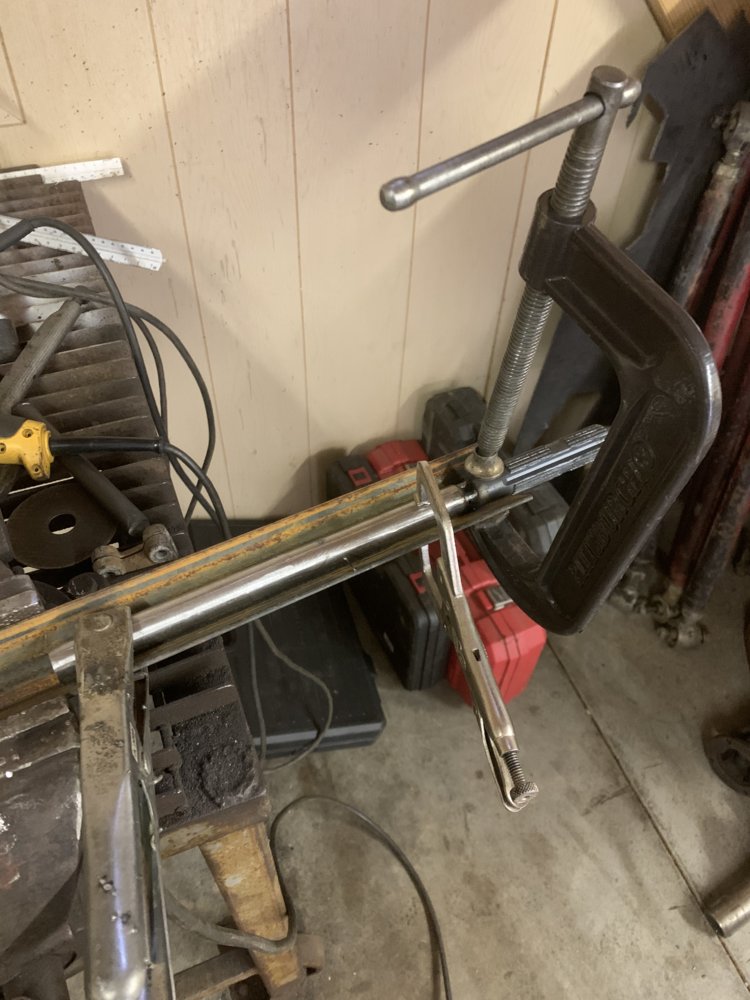

    Been working on my drag link this afternoon. Had to do some odd bends and notch it out for my idler pulley, but got it to clear everything.

    56B75D5E-2032-4814-8F33-209A9567ABAB.jpeg C2AB67DF-2501-4887-8E12-D7BAFE12ABB8.jpeg 246C3230-9E7B-4AB8-B497-E1CCA2D8DE79.jpeg 978650F7-6657-4A71-9264-A315F636F0CA.jpeg 0288BF90-8B70-4662-A64B-59F32C6204F7.jpeg 652FCFB2-5520-4169-AE02-227F56344B94.jpeg 449A230F-0BFD-47E4-9D0F-C5407656728B.jpeg 0C6CAB63-F0F0-4616-9253-F65B94461DB7.jpeg

  2. upnover

    upnover Grumpy, decrepit Old Man Moderator

    Joined:
    Mar 20, 2005
    Location:
    Morganton NC
    Was good to see you again also! Thanks for the "Junk"

  3. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I need to get this thing on the trails...

    justjeepin86 and Chris_Keziah like this.
  4. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

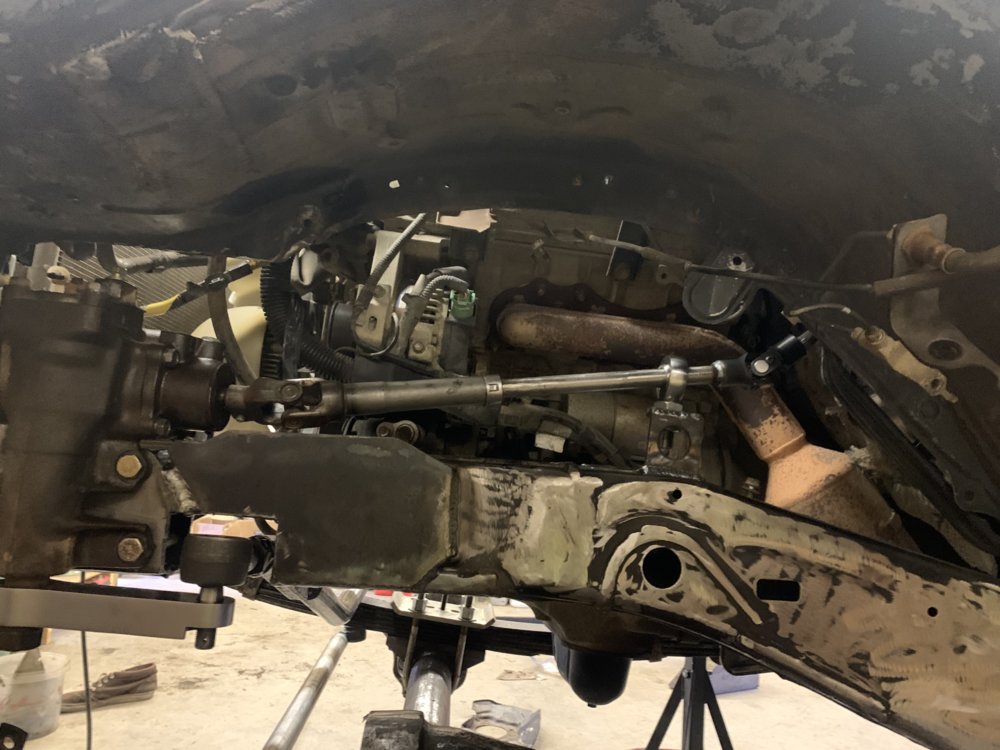

    Ordered a splined unjoint thingy to adapt A shaft I picked up at the junk yard to my steering column.
    It’s was a 5/8-36 Spline to 3/4 ROUND SMOOTH WELD ON

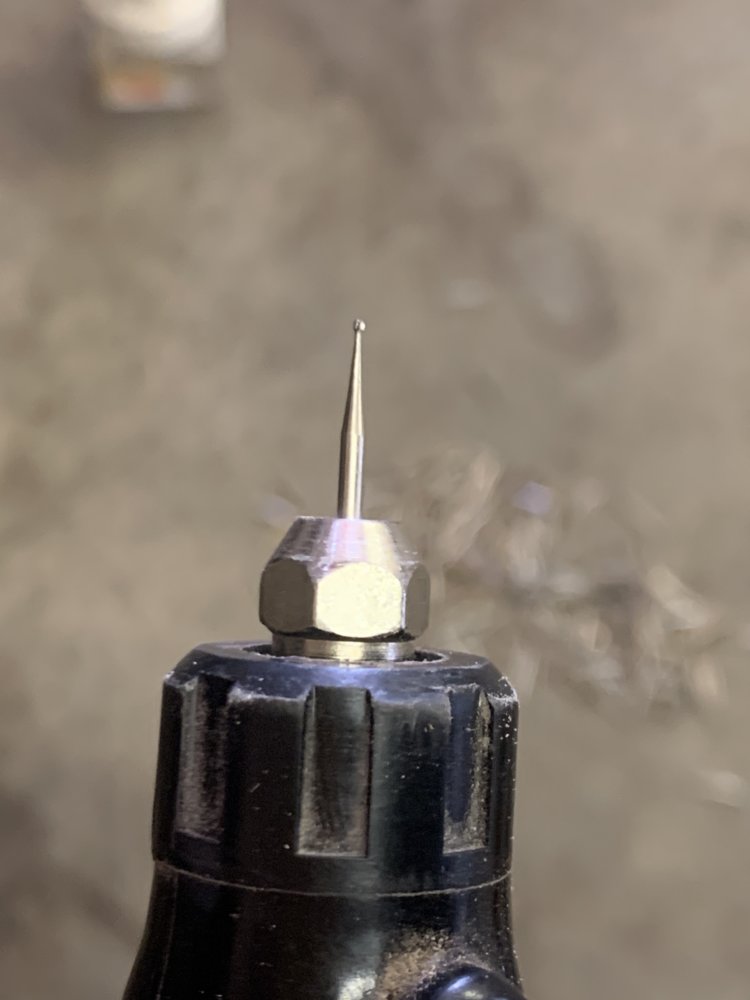

    I was told this was the right size. It wouldn’t quite fit. Had to grind out the splines on the column with some old dentist attachments...
    worked great.


    extended my shaft.


    Steering is complete.

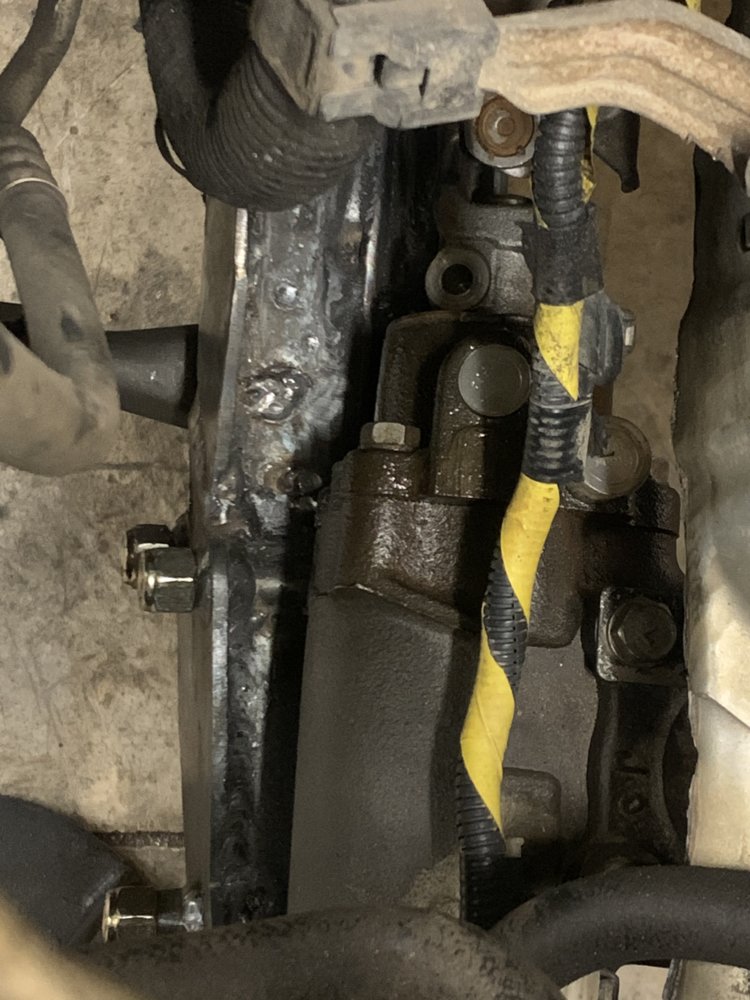

    Plated the inside of the frame. It is really hard to get to to weld but two sticks of 3/8 flat stock should keep it together.


  5. hurt4x4

    hurt4x4 Well-Known Member

    Joined:
    Sep 12, 2012
    Location:
    Greensboro
    You gonna weld the rest of that flat bar on the inside of the frame?

    Van-go likes this.
  6. Wesling Ducos

    Wesling Ducos Member

    Joined:
    Jan 23, 2017
    Location:
    Durham
    Looks good. Any plans to plate in the opening?

  7. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I may. :flipoff2:


    Yeah. I’ll probably knock it out tomorrow. Just left it open to get the inside welded up.

  8. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

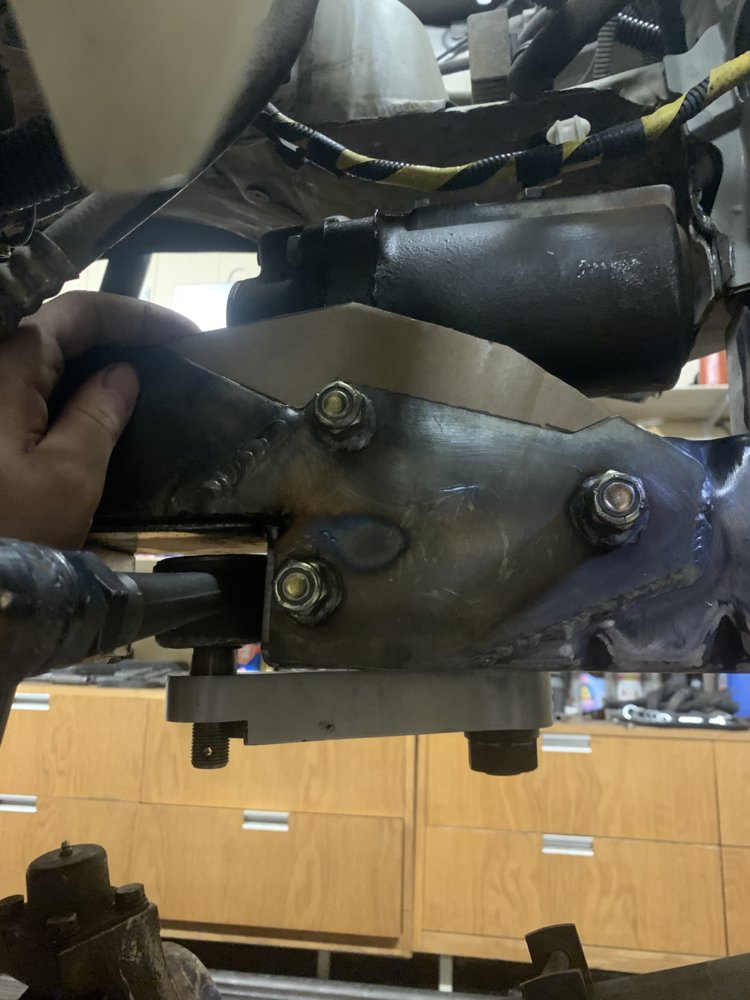

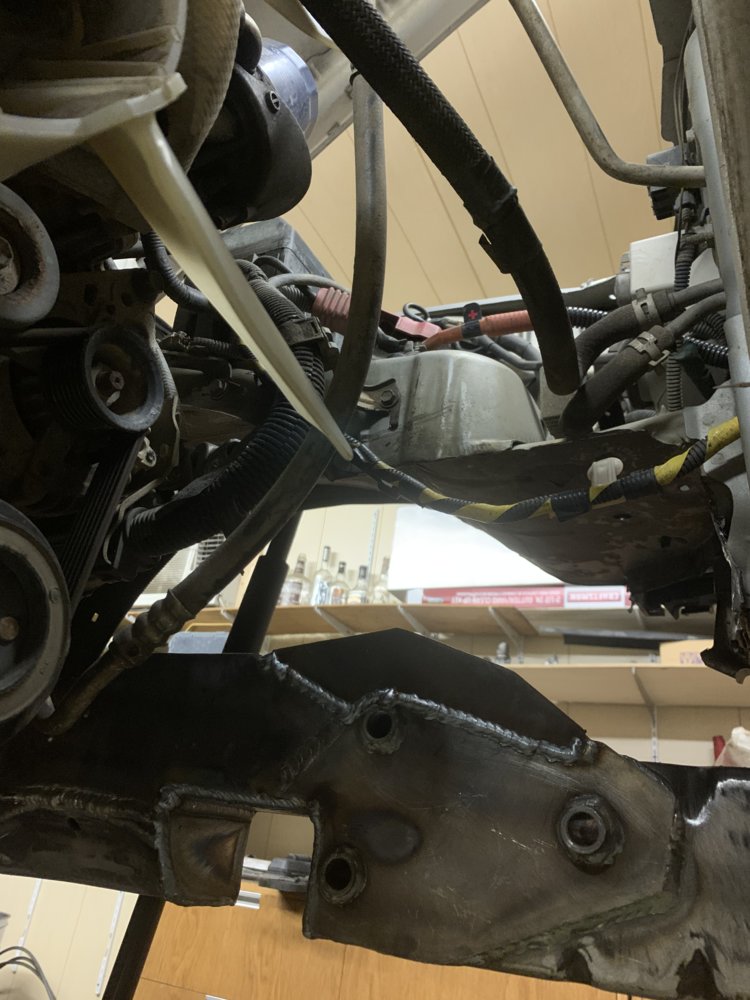

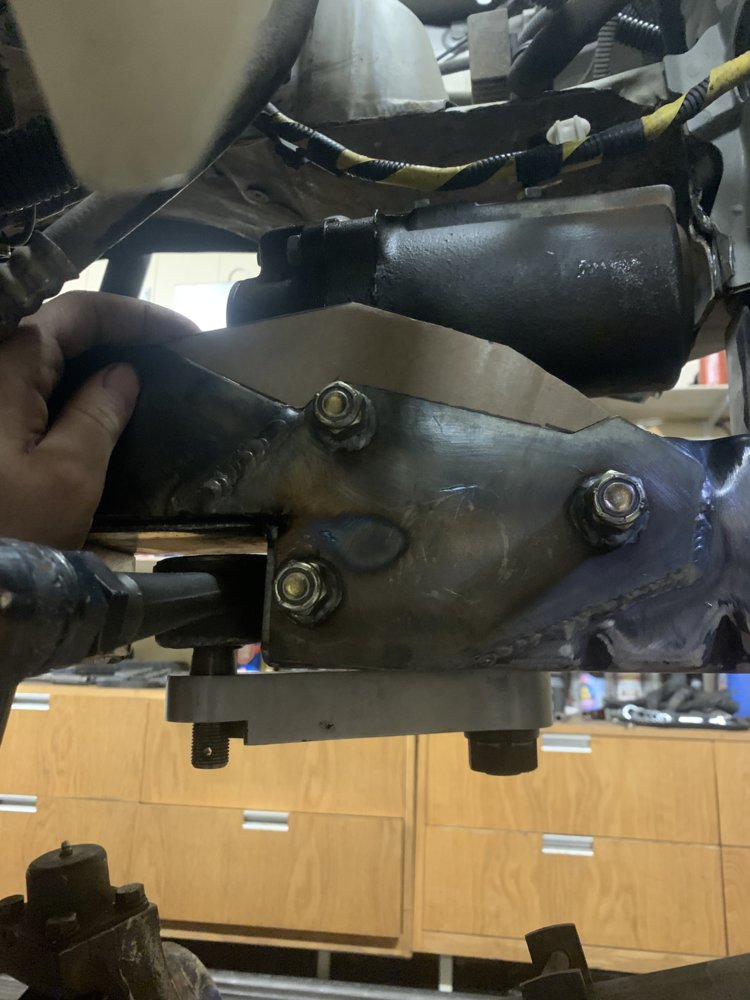

    Plates made.

    A771FBB3-BAD0-459F-879B-B318884EEB5B.jpeg 76BD40BA-5F48-4B49-BDB8-F4C60559051F.jpeg

    BigSouth and frankenyoter like this.
  9. Wesling Ducos

    Wesling Ducos Member

    Joined:
    Jan 23, 2017
    Location:
    Durham
  10. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Flexes which way?

  11. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    If I put jack stands under the front crossmember and lower it down onto the stands the front flexes up.
    Jack is under t case crossmember

  12. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Need to add vertical height back to the frame, that cardboard piece should help some.

  13. paradisePWoffrd

    paradisePWoffrd Recovering Project Junkie

    Joined:
    Nov 5, 2005
    Location:
    Newton, NC
    You could also stiffen with tube, by building a grill hoop and triangulating it back to the frame/firewall/A-pillar.

    NickMaul and iwaxmyjimmy like this.
  14. BigSouth

    BigSouth Doesn't play well with others!

    Joined:
    Jun 8, 2011
    Location:
    Shelby, NC
    I don’t think you’re plating enough frame to compensate for the chunk you removed. I’m used to seeing a plate run from the door jam all the way to the frame horn. I’m also not a metallurgical expert, but I’d be weary of how much heat you’ve put into that one section of frame rail.

    Van-go likes this.
  15. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

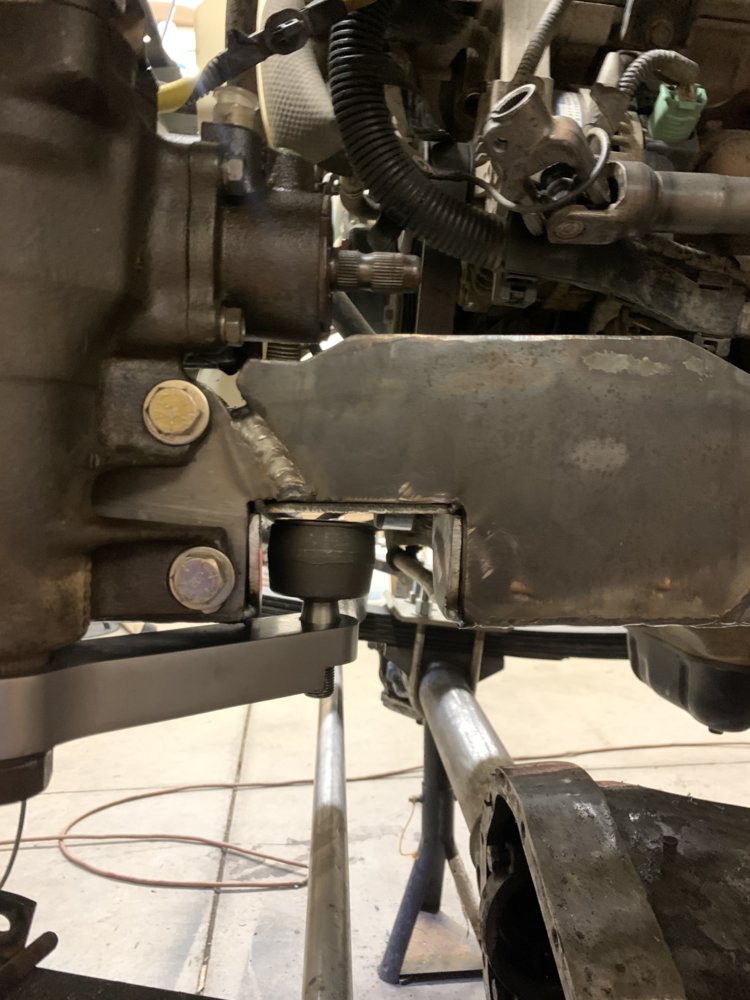

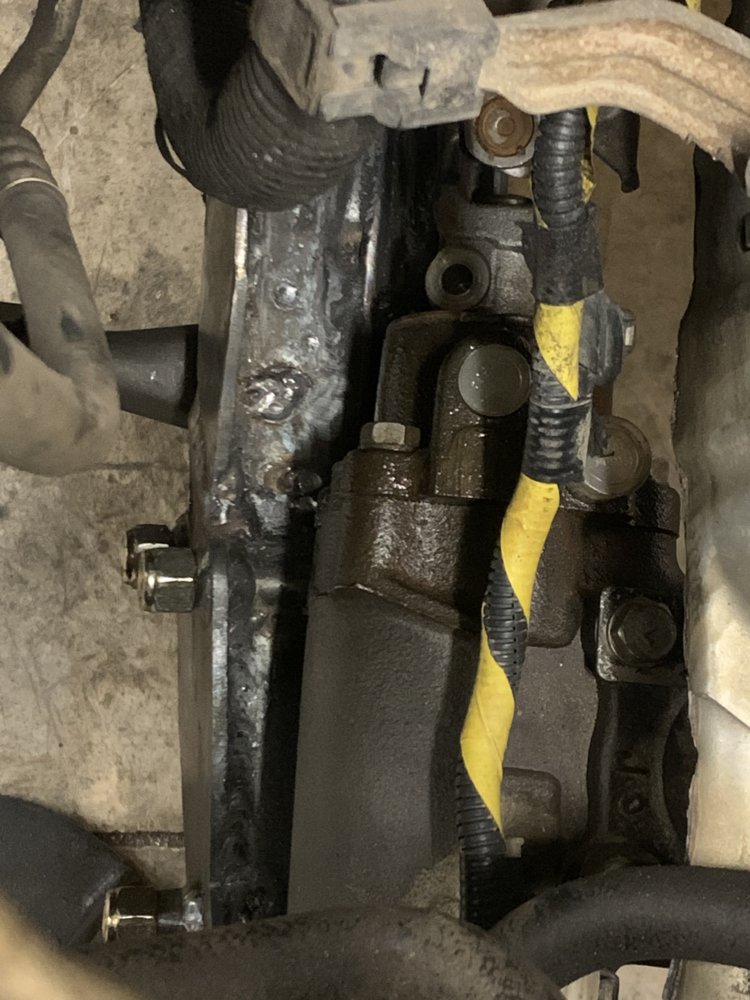

    Yeah I just can’t go up higher on the outside cause of the steering box. I can go higher on the inside of the frame where that cardboard is.


    Yeah I’m adding shock hoops soon. I’ll try to tie those into the grill hoop/bumper I’m building, but there isn’t much room on these newer trucks.

  16. Wesling Ducos

    Wesling Ducos Member

    Joined:
    Jan 23, 2017
    Location:
    Durham
    These newer trucks usually get the whole front frame section plated up on both driver and passenger to prevent flex, whether linked or on leafs as far as I have seen. The front frames are quite thin on them. I would do the whole thing on both sides personally.

  17. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    That’s what I’m leaning towards. Why not right? lol

    @Chris_Keziah what if I added a taller plate rather than just where I had the cardboard cut out?
    I have room on that side behind the box.
    How thick of plate should I use? 3/16 is what I‘ve been using but if I go right behind the current plate on top of the frame I could use a thicker one.

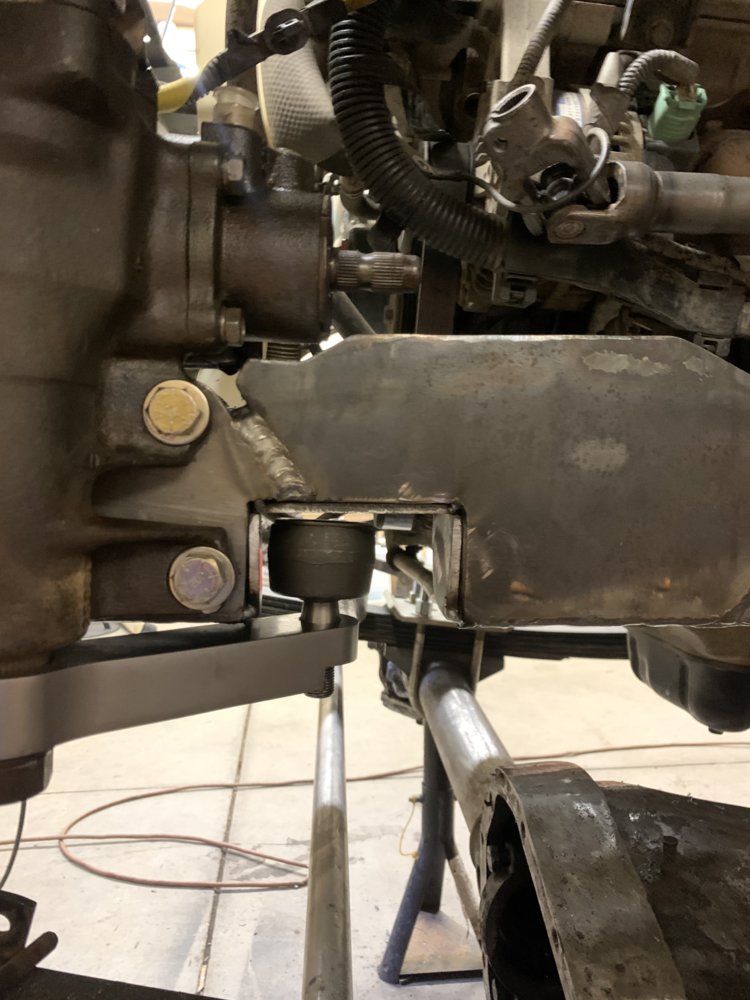

    F9DACD87-0153-417E-8D50-699E09ACAEF9.jpeg 7FD0E678-039C-4C4A-8076-09676EEE3DBD.jpeg AD7C0A00-AA76-4F30-8D66-DA15893EF116.jpeg

  18. Wesling Ducos

    Wesling Ducos Member

    Joined:
    Jan 23, 2017
    Location:
    Durham
    I would say so lol. It’s why the Toyota frame plate aftermarket has so many options. Wish I would have sold you the set I had with the truck but my buddy needed them. Haha

    Van-go likes this.
  19. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    If you just moved that steering box to the work bench you'd have plenty of room for an orbital. I'd try to build a box spine on top as tall and wide within reason. Really hard to tell but doesn't look like a terrible amount of room.

  20. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Can’t do full hydro... airbag clocking ring in column will break and I’ll loose all controls on the column. Cruise, horn, blinker, etc.
    Not much room under the box on outside of frame. Inside, it can extend up more.

  21. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    What about a tube underneath it?


    skyhighZJ likes this.
  22. StretchASU

    StretchASU Well-Known Member

    Joined:
    Oct 17, 2006
    Location:
    Durm
    Brace the framerail to the radiator support with a big gusset?

  23. skyhighZJ

    skyhighZJ Thanks for your taxes

    Joined:
    May 31, 2012
    Location:
    Aberdeen, NC.

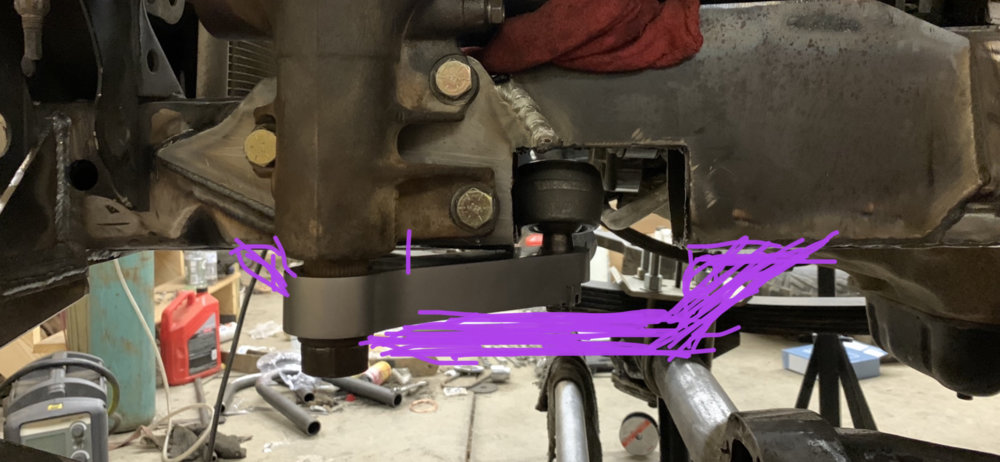

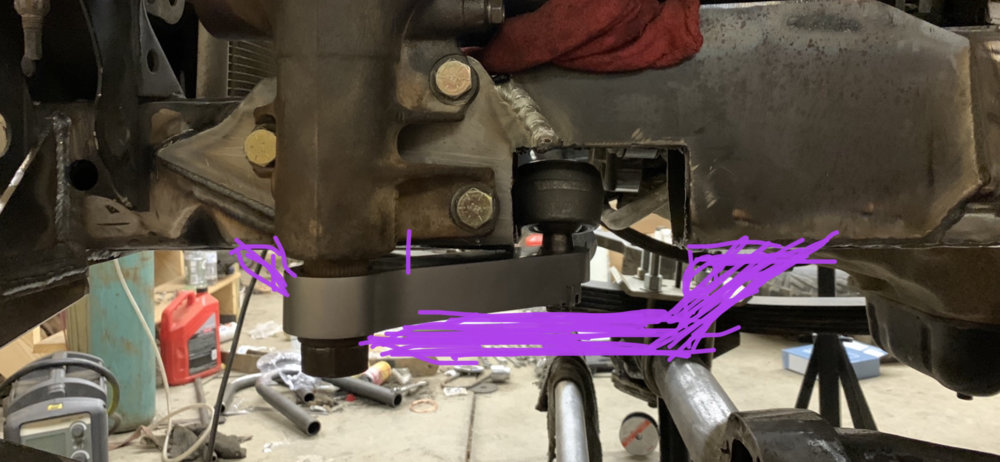

    I was thinking something like this with a heavy wall DOM. Only thing is keeping it tight enough to frame may hamper getting the pitman arm off without removing the steering box??

  24. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    So I looked a little harder and it’s actually not flexing where the notch is. It right behind the plates where the frame is bare. So I guess I’ll be plating the rest of the frame like @Wesling Ducos was saying. And still adding more to the notched section.

  25. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

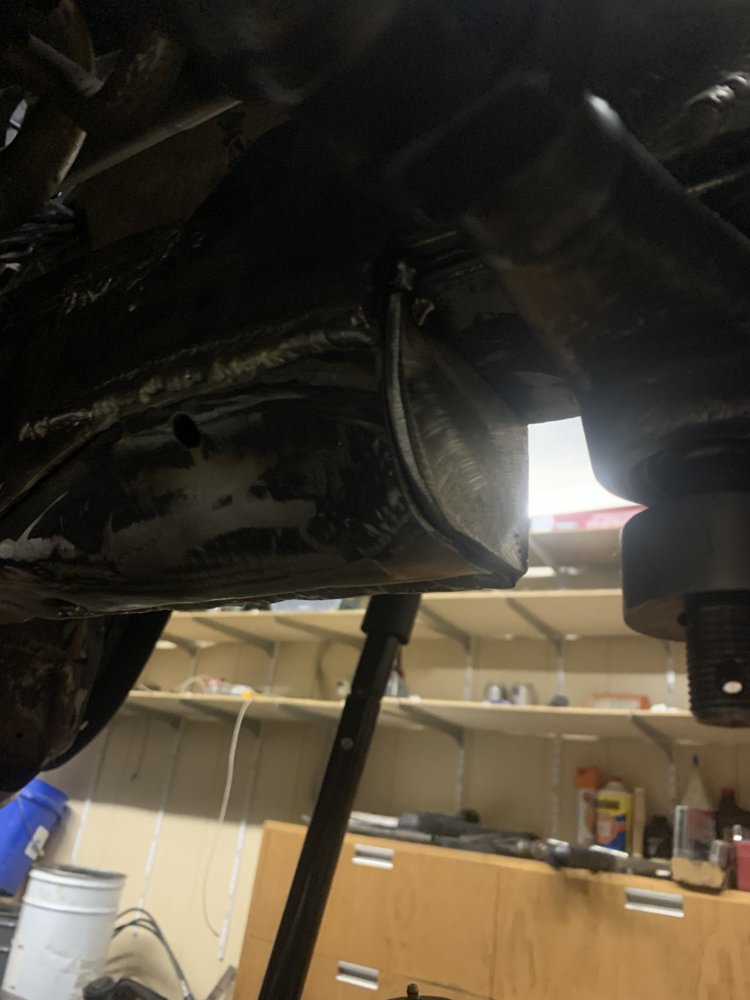

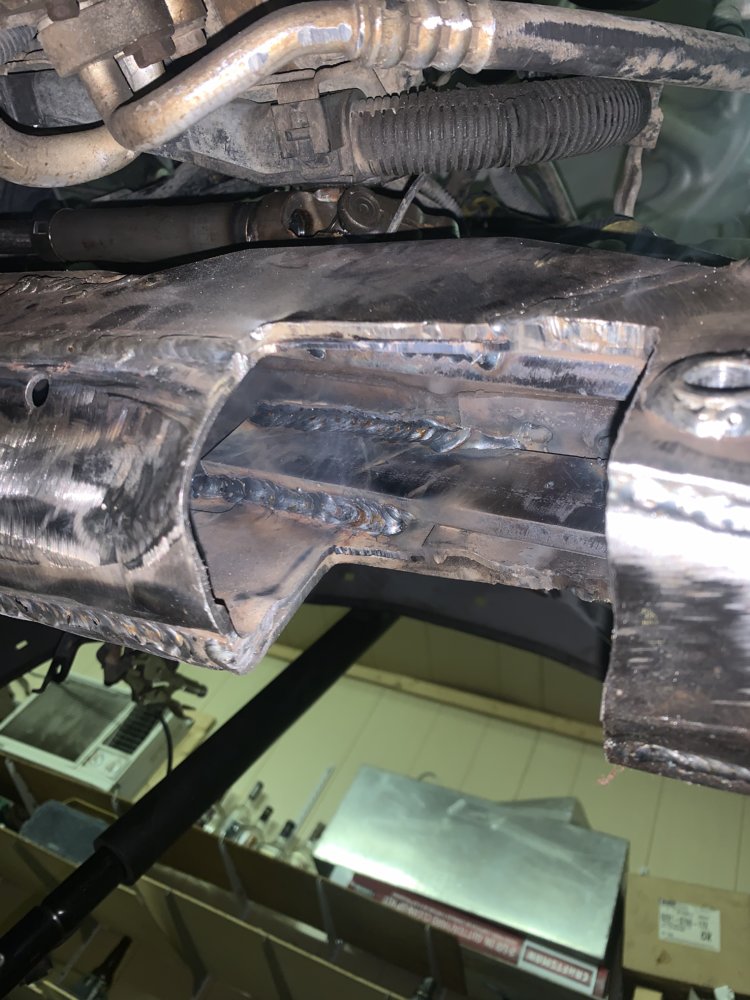

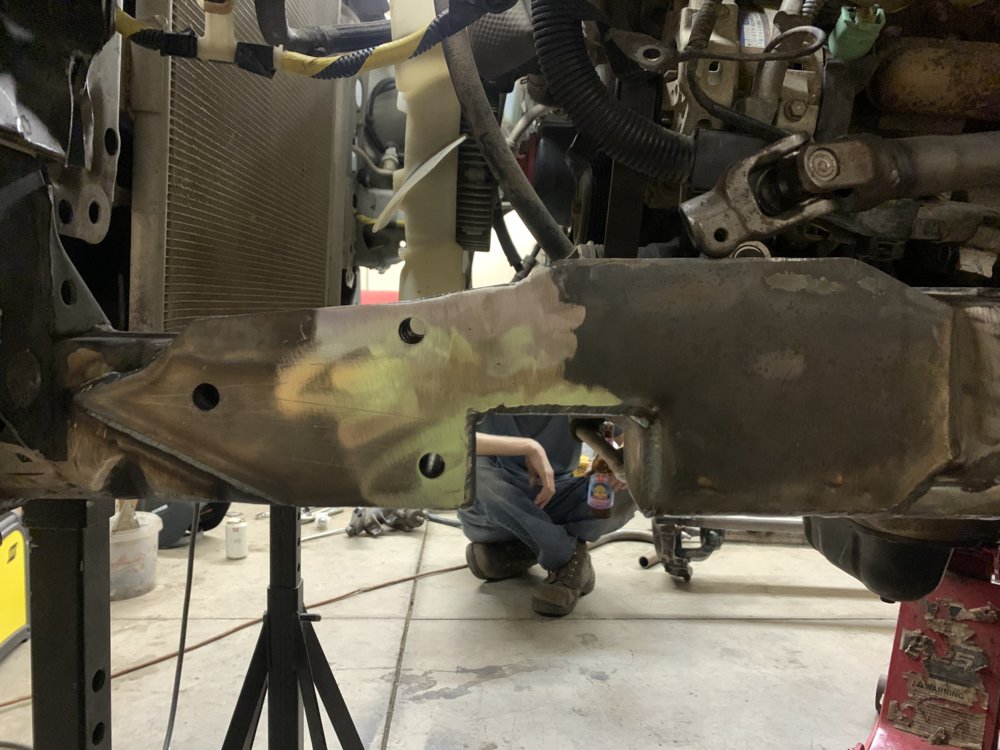

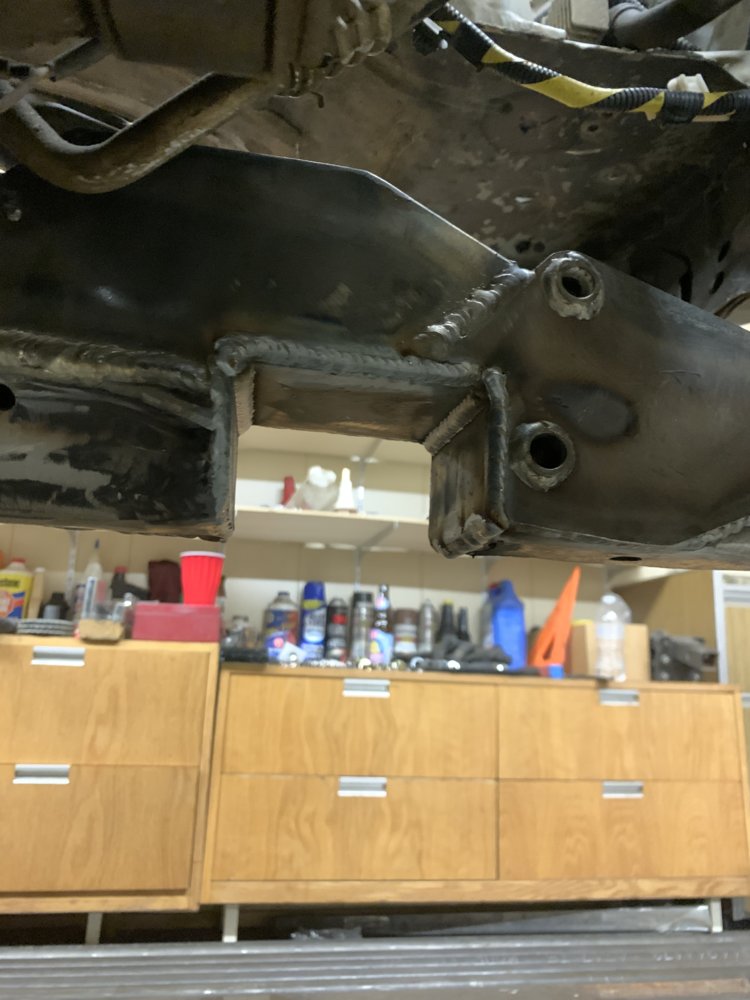

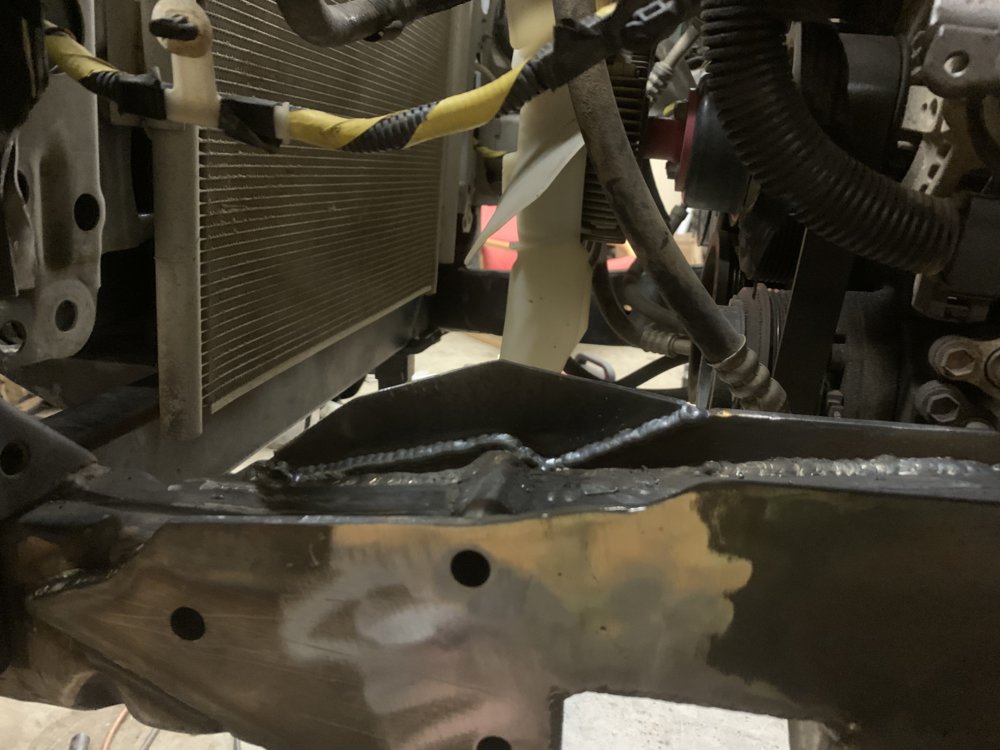

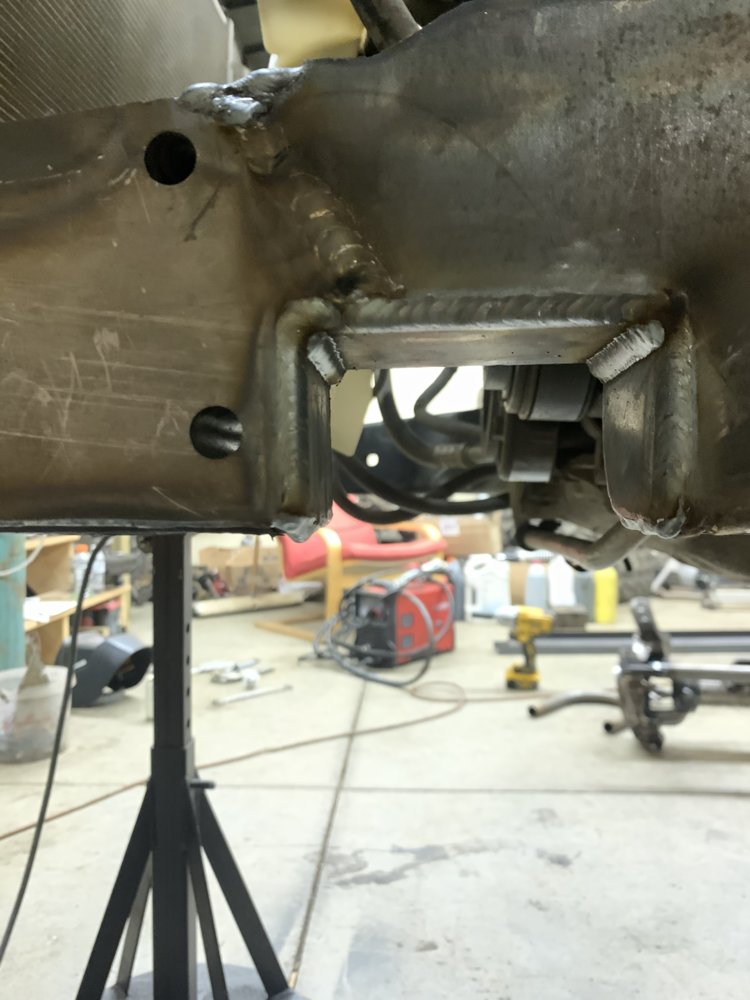

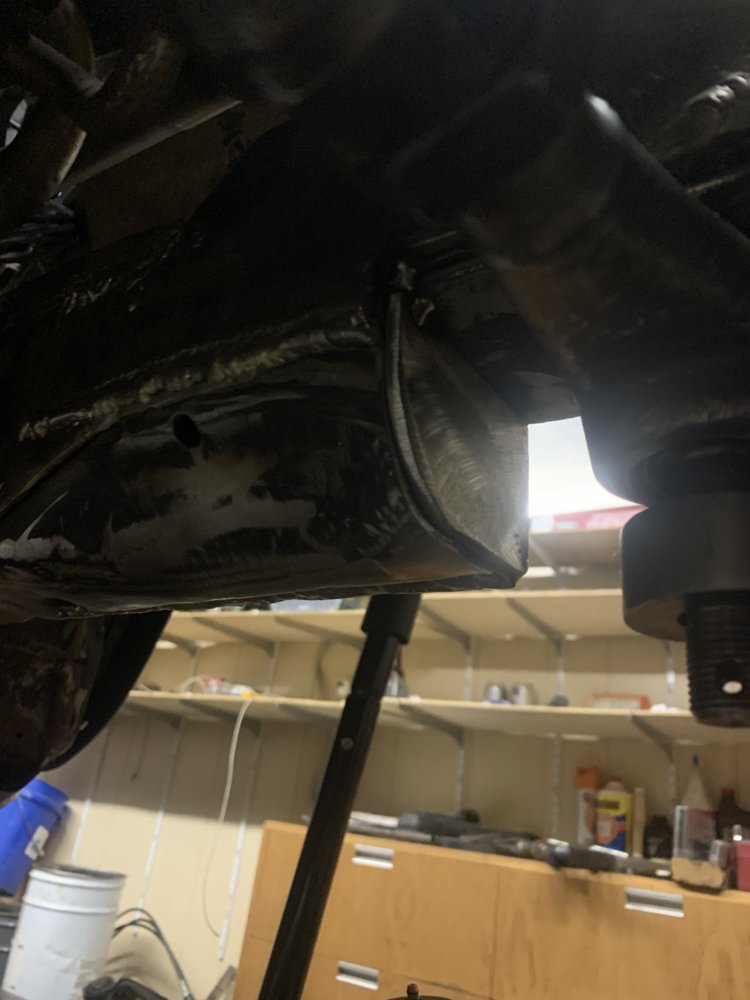

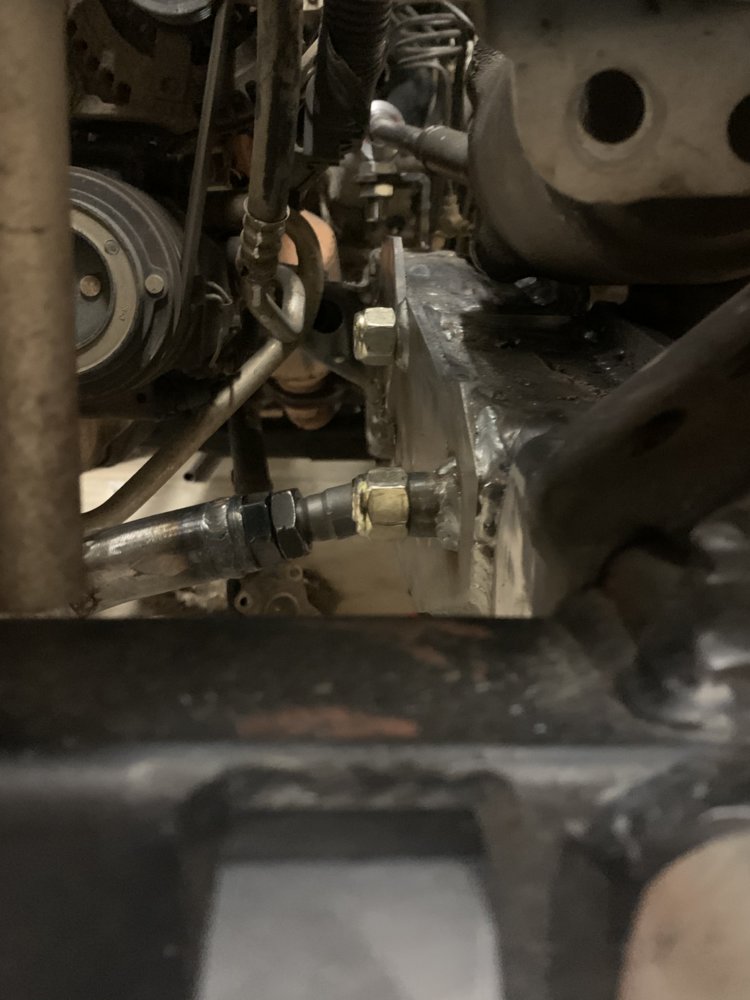

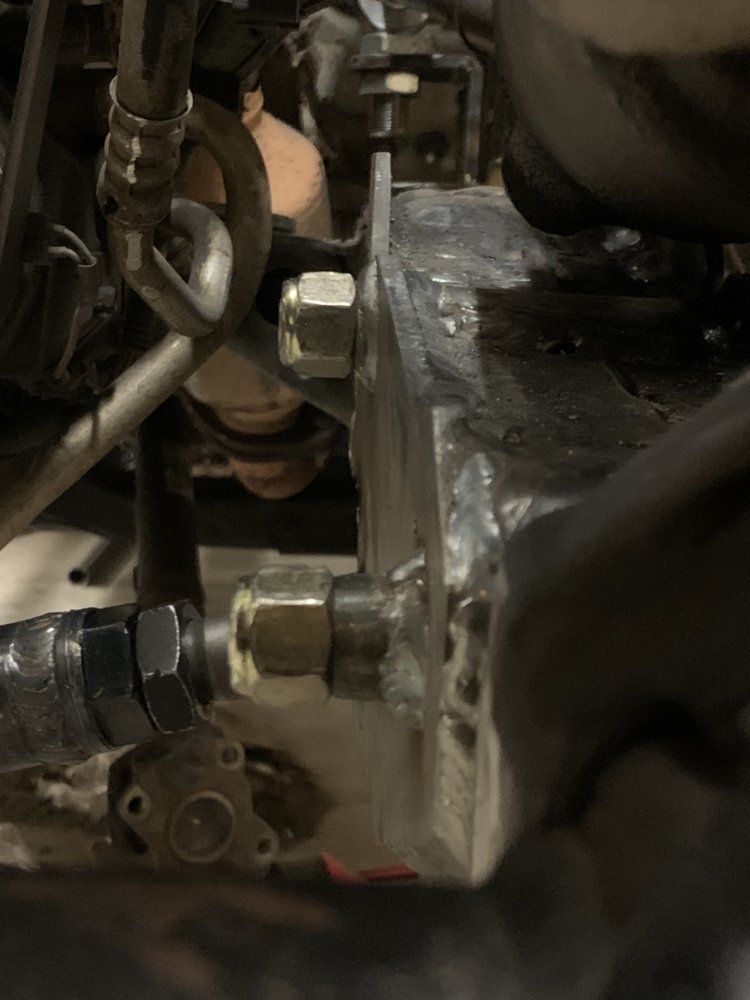

    Plates are done around the notch. Still flexes where the frame is stock. Gonna plate the whole front I guess.

    2BF4C3B2-9711-462C-85C5-4EEACD5E1AE4.jpeg AC6271F9-FE9D-4B2C-A998-225B0F7F63FD.jpeg A4F672E6-8CDB-471F-886B-B563B52BE26E.jpeg 2B3813D0-9E61-4641-8FDB-5F42F9D6603F.jpeg 69DC8031-458E-40BA-98A4-FA14345E899F.jpeg

    justjeepin86, doc and 87TPIYJ like this.
