One Ton 2nd gen Tacoma Build

Discussion in 'Build Threads' started by Van-go, Jun 23, 2019.

  1. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

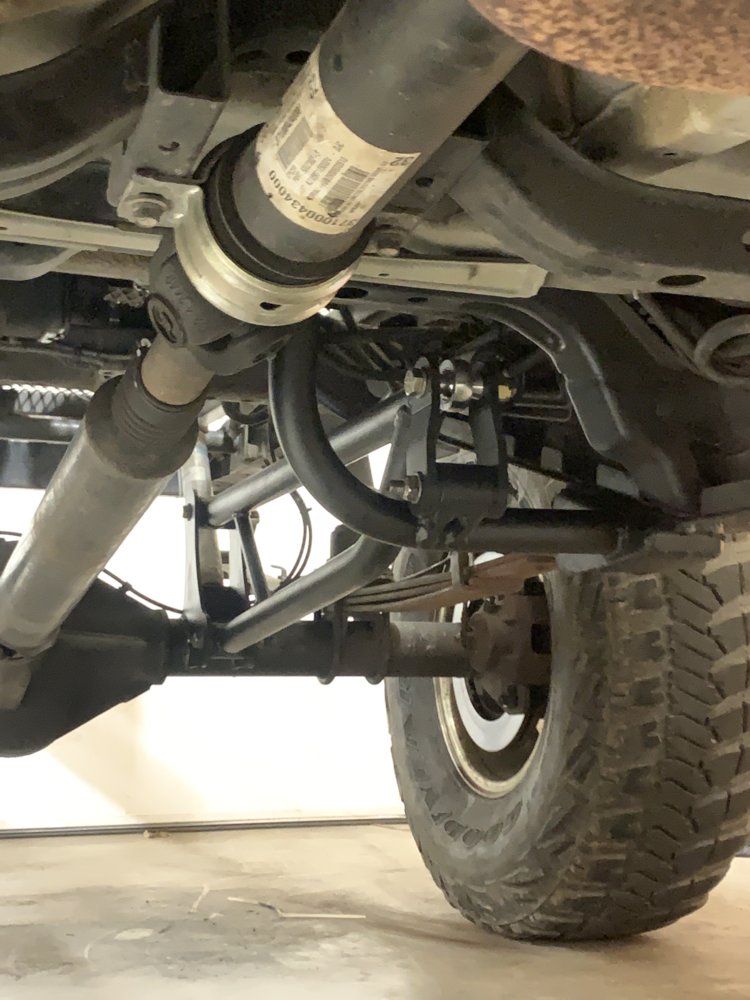

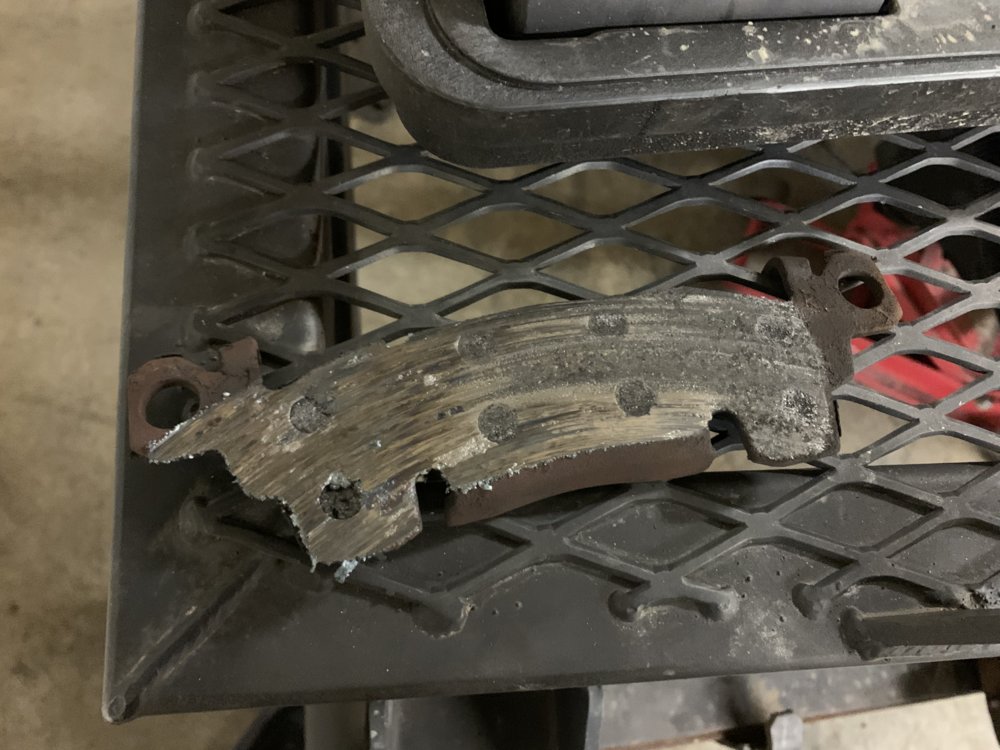

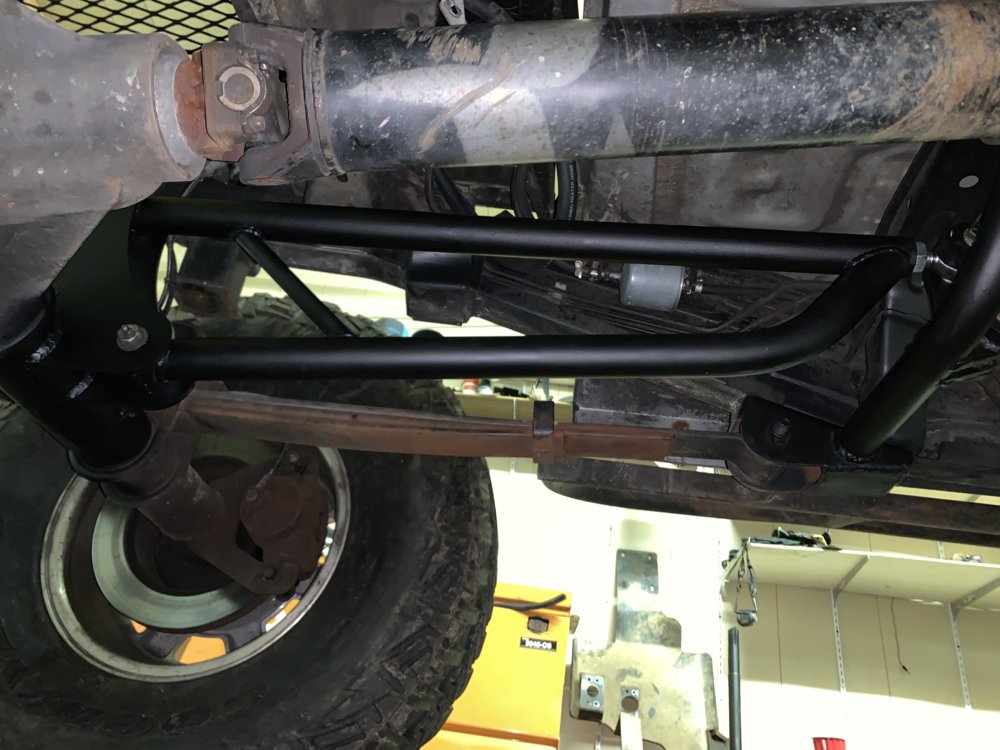

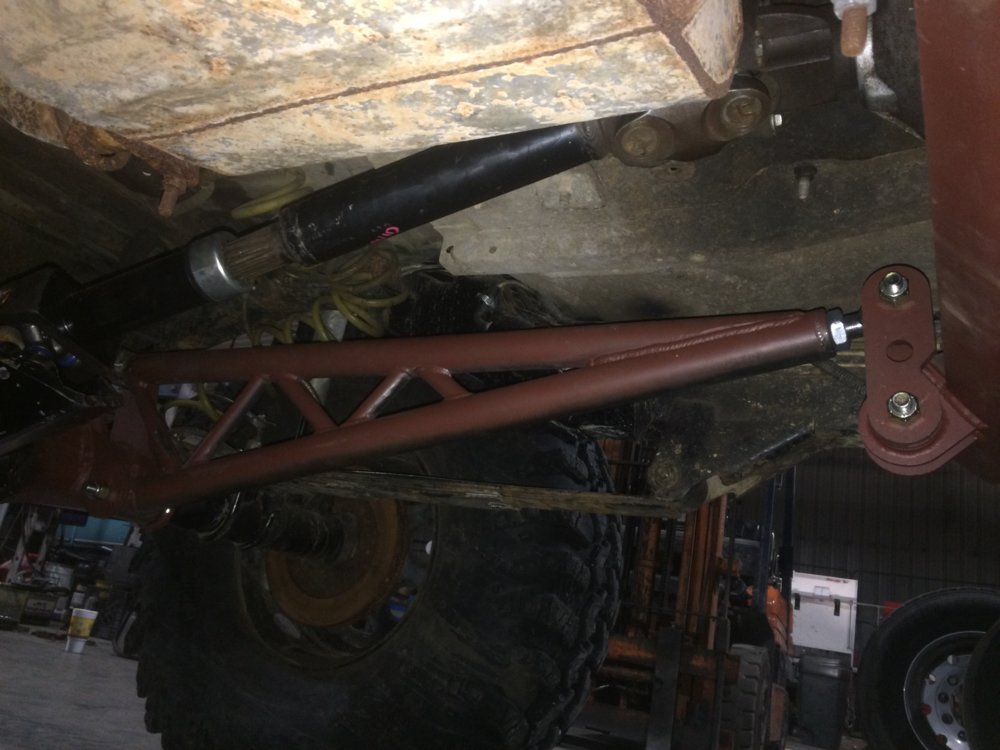

    Anti-wrap bar is in. Diff fluid in front. Rear brakes were metal on metal. Changed those.

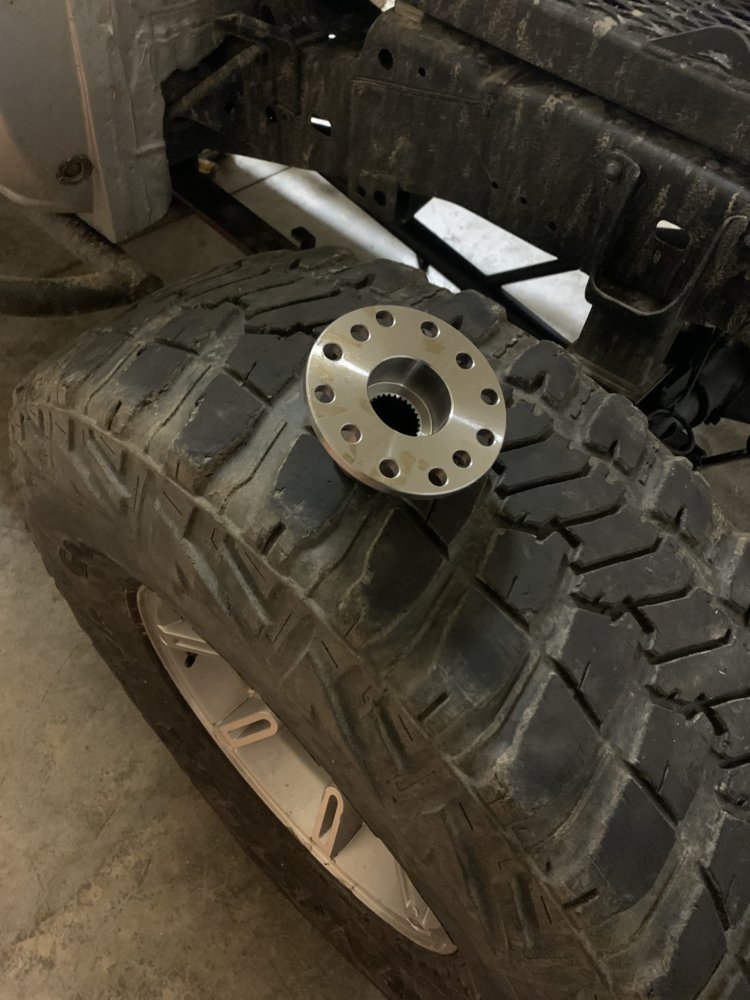

    Toyota to 60 flange showed up. Hopefully @Oliver's finishes up my front shaft in time. I’ll need to drill my t-case flange for the older yota pattern.

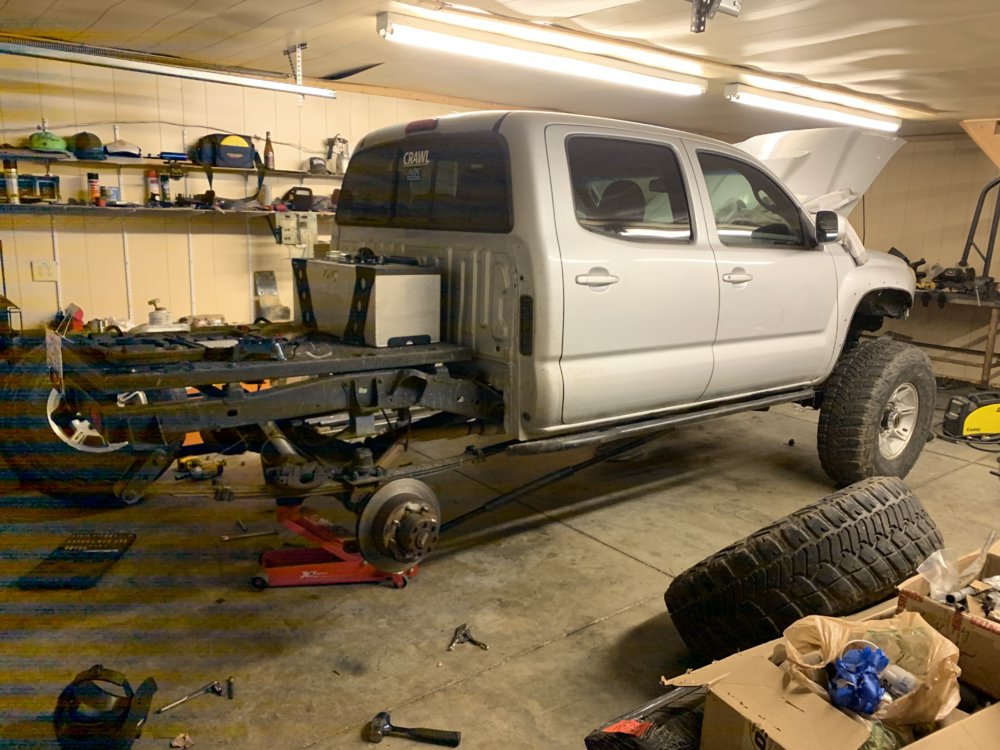

    4DFE88F6-34EA-4058-B780-19A3A23A0094.jpeg 8DF68BAA-BDD2-4250-86D5-6A0604FCC3B8.jpeg 6173DF04-808C-4B62-85E8-8689FEF4066B.jpeg 1C540B63-1E4A-4CEA-9304-4721E3DB9632.jpeg 28AE81B2-C6B6-4E20-B96D-9DA50927495C.jpeg

    Last edited: Dec 13, 2019
    doc, Chris_Keziah and 77GreenMachine like this.
  2. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    Enjoying the build, makes me miss the simplicity of leaves.

    I have a suggestion on your traction bar. I've built a few and had a couple failures years back.

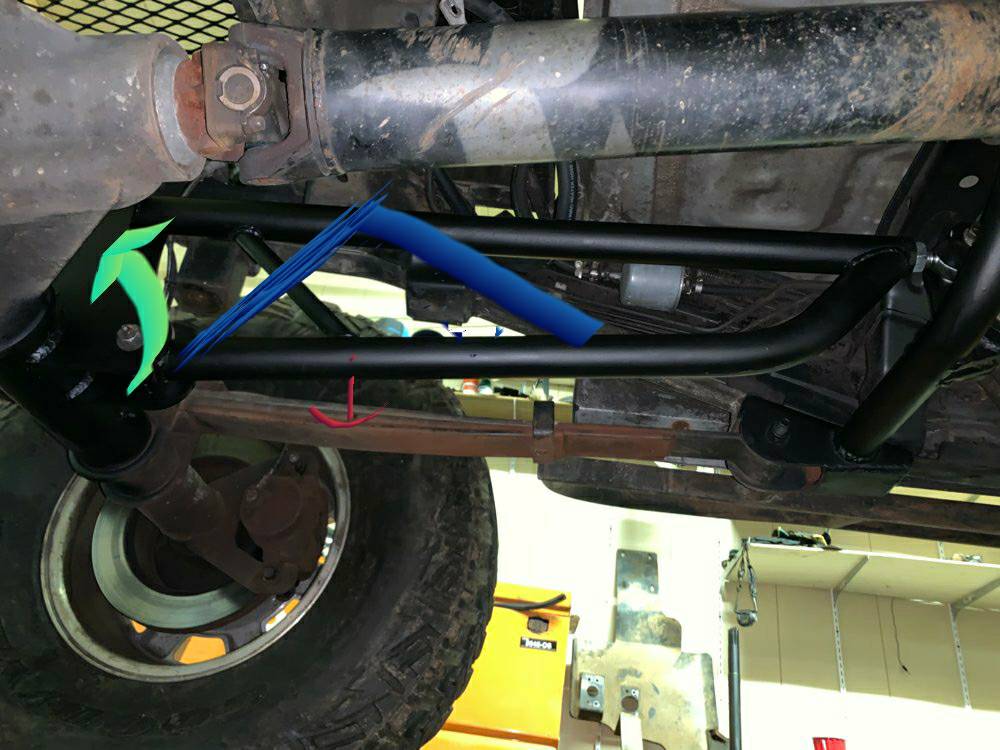

    You've created a bending point at the bottom of your small brace. The rotation in green will try to bend the bar at the red area. I would suggest triangulating on a truss style fashion (blue) to spread the load.

    Keep the progress coming.[​IMG]

    Sent from my SM-G892A using Tapatalk

  3. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I see. I should have made it like the one in my YJ. It was all .120 wall so I added more braces. The lower on this is .188 wall. I didn’t think it was an issue. Should I for sure go back and add some more triangles?

    I really only added the one bar to keep it from pulling when I welded it, but you are much more experienced than I am. :smokin:
    Thanks for the help!


    Chris_Keziah likes this.
  4. mcutler

    mcutler Well-Known Member

    Joined:
    Apr 17, 2010
    Location:
    mt.airy nc
    The older one is a much stronger design. I would personally cut out your brace, add the blue and one between the joints...\/\

    No problem anytime.

    Sent from my SM-G892A using Tapatalk

    Chris_Keziah, Caver Dave and Van-go like this.
  5. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

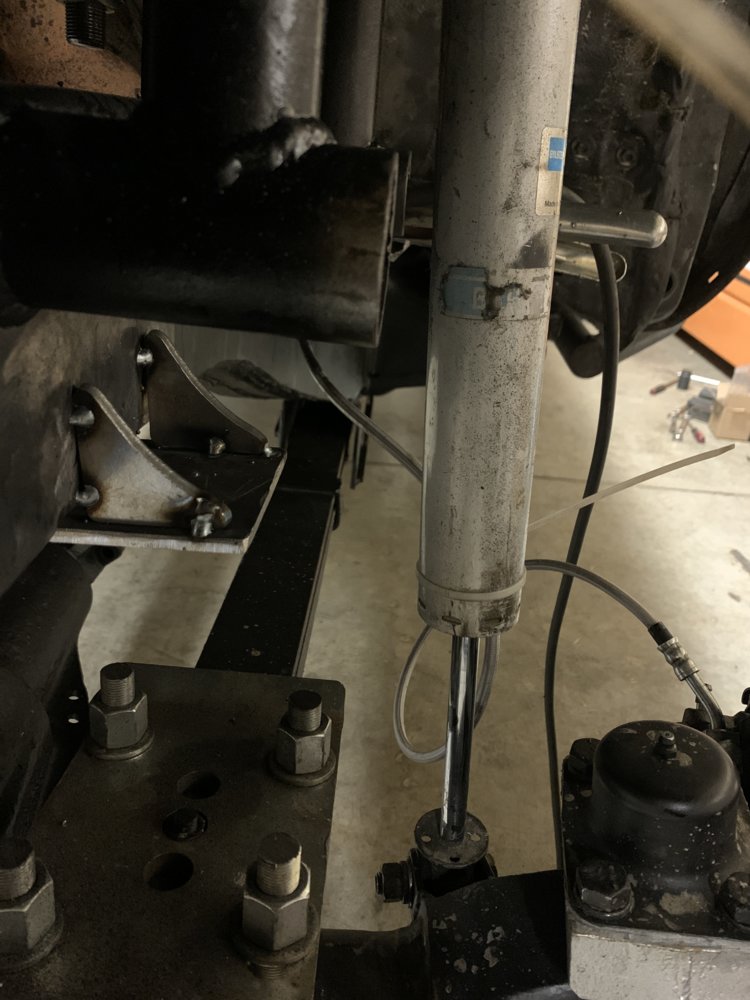

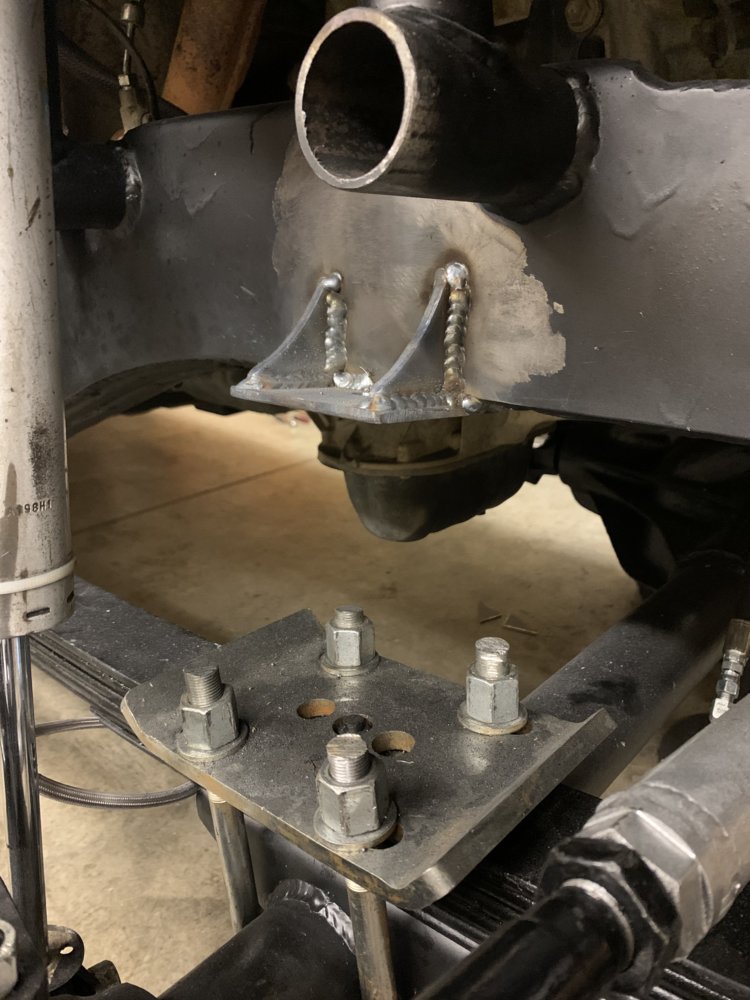

    Made some quick bump stop mounts. Had the Wheelers Superbumps from the IFS set up which is also what’s in the rear.

    038E2AB7-6FE7-43FE-8CAE-7E34565618B6.jpeg 159F54A2-913B-467B-AE6F-3BA1F7FE32FF.jpeg

    rcalexander105 and Chris_Keziah like this.
  6. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Broke some stuff. Just an opportunity to build it better now.

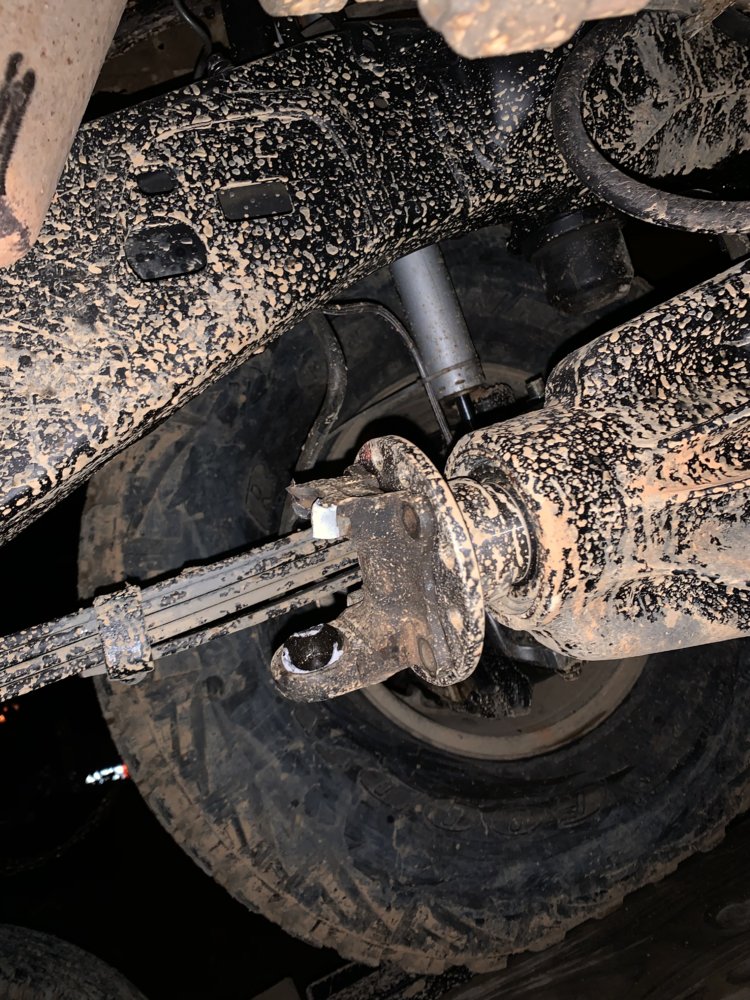

    front driveshaft flange yoke and u-joint broke.
    I think the front axle is wrapping too much.

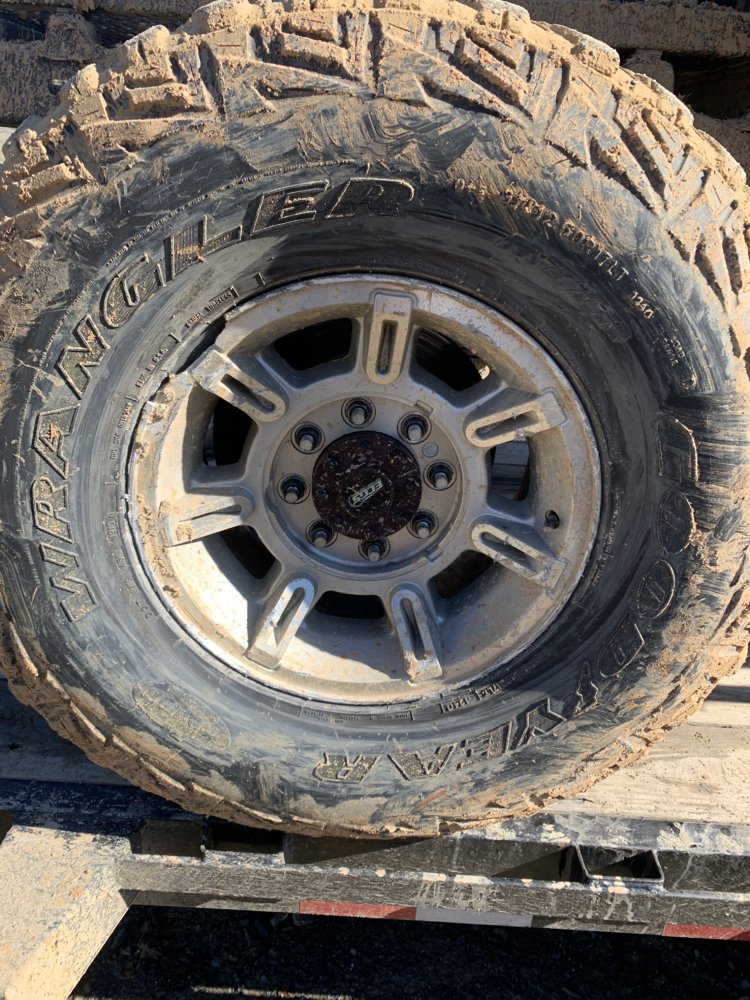

    Took a chunk out of a wheel


    Bent my passenger slider box.

    Power steering pump blew a seal out.
    Drag link hit the frame and bent the link end. Now it rides the spring and gets into the idler pulley.
    So I guess I’ll notch the frame on the passenger side to clear the drag link.

  7. ProbablyBroke

    ProbablyBroke does not torque to spec

    Joined:
    Nov 7, 2012
    Location:
    Reidsville
    Sounds like an effective shakedown was had.

    Van-go and rcalexander105 like this.
  8. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Good call. Packaging this steering is still a bitch... Got to notch the passenger frame rail for my drag link now.

    frankenyoter and Chris_Keziah like this.
  9. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Merry Christmas :smokin: time to get some work done.


    justjeepin86 and Chris_Keziah like this.
  10. Brownsxj

    Brownsxj Well-Known Member

    Joined:
    Mar 19, 2008
    Location:
    Durham NC
    I hate to see so much stuff break on you. Great build by the way.

  11. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    I don’t mind it. It’s a new build and one I’ve never seen anyone else do. Didn’t really have anything to base it on being so new. Most people 3 link things this new. I decided to go back 30 years in suspension technology :D

    Chris_Keziah and iwaxmyjimmy like this.
  12. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

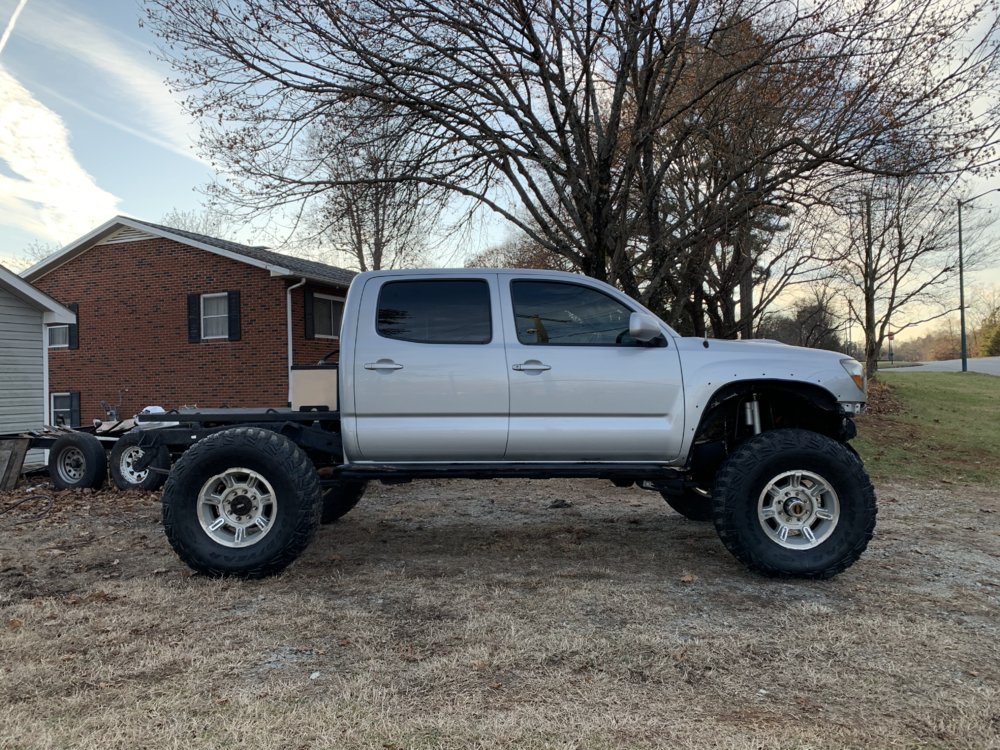

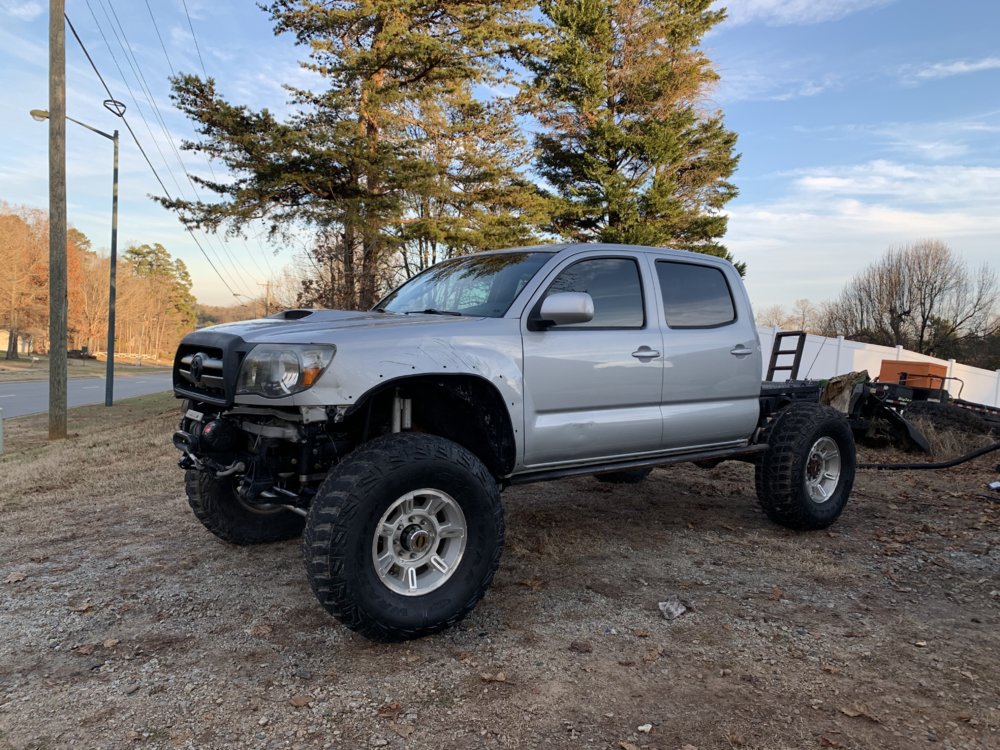

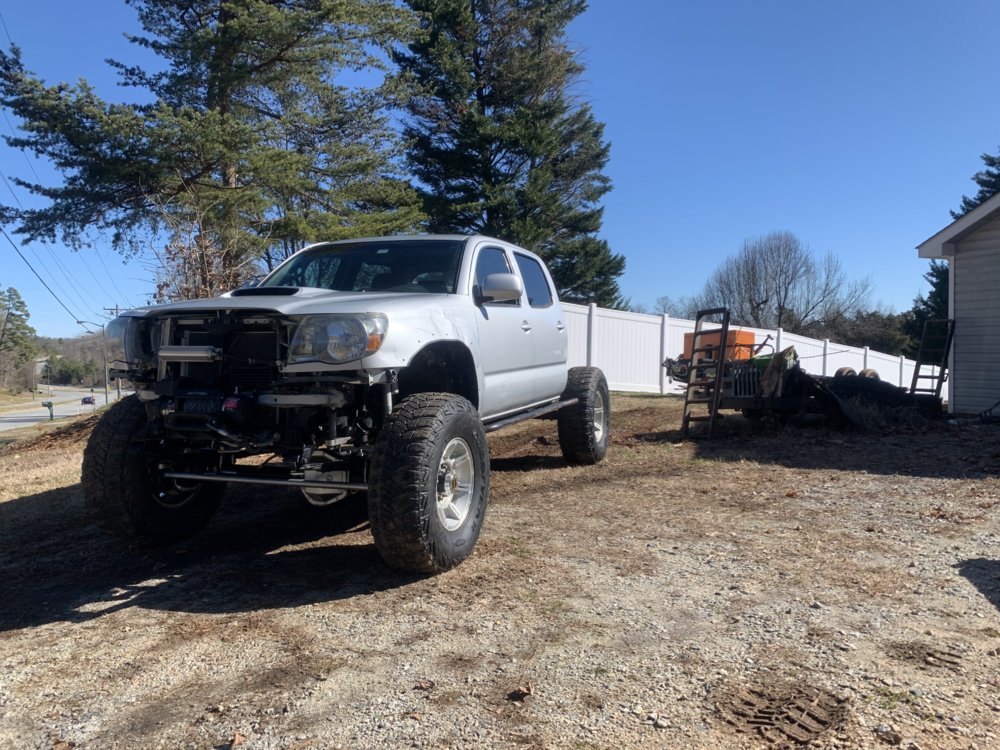

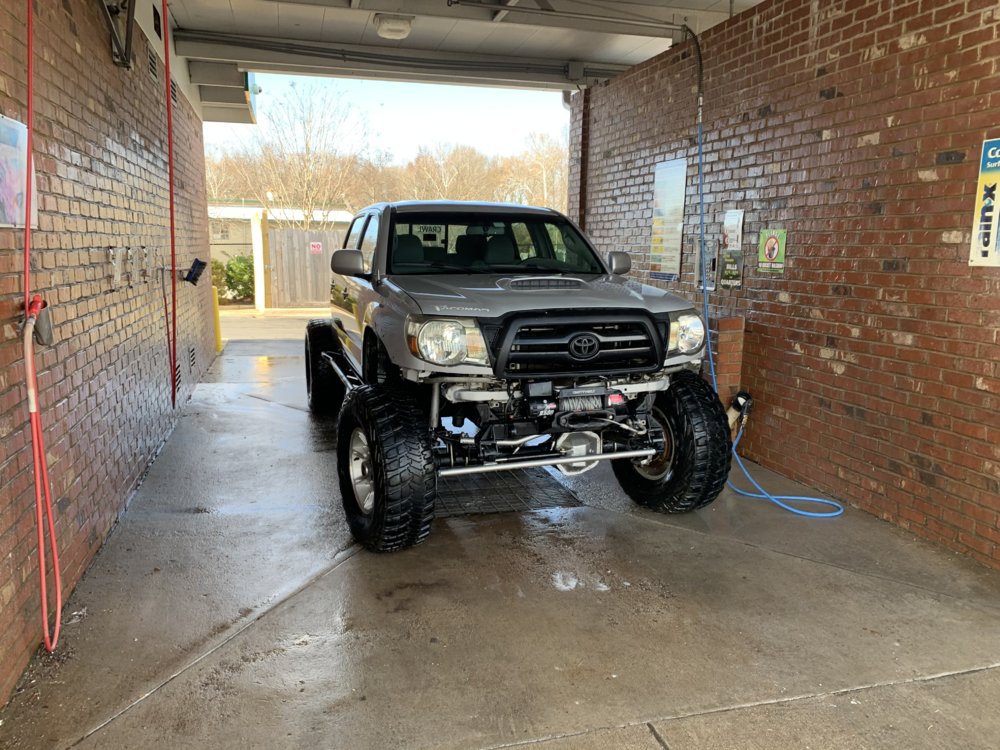

    Got her all cleaned up and vacuumed.

    B96EE2C5-5891-4DAD-B5C2-9A00810E6A98.jpeg DBE7B473-8D14-4E6A-B21D-8C9258B3BB9D.jpeg 2CA09474-C504-446D-A551-2D6133A4BCDD.jpeg

  13. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

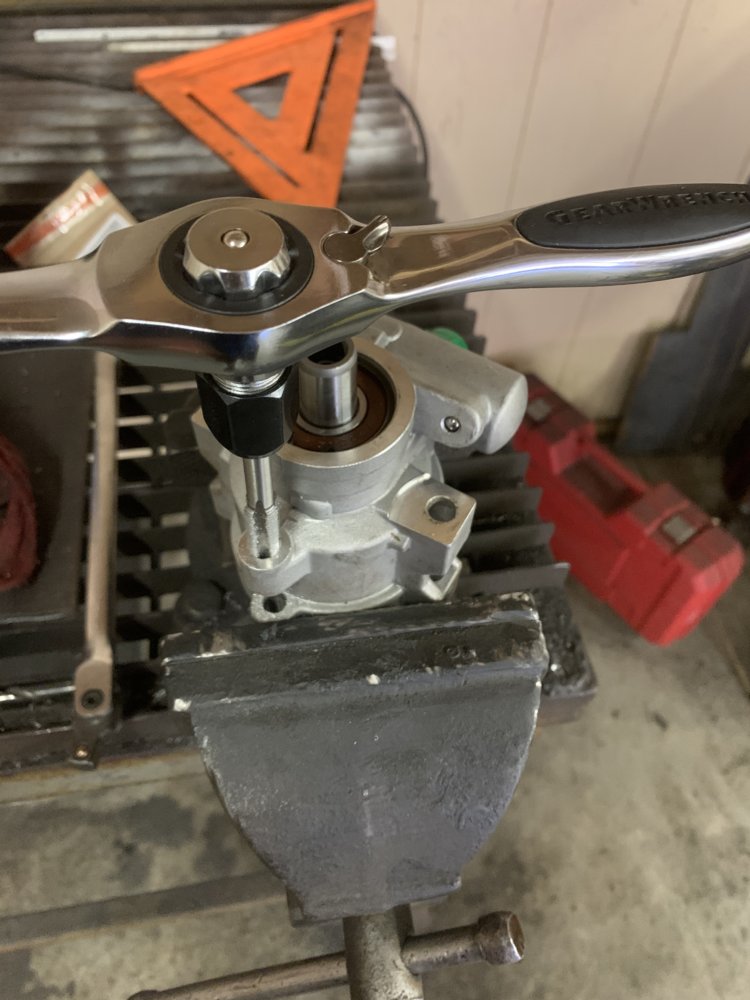

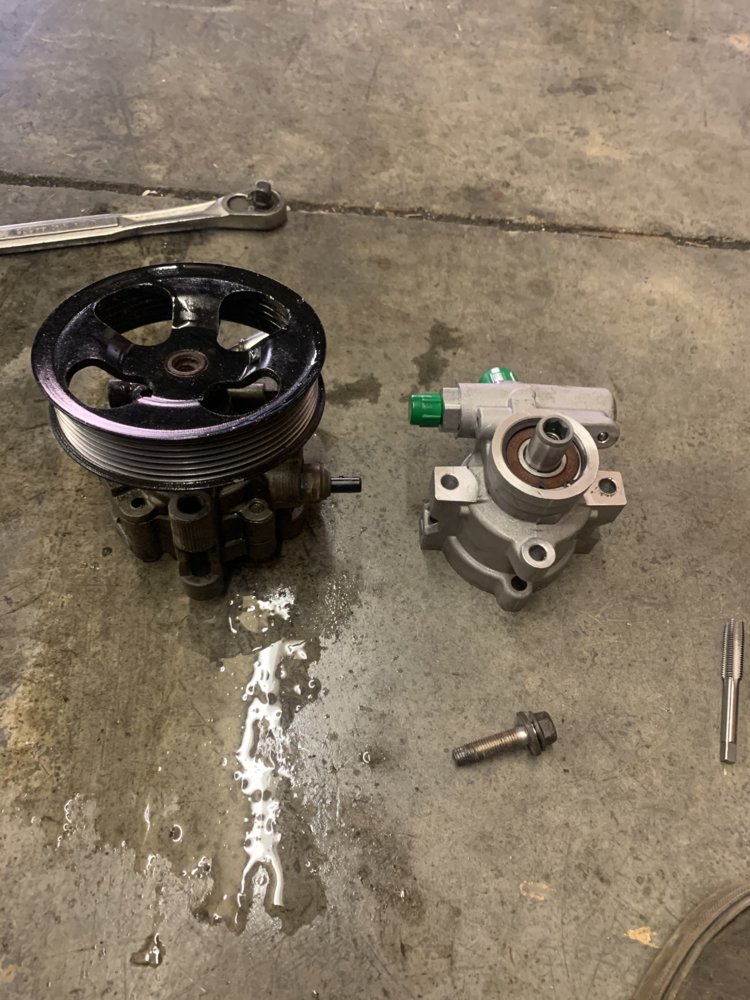

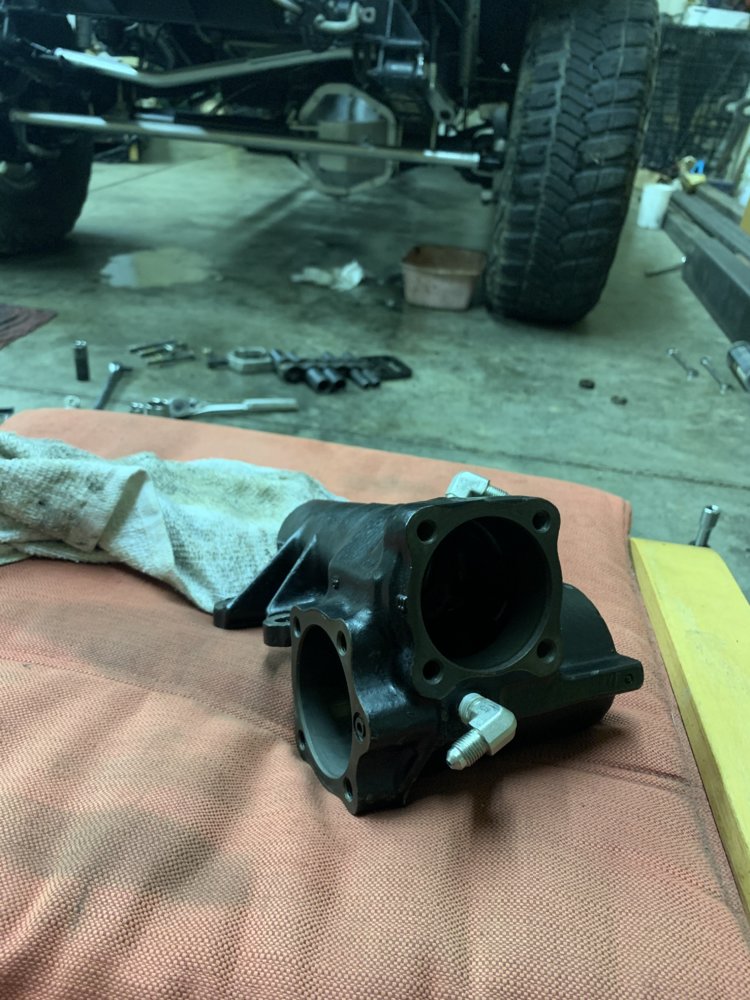

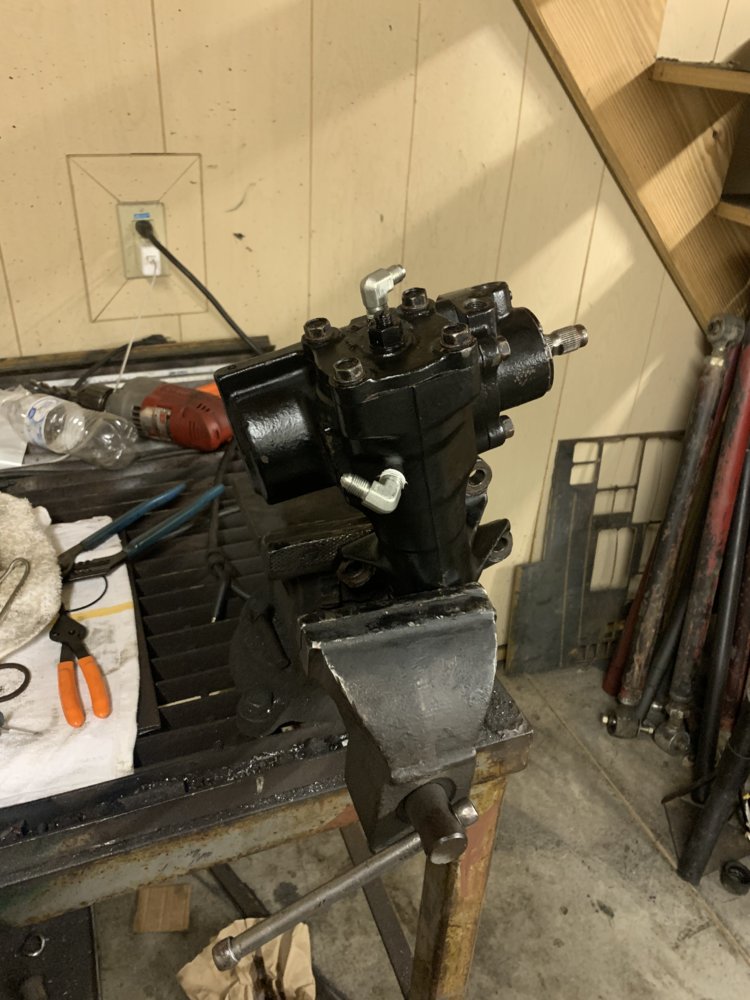

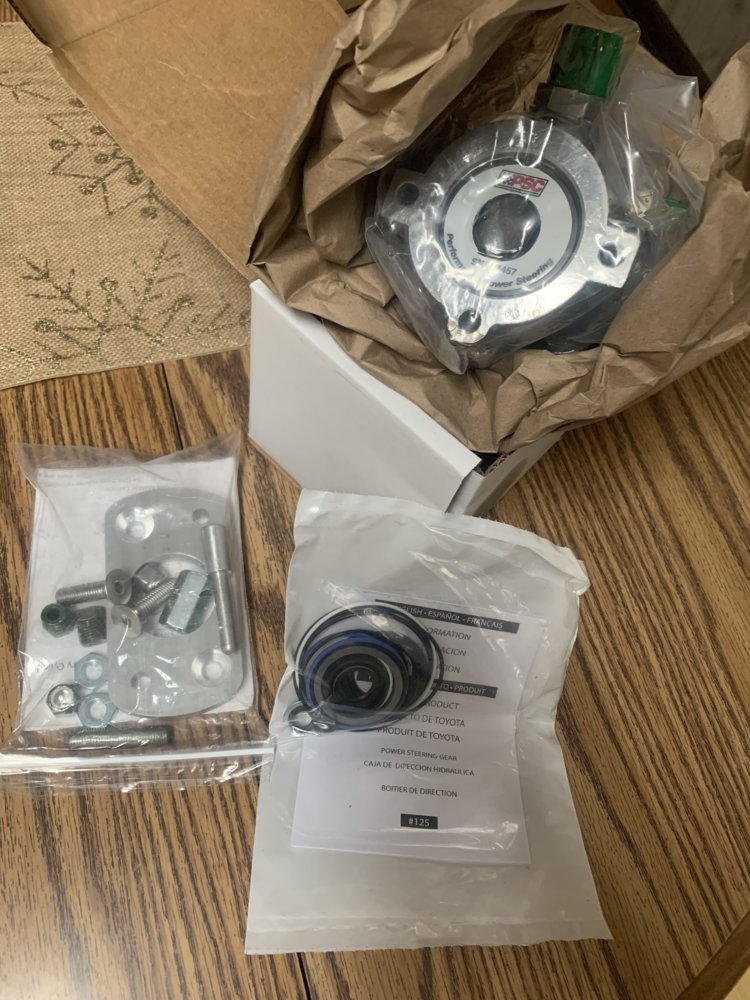

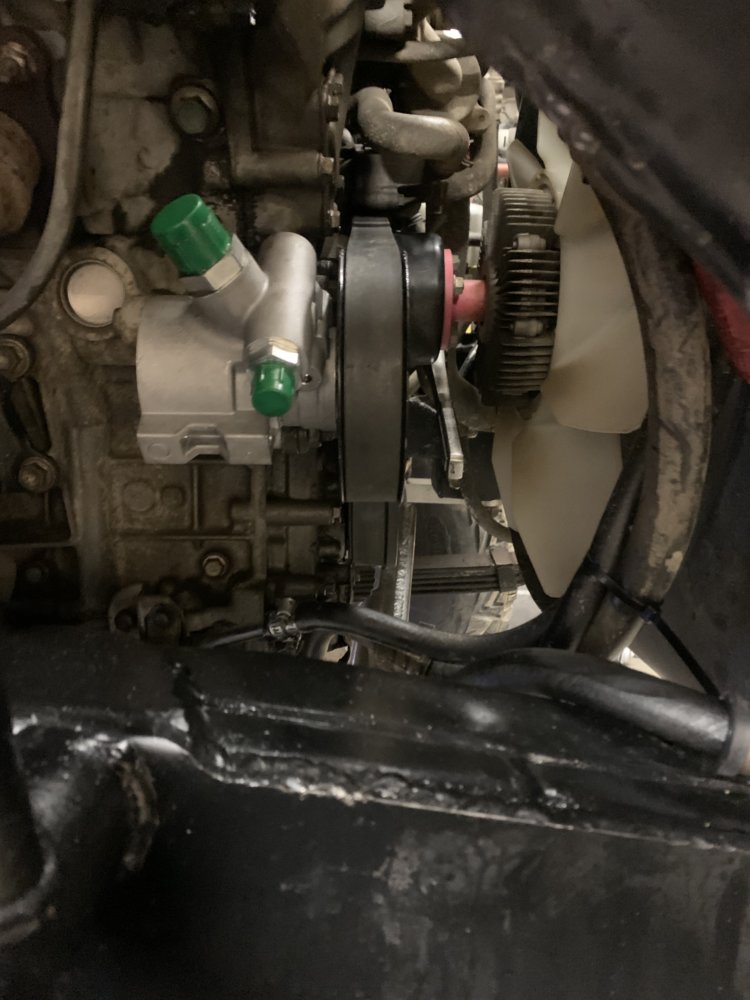

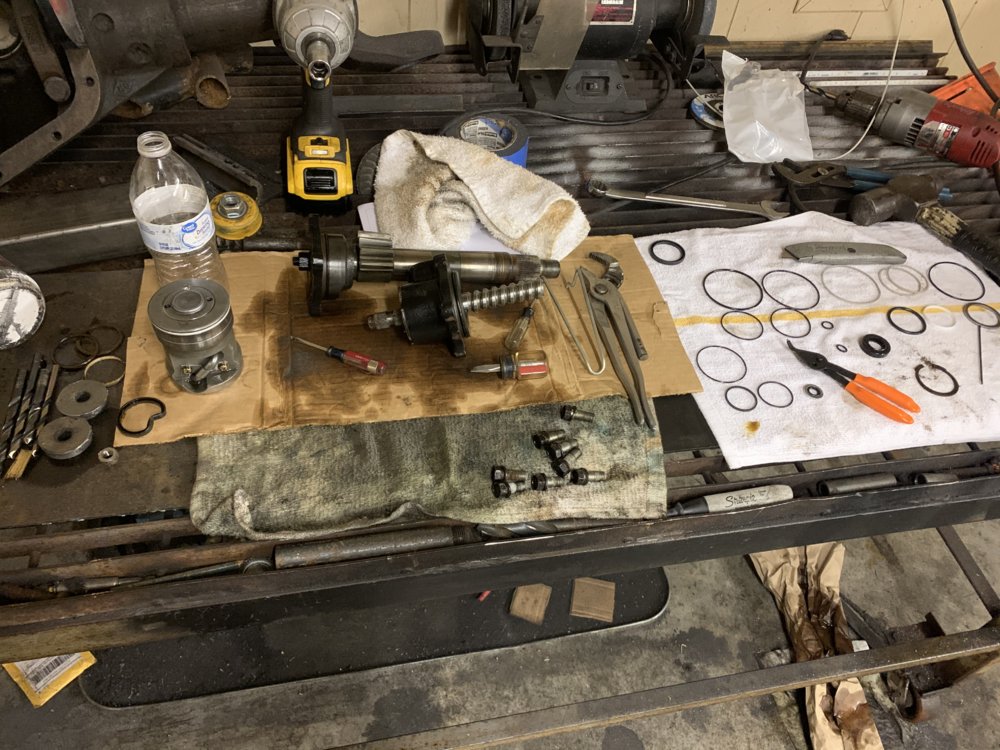

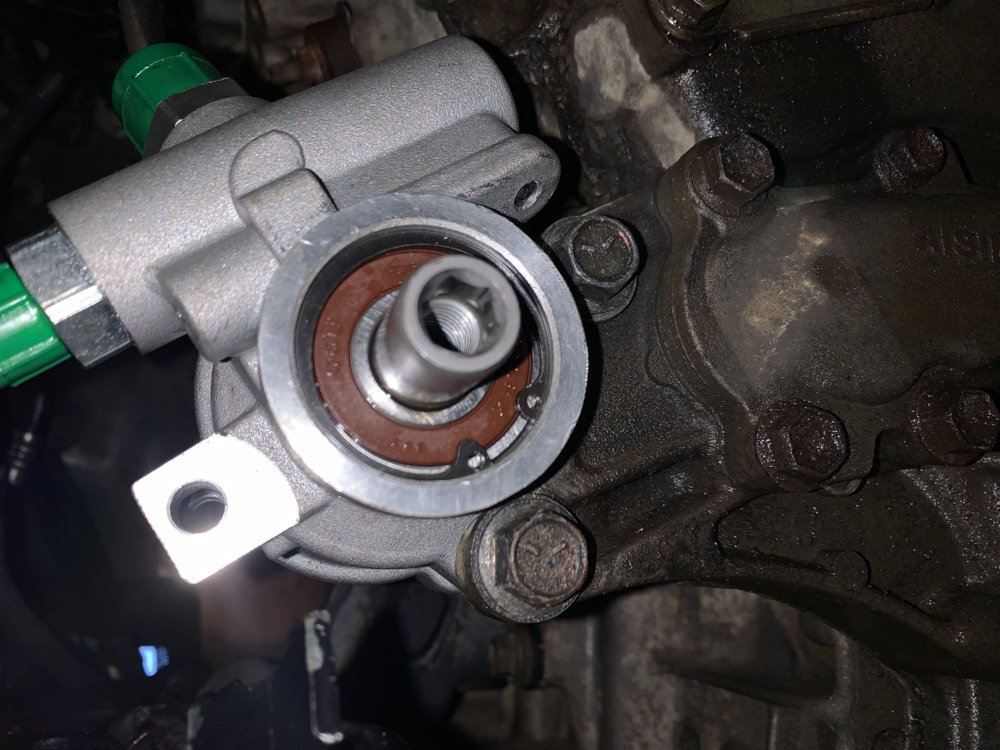

    Pump is in. Box rebuilt. Need some lines made now.
    Next to notch the frame and modify the drag link.

    52E930E3-1192-41A7-BA7D-1F25DE41565F.jpeg BD7799B7-D679-4D0F-9EE2-C0B865CA8A45.jpeg CBE15592-F191-4D7E-898B-B7440D9D9643.jpeg DACE10B4-316F-46E8-BD89-6A4EDFD56A92.jpeg A9E80CFA-B361-4676-8907-6AF807A0A61A.jpeg 708B8CC4-78FA-4010-979D-27567DFE0409.jpeg F38D4C38-C7D3-4DC7-A834-202C07F43262.jpeg

    Chris_Keziah likes this.
  14. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Shout out to Alliance Hose in Greensboro. Walked in and they put a new AN fitting on my pressure side line for the PSC pump free of charge and I was done in less than 5 minutes.

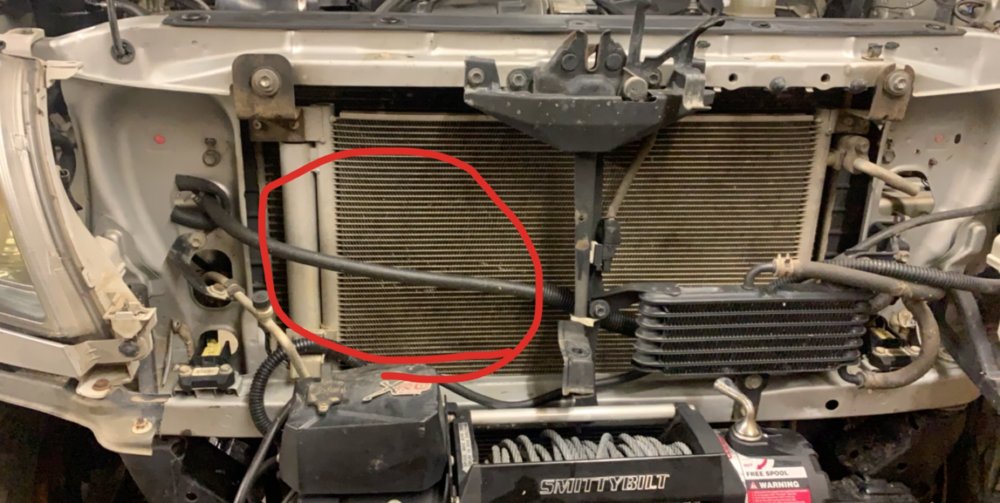

    Also, been messing around with a cooler I had laying around. Figured I should run one to keep the new pump from getting too hot.

    6FE9AF8F-959E-47B4-A4E7-5795546E0C01.jpeg AB259D1E-4E76-48BC-B3CB-EB1D1B0993BB.jpeg

    justjeepin86 likes this.
  15. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

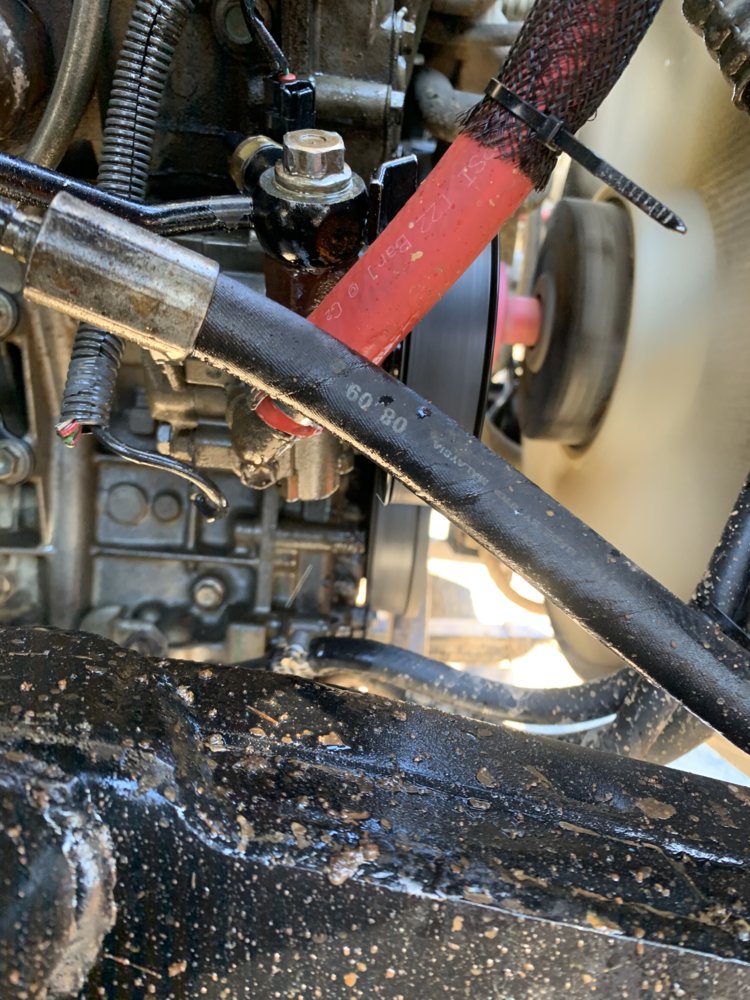

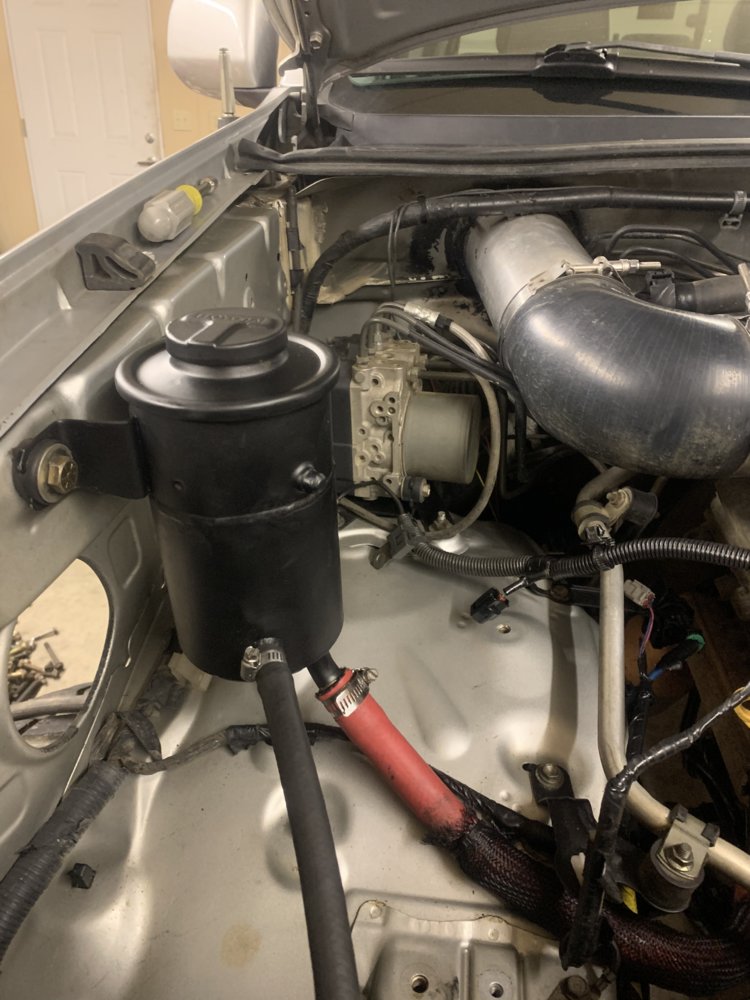

    I want to run some sort of power steering filter. Anyone have experience with the inline filters?

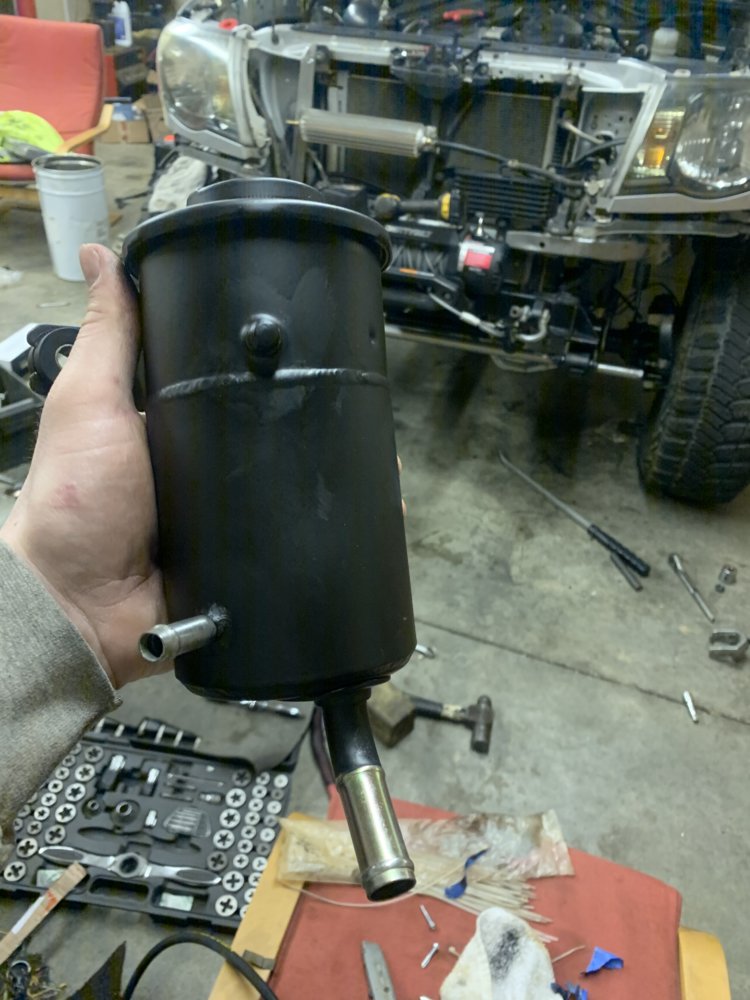

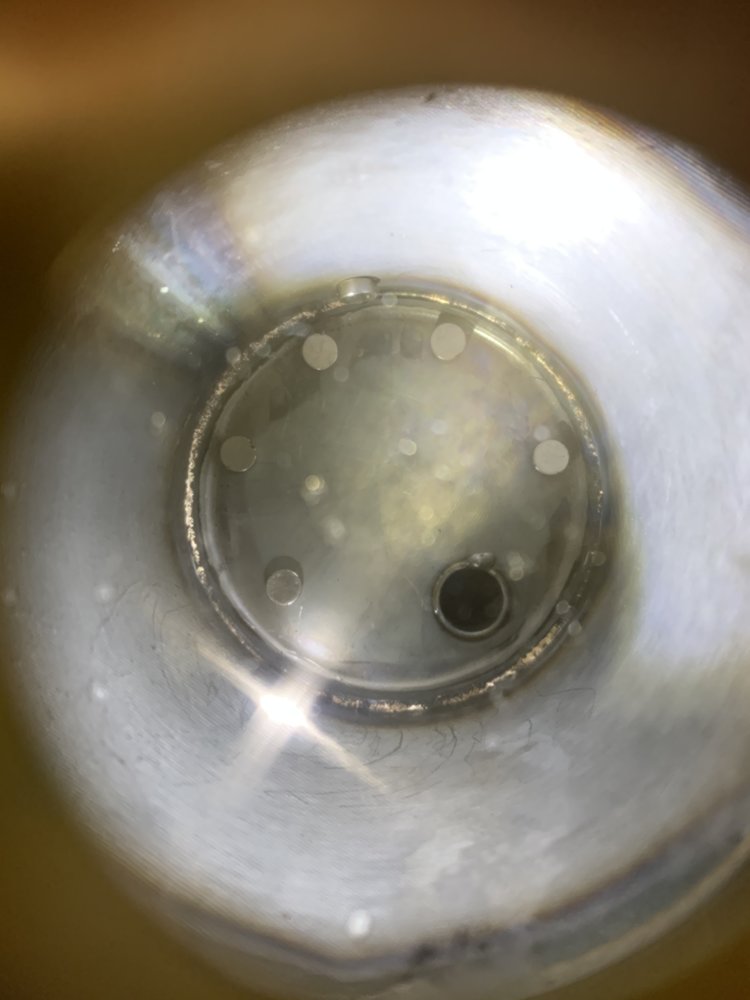

    I put “rare earth” magnets on the bottom of the reservoir to help catch some stuff.
    Inlet to PS reservoir moved lower to keep it below fluid level.

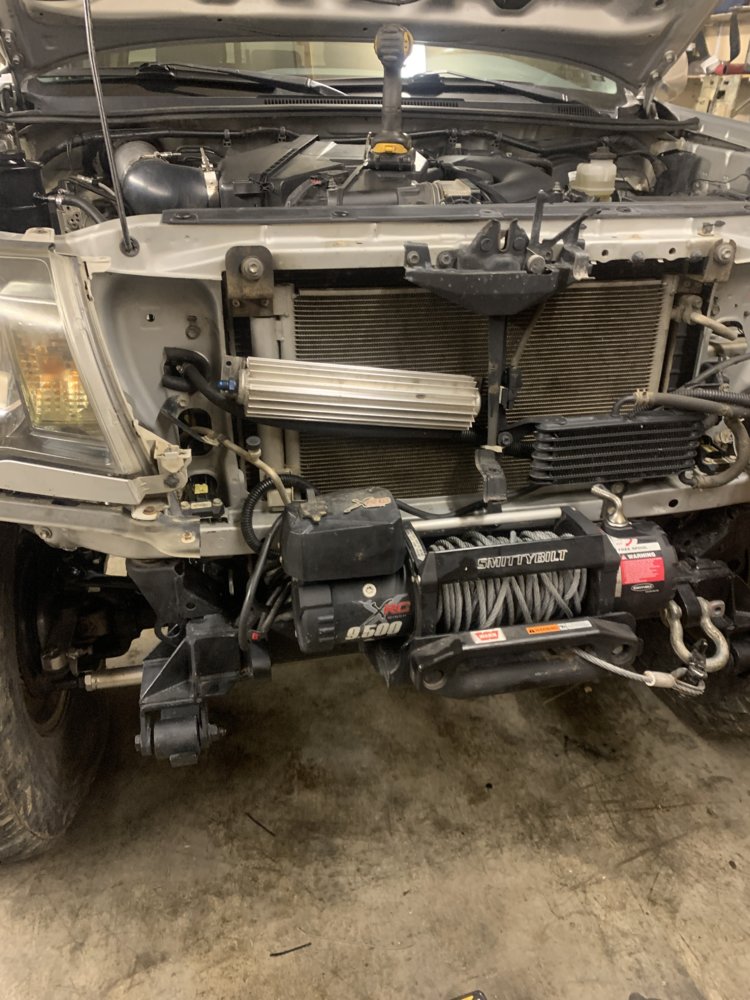

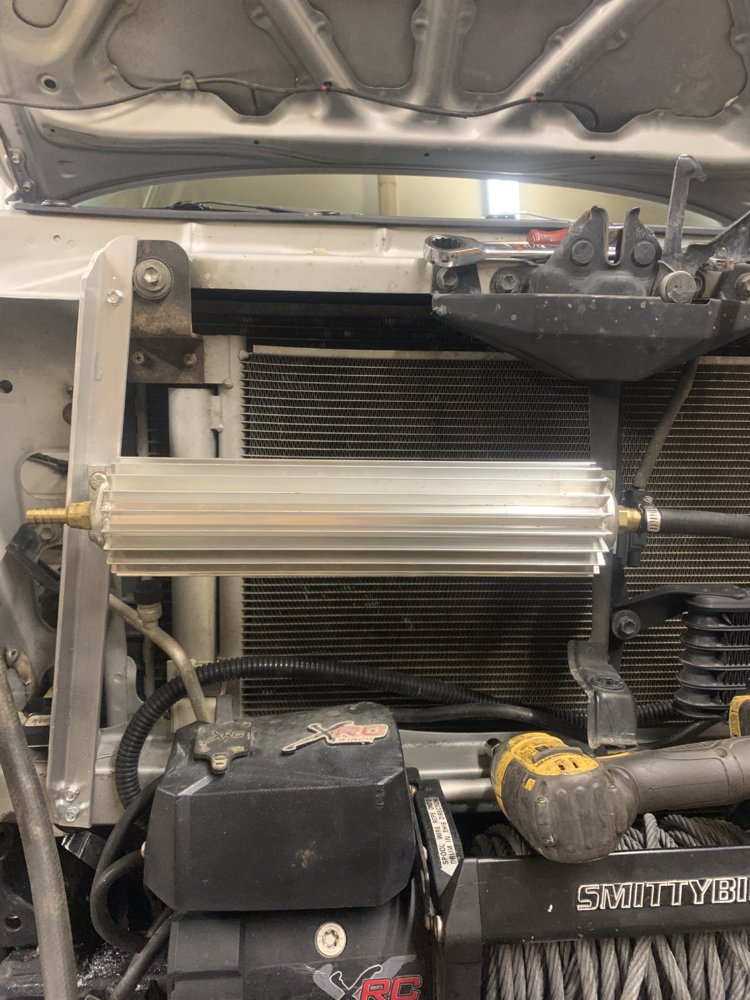

    Cooler mounted up.

    Hunter44 and a_kelley like this.
  16. a_kelley

    a_kelley mechanical fixer

    Joined:
    Jan 26, 2010
    Location:
    Rutherfordton
    I've installed the magnapure filters, which are not much more than a screen and a strong magnet (neodynium probably).. there are inline transmission filters available, that may actually have a filter element.

  17. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

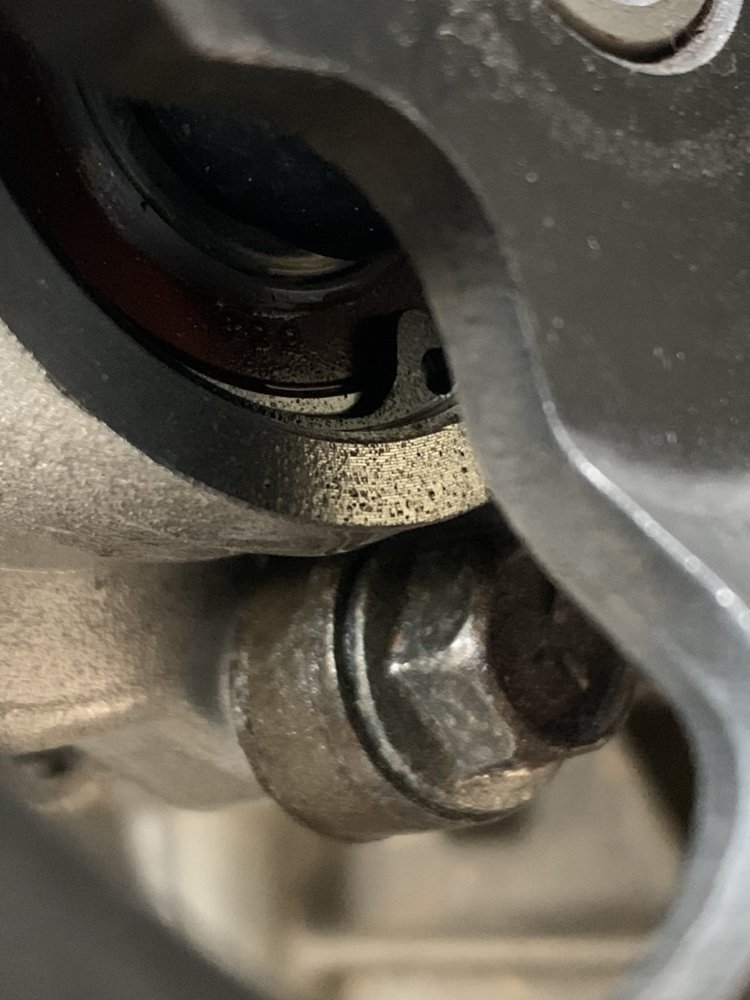

    New pump made a huge difference. Quicker steering. Less lag. It does look like it’s leaking around the pulley shaft though... kinda bummed.

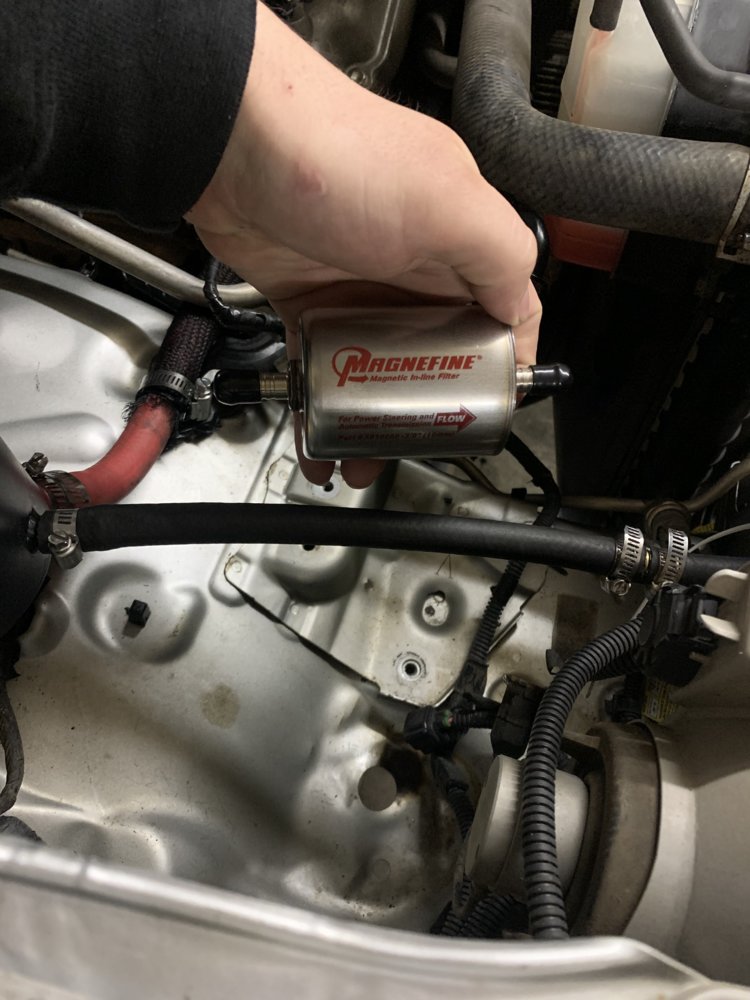

    I ended up putting a little in line filter in.

    1D26F8B2-7E0C-458B-AEF1-1EE3E92EF0D5.jpeg F48B676A-2D63-4E19-97AE-A16F19A50129.jpeg 85EFAF8E-0589-4CA3-AAFB-4BD94395FFBE.jpeg

    drkelly, Andy J., Hunter44 and 3 others like this.
  18. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Started in the rear rack/cage.

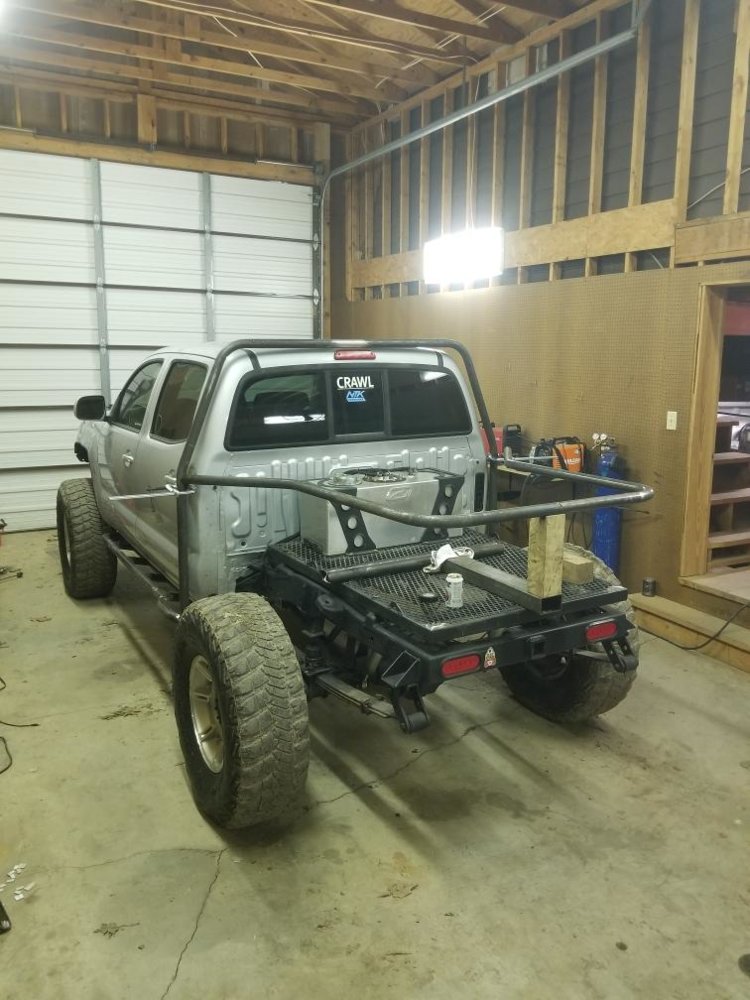

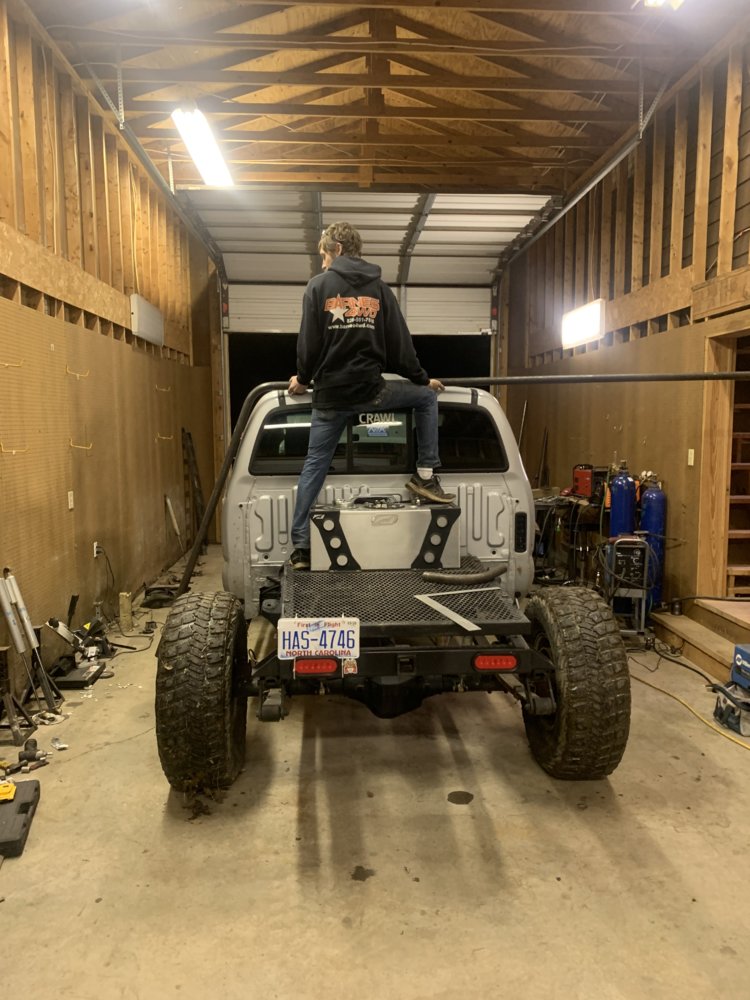

    Gonna do a ladder rack looking cage on the rear. Got the main hoop started.
    I want to be able to throw a kayak on top or some lumber if needed. Also protects the rear cab corner.
    First time really working with the bender @hurt4x4 and I bought.

    B77BB62B-541C-461B-892D-82A671904EFF.jpeg 52D2510B-DF88-47E2-A16A-D6656D6A2F23.jpeg

  19. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

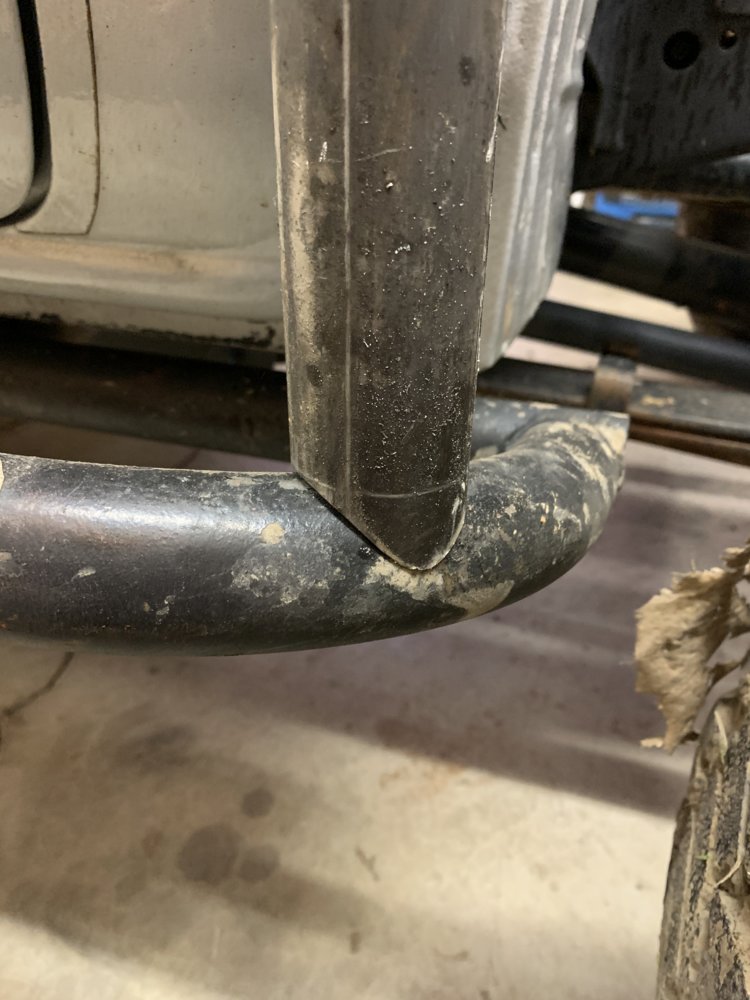

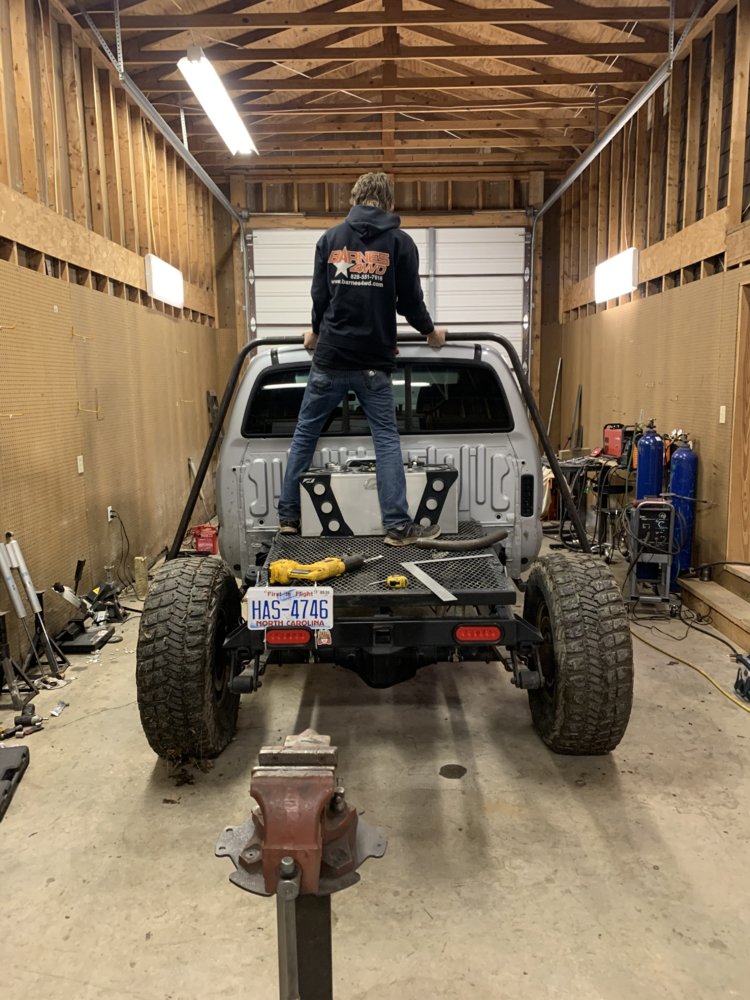

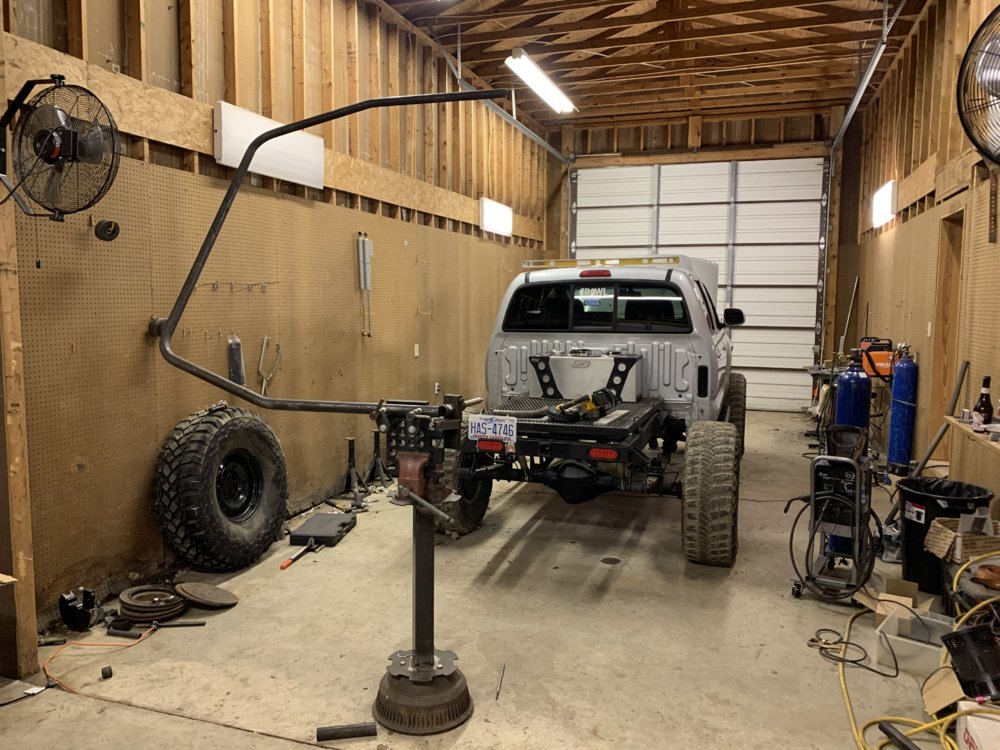

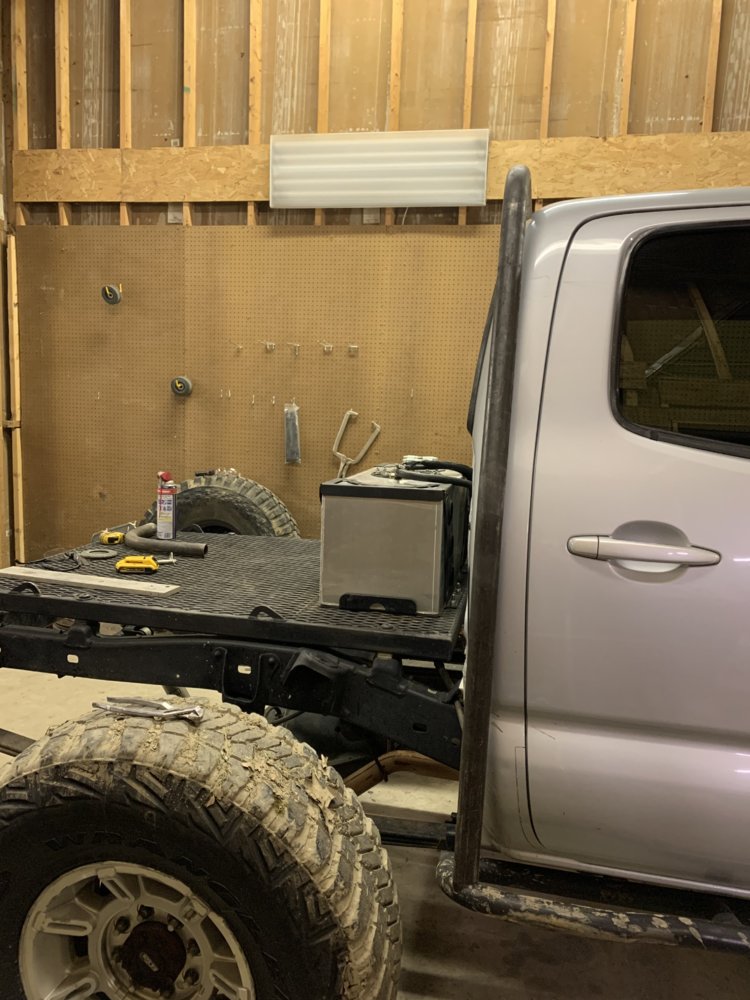

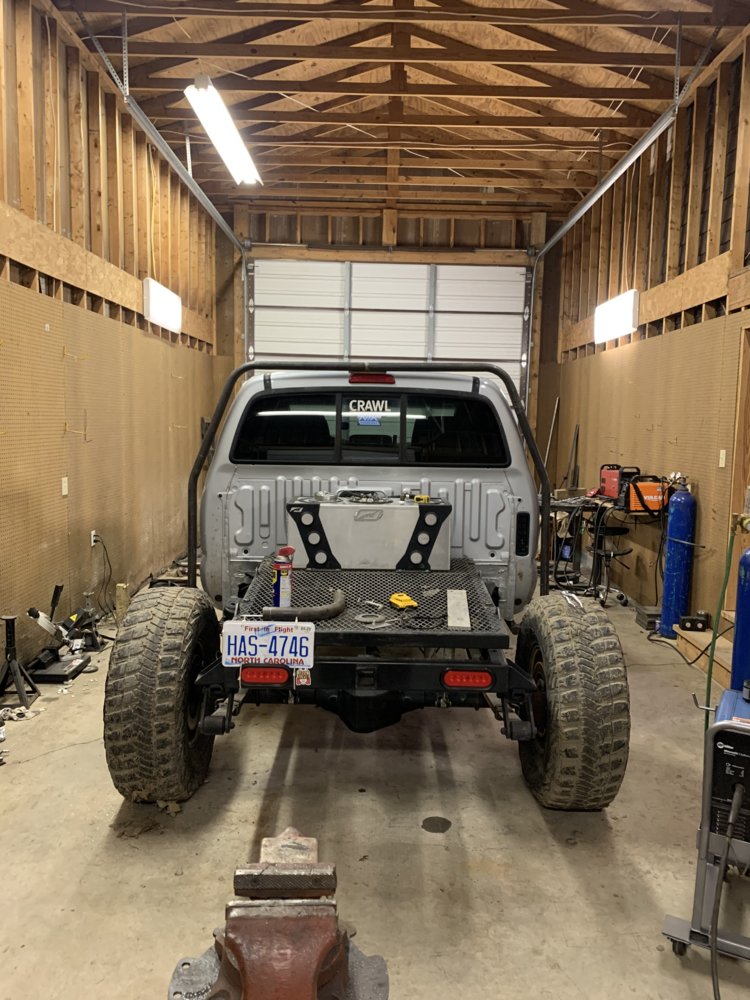

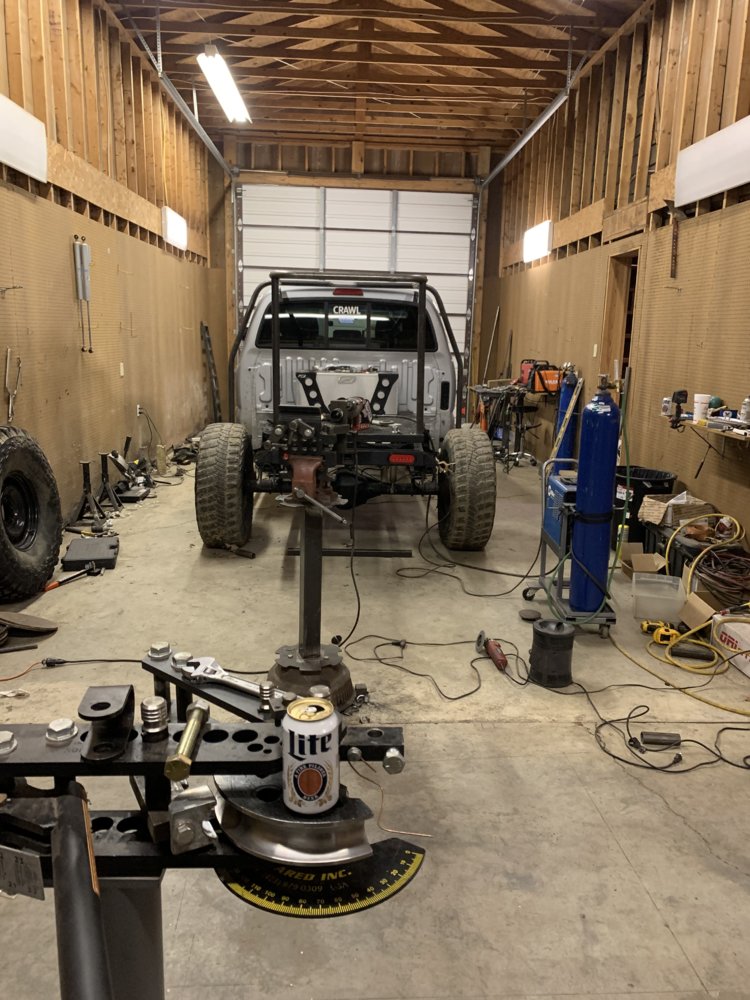

    Got the main hoop figured out. Had to cut some out of the middle to draw it in closer. Still figuring out this bender.
    Notches were spot on this time though.

    64B3C4D6-3739-46FC-93C0-DE6020C9D646.jpeg 8ABF7729-48D1-404F-B757-7354377CFE44.jpeg 703CDE2E-B6BA-4C7D-AF20-6185D8A08B7C.jpeg
    CE58C47B-16D9-4BEC-BC51-79EF2B7239BB.jpeg 965F68EB-0489-4FDE-A3D0-235D16154A78.jpeg

    Last edited: Feb 28, 2020
    paulevans76, mcutler, adamk and 3 others like this.
  20. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

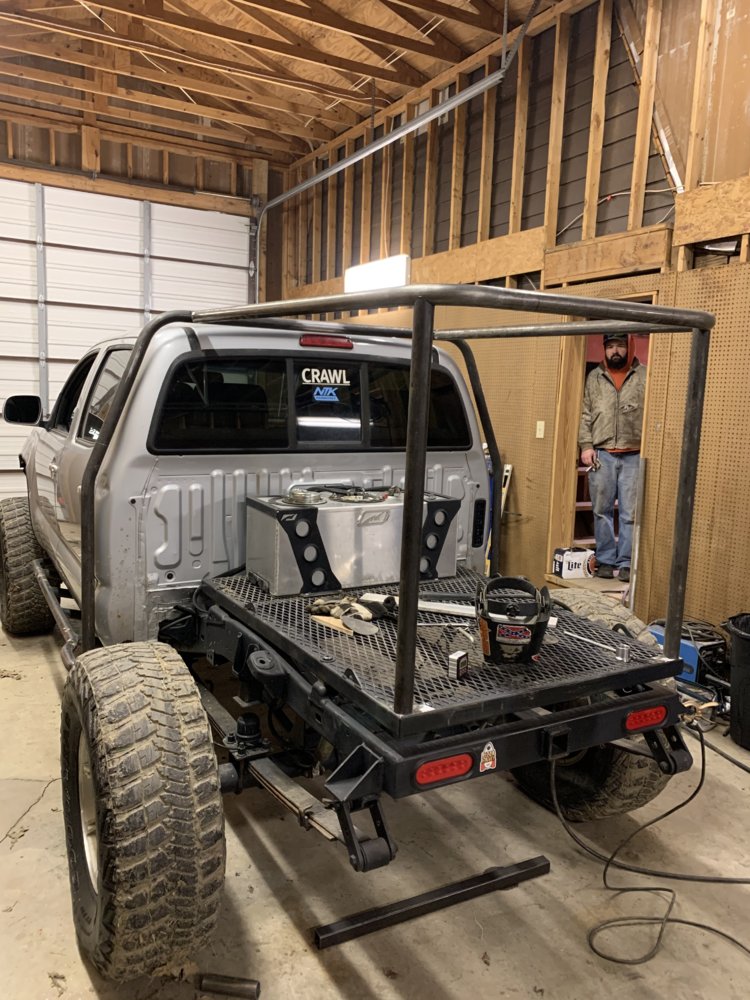

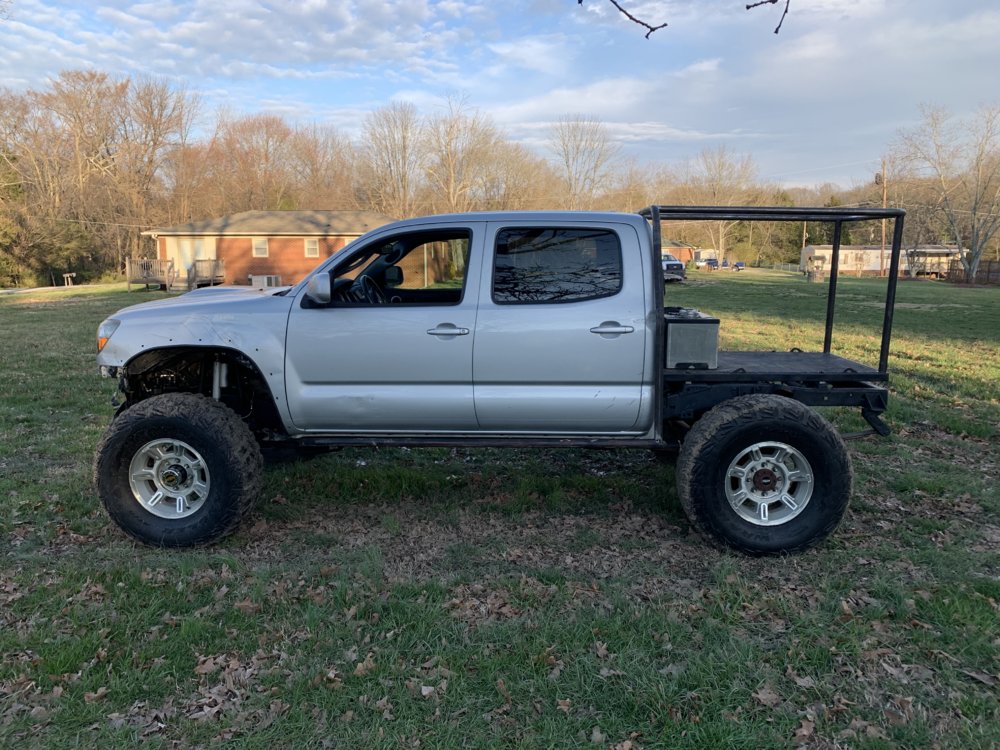

    Not sure how I feel about it yet.

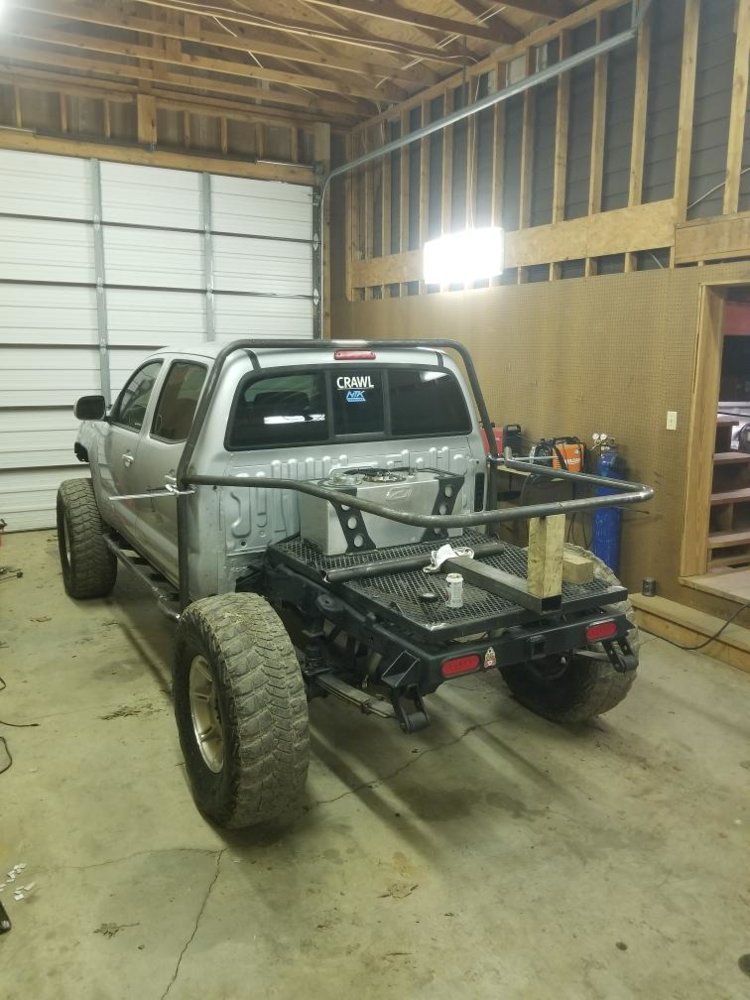

    This is the main part, but more tube will be added for bracing and probably will make a rack from above the fuel cell to the back for coolers, etc.
    maybe an “X” behind the cab for side to side strength. I need something to keep it sturdier front to back though.

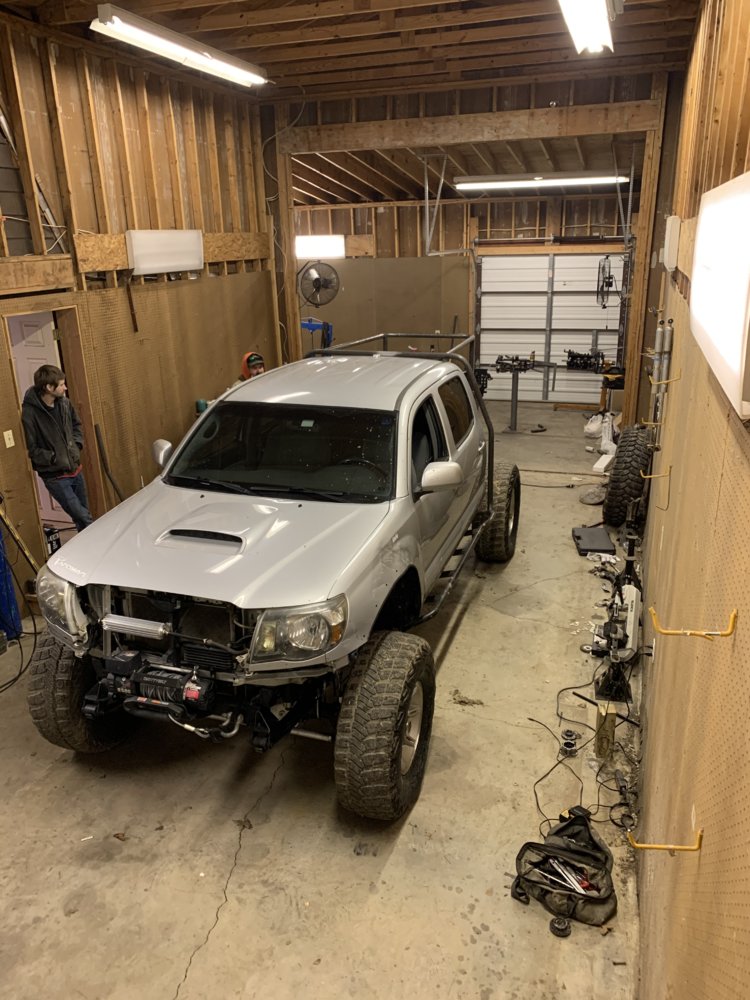

    F8A8FF9A-D530-4F4D-8893-6F3FCCAFCB7C.jpeg 6A583153-2D3F-4A0F-B59E-3E8B0EB48246.jpeg 1CC7D4E4-7DDD-482B-86CC-345176FCC408.jpeg

  21. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro

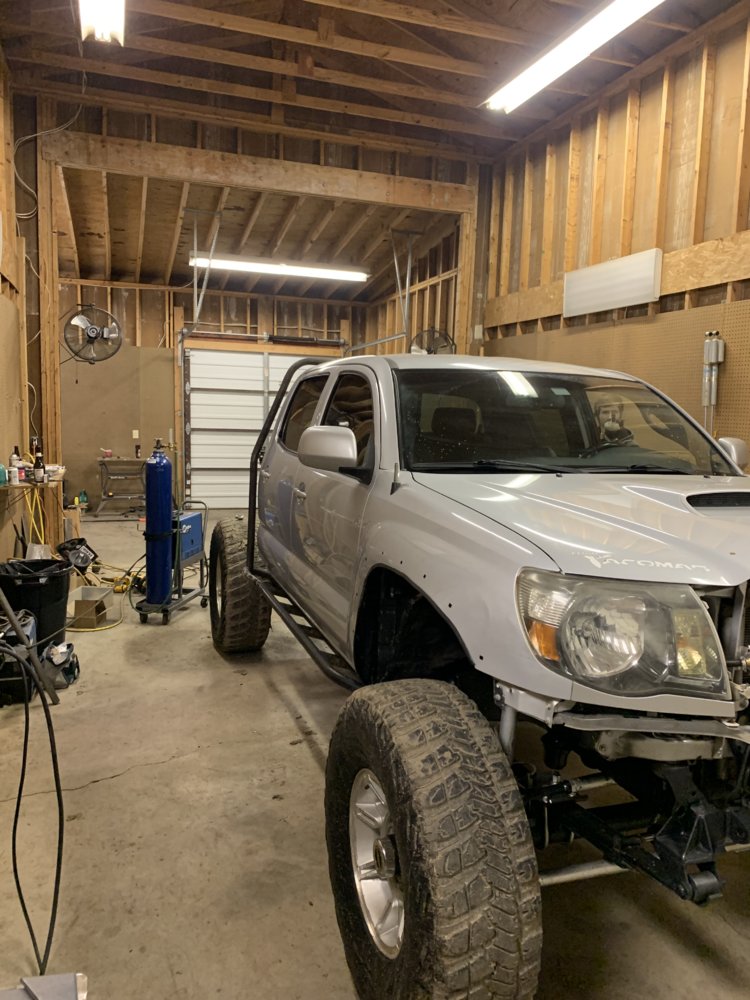

    Wasn’t a fan of what I had.
    Started over.

    Andy J., BigSouth, Caver Dave and 5 others like this.
  22. Chris_Keziah

    Chris_Keziah Joe Dirt @ Rev Limit Fab

    Joined:
    Dec 1, 2010
    Location:
    Winston-Salem
    Much better, the first one was way to overlandy.

  23. Van-go

    Van-go Not an old man

    Joined:
    Dec 11, 2014
    Location:
    Greensboro
    Yeah I pulled it out of the garage and i didn’t like it.


  24. BigSouth

    BigSouth Doesn't play well with others!

    Joined:
    Jun 8, 2011
    Location:
    Shelby, NC

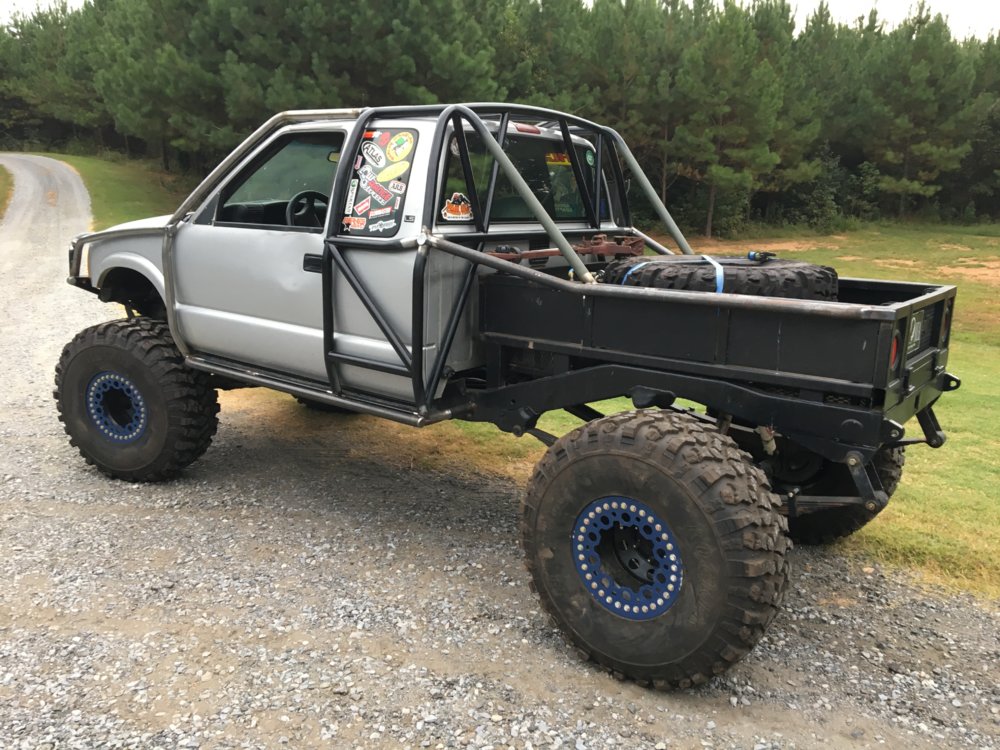

    This is what Cutler did with the S10 I had. Maybe it’ll give you some ideas about cross bracing. Really depends on how much structure support you’re looking for. I liked to lean up against trees with mine.

    Chris_Keziah, Van-go and mcutler like this.
  25. BigSouth

    BigSouth Doesn't play well with others!

    Joined:
    Jun 8, 2011
    Location:
    Shelby, NC
    This looks 200% better than the 1.0 version!
