'64 International Scout 80 Build

Discussion in 'Build Threads' started by ncflintlock, Jan 25, 2012.

  1. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC

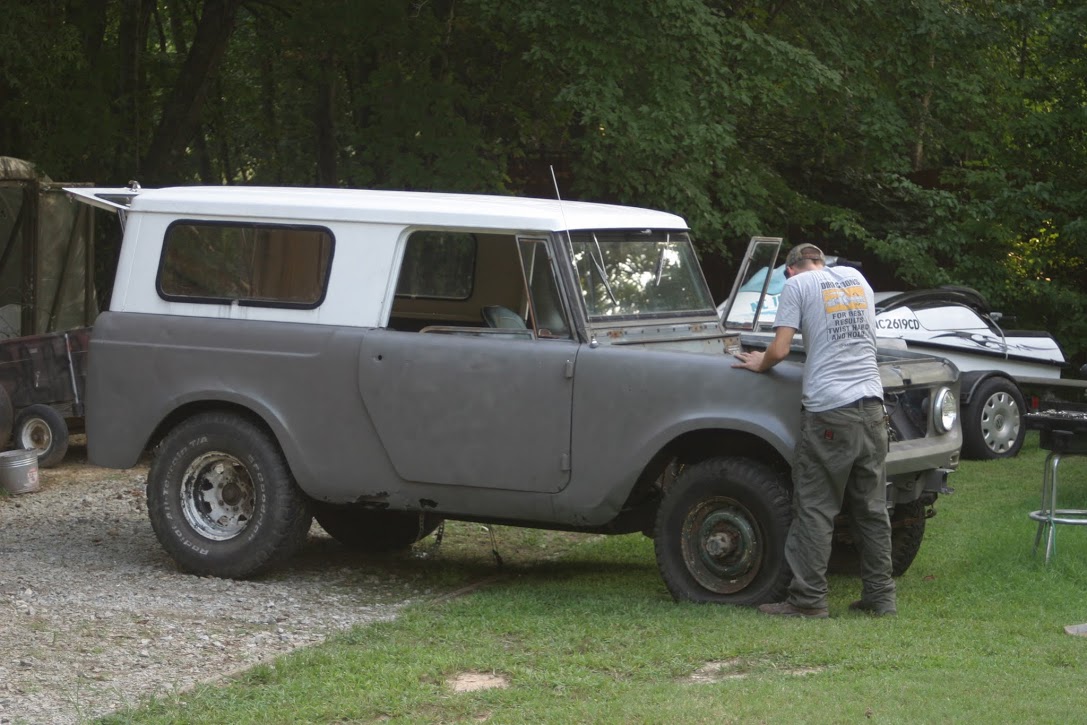

    I started this project a while ago and I am about half way through it. I got a :poop:rusted out '64 Scout 80 pretty cheap and this was the plan was to have fun with my son building road legal offroad machine. It started out as:

    Fix up the body and use the stock frame
    I picked up a ScoutII with the Chrysler Nissan Diesel and spring/Axels

    What it has turned into is:

    Stock frame
    stuff in a Cummins B4T
    Tu-Flow Air Compressor with Air Start
    4 Speed T19 mated to a DANA 18 with ATV mfg Overdrive
    Front - Chevy Dana 44 with Ford outers (8 Lug)
    Rear - Ford Dana 61 with 410 gears
    Add 4 Link/3 Link setup with Air bags

    alh3.googleusercontent.com__Kx8WQf4kE0U_Tx9sHUPcaUI_AAAAAAAAAF8_TQ2qyBUvQoo_s1087_IMG_9010.JPG
    Now I read the forums and see people putting down air bags, don't link a Scout 80... but it's mine and you learn through doing not listening to couch potatoes.

    I work on it when I can but hopefully I can finish it in time to take out on the beach this year:gitrdun:. So here it goes........

    Last edited: Dec 15, 2012
  2. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC

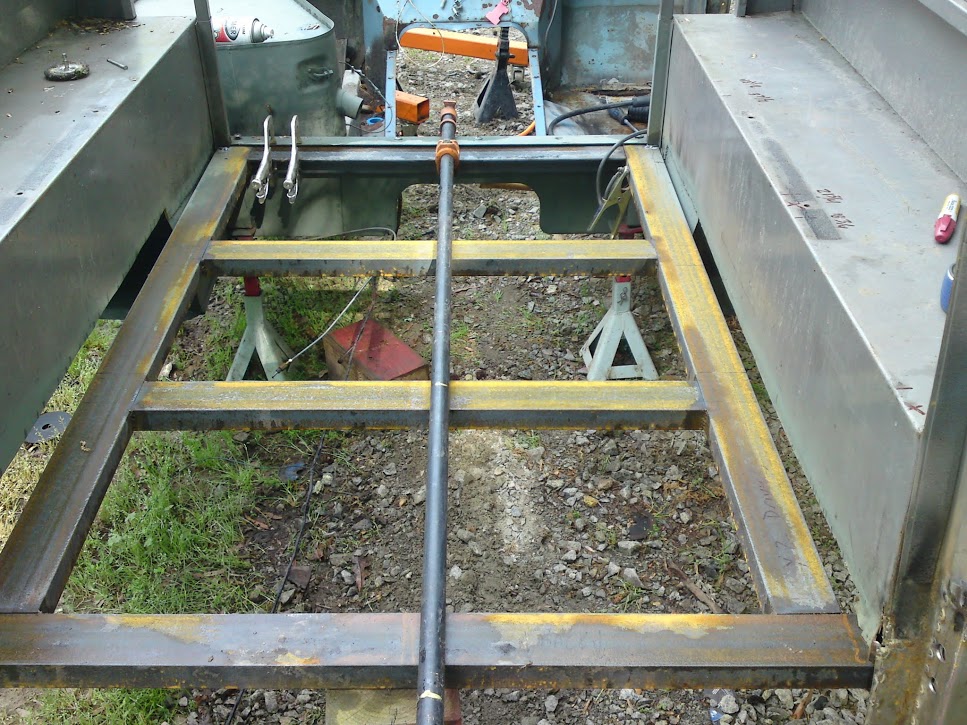

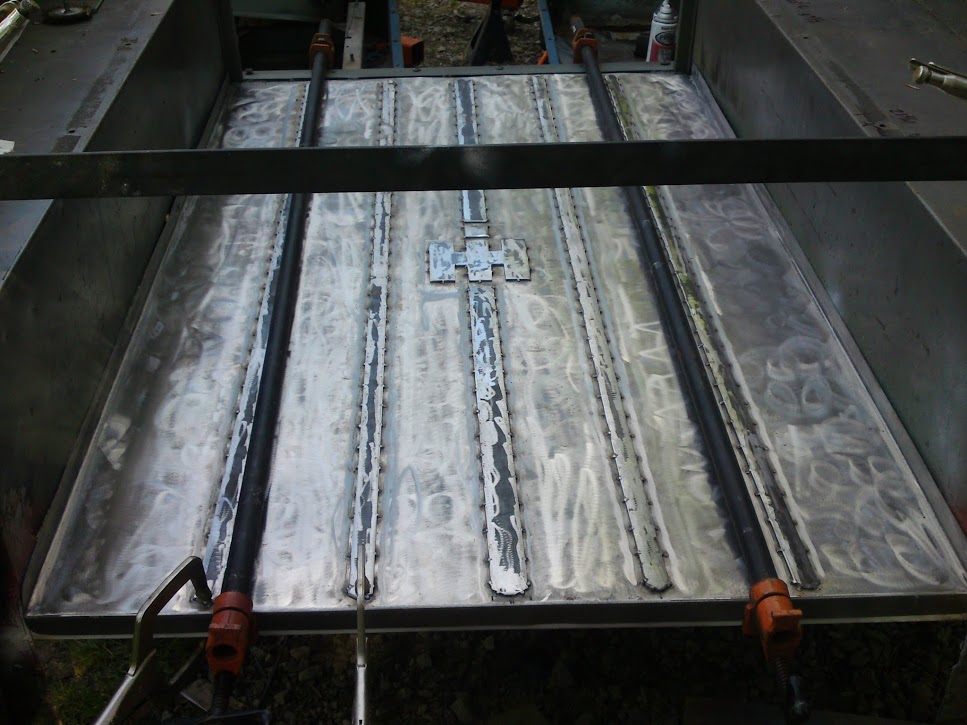

    Step One Body:

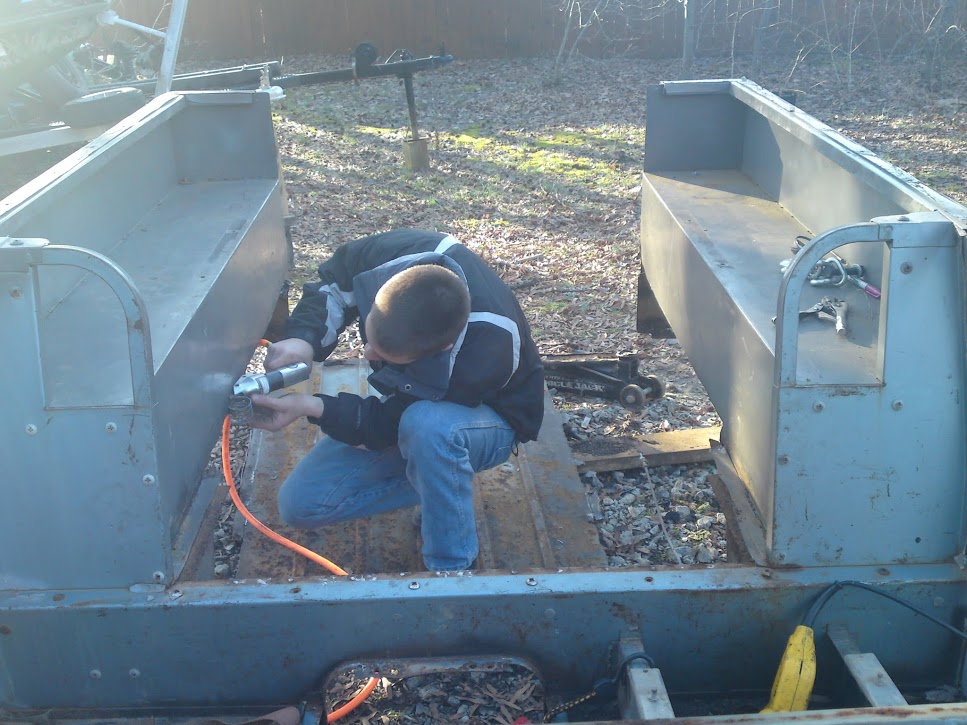

    The Bed was almost completely gone so what do you do? Power shears!
    alh4.googleusercontent.com__WvPEKzP72XU_Tx9svtK8zvI_AAAAAAAAAKM_n48FXKjoUfM_s967_DSC00140.JPG


    alh4.googleusercontent.com__Q3LAipLd5xY_Tx9sxWqhDOI_AAAAAAAAAKY_cBIbY4kUFm4_s967_DSC00188.JPG
    alh4.googleusercontent.com__s8R_gMrIE_0_Tx9s0ukEdiI_AAAAAAAAAKo_s21AQ_vtLGU_s967_DSC00190.JPG

    Last edited: Dec 15, 2012
  3. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    More Body Work...
    alh4.googleusercontent.com___ofh0GX40tw_Tx9s17rp_0I_AAAAAAAAAKw_tUssdvDcDUA_s140_DSC00194.JPG alh3.googleusercontent.com__J92ej_XxJdU_Tx9s8WhuSkI_AAAAAAAAAL4_GHk19SXj_yY_s140_DSC00277.JPG alh3.googleusercontent.com__Y4fw6Pep0NU_Tx9szoONebI_AAAAAAAAAKg_YSXFj2utXi0_s140_DSC00189.JPG

    Last edited: May 22, 2013
  4. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    alh6.googleusercontent.com__OwjvYRpaSf8_Tx9s36KXoNI_AAAAAAAAALA_T_9g4qRIA8g_s140_DSC00244.JPG alh6.googleusercontent.com__P_zfWwzIa0M_Tx9s543zFFI_AAAAAAAAALg_pMEPqGqHEv0_s140_DSC00273.JPG

    Last edited: May 22, 2013
  5. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    Now the original Scout 80 came with some with Dana Axels. The front is a DANA 27. For a small Axel it is cool! It has lockout hubs!
    alh3.googleusercontent.com__fIaiBni3jE8_Tx9sholJ67I_AAAAAAAAAI0_ywO2AMFlZ20_s140_DSC00097.JPG

    Last edited: May 22, 2013
  6. willness33

    willness33 Well-Known Member

    Joined:
    May 3, 2005
    Location:
    Alexis,NC
    I'm watching. I love the old corn binders. There's a nearly rust free 80 very near me that hasn't moved in at least 3 years. Too bad the owner is a recluse and never sells anything.

  7. gmentavlos

    gmentavlos Well-Known Member

    Joined:
    Jan 7, 2009
    Location:
    Charlotte NC
    Nice engine choice! Looking foreword to this build....

  8. AdamH

    AdamH Well-Known Member

    Joined:
    Mar 17, 2009
    Location:
    Mt. Holly
    I had a '65 80 - had to sell it but still miss it. Looking forward to watching your progress.

  9. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    OK Now the engine/tranny/tcase....

    The doner ScoutII I bought had a Chrysler Nissan Diesel. I wanted to use it but the injection pump was waxed up and it didn't have good compression in the middel 2 cylinders where water had come in the intake and collected.


    alh6.googleusercontent.com__hMuha06gUPg_Tx9srLxWvgI_AAAAAAAAAJs_AdSKrOe5BTs_s140_DSC00124.JPG
    I looked into the rebuild and this engine was used in Tugs and a lot in Australia but I opted for a better choice. Even though the Cummins didn't come in a scout, how can you go wrong! I got the B4T and a Ford T19 4 speed out of a delivery truck.

    alh5.googleusercontent.com____mGfS9jmFA_Tx9sapoTohI_AAAAAAAAAIM_LdRyYJlJWuQ_s140_DSC00087.JPG alh4.googleusercontent.com__Ehwz1iFQPos_Tx9sZAPsKdI_AAAAAAAAAIE_dqRXBBO6FVU_s140_DSC00085.JPG

    I wanted to use the Dana 18 out of the scout because it has a PTO port on the back you can use for adding an ATV mfg overdrive. for those lose highway RPM's.
    alh4.googleusercontent.com__ujTYUwQvtJ0_Tx9sb_59ukI_AAAAAAAAAIU_ZhJqw4cCqZs_s140_DSC00089.JPG

    Last edited: May 22, 2013
  10. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    Do you know how to get 48 year old rusted stuck philips head bolts out...
    alh3.googleusercontent.com__o_fIZN4_UBE_Tx9suZU6KbI_AAAAAAAAAKE_KXOaQeJP7H8_s140_DSC00136.JPG

    Last edited: May 22, 2013
  11. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    Here is the completed Tranny Tcase after getting the T19 to Dana 18 adapter, a Dana 18 rebuild and putting in a new mainshaft in the T19.

    I got the ATV overdrive unit from Herm the overdrive guy. Herm rocks! He got me the stock Dana18 drive line brake unit as well.

    The 4 stick shift are basically an anti-theft device. I can put 3 of them in neutral and basically dare some punk to steal it.
    alh3.googleusercontent.com__ojNouswJSCA_Tx9tHm2V8sI_AAAAAAAAANI_G8v6WbtoIMc_s140_DSC_0143.jpg

    Last edited: May 22, 2013
  12. BRUISER

    BRUISER silent.. but deadly Moderator

    Joined:
    Mar 17, 2005
    Location:
    Raleigh
    very cool

  13. Jman78CJ7

    Jman78CJ7 Well-Known Member

    Joined:
    Nov 10, 2006
    Location:
    Louisville KY/ Oak Ridge NC
    Sounds like a fun project. Looking forward to seeing your progress.

  14. josh$$

    josh$$ FTA

    Joined:
    Sep 12, 2007
    Location:
    Morganton NC
    :driver::popcorn: subscribed cant wait to see more progress

  15. nctom

    nctom Well-Known Member

    Joined:
    Dec 9, 2008
    Location:
    CONCORD NC

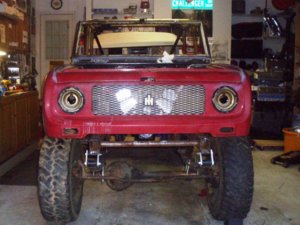

    Building a 66 as we speak. Good luck with it!:beer:


    Attached Files:

  16. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    Now the tech for the drivetrain:
    With the T19 gears, 4.11 pumpkins and 37's I would be running 2600RPM at 70MPH. Herms .75:1 ATV mfg Overdrive brings that down to 1955, just about the sweet spot for a Cummins.

    alh3.googleusercontent.com__qQ9_8wT44lY_Tx9tjbPyS6I_AAAAAAAAAQw_sWSX40_e_zo_s140_Gearing.jpg

    Last edited: May 22, 2013
  17. OnlyOneDR

    OnlyOneDR Well-Known Member

    Joined:
    Feb 10, 2006
    Location:
    R
    Love this. Those old 'binders were nice but the bodylines were ahead of their (rust resistant) time.

    Great driveline, but wondering on that 61? Isn't that van width? How's that line up with the front?

  18. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    Actually, the D61 is 5" narrower than the '78 D44 Chevy/Ford potluck I have upfront. I had to order 2" spacers from Ballistic Fab for the back. I am running Dodge 6.5" backspacing rims to tuck everything back under.
    Speaking of the spacers I need help. The studs are too short and when I tighten the lug nuts that hold the spacer to the drum, I still see half the threads in the nut. My studs are 2.25" overall, I need 2.75"-3" studs. I looked at my sons '97 F350 and his studs stick out so far it would make Mad Max happy. But my stud knurl is .606 and is 1/2-20 his knurl is .625 and 9/16-18. I checked and the 7/8's socket for the 9/16 stud fits in the hole but:
    I think press fit studs need .002"-.009" of clearance and the closest drill I can find to 6.25 is 39/64=.6094" that would leave .0156" of interfearance, can I even get the new studs pressed in if I drill them out to 39/64th?
    I looked in the Dorman catalog and cant find a 2.75"-3" 1/2-20 with .606" knurl anything.

  19. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    4 Link Tech.

    The wider axel aslo gave me a leg up on semi triangulation. What I mean by semi is the upper and lower links cross to help me out in the numbers.

    alh3.googleusercontent.com__s6N8J_ETxNY_UM0XlX_or6I_AAAAAAAAATk_N0BXey_96TY_s140_4_link.jpg alh3.googleusercontent.com__eNM_BbpUM8g_UM0XnB8lynI_AAAAAAAAATs_7I8hnbJco2A_s140_3_link.jpg

    Last edited: May 22, 2013
  20. ncgamedog

    ncgamedog Well-Known Member

    Joined:
    Oct 30, 2005
    Location:
    UNCC/ Charlotte
    http://icrank.com/cgi-bin/pageman/pageout.cgi?path=/drillsizechart.htm&t=2

    A 5/8 drill size = 0.625 in OR a 41/64 drill = 0.6406 in

    May have to go to Grainger or similar to find it:

    5/8
    http://www.grainger.com/Grainger/reduced-shank-drill-bits/machine-cutting-tools/machining/ecatalog/N-gyjZ1z0jsgl

    41/64
    http://www.grainger.com/Grainger/reduced-shank-drill-bits/machine-cutting-tools/machining/ecatalog/N-gyjZ1z0c1x9

  21. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    Here are some pics of the links.




    alh3.googleusercontent.com__4RwWKcVp7U0_Tx9tT19EnII_AAAAAAAAAOo_ioZpBisvZxg_s140_IMG_9971.JPG
    alh3.googleusercontent.com__MnP7OjsLeI4_Tx9tXT5apTI_AAAAAAAAAPA_MrM7Mbe5TZA_s140_IMG_9974.JPG
    alh3.googleusercontent.com__9IQkax7MM18_Tx9tcCOzw7I_AAAAAAAAAPo_hjShHyf1DWc_s140_IMG_9986.JPG

    Now it's welding time.

    Last edited: May 22, 2013
  22. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    "A 5/8 drill size = 0.625 in OR a 41/64 drill = 0.6406 in "

    I need .002"-.009" less than .625 or my studs will fall out of the drum.

  23. gharris54

    gharris54 New Member

    Joined:
    Jul 9, 2010
    Location:
    Raleigh, NC
    this thing is awesome man. I am a big fan of scouts as well as diesels.

  24. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    My son keep teasing me because I won't cut the shifter down that came out of the delivery truck. Obviously he is not in tune with the "Rat Fink"!
    alh6.googleusercontent.com__w5su96w627k_Tx9tg8vXLsI_AAAAAAAAAQ3ac35082ef13b86b467523e7b08eb4b9.jpg

    Last edited: May 22, 2013
  25. ncflintlock

    ncflintlock Well-Known Member

    Joined:
    Jan 28, 2010
    Location:
    Apex, NC
    My son put a tack down all the links but he was having hesitations on doing all the welding because he has no formal training. I suck at welding so I had Stephen come over yesterday and he finished welding all the link mounts on the front axel. Just the frame and rear axel to go!
    Stephen went through the Wake Tech welding program and is pretty good. He would like to work in a shop that does this stuff so if you know of an opening, let me know!
