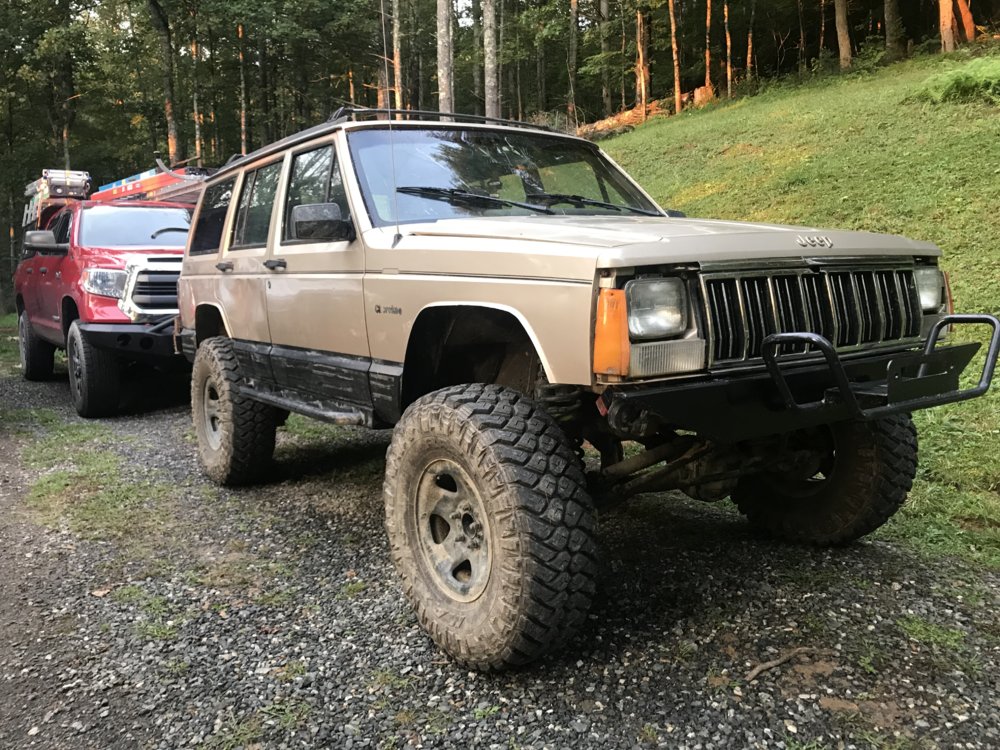

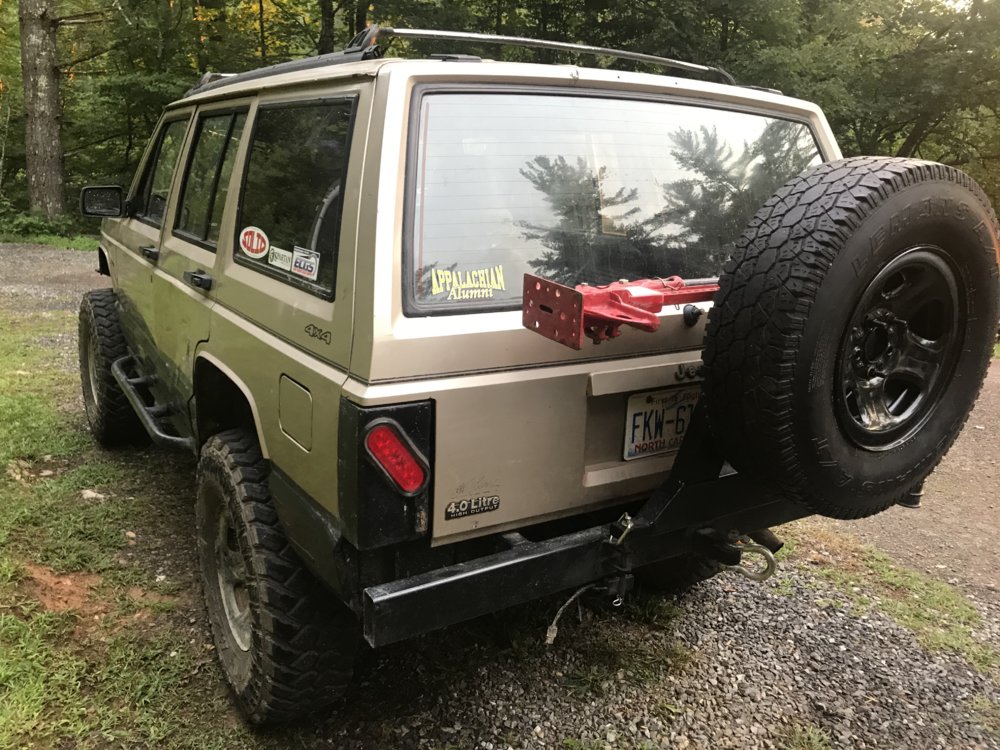

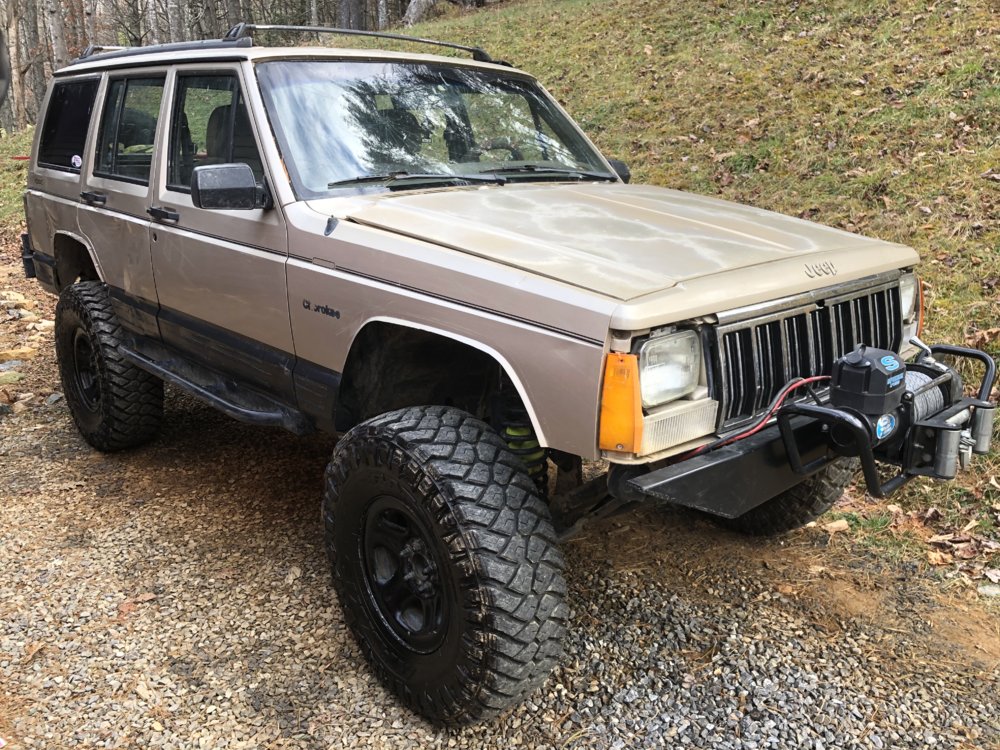

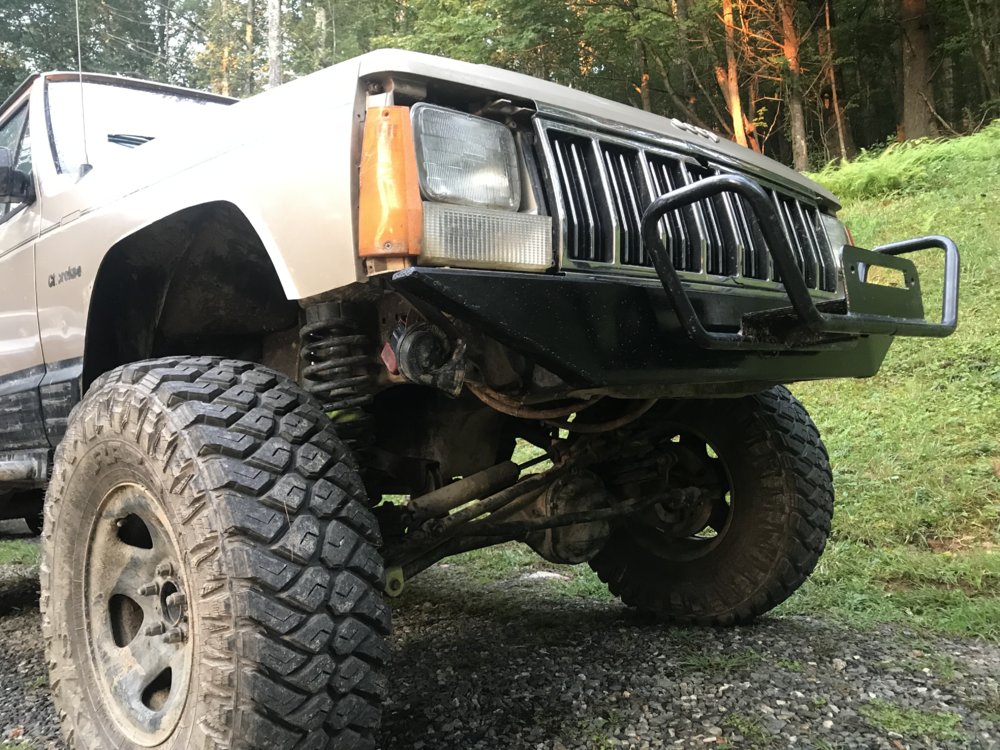

    Some better pics after lightly washing it

    upload_2019-8-19_19-57-55.jpeg upload_2019-8-19_19-56-41.jpeg upload_2019-8-19_19-55-9.jpeg

    a_kelley, ncpartsguy and StretchASU like this.
  2. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

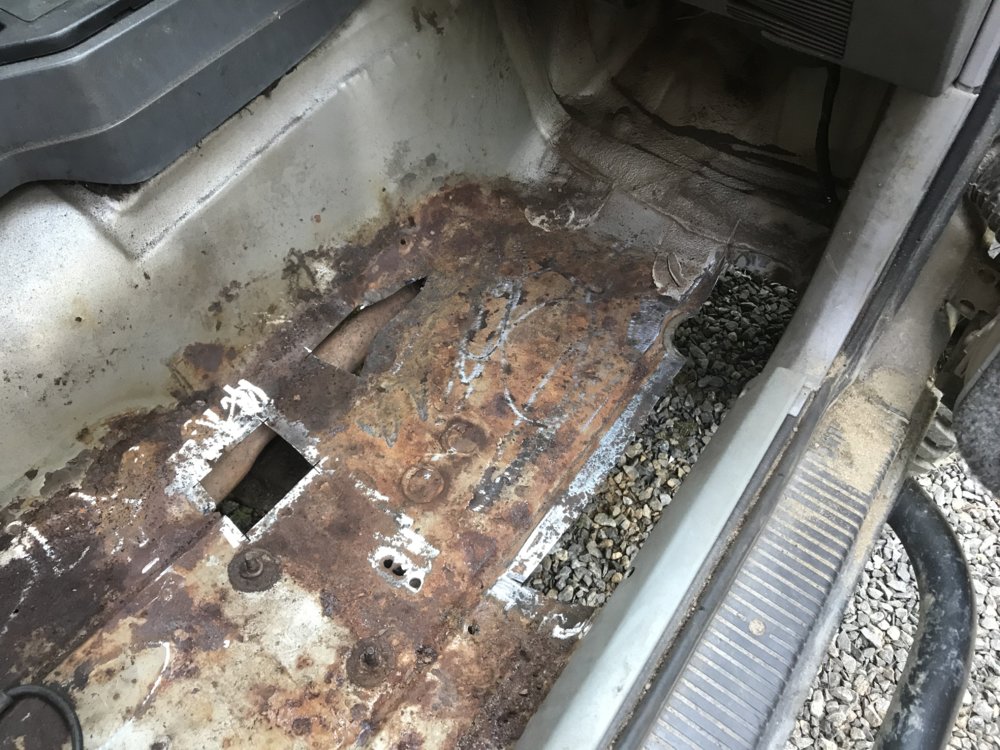

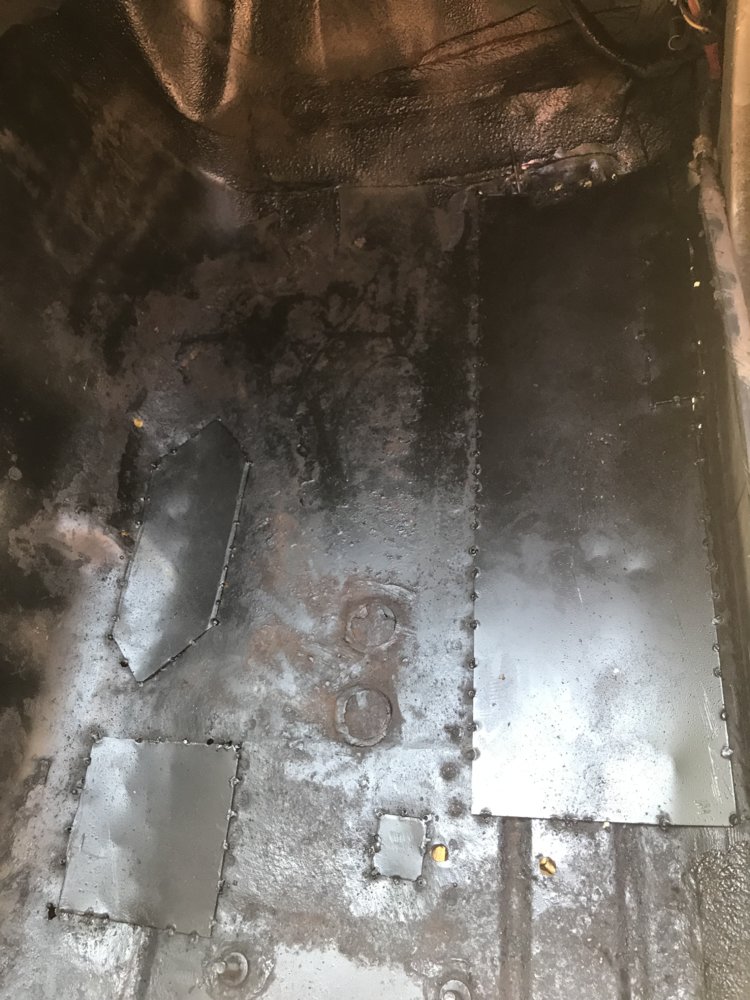

    Ripped out all the old gross carpet and sound deafening stuff and patched the floorboard rust. 7 patch plates in total from front to back.

    I have some axle end UCA bushings on the way as well as new UCAs, track bar and bracket, steering box brace, and rear shackle relocators - will be some good work coming up



    Creekin and ncpartsguy like this.
  3. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

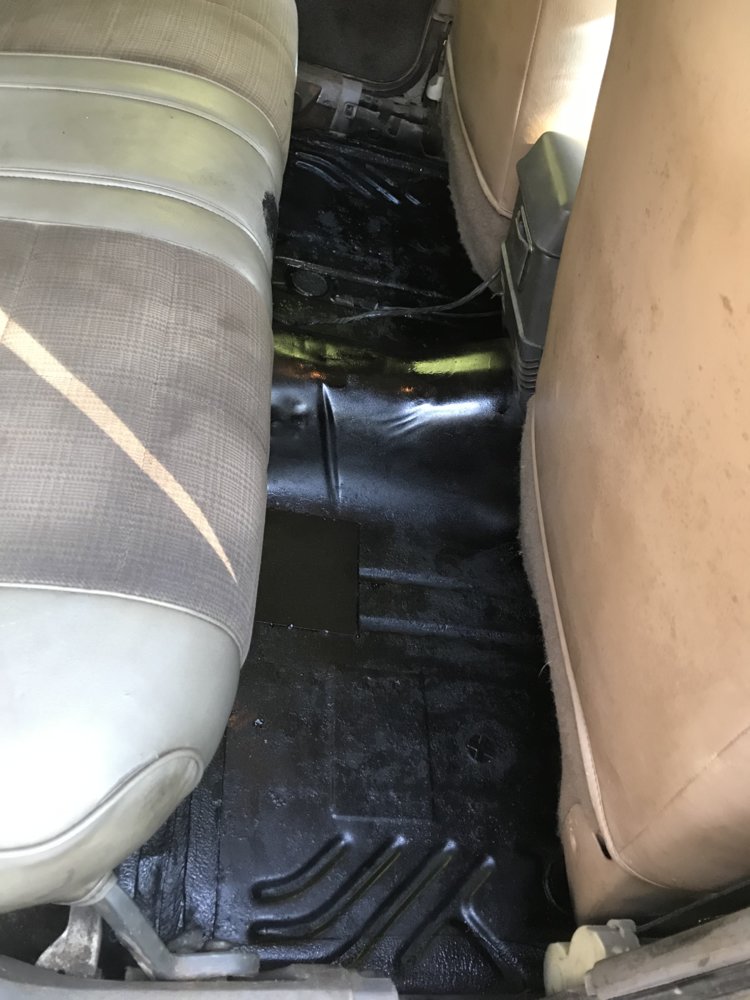

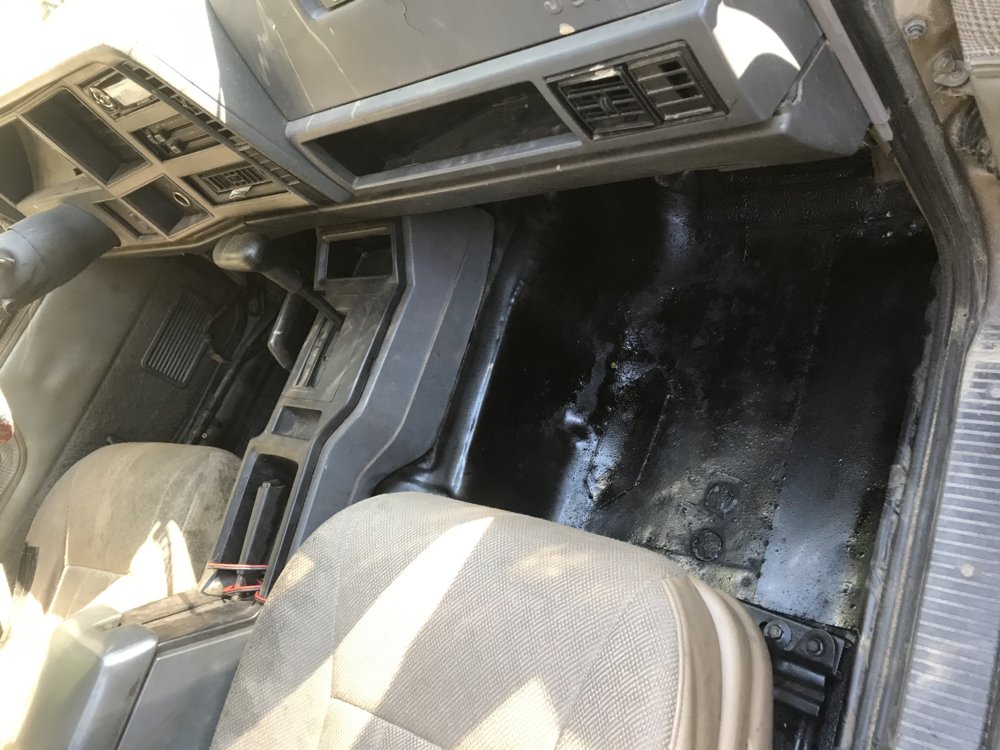

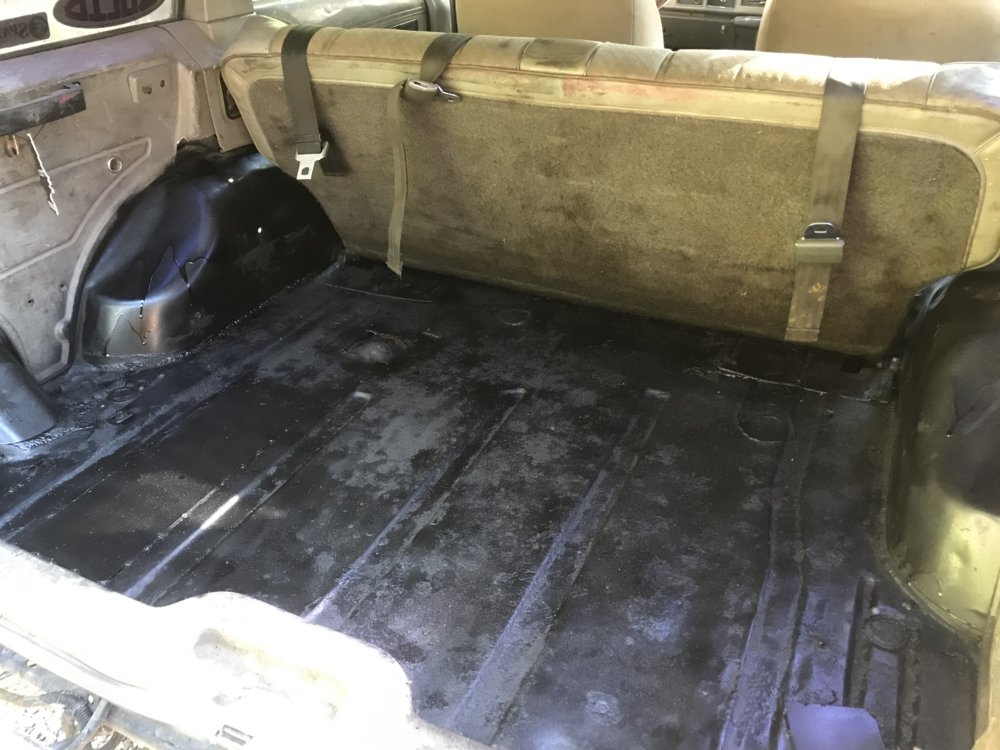

    Sprayed some aerosol bedliner on it. It’s not nice enough to justify any other finish really lol.


    upload_2019-9-8_18-14-1.jpeg upload_2019-9-8_18-13-4.jpeg upload_2019-9-8_18-12-9.jpeg

    ncpartsguy and skyhighZJ like this.
  4. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

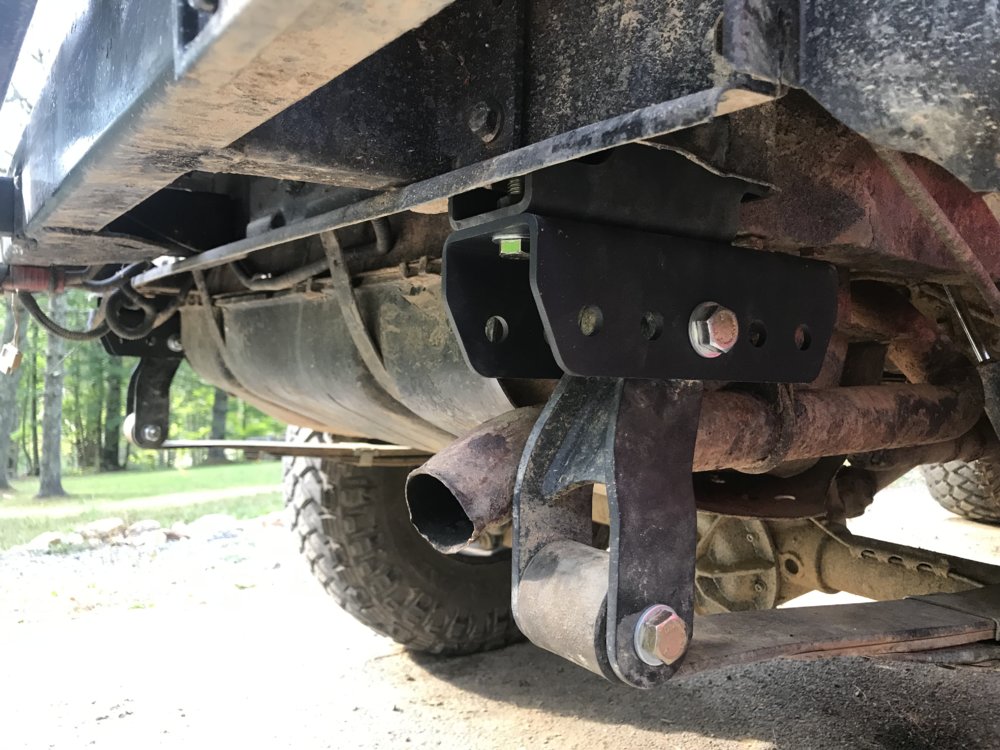

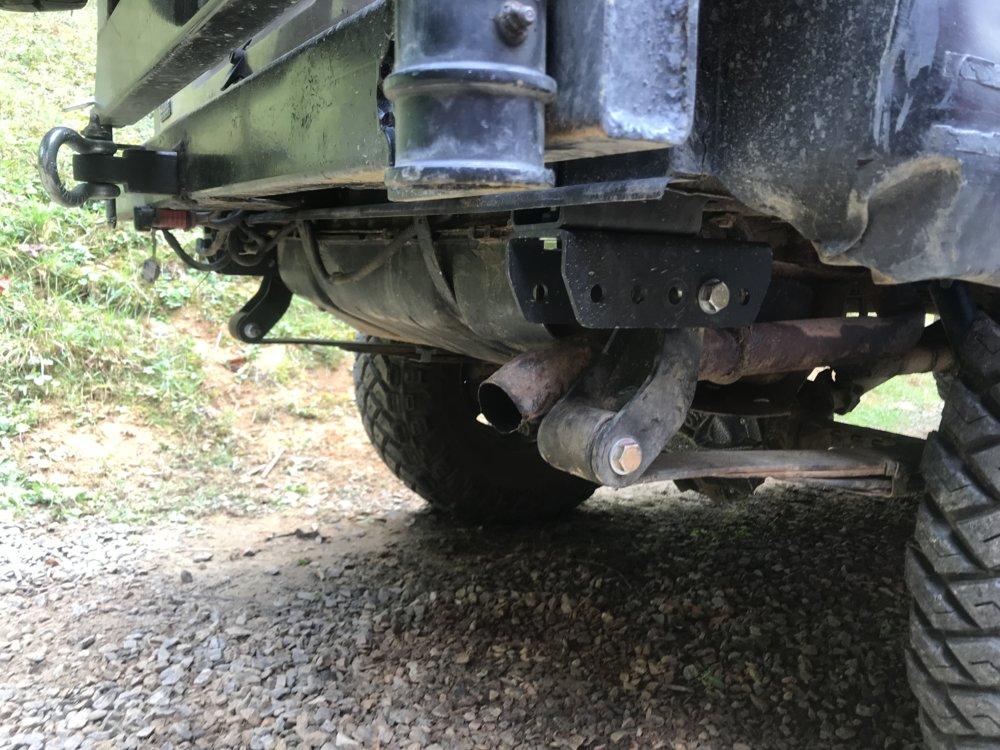

    Got the shackle relocation brackets and new panhard bracket on today

    Things are looking up

    upload_2019-9-14_17-17-2.jpeg upload_2019-9-14_17-15-48.jpeg

  5. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Norfolk, VA
    Go forward at least one more bolt hole on those relocation brackets. Shackles should be in the 30*-45* orientation for best suspension articulation :D


    Sent from my iPhone using Tapatalk

  6. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    Got the MORE steering box brace installed this afternoon. @NickMaul i was doing some flex testing in the yard with this angle and it’s really not different than before, still twists pretty good. I may or may not change it.


  7. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Norfolk, VA
    Roger that. Fortunately it looks like your springs are pretty flat at ride height. You’ll be wanting more shackle angle if you get newer springs with more arch in them. Usually a touch more shackle angle will net you some improved ride quality but this is a Cherokee after all!


    Sent from my iPhone using Tapatalk

    iwaxmyjimmy likes this.
  8. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

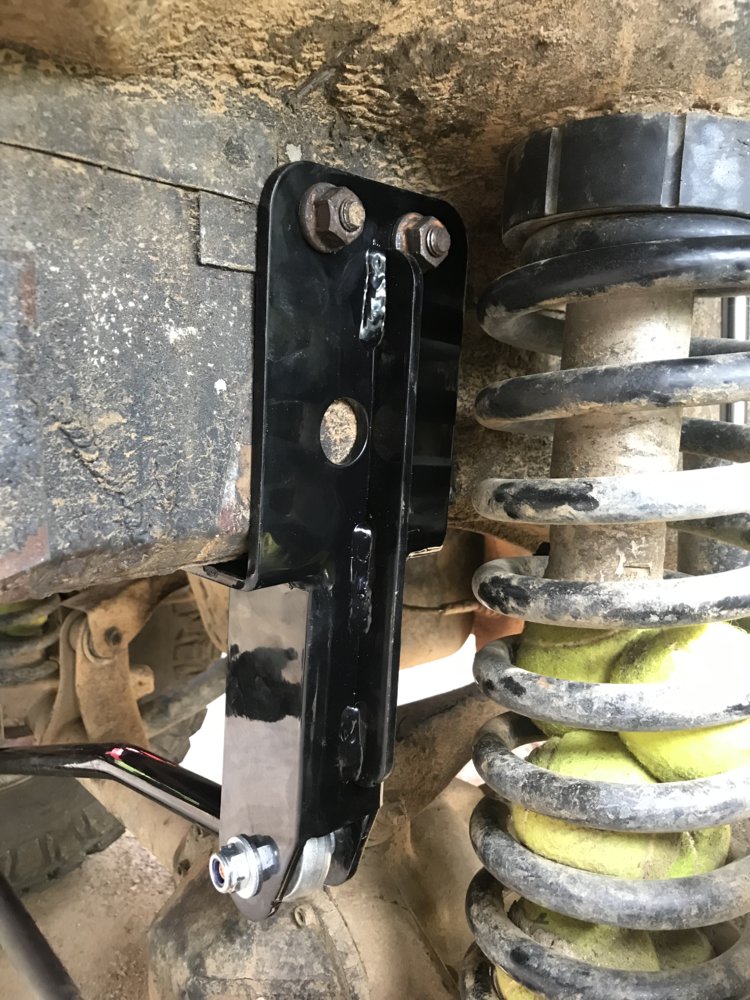

    @NickMaul got the shackles moved forward 1 hole and flipped 180 so it tucks into the bracket better

    NickMaul likes this.
  9. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

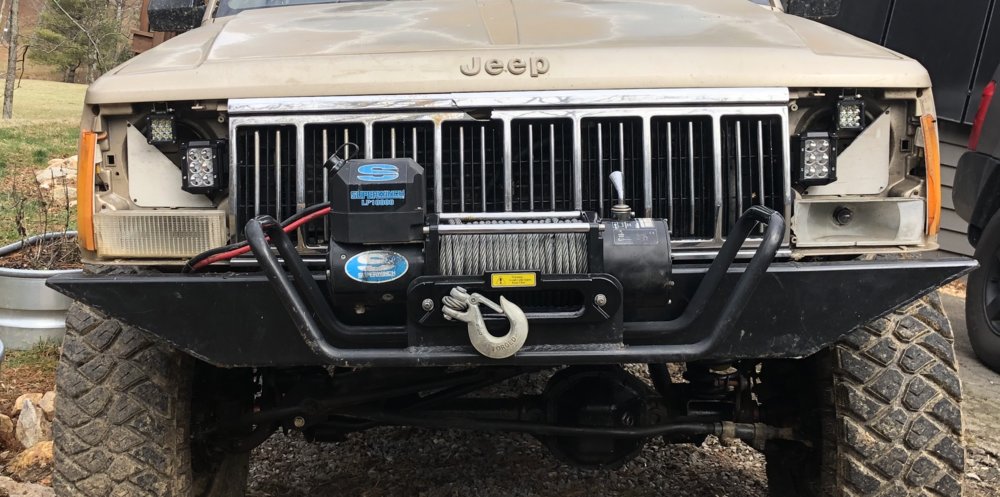

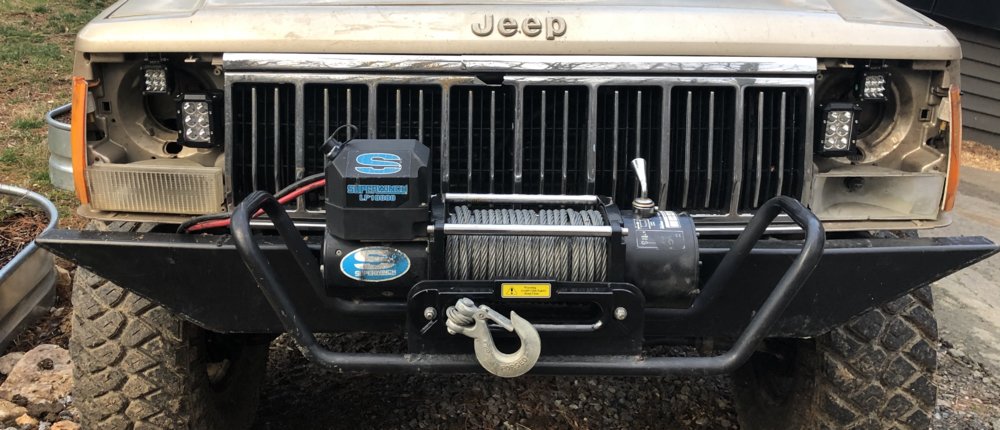

    10k lb superwinch in the tray. Also made a turndown exhaust and a few other doodads




  10. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

  11. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    :beer::beer: upload_2020-2-16_22-44-32.jpeg upload_2020-2-16_22-43-41.jpeg upload_2020-2-16_22-42-10.jpeg

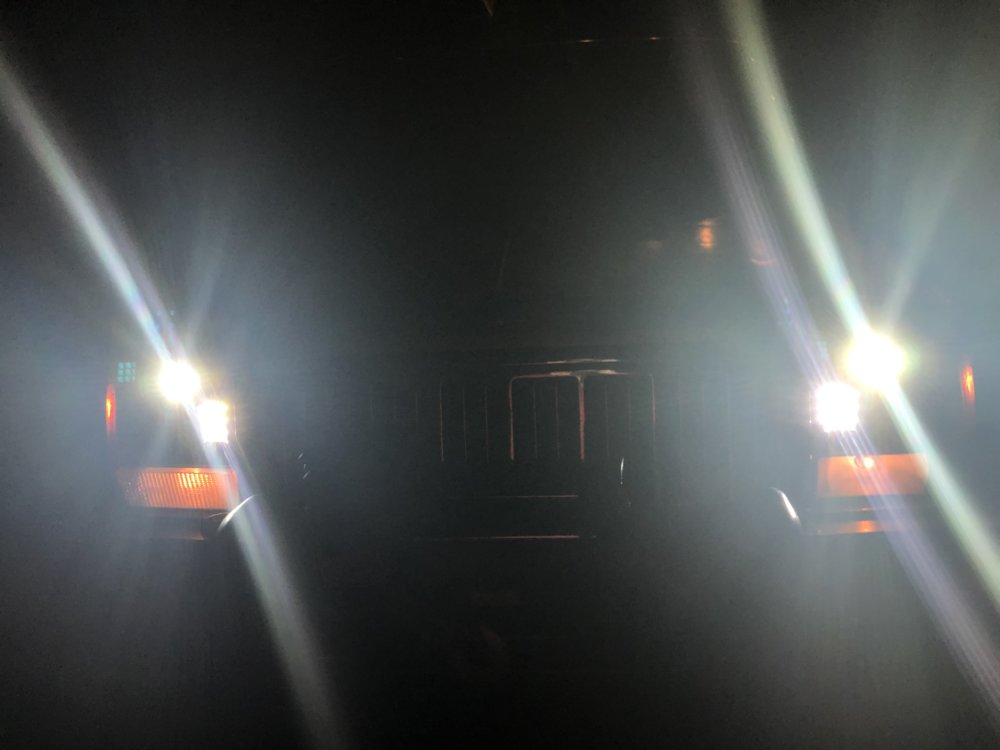

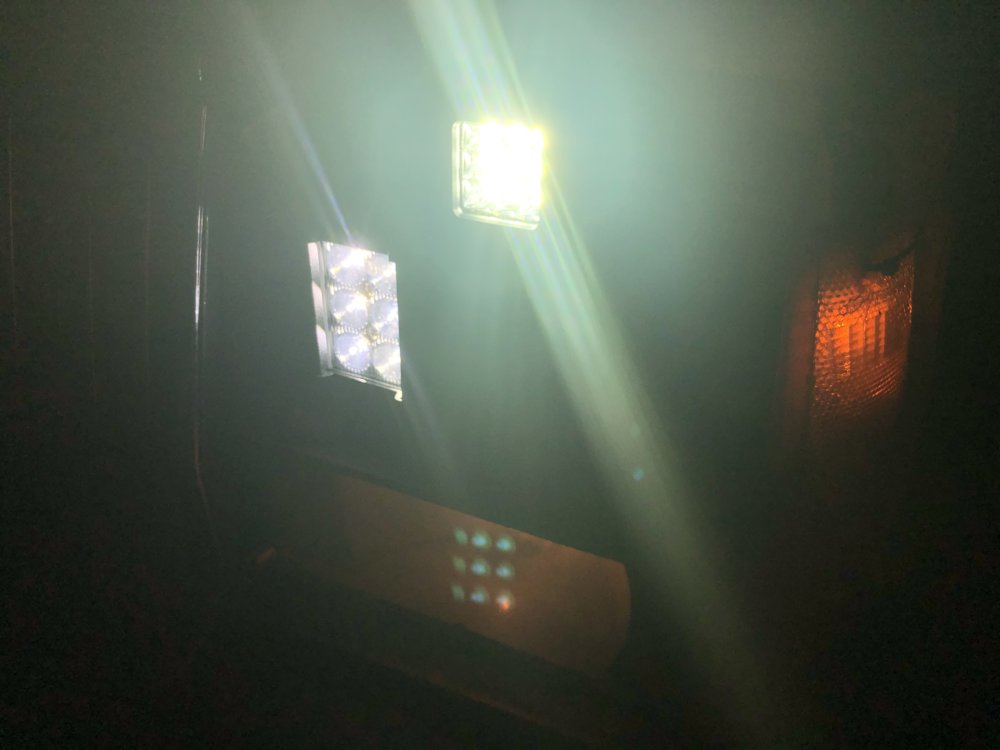

    The old halogen bulbs pulled a lot of wattage for the old headlight circuit, and made the switch get hot over time via resistance. I had some LED light pods in storage I bought some time ago and had forgotten about, then decided to throw em on in place of the old headlights. Admittedly it looks a little different; it’s growing on me. But damn it sure does make for good headlights.

    Race program :beer::beer::beer:

  12. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

    Made some aluminum plates to fill the gap and give it more of a pseudo square headlight look

  13. Jeff B

    Jeff B Thanos was right

    Joined:
    Dec 23, 2006
    Location:
    Lincolnton N.C.
    Thank you for no angry jeep xj.

    336wheeler likes this.
  14. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Norfolk, VA
    So your light options are high beams and high beams :flipoff2:

    336wheeler likes this.
  15. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    Correctamundo. I like to think of it more as On/Off.

  16. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    upload_2020-3-21_19-39-58.jpeg upload_2020-3-21_19-39-16.jpeg

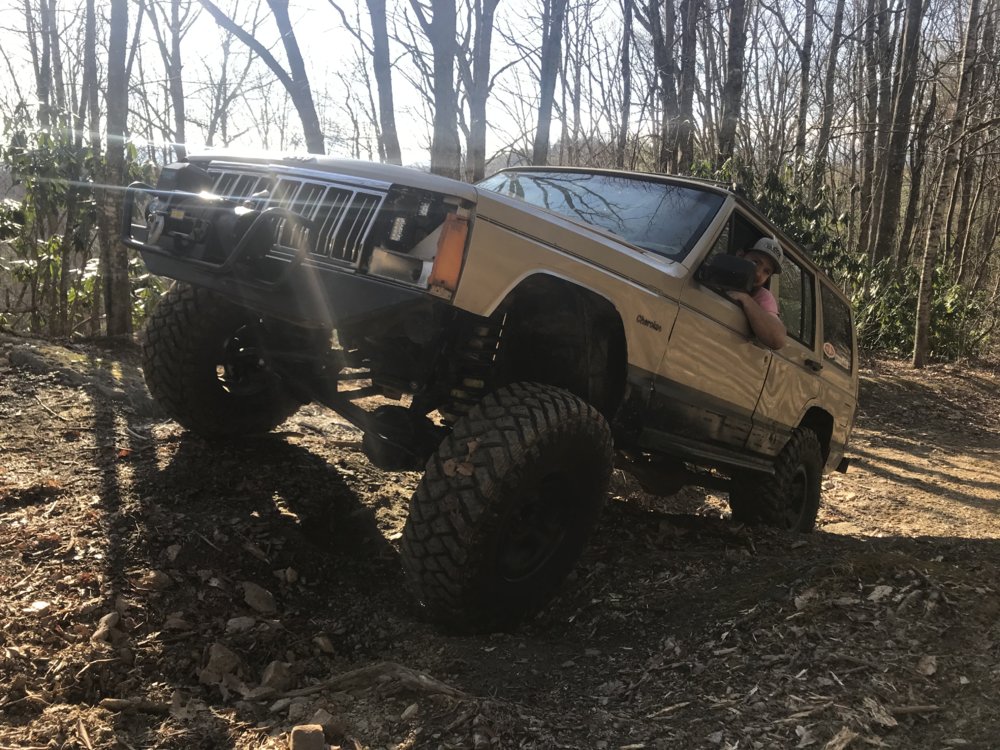

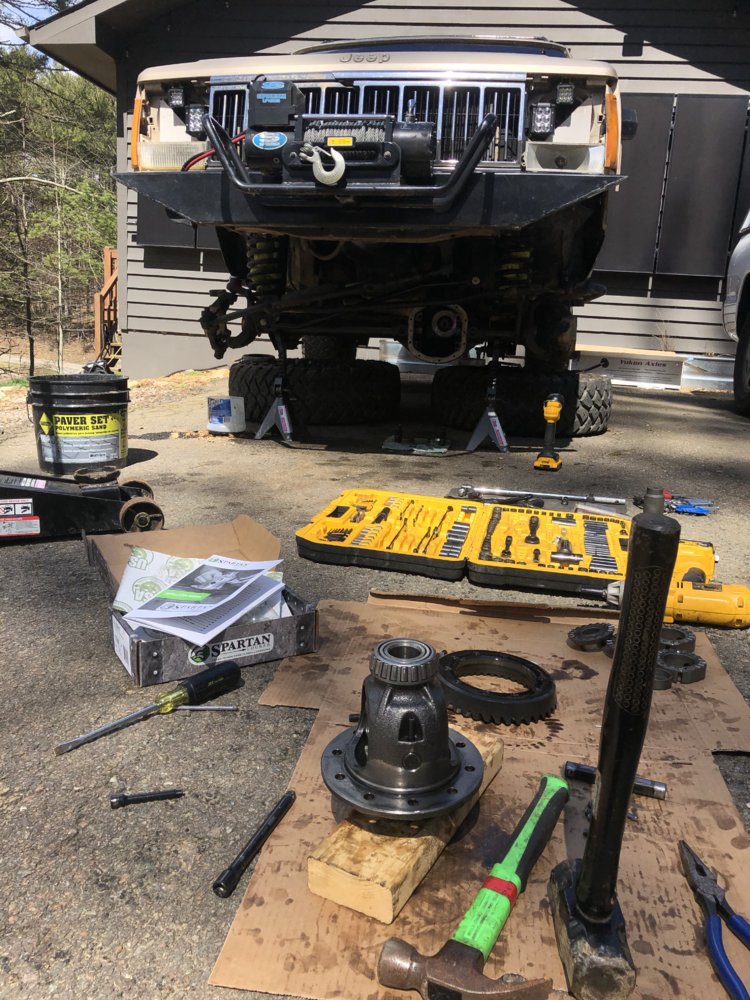

    Put a new locker in the front today; my lock right had sloppy teeth so I put a Spartan in.

    Also did 4340 Yukon shafts with Spicer 760X joints.

    Then I went four wheeling!

    doc, ghost, GOAT and 2 others like this.
  17. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    Corona project teaser pic


  18. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    Was able to get the X-member done this afternoon



  19. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

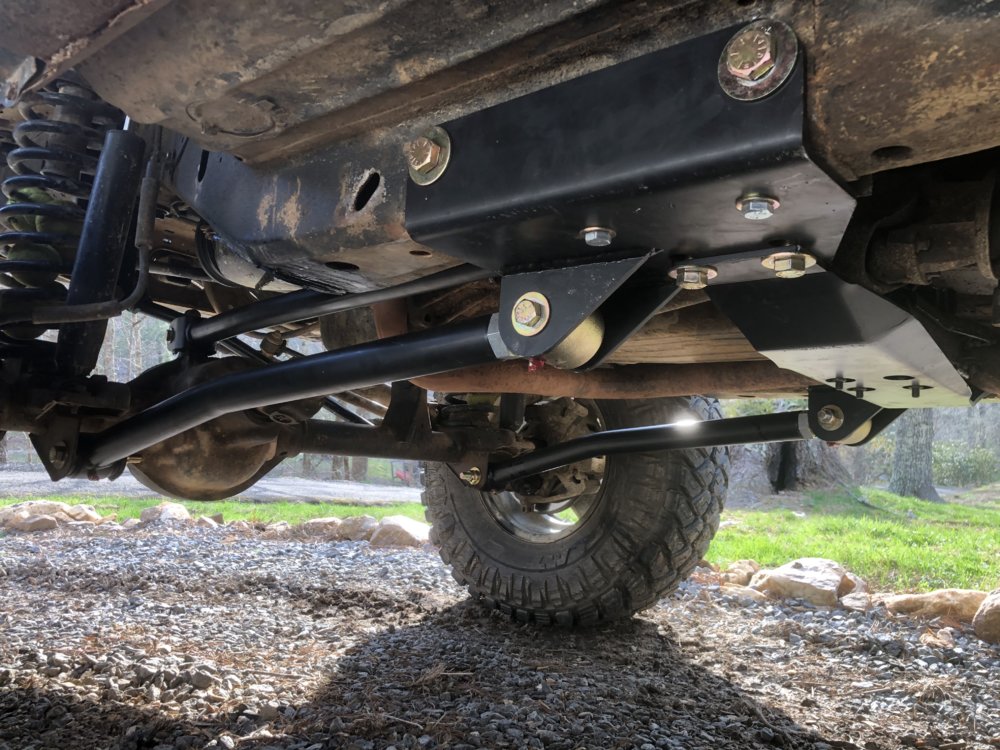

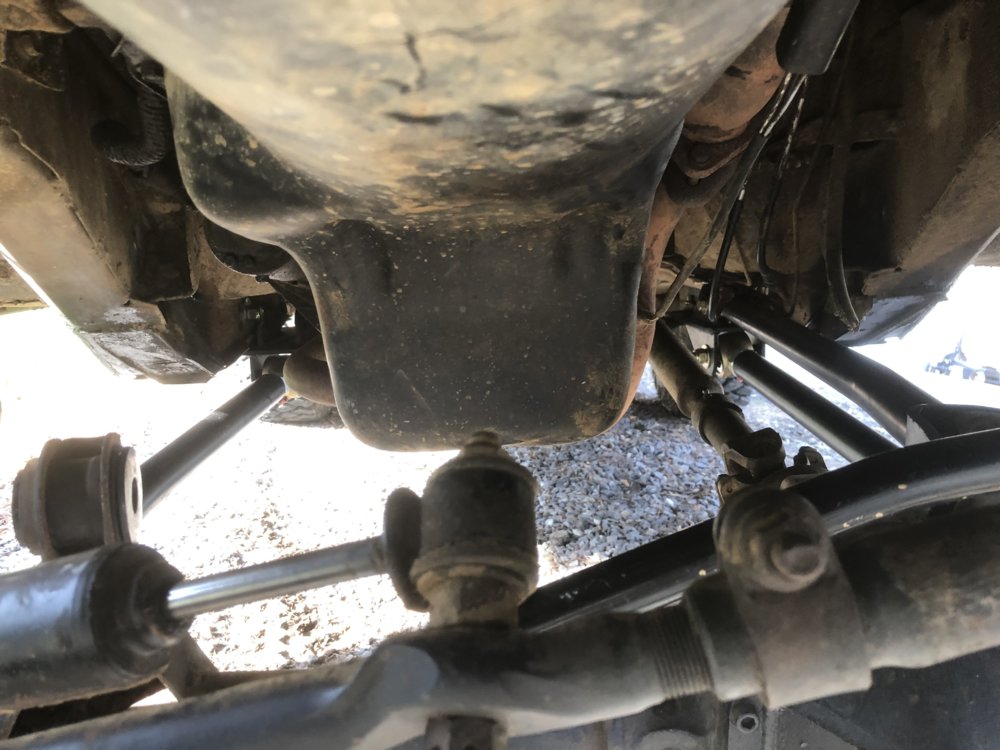

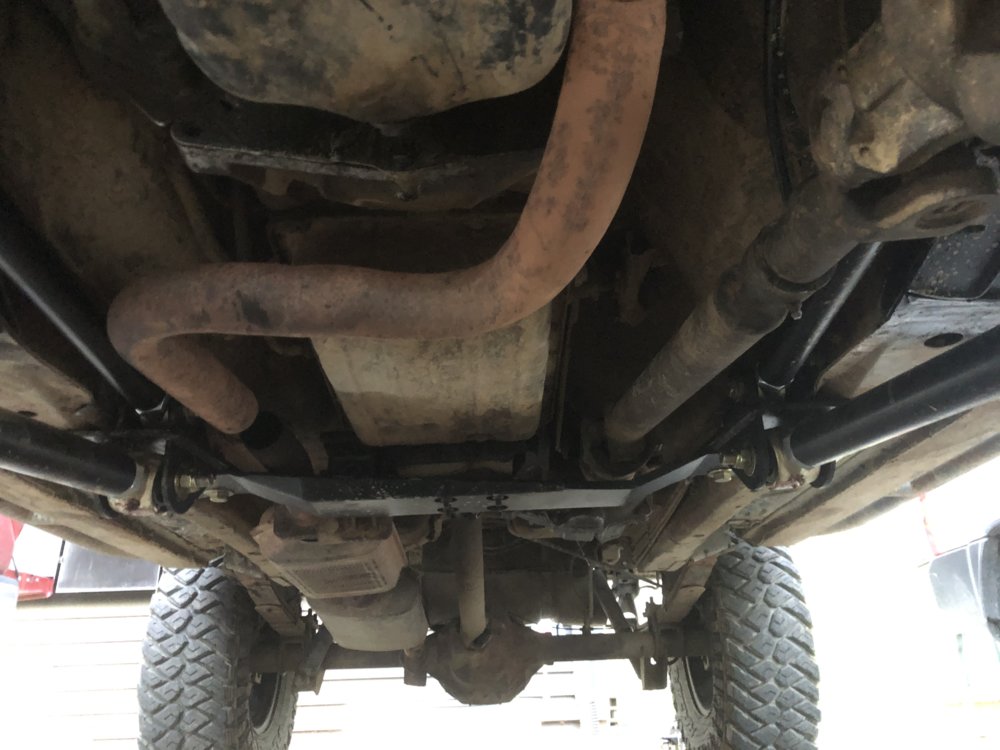

    Got the 3 link in today. May add the 4th link but I think it will bind less without it. Road manners would probably be a little better with a 4th link but thats long forgotten at this point.

    upload_2020-3-27_18-44-24.jpeg upload_2020-3-27_18-33-6.jpeg

  20. NickMaul

    NickMaul Well-Known Member

    Joined:
    Jul 4, 2009
    Location:
    Norfolk, VA
    I would really consider changing that upper link bolt at the axle. I believe Currie sells a cartridge joint that drops into the casting. I believe they also offer a larger bolt diameter which you should be looking to upgrade.

    That small fastener breaks and all hell is going to break loose on your front end. Maybe utilize that 4th link until you have the means to upgrade the upper axle link bushing.


    Sent from my iPhone using Tapatalk

    Last edited: Mar 27, 2020
    iwaxmyjimmy likes this.
  21. StretchASU

    StretchASU Well-Known Member

    Joined:
    Oct 17, 2006
    Location:
    Creedmoor, NC
    If a 1/2” grade 9 bolt shits the bed in the immediate future, he was doing something way more than should have been happening in a shitmissile XJ powered by blue cans. In that case I’m pretty sure he knows what he’s got coming, will drag it home, booger it back together and repeat the process.

    Sick rock missile @336wheeler.

    Charles Sauder and 336wheeler like this.
  22. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
  23. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone

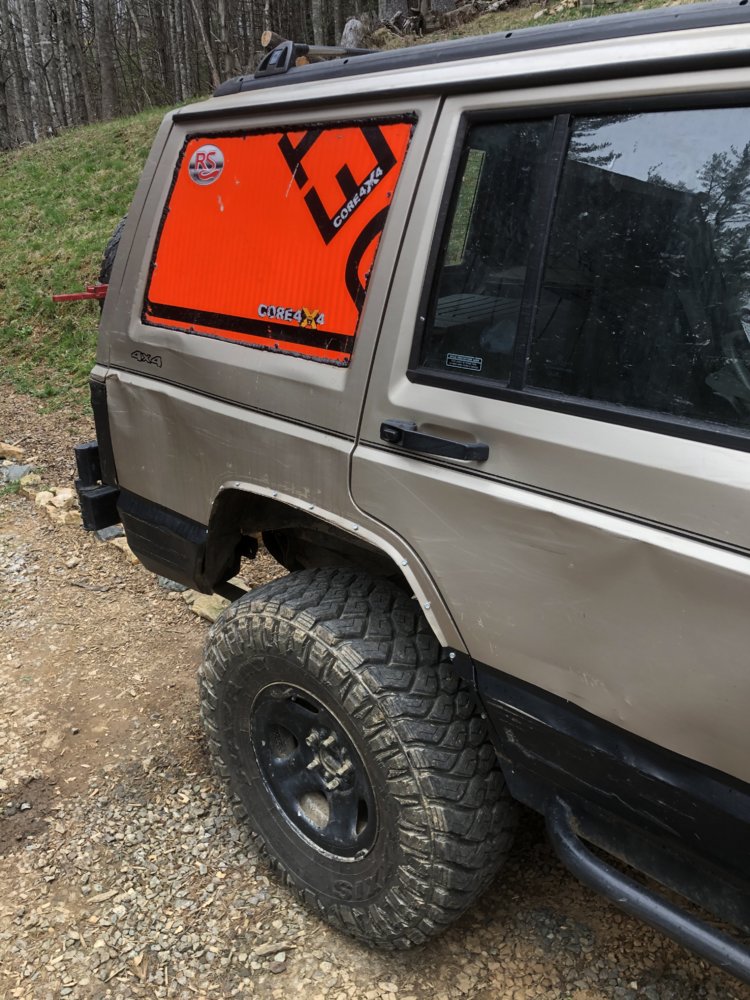

    Well after blowing out the glass a few nights ago it really took a hard turn down Shitmissile Road


    Attached Files:

    Last edited: Mar 31, 2020
  24. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    @NickMaul now a bus full of nuns in groups under 10 can’t get killed on the trail


    NickMaul likes this.
  25. 336wheeler

    336wheeler Well-Known Member

    Joined:
    Sep 9, 2006
    Location:
    Boone
    More pics
