Mr. Ed buggy

come on we have a ride n march!!. thanks tim, but seriously, its gonna b a push to get mine all buttoned up, with business so heavy rite now. really wanna be done for KOH and drag it out to spectate. we'll see.

mcutler said:
come on we have a ride n march!!. thanks tim, but seriously, its gonna b a push to get mine all buttoned up, with business so heavy rite now. really wanna be done for KOH and drag it out to spectate. we'll see.
Click to expand...

I hear that. With my wifes situation we will see how thing turn out.

progress

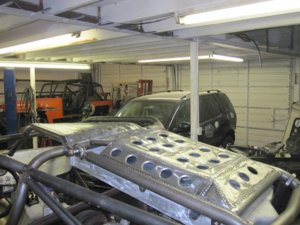

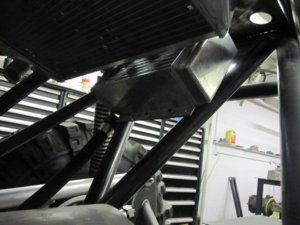

well, was able to get the intercooler mounted. also had to make a shield and opening to pull the motor out. think it turned out pretty good. did alittle work to the front, tranny cooler and couple more braces.


Attachments

  • intercooler 001.JPG

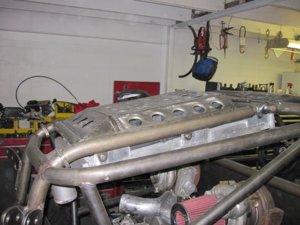

    intercooler 001.JPG
    181.8 KB · Views: 1,315
  • intercooler 002.JPG

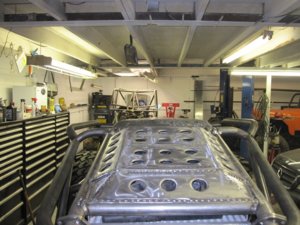

    intercooler 002.JPG
    210.4 KB · Views: 1,281
  • intercooler 003.JPG

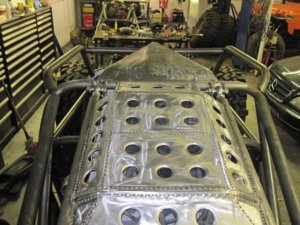

    intercooler 003.JPG
    236 KB · Views: 1,309
  • intercooler 004.JPG
    intercooler 004.JPG
    187.4 KB · Views: 1,258
  • intercooler 005.JPG

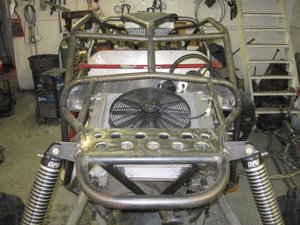

    intercooler 005.JPG
    230.4 KB · Views: 1,332
  • intercooler 006.JPG
    intercooler 006.JPG
    160.3 KB · Views: 1,302
That's freaking beautiful.

is that tube going to be welded to the sheet?
I see your aftercooler is solid mounted to your cage, you're not worried about any sort of flex induced from the engine that could crack it?

killer looking set up Tim.

my last buggy all the coolers were solid mounted and i never had issues. i think the chassis should be pretty regid.

firetoy said:
my last buggy all the coolers were solid mounted and i never had issues. i think the chassis should be pretty regid.
Click to expand...

Gotcha, just curious, not critisizing your buggy's chassis, especially since I'm the one that can barely notch a tube ;)

(tap tap tap)

You've got time to buy new trucks, you've got time to build stuff for me to look at at work Tim. . . . :D

little update, sent the motor off to be built along with the tranny. when i get them back i am going to install everything, wheel it a couple times, tear it done and paint it.

Tim, you crazy mofo. That thing is the sickest buggy i've seen. And i thought your last one was sweet. This one just tops the cake. You're gonna have to take it out and wheel with it when i get back over to the east coast brotha!

Jonnyjpr said:
Tim, you crazy mofo. That thing is the sickest buggy i've seen. And i thought your last one was sweet. This one just tops the cake. You're gonna have to take it out and wheel with it when i get back over to the east coast brotha!
Click to expand...


thanks dude.

Updates???

sorry guys. this build was delayed, but don't give up on me. motor will be back from the engine builder this week. then i will have a welding fest. if any of you guys have any time, feel free to come down to the shop and do some welding. i will buy yeah lunch.:driver:

update

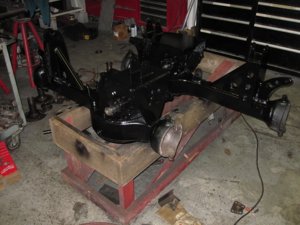

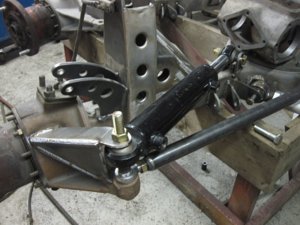

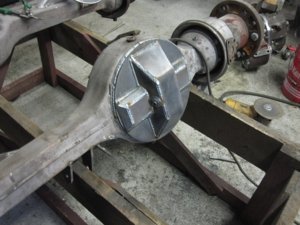

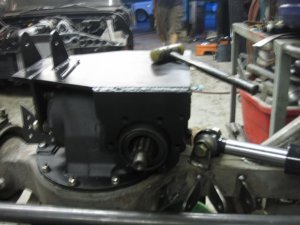

well started back on this thing. getting the axles back together. had mud machine the center chunks so the will spin backwards. also got the steering figured out. should have them completely backtogether tonight.


Attachments

  • 001.JPG
    200.7 KB · Views: 1,114
  • 005.JPG
    194.2 KB · Views: 1,178
  • 006.JPG

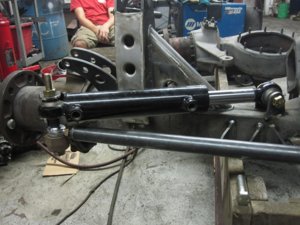

    210.2 KB · Views: 1,139
  • 007.JPG

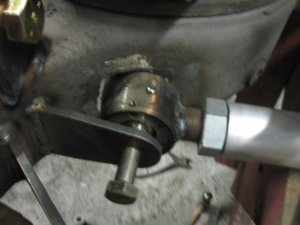

    139.4 KB · Views: 1,094
  • 016.JPG
    167 KB · Views: 1,097
