Project dirt dobber

[ORV design and fab]

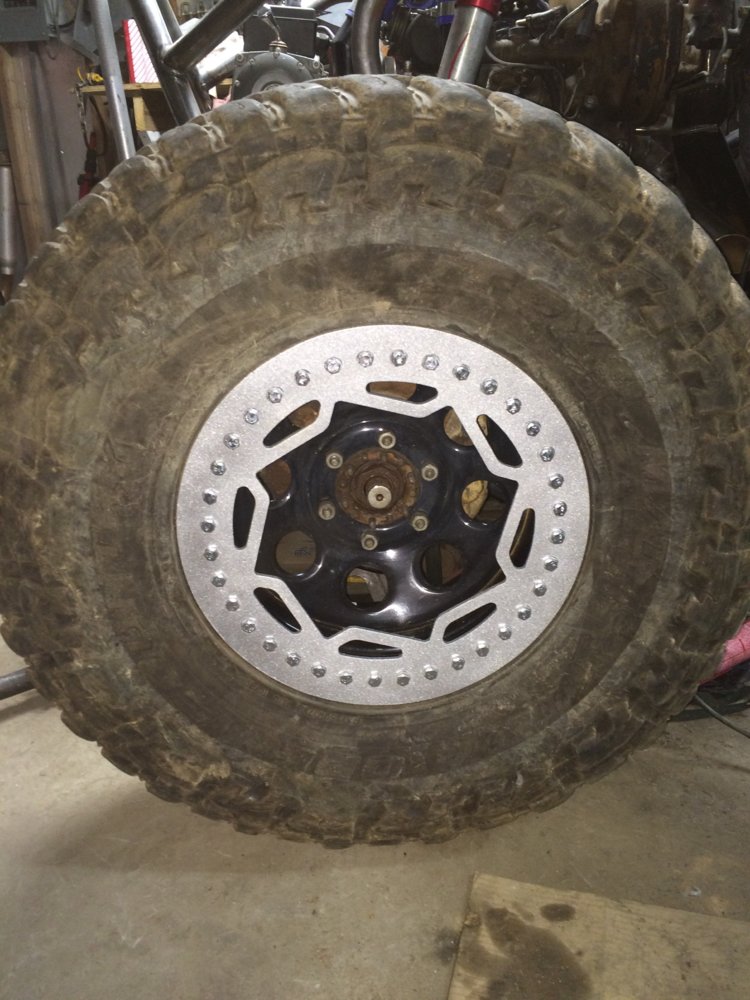

Got some toyo stickies from taco747, and beadlocks from bnboffroad, now more work but I hope the toyo stickies make a difference!



[ORV design and fab]

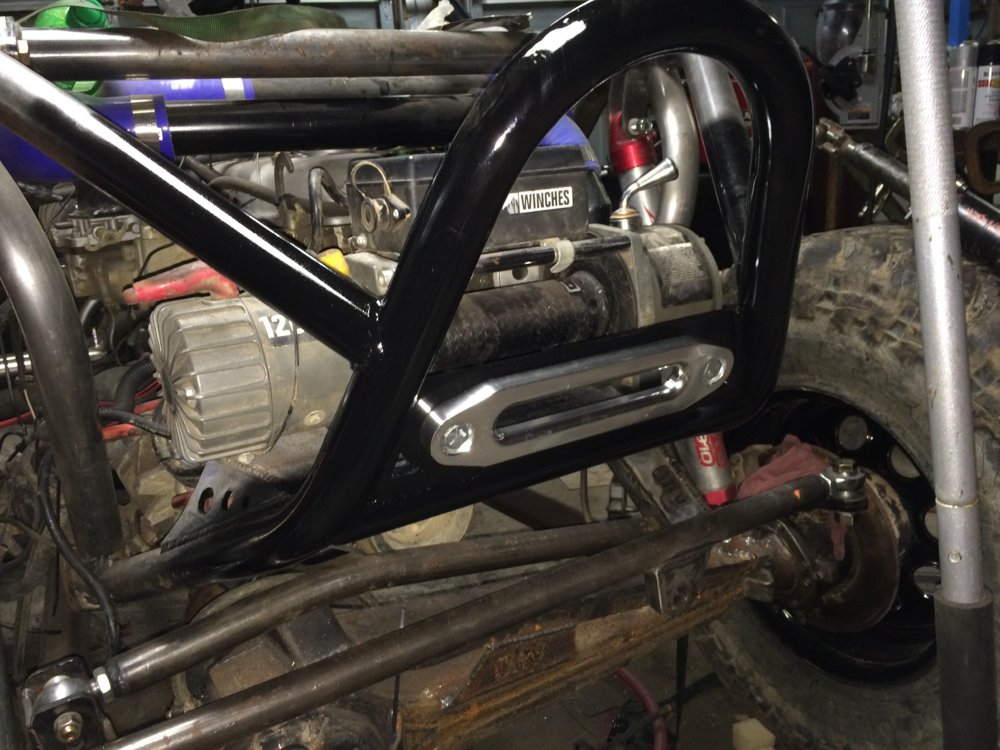

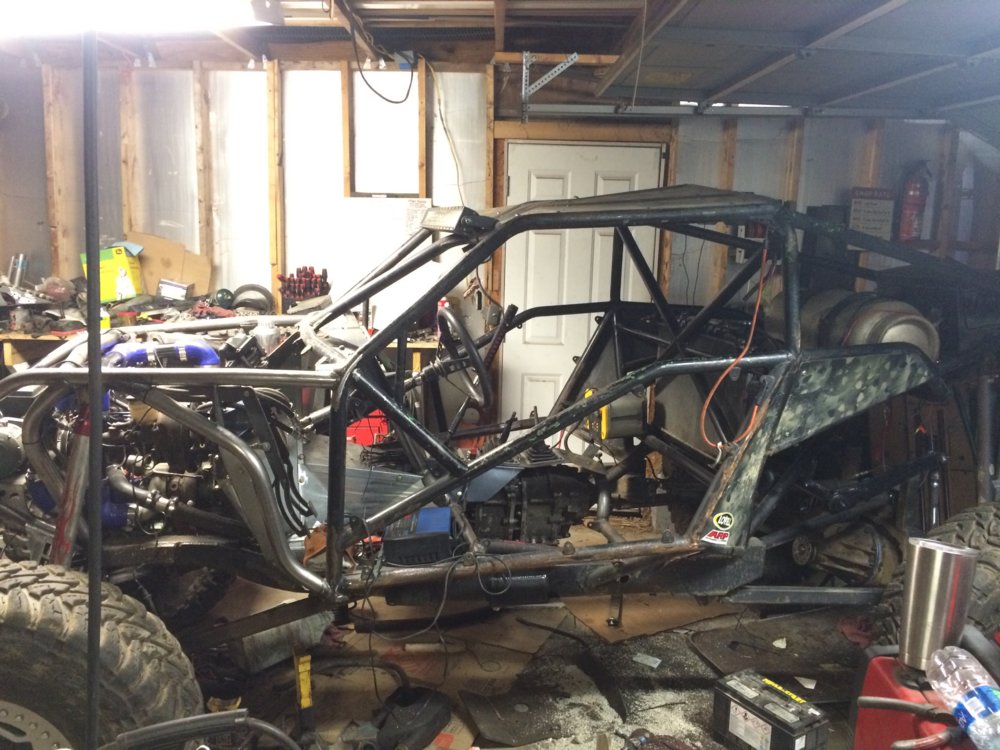

Working on the buggy, knocking out things in the list!!!! Only 500 more to go



[ORV design and fab]

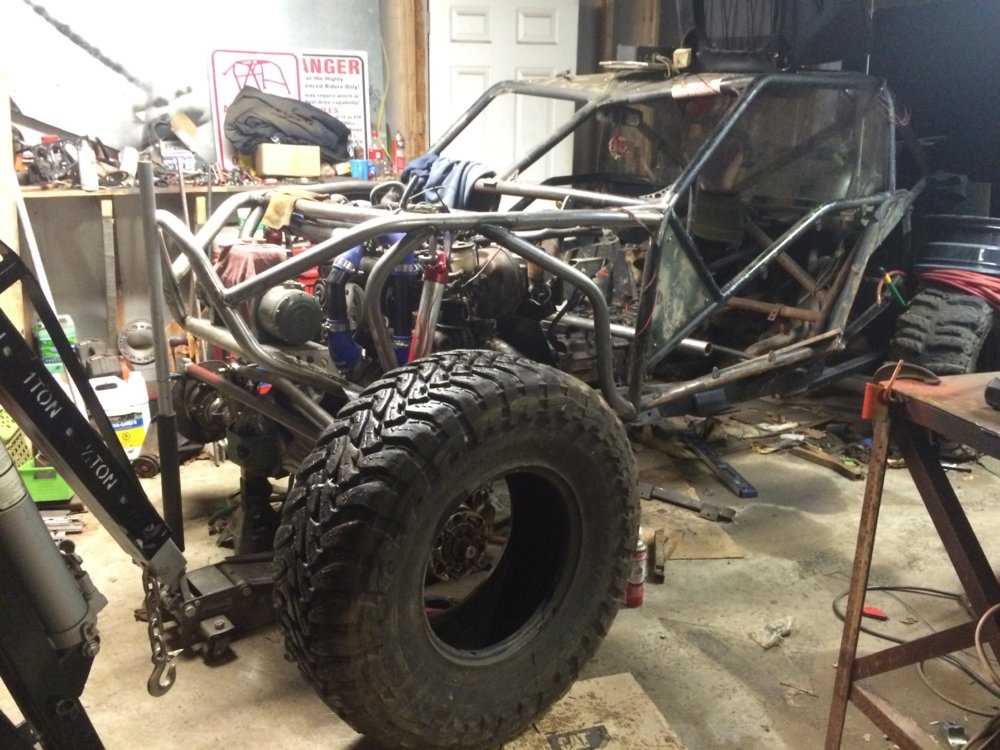

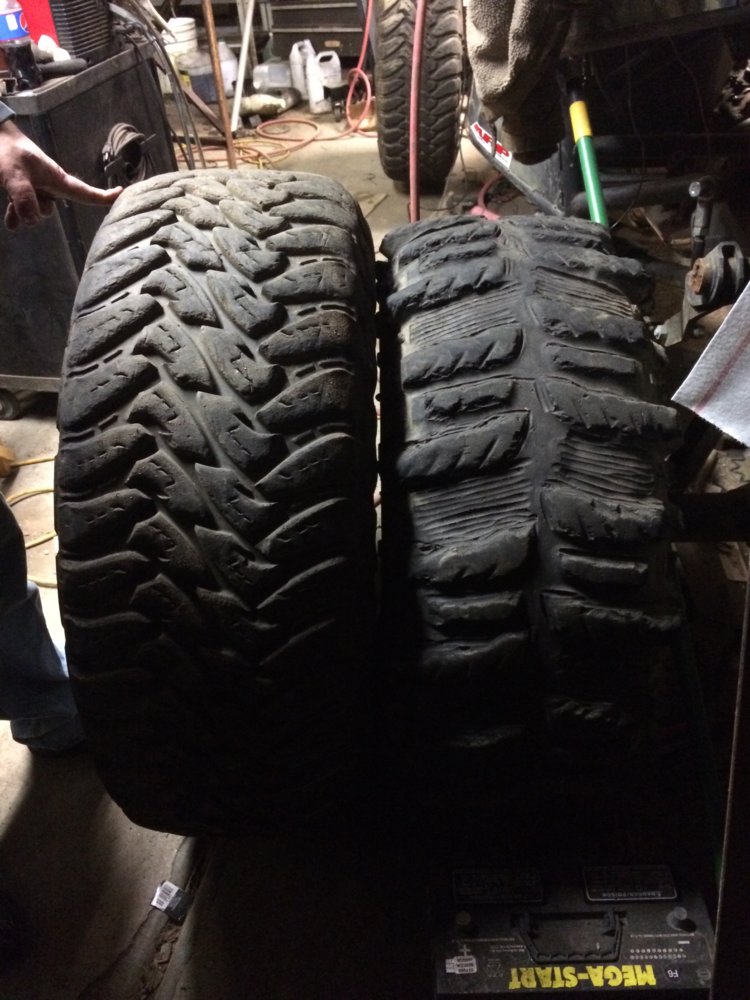

37 Toyos compared to the 37" boggers



[ORV design and fab]

I was able to get some good work on the buggy again this week, thanks to all my friends that came over and helped give me ideas on the dash and such!!! Coming along



[ORV design and fab]

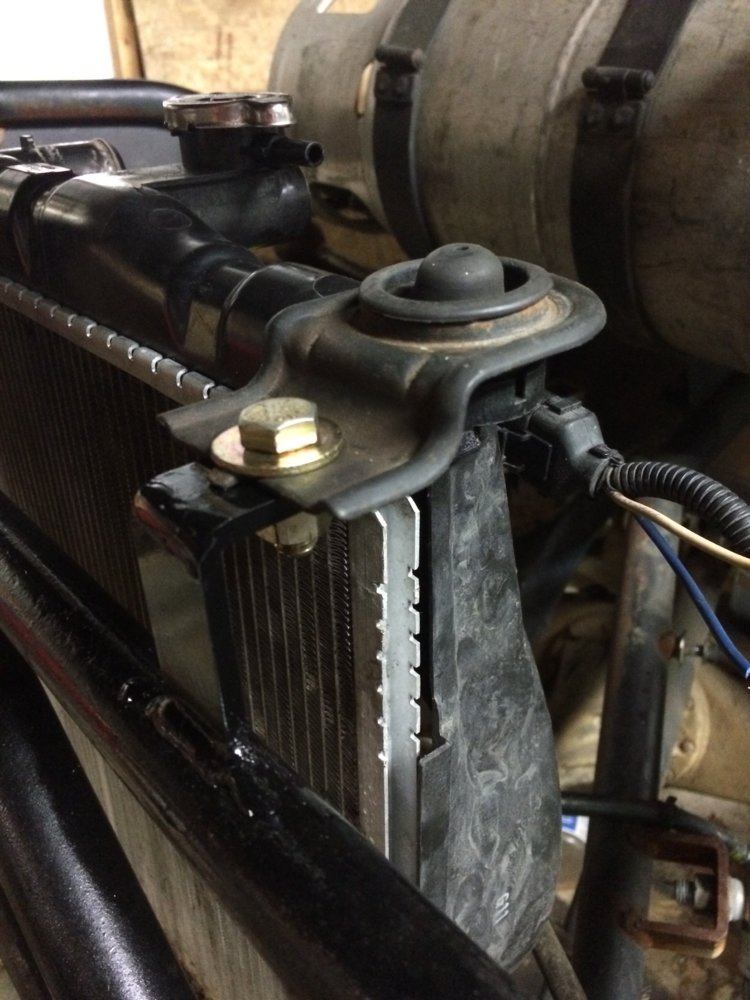

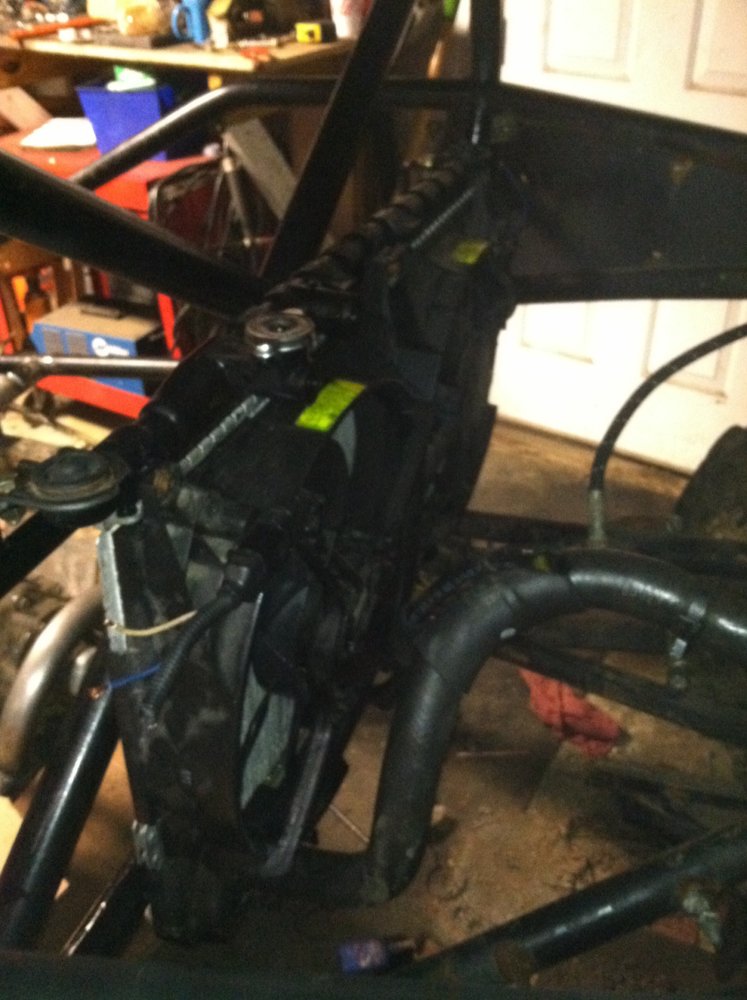

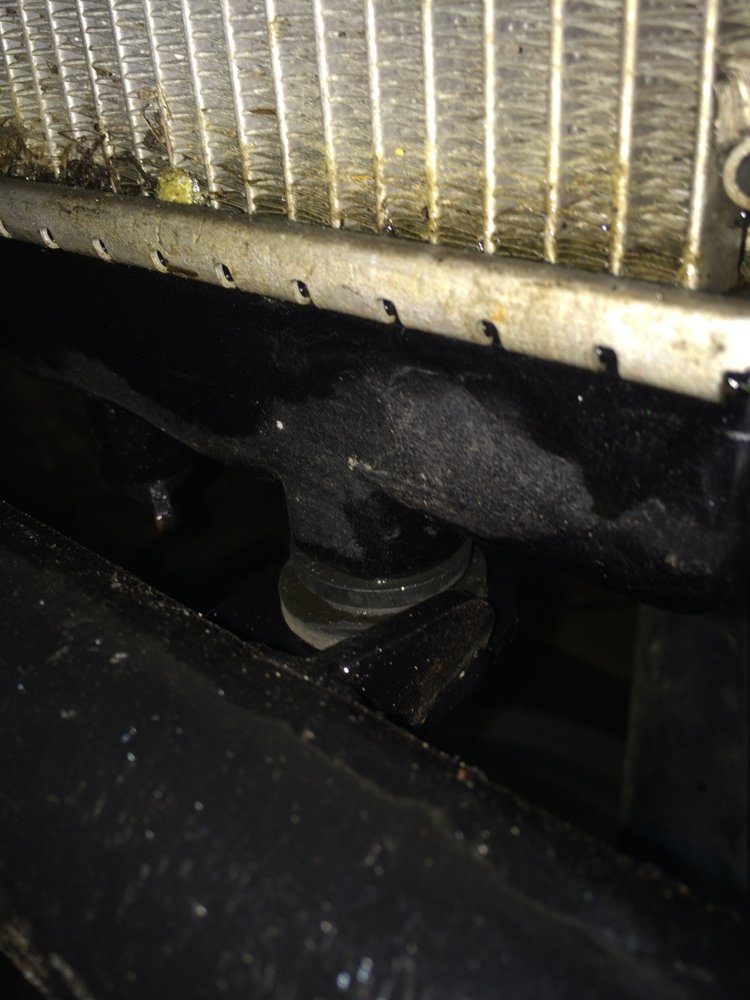

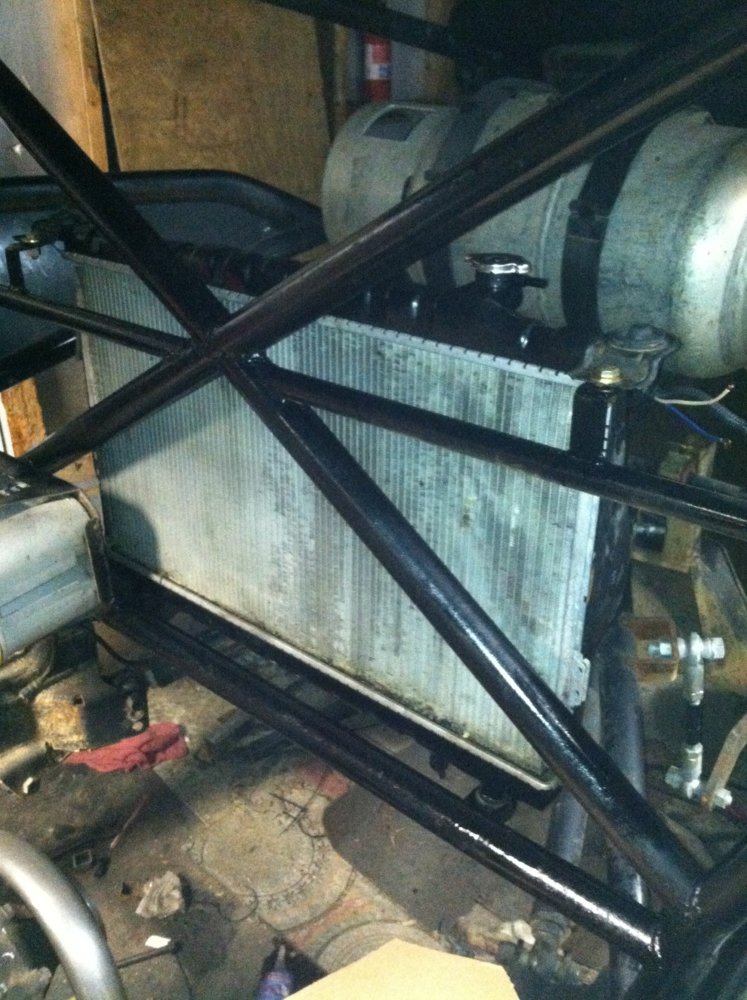

Was able to get a used radiator from a pick and pull by the house and found this one that looked relatively new, so I grabbed it and used stock isolation mounts on my buggy, seems like its going to work well, grabbed some marine exhaust tube for the lines to mount from engine to radiator, it's coming along



[ORV design and fab]

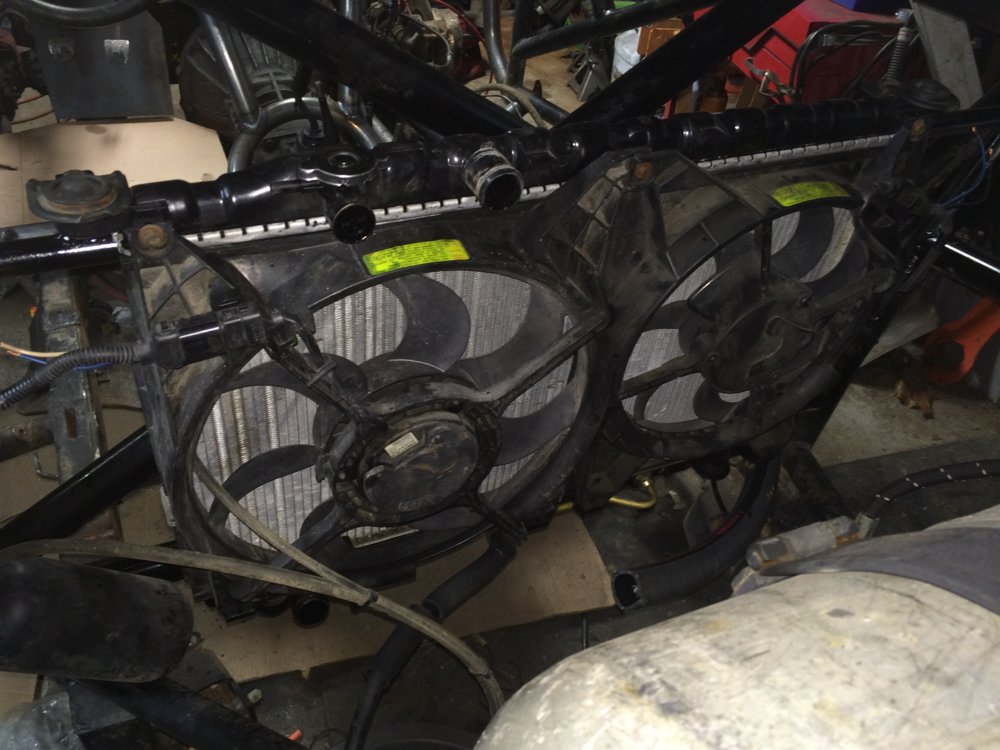

Here is some better pics, I'll post when I clamp the hose and get everything mounted for good



[ORV design and fab]

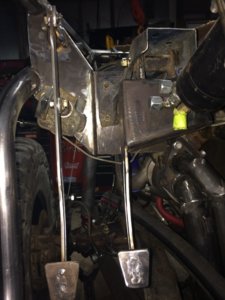

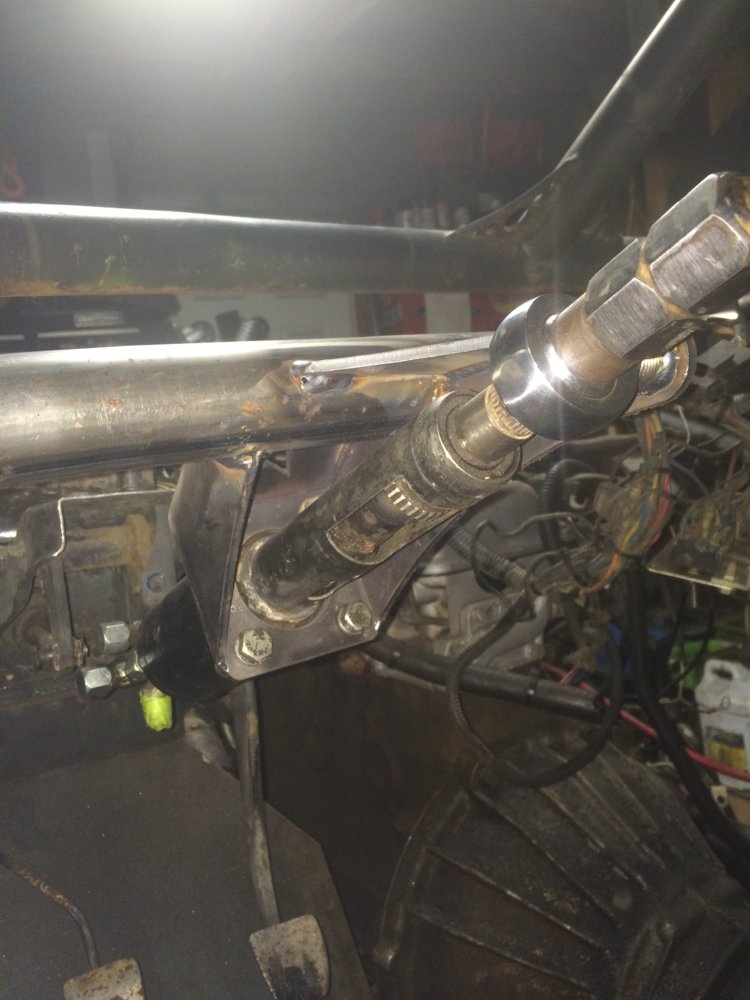

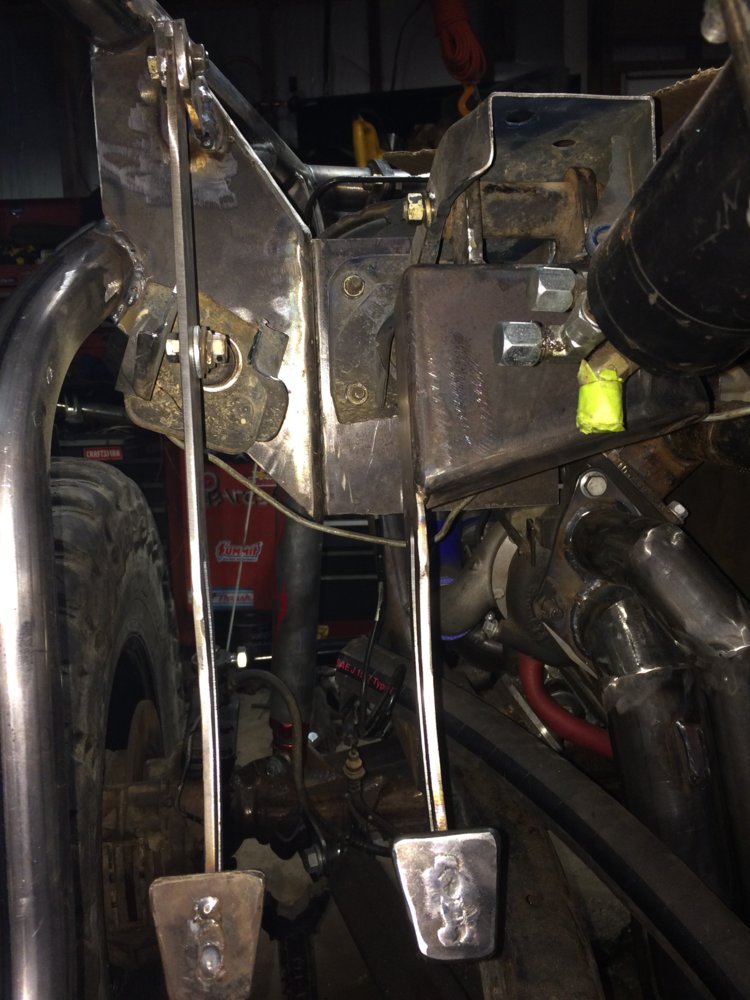

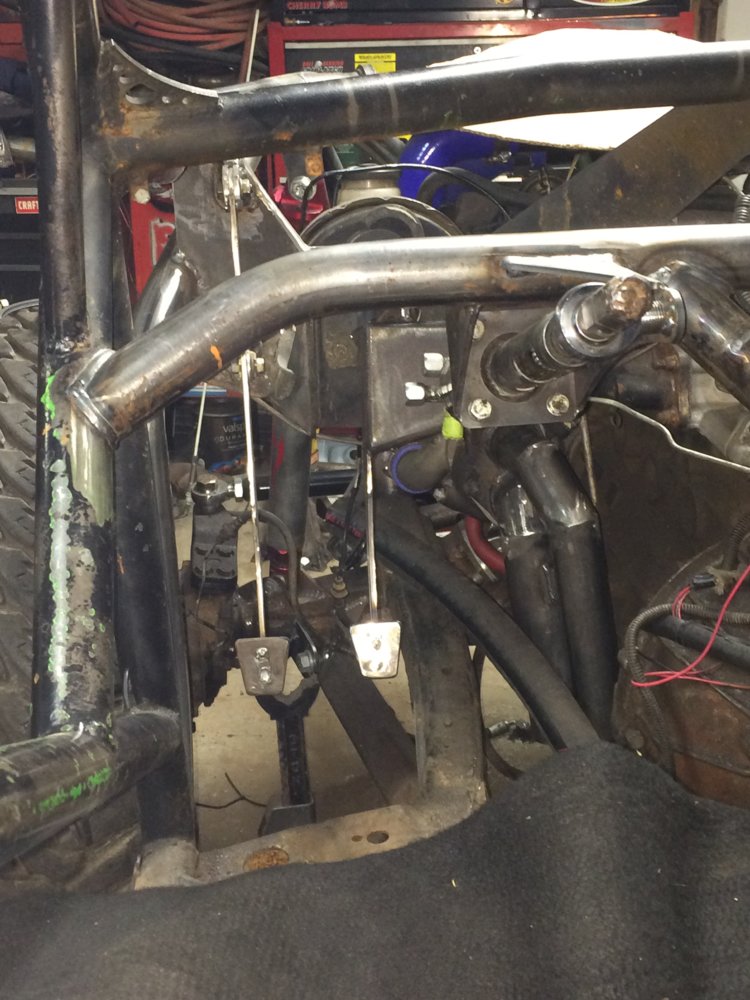

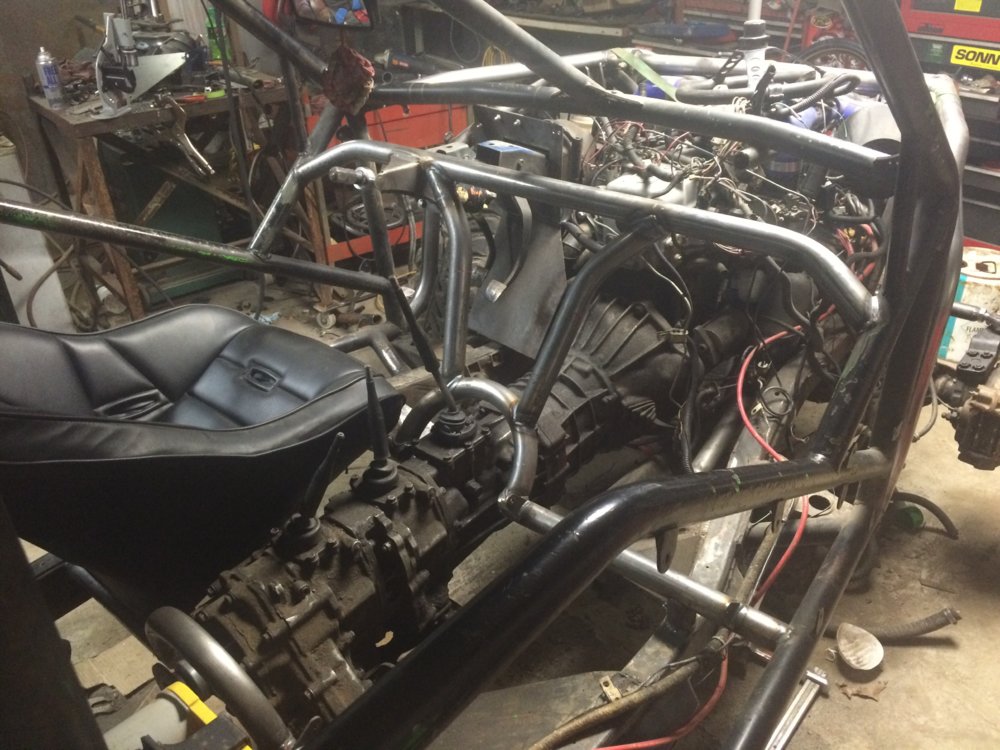

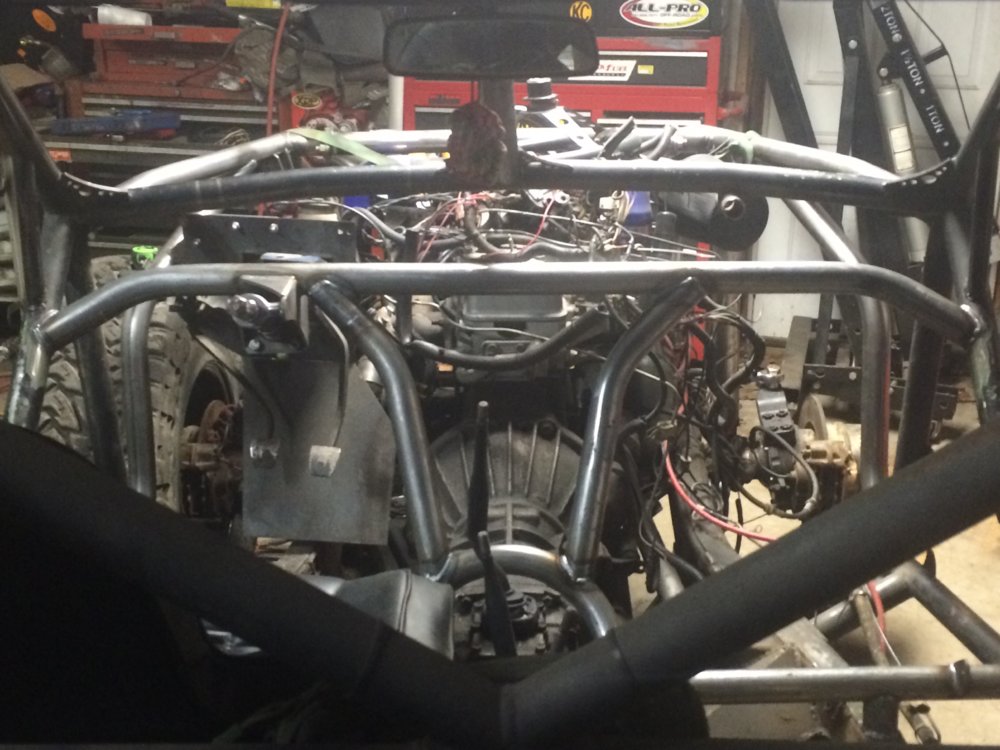

Was able to knock out some pedal issues, factory pedals pushed way outside of the fender area and into the tire, brake was too far over and I had no room for the gas pedal, so I made a clutch pedal with a throw of 3" instead of 8" factory throw, I'm hoping I can still feather the clutch and it not be too jumpy, but we will see and I'll fix it if need be, refabbed brake pedal over 5" and this givese a lot of room for gas pedal, exhaust was rerouted straight down instead out of the fender area, so it should keep my feet cooler,

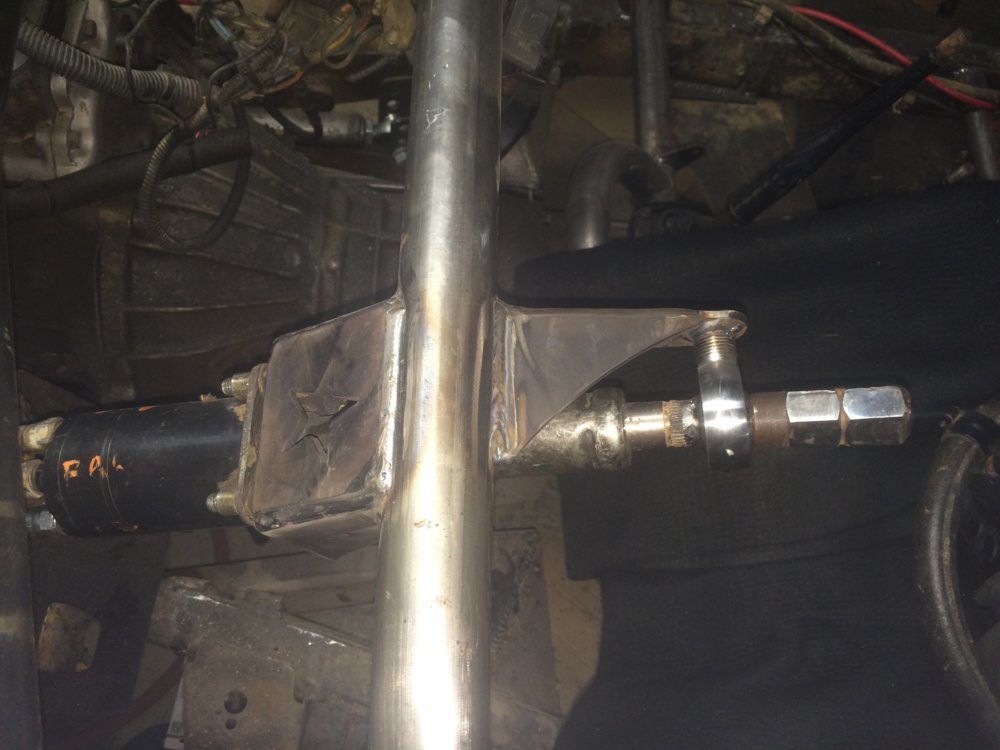

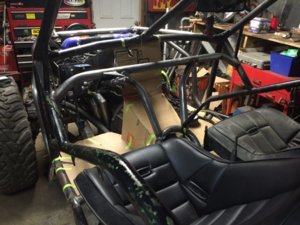

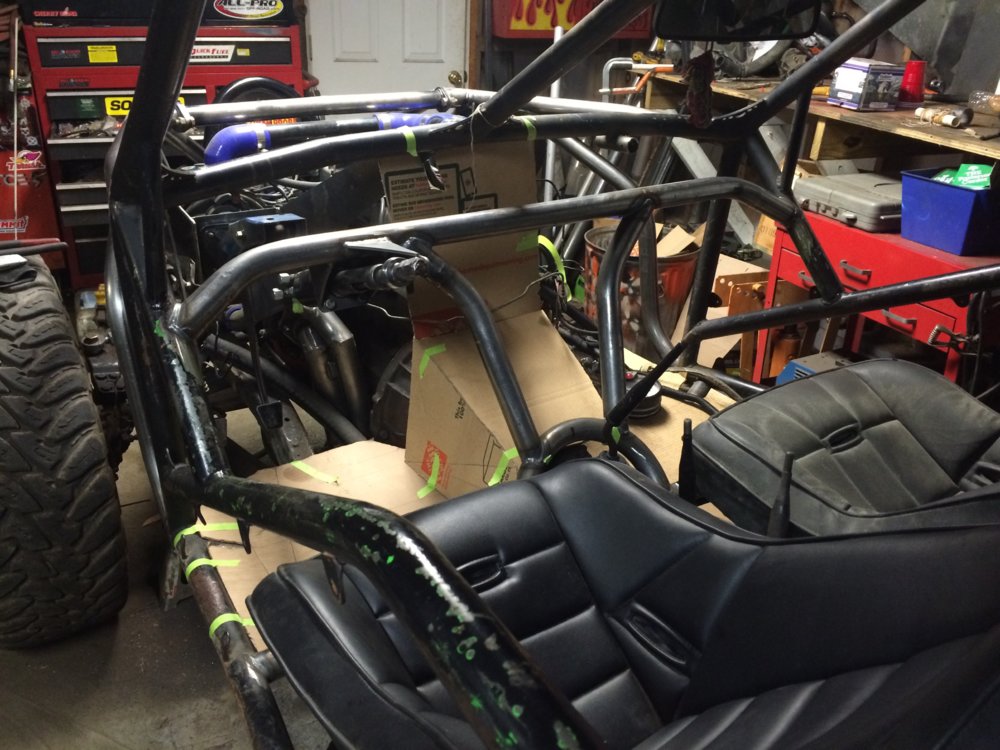

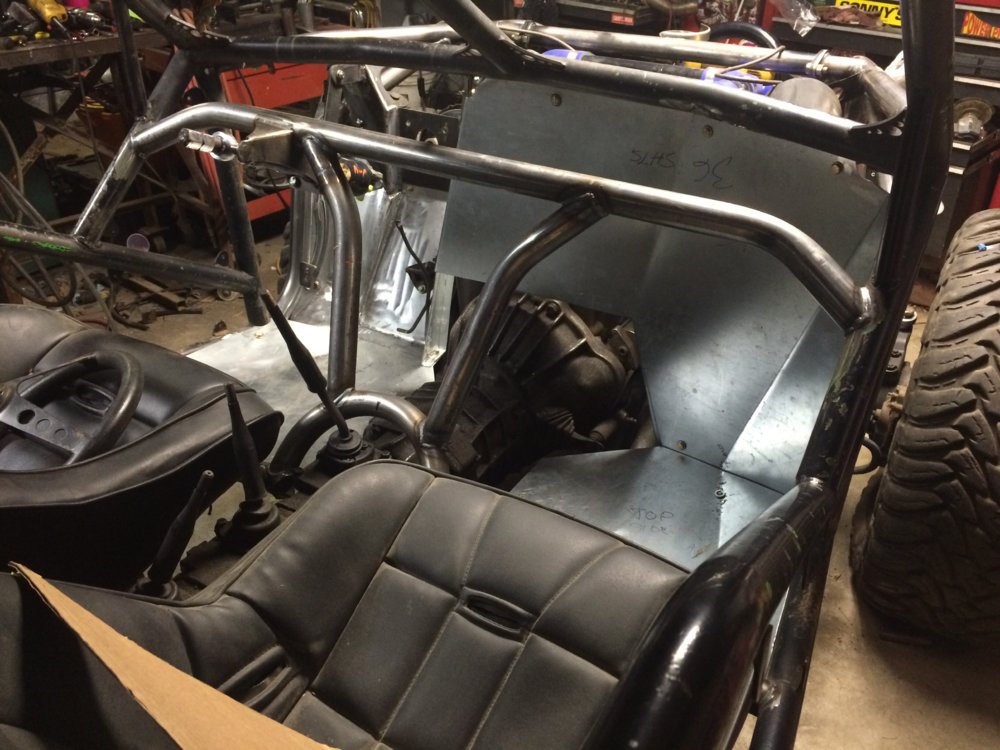

After pedals were fixed I moved onto cardboard interior



[ORV design and fab]

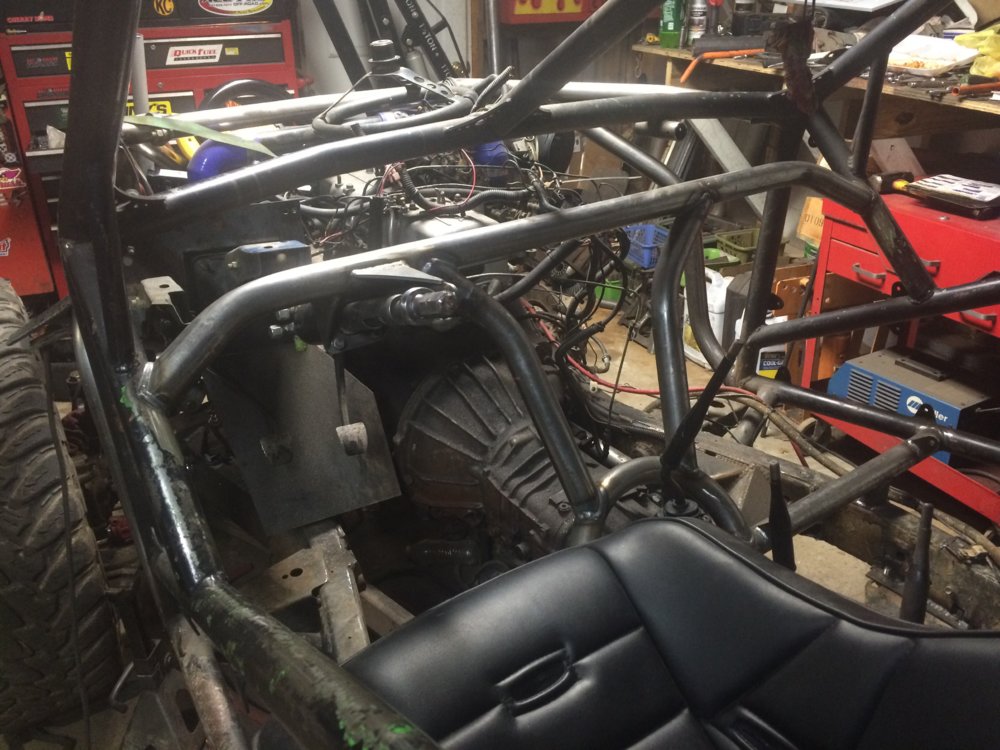

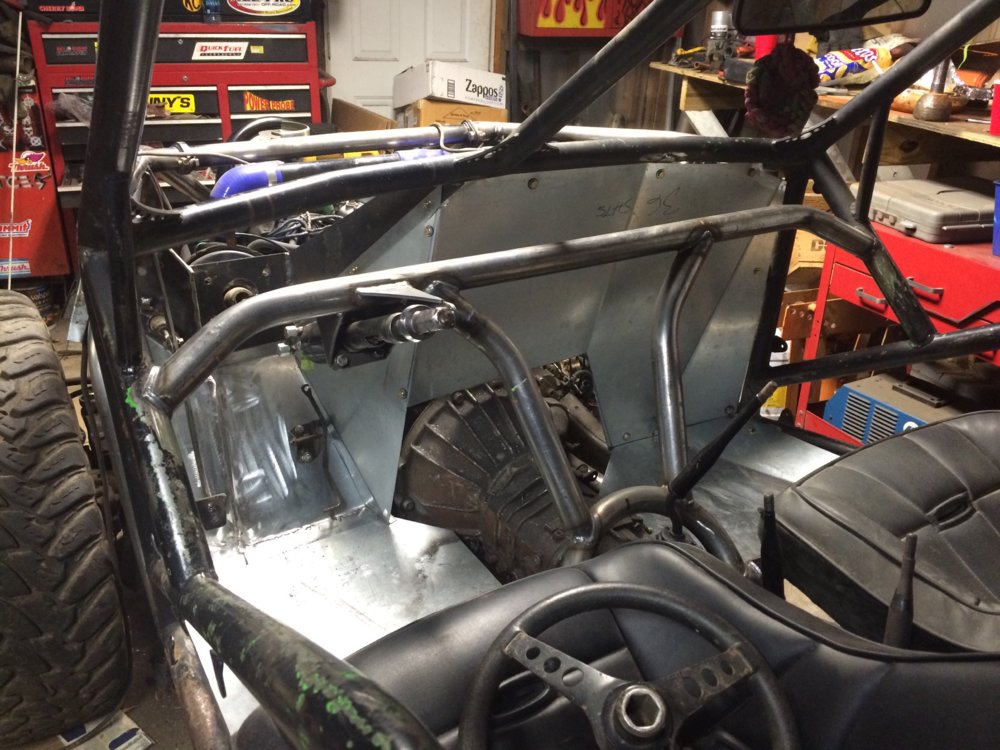

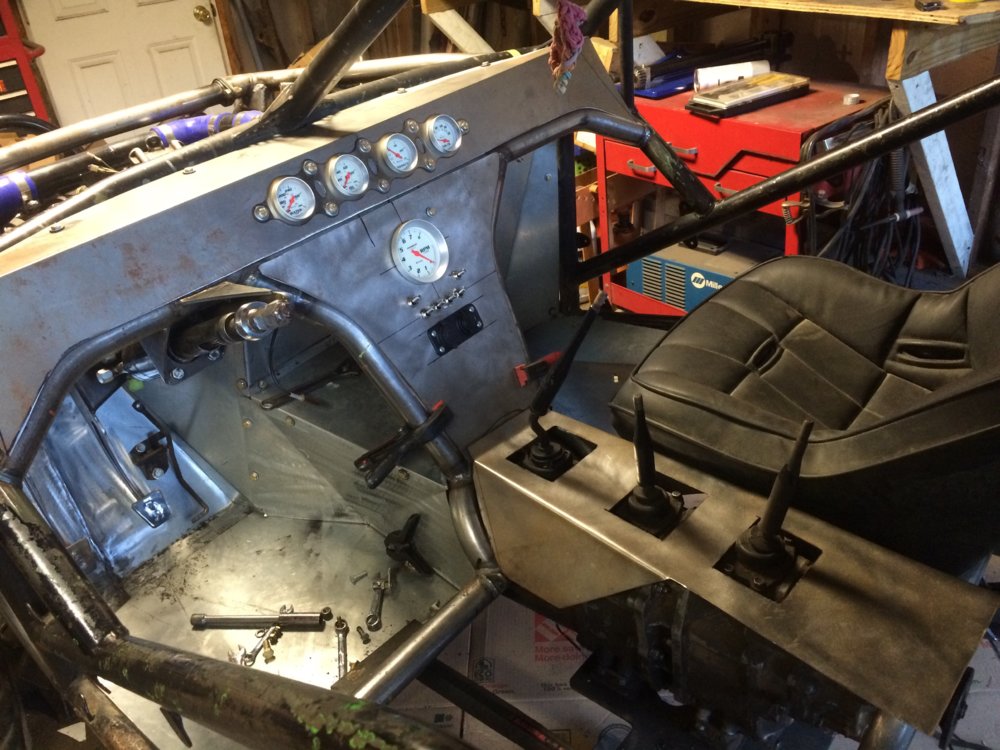

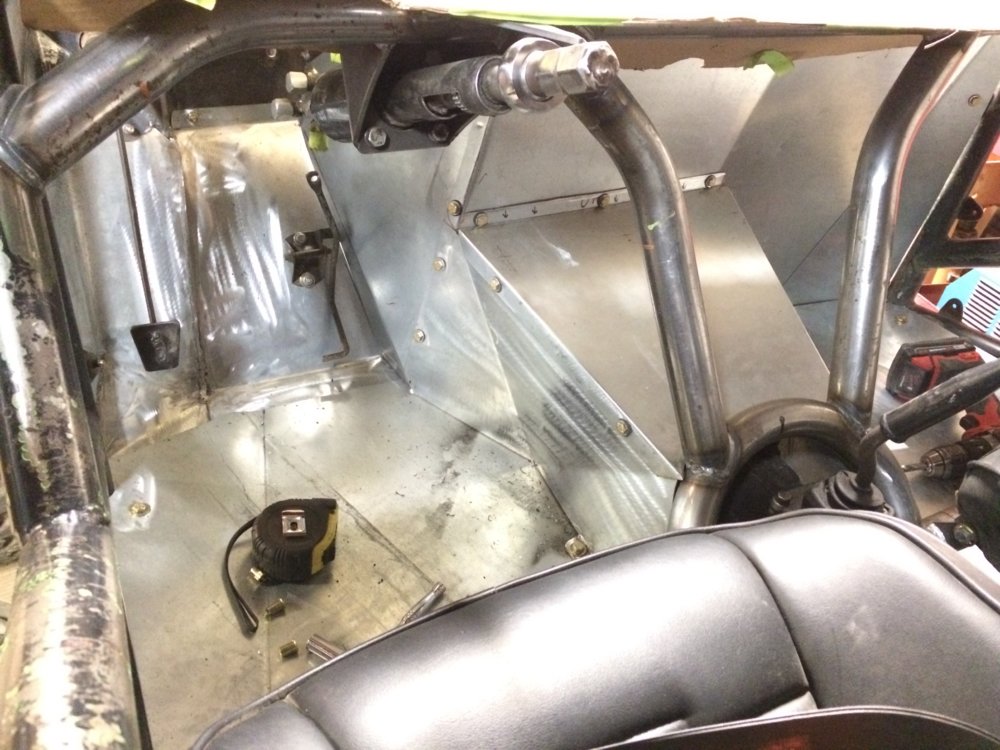

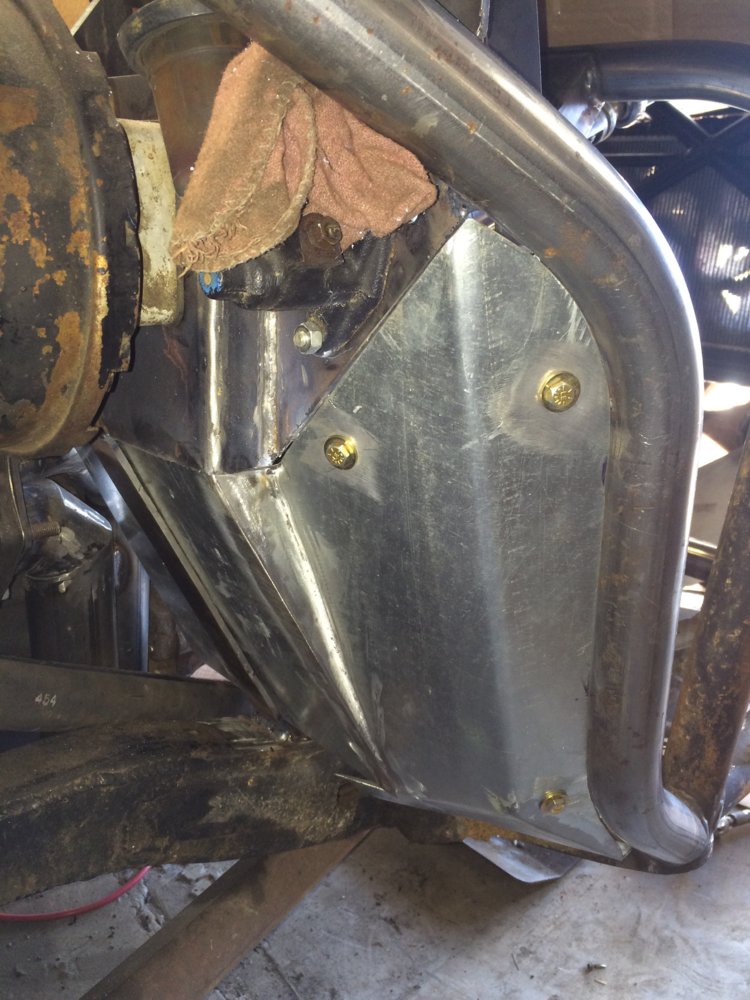

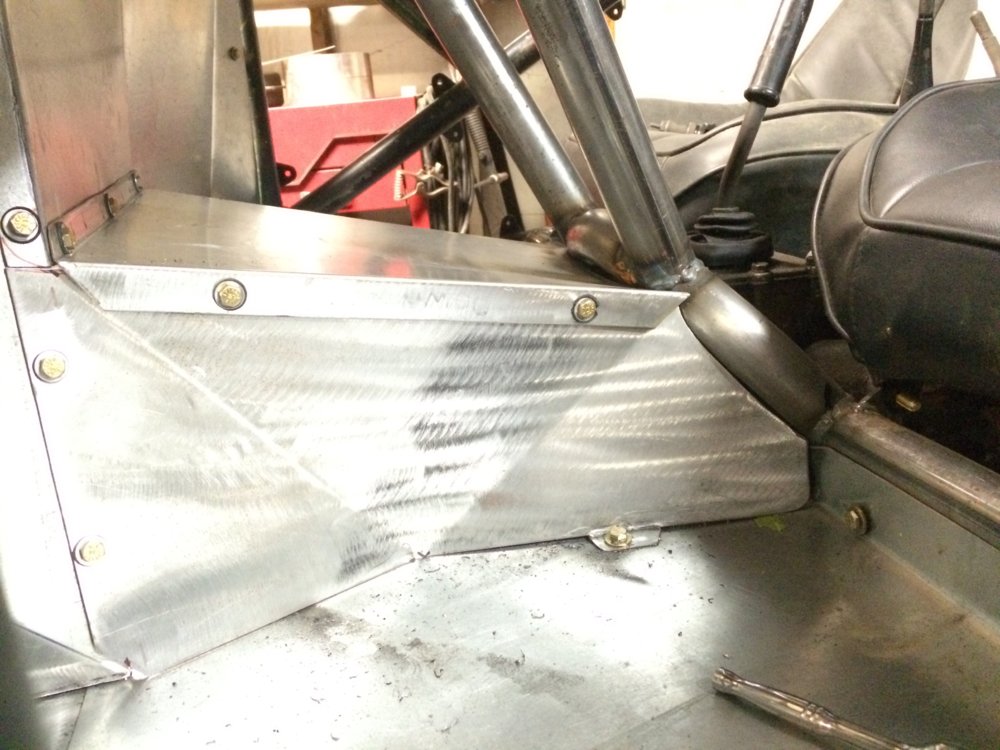

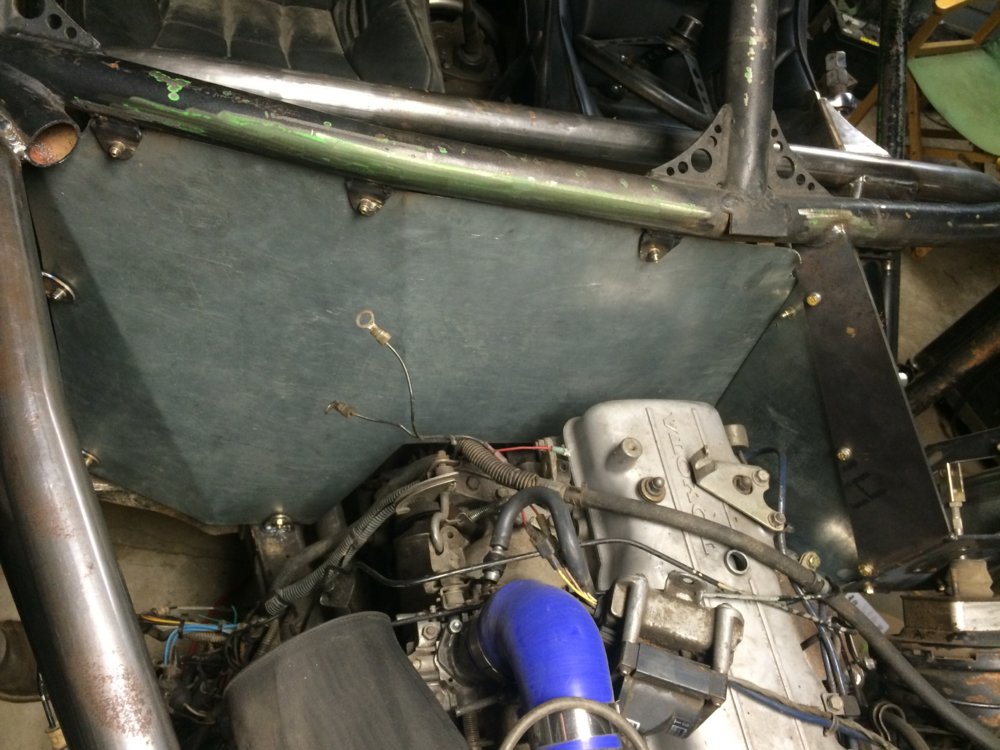

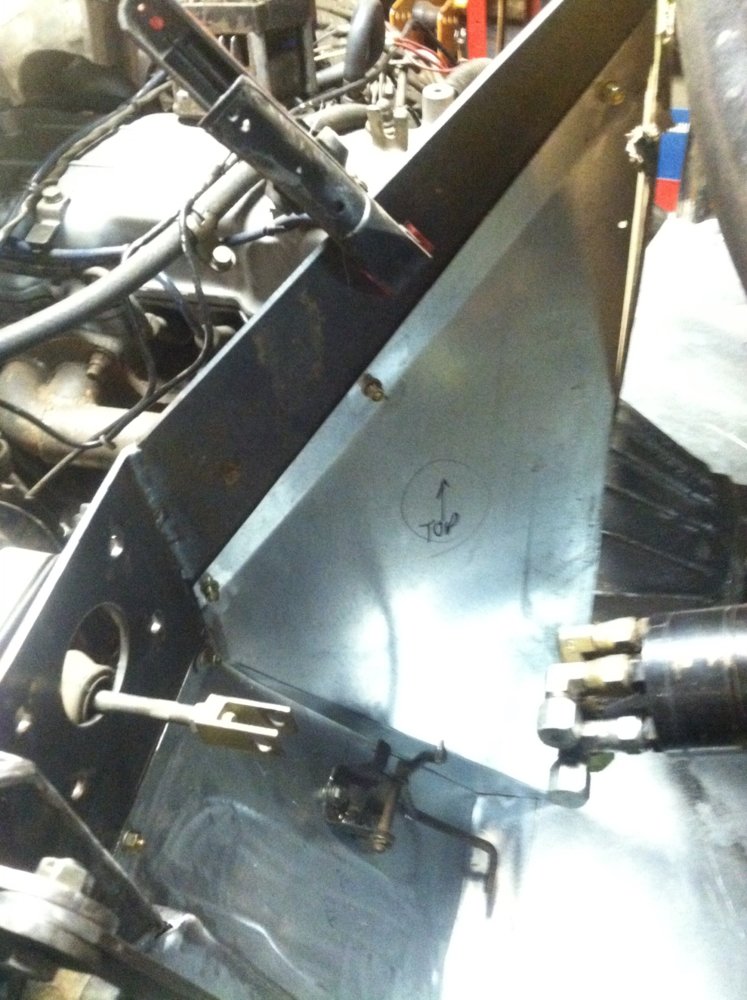

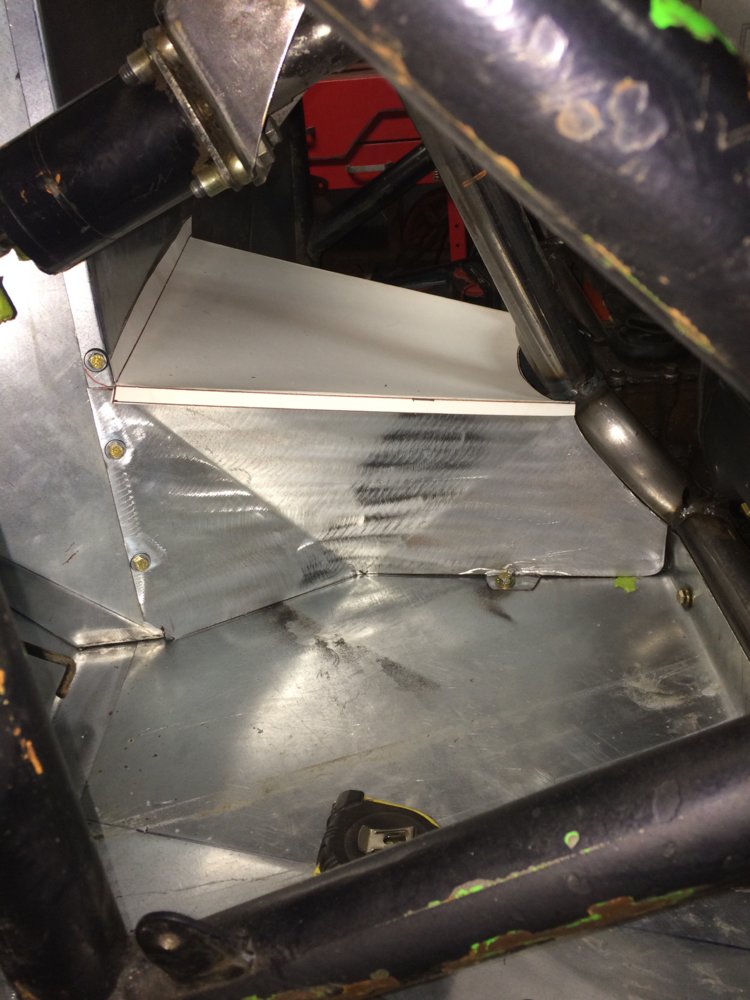

Was able to get some sheet metal work done, firewall, floors and behind the pedals, getting there



[ORV design and fab]



[ORV design and fab]

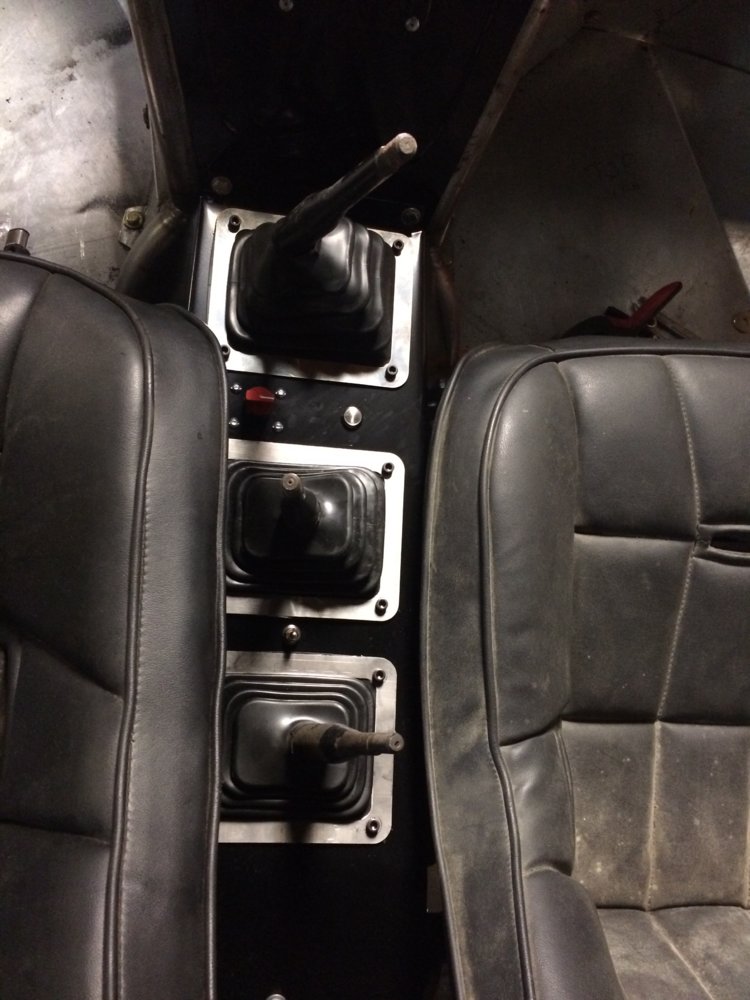

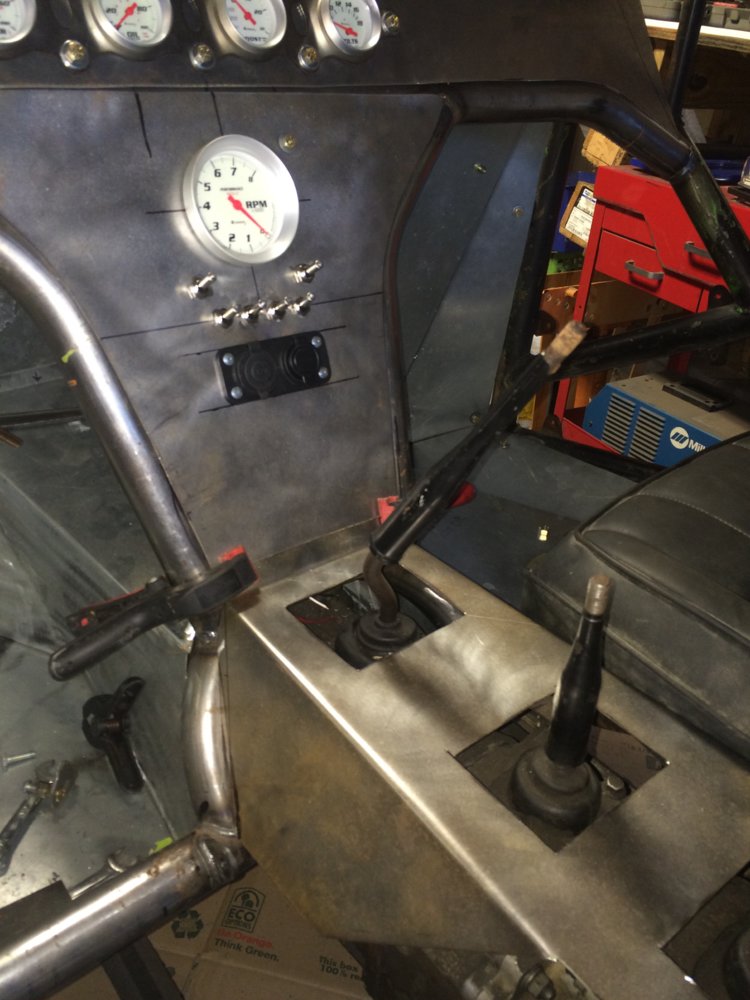

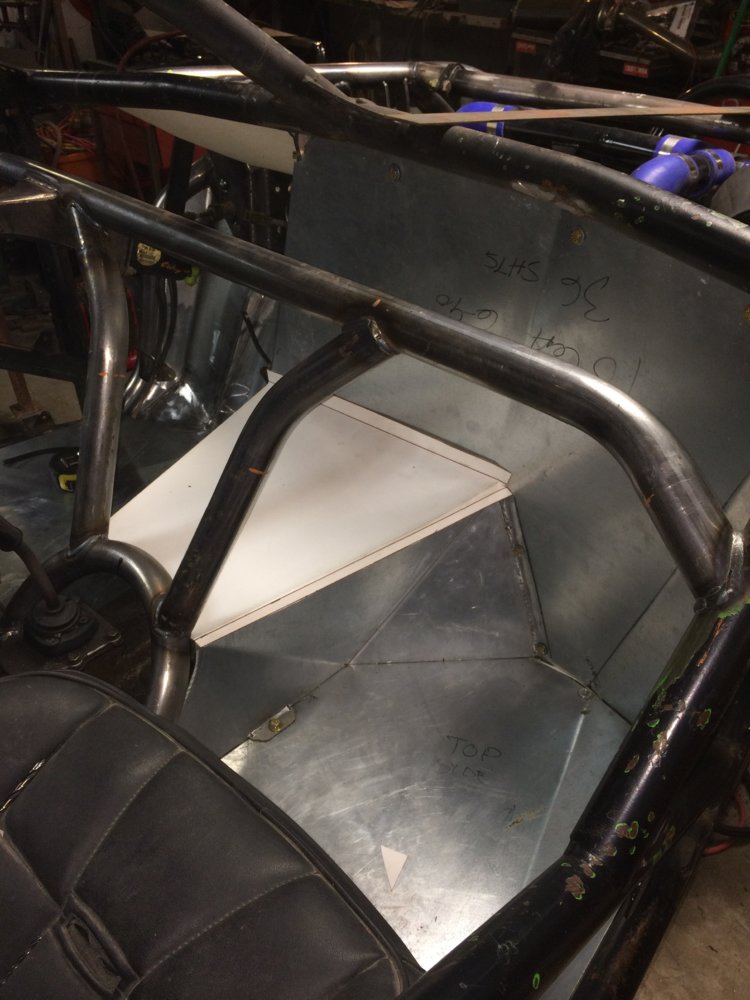

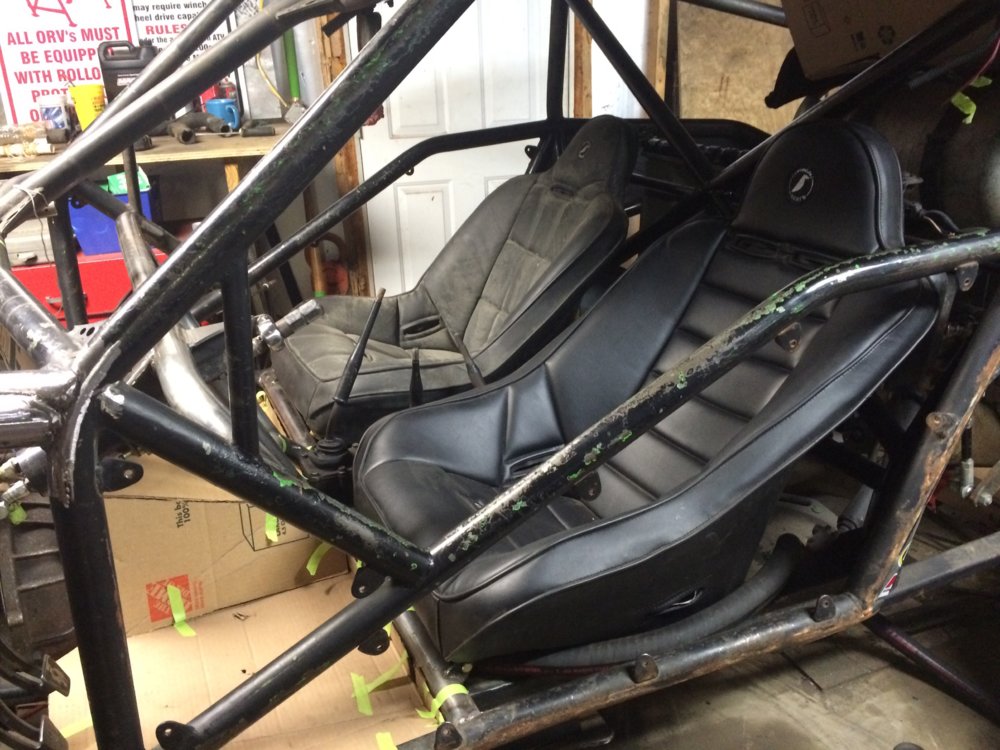

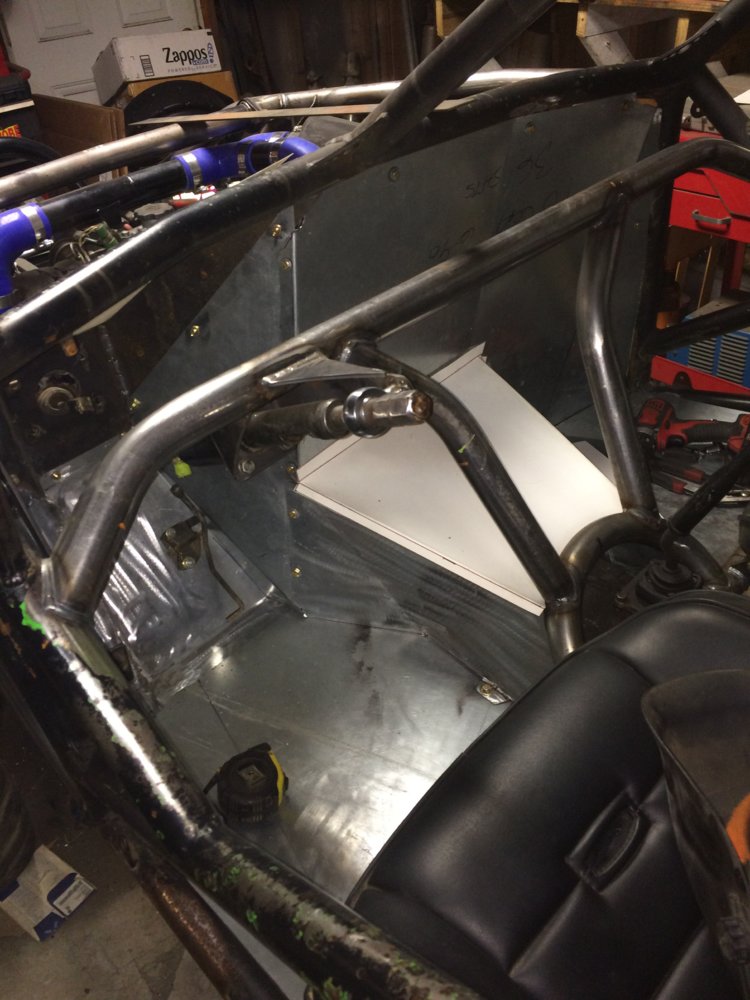

Coming together with the interior, still a lot left to do...



[ORV design and fab]



[mcutler]

Nice work on the sheet metal!

Sent from my SM-G925R4 using Tapatalk



[ORV design and fab]

Nice work on the sheet metal!

Sent from my SM-G925R4 using Tapatalk

Every panel is a learning experience, I get excited about every one and the possibilities after I see how I could have changed it and made it fancier! Thanks mcutler



[mcutler]

I know the feeling.

Sent from my SM-G925R4 using Tapatalk



[ORV design and fab]

I know the feeling.

Sent from my SM-G925R4 using Tapatalk

Your doing some nice work on the shop truck as well!! You will have to share some tricks on your sheet metal work!!!!



[ORV design and fab]

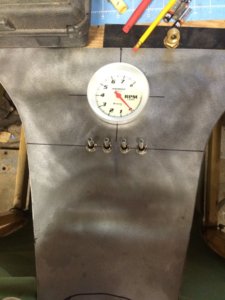

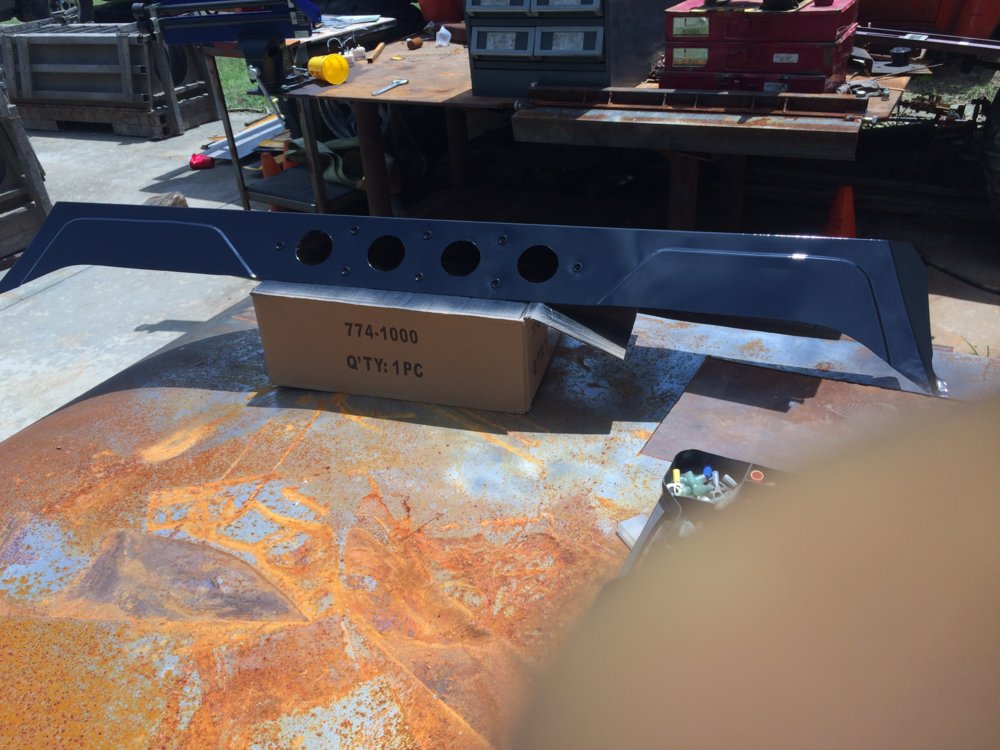

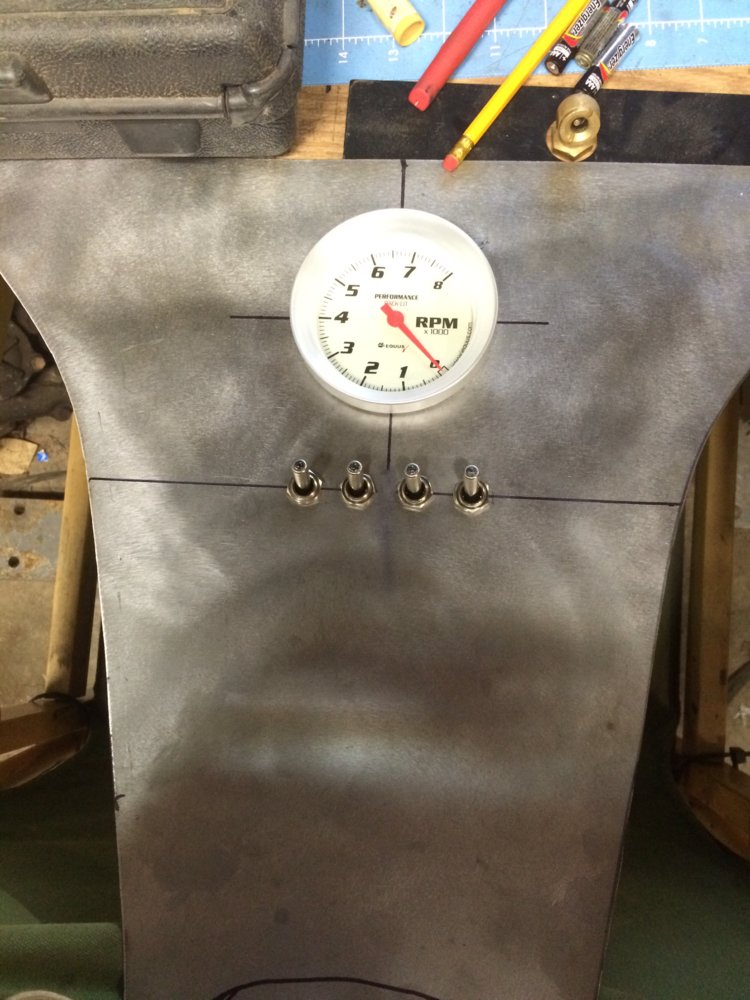

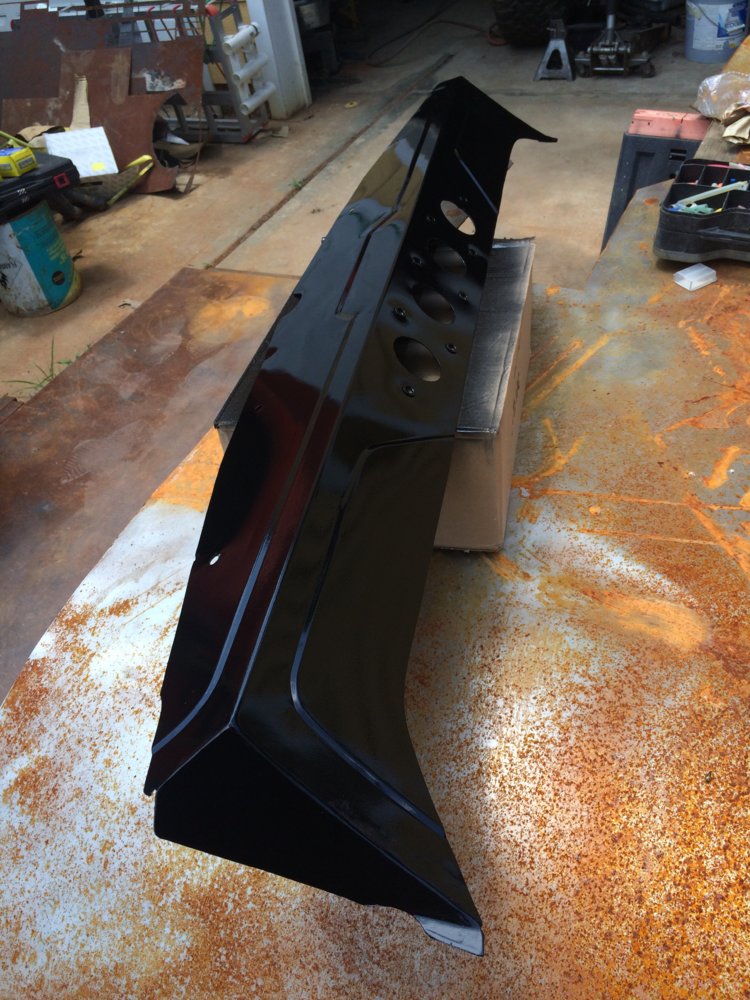

I don't get to spend many hours at one time most of the time, today I was able to knock a lot of things out and prep for the next time, order different components and stuff that I'm needing to finish, but was able to mount most of the electrical components, get started on a schematic for harness and play around with the bead roller, this is the first piece other than a test piece to see what the types of rollers I had, so I did some things wrong but will learn from the mistakes, turned out nice for the first time



[ORV design and fab]

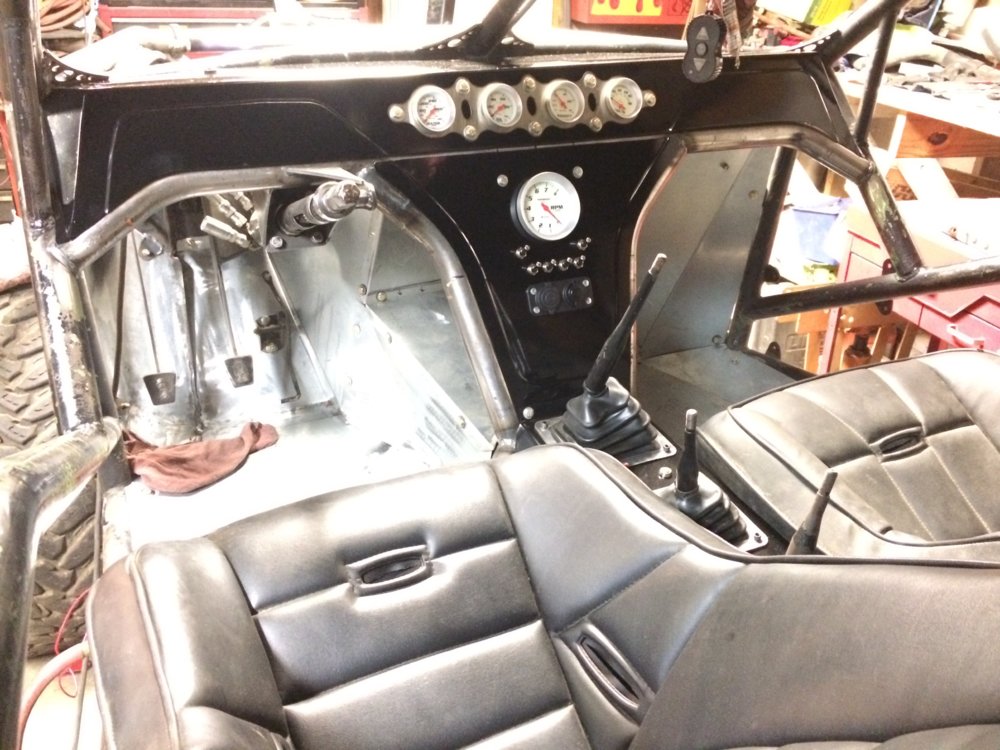

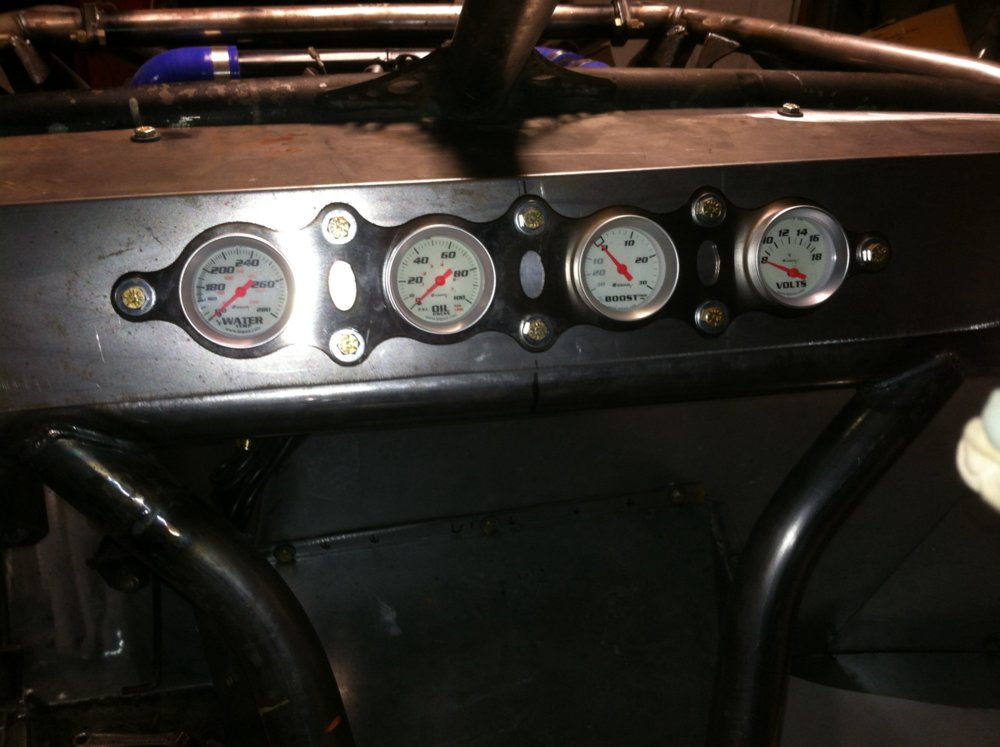

Was able to get a lot done on the buggy this weekend, mounted most of my electrical components, make schematic for wiring harness, bead roll and paint dash and tunnel, remount switches, gauges, wire up all lights for gauges and switches, and get an idea of where harness will run, still a lot to do but I'm getting excited to crank it up, it's been a year and half since the last time I fired this beaut.



[ORV design and fab]

After a year and a half, I fired the ole girl up. So glad to hear this noise, even tho it's alil obnoxious! The turbo will talk more under a load



[DAWGTOY]

sounds good man. did you change the camshaft cause it sounds like it's hittin
a mean lick. could it be a little rich? good to hear the ol mill run again.



[ORV design and fab]

I wish! Lol , it's just really low idle right now, gonna build the harness now and see the vitals to tune on it more,



[karatejosh]

sounds good man. did you change the camshaft cause it sounds like it's hittin
a mean lick. could it be a little rich? good to hear the ol mill run again.

That's his custom race pipe your hearing

Sent from my SM-G930V using Tapatalk



[ORV design and fab]

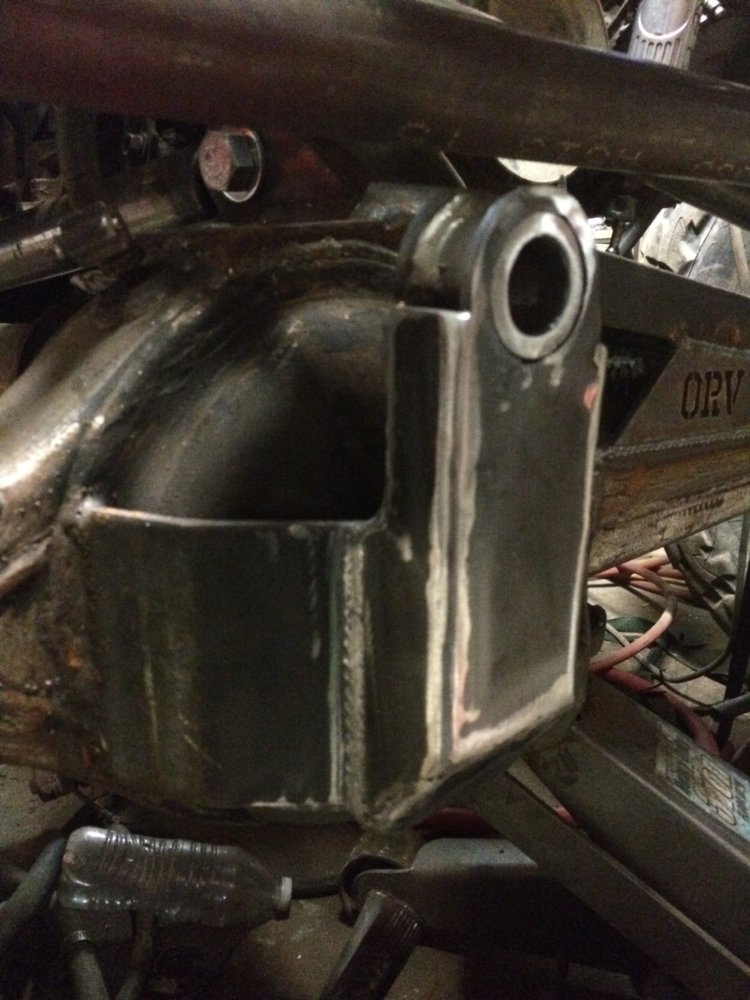

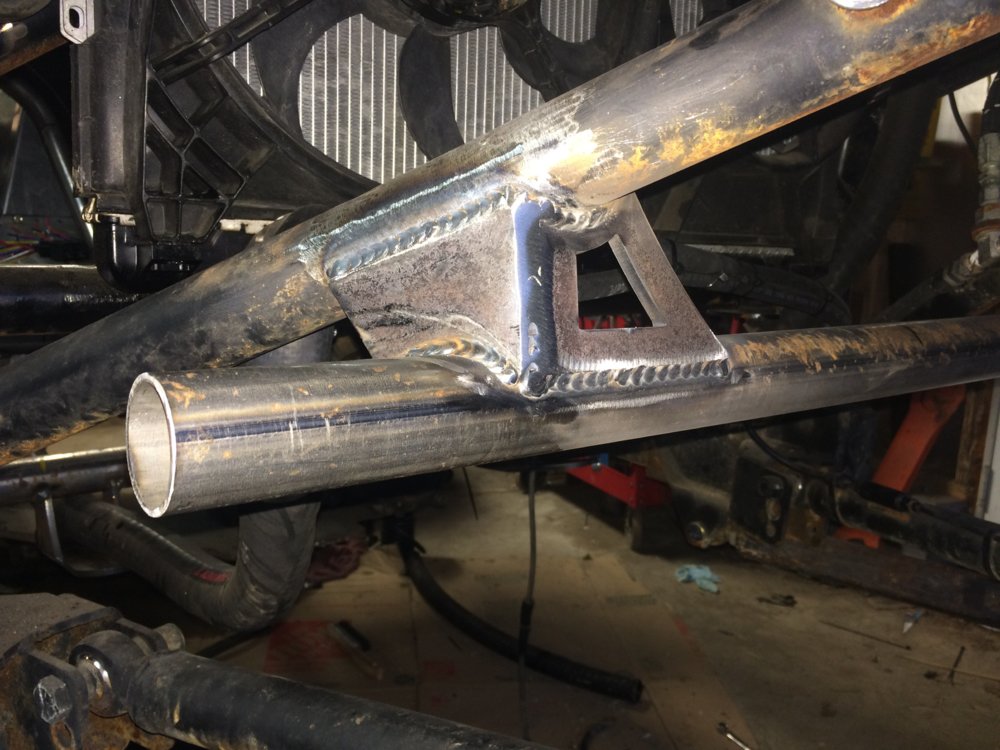

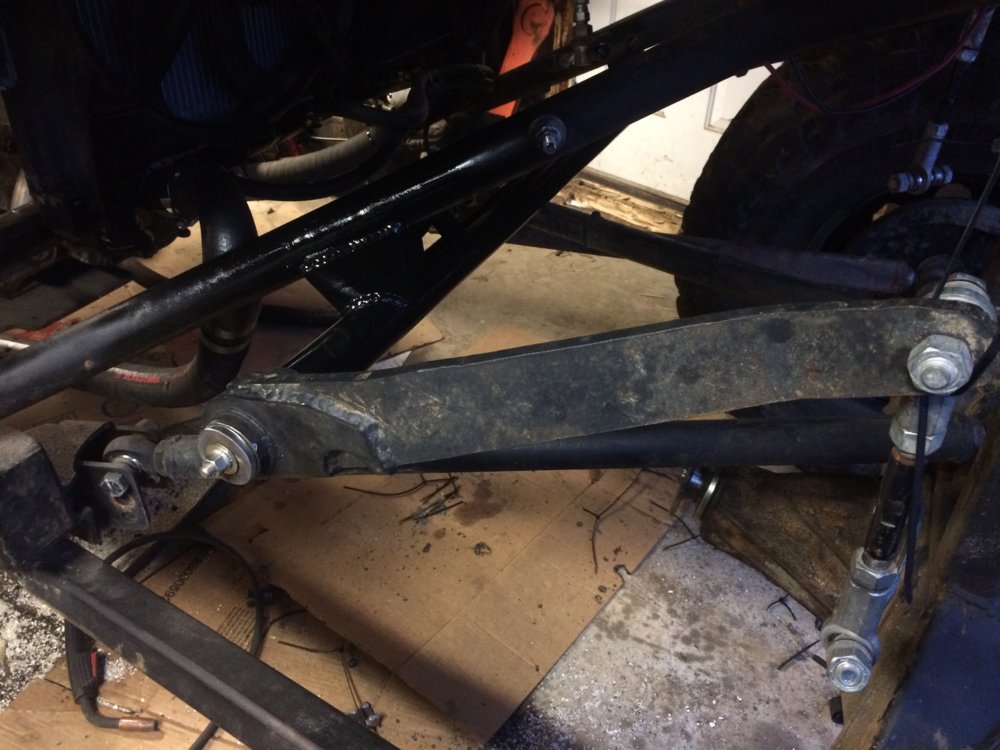

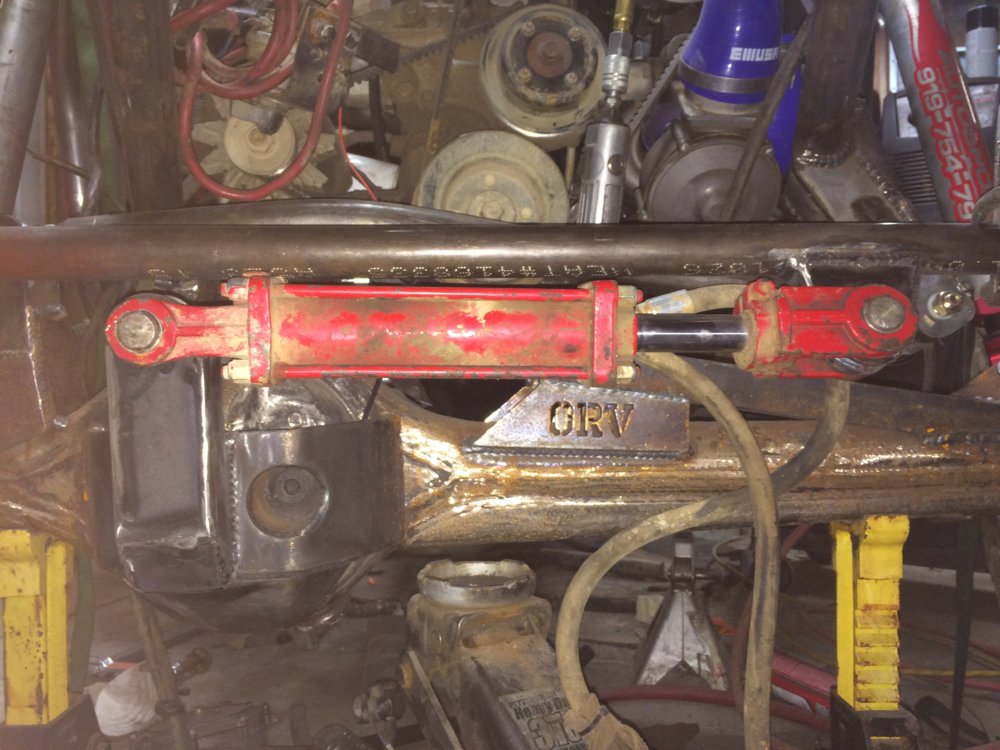

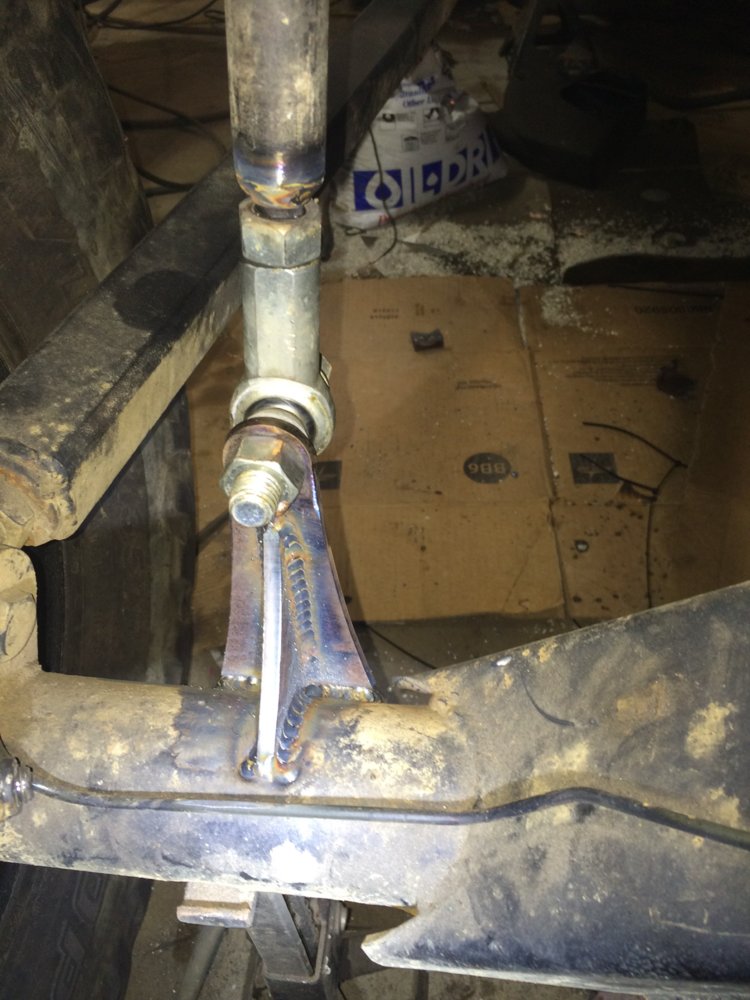

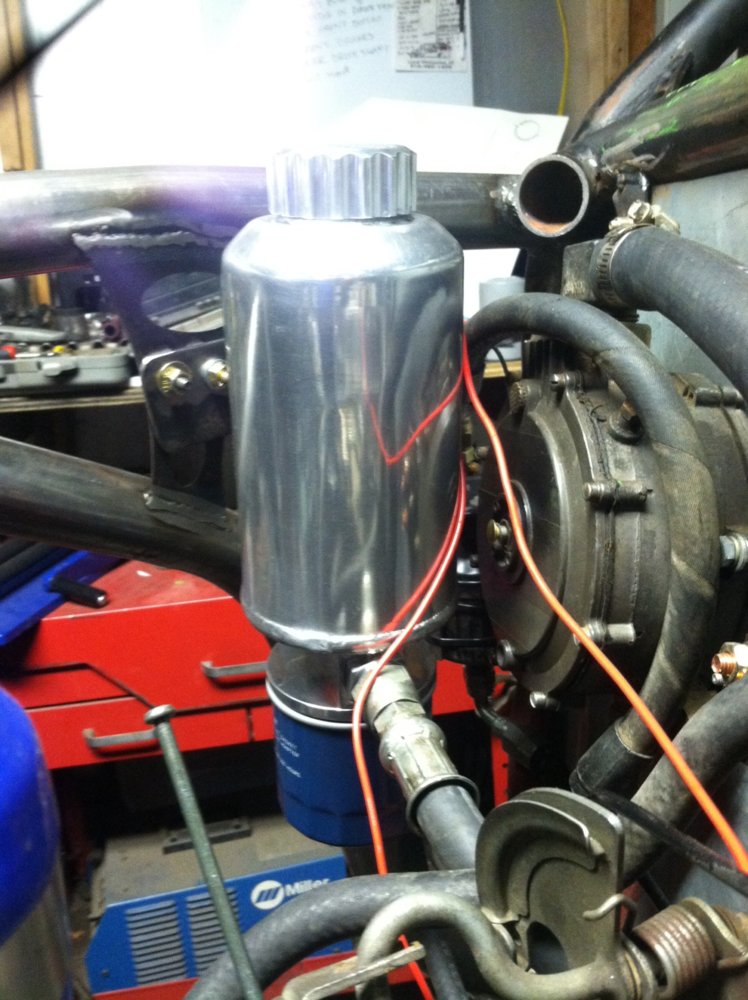

I was thinking of going with a TK1 racing off-road sway bar, But I had really good results with the one I built out of the amigo torsion bar. The mounting of my old sway bar was sketchy and allowed the bar to deflect while twisting. I had it mounted on the axle for reasons, but removing the exhaust allowed me to remount the bar and use tubing and bushing for leaf springs inside to rigidly mount the bar, it turned out nice and should not have any other issues with it... We will see



[ORV design and fab]

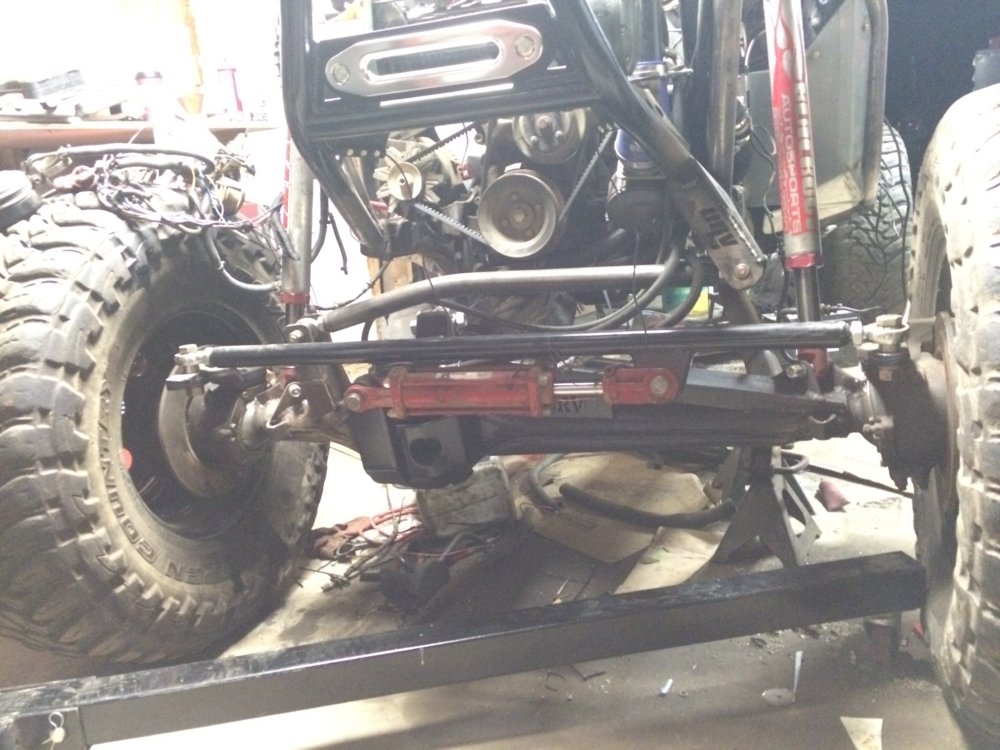

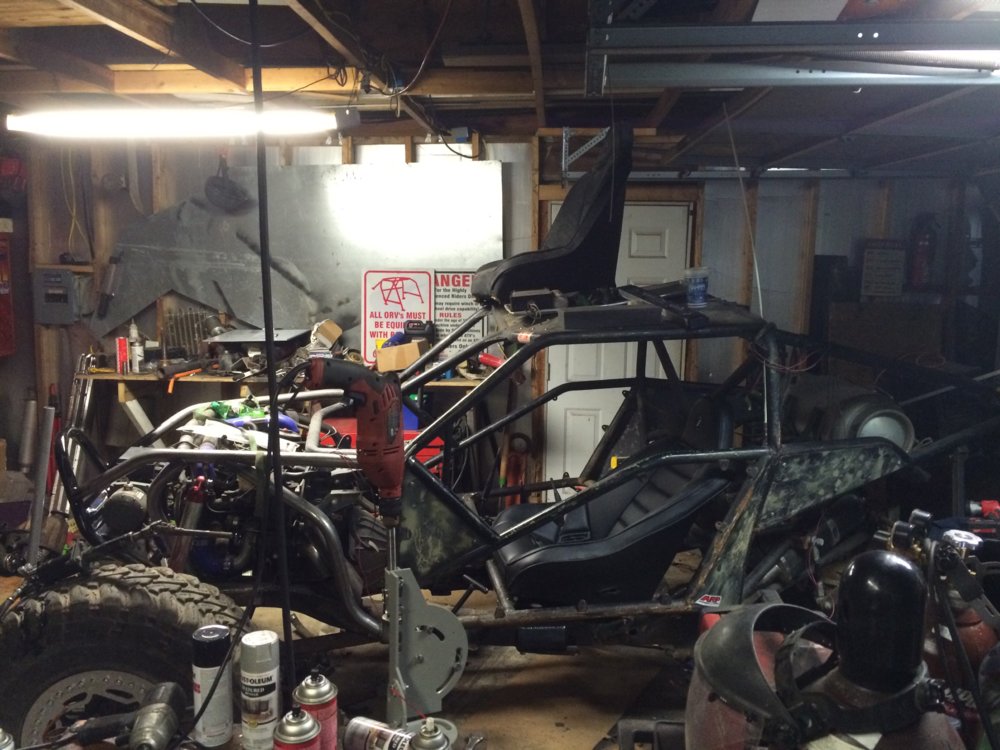

Finished up sway bar, mounted another new steering reservoir after the last new one was too small and charged my front shocks and got it on its own weight for the first time in a October of 2015! Feels good to crank it up and have it on the tires. Checked some stats at ride height. Wheel base is 114". Belly at 20.5" , 5" shaft showing in the front and 6" on rear. Top of mid roof is 69" tall and outside tire to tire width is 74". Higher than I wanted but it should do good! We shall see



[mcutler]

Shit, you can't get the roof much lower than that at ride height with that belly clearance. Nice work.

Sent from my SM-G925R4 using Tapatalk



[ProbablyBroke]

Nice work man, can't wait to see it in some day light.
