I still want to see real metal. When will that happen?

I would plan for at least .003-.005 which is only on the radius. If you have that piece hard coat anodized like you should thats another .003. Hopefully you not drawing any of this chassis that tight.

It's drawn tight. It's pretty tight on the tubing right now like Rob was saying. There is a 0.035 gap between the tube, and the armor. I'm actually looking into it being a jig fixture at the moment. I'm thinking draw it to bolt on the chassis table, or draw the chassis table to bolt to it. Vice, Versa. I think I can just bolt it to the fixture table and use it as mock up when I bend the center belly rails.

Last edited:
Oh, we did a test run on some metal with the lower control arm a while back. Everything checked out. The digital model is good.
So are you planning to build this on your own dime. Or try to find someone to front the cost?

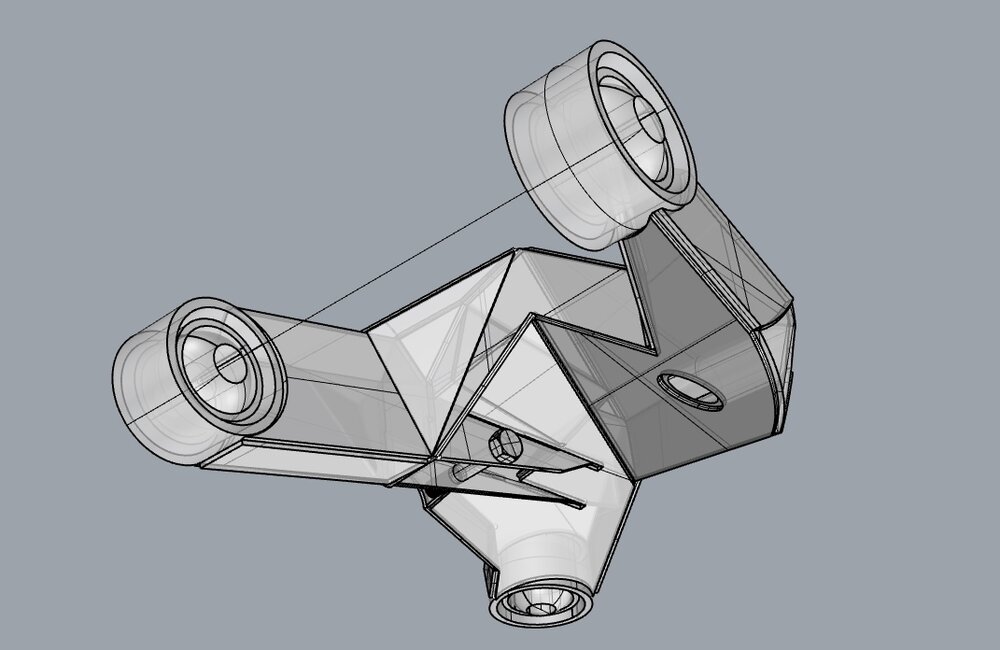

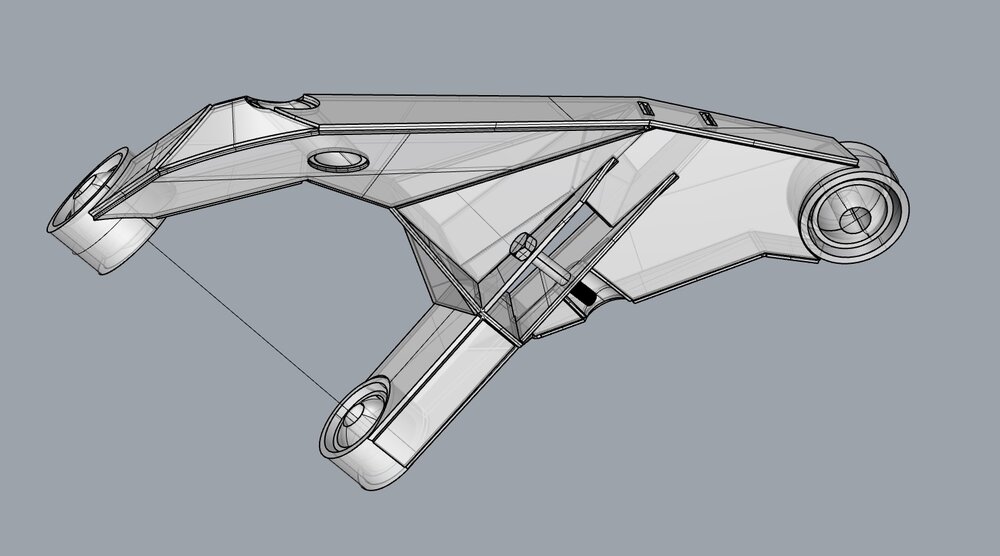

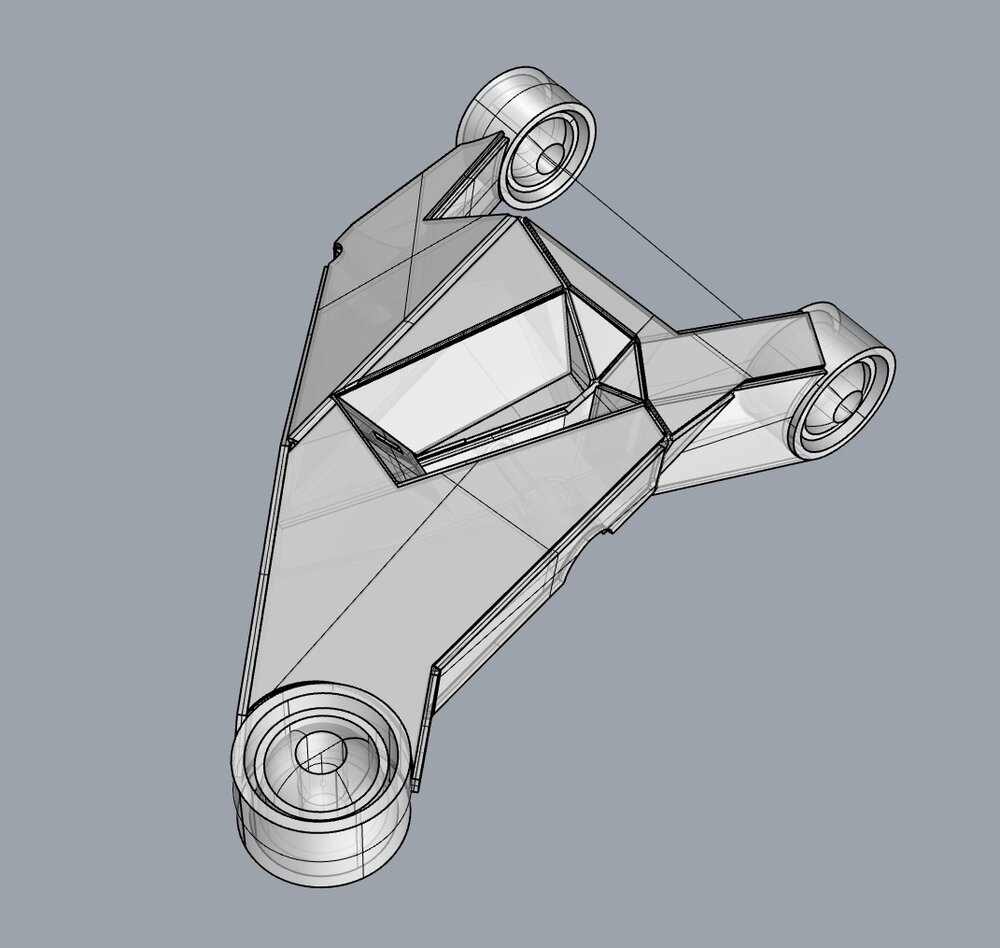

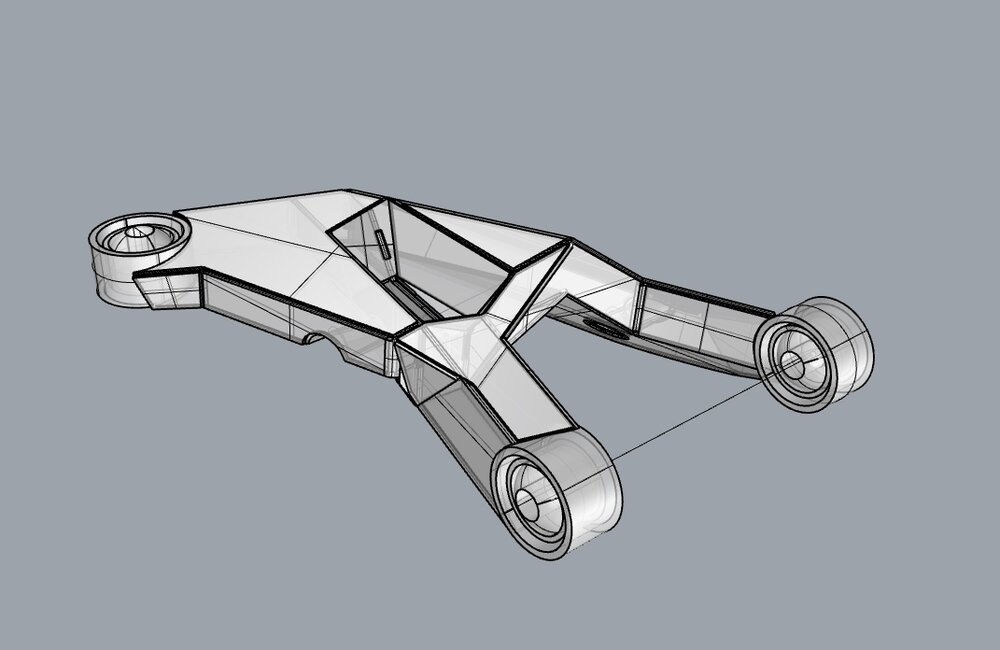

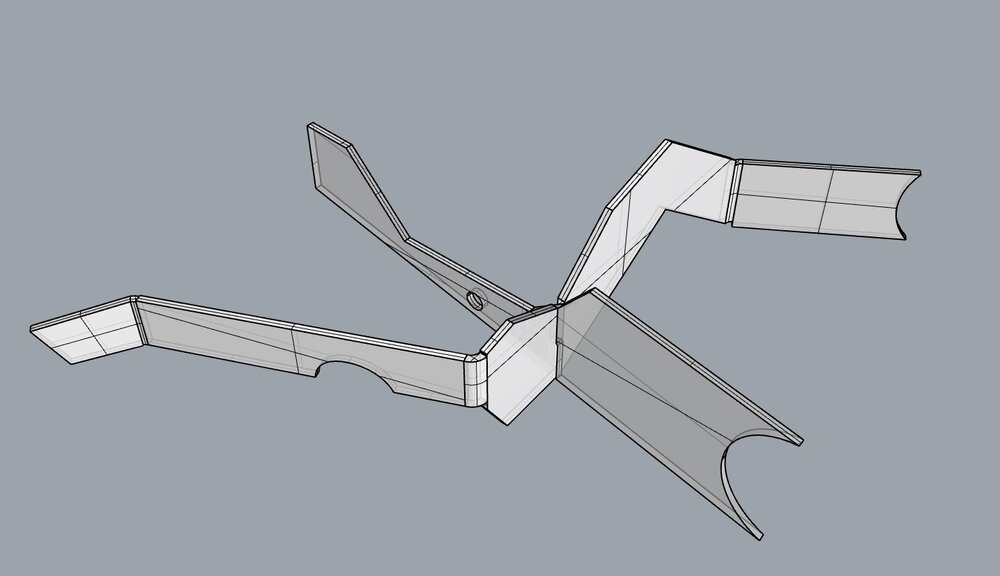

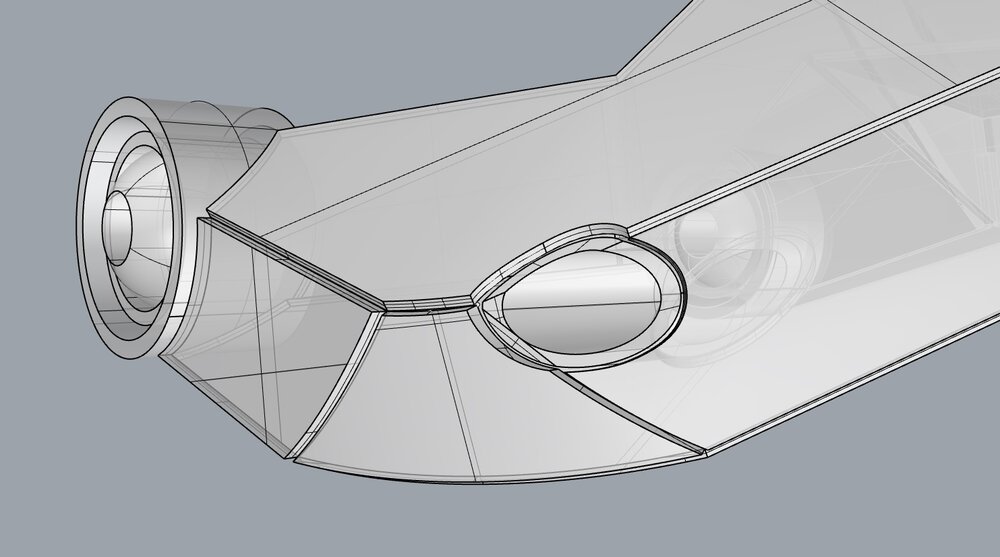

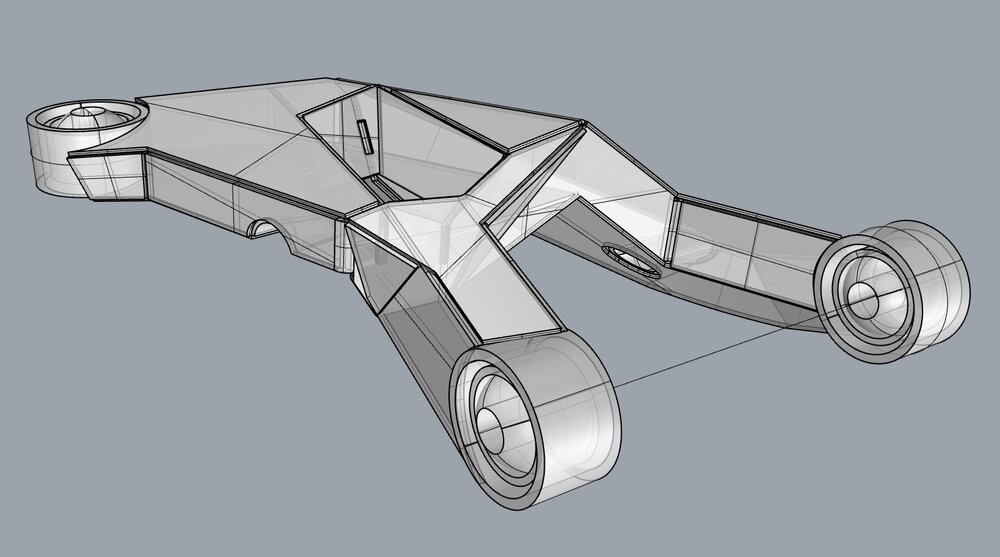

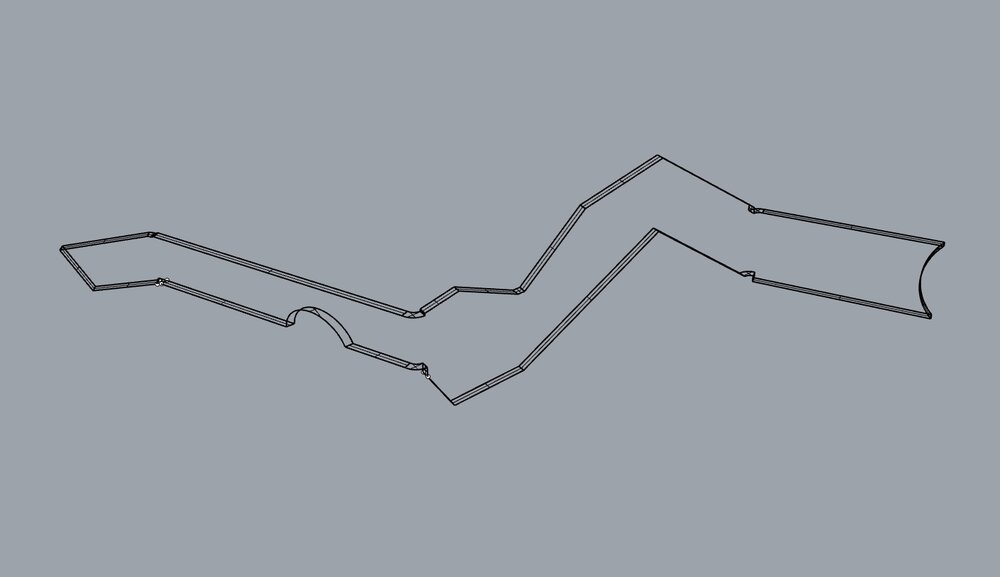

Upper control arm. There's a lot of people's work I've been around influenced into it. I might would call it "what I've learned" few more details, and it's there.

upper control arm 34.jpg

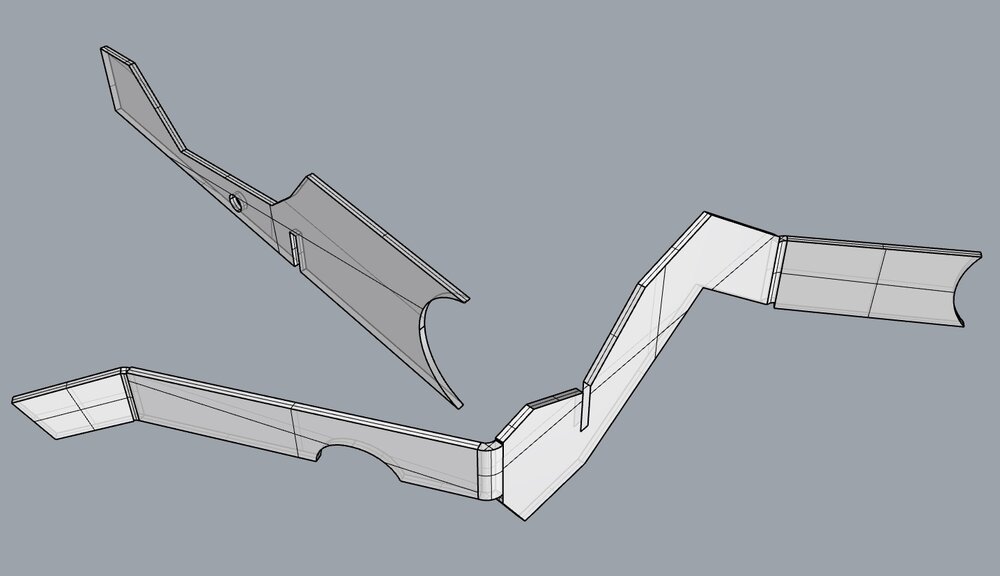

upper control arm 35.jpg


upper control arm 37.jpg

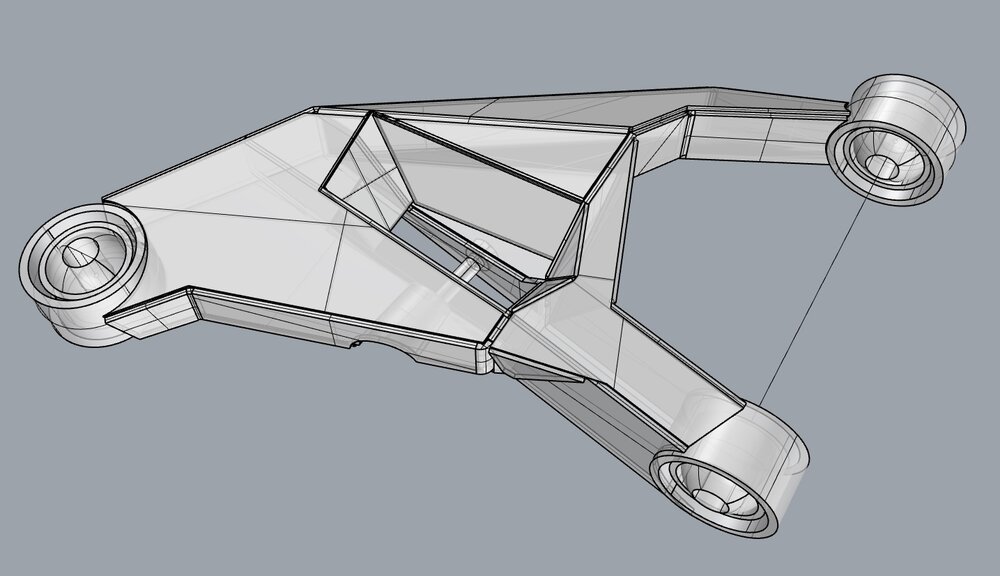

upper control arm 38.jpg

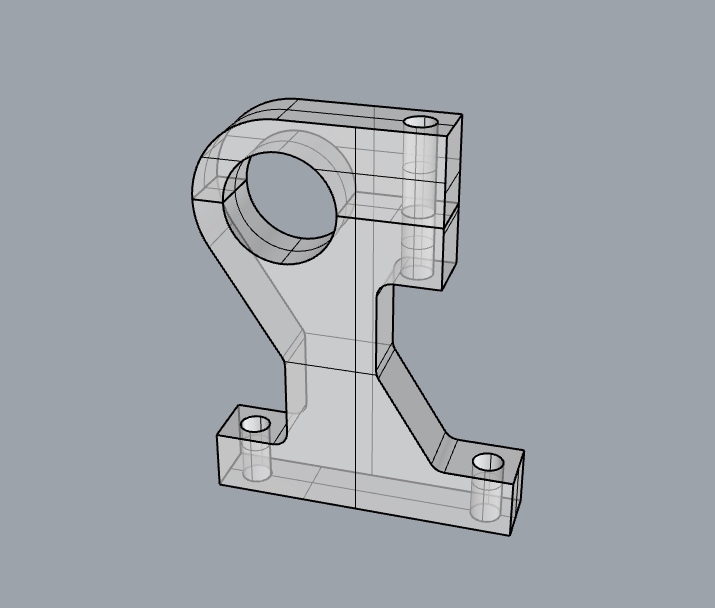

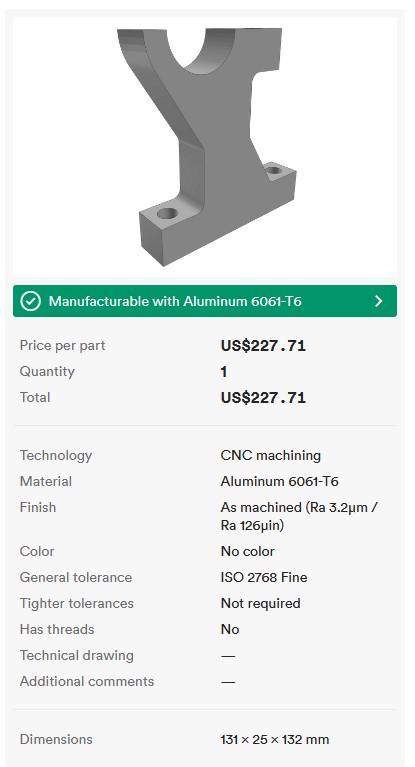

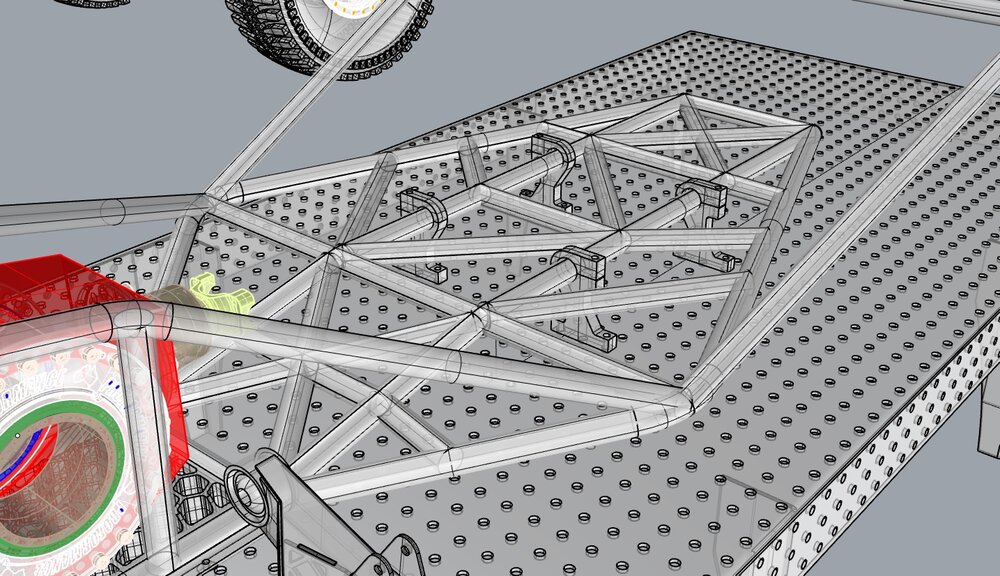

Billet belly rail clamps. Ordering 4 sets cuts the price in half. First time I've noticed those tubes aren't flat with the earth.

Fixture parts - belly rail 1.jpg


Fixture parts - belly rail 2.jpg


Screenshot 2021-08-22 172622.jpg

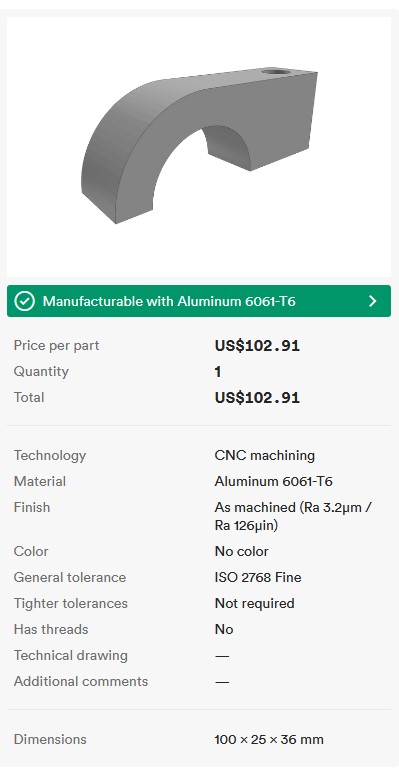

Screenshot 2021-08-22 173050.jpg

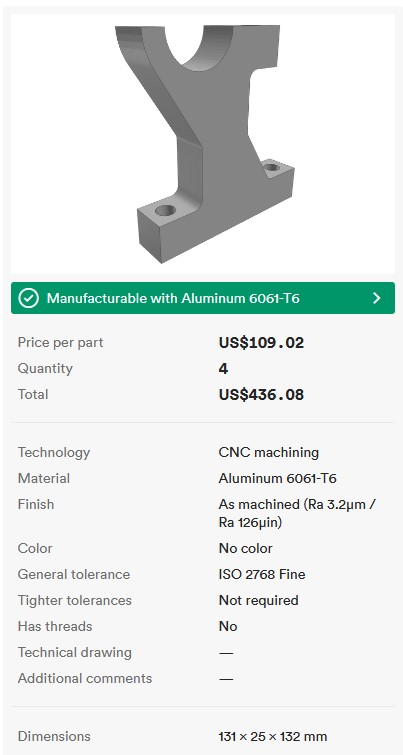

Screenshot 2021-08-22 173447.jpg


Screenshot 2021-08-22 173631.jpg

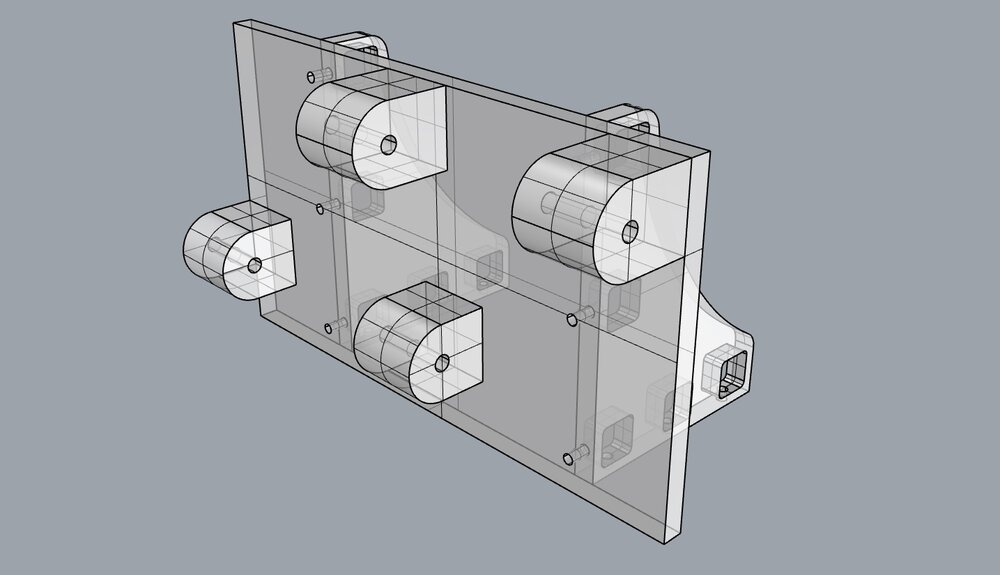

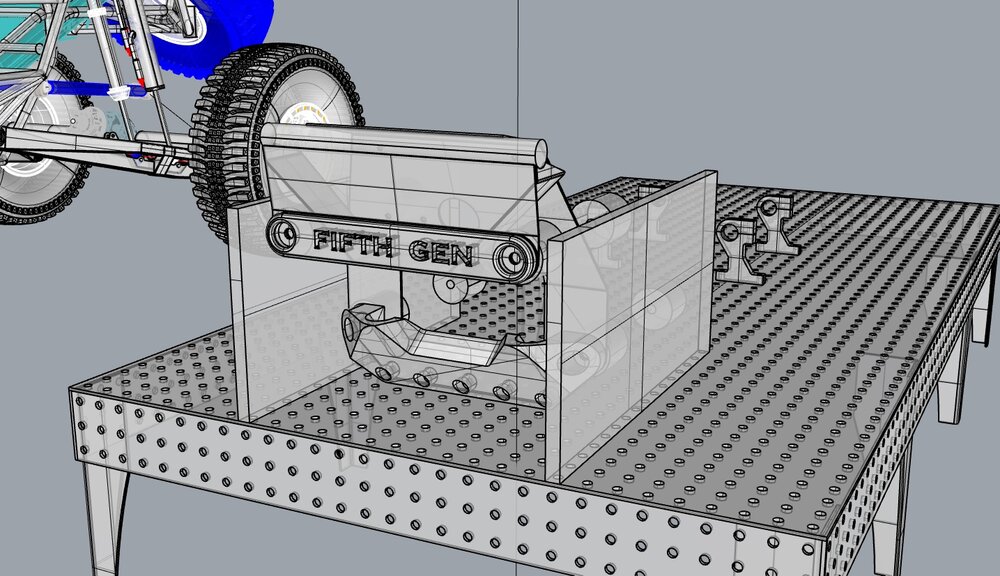

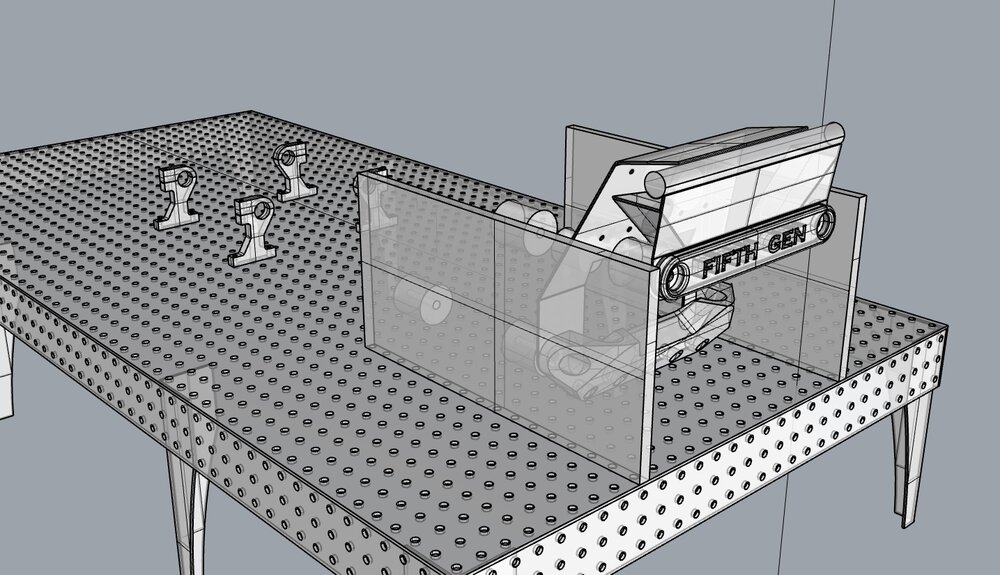

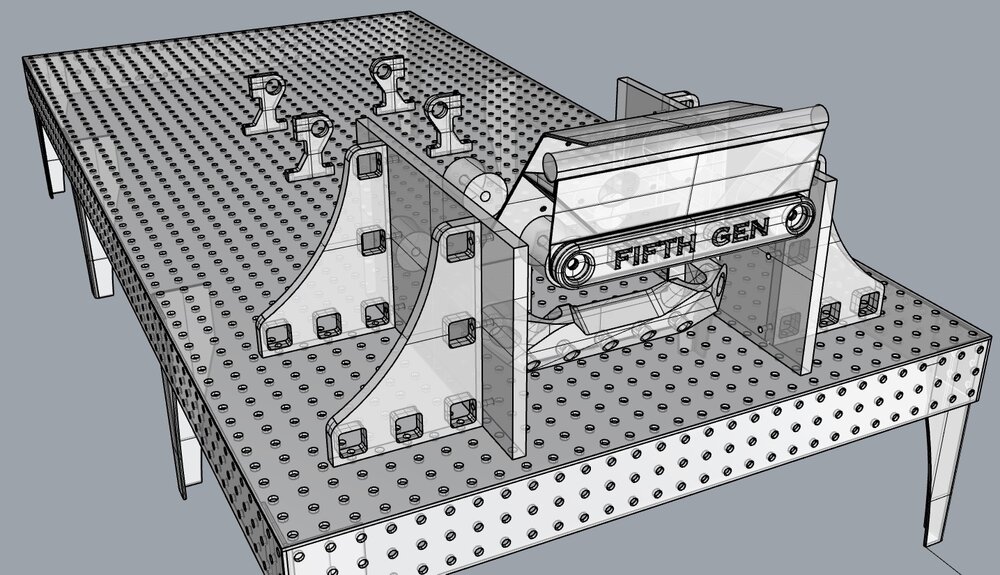

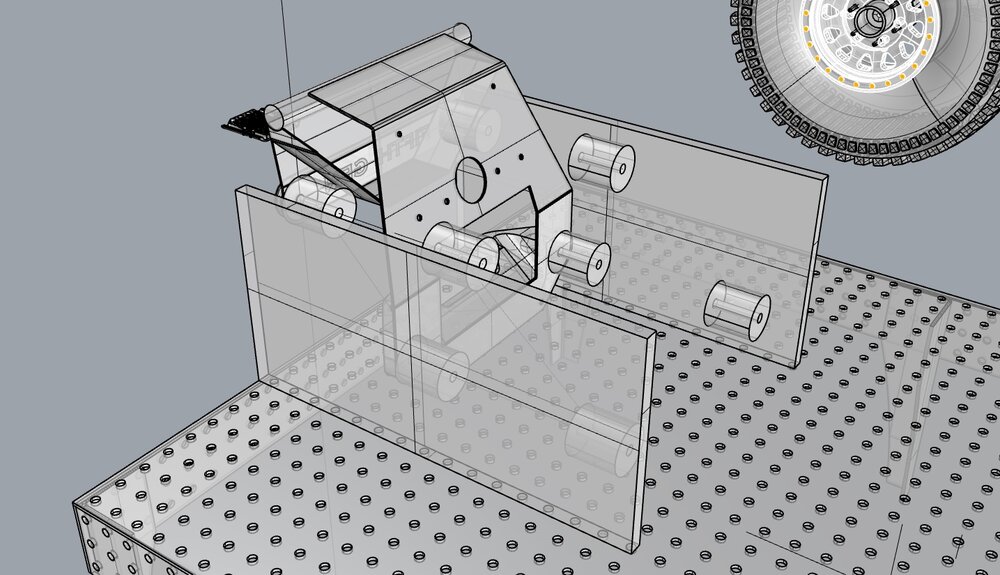

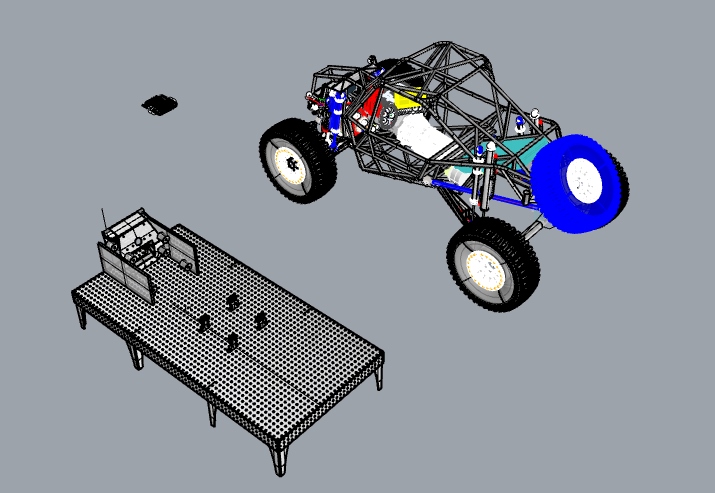

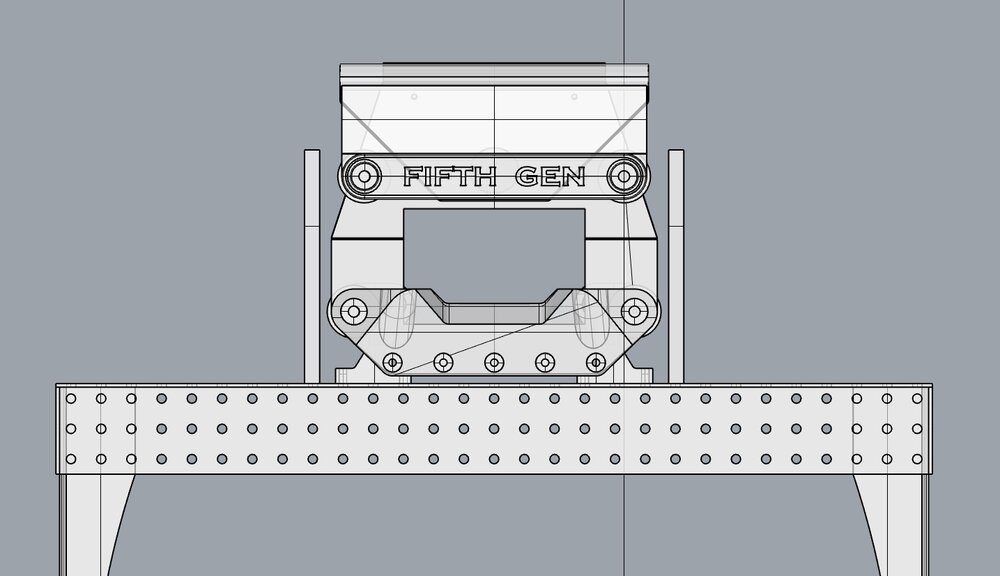

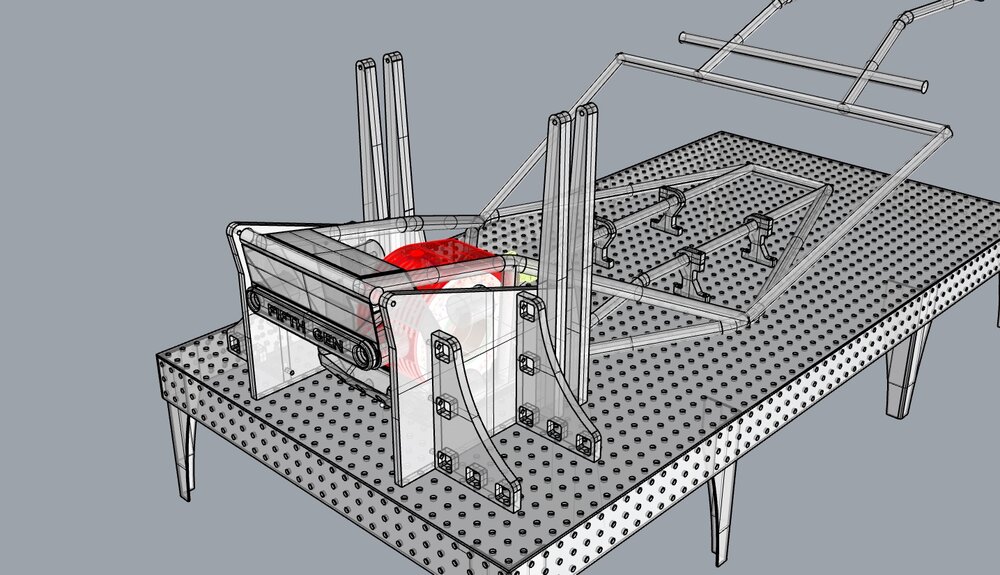

Digging into the bulkhead fixture. I'll end up making everything interlock & bolt together symmetrically so nothing's mirrored. So the fixture pieces can do the same job on either side, and cuts the cost to machine.

Fixture parts - bulkhead 6.jpg


Fixture parts - bulkhead 7.jpg

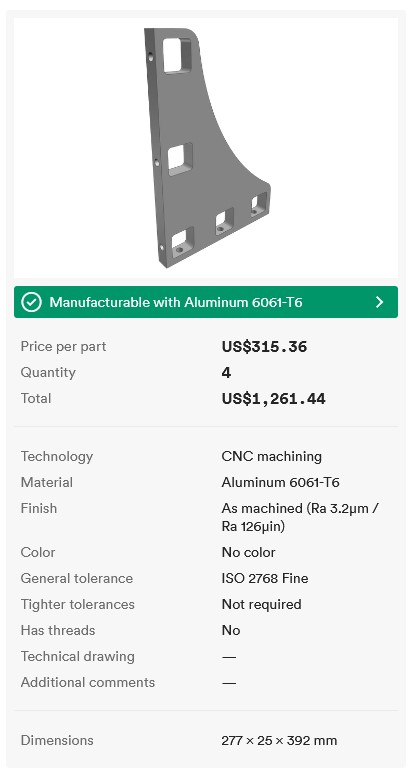

Screenshot 2021-08-23 180316.jpg

Last edited:

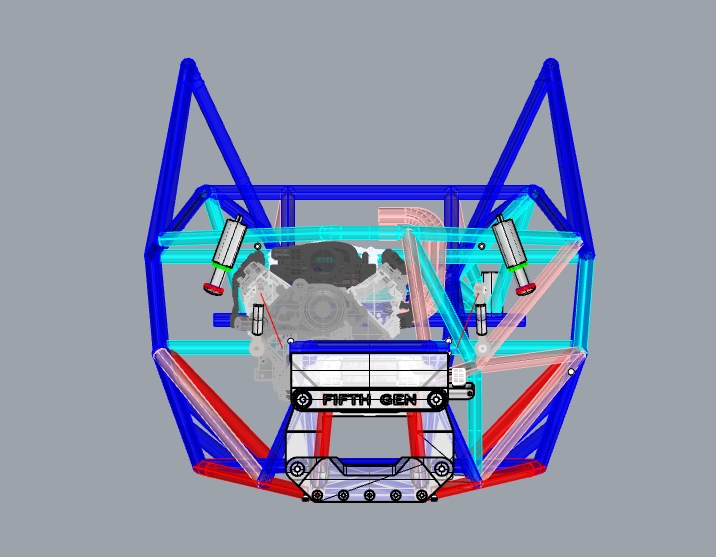

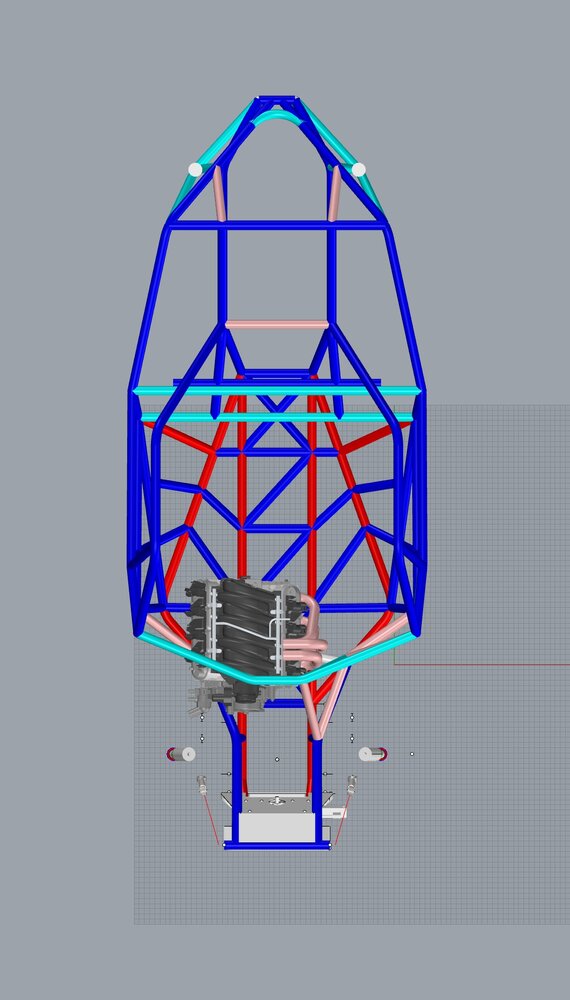

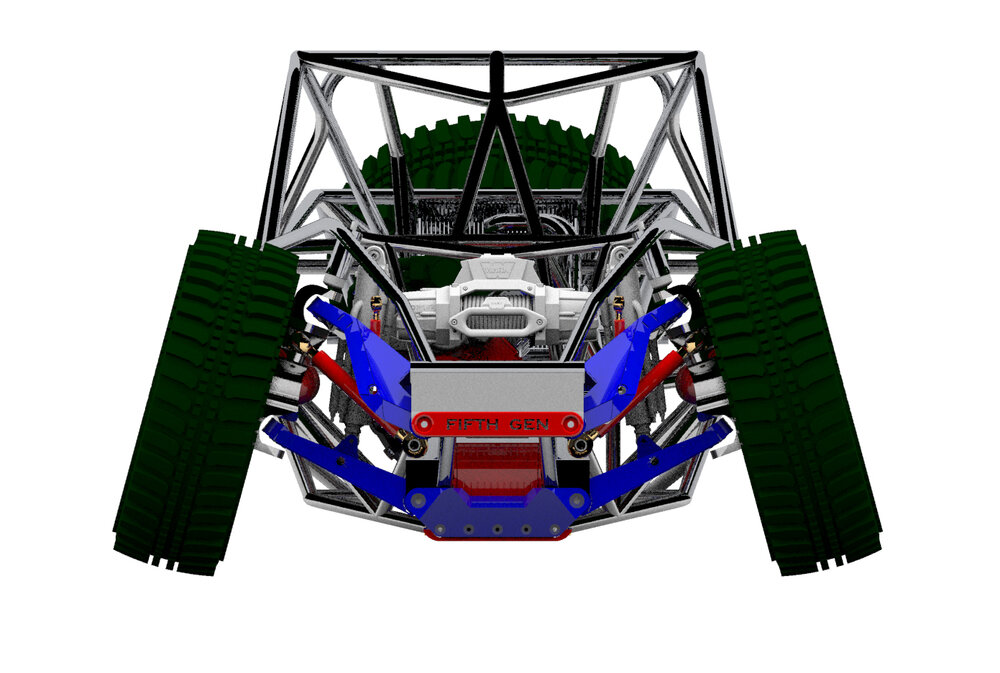

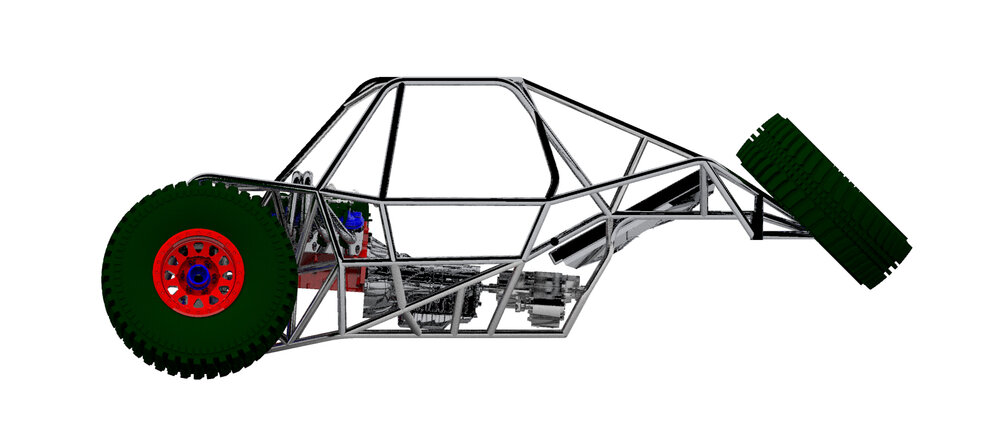

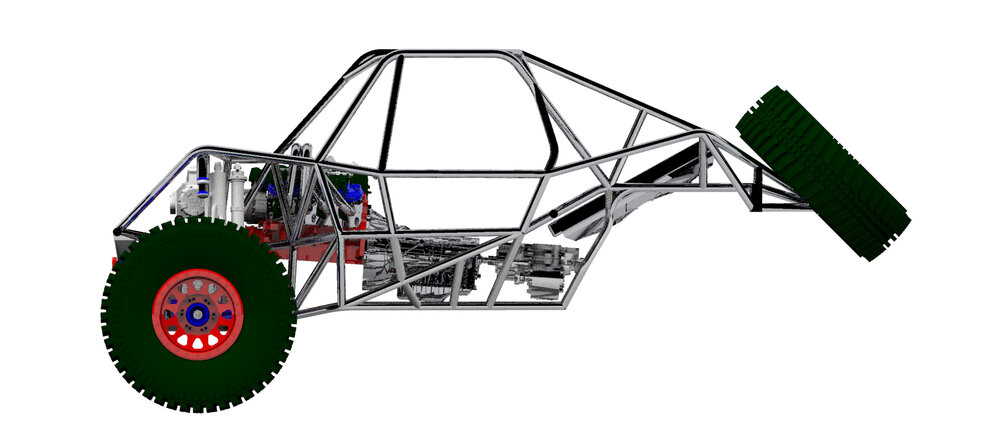

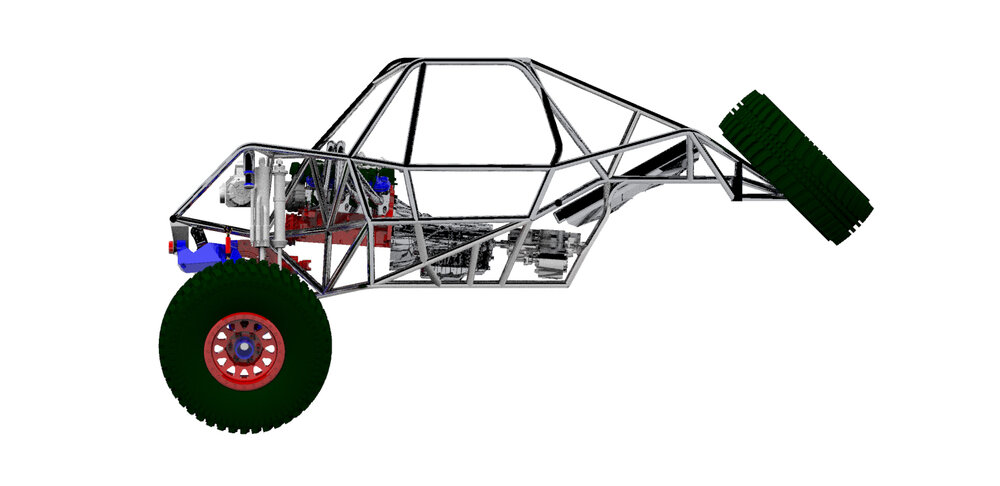

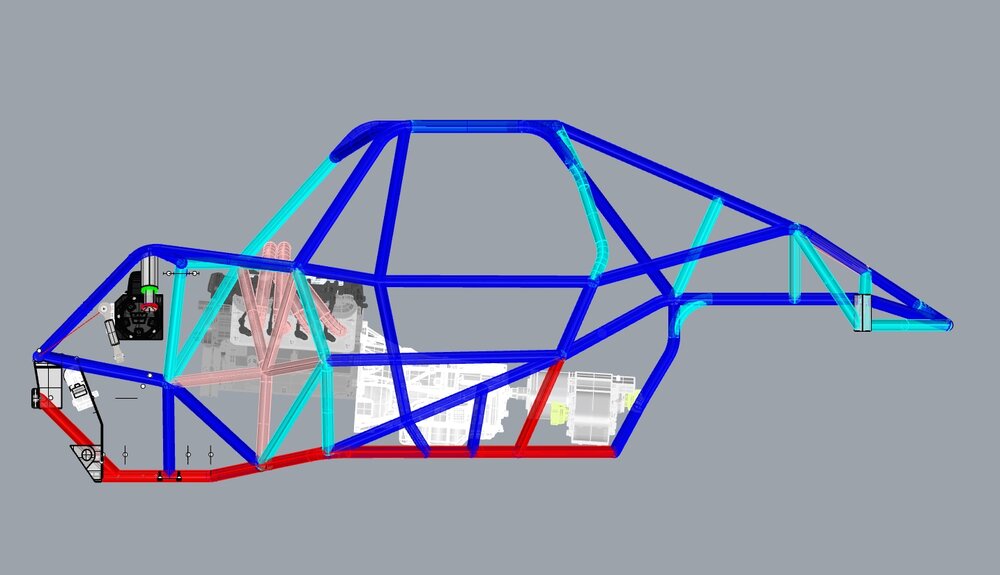

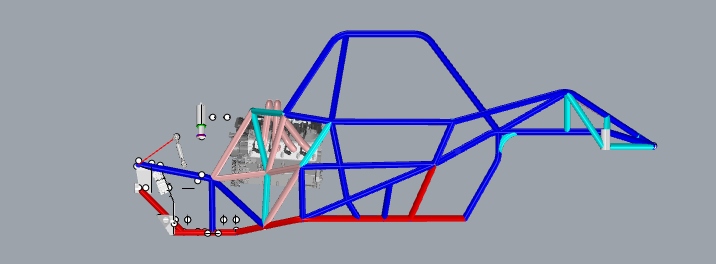

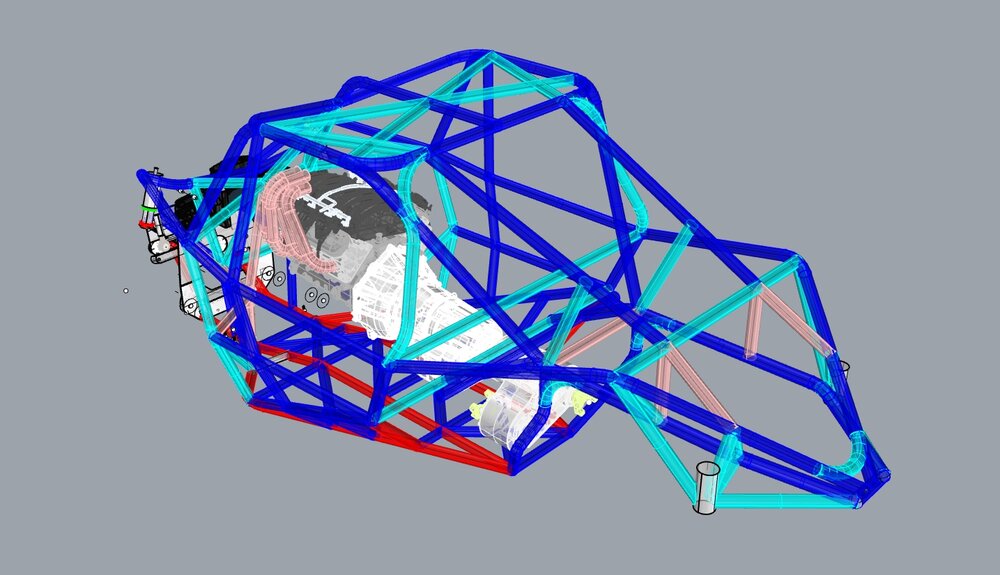

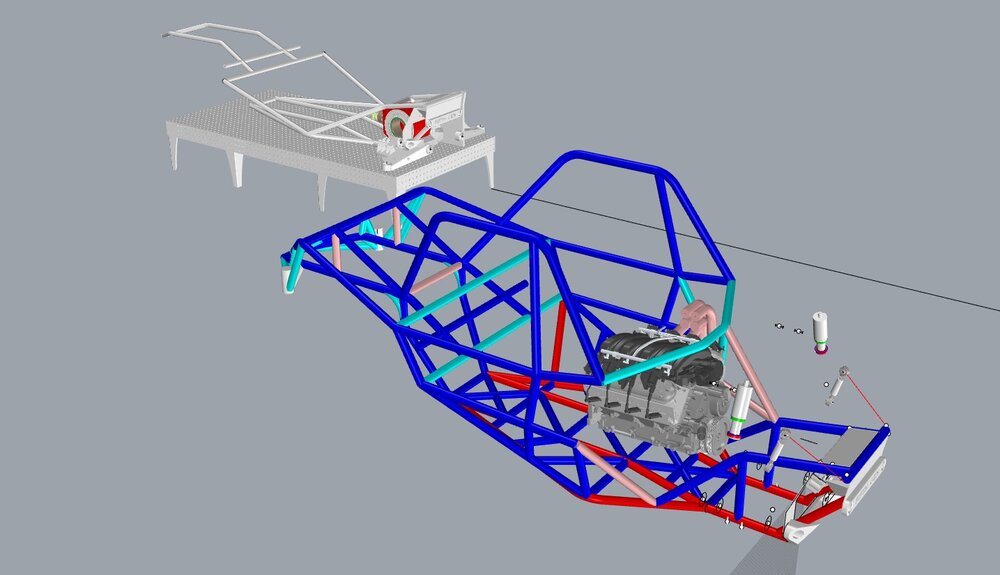

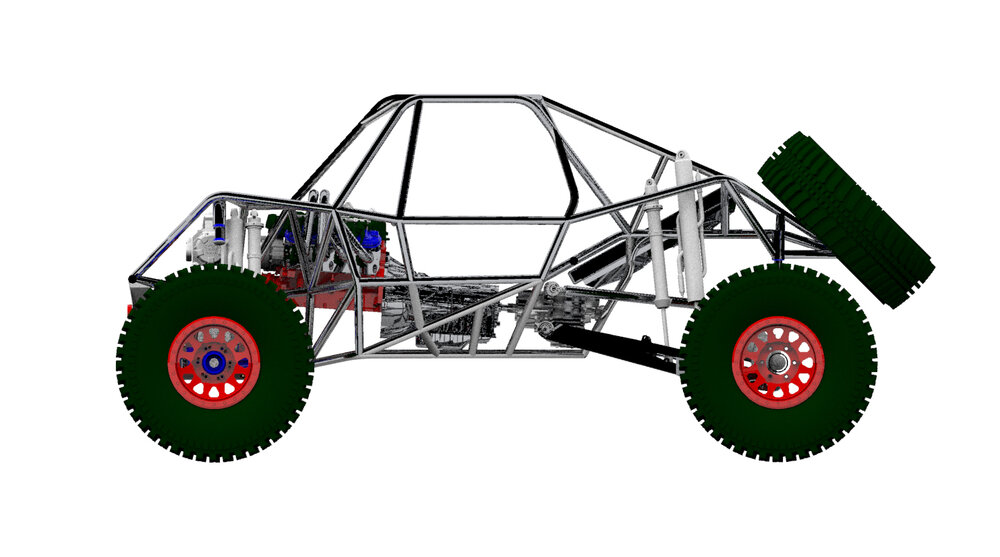

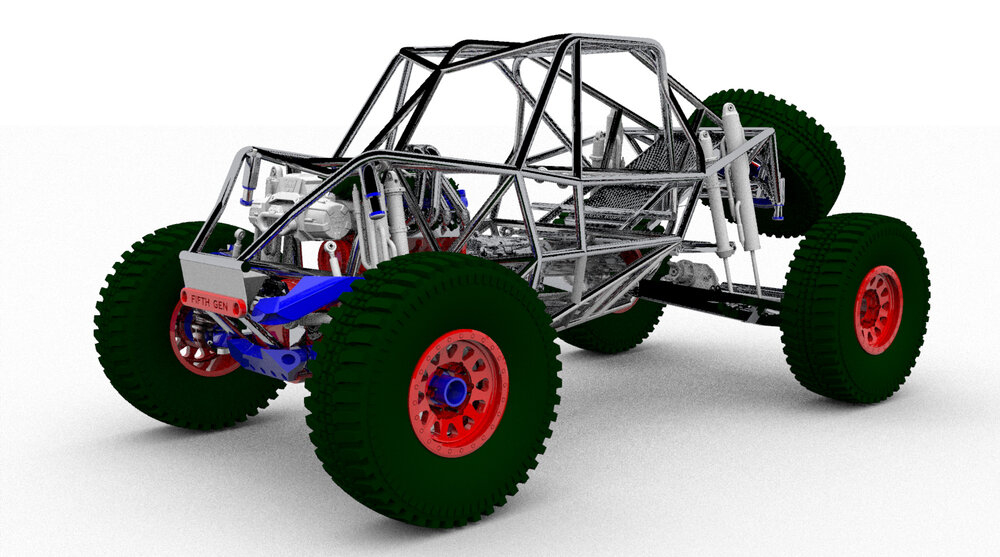

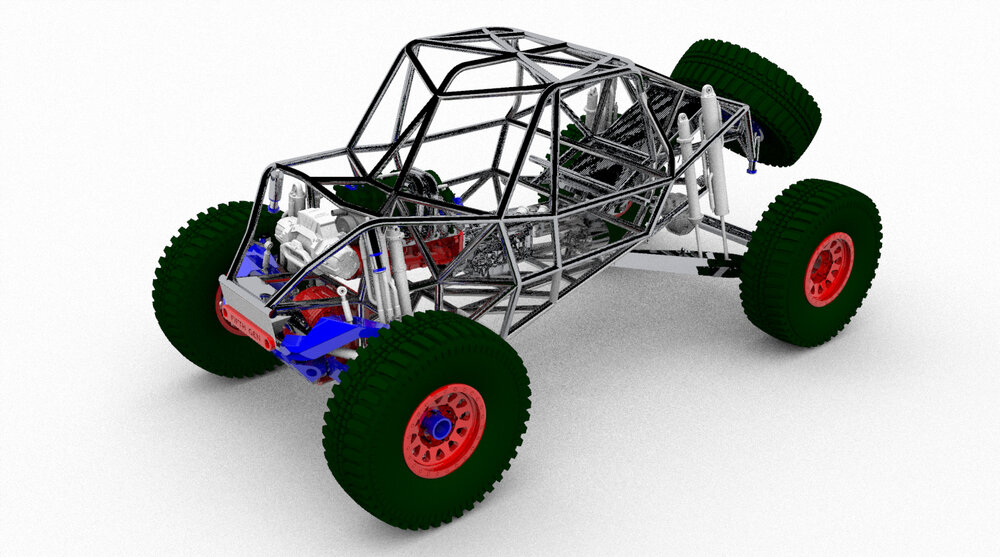

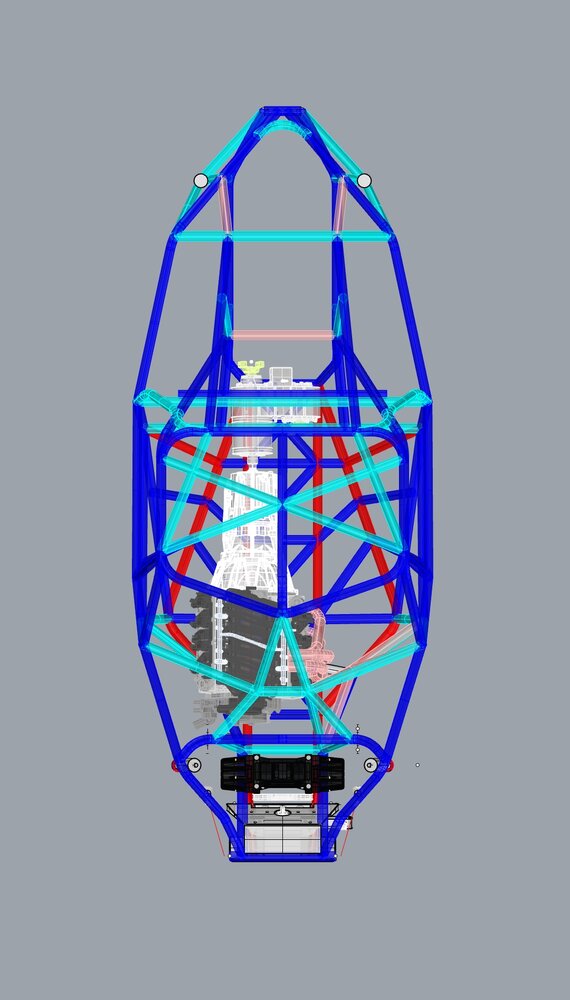

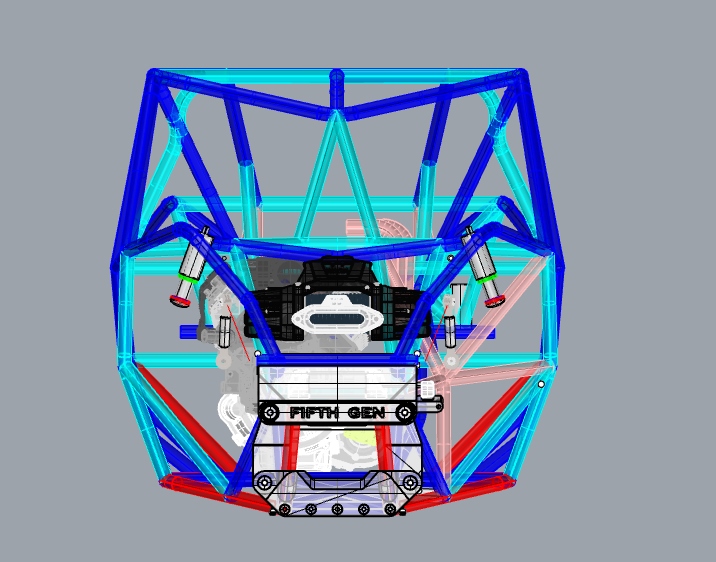

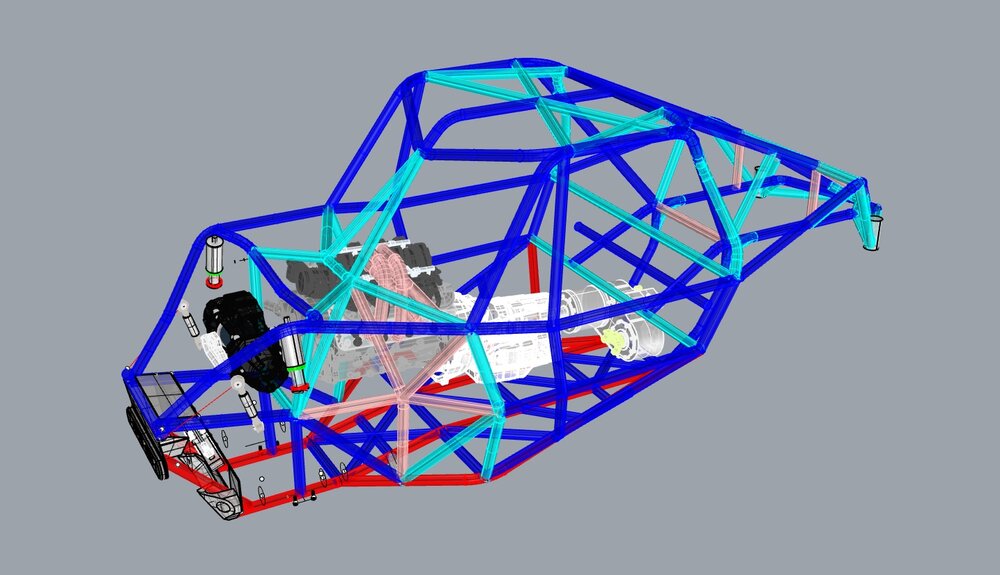

Further with the chassis.
Inch & three quarter chromoly tubing.
Legend:
Red = .188 wall
Blue = .120 wall
Cyan = .090 wall
Pink = .063 wall
The lacing around the engine won't be symmetrical with the lacing on the driver side. I've mapped the driver side though. l may end up having to stuff the tire at lock, and lace around the engine hands on. You can see a major tubing change between the colored pictures, and that one picture on the jig.

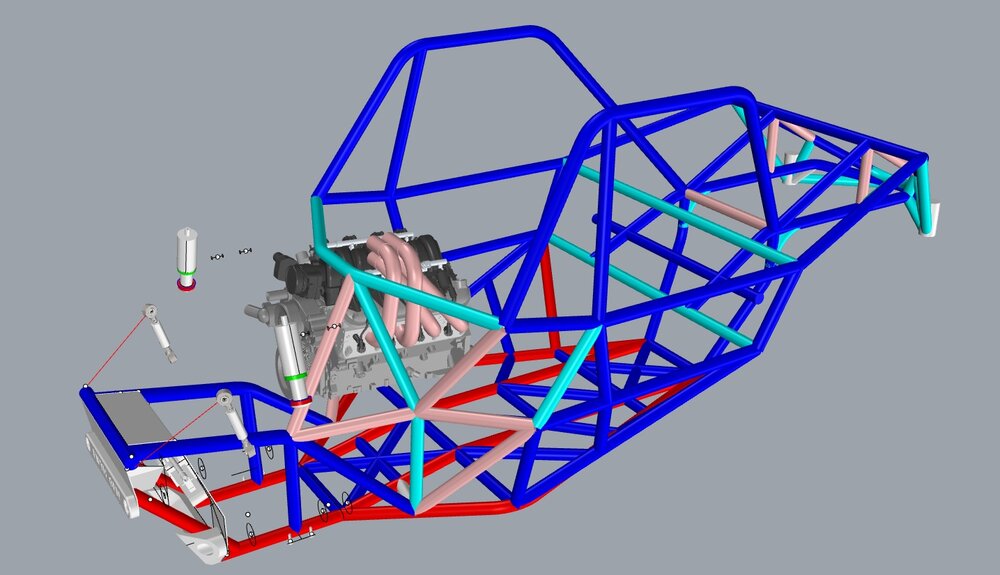

D-6 77.jpg


D-6 78.jpg


D-6 79.jpg


D-6 80.jpg


D-6 81.jpg

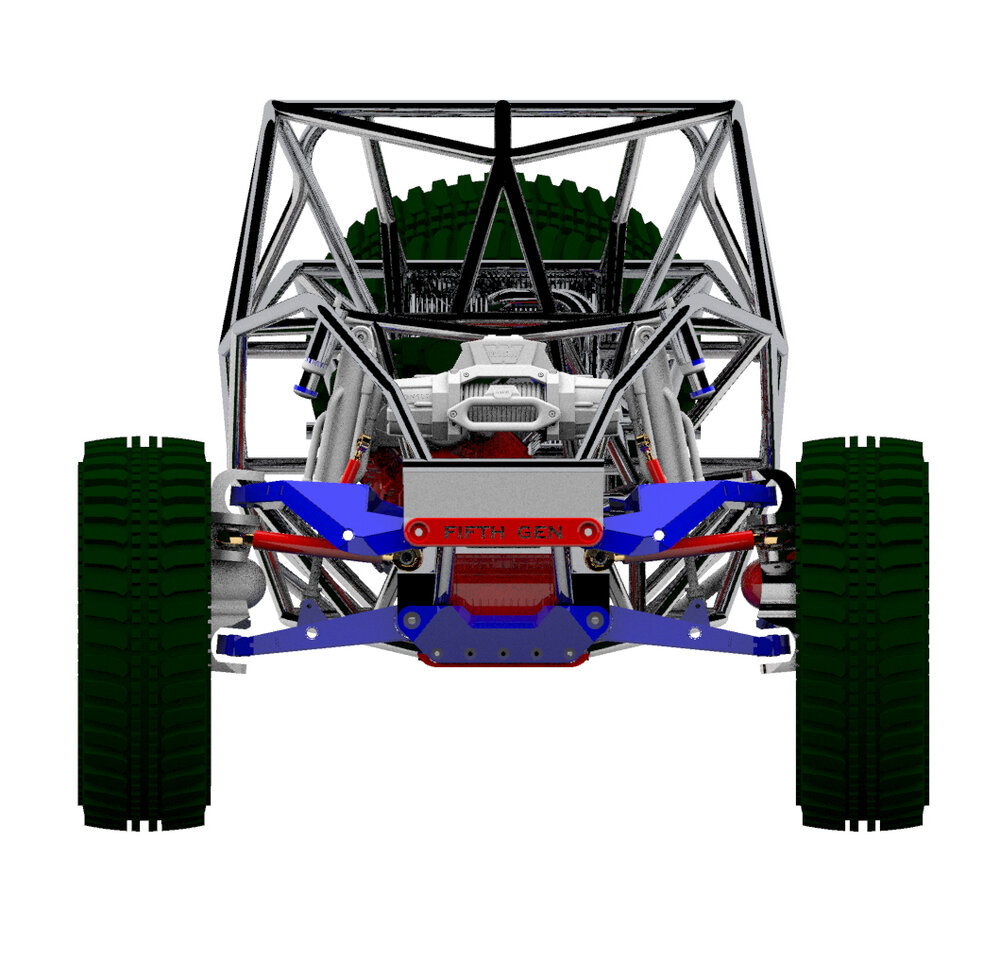

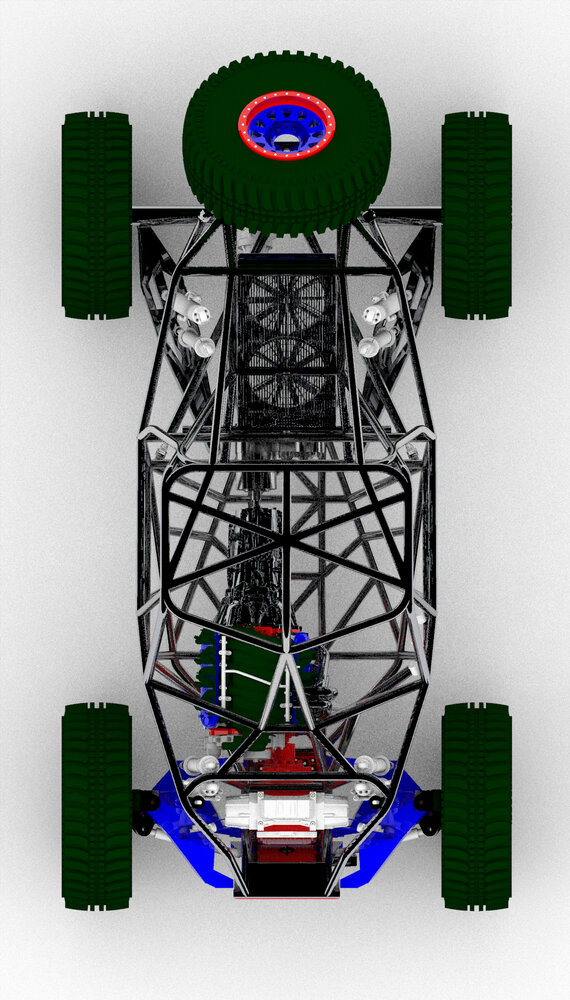

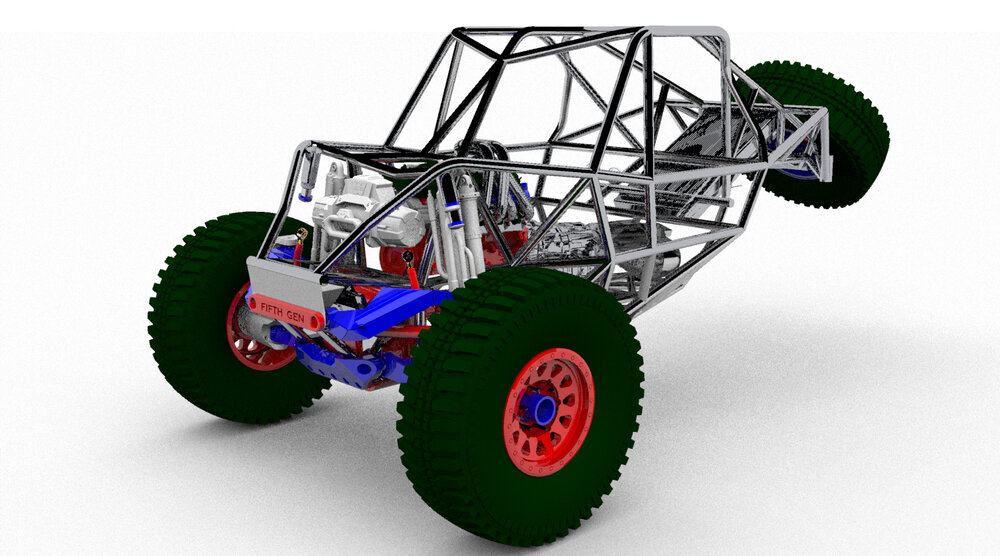

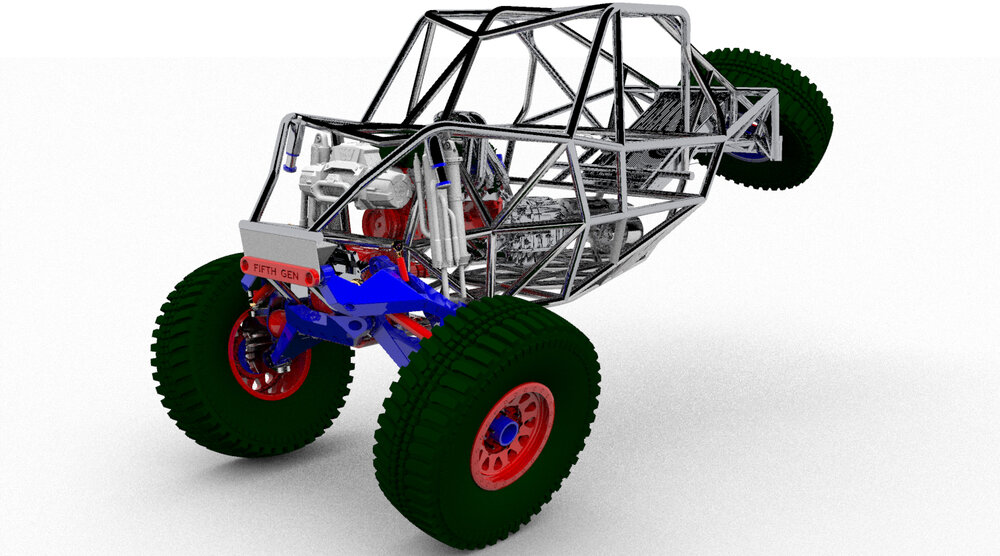

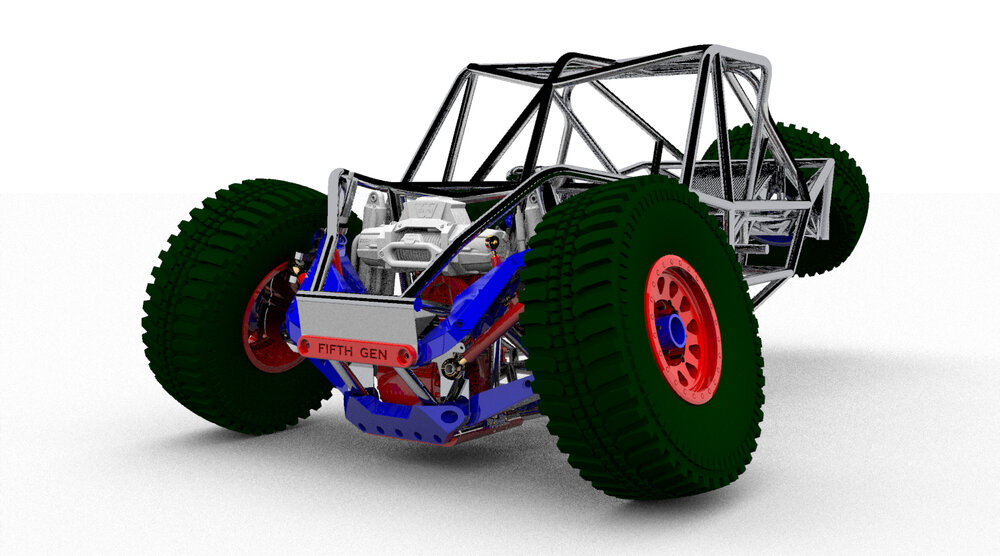

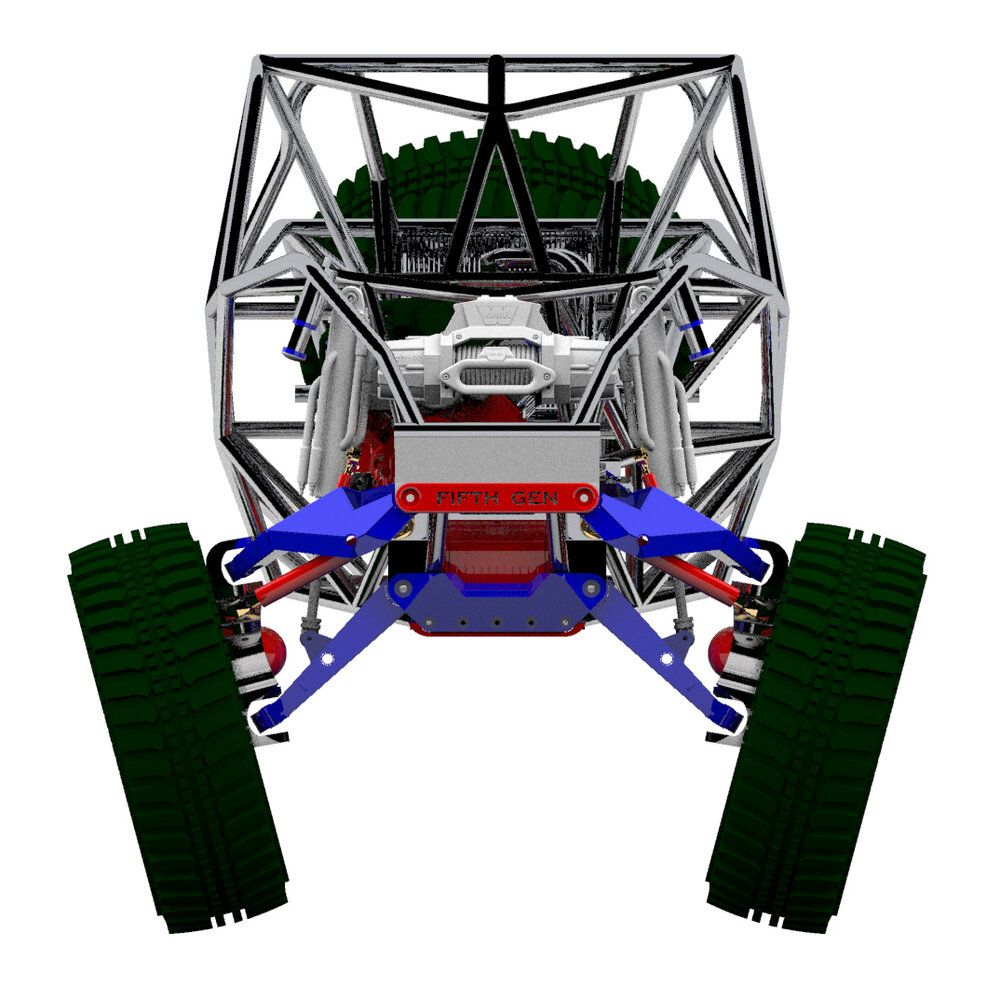

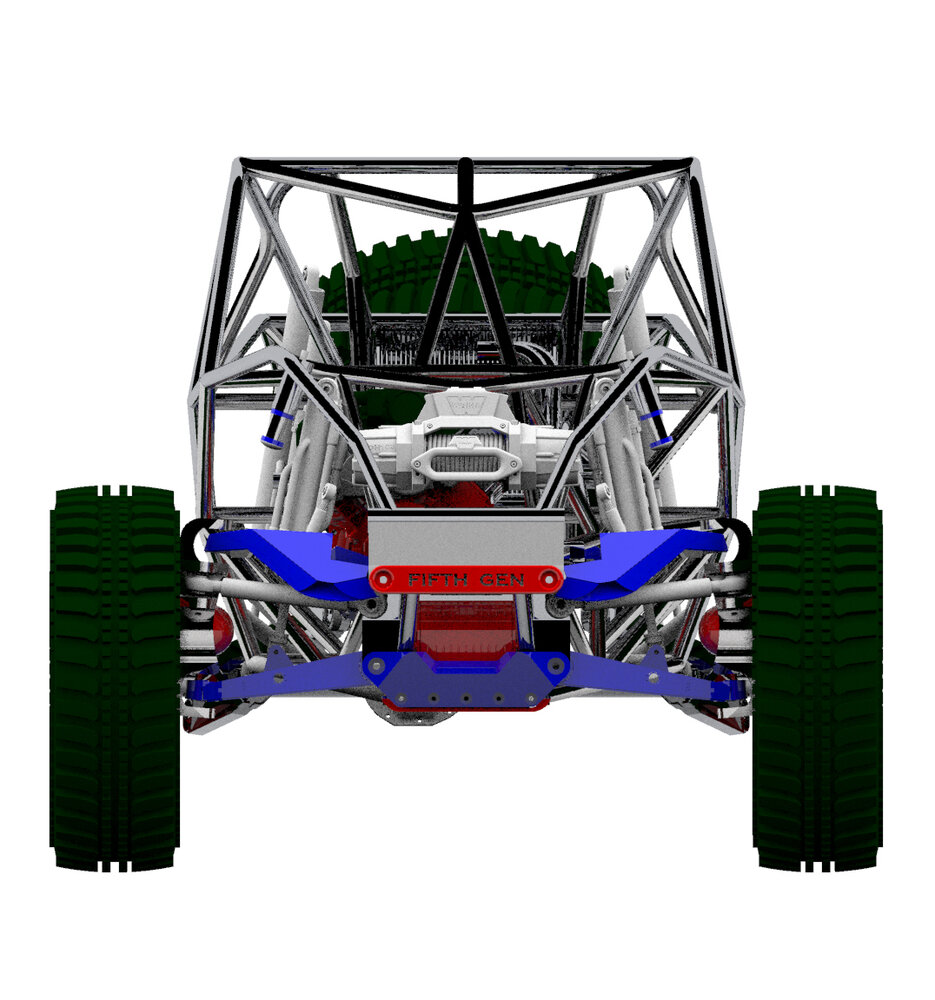

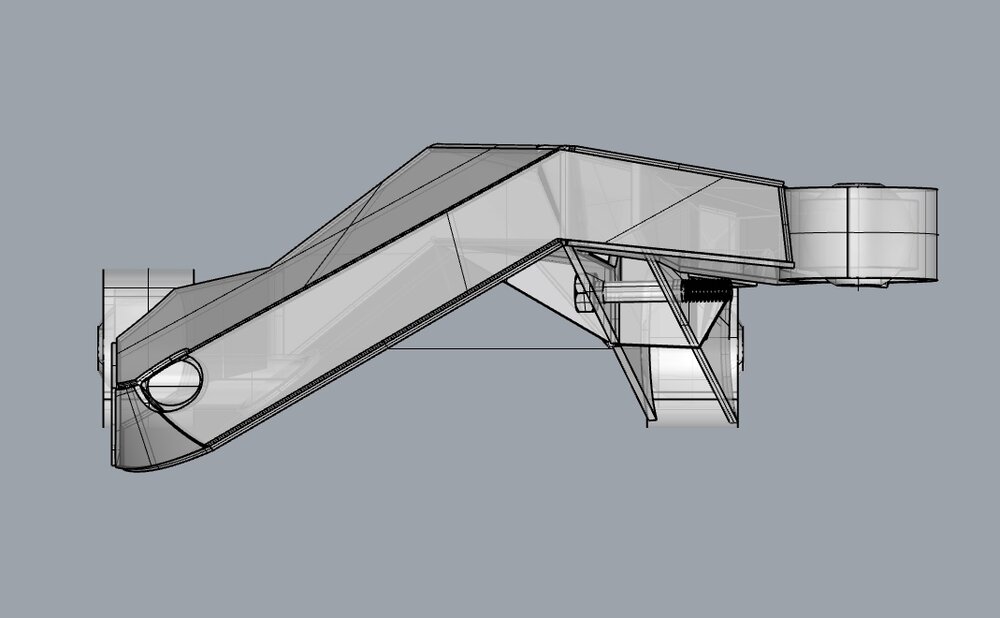

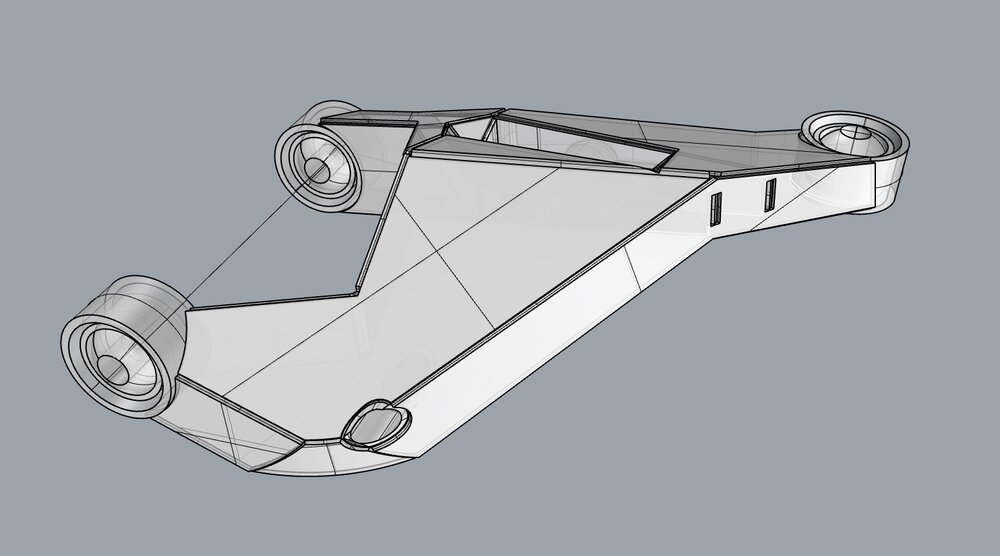

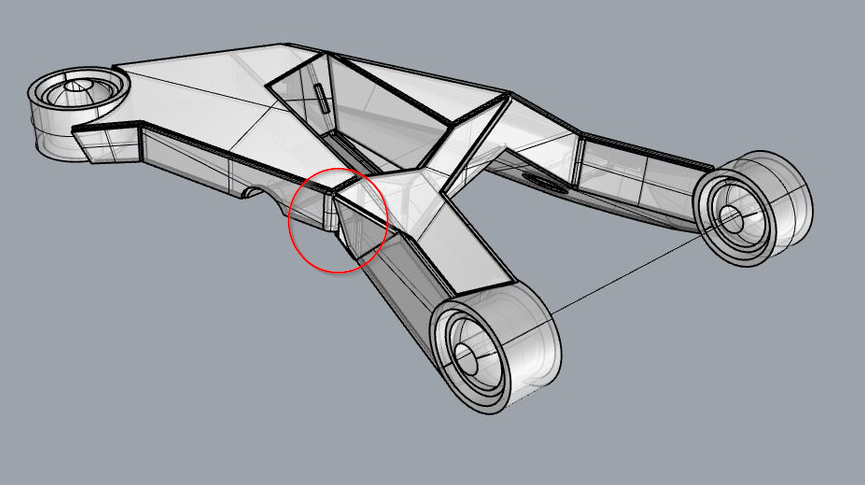

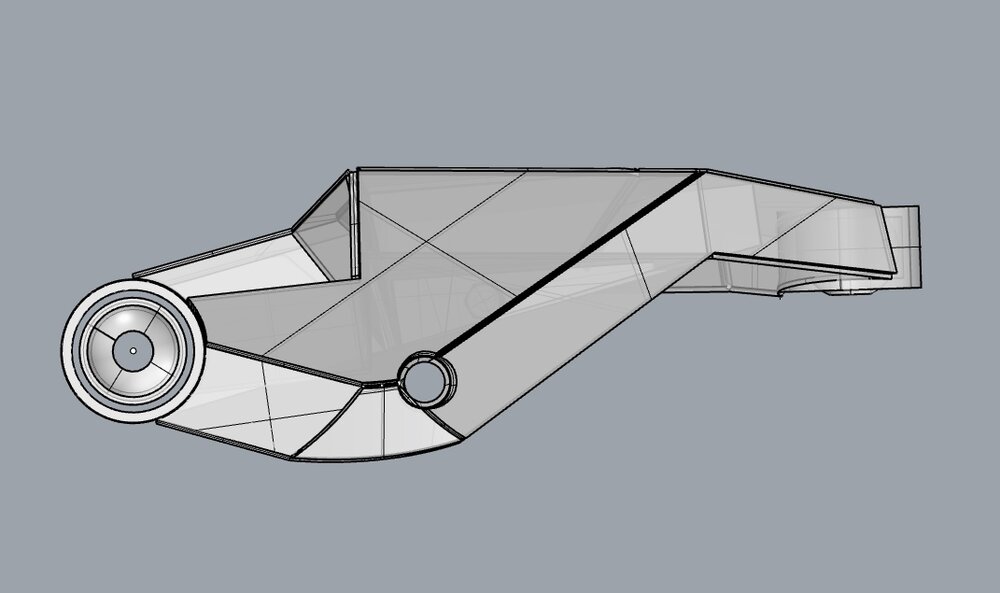

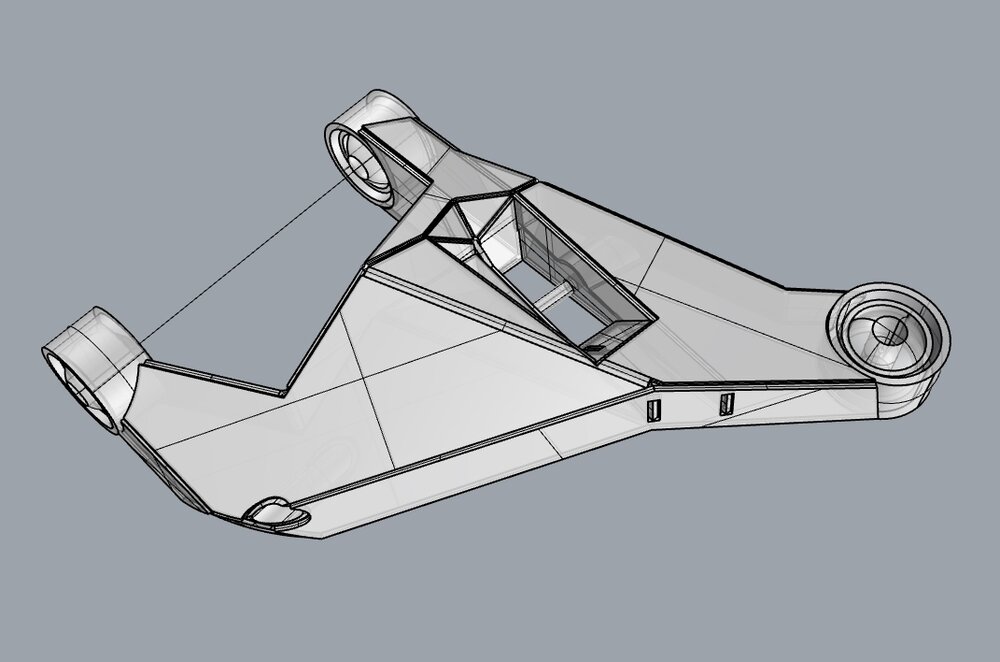

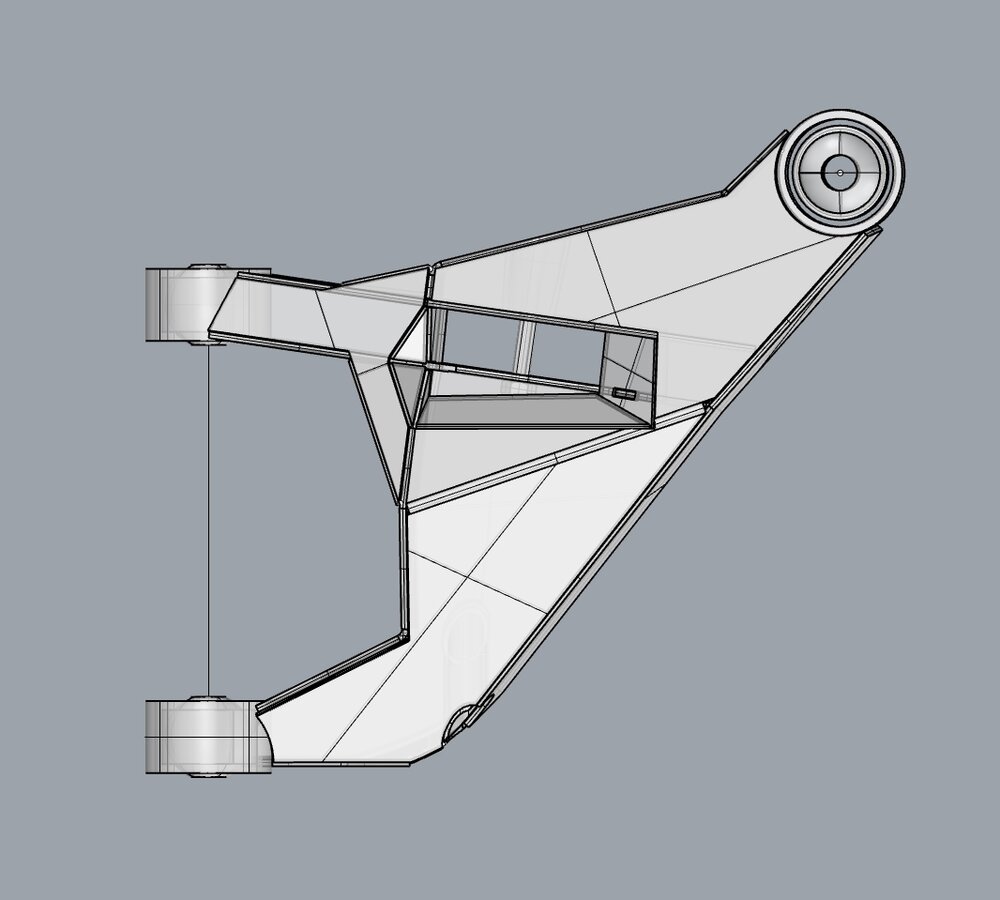

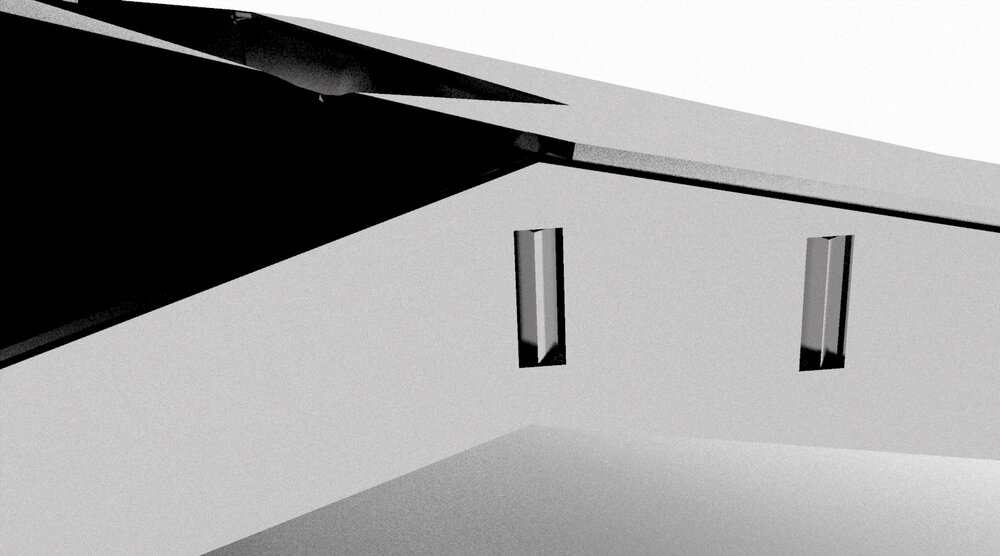

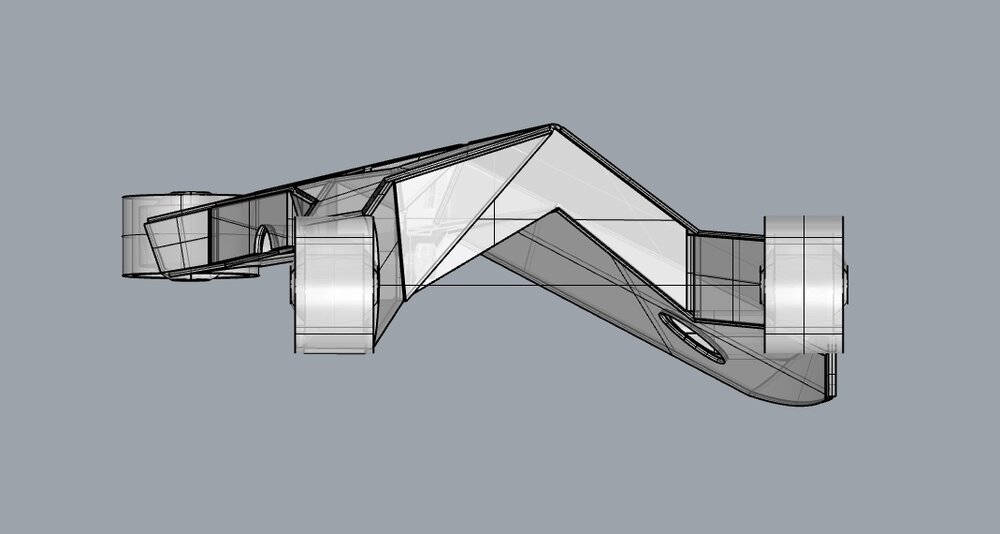

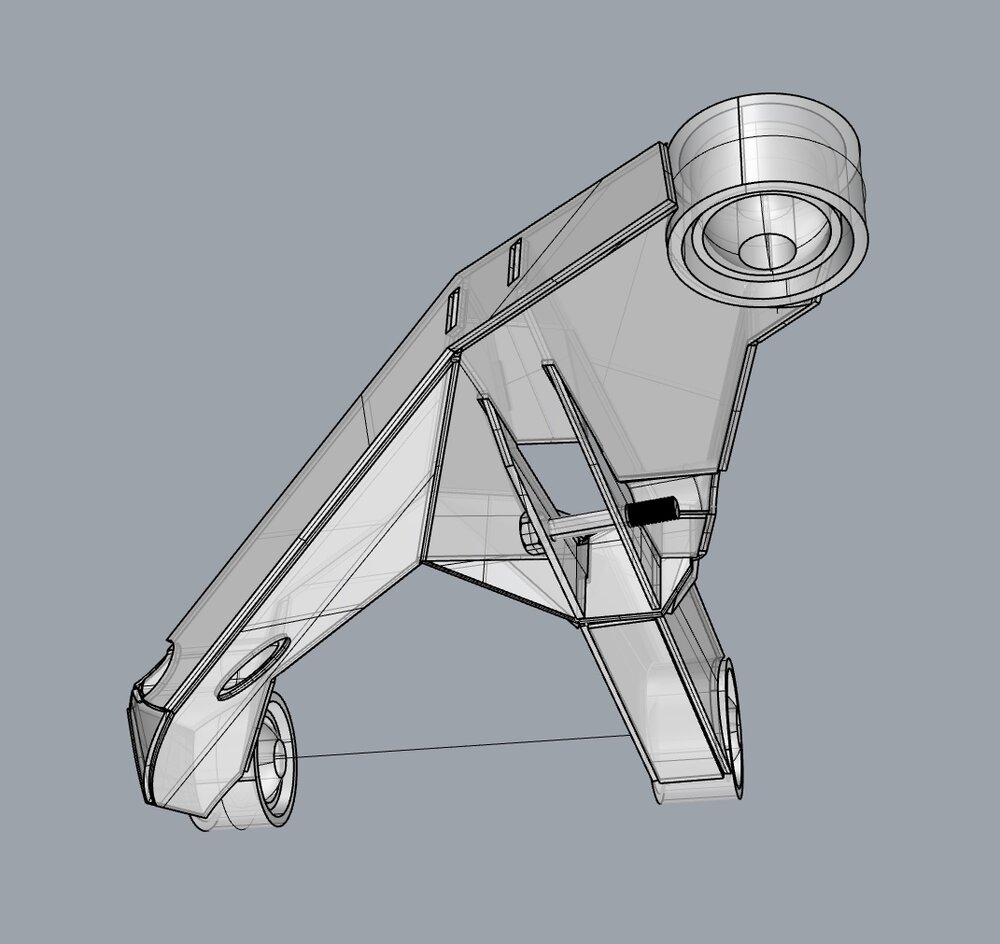

Absolutely insane amount of work into this upper control arm, but I think it's done. I would never be able to create something like this by hand. Motobilt technology opening up doors for some speed. The hard work is done. Unbelievable.

upper control arm 50.jpg


upper control arm 51.jpg


upper control arm 52.jpg


upper control arm 53.jpg


upper control arm 54.jpg


upper control arm 55.jpg

Now that you have you design complete... and posted... I hope there's no intention of parent protection.
