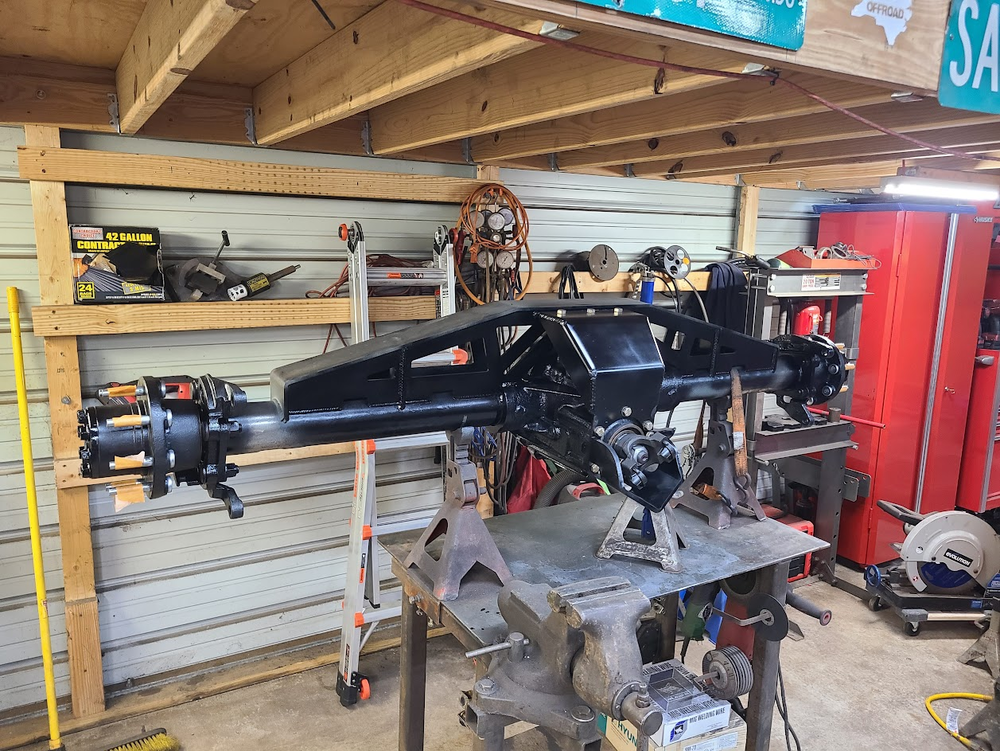

Commando axle swap, got a HP44 and D60. Shackle reversal up front and a touch of stretch on both ends. Customer is planning to drop a LS/auto in it at some point. Just a simple beach cruiser.


Really should've taken more pictures of it before it left 🤦‍♂️

Simple harness bar and limit straps on my old TJ

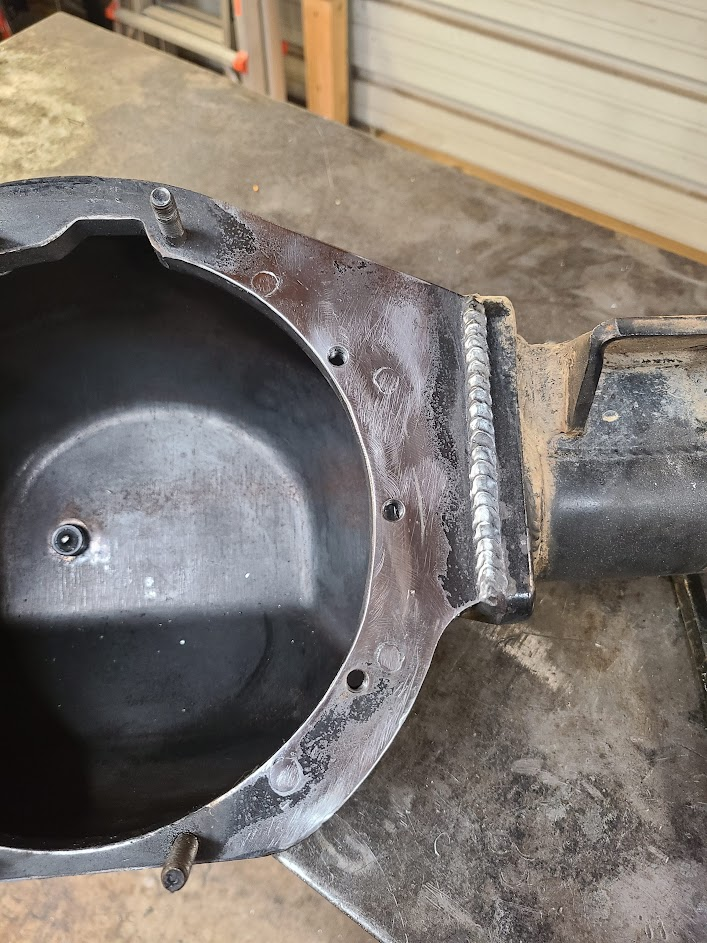

E-locker housing mod for a normal third


Fresher, not yet bent 14 bolt swap on Derek's buggy

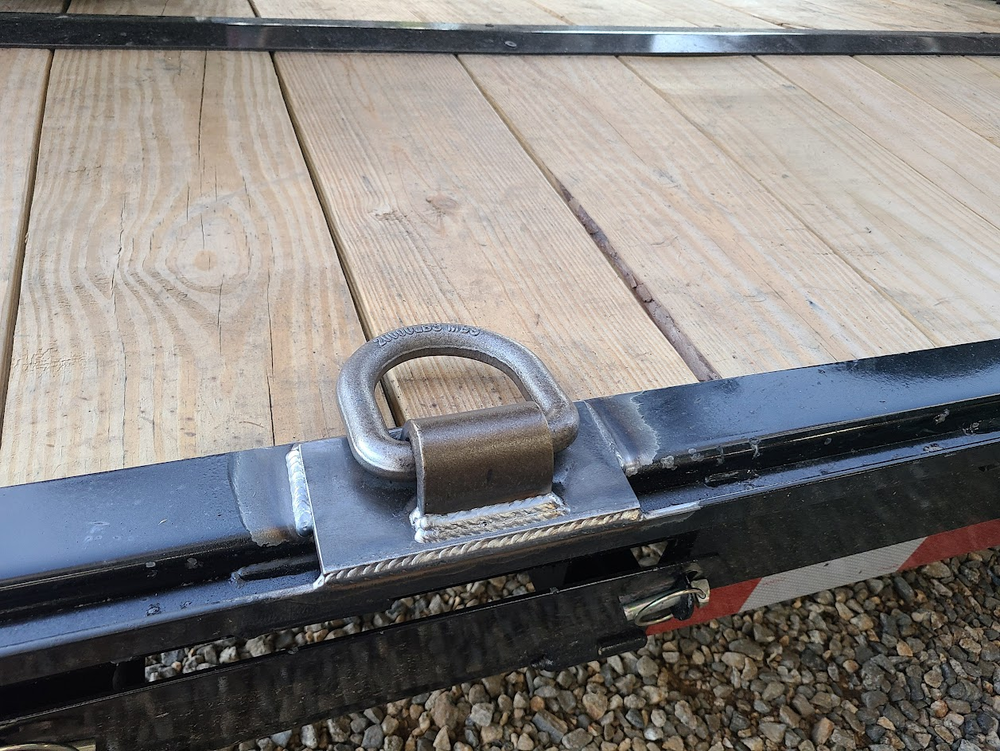

Simple clean trailer D-ring mounts

Now offering HD truck repair services 🤣 Cone washers were invented by an engineer whos wife fucked a mechanic.

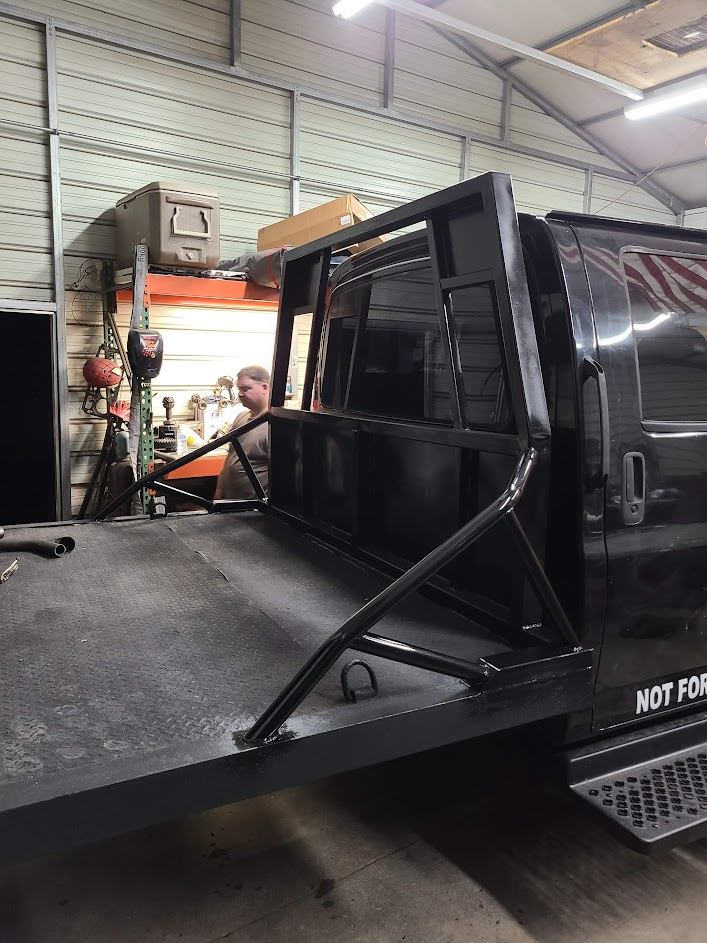

Headache rack build on @77GreenMachine mega hauler

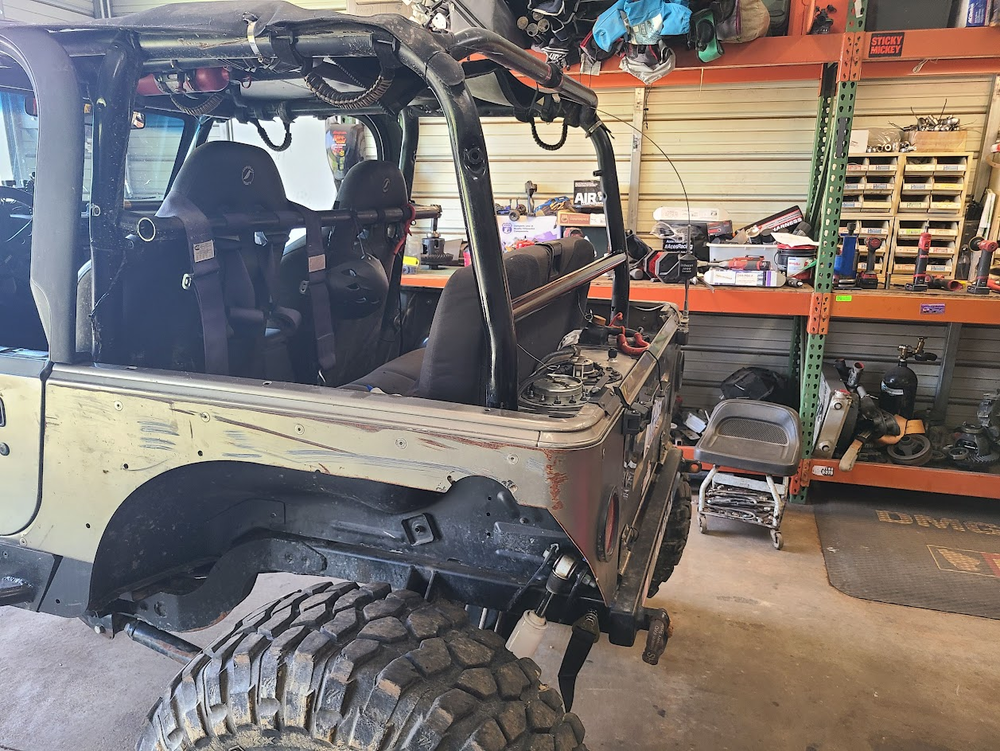

The kinds of things you find while working on JK's

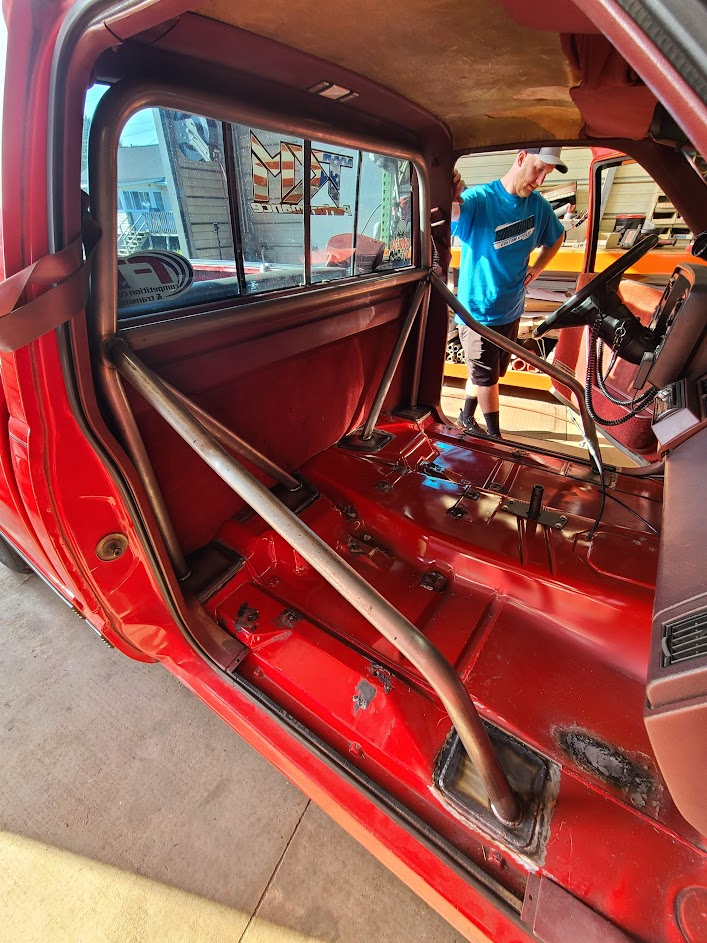

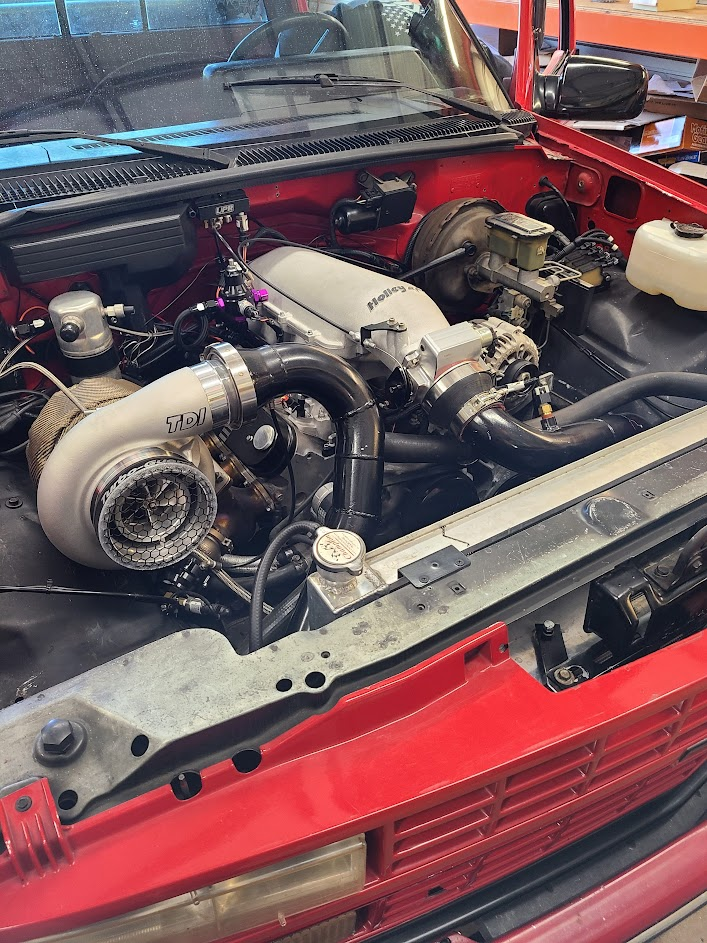

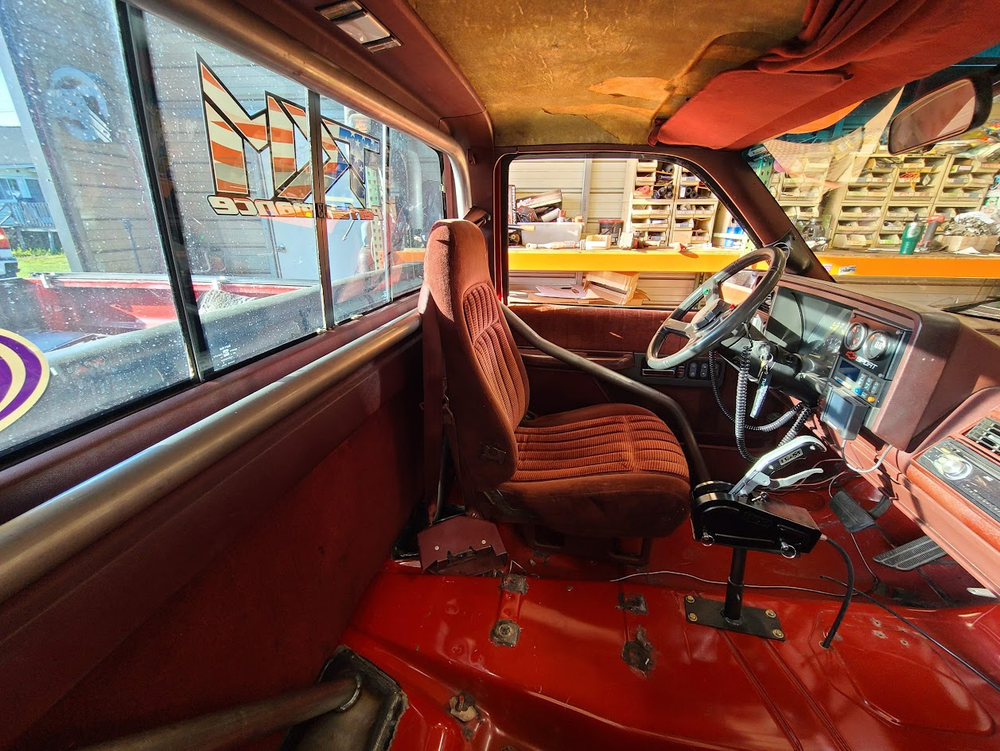

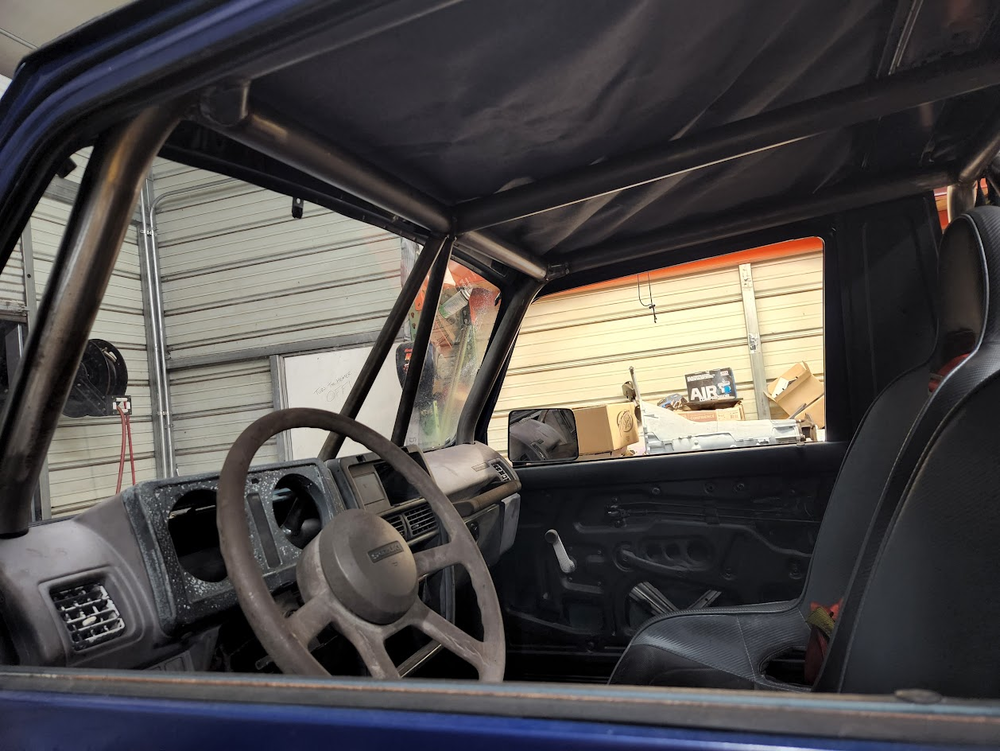

Simple roll cage in an OBS Chevy drag truck




Pics of the truck for shits and giggles

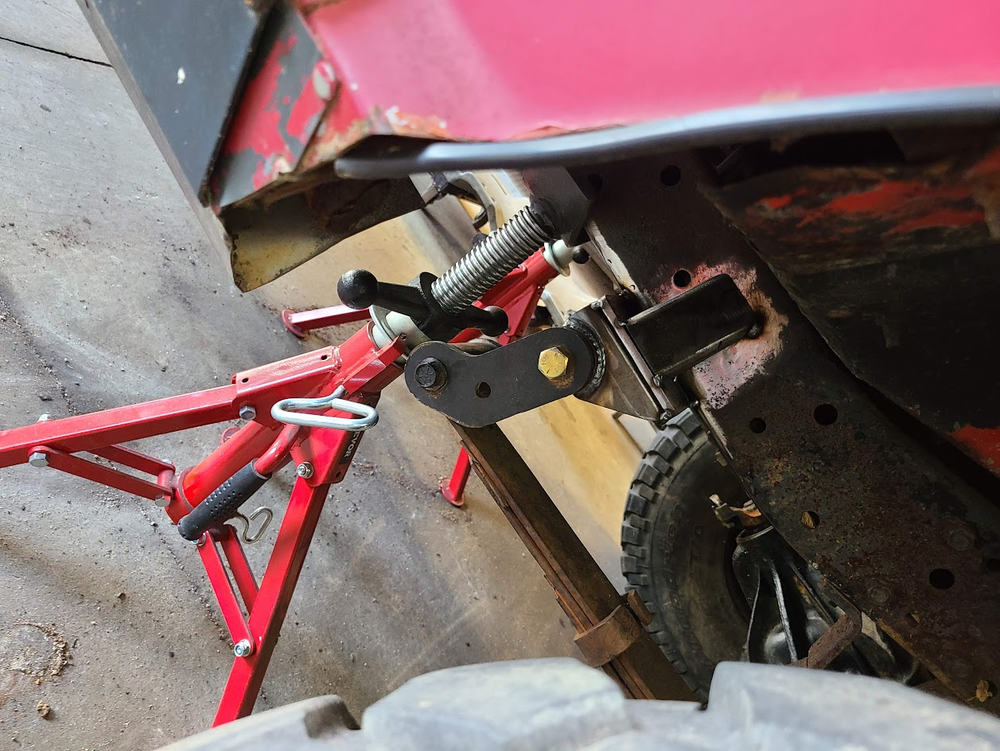

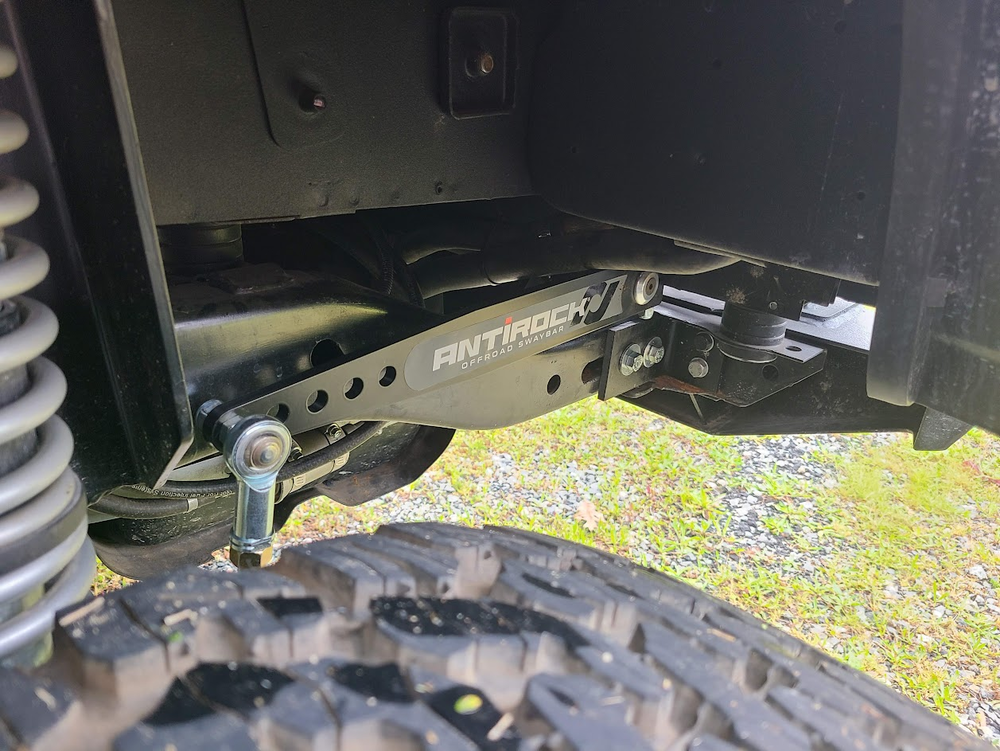

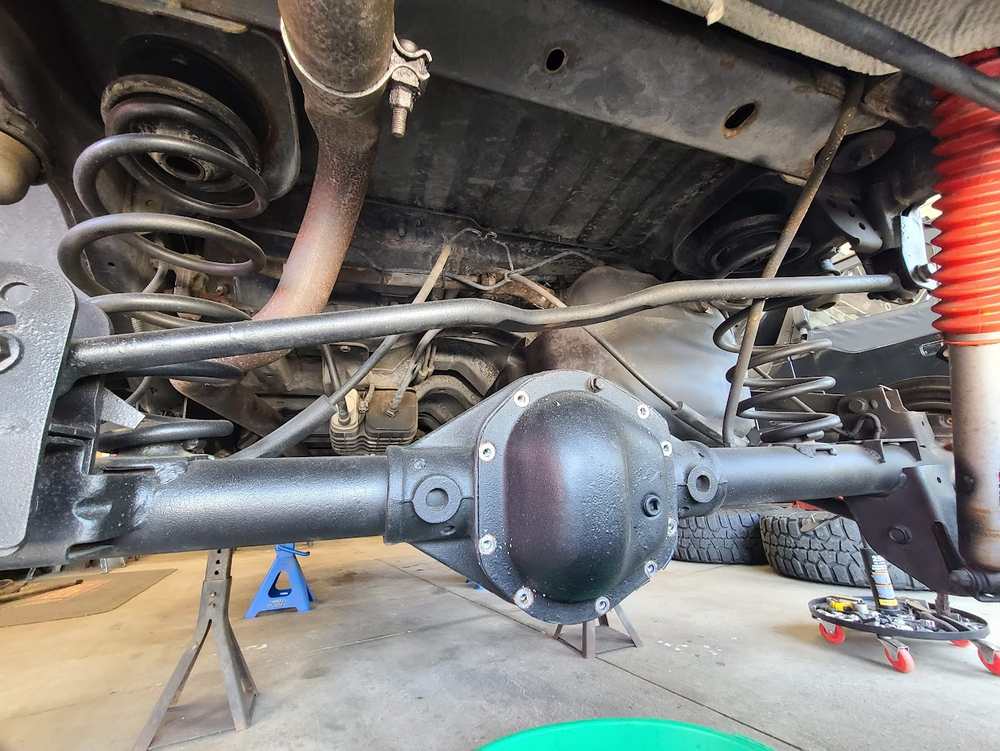

Sway bar install and little suspension geometry changes on a linked CJ. It was extremely sketchy before the changes, I about put the thing in the ditch multiple times on the initial test drive. Now cruises down the road with one hand on the wheel.




It's also stupid clean, 5.3/4l60 makes it move way faster than a CJ ever thought about.

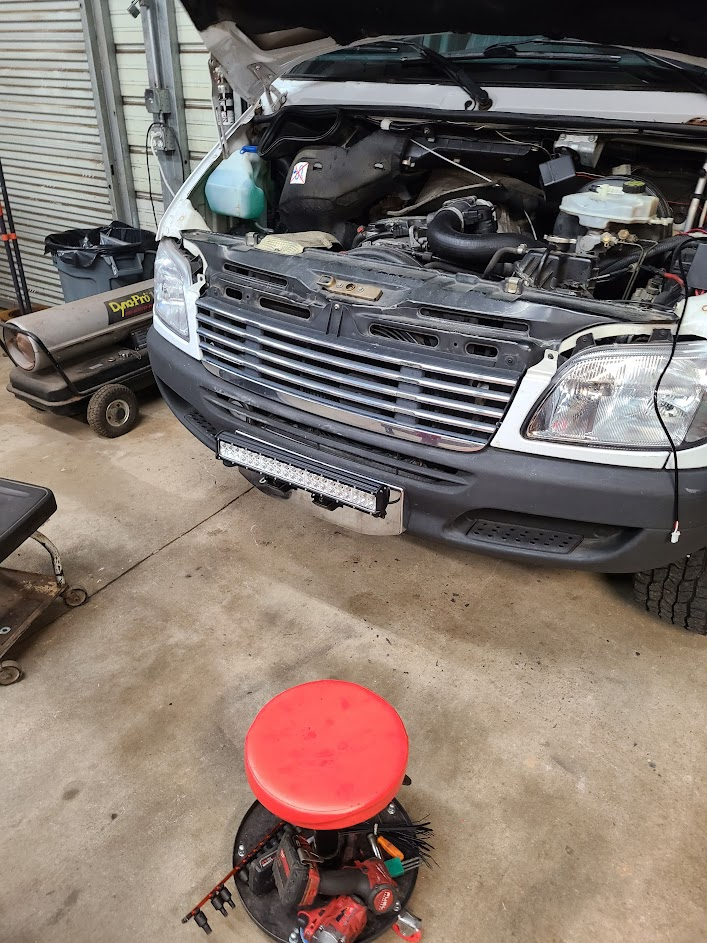

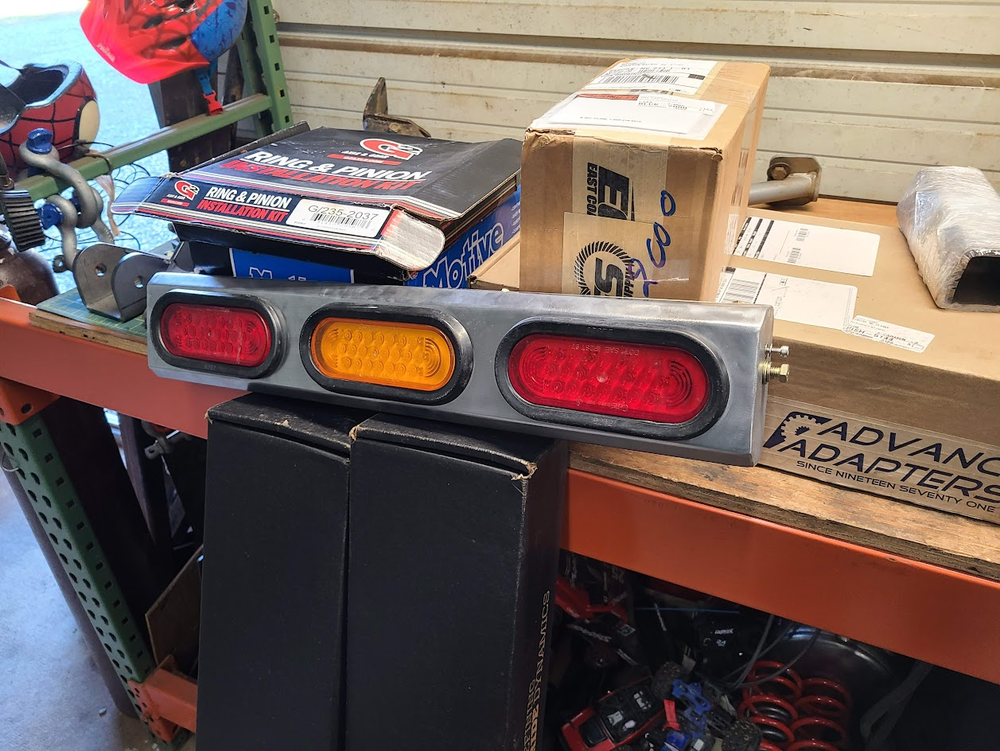

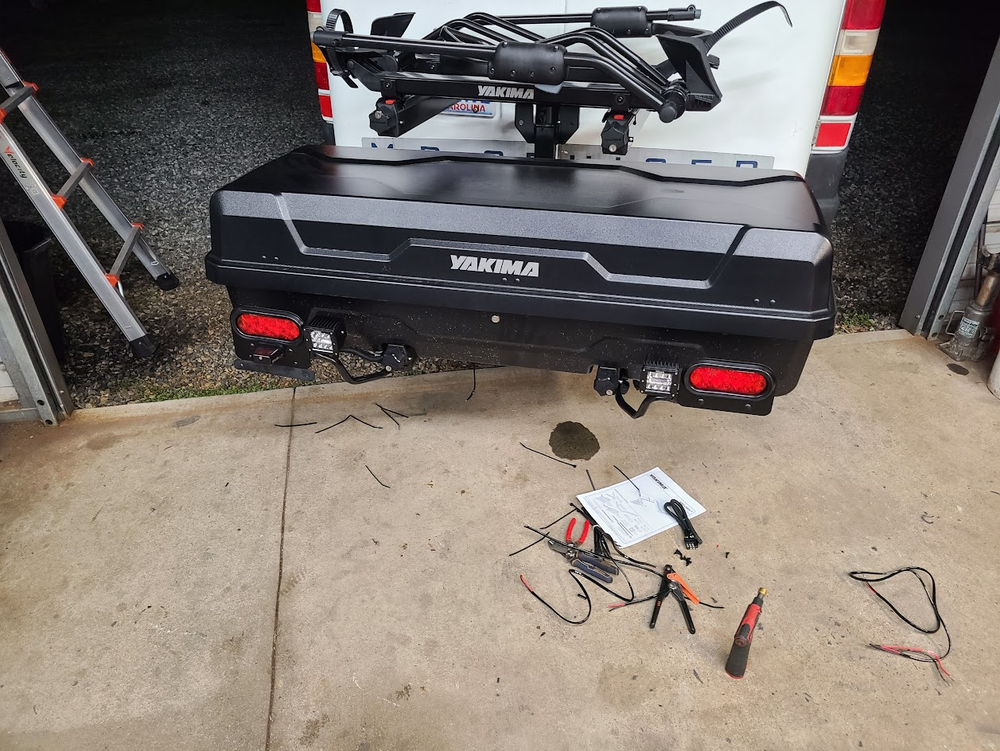

Just look over the mess on the floor, simple LED pos and light bar mount on an RV.

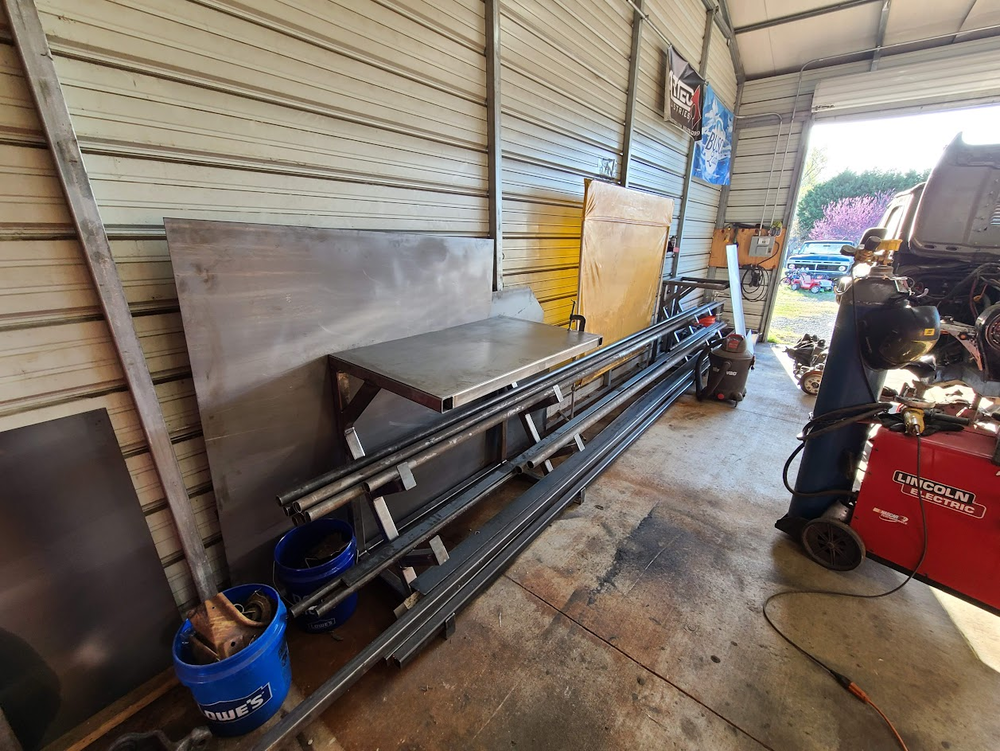

Shop upgrades because storing metal on the floor sucks.

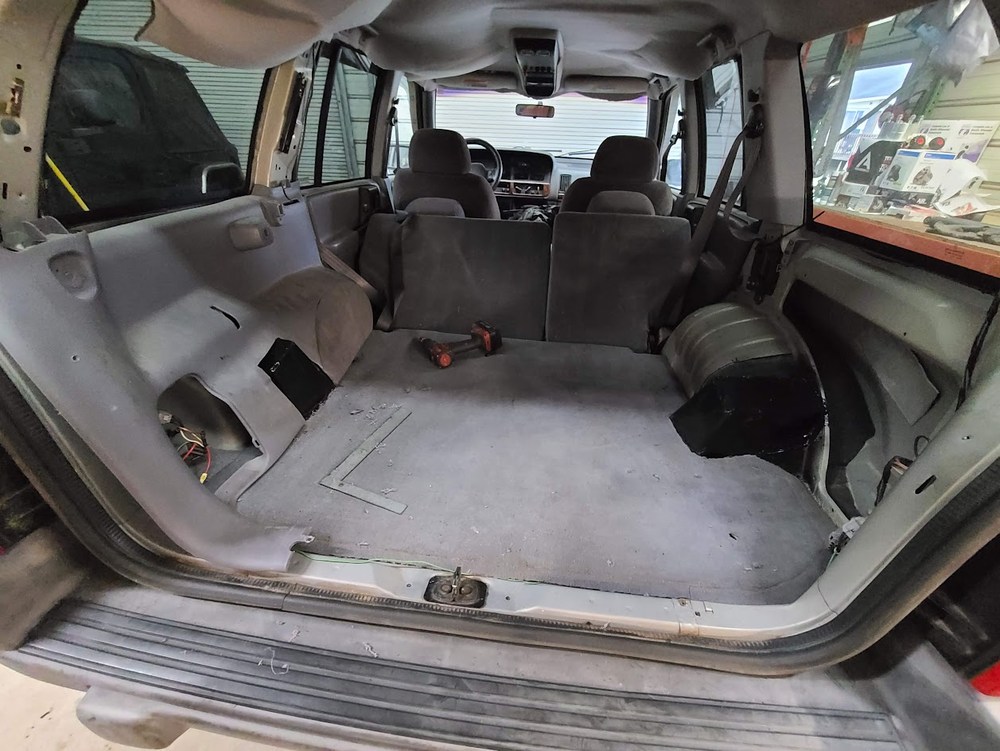

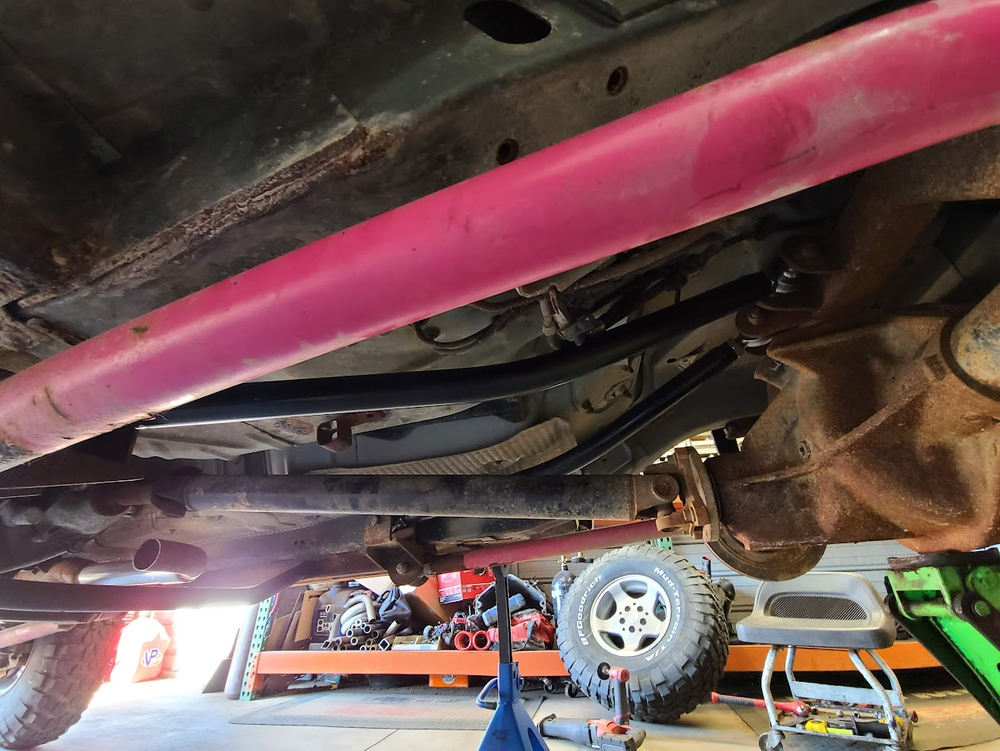

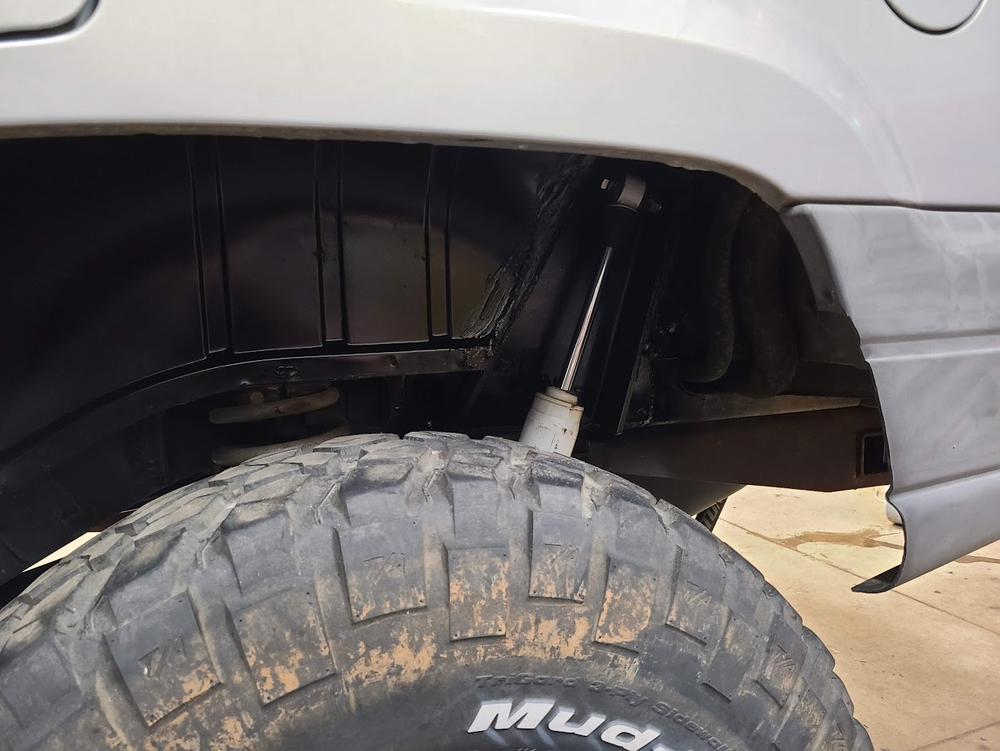

ZJ shock relocation and upper links made to actually clear at full bump.

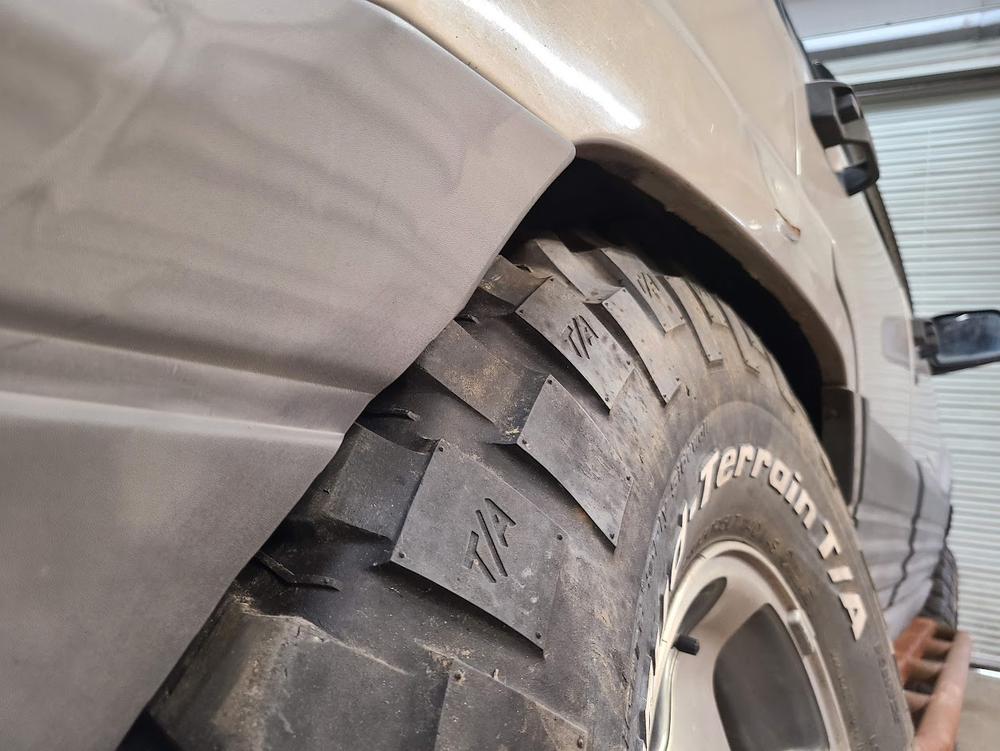

Trimming plastic is my least favorite hobby

ALL the stuff


Attachments

  • 1658982516820.png
    623.1 KB · Views: 65
14 bolt build


What it looked like before 🤣


Quick and easy 4Xinnovation slider install

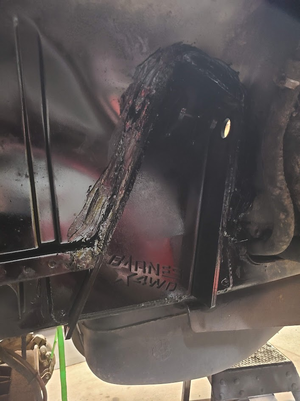

Should've taken a before pic but just know it was in a roll over and both end caps broke at the welds.

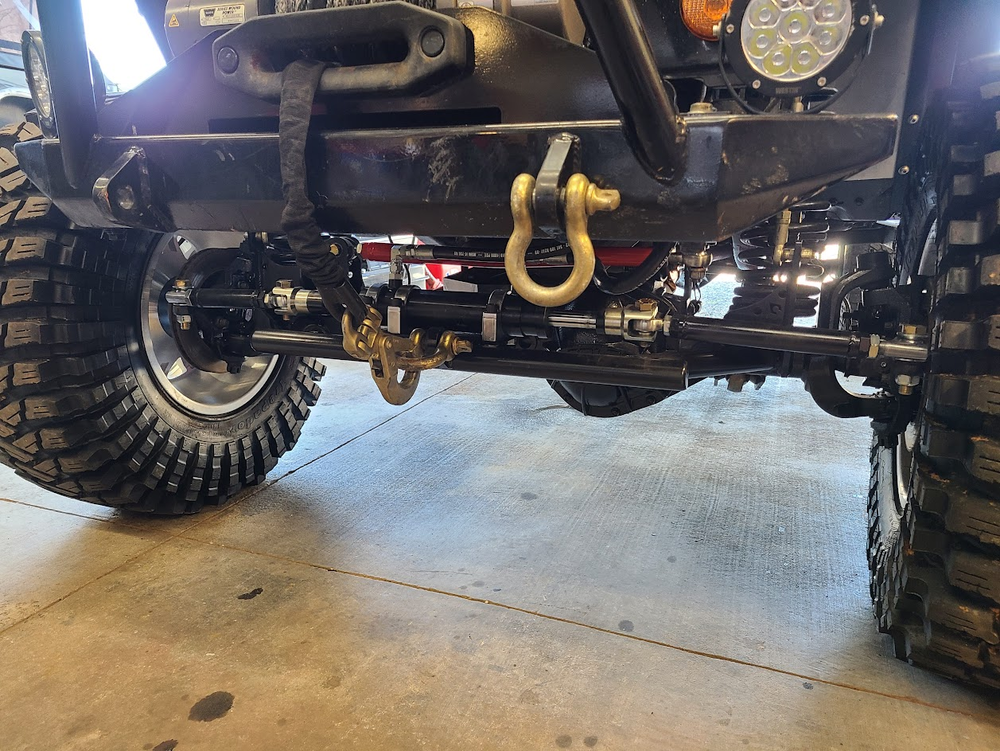

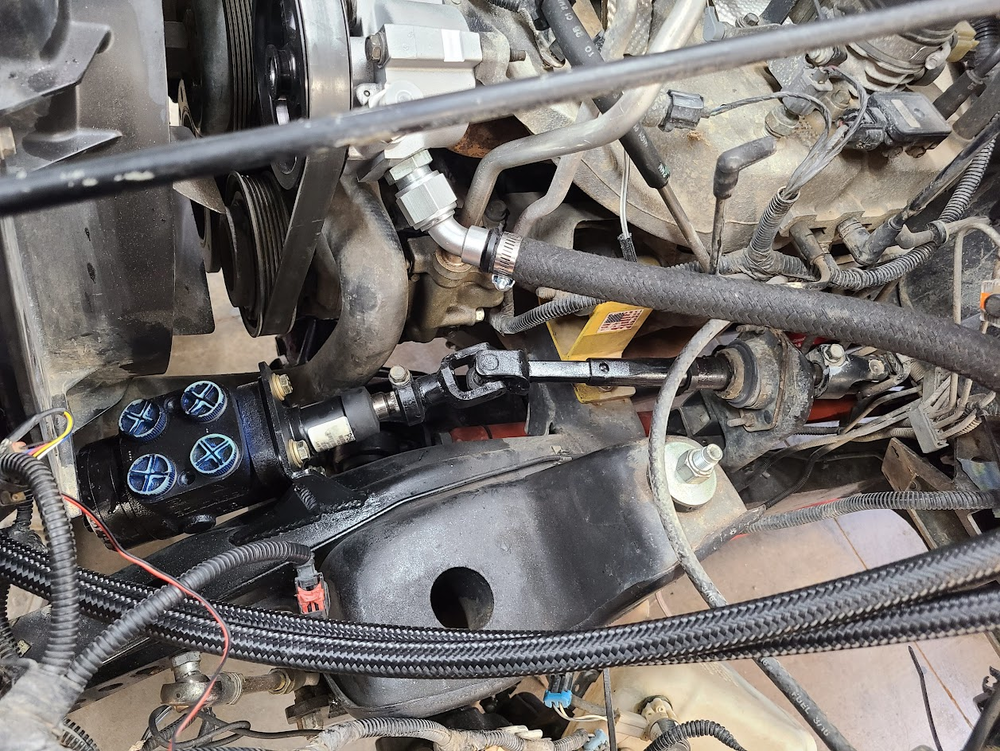

@CasterTroy TJ D44 full hydro install

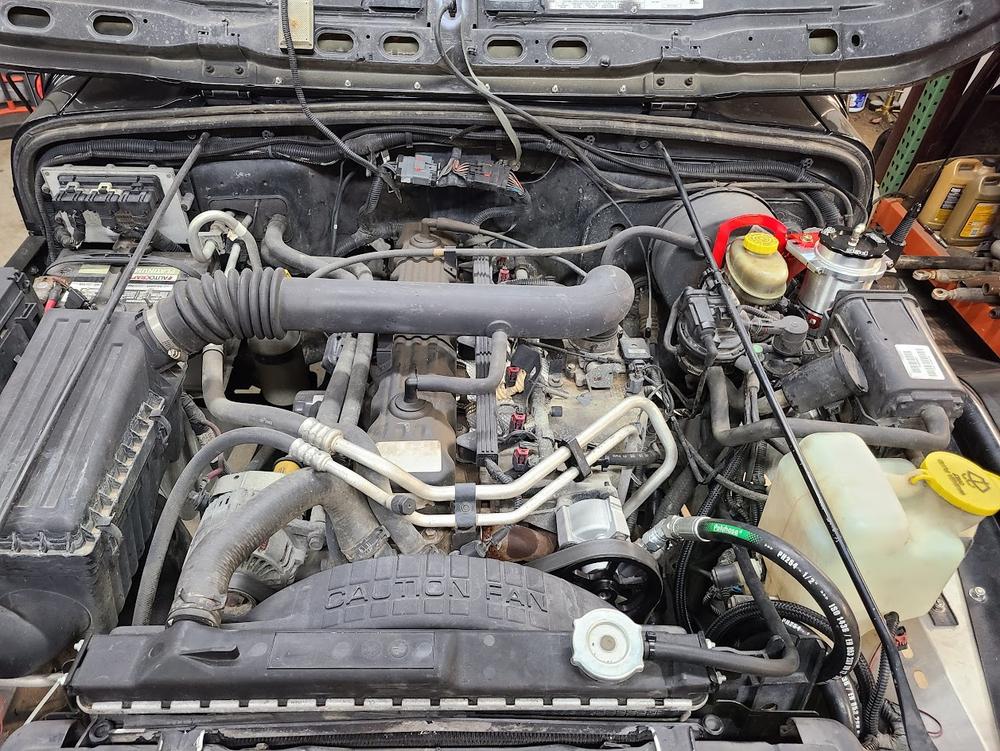

Very tight under the hood



Had to make the resi bracket fit as I'm pretty sure they designed it around 03+ TJ's

Chris_Keziah said:
😬 long time no update.....so this will just be all out of order 🤷‍♂️

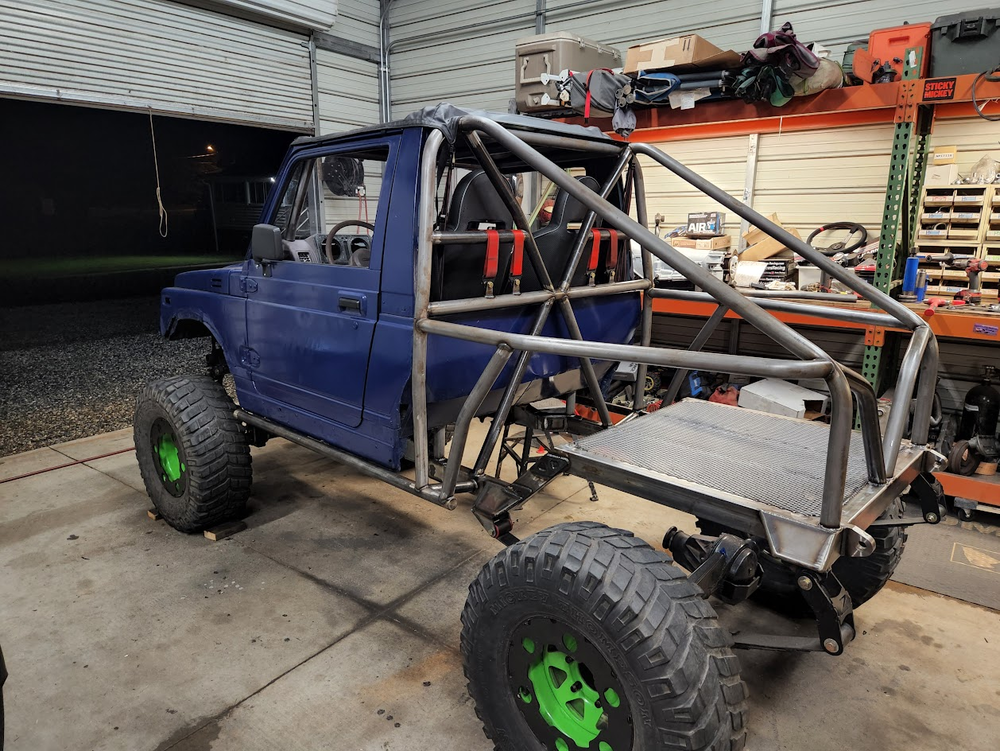

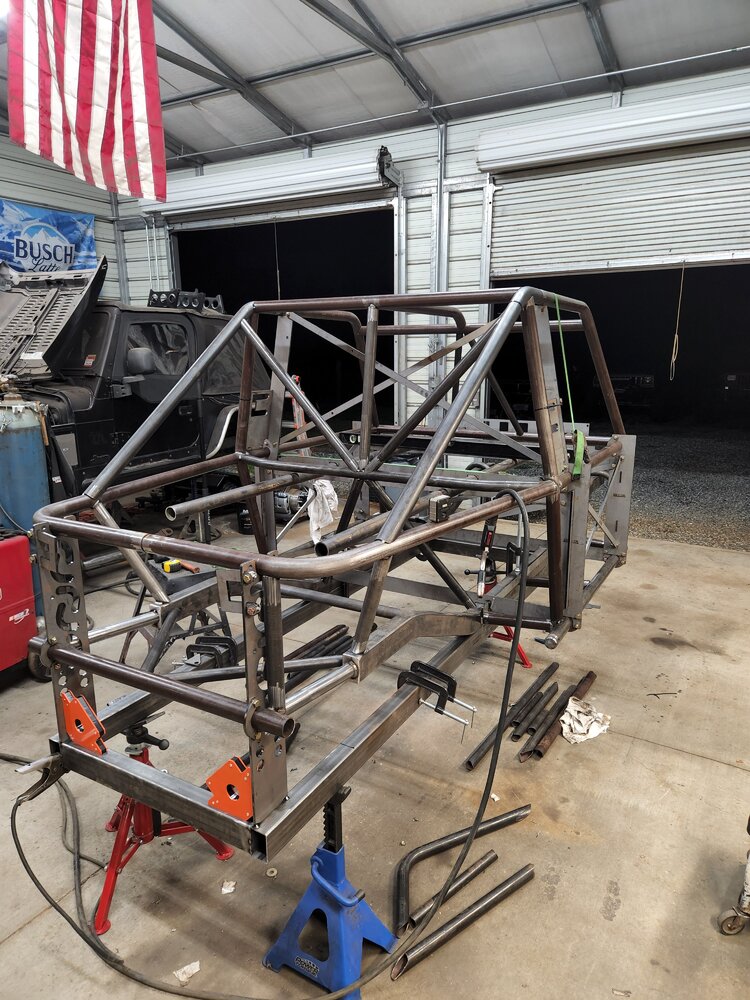

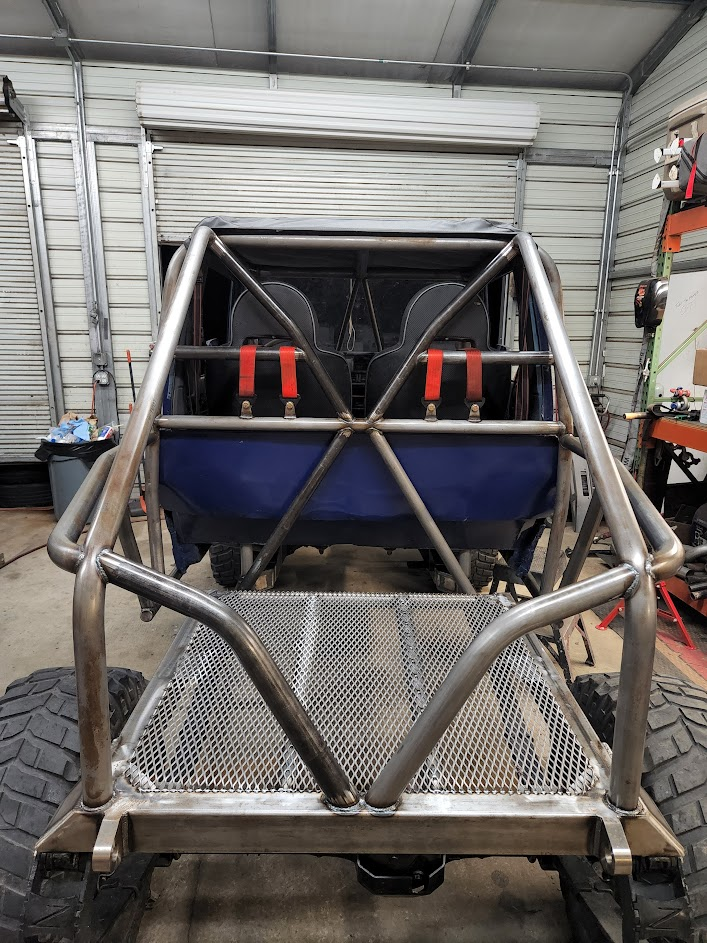

Sami build, got 20" of frame stretch and full cage
View attachment 377430

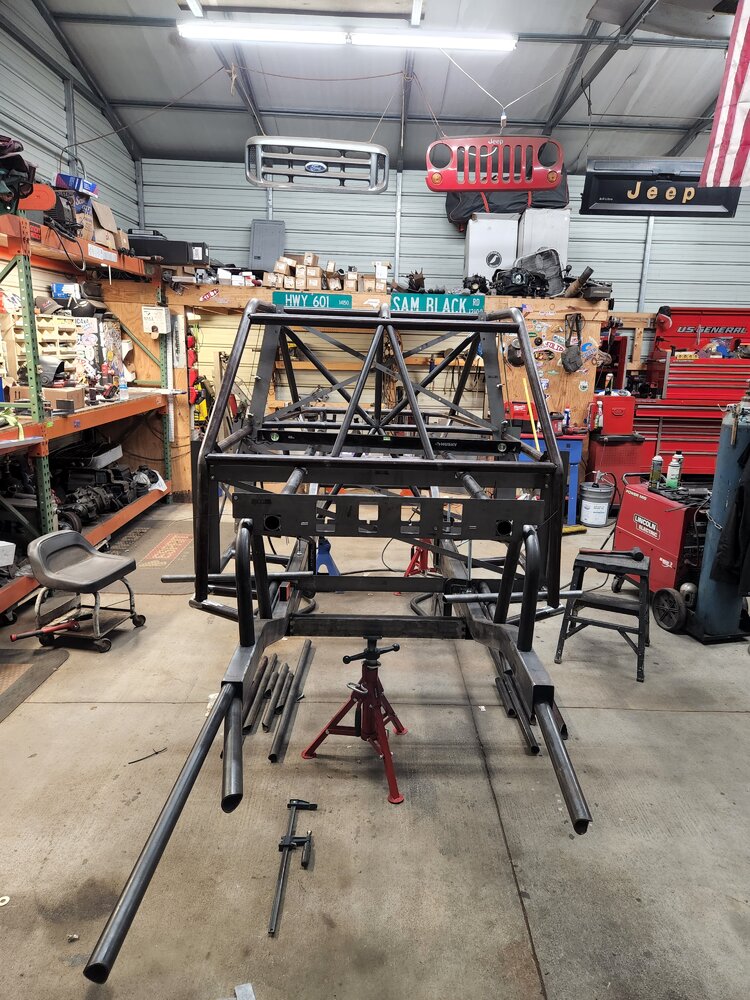

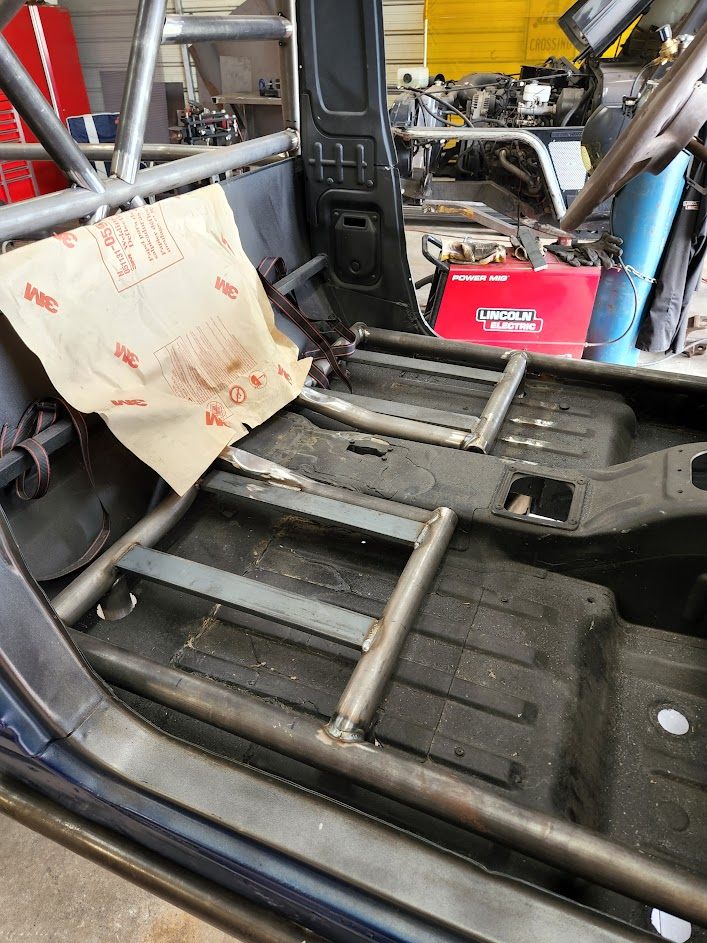

Floor tube work
View attachment 377431
View attachment 377432
View attachment 377433
View attachment 377434
Click to expand...
I'll brag on this fool since he's so humble.

All this on the Sami build with no 'puters or software, just by eye. There's about 120ft. of round tube here and no more than 4ft. wasted.

Home boy got a little bit of skillz

Curious what changes you made on the CJ geometry? I dont know what it looked like before, but always up for learning what to and not to do.

Chris_Keziah said:
Sway bar install and little suspension geometry changes on a linked CJ. It was extremely sketchy before the changes, I about put the thing in the ditch multiple times on the initial test drive. Now cruises down the road with one hand on the wheel.

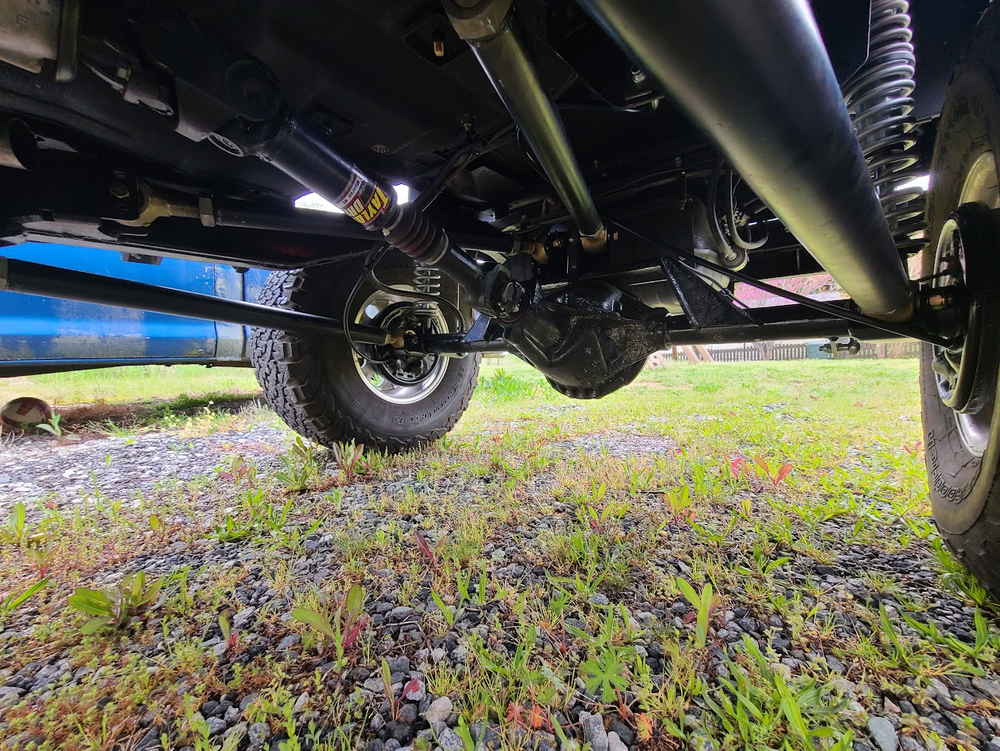

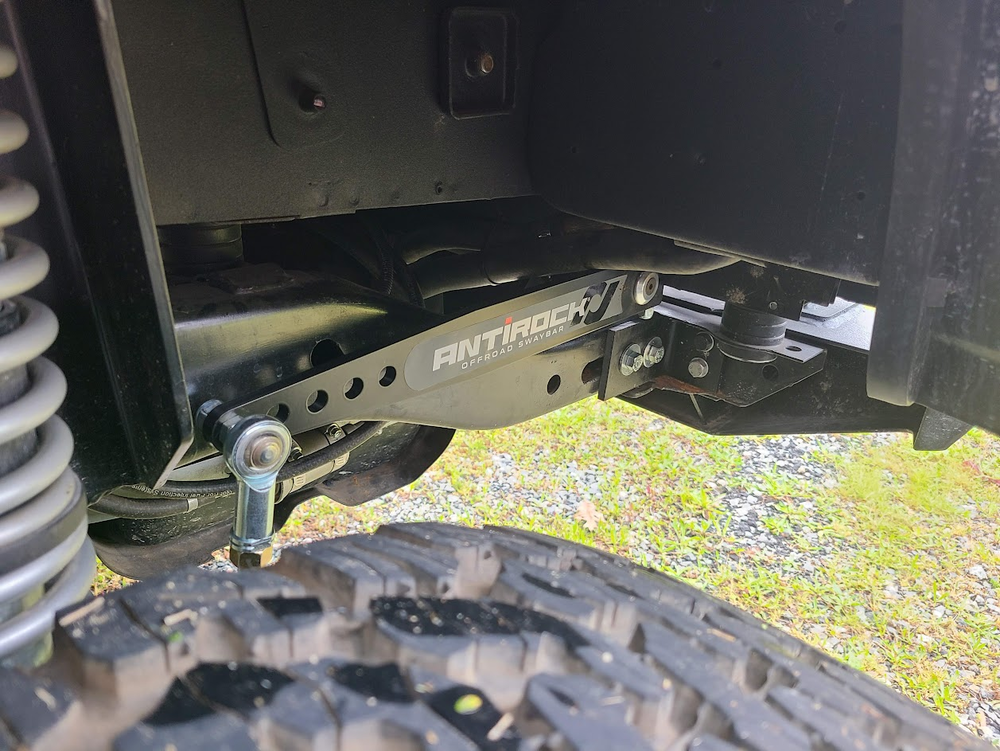

View attachment 377449
View attachment 377450

It's also stupid clean, 5.3/4l60 makes it move way faster than a CJ ever thought about.
View attachment 377451
Click to expand...


All the work looks awesome BTW.

paradisePWoffrd said:
Curious what changes you made on the CJ geometry? I dont know what it looked like before, but always up for learning what to and not to do.




All the work looks awesome BTW.
Click to expand...

Brought the lower links out on the axle side ~3" and the upper links up higher. The roll axis was awful before, the upper links were way to short, and there was barely enough triangulation with the lower links being parallel. Essentially had crap tons of rear steer due to the short uppers and parallel lowers. I couldn't get it perfect but with the changes and with the sway bar it made it much nicer to drive down the road.

Wanna try your hand at making a sweet bumper for my HD one day? Something along these lines is what I'm after. This guy was going to make 6 of them, but disappeared off FB. Oh well.








Croatan_Kid said:
Wanna try your hand at making a sweet bumper for my HD one day? Something along these lines is what I'm after. This guy was going to make 6 of them, but disappeared off FB. Oh well.

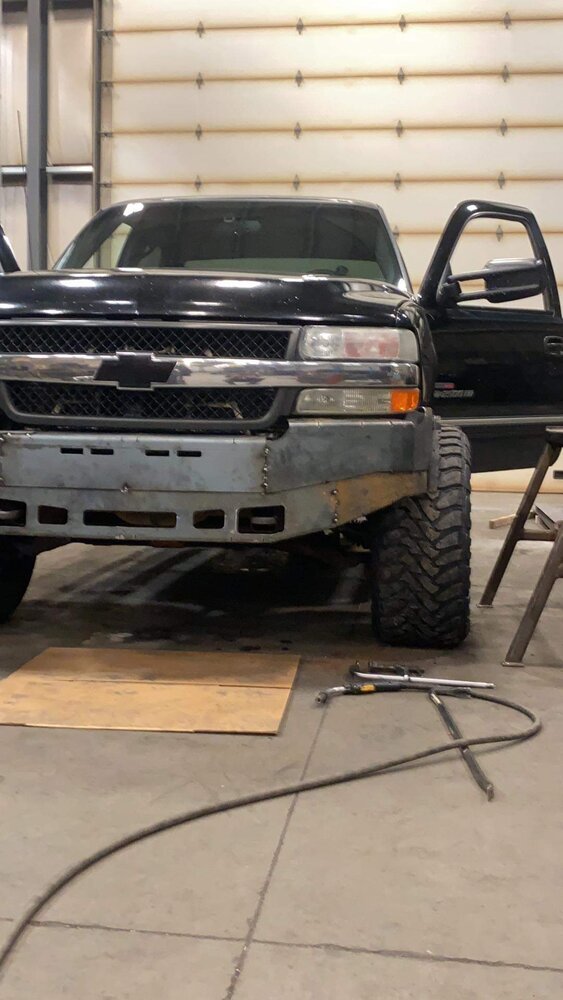

View attachment 377573

View attachment 377570

View attachment 377571

View attachment 377572
Click to expand...
To be honest I don't have much a want to build plate style bumpers, that and I'm not really set up for that kind of fab work. The amount of time involved generally vastly out weights the cost of a kit or already done bumper.

Figured I'd ask. I think two places make decent looking bumpers for an 01/02 HD. Most stuff is 03+ and looks like garbage.

Chris_Keziah said:
To be honest I don't have much a want to build plate style bumpers, that and I'm not really set up for that kind of fab work. The amount of time involved generally vastly out weights the cost of a kit or already done bumper.
Click to expand...
Said every fabricator with any damn sense.....

Oh and you did gears in my Dana 30… twice…

Edit: this had nothing to do with Chris. I am just an idiot who wheels a Dana 30 and my cross pin broke & took out a new R&P

Van-go said:
Oh and you did gears in my Dana 30… twice…

Edit: this had nothing to do with Chris. I am just an idiot who wheels a Dana 30 and my cross pin broke & took out a new R&P
Click to expand...
That makes 2 of us homie!

im an idiot GIF

rcalexander105 said:
That makes 2 of us homie!

im an idiot GIF
Click to expand...
That makes three of us....

My cross pin broke on my spartan at the ranch in my 30. Then a few months later I blew up my 8.25 when i broke an axle shaft. But I'm not running stickies.

Last edited:

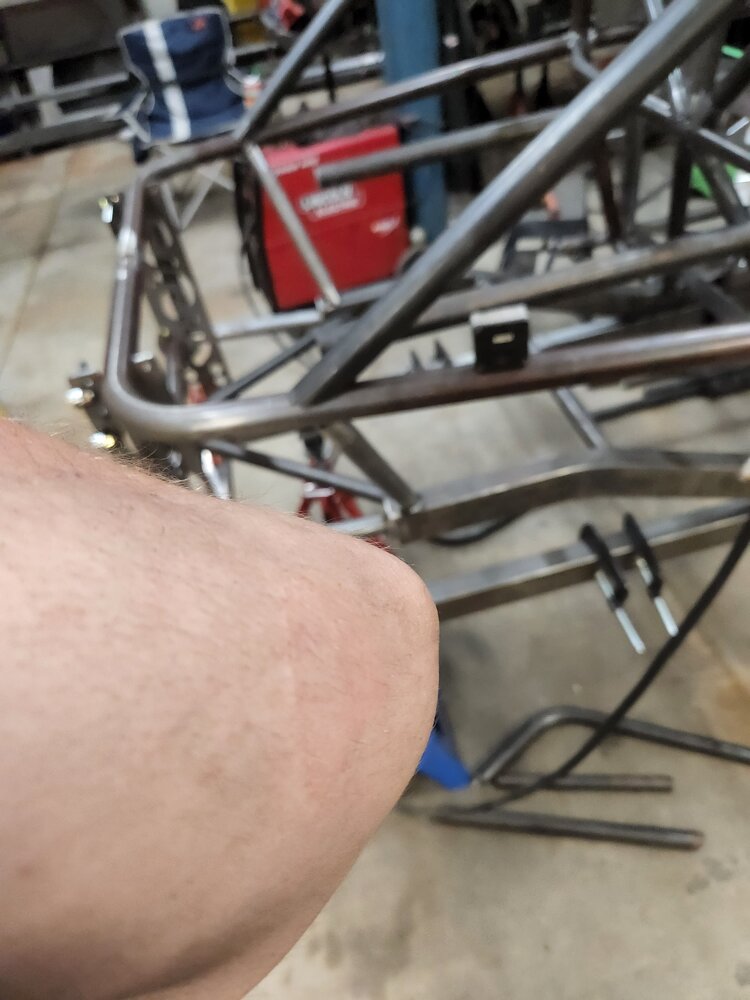

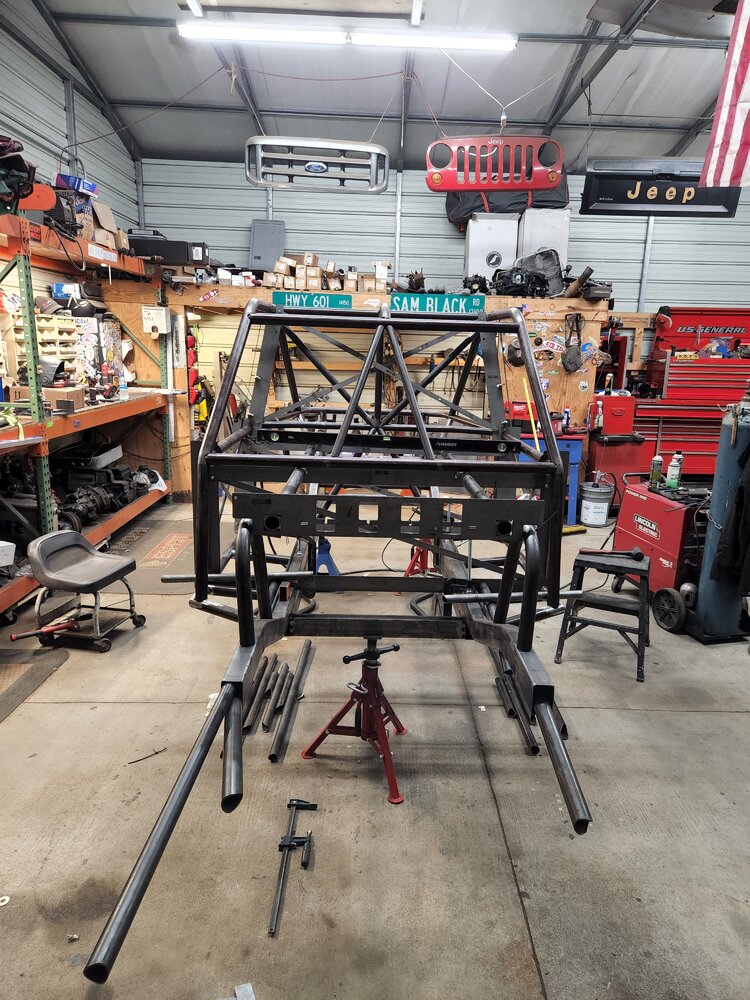

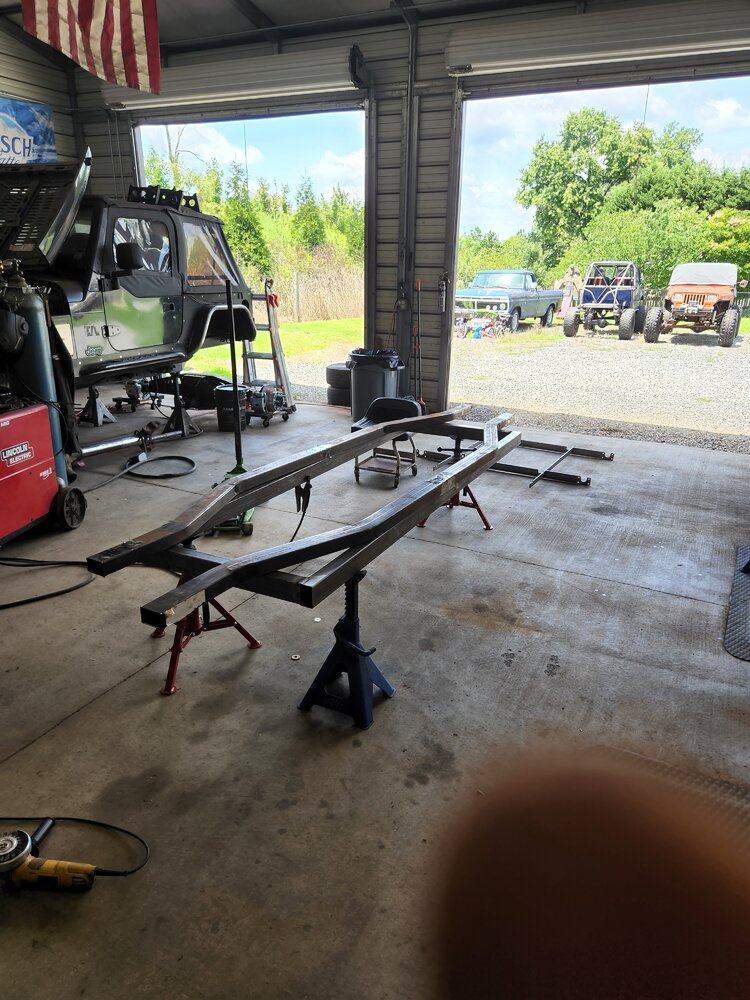

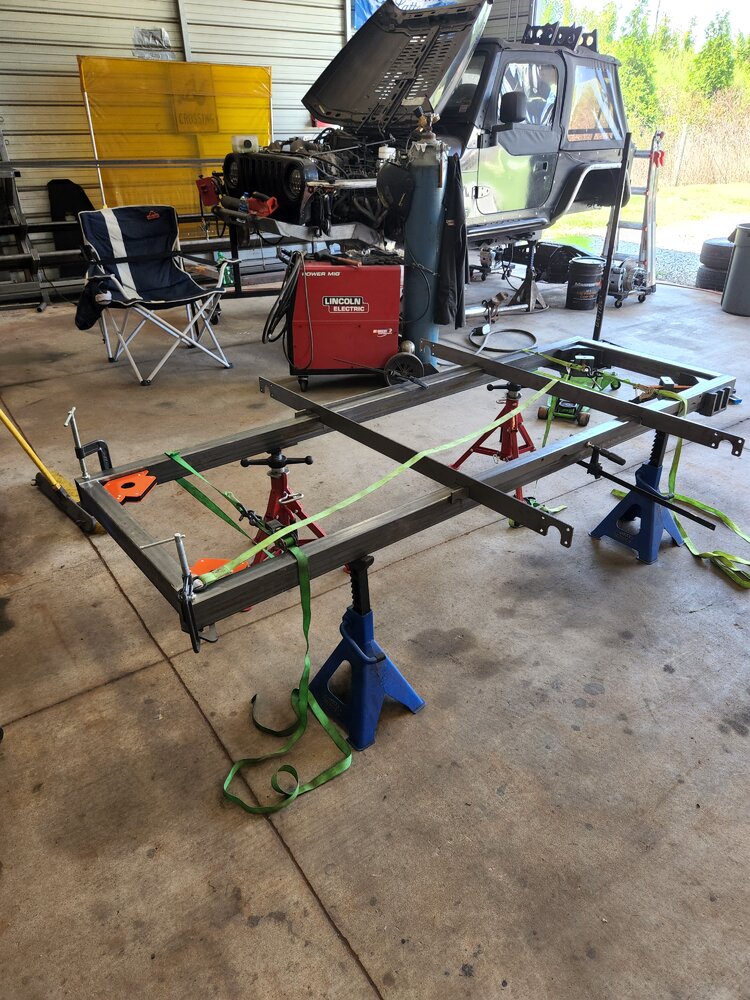

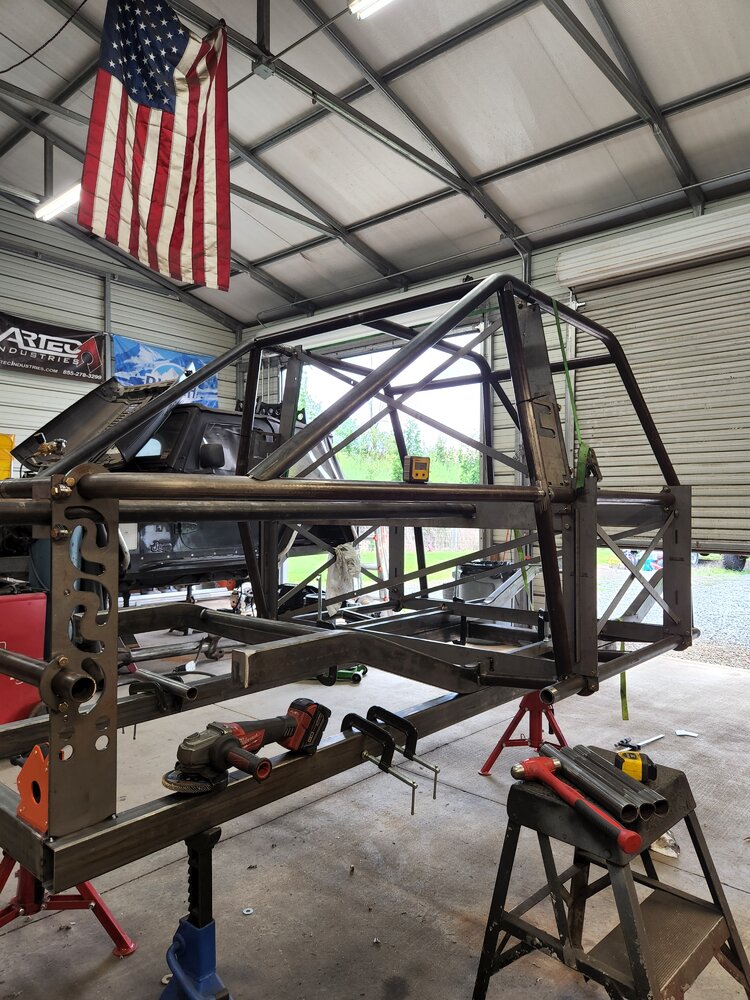

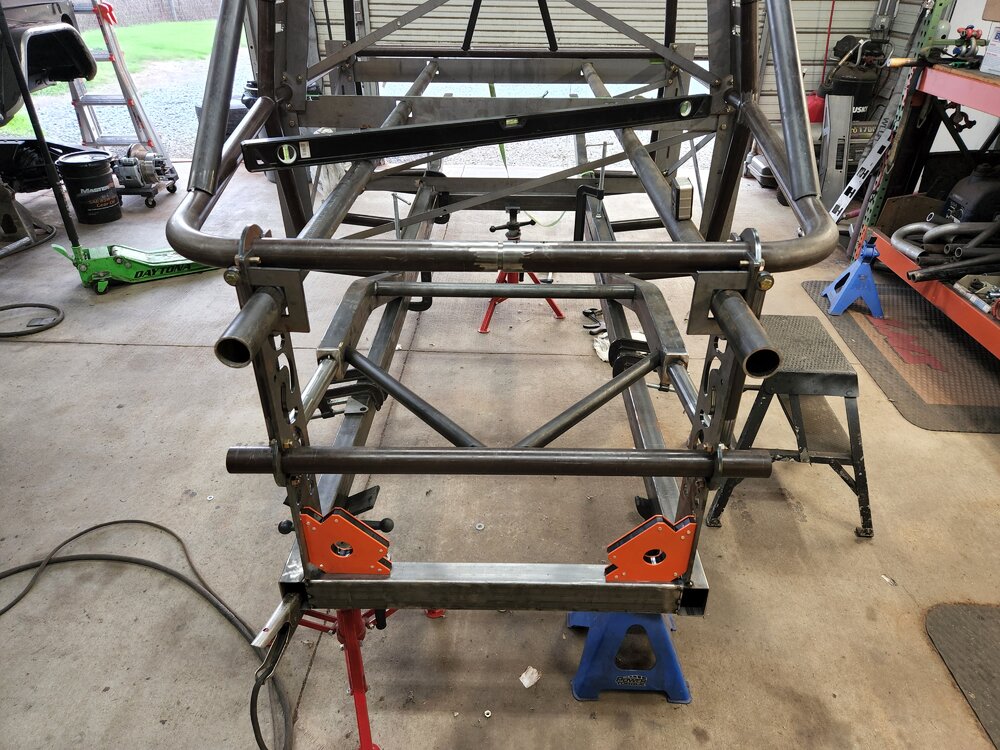

Starting to look like a chassis. Thankful for the jig but at the same time it's not prefect. Had to open up the jig at the b pillar to get the tube through it and it's about an 1/8" short at the top. Everything else still lines up with all of etched tube lands though and still square and level so no big deal.





Psa, shit you just welded is hot 🔥



Should be playing in the spicey jungle gym tomorrow while finding all the spots I missed with the welder.

Bebop said:
I can't seem to learn that lesson...



Looking good !
Click to expand...
Nor can I, though generally I catch spatter down in my boots more than anything. Usually it's @77GreenMachine that touches picks up or touchs stuff that I just welded.
